Surface Vessel Weapon System
OtoMelara - OtoBreda 127/54C gun
127mm (5") / 54-caliber compact dual-purpose automatic naval gun system

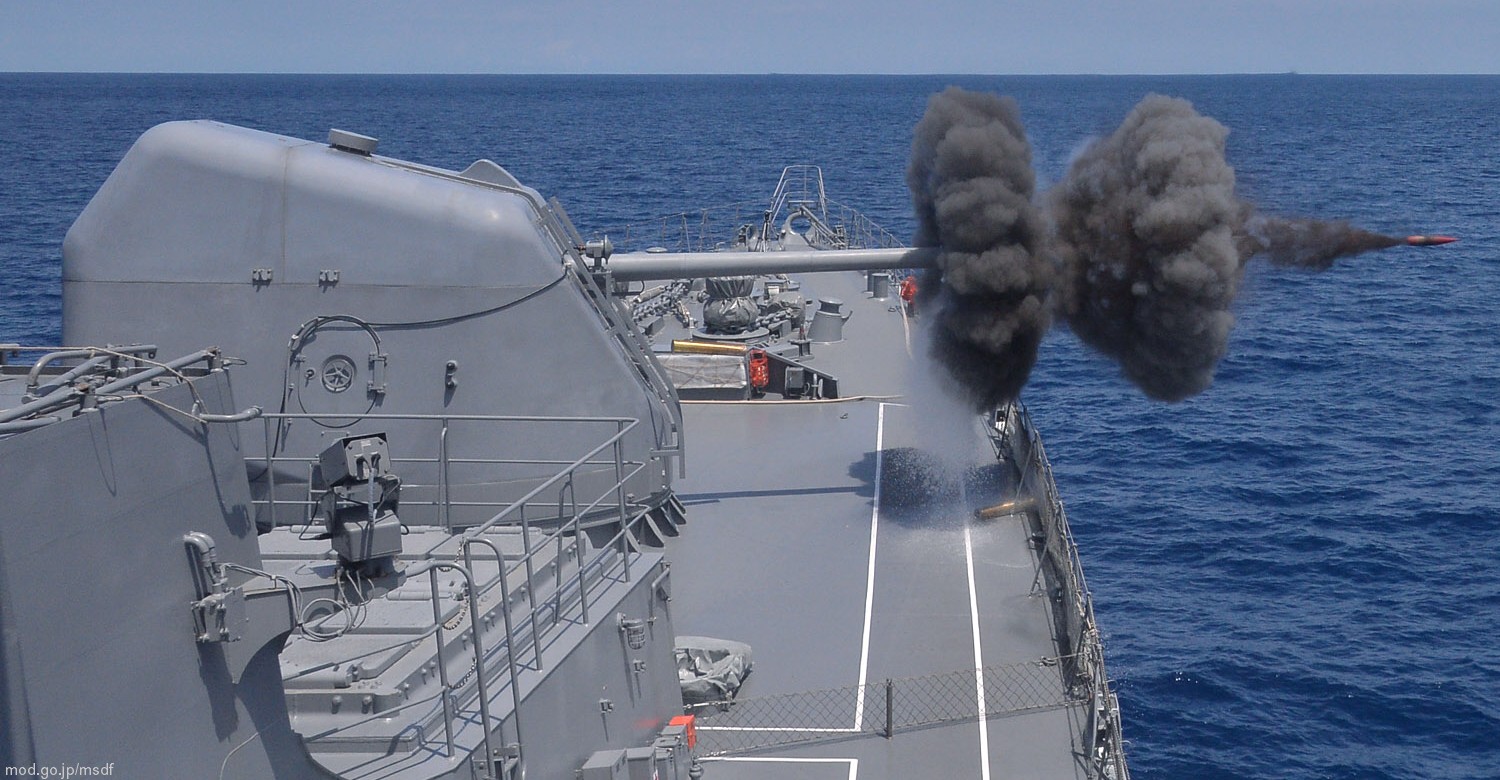

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 25x leonardo destroyer frigate

 07/21
The Otobreda 127mm/54-caliber Compact (127/54C) gun is a dual purpose naval gun system.
It fires the 127mm (5") rounds which are also in use in the US Mk-45 5-inch/ 54-caliber gun.

Technical data:
Builder: Oto-Melara (now OtoBreda)
In service: 1972
Caliber: 5 inches / 127 mm
Barrel lenght: 270 inches / 6,858 meters (= 54 caliber)
Weight: 37500 kg (without ammunition)
Elevation: -15° / + 83°
Rate of fire: 40 rounds per minute
Muzzle velocity: 808 meters per second
Range: 23000 meters, max. (47°) / 15000 meters effective / 7000 meters AA (83°)
Ammunition stowage: 66 rounds ready to fire in 3 loader drums / 500-600 in magazine
Ammunition: High Explosive, Illumination


The Otobreda 127/54C gun is used on the following ships:
Audace-class Destroyer (Italian Navy, decommissioned)
Durand de la Penne-class Destroyer (Italian Navy)
De Zeven Provincien-class Frigate (Royal Netherlands Navy)
Gwanggaeto the Great-class Destroyer (Republic of Korea Navy)
Kongou-class Destroyer (Japan Maritime Self-Defense Force)
Lupo-class Frigate (Italian Navy, Peruvian Navy, Venezuelan Navy)
Maestrale-class Frigate (Italian Navy)
MEKO 360 Frigates (Argentine Navy, Nigerian Navy)
Takanami-class Destroyer (Japan Maritime Self-Defense Force)
Visakhapatnam class Destroyer (Indian Navy)


NOTE:
On 1 December 2001, the naval artillery division of Oto Melara merged with that of Breda Meccanica Bresciana to form the new entity of OtoBreda. Oto-Melara/OtoBreda operations are part of the “Finmeccanica” consortium.
In January 2016 the activities of OTO Melara merged into Leonardo's Defence Systems Division.

images

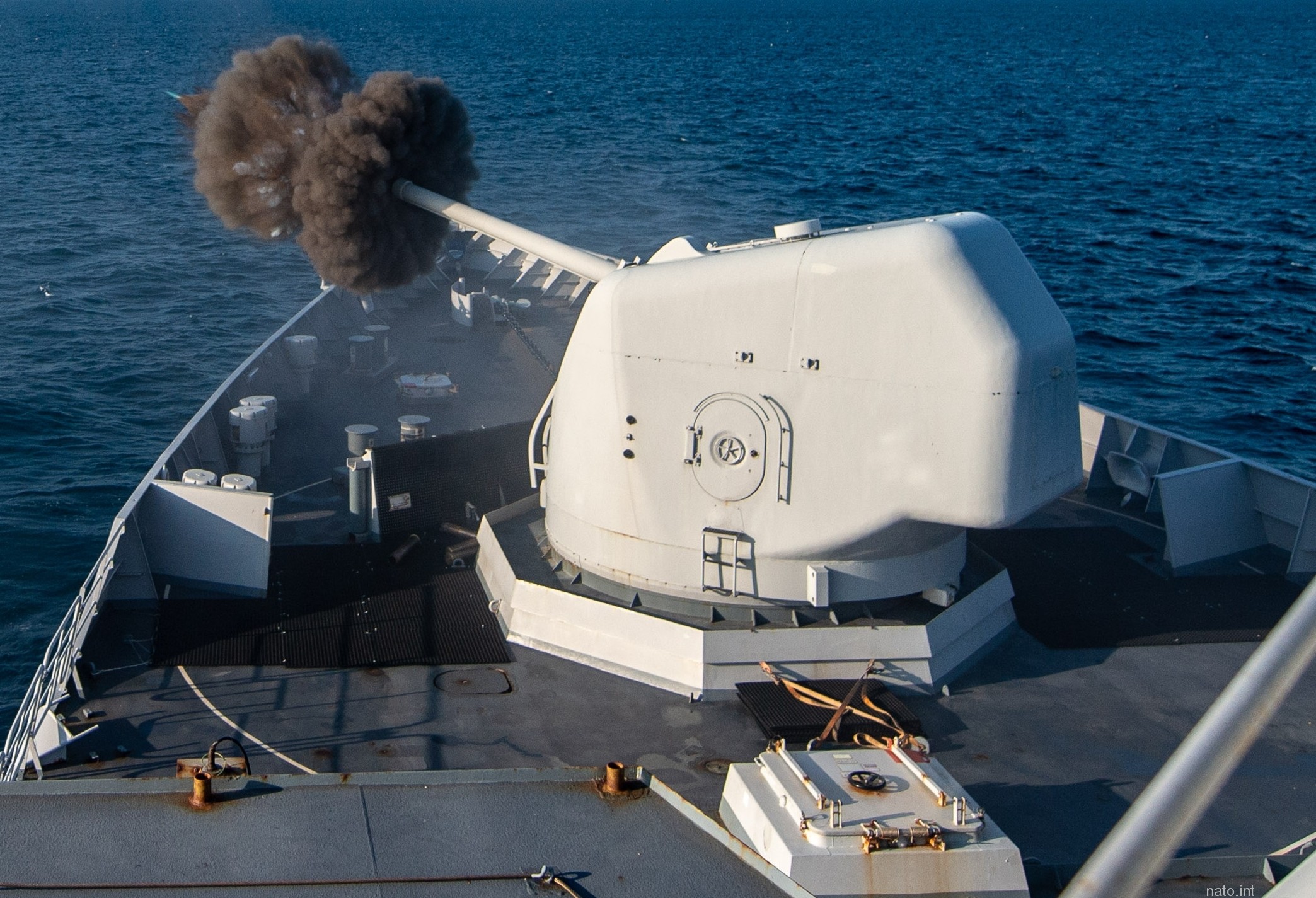

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 17 de zeven provincien class frigate
Oto-Melara 127/54C gun aboard a RNLN De Zeven Provincien class Frigate

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 16

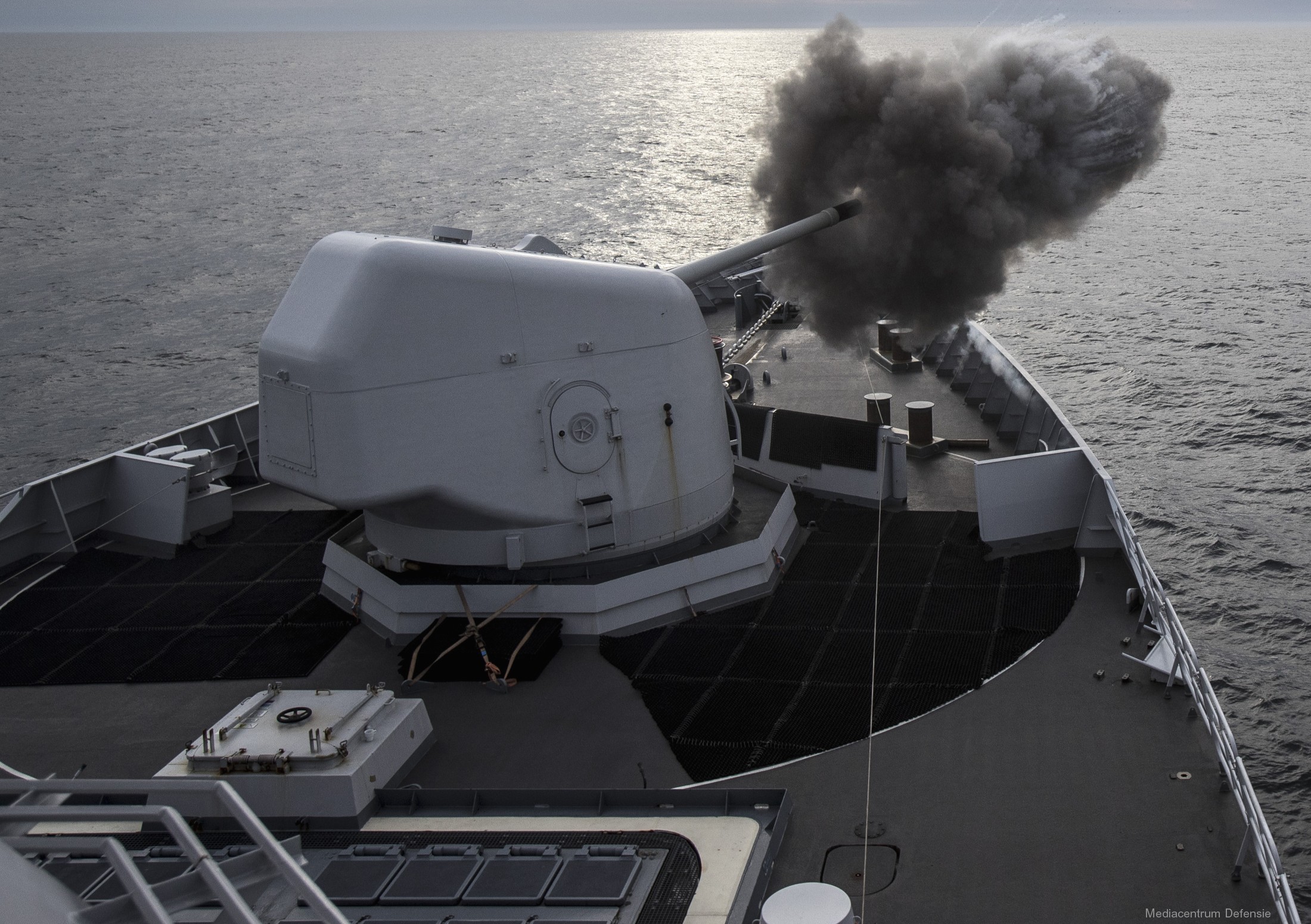

Oto-Melara 127/54C gun aboard a RNLN De Zeven Provincien class Frigate

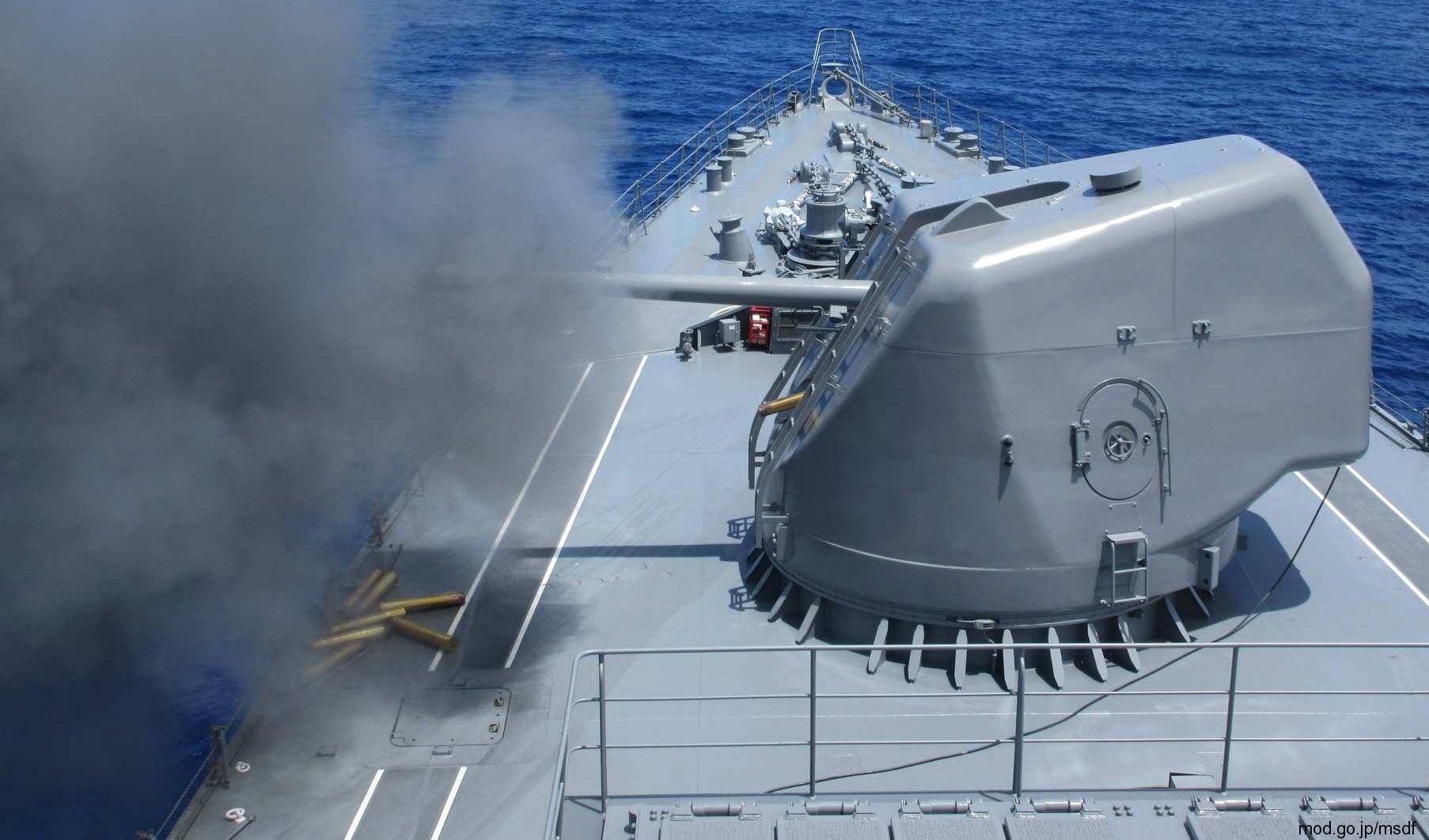

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 23 takanami class destroyer jmsdf
Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 25 takanami class destroyer jmsdf japan navy
Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 27 takanami class destroyer jmsdf japan navy

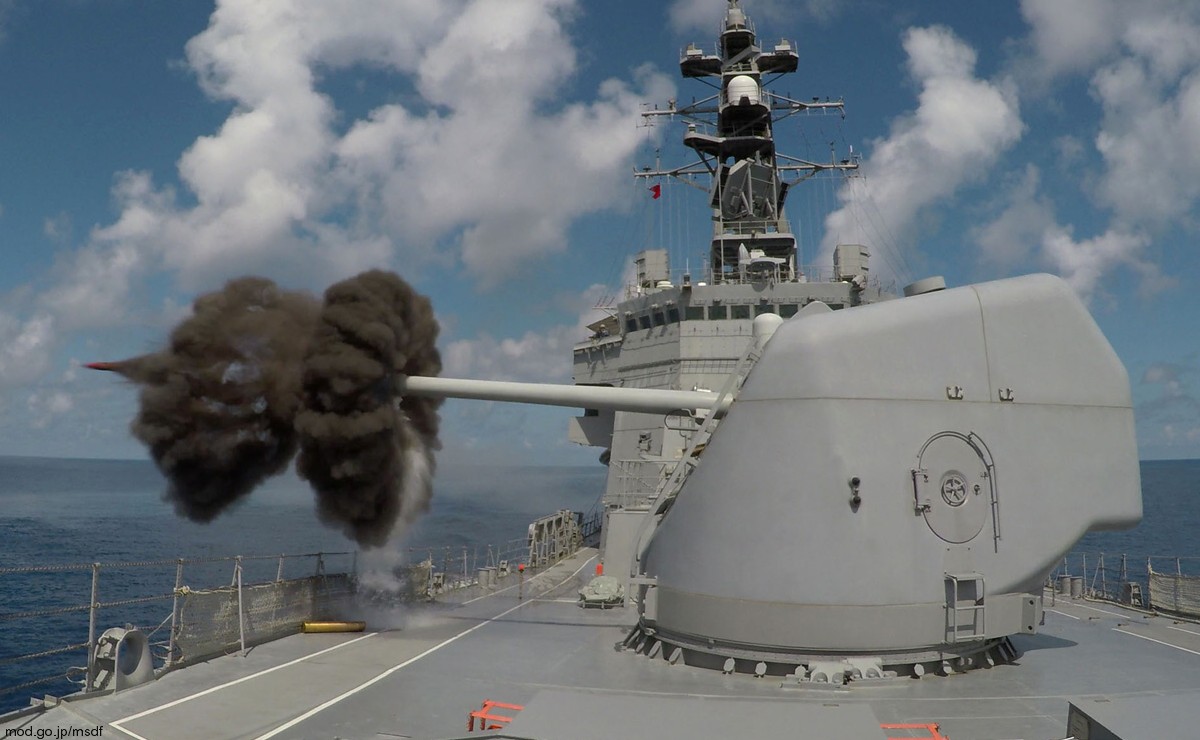

Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 24 takanami class destroyer

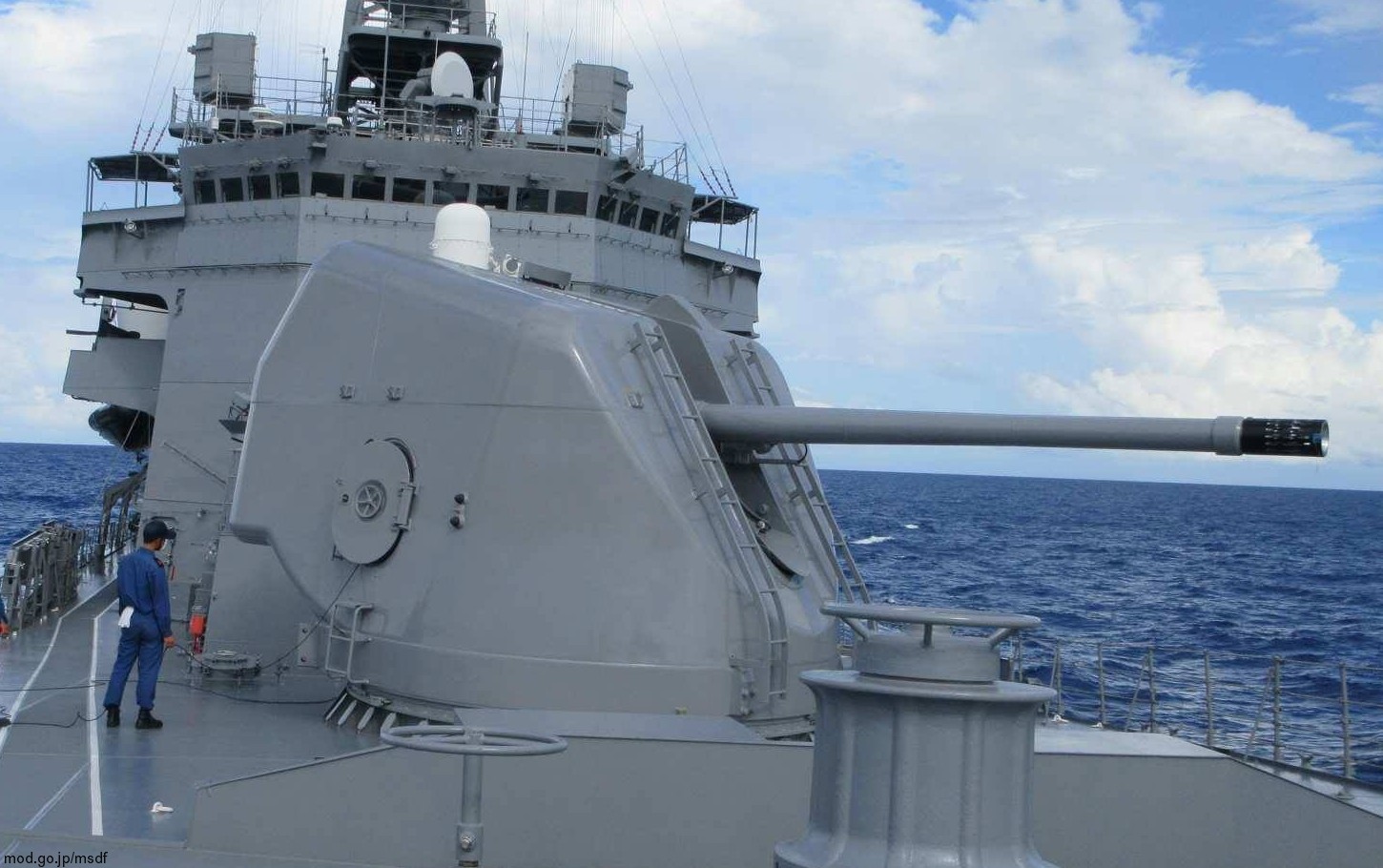

Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 20 gwanggaeto the great class destroyer korean navy
Oto-Melara 127/54C gun aboard a Republic of Korean Navy Gwanggaeto the Great class Destroyer

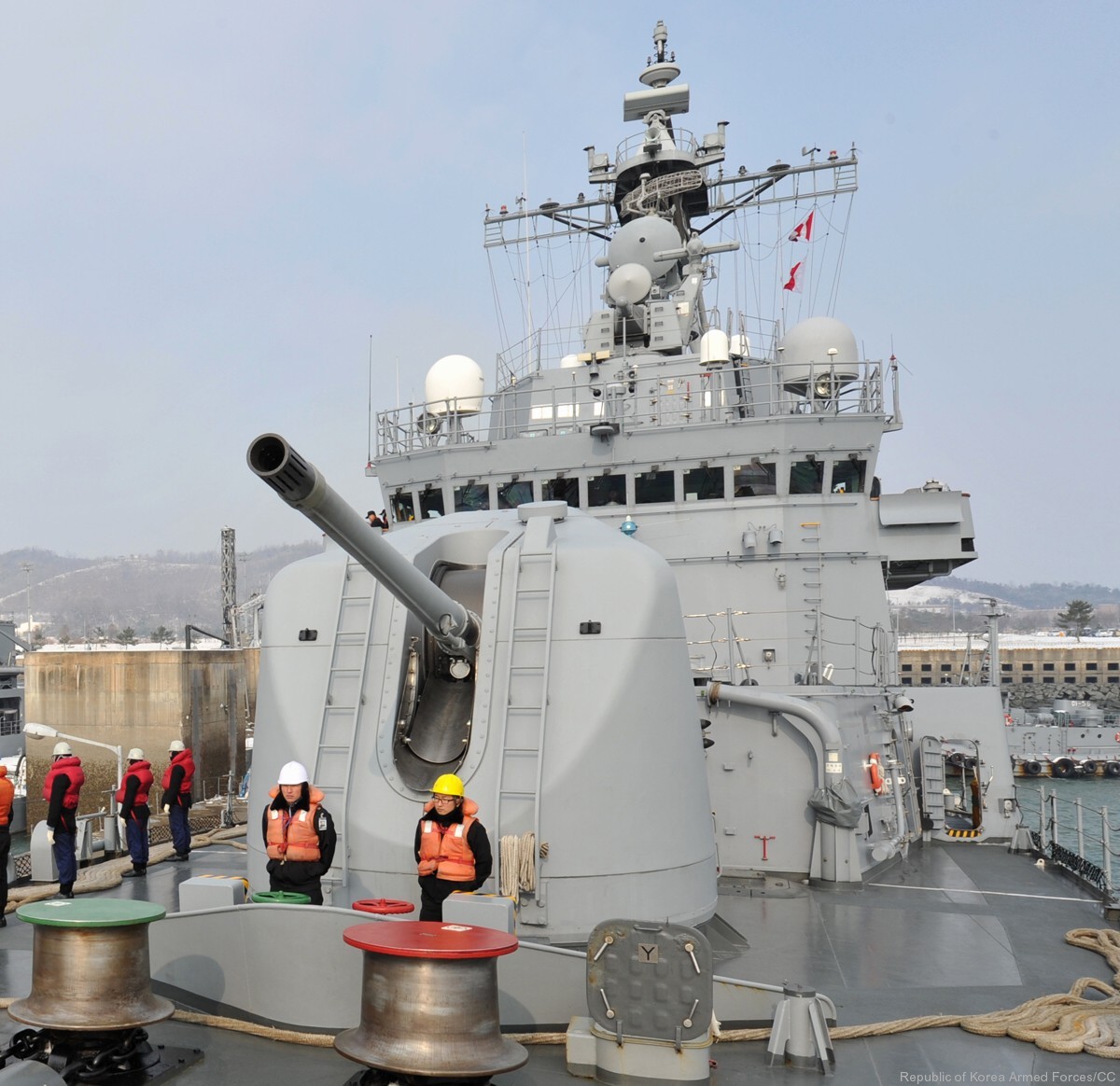

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 22 gwanggaeto the great class destroyer ddg korean navy rokn

Oto-Melara 127/54C gun aboard a Republic of Korean Navy Gwanggaeto the Great class Destroyer

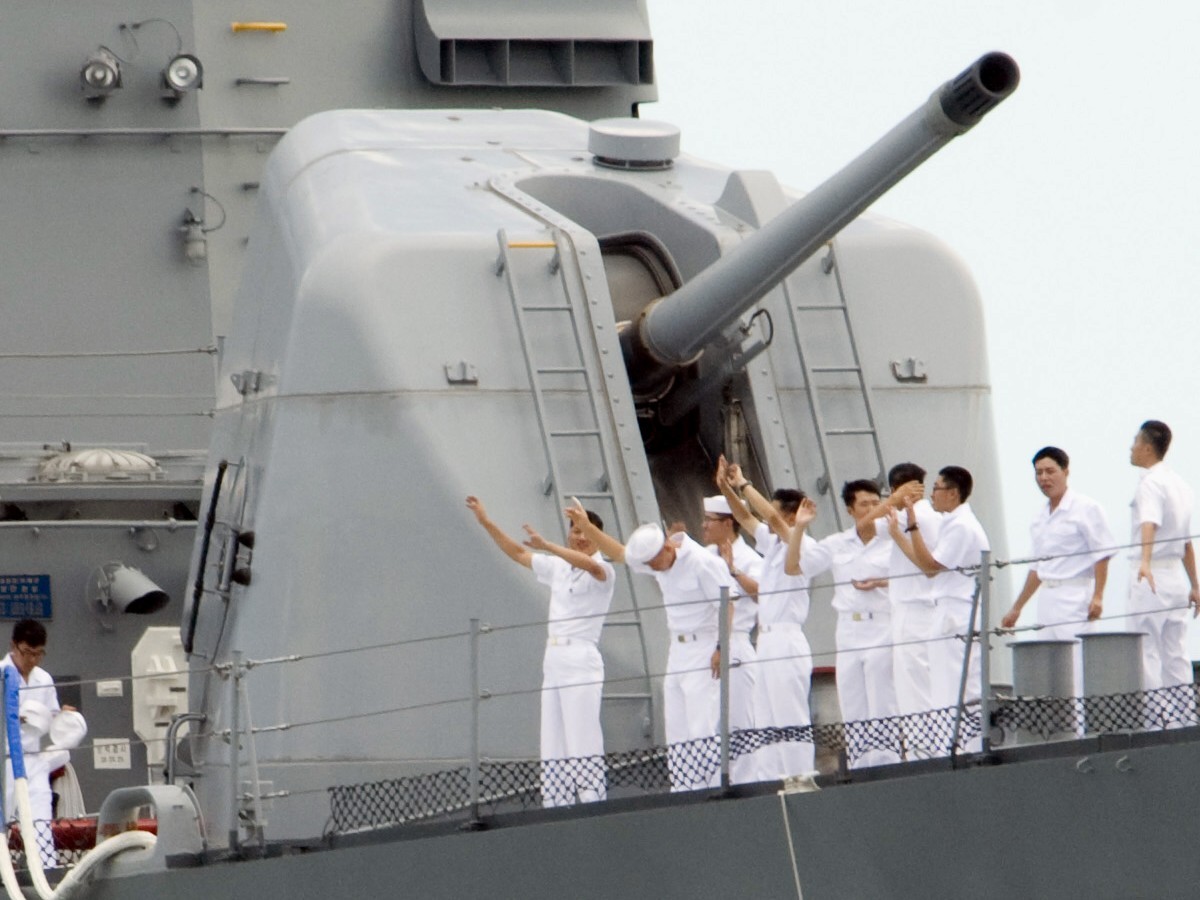

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 21
Oto-Melara 127/54C gun aboard a Republic of Korean Navy Gwanggaeto the Great class Destroyer

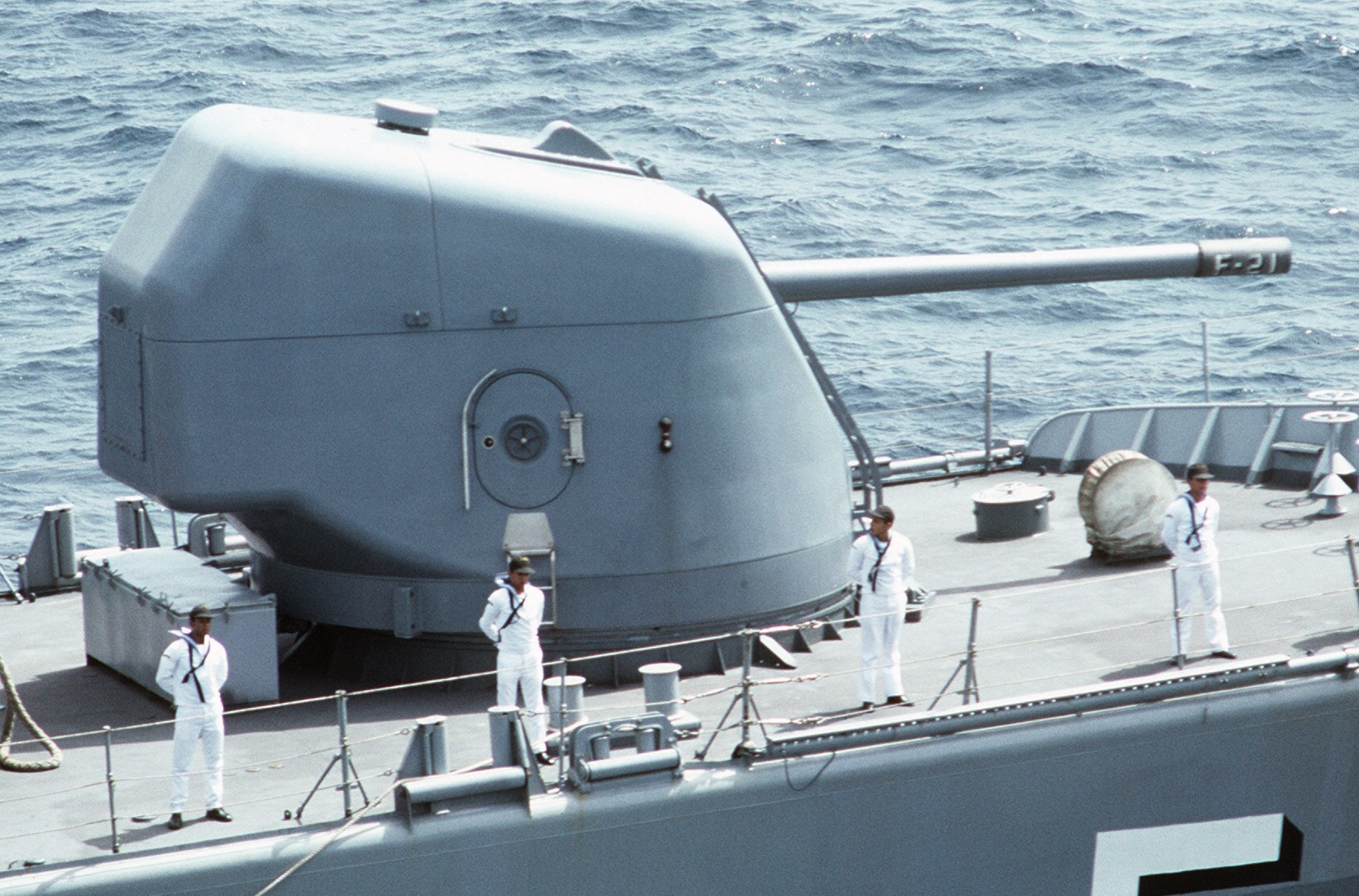

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 26 mariscal sucre class frigate venezuelan navy
Oto-Melara 127/54C gun aboard a Venzuelan Navy Frigate ARV Mariscal Sucre (F 21)

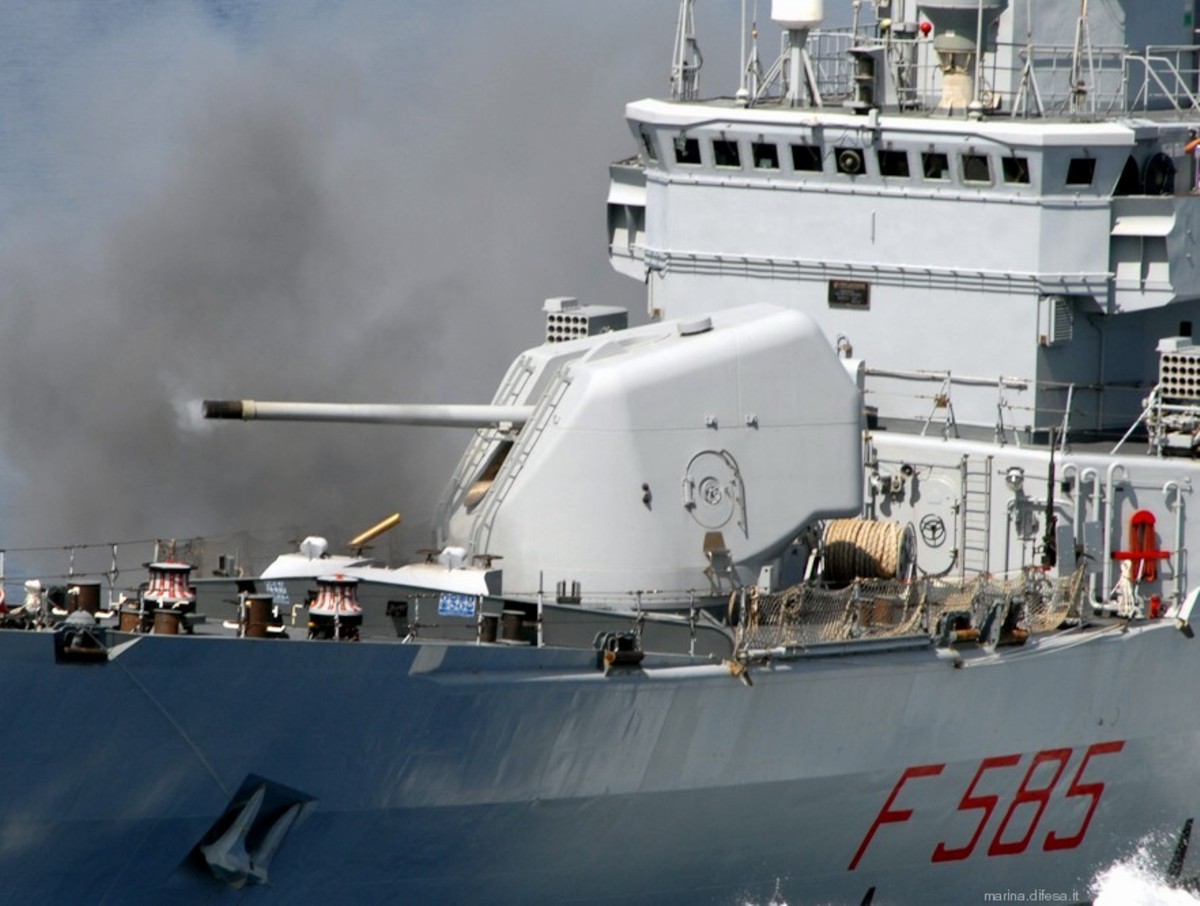

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 04 soldati class frigate italian navy marina
Oto-Melara 127/54C gun aboard an Italian Navy Soldati class Frigate

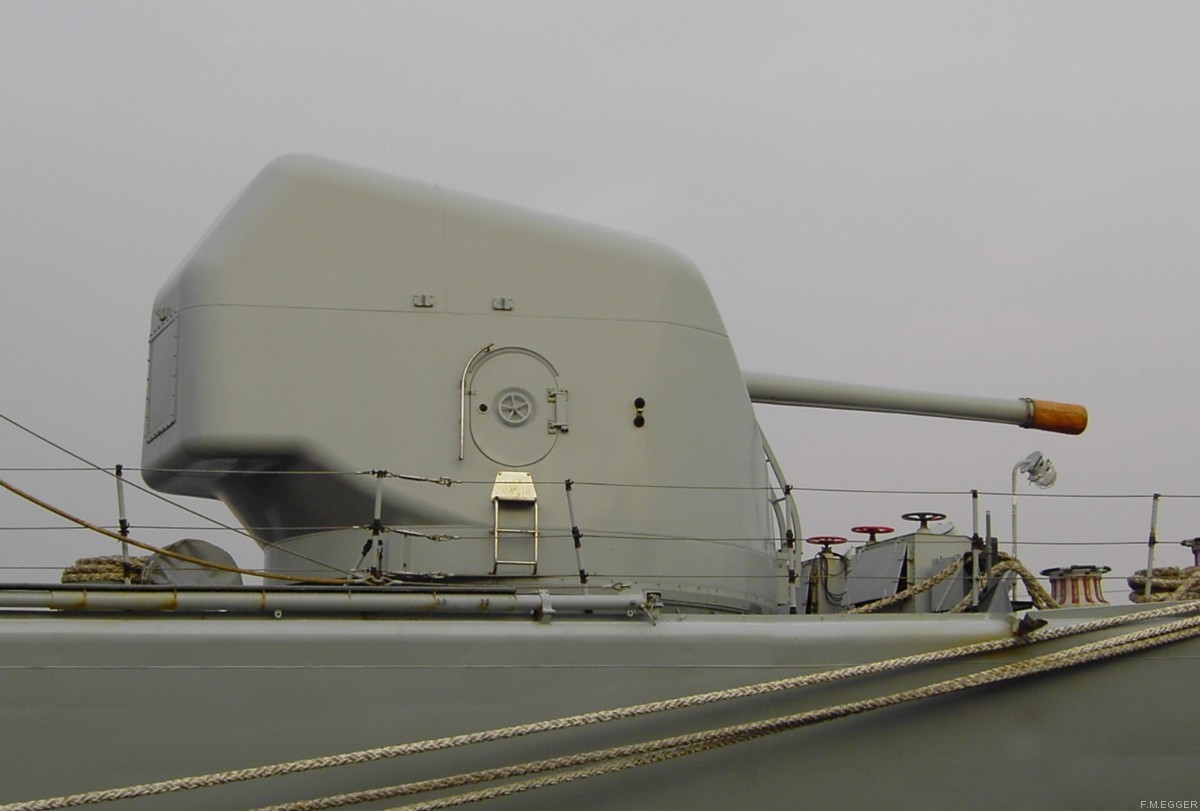

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 03 maestrale class frigate espero
Oto-Melara 127/54C gun aboard ITS Espero (F 576)

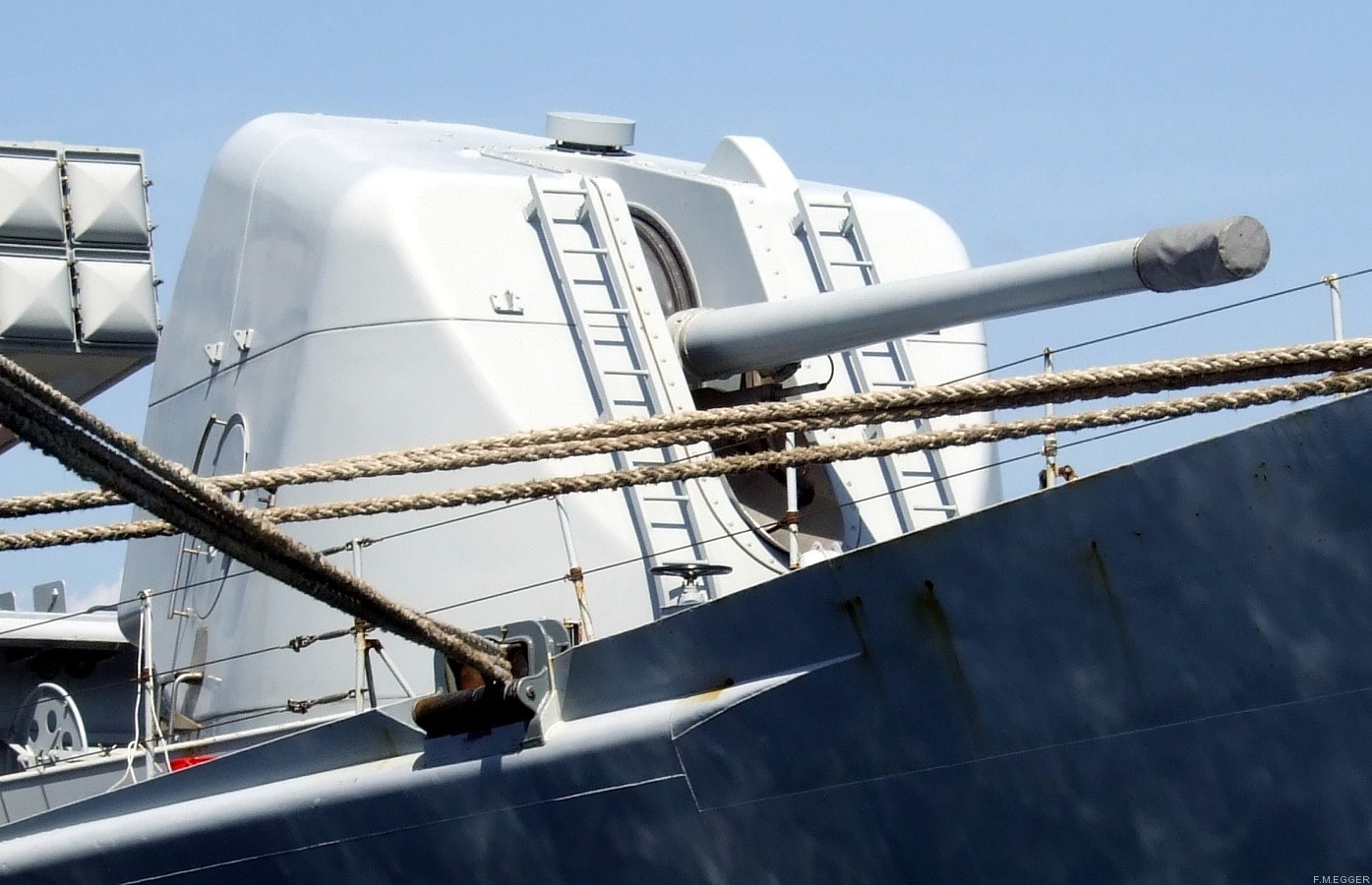

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 05 maestrale class frigate euro
Oto-Melara 127/54C gun aboard ITS Euro (F 575)

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 06

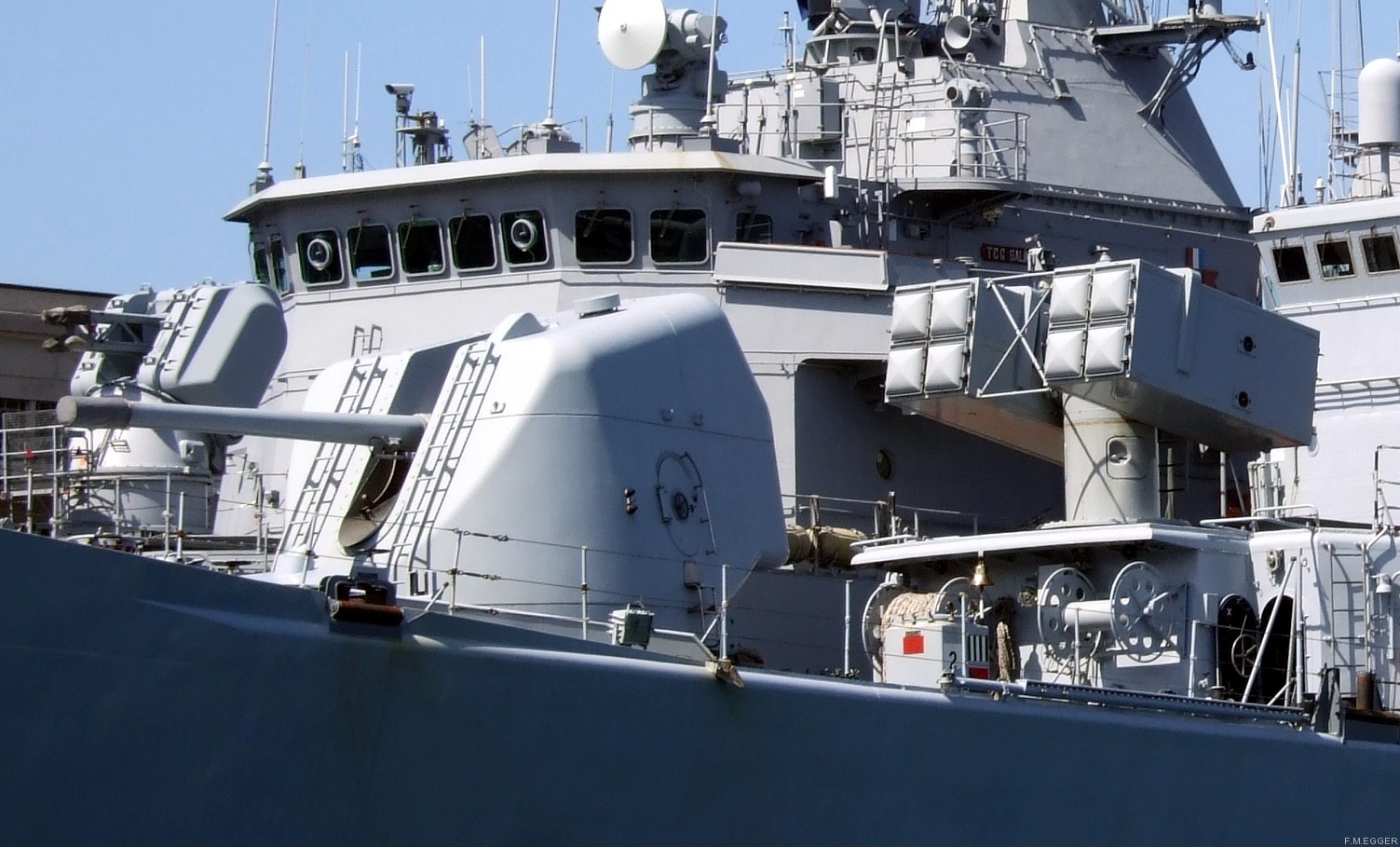

Oto-Melara 127/54C gun aboard ITS Euro (F 575)

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 18

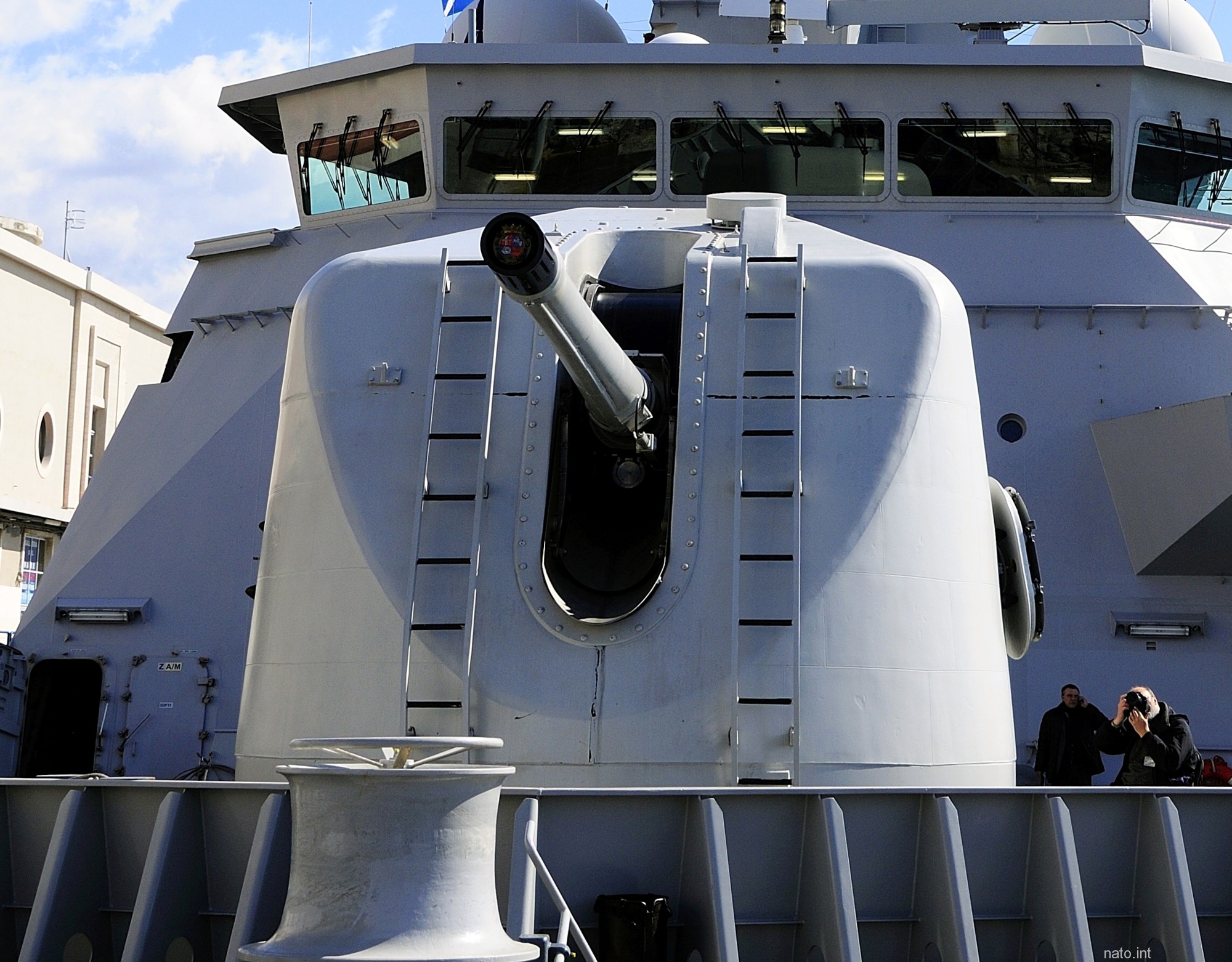

Oto-Melara 127/54C gun aboard a RNLN De Zeven Provincien class Frigate

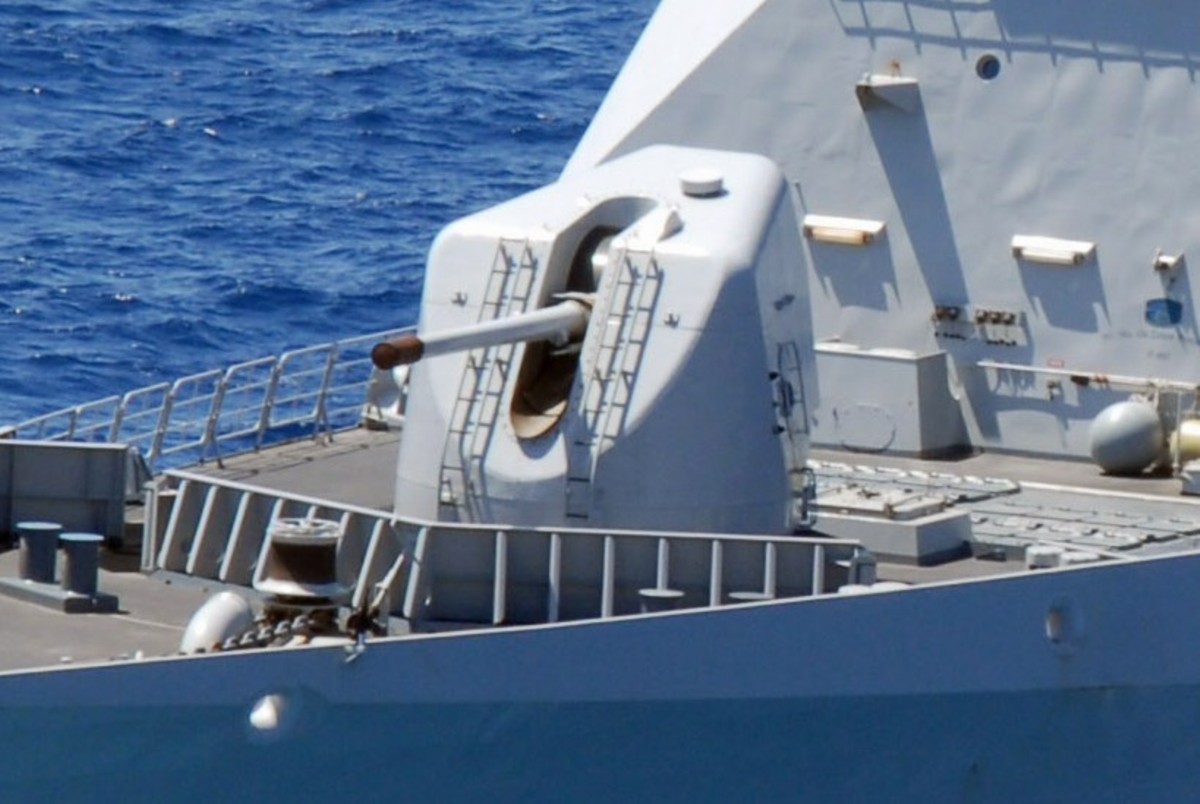

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 07 de zeven provincien class frigate netherlands navy rnln
Oto-Melara 127/54C gun aboard a RNLN De Zeven Provincien class Frigate

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 08

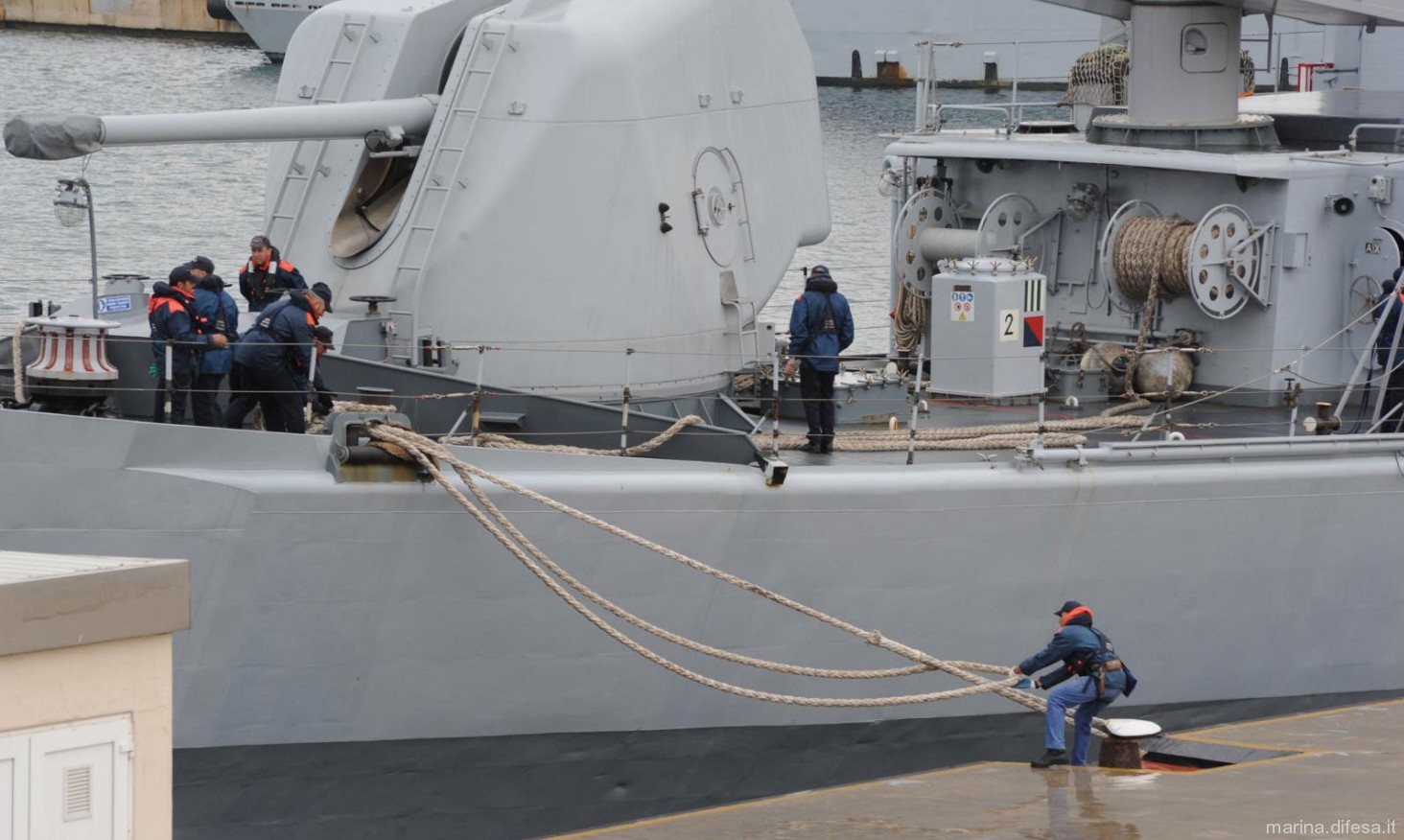

Oto-Melara 127/54C gun aboard an Italian Navy Maestrale class Frigate

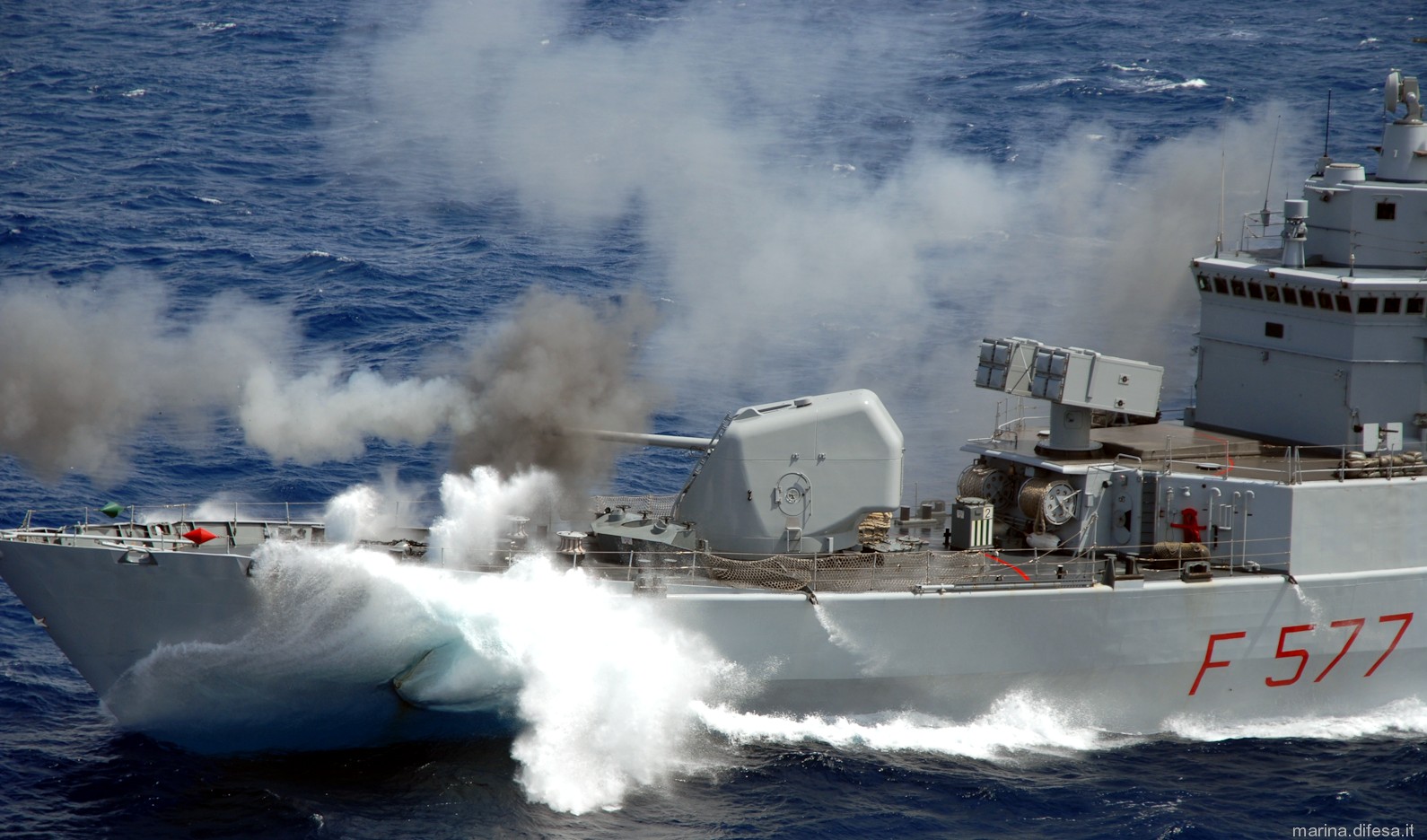

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 09 italian navy frigate
Oto-Melara 127/54C gun aboard ITS Zeffiro (F 577)

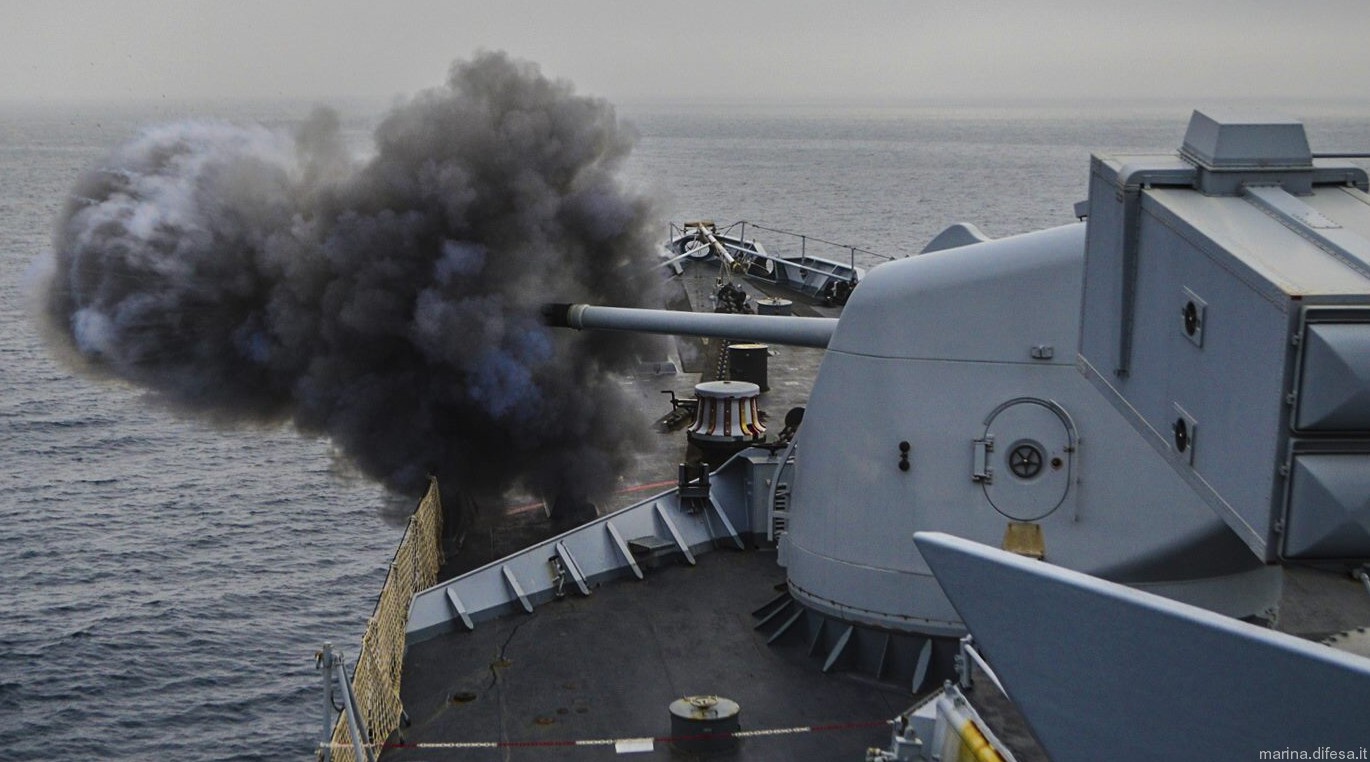

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 19
Oto-Melara 127/54C gun aboard an Italian Navy Maestrale class Frigate

oto melara breda 127/54c compact gun 127mm 5-inches 54- caliber 10

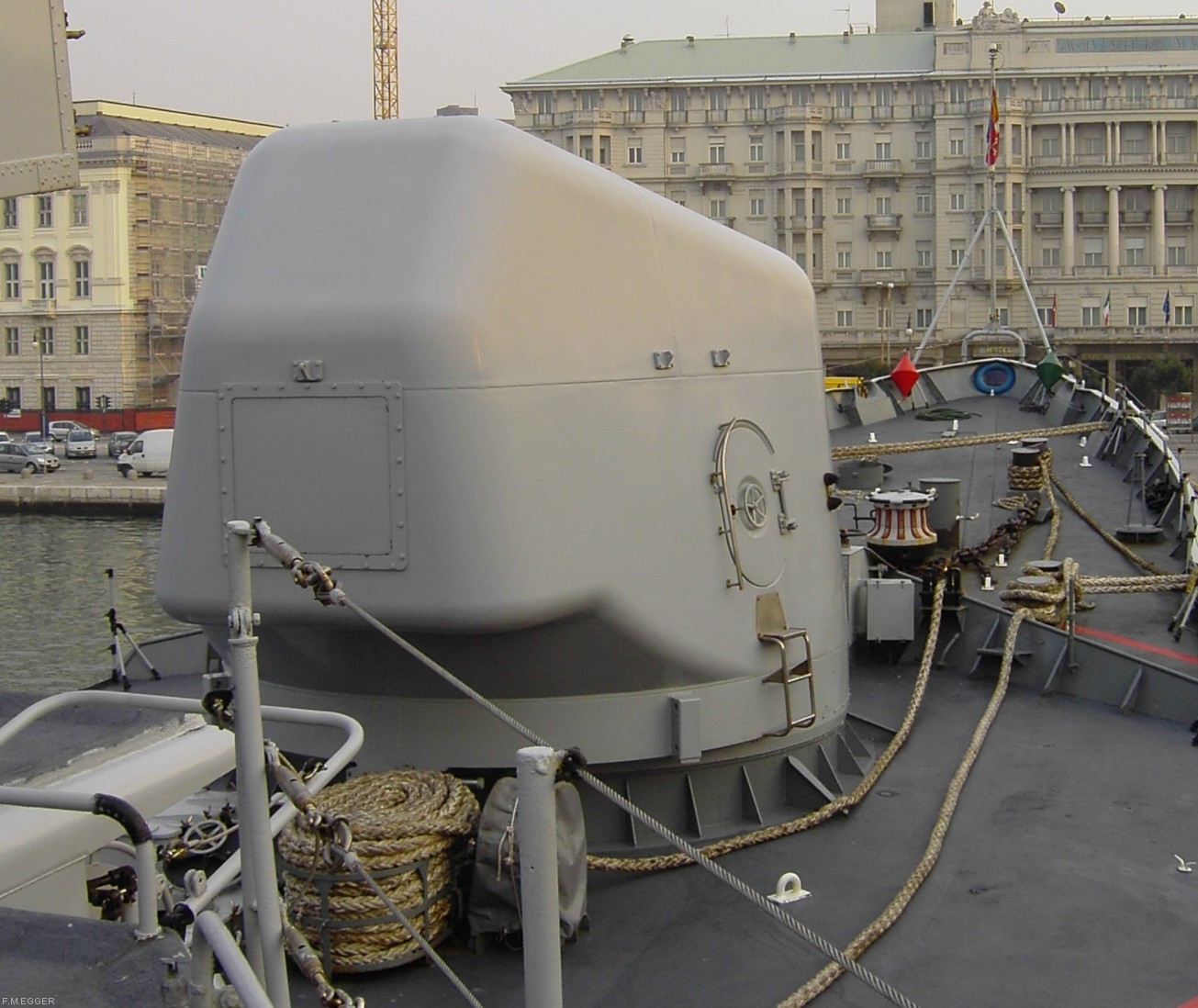

Oto-Melara 127/54C gun aboard ITS Espero (F 576)

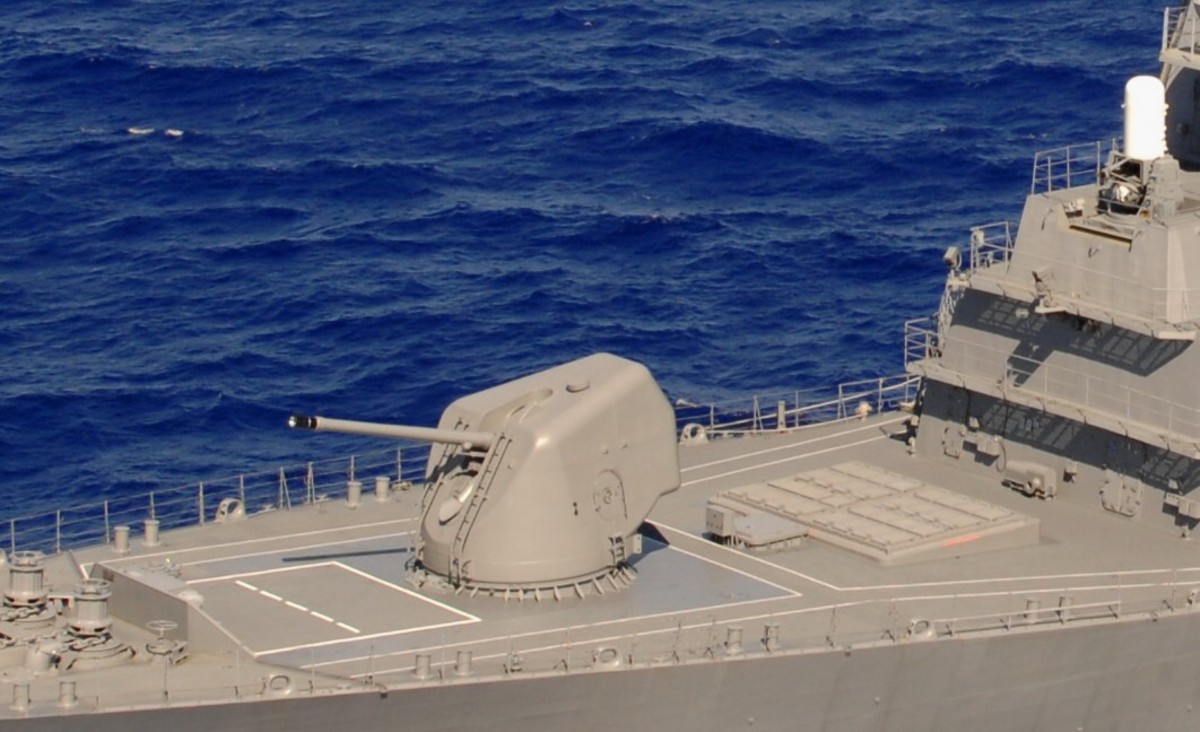

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 11 kongou class destroyer ddg jmsdf japan navy
Oto-Melara 127/54C gun aboard JDS Kongou (DDG 173)

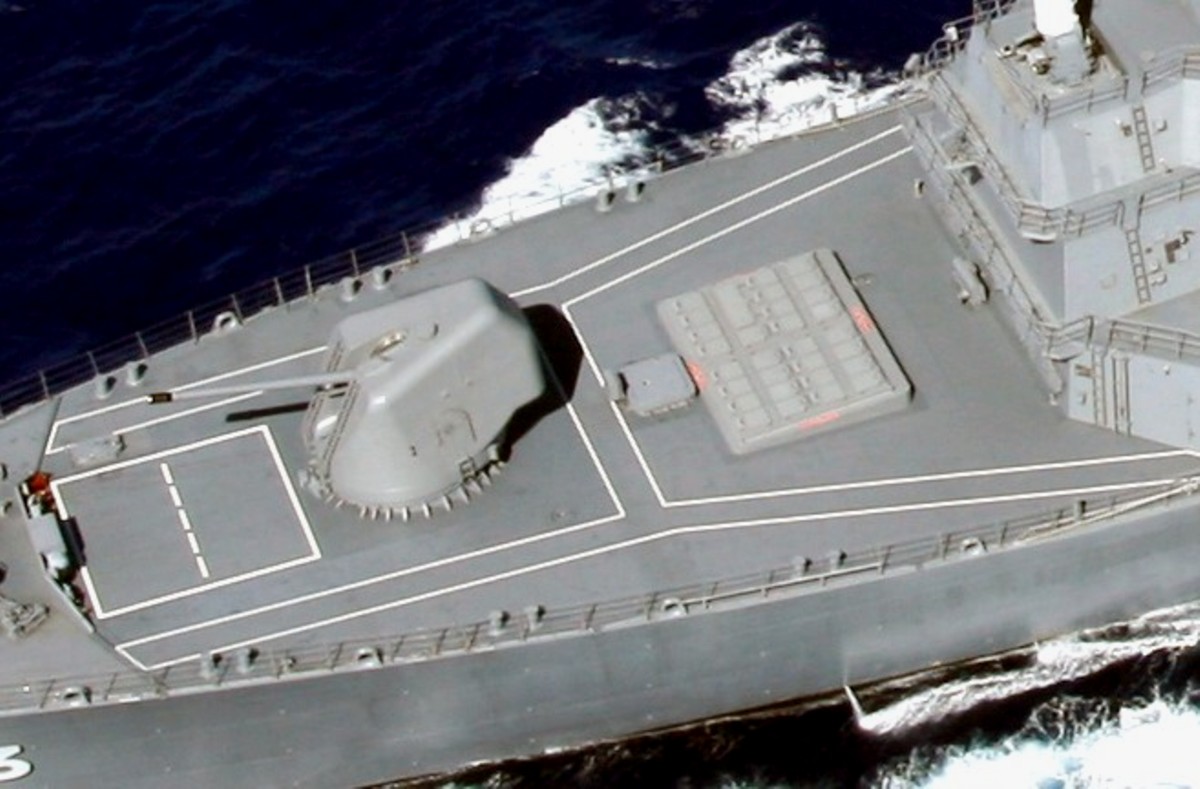

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 12 kongou ddg jmsdf japan navy
Oto-Melara 127/54C gun aboard JDS Kongou (DDG 173)

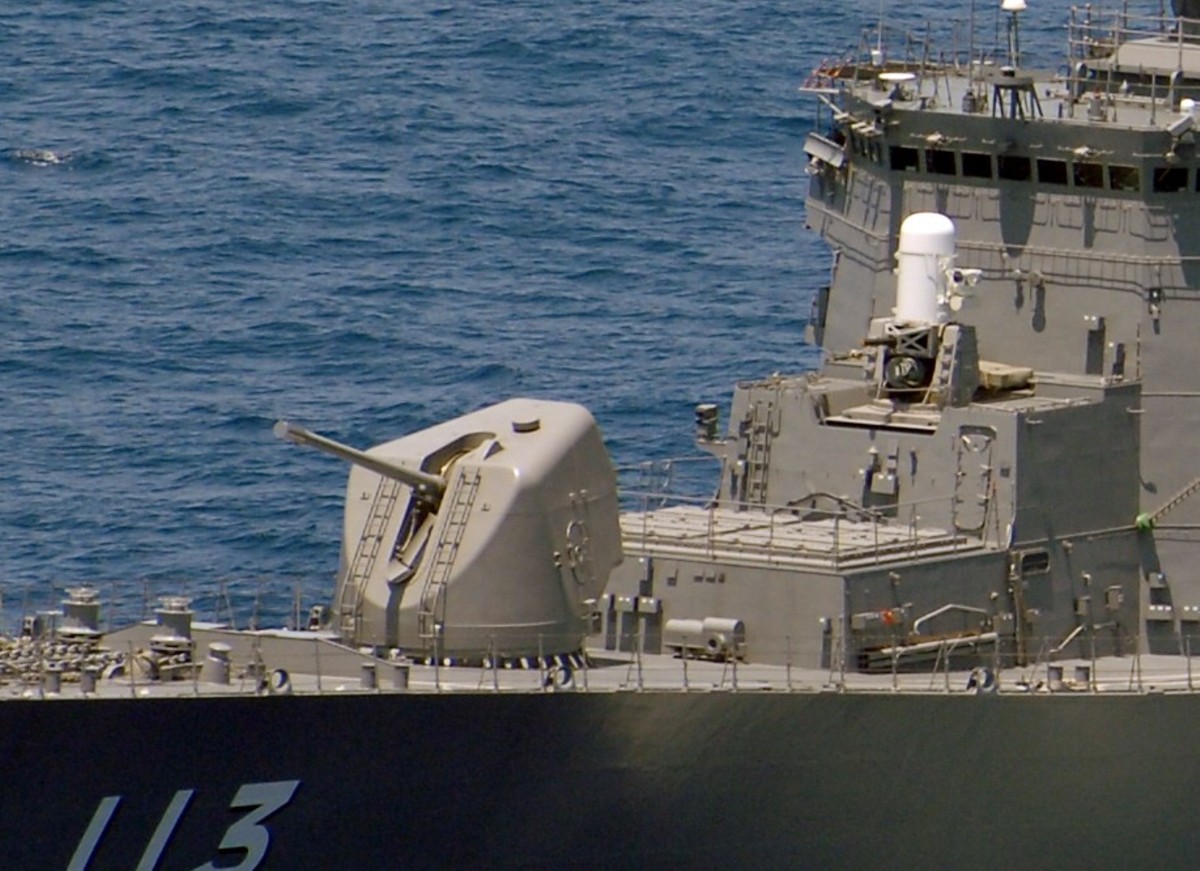

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 13 takanami class destroyer jmsdf japan
Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 02 takanami class destroyer jmsdf
Oto-Melara 127/54C gun aboard a JMSDF Takanami class Destroyer

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 14 kongou class destroyer ddg myoko

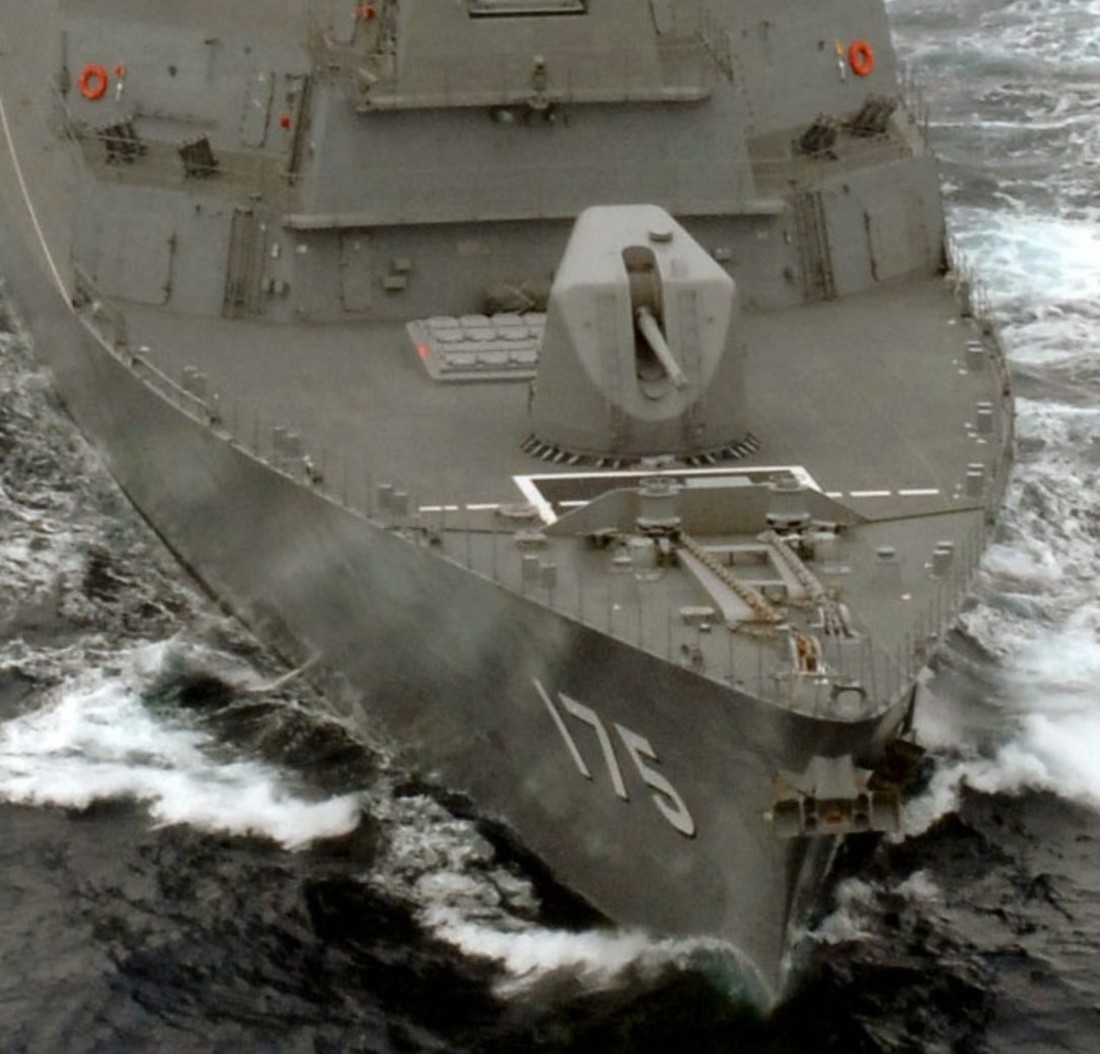

Oto-Melara 127/54C gun aboard JDS Myoko (DDG 175)

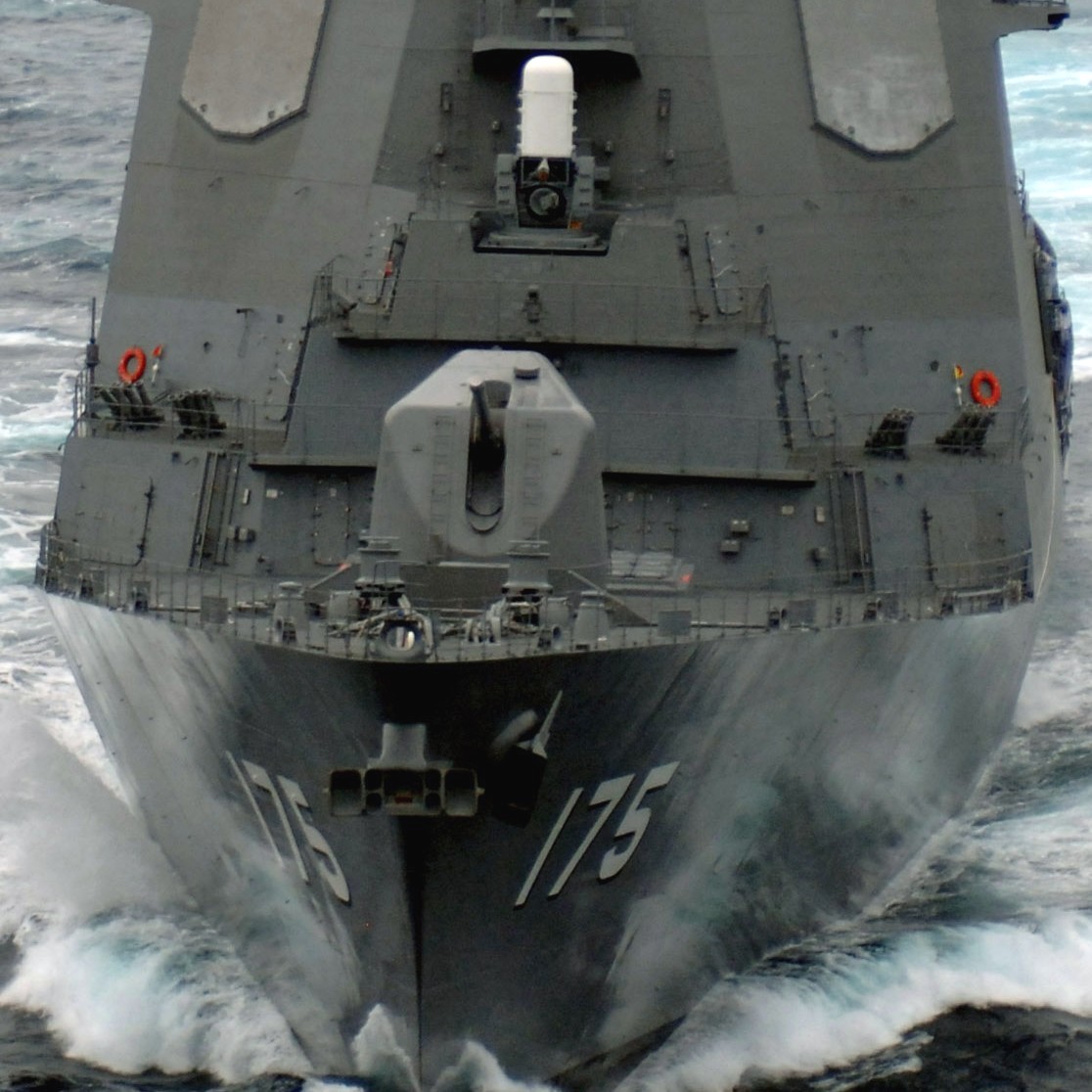

oto melara breda 127/54c compact naval gun 127mm 5-inches 54-caliber 15 kongou class ddg jmsdf myoko japan
Oto-Melara 127/54C gun aboard JDS Myoko (DDG 175)
