Kongō class Guided Missile Destroyer - DDG


kongou class guided missile destroyer japan maritime self defense force jmsdf kirishima myoko chokai ddg standard missile sm-2 sm-3

09/22
Ships:

DDG-173 JS Kongo (1993)
DDG-174
JS Kirishima (1995)
DDG-175 JS Myoko (1996)
DDG-176 JS Chokai (1998)



Specifications:
Length: 161 meters (528 feet 2 inches)
Beam: 21 meters (68 ft 9 in)
Draft: 6.2 meters (20 ft 3 in)

Displacement: 7500 tons (standard) / 9500 tons (full load)
Speed: 30 knots (56 km/h)
Range: 4500 NM (8300 km) at 20 knots (37 km/h)
Complement: 300

 Propulsion:
4 x Ishikawajima Harima Industries - IHI/General Electric LM2500-30 gas turbines (100000 shp)
2 shafts / 2 controllable pitch propellers

 Aviation:
flight deck for 1 helicopter (SH-60K Seahawk) aft - no hangar

Armament:
Mk.41 Vertical Launching System / VLS
1 forward (29 cells) / 1 aft (61 cells) = 90 cells
for a mix of:
RIM-66 Standard SM-2MR SAM

RIM-161 Standard Missile SM-3 ABM
RIM-162 Evolved Sea Sparrow Missile (ESSM)
RUM-139 Vertical Launch ASROC


1 x
Oto-Melara 127/54 (5-inch/54-caliber) gun
2 x Mk.141 missile launcher
for 8 RGM-84 Harpoon SSM
2 x Type 68/HOS-302 (Mk.32) 12.75-inch (324mm) triple torpedo tubes for Mk.46 or Type 73 torpedoes
2 x Mk.15 Phalanx Close-In-Weapon-System (CIWS)

Systems:
AEGIS Combat System
SPY-1D Phased Array Radar
SPG-62 Fire Control Radar
OPS-28C Surface / Air Search Radar
OPS-20 Navigation Radar
OQS-102 Hull Sonar
OQR-1 Towed Array Sonar

The Kongō class of guided-missile destroyers in the Japan Maritime Self-Defense Force are equipped with the Aegis Combat System, and is the first of few ship classes outside the United States to have that capability. Following a decision made in December 2003, Japan is upgrading their Kongo-class destroyers with Aegis Ballistic Missile Defense System. The upgrade involves a series of installations and flight tests to take place from 2007 to 2010. JS Kongo was the first ship to have the BMD upgrade installed.

Background:
The JMSDF built JDS Amatsukaze (DDG-163) under FY1960 program and started shipboard operation of surface-to-air missiles. She had been equipped with analog-version of the Tartar Guided Missile Fire Control System. A fully-digitized system was adopted on the next-generation Tachikaze class, and later a combat direction system based on the Naval Tactical Data System was added.

Nevertheless, the JMSDF estimated that its fleets would not survive against Soviet airstrikes, especially Tupolev Tu-22M bombers and AS-4 air-to-surface missiles. Based on these estimates, JMSDF began to pursue the introduction of the Aegis Weapon System (AWS) from the early 1980s. In 1984, with the prospect of deploying AWS, concrete implementation plans began. And the construction of Japanese first Aegis-equipped ships, Kongo class, had begun under FY1988 program.

Design:
The overall design is generally modeled on the Arleigh Burke-class destroyers of the U.S. Navy. The hull adopted shelter deck design as with preceding Japanese destroyers, but it was widened to support the superstructure with four PESA antennas just as Arleigh Burke class. Due to this widened hull, the outer panel is inclined to reduce the width of the waterline, which also has the effect of reducing radar cross section area.

Because they are built to different operational requirements than the Arleigh Burke-class destroyers, such as for carrying extra commanding equipment, the Kongō-class ships' internal arrangement is quite different from the original design on which they are based. Recognisable external features are the vertical mast and enlarged superstructure to carry sufficient headquarters equipment so that they could act as a flagship.

The propulsion systems are almost the same as those of the Arleigh Burke class, powered by four Ishikawajima-Harima LM2500 gas turbines giving them a top speed of 30 knots (56 km/h; 35 mph).

Equipment:
The class is equipped with the Aegis Weapon System (AWS). The system version was Baseline 4 for name-ship through third ship, and Baseline 5 for fourth ships immediately after they were put into service; then all ships were updated to Baseline 5.3 with modernization. As surface-to-air missiles, The SM-2MR Block IIIA was initially used, and later the Block IIIB came into use. Since the mid-2000s, they have also been equipped with a missile defense capability with the primary intention of countering North Korean ballistic missiles, and now have an Aegis BMD 3.6 system installed to launch SM-3 Block IA and IB missiles.

The Mk.41 Vertical Launching System (VLS) arrangement, similar to the Arleigh Burke class, consisted of 29 cells on the foredeck and 61 cells on the afterdeck. These cells contain not only RIM-162, SM-2, and SM-3, but also VL-ASROCs. In addition, they are equipped with HOS-302, one of the Japanese variant of the Mark 32 Surface Vessel Torpedo Tubes, as anti-submarine weapons and Harpoon as antiship missiles And as gunnery weapons, an Oto Melara 127 mm (5 in)/54 caliber gun and two Mark 15 20 mm CIWS gun mounts are installed.

Most of electronic devices outside of AWS are originated in Japan. For electronic warfare, this class is equipped with NOLQ-2, an elaborate system capable of both ES and EA. The OQS-102 sonar is equivalent to the U.S. SQS-53C.

Flight tests for Aegis BMD systems:
In December 2007, Japan conducted a successful test of the SM-3 block IA against a ballistic missile aboard Kongō. This was the first time a Japanese ship was selected to launch the interceptor missile during a test of the Aegis Ballistic Missile Defense System. In previous tests they provided tracking and communications. Afterward, Japan has also undertaken another two successful Ballistic Missile Defense test aboard Myōkō in October 2009 and aboard Kirishima in October 2010. While one test aboard Chōkai in November 2008 failed to intercept the target.

source: wikipedia


kongou class guided missile destroyer ddg armament oto melara 127/54 5 inch gun mk-41 vertical launching system vls mk-15 ciws mk-141 rgm-84 harpoon ssm type 68 mk-32 torpedo tubes jmsdf 02


images

kongou class guided missile destroyer japan maritime self defense force jmsdf ddg-173 js kongou
JS Kongo (DDG-173)

kongou class guided missile destroyer japan maritime self defense force jmsdf ddg-174 js kirishima
JS Kirishima (DDG-174)

kongou class guided missile destroyer japan maritime self defense force jmsdf ddg-175 js myoko
JS Myoko (DDG-175)

kongou class guided missile destroyer japan maritime self defense force jmsdf ddg-176 js chokai
JS Chokai (DDG-176)



all four


detail images

kongou class ddg jmsdf armament oto melara 127/54 5-inch gun mk-41 vertical launching system vls mk-15 close in weapon system ciws spy-1d phased array radar aegis
Oto-Melara 127/54 gun - forward Mk-41 VLS - Mk-15 CIWS - SPY-1D radars

kongou class ddg jmsdf armament mk-141 missile launcher rgm-84 harpoon ssm 03
Mk-141 missile launcher for RGM-84 Harpoon SSM

kongou class ddg jmsdf armament oto melara 127/54 gun mk-41 vls standard missile sm-2mr sm-3 an/spy-1d radar aegis 12
Oto-Melara 127/54 gun - forward Mk-41 VLS - Mk-15 CIWS - SPY-1D radars

kongou class ddg jmsdf armament oto melara 127/54 gun mk-41 vls mk-15 ciws mk-141 harpoon launcher aegis spy-1d radar 05
Oto-Melara 127/54 gun - forward Mk-41 VLS - Mk-15 CIWS - SPY-1D radars - Mk-141 missile launcher for RGM-84 Harpoon SSM

kongou class ddg jmsdf armament oto melara 127/54 5-inch 54 caliber gun aegis spy-1d radar 06

kongou class ddg jmsdf armament superstructure mk-141 missile launcher rgm-84 harpoon ssm 07
superstructure details - Mk-141 missile launcher for RGM-84 Harpoon SSM - aft Mk-15 CIWS

kongou class ddg jmsdf armament superstructure aft mk-41 vls standard missile sm-2 sm-3 08
superstructure details - aft Mk-41 VLS (61 cells) - aft Mk-15 CIWS - Mk-141 Harpoon launcher

kongou class ddg jmsdf armament oto melara breda 127/54 gun mk-41 vls mk-15 ciws aegis spy-1d radar 10
Oto-Melara 127/54 gun - forward Mk-41 VLS (29 cells) - Mk-15 CIWS - SPY-1D radars

kongou class ddg jmsdf armament superstructure 11

kongou class ddg jmsdf armament superstructure 04


kongou class guided missile destroyer ddg armament oto melara 127/54 5 inch gun mk-41 vertical launching system vls standard missile sm-2 sm-3 vl-asroc mk-15 ciws mk-141 rgm-84 harpoon ssm type 68 mk-32 torpedo tubes 03

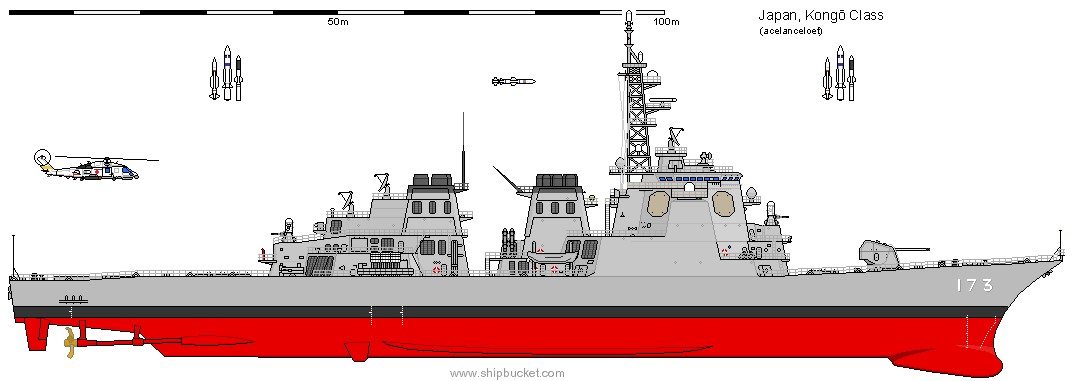

kongou class guided missile destroyer japan maritime self defense force jmsdf drawing
