Takanami class Destroyer - DD


takanami class destroyer japan maritime self defense force jmsdf onami makinami sazanami suzunami

07/22
Ships:

DD-110 JS Takanami (2003)
DD-111 JS Onami (2003)
DD-112
JS Makinami (2004)
DD-113
JS Sazanami (2005)
DD-114
JS Suzunami
(2006)


Specifications:
Length: 151 meters (495 feet)
Beam: 17.4 meters (57 ft 1 in)
Draft: 5.3 meters (17 ft 5 in)

Displacement: 4650 tons (standard) / 6300 tons (full load)
Speed: 30 knots, max. (56 km/h)
Range: -
Complement: 175

 Propulsion:
COGAG (combined gas and gas)
2 x
Ishikawajima Harima Industries (IHI)/General Electric LM-2500 gas turbines
2 x Kawasaki/Rolls-Royce Spey SM-1C gas turbines
60000 shp (45 MW)

2 shafts / 2 controllable pitch propellers

 Aviation:
flight deck and hangar for 1 helicopter / SH-60J(K) Seahawk

Armament:
1 x Mk-41 Vertical Launching System / VLS (32 cells) for a mix of
RIM-162 Evolved Sea Sparrow Missiles / ESSM (4 per cell)
RUM-139 Vertical Launched Anti-Ship Rockets / VL-ASROC

1 x
Oto-Melara/OtoBreda 127/54C compact gun (127mm / 54-caliber - 5-inches)
2 x Mk-141 missile launcher for 8 Type 90 SSM-1B anti ship missiles
2 x Type 68/HOS-302A (Mk-32) 12,75-inch (324mm) triple torpedo tubes for Mk-46 or Type 73 torpedoes
2 x Mk-15 Phalanx Close-In-Weapon-System (CIWS)

Systems:
OYQ-31 Combat Direction System (CDS)
OPS-24B active electronically scanned array radar
OPS-28D surface search and target acquisition radar
OPS-20 navigation radar
FCS-3 fire control system
OQS-5 hull sonar
OQR-2 towed array sonar
Mk-36 SRBOC jaff & decoy launcher
OYQ-103 anti-submarine warfare control system
NOLQ-3 ECM/ESM intergrated electronic warfare system

Since FY1991, the JMSDF started construction of the second-generation, general-purpose destroyers, Murasame class. These destroyers are generally satisfactory for the fleet, but there is some discontent. From FY1998 onwards, a slightly modified version that corrected these dissatisfaction points was to be built: Takanami class.

The hull design is generally based on the one of the Murasame class. However, the weapons mounted are different, and as a result, the internal structure has also been changed. The large lattice mast affected the stealthiness of the Murasame class, so in Takanami class, it was planned to change to two small masts, but that was not implemented.

Although their displacement become slightly increased, there was no change to their main engines, as it was not a big difference that had little effect on the performance of the ship.

The combat system was slightly improved. The combat direction system is similar to the Murasame class in the first three ships, but in the fourth ship, workstations were changed to AN/UYQ-70, and in the fifth ship, it corresponded to the communication in Link 16. Radars are the same as those of Murasame class, sonars are also small revision type.

In terms of weaponry, instead of the 3-inch gun that has been adopted by conventional destroyers, a larger Oto Melara 127 mm gun was introduced. Although vertical launching systems were divided into two places in the Murasame class, 16-cell Mk 41 for VL-ASROC on the bow deck and 16-cell Mk 48 for Sea Sparrow (later replaced with Evolved Sea Sparrow) on the middle deck, they are compiled in one place, 32-cell Mk 41 on the bow deck in this class.

source: wikipedia

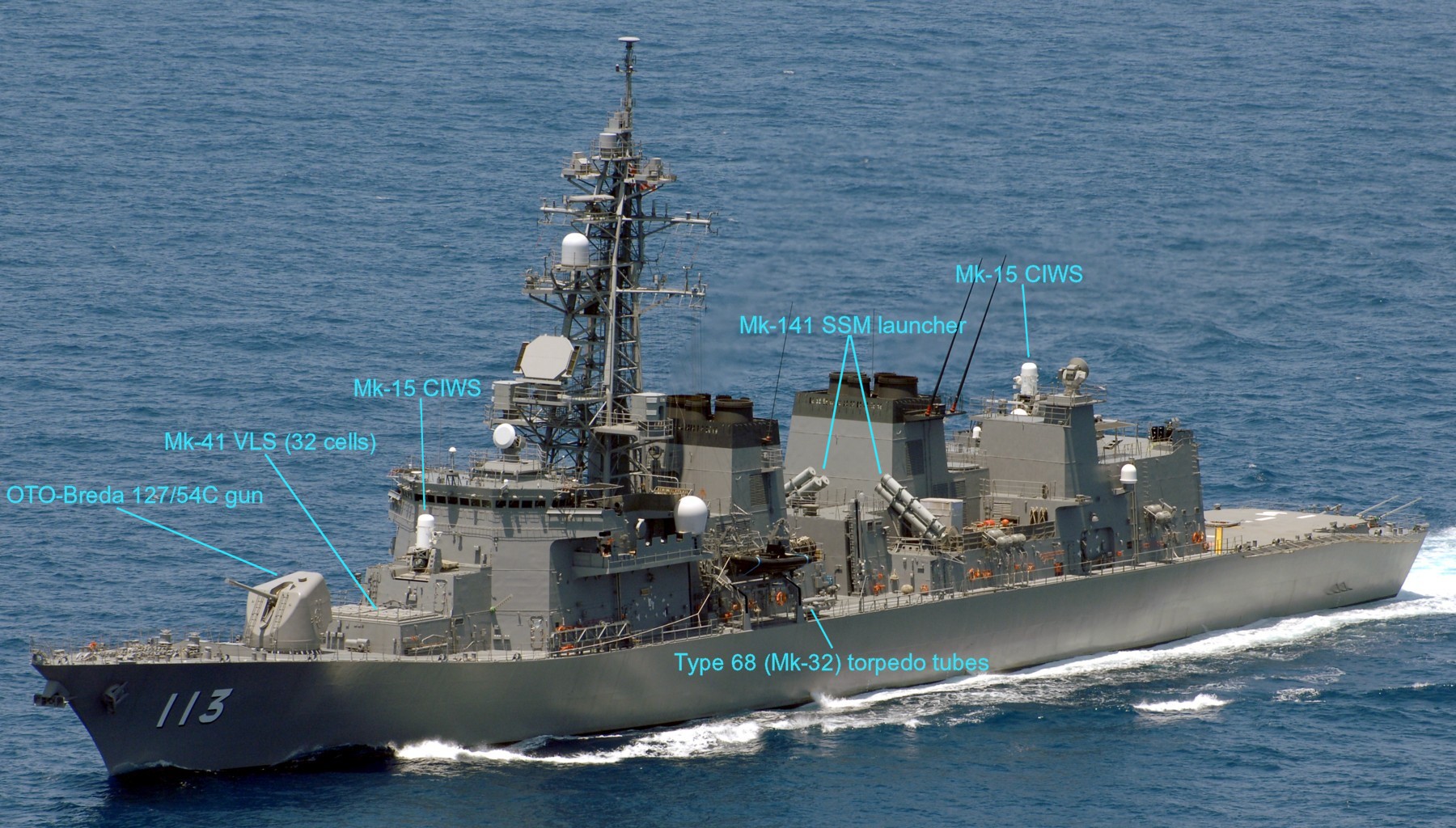

takanami class destroyer armament oto melara breda 127/54c gun mk-41 vertical launching system vls rim-162 essm rum-139 vl-asroc mk-15 ciws type 68 torpedo tubes type-90 ssm-1b jmsdf

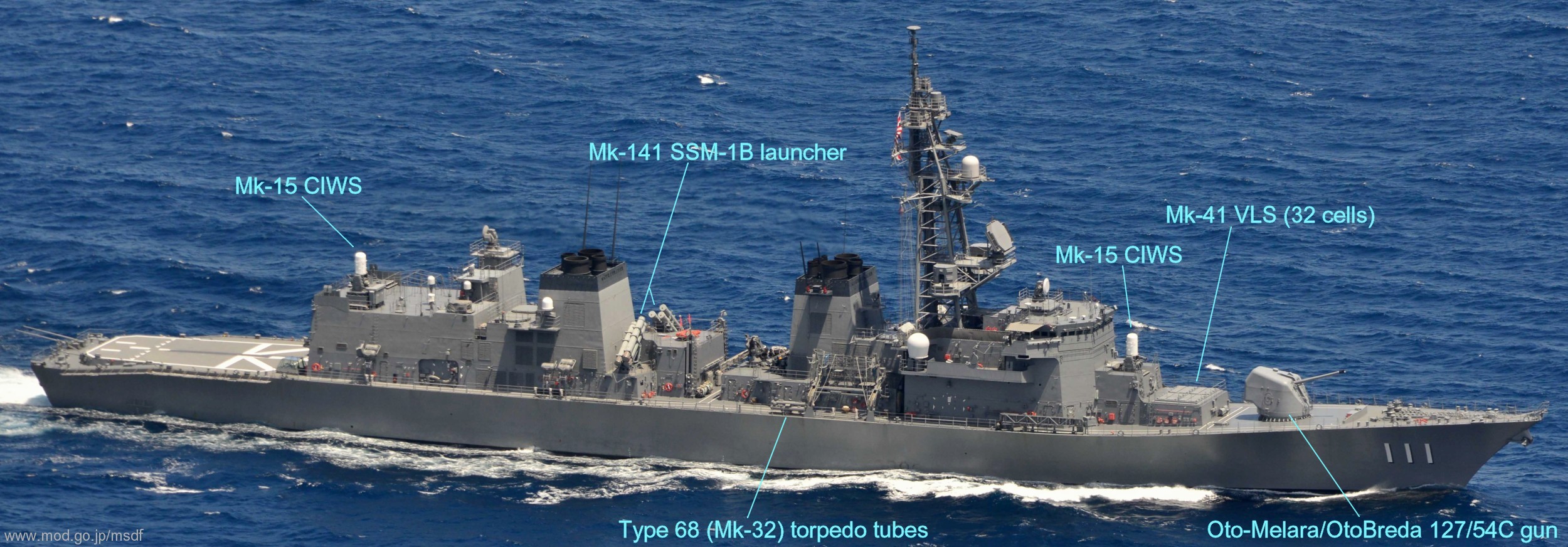

takanami class destroyer armament oto melara breda 127/54c gun mk-41 vertical launching system vls rim-162 essm rum-139 vl-asroc mk-15 ciws type 68 torpedo tubes type-90 ssm-1b jmsdf 002


class images
for more images go to the individual ship-site

takanami class destroyer japan maritime self defense force jmsdf dd-110
JS Takanami (DD-110)

takanami class destroyer japan maritime self defense force jmsdf dd-111 onami

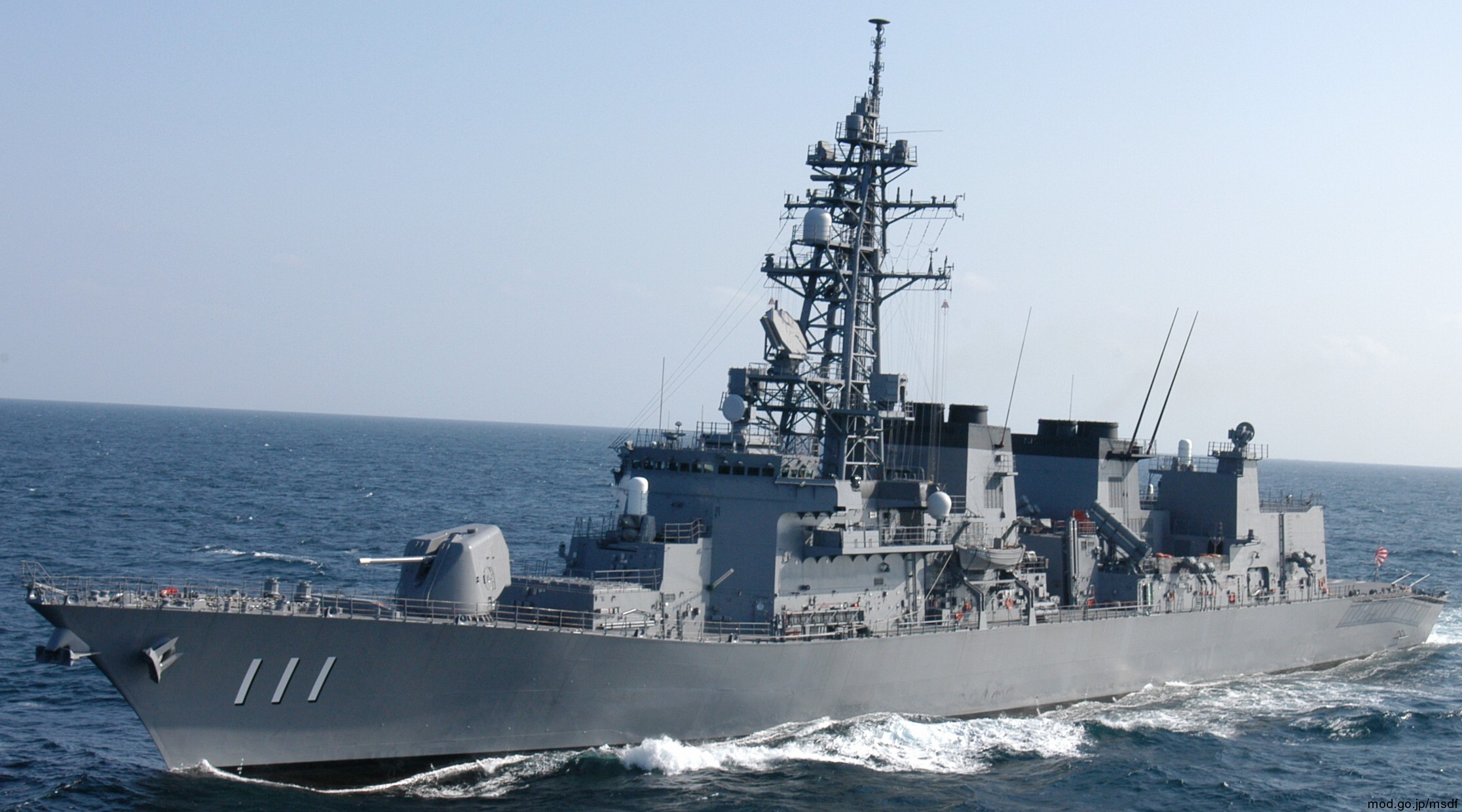

JS Onami (DD-111)

takanami class destroyer japan maritime self defense force jmsdf dd-112 makinami

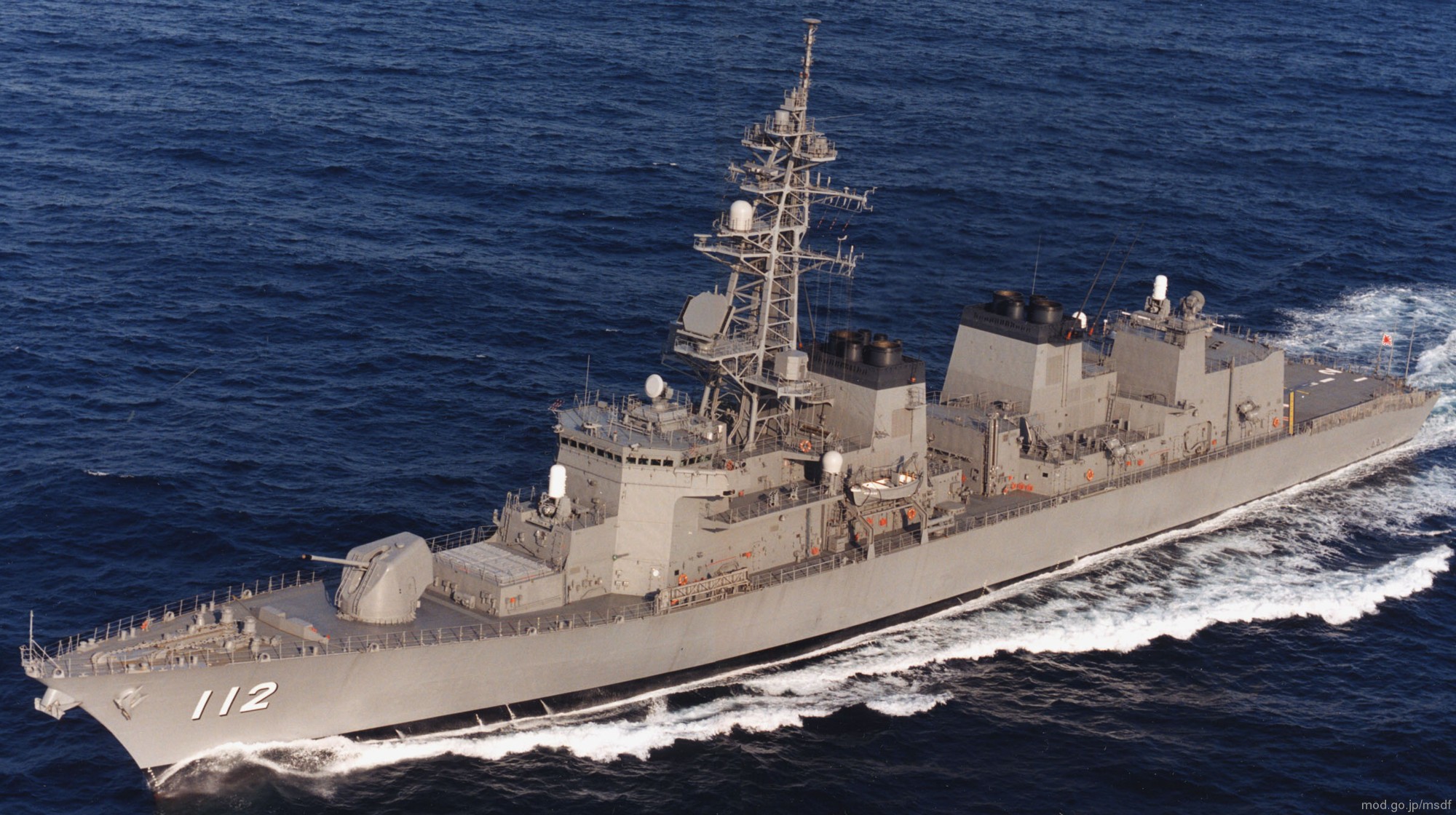

JS Makinami (DD-112)

takanami class destroyer japan maritime self defense force jmsdf dd-113 sazanami

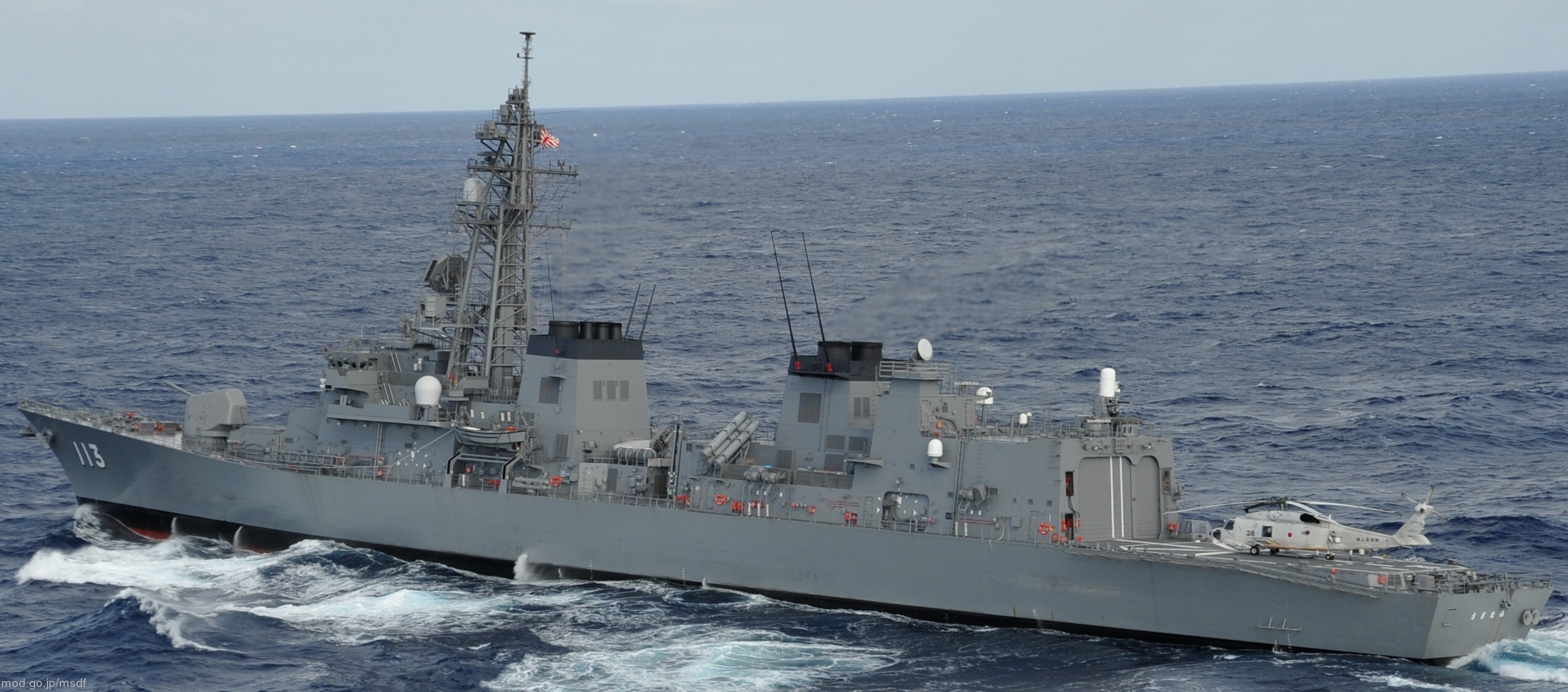

JS Sazanami (DD-113)

takanami class destroyer japan maritime self defense force jmsdf dd-114 suzunami

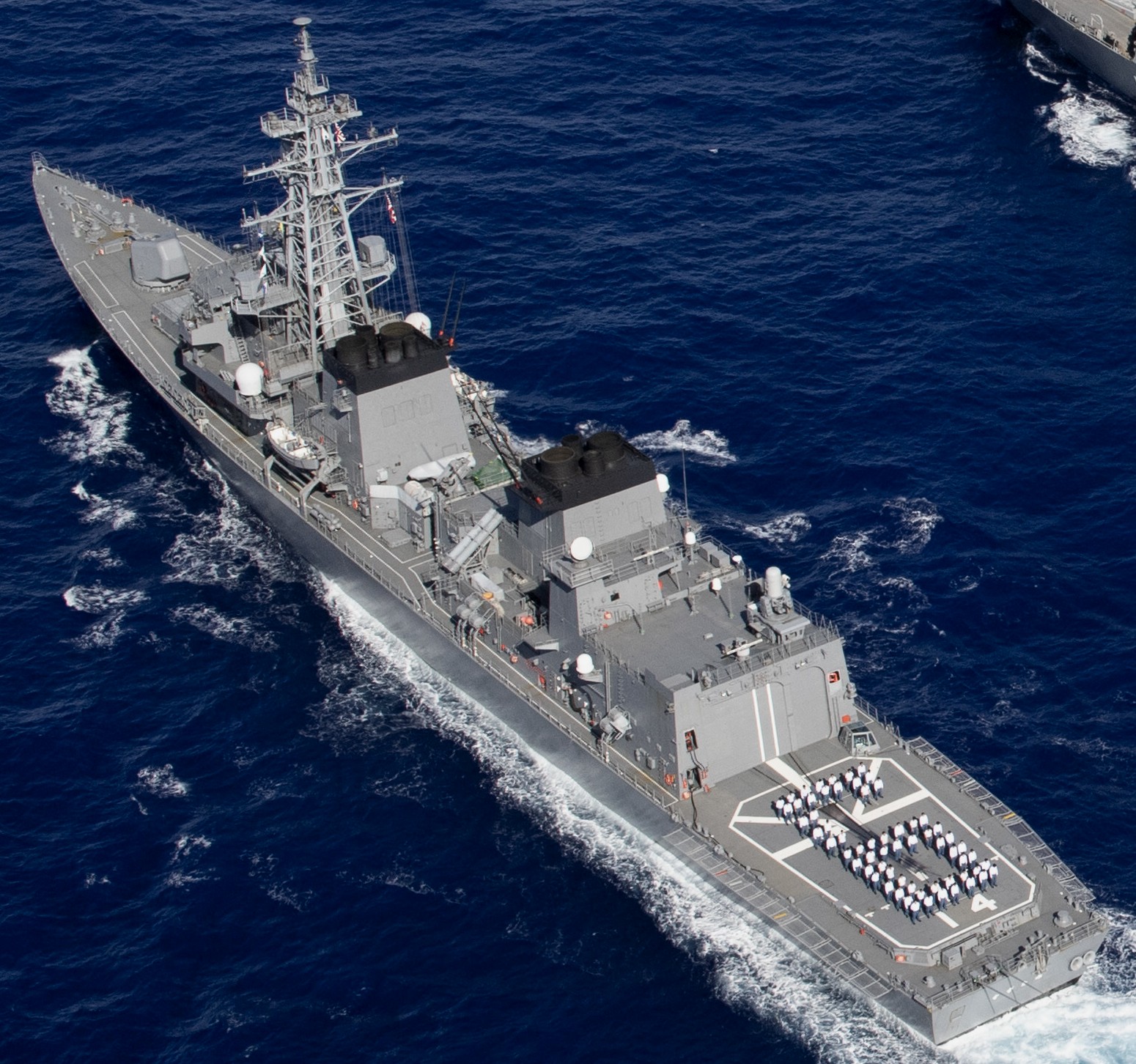

JS Suzunami (DD-114)


detail images


takanami class destroyer japan maritime self defense force jmsdf oto-melara breda 127/54 compact gun mk-41 vls mk-15 ciws

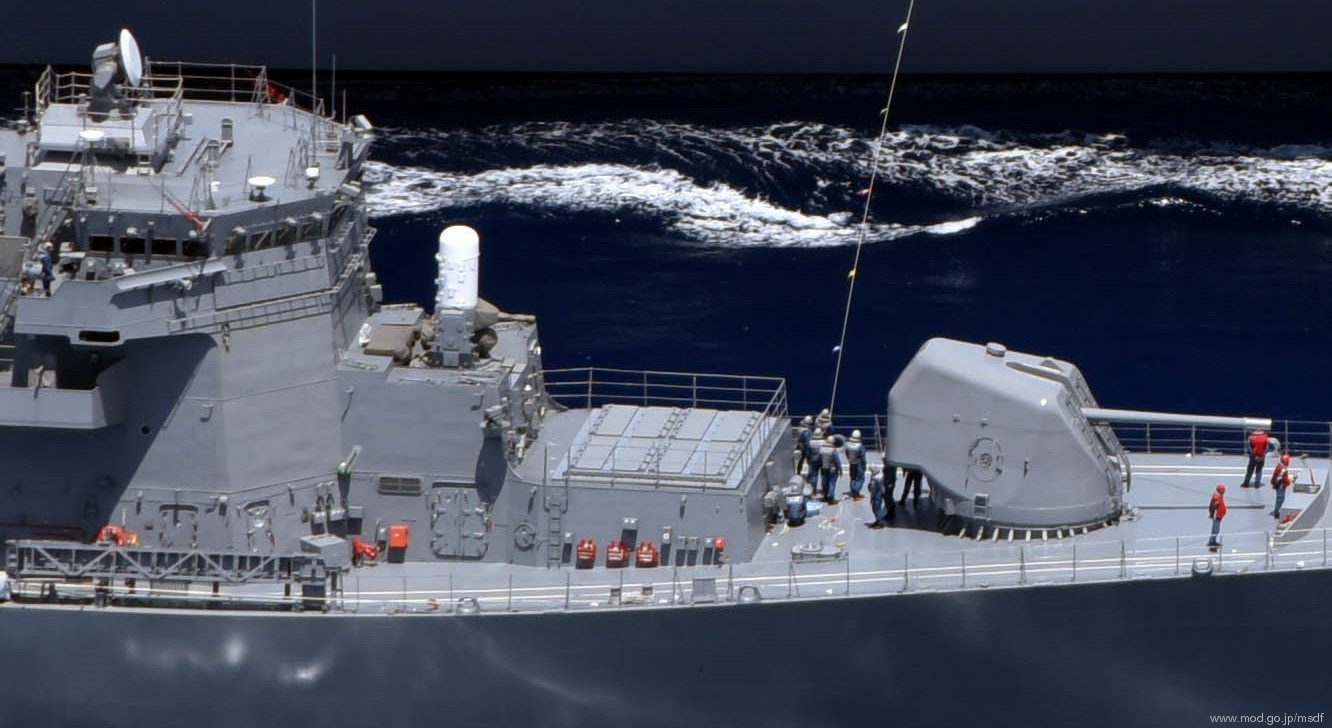

Oto-Melara/OtoBreda 127/54C gun - Mk-41 VLS - Mk-15 CIWS

takanami class destroyer japan maritime self defense force jmsdf superstructure details 02

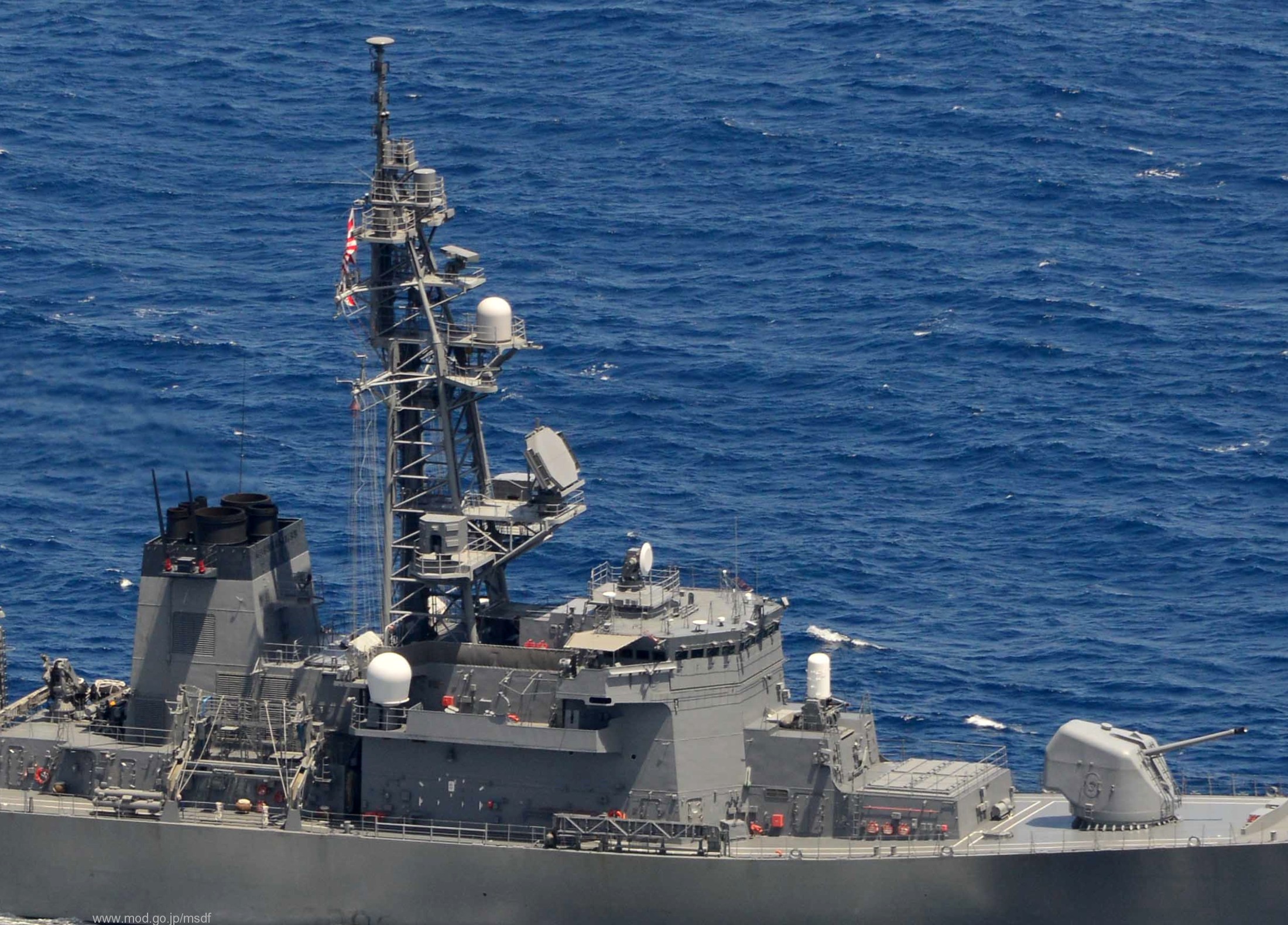

superstructure and systems details

takanami class destroyer japan maritime self defense force jmsdf superstructure details type-68 torpedo tubes mk-141 ssm-1b launcher type-90

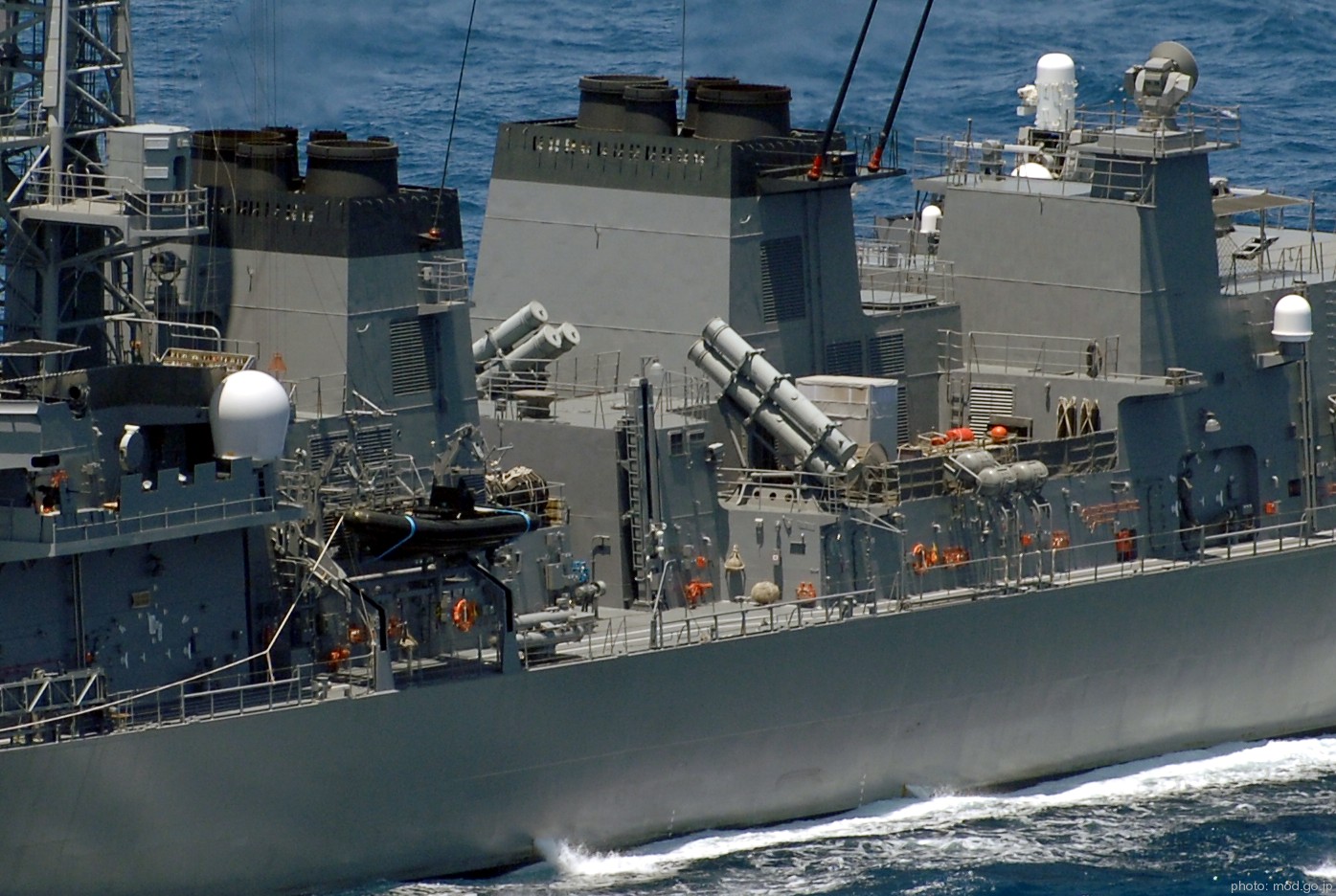

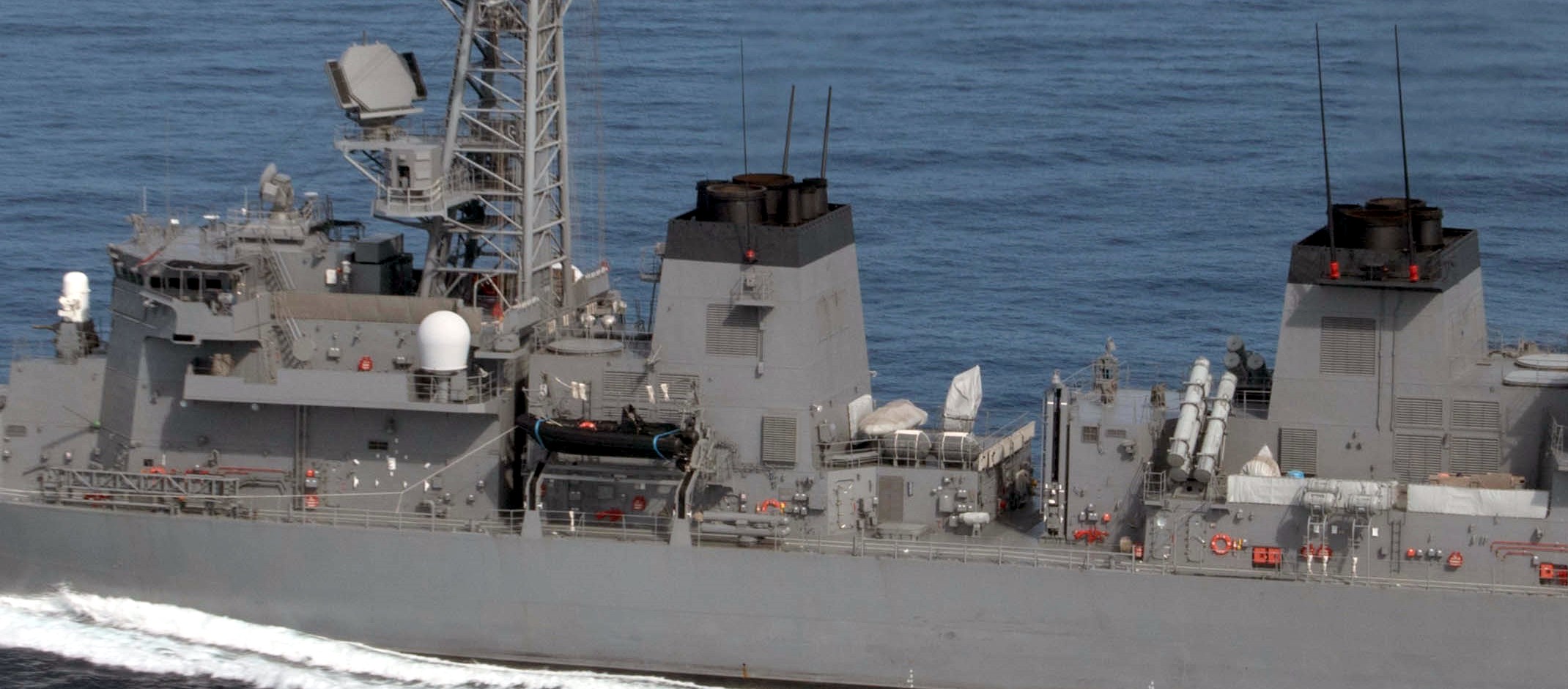

Type-68 torpedo tubes - Mk-141 SSM launcher for Type-90 SSM-1B missiles

takanami class destroyer japan maritime self defense force jmsdf armament details 03 mk-41 vertical launching system vls rim-162 essm oto melara breda 127/54 gun

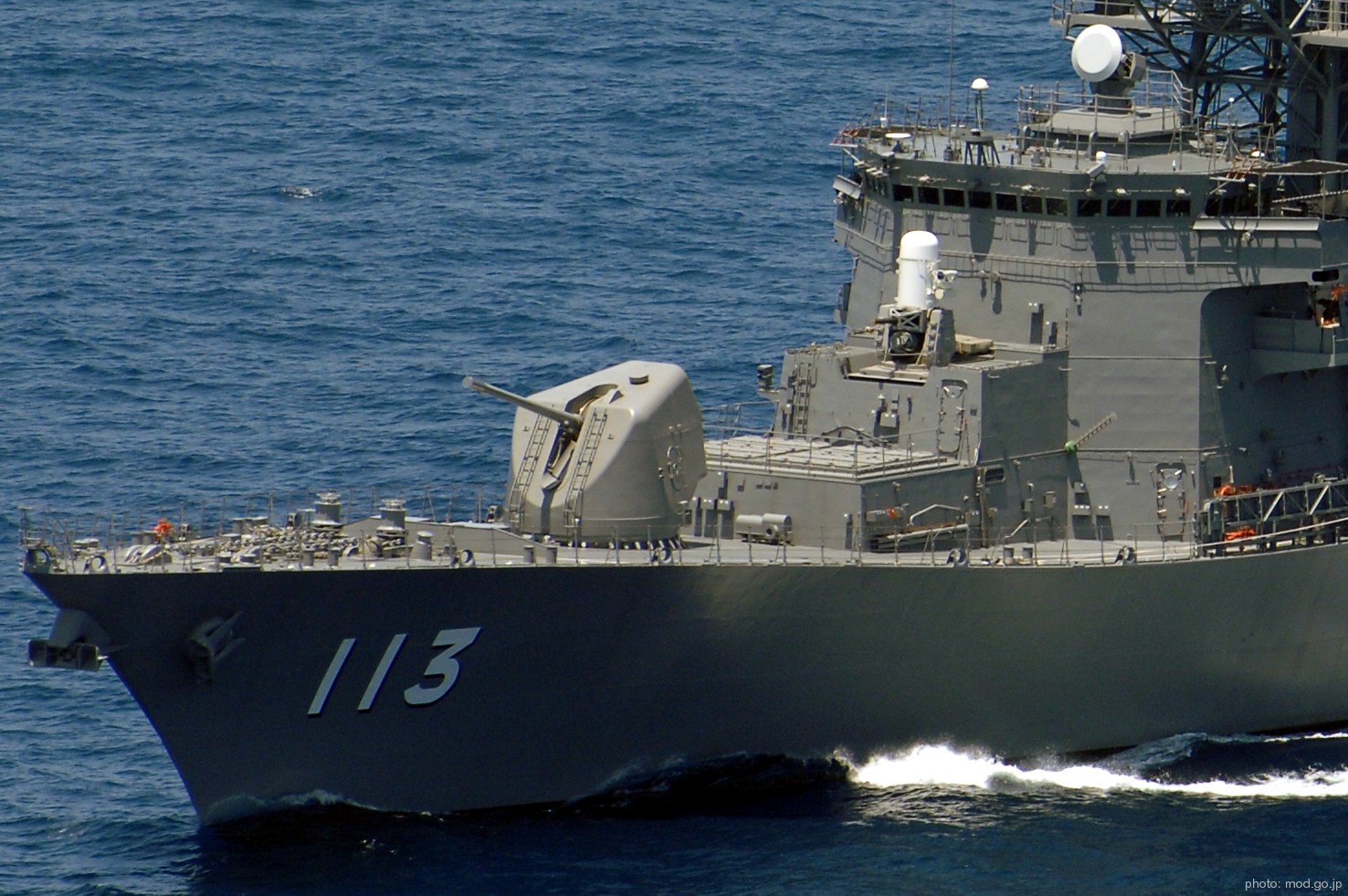

forward Mk-15 CIWS - Mk-41 Vertical Launching System / VLS - Oto-Melara/OtoBreda 127/54C gun

takanami class destroyer japan maritime self defense force jmsdf superstructure mast details 04

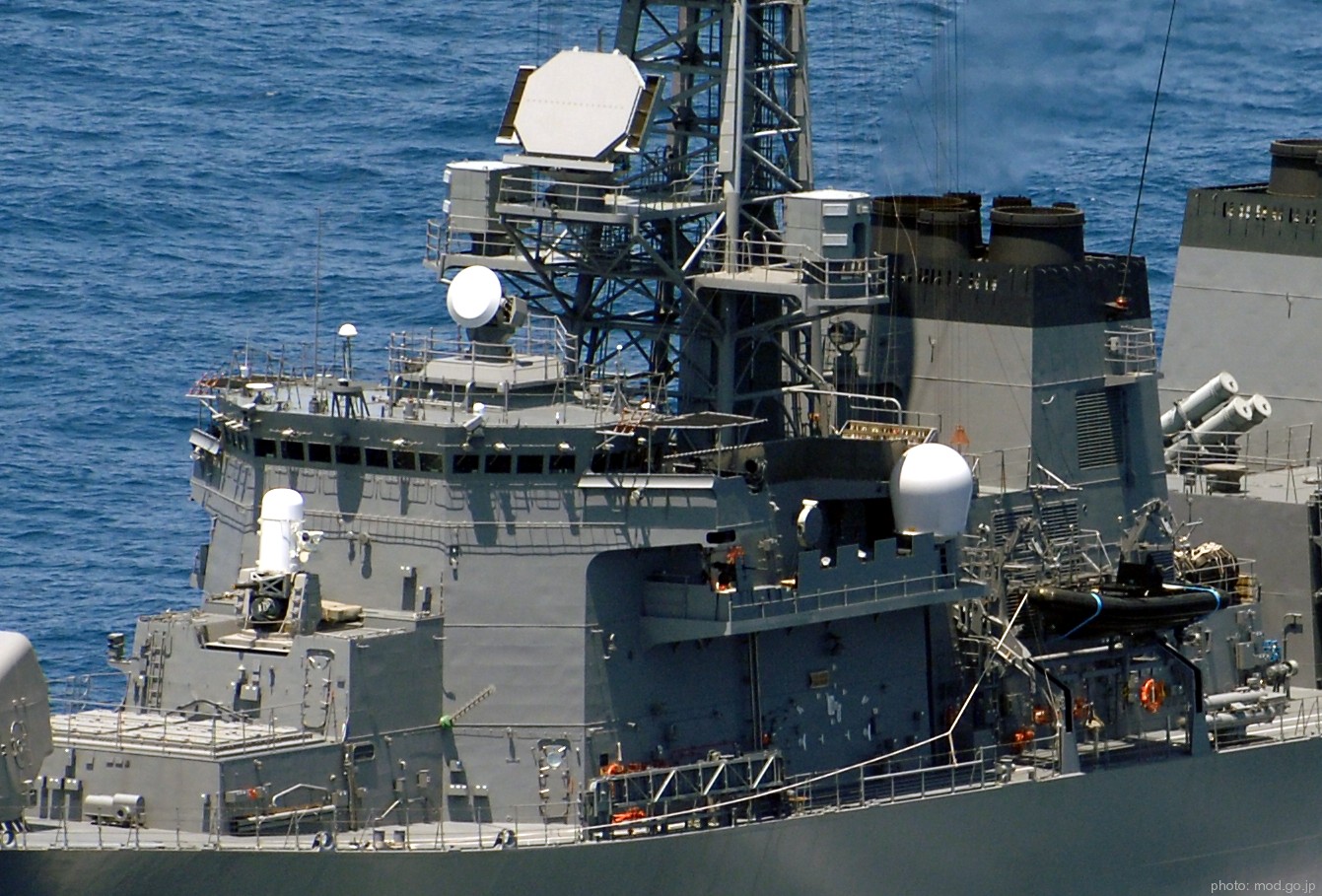

superstructure and mast details

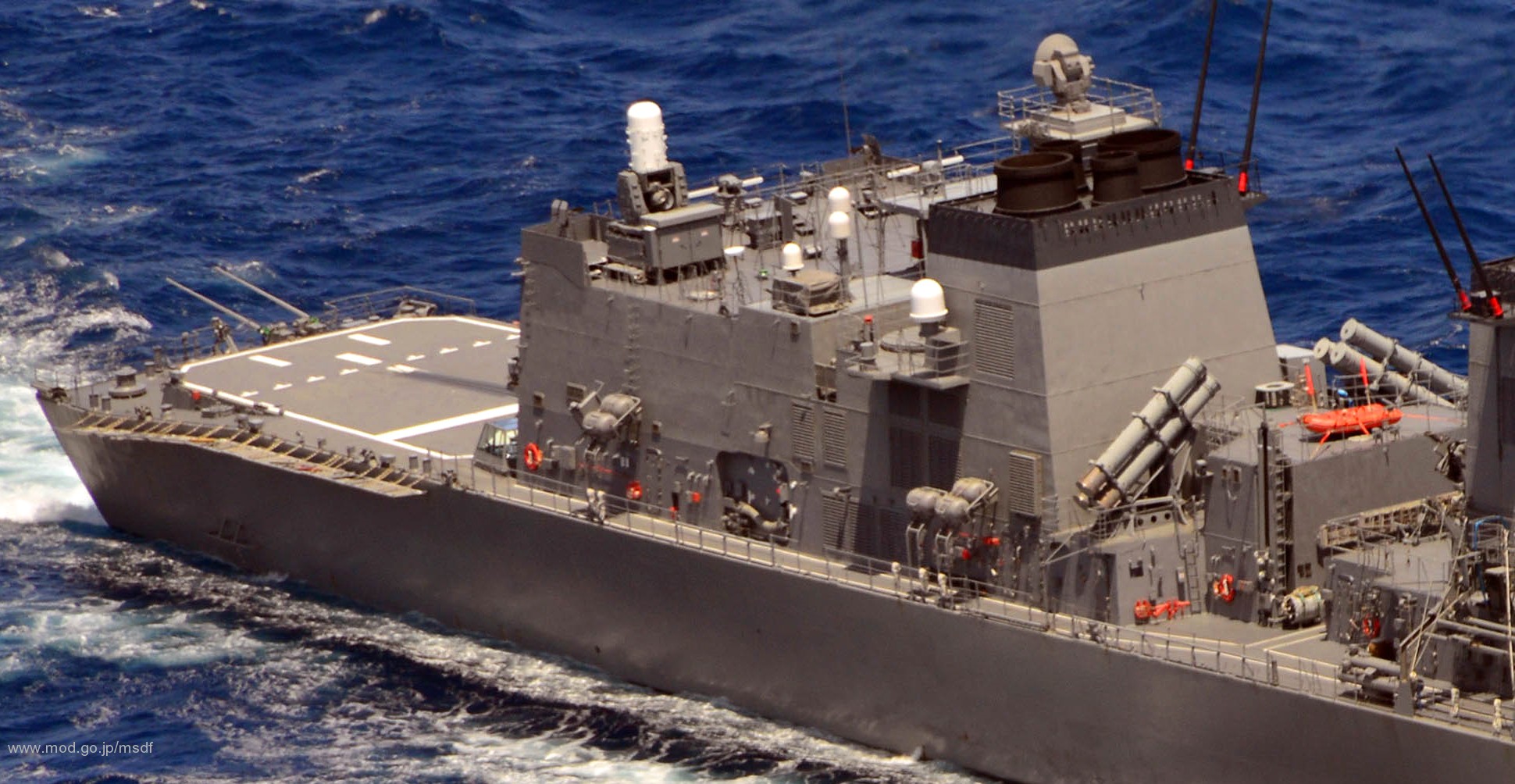

takanami class destroyer japan maritime self defense force jmsdf superstructure armament details 05

takanami class destroyer japan maritime self defense force jmsdf superstructure armament details 06

takanami class destroyer japan maritime self defense force jmsdf superstructure armament details 07

takanami class destroyer japan maritime self defense force jmsdf hangar flight deck sh-60 seahawk helicopter 02

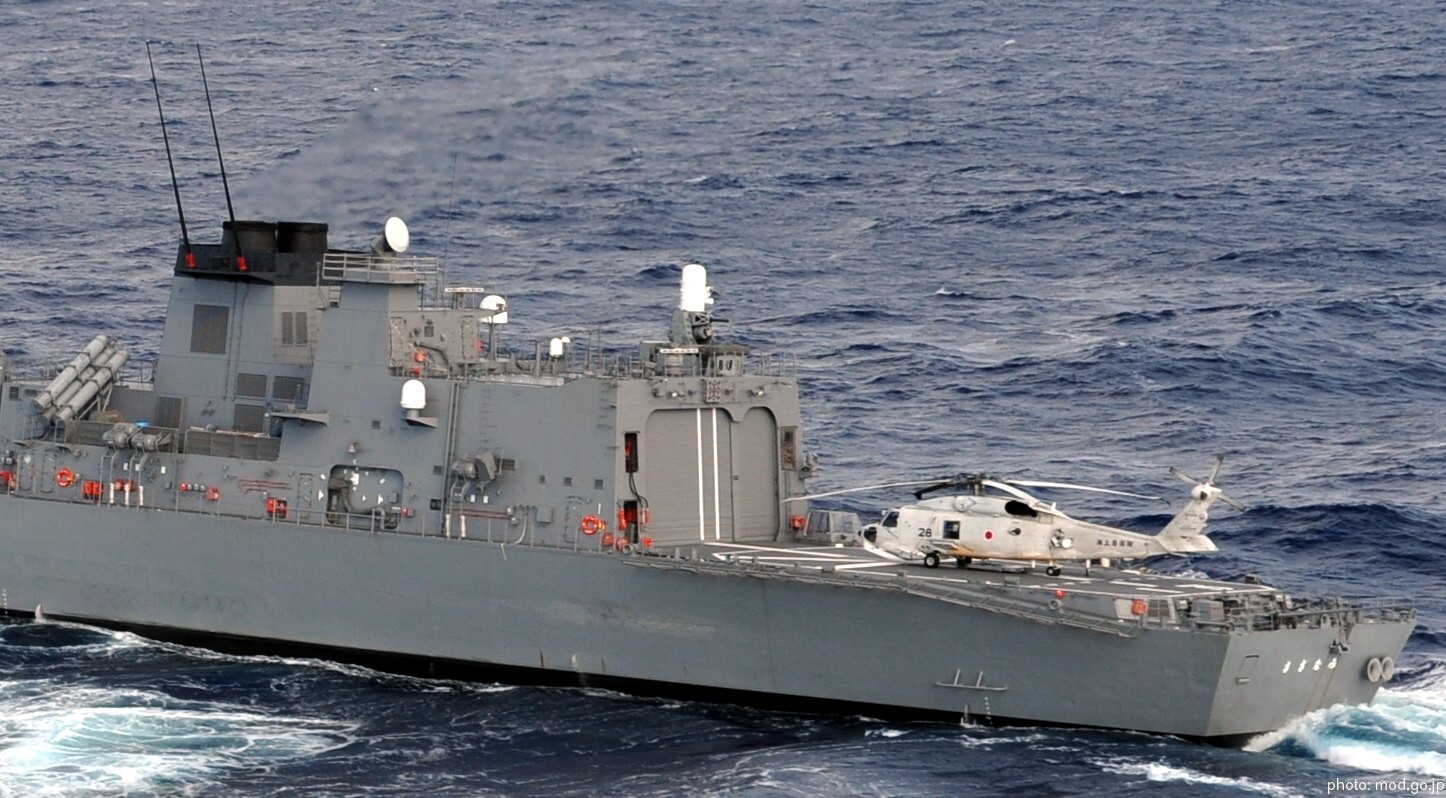

flight deck and hangar with SH-60 Seahawk helicopter

takanami class destroyer japan maritime self defense force jmsdf hangar flight deck sh-60 seahawk helicopter 03
flight deck with SH-60 Seahawk helicopter in hangar

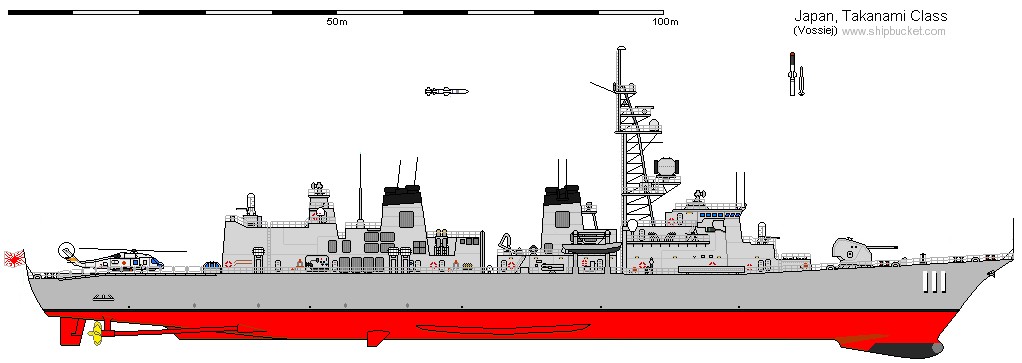

takanami class destroyer japan maritime self defense force jmsdf drawing 02
