Italian Navy / Marina Militare Italiana
Lockheed Martin F-35B Lightning II

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 07x

03/26

Units (20 planned):

Serials / markings:

F-35B - Marina Militare
MM7451 (4-01) / MM7452 (4-02) / MM7454 (4-03) / MM7456 (4-04)
MM7457 (4-05) / MM7458 (4-06) / MM7459 (4-07) / MM7460 (4-08)

F-35B - Aeronautica Militare
MM7453 (32-14) / MM7455 (32-18)

on order
MM7461 (32-28) / MM7462 (32-29)

F-35B Lightning II - Italian Navy - assigned to:

Carrier Air Group (Gruppo Aerei Imbarcati - GRUPAER)
based at
Naval Aircraft Station (Stazione Aeromobili della Marina Militare - MARISTAER)
at Grottaglie Airport, Taranto

F-35B Lightning II - Italian Air Force - assigned to:

13th Group, 32nd Wing / 13° Gruppo, 32° Stormo Aeronautica Militare
based at
Amendola Air Base, Puglia

The Lockheed Martin F-35 Lightning II is a family of single-seat, single-engine, stealth multirole combat aircraft designed for air superiority and strike missions; it also has electronic warfare and intelligence, surveillance, and reconnaissance capabilities. Lockheed Martin is the prime F-35 contractor with principal partners Northrop Grumman and BAE Systems. The aircraft has three main variants: the conventional takeoff and landing (CTOL) F-35A, the short take-off and vertical-landing (STOVL) F-35B, and the carrier-based (CV/CATOBAR) F-35C.

The F-35 first flew in 2006 and entered service with the U.S. Marine Corps F-35B in July 2015, followed by the U.S. Air Force F-35A in August 2016 and the U.S. Navy F-35C in February 2019. The aircraft was first used in combat in 2018 by the Israeli Air Force. The U.S. plans to buy 2,456 F-35s through 2044, which will represent the bulk of the crewed tactical aviation of the U.S. Air Force, Navy, and Marine Corps for several decades; the aircraft is planned to be a cornerstone of NATO and U.S.-allied air power and to operate until 2080.

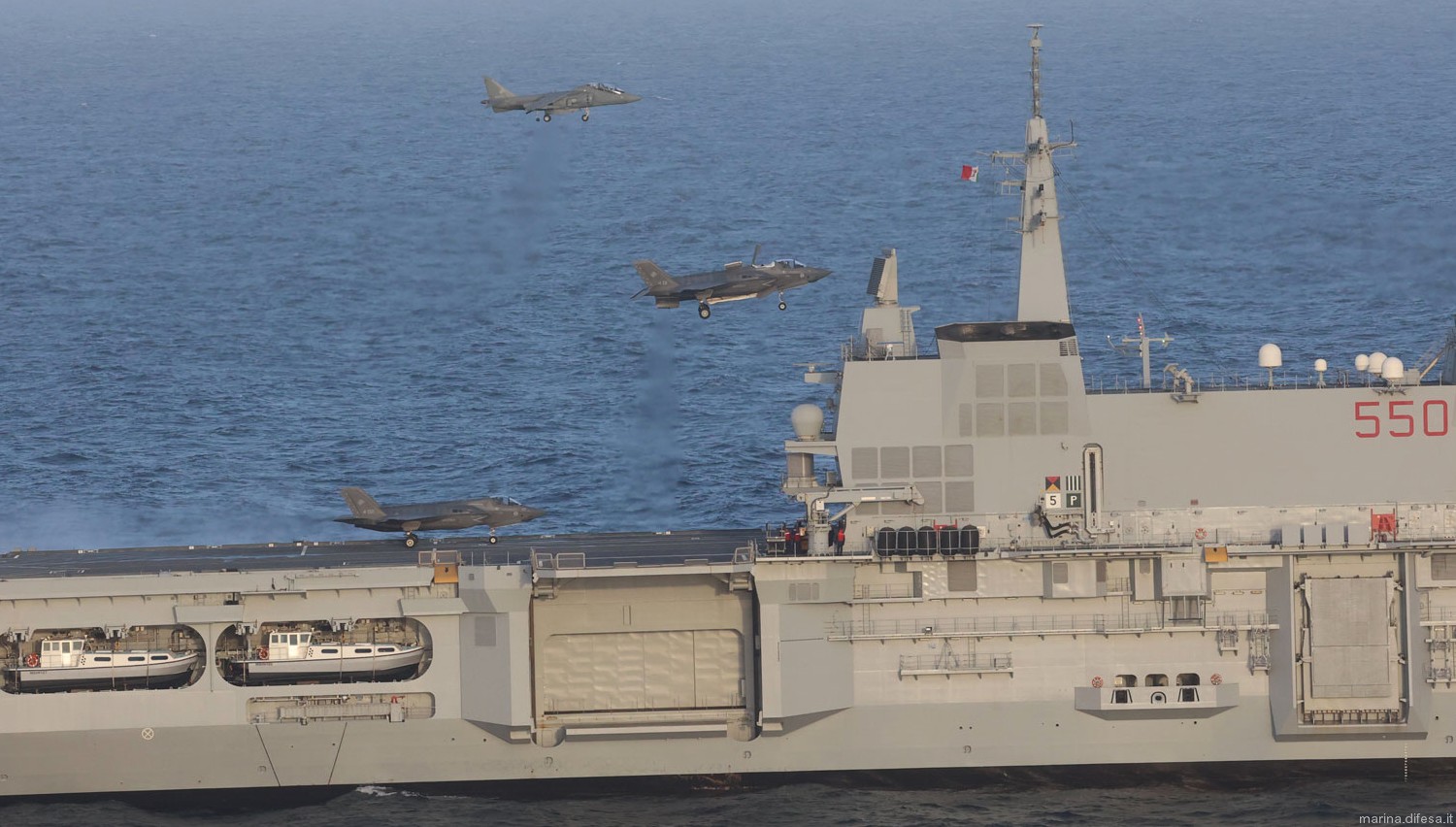

Italian Navy: 20 F-35Bs ordered for the Italian Navy for service aboard C550 ITS Cavour and the future L9890 ITS Trieste.

NOTE: Italian Air Force also operates F-35B's.

General characteristics:
Crew: 1
Length: 51.2 ft (15.6 m)
Wingspan: 35 ft (10.7 m)
Height: 14.3 ft (4.36 m)
Wing area: 460 sq ft (42.74 m2)
Empty weight: 32,472 lb (14,729 kg)
Max takeoff weight: 60,000 lb (27,200 kg)
Weapon payload: 15,000 lb (6,800 kg)
Fuel capacity: 13,500 lb (6,123 kg) internal
Range: 900 nmi (1,700 km)
Combat radius: 505 nmi (935 km) on internal fuel
Service ceiling: 50,000 ft (15,000 m)
g limits: +7.0

Powerplant:
1 x Pratt & Whitney F135-PW-600 two-spool, axial flow, augmented turbofan with shaft driven remote lift fan
Maximum thrust: 27,000 lbf (120 kN) military thrust / 41,000 lbf (182 kN) with afterburner / 40,650 lbf (181 kN) hovering
Maximum speed: Mach 1.6 at altitude

Armament:
Gun: 1 x 25 mm (0.984 in) GAU-22/A 4-barrel rotary cannon, 180 rounds

Hardpoints: 4 x internal stations, 6 x external stations on wings with a capacity of 5,700 pounds (2,600 kg) internal, 15,000 pounds (6,800 kg) external, 18,000 pounds (8,200 kg) total weapons payload,with provisions to carry combinations of:

Missiles: Air-to-air missiles:
AIM-120 AMRAAM
AIM-9X Sidewinder
AIM-132 ASRAAM
MBDA Meteor (Block 4)

Air-to-surface missiles:
AGM-88G Extended Range Advanced Antiradiation Guided Missile (AARGM-ER)
AGM-158 Joint Air-to-Surface Standoff Missile (JASSM)
Select Precision Effects At Range (SPEAR) Capability 3 (SPEAR 3)
AGM-179 Joint Air-to-Ground Missile (JAGM)
Joint Strike Missile (JSM, planned)

Anti-ship missiles:
AGM-158C Long Range Anti-Ship Missile (LRASM)

Bombs:
Joint Direct Attack Munition (JDAM) series
Paveway series laser-guided bombs
Small Diameter Bomb (SDB)
AGM-154 JSOW
Mk.20 Rockeye II cluster bomb
Mk 77 incendiary bombs
Wind Corrected Munitions Dispenser (WCMD) capable
B61 Mod.12 nuclear bomb

Avionics:
AN/APG-81 AESA radar
AAQ-40 E/O Targeting System (EOTS)
AN/AAQ-37 Distributed Aperture System (DAS) missile warning system
AN/ASQ-239 Barracuda electronic warfare system

AN/ASQ-242 CNI suite, which includes:
Harris Corporation Multifunction Advanced Data Link (MADL) communication system
Single Channel Ground and Airborne Radio System (SINCGARS)
An IFF interrogator and transponder
HAVE QUICK - ECM resistant frequency-hopping system
AM, VHF, UHF AM, and UHF FM Radio
GUARD survival radio
Tactical air navigation system (TACAN)
Instrument carrier landing system
Joint precision approach and landing system (JPALS)
TADIL-J JVMF/VMF / Link 16

source: wikipedia+

images

F-35B Lightning II - Italian Navy (Marina Militare)

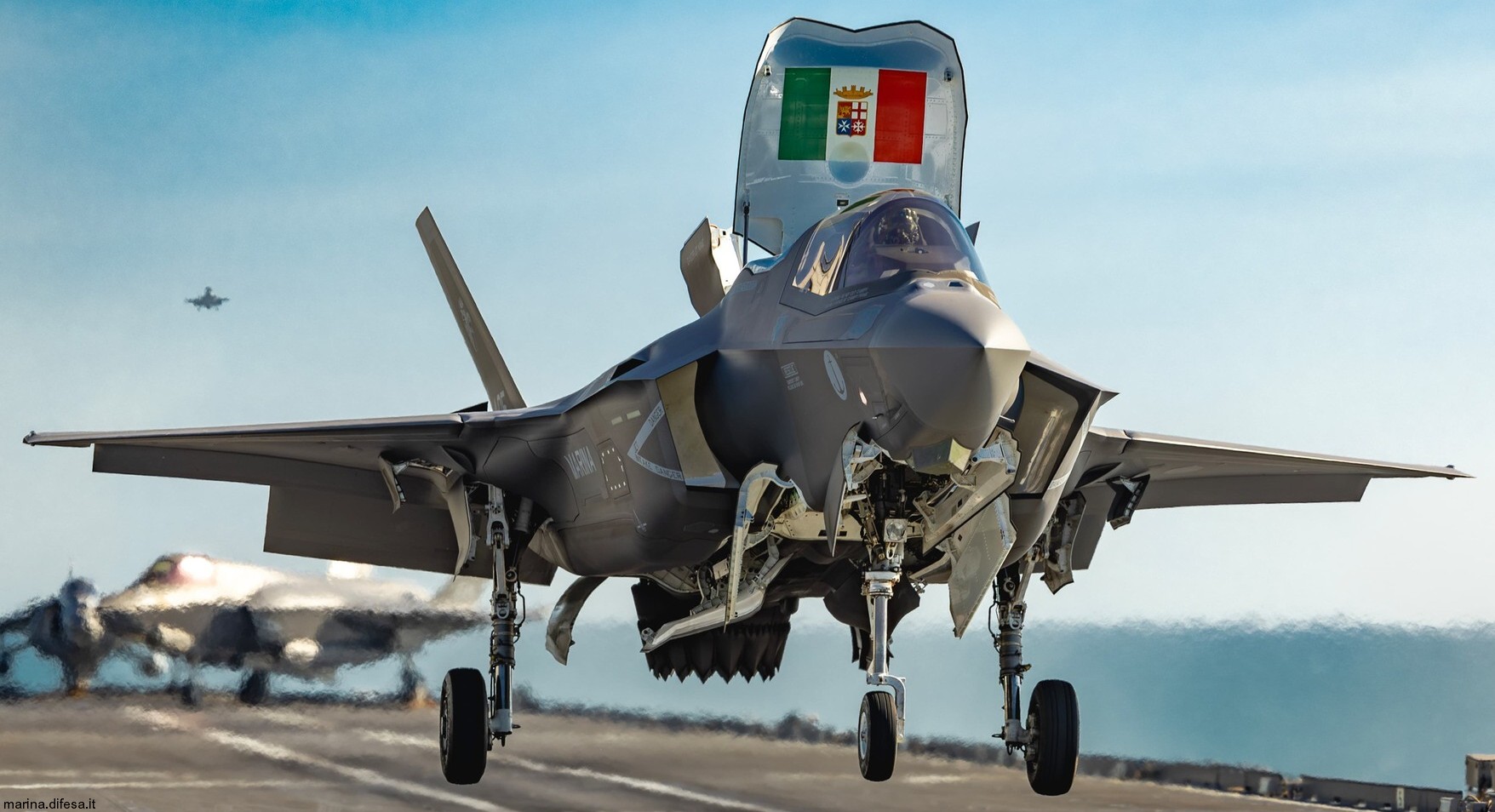

f-35b lightning ii italian navy marina militare lockheed martin grupaer 26

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 11

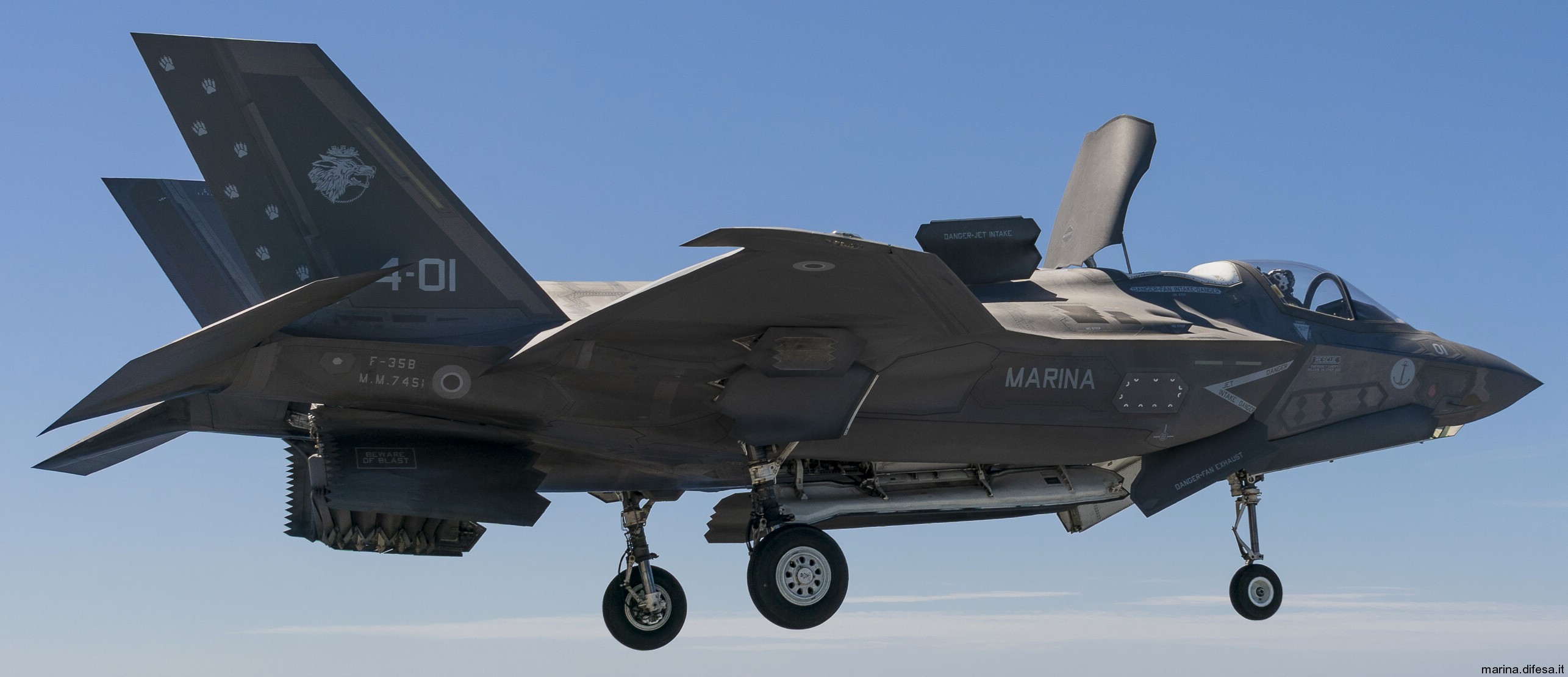

f-35b lightning ii italian navy marina militare lockheed martin grupaer 30

f-35b lightning ii italian navy marina militare lockheed martin grupaer 14

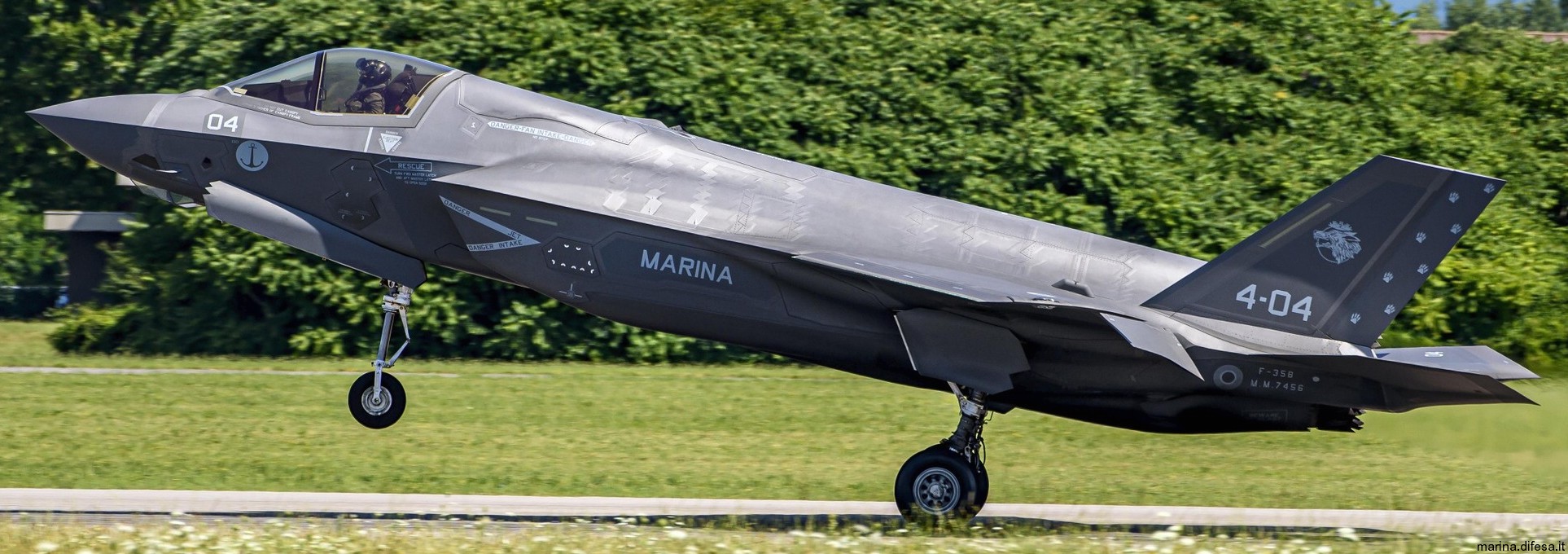

f-35b lightning ii italian navy marina militare lockheed martin grupaer 25

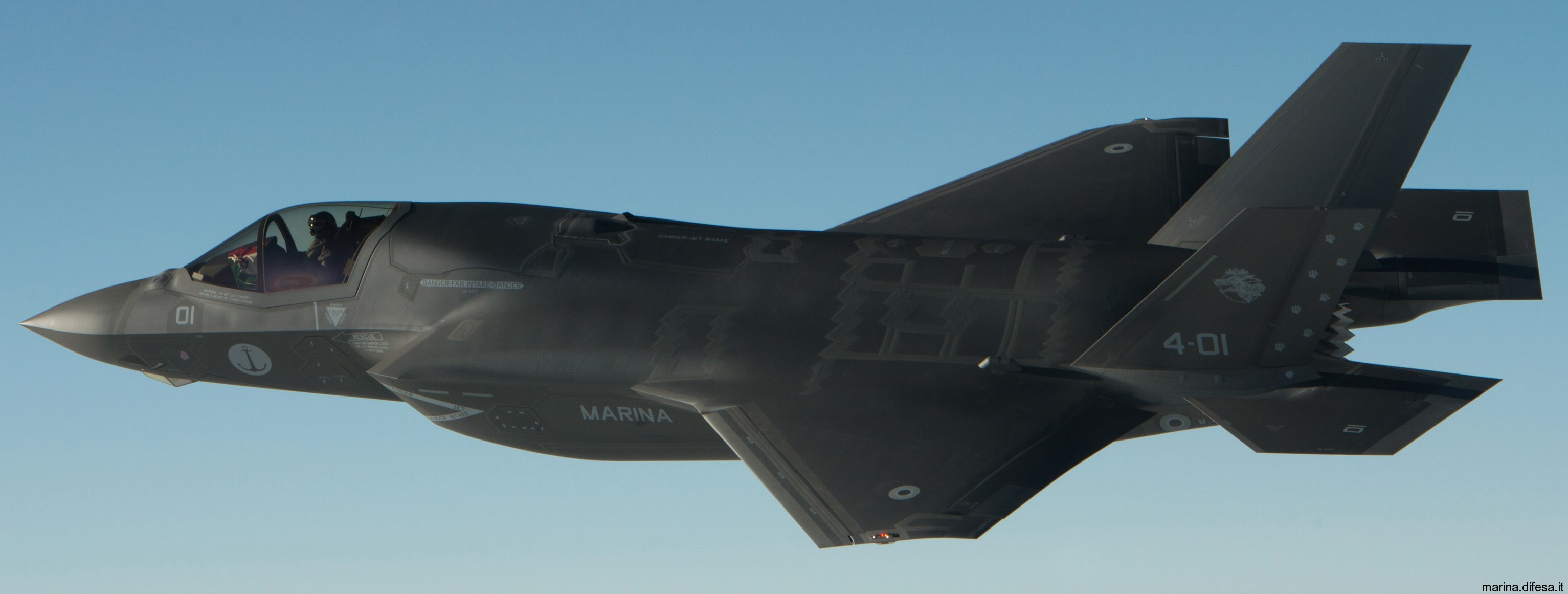

f-35b lightning ii italian navy marina militare lockheed martin grupaer 27

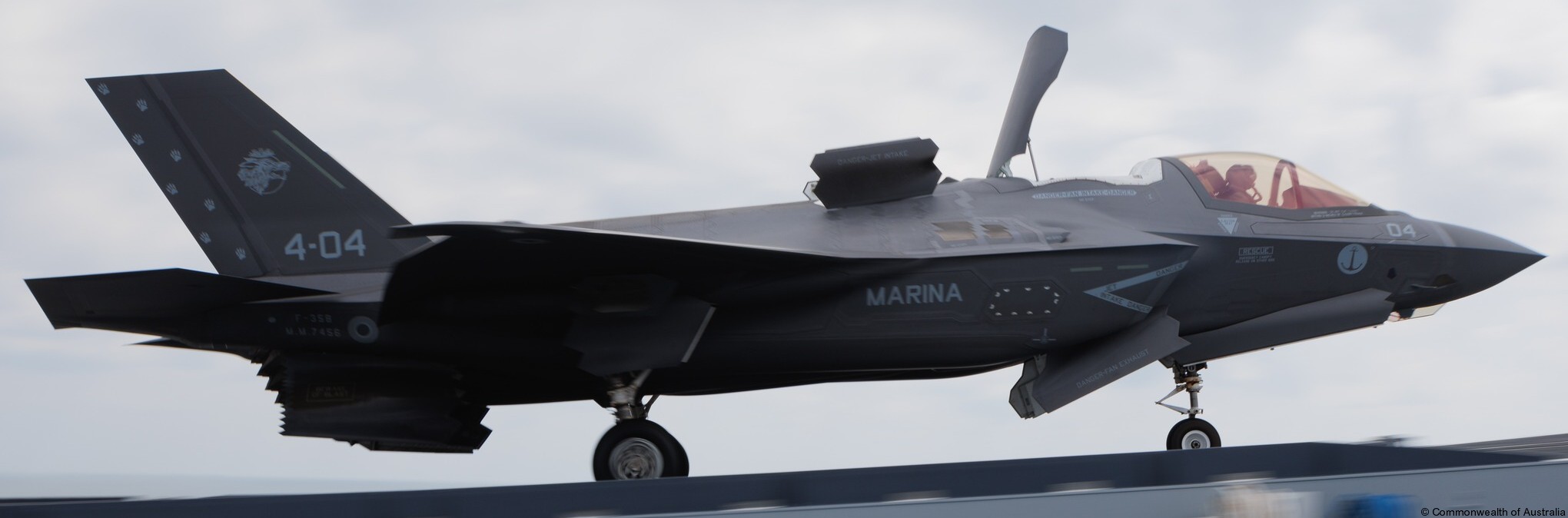

f-35b lightning ii italian navy marina militare lockheed martin grupaer c550 cavour 23

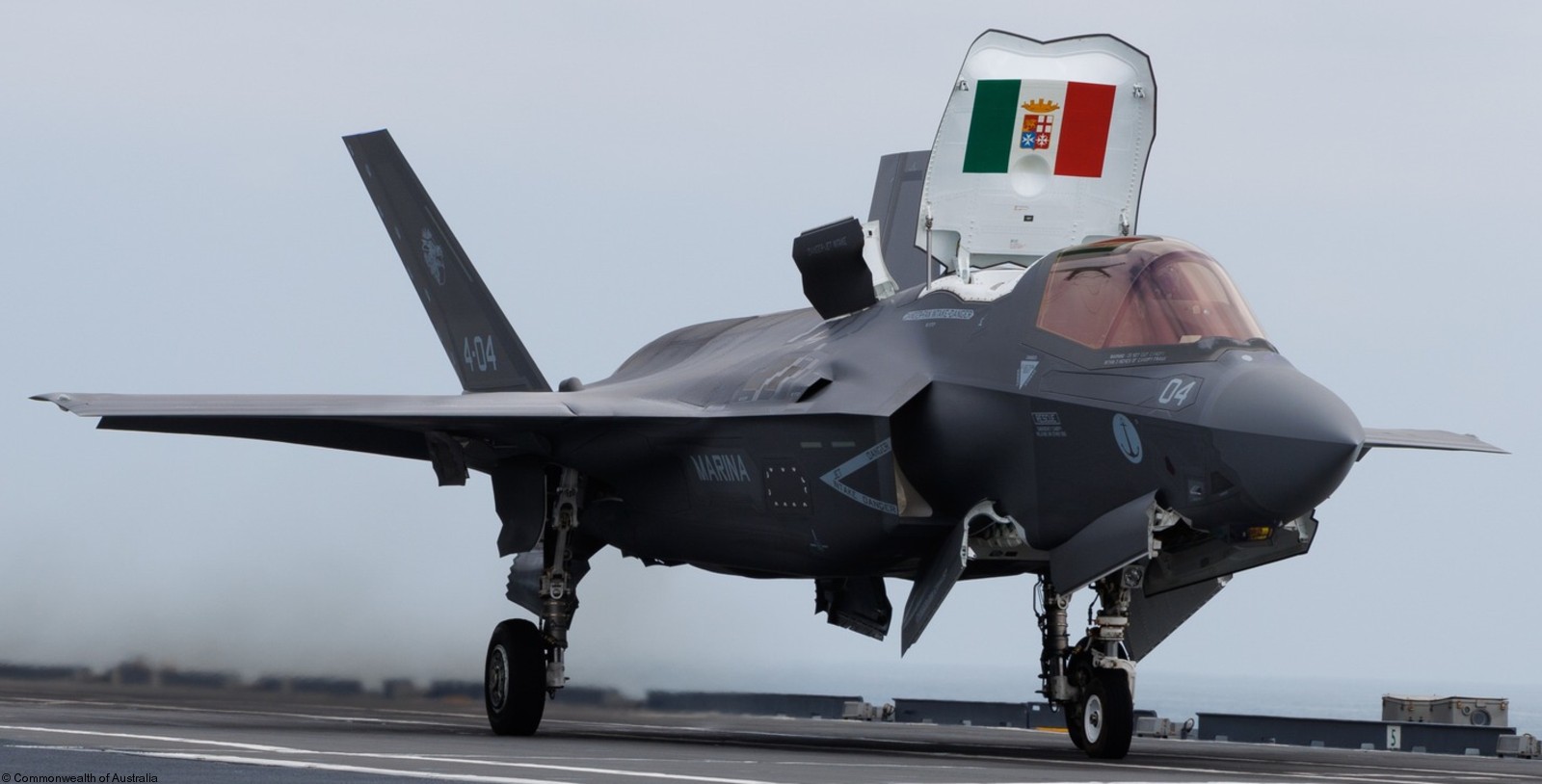

f-35b lightning ii italian navy marina militare lockheed martin grupaer 24

f-35b lightning ii italian navy marina militare lockheed martin grupaer 12

f-35b lightning ii italian navy marina militare lockheed martin grupaer 13

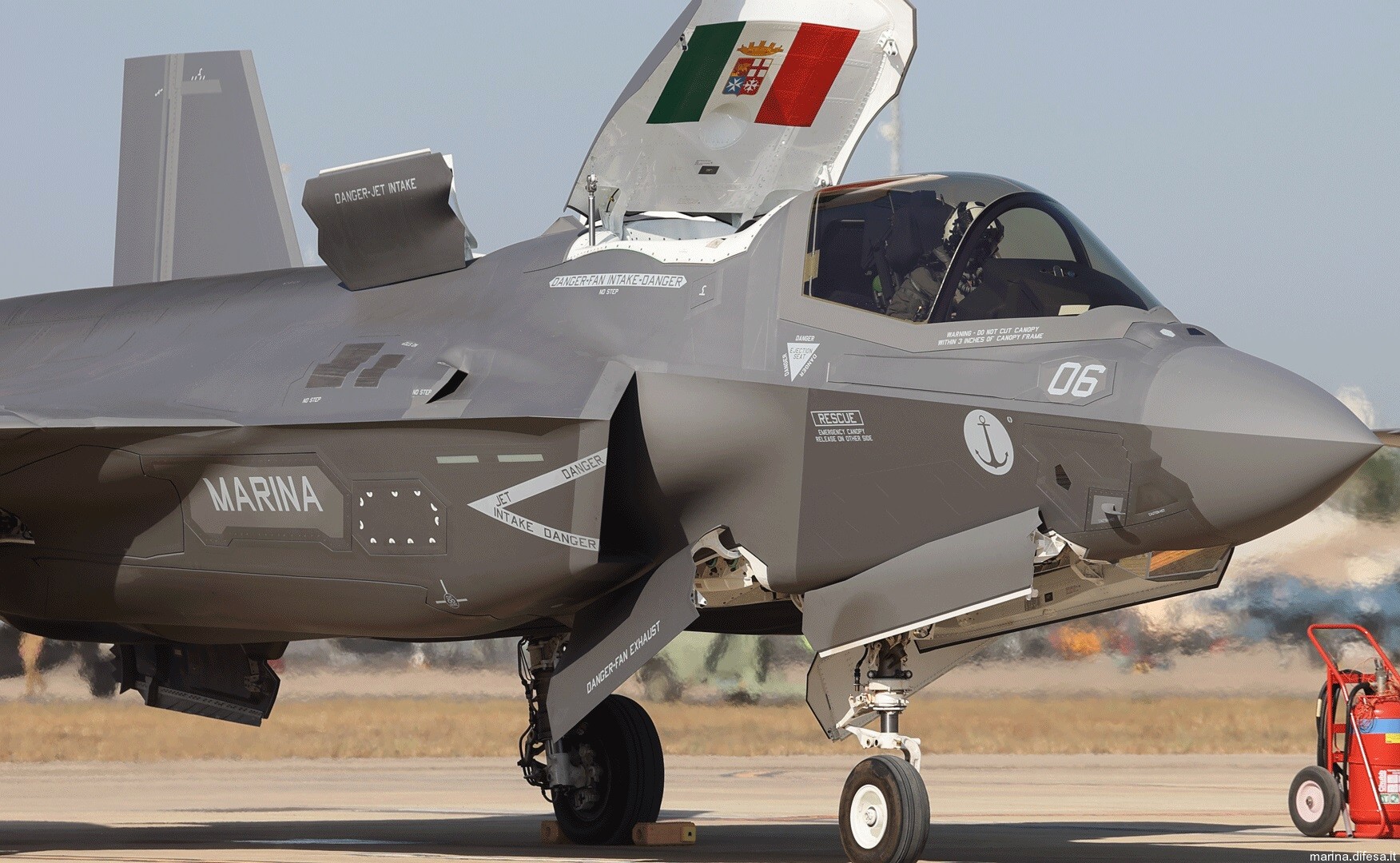

f-35b lightning ii italian navy marina militare lockheed martin grupaer 31

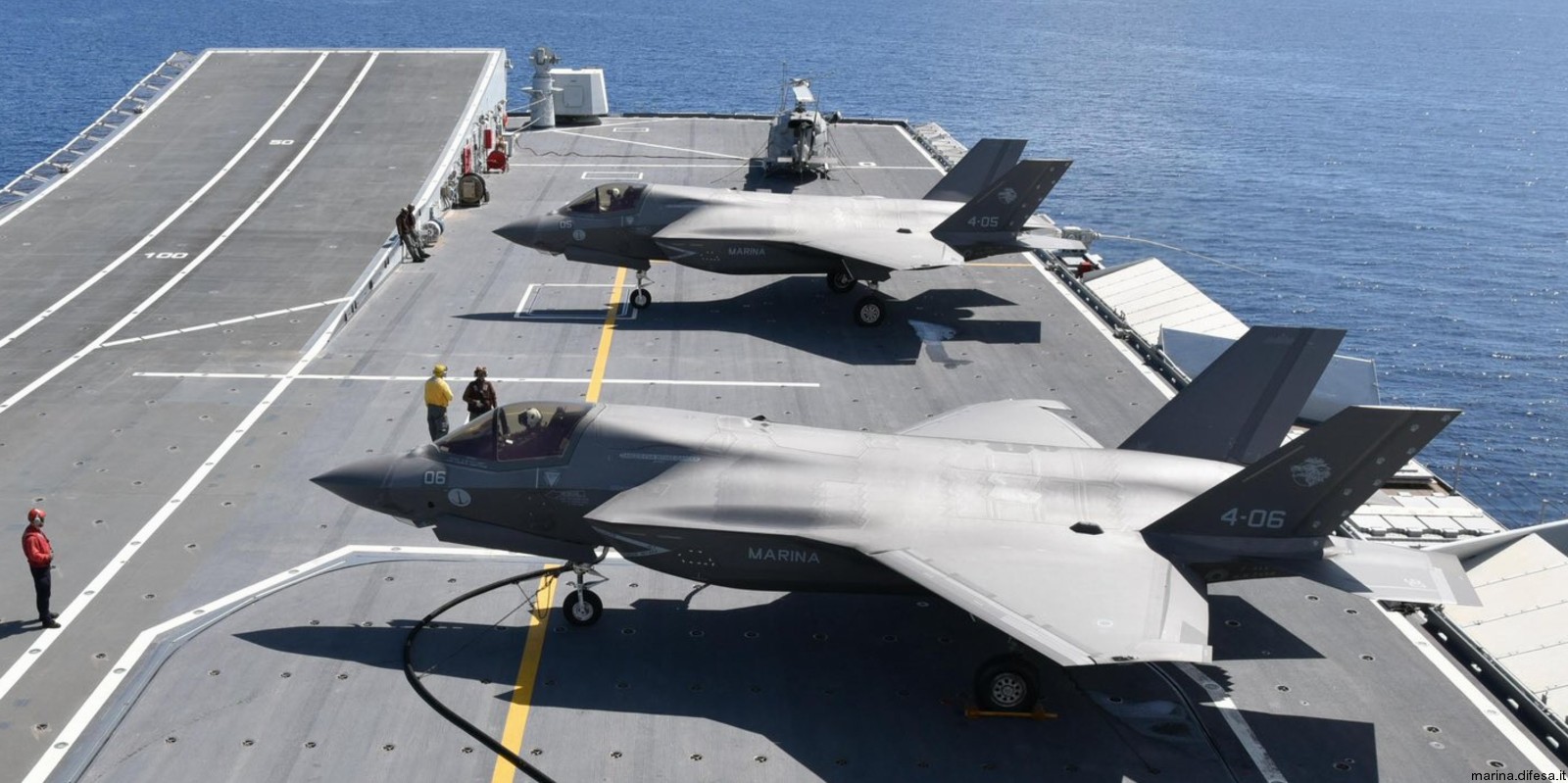

f-35b lightning ii italian navy marina militare lockheed martin grupaer 28

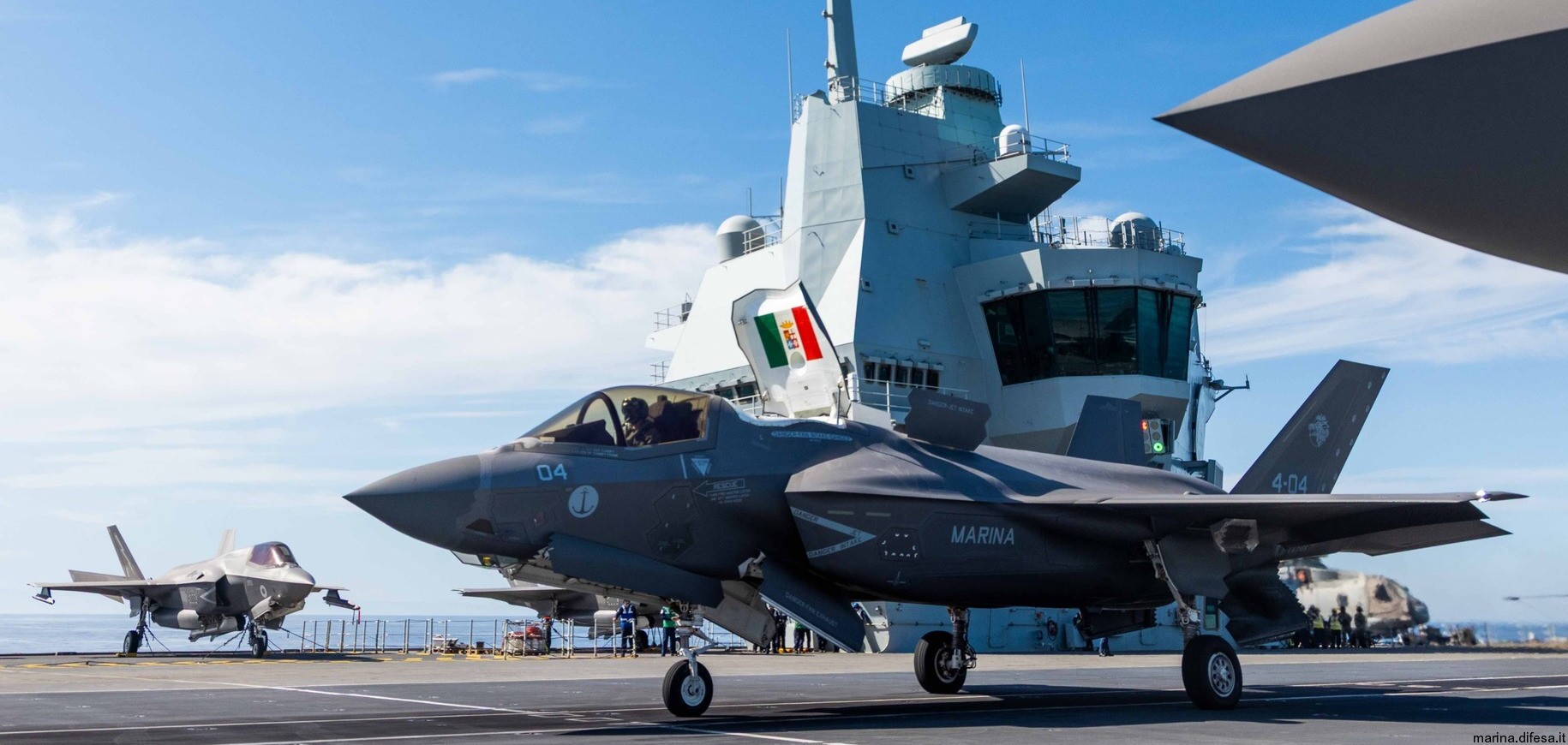

f-35b lightning ii italian navy marina militare lockheed martin grupaer r08 hms queen elizabeth 29

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 02

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 08

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 05

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 03

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 09

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 10

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer c550 cavour 06

f-35b lightning ii italian navy marina militare lockheed martin leonardo grupaer taranto grottaglie 04

F-35B Lightning II - Italian Air Force (Aeronautica Militare)

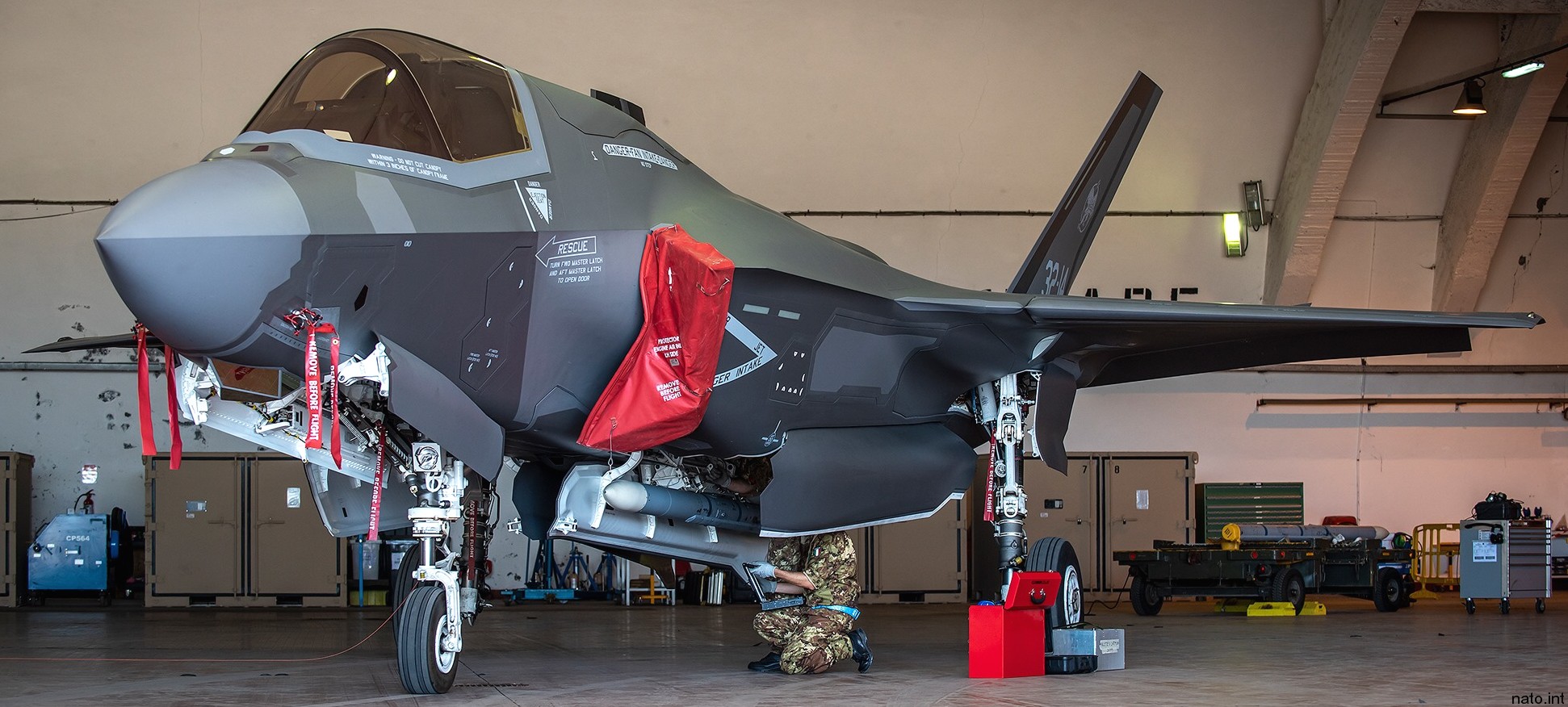

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 18

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 18

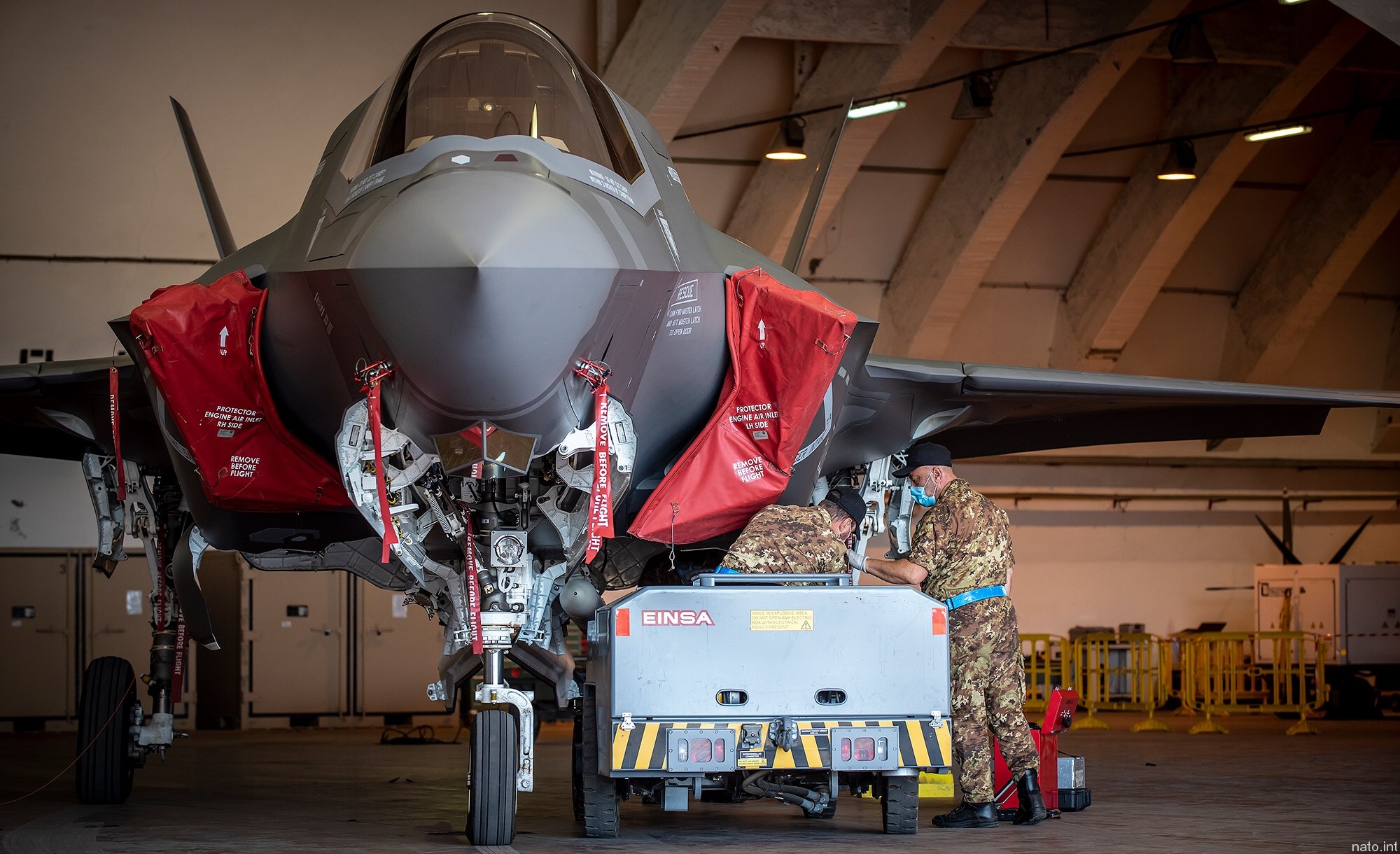

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 20

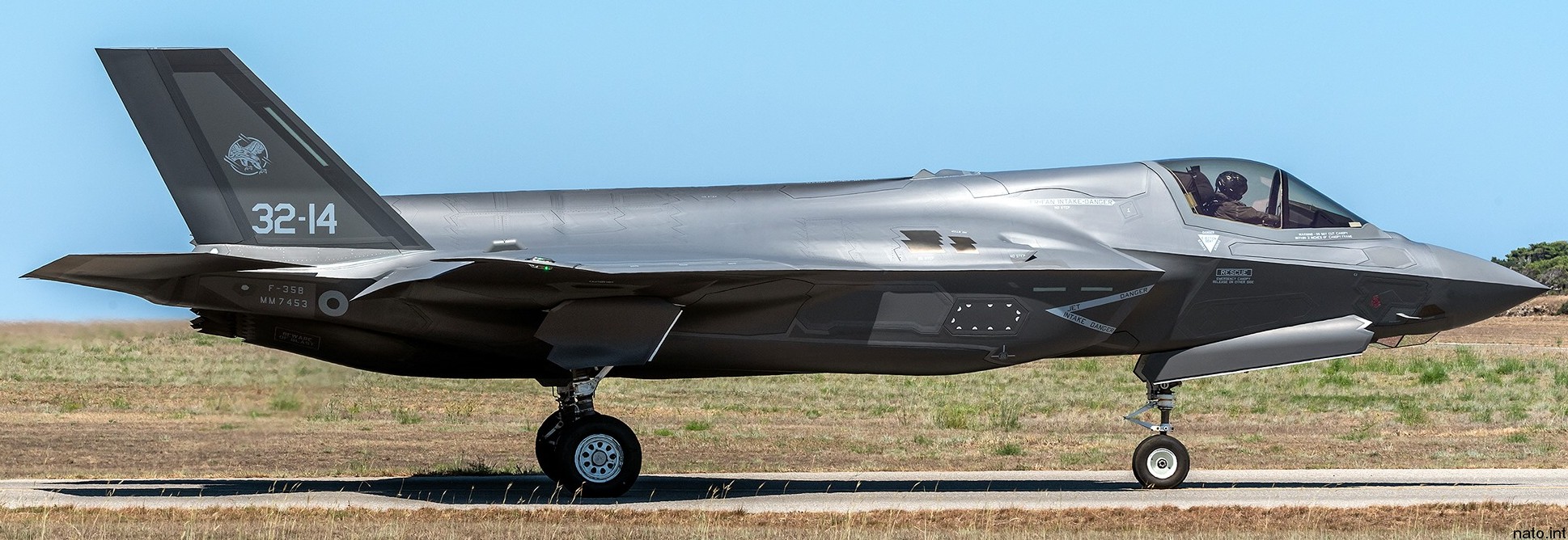

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 21

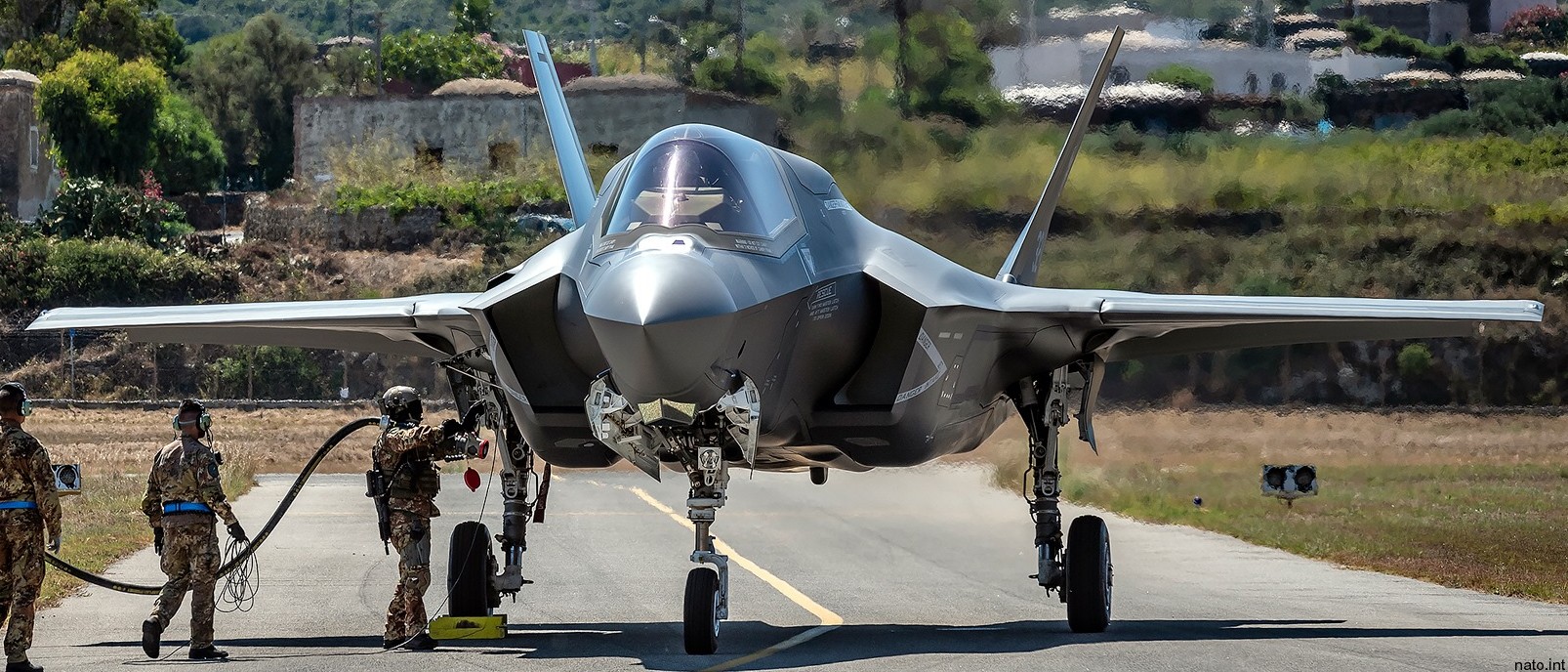

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 22

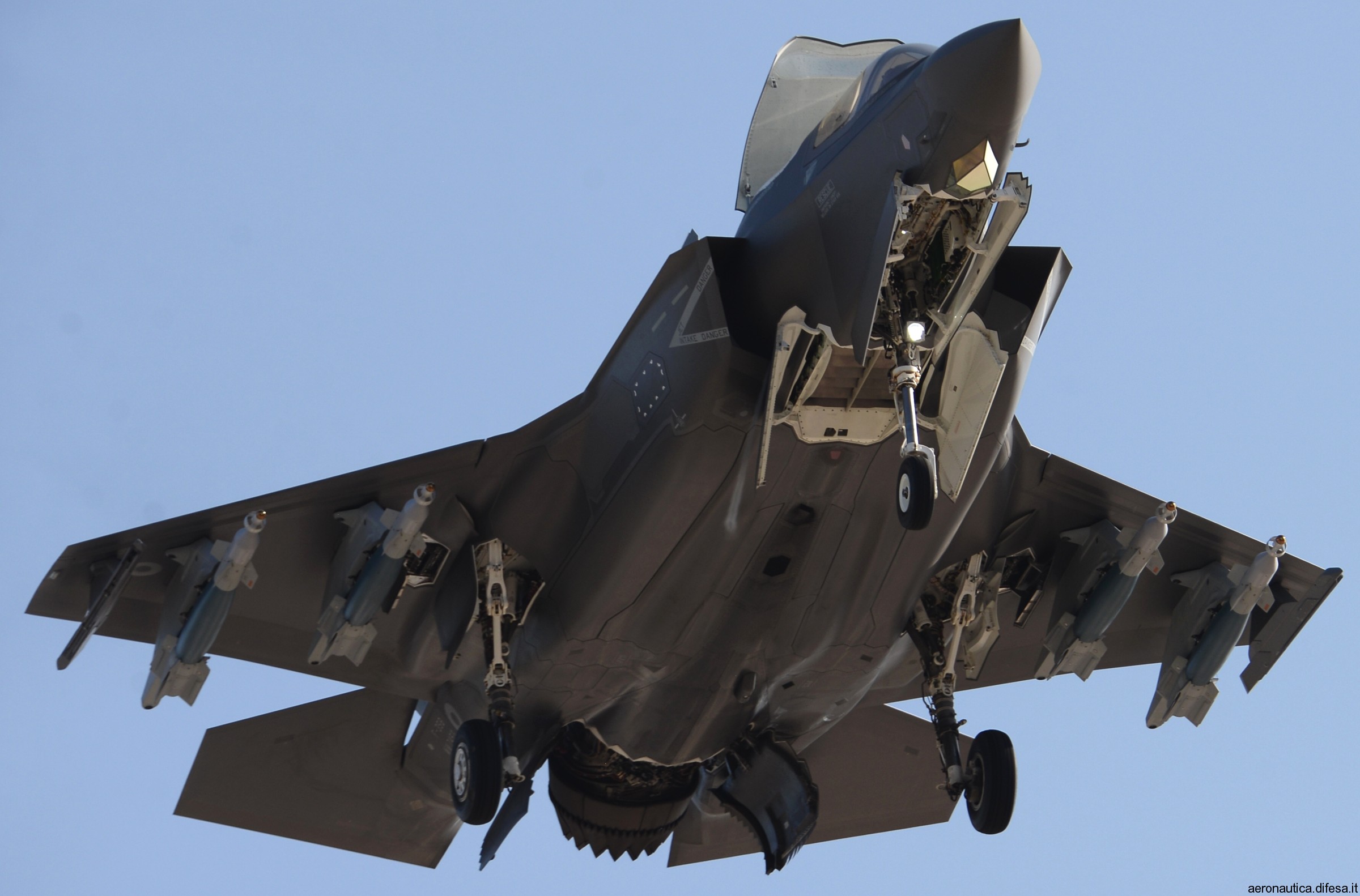

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 15

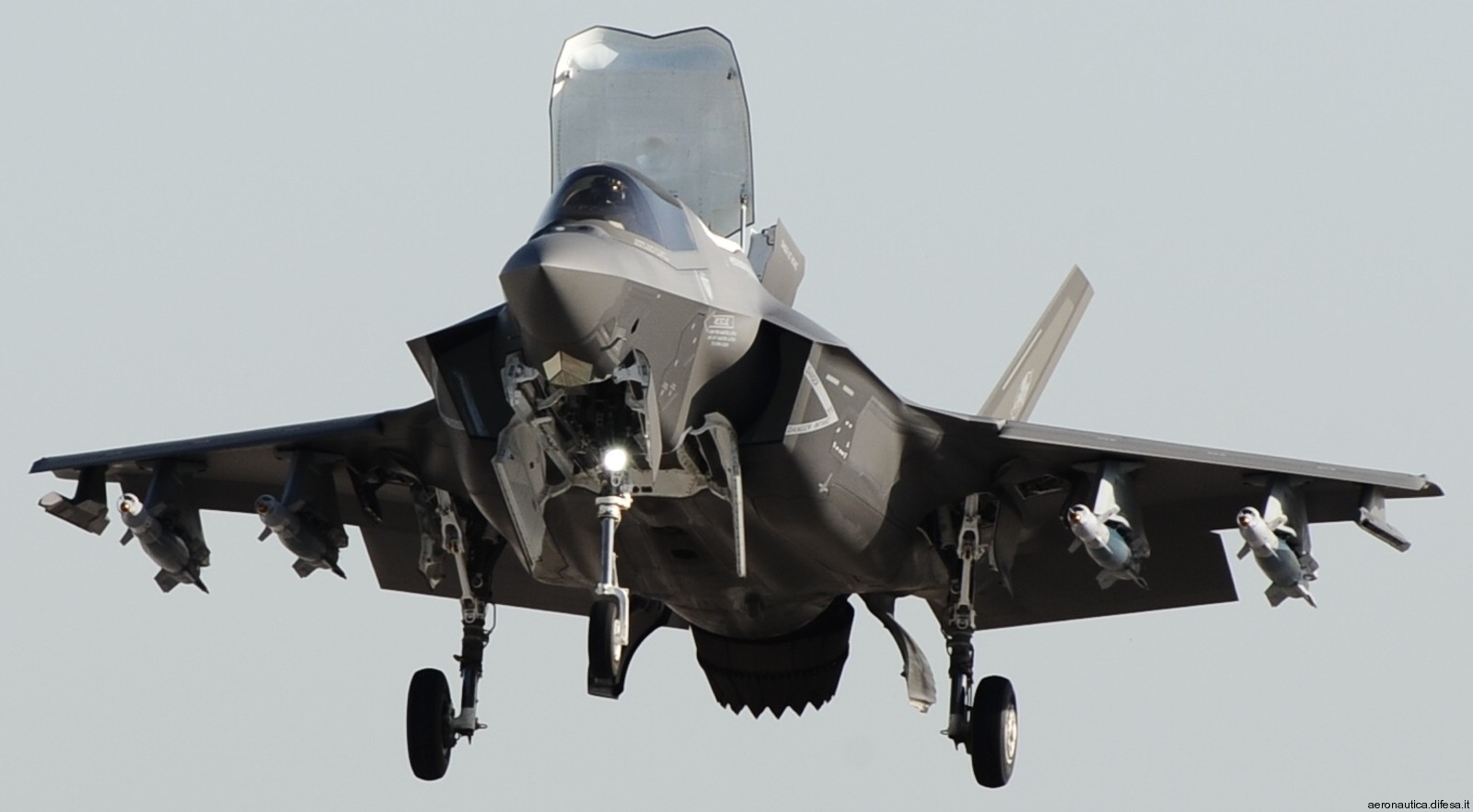

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 16

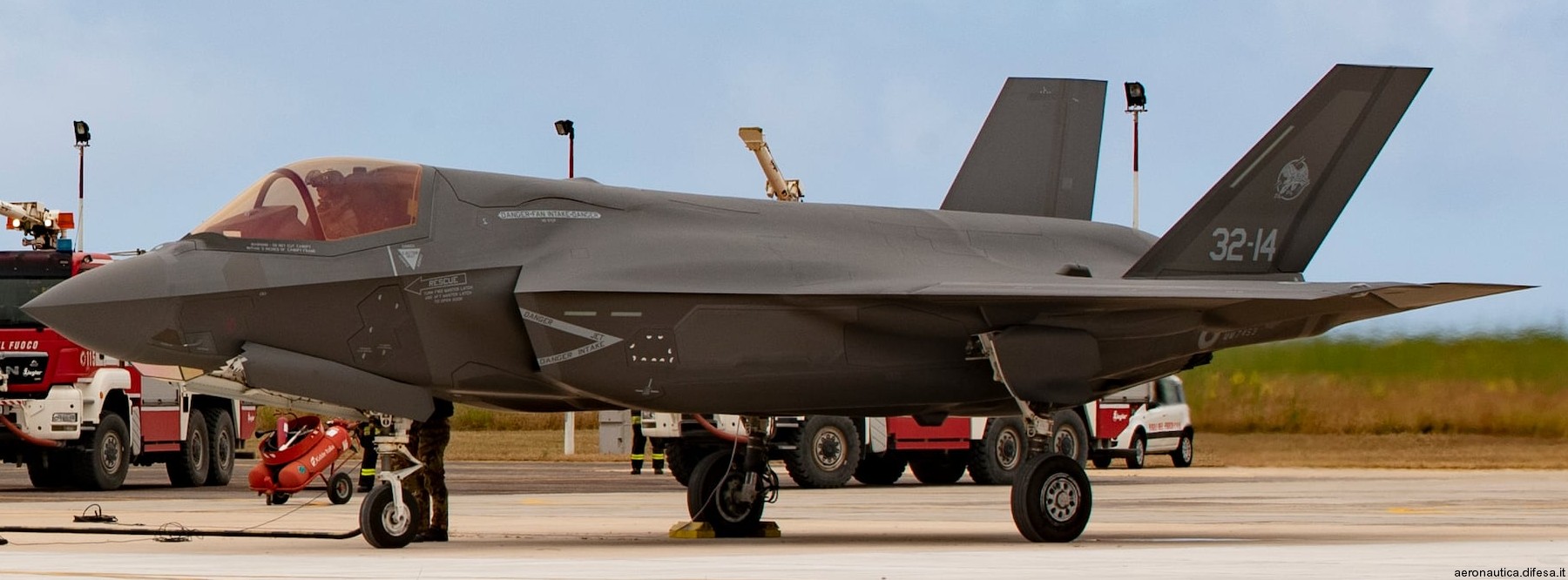

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 19

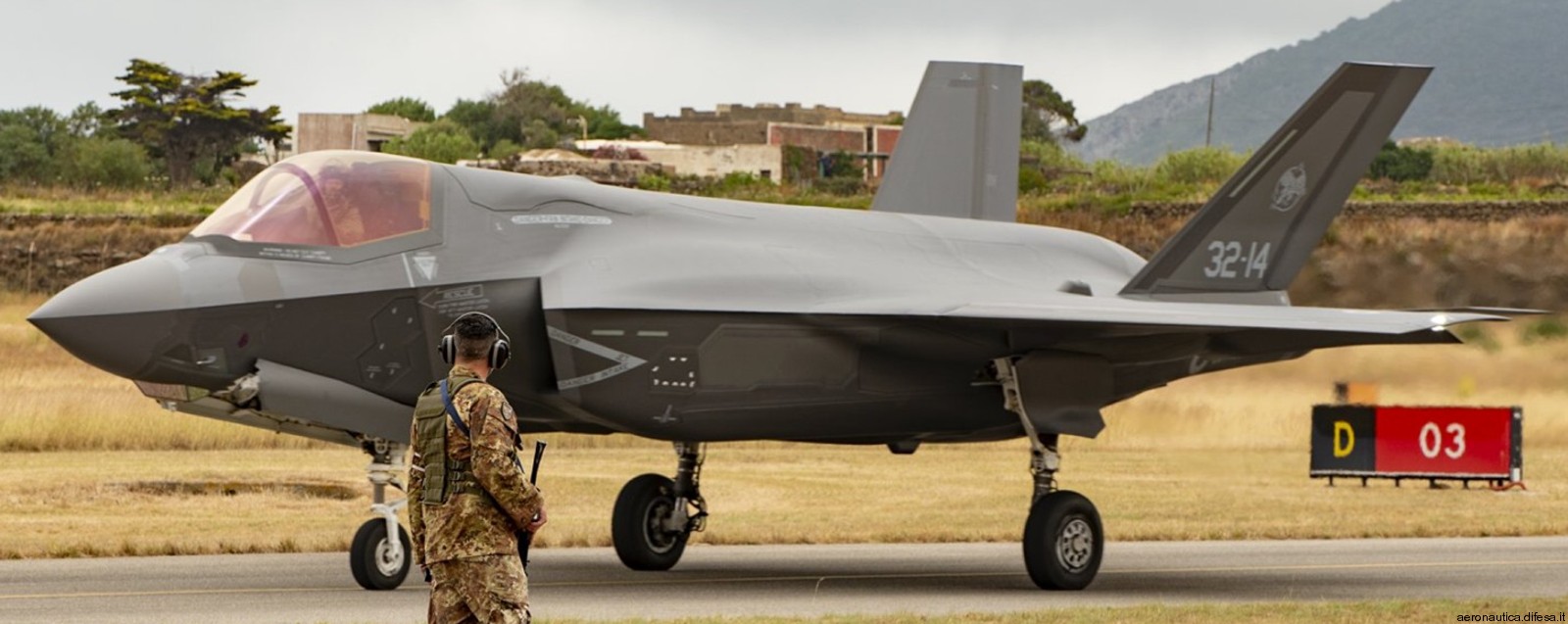

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 17

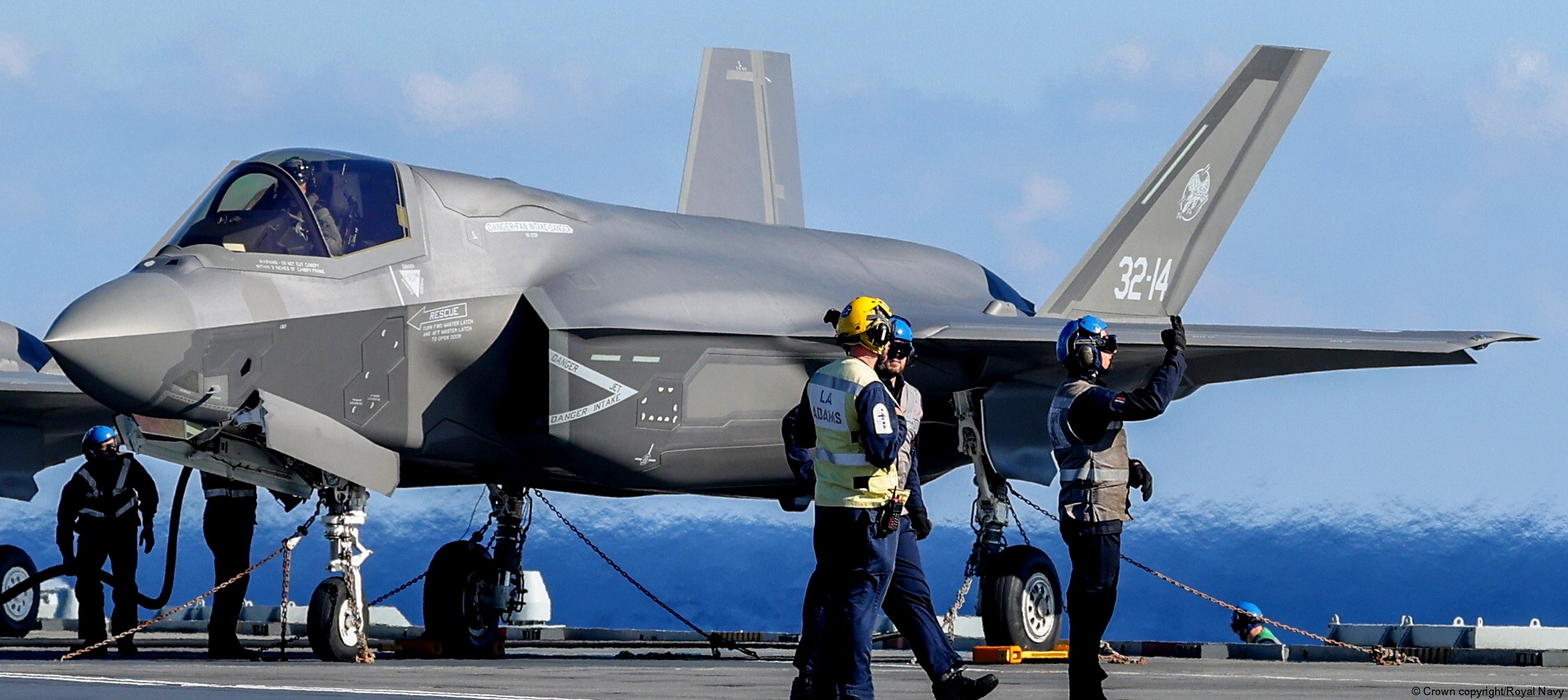

f-35b lightning ii italian air force aeronautica militare lockheed martin 13 gruppo amendola 32
