Japan Maritime Self Defense Force / JMSDF
Asagiri class Destroyer - DD


asagiri class destroyer japan maritime self defense force jmsdf jds yamagiri yugiri amagiri hamagiri setogiri sawagiri umigiri

09/22
Ships:

DD-151 JS Asagiri (1988)
DD-152 JS Yamagiri (1989)
DD-153
JS Yugiri (1989)
DD-154
JS Amagiri (1989)
DD-155
JS Hamagiri
(1990)
DD-156
JS Setogiri
(1990)
DD-157
JS Sawagiri
(1990)
DD-158
JS Umigiri
(1991)


Specifications:
Length: 137 meters (449 feet 6 inches)
Beam: 14.6 meters (47 ft 11 in)
Draft: 4.5 meters (14 ft 9 in)

Displacement: 3500 tons (standard) / 4900 tons (full load)
Speed: 30 knots, max. (56 km/h)
Range: 8000 NM (14800km) at 14 knots (26 km/h)
Complement: 220


 Propulsion:
COGAG (combined gas and gas)
4 x
Kawasaki/Rolls-Royce Spey SM-1A gas turbines (54000 shp)

2 shafts / 2 controllable pitch propellers


 Aviation:
flight deck and hangar for 1 helicopter / SH-60J/K Seahawk


Armament:
1 x Oto-Melara 76mm/62-caliber gun (3-inches)
2 x Mk.141 missile launcher for 8 RGM-84 Harpoon SSM
1 x Mk.29 missile launcher for 8 RIM-7 Sea Sparrow SAM
1 x
Type 74 (Mk.16) launcher for 8 RUR-5 ASROC anti-submarine rockets

2 x Type 68/HOS-302A (Mk.32) 12,75-inch (324mm) triple torpedo tubes for Mk.46 torpedoes
2 x Mk.15 Phalanx Close-In-Weapon-System (CIWS) (added later)

Systems:
OYQ-6/7 Combat Direction System (CDS) with Link-11
OPS-14/24 air search radar
OPS-28 surface search radar
OQS-4A hull sonar
OQR-1 towed array sonar

NOLR-8 intercept
OLT-3 jammer
Mk-36 SRBOC jaff & decoy launcher

Design:

The hull is an enlarged type of Hatsuyuki class, and the hull form is of the shelter deck style. Also, as the latter batch of the Hatsuyuki class, the upper structure is made of steel, but since it was incorporated into the design from the beginning, the adverse effect on the movement performance was solved.

The engine room was greatly renovated. Instead of the COGOG propulsion system of the Hatsuyuki class, this class has the COGAG propulsion system with four Kawasaki-Rolls-Royce Spey SM1A gas turbines. With these powerful engines, it was possible to run at 26 knots (48 km/h; 30 mph) by driving only two of the four engines, especially the benefits of tracking a submarine were great. And alternating arrangement was introduced to improve resistance and durability, as in the steam turbine driven destroyers.

Equipment:
The earlier batch was equipped the OYQ-6 combat direction system (CDS). This system employed one AN/UYK-20 computer as the same as OYQ-5 tactical data processing system of the Hatsuyuki class, but with expanded memories, it can exchange tactical data via Link-11, which the OYQ-5 does not support. Later, all OYQ-6 systems were upgraded to the OYQ-7, integrated with OYQ-101 ASW Direction System. All ships of this class were later retrofitted with the terminal for the MOF system, the key operational C4I system of the JMSDF which uses the Superbird SHF-SATCOM.

The surface-search radars were replaced by OPS-28. The air-search radars were updated to OPS-14C in the earlier batch, and in the latter batch, OPS-24 3D radars were introduced. This was a maritime version of the land-based J/FPS-3 early-warning radar, and first shipboard active electronically scanned array radar in the world. In the latter batch, electronic warfare support measures systems were also replaced by NOLR-8, completely newly developed with emphasis on anti-ship missile defense.

Its weapon system is basically the same as the Hatsuyuki class except for the minor change on its FCS. However, a new SH-60J was installed as a shipboard helicopter, so a large capacity data link device was installed. The hangar is enlarged in order to accommodate two helicopters, but only one helicopter is used operationally.

source: wikipedia

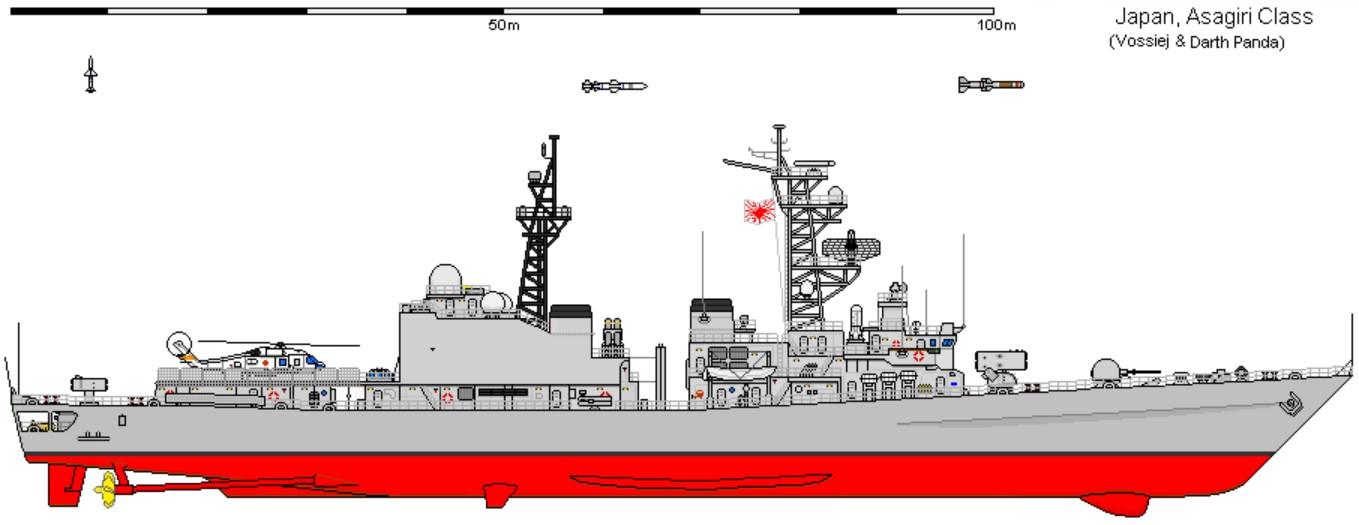

asagiri class destroyer jmsdf armament oto melara 76/62 gun type-74 asroc rur-5 mk-15 ciws mk-141 rgm-84 harpoon ssm mk-29 missile launcher rim-7 sea sparrow sam torpedo tubes type-68 mk.32

asagiri class destroyer jmsdf armament oto melara 76/62 gun type-74 asroc rur-5 mk-15 ciws mk-141 rgm-84 harpoon ssm mk-29 missile launcher rim-7 sea sparrow sam torpedo tubes type-68 mk.32 002


images
for more images go to the individual ship-site

asagiri class destroyer japan maritime self defense force jmsdf dd-151 05c
JS Asagiri (DD 151)

asagiri class destroyer japan maritime self defense force jmsdf dd-152 js yamagiri 03c
JS Yamagiri (DD 152)

asagiri class destroyer japan maritime self defense force jmsdf dd-153 js yugiri 03c
JS Yugiri (DD 153)

asagiri class destroyer japan maritime self defense force jmsdf dd-154 js amagiri 02c
JS Amagiri (DD 154)

asagiri class destroyer japan maritime self defense force jmsdf dd-155 js hamagiri 03c
JS Hamagiri (DD 155)

asagiri class destroyer japan maritime self defense force jmsdf dd-156 js setogiri 11c
JS Setogiri (DD 156)

asagiri class destroyer japan maritime self defense force jmsdf dd-157 js sawagiri 13c
JS Sawagiri (DD 157)

asagiri class destroyer japan maritime self defense force jmsdf dd-158 js umigiri 06c
JS Umigiri (DD 158)


detail images

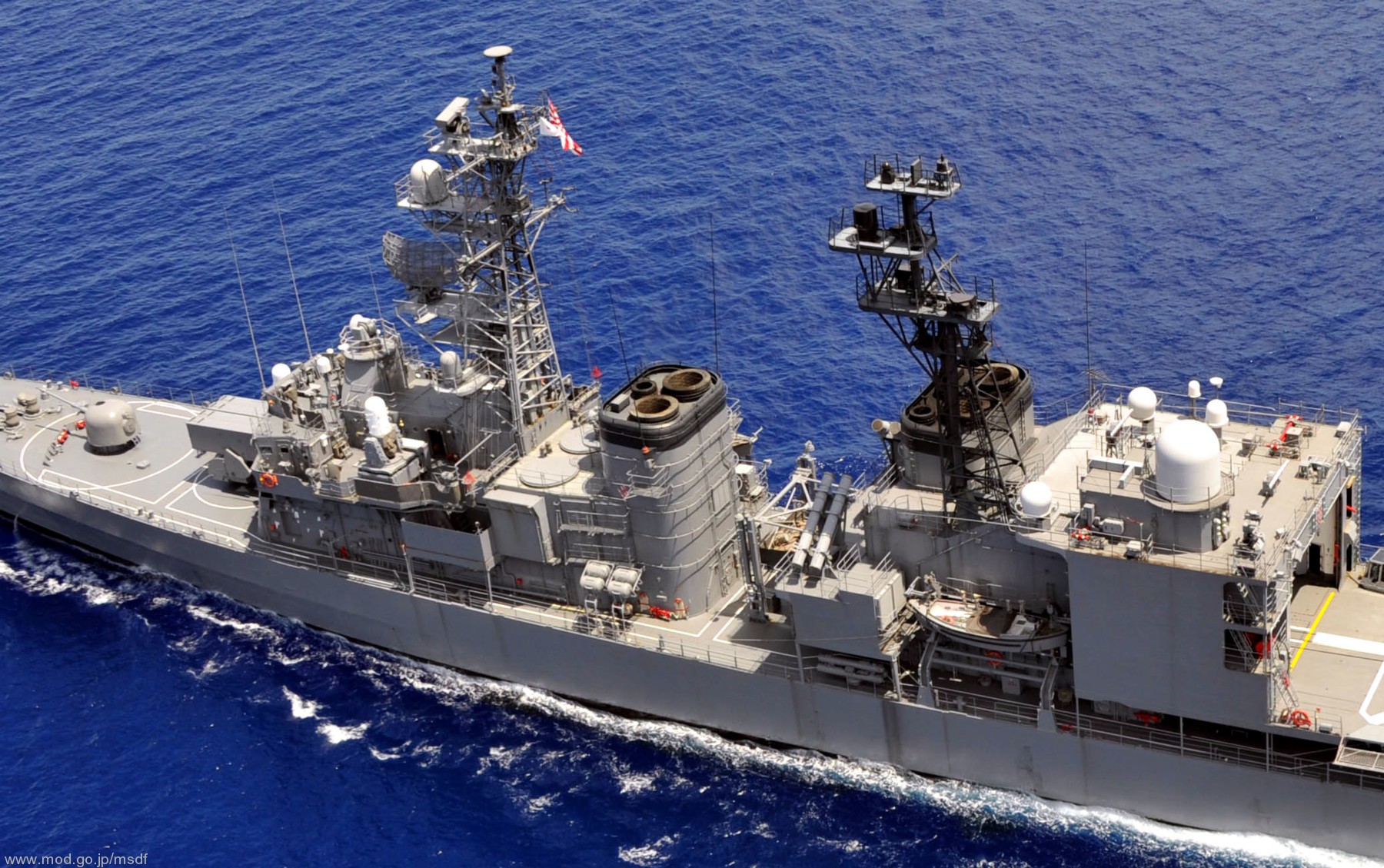

asagiri class destroyer japan maritime self defense force jmsdf superstructure armament masts 03

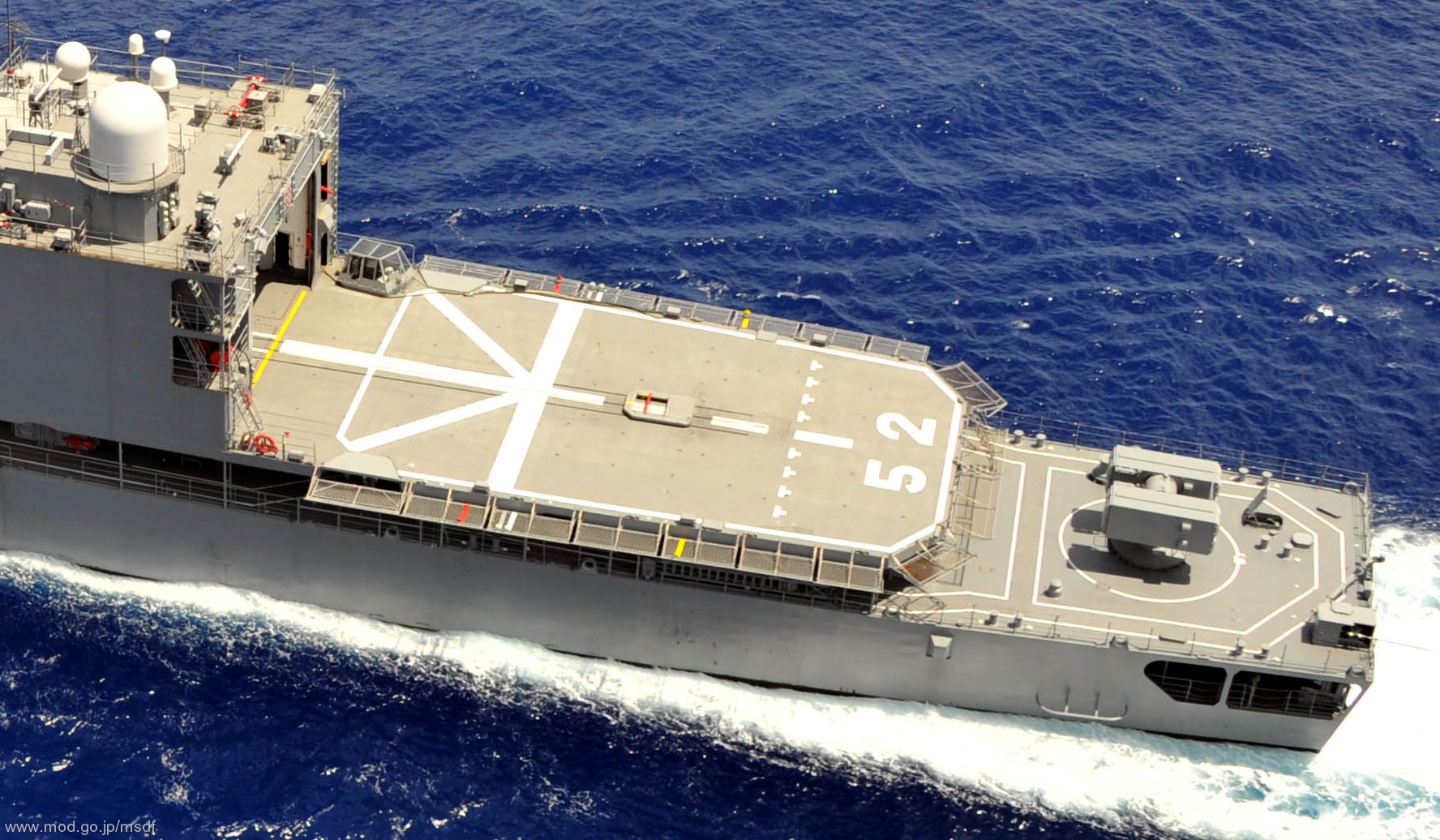

asagiri class destroyer japan maritime self defense force jmsdf hangar flight deck mk-29 sea sparrow launcher 04

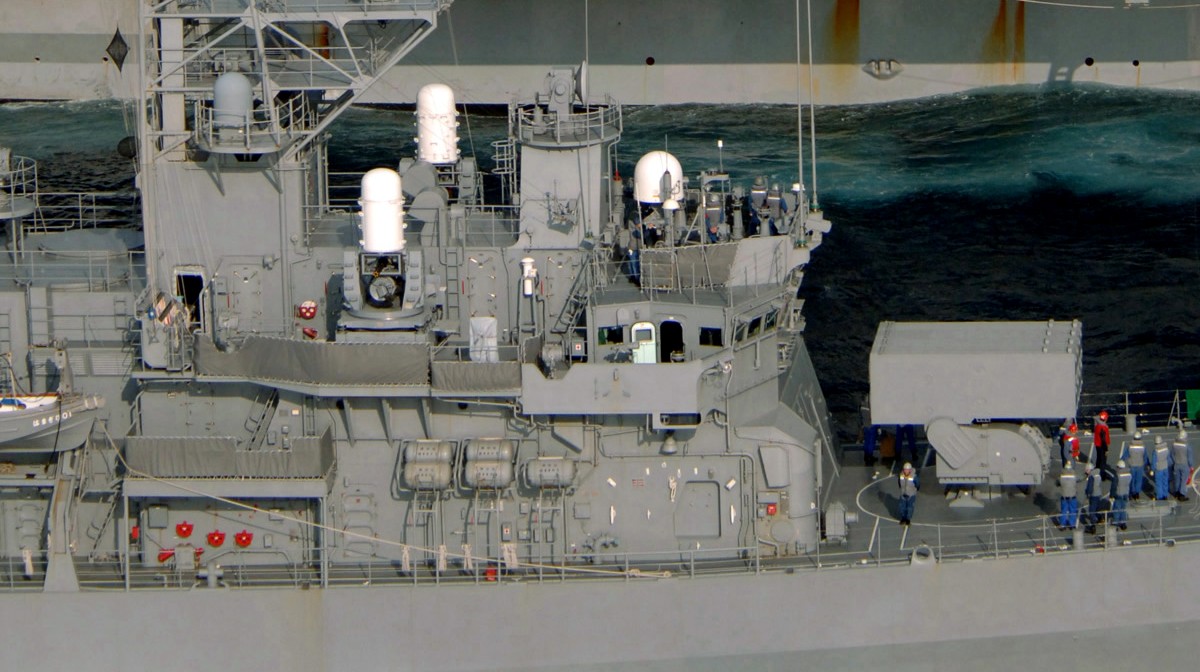

asagiri class destroyer japan maritime self defense force jmsdf superstructure bridge mk.15 ciws 16

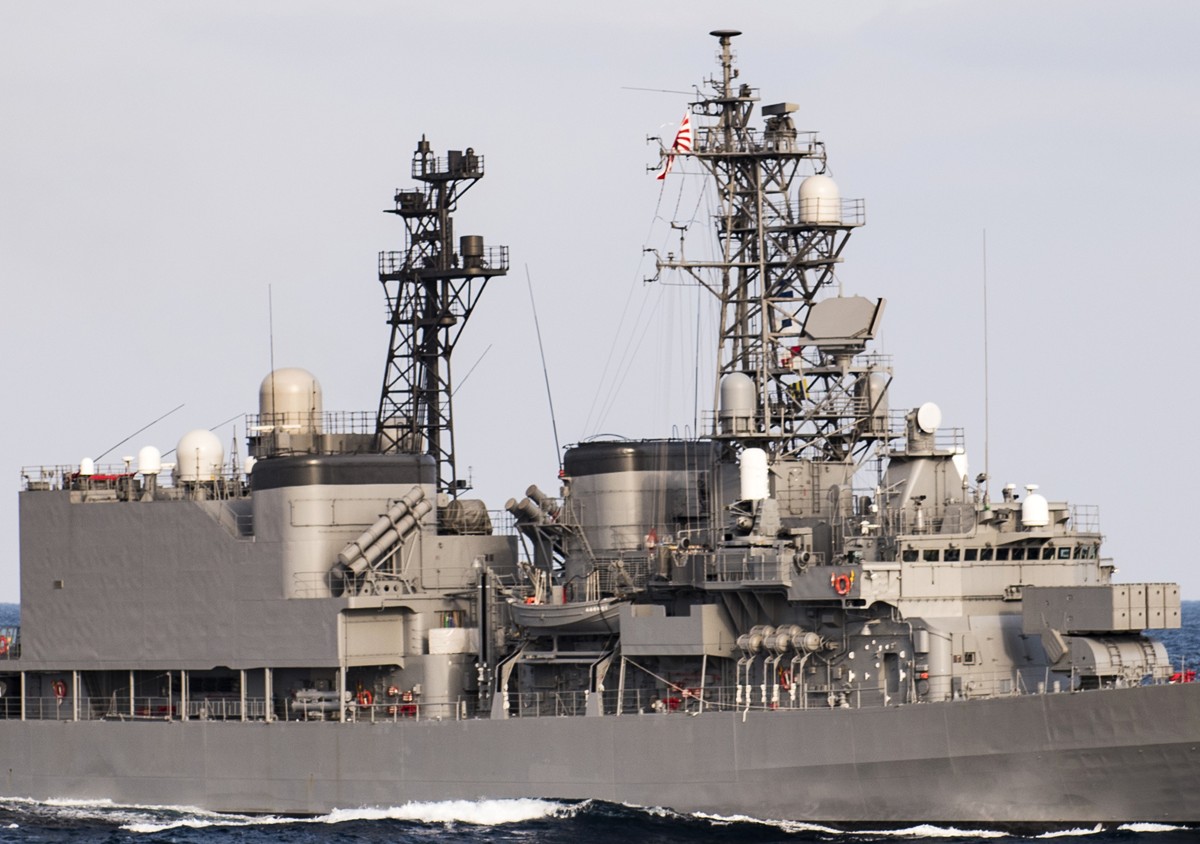

asagiri class destroyer japan maritime self defense force jmsdf armament hangar mk.141 rgm-84 harpoon launcher 09

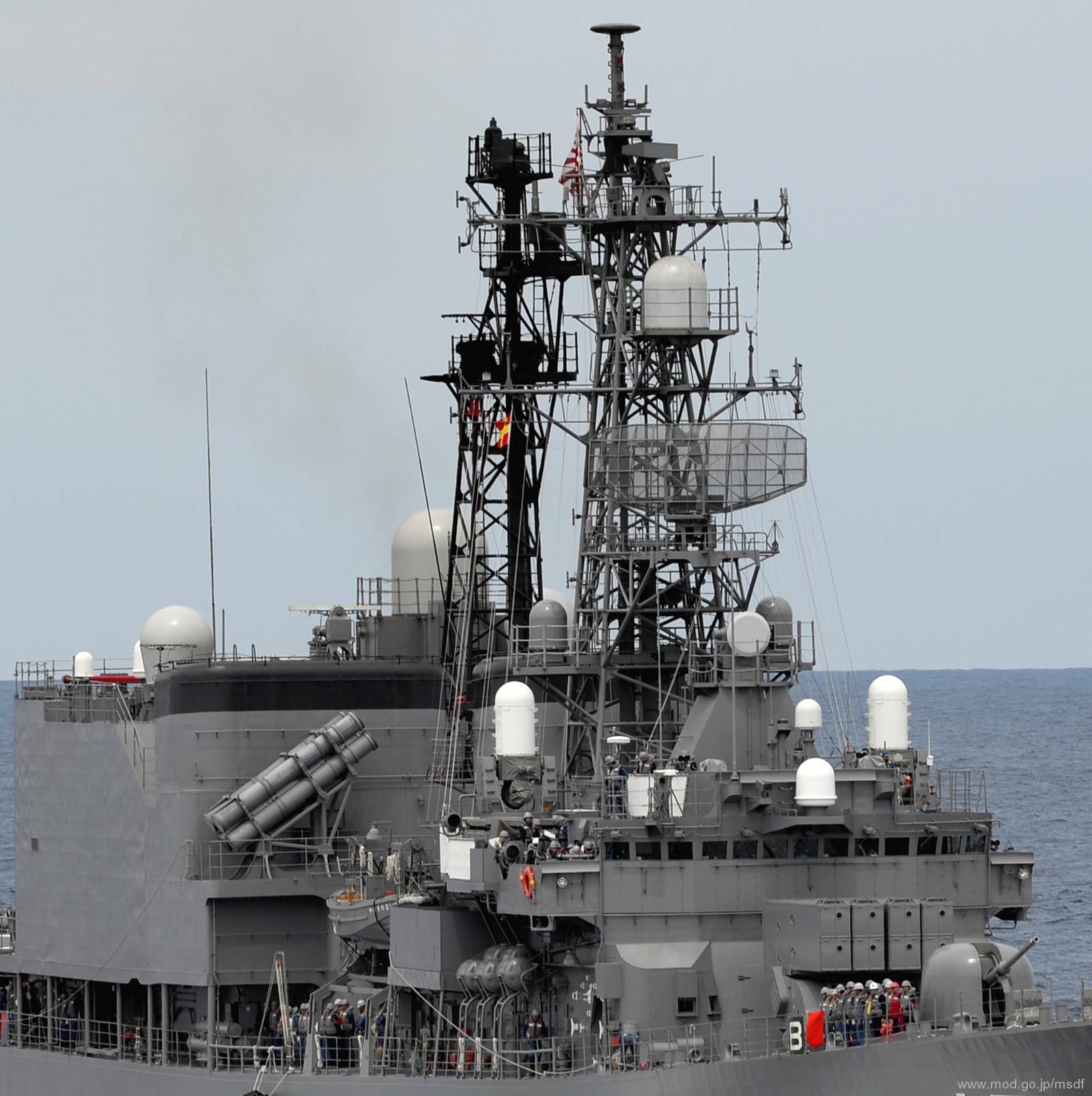

asagiri class destroyer japan maritime self defense force jmsdf mast details armament mk.141 harpoon launcher mk.15 ciws 07

asagiri class destroyer japan maritime self defense force jmsdf flight deck hangar sea sparrow launcher 05

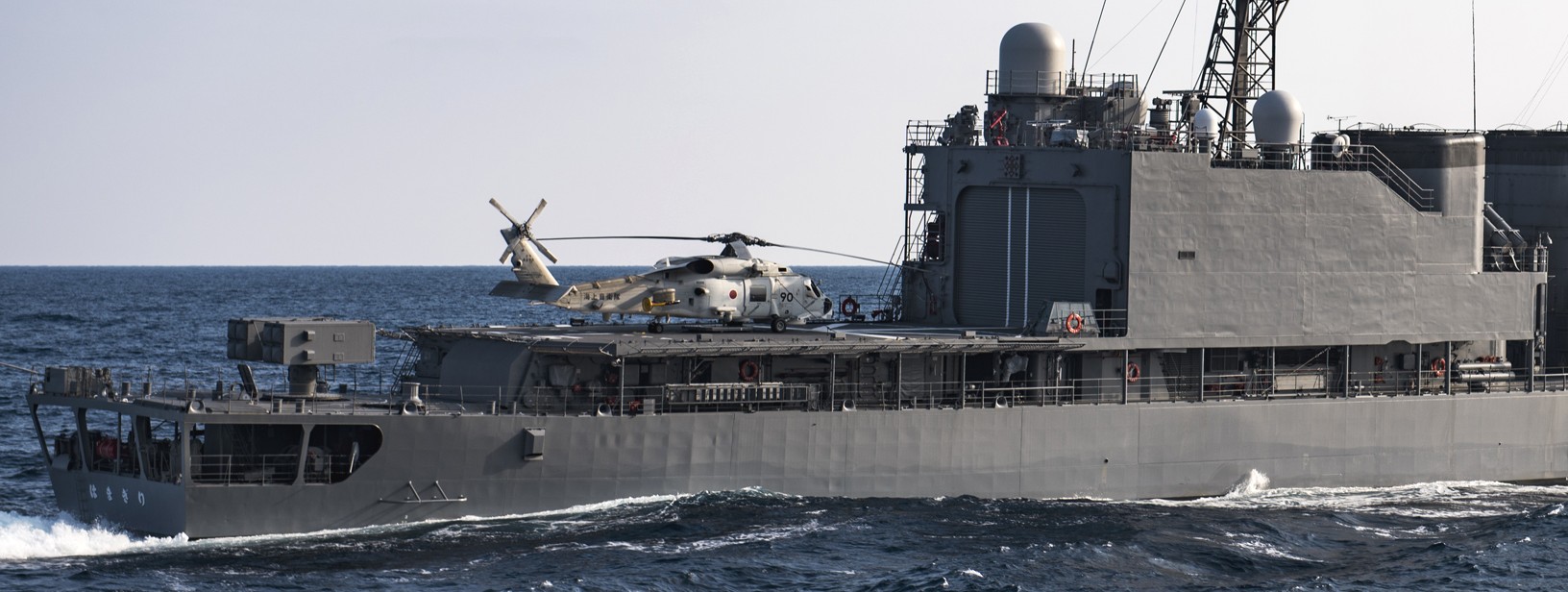

asagiri class destroyer japan maritime self defense force jmsdf flight deck hangar sh-60 seahawk helicopter 10

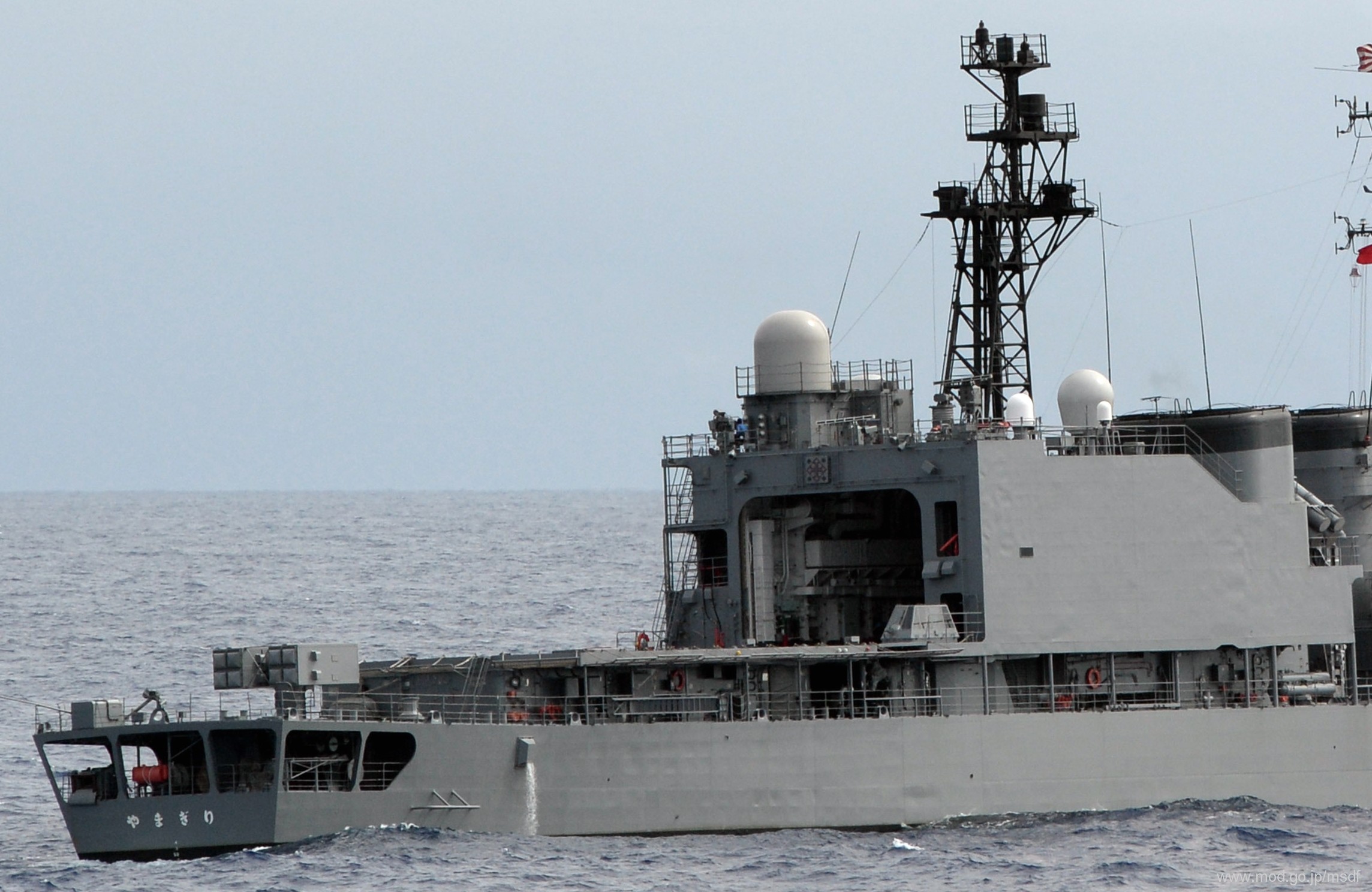

asagiri class destroyer japan maritime self defense force jmsdf superstructure hangar 11

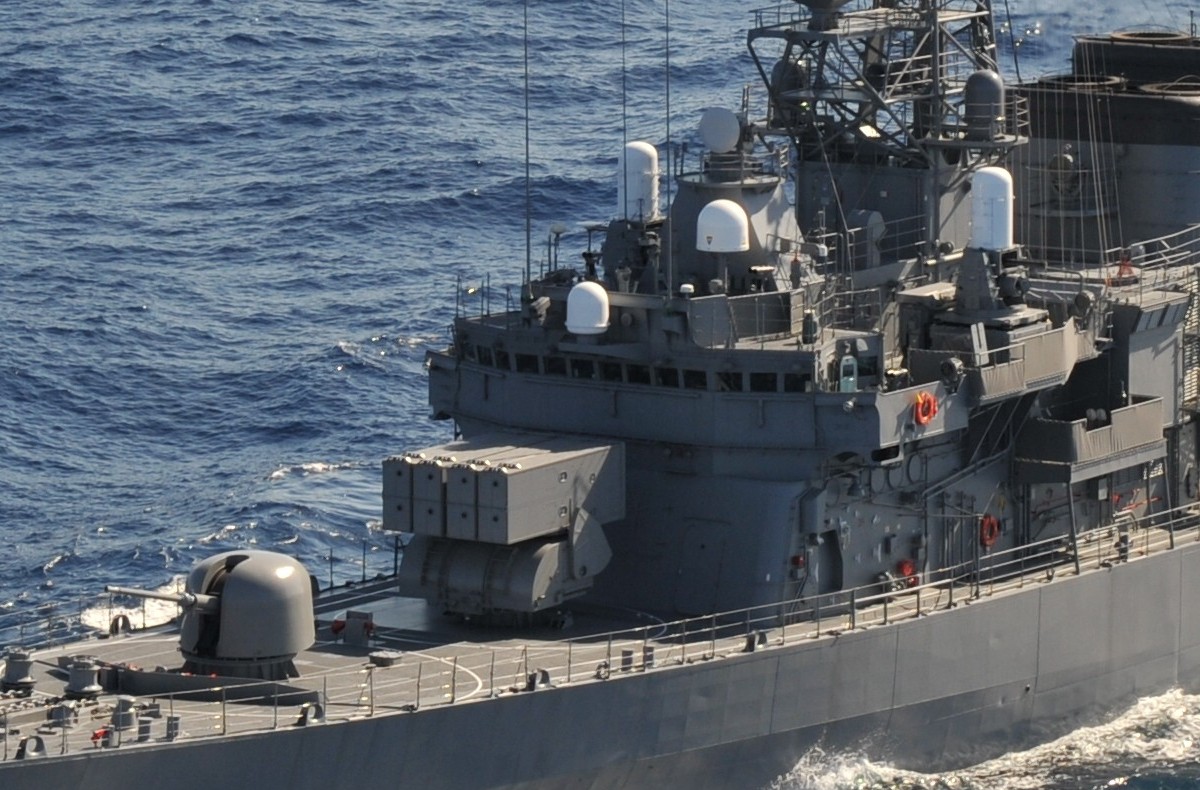

asagiri class destroyer japan maritime self defense force jmsdf oto melara gun asroc launcher 17

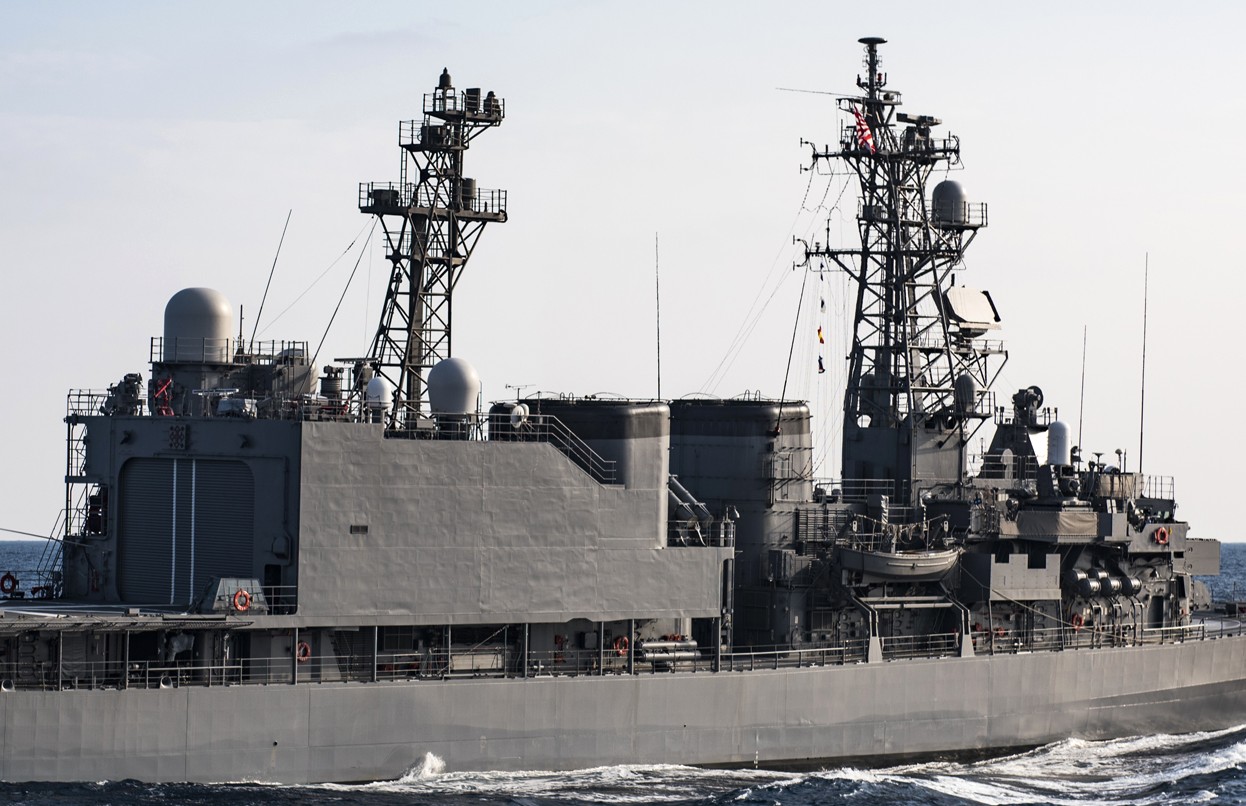

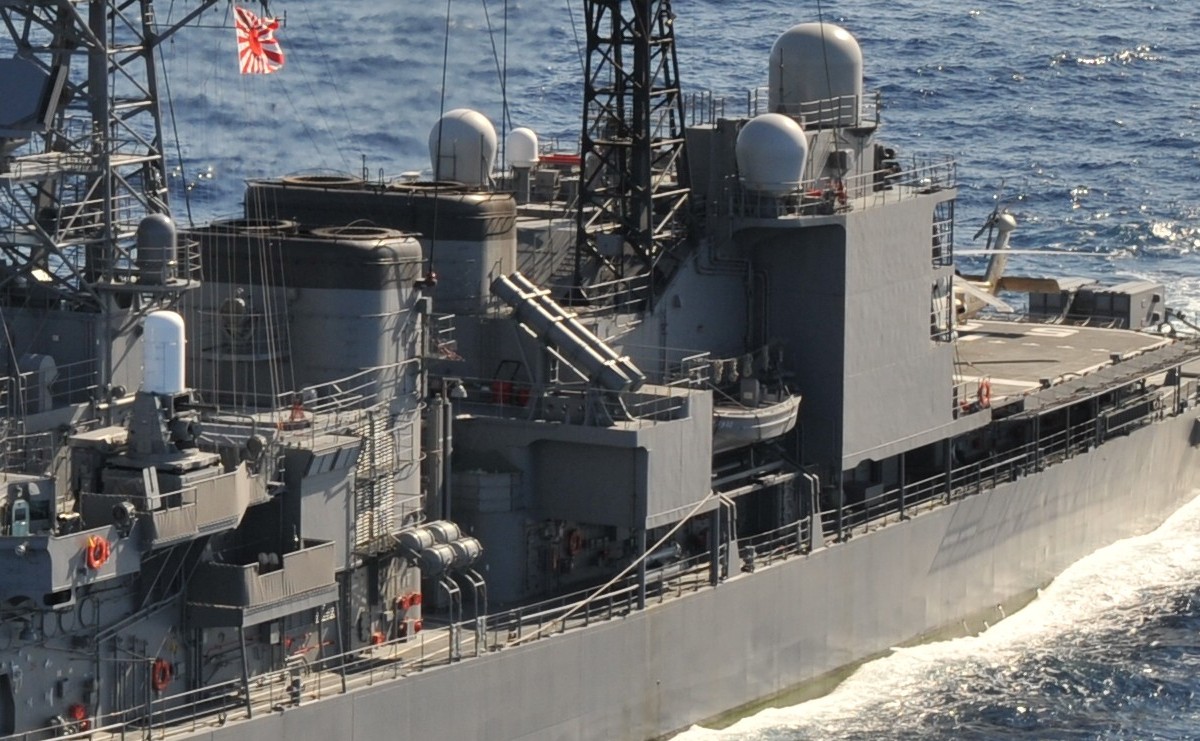

asagiri class destroyer japan maritime self defense force jmsdf superstructure 18

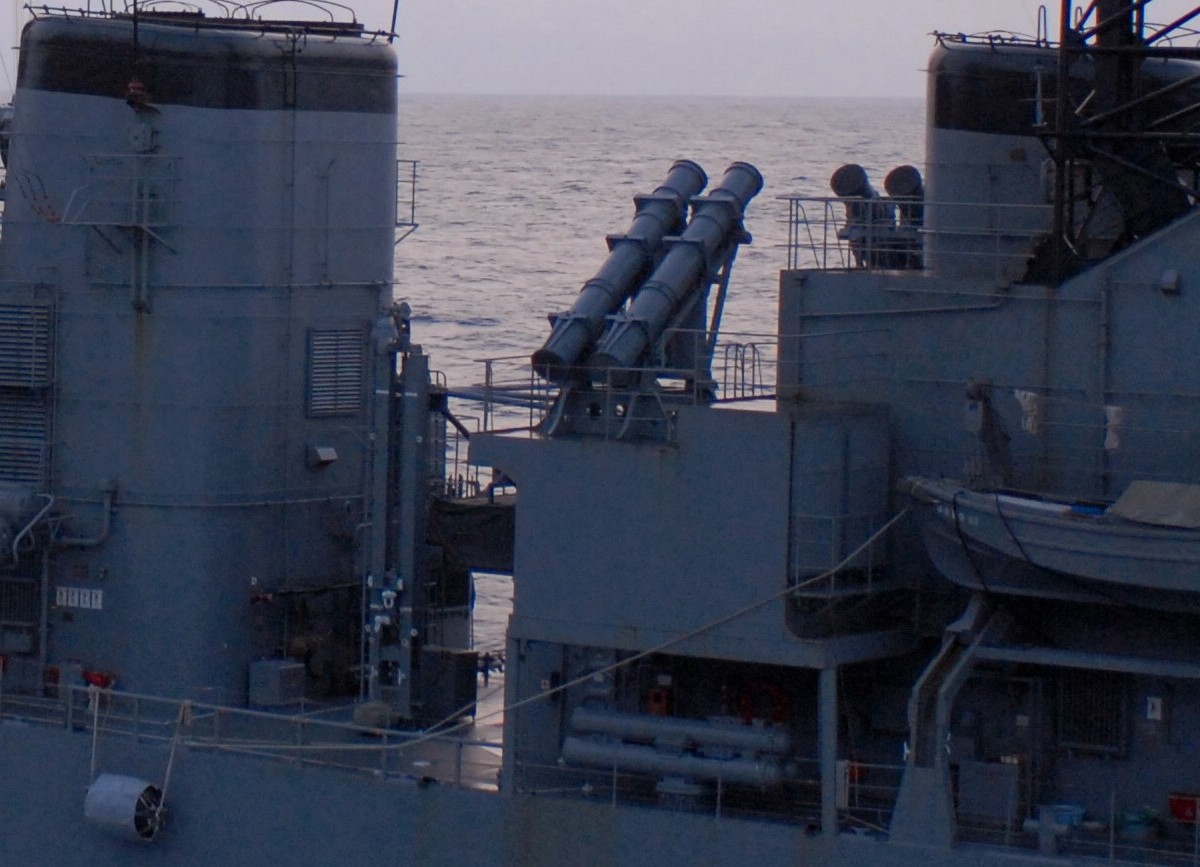

asagiri class destroyer japan maritime self defense force jmsdf torpedo tubes harpoon ssm launcher 19

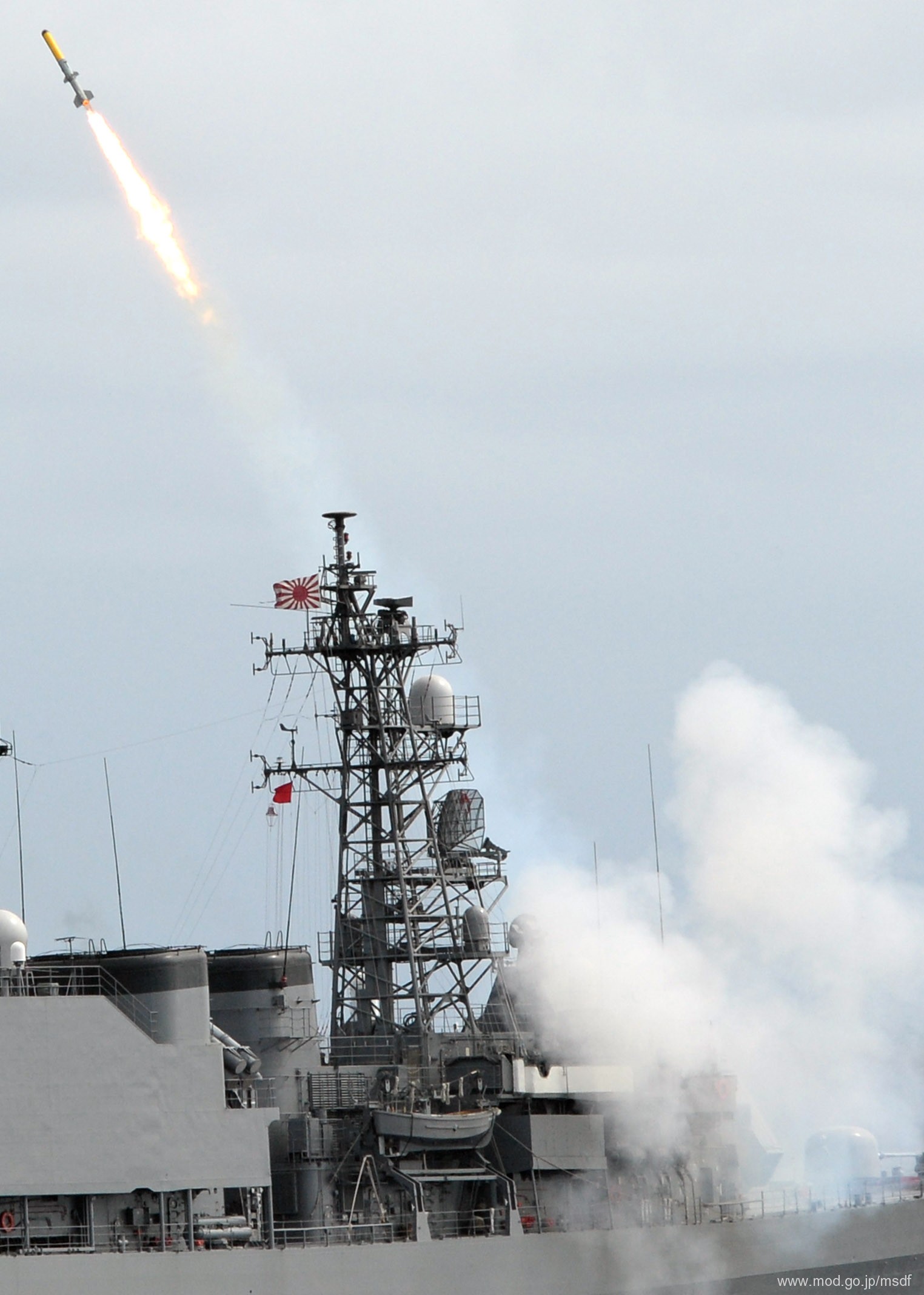

asagiri class destroyer japan maritime self defense force jmsdf rur-5 asroc launcher type-74 mk.16 06
RUR-5 ASROC was launched from the Type 74 (Mk-16) launcher

asagiri class destroyer japan maritime self defense force jmsdf 08
3 of a kind: JDS Asagiri (DD 151), JDS Sawagiri (DD 157) and JDS Yamagiri (DD 152) alongside

asagiri class destroyer japan maritime self defense force jmsdf 12
3 of a kind: JDS Asagiri (DD 151), JDS Sawagiri (DD 157) and JDS Yamagiri (DD 152) alongside

asagiri class destroyer japan maritime self defense force jmsdf 18x
JDS Amagiri (DD 154), top and JDS Sawagiri (DD 157) with JDS Shimakaze (DDG 172)

asagiri class destroyer japan maritime self defense force jmsdf 13
JDS Asagiri (DD 151) and JDS Sawagiri (DD 157) alongside JDS Kurama (DDH 144)

asagiri class destroyer japan maritime self defense force jmsdf 15
JDS Asagiri (DD 151) and JDS Sawagiri (DD 157) alongside JDS Kurama (DDH 144)

asagiri class destroyer japan maritime self defense force jmsdf 14
JDS Setogiri (DD 156) and JDS Hamagiri (DD 155)
