The OTO 76/62 Gun, is a light-weight, rapid-fire naval autocannon built and designed by the
Italian defence company OTO Melara. It is based on the OTO Melara
76/62C and evolved toward 76/62SR and 76/62 Strales. The system is compact enough to be installed on relatively small warships. Its high rate of fire and the availability of several types of ammunition make it capable of short-range anti-missile point defence, anti-aircraft, anti-surface, and ground support. Ammunition includes armour-piercing, incendiary, directed fragmentation effects, and a guided round marketed as capable of destroying maneuvering anti-ship missiles. The OTO Melara 76 mm has been widely exported, and is in use by sixty navies. The Super Rapid Gun Mount (SRGM) variant is being license-manufactured in India by Bharat Heavy Electricals Limited (BHEL) in its Haridwar plant in Uttarakhand, India since 1994. Multiple warships of the Indian Navy as well as the Indian Coast Guard has deployed SRGM as an anti-missile/anti-aircraft naval gun. Variants: 76/62 Compact The original version has a rate of fire of 85 rounds per minute. 76/62 Super Rapid (SR) The Super Rapid or "Super Rapido" (SR) variant, with a higher rate of fire of 120 rounds per minute, was developed in the early 1980s and remains current as of 2025. The Super Rapid's higher rate of fire was achieved by designing a faster feed system. In service and new 76/62 SR, have the necessary flexibility for being fitted with optional: Integral Stealth Shield to reduce the total RCS of the ship. Muzzle Velocity Radar to update the FCS of eventual deviations from range table values. Multi Feeding Device for the automatic handling selection and feeding of any type of ammunition loaded. 76/62 Sovraponte ("over deck") is a new, compact, lightweight mount for the 76/62 gun. The system is approximately 30-40% lighter than the standard Super Rapid, and its installation requires no penetration of the deck below. The mount accommodates 76 ready-to-fire rounds and is available for sale both with and without the Strales system. The Sovraponte mount was installed for the first time on the Thaon di Revel-class patrol vessel of the Italian Navy, positioned above the roof of the helicopter hangar. STRALES Guidance System The OTO STRALES system represents a remarkable evolution for the 76/62 naval artilleries which includes three main components: a 76/62 naval gun, OTO DART guided ammunition and a Radio Frequency Guidance System with associated electronic. Specifications: Caliber: 3 inches / 76.2 mm Barrel lenght: 186 inches / 4.72 meters (= 62 caliber) Weight: 7,900 kg, empty (Super Rapid) Shell: 76 x 900 mm / 12.34 kilograms Elevation: - 15° to + 85° Traverse: 360° Rate of fire: Compact: 85 rpm / Super Rapid+Sovraponte: selectable from single shot up to 120 rpm Muzzle Velocity: 925 m/s (DART = 1,100 m/s) Magazine: Compact: 80 rounds / SR: 85 rounds / Sovraponte: 76 rounds Range: 16 kilometers with standard ammunition 20 km with extended range ammunition up to 40 km with VULCANO ammunition Manufacturer: 1963-2001 Oto-Melara / 2001-2015 OtoBreda / 2016- Leonardo Produced: Compact: 1963- / Super Rapid: 1988- Ammunition: HE: (high explosive): weight 6.296 kg, range 16 km, effective 8 km (10 km vs. air targets at 85°) MOM: (Multirole OTO Munition) developed by OTO PFF: (pre-formed fragmentation): anti-missile projectile, with proximity fuze and tungsten balls embedded in the shell for defined fragmentation effect SAPOM: (semi-armored piercing OTO munition) - 6.35 kg / Range 16 km SAPOMER: (semi-armored piercing OTO munition, extended range) - Range 20 km DART: (driven ammunition reduced time of flight): sub-calibre guided ammunition against multiple targets (missiles and maneuvering targets at sea) Projectile weight: in barrel 4.2 kg (in barrel) / 3.5 kg (in flight) Length: 660 mm Effective operating range: >8 km Initial velocity: 1100 m/s Maneuverability: up to 40 g's Fuse functions: anti-air proximity surface proximity impact delay impact Fuse characteristics: programmable during flight through RF beam ECM capability low altitude operation self destruction altimetric guidance Multiple feeding kit for 76mm Gun: Up to 20 ammunition type selectable Interchangeable to 76mm standard and double feeding 89 rounds ready-to-fire VULCANO: 5 kg guided (GLR) projectile with a maximum range around 40 km The transfer of VULCANO technology (155mm and 127mm) to the 76mm calibre creates a new family of long range precision ammunition, both guided and unguided. Thus the 76/62 gun system is a leap ahead of the competition, dramatically increasing its already outstanding artillery performances in the roles of Naval Gunfire Support (NGS) and Anti-Surface Warfare. The effective range of the gun is improved (twice the distance of normal 76 mm gun ammunition) beyond the industry standard with the extra precision provided by VULCANO Technology: sub calibre, GPS-inertial measurement unit (IMU) guidance and IR or SAL Terminal Sensor, as well as Terminal Lethality improvements. Any existing 76 gun can fire the new ammo VULCANO 76 mm family with an adaptation kit, according to the level of required performances. The new VULCANO 76, with additional embedded features, will have multi-ammo selection and be fully compatible with the Strales configuration. Characteristics: High performance Multipurpose Semi-Armour-Piercing Warhead Sub Calibre, Fin Stabilized airframe Projectile weight - 5kg Ballistic flight, no additional propulsion (>30km ballistic range) IMU + GPS guidance system, gliding phase (>40km guided range) Terminal Guidance (IR or SAL) Ammunition configurations: BER (Ballistic Extended Range) Unguided multipurpose (AAW, ASuW and NGS) Over 30 km range multifunctional fuze altimetric proximity time and air burst impact and delayed impact GLR (Guided Long Range) Guided for NGS missions Over 40 km range multifunctional fuze GPS & IMU guided GLR/IR (Guided Long Range/Infra Red) Guided for ASuW missions Up to 40 km range IR sensor for terminal guidance see also: Mk.75 76mm gun (US Navy) sources: wikipedia. Leonardo |
| images |

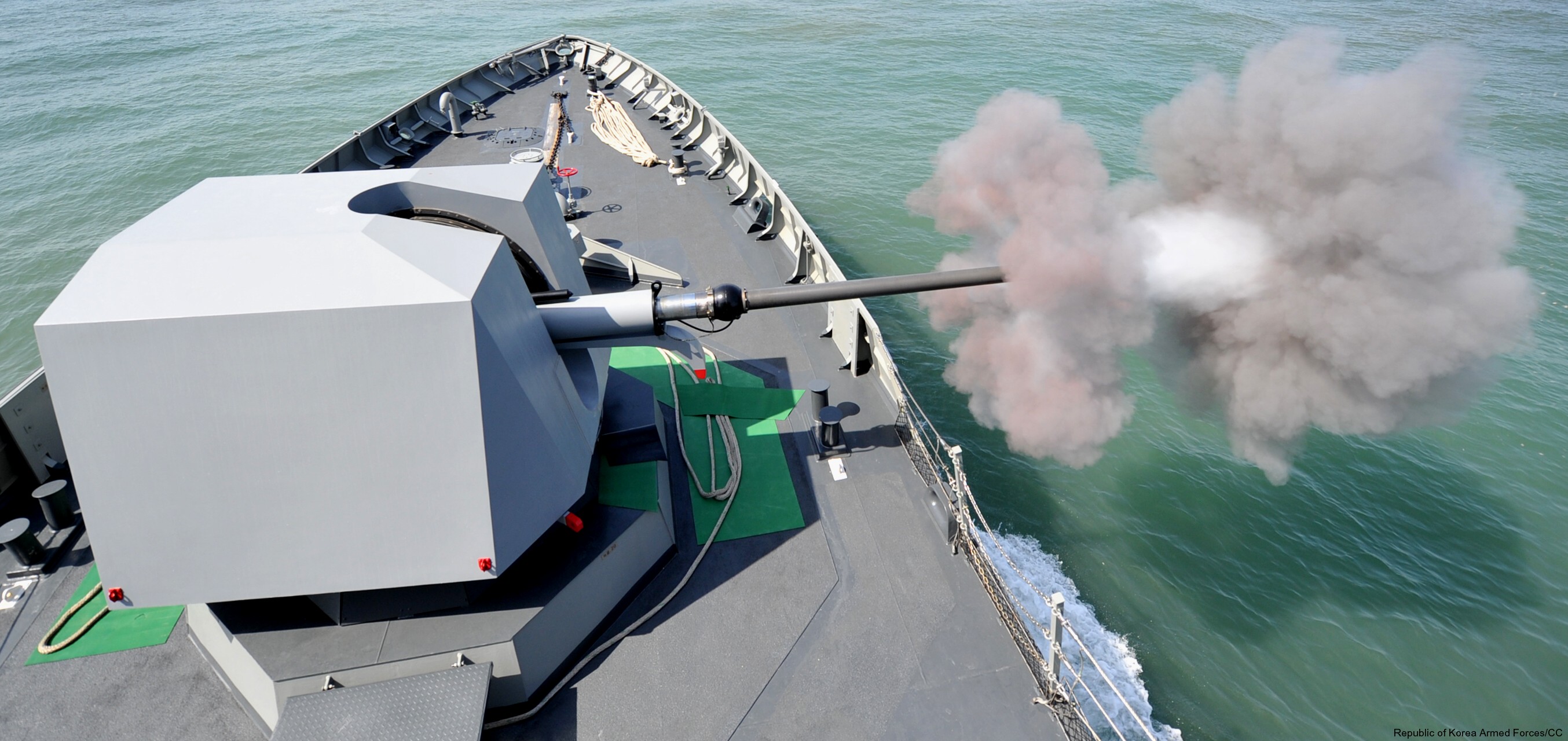

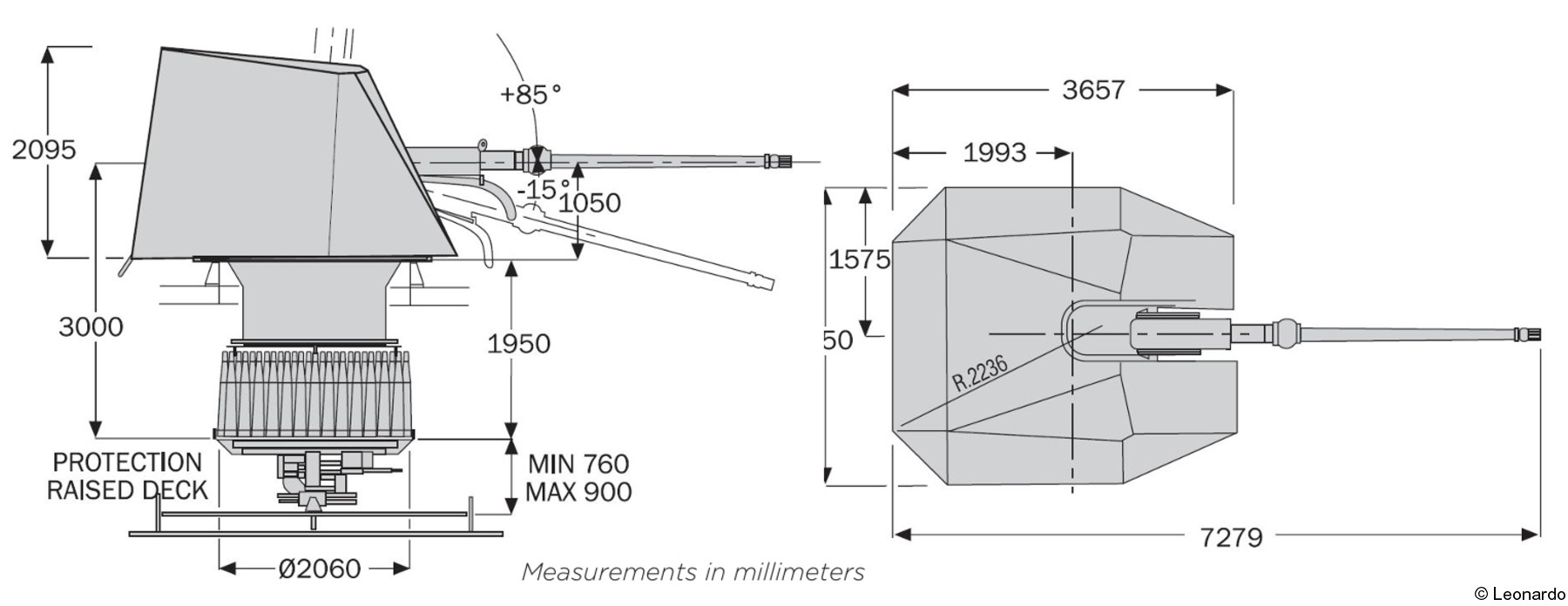

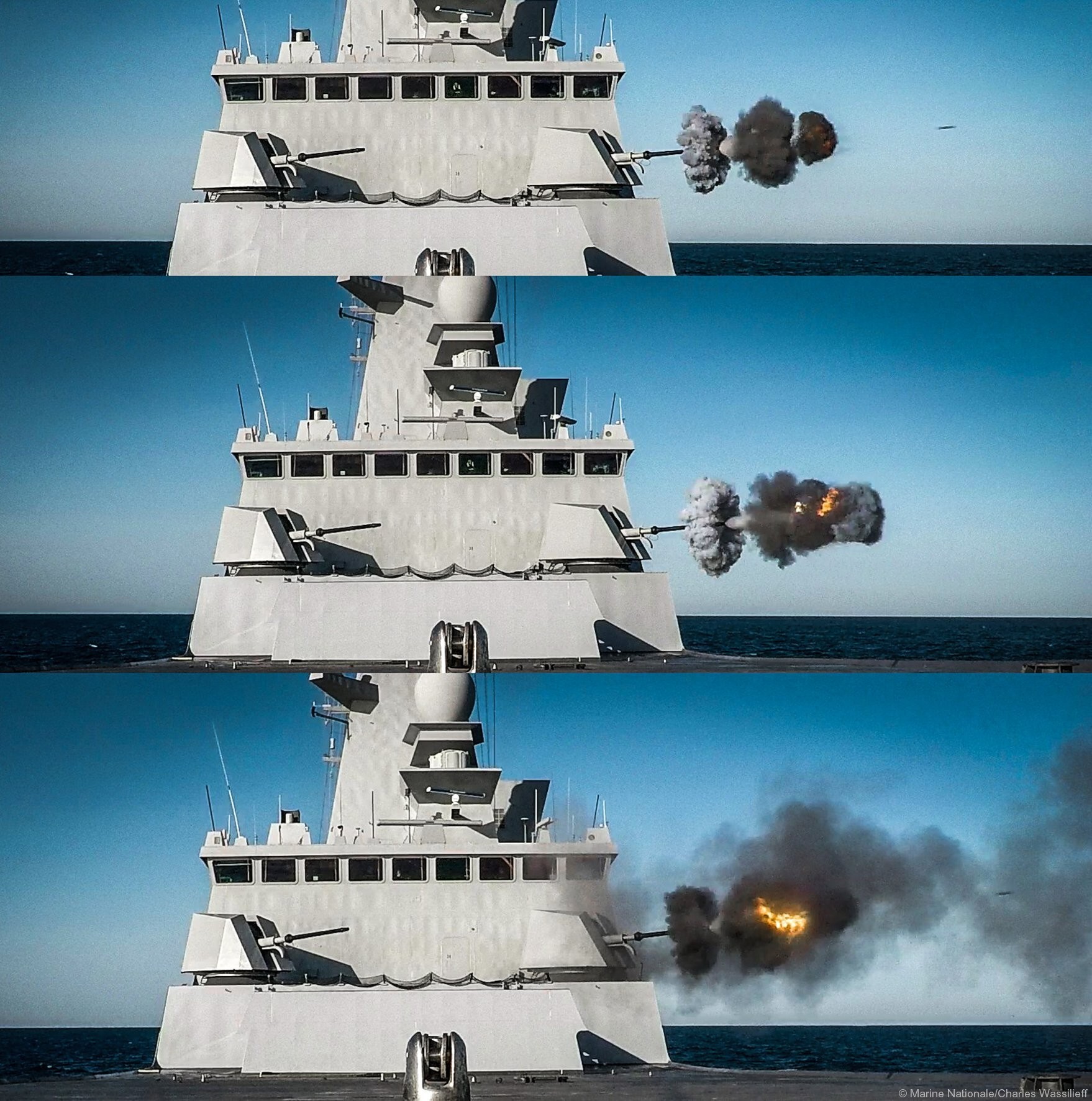

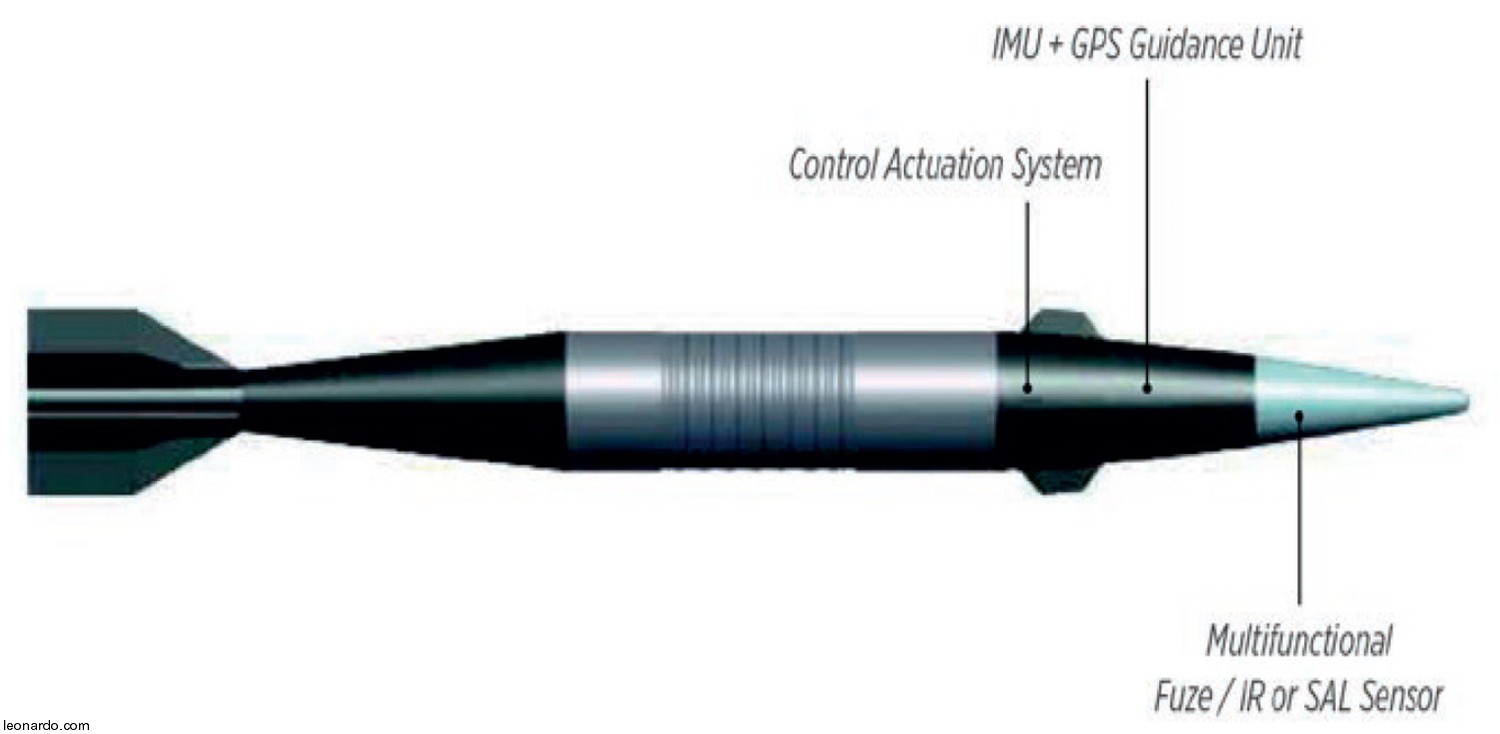

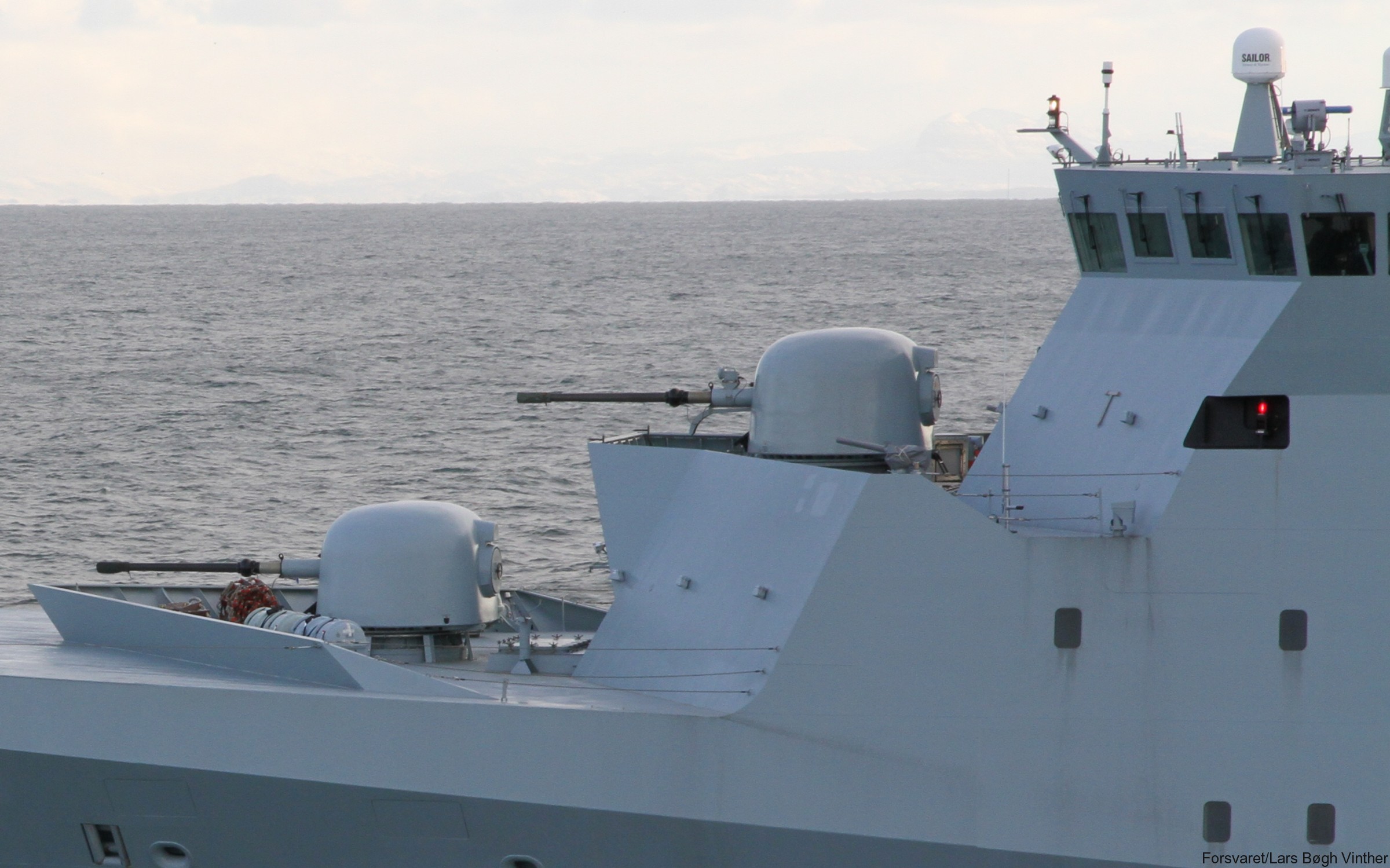

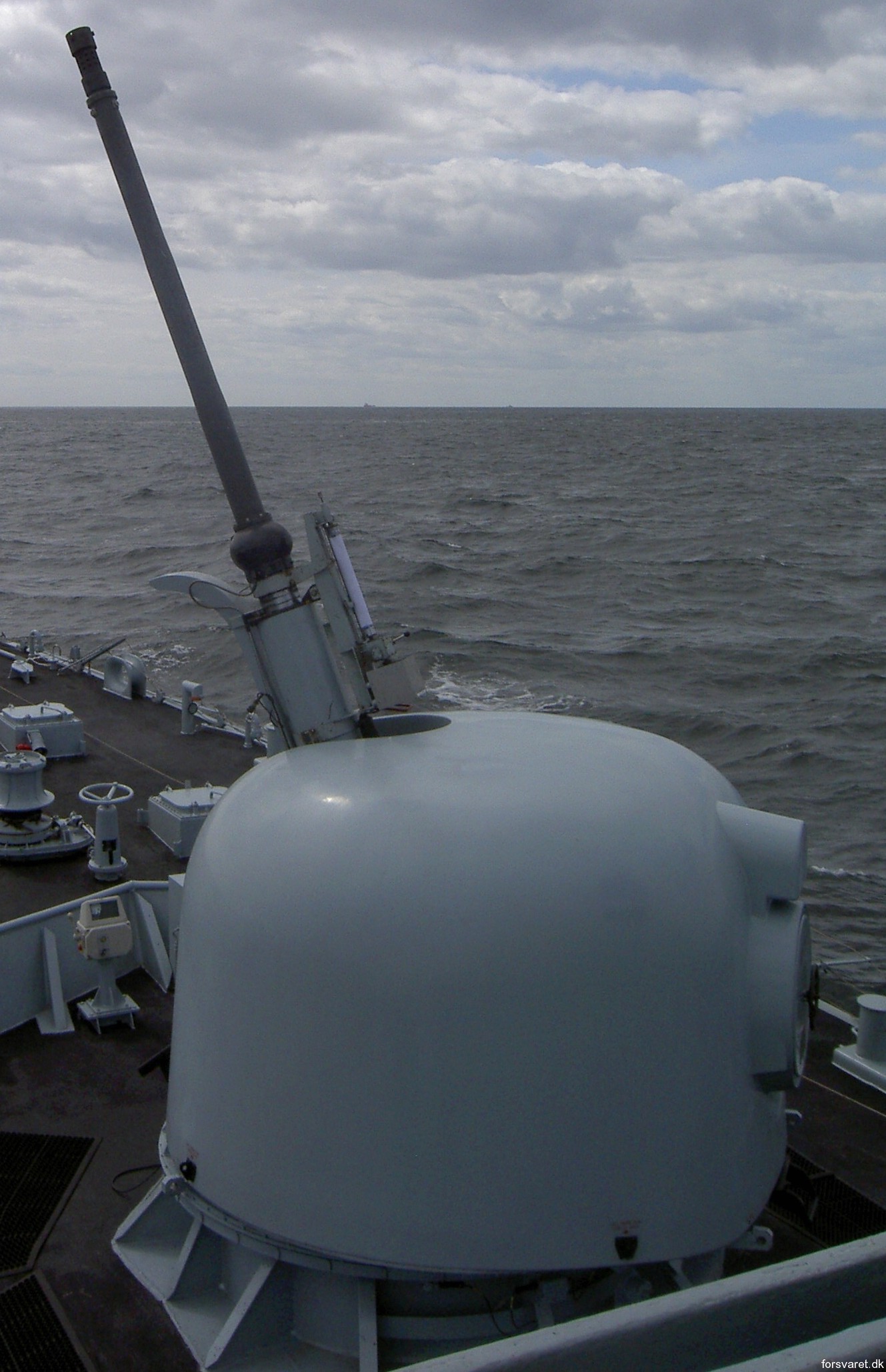

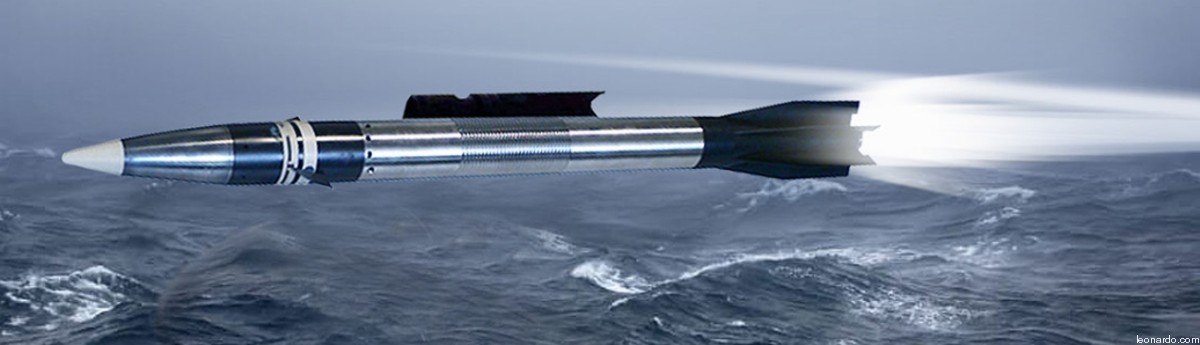

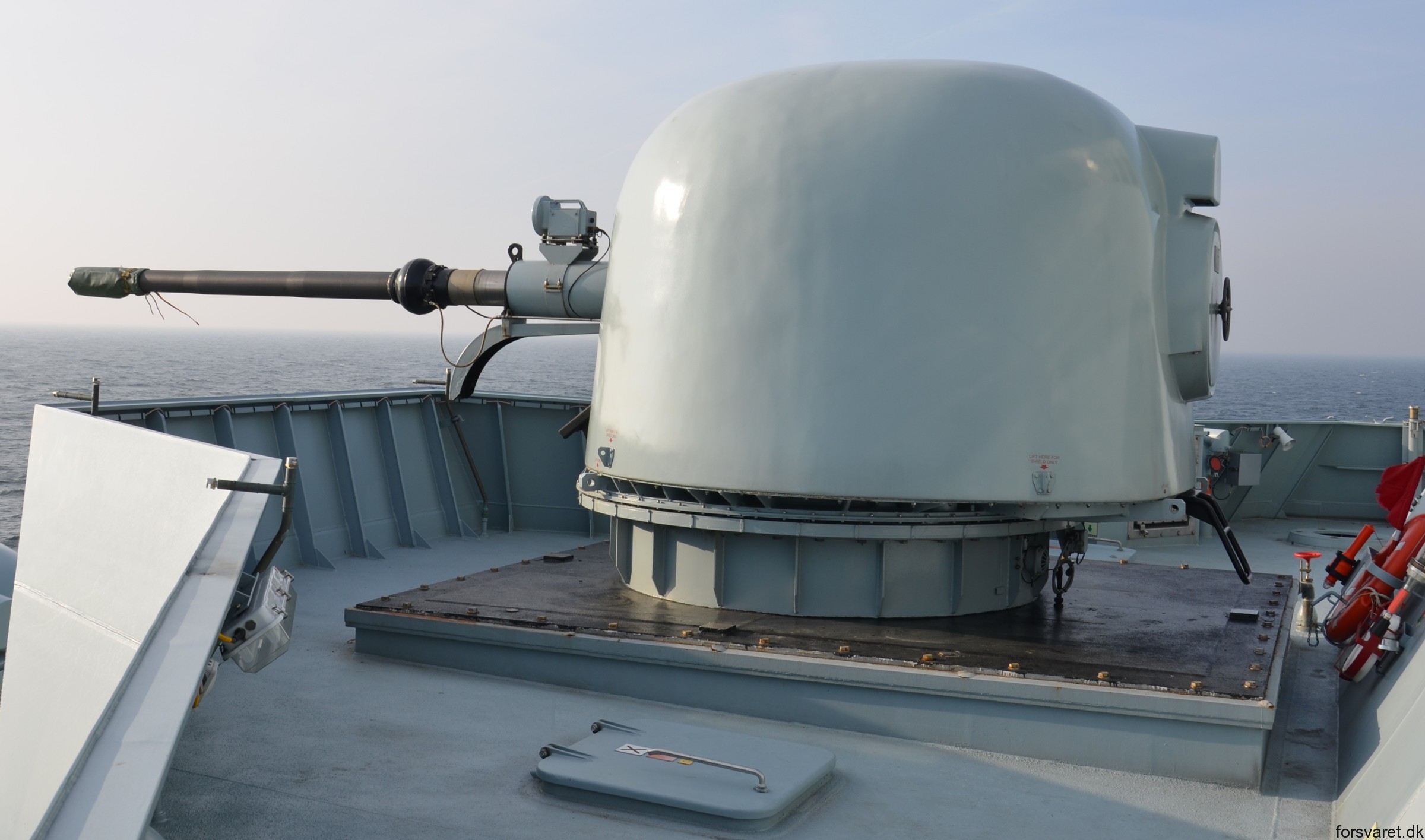

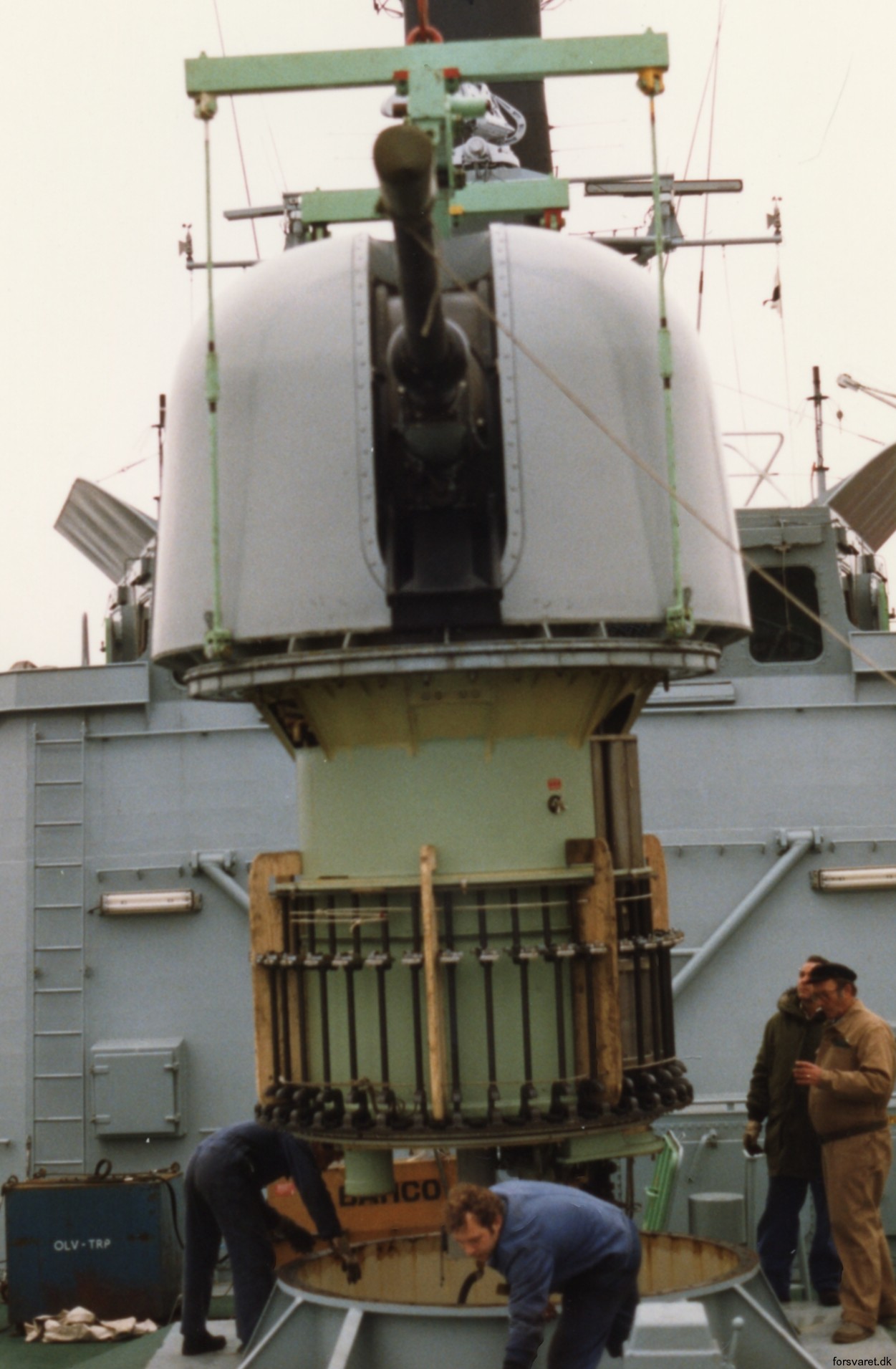

 OtoBreda 76/62SR Super Rapid with STRALES guidance system  OtoBreda 76/62SR super rapid gun with STRALES system for DART guided ammunition aboard ITS Comandante Foscari (P 493)  OtoBreda 76/62SR super rapid gun with STRALES system for DART guided ammunition  OtoBreda 76/62SR super rapid gun with STRALES system for DART guided ammunition aboard ITS Cavour (C 550)  OtoBreda 76/62SR Super Rapid with STRALES guidance system aboard an Italian Navy Bergamini/FREMM class Frigate  OtoBreda 76/62SR Super Rapid with STRALES guidance system aboard an Italian Navy Bergamini/FREMM class Frigate  Leonardo 76/62 Sovraponte with STRALES guidance system  Leonardo 76/62 Sovraponte with STRALES guidance system  Leonardo 76/62 Sovraponte with STRALES guidance system  Leonardo 76/62 Sovraponte with STRALES guidance system  OtoBreda 76/62SR super rapid gun was removed from ITS Comandante Foscari (P 493)  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid guns aboard a French Navy Forbin/HORIZON class Guided Missile Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Fridtjof Nansen class Frigate  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Skjold class Corvette  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Skjold class Corvette  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Skjold class Corvette  OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Skjold class Corvette  magazine of a OtoBreda 76/62SR super rapid gun aboard a Royal Norwegian Skjold class Corvette  OtoBreda 76/62SR super rapid gun aboard ITS Caio Duilio (D 554)  OtoBreda 76/62SR super rapid gun  Oto-Melara 76mm/62-caliber gun aboard a Republic of Singapore Navy Victory class Corvette  Oto-Melara 76/62 gun aboard a Danish Navy Iver Huitfeldt class Guided Missile Frigate  Oto-Melara 76mm/62-caliber gun aboard a German Navy Type 143A Gepard class fast attack craft  Oto-Melara 76/62 gun aboard a Danish Navy Iver Huitfeldt class Guided Missile Frigate  Oto-Melara 76mm/62-caliber gun aboard ITS Audace (D 551)  Oto-Melara 76mm/62-caliber gun aboard a Spanish Navy Santa Maria class Frigate    Oto-Melara 76/62 gun aboard German Navy Type 122 Bremen class Frigate FGS Niedersachsen (F 208)  Oto-Melara 76/62 gun aboard German Navy Type 122 Bremen class Frigate FGS Niedersachsen (F 208)     Oto-Melara 76/62 gun aboard a Danish Navy Niels Juel class Corvette  Oto-Melara 76/62 gun aboard a Danish Navy Niels Juel class Corvette   76 mm DARDO / DART guided ammunition  76 mm DARDO / DART guided ammunition  76 mm VULCANO ammunition |
|
|
