Japan Maritime Self-Defense Force - JMSDF





Hatsuyuki class Destroyer - DD



hatsuyuki class destroyer japan maritime defense force jmsdf shirayuki mineyuki sawayuki hamayuki isoyuki haruyuki yamayuki matsuyuki setoyuki asayuki shimayuki sumitomo hitachi mitsubishi mitsui





Ships:

unit

laid down

launched

commissioned

decommissioned

DD 122 JDS Hatsuyuki

March 14, 1979

November 7, 1980

March 23, 1982

June 25, 2010

DD 123 JDS Shirayuki

December 3, 1979

August 4, 1981

February 8, 1982

in service as TV-3517

DD 124 JDS Mineyuki

May 7, 1981

October 19, 1982

January 26, 1984

March 7, 2013

DD 125 JDS Sawayuki

April 22, 1981

June 21, 1982

February 15, 1984

April 1, 2013

DD 126 JDS Hamayuki

February 4, 1981

May 27, 1982

November 18, 1983

March 14, 2012

DD 127 JDS Isoyuki

April 20, 1982

September 19, 1983

January 23, 1985

in service

DD 128 JDS Haruyuki

March 11, 1982

September 6, 1983

March 14, 1985

in service

DD 129 JDS Yamayuki

February 25, 1983

July 10, 1984

December 3, 1985

in service

DD 130 JDS Matsuyuki

April 7, 1983

October 25, 1984

March 19, 1986

in service

DD 131 JDS Setoyuki

January 26, 1984

July 3, 1985

December 11, 1986

in service as TV-3518

DD 132 JDS Asayuki

December 22, 1983

October 16, 1985

February 20, 1987

in service

DD 133 JDS Shimayuki

May 8, 1984

January 29, 1986

February 17, 1987

in service as TV-3513



NOTES:

From DD-129 onwards, steel replaced aluminium for key elements of the superstructure, including the bridge, this increased the overall displacement.



DD-123 JDS Shirayuki was reclassified to training vessel TV-3517 on March 16, 2011

DD-131 JDS Setoyuki was reclassified to training vessel TV-3518 on March 14, 2012

DD-133 JDS Shimayuki was reclassified to training vessel TV-3513 on March 18, 1999





BUILDERS:

DD-122, DD-128, DD-132 = Sumitomo, Uraga, Japan

DD-123, DD-129 = Hitachi, Maizuru, Japan

DD-124, DD-133 = Mitsubishi, Nagasaki, Japan

DD-125, DD-127, DD-130 = IHI Marine United, Yokohama, Japan

DD-126, DD-131 = Mitsui, Tamano, Japan





Specifications:



Length:

130 meters



Beam:

13,6 meters



Draft:

4,2 meters (4,4 meters DD 129 to DD 132)



Displacement:

2950 tons,standard (3050 tons, standard DD 129 to DD 132) / 3800 tons (full load)



Speed:

30 knots, max. (56 km/h)



Range:





Crew:

up to 200



Aviation:

flight deck and hangar for 1 helicopter (S-61 Sea King / SH-60J Seahawk)



Propulsion:

COGOG (combined gas or gas)

high speed: 2 x Kawasaki/Rolls-Royce Olympus TM-3B gas turbines (45000 shp)

cruise: 2 x Kawasaki/Rolls-Royce Tyne RM-1C gas turbines (9900 shp)

2 shafts, 2 controllable pitch propellers



Armament:

1 x Oto-Melara 76mm/62-caliber gun (3-inches)

2 x Mk-141 missile launcher for 8 RGM-84 Harpoon SSM

1 x Mk-29 launcher for 8 RIM-7 Sea Sparrow SAM

2 x Mk-15 Phalanx Close-In-Weapon-System (CIWS)

1 x Mk-16 launcher for 8 RUR-5 ASROC anti-submarine rockets

2 x HOS-301 (Mk-32) 12,75-inch (324mm) triple torpedo tubes





Hatsuyuki class destroyer armament Oto Melara 76mm 62 caliber gun Mk-141 Harpoon missile launcher Mk-29 Sea Sparrow launcher Mk-15 CIWS Mk-16 ASROC Mk-32 torpedo tubes JMSDF





images:



dd 122 jds hatsuyuki class destroyer japan maritime self defense force jmsdf

JDS Hatsuyuki (DD 122)



DD-122 JDS Hatsuyuki destroyer japan maritime self defense force

JDS Hatsuyuki (DD 122)



JDS Hatsuyuki DD-122 destroyer jmsdf

JDS Hatsuyuki (DD 122)



DD-122 JDS Hatsuyuki class destroyer

JDS Hatsuyuki (DD 122)



DD-122 JDS Hatsuyuki destroyer jmsdf

JDS Hatsuyuki (DD 122)



DD 123 JDS Shirayuki Hatsuyuki class destroyer jmsdf

JDS Shirayuki (DD 123)



JDS Shirayuki DD-123 destroyer jmsdf

JDS Shirayuki (DD 123)



dd 124 jds mineyuki hatsuyuki class destroyer japan maritime self defense force jmsdf

JDS Mineyuki (DD 124)



DD-124 JDS Mineyuki Hatsuyuki class destroyer jmsdf

JDS Mineyuki (DD 124)



DD-124 JDS Mineyuki

JDS Mineyuki (DD 124)



DD-124 JDS Mineyuki destroyer jmsdf

JDS Mineyuki (DD 124)



JDS Mineyuki DD-124 destroyer jmsdf

JDS Mineyuki (DD 124)



dd 125 jds sawayuki hatsuyuki class dstroyer jmsdf

JDS Sawayuki (DD-125)



dd 125 jds sawayuki hatsuyuki class destroyer

JDS Sawayuki (DD-125)



jds sawayuki dd 125 hatsuyuki class destroyer jmsdf

JDS Sawayuki (DD-125)



dd 125 jds sawayuki hatsuyuki class destroyer

JDS Sawayuki (DD-125)



JDS Sawayuki DD-125 and JDS Yamagiri TV-3515

JDS Yamagiri (TV 3515) and JDS Sawayuki (DD 125)



dd 126 jds hamayuki hatsuyuki class destroyer japan maritime self defense force

JDS Hamayuki (DD 126)



DD-126 JDS Hamayuki Hatsuyuki class destroyer jmsdf

JDS Hamayuki (DD 126)



dd 126 jds hamayuki hatsuyuki class destroyer jmsdf

JDS Hamayuki (DD 126)



dd 126 jds hamayuki

JDS Hamayuki (DD 126)



jds hamayuki dd 126 hatsuyuki class destroyer

JDS Hamayuki (DD 126)

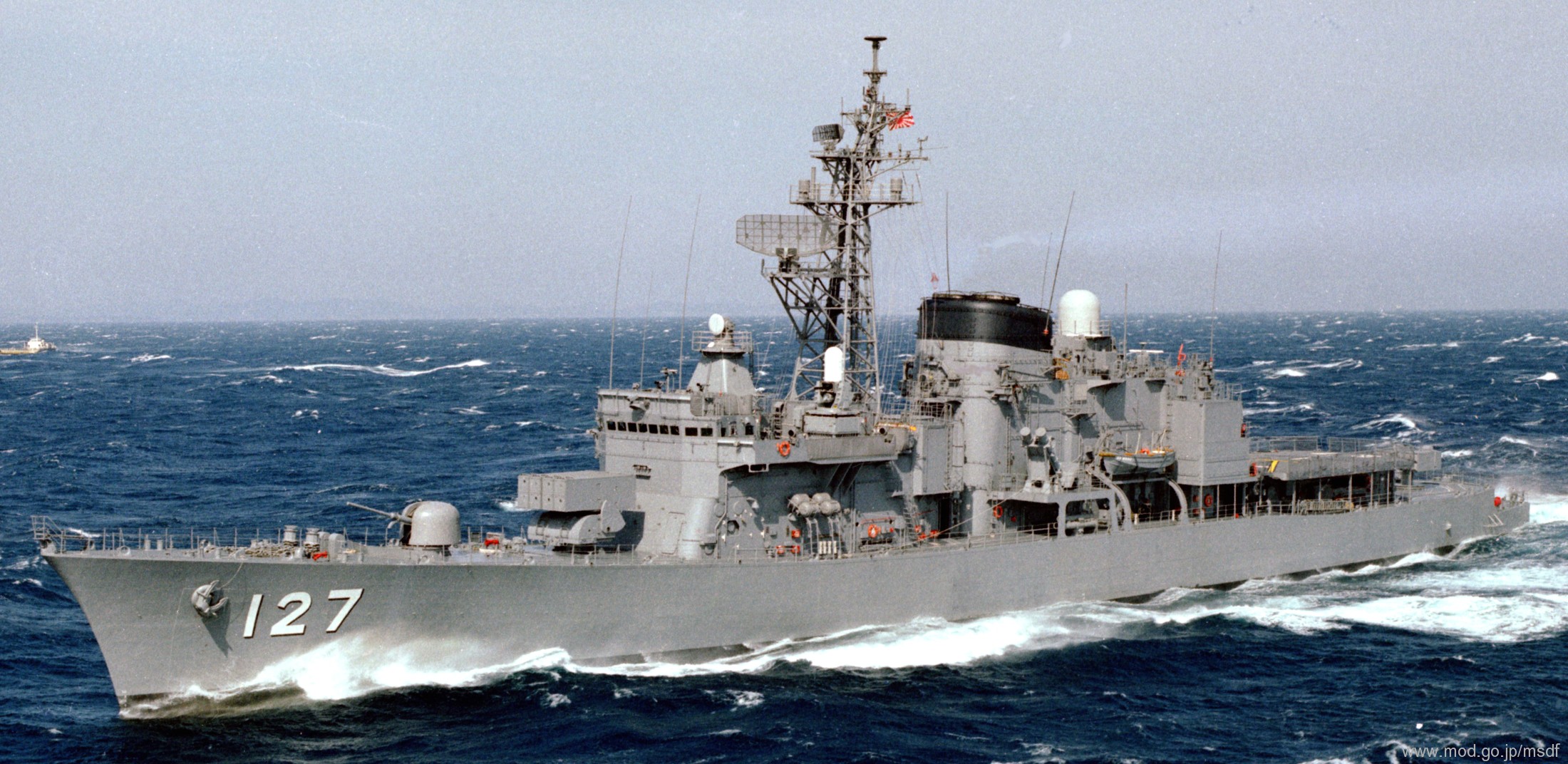

dd 127 jds isoyuki hatsuyuki class destroyer japan maritime self defense force

JDS Isoyuki (DD 127)



dd 127 jds isoyuki hatsuyuki class destroyer jmsdf

JDS Isoyuki (DD 127)



jds isoyuki dd 127 hatsuyuki class destroyer

JDS Isoyuki (DD 127)



DD-127 JDS Isoyuki Hatsuyuki class destroyer jmsdf

JDS Isoyuki (DD 127)



JDS Isoyuki DD-127 destroyer jmsdf

JDS Isoyuki (DD 127)



dd 128 jds haruyuki hatsuyuki class destroyer jmsdf

JDS Haruyuki (DD 128)



dd 128 jds haruyuki hatsuyuki class destroyer japan maritime self defense force

JDS Haruyuki (DD 128)



dd 128 jds haruyuki hatsuyuki class destroyer

JDS Haruyuki (DD 128)



dd 129 jds yamayuki hatsuyuki class destroyer japan maritime self defense force

JDS Yamayuki (DD 129)



DD-129 JDS Yamayuki Hatsuyuki class destroyer jmsdf

JDS Yamayuki (DD 129)

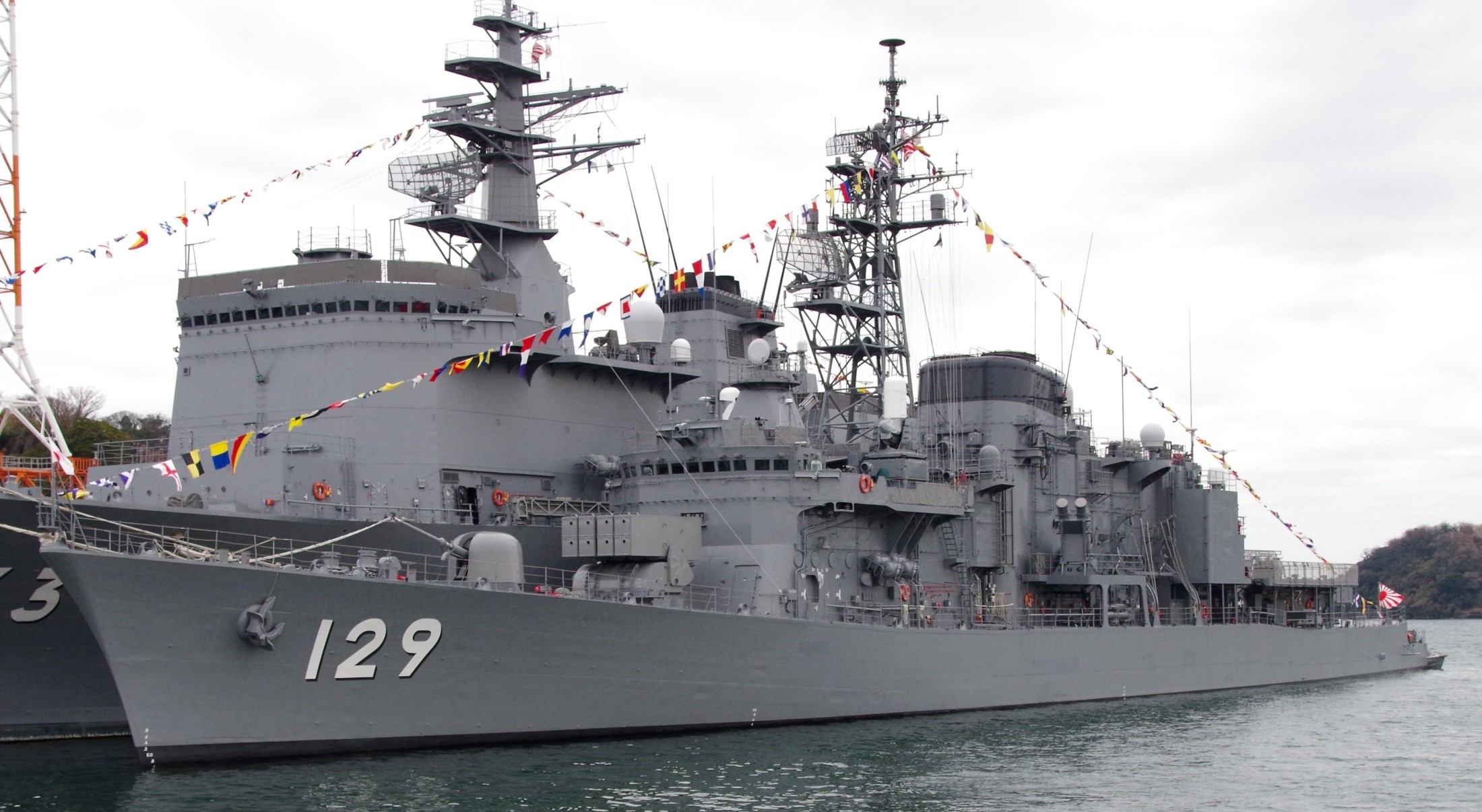

DD-129 JDS Yamayuki destroyer

JDS Yamayuki (DD 129)

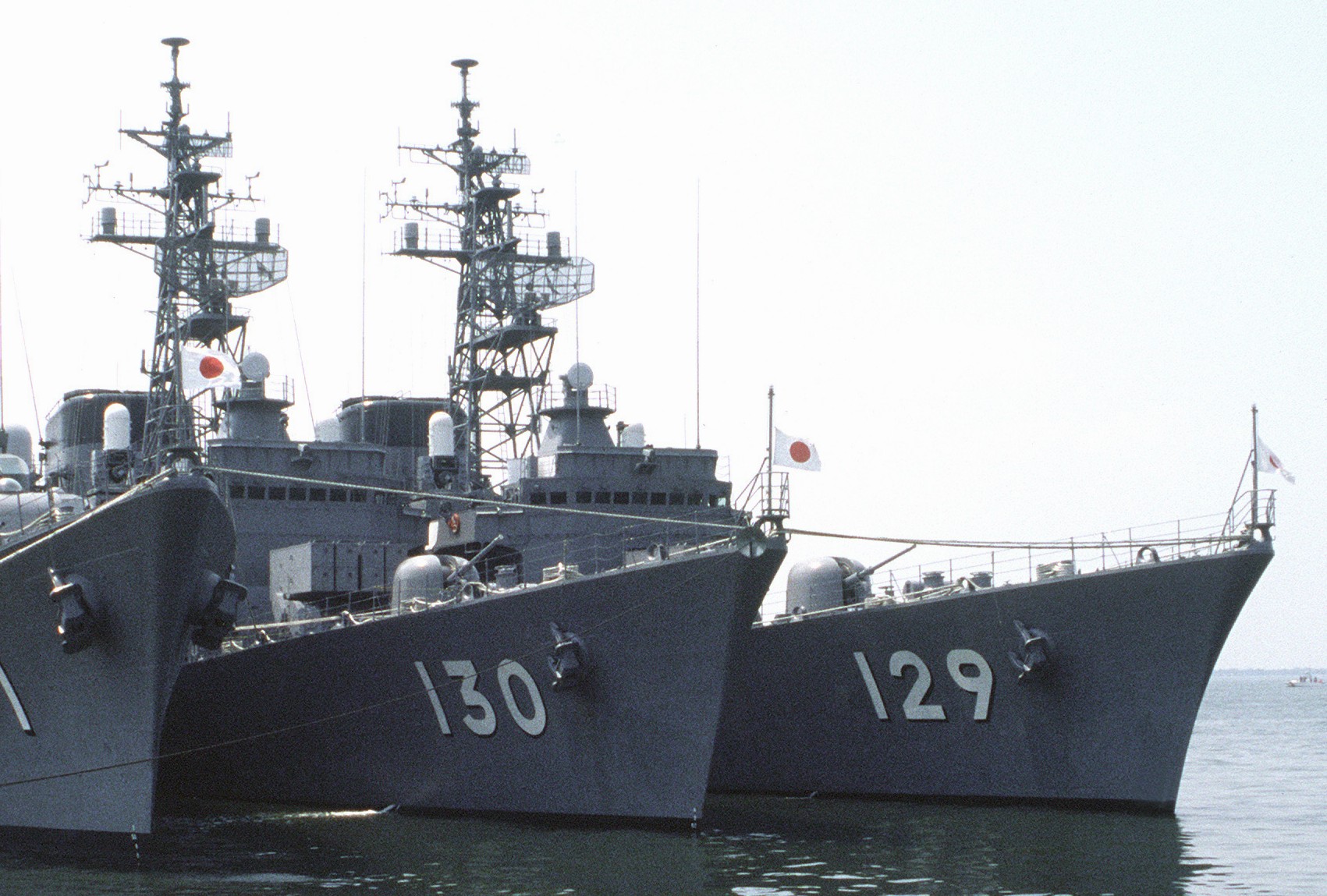

DD-129 JDS Yamayuki and DD-130 JDS Matsuyuki destroyer jmsdf

JDS Matsuyuki (DD 130) and JDS Yamayuki (DD 129)

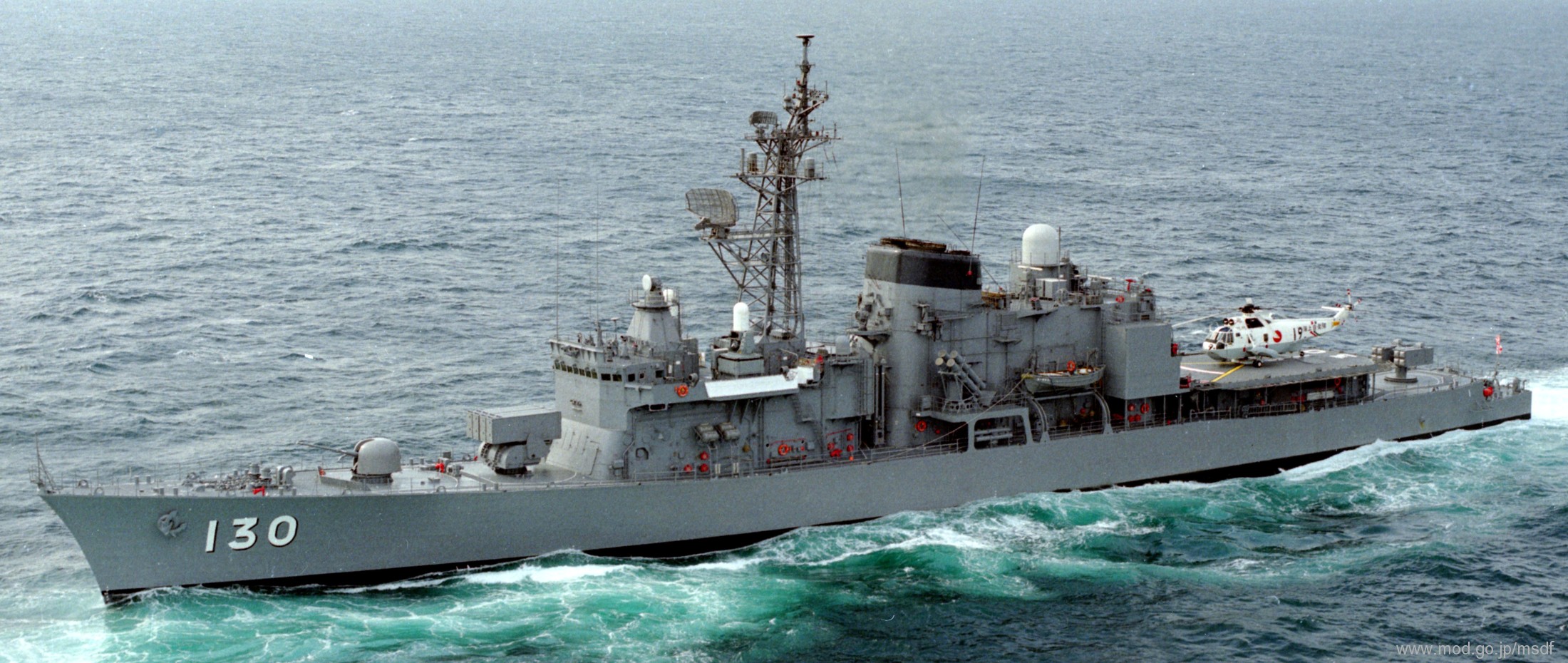

dd 130 jds matsuyuki hatsuyuki class destroyer jmsdf

JDS Matsuyuki (DD 130)



dd 130 jds matsuyuki hatsuyuki class destroyer japan maritime self defense force

JDS Matsuyuki (DD 130)



dd 131 jds setoyuki hatsuyuki class destroyer jmsdf

JDS Setoyuki (DD 131)



DD-131 JDS Setoyuki Hatsuyuki class destroyer jmsdf

JDS Setoyuki (DD 131)



dd 132 jds asayuki hatsuyuki class destroyer japan maritime self defense force

JDS Asayuki (DD 132)



DD-132 JDS Asayuki Hatsuyuki class destroyer jmsdf

JDS Asayuki (DD 132)



DD-132 JDS Asayuki destroyer

JDS Asayuki (DD 132)

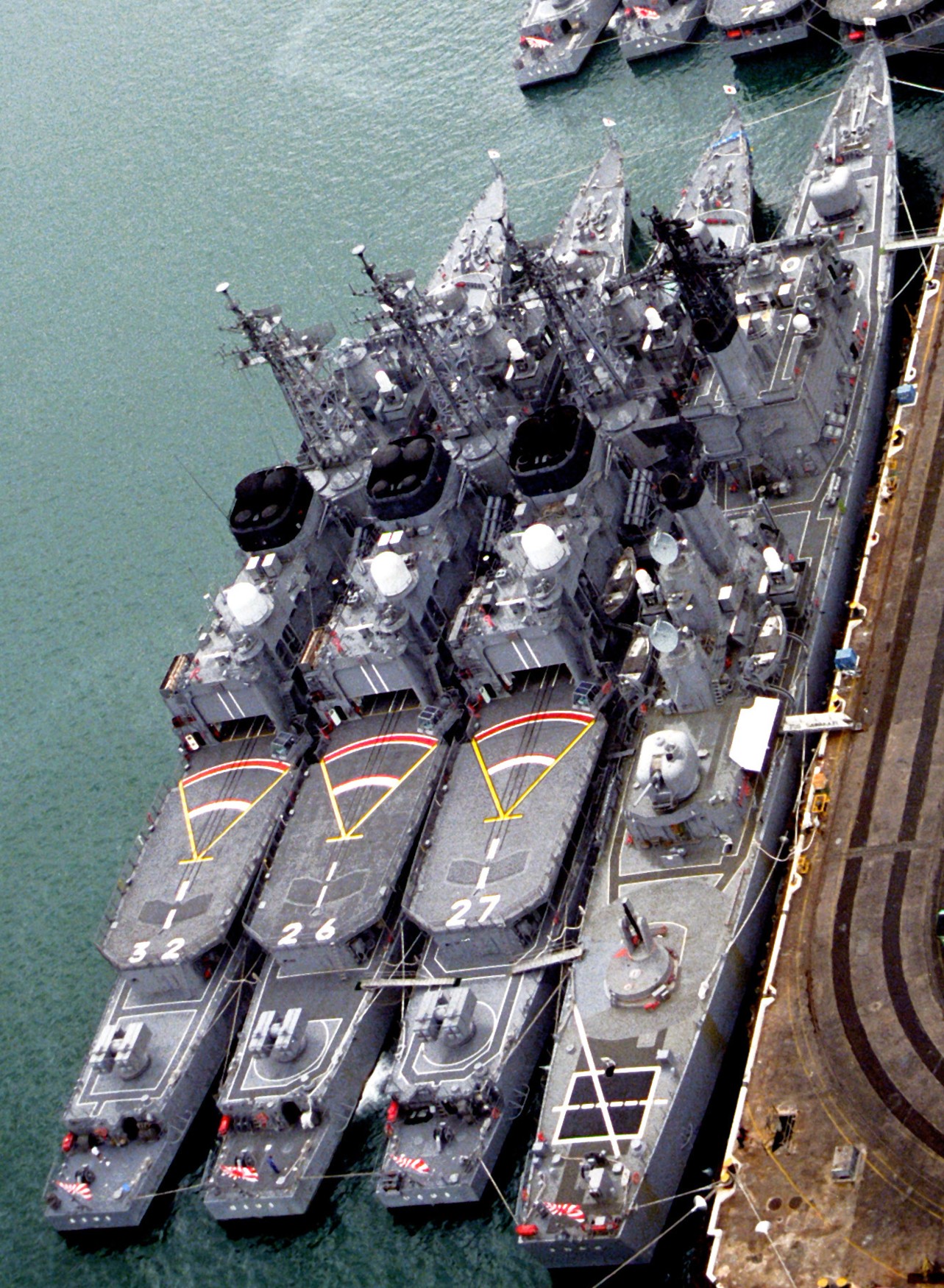

Hatsuyuki class destroyer JDS Hamayuki Isoyuki Asayuki japan maritime self defense force jmsdf

DD-132 JDS Asayuki, DD-126 JDS Hamayuki and DD-127 JDS Isoyuki alongside

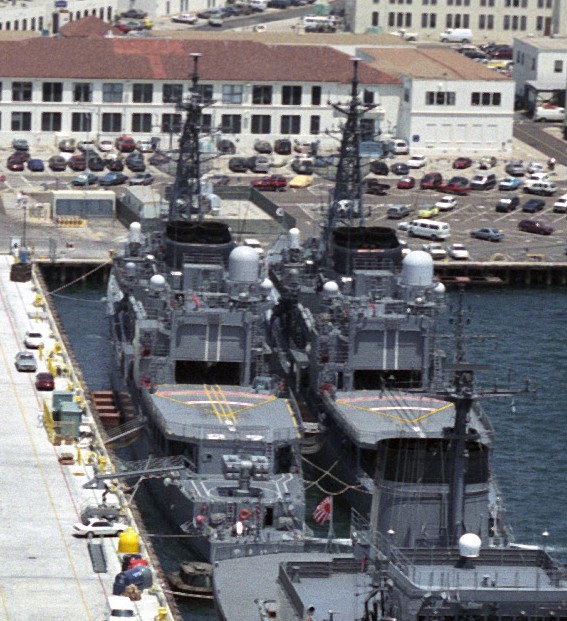

Hatsuyuki class destroyer jmsdf

2 Hatsuyuki class destroyers (DD-129 JDS Yamayuki and unknown)

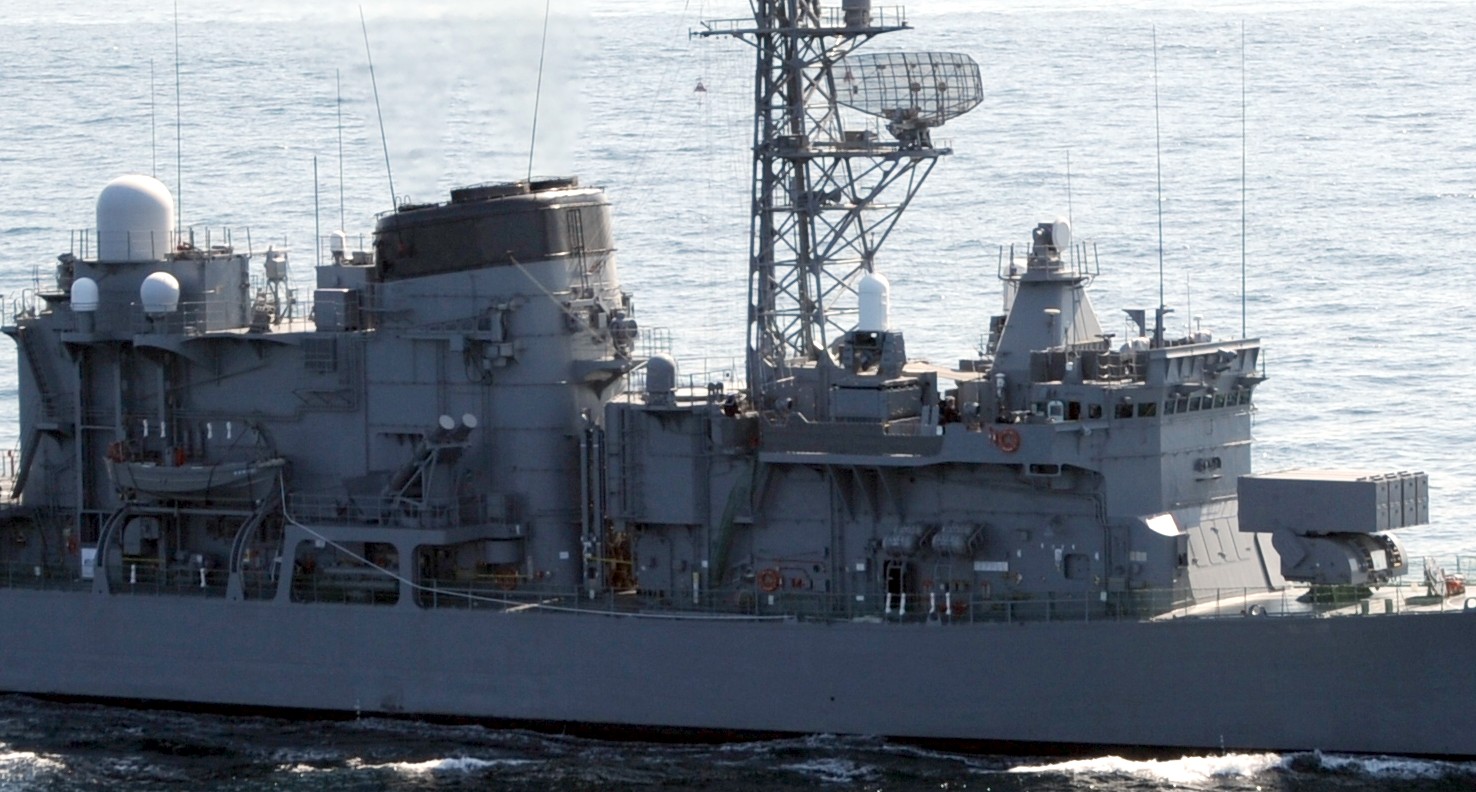

detail images

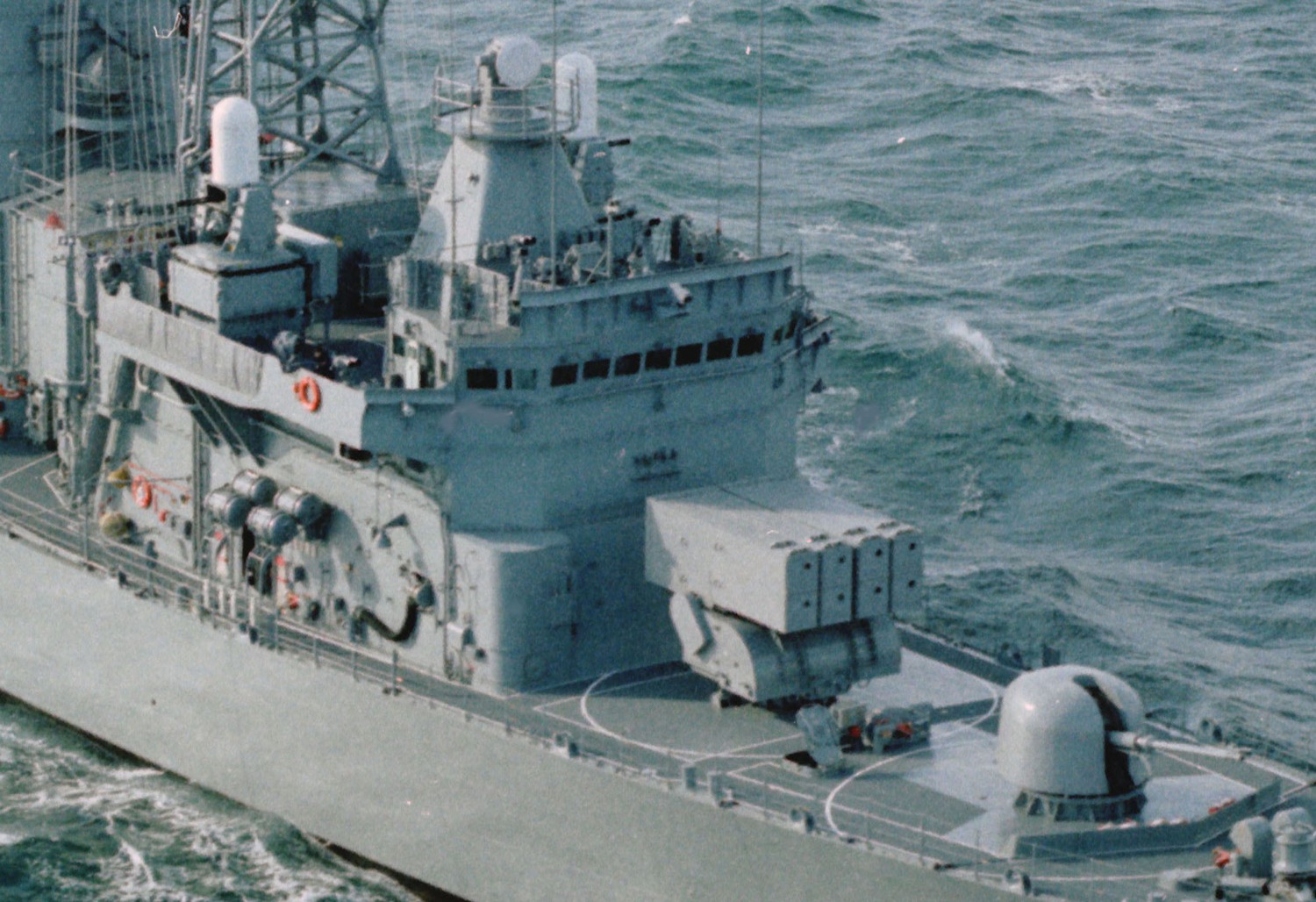

hatsuyuki class destroyer japan maritime self defense force armament



hatsuyuki class destroyer japan maritime self defense force armament details



hatsuyuki class destroyer jmsdf



hatsuyuki class destroyer japan navy



hatsuyuki class destroyer details



hatsuyuki class destroyer flight deck hangar mk-29 sea sparrow launcher



hatsuyuki class destroyer jmsdf



hatsuyuki class destroyer japan maritime self defense force
