Aircraft Weapon System
Paveway I, II, III, IV - Guided Bomb Unit (GBU)
Semi-Active Laser (SAL) / GPS-INS Global Positioning System-Inertial Navigation System / Dual Mode GPS-INS precision-guided bombs

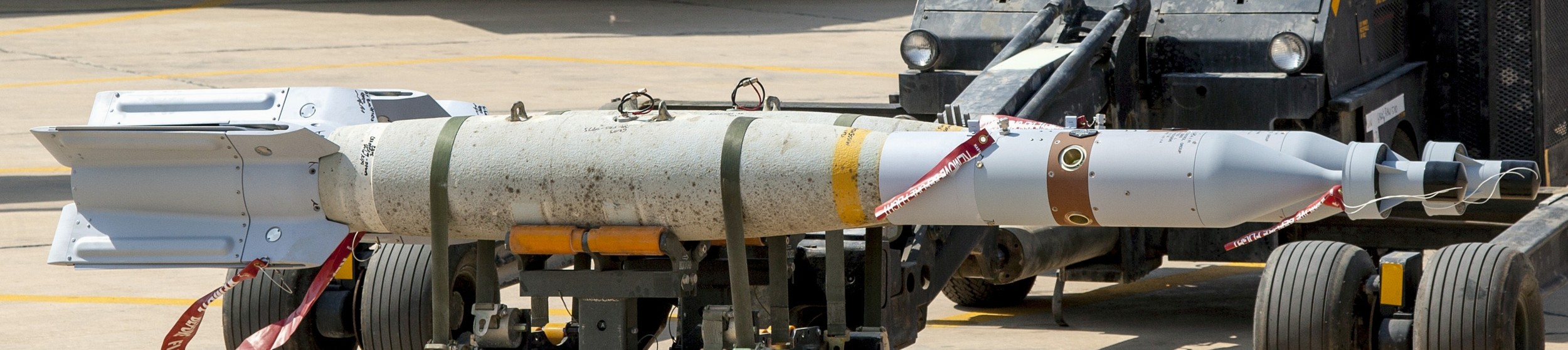

gbu paveway laser guided bomb lgb us air force navy raf 51x

08/26
Paveway is a series of American laser-guided bomb (LGB) kits. Developed originally by Texas Instruments and now produced by Raytheon, the system attaches a nose-mounted laser seeker and a tail-mounted Computer Control Group (CCG) with steering fins to conventional, unguided "dumb" bombs (Mark 81, 82, 83, 84), converting them into highly accurate precision-guided munitions. Paveway bombs are currently used by over 40 countries.


Paveway / Paveway I:
Variant and warhead
GBU-1/B: M117 (750 lbs / 340 kg)
GBU-2/B: CBU-75/B Sadeye cluster bomb
GBU-3/B: CBU-74/B cluster bomb
GBU-5/B: CBU-100 Rockeye II cluster bomb
GBU-6/B: CBU-79/B cluster bomb
GBU-7/B: CBU-80/B cluster bomb
GBU-10/B, GBU-10A/B, GBU-10B/B: Mark 84 (2,000 lbs / 907 kg)
GBU-11/B, GBU-11A/B: M118E1 (3,000 lbs / 1,400 kg)
GBU-12/B, GBU-12A/B: Mark 82 (500 lbs / 227 kg)


Paveway II:
Variant and warhead
GBU-10C/B, GBU-10D/B, GBU-10E/B, GBU-10F/B: Mark 84 (2,000 lbs / 907 kg)
GBU-10G/B, GBU-10H/B, GBU-10J/B, GBU-10K/B: BLU-109 (2,000 lbs / 907 kg)

GBU-12B/B, GBU-12C/B, GBU-12D/B, GBU-12E/B, GBU-12F/B: Mark 82 (500 lbs / 227 kg)

GBU-16/B, GBU-16A/B, GBU-16B/B, GBU-16C/B: Mark 83 (1,000 lbs / 454 kg)

GBU-58: Mark 81 (250 lbs / 113 kg)

GBU-51/B: BLU-126/B (500 lbs / 227 kg - Low-Collateral Damage Bomb / LCDB)

Enhanced Paveway II:
GBU-48(V)1/B: Mark 83 (1,000 lbs / 454 kg)
GBU-49(V)1-3/B: Mark 82, BLU-133/B (500 lbs / 227 kg)
GBU-50/B: Mark 84 (2,000 lbs / 907 kg)
GBU-59: Mark 81 (250 lbs / 113 kg)


Paveway III:
Variant and warhead
GBU-22/B: Mark 82 (500 lbs / 227 kg)

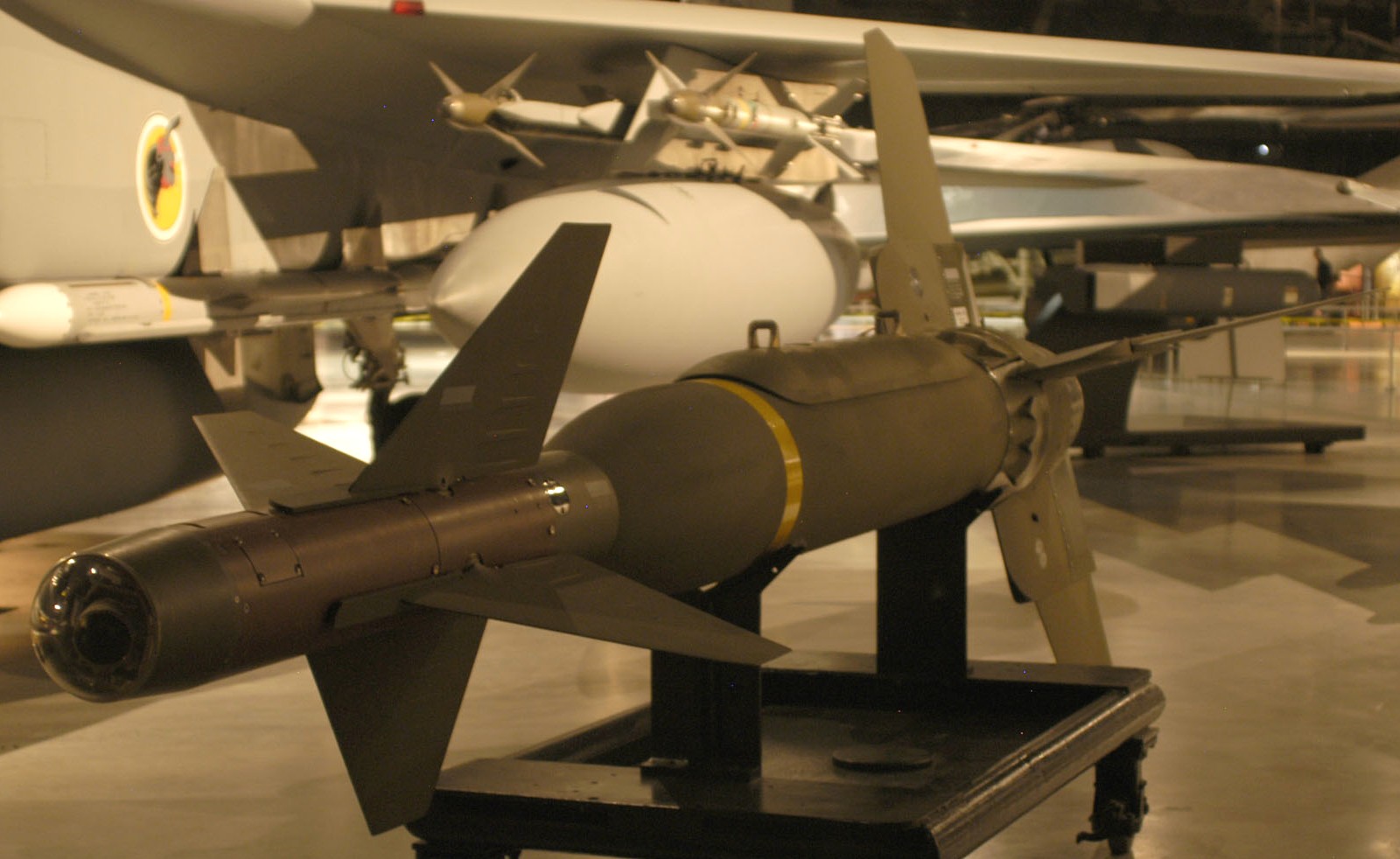

GBU-24/B: Mark 84 (2,000 lbs / 907 kg)
GBU-24A/B: BLU-109/B (2,000 lbs / 907 kg)
GBU-24B/B: BLU-109A/B (2,000 lbs / 907 kg)
GBU-24C/B, GBU-24D/B: BLU-116/B Advanced Unitary Penetrator / AUP (1,927 lb / 874 kg)
EGBU-24E/B: BLU-109A/B (2,000 lbs / 907 kg)
GBU-24F/B, EGBU-24G/B: BLU-116A/B Advanced Unitary Penetrator / AUP (1,927 lb / 874 kg)
GBU-24(V)1/B, GBU-24(V)3/B, GBU-24(V)7/B: Mark 84 (2,000 lbs / 907 kg)
GBU-24(V)2/B, GBU-24(V)4/B, GBU-24(V)8/B: BLU-109 (2,000 lbs / 907 kg)

EGBU-24(V)9/B: Mark 84 (2,000 lbs / 907 kg)
EGBU-24(V)10/B, EGBU-24(V)12/B, GBU-27/B, EGBU-27A/B: BLU-109 (2,000 lbs / 907 kg)

GBU-27: BLU-109 (2,000 lb / 907 kg - Penetrator warhead)
EGBU-27B/B: BLU-116/B Advanced Unitary Penetrator / AUP (1,927 lb / 874 kg)

GBU-28/B: BLU-113/B (5,000 lbs / 2,268 kg - Penetrator bomb)
GBU-28A/B, EGBU-28B/B: BLU-113A/B (5,000 lbs / 2,268 kg - Penetrator bomb)
EGBU-28C/B, EGBU-28D/B: BLU-122/B (5,000 lbs / 2,268 kg - Penetrator bomb)
EGBU-28E/B: BLU-113 (5,000 lbs / 2,268 kg - Penetrator bomb)


Paveway IV: (500 lbs / 227 kg) - dual-mode GPS/INS and laser-guided - Royal Air Force (RAF)


Future projects & developments:

Lockheed Martin Paveway II Plus:
A semi-active laser seeker and pneumatically controlled canards guide the weapon. The air foil group (AFG) includes extending wings to provide lift and stability. The aerodynamic properties, exterior dimensions, and overall weapon mass properties of the CCG remain the same as existing Paveway II LGB computer control group's (CCG). The Paveway II Plus guidance section is field programmable, allowing easy installation of future capability.
Paveway II Plus LGB can be used in all Paveway II LGB weapon configurations and aircraft, and is compatible with the MK 80 series and BLU-109 warheads.



The Paveway configuration consists of a large number of possible components from the main groups:
Warhead (GP bomb)
Guidance Kit
Computer Control Group (CCG)
Air Foil Group (AFG)

Guidance variants:
Semi-Active Laser (SAL) Guidance (Paveway I & II)
Enhanced Digital Guidance (Paveway III)
Dual-Mode GPS/INS and Laser Guidance (Paveway IV & Enhanced variants)


NOTE:
Total weight depends on the specific configuration.
On carrier use, US Navy and Marines using bombs with with thermal-protective coating.

Live / practice / inert bomb markings:

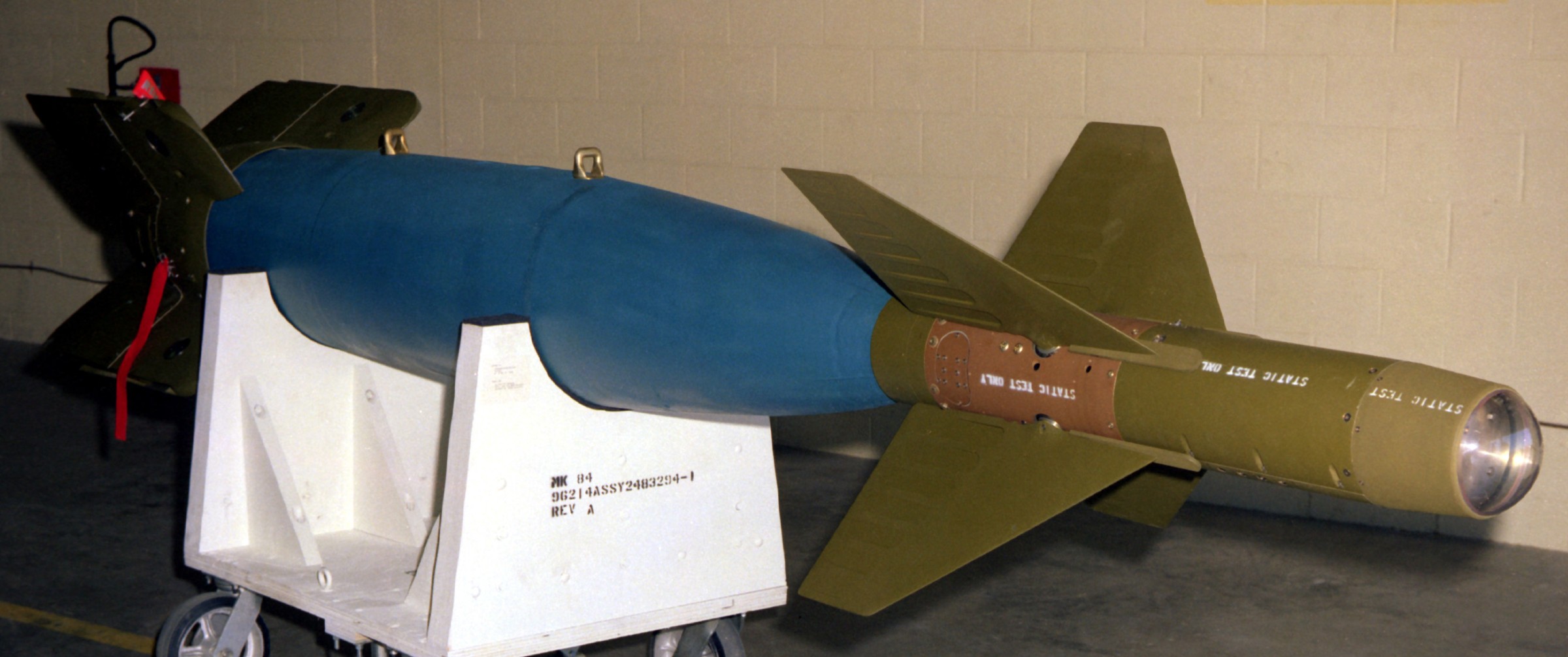

Fully Blue: The entire weapon body is painted blue to signify it is a completely inert, empty, or concrete-filled practice bomb used to simulate the weight and drag of a live weapon.

Blue Stripe(s): One or more blue stripes generally indicate a training munition. In some configurations, it may have an inert-filled main warhead but retain a functioning or electronic fuze/seeker system for pilot training

Yellow stripe(s): live, high-explosive ordnance (warshots)

sources: wikipedia, Boeing, Lockheed Martin, US DoD ...

images

500 lbs Paveway laser guided bombs (LGB)

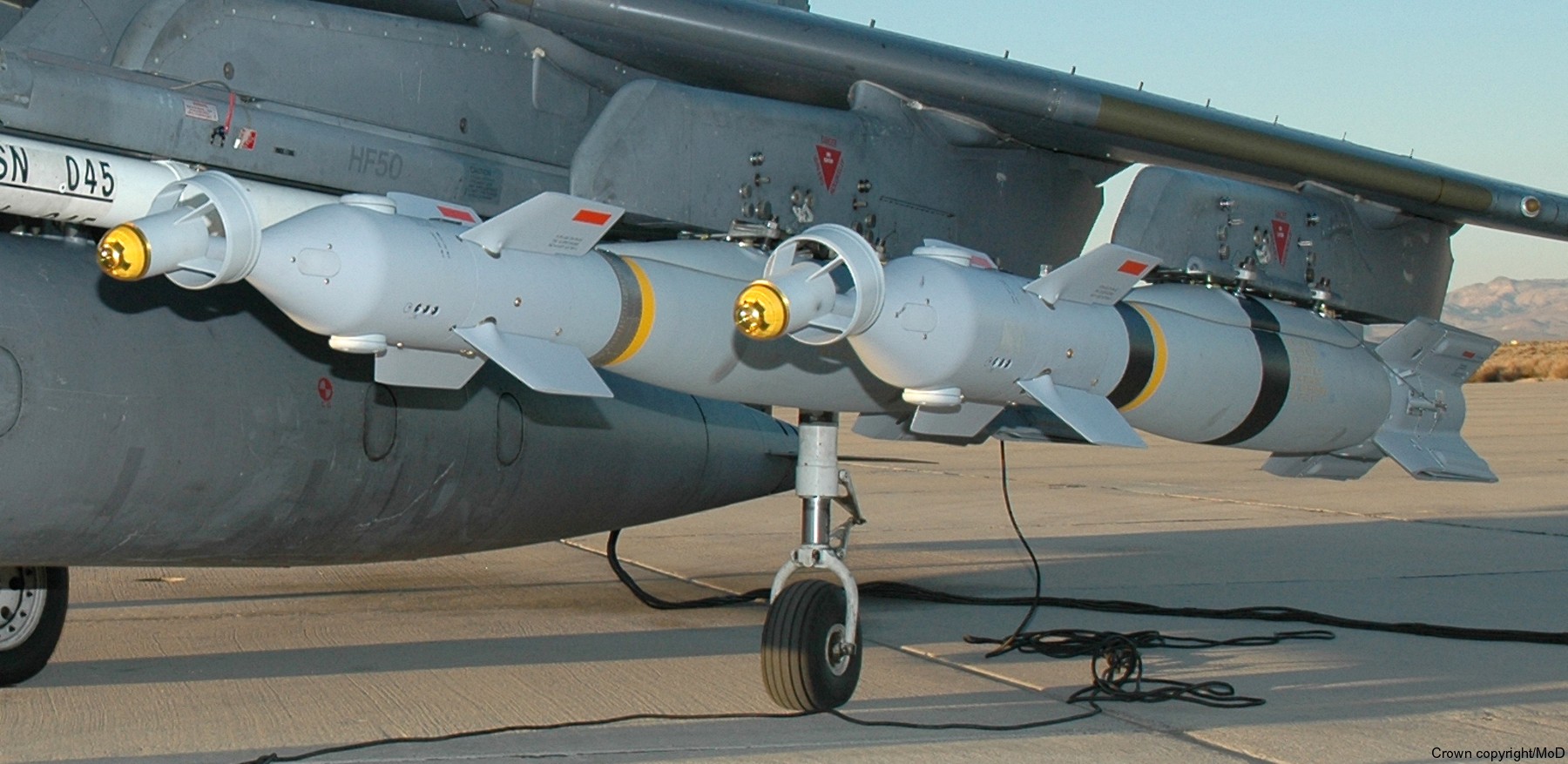

paveway iv laser guided bomb unit gbu 500 lbs royal air force raf 03
Paveway IV (500 lbs) laser guided bomb

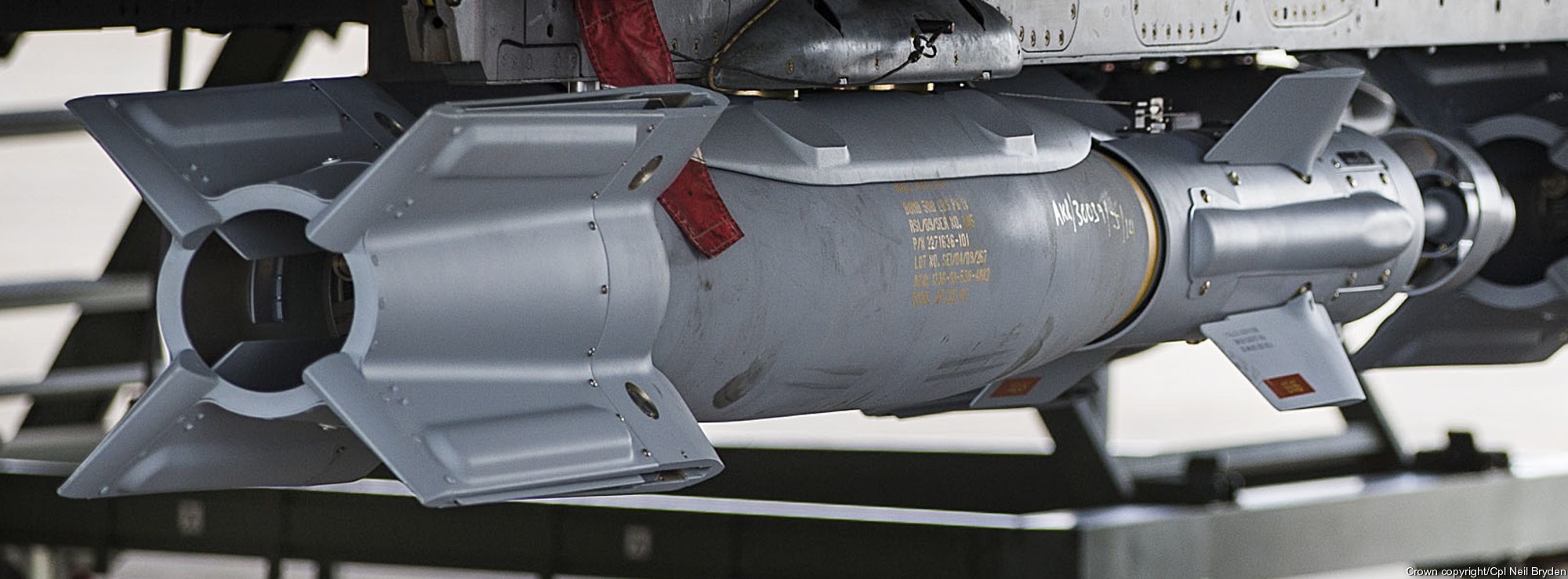

paveway iv laser guided bomb unit gbu 500 lbs royal air force raf tornado typhoon 04
Paveway IV (500 lbs) laser guided bomb

paveway iv laser guided bomb unit gbu 500 lbs royal air force raf 02

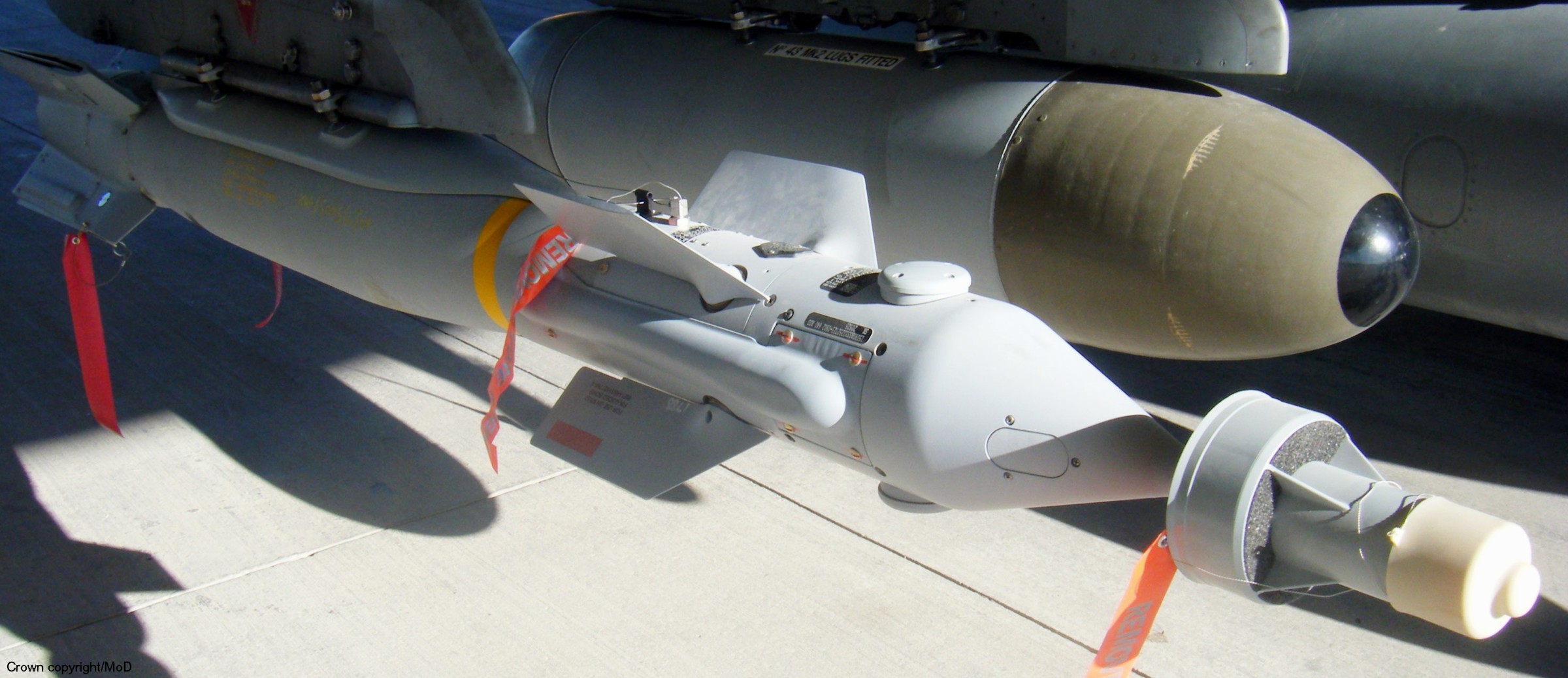

Paveway IV (500 lbs) laser guided bomb

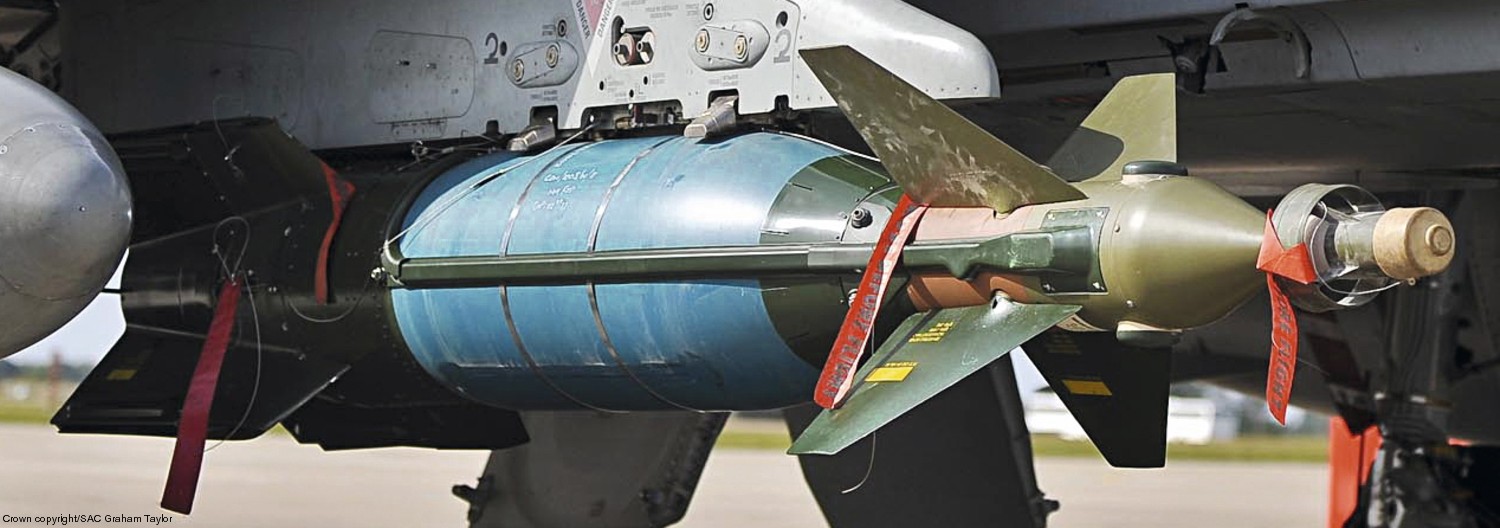

paveway iv laser guided bomb unit gbu 500 lbs royal air force raf 05
Paveway IV (500 lbs) laser guided bomb



gbu-49 enhanced paveway laser guided bomb unit gbu 500 lbs 02

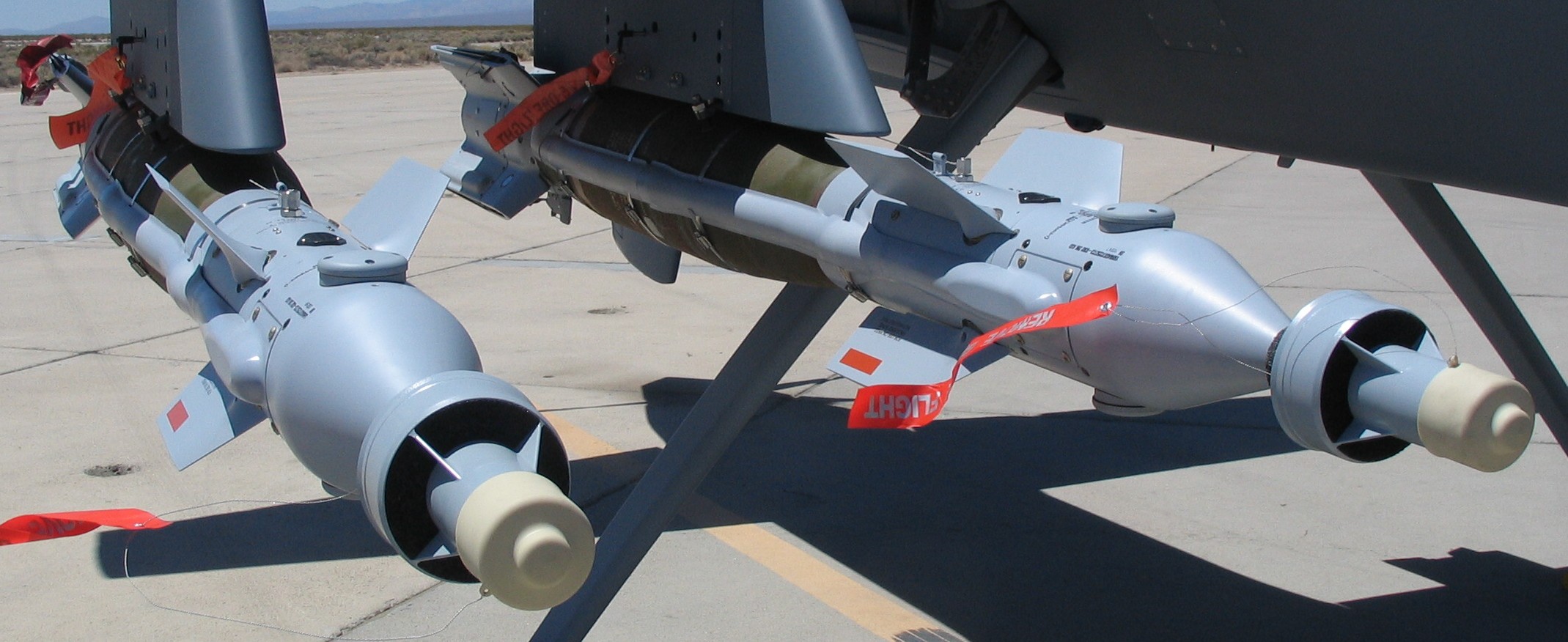

GBU-49 Enhanced Paveway (500 lbs) laser guided bomb

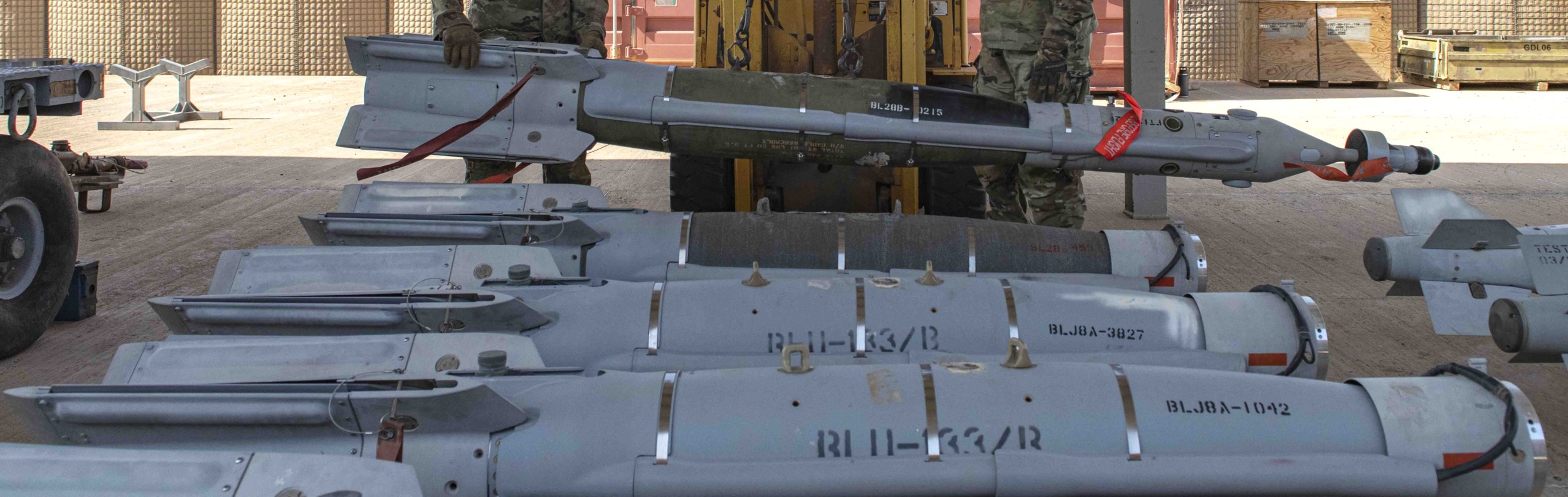

gbu-49 enhanced paveway laser guided bomb unit gbu 500 lbs 03
GBU-49 Enhanced Paveway (500 lbs) laser guided bomb



gbu-22 enhanced paveway laser guided bomb unit gbu 500 lbs 02

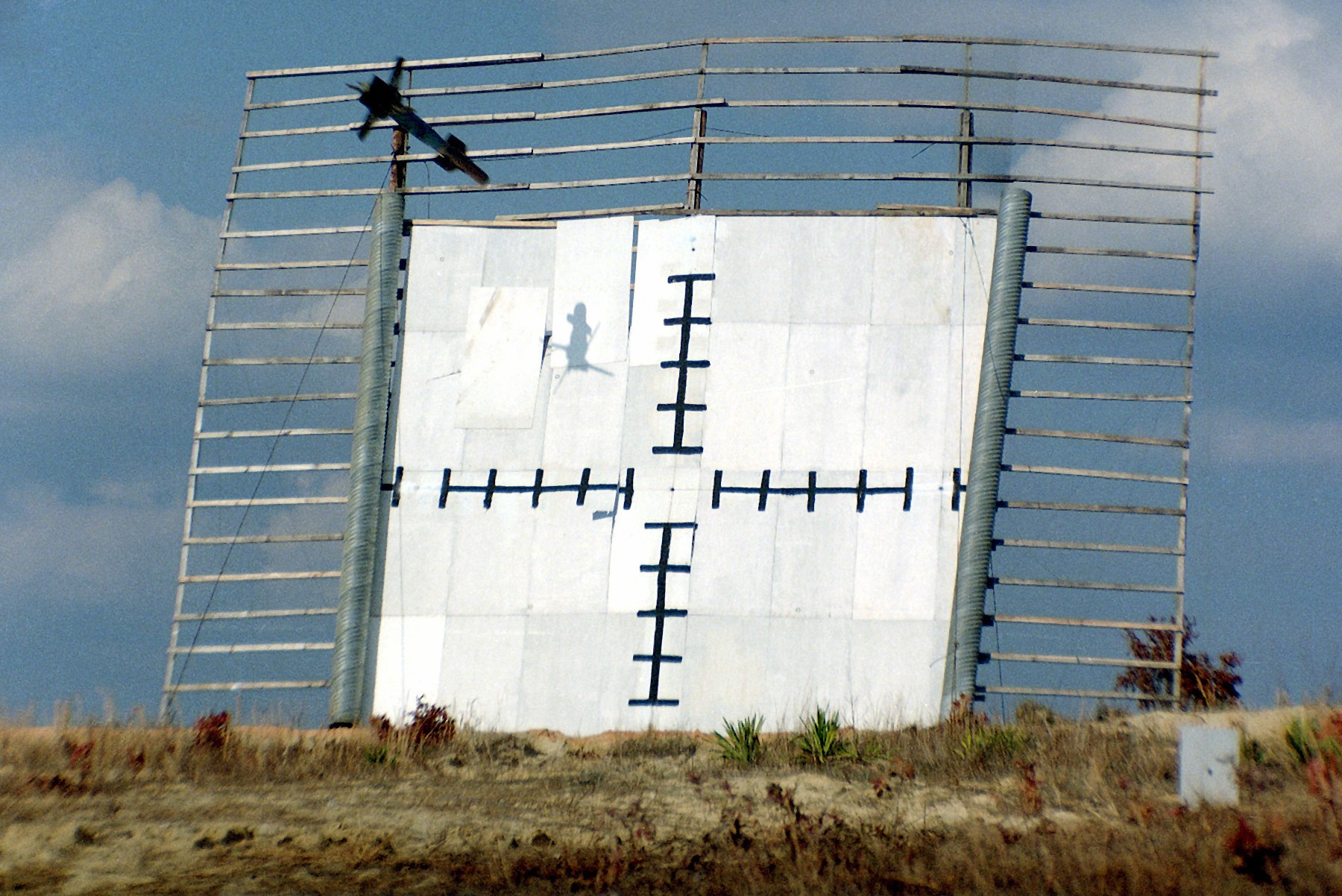

GBU-22 Paveway (500 lbs) laser guided bomb on target

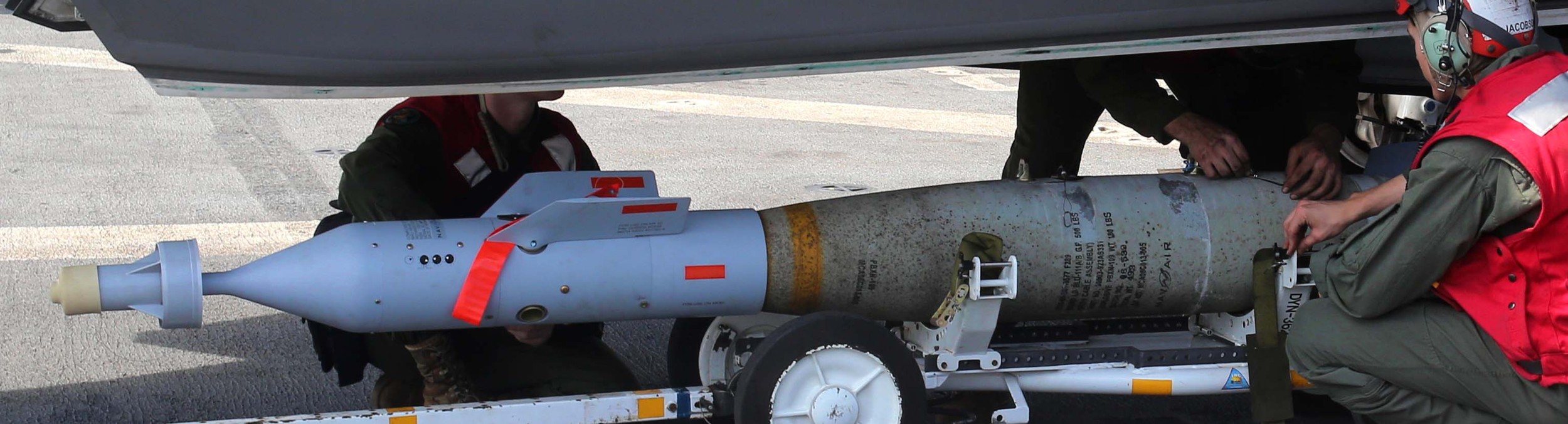

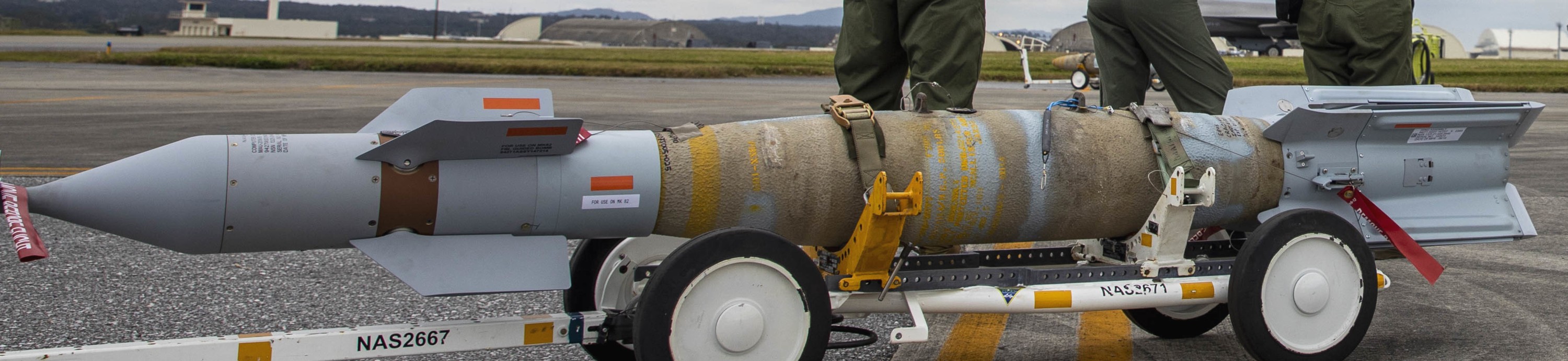

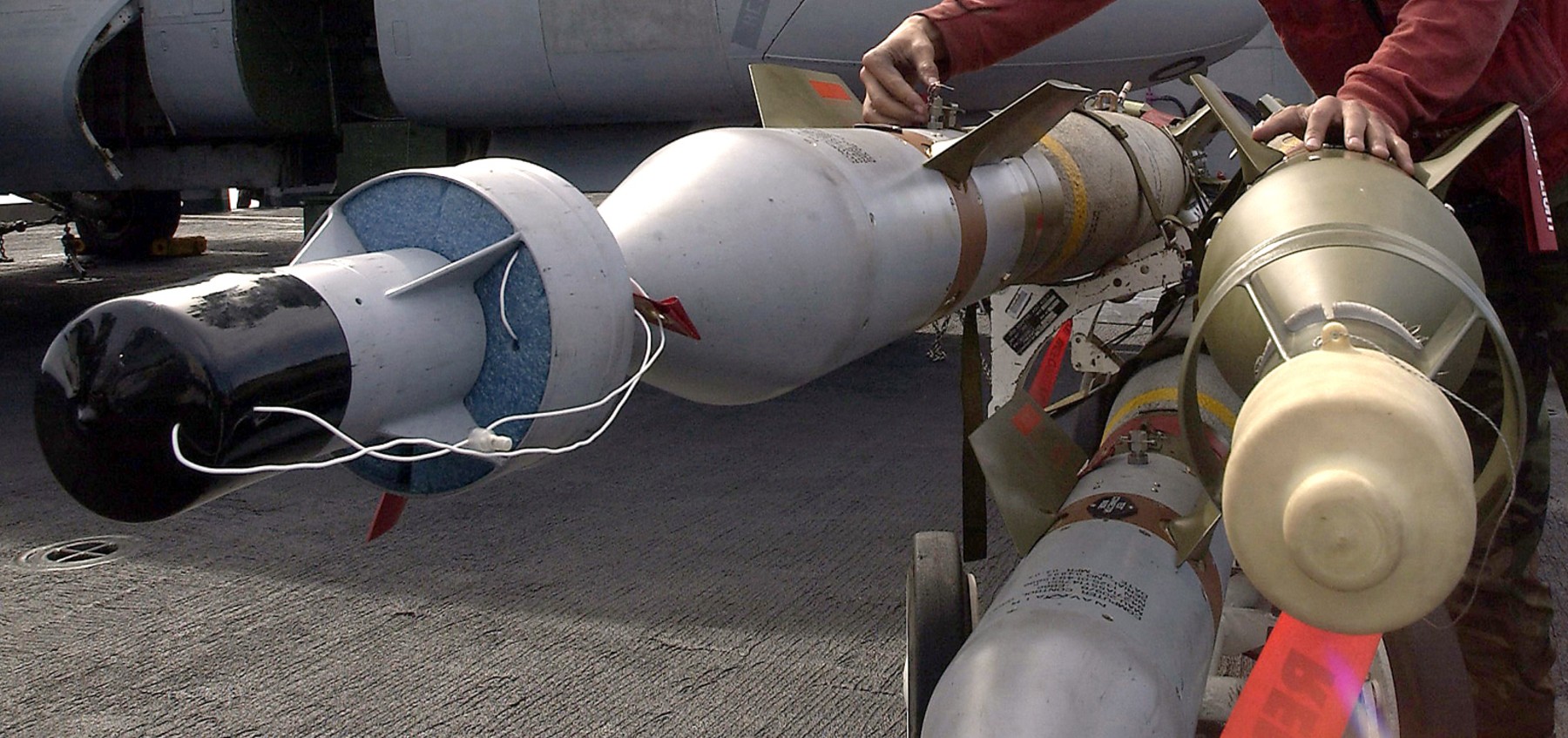

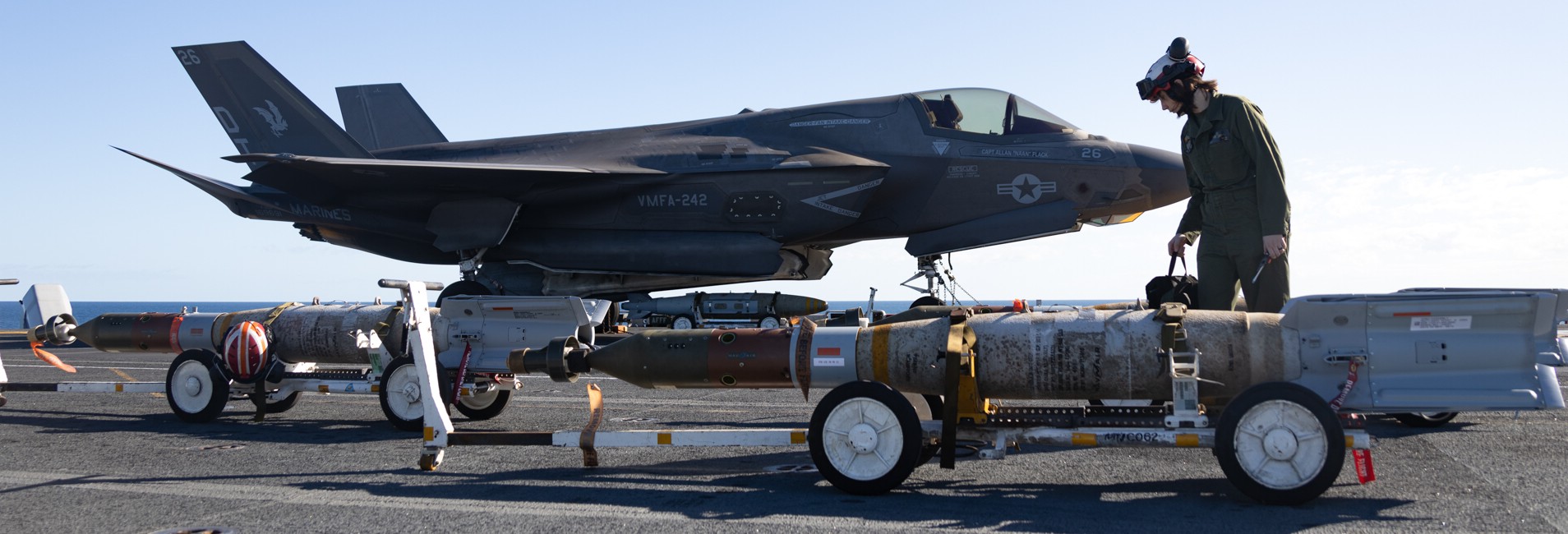

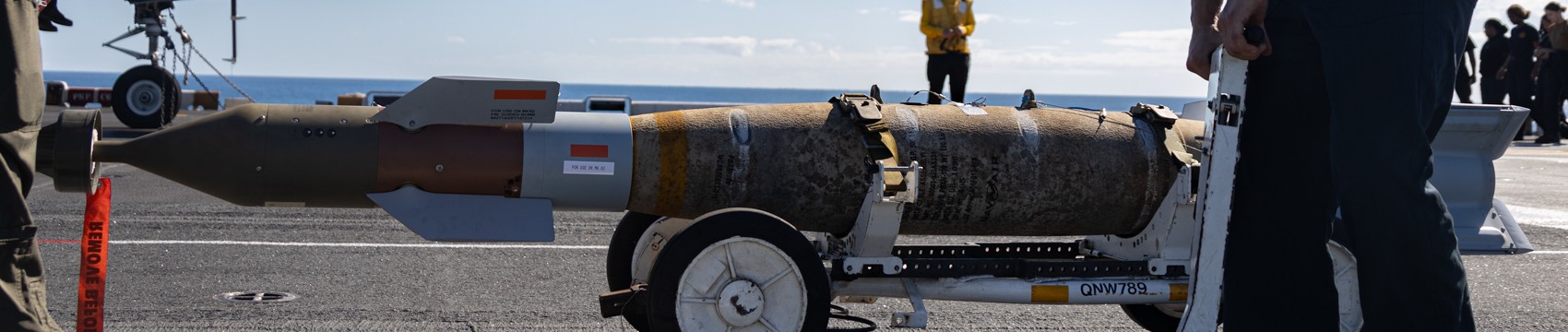

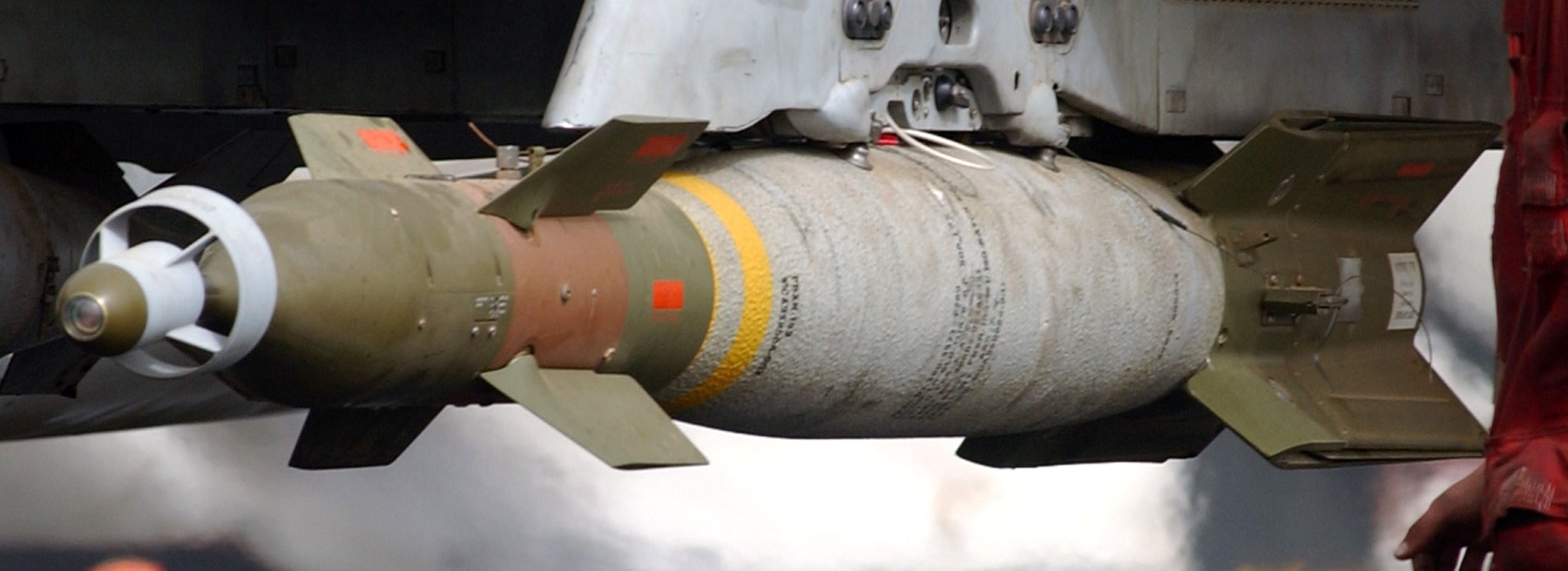

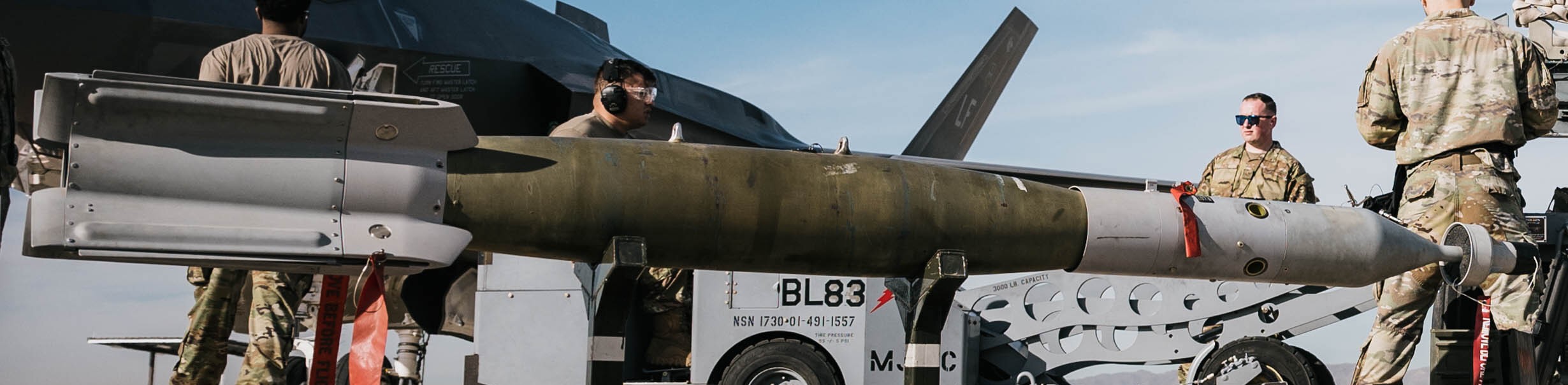

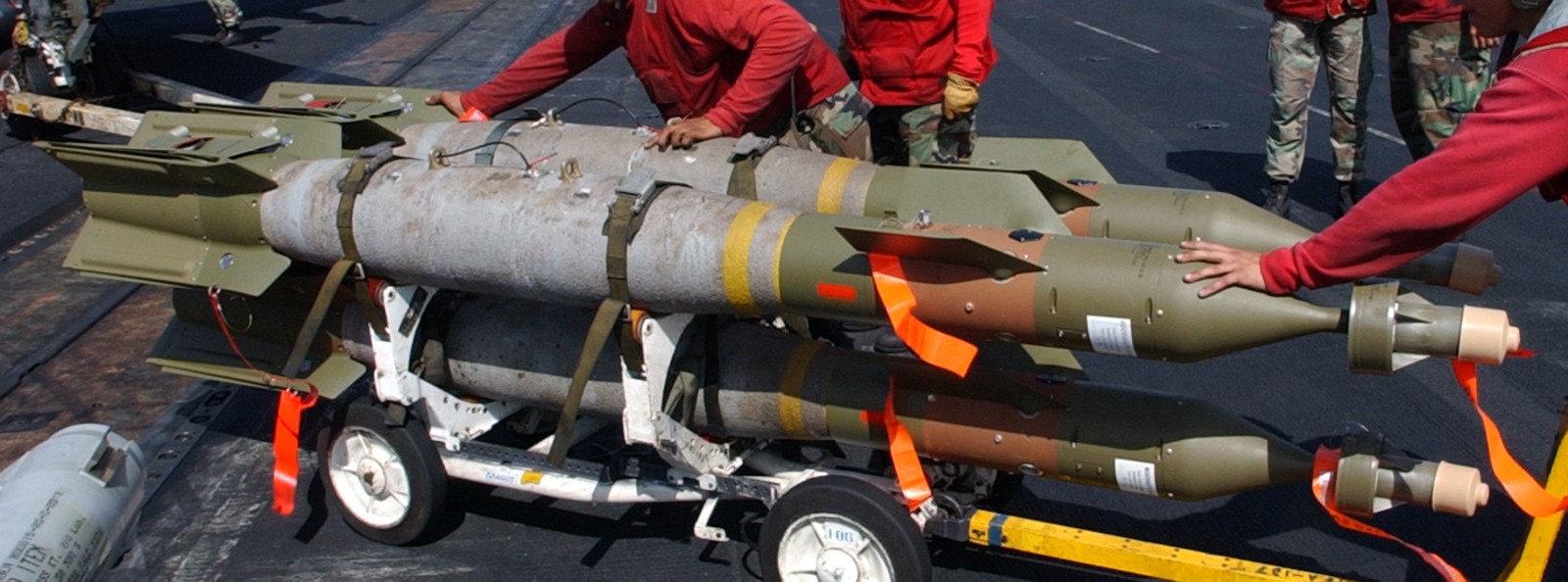

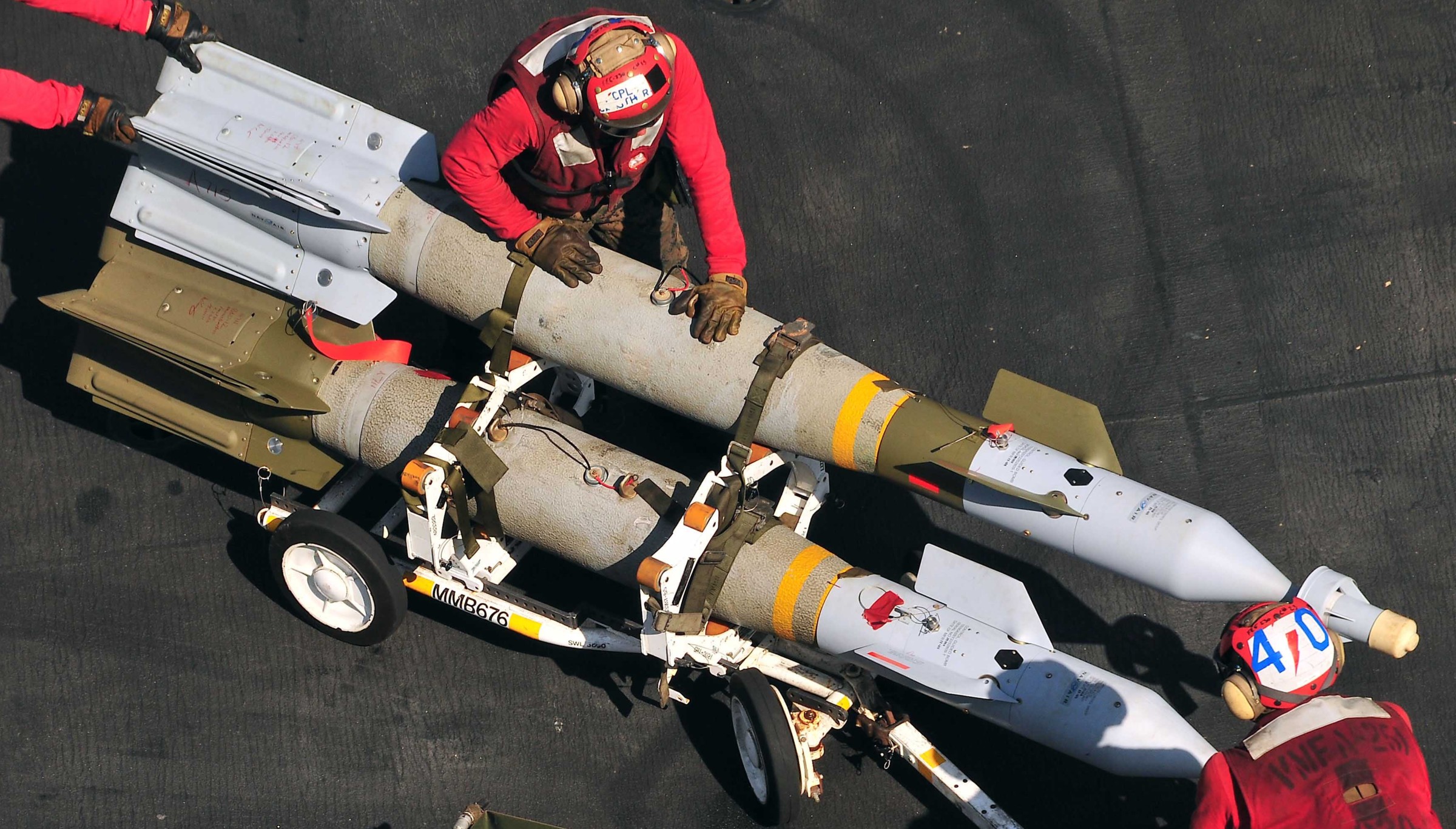

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 14
GBU-12 Paveway (500 lbs) laser guided bomb

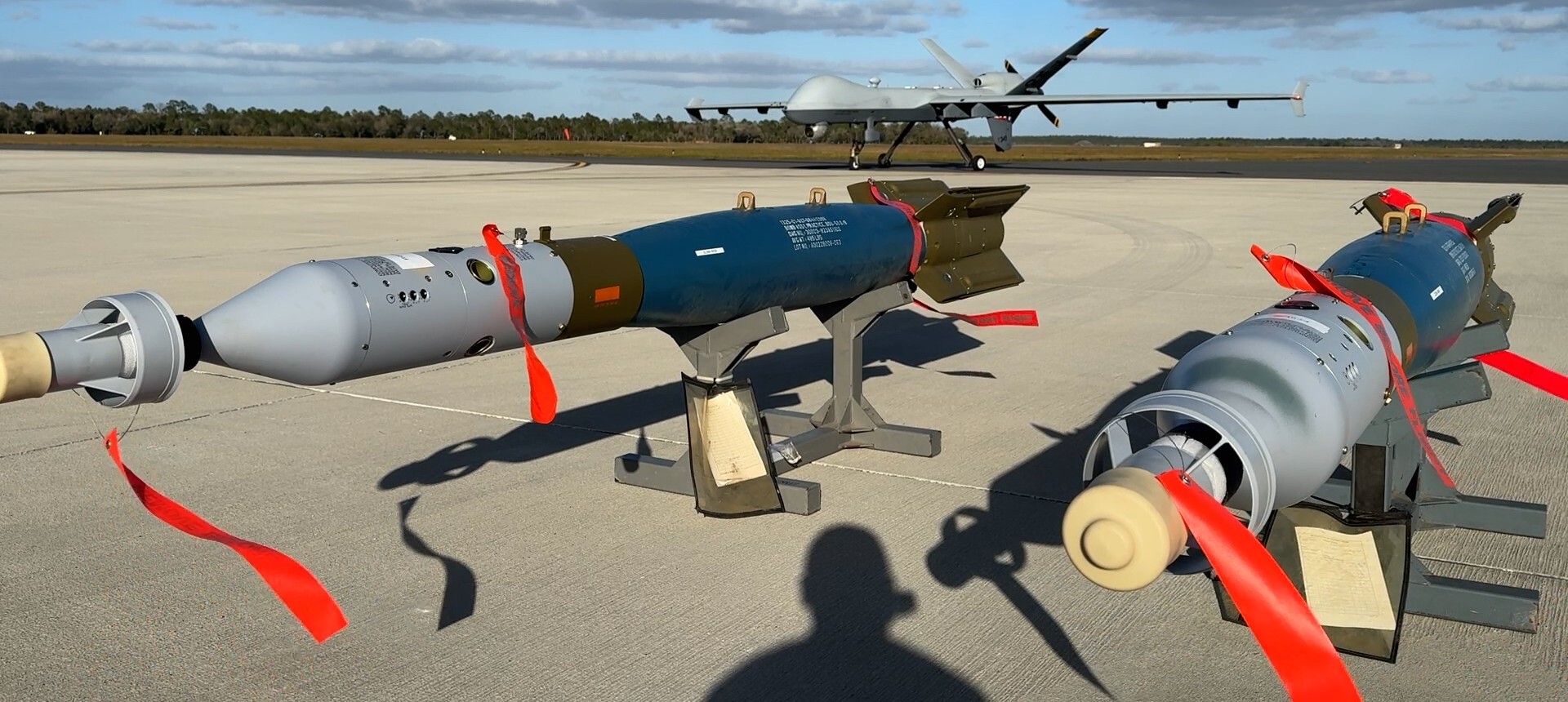

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 13
GBU-12 Paveway (500 lbs) laser guided bomb

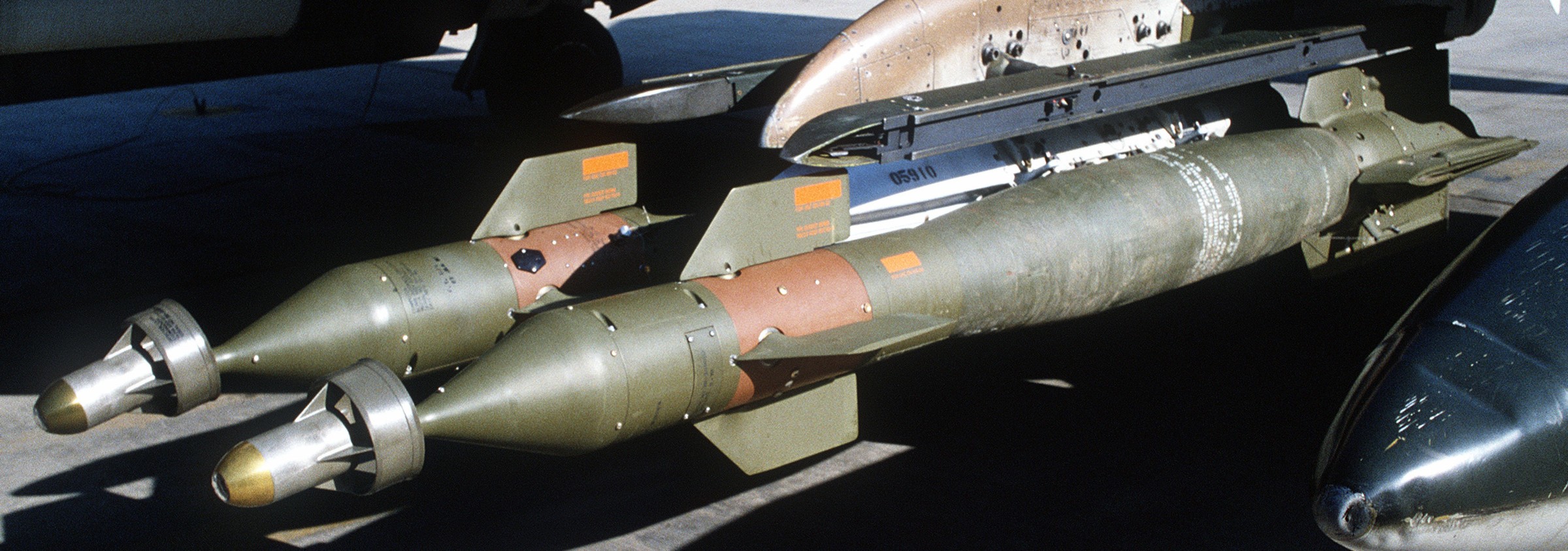

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 40
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 51
GBU-12 Paveway (500 lbs) laser guided bomb

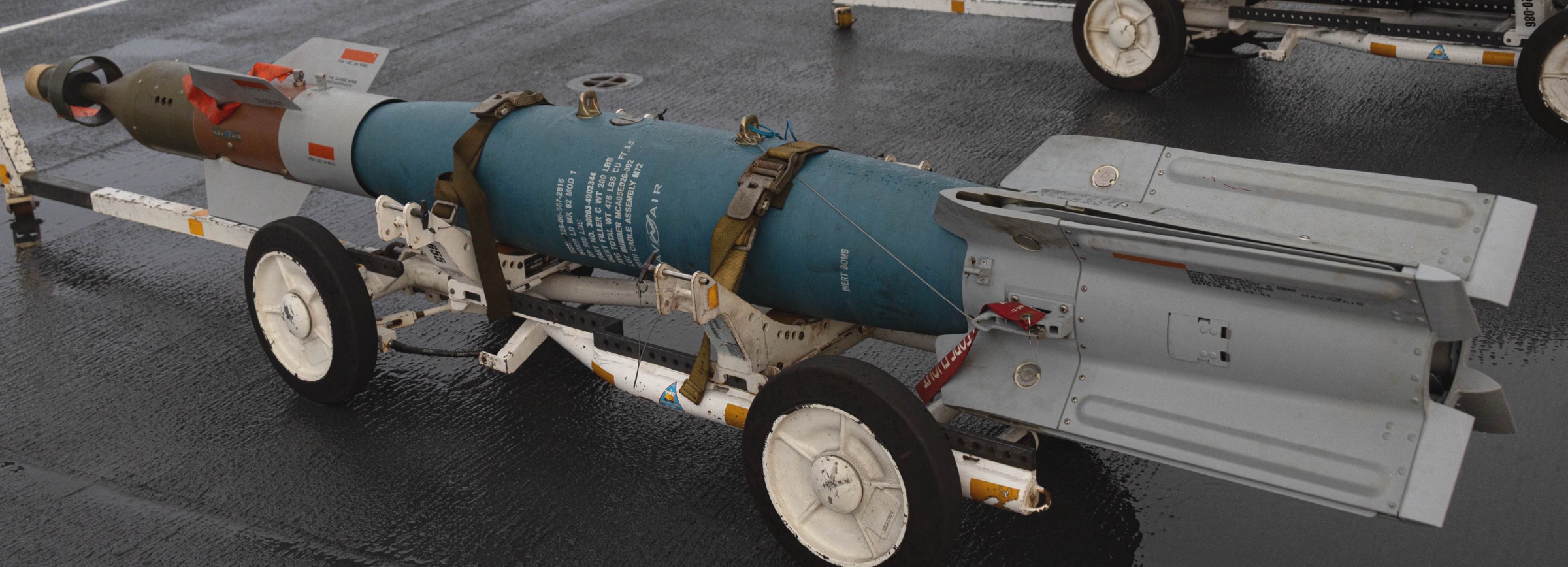

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 09
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 41
GBU-12 Paveway (500 lbs) laser guided bomb

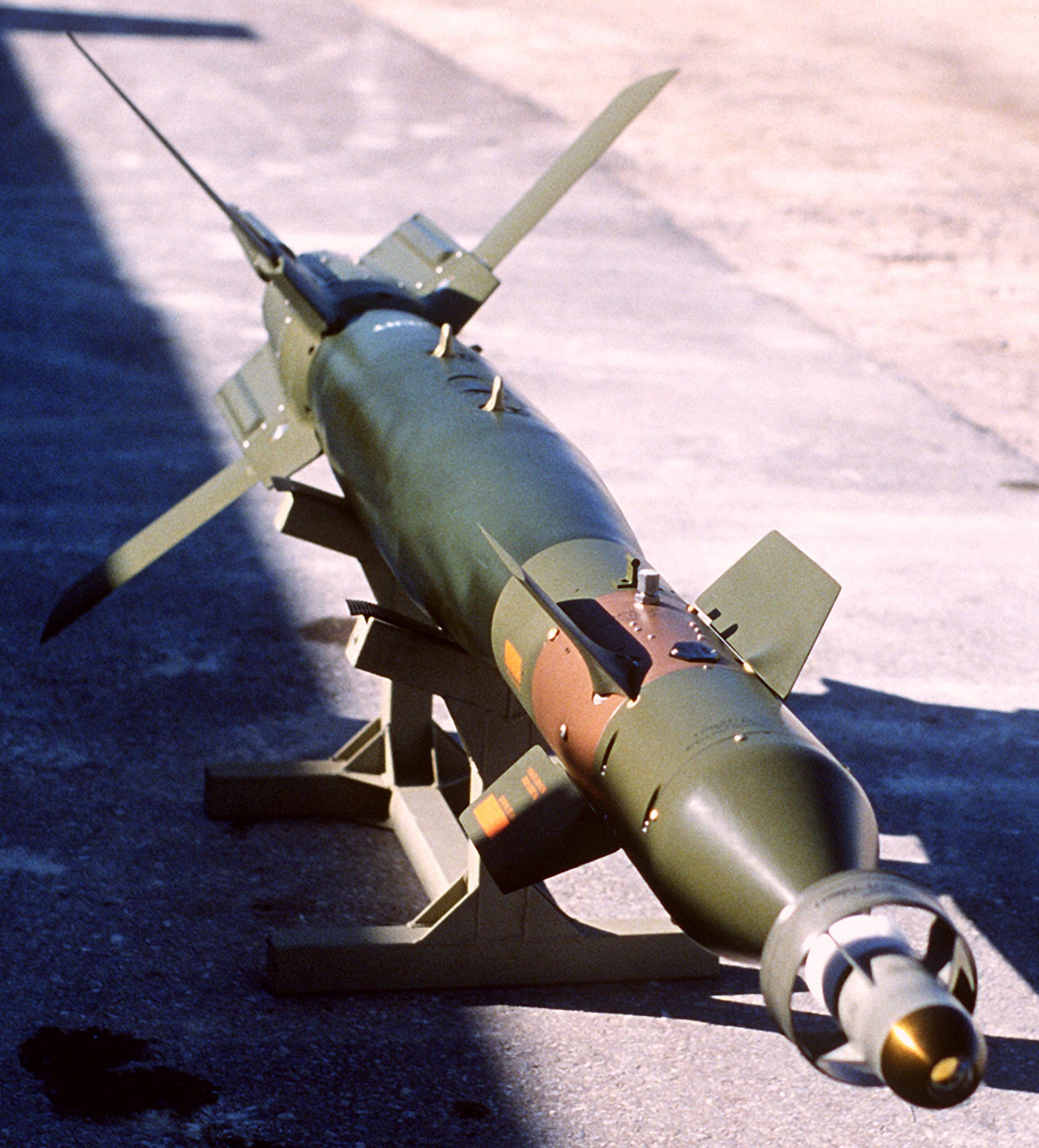

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 07
GBU-12 Paveway (500 lbs) laser guided bomb

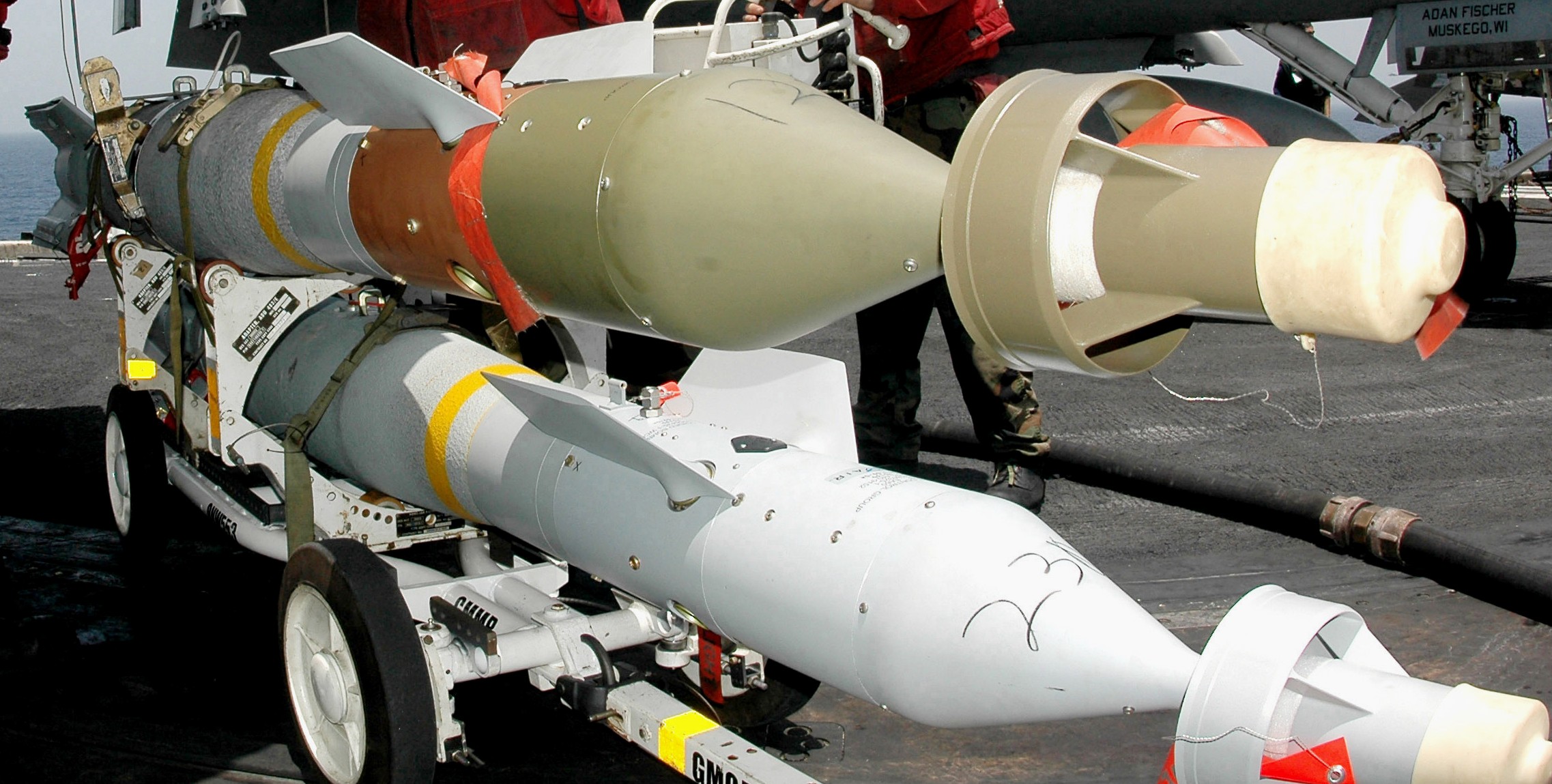

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 50
GBU-12 Paveway (500 lbs) laser guided bomb

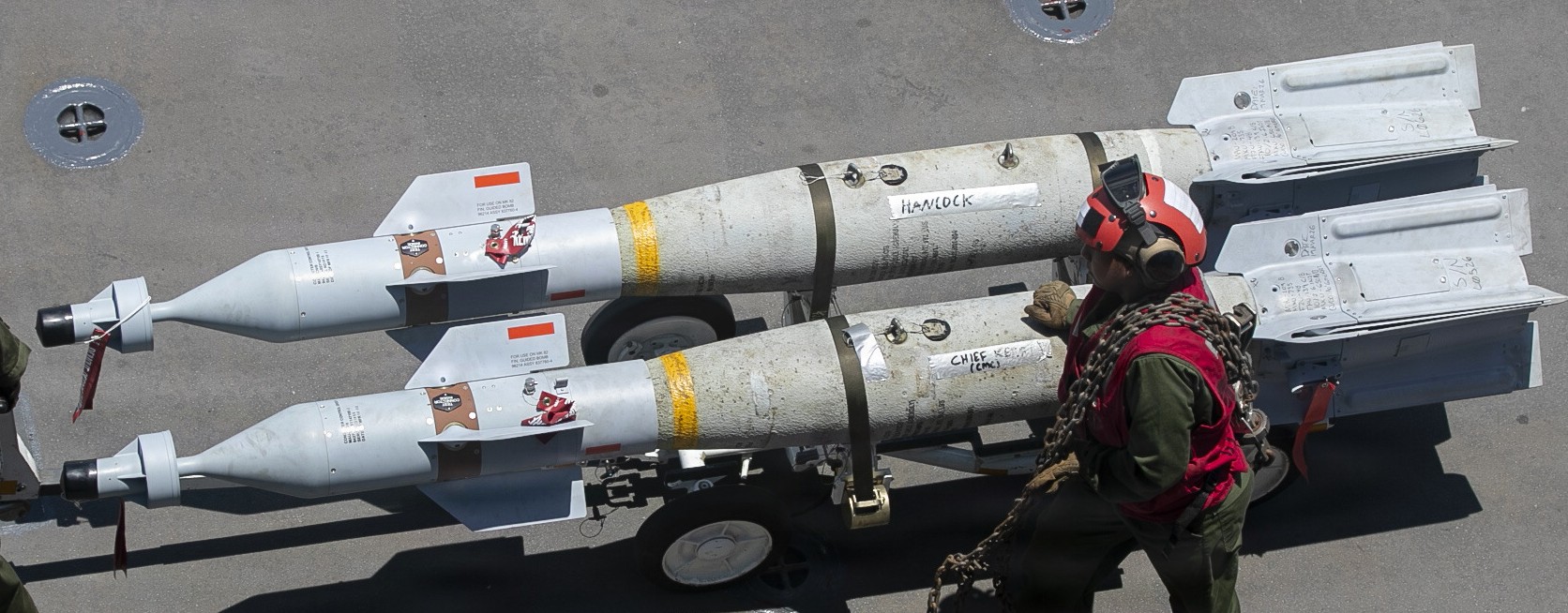

gbu-12 paveway laser guided bomb unit gbu 500 lbs navy marines 04x
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 02x
GBU-12 Paveway (500 lbs) laser guided bomb

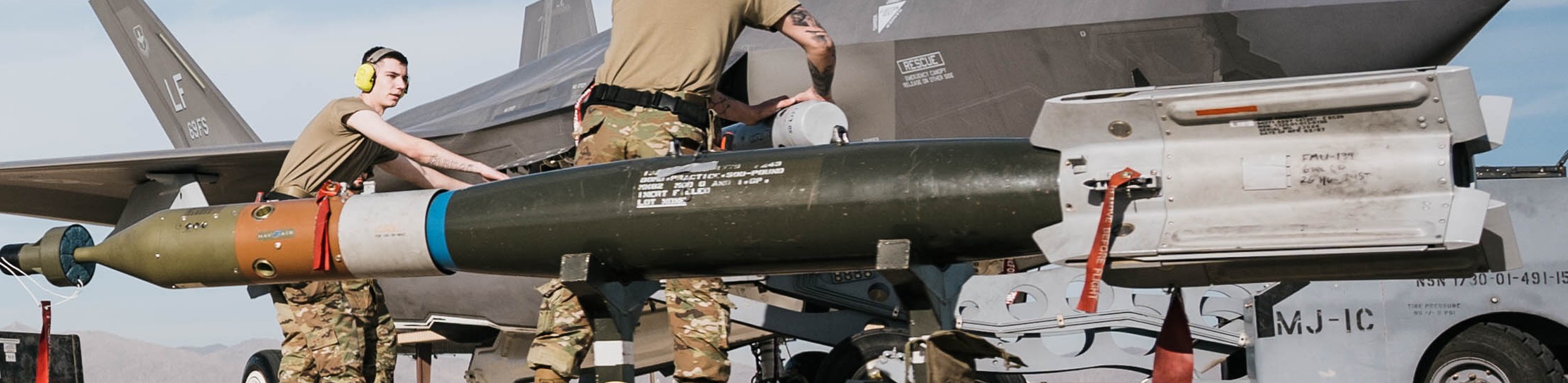

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 11
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 10
GBU-12 Paveway (500 lbs) laser guided bomb

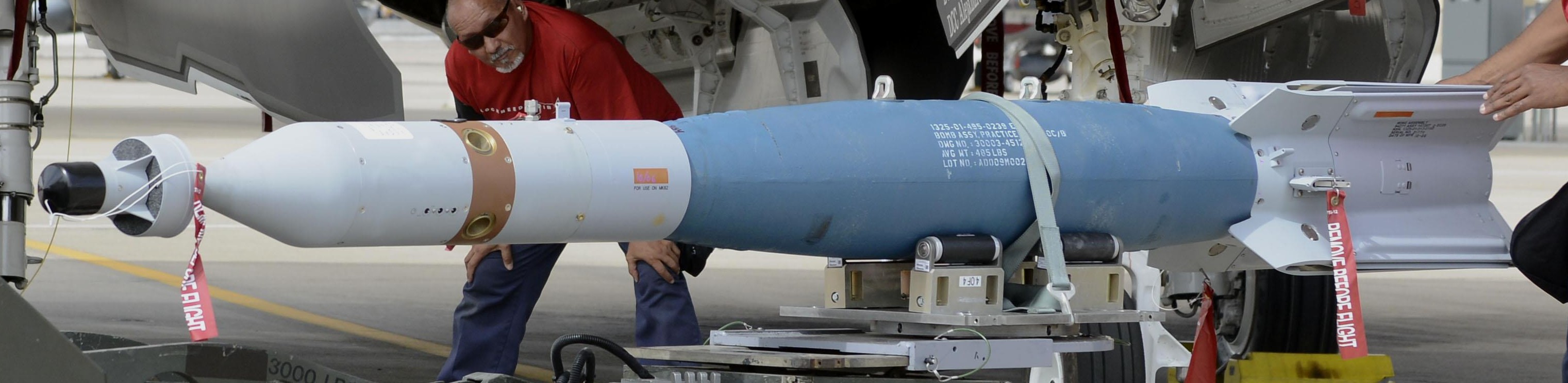

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 12
GBU-12 Paveway (500 lbs) laser guided bomb

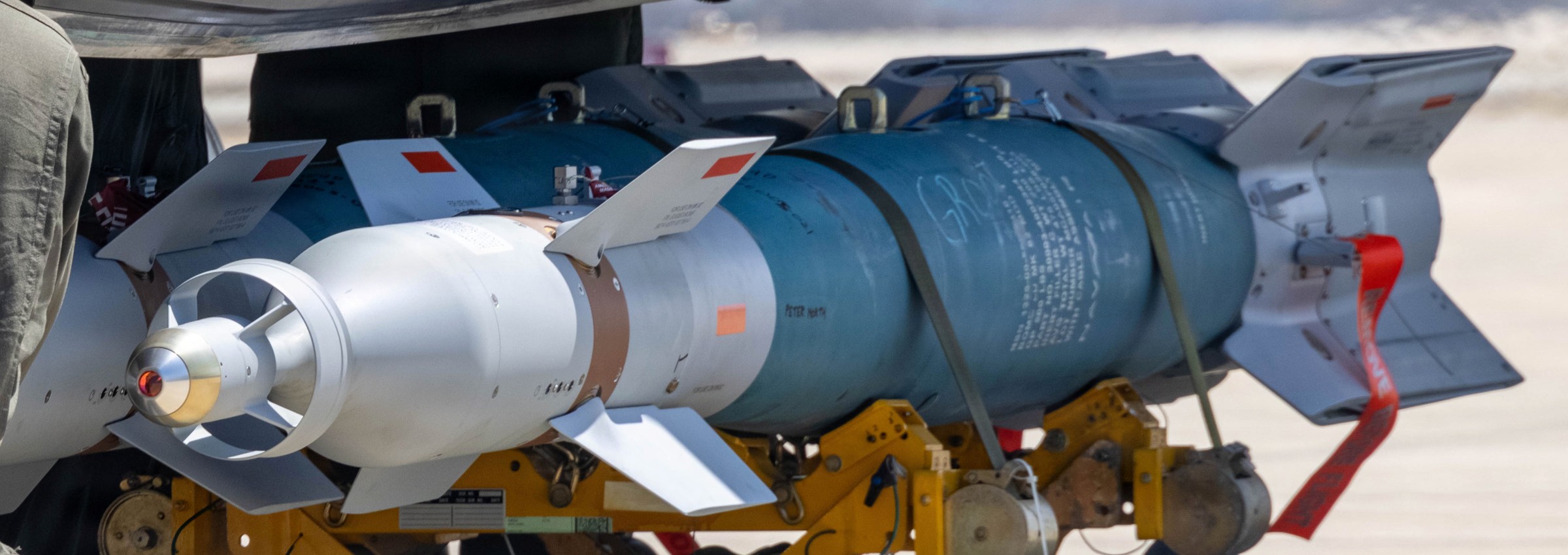

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 31
GBU-12 Paveway (500 lbs) laser guided bomb

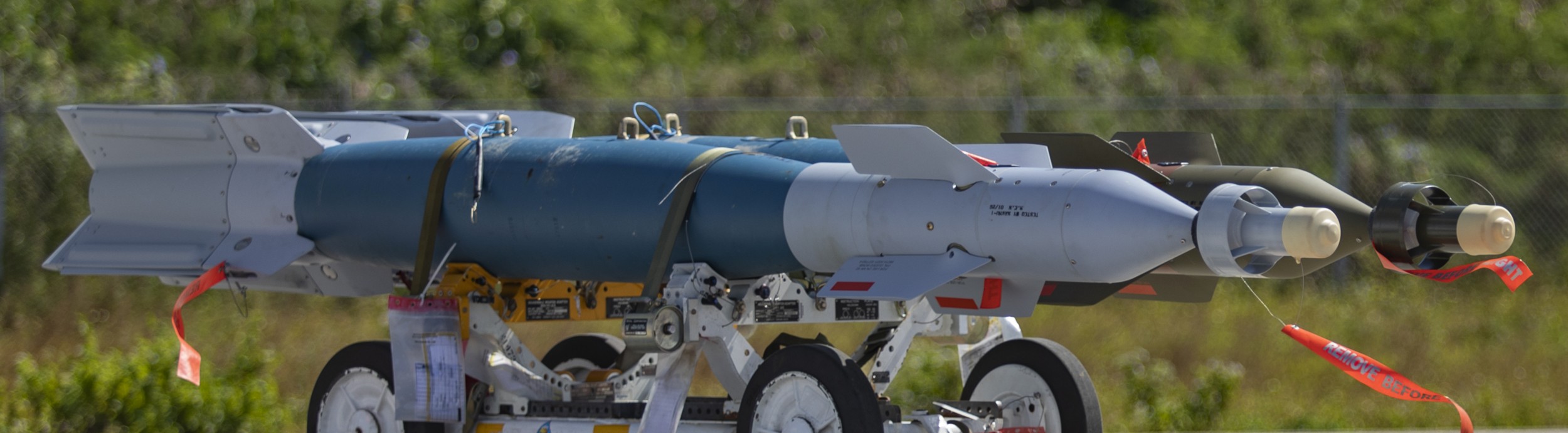

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 38
GBU-12 Paveway (500 lbs) laser guided bomb

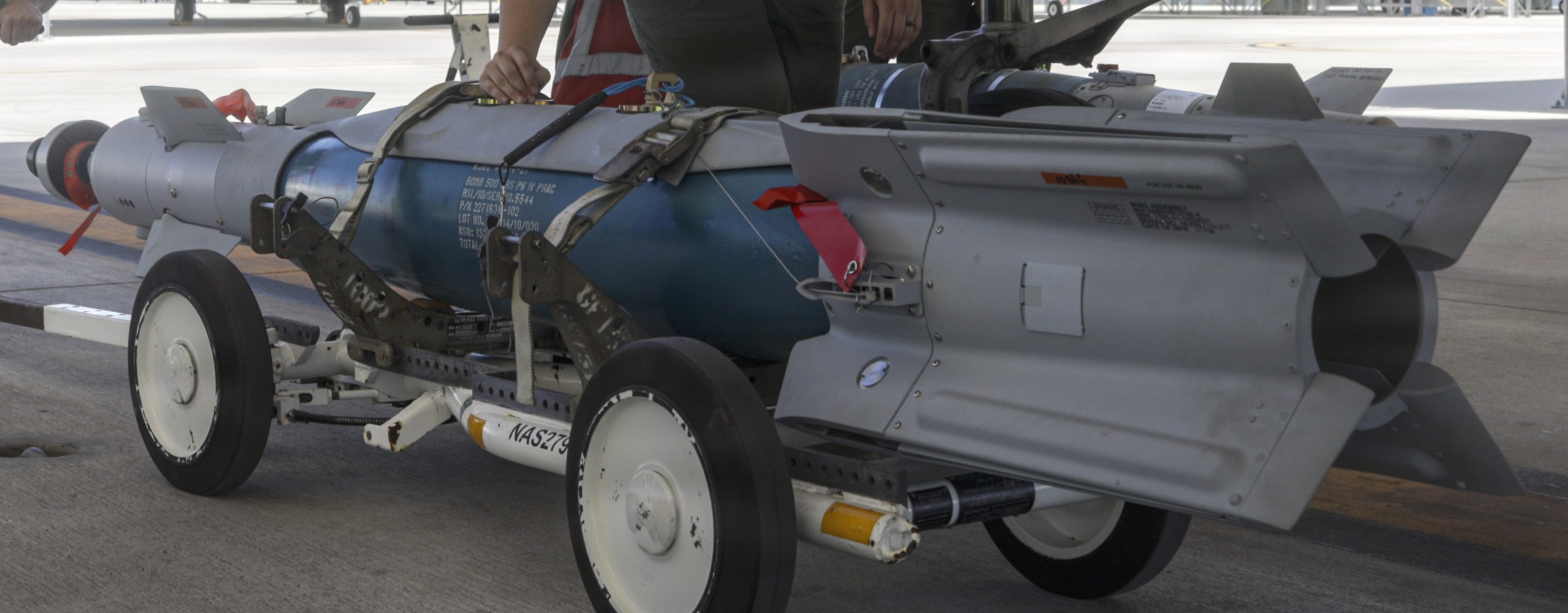

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 19
GBU-12 Paveway (500 lbs) laser guided bomb

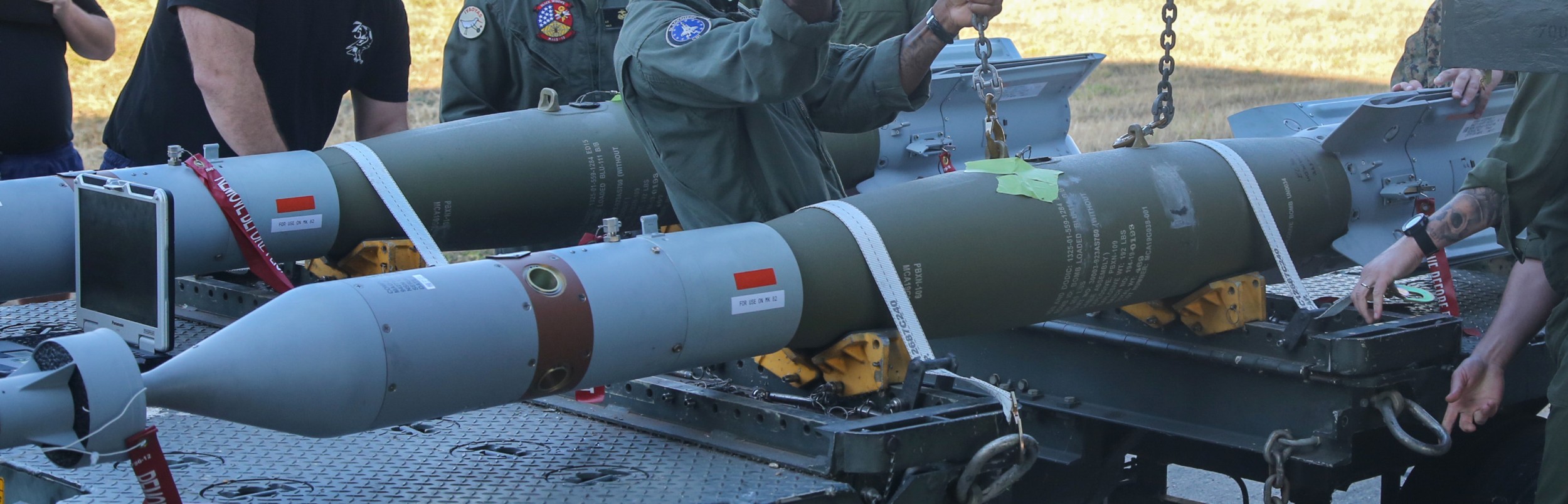

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 29
GBU-12 Paveway (500 lbs) laser guided bomb

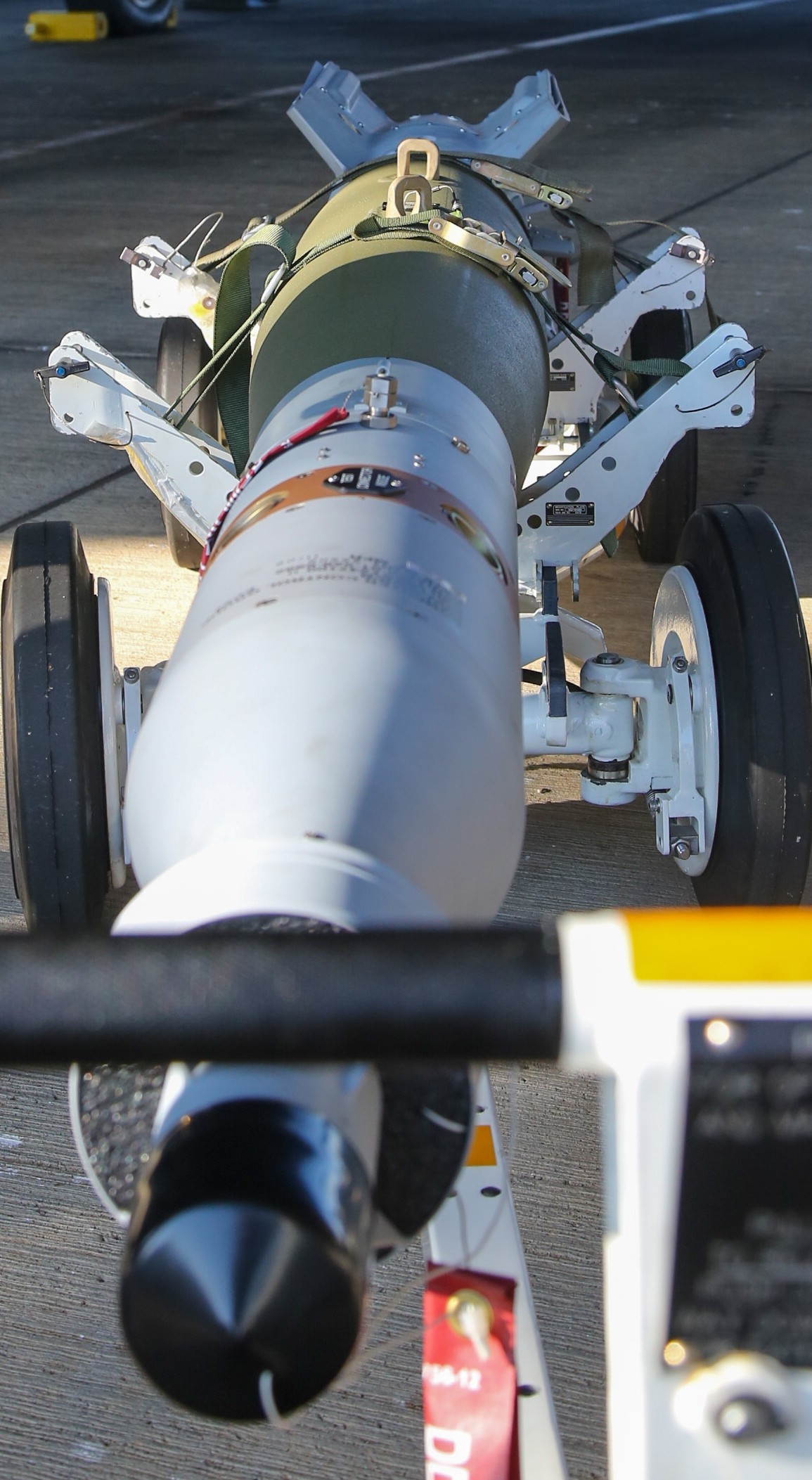

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 30
GBU-12 Paveway (500 lbs) laser guided bomb

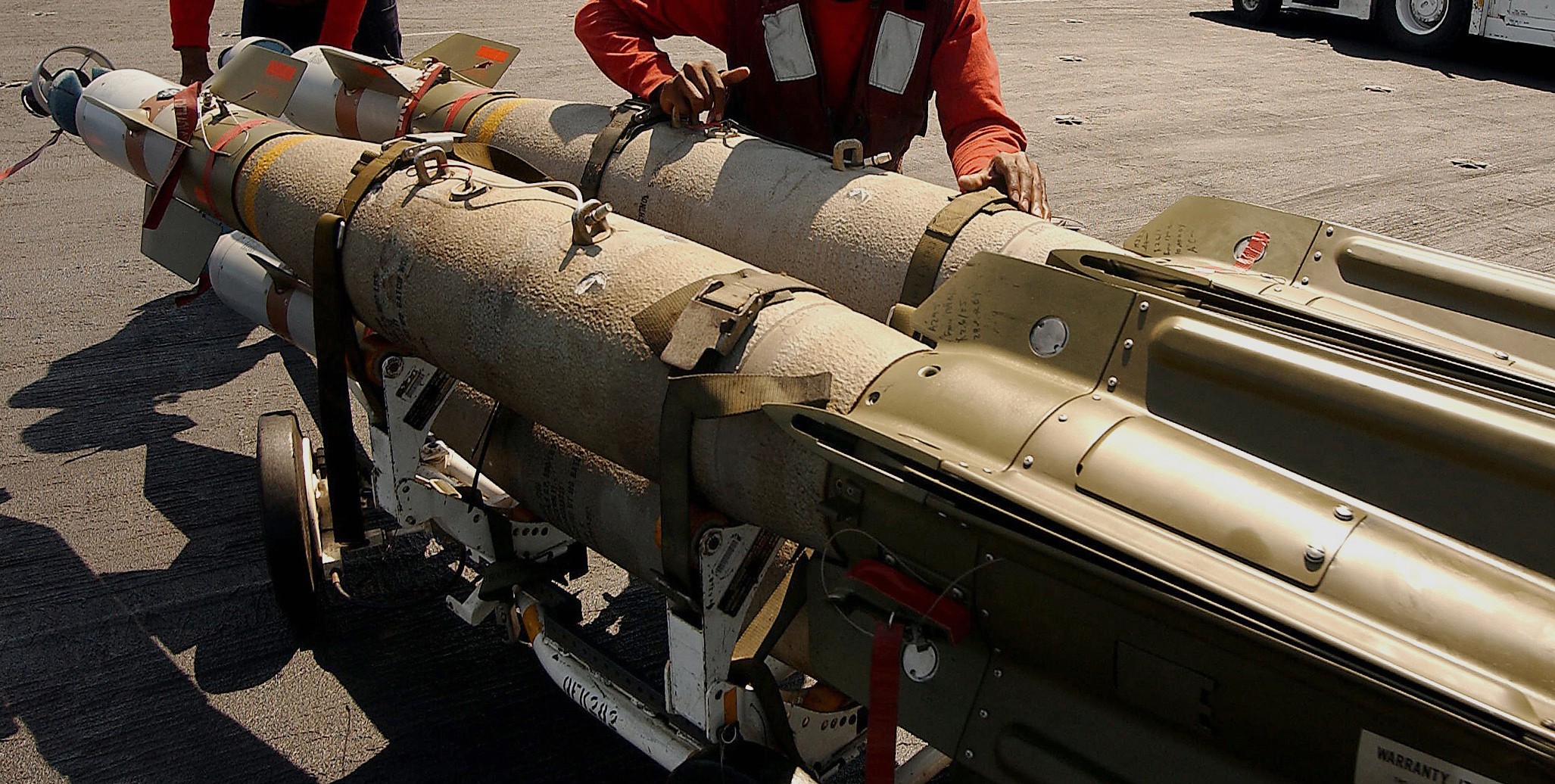

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 04
GBU-12 Paveway (500 lbs) laser guided bomb

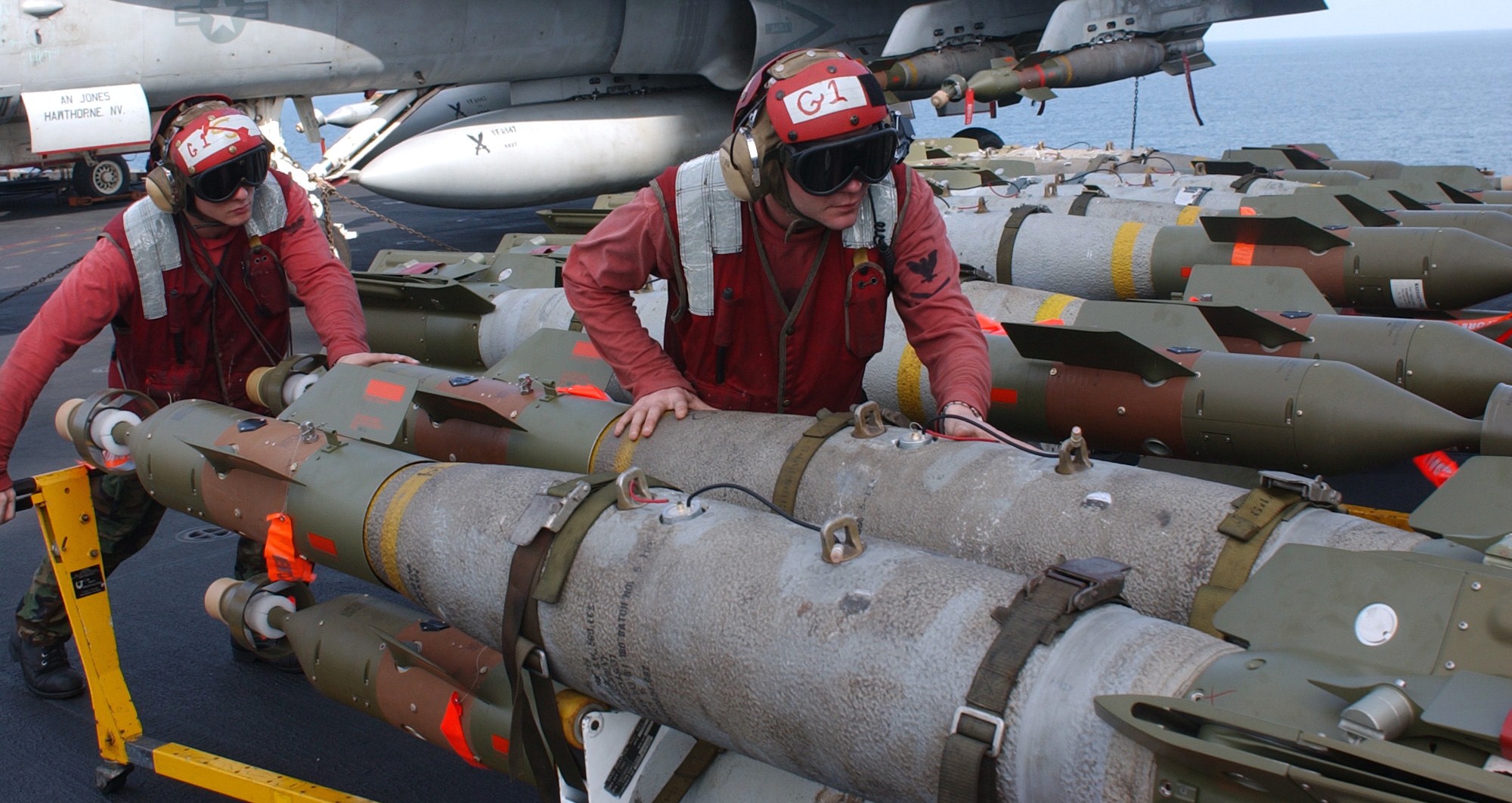

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 15
GBU-12 Paveway (500 lbs) laser guided bomb

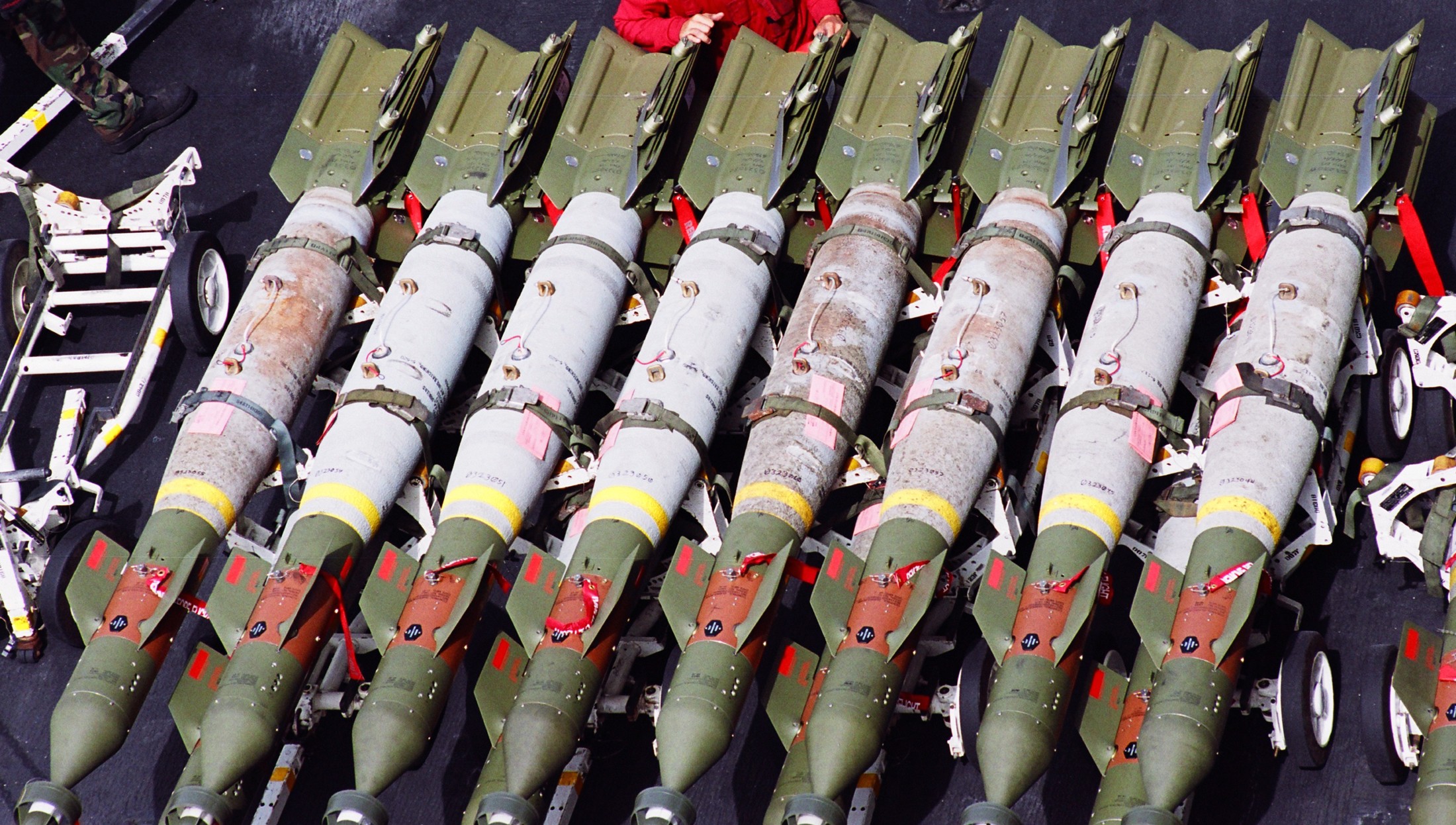

gbu-12 paveway laser guided bomb unit gbu 500 lbs navy marines 10x
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines f-35b lightning 03
GBU-12 Paveway (500 lbs) laser guided bomb

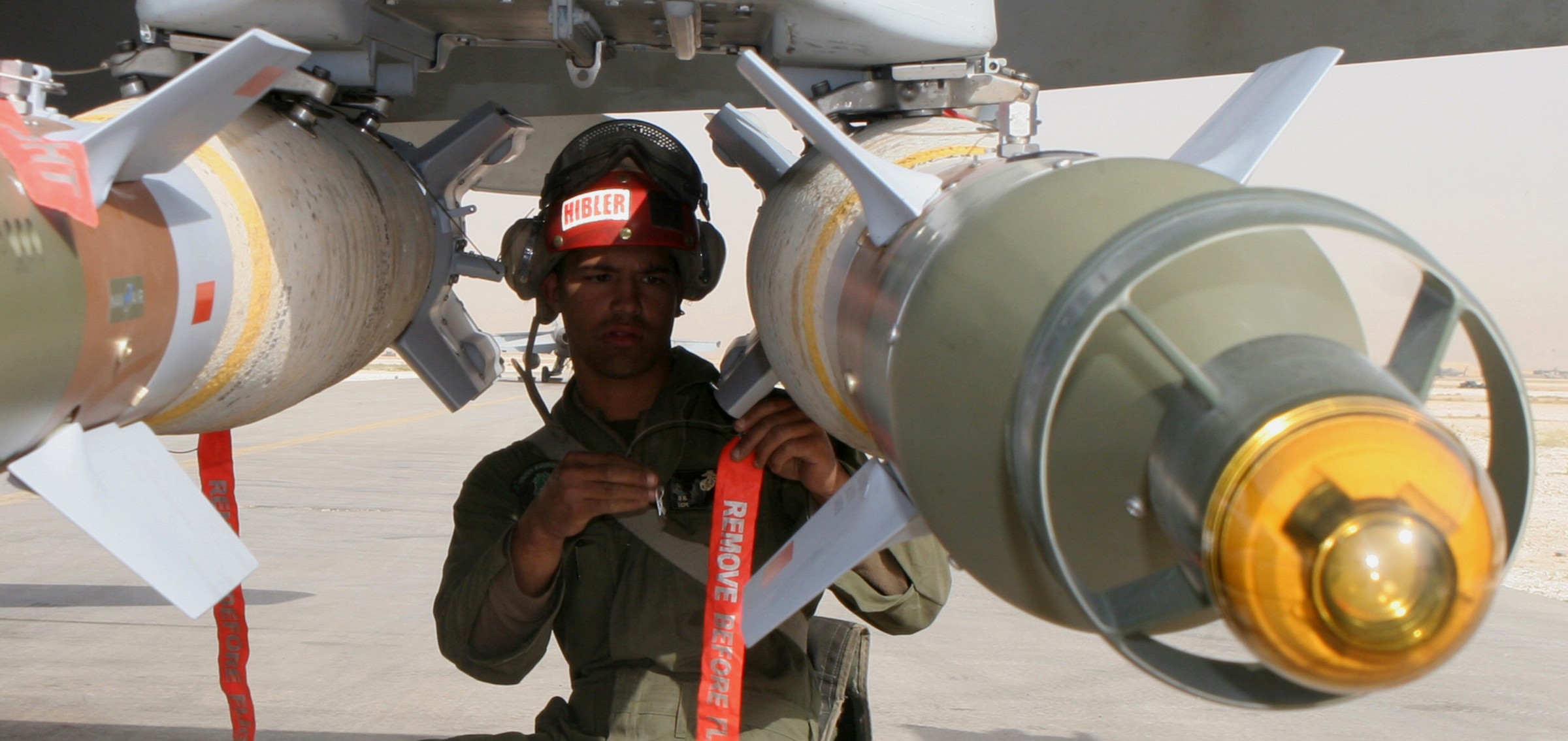

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 05
GBU-12 Paveway (500 lbs) laser guided bomb

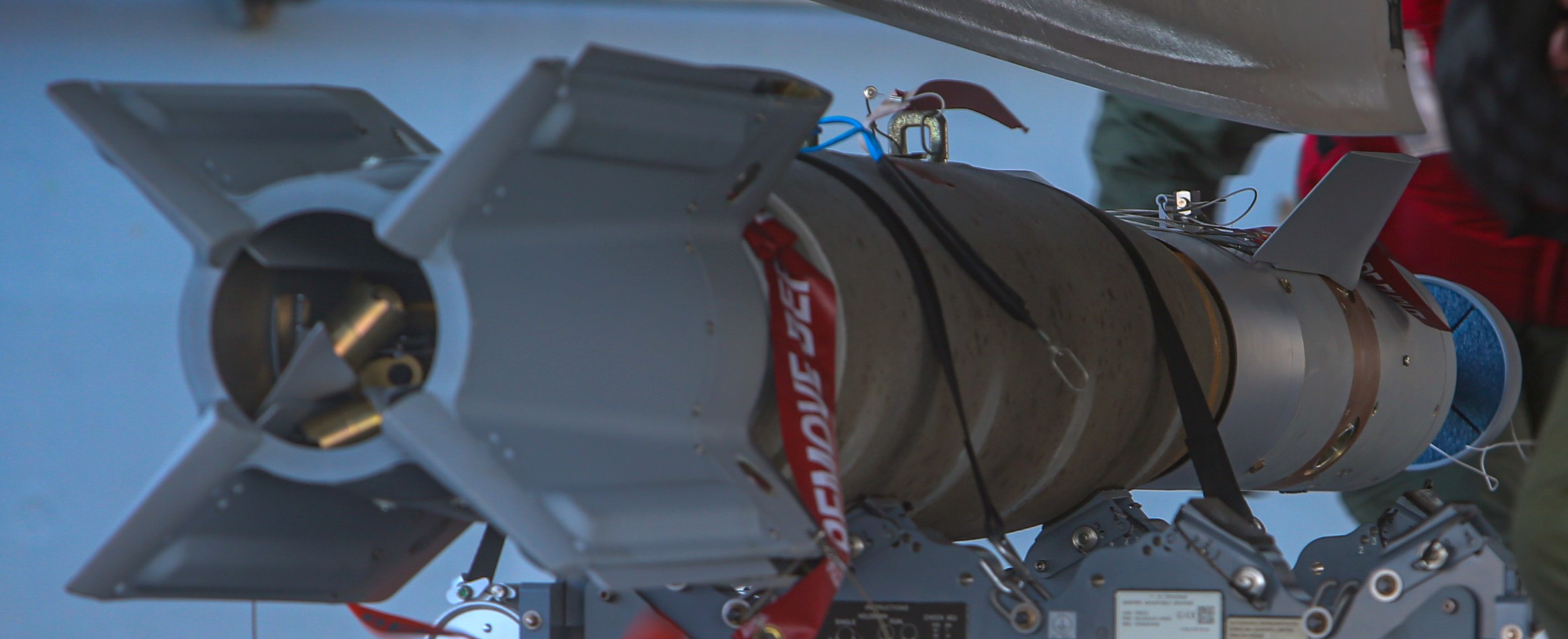

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 06
GBU-12 Paveway (500 lbs) laser guided bomb

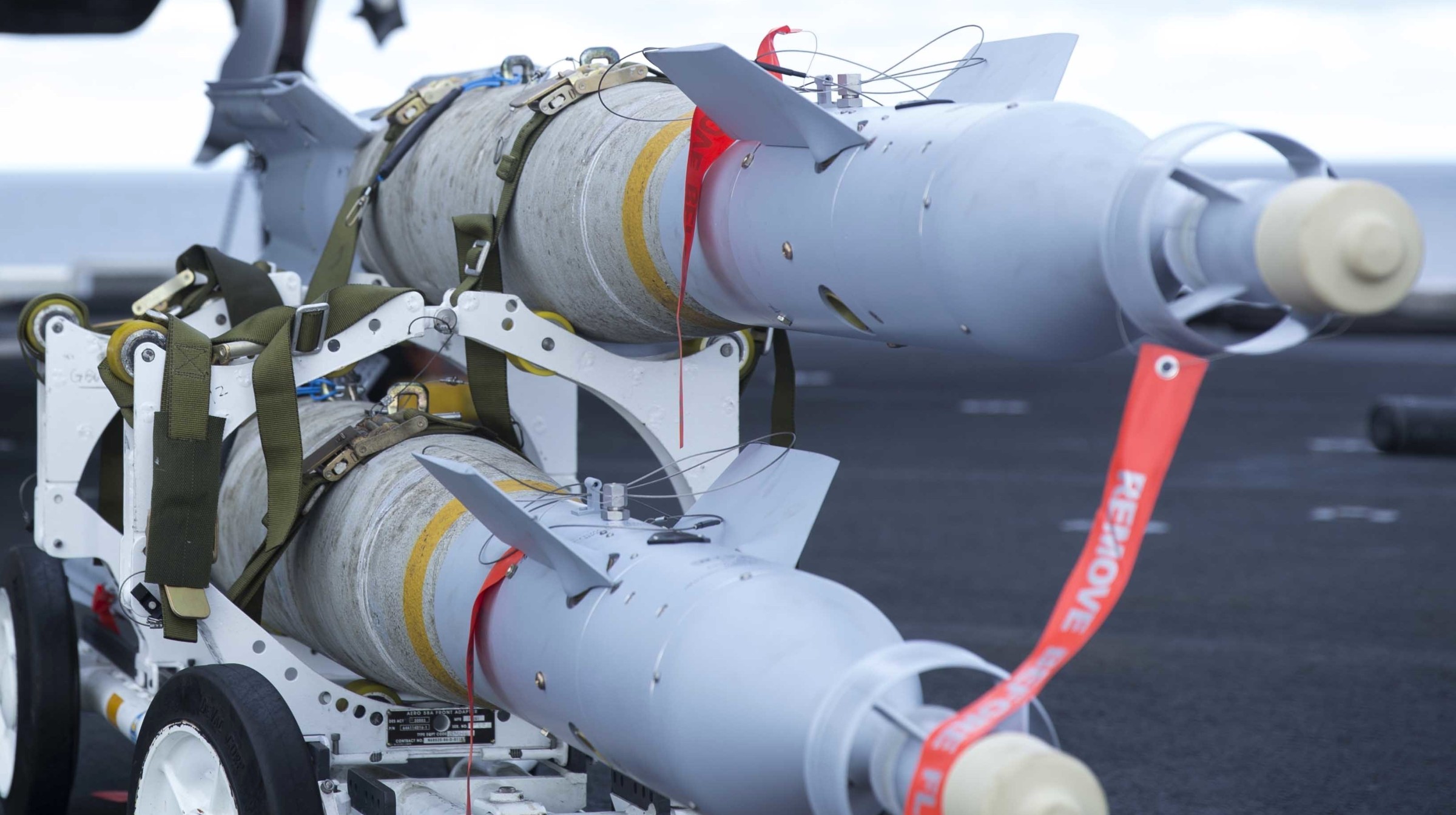

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 17
GBU-12 Paveway (500 lbs) laser guided bomb

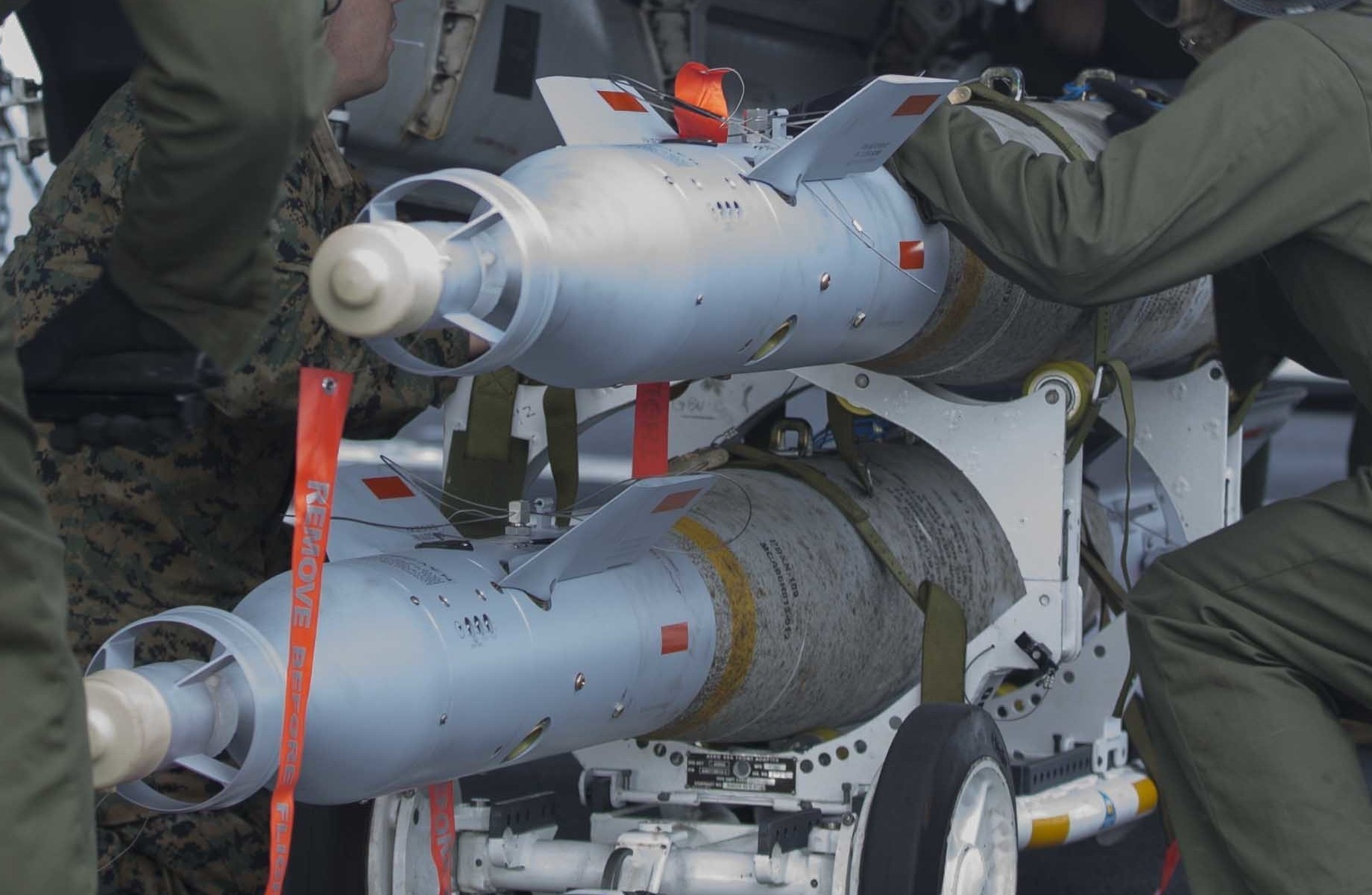

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 18
GBU-12 Paveway (500 lbs) laser guided bomb

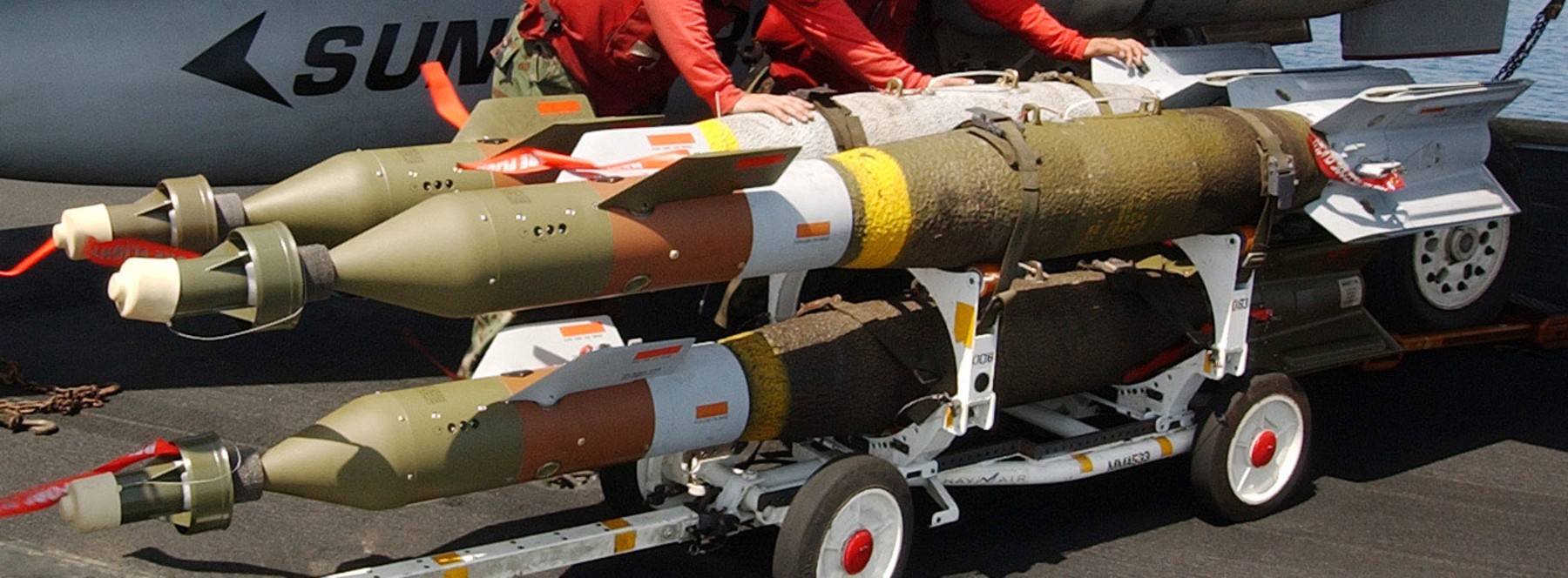

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 45
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 44
GBU-12 Paveway (500 lbs) laser guided bomb

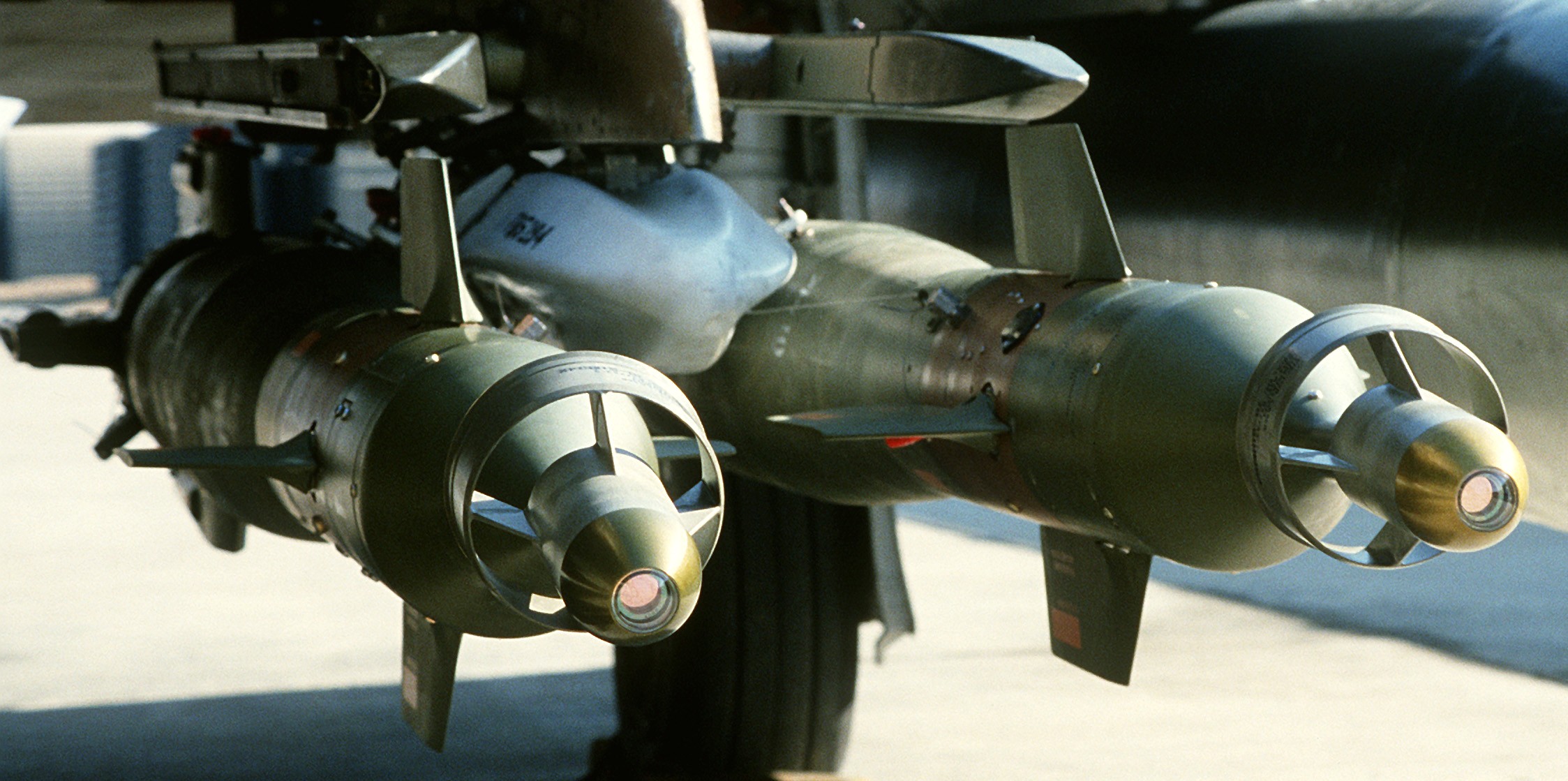

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 25
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 42
GBU-12 Paveway (500 lbs) laser guided bomb

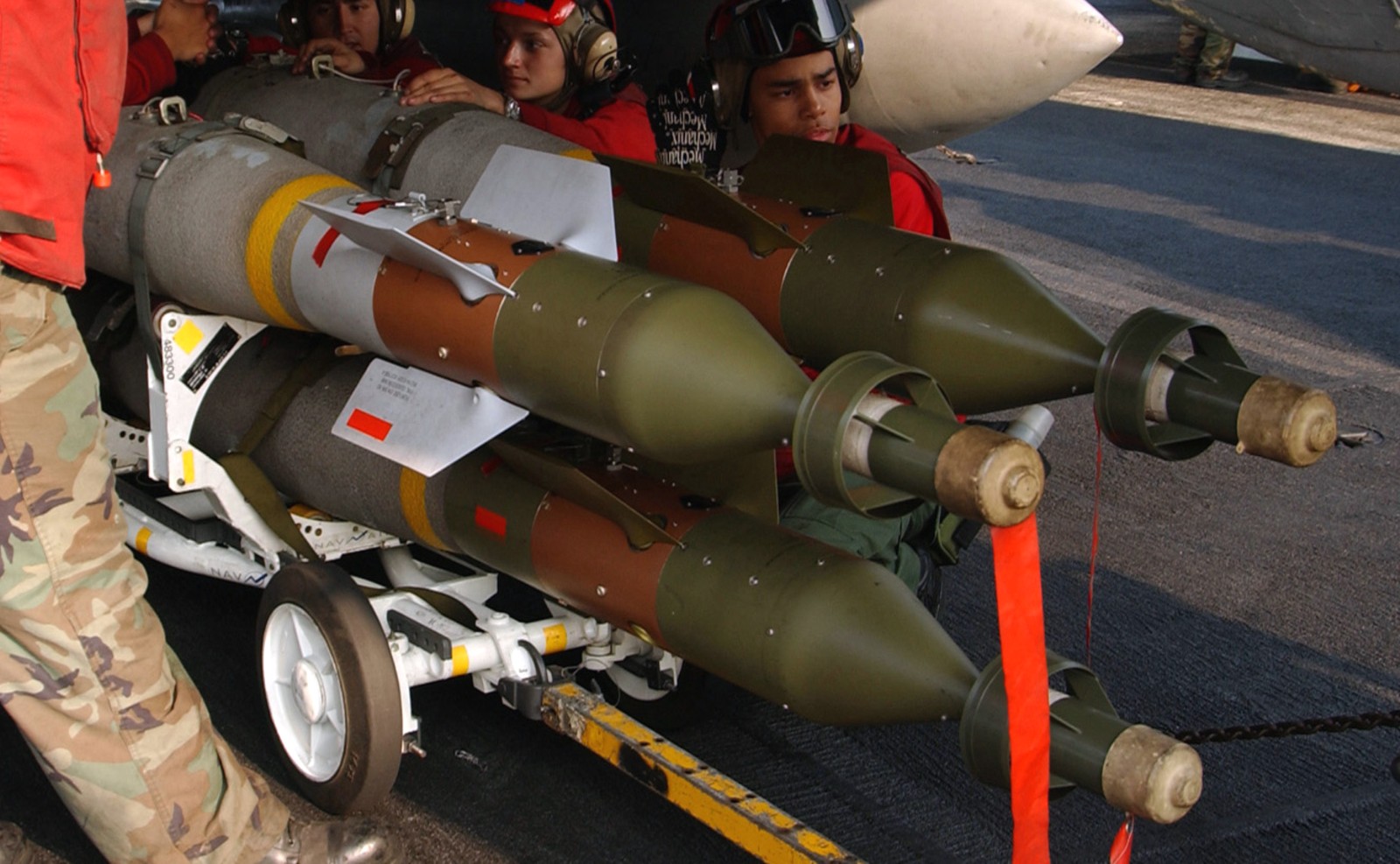

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 39
GBU-12 Paveway (500 lbs) laser guided bomb

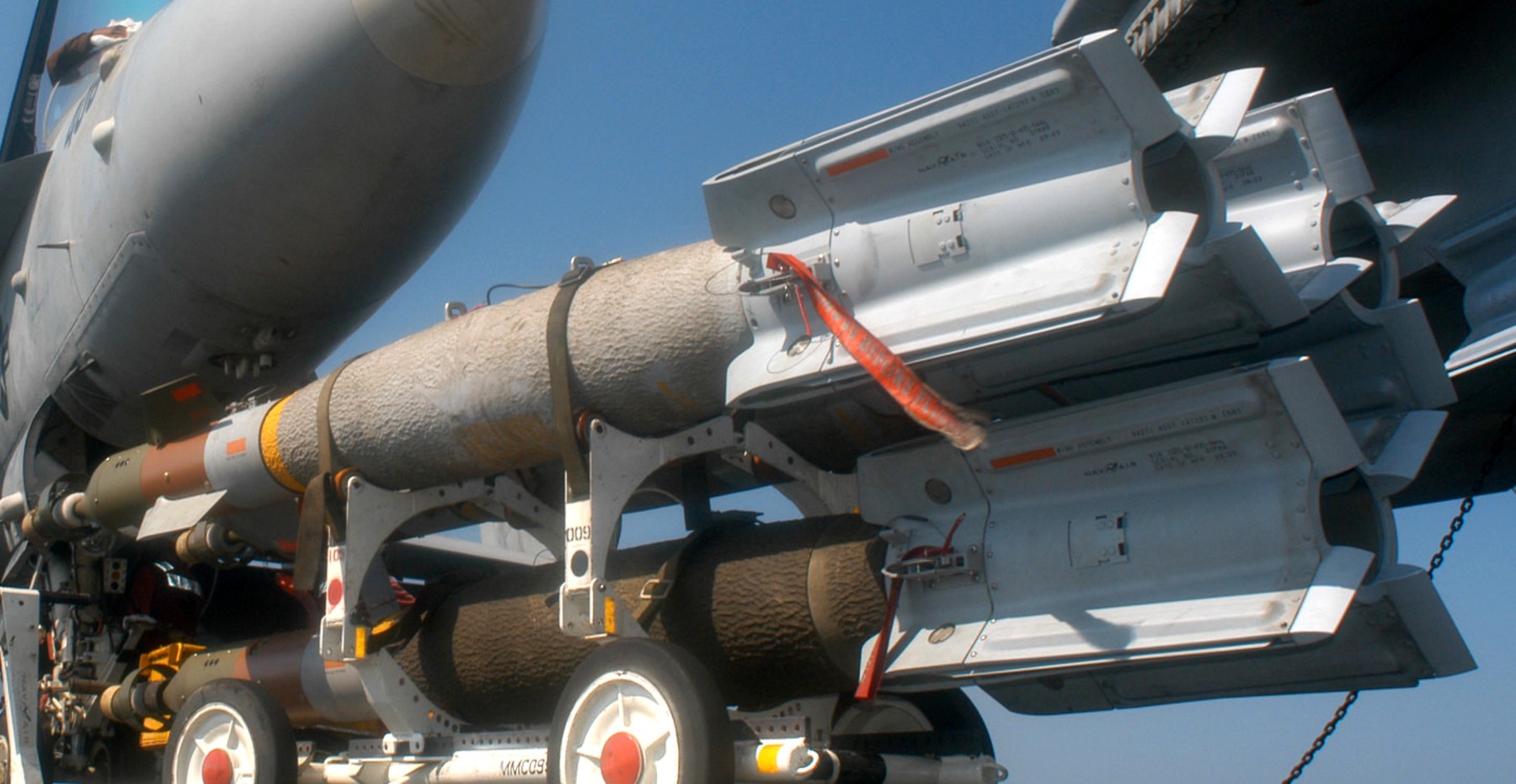

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 48
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines tail kit 08
GBU-12 Paveway (500 lbs) laser guided bomb

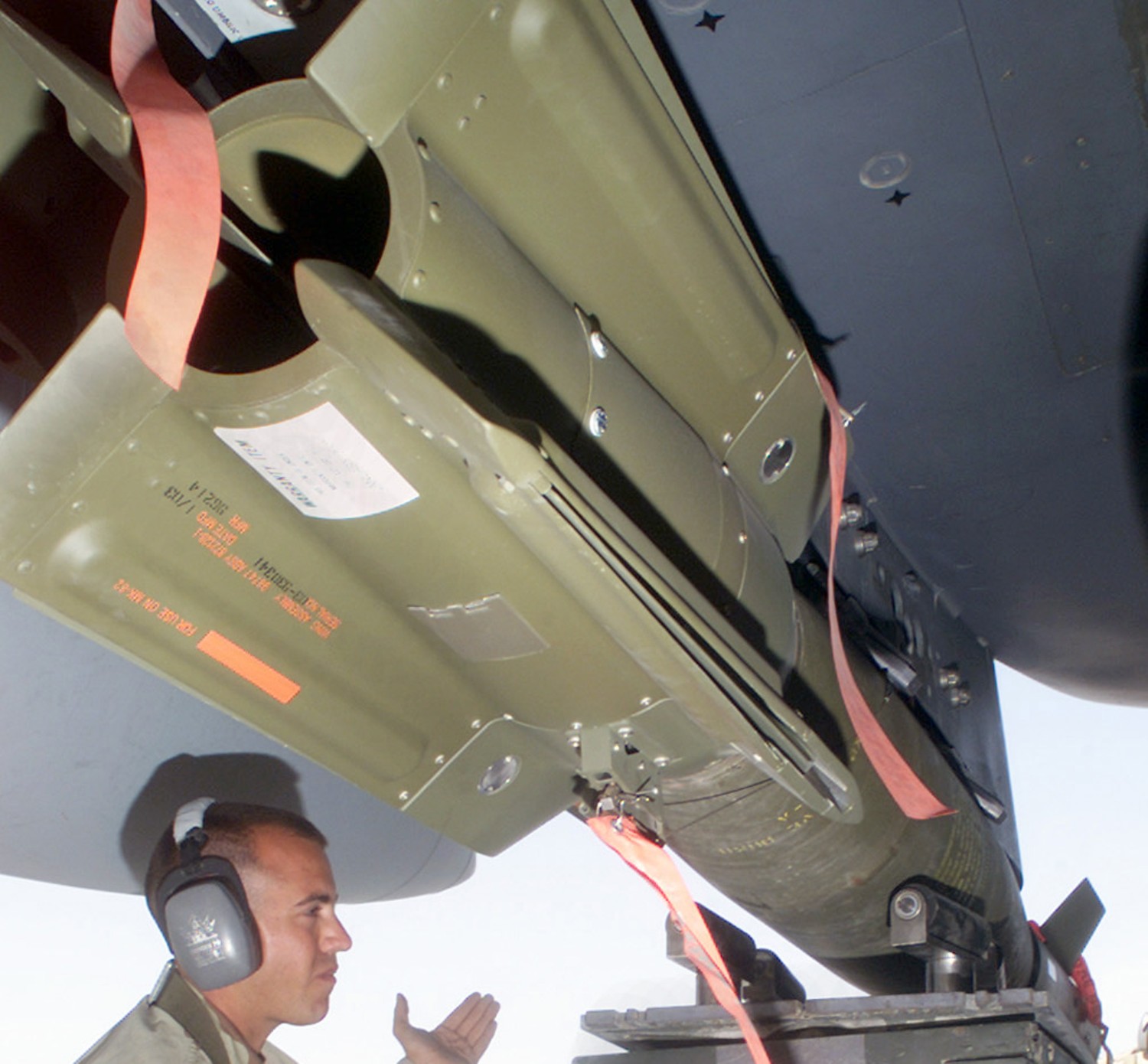

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 28
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 43
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 32
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 03
GBU-12 Paveway (500 lbs) laser guided bomb

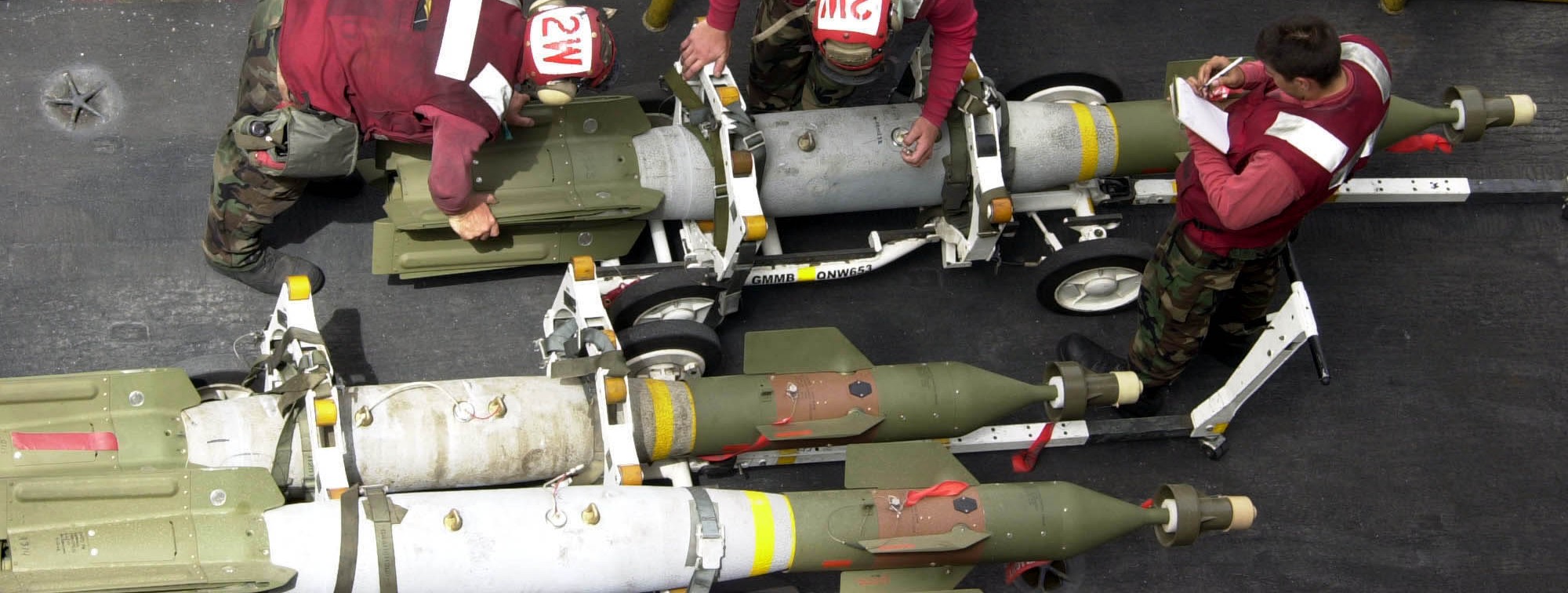

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 23
GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 21
GBU-12 Paveway (500 lbs) laser guided bomb

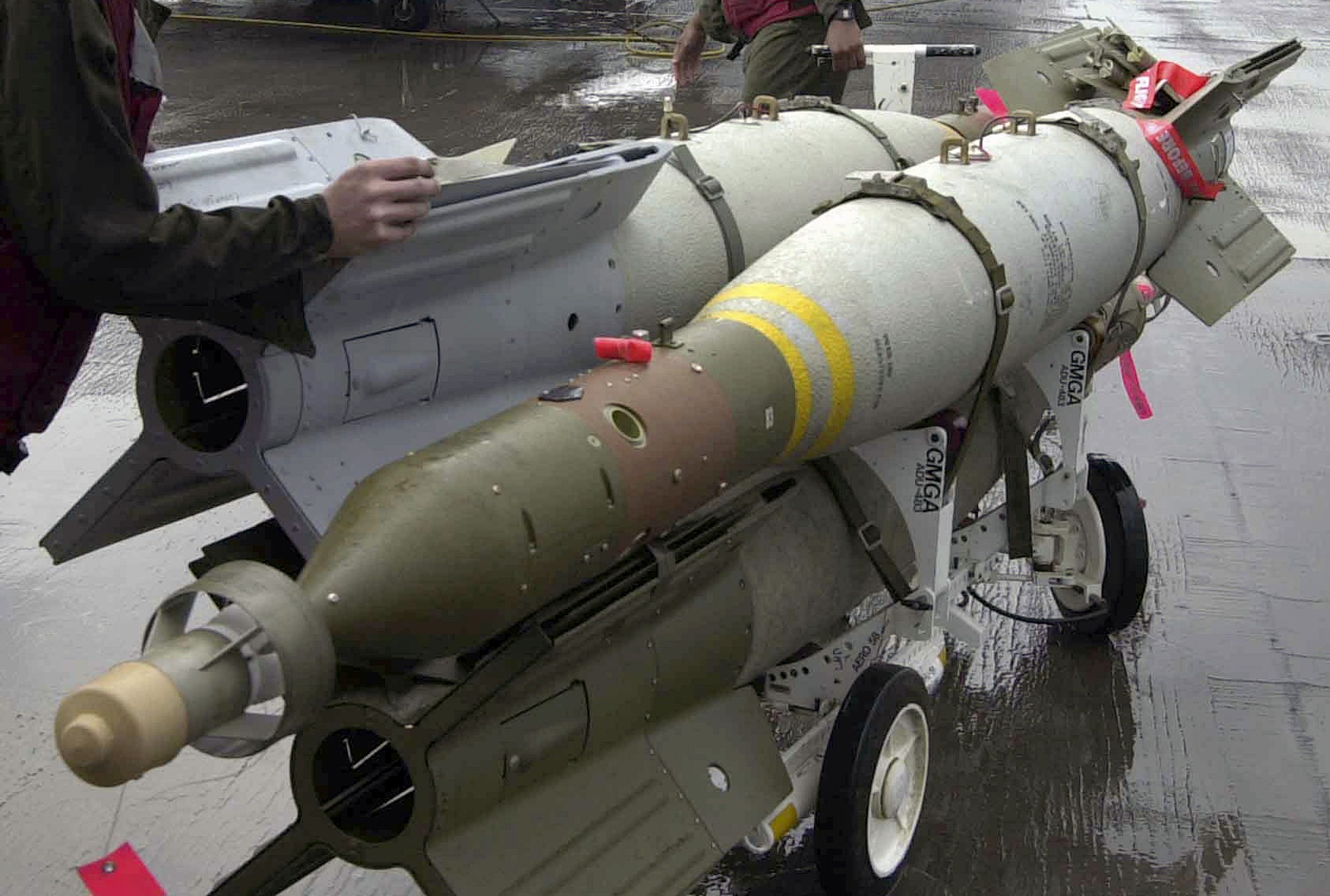

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 24
GBU-12 Paveway (500 lbs) laser guided bomb

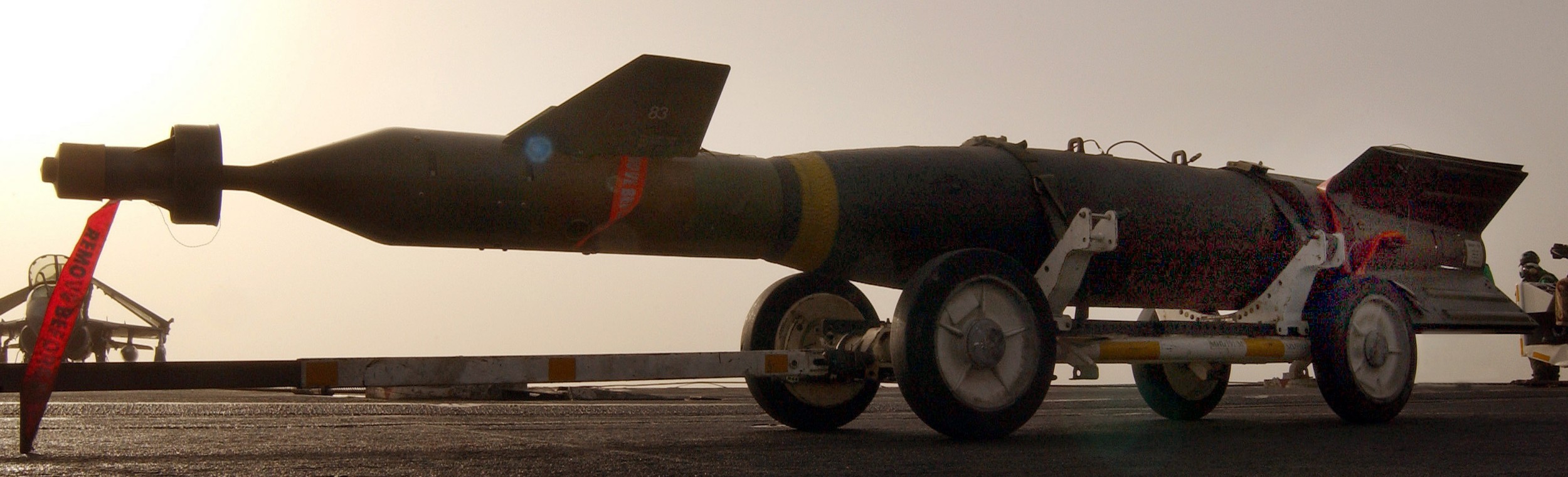

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 16
GBU-12 Paveway (500 lbs) laser guided bomb

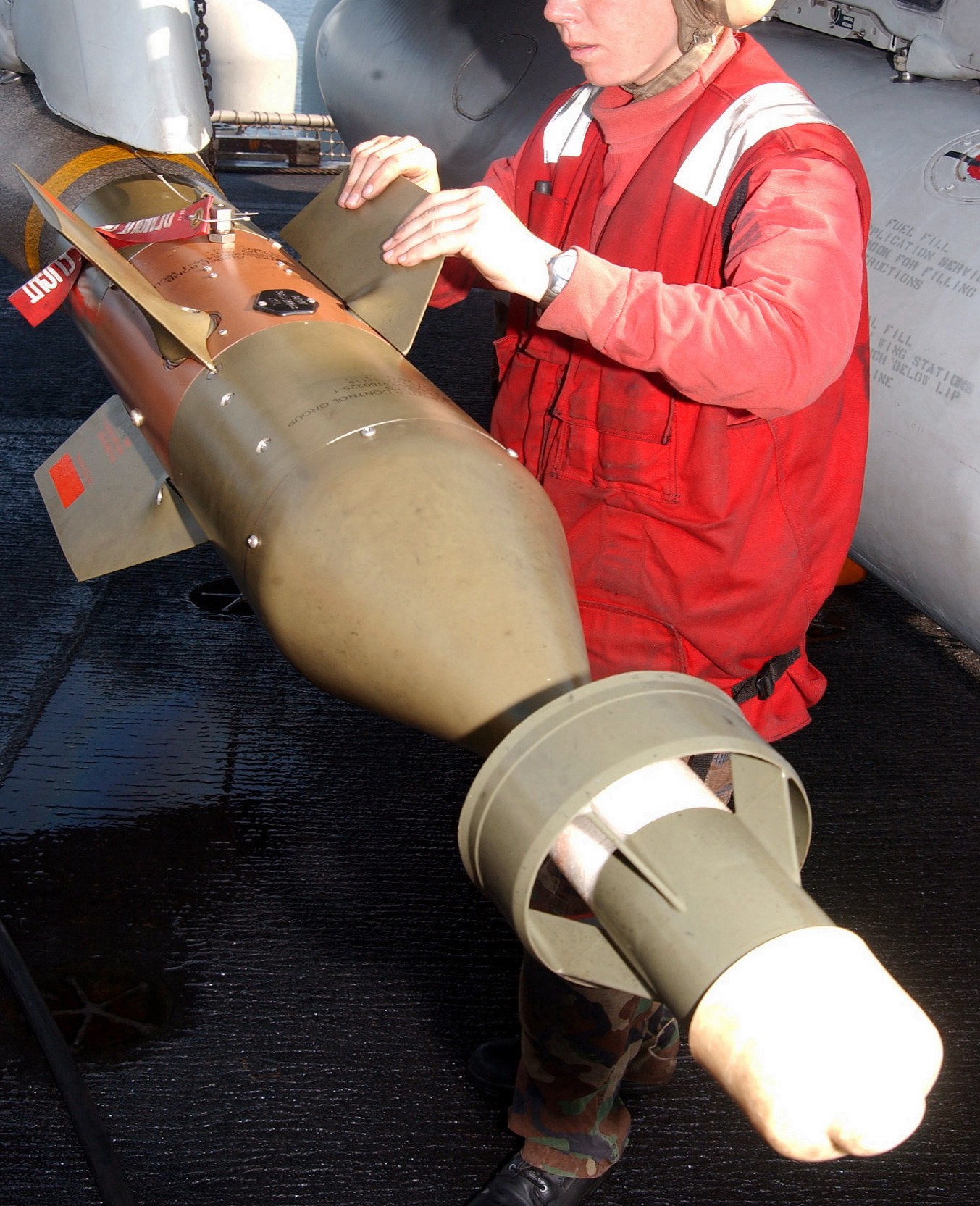

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 22
GBU-12 Paveway (500 lbs) laser guided bomb - computer control group (CCG)

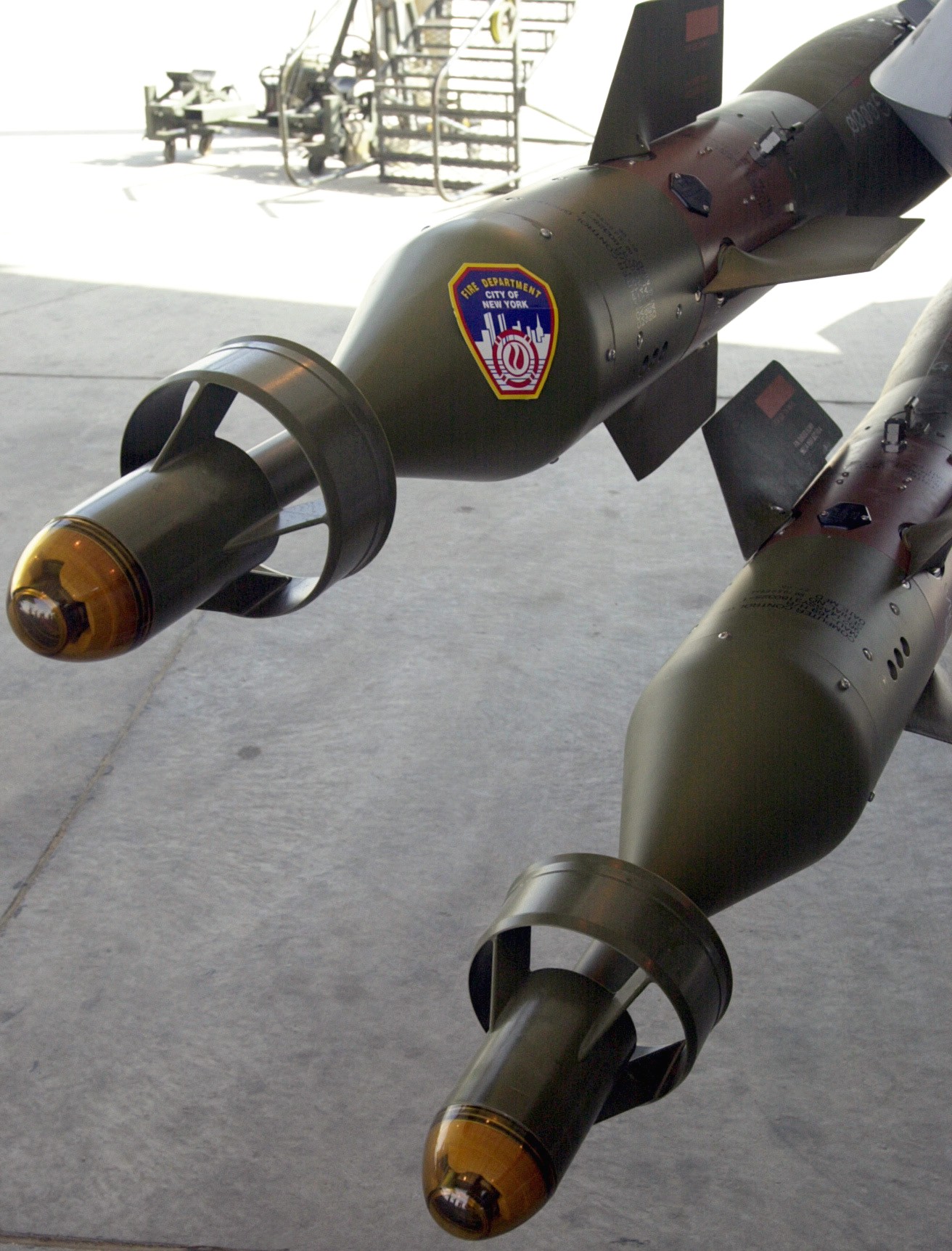

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 27
GBU-12 Paveway (500 lbs) laser guided bomb

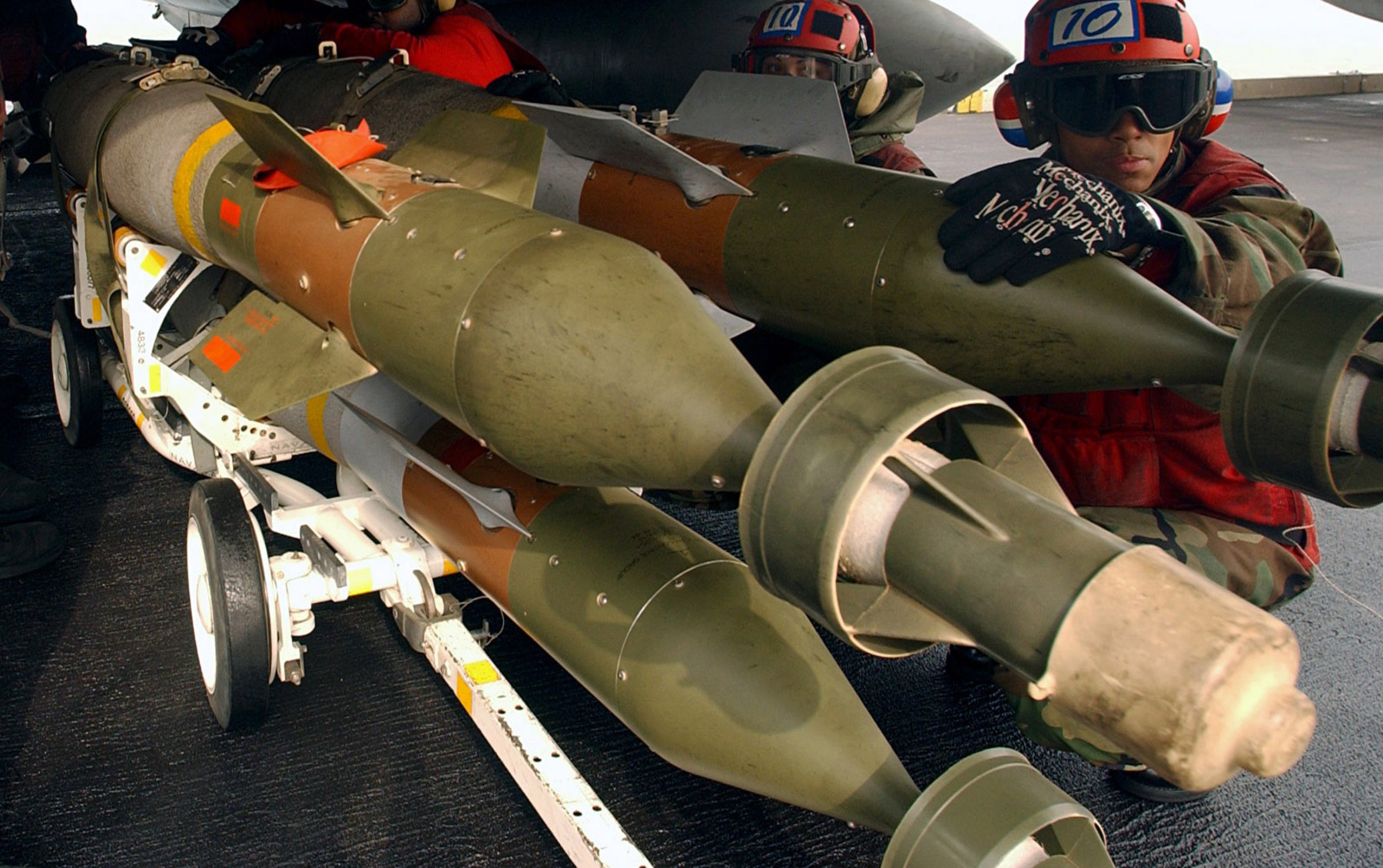

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 49
GBU-12 Paveway (500 lbs) laser guided bomb

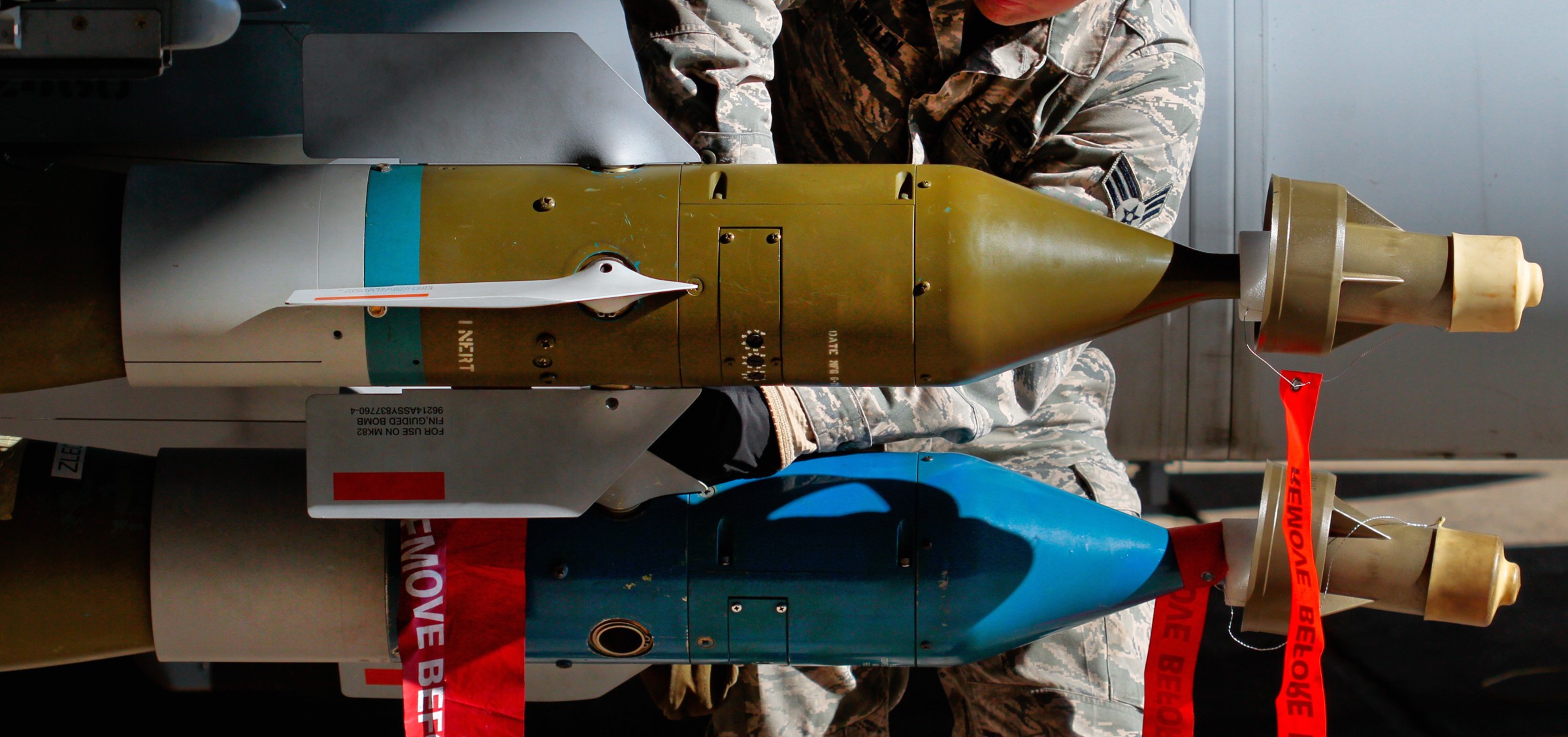

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 20
GBU-12 Paveway (500 lbs) laser guided bomb - computer control group (CCG)

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 26

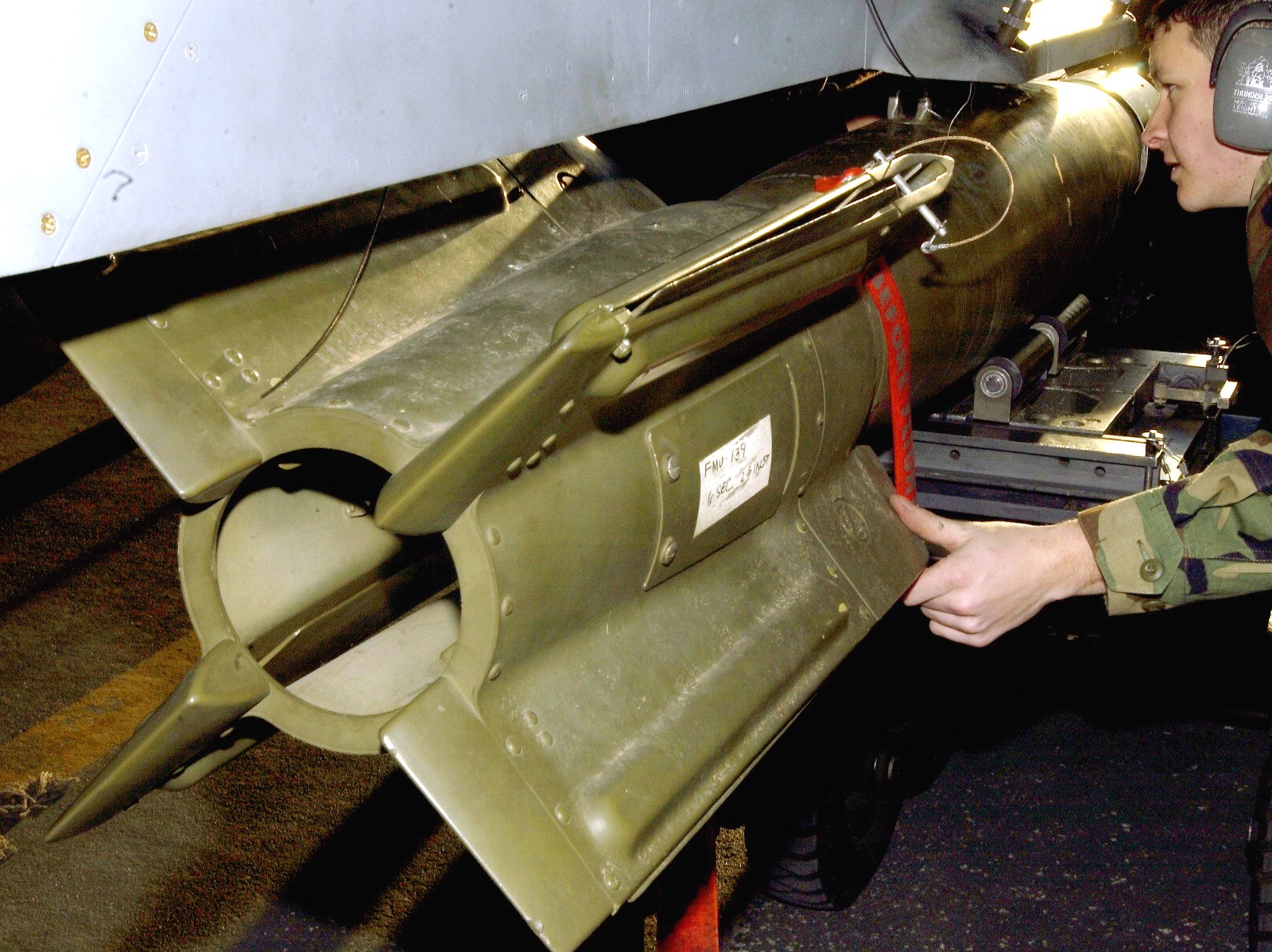

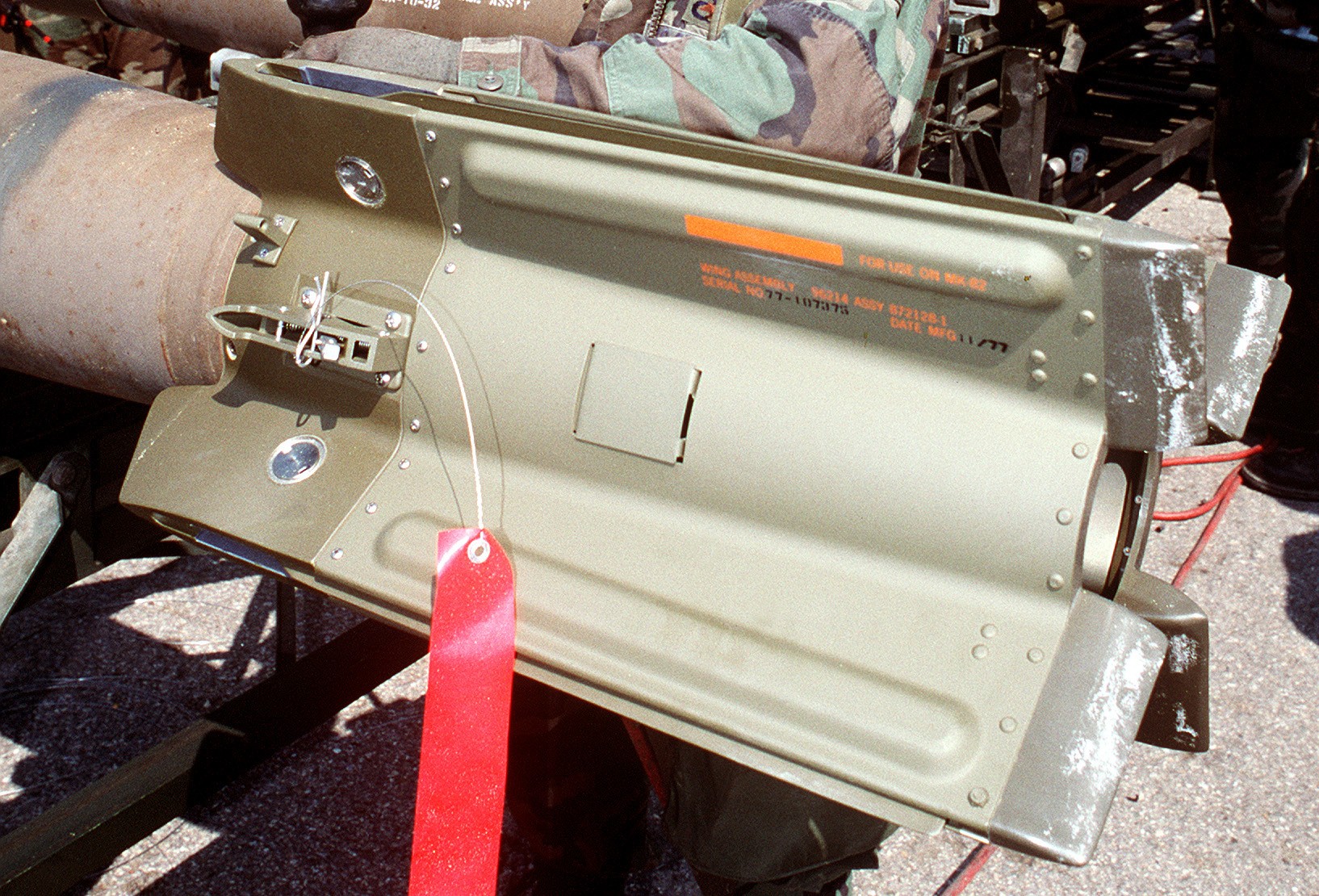

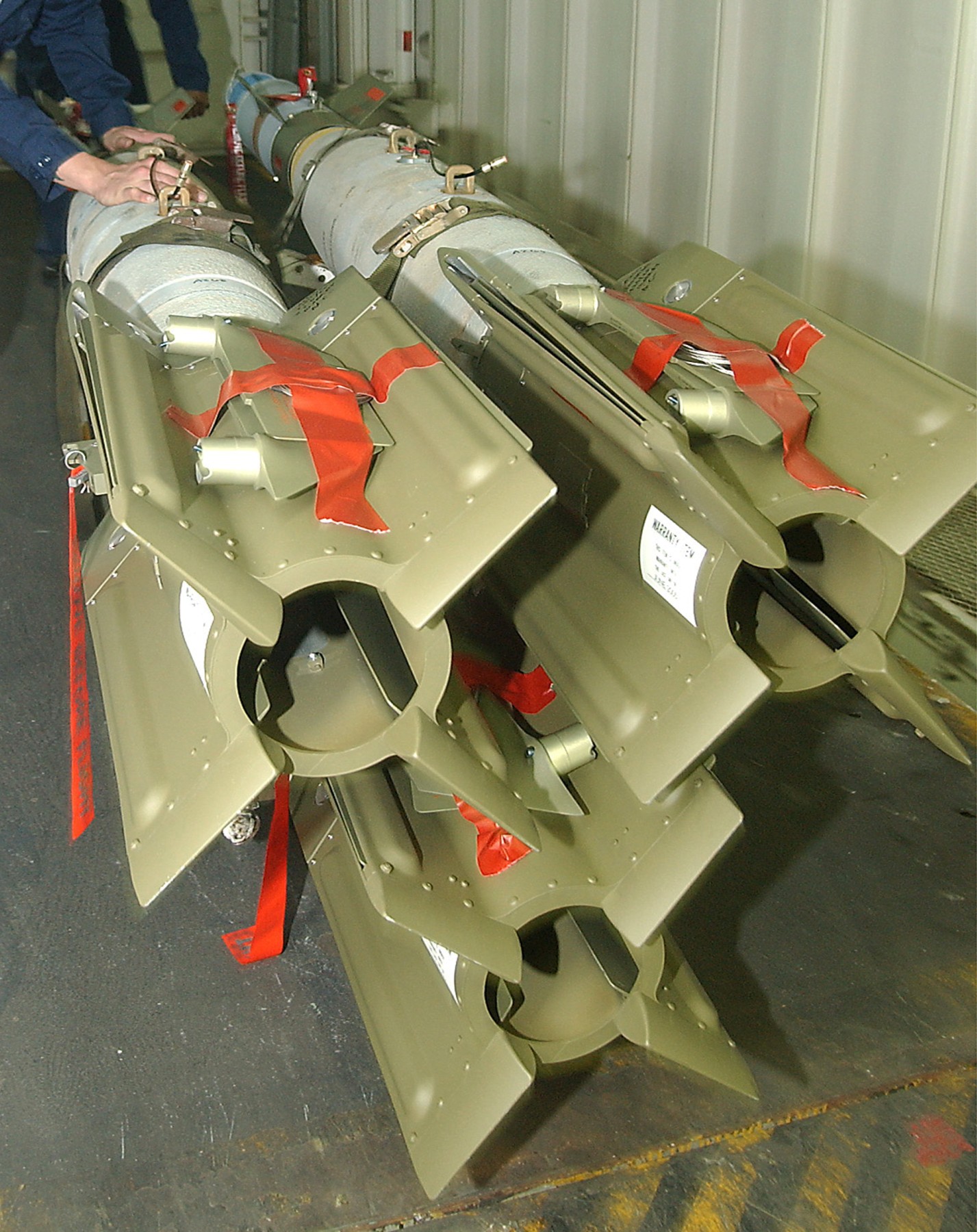

GBU-12 Paveway (500 lbs) laser guided bomb - tail kit

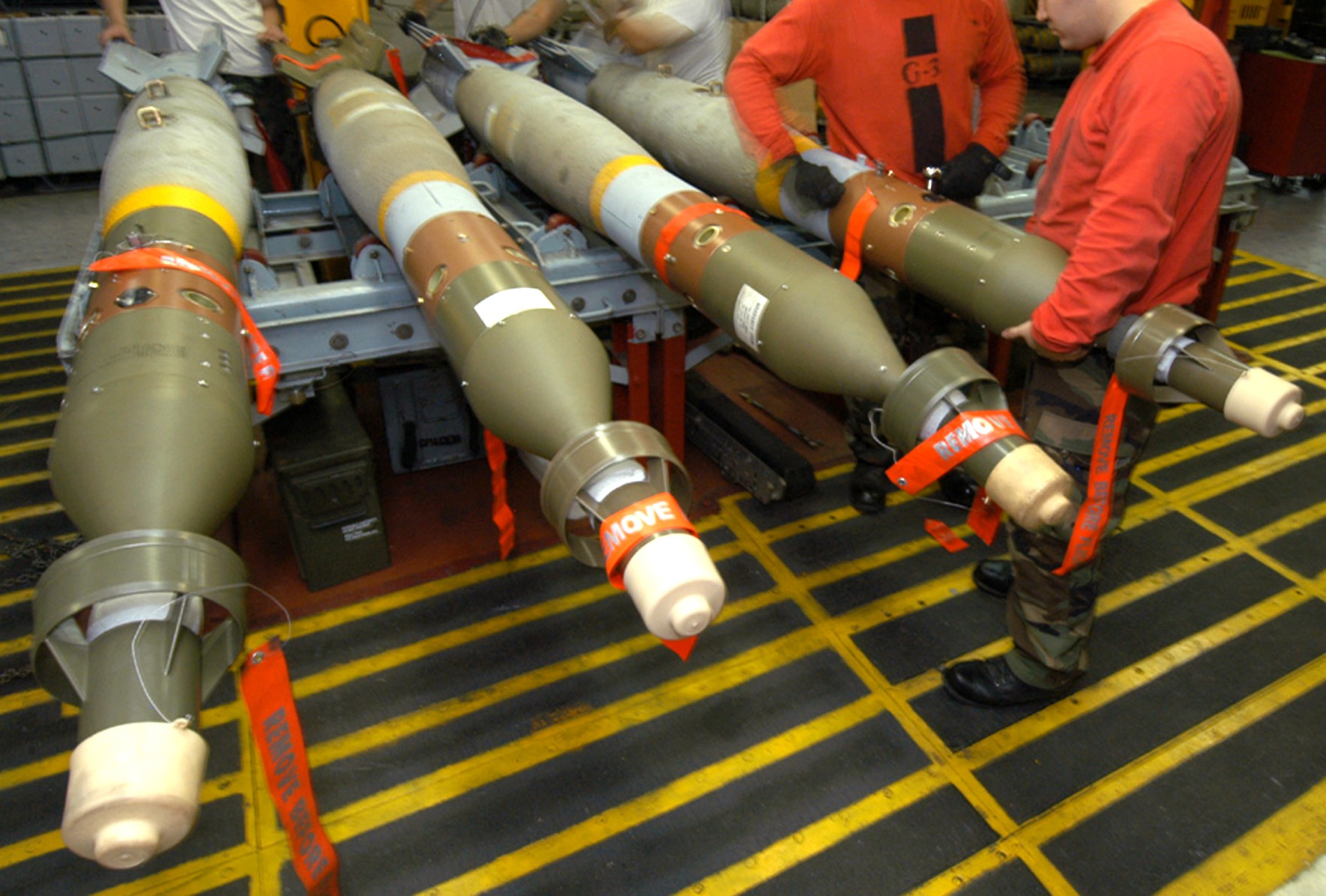

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 47
GBU-12 Paveway (500 lbs) laser guided bomb assembly

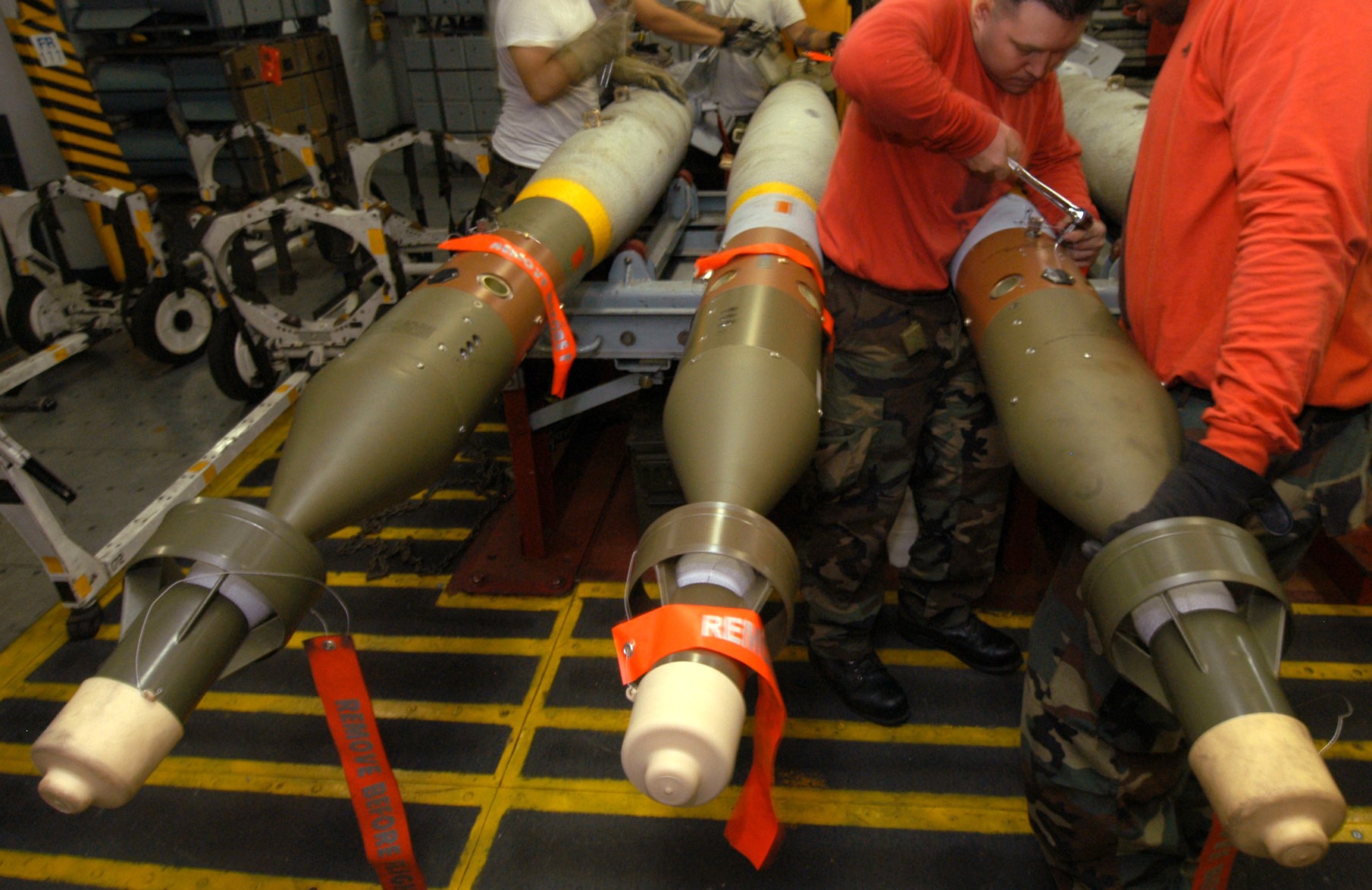

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 46
GBU-12 Paveway (500 lbs) laser guided bomb assembly

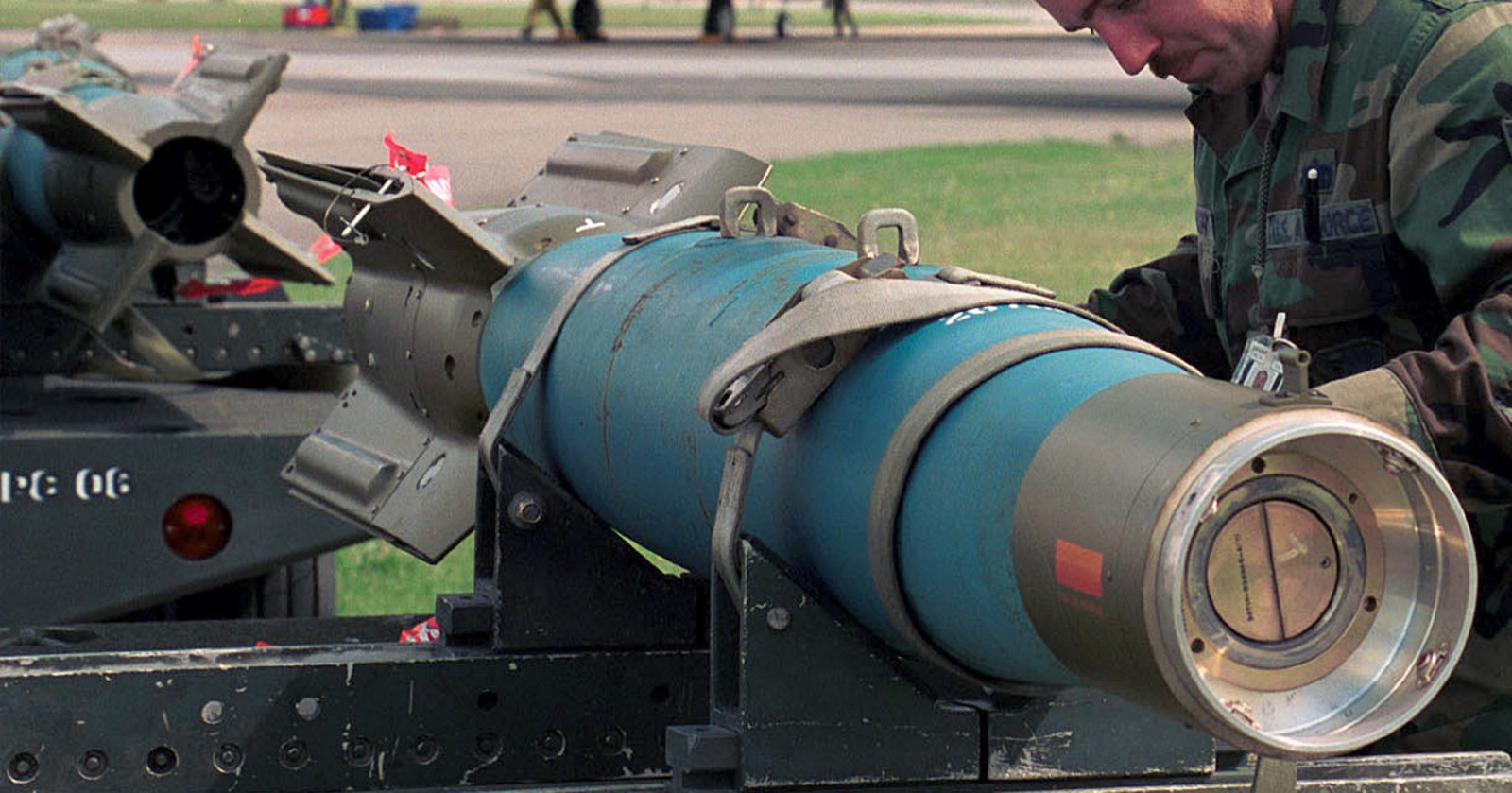

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 35
GBU-12 Paveway (500 lbs) laser guided bomb assembly

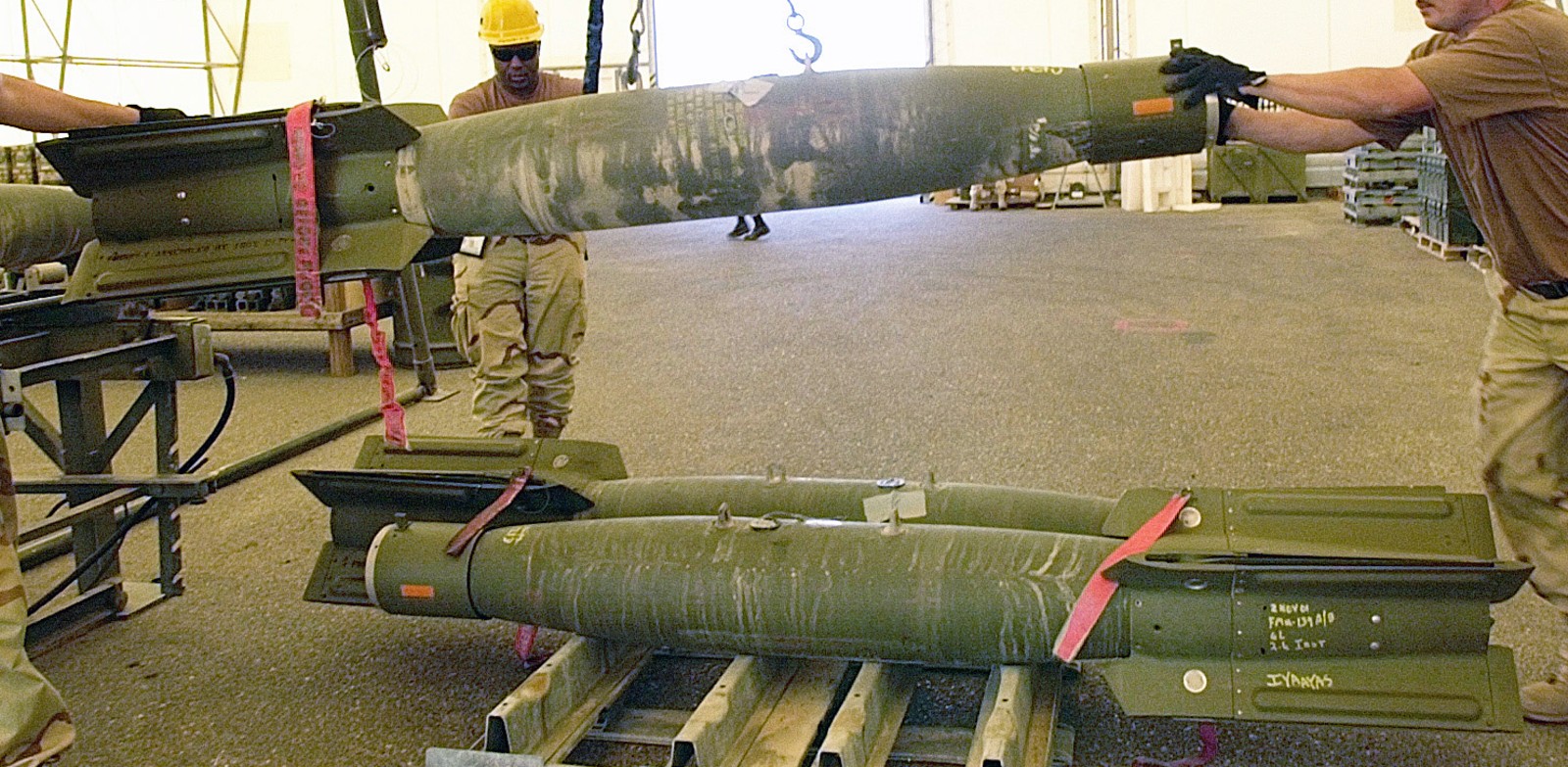

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 34
GBU-12 Paveway (500 lbs) laser guided bomb assembly

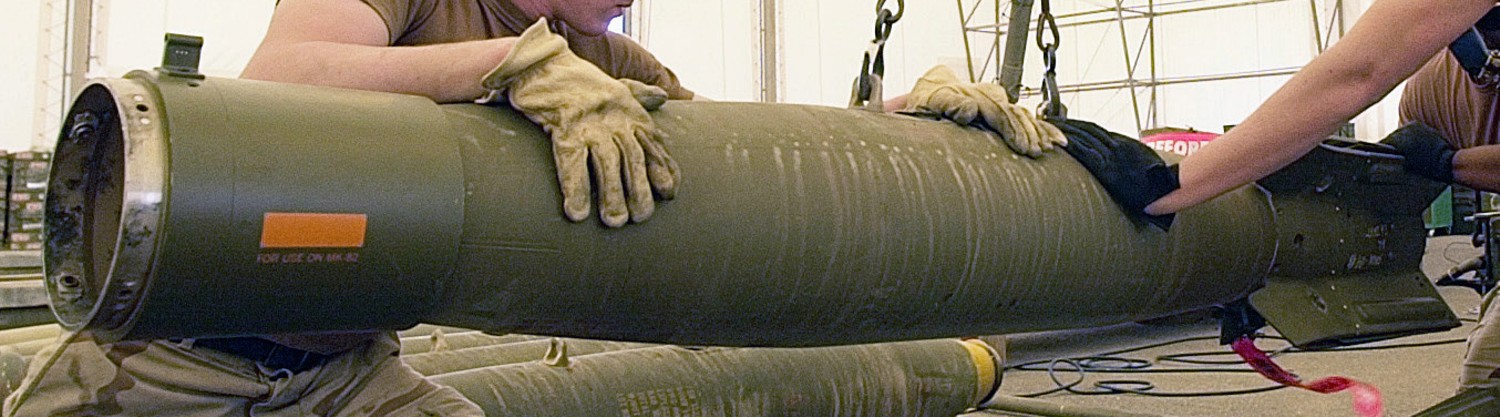

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force navy marines 33
GBU-12 Paveway (500 lbs) laser guided bomb assembly

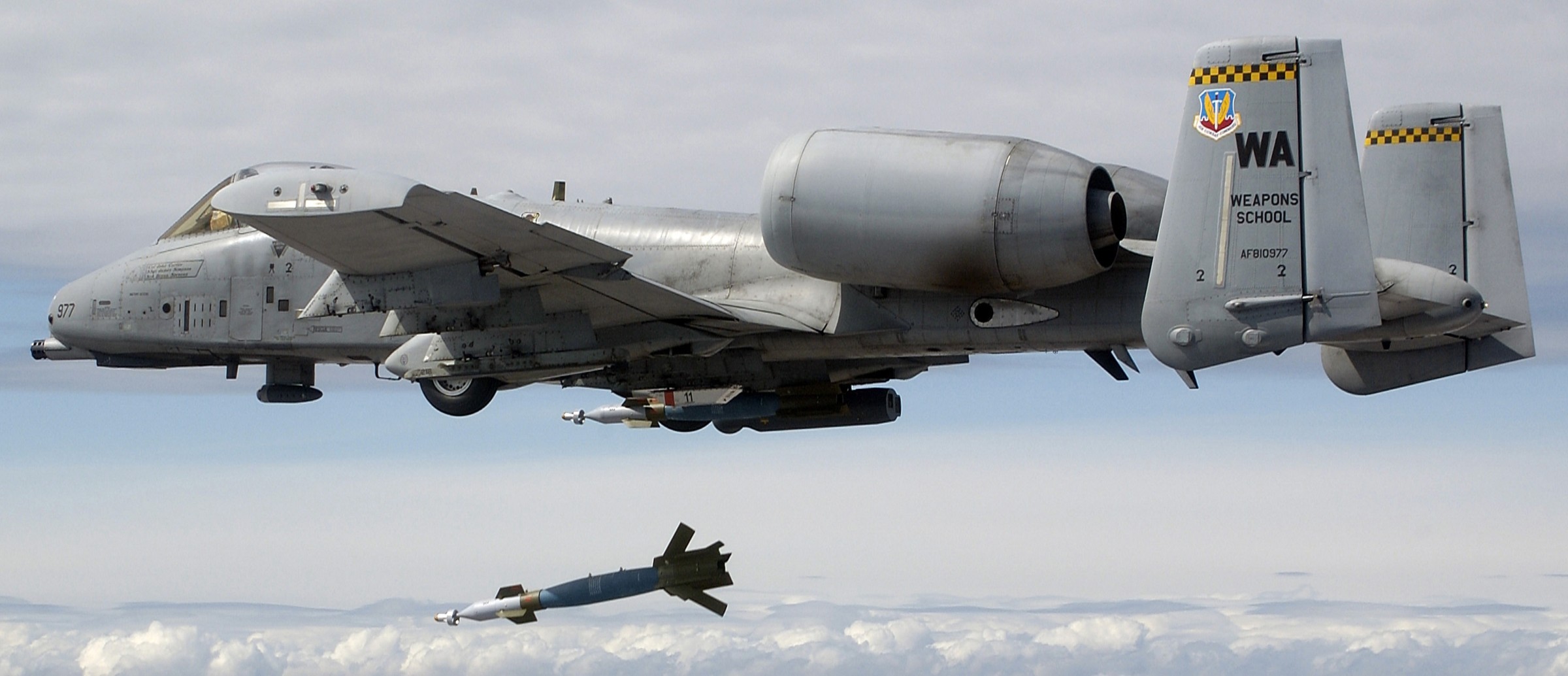

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force a-10 thunderbolt 37

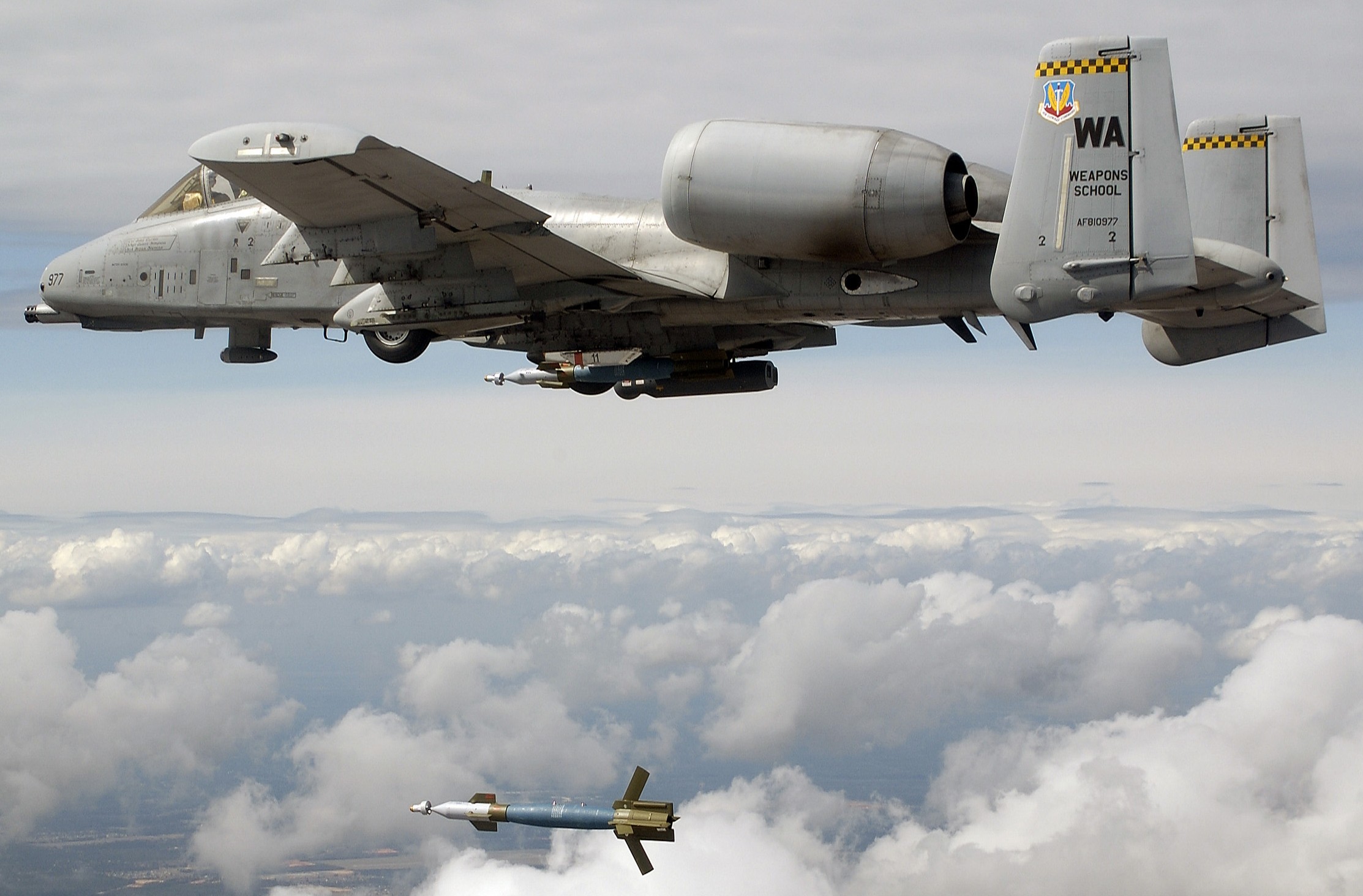

an USAF A-10 Thunderbolt II drops a GBU-12 Paveway (500 lbs) laser guided bomb

gbu-12 paveway laser guided bomb unit gbu 500 lbs us air force a-10 thunderbolt ii 36
an USAF A-10 Thunderbolt II drops a GBU-12 Paveway (500 lbs) laser guided bomb

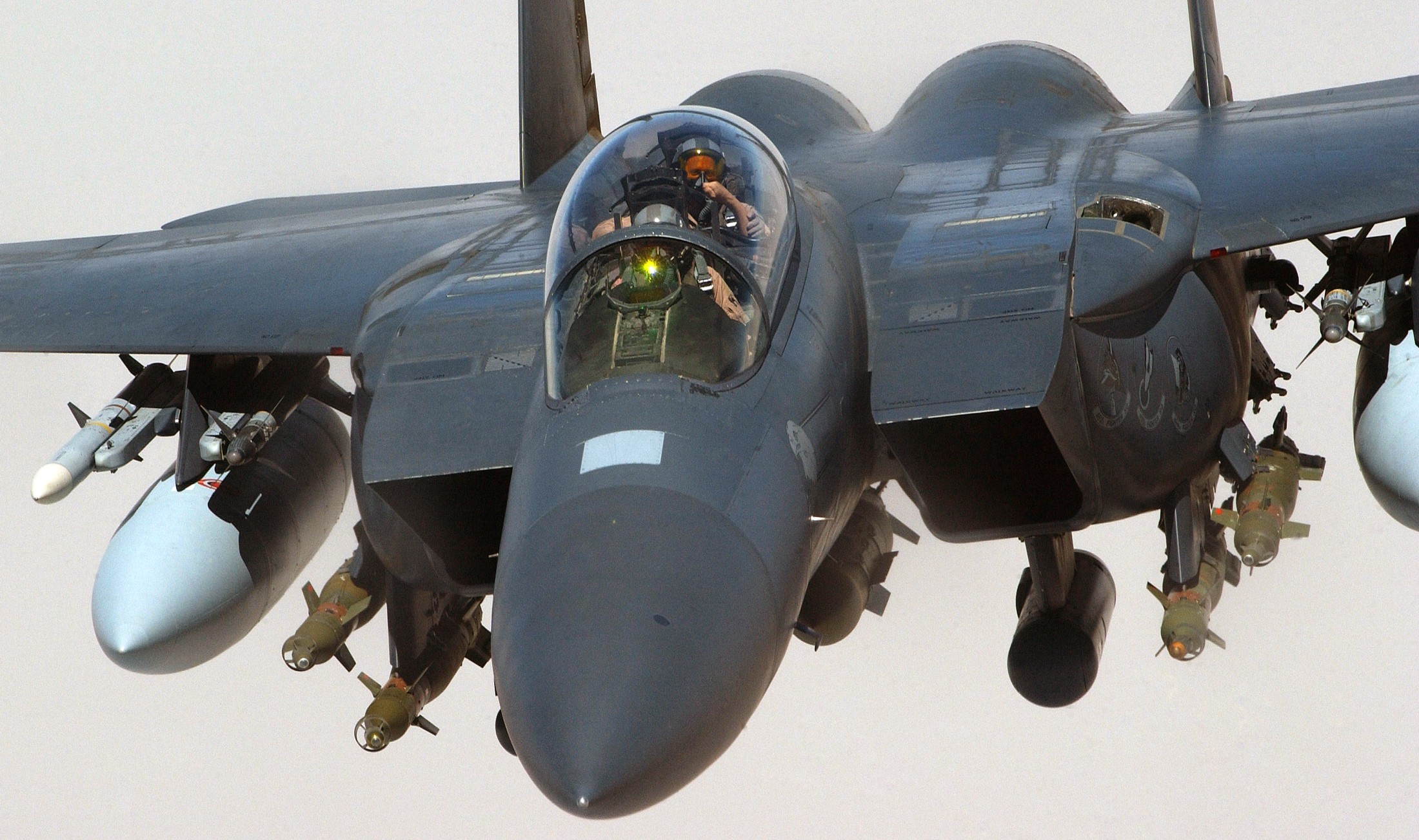

gbu-12 paveway laser guided bomb unit gbu 500 lbs air force f-15e strike eagle 02
GBU-12 Paveway (500 lbs) laser guided bombs on an USAF F-15E Strike Eagle



1,000 lbs Paveway laser guided bombs (LGB)

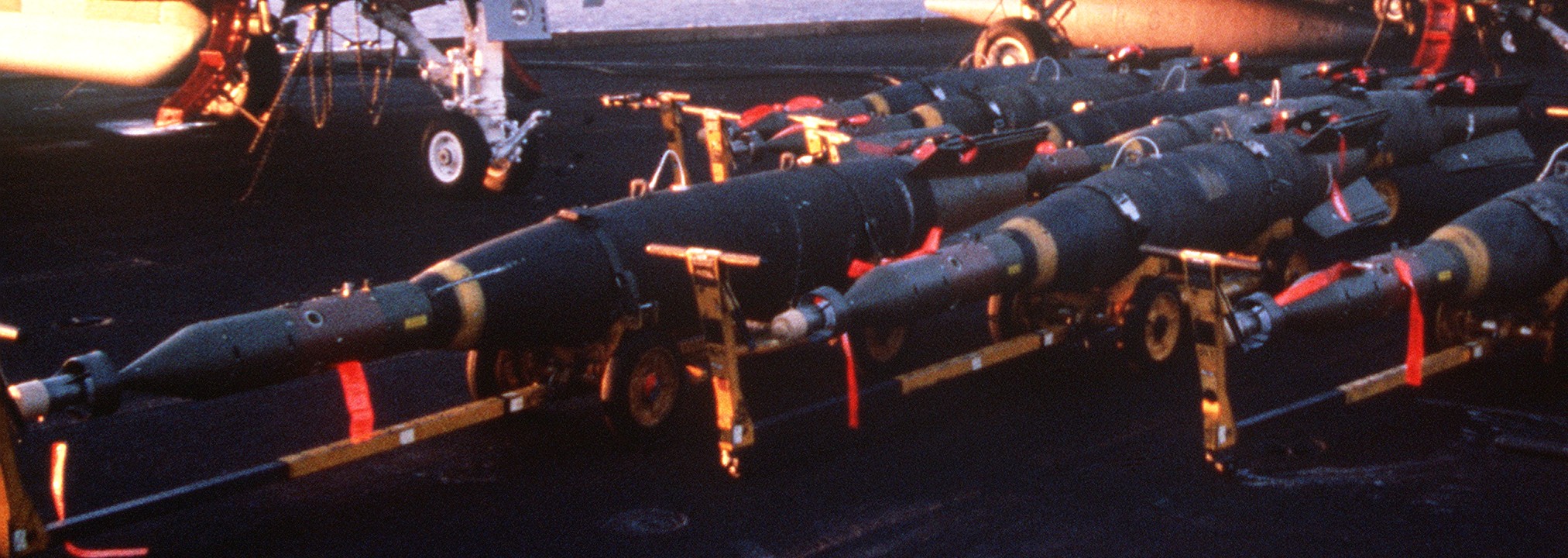

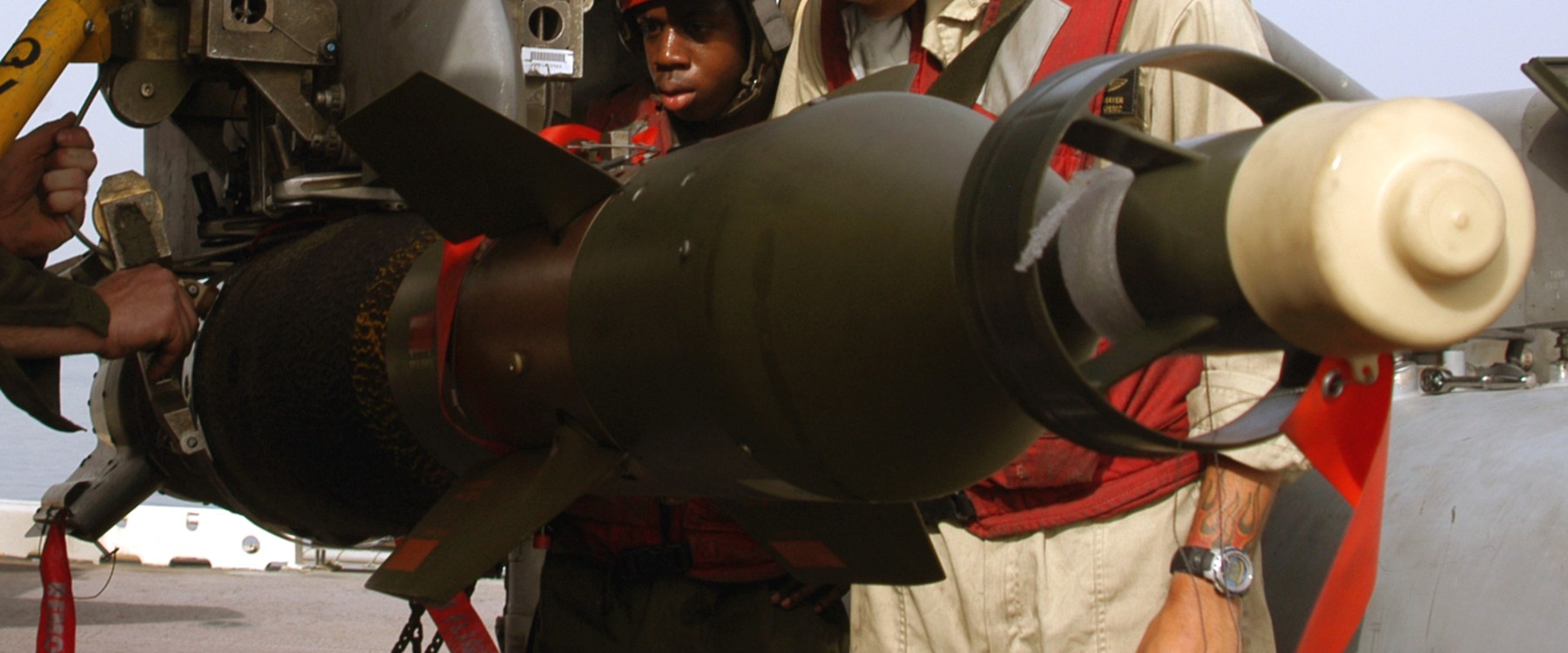

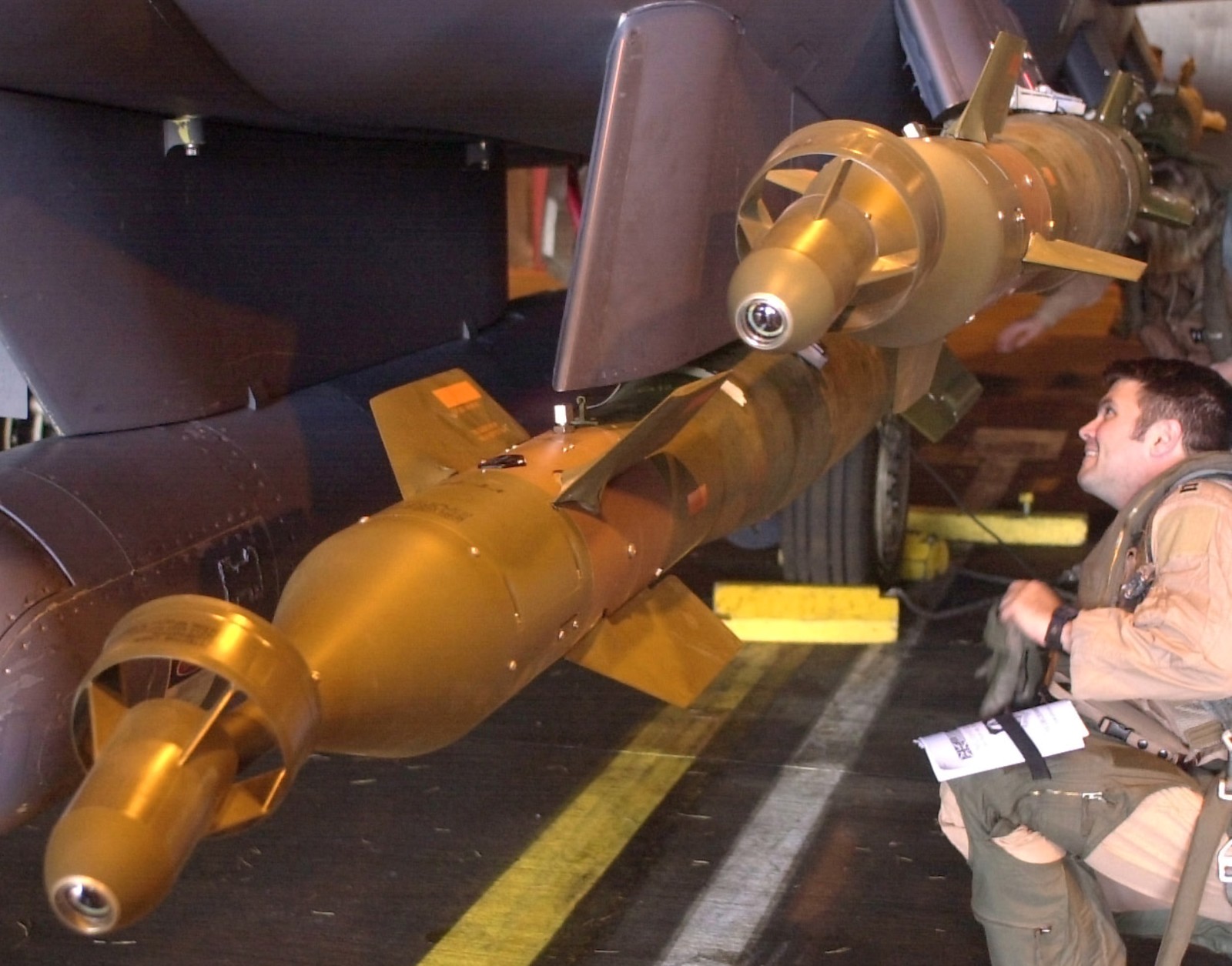

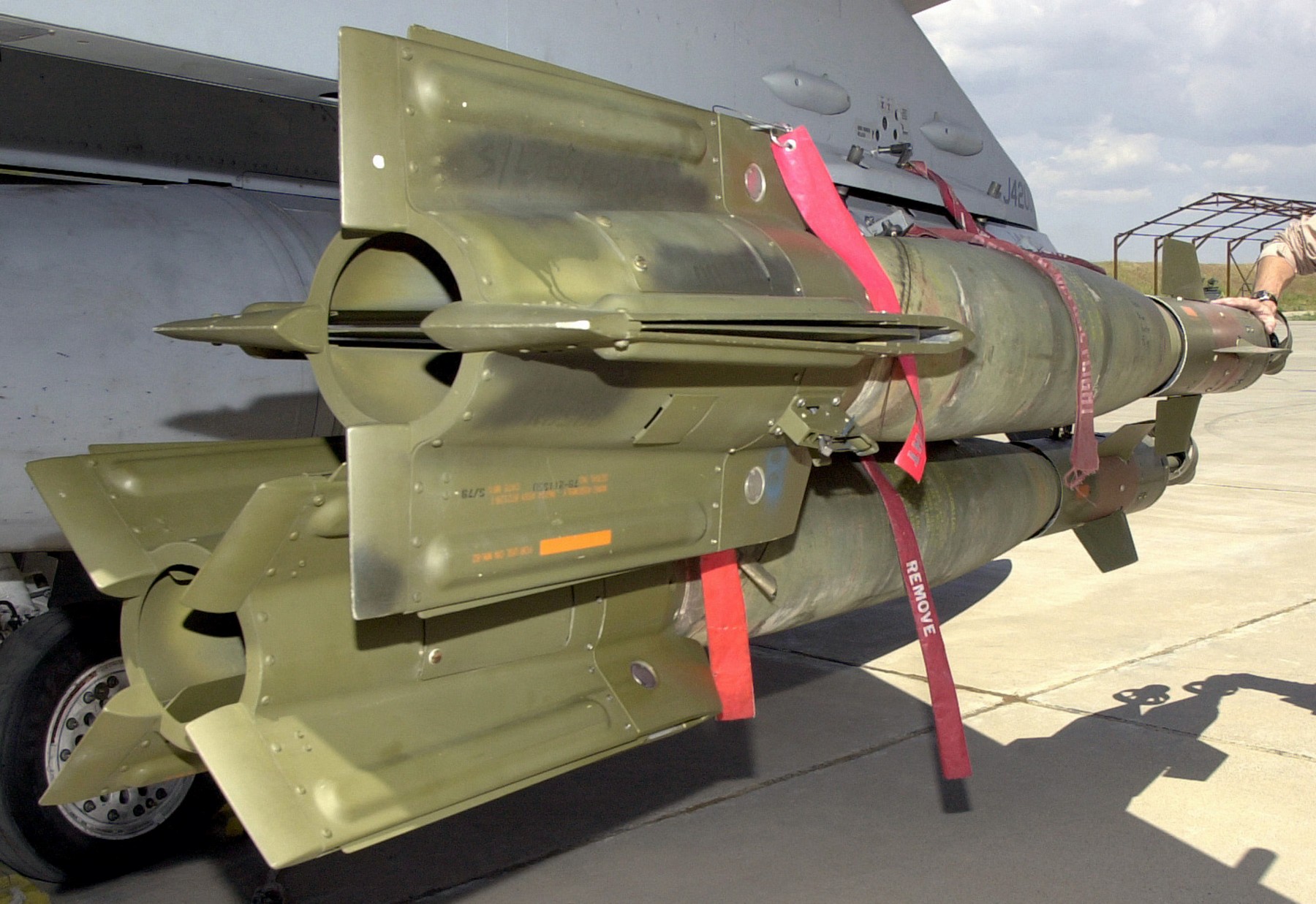

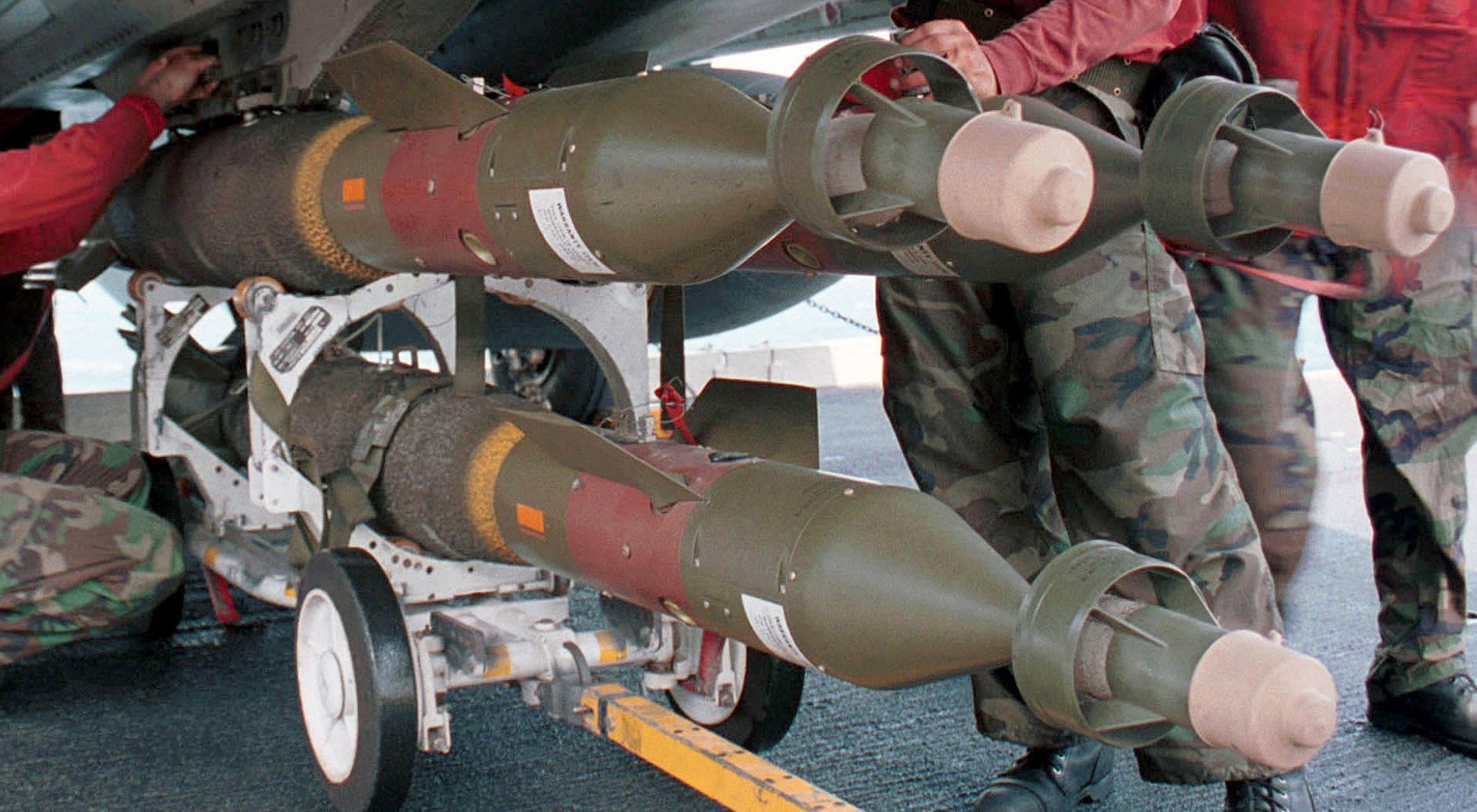

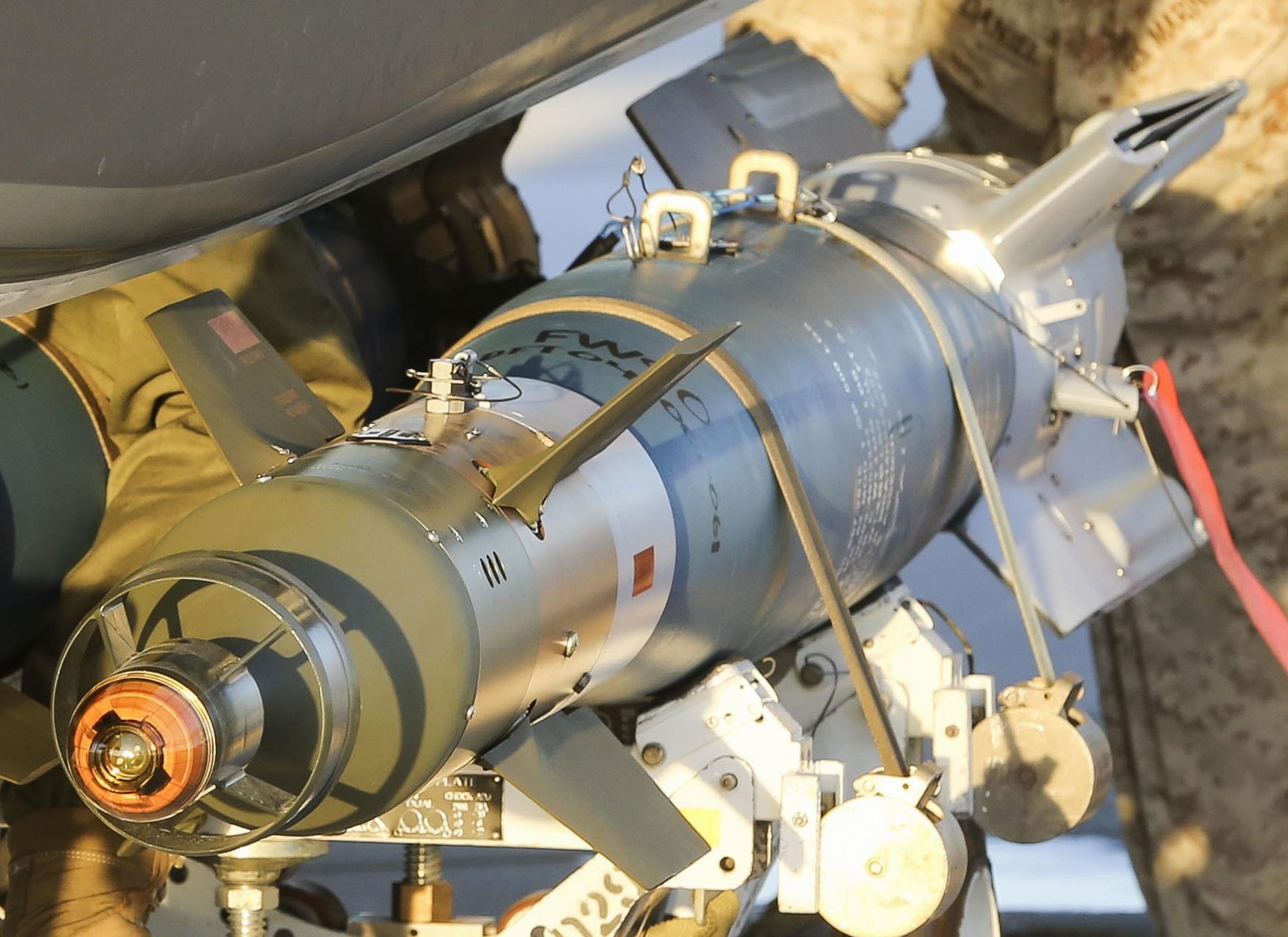

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 07
GBU-16 Paveway (1,000 lbs) laser guided bomb

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 05
GBU-16 Paveway (1,000 lbs) laser guided bomb

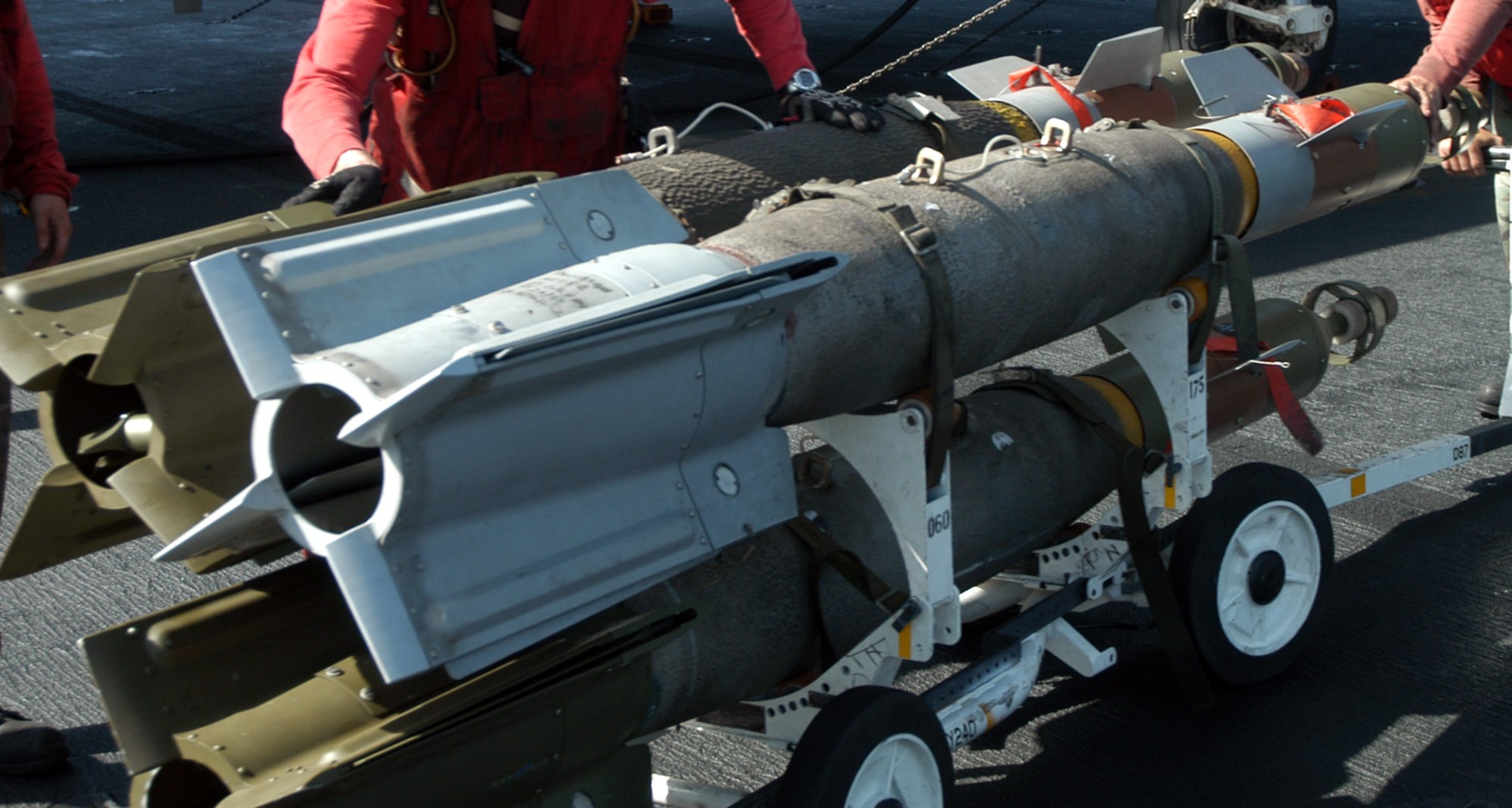

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 09
GBU-16 Paveway (1,000 lbs) laser guided bomb

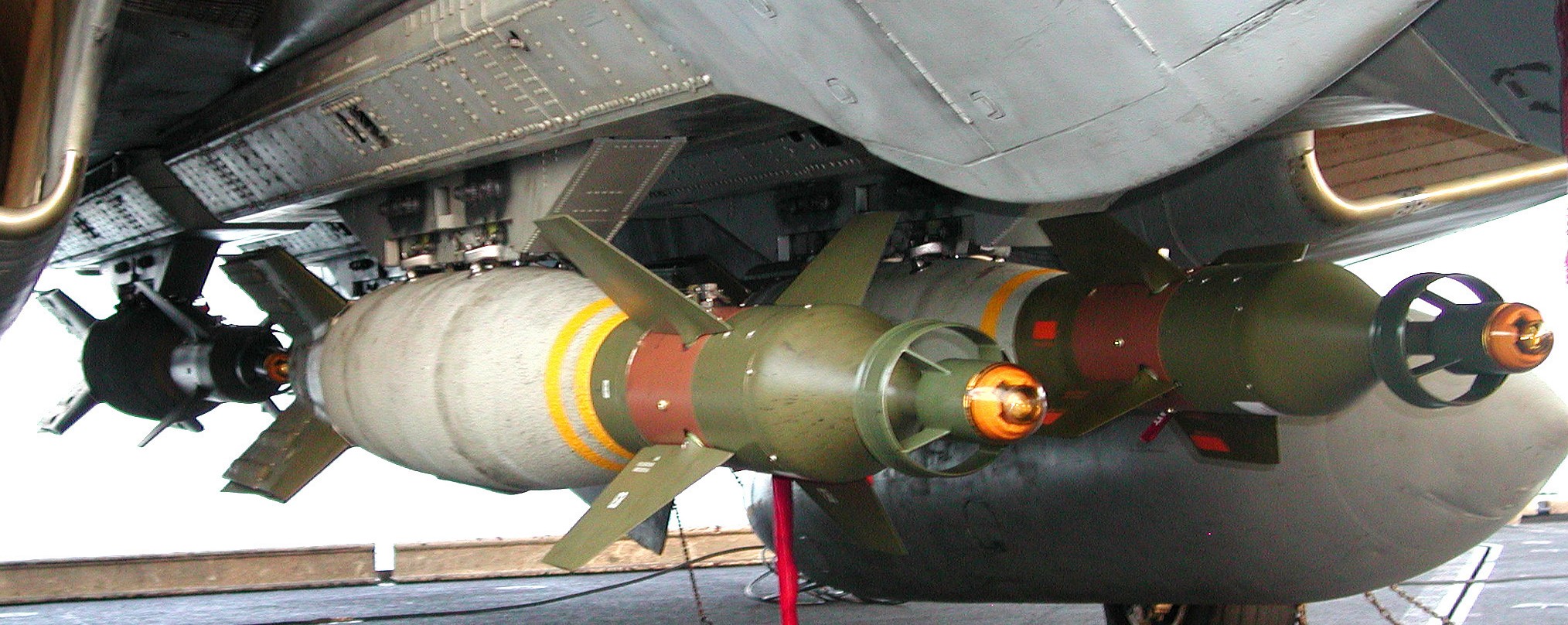

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 08
GBU-16 Paveway (1,000 lbs) laser guided bomb

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 04
GBU-16 Paveway (1,000 lbs) laser guided bomb

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 10
GBU-16 Paveway (1,000 lbs) laser guided bomb

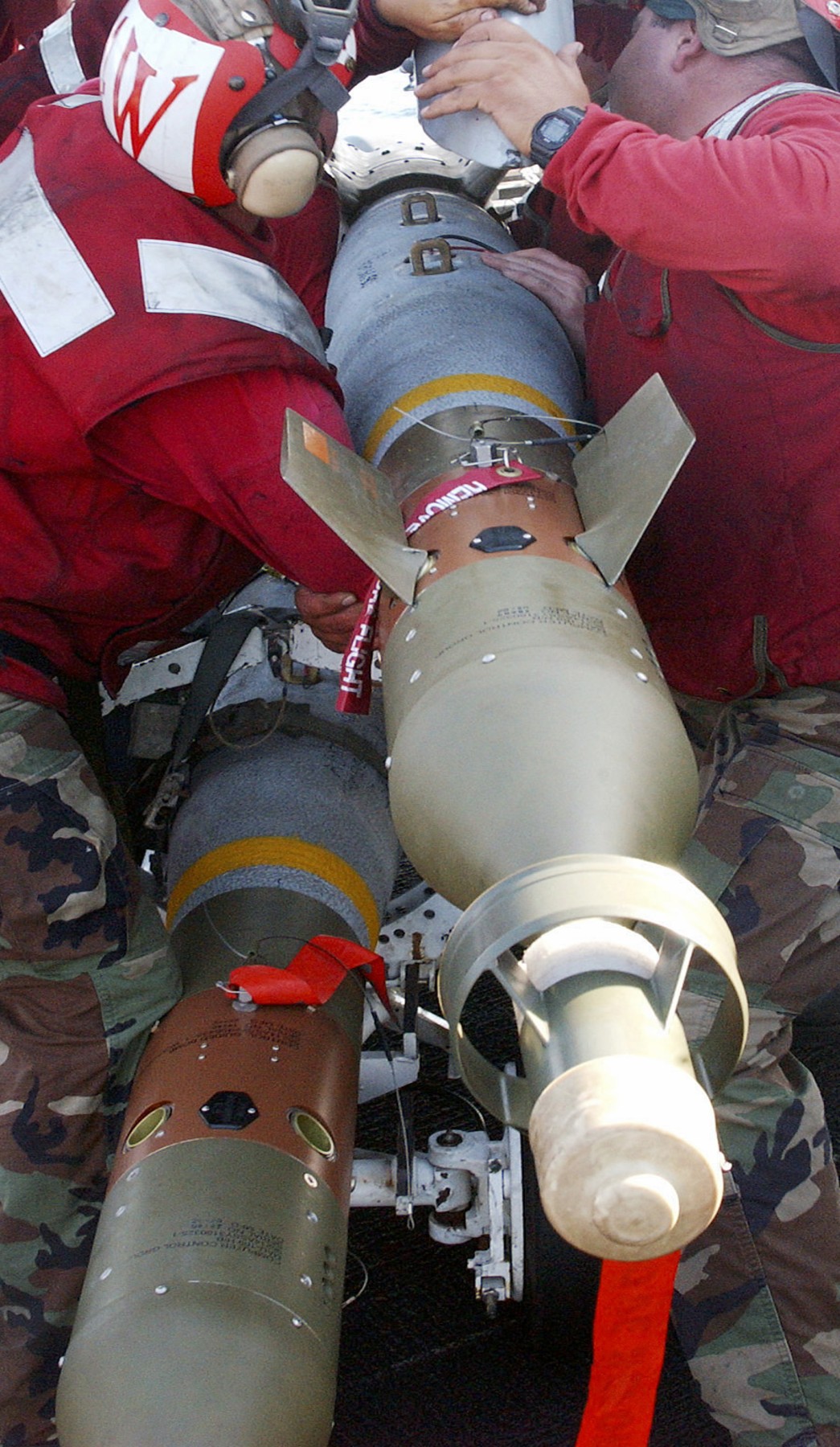

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 06
GBU-16 Paveway (1,000 lbs) laser guided bomb

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 03
GBU-16 Paveway (1,000 lbs) laser guided bomb

gbu-16 paveway laser guided bomb unit gbu 1000 lbs air force navy marines 02
GBU-16 Paveway (1,000 lbs) laser guided bomb



2,000 lbs Paveway laser guided bombs (LGB)

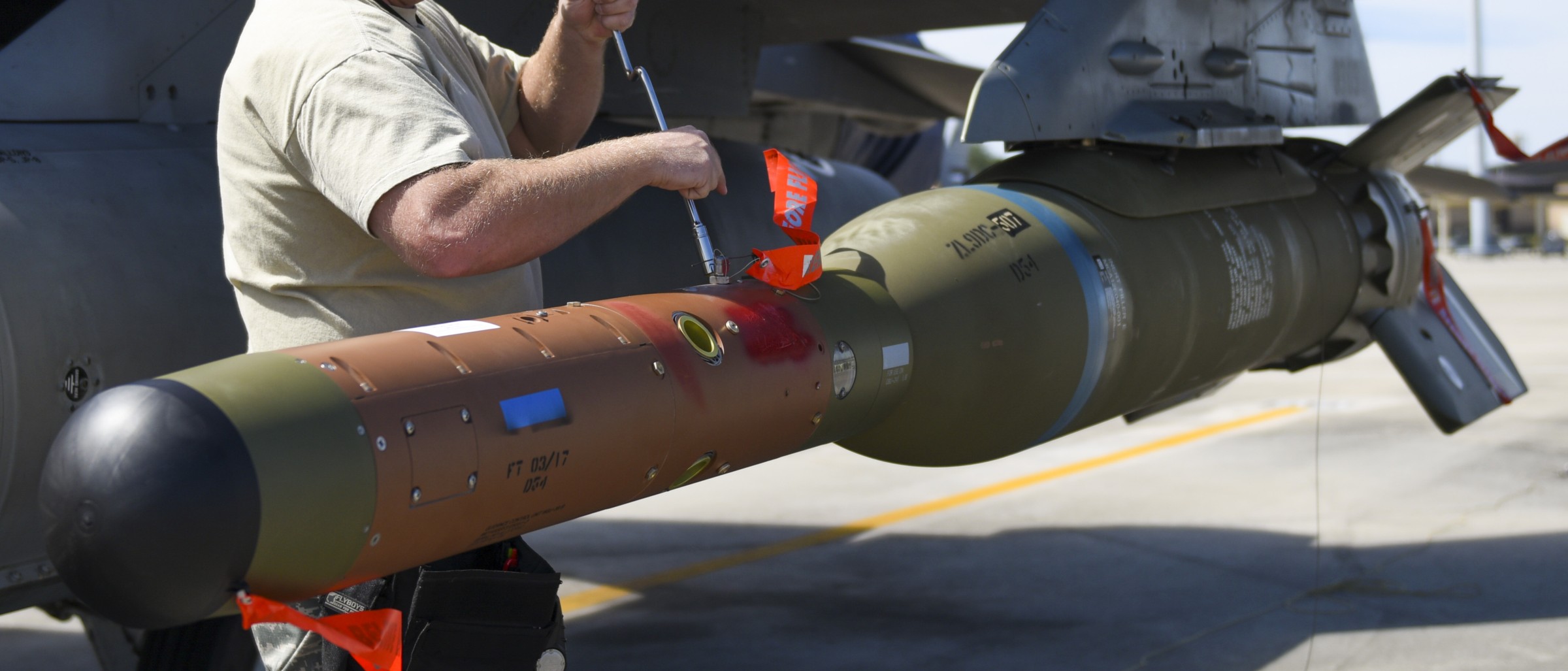

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 03
GBU-24 Paveway (2,000 lbs) laser guided bomb

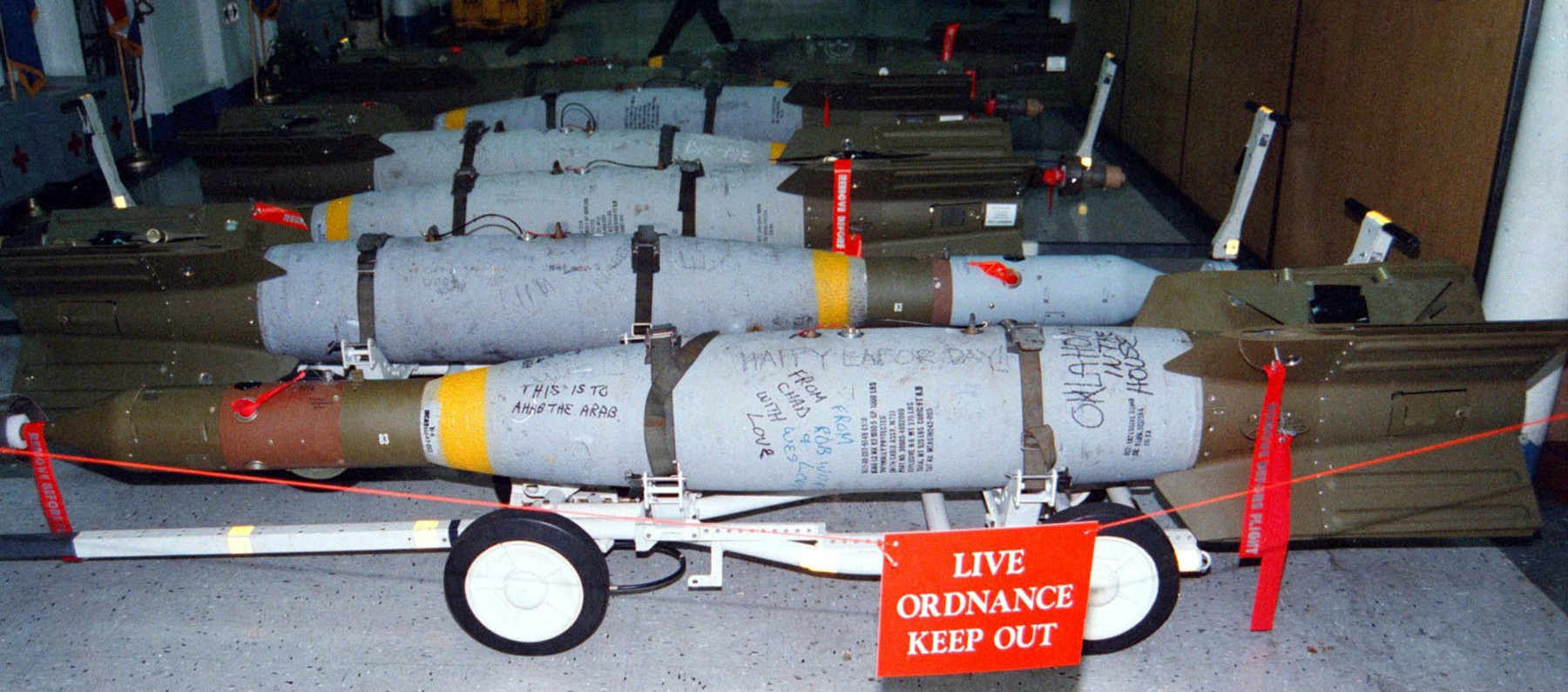

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 06
GBU-24 Paveway (2,000 lbs) laser guided bomb

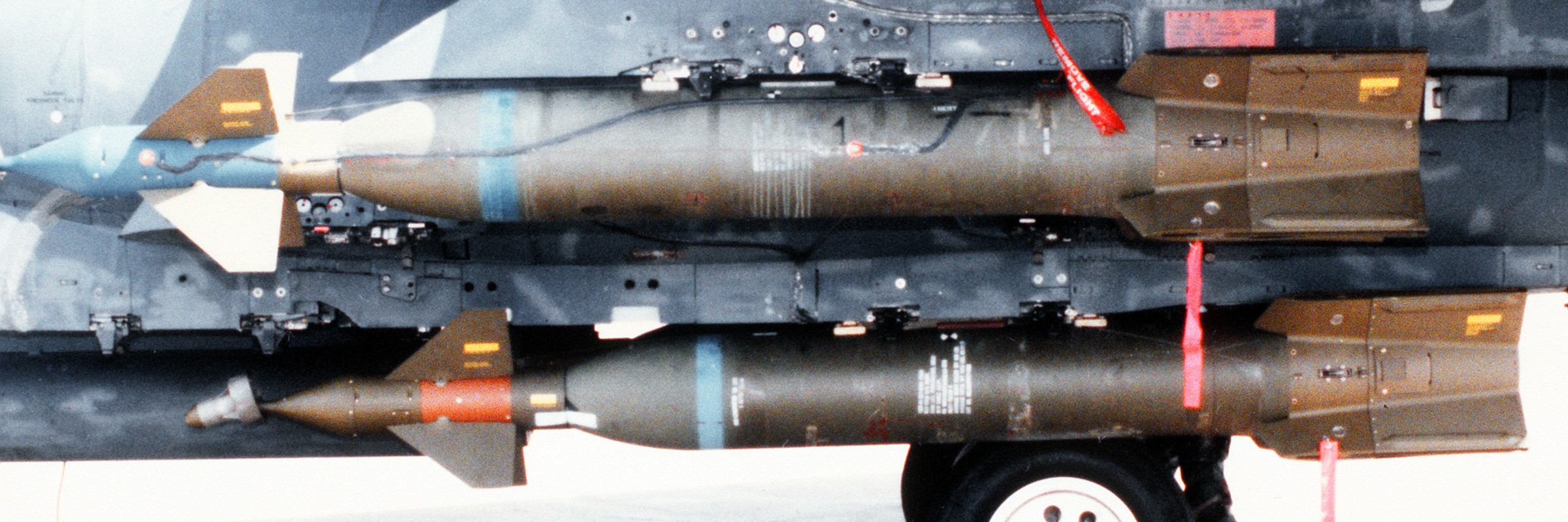

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 09
GBU-24 Paveway (2,000 lbs) laser guided bomb

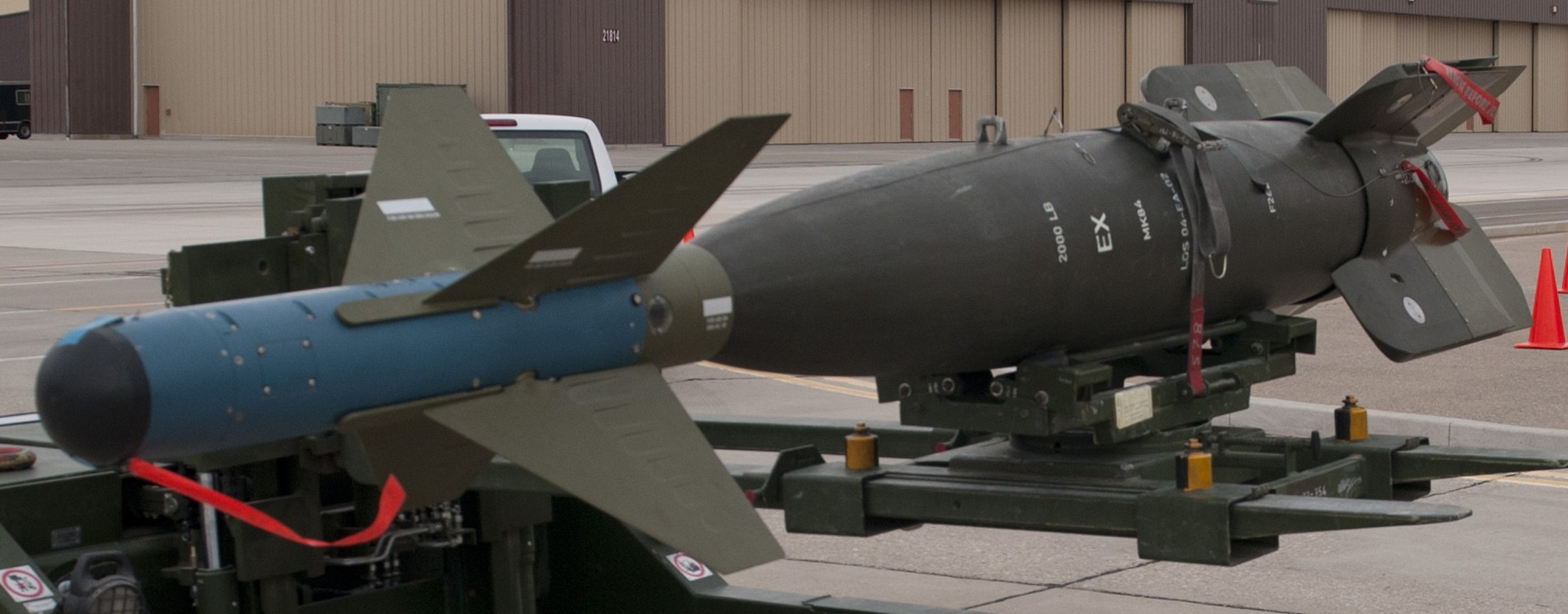

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 13
GBU-24 Paveway (2,000 lbs) laser guided bomb

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 02
GBU-24 Paveway (2,000 lbs) laser guided bomb

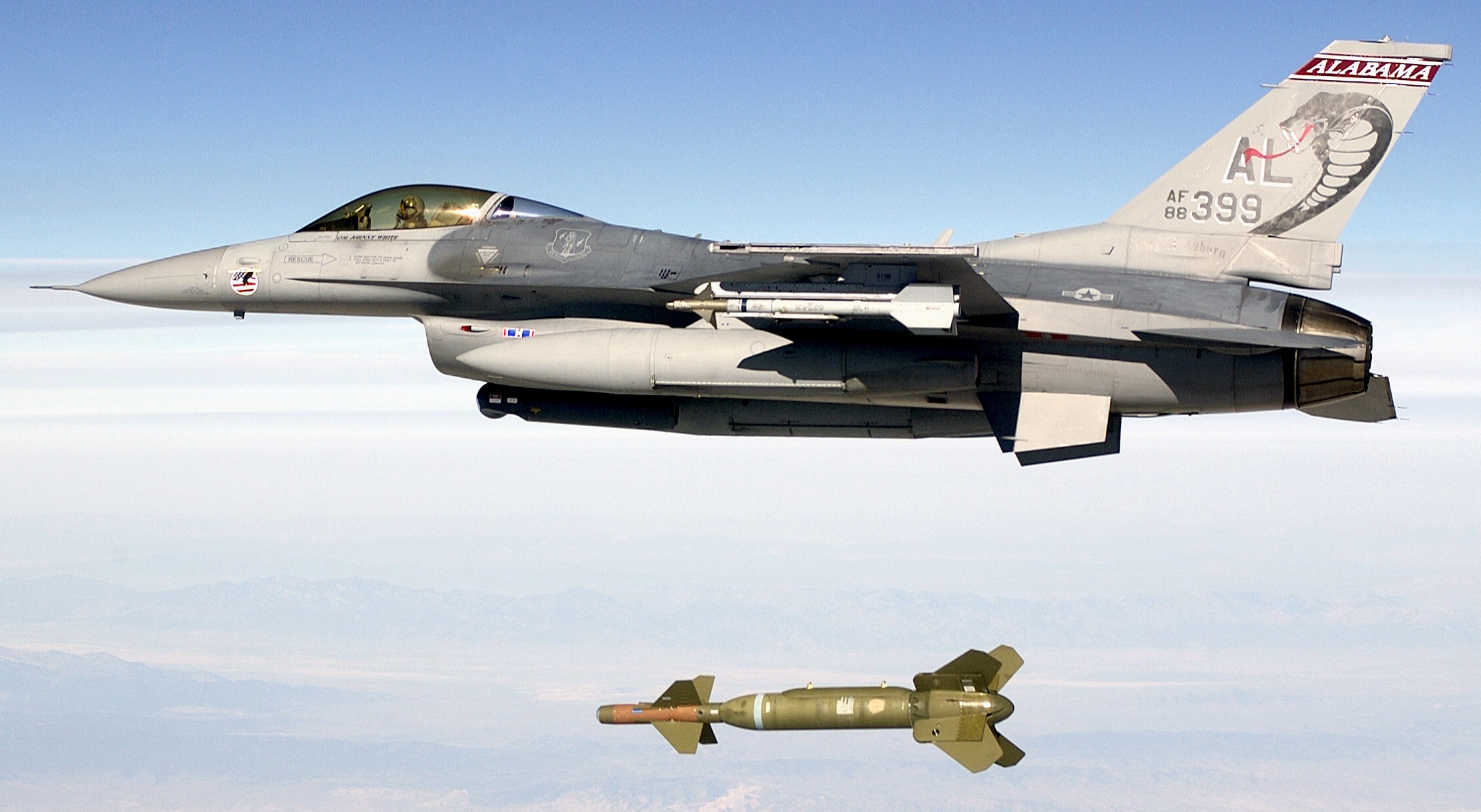

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force f-16 fighting falcon 04
an USAF F-16 Fighting Falcon drops a GBU-24 Paveway (2,000 lbs) laser guided bomb

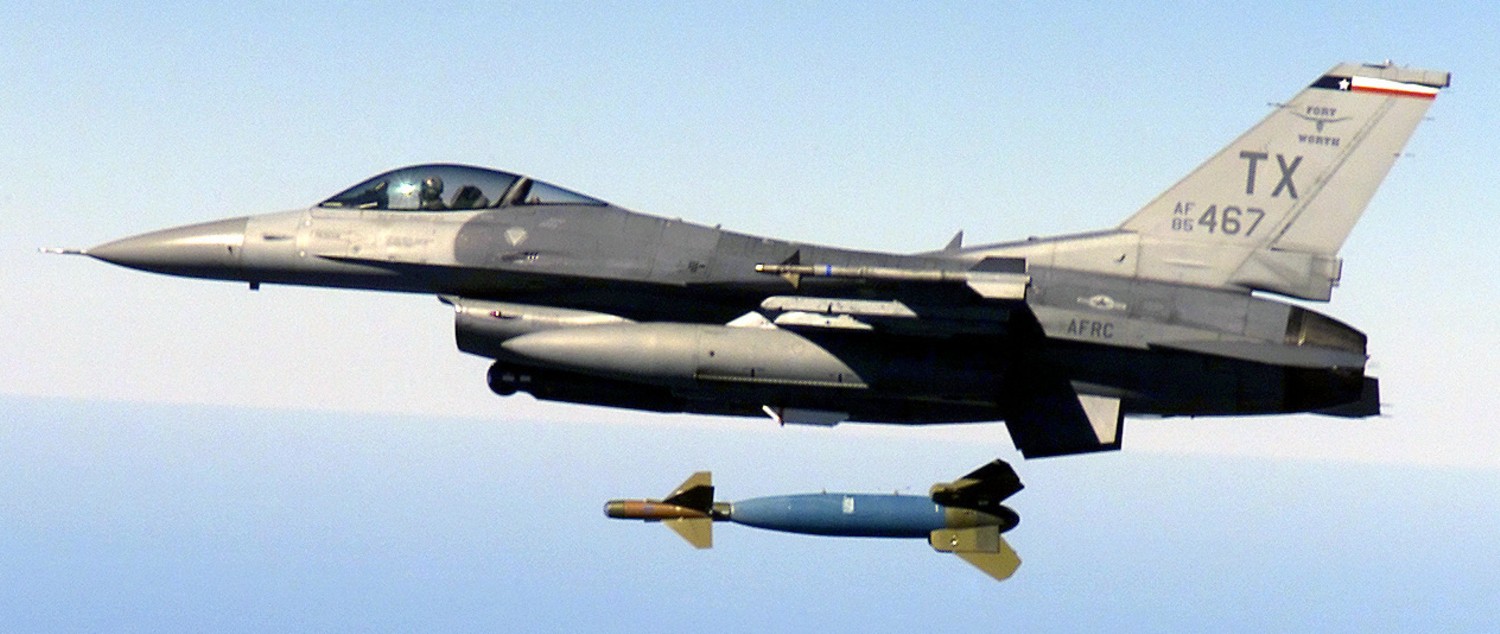

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 07
an USAF F-16 Fighting Falcon drops a GBU-24 Paveway (2,000 lbs) laser guided bomb

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force f-16c fighting falcon 05
an USAF F-16 Fighting Falcon drops a GBU-24 Paveway (2,000 lbs) laser guided bomb

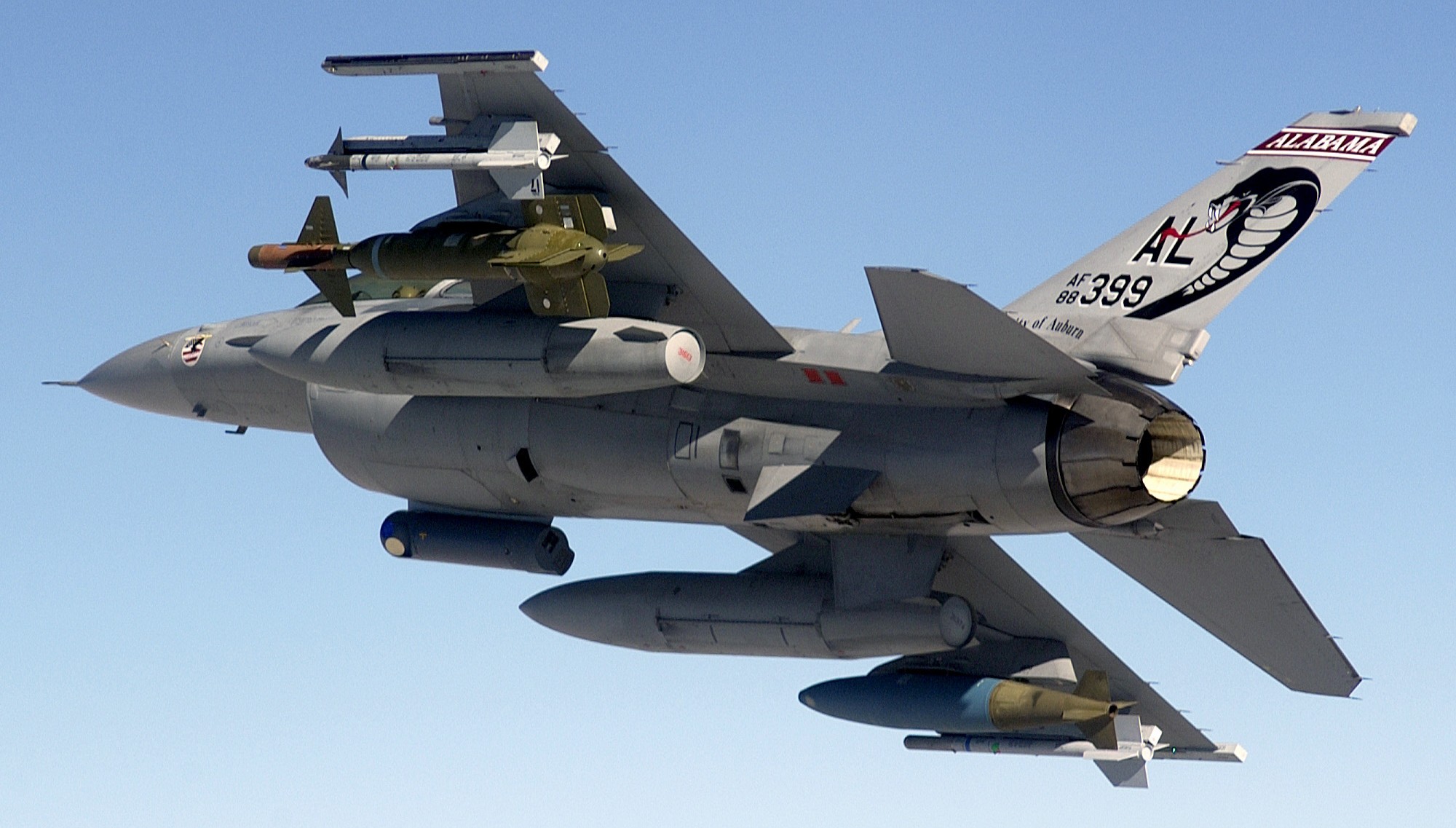

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 12
GBU-24 Paveway (2,000 lbs) laser guided bomb on an USAF F-16 Fighting Falcon

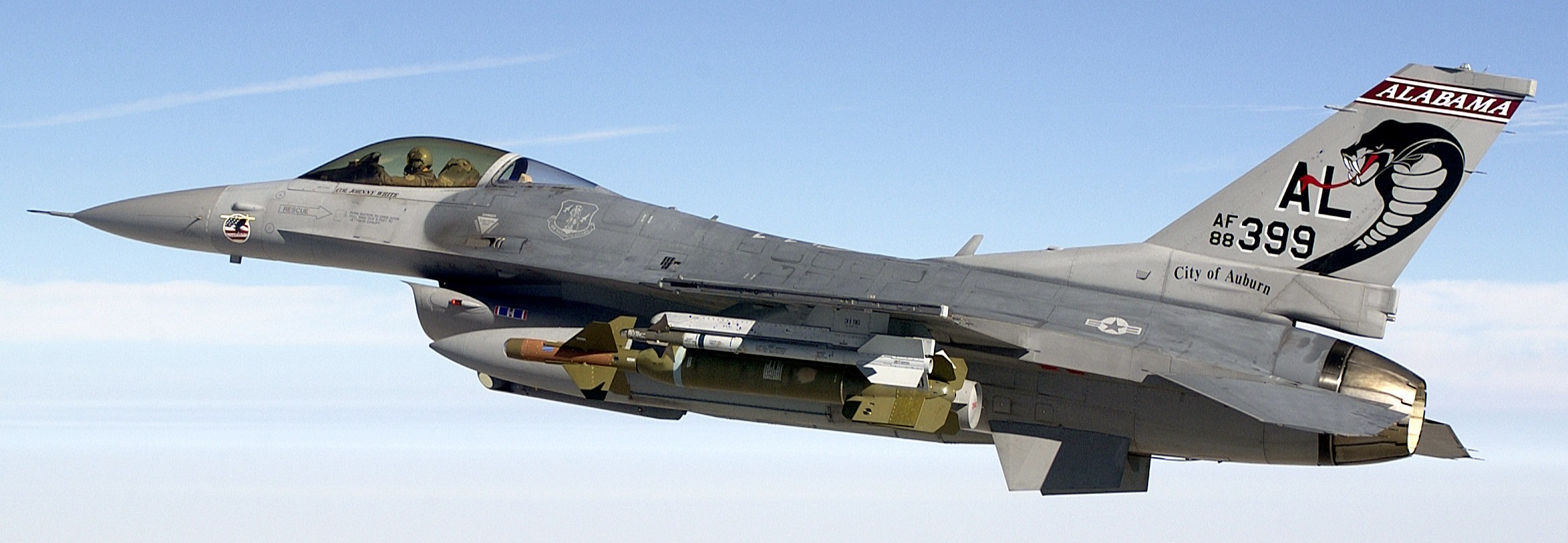

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 11
GBU-24 Paveway (2,000 lbs) laser guided bomb on an USAF F-16 Fighting Falcon

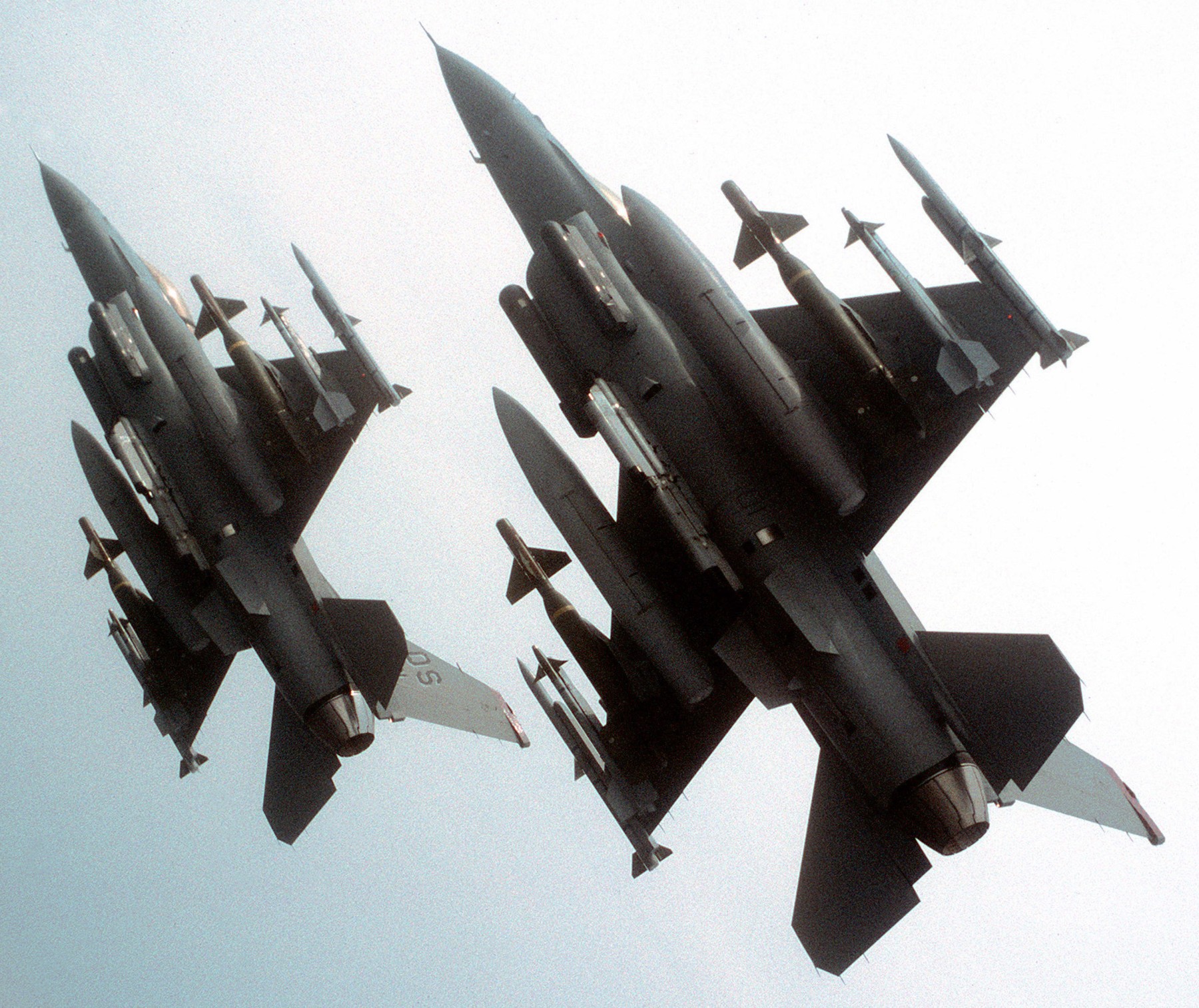

gbu-24 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 08
GBU-24 Paveway (2,000 lbs) laser guided bombs on an USAF F-16 Fighting Falcon


gbu-24 paveway laser guided bomb unit gbu 2000 lbs impact effect target 10
GBU-24 Paveway (2,000 lbs) laser guided bomb impact effect


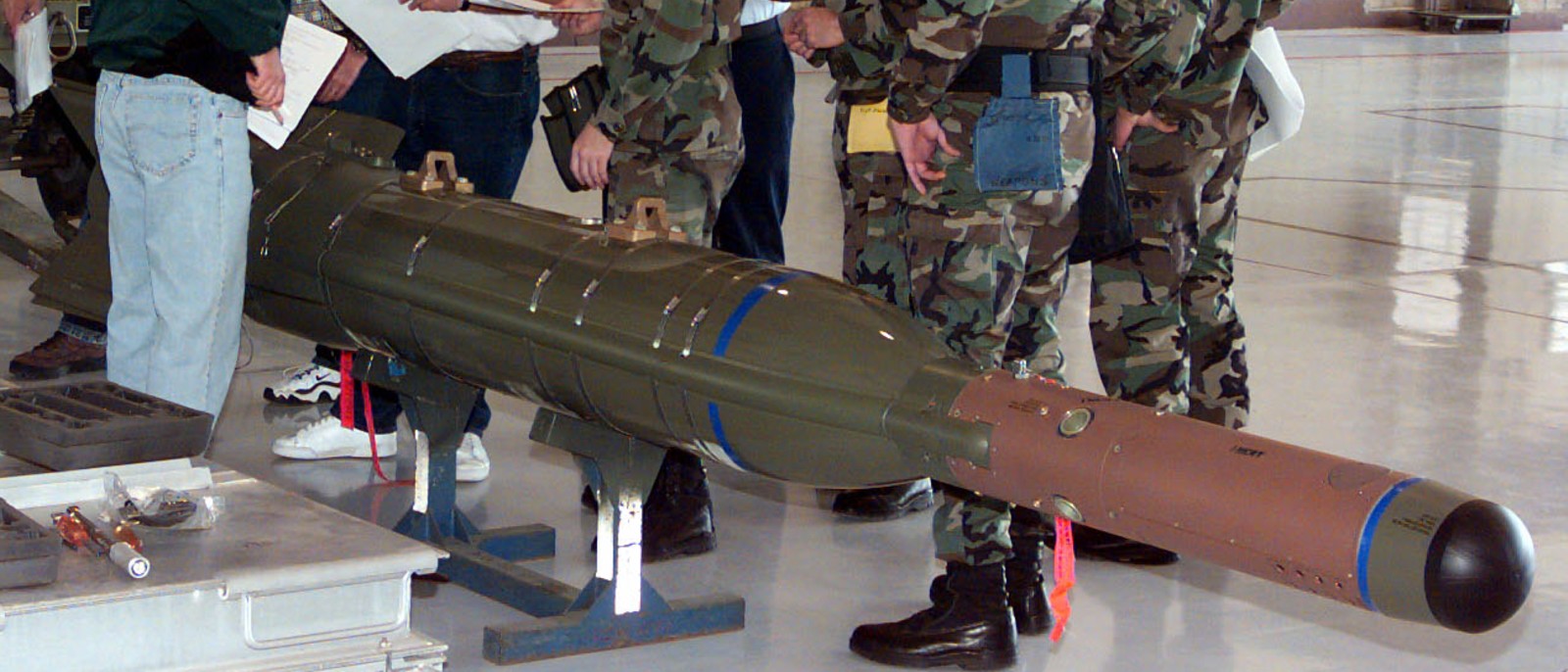

gbu-27 paveway laser guided bomb unit gbu 2000 lbs penetrator air force navy marines 04
GBU-27 Paveway (2,000 lbs) laser guided penetrator bomb

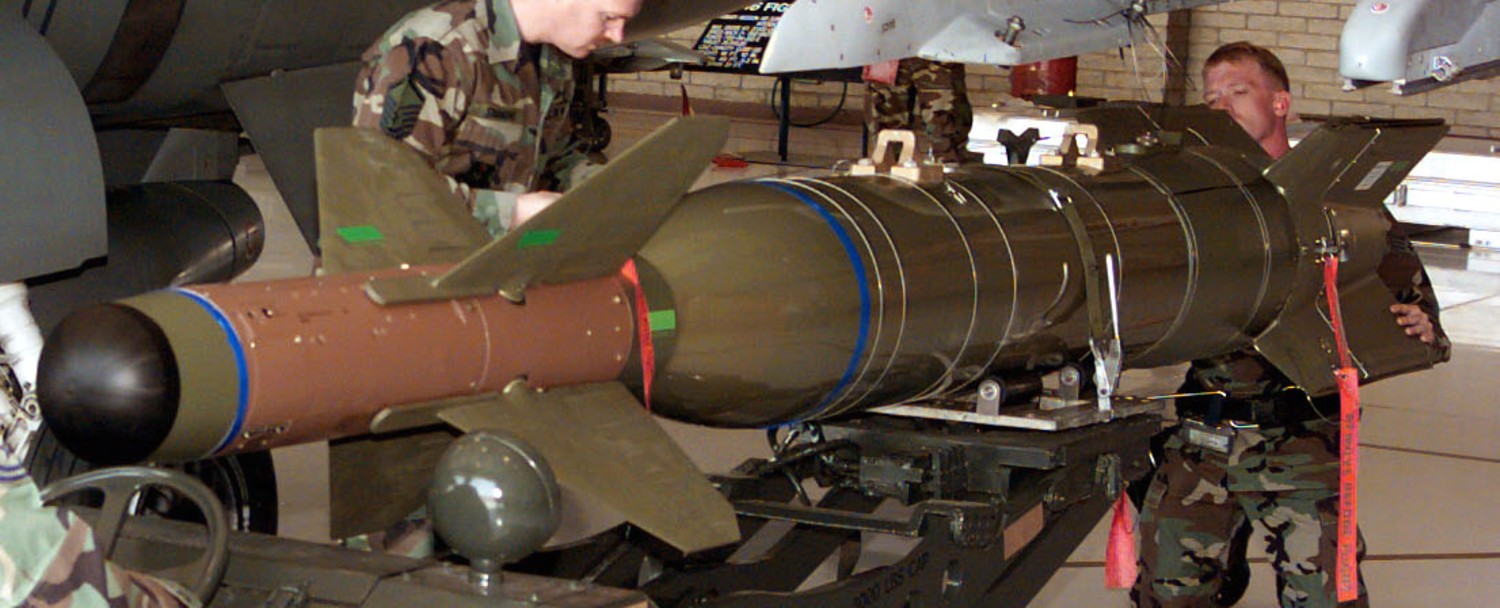

gbu-27 paveway laser guided bomb unit gbu 2000 lbs penetrator air force navy marines 03
GBU-27 Paveway (2,000 lbs) laser guided penetrator bomb

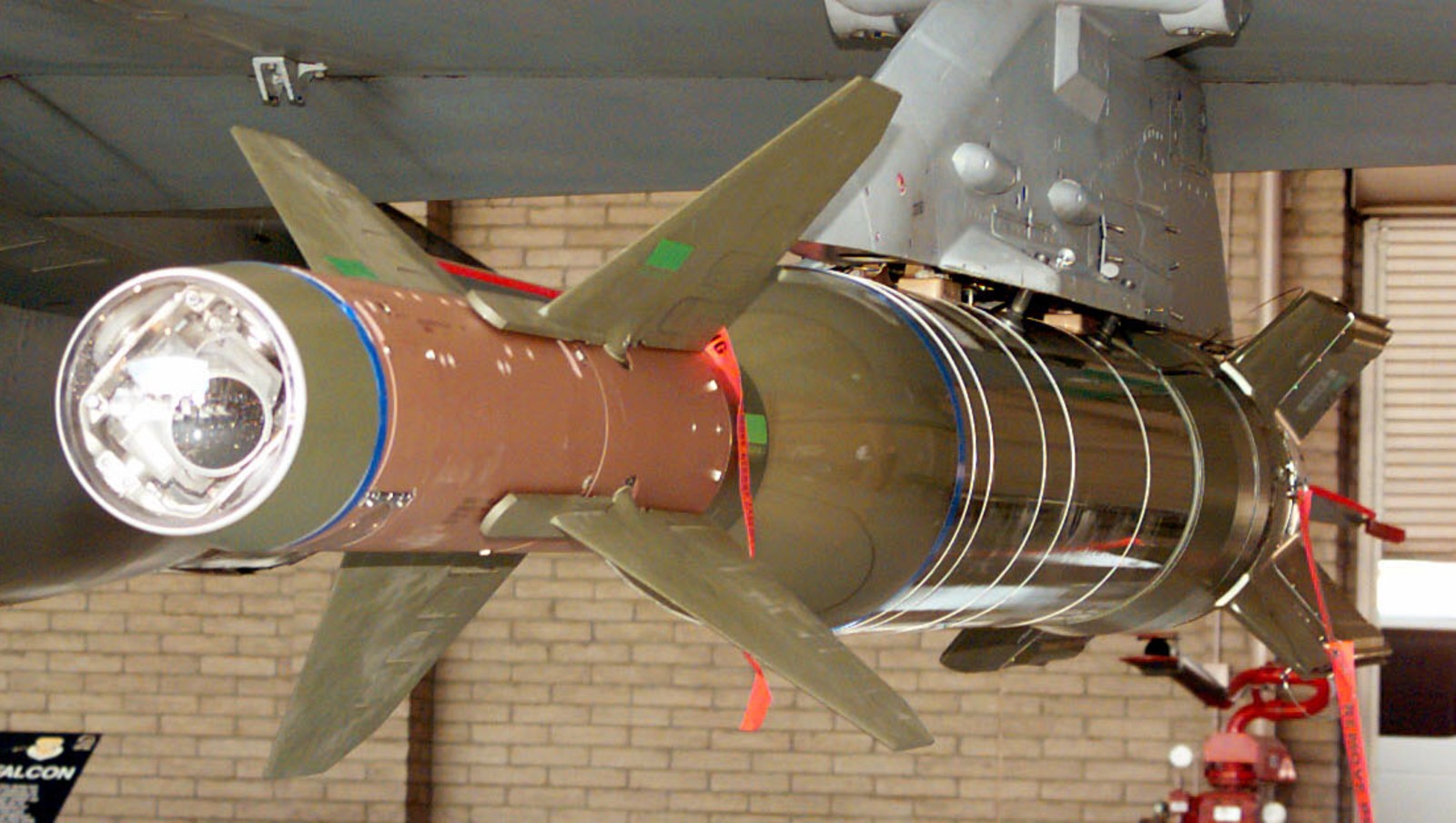

gbu-27 paveway laser guided bomb unit gbu 2000 lbs penetrator air force navy marines 02
GBU-27 Paveway (2,000 lbs) laser guided penetrator bomb

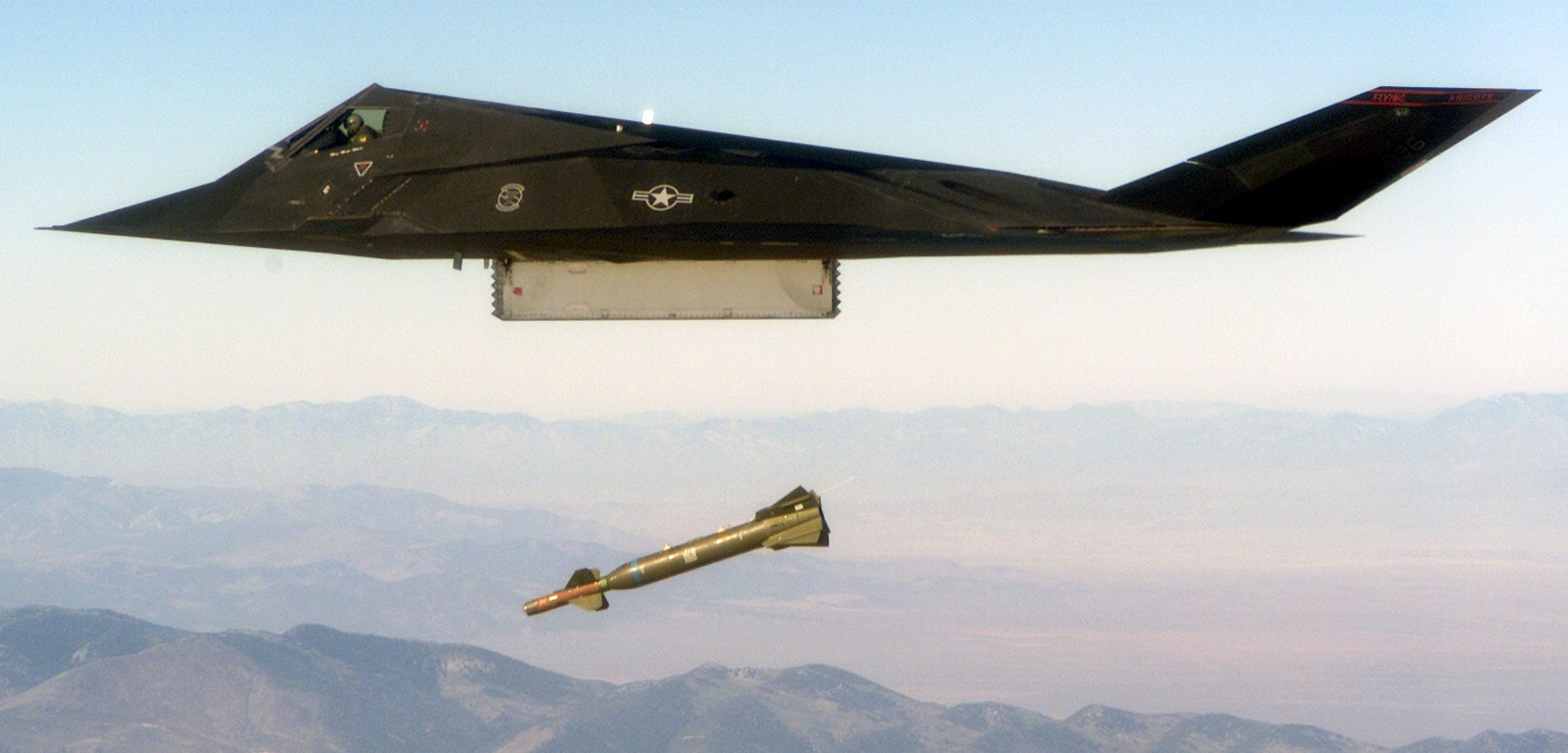

gbu-27 paveway laser guided bomb unit gbu 2000 lbs penetrator air force f-117 nighthawk 05
an USAF F-117 Nighthawk drops a GBU-27 Paveway (2,000 lbs) laser guided penetrator bomb

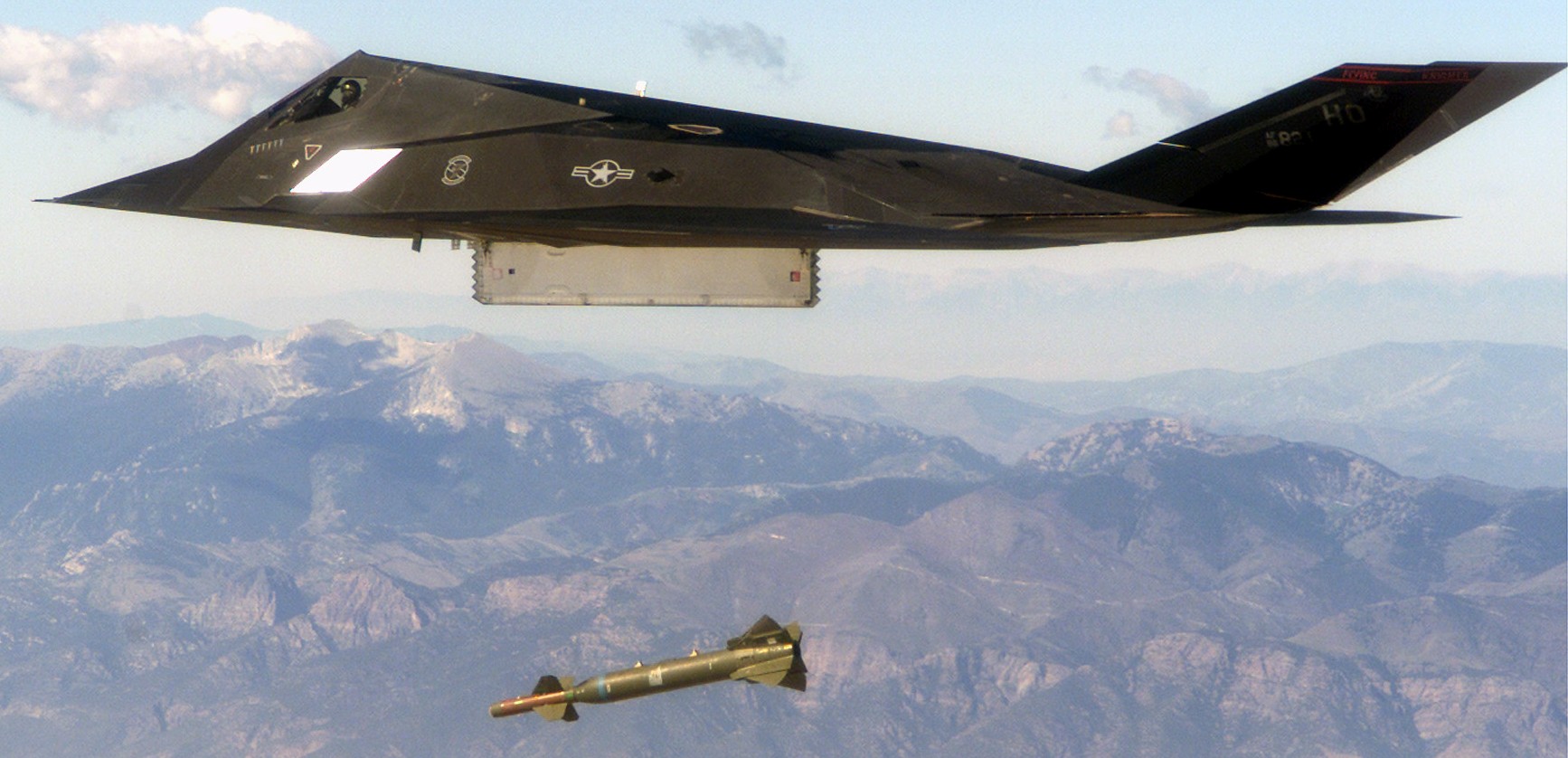

gbu-27 paveway laser guided bomb unit gbu 2000 lbs penetrator air force f-117 06
an USAF F-117 Nighthawk drops a GBU-27 Paveway (2,000 lbs) laser guided penetrator bomb


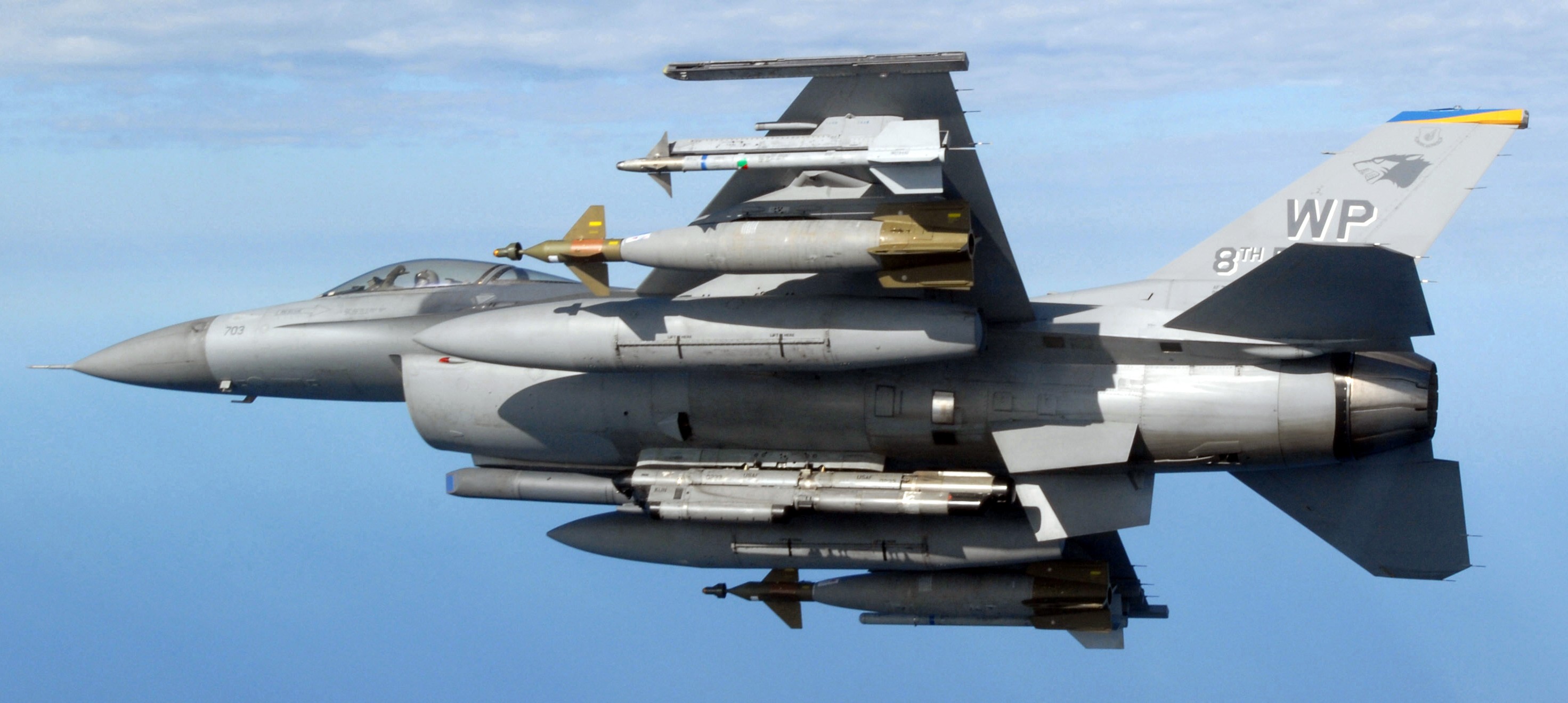

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force f-16c fighting falcon 04
GBU-10 Paveway (2,000 lbs) laser guided bombs on an USAF F-16 Fighting Falcon

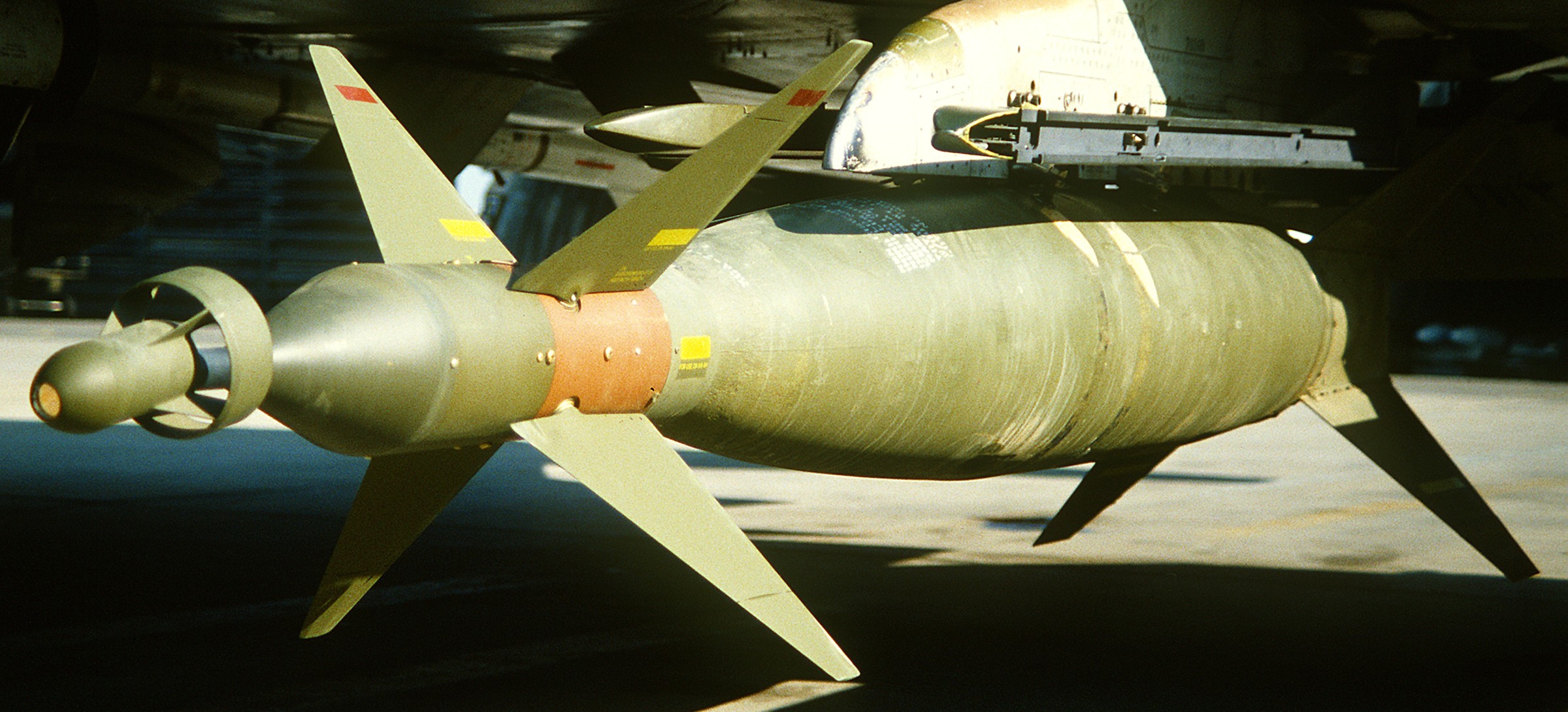

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 05
GBU-10 Paveway (2,000 lbs) laser guided bomb

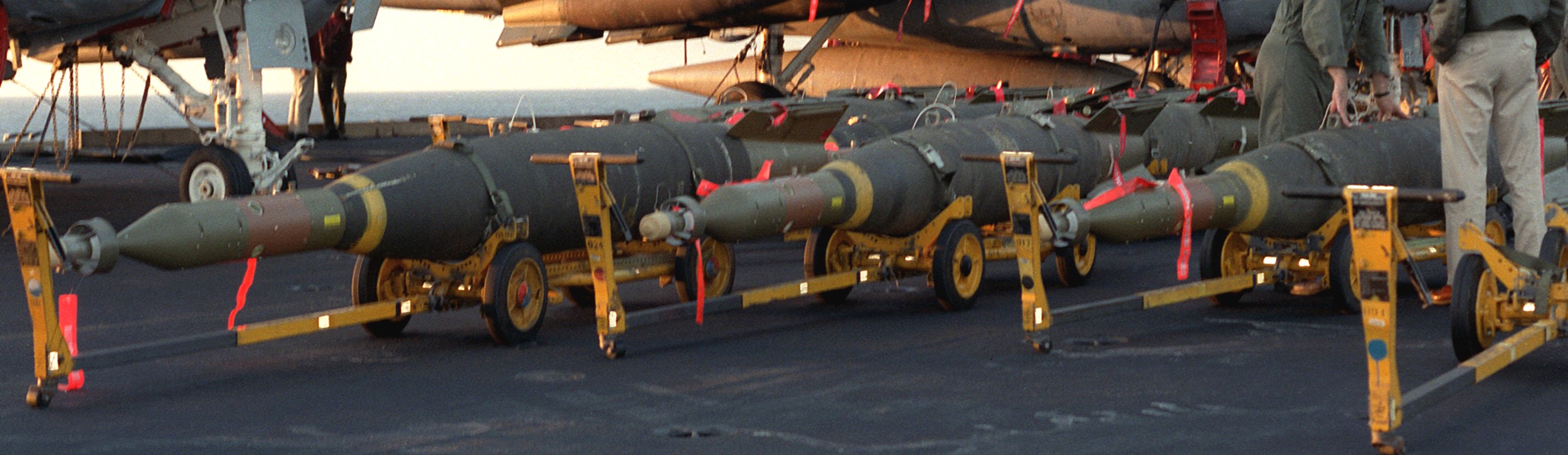

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 07
GBU-10 Paveway (2,000 lbs) laser guided bomb

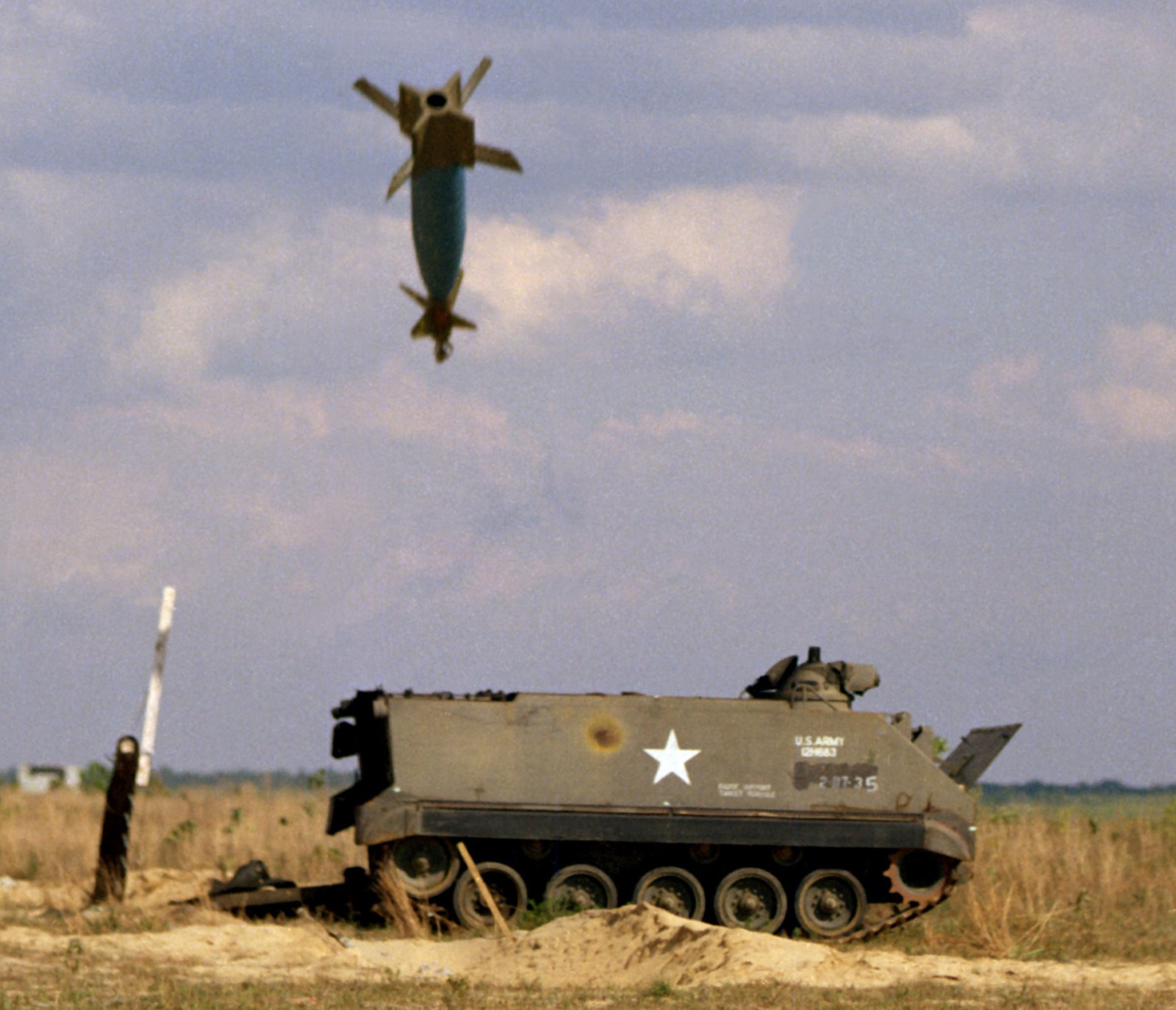

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force navy marines on target 03
GBU-10 Paveway (2,000 lbs) on target

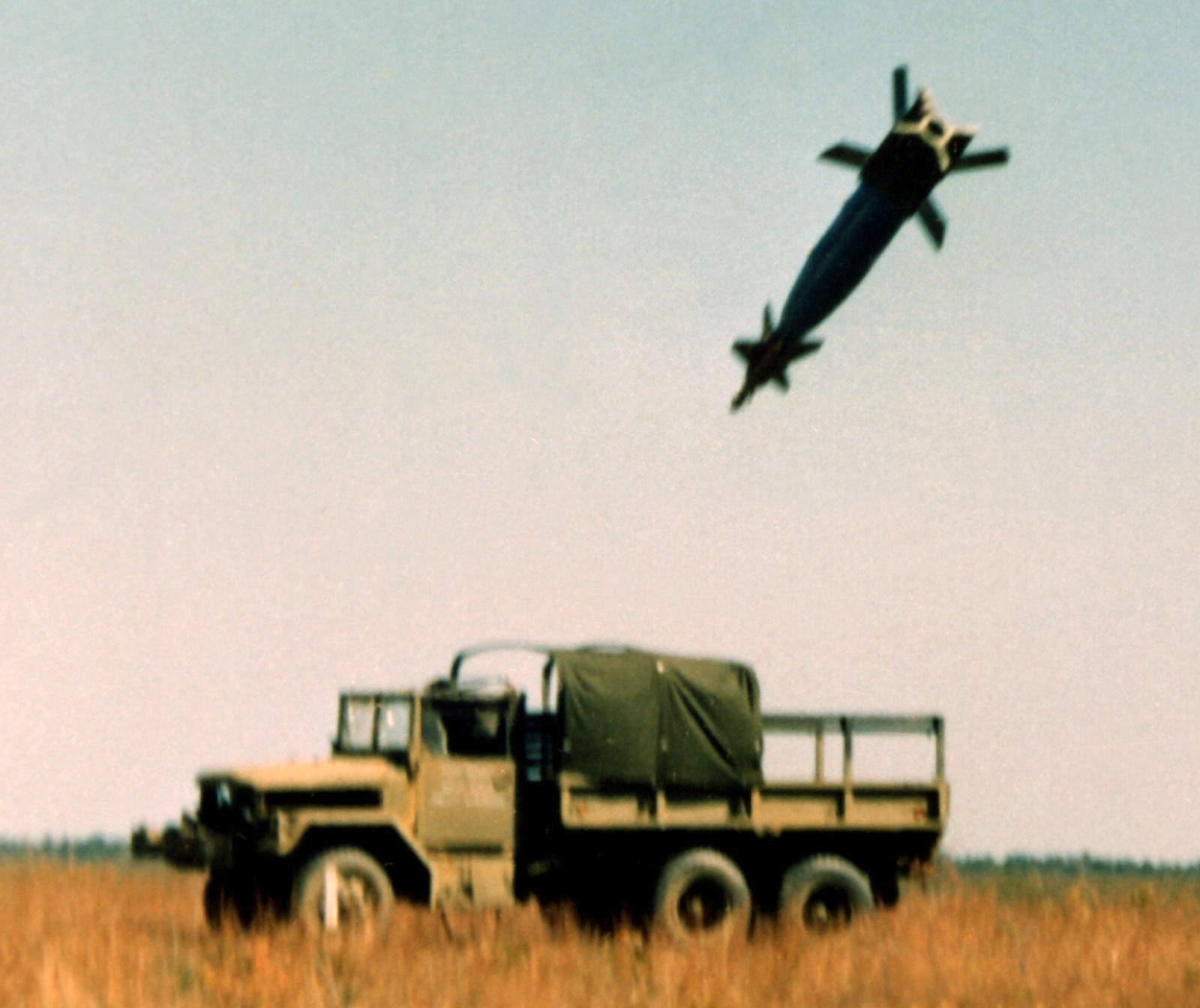

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 02
GBU-10 Paveway (2,000 lbs) on target

gbu-10 paveway laser guided bomb unit gbu 2000 lbs air force navy marines 06
GBU-10 Paveway (2,000 lbs) on target



5,000 lbs Paveway laser guided bombs (LGB)

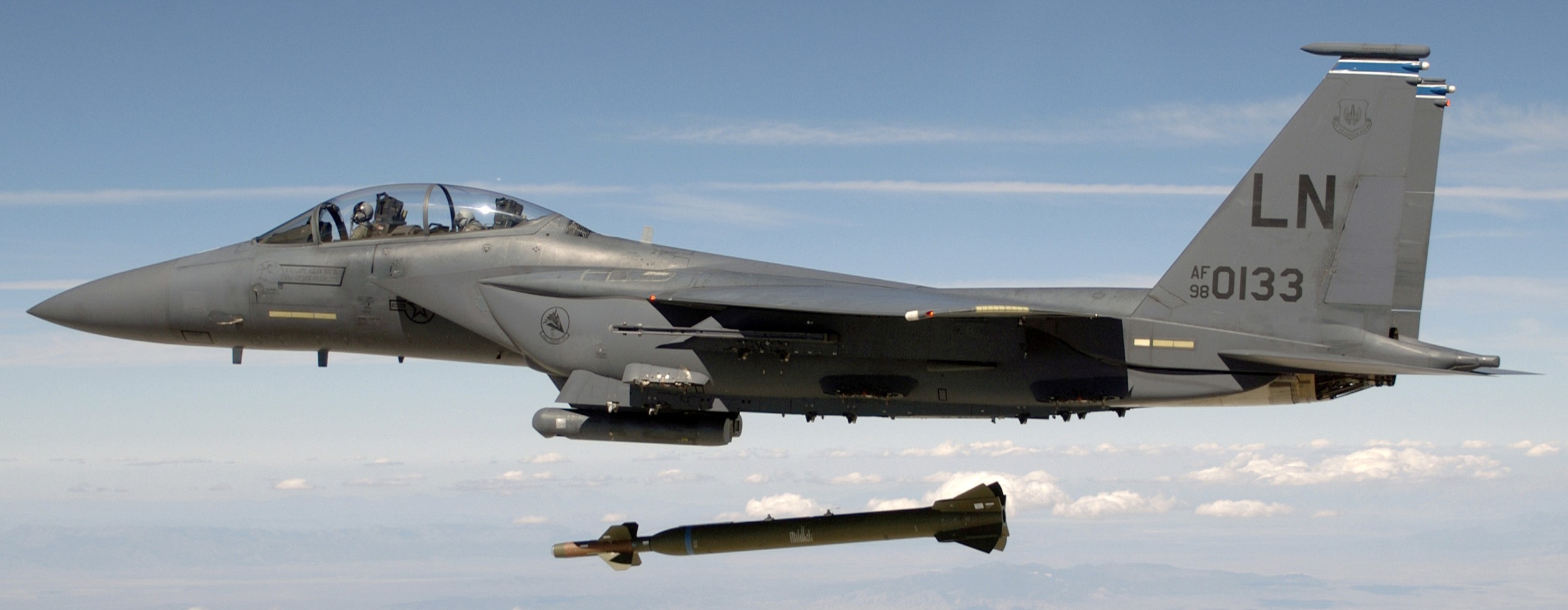

gbu-28 paveway laser guided bomb unit gbu 5000 lbs penetrator bunker buster us air force navy marines 03
an USAF F-15E Strike Eagle drops a GBU-28 Paveway (5,000 lbs) laser guided penetrator bomb

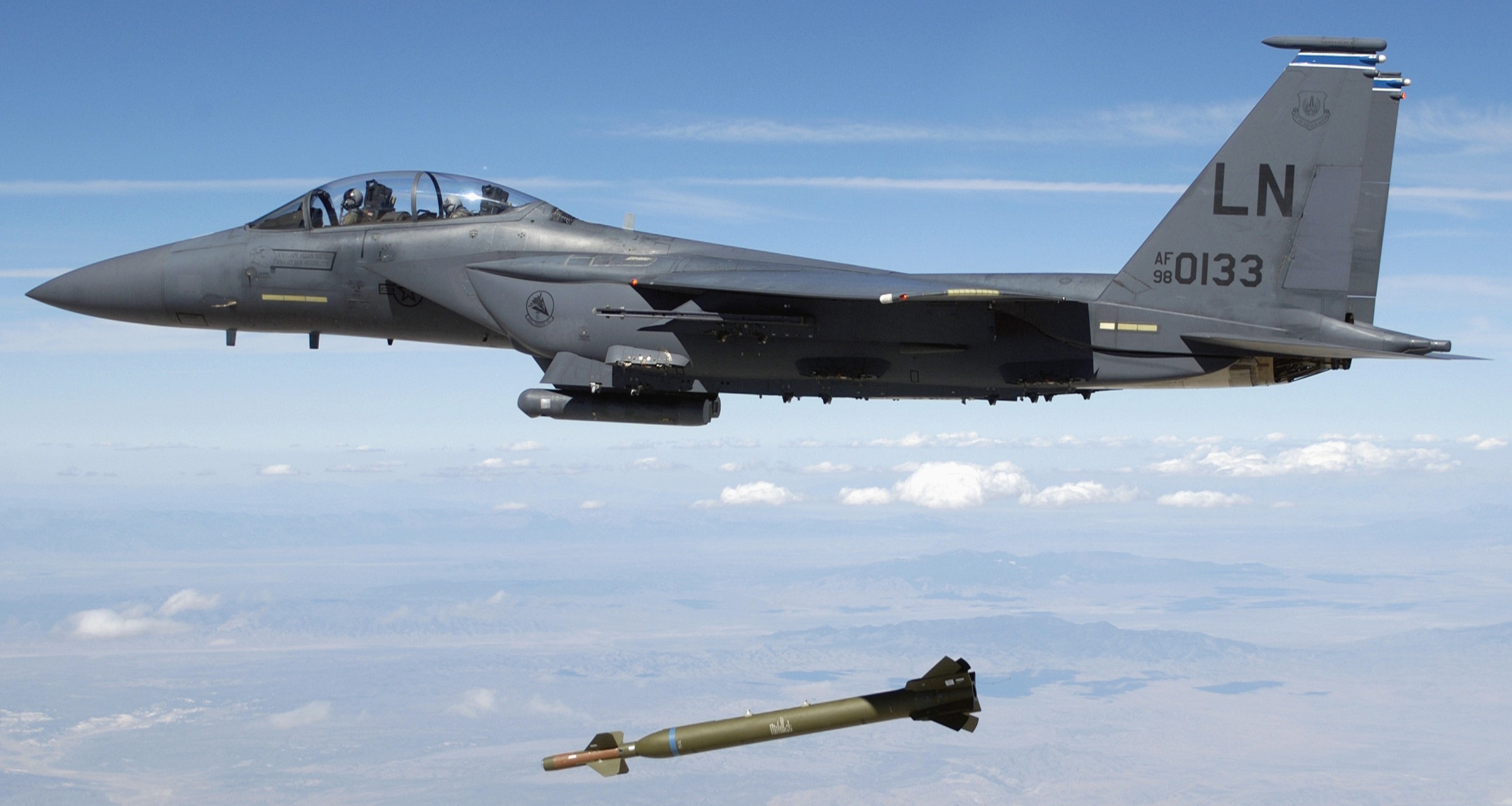

gbu-28 paveway laser guided bomb unit gbu 5000 lbs penetrator bunker buster us air force f-15e strike eagle 02
an USAF F-15E Strike Eagle drops a GBU-28 Paveway (5,000 lbs) laser guided penetrator bomb



Various Paveway laser guided bombs (LGB)

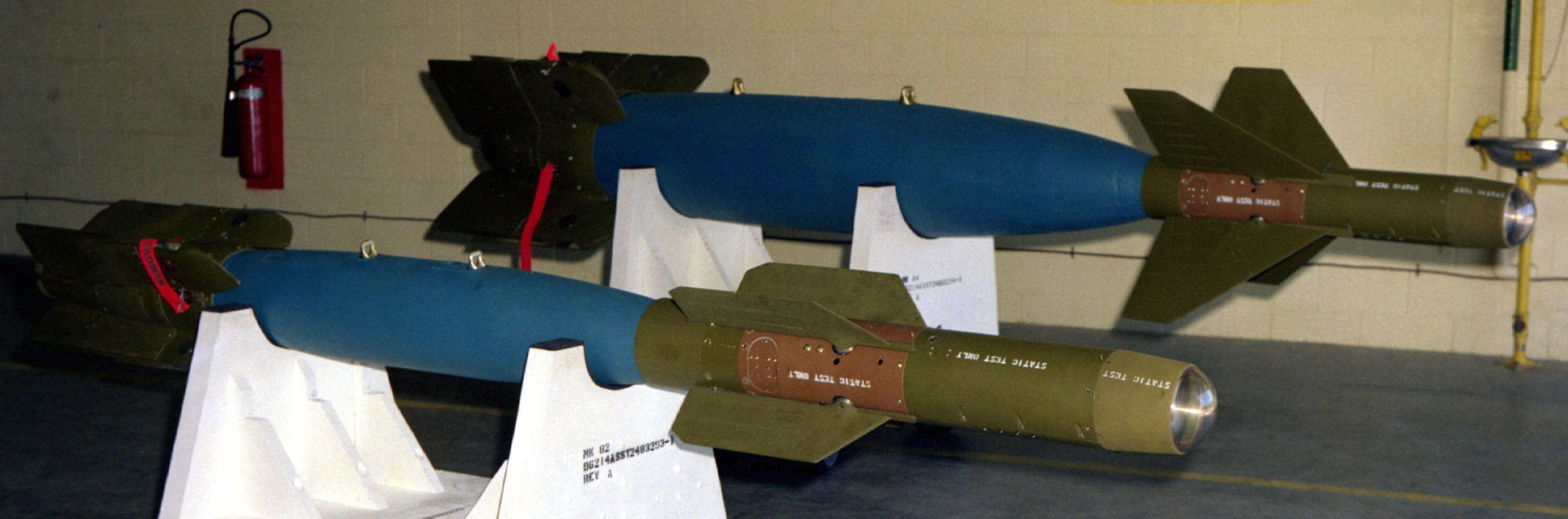

gbu paveway laser guided bomb unit us air force navy marines 05

gbu paveway laser guided bomb unit us air force navy marines 06

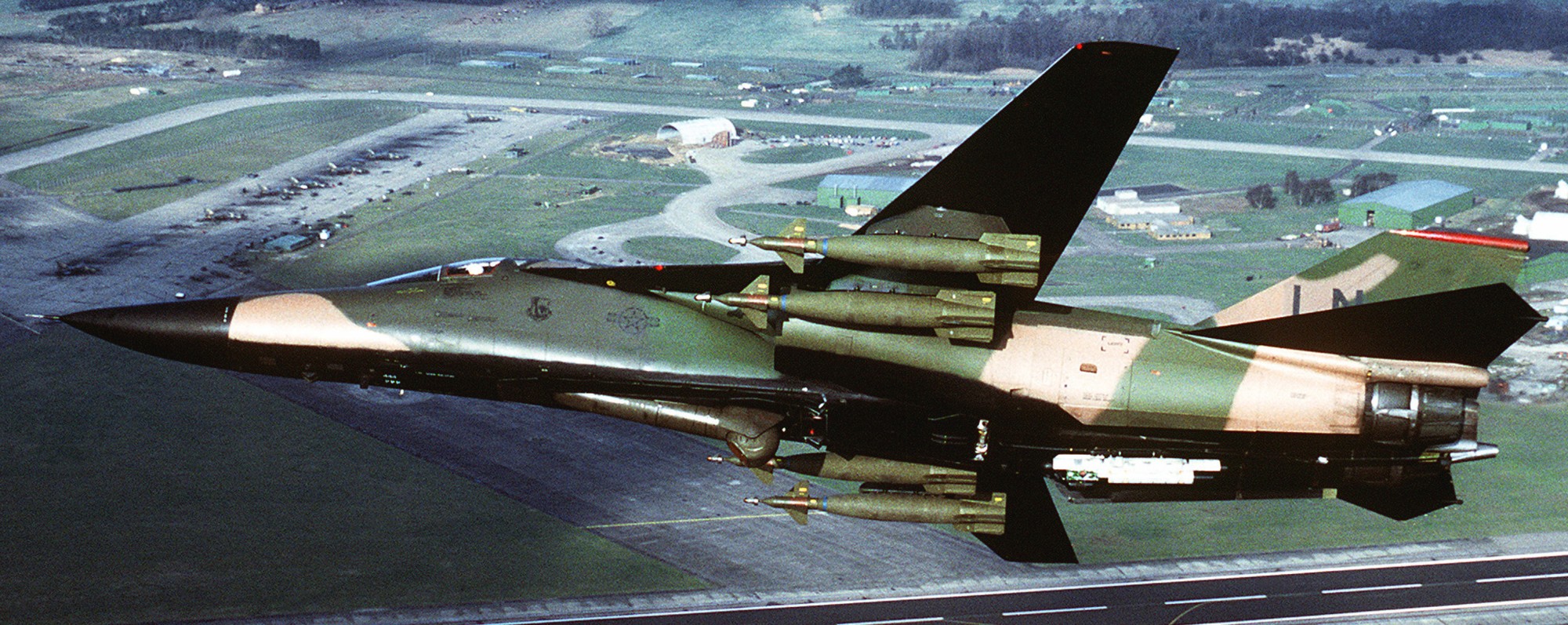

gbu paveway laser guided bomb unit us air force navy marines f-111 aardvark 12
Paveway laser guided bombs on an USAF F-111 Aardvark

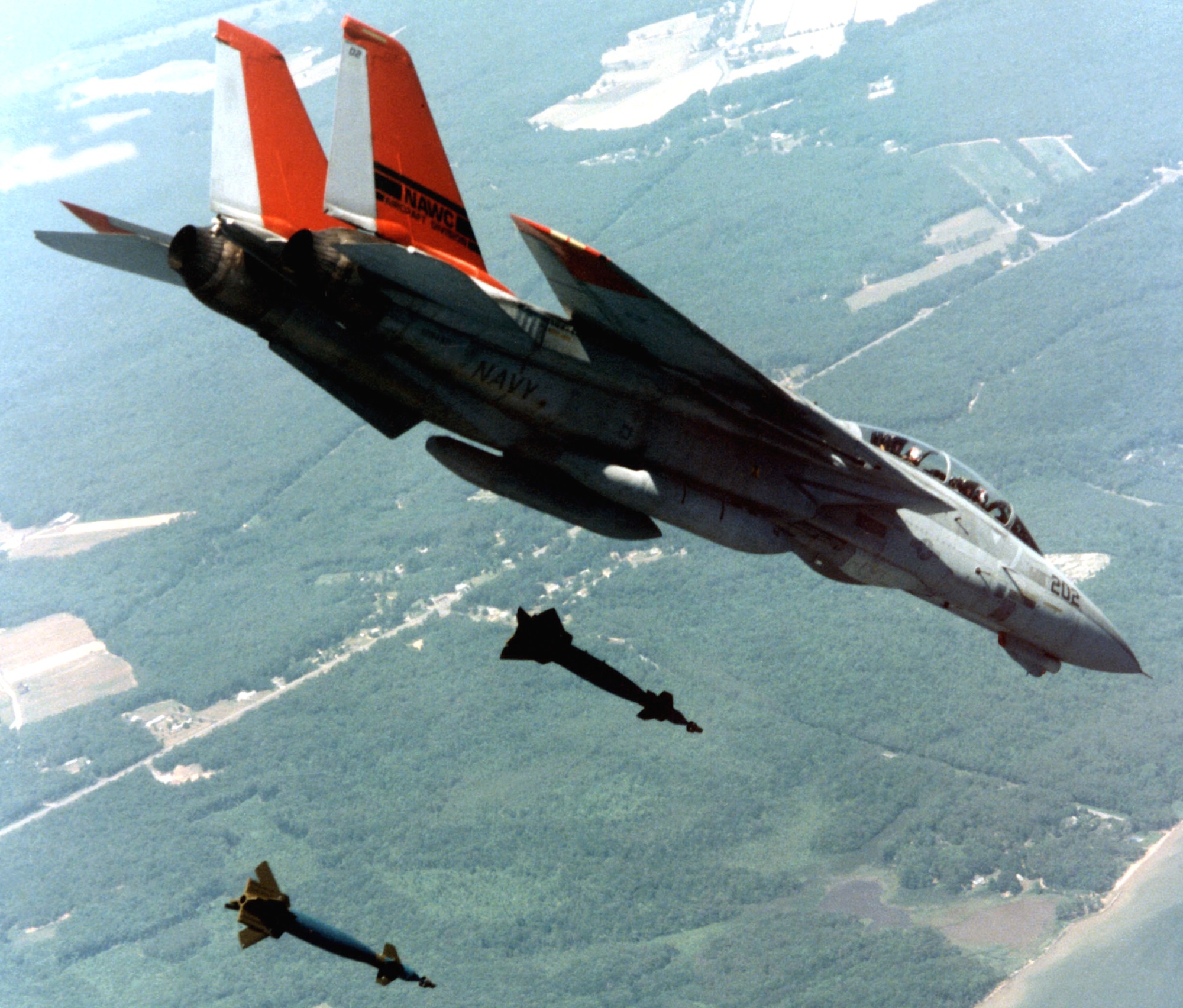

gbu paveway laser guided bomb unit us navy f-14 tomcat 07
Paveway I laser guided bombs were dropped from an US Navy F-14 Tomcat

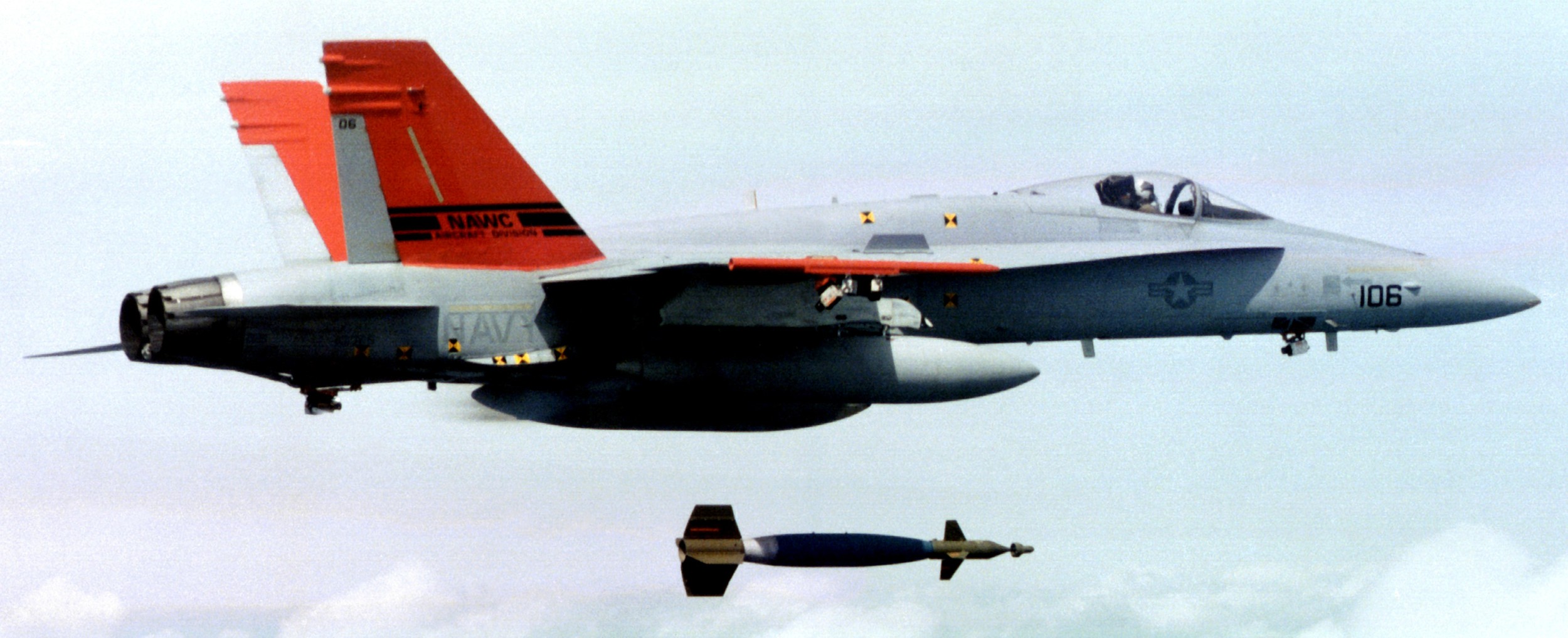

gbu paveway laser guided bomb unit us navy f/a-18a hornet 08
a Paveway I laser guided bomb was dropped from an US Navy F/A-18A Hornet

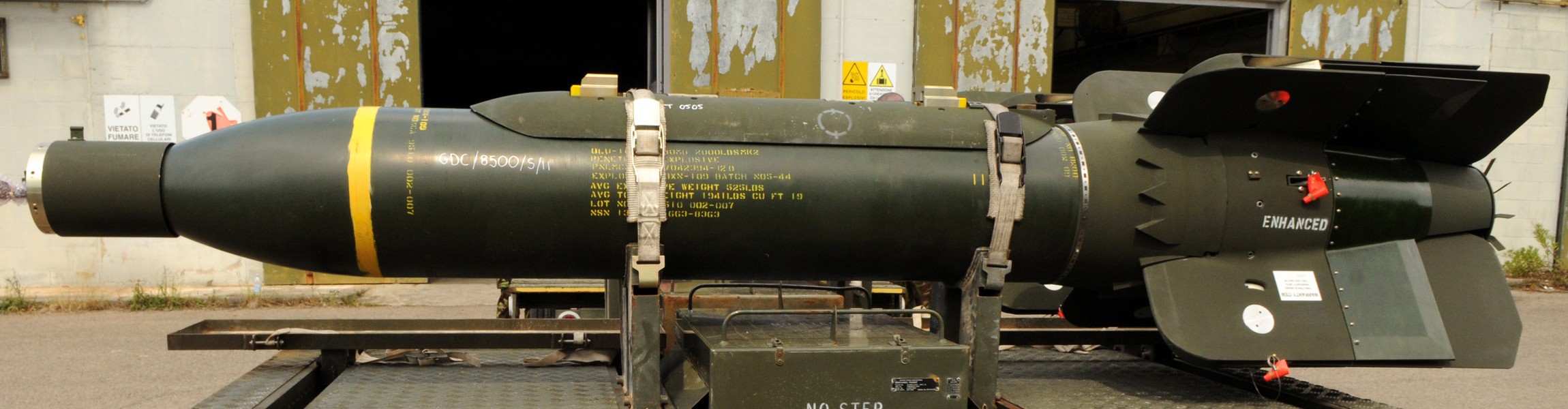

gbu paveway laser guided bomb unit us air force navy marines 09

| seaforces.org | Weapon Systems start page |
