Mark 80 Series General Purpose Bomb (GPB)
Mark 81 - Mark 82 - Mark 83 - Mark 84 low drag bombs


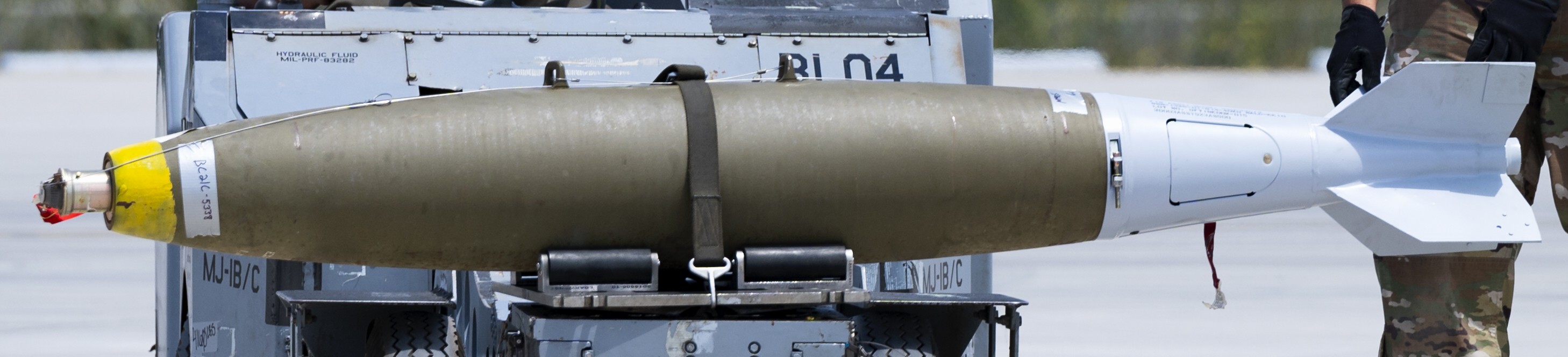

mark 81 82 83 84 general purpose bomb series navy air force 24x

07/26
The Mark 80 series are the primary US Low-Drag General Purpose (LDGP) unguided or "dumb" bombs.

There are four basic types with a nominal weight of 250 pounds (113 kg), 500 pounds (227 kg), 1,000 pounds (454 kg) and 2,000 pounds (907 kg):


Mark 81:
The Mark 81 is the smallest of the Mark 80 series of low-drag general-purpose bombs.

Mass: 262 lb (119 kg)
Length: 74 in (1.88 m)
Diameter: 9 in (23 cm)
Warhead: 96 lb (44 kg) Tritonal, Minol or Composition H-6


Mark 82 / BLU-111 / BLU-126 / BLU-129:

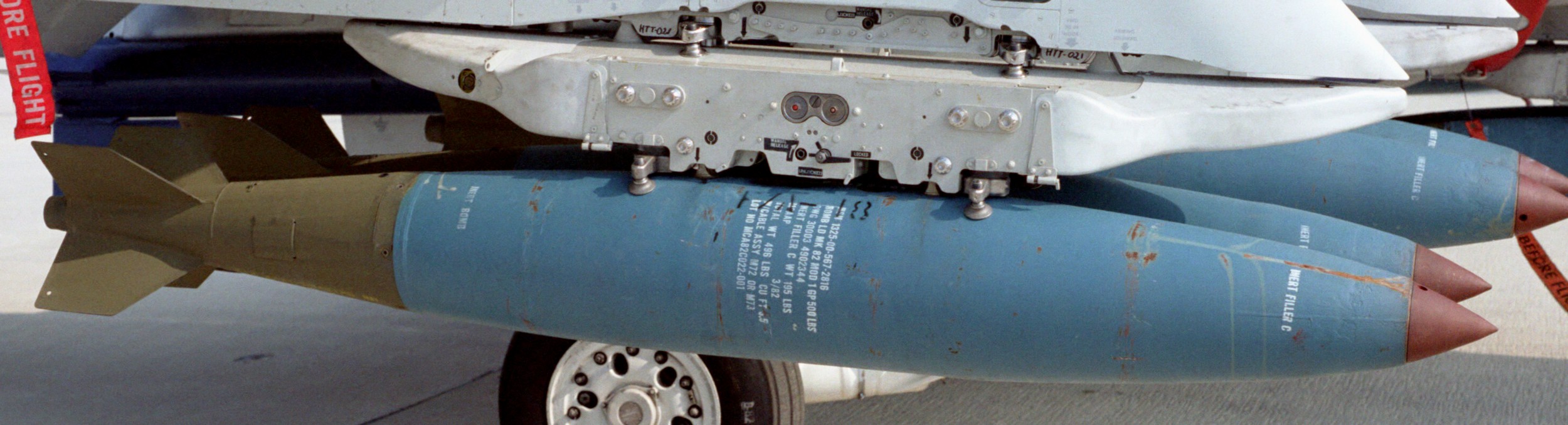

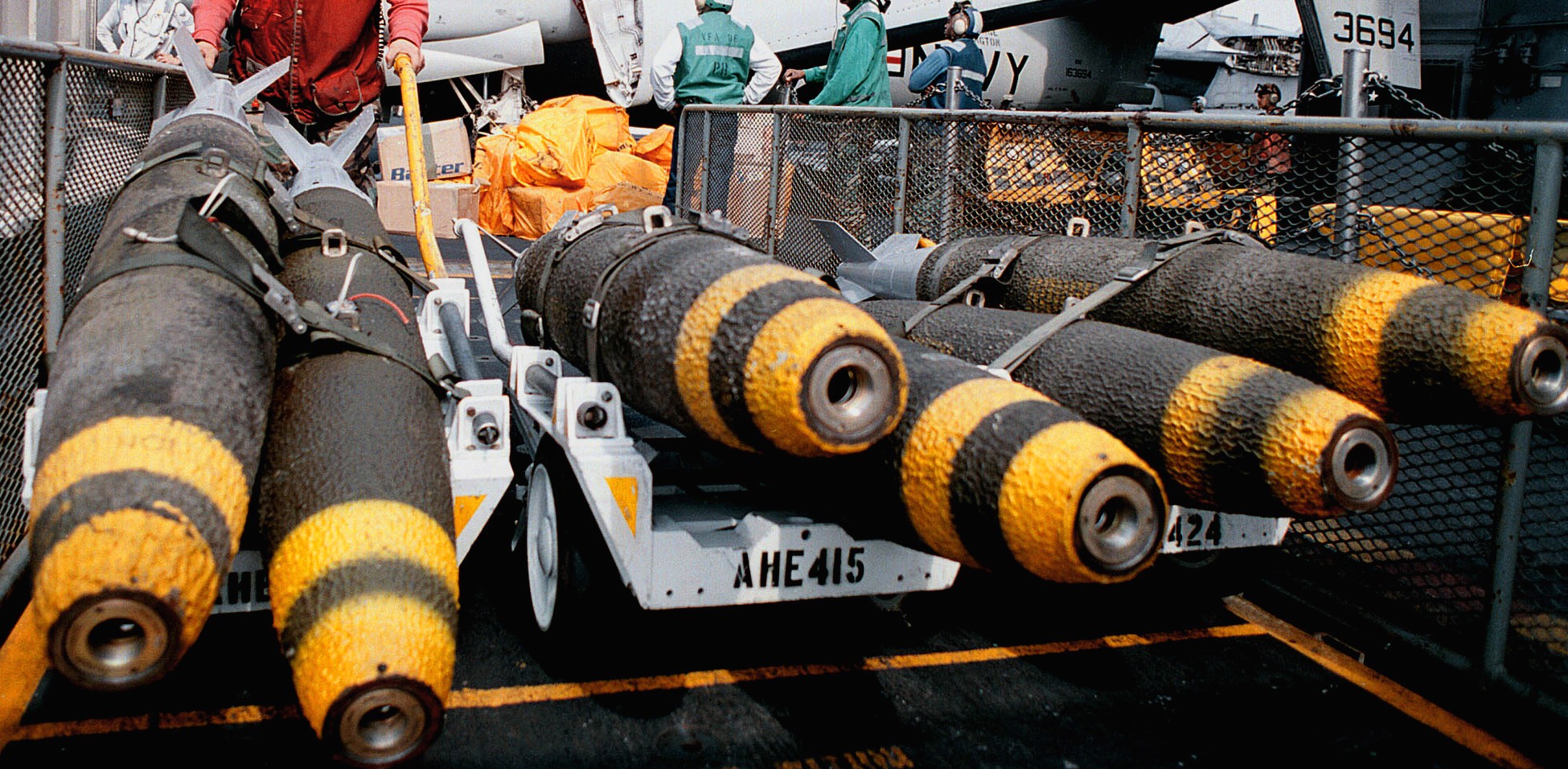

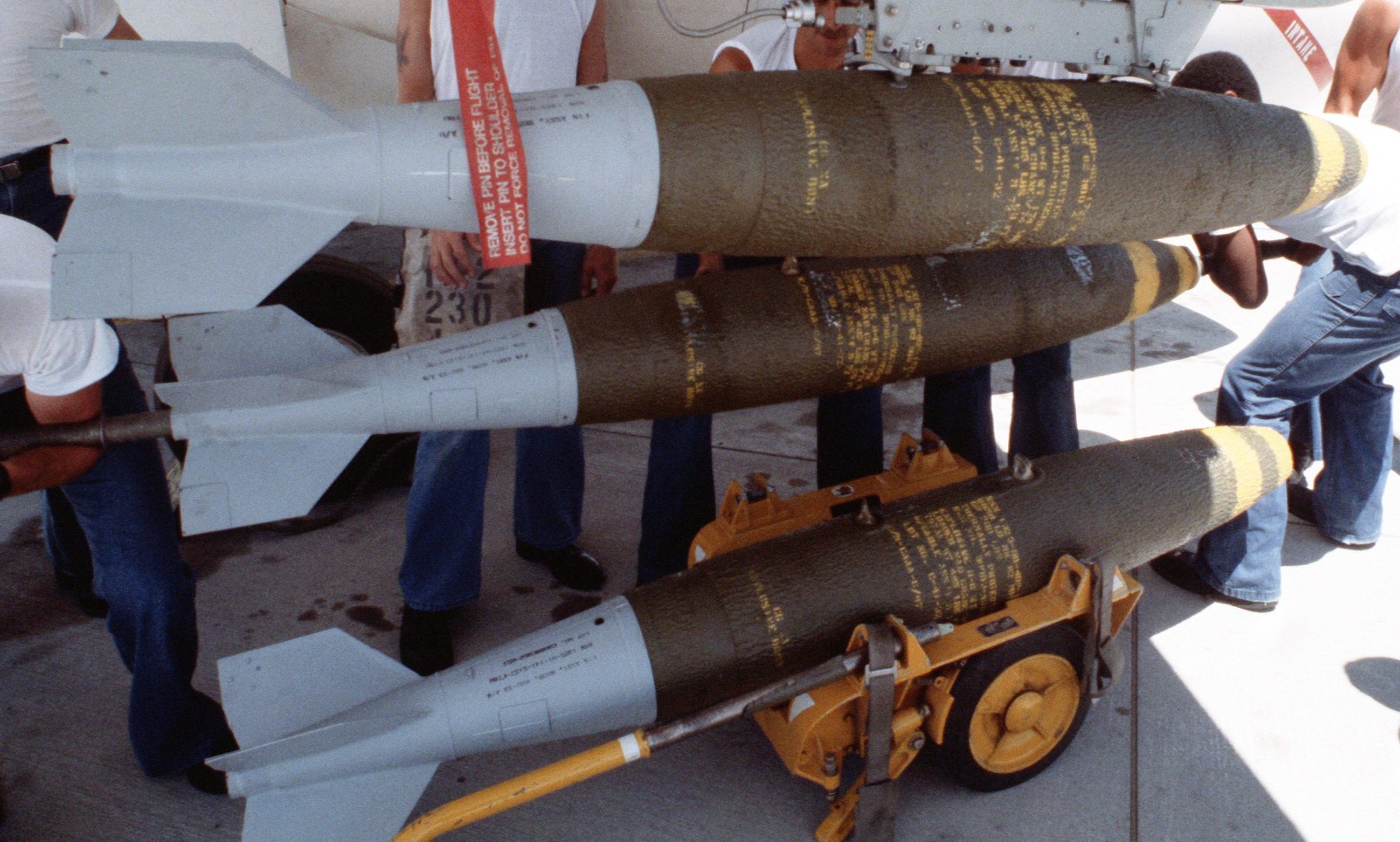

The Mark 82 is a 500-pound (230 kg) unguided, low-drag general-purpose bomb. The explosive filling is usually tritonal, though other compositions have sometimes been used.

Mass: 531 lb (241 kg)
Length: 7 ft 3 in (2.21 m)
Diameter: 10.7 in (273 mm)
Warhead: 196 lb (89 kg) Tritonal, Comp H-6 or PBXN-109

Variants:
BLU-111/B: Mk.82 casing filled with PBXN-109; item weighs 481 lb (218 kg). PBXN-109 is a less sensitive explosive filler when compared to H6.

BLU-111A/B, BLU-111C/B: Used by the U.S. Navy, this is the BLU-111/B with a thermal-protective coating added to reduce cook-off in (fuel-related) fires.

BLU-126/B: Designed following a U.S. Navy request to lower collateral damage in air strikes. Delivery of this type started in March 2007. Also known as the Low Collateral Damage Bomb (LCDB), it is a BLU-111 with a smaller explosive charge (28 lbs). Inert ballast is added to match the original weight of the BLU-111, which gives it the same trajectory when dropped.

BLU-129/B: U.S. Air Force Mark 82 version with a 300 lbs composite warhead case that disintegrates upon detonation to minimize fragmentation, decreasing damage to nearby structures and reducing the chances of collateral damage. The carbon fiber composite shell achieves three-times less collateral damage by keeping the blast radius tight, while the tungsten-laden case high explosive has greater lethality in that blast radius. Entered service in 2011 with some 800 units produced until early 2015. USAF is looking to restart production for domestic and international consumption.

BLU-139/B: 500 lbs penetrator warhead.

Mark 82 Mod 7: Near-term solution for cluster bomb replacement that replaces the forged steel casing with a unitary "cast ductile iron" warhead and reconfigured burst height and fuze locations, dispersing iron fragmentation over a large area to fulfill area-attack requirements with less chance of unexploded ordnance. To enter service by 2018.

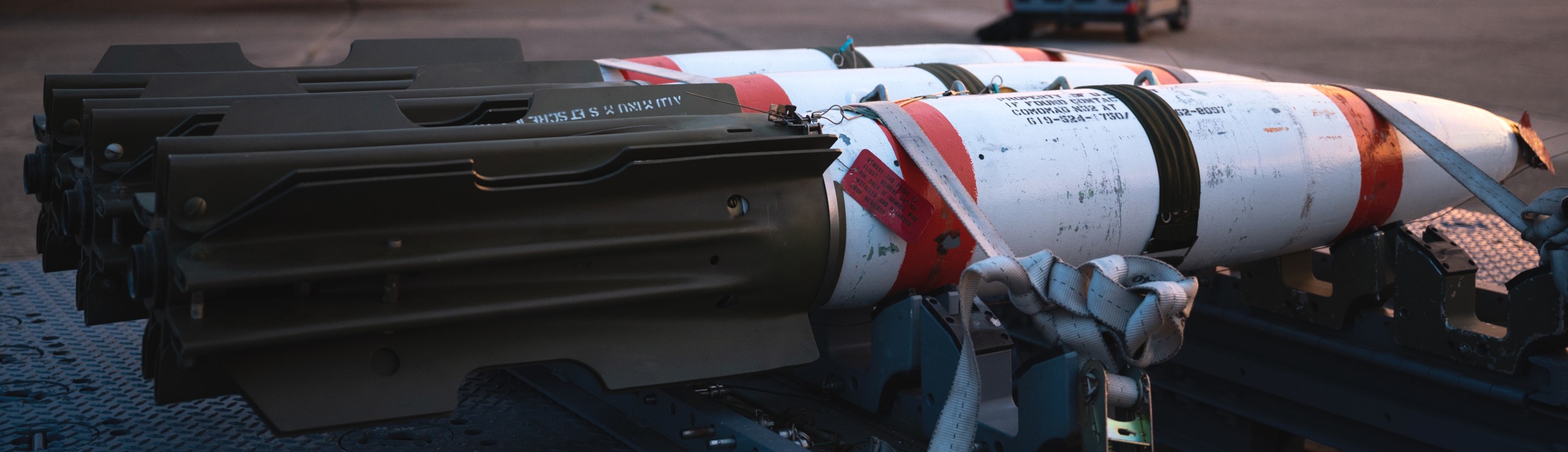

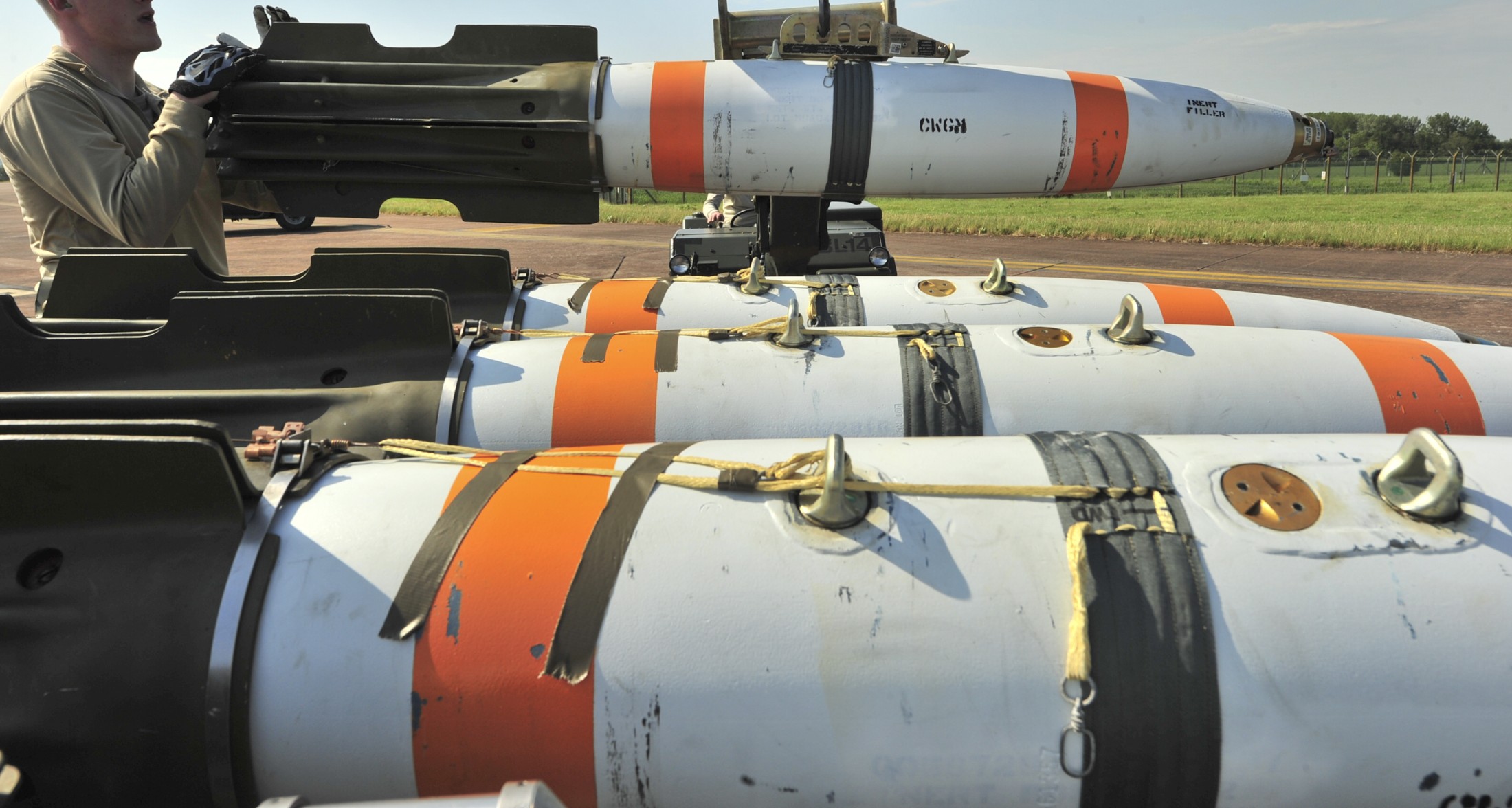

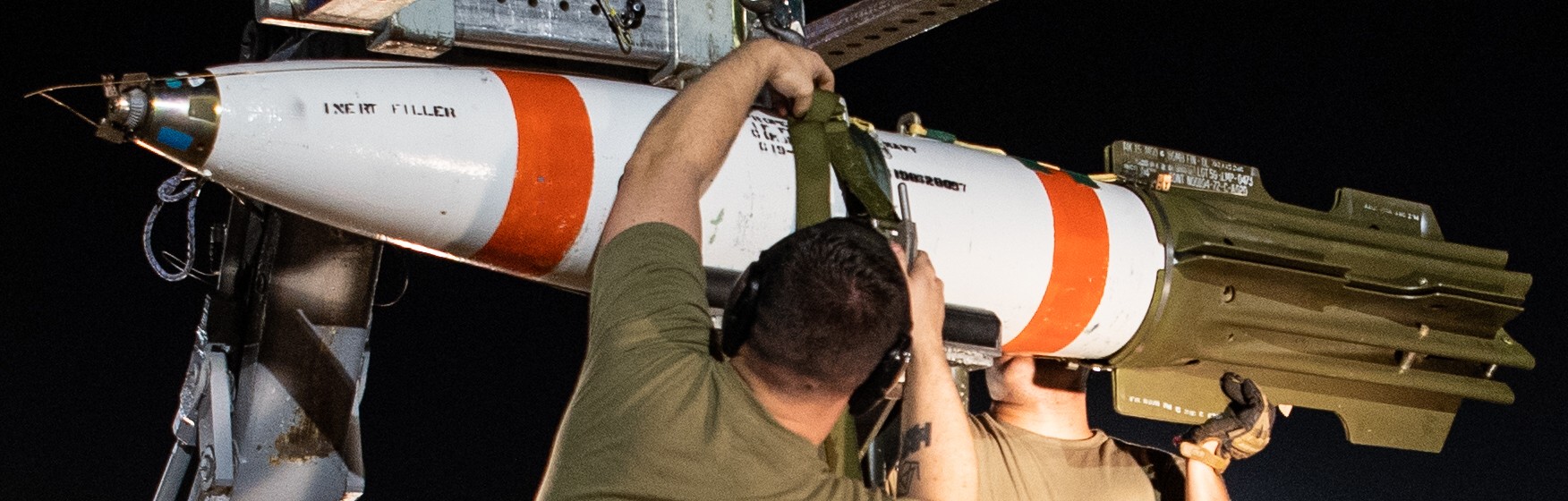

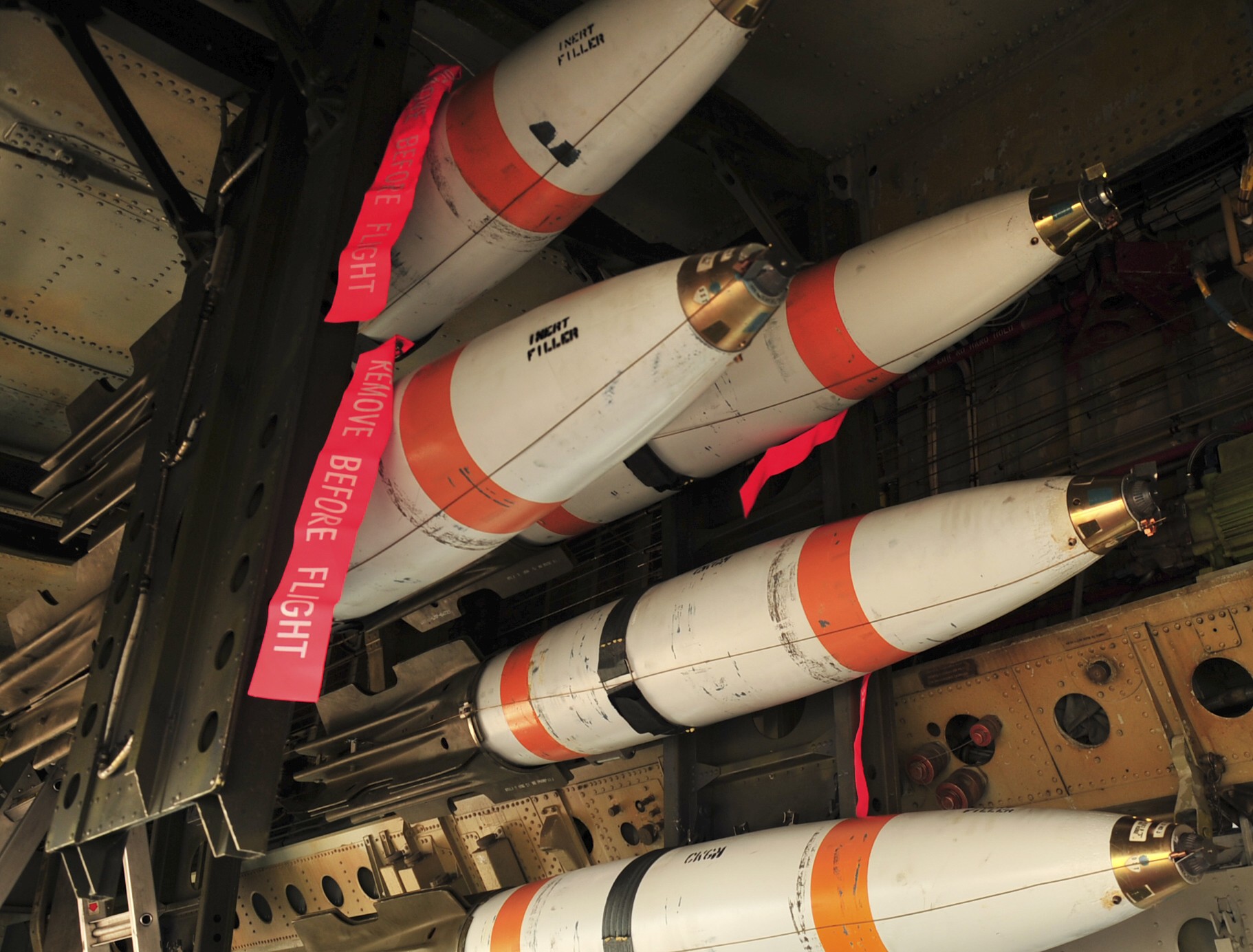

Mark 62 Quickstrike mine:
An air-launched naval mine, which is a conversion of the 500 lbs Mark 82 bomb. Used by US Navy and Air Force.

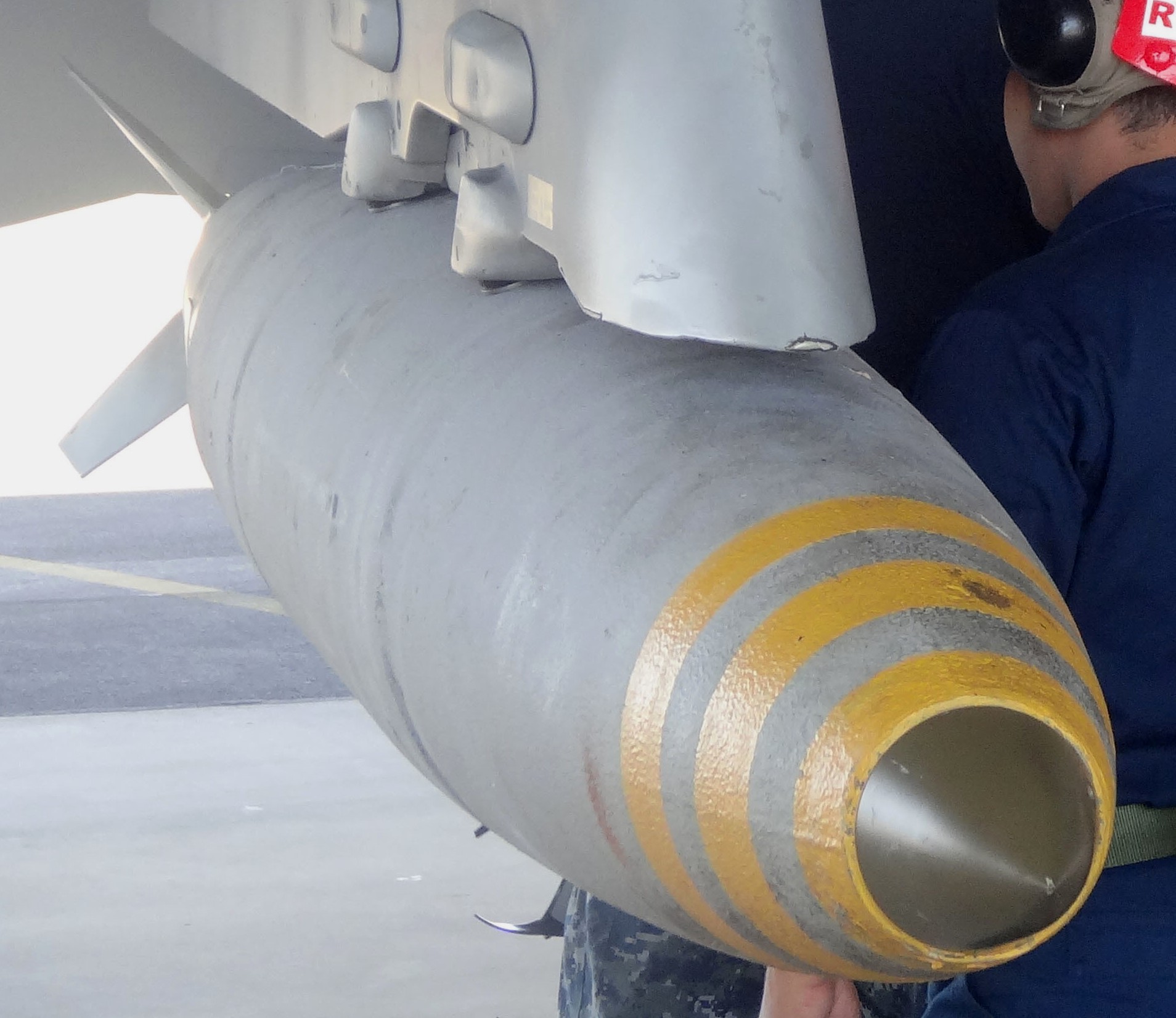

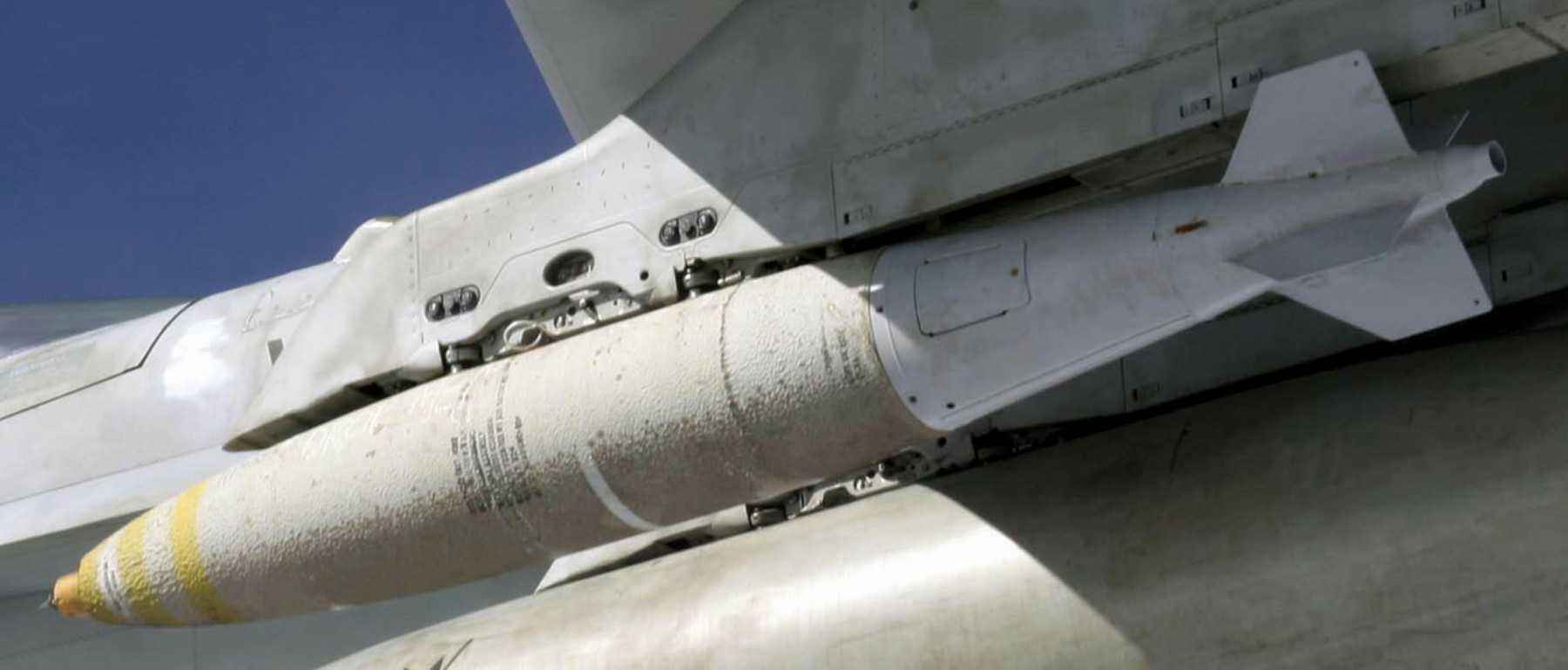

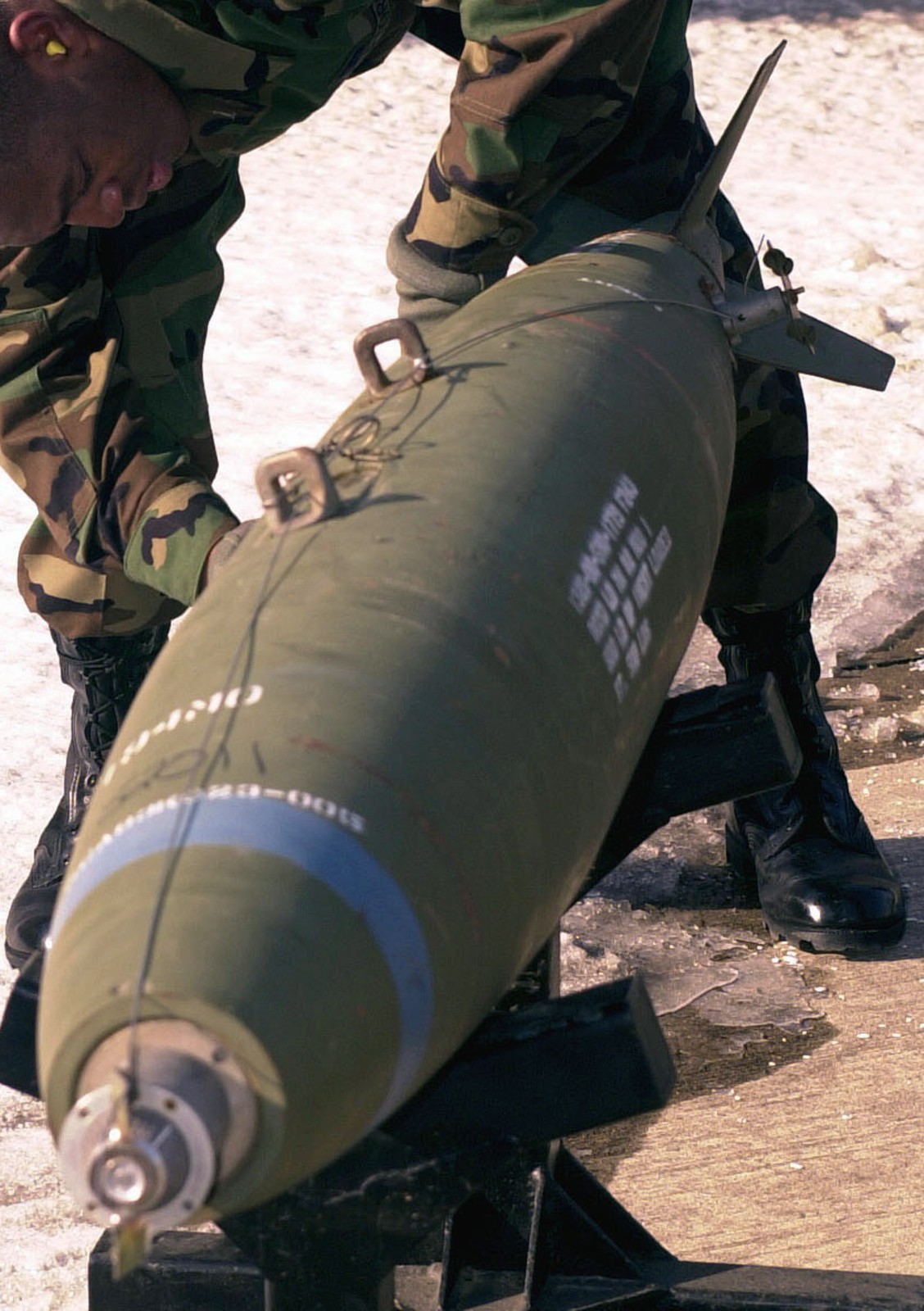

Mark 83 / BLU-110:
The Mark 83 is the 1,000-pound (450 kg) variant of the Mark 80 series.
When filled with PBXN-109 (385 lbs) thermally insensitive explosive, the bomb is designated BLU-110.

Mass: 985 lb (447 kg)
Length: 9.8 ft (3 m) overall
Diameter: 14 in (350 mm)
Tailspan: 19 in (480 mm)
Warhead: 445 lb (202 kg) H6 or PBXN-109

Mark 63 Quickstrike mine:
An air-launched naval mine, which is a conversion of the 1,000 lbs Mark 83 bomb.

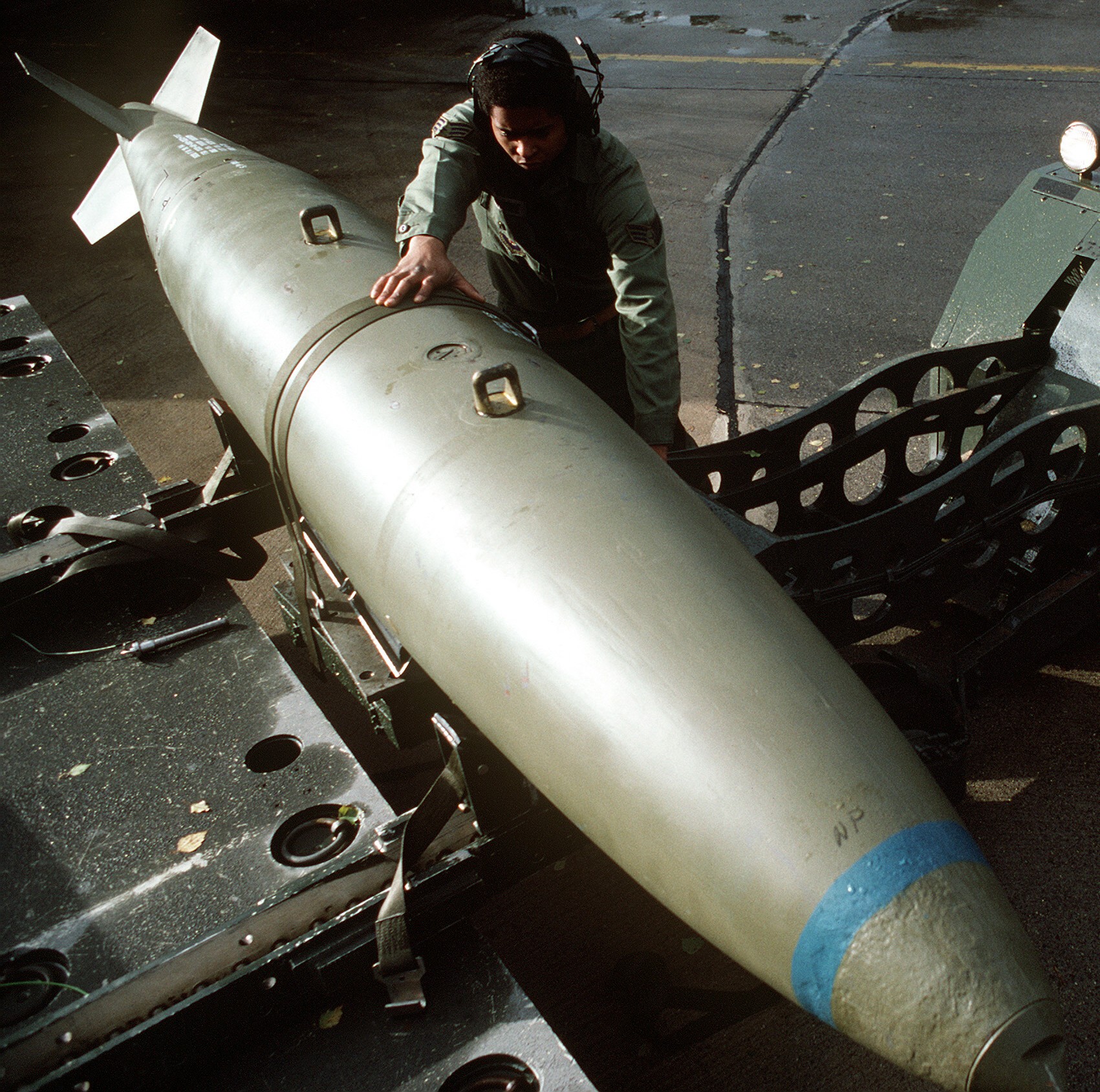

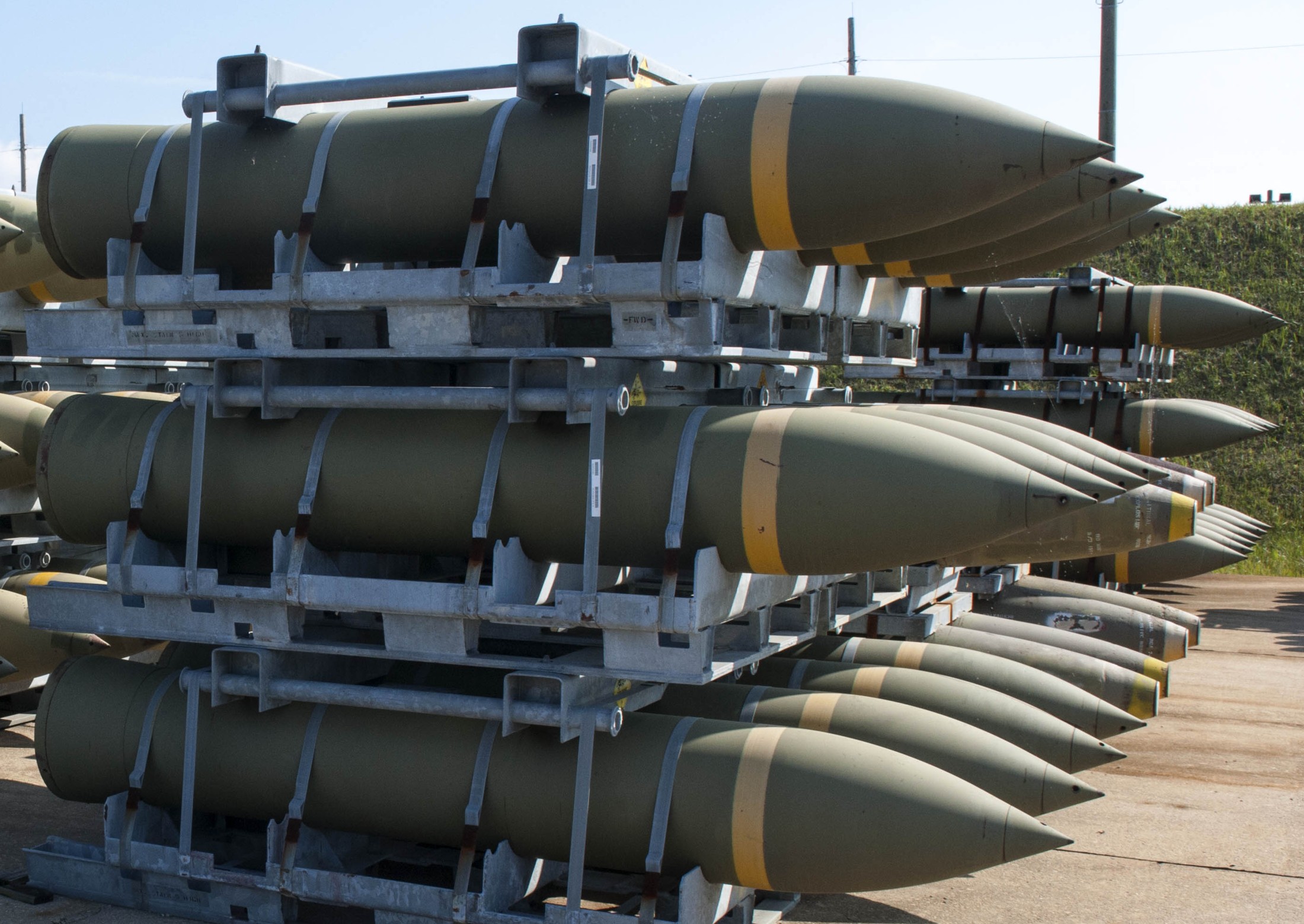

Mark 84 / BLU-109 / BLU-117:
The Mark 84 is a 2,000-pound (900 kg) general purpose aircraft bomb, the largest of the Mark 80 series.
When filled with PBXN-109 (886 lbs) thermally insensitive explosive, the bomb is designated BLU-117.

Mass: 2,039 lb (925 kg)
Length: 12 ft 7 in (3.84 m)
Diameter: 18 in (460 mm)
Tailspan: 2 ft 1 in (640 mm)
Warhead: 946 lb (429 kg) Tritonal, H6 or PBXN-109

Variant:
The BLU-109/B is a hardened bunker buster penetration bomb used by the United States Air Force. The BLU-109/B has a steel casing about 1 inch (25 mm) thick. Its warhead is filled with 550 pounds (250 kg) of tritonal. It has a mechanical-electrical delayed-action FMU-143 tail-fuze.

Mark 64 Quickstrike mine:
An air-launched naval mine, which is a conversion of the 2,000 lbs Mark 84 bomb.

Mark 65 Quickstrike: is a 2,000 lbs mine, which uses a thin-walled mine case rather than a GP bomb body.

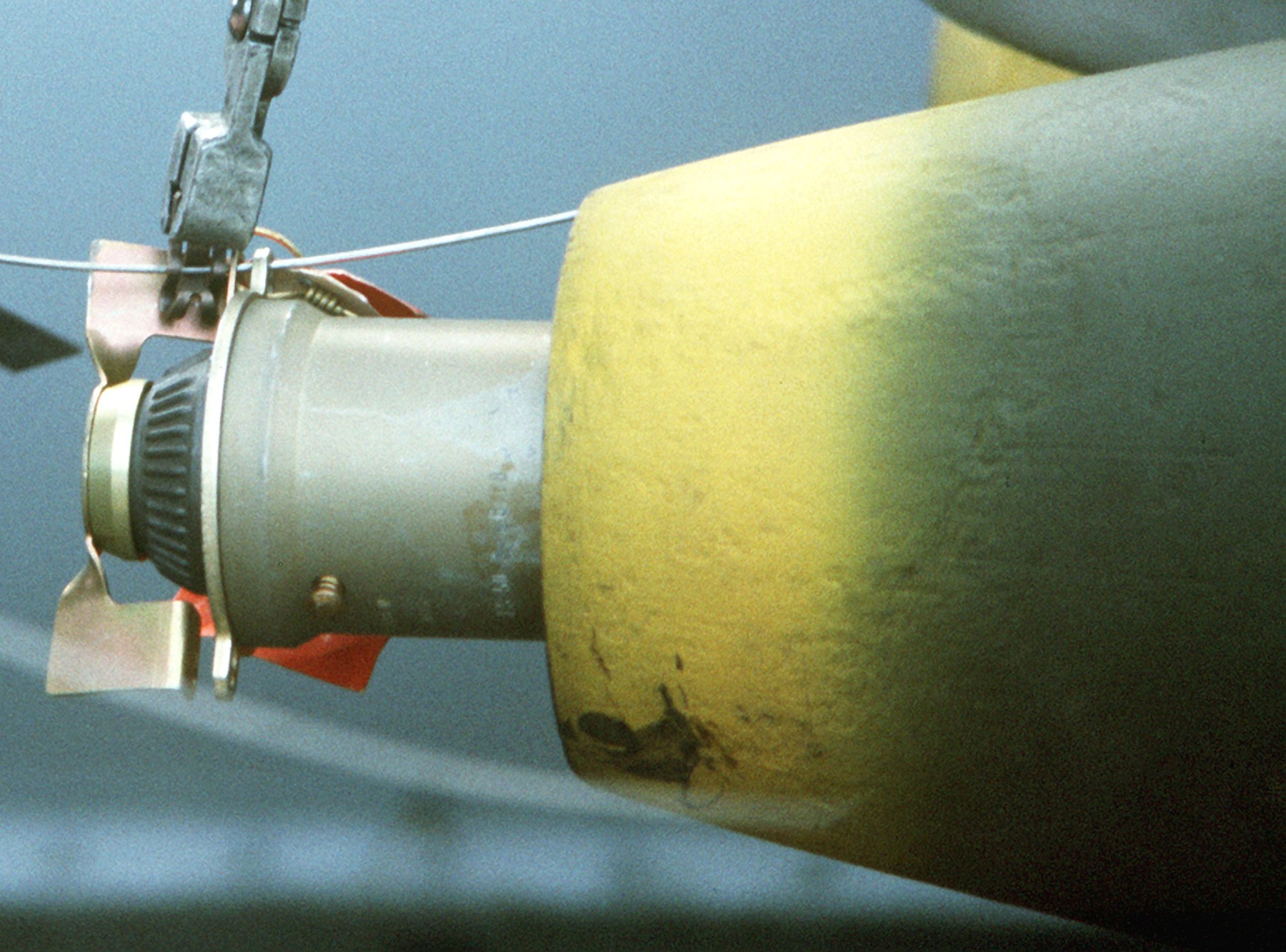

All Mark 80 bombs have both nose and tail fuze wells and can accept a variety of fuzes. Various nose and tail kits can be fitted to adapt the weapon for a variety of roles.

The bombs used by the United States Navy and the United States Marine Corps were initially filled with H-6 (Hexogen and TNT).
Today, PBXN-109 is used as the filling to reduce the likelihood of the bombs cooking off on board aircraft carriers.
Since the Vietnam War and the 1967 USS Forrestal fire, United States Navy and United States Marine Corps GP bombs are distinguished by a thick ablative fire-retardant coating, which is designed to delay any potential accidental explosion in the event of a shipboard fire.

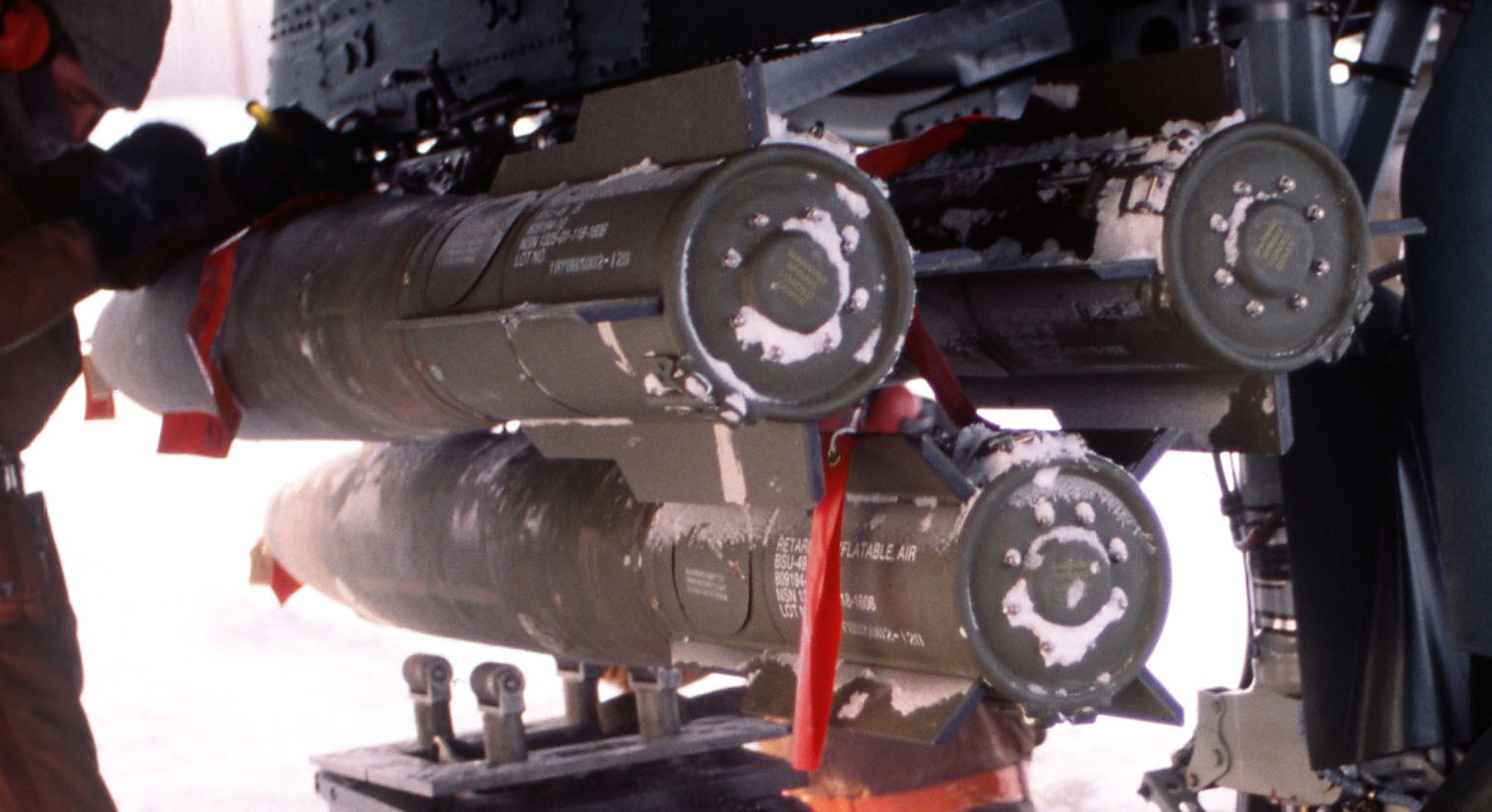

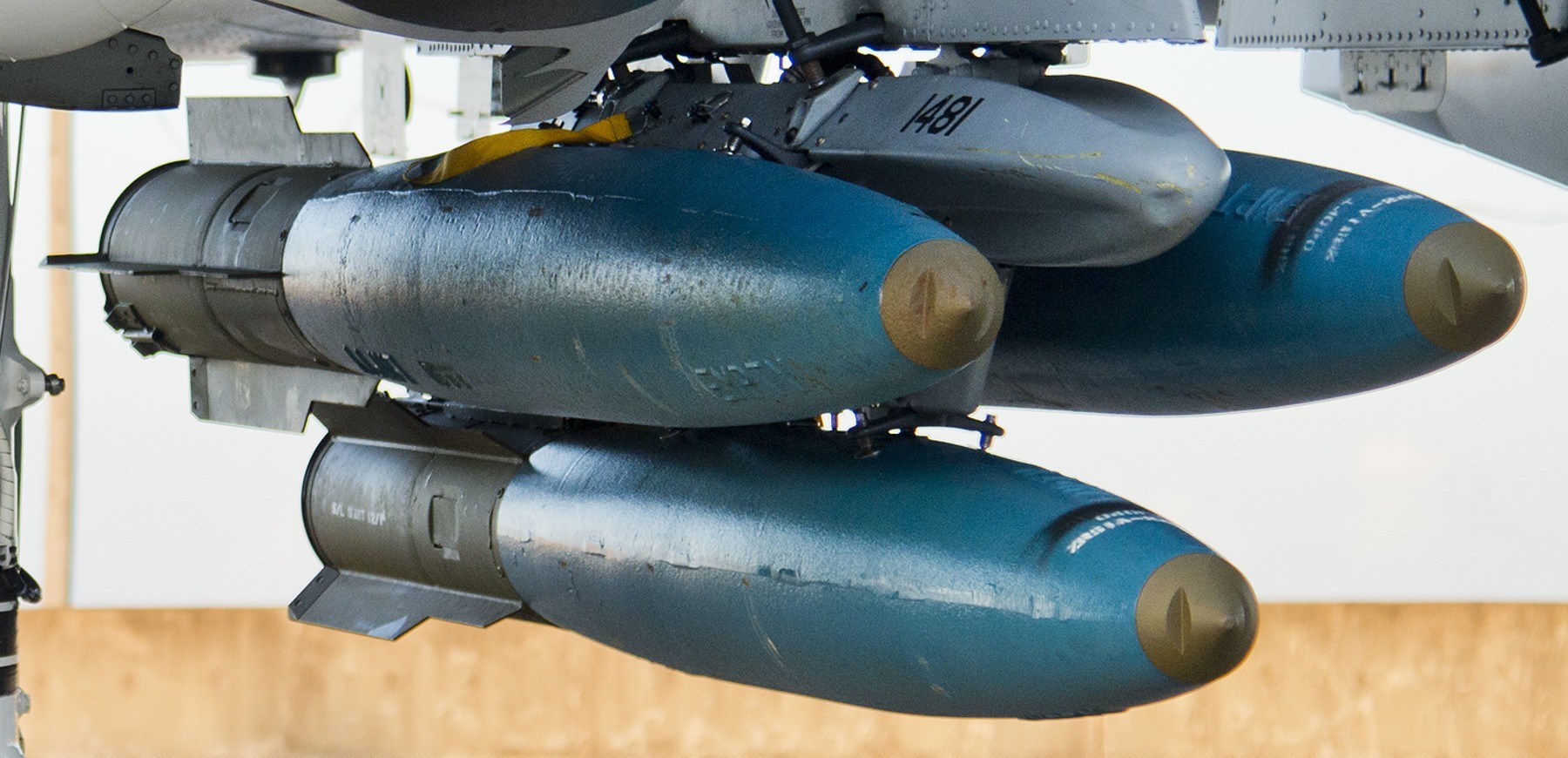

Snakeye and AIR high drag bombs:
... are aerial bombs of types Mark 81, Mark 82, Mark 83 and M117, which are equipped with braking mechanisms with

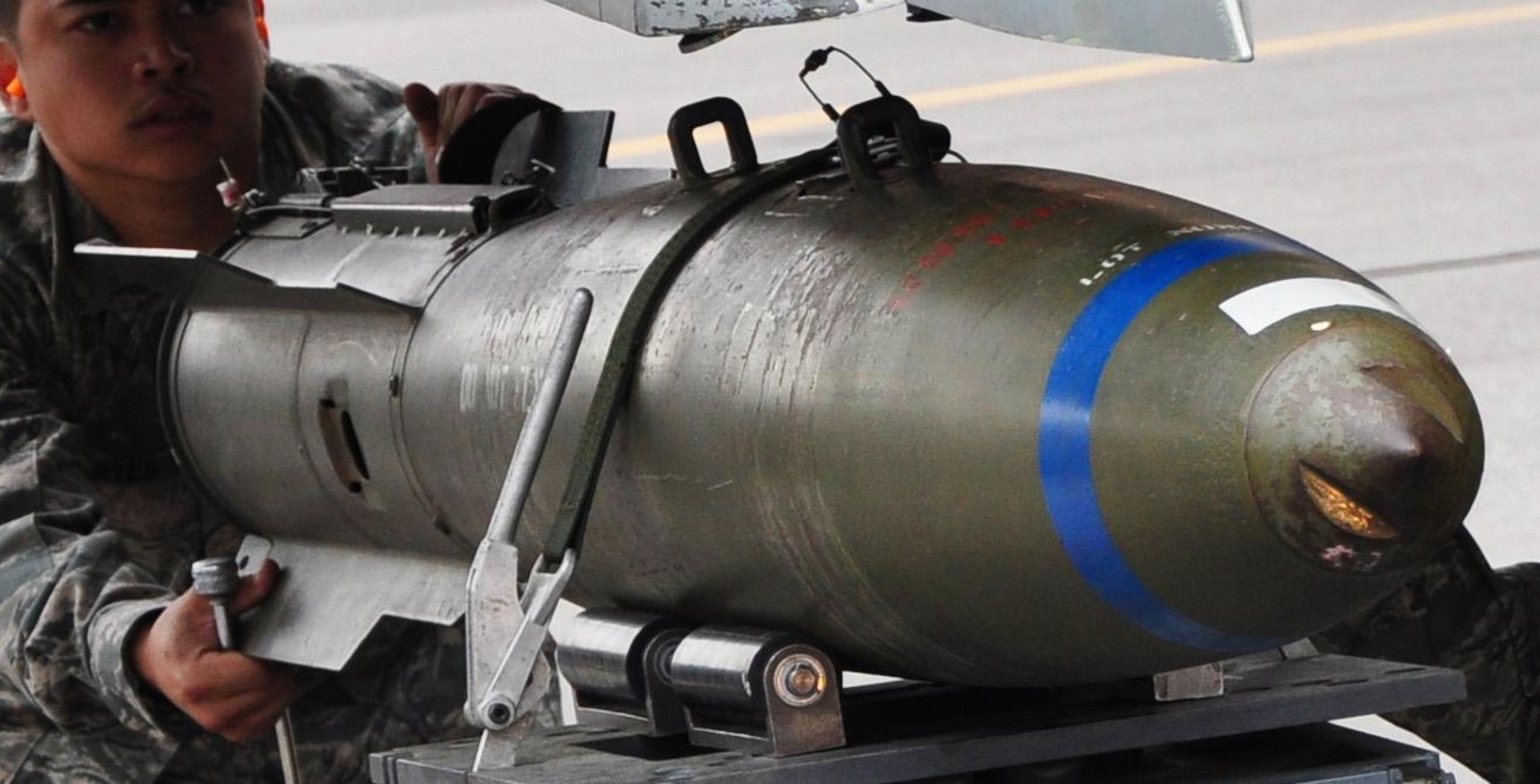

cross-shaped folding air brakes (Mk.14, Mk.15, BSU-86, MAU-91 Tail Retarding Device / TRD
or BSU-49/50/85 (Air Inflatable Retarder / AIR) for low-level delivery.


NOTE: live / practice / inert bomb markings:

Fully Blue: The entire weapon body is painted blue to signify it is a completely inert, empty, or concrete-filled practice bomb used to simulate the weight and drag of a live weapon.

Blue Stripe(s): One or more blue stripes generally indicate a training munition. In some configurations, it may have an inert-filled main warhead but retain a functioning or electronic fuze/seeker system for pilot training

Yellow stripe(s): live, high-explosive ordnance (warshots)

Main manufacturer: General Dynamics Ordnance and Tactical Systems
Mark 80 series bombs are one of the most widely deployed air-dropped weapons, globally.
These, or derivatives, are also built under license in many countries (SAMP, France / Rheinmetall, Germany ...)


Dumb Mark 80 bombs could be converted to "smart bombs" with attached kits:
Paveway I, II, III + IV: laser-guided bombs (GBU)
Joint Direct Attack Munition (JDAM): INS/GPS/Laser guided bombs (GBU)

images

mark 81 82 83 84 general purpose bomb series navy air force snakeye 02

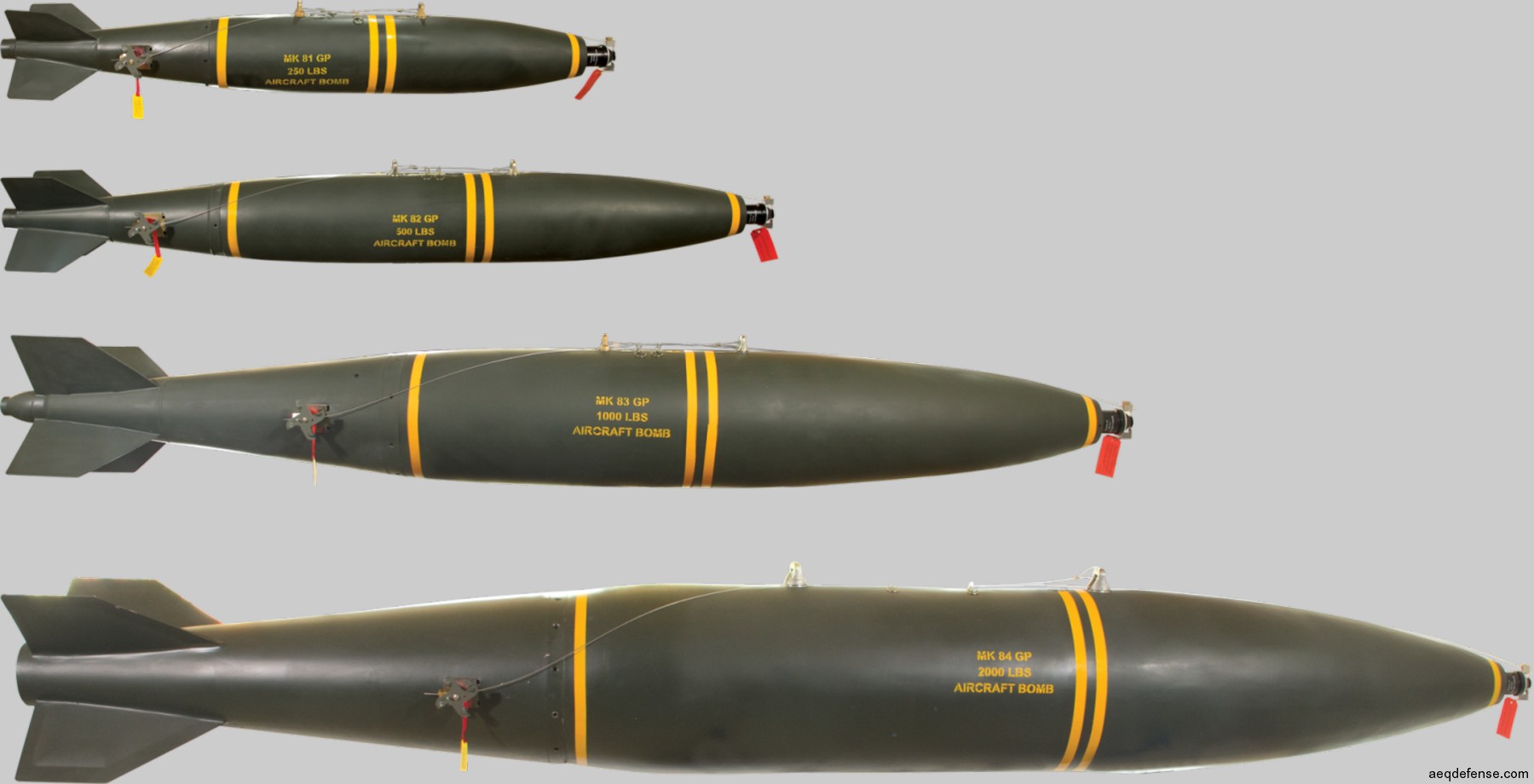

Mark 81, 82, 83 and 84 size comparison



Mark 81
250 lbs general purpose bomb

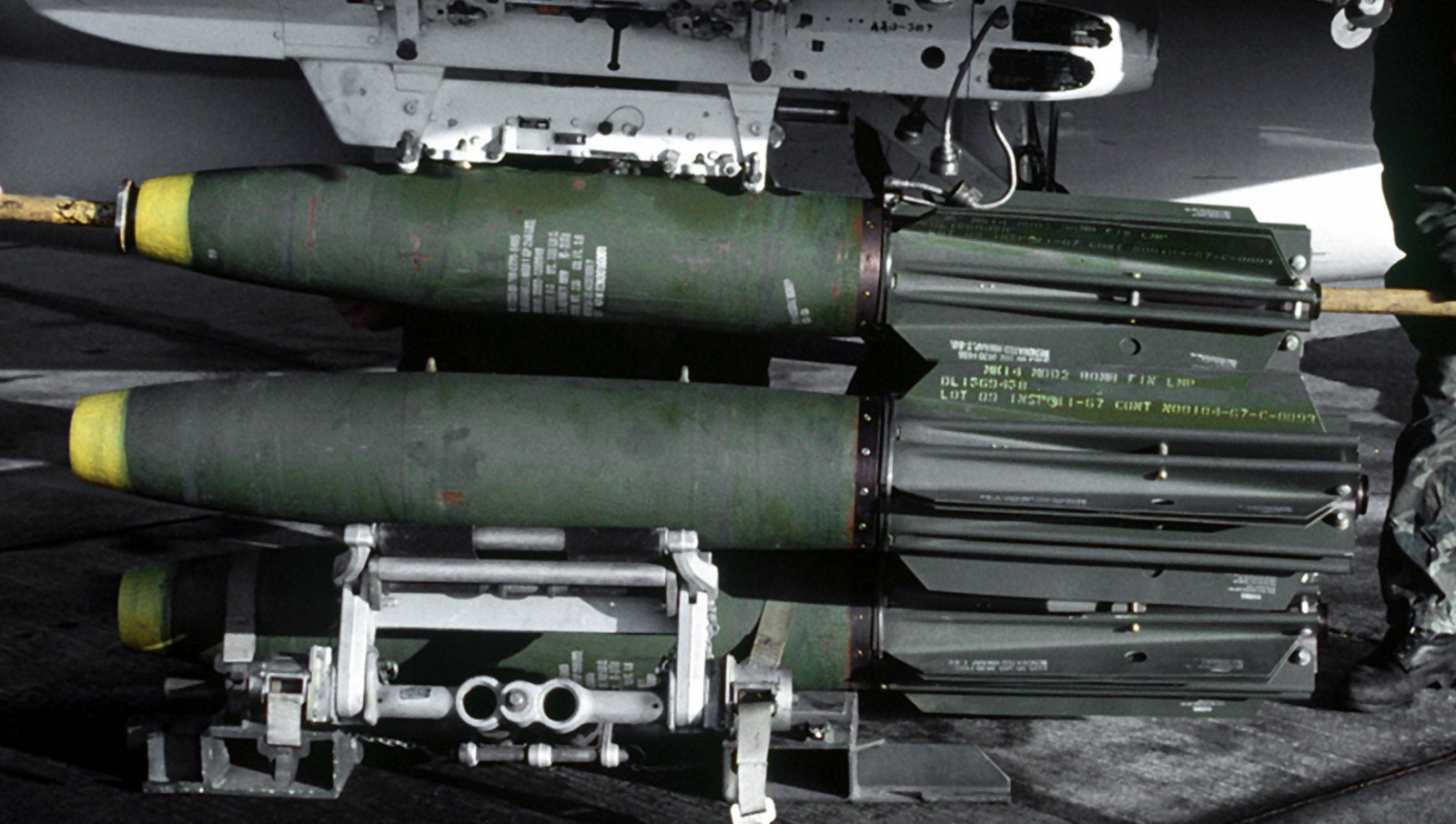

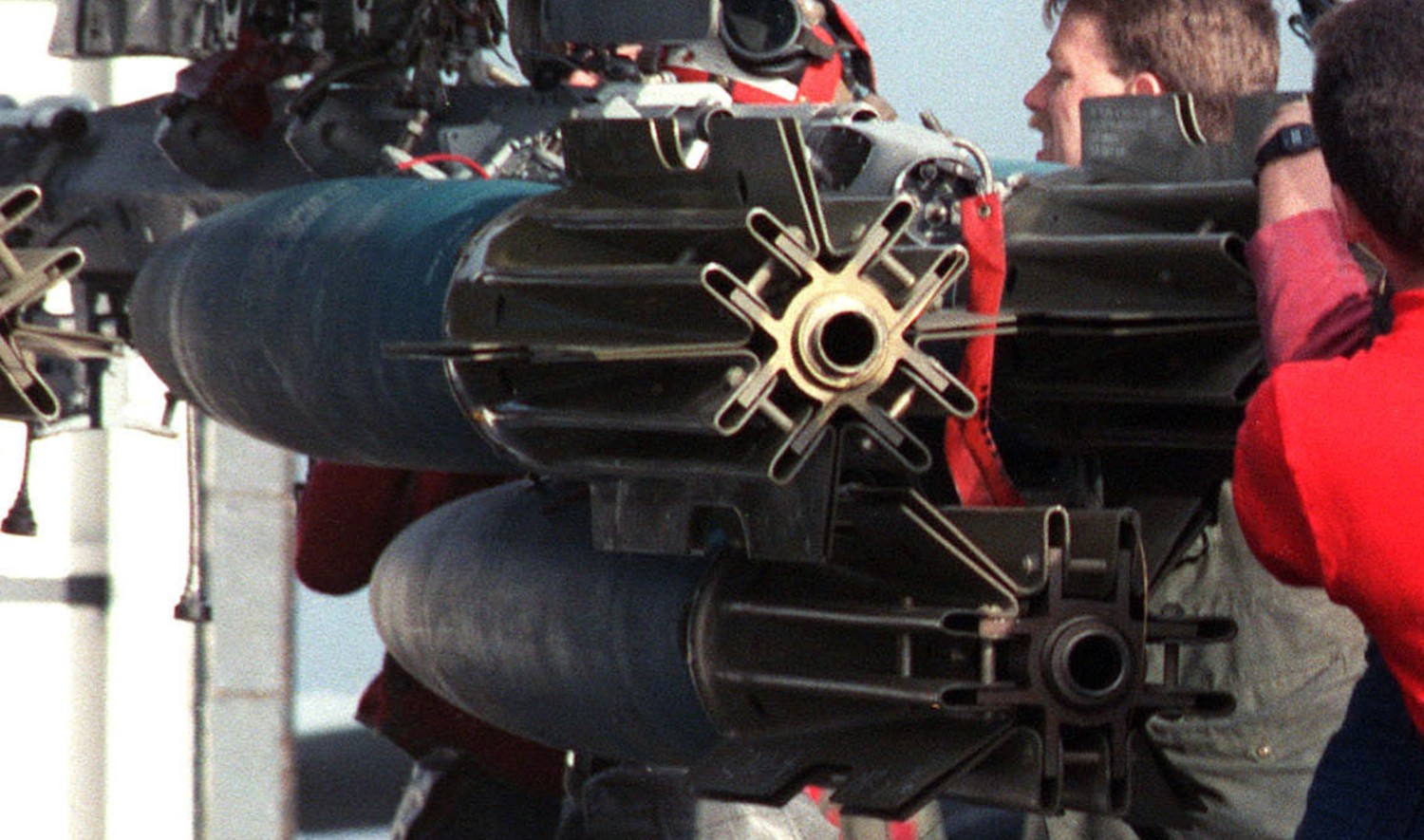

mark 81 snakeye general purpose bomb mk.81 high drag 02

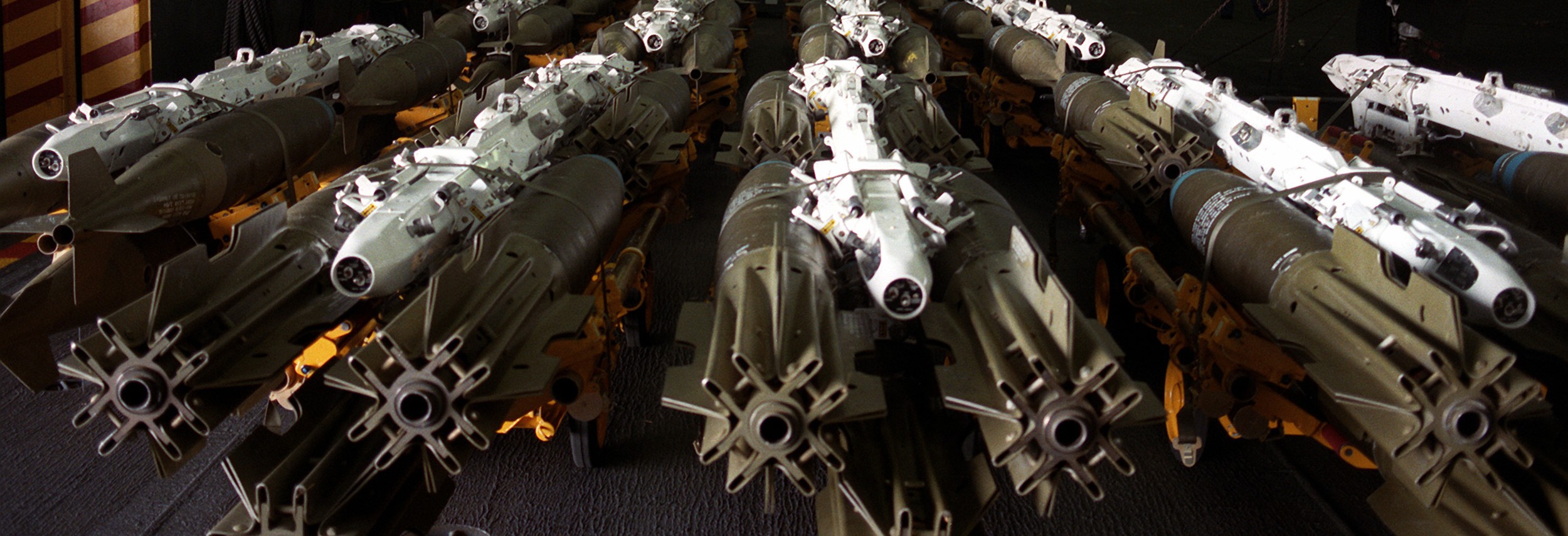

Mark 81 250 lbs Snakeye bomb with Mark 14 Tail Retrarding Device / TRD

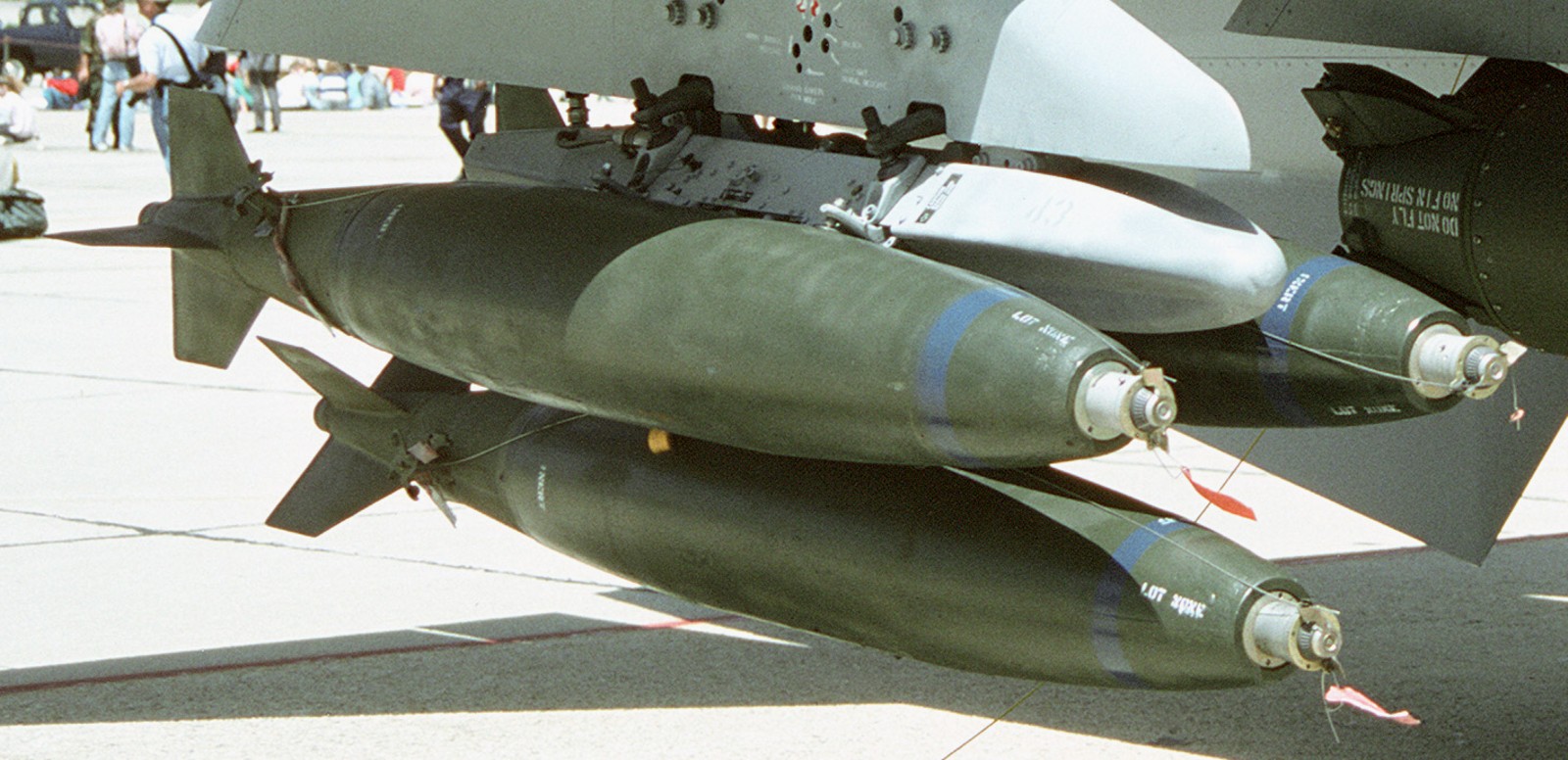

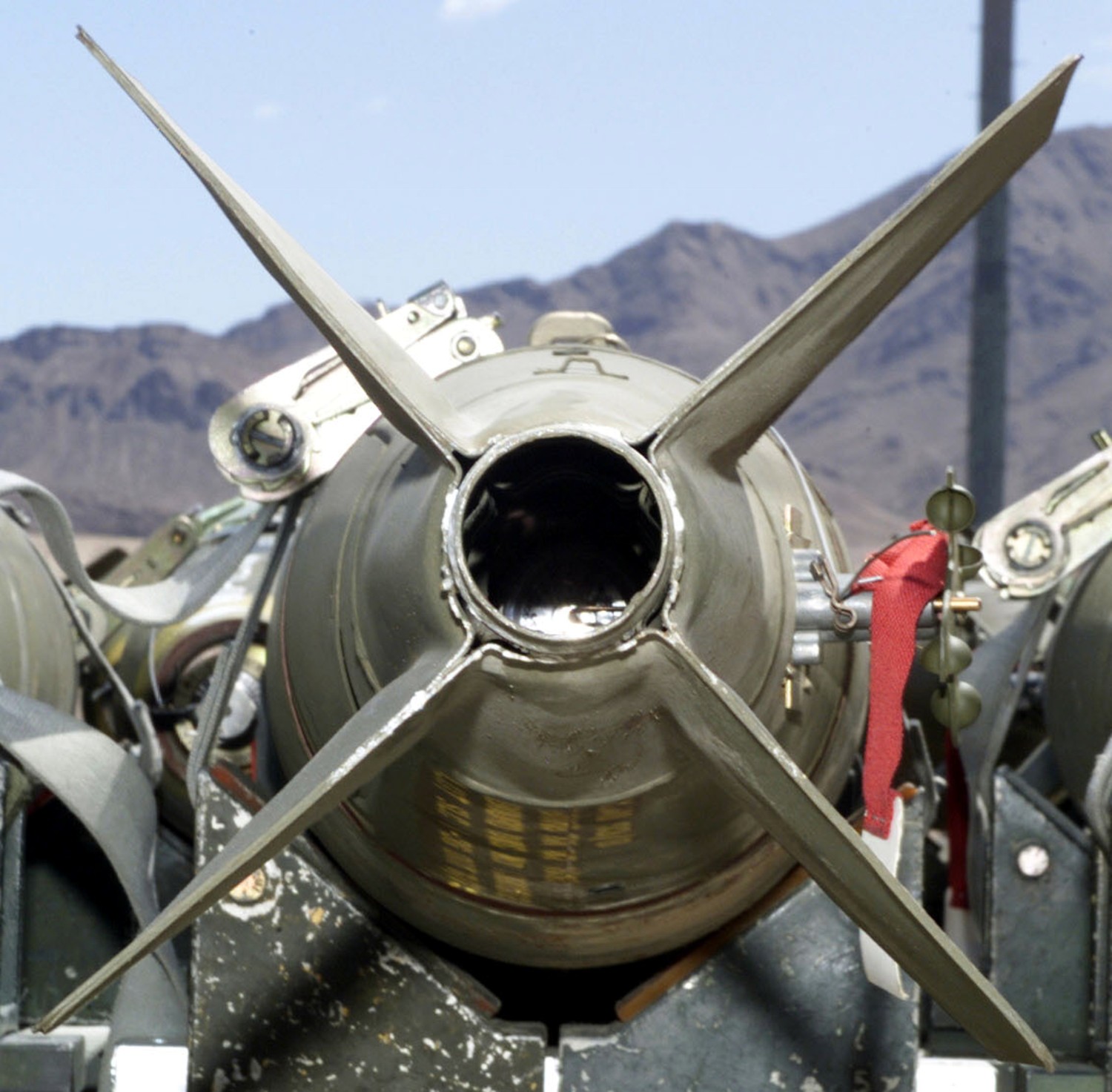

Mark 82 / BLU-111 / BLU-126 / BLU-129
500 lbs general purpose bomb

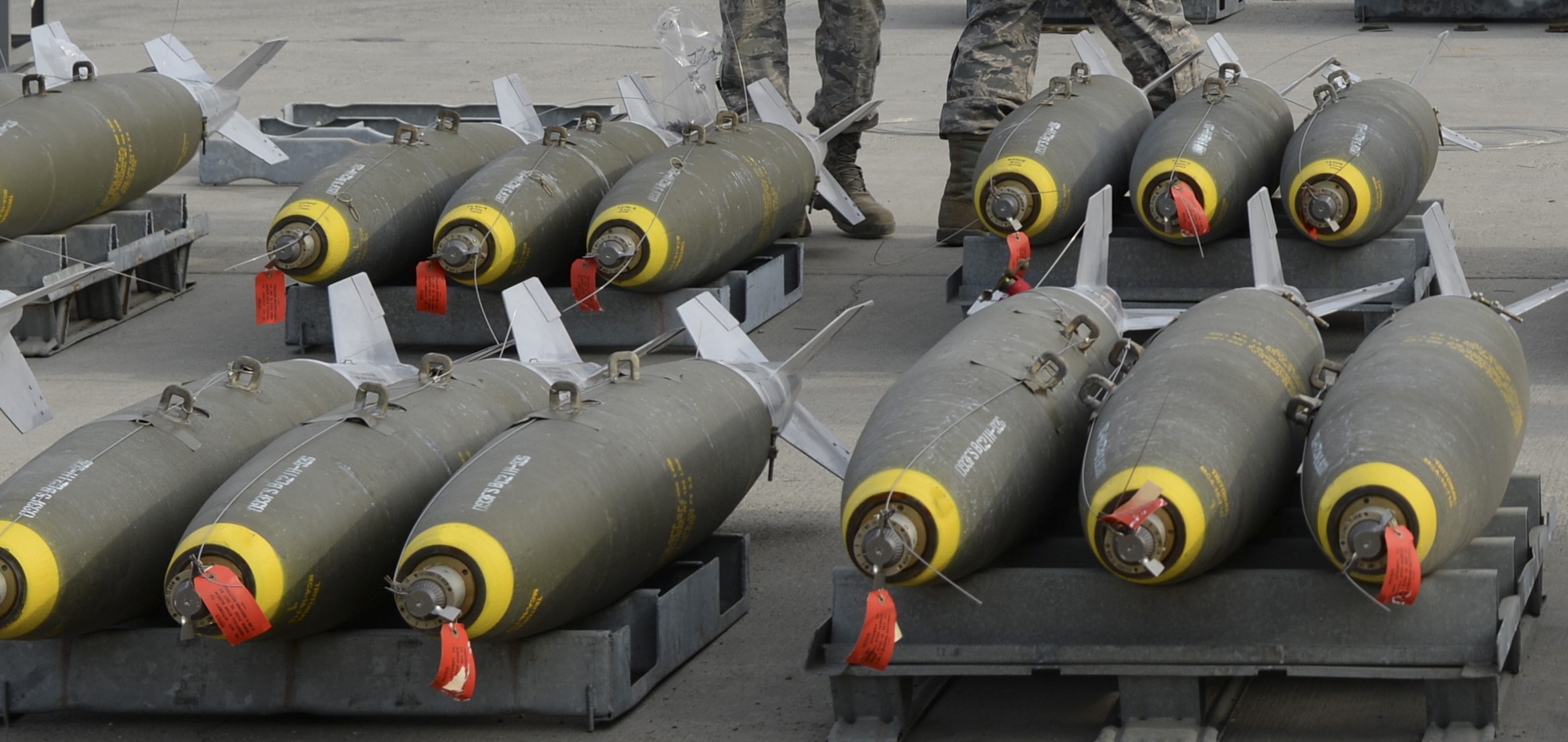

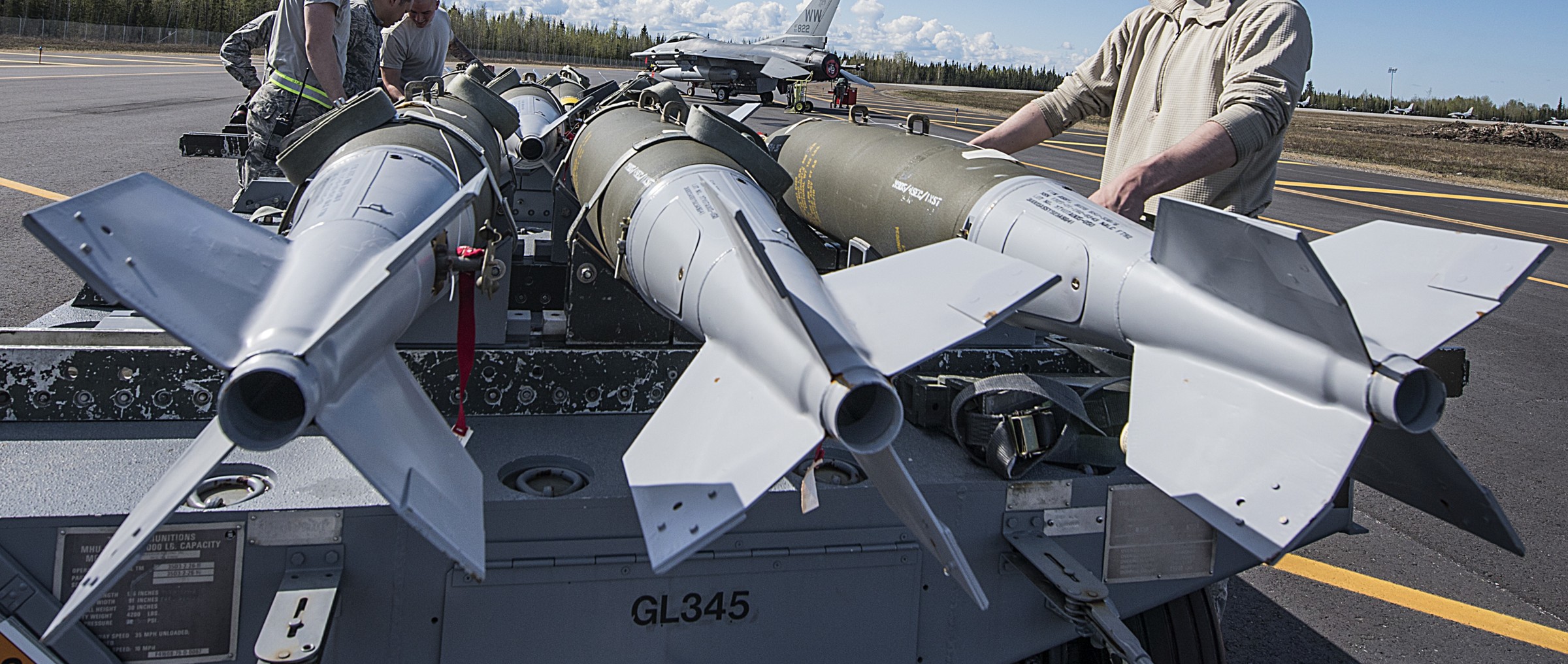

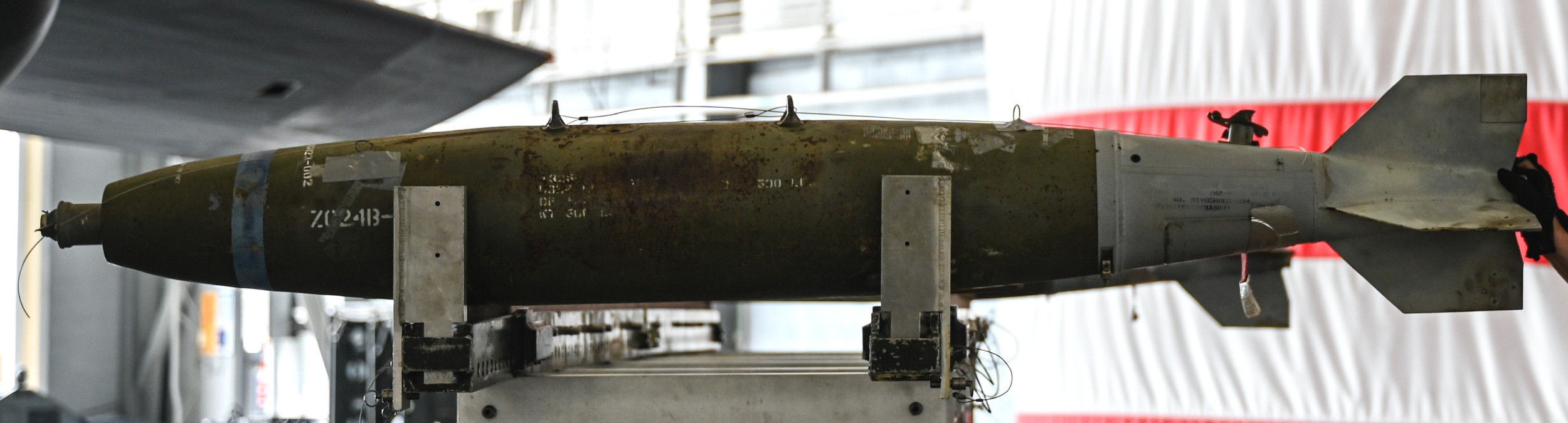

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 17

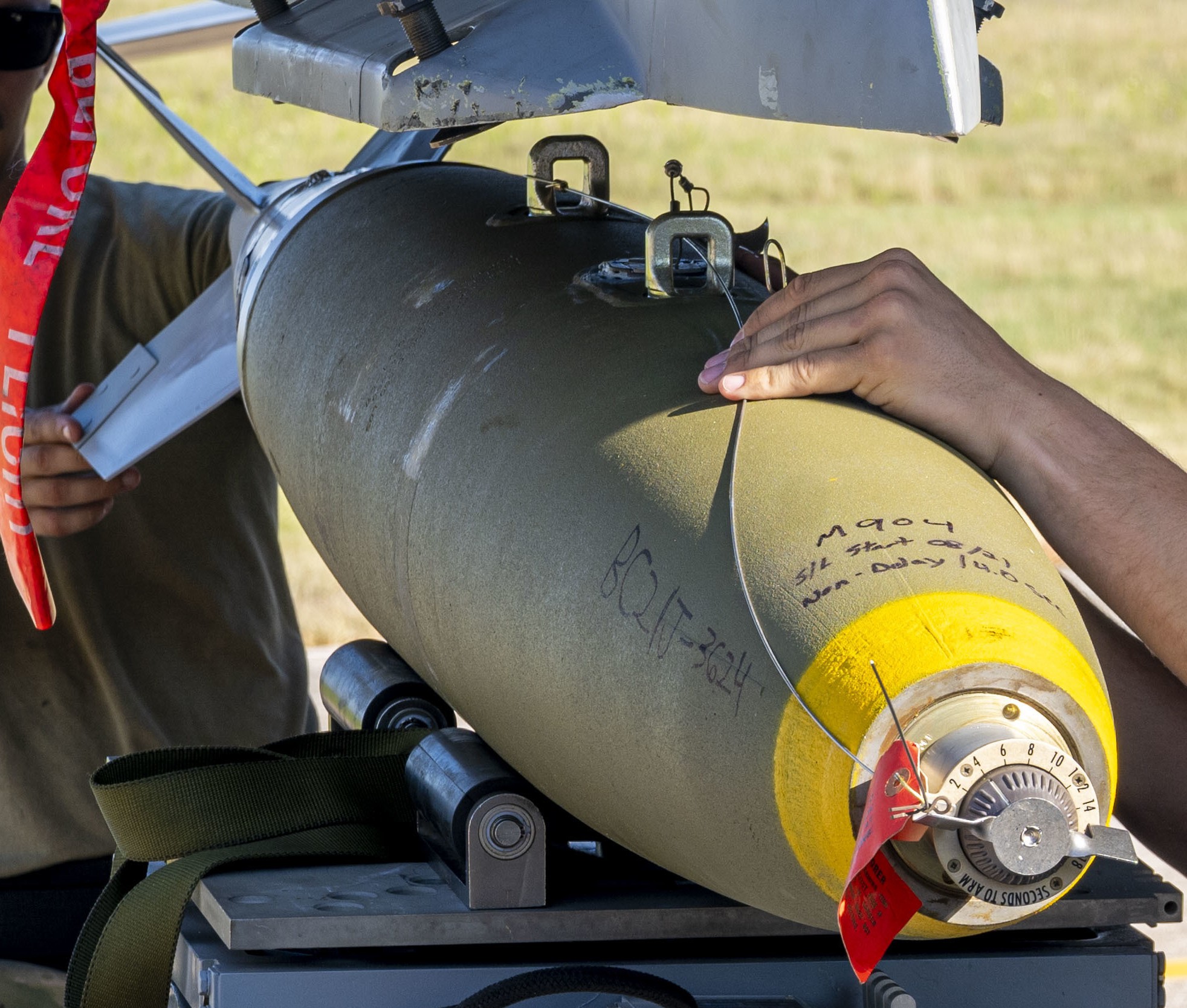

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

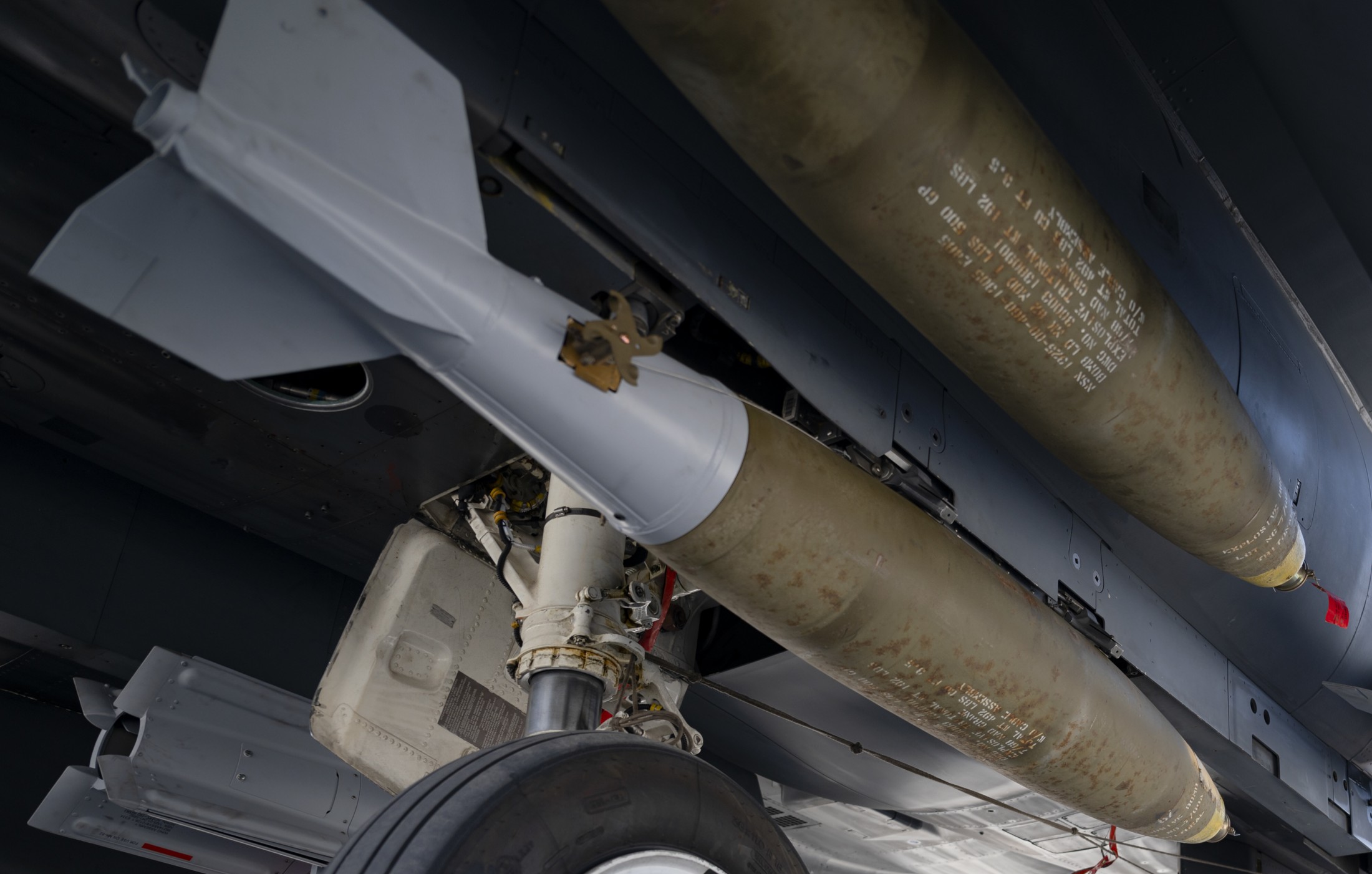

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 23
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

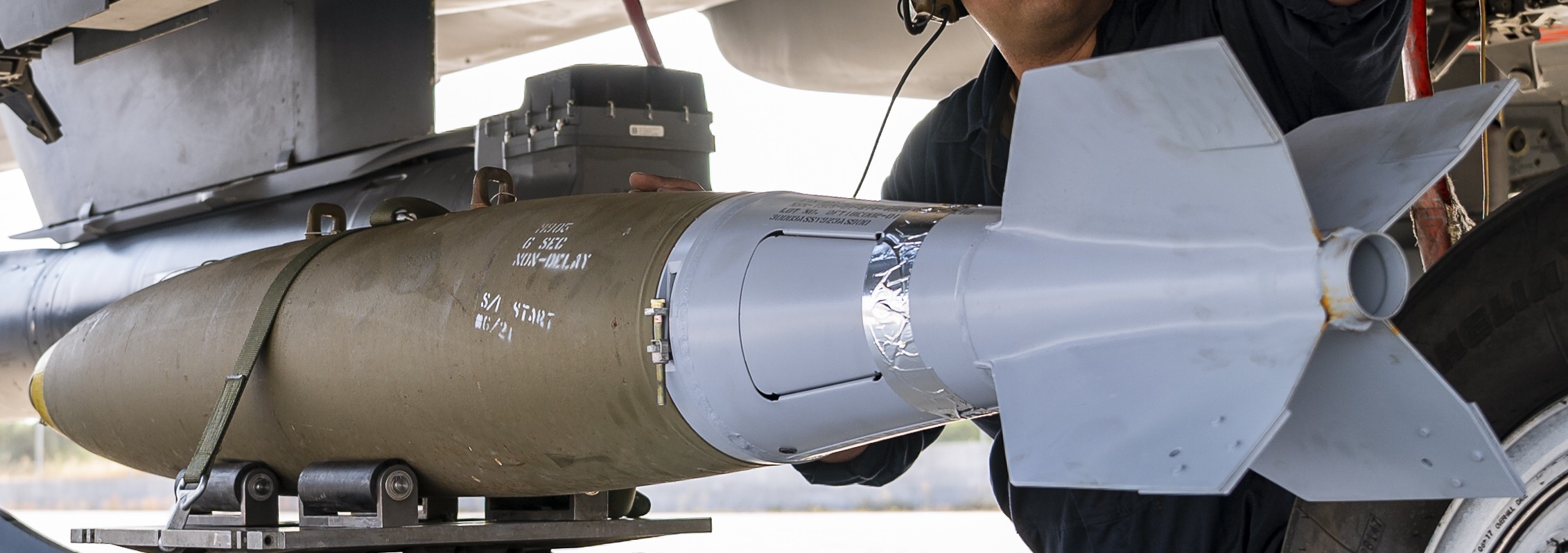

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 28
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 24
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

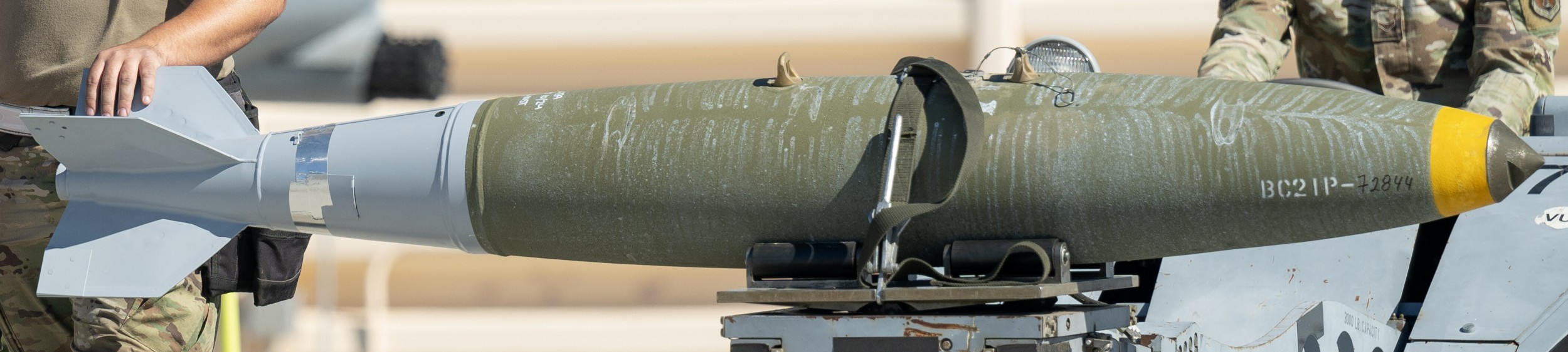

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 37
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

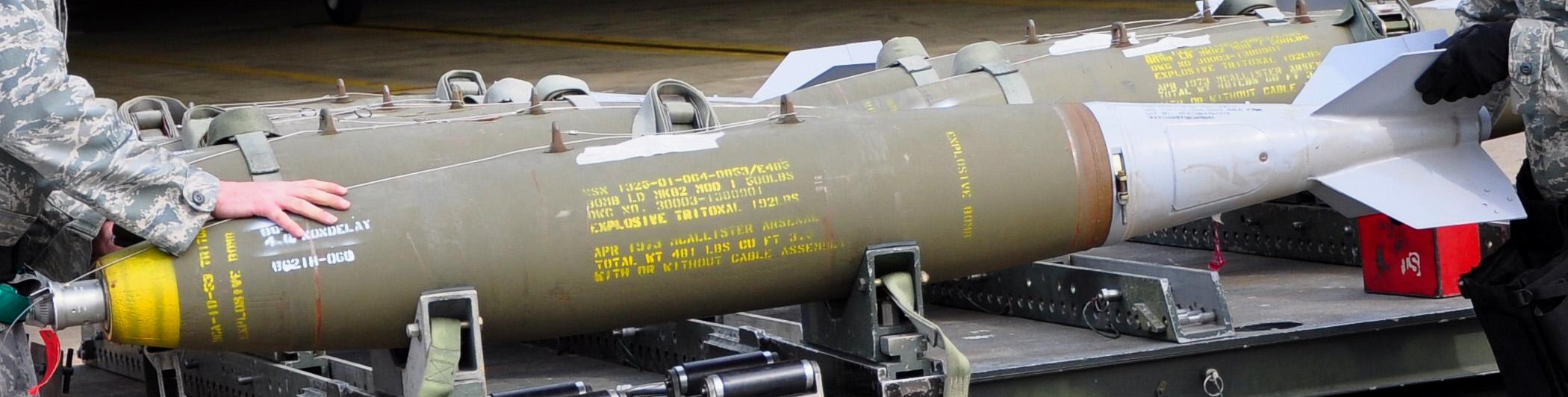

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 21
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

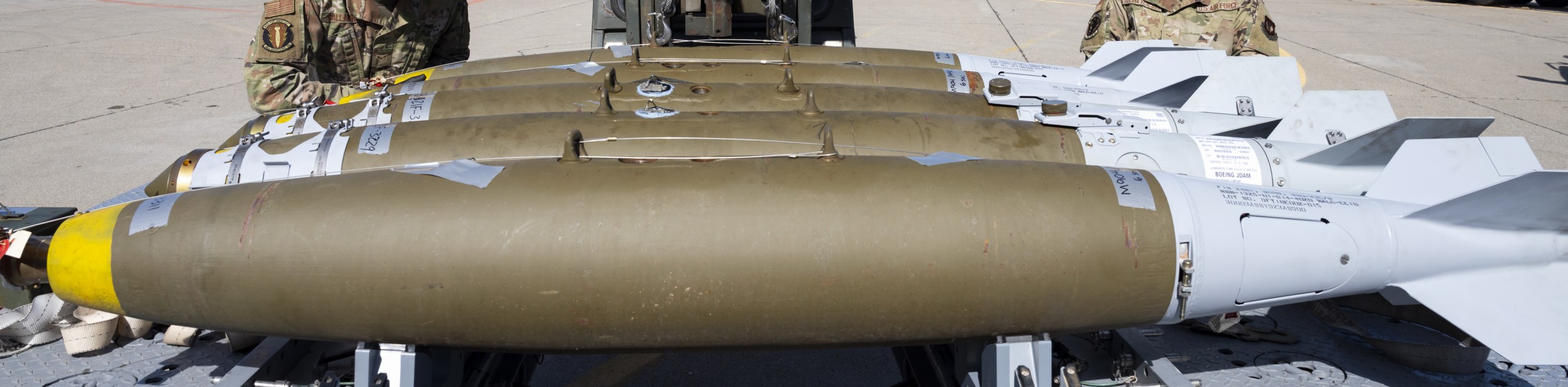

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 26
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

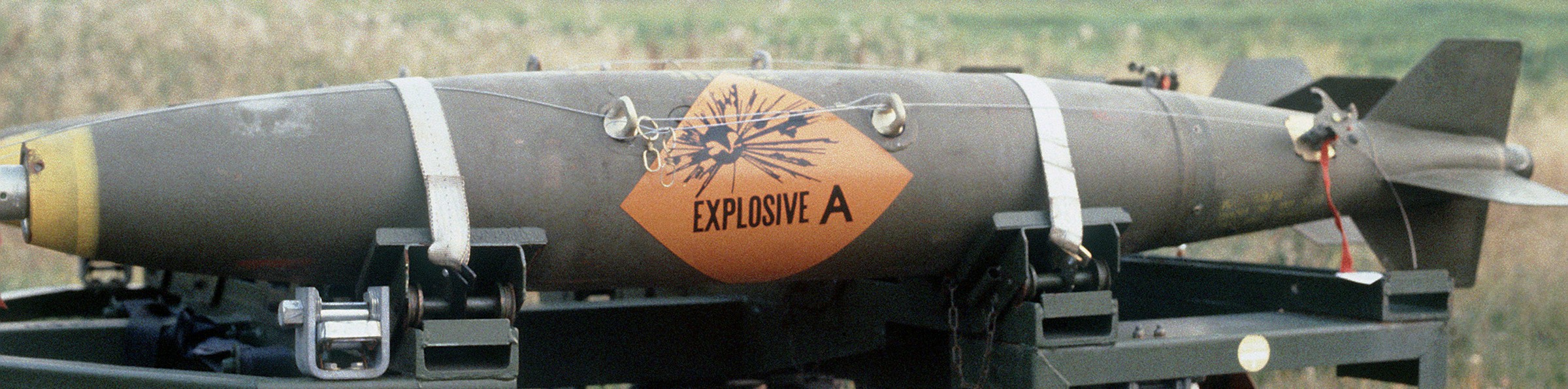

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 55
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag navy air force 14
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

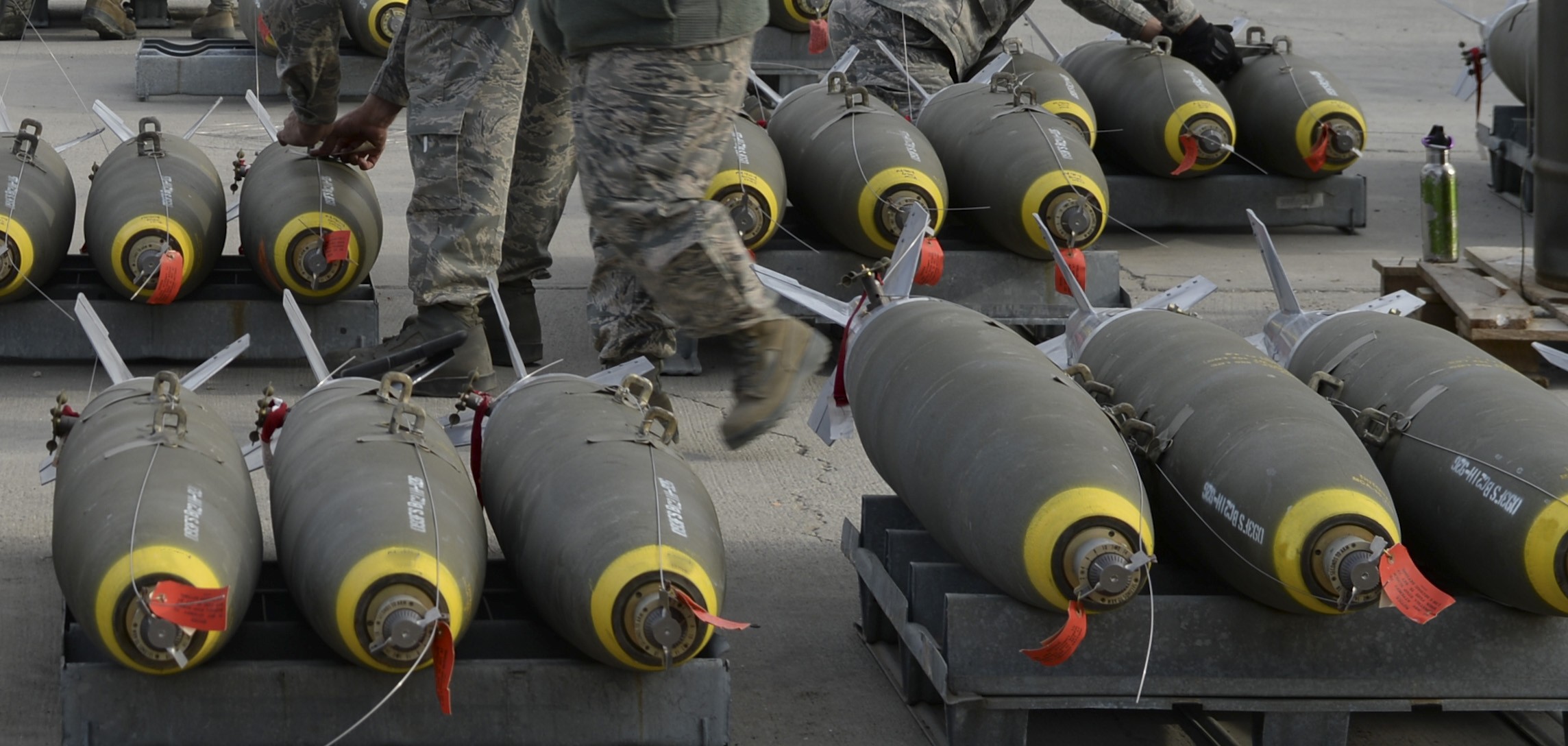

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 15
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

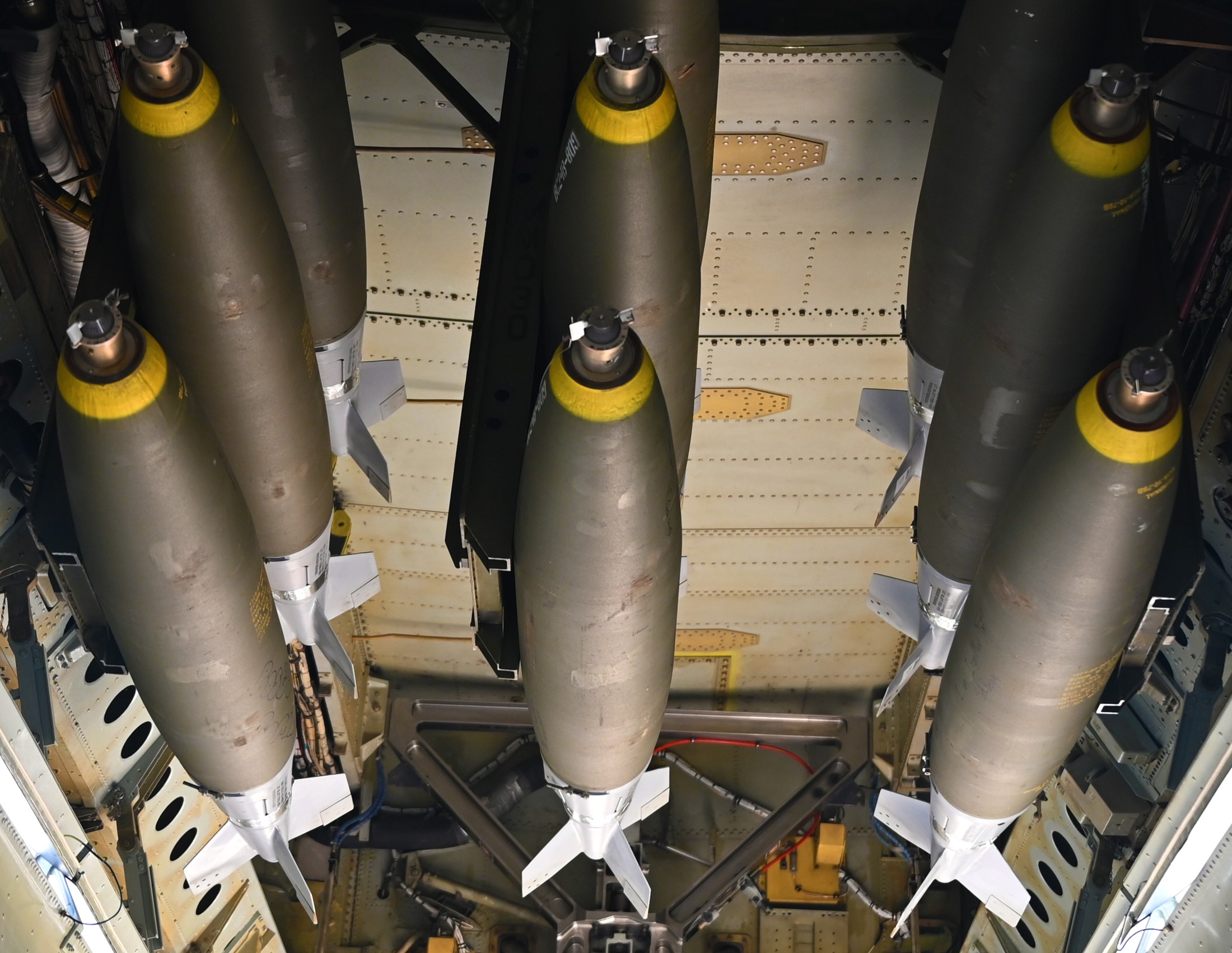

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 03
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

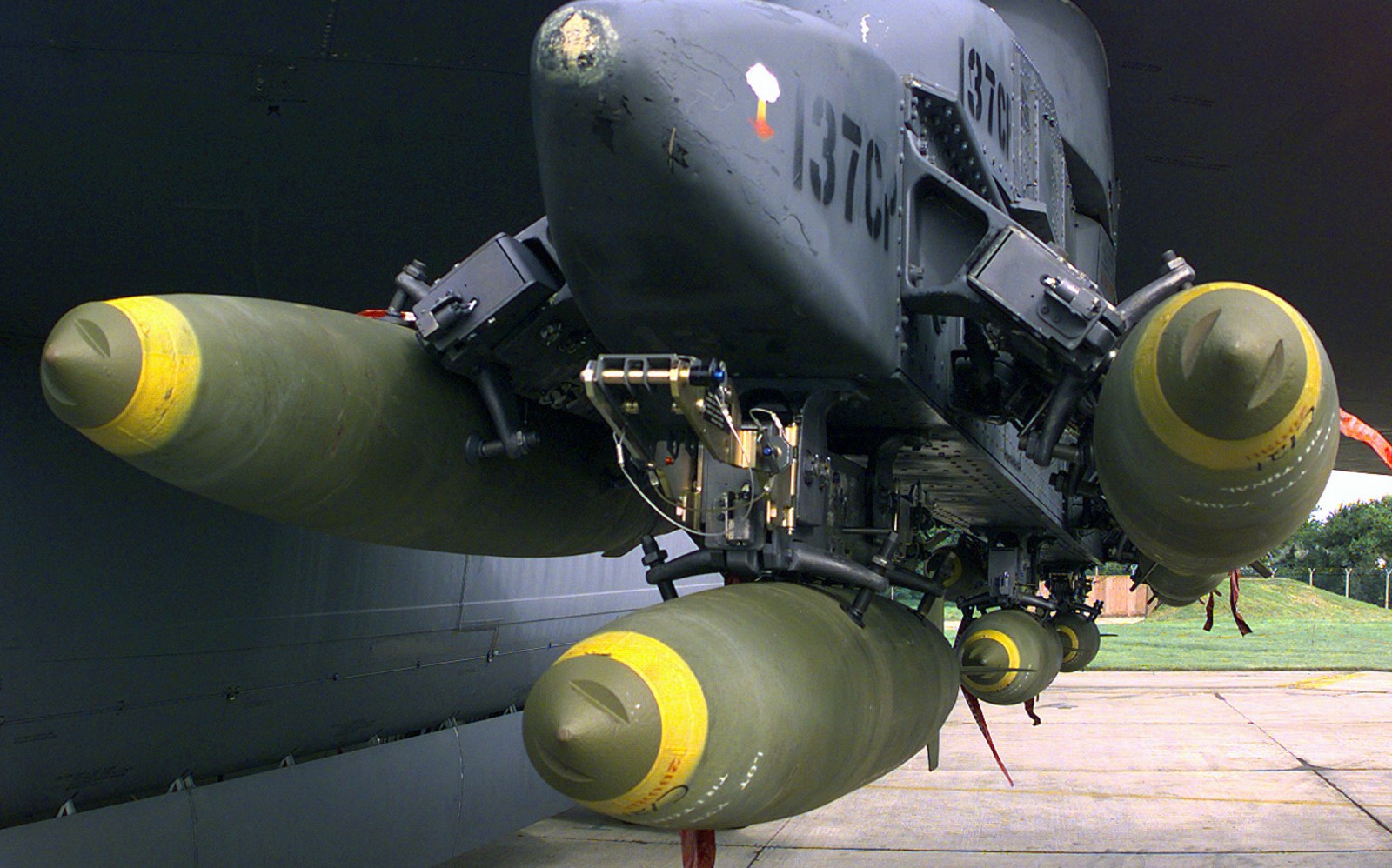

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 08
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 31

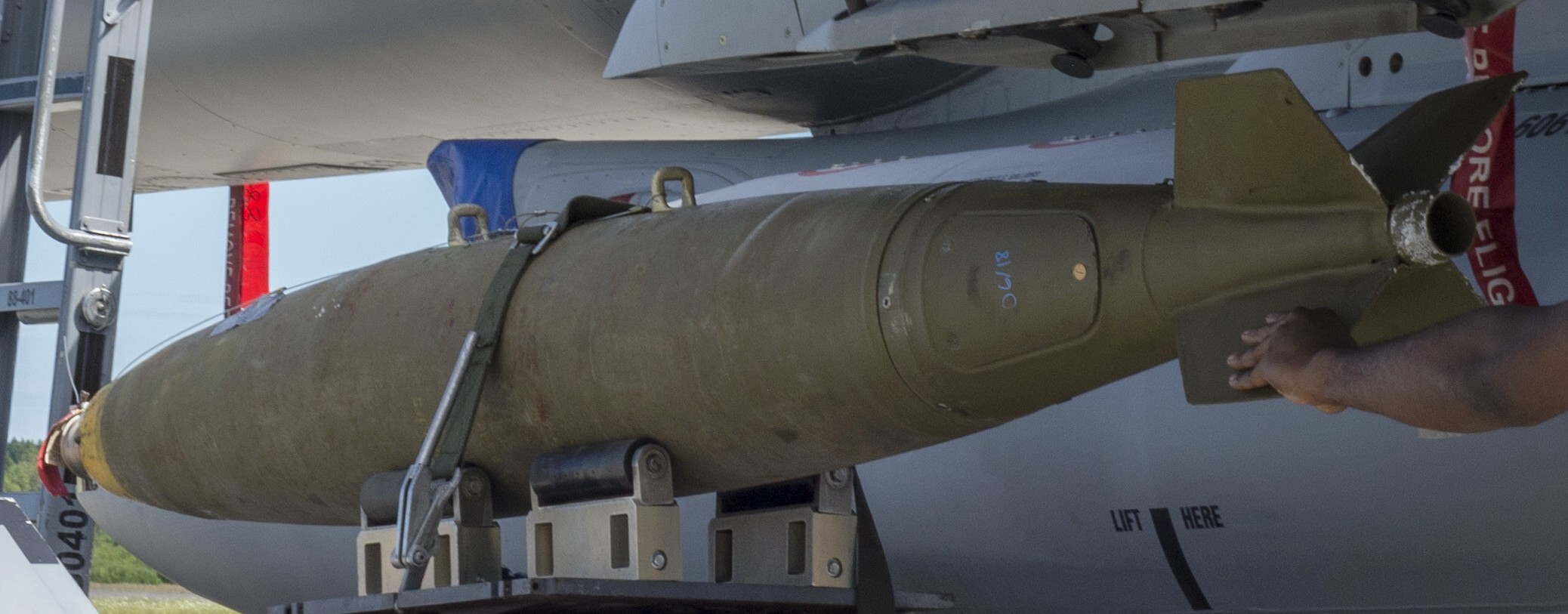

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 10

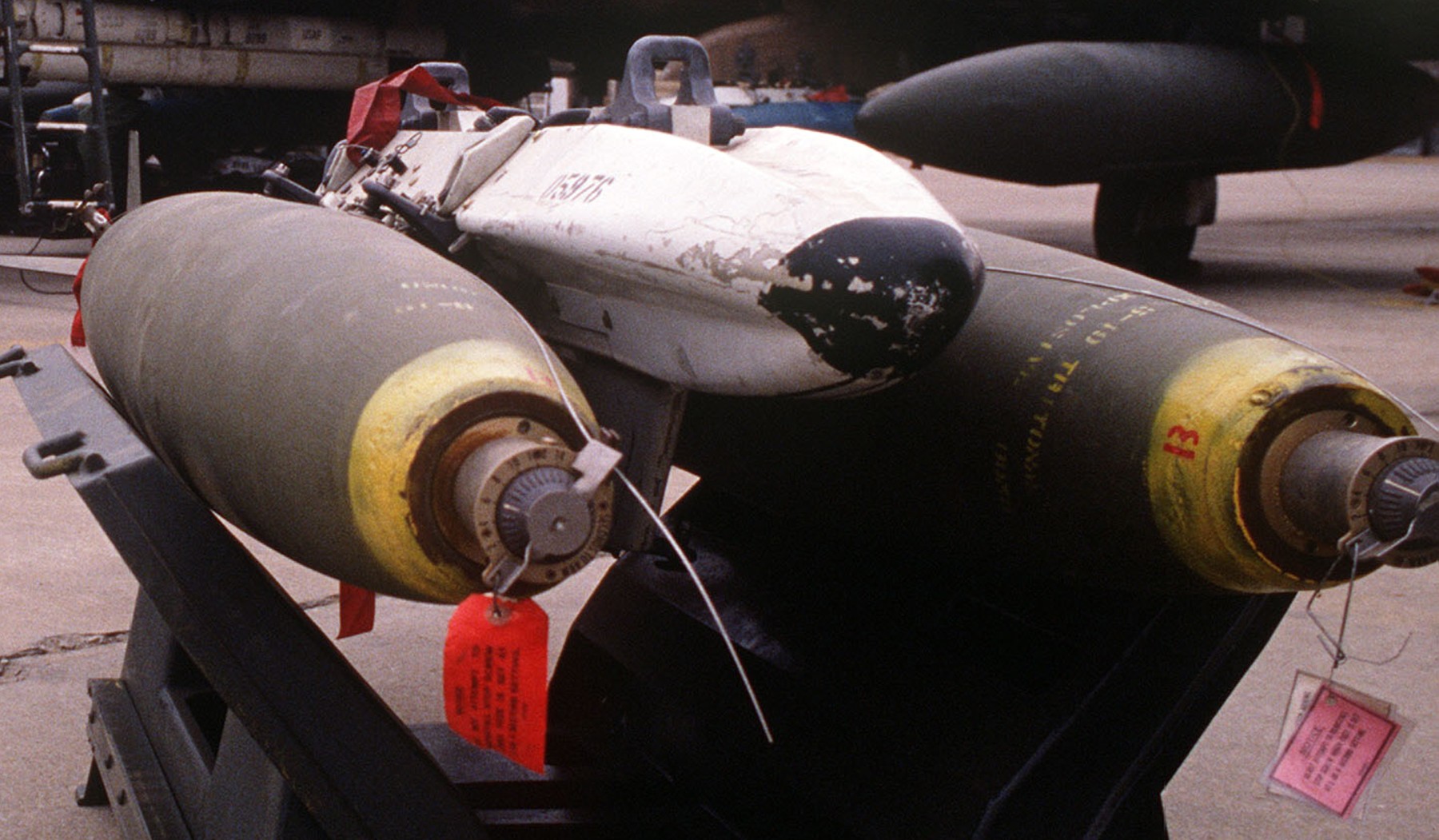

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

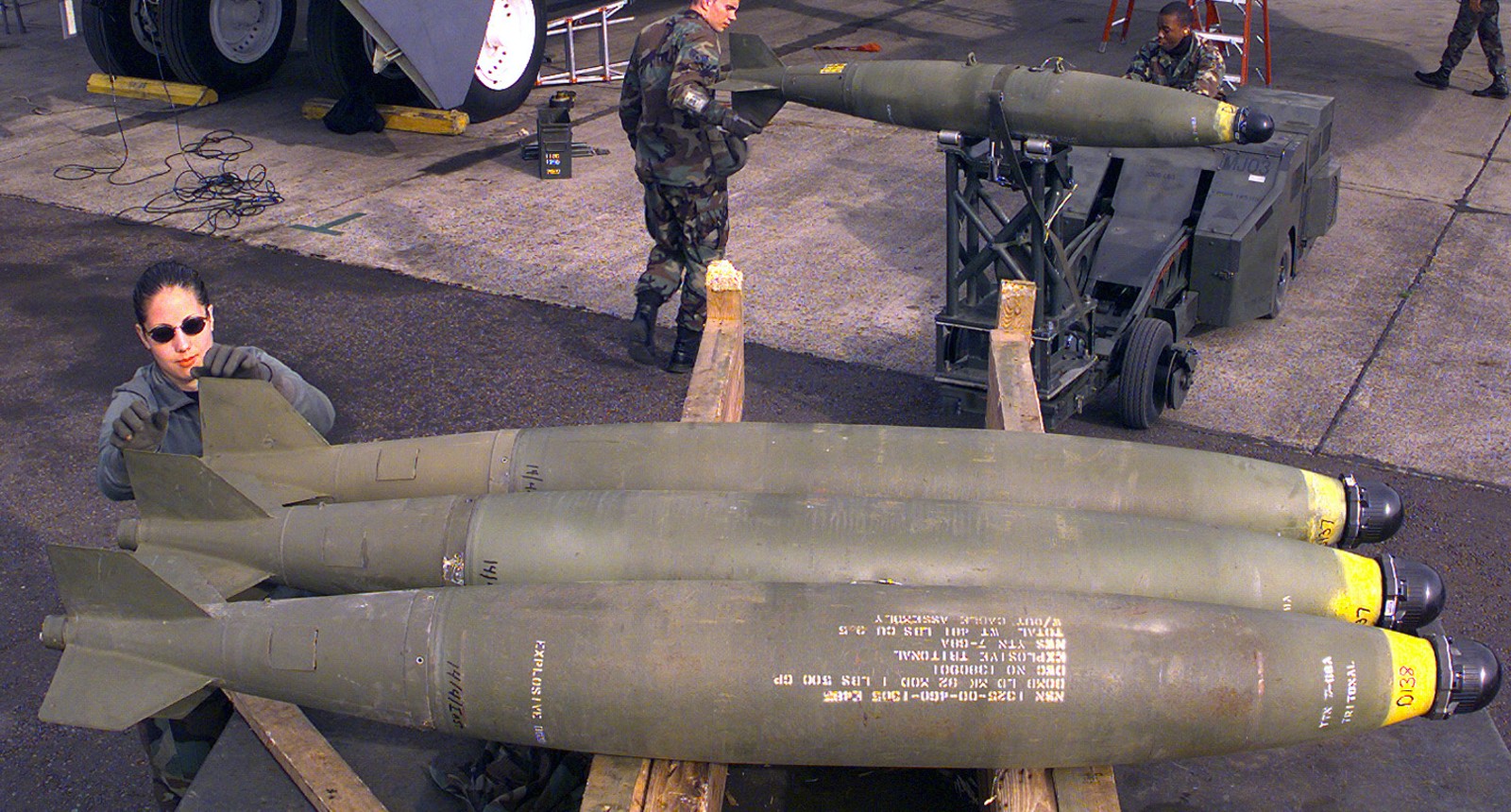

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 34
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

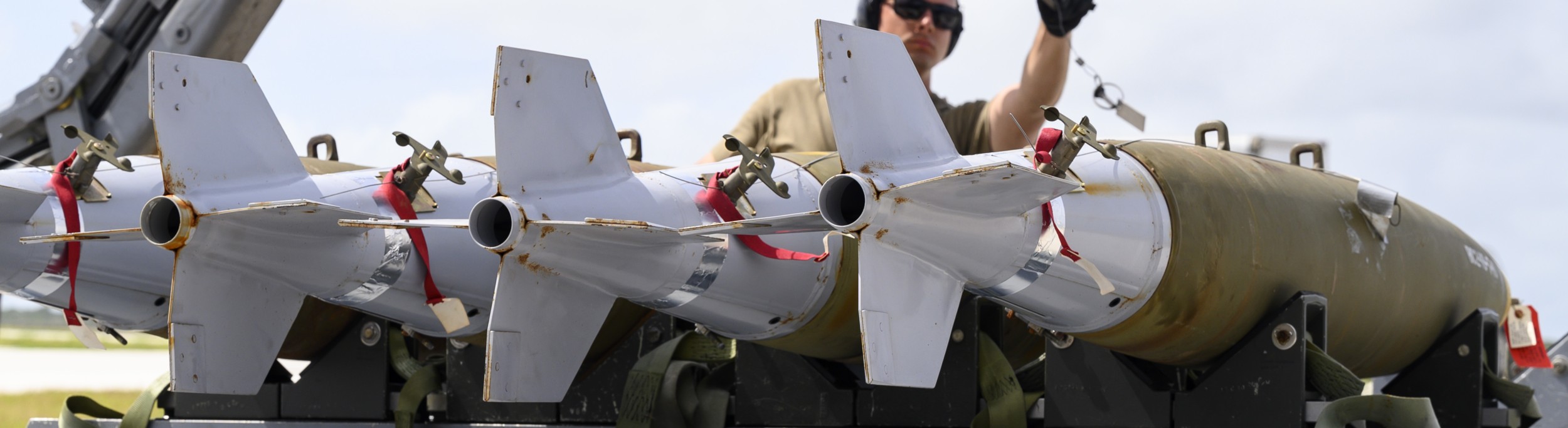

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 30
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 32

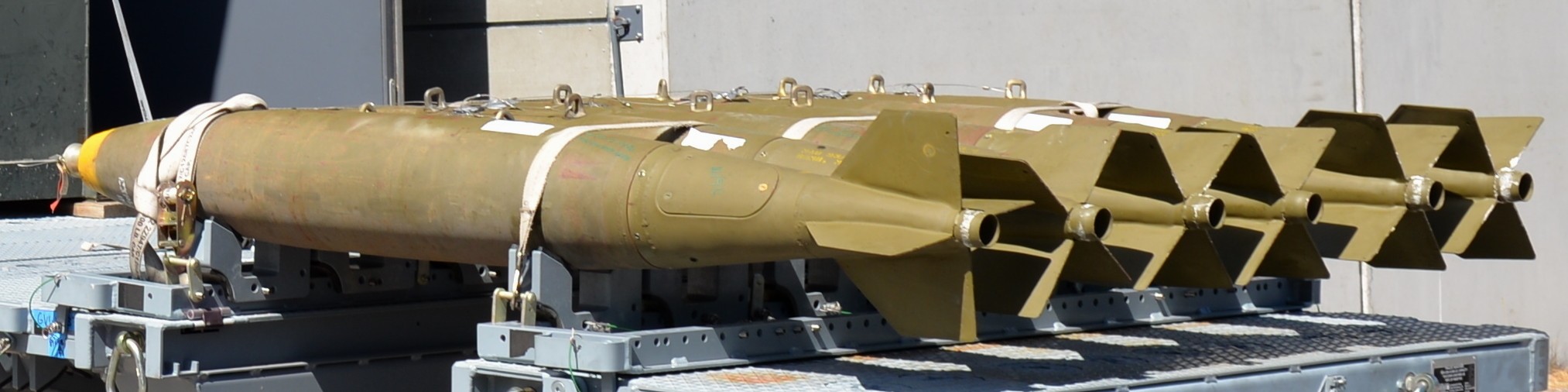

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 12
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

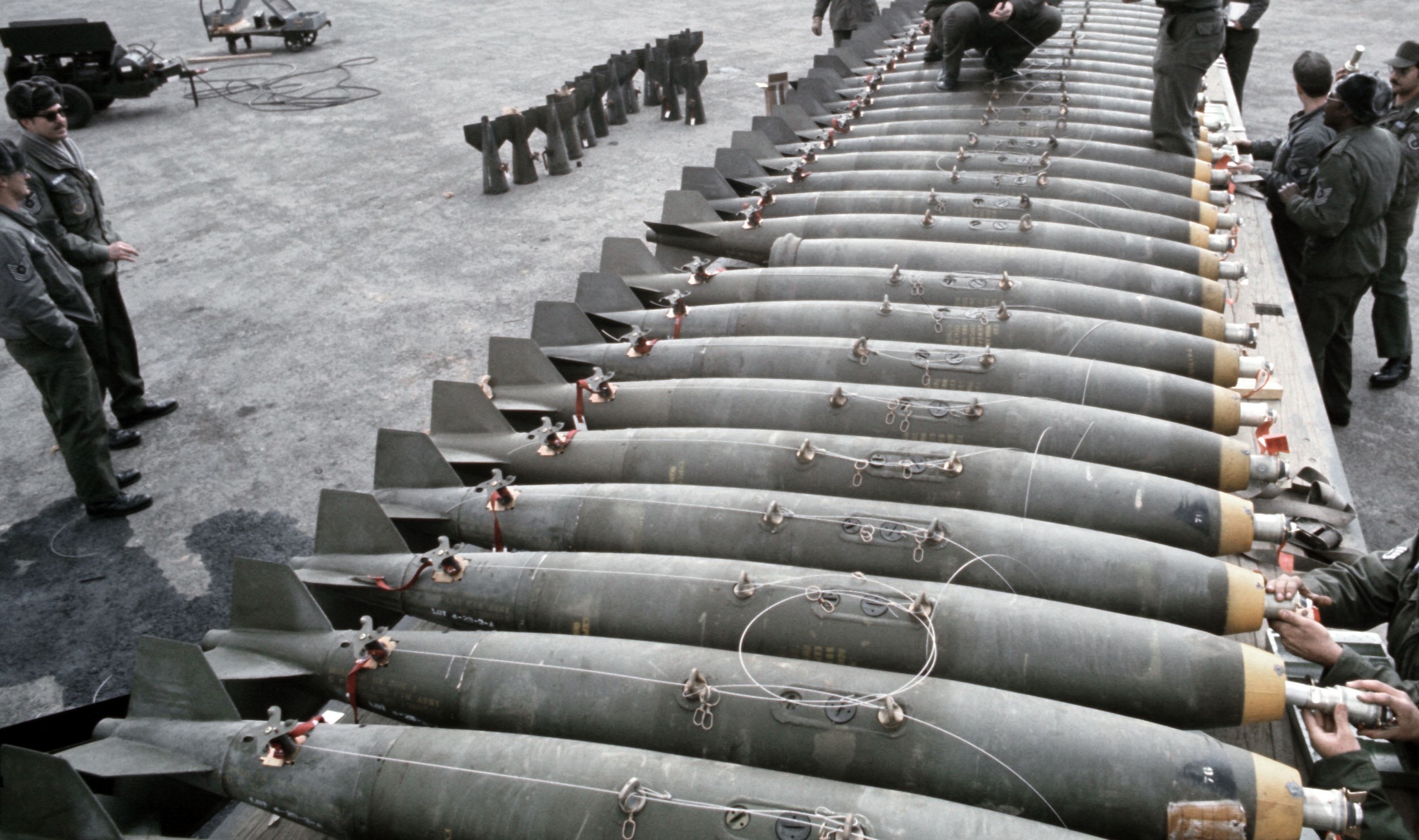

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 43
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 02

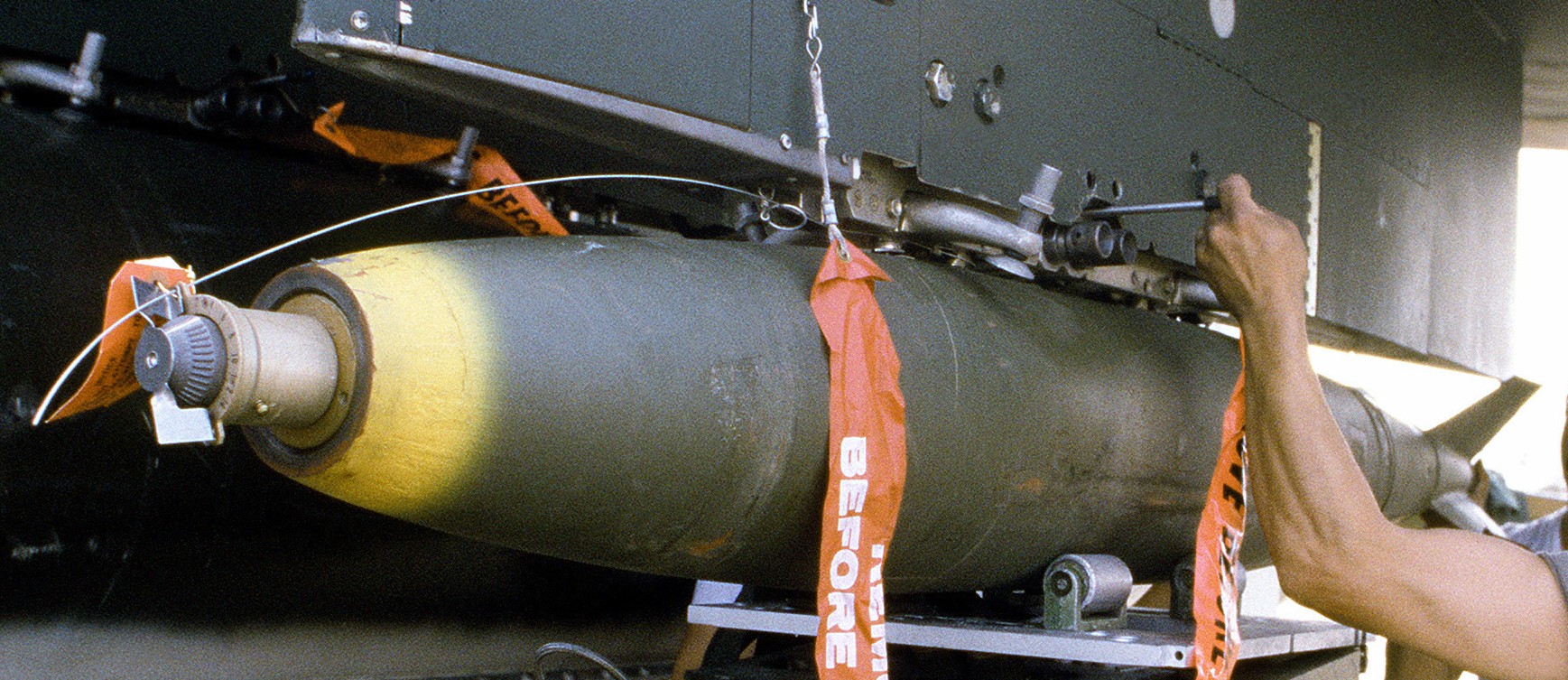

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

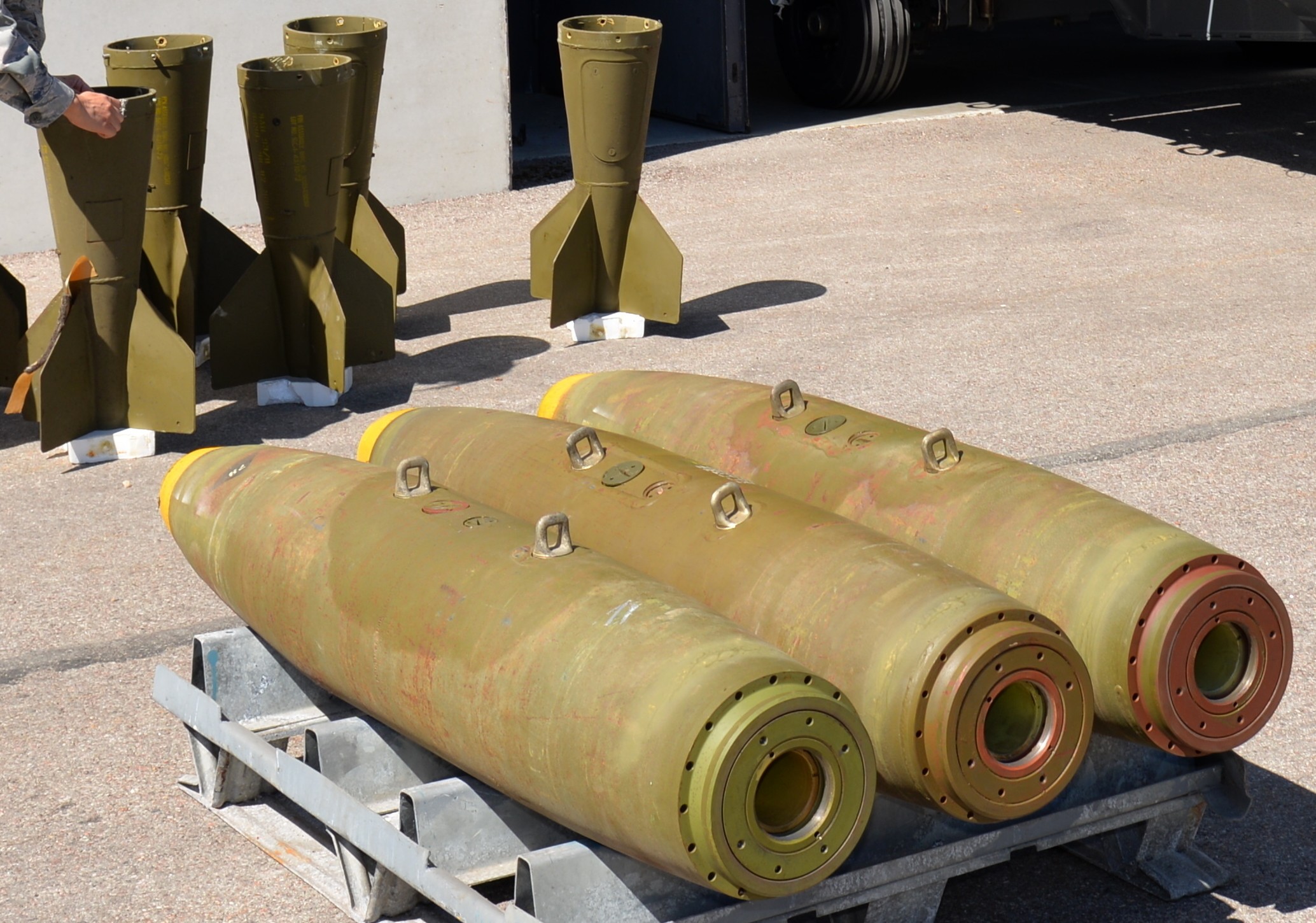

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 33
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

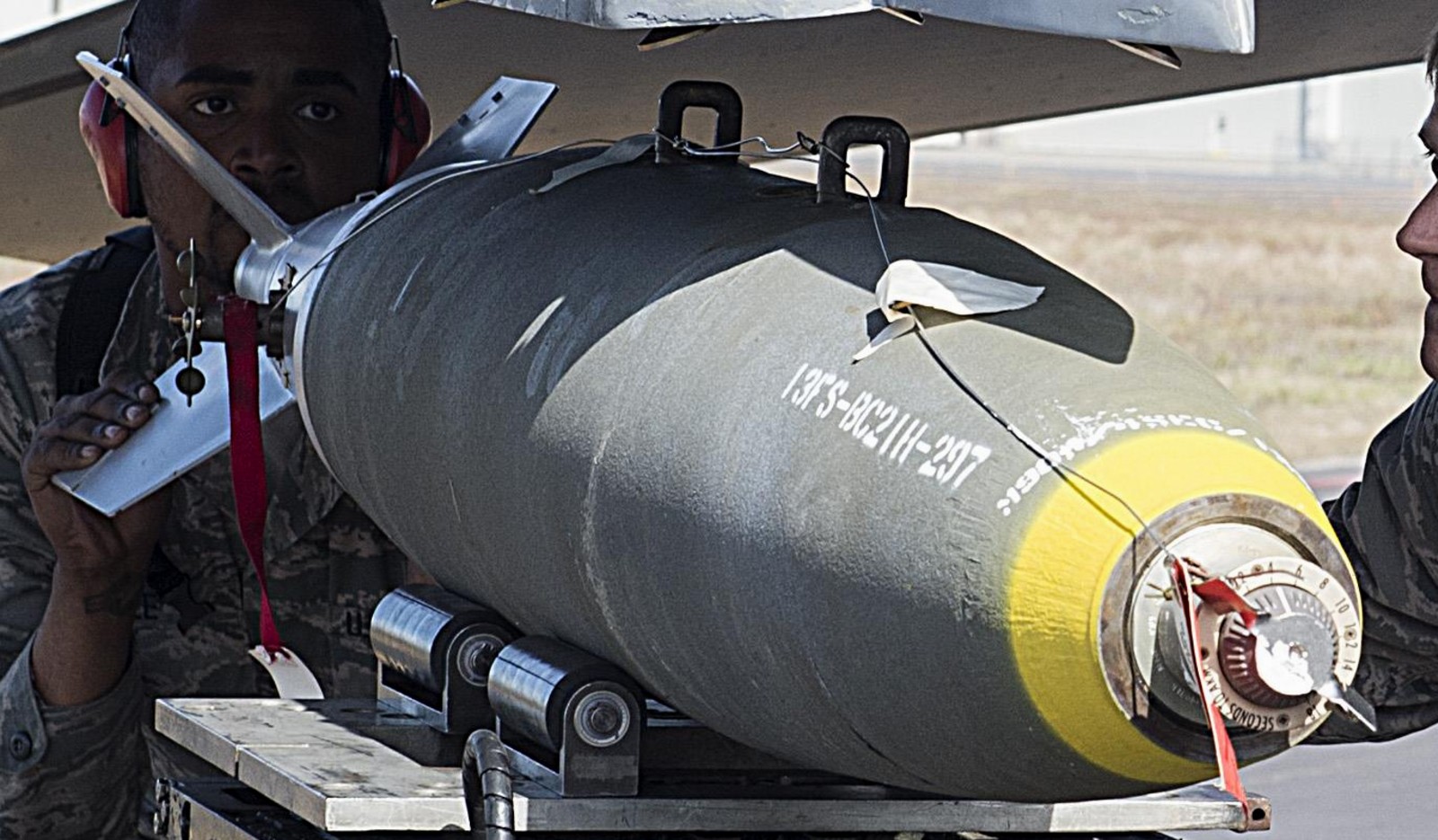

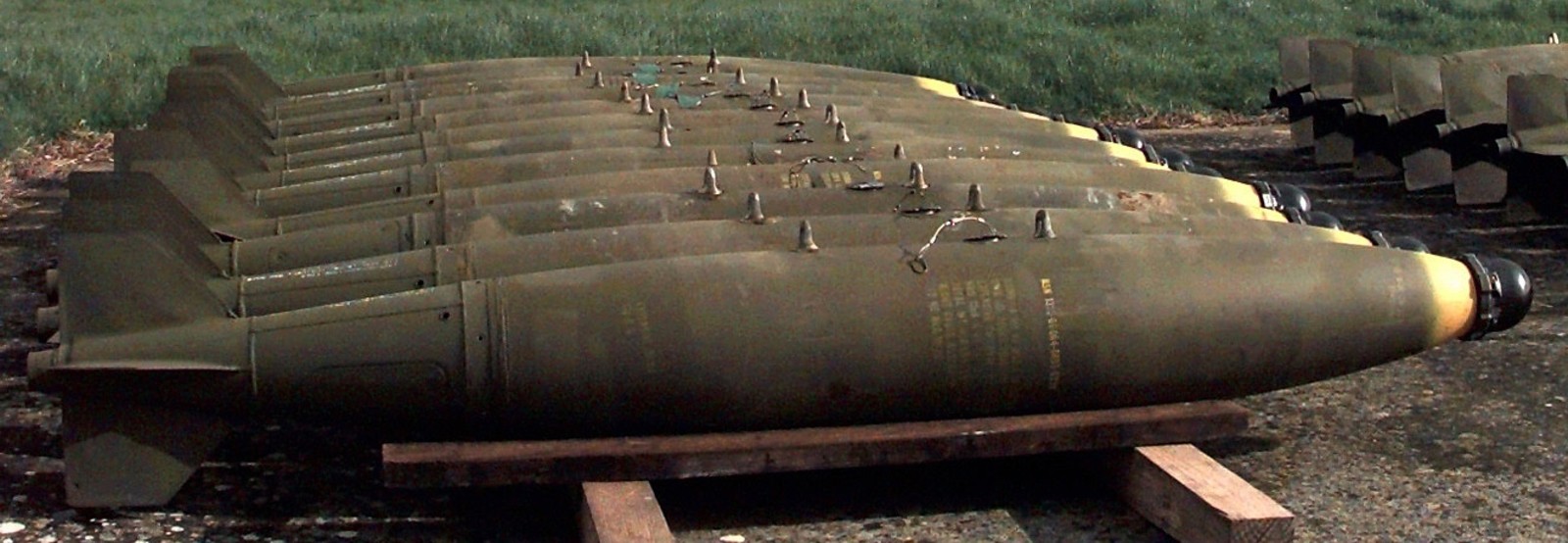

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 13
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 27

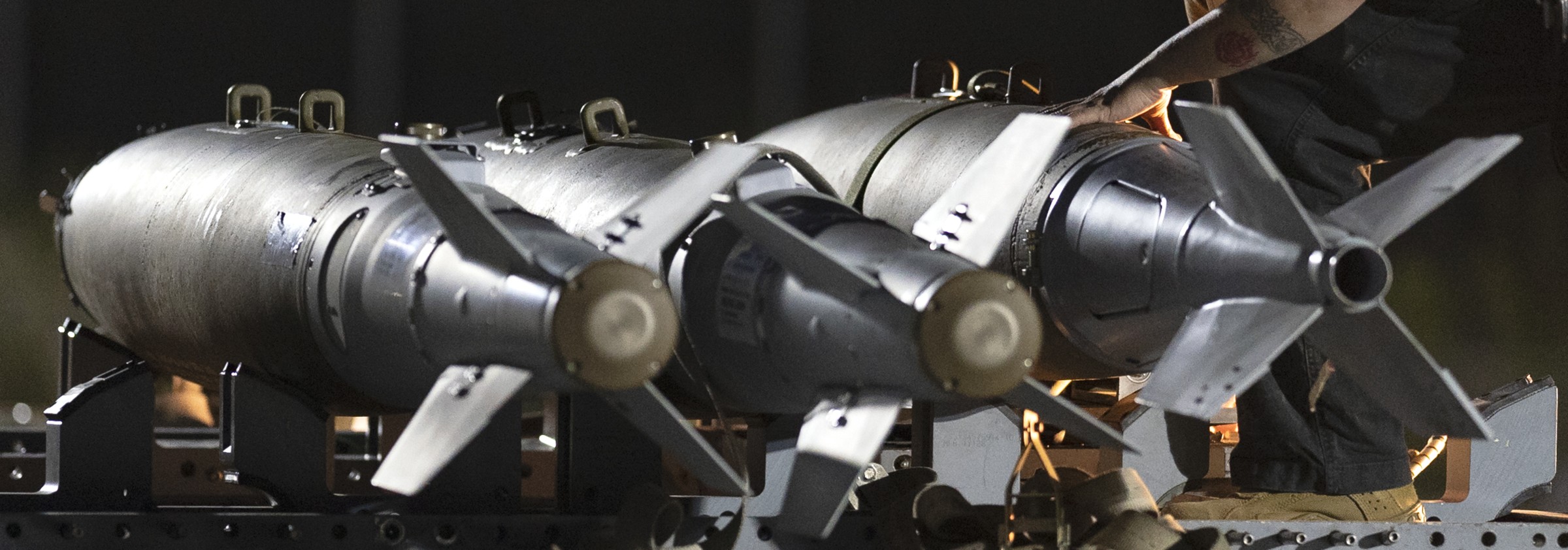

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

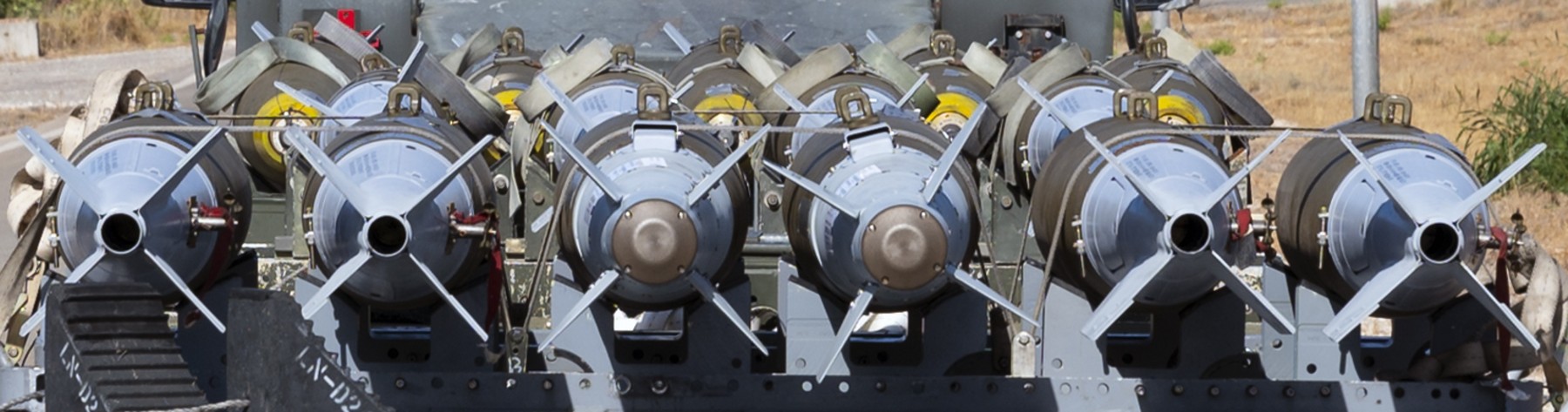

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 25
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

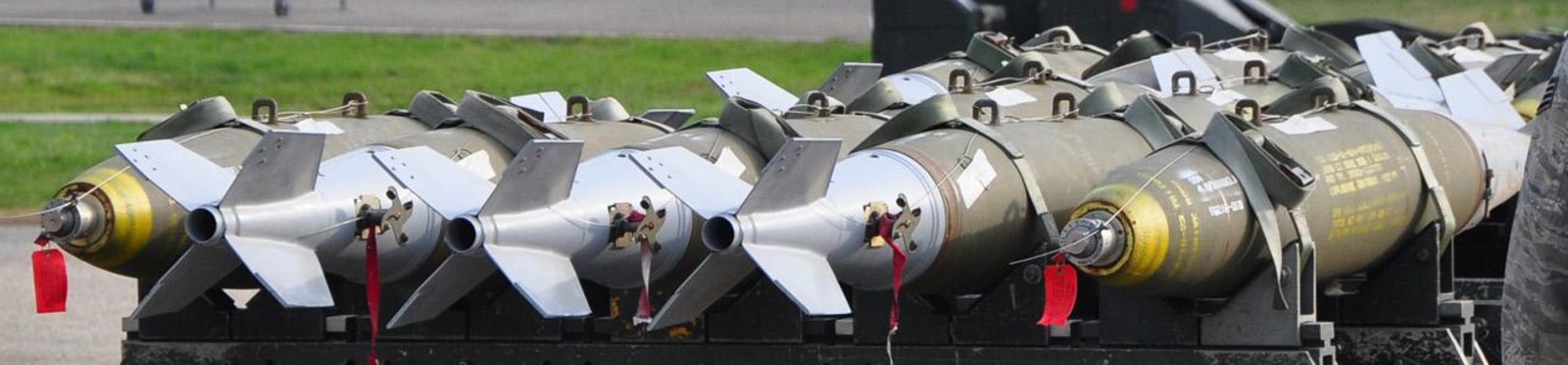

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 22
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

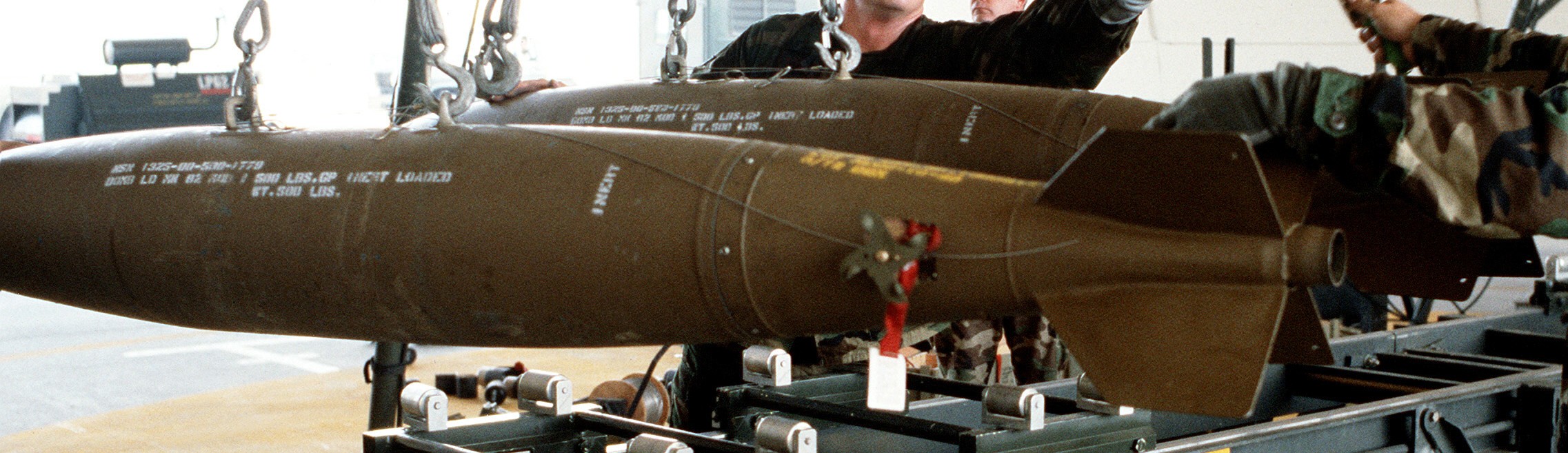

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 11
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 13
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 09
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag fuze delay timer 19

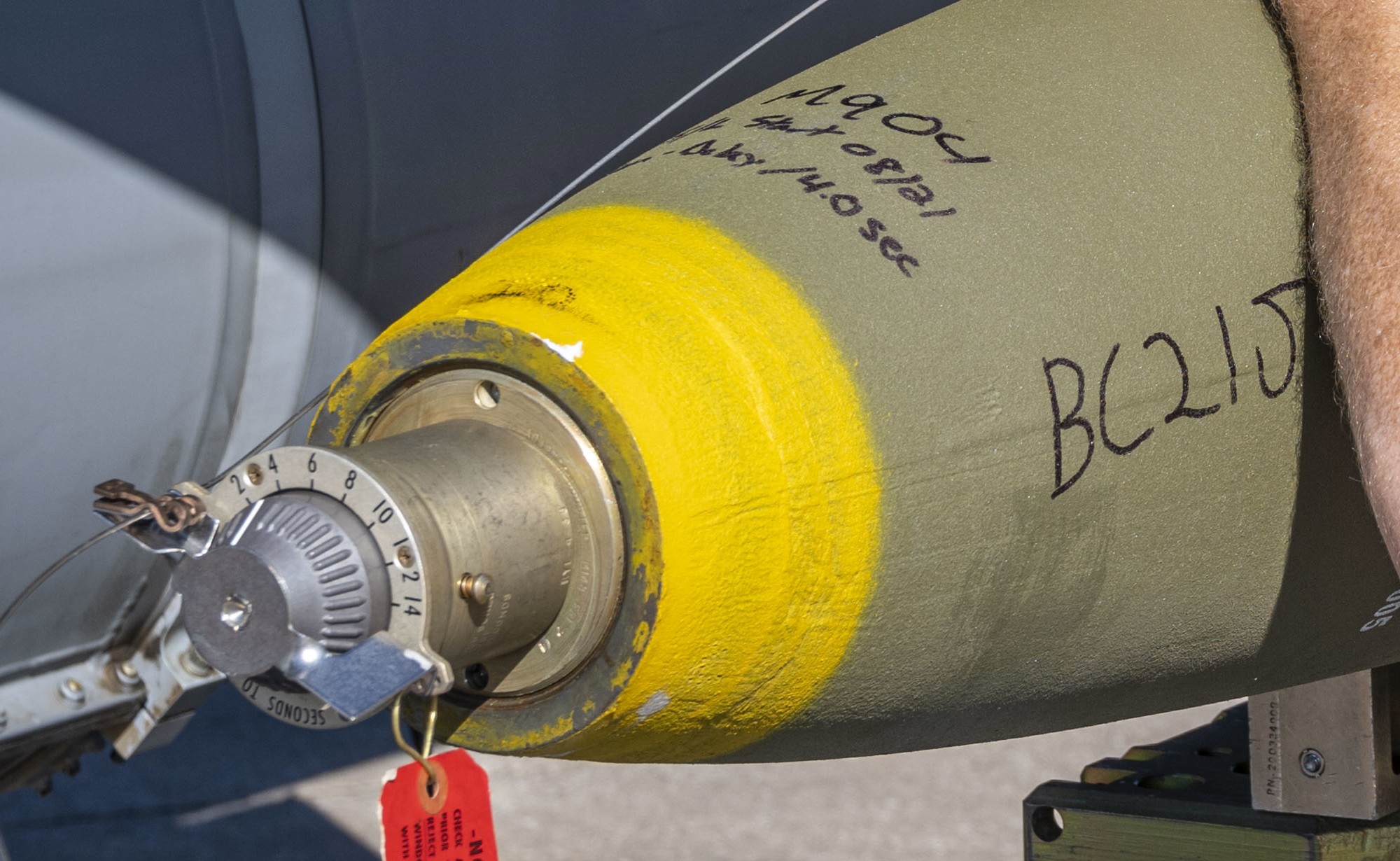

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb fuze delay

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 39
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb fuze delay


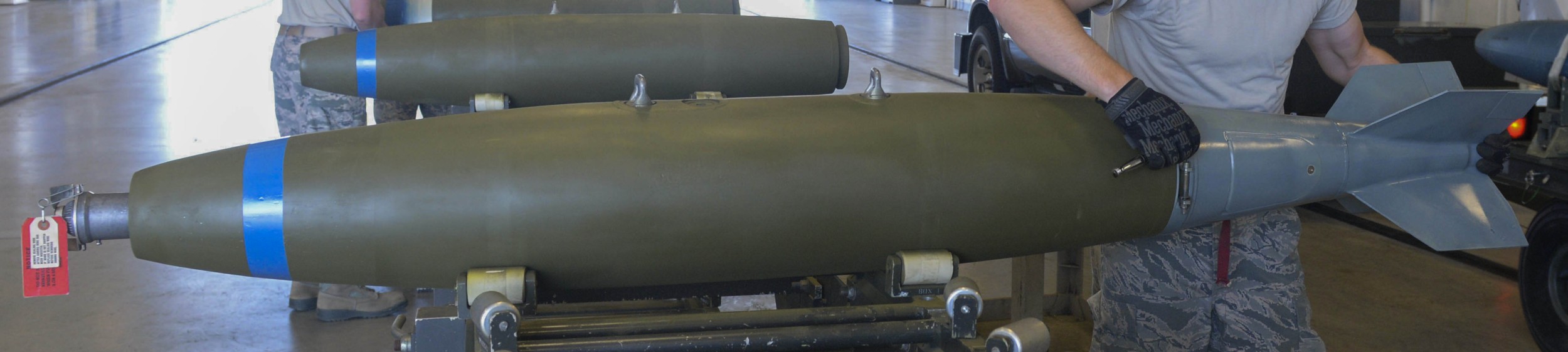

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 42
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 36

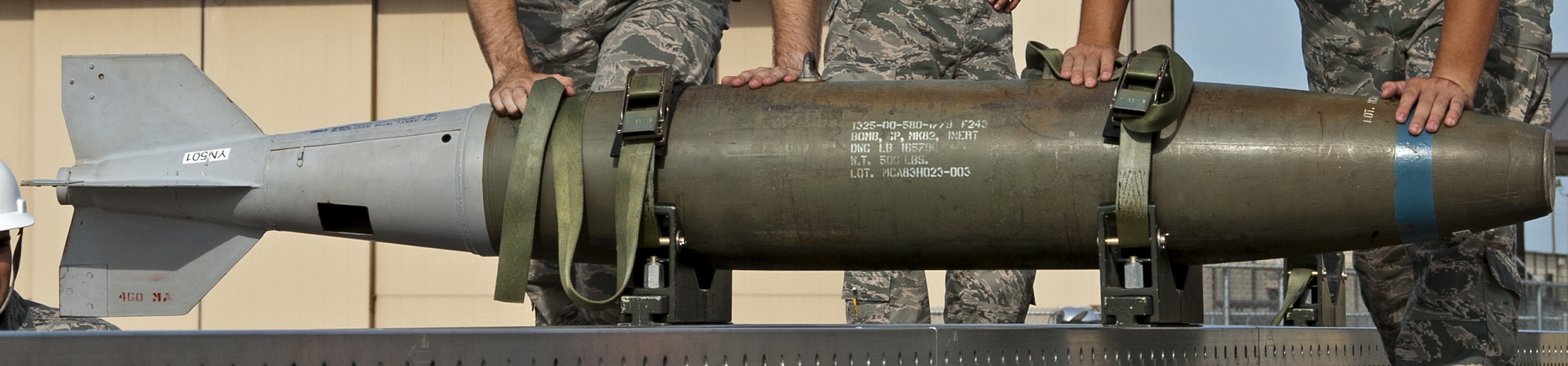

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

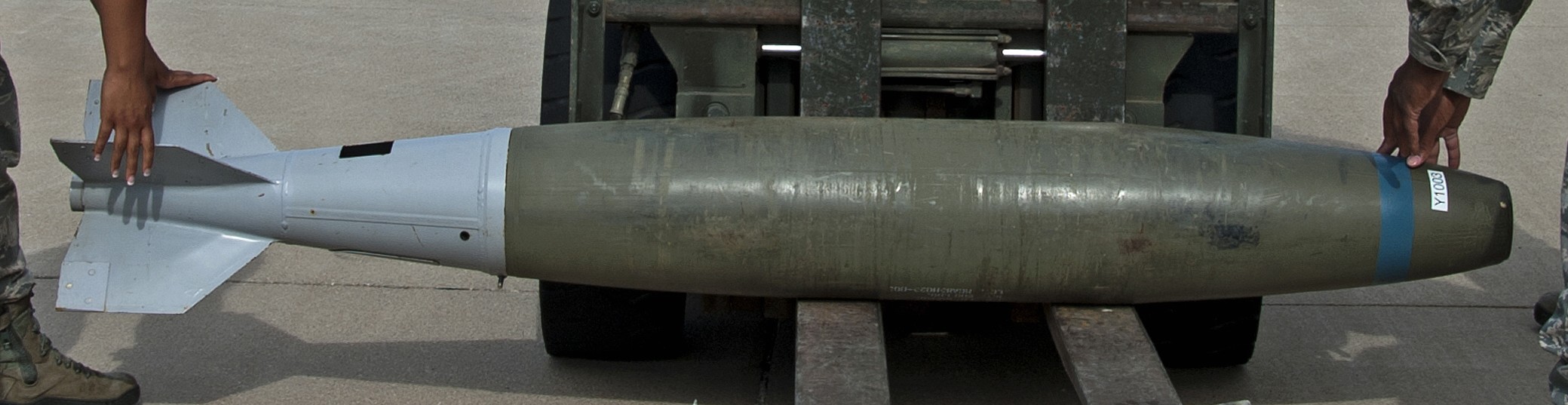

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 35
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 38
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

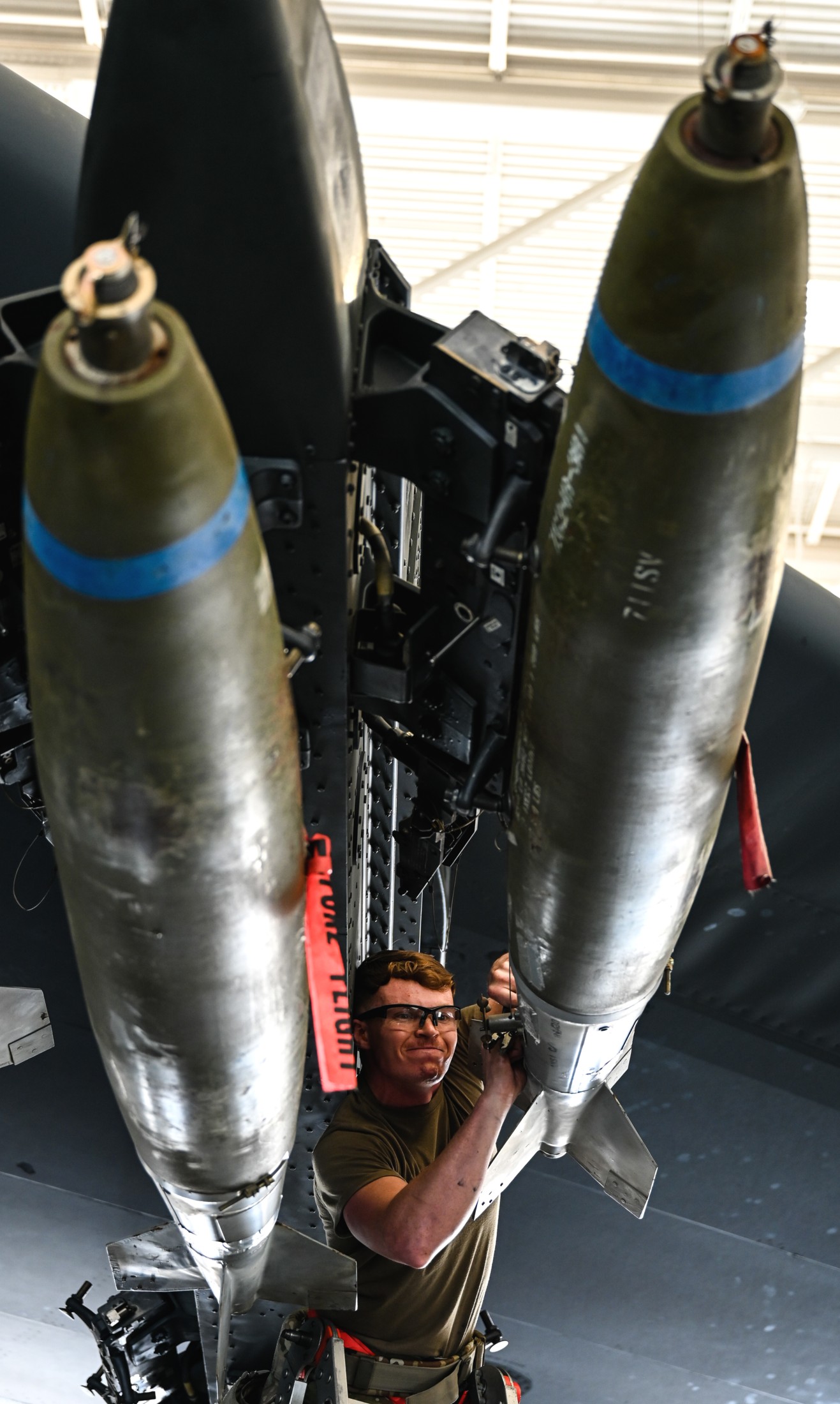

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 29
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 12
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 06
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 05

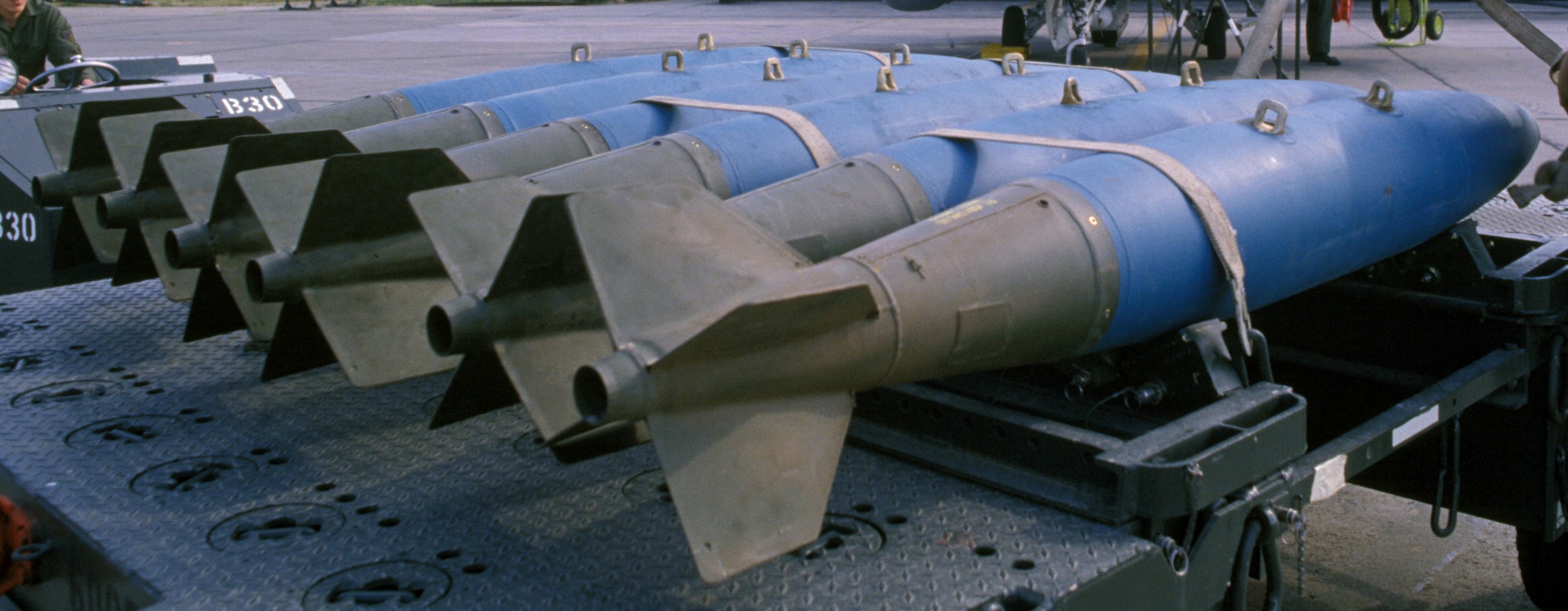

Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)

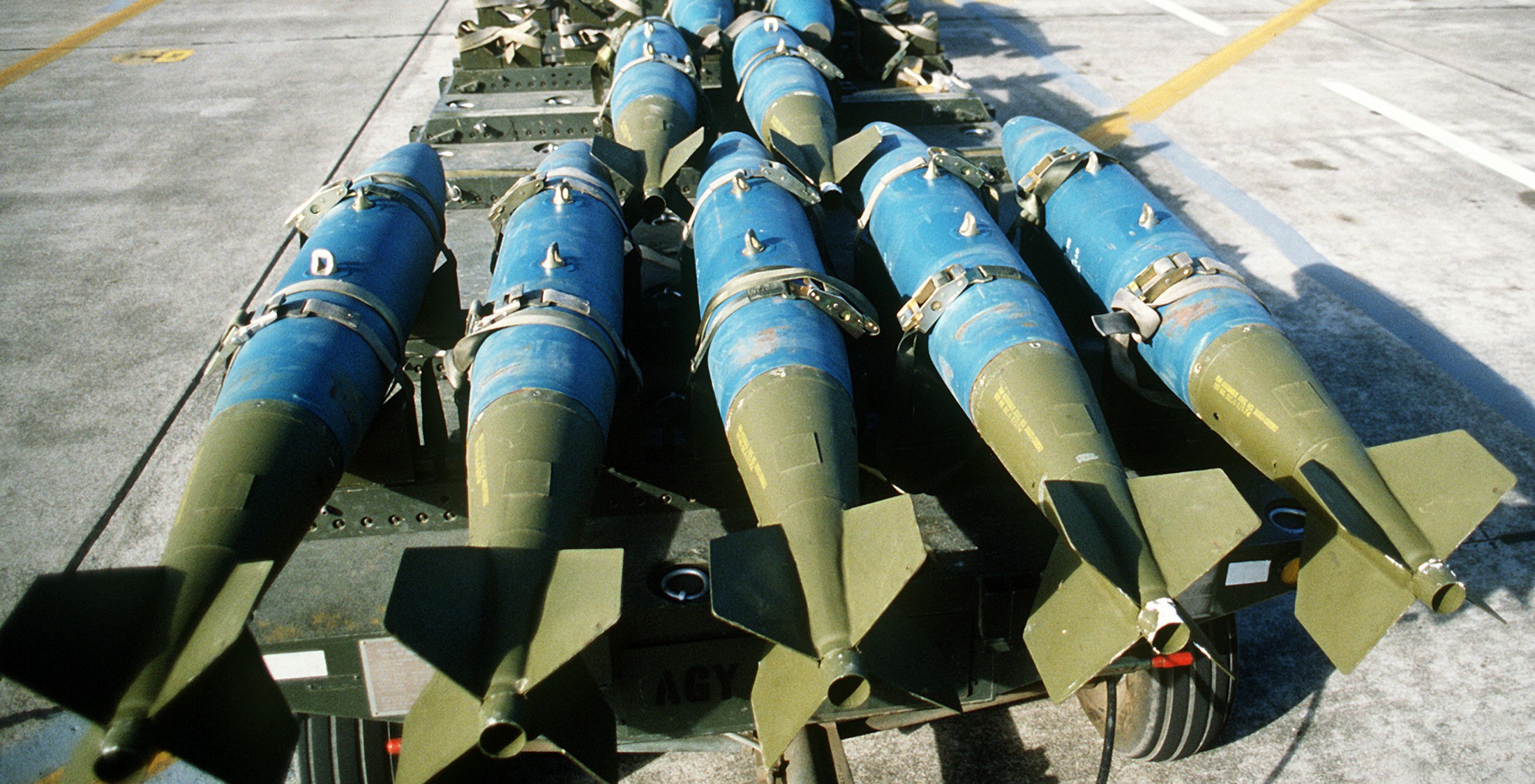

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 45
Mark 82 / BLU-111 / BLU-126 / BLU-129 low-drag general purpose bomb (practice)


mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag usaf f-4 phantom 52

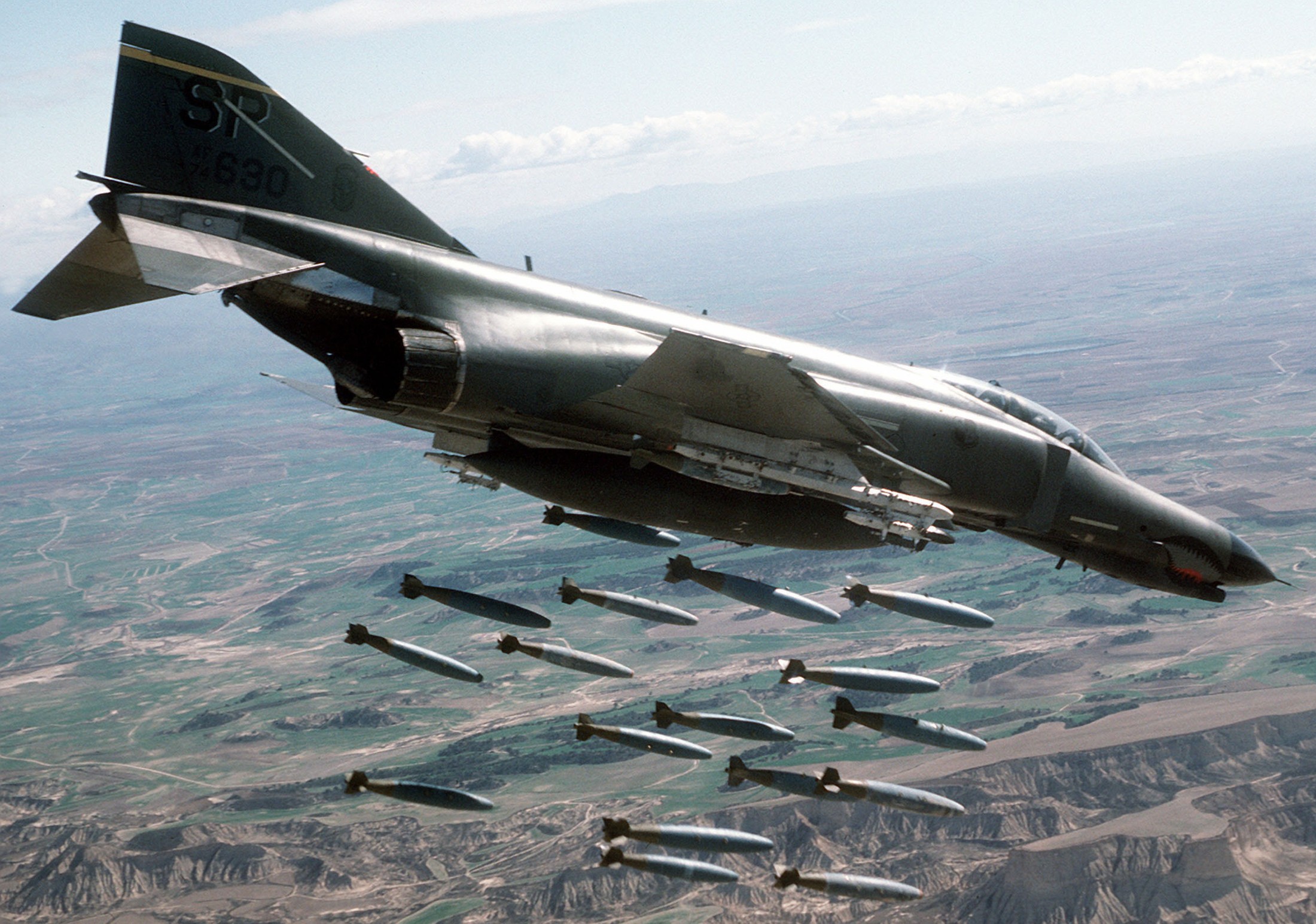

Mark 82 practice bombs were dropped by an USAF F-4 Phantom II

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 51

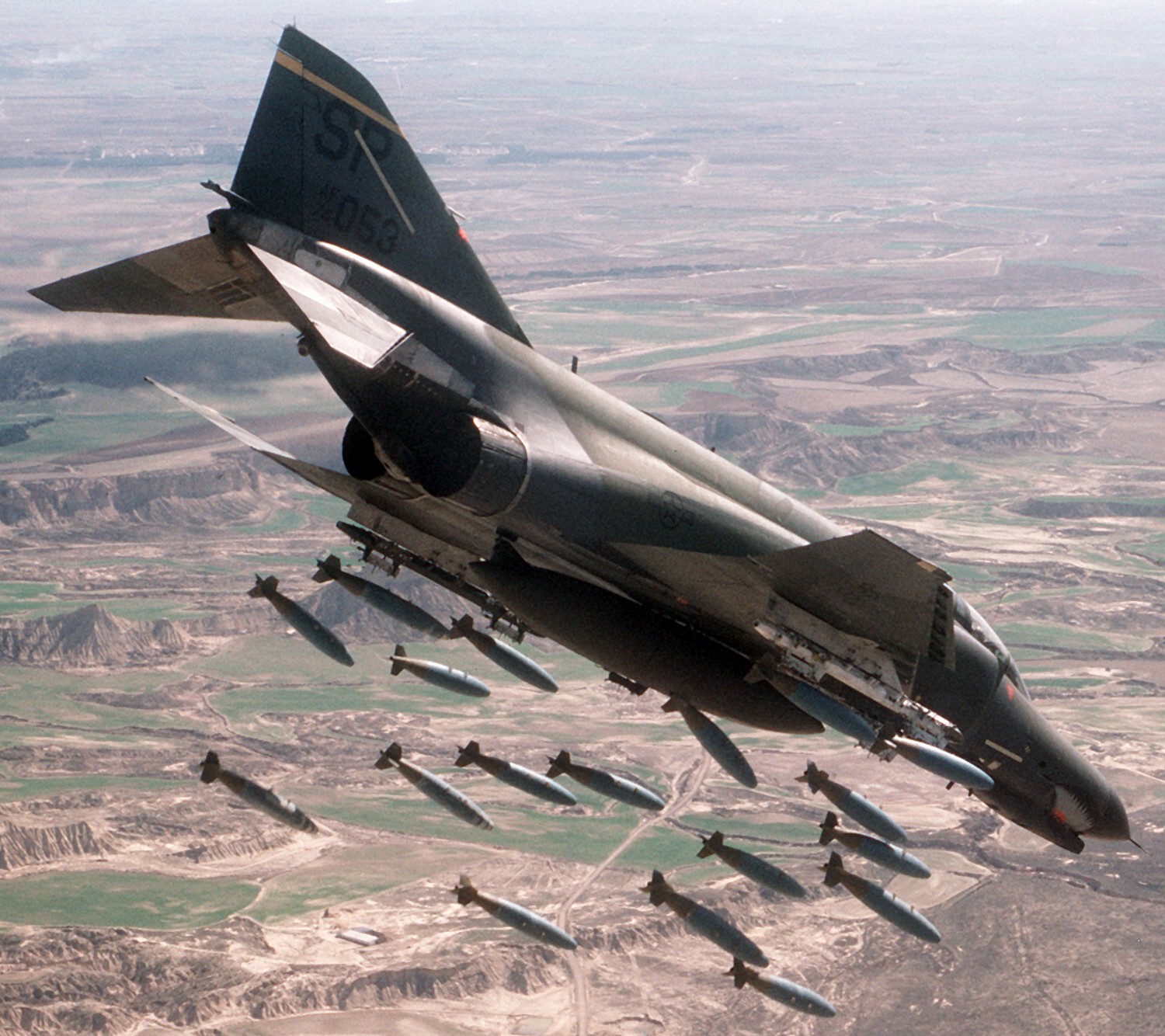

Mark 82 practice bombs were dropped by an USAF F-4 Phantom II

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 54

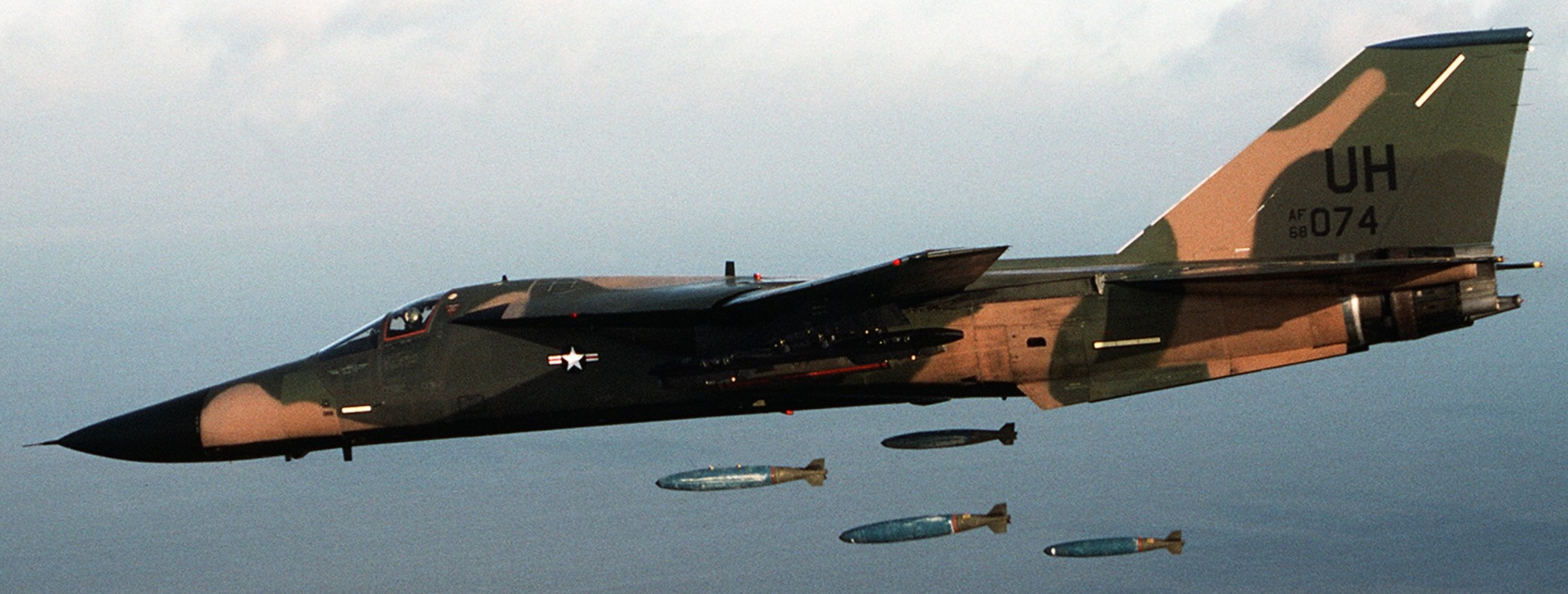

Mark 82 practice bombs were dropped by an USAF F-111 Aardvark

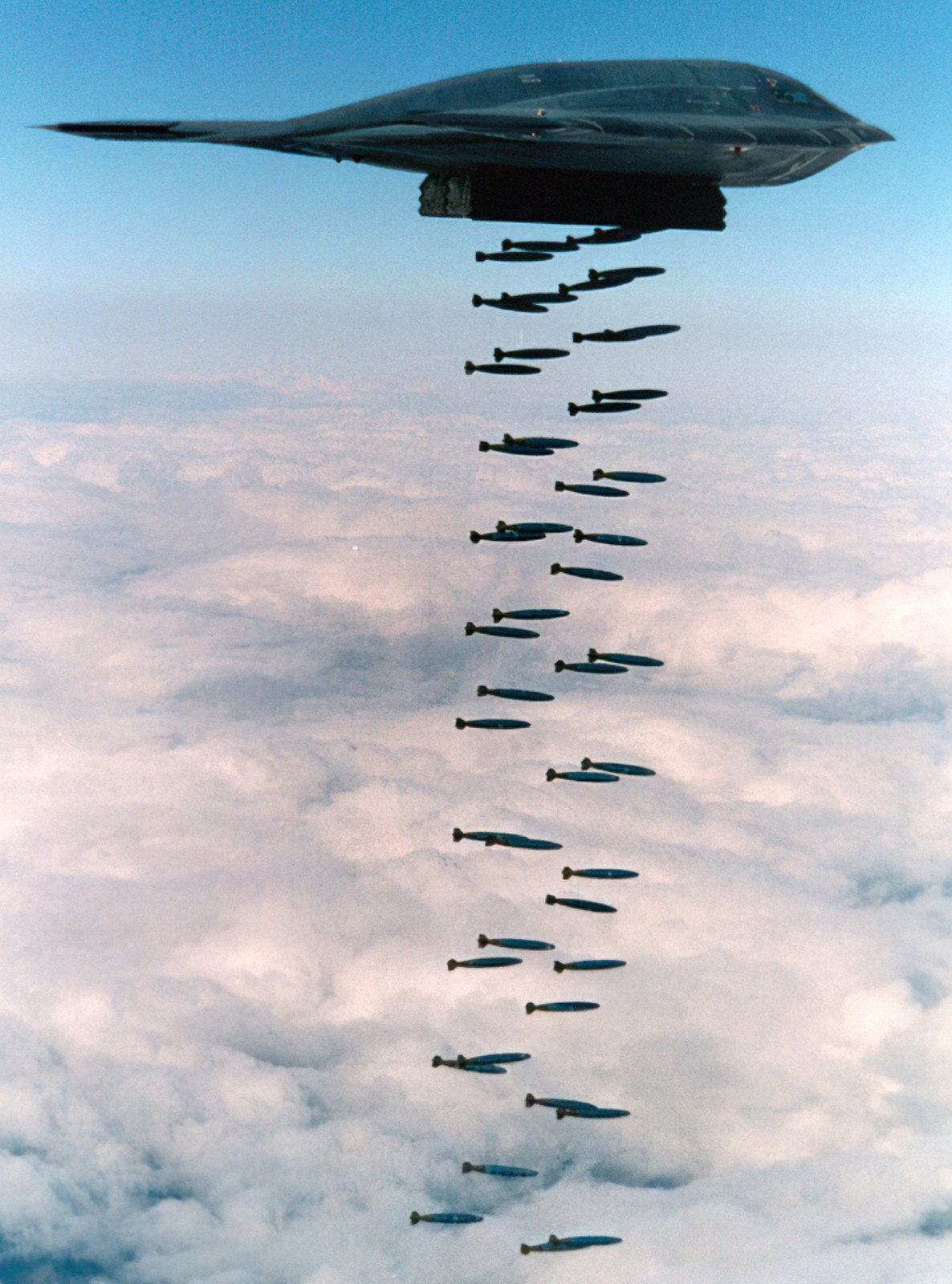

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag usaf b-2 spirit 53
Mark 82 practice bombs were dropped by an USAF B-2 Spirit

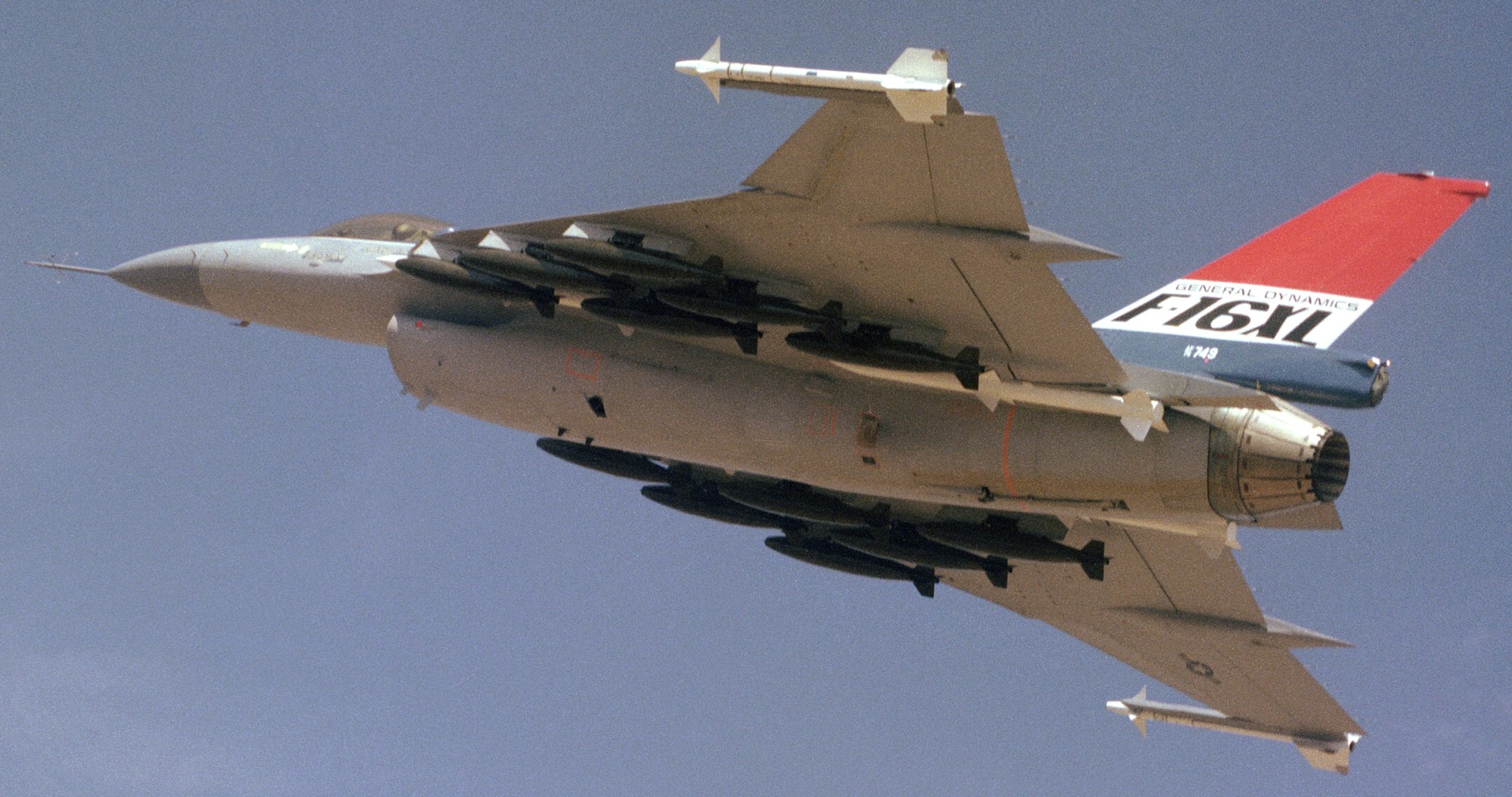

mark 82 mk.82 blu-111 blu-126 blu-129 general purpose bomb 500 lbs low drag 44
Mark 82 bombs on an F-16XL experimental aircraft

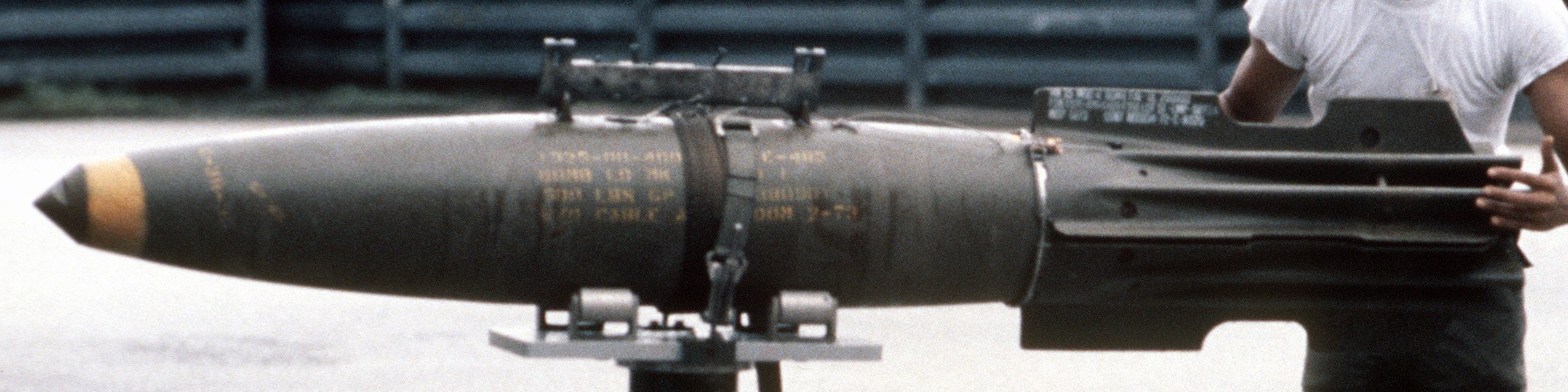

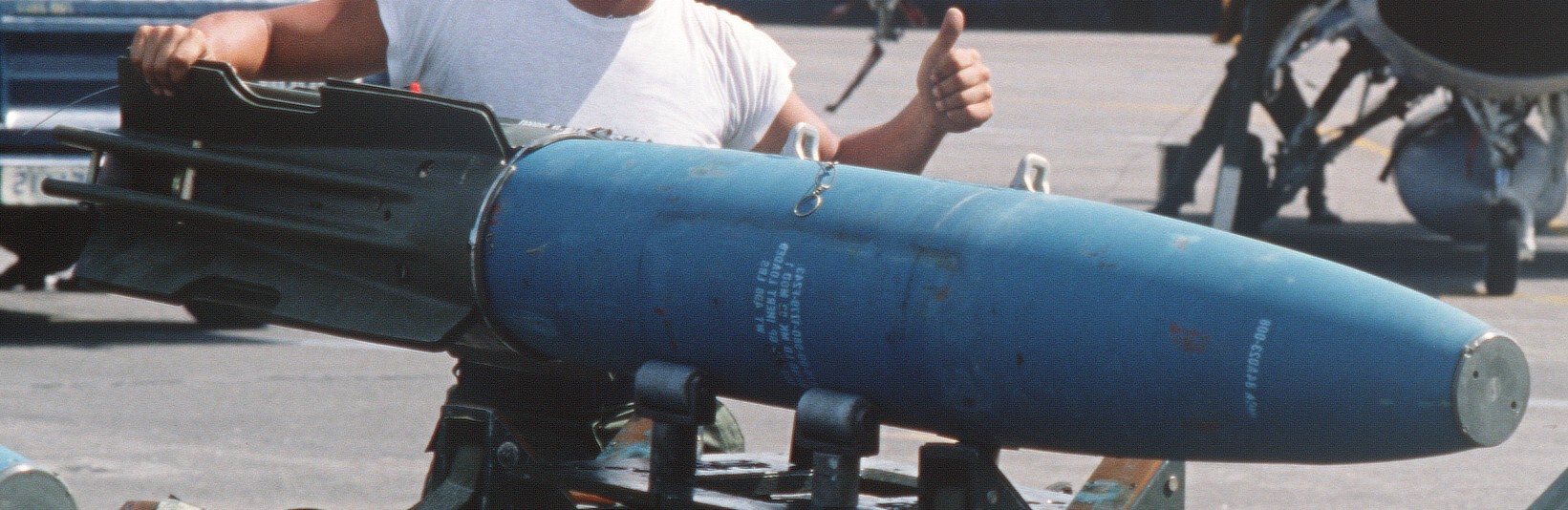

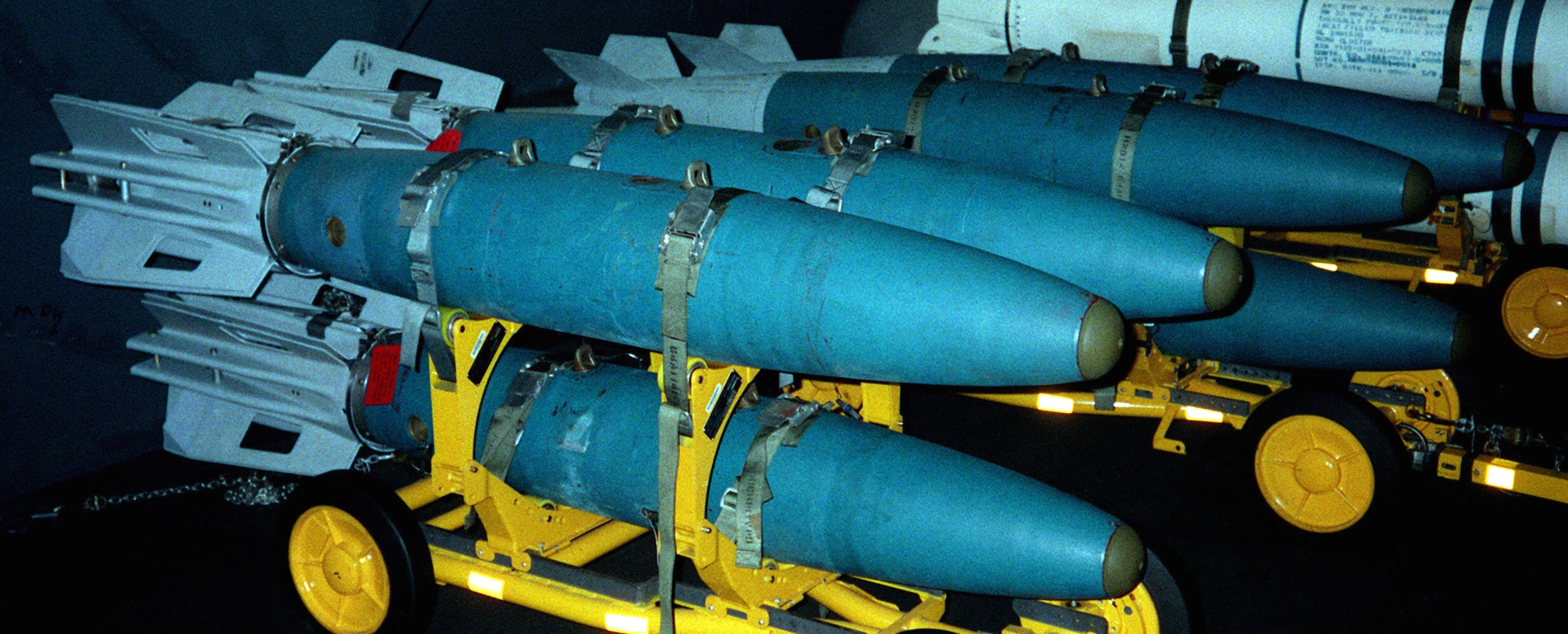

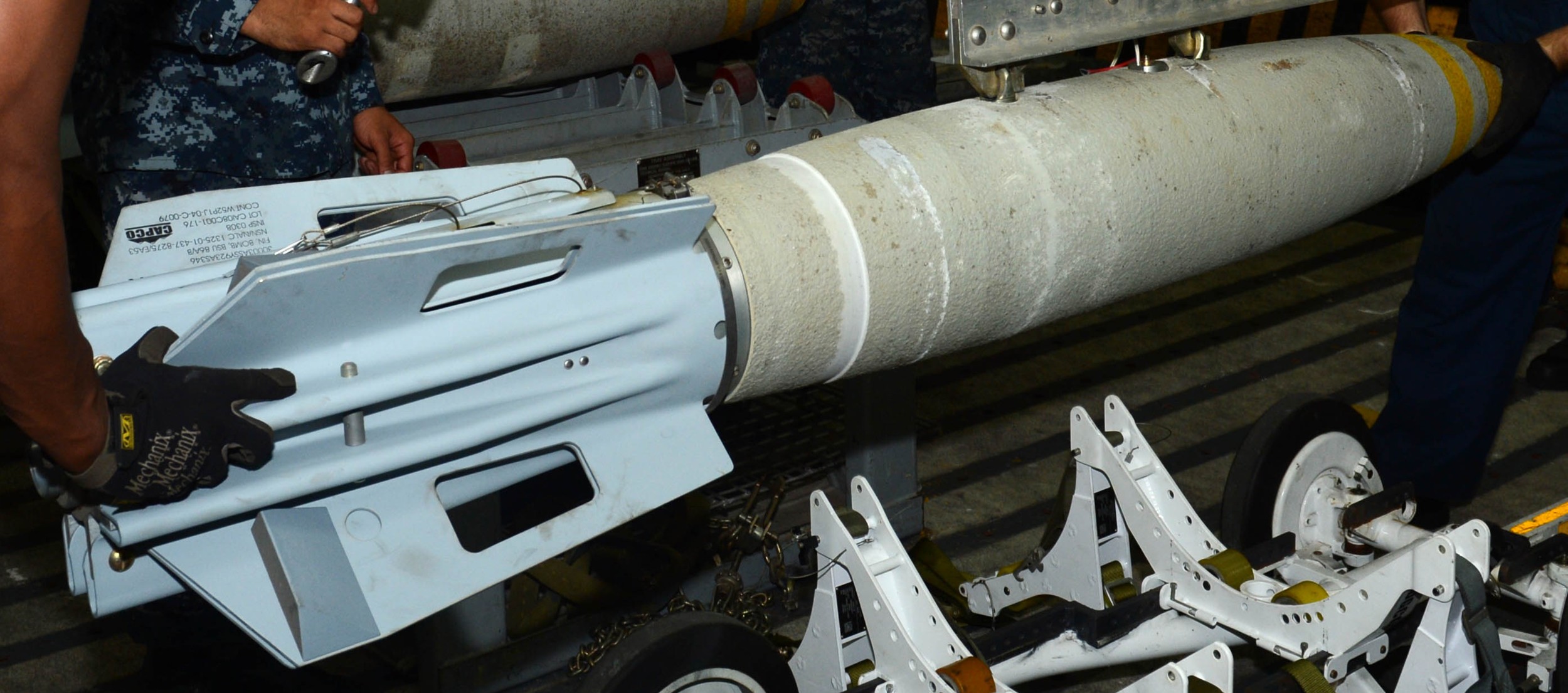

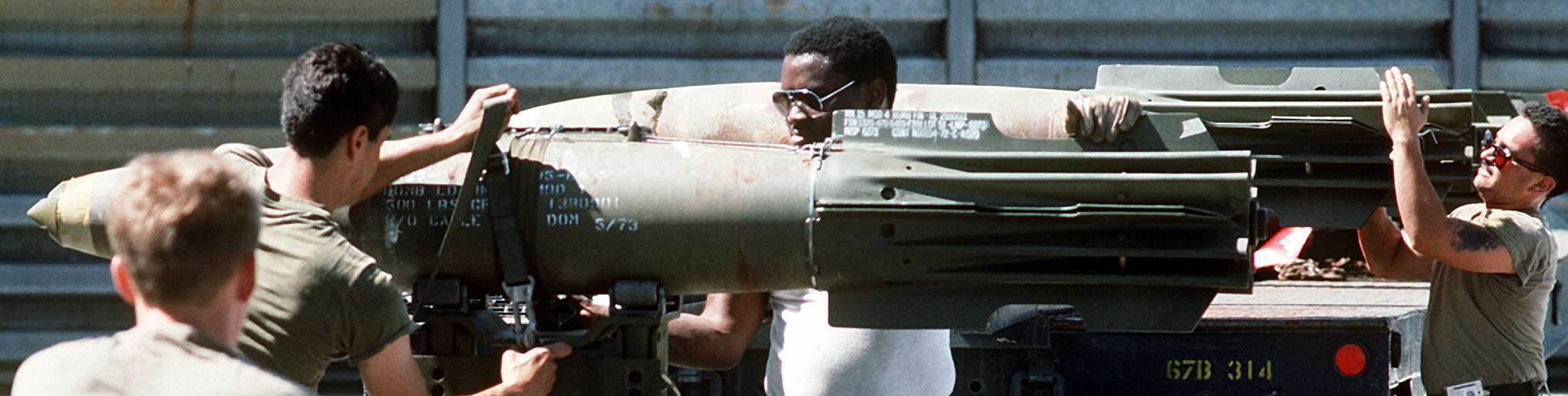

Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye
500 lbs high drag general purpose bomb

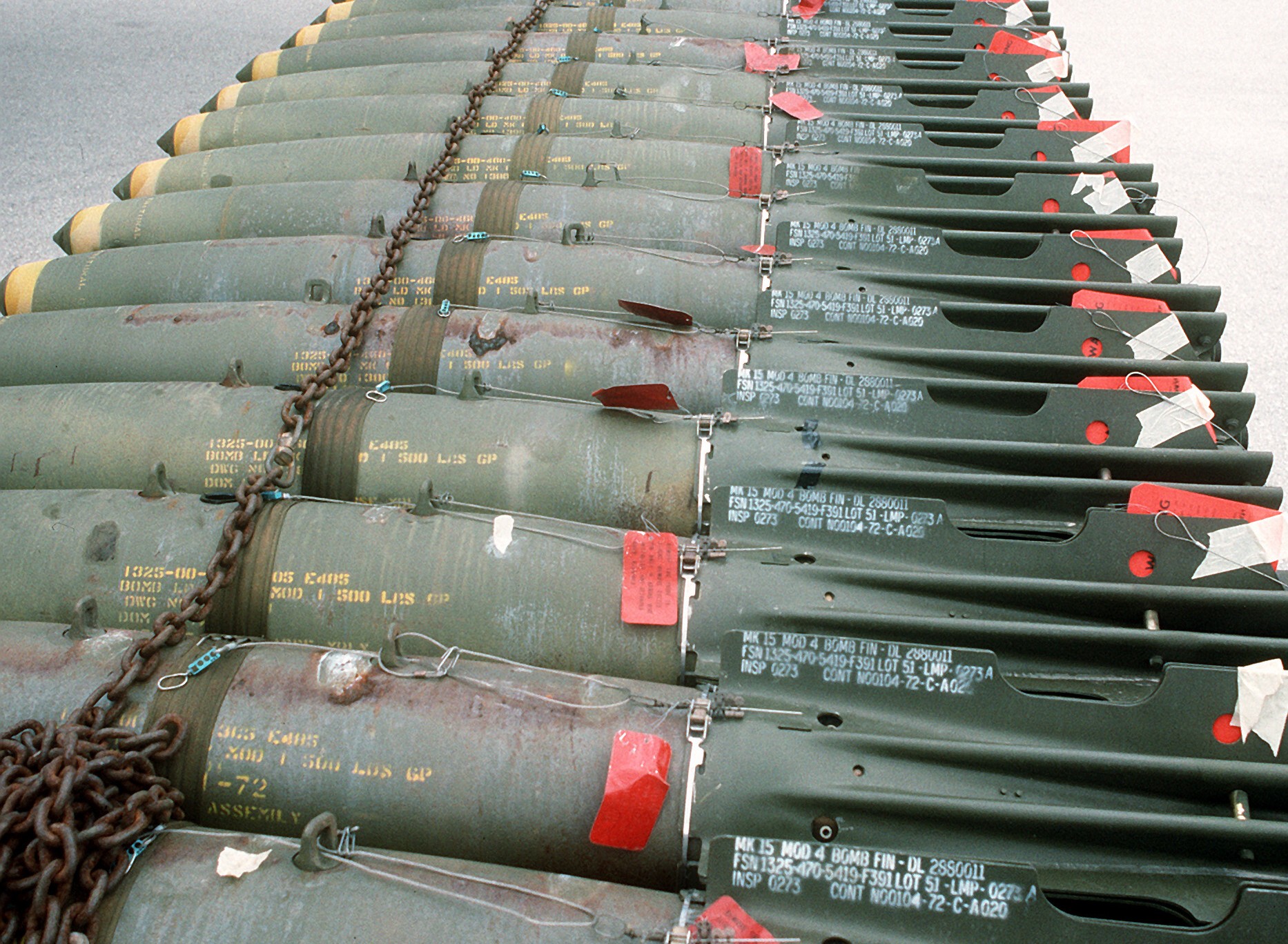

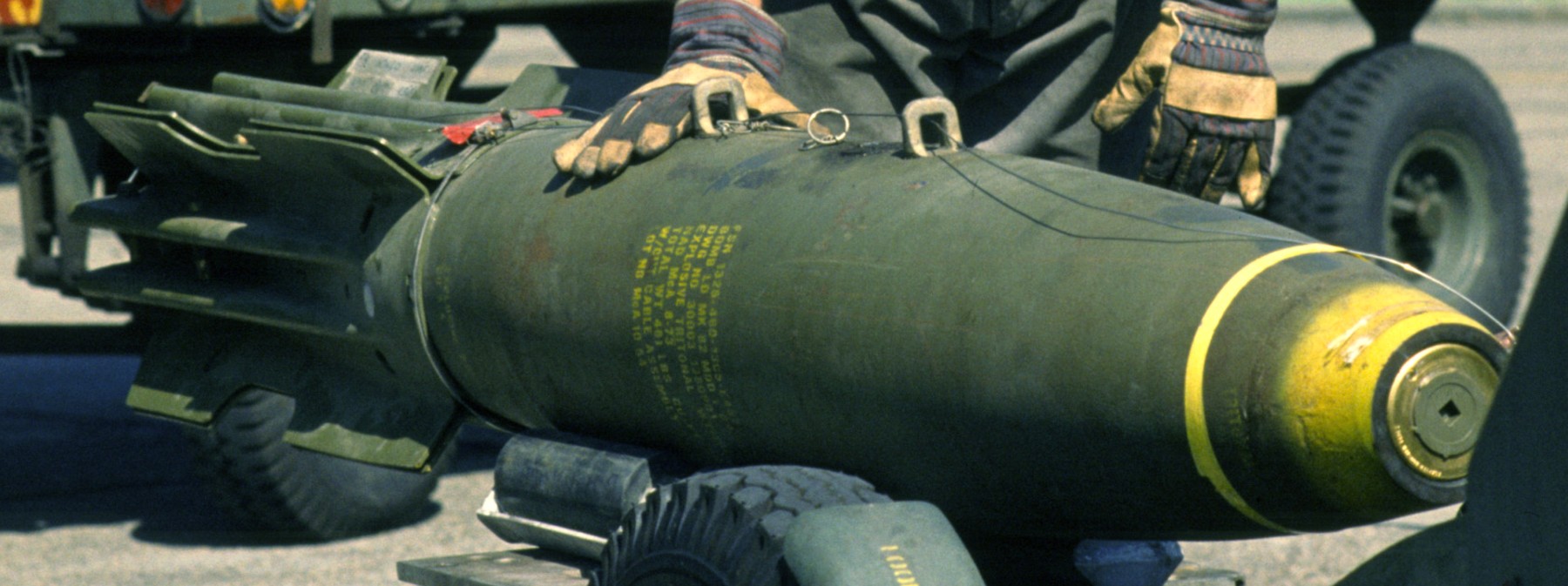

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 13
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 09

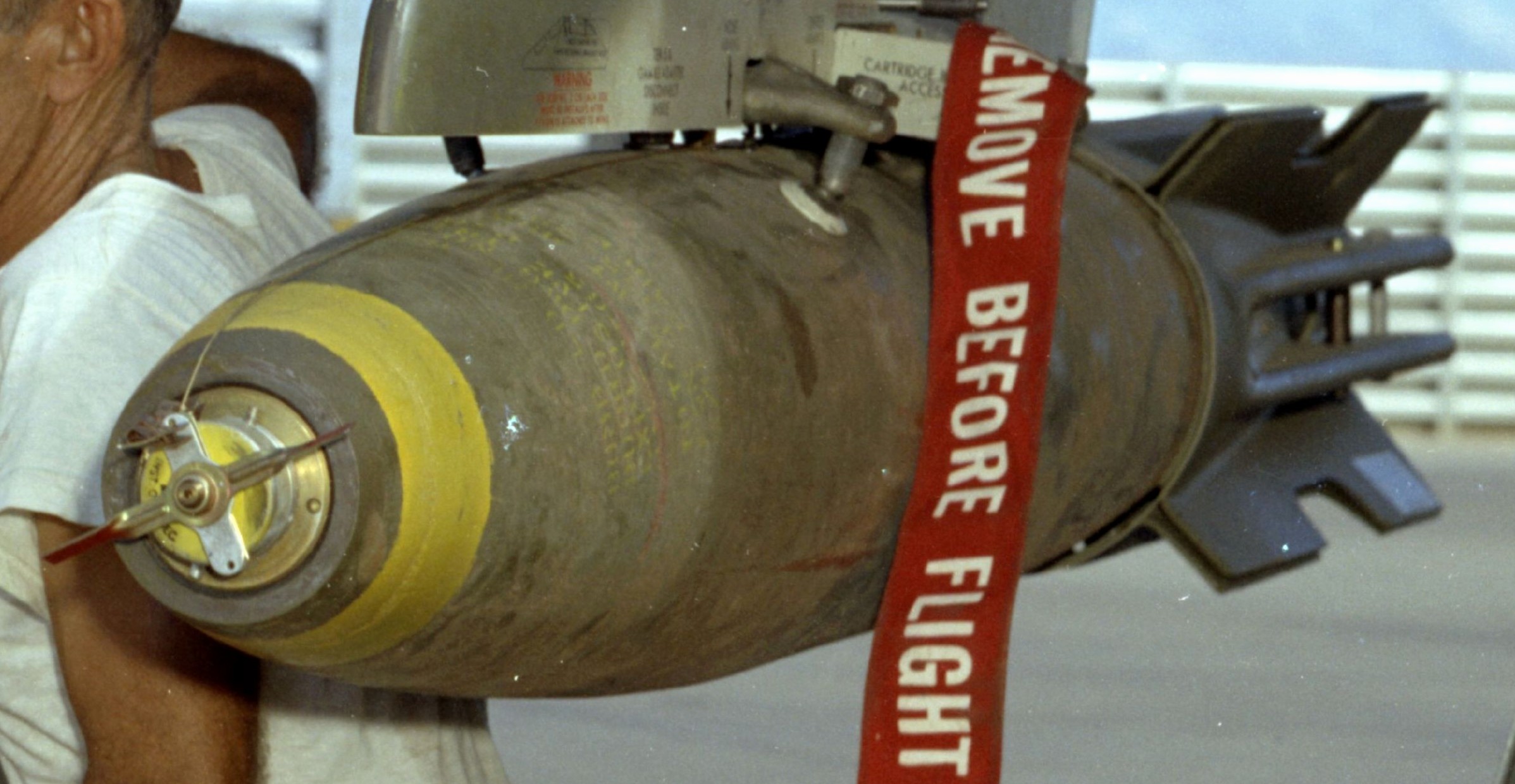

Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 07
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 08
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 05
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb


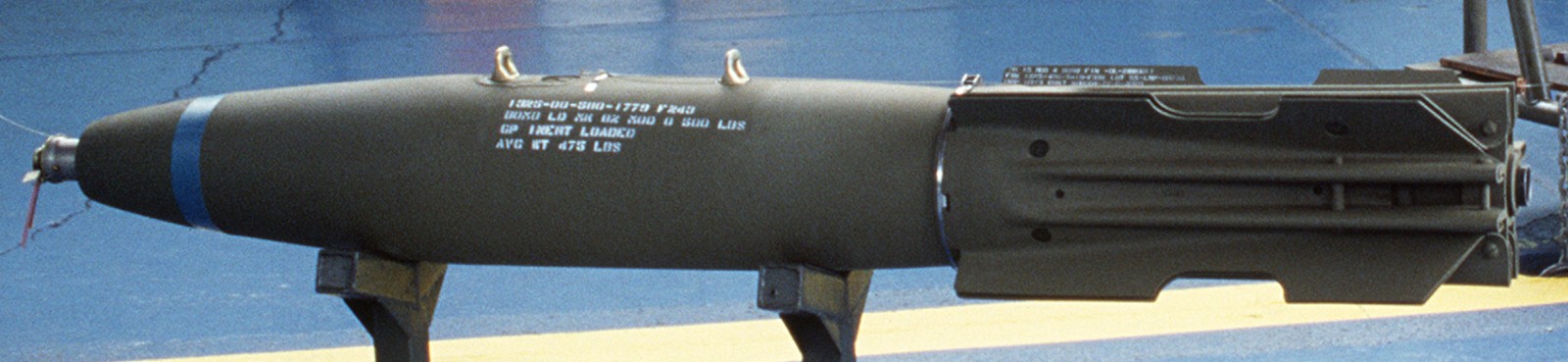

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 06
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 14
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb (practice)

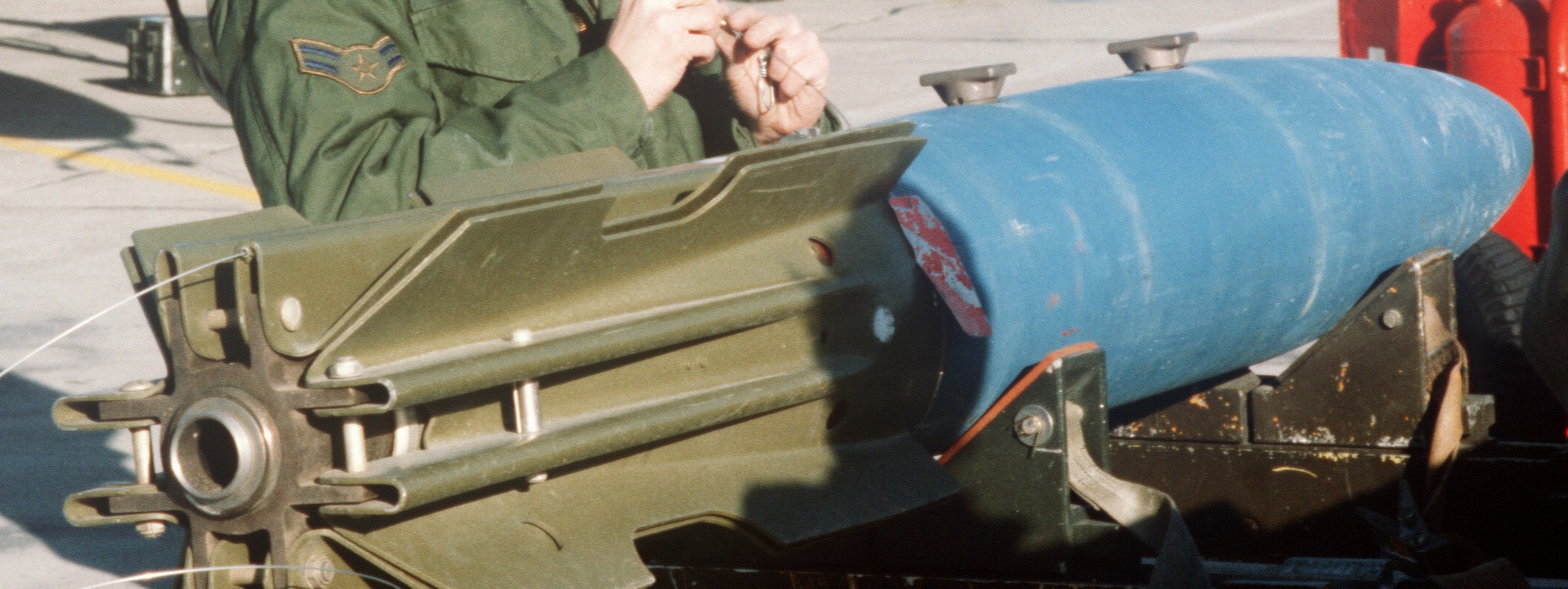

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 12
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 02
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb (practice)

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 03
Mark 82 / BLU-111 / BLU-126 / BLU-129 Snakeye high-drag general purpose bomb (practice)


mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag 10

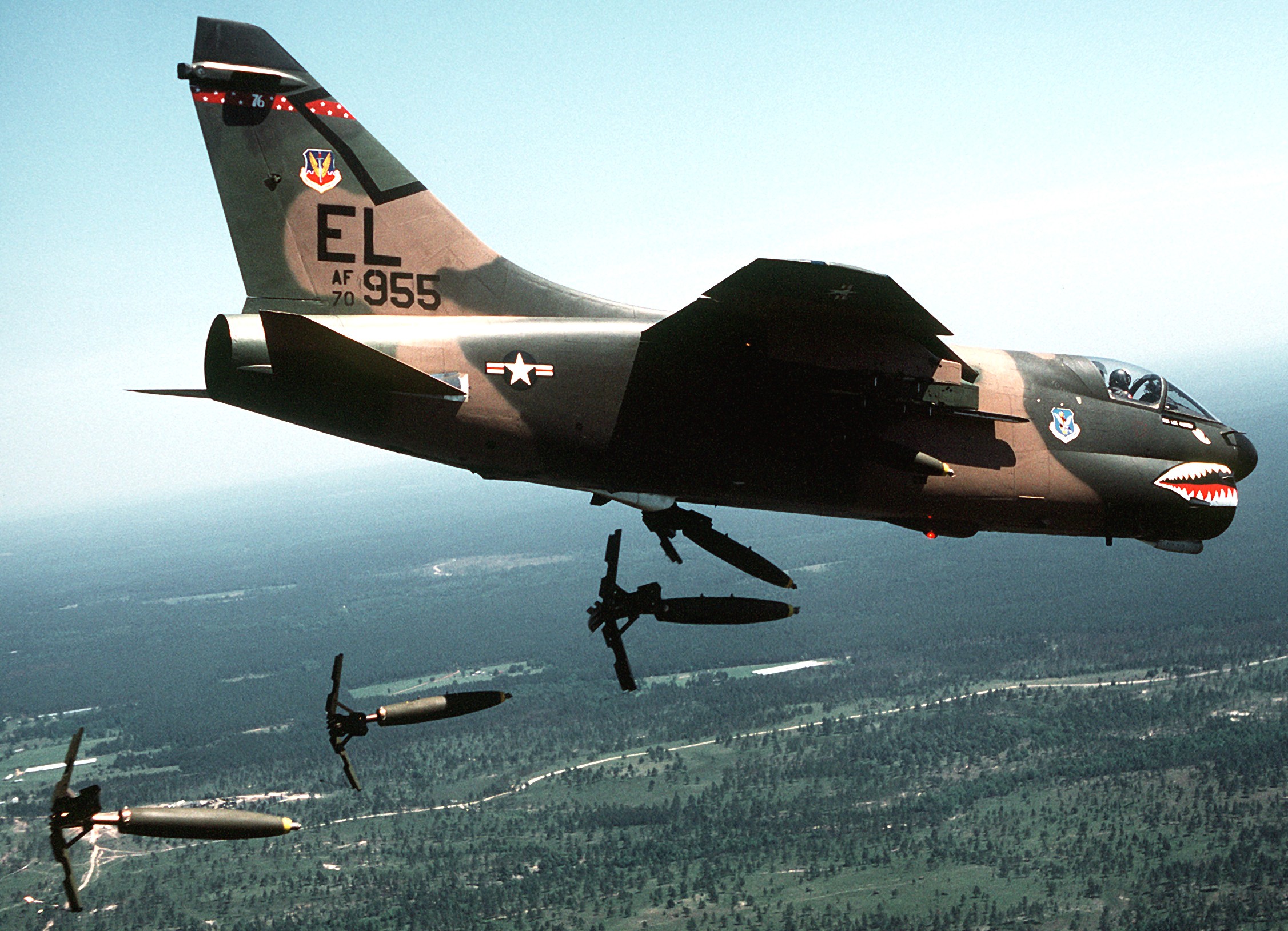

an USAF A-7 Corsair II drops Mark 82 Snakeye high-drag general purpose bombs

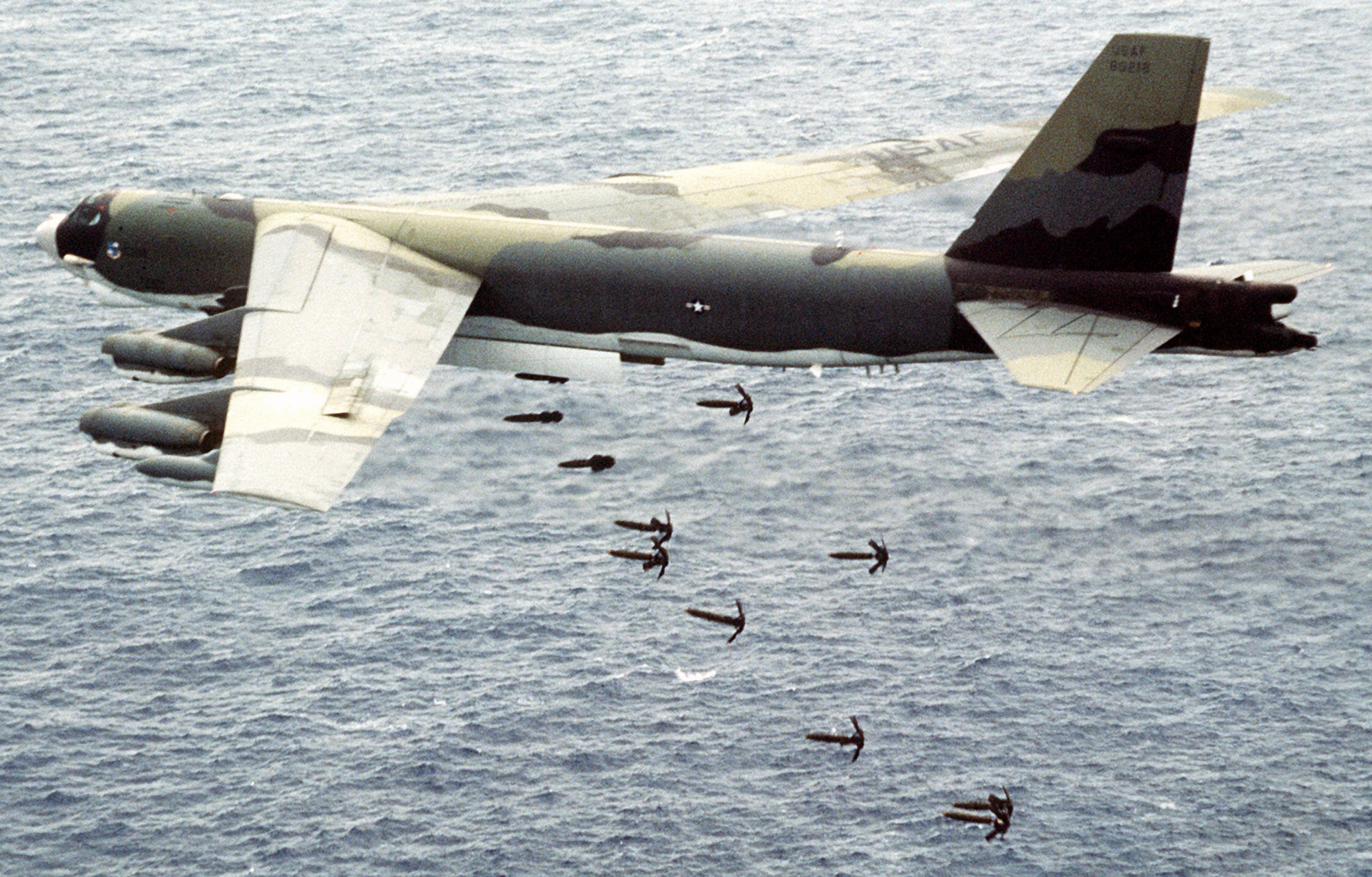

mark 82 mk.82 blu-111 blu-126 blu-129 snakeye general purpose bomb 500 lbs high-drag usaf b-52 stratofortress 11
an USAF B-52 Stratofortress drops Mark 82 Snakeye high-drag general purpose bombs



BLU-111A/B
500 lbs low drag general purpose bomb

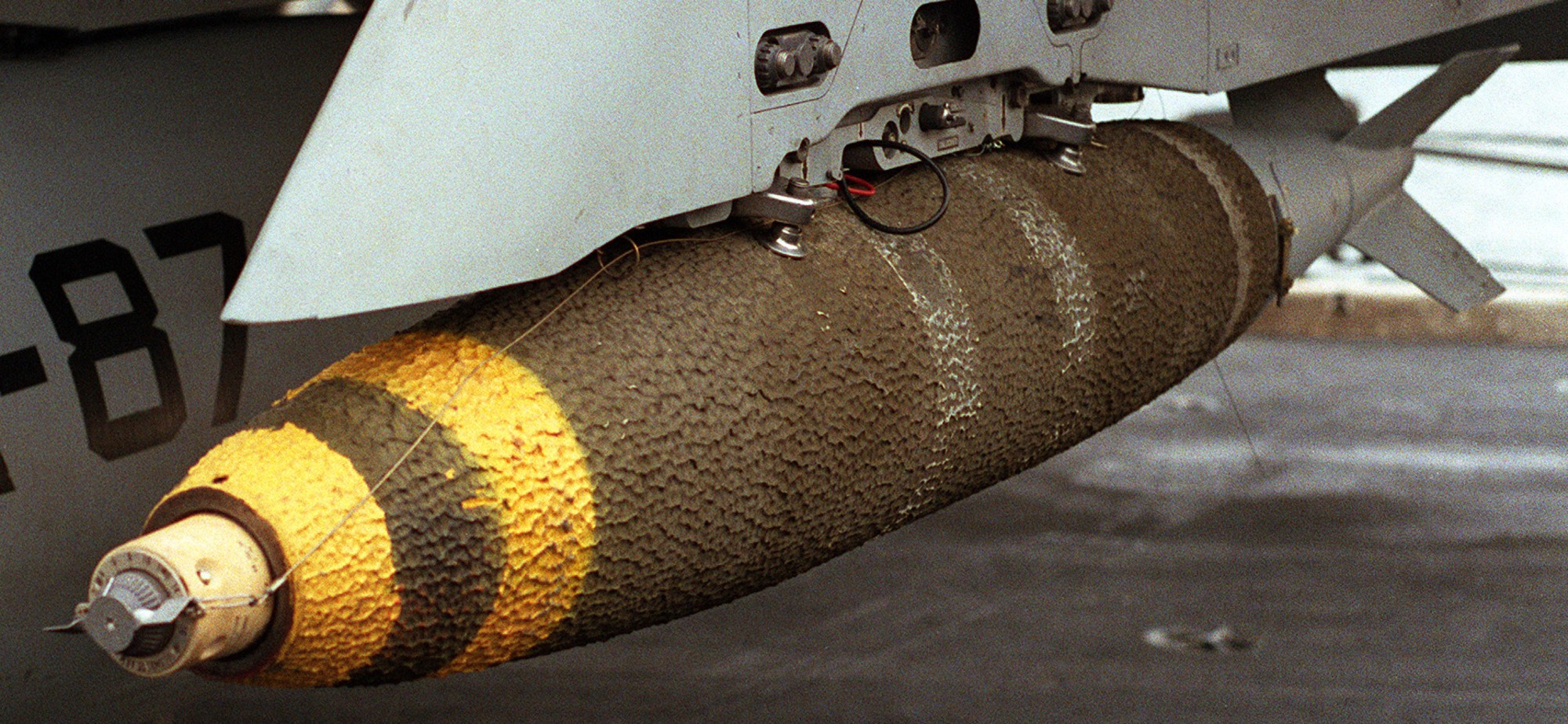

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 04
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 09

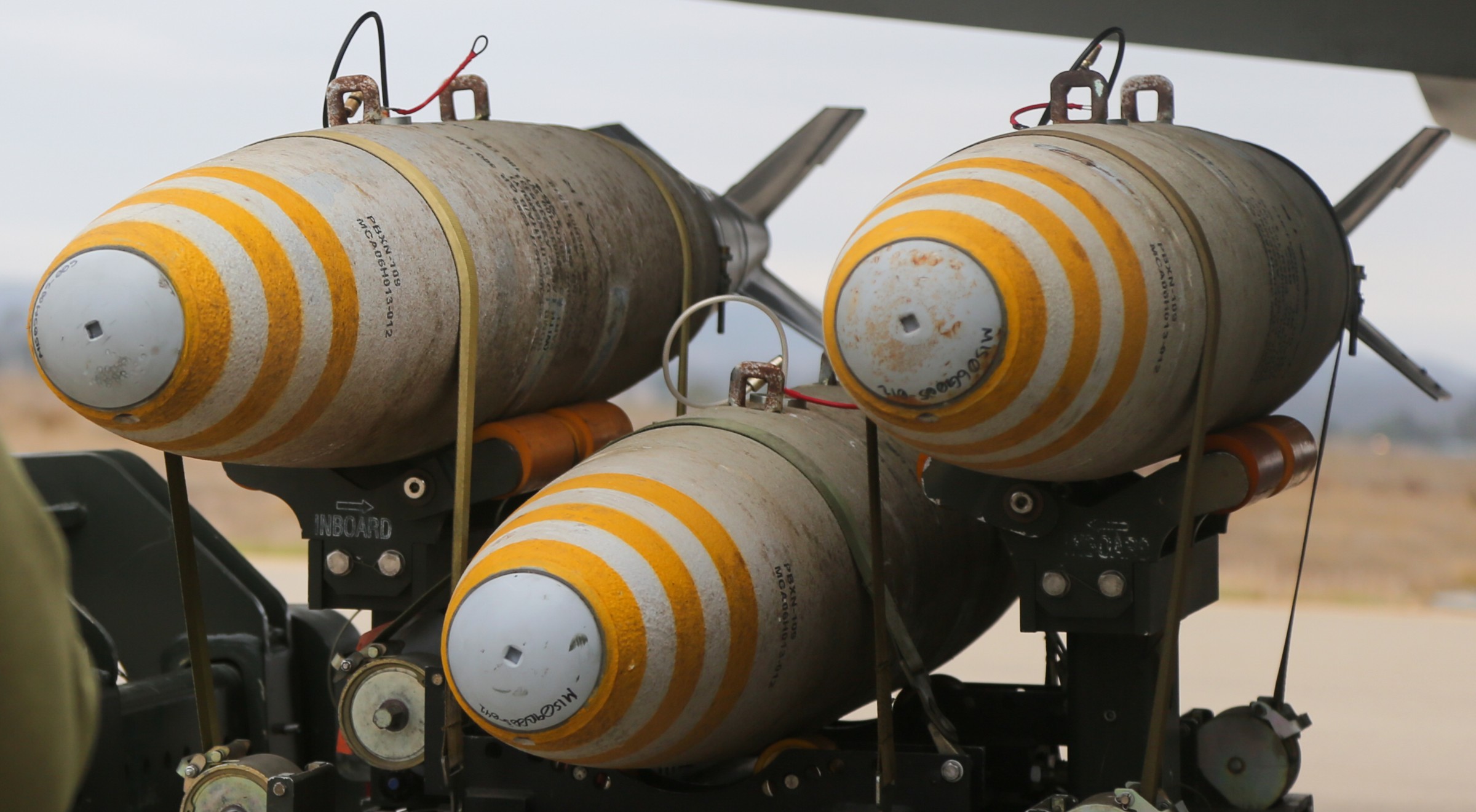

BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

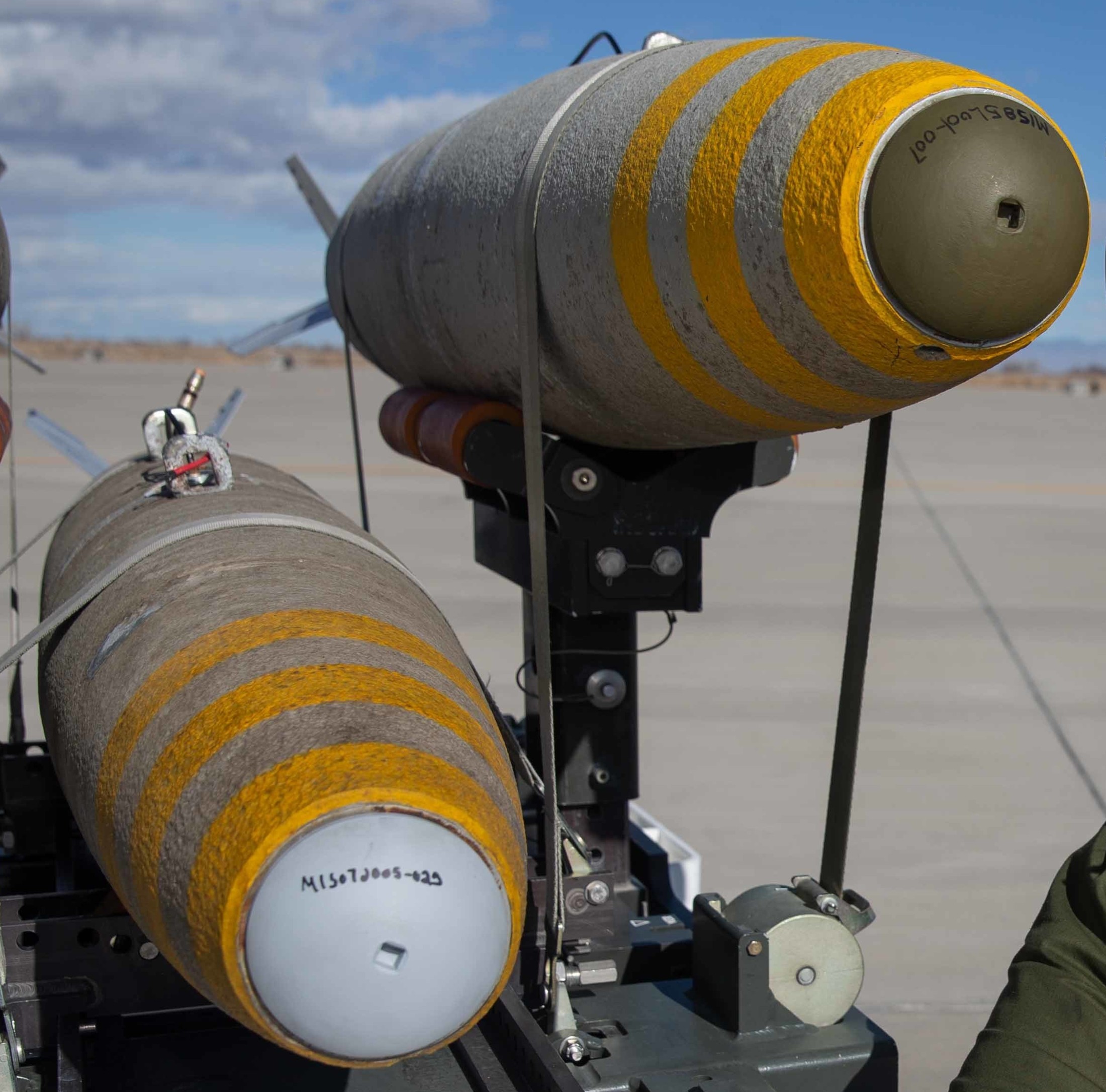

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 07
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

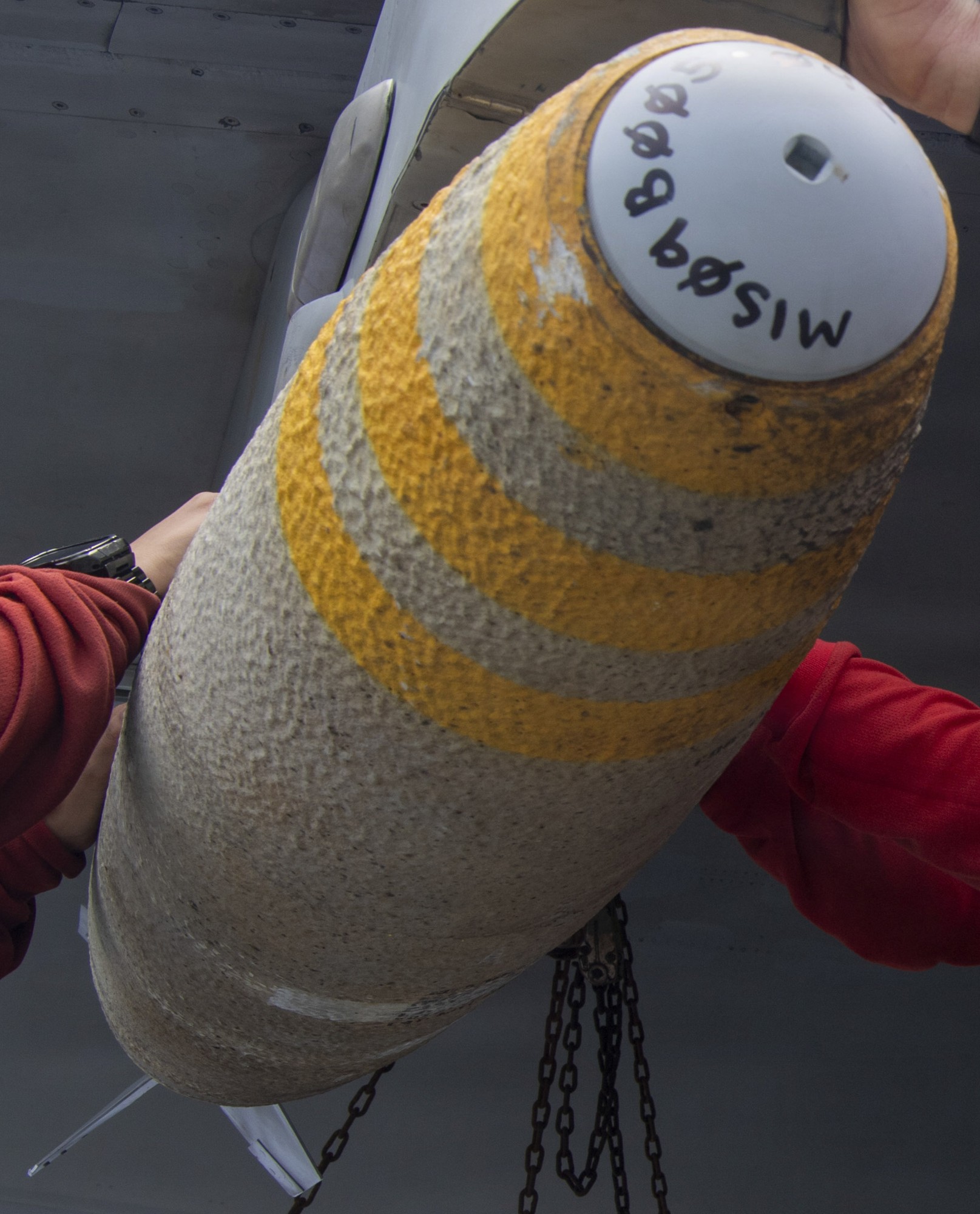

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 15
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

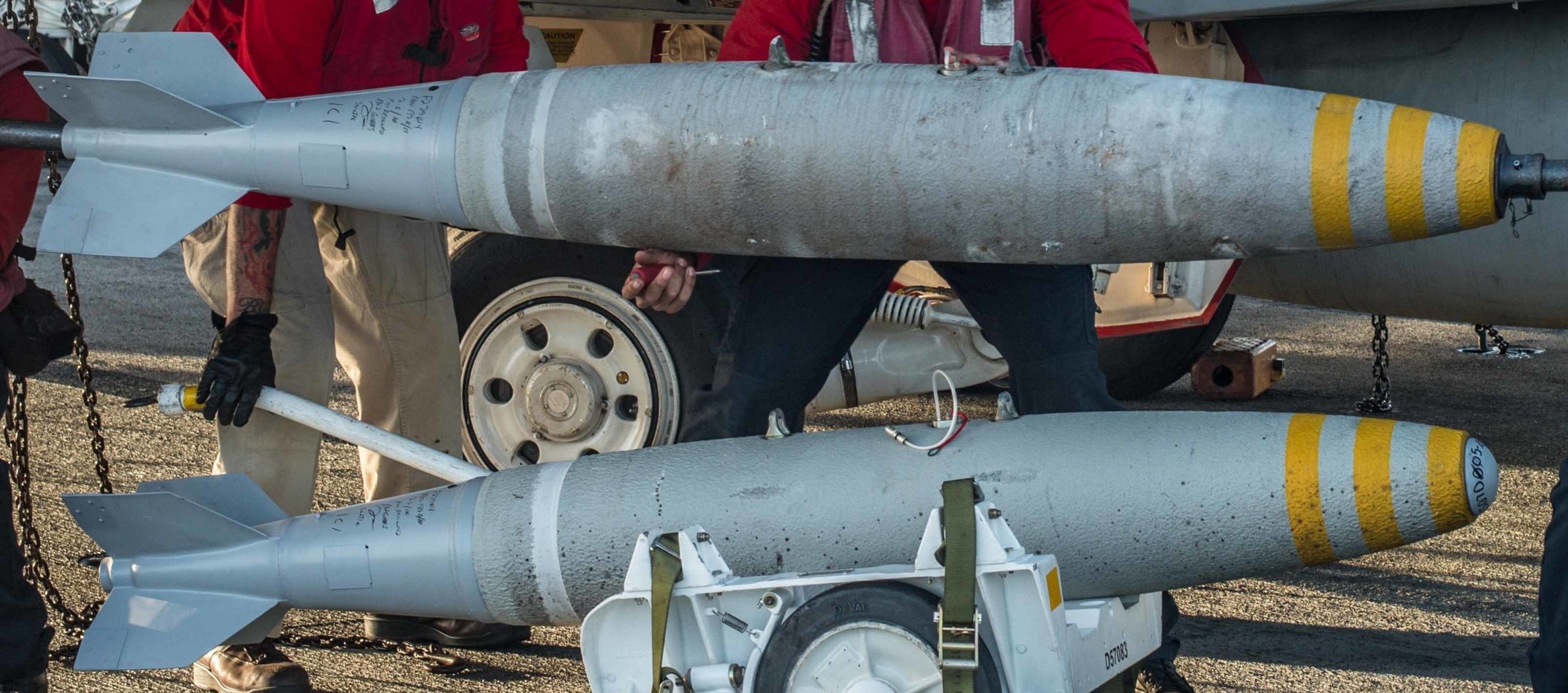

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 02
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

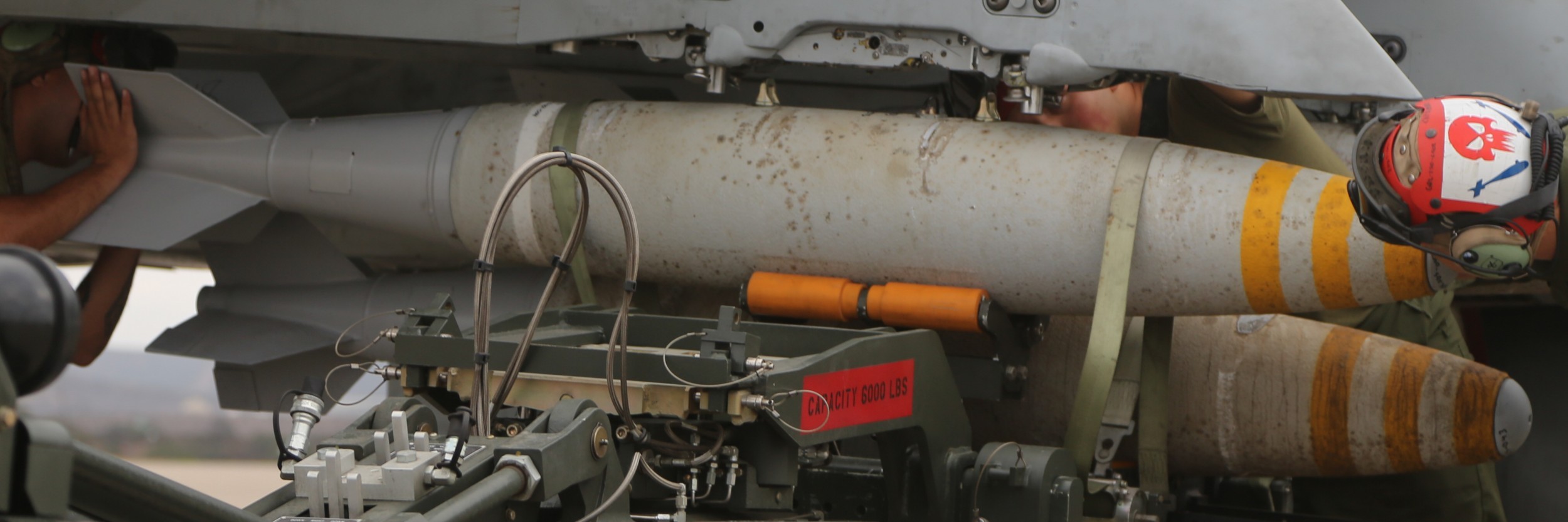

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 10
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 21
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

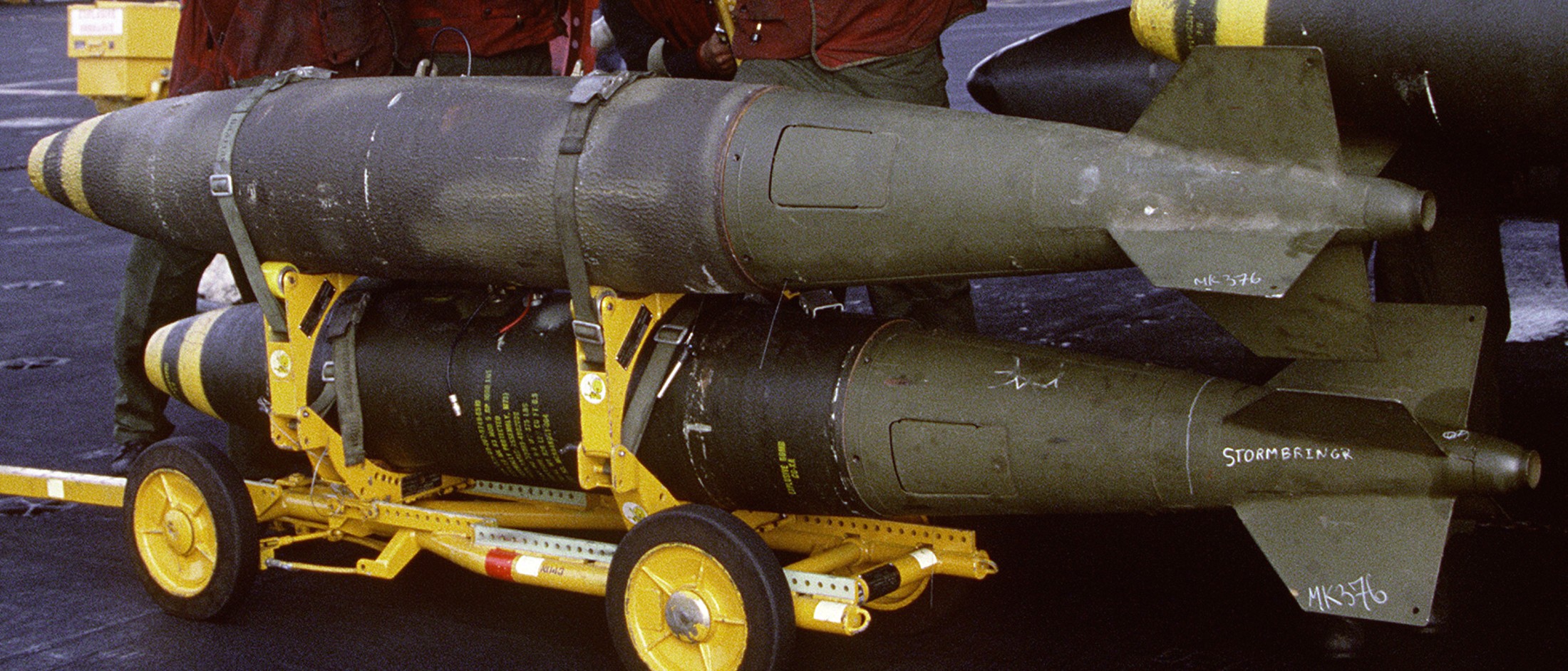

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 50
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 06
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

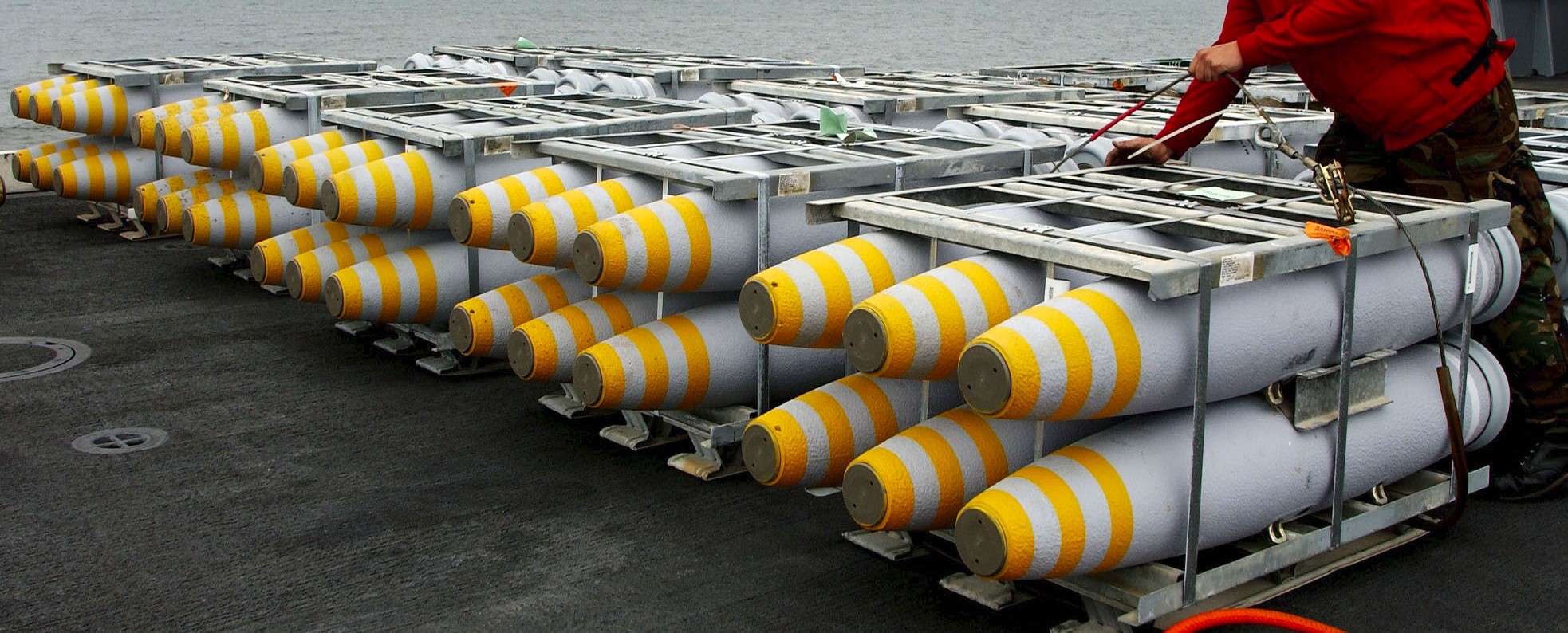

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 11
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

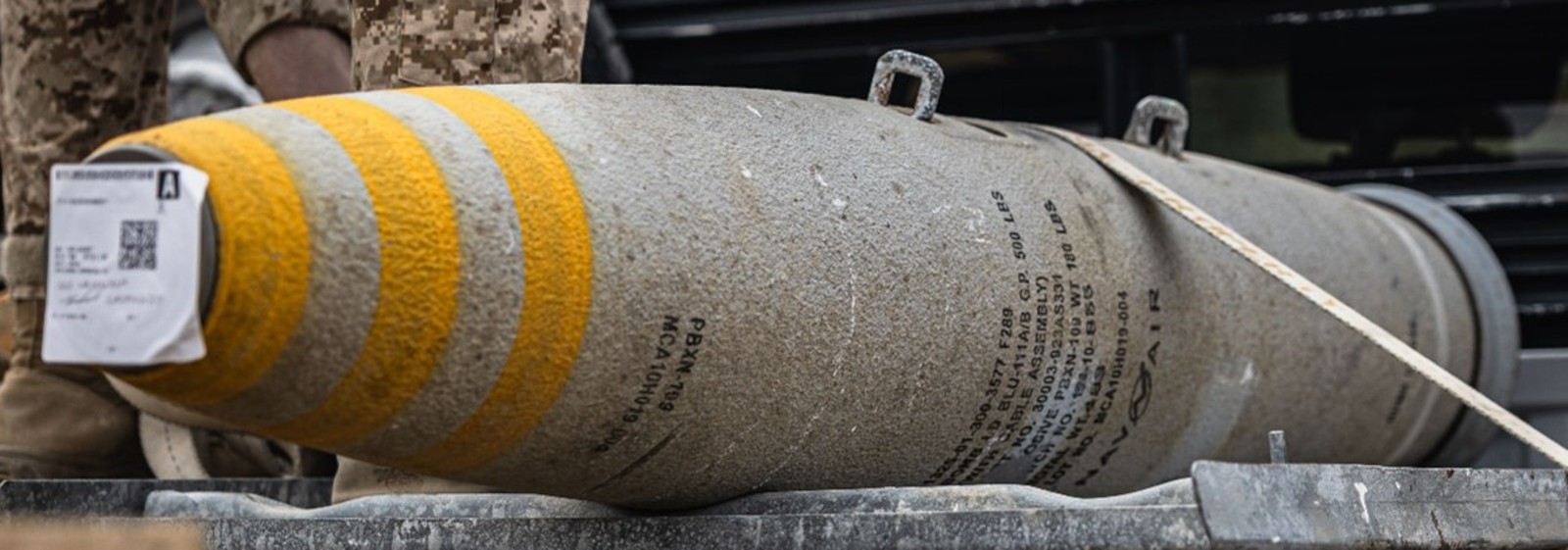

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 08
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

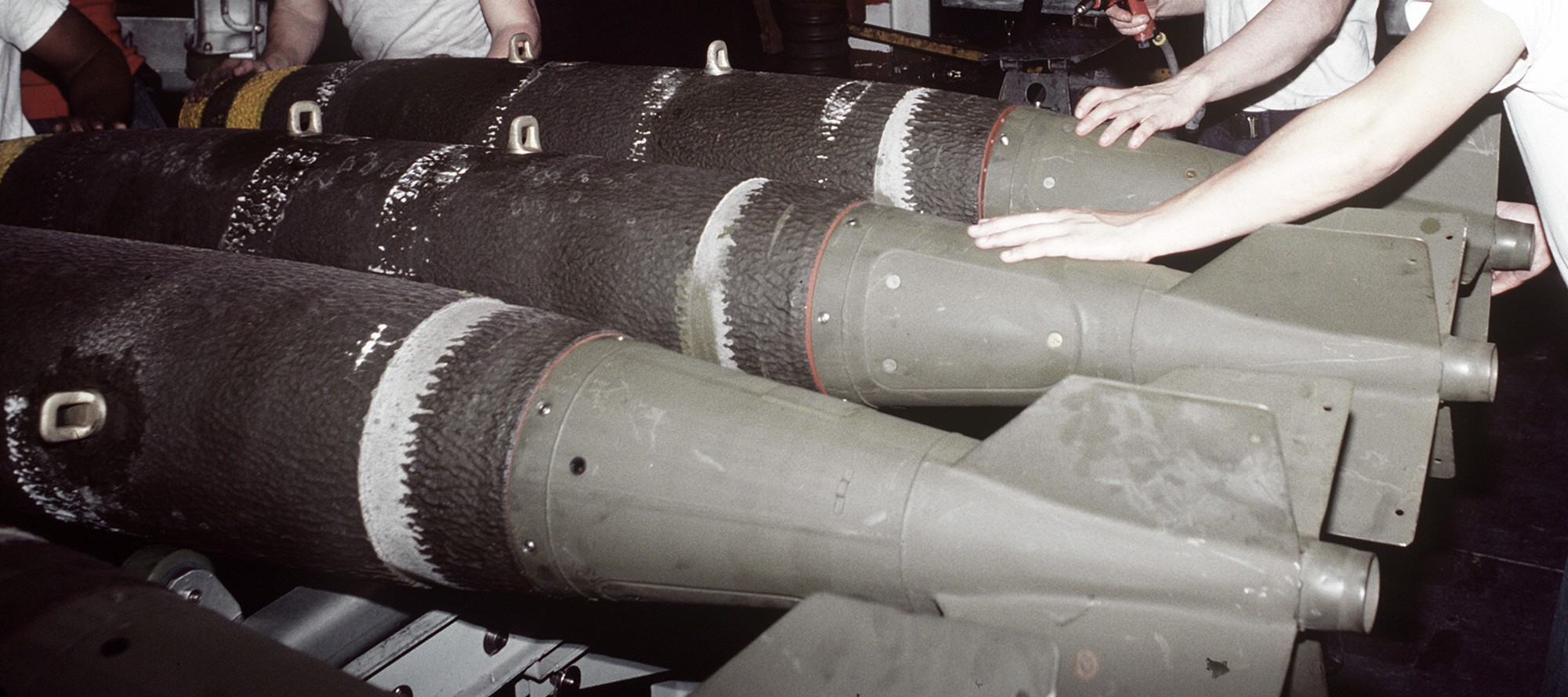

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 18
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy fuze delay timer 14

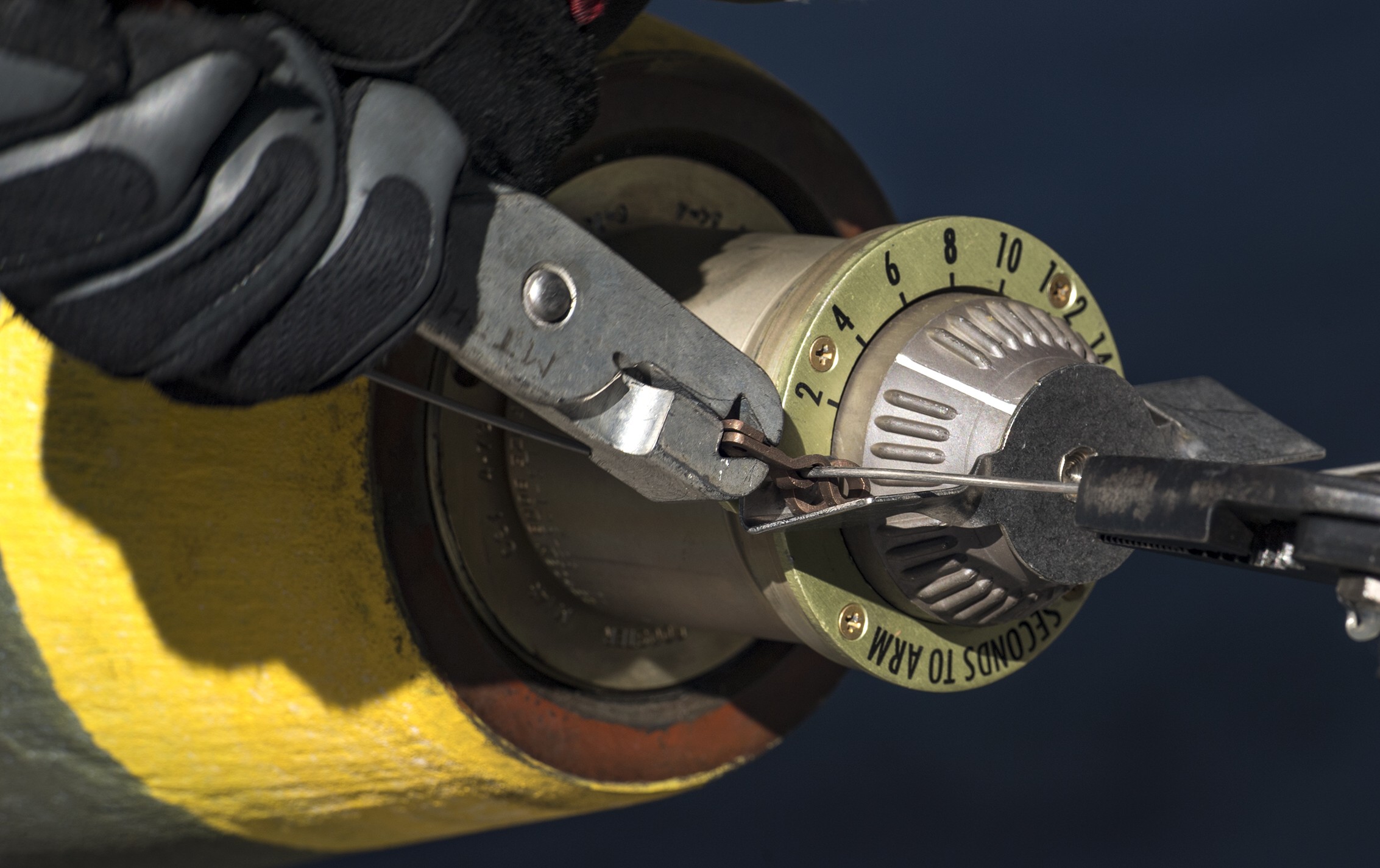

BLU-111A/B 500 lbs general purpose bomb fuze delay (Navy - with thermal-protective coating)

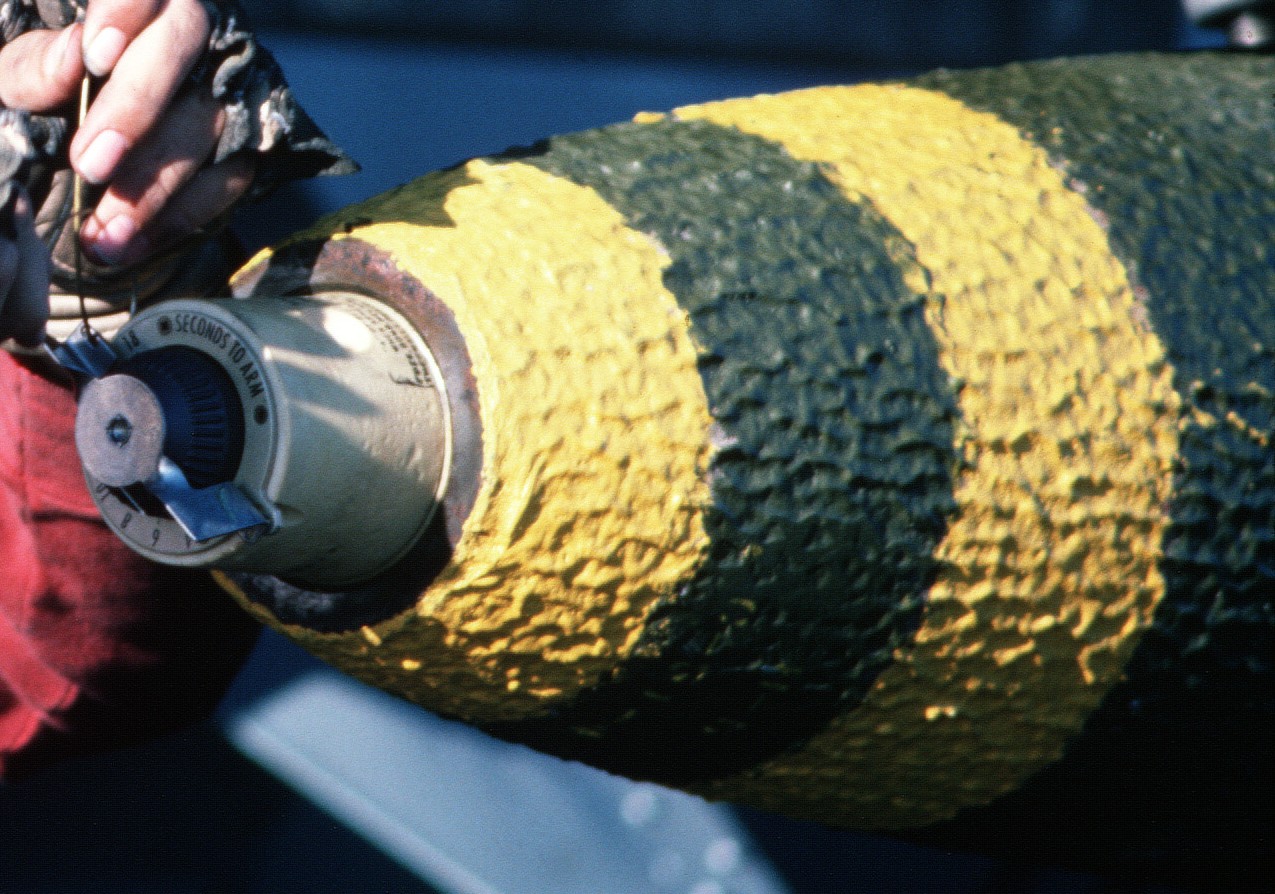

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 05
BLU-111A/B 500 lbs general purpose bomb fuze delay (Navy - with thermal-protective coating)


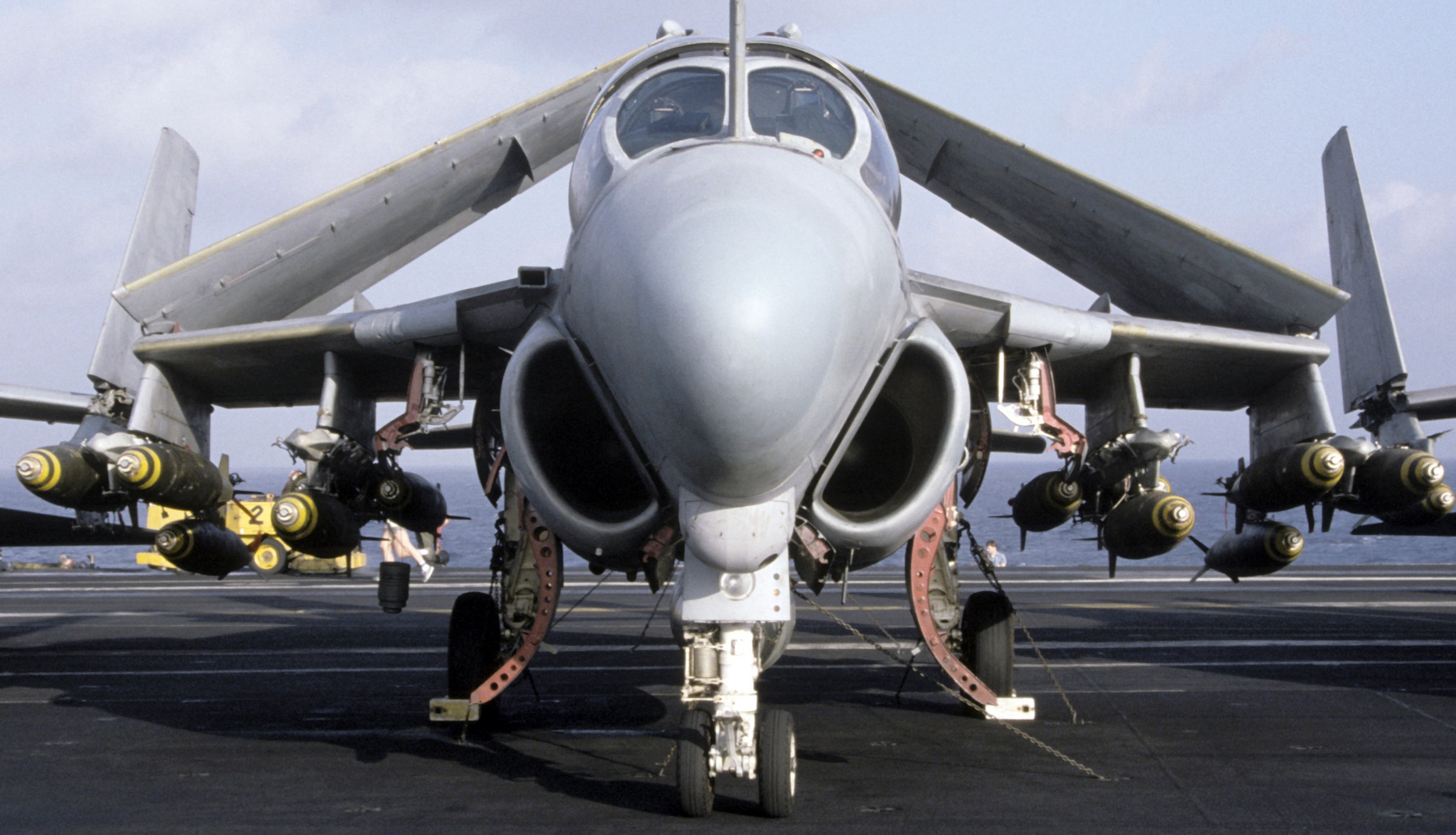

blu-111a/b general purpose bomb 500 lbs low drag mk.82 navy 16
BLU-111A/B 500 lbs general purpose bomb (Navy - with thermal-protective coating) on an US Navy A-6E Intruder



BLU-111A/B Snakeye
500 lbs high drag general purpose bomb
blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy 04
BLU-111A/B Snakeye 500 lbs high drag general purpose bomb (Navy - with thermal-protective coating)

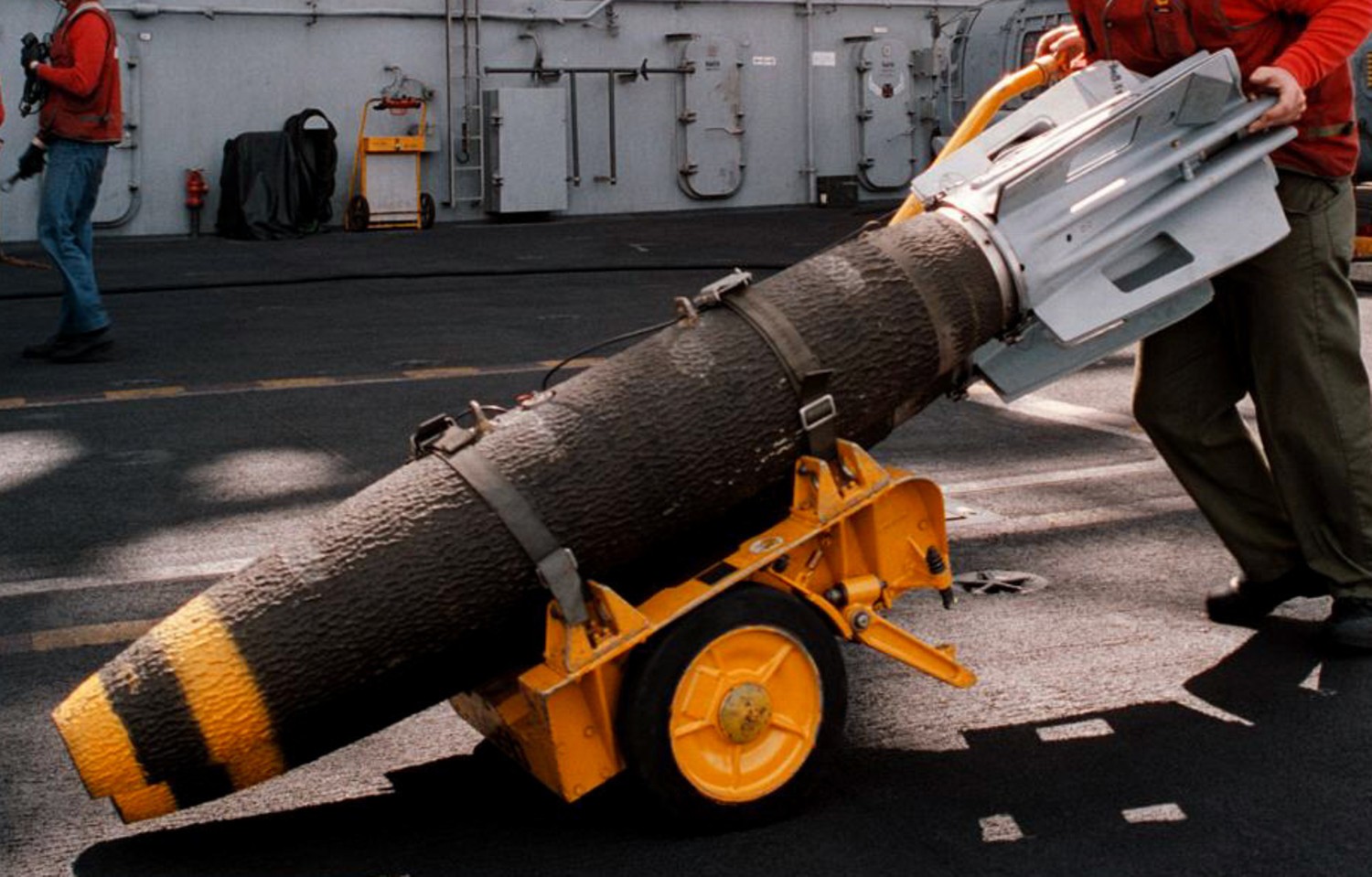

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy 05
BLU-111A/B Snakeye 500 lbs high drag general purpose bomb (Navy - with thermal-protective coating)

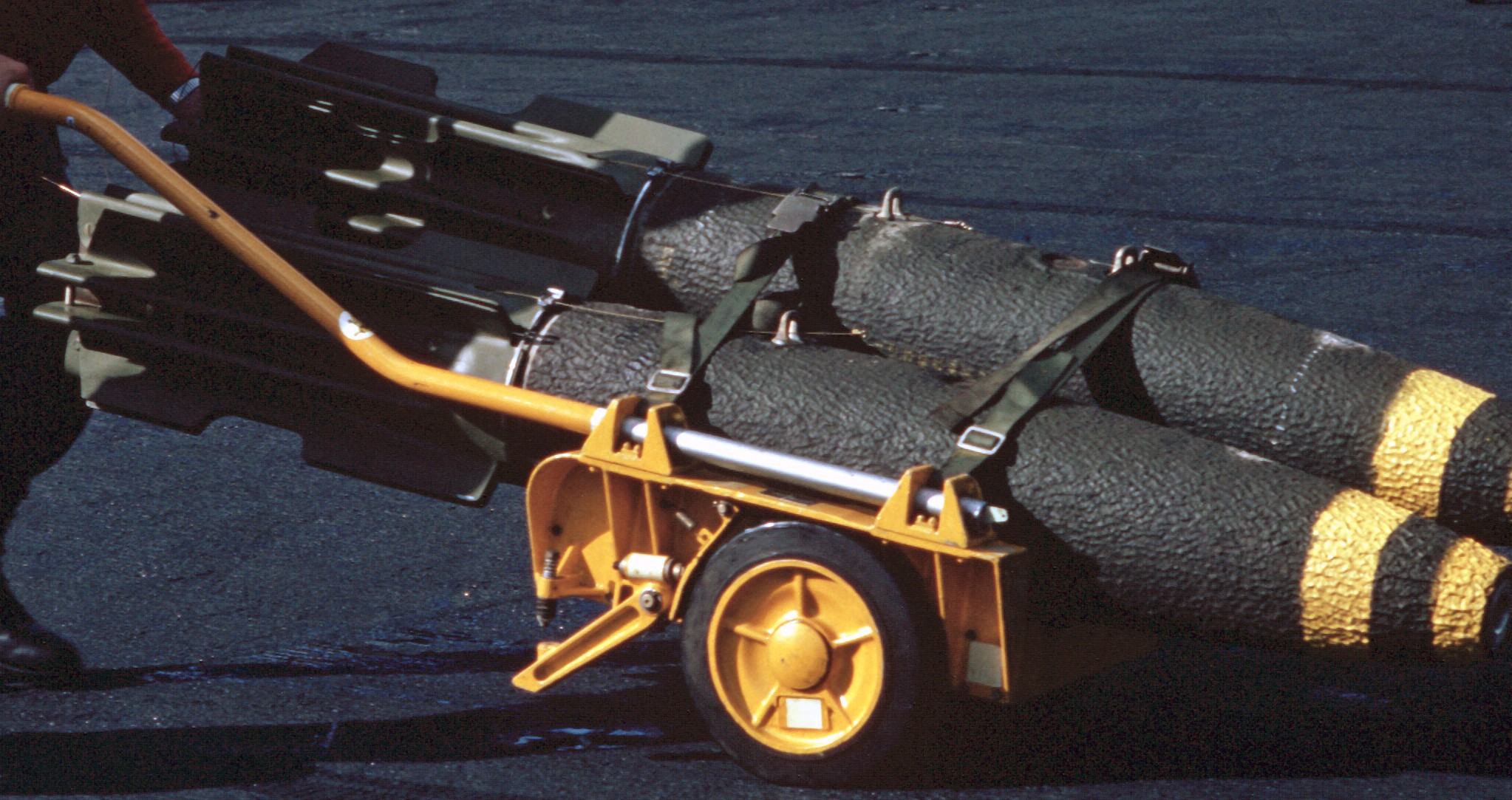

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy 02
BLU-111A/B Snakeye 500 lbs high drag general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy 03

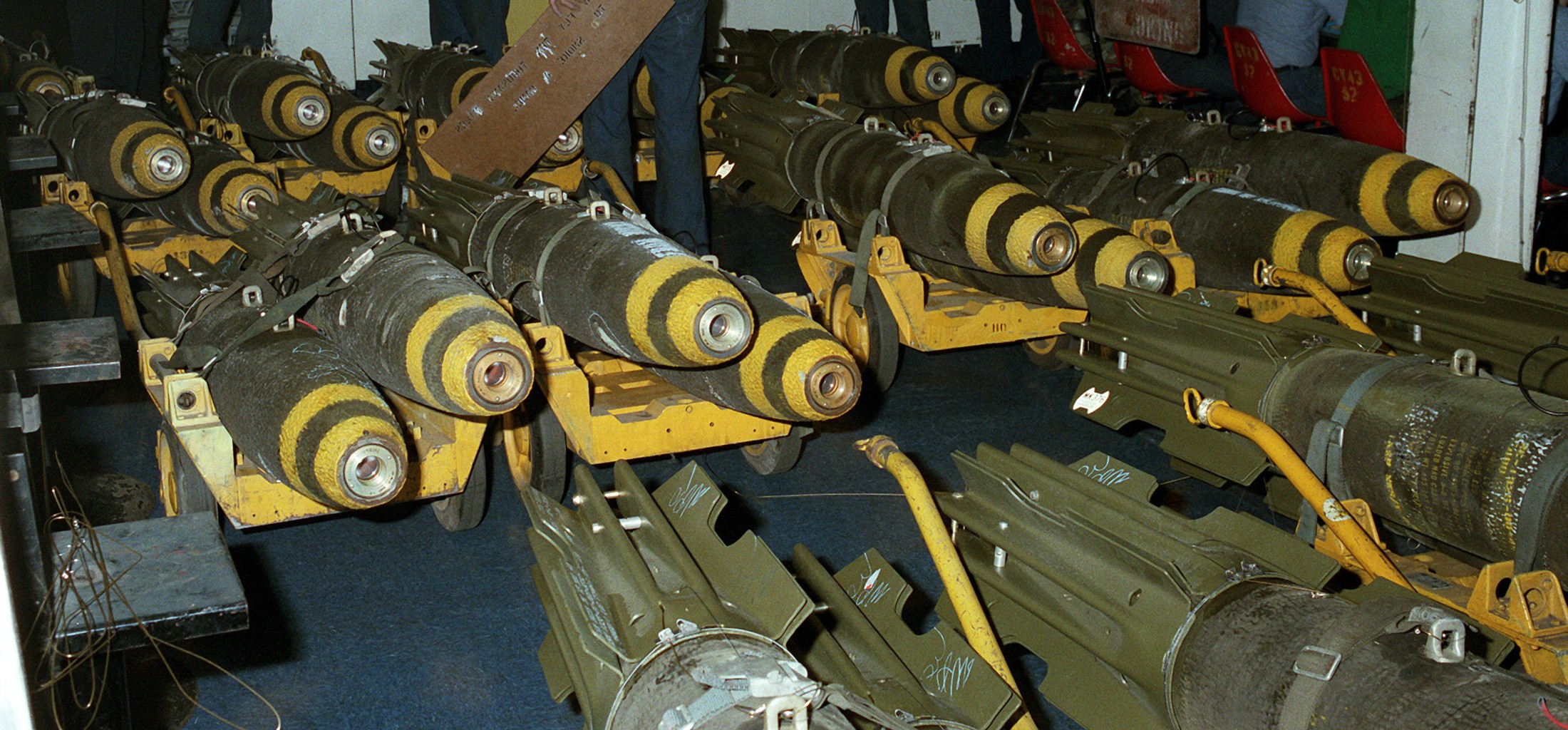

BLU-111A/B Snakeye 500 lbs high drag general purpose bomb (Navy - with thermal-protective coating)

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy 08
BLU-111A/B Snakeye 500 lbs high drag general purpose bomb (Navy - with thermal-protective coating)


blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy a-4 skyhawk 06

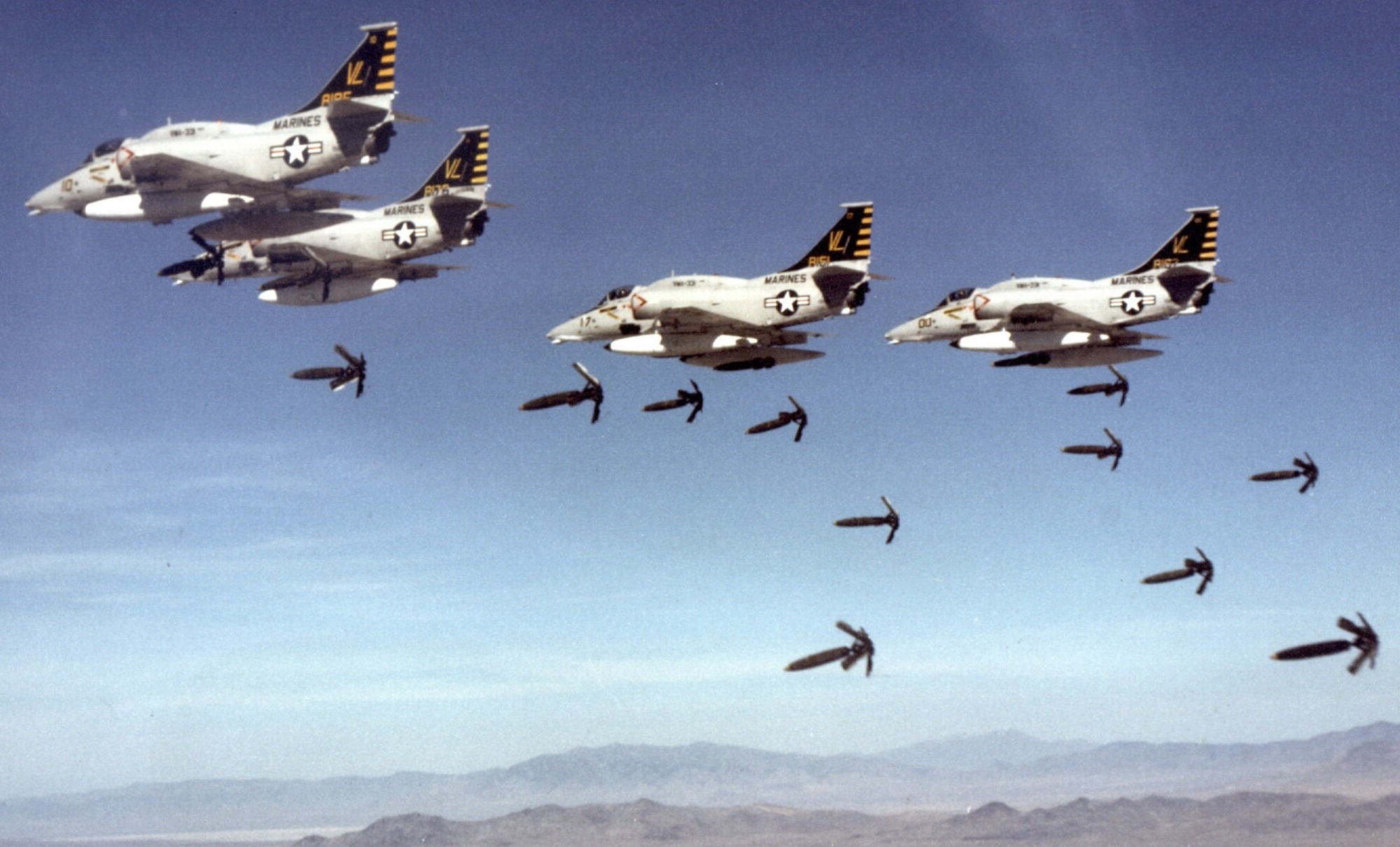

US Navy A-4 Skyhawks dropping BLU-111A/B Snakeye bombs

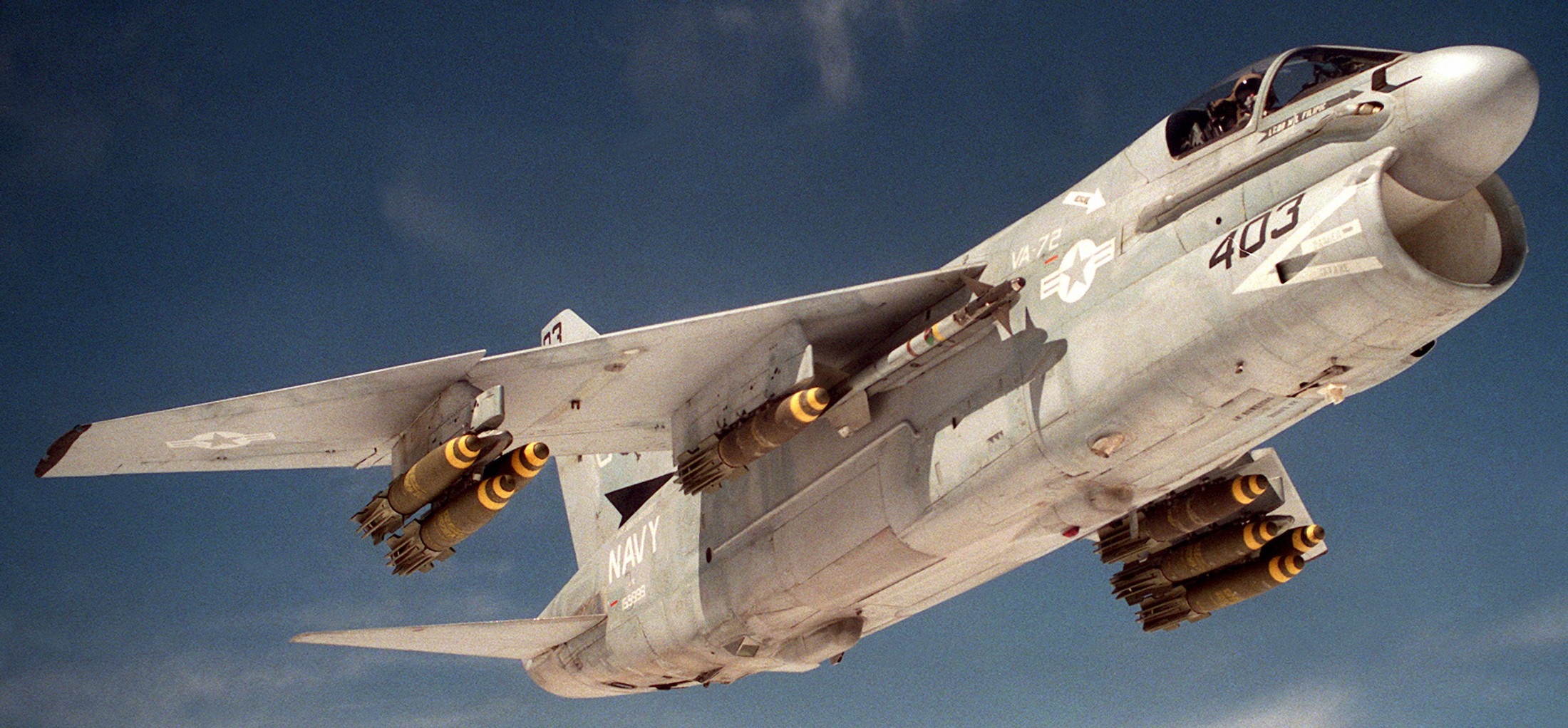

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy a-7 corsair 07
US Navy A-7 Corsair II - loaded with BLU-111A/B Snakeye bombs

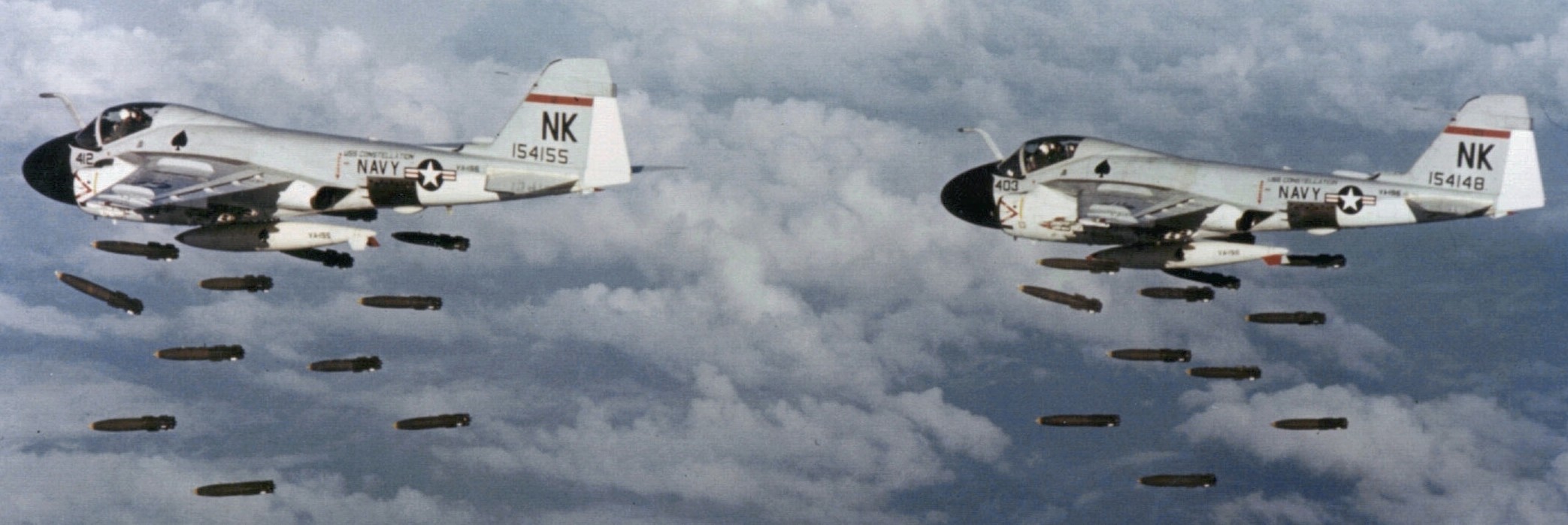

blu-111a/b snakeye general purpose bomb 500 lbs high-drag mk.82 navy a-6e intruder 17
US Navy A-6E Intruders dropping BLU-111A/B Snakeye bombs without activating the air-brake mechanism



Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute")
500 lbs high drag general purpose bomb

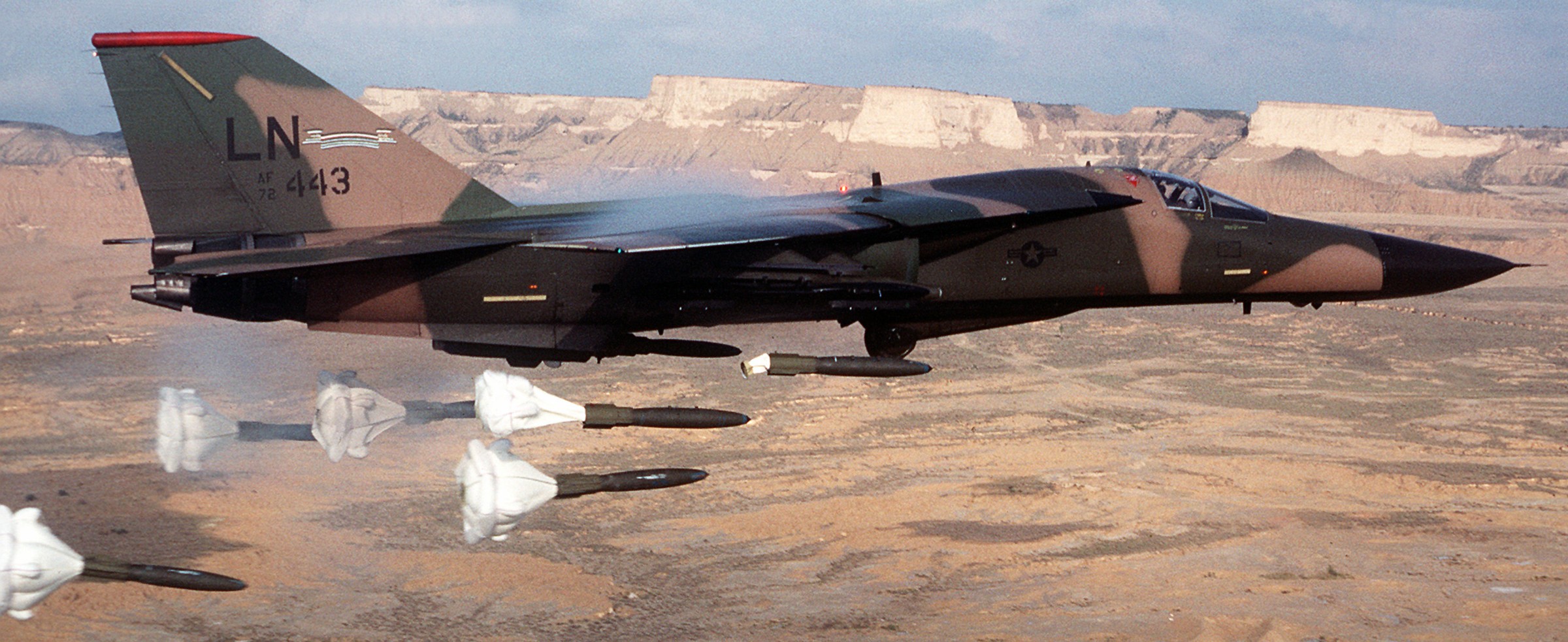

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 04
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bombs - launched from an USAF F-111 Aardvark

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force f-111 aardvark 07

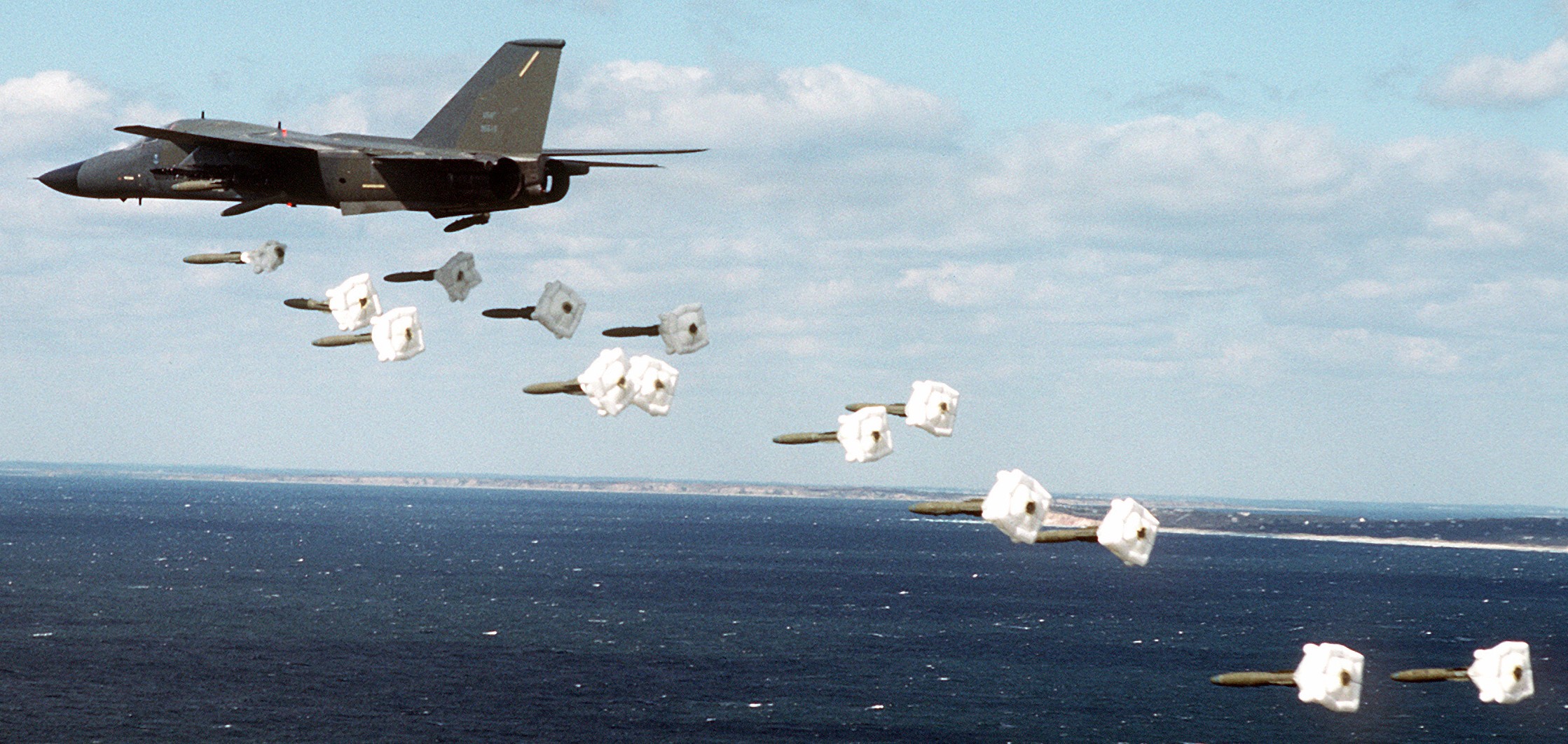

Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bombs - launched from an USAF F-111 Aardvark

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 05

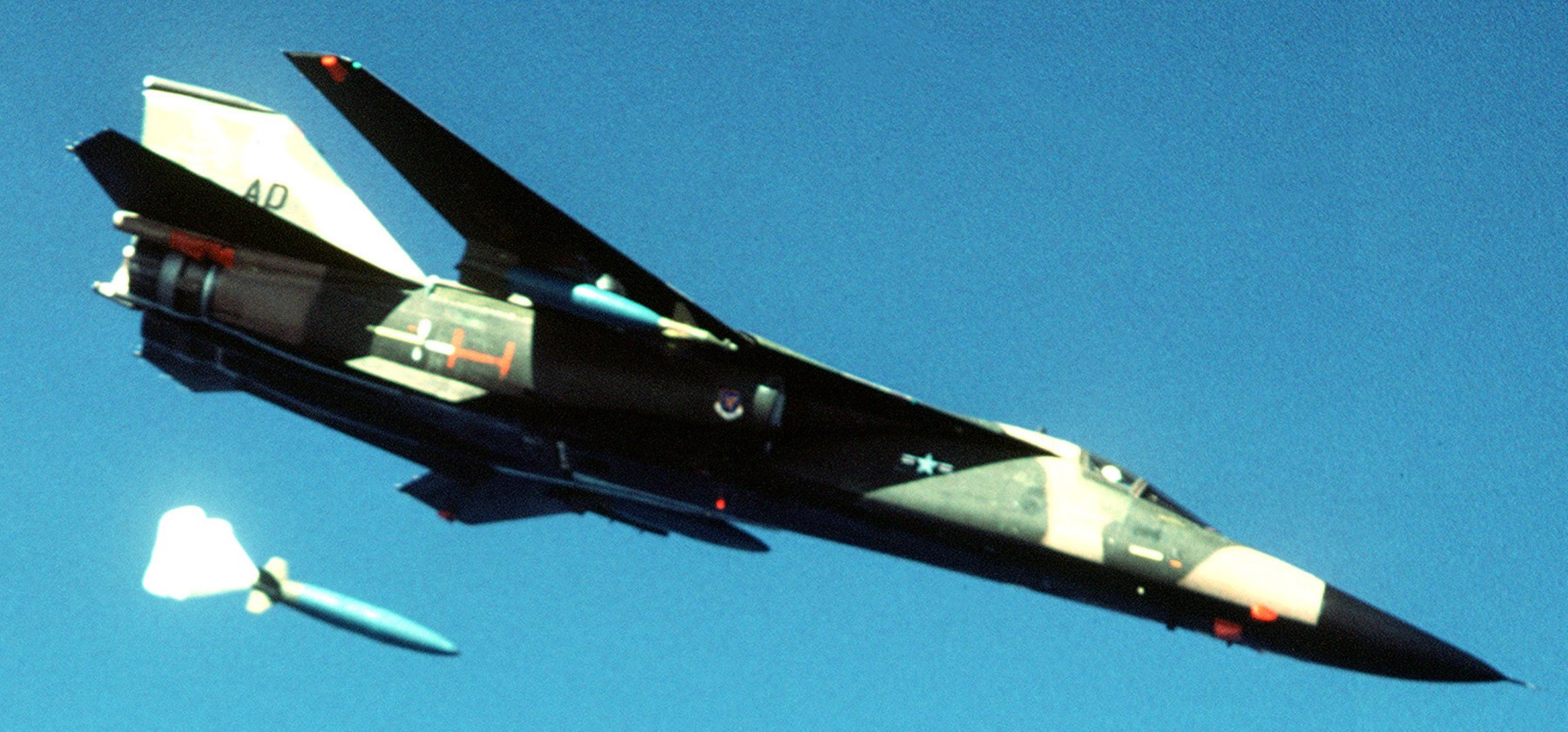

Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb - launched from an USAF F-111 Aardvark

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 02

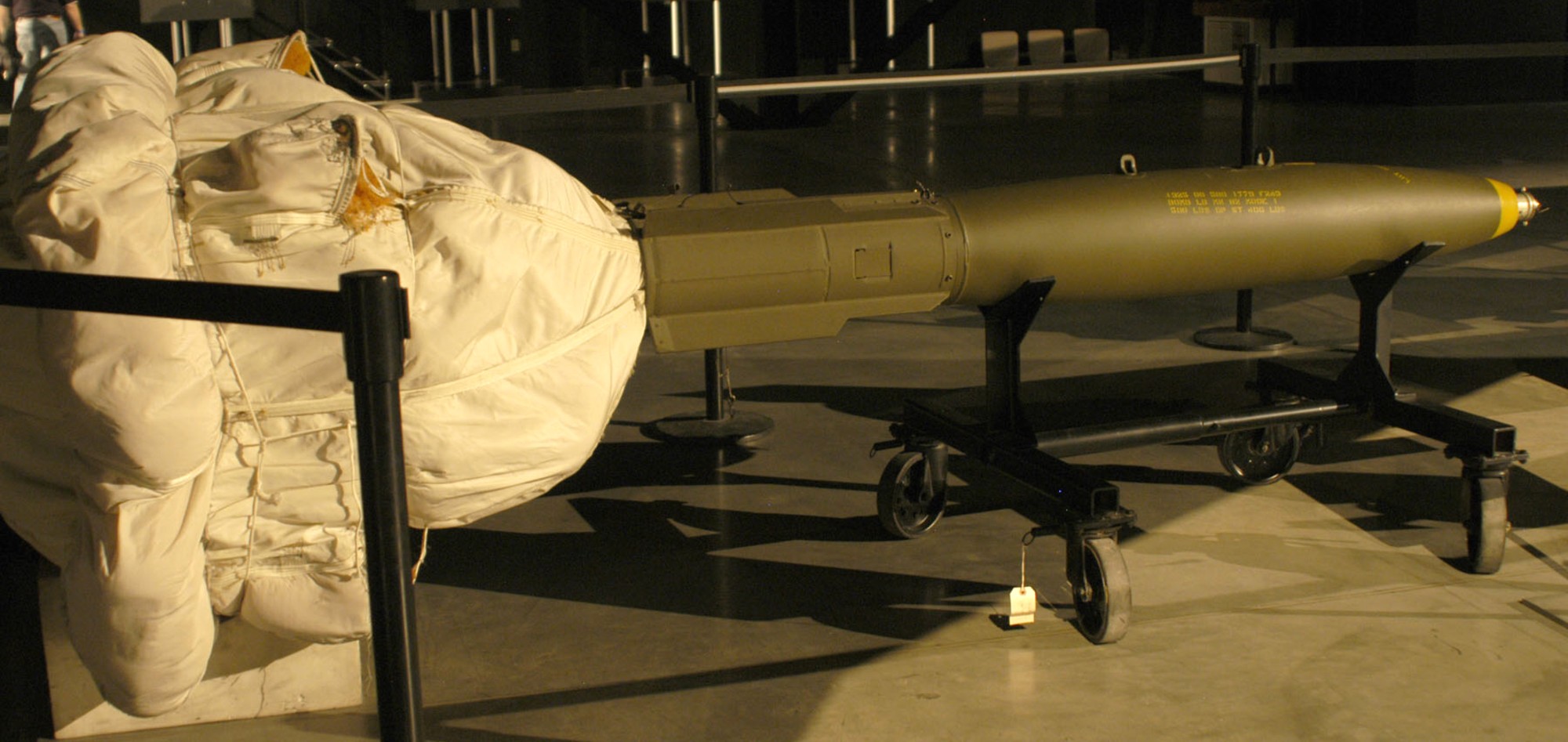

Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb

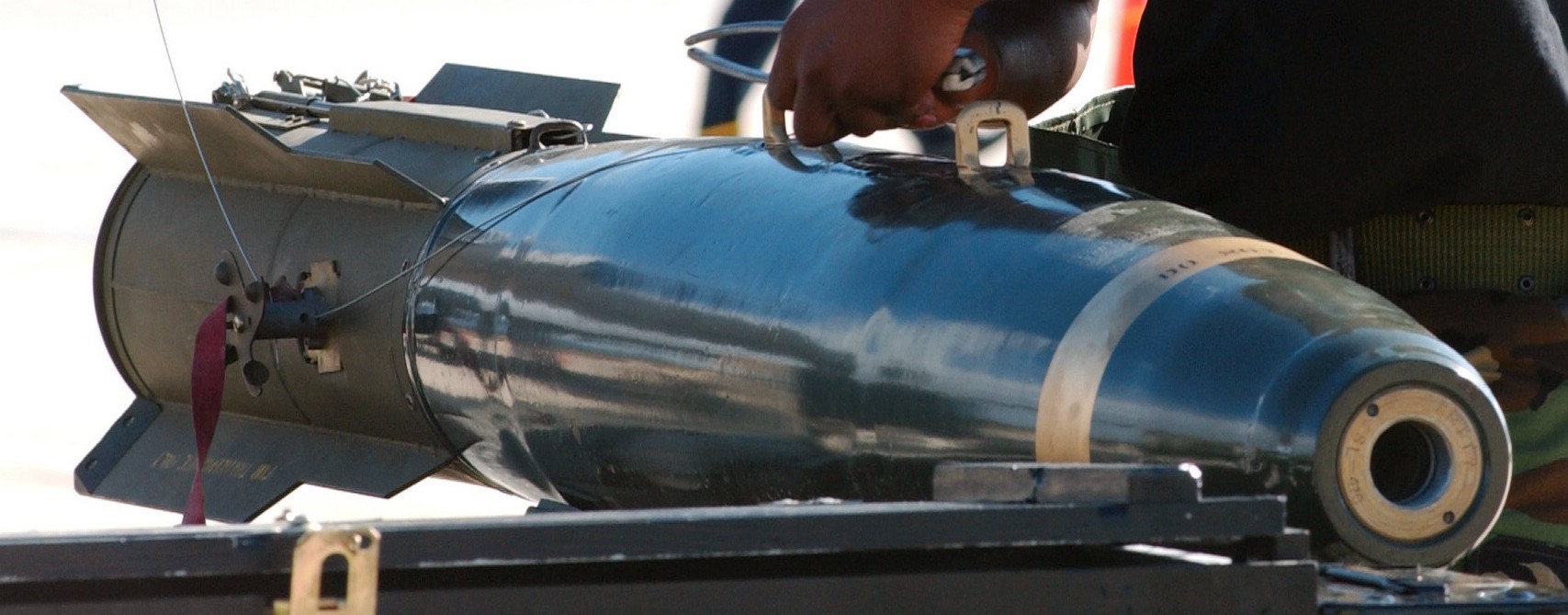

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 11
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb

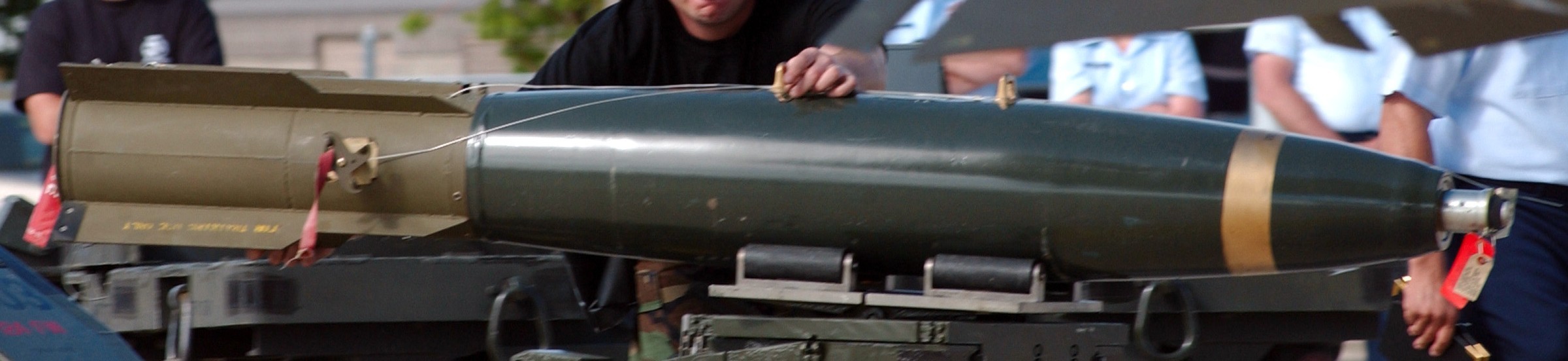

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 10
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 03
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 09
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb (practice)

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 08
Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb (practice)

mark 82 mk.82 air general purpose bomb 500 lbs high-drag air inflatable retarder ballute navy air force 06

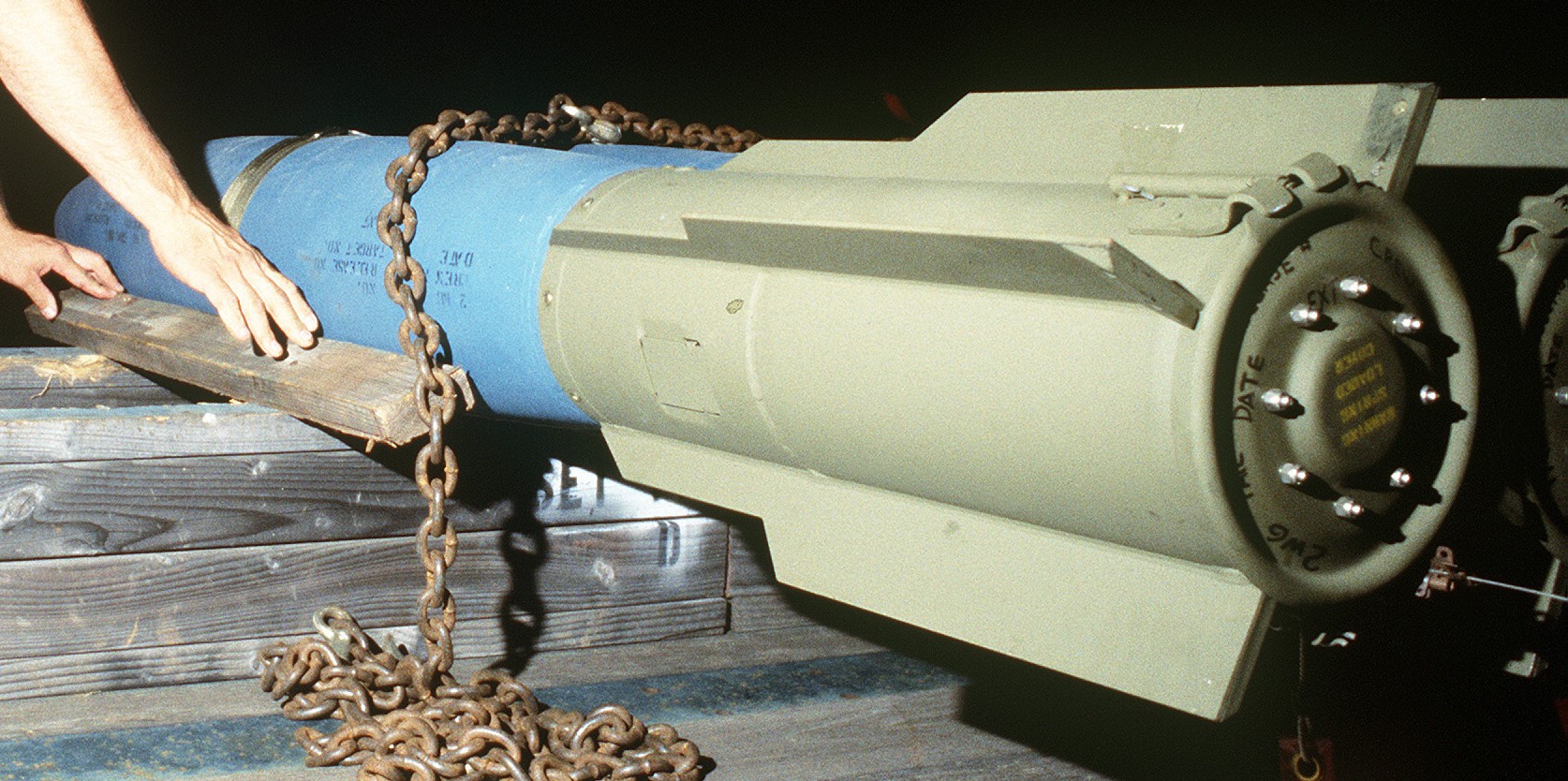

Mark 82 AIR (with BSU-49 Air Inflatable Retarder / "ballute") 500 lbs high drag general purpose bomb (practice)



BLU-110
1000 lbs general purpose bomb
blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 02
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 03
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 04

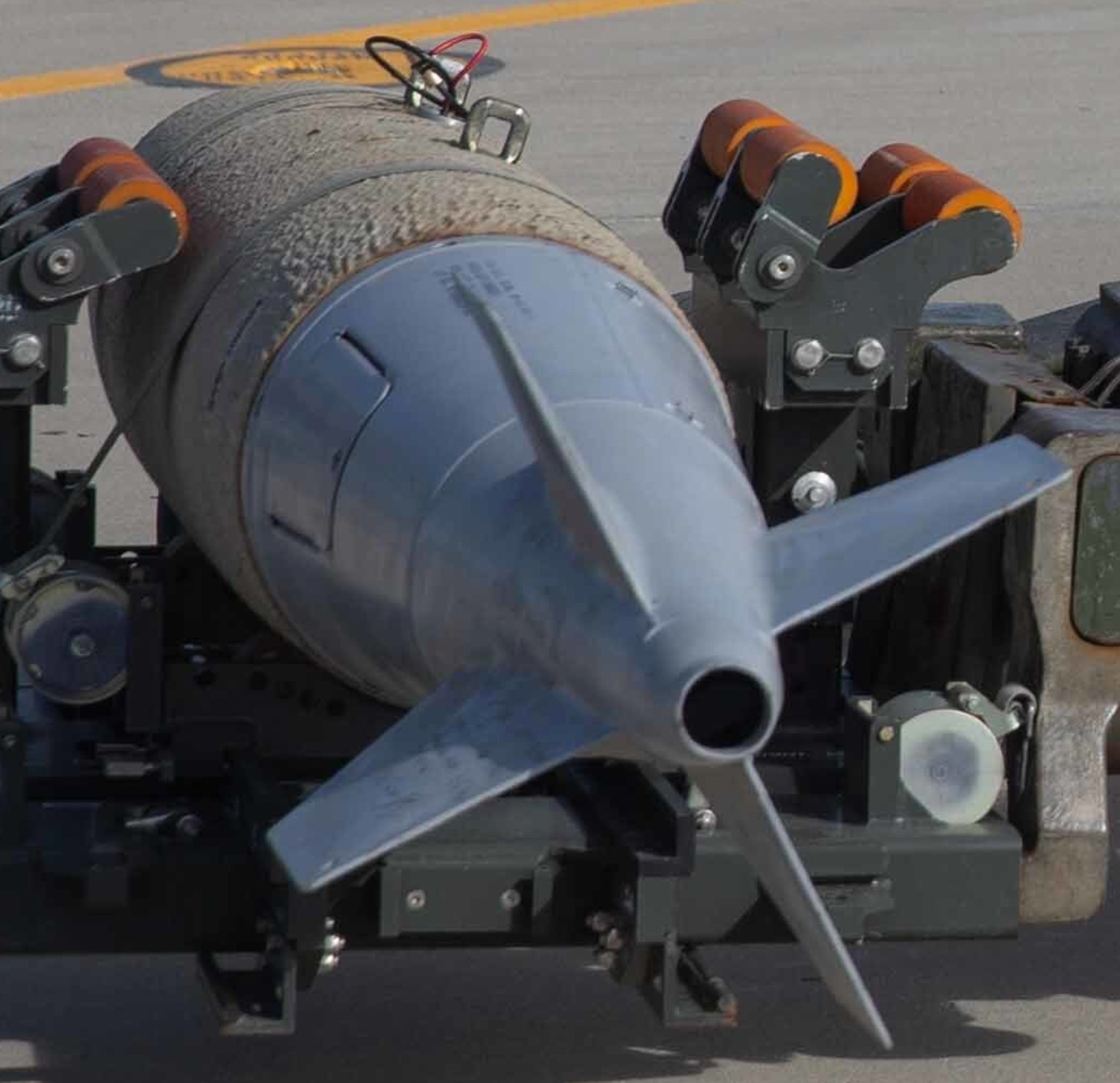

BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

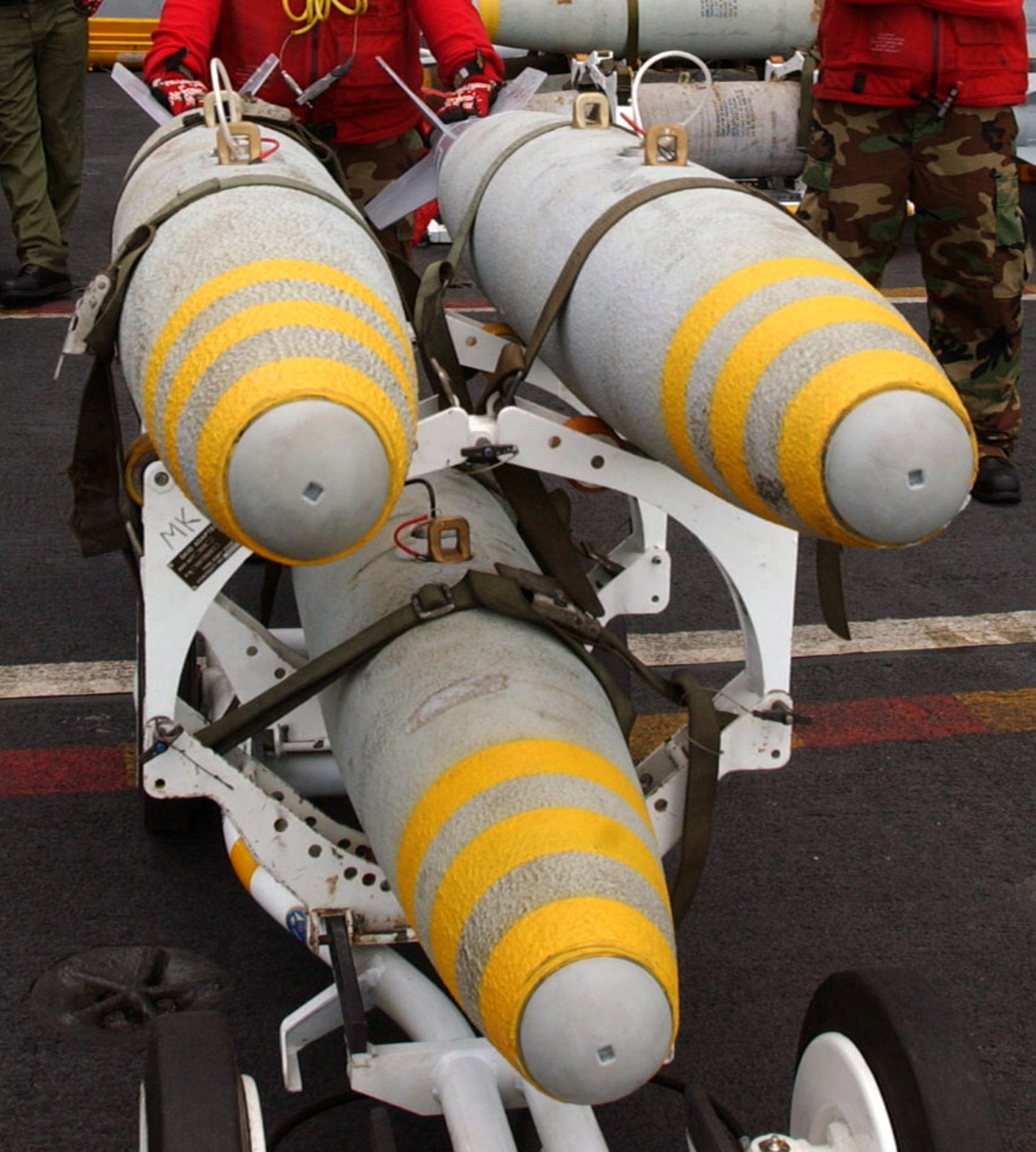

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 08
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

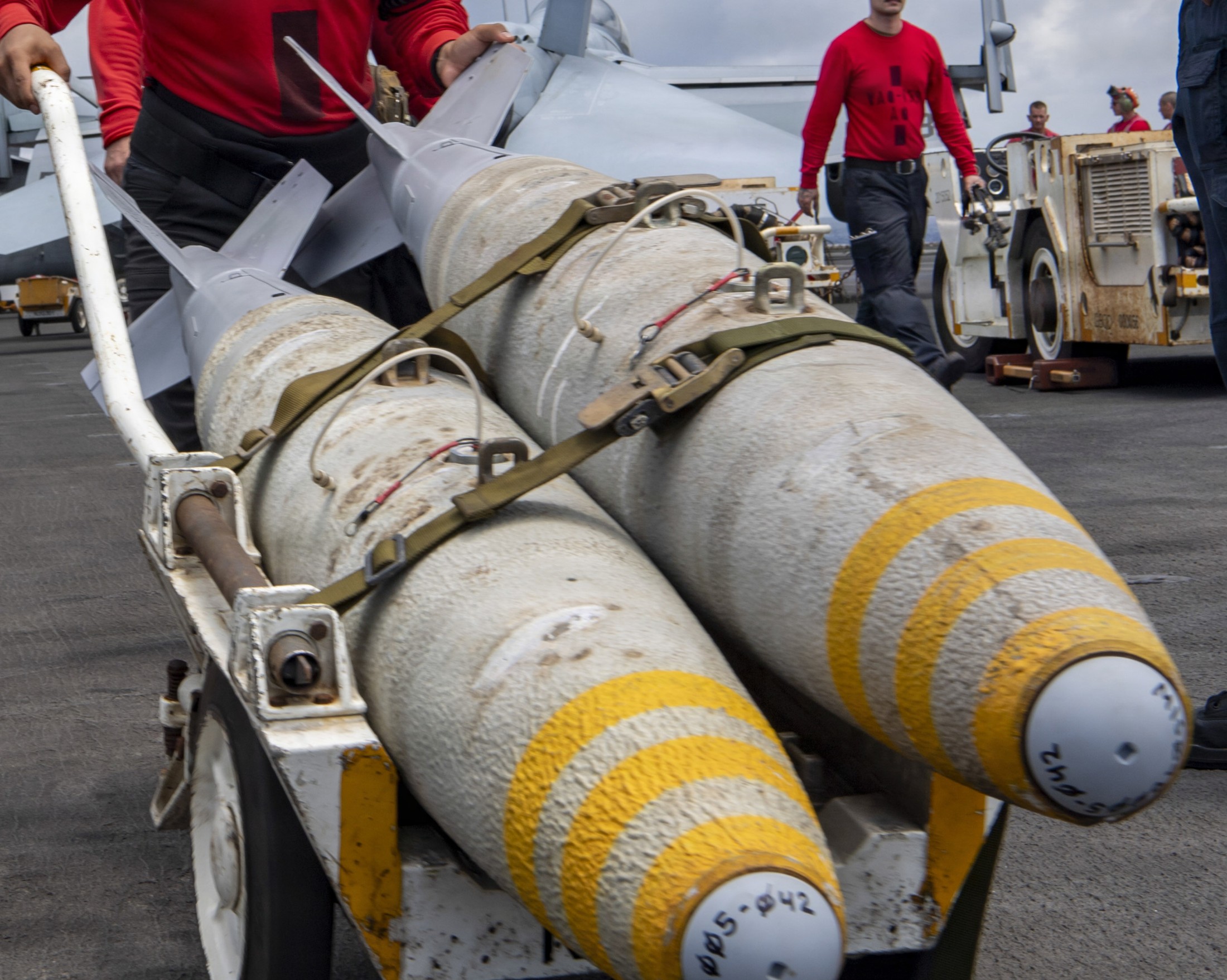

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 07
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

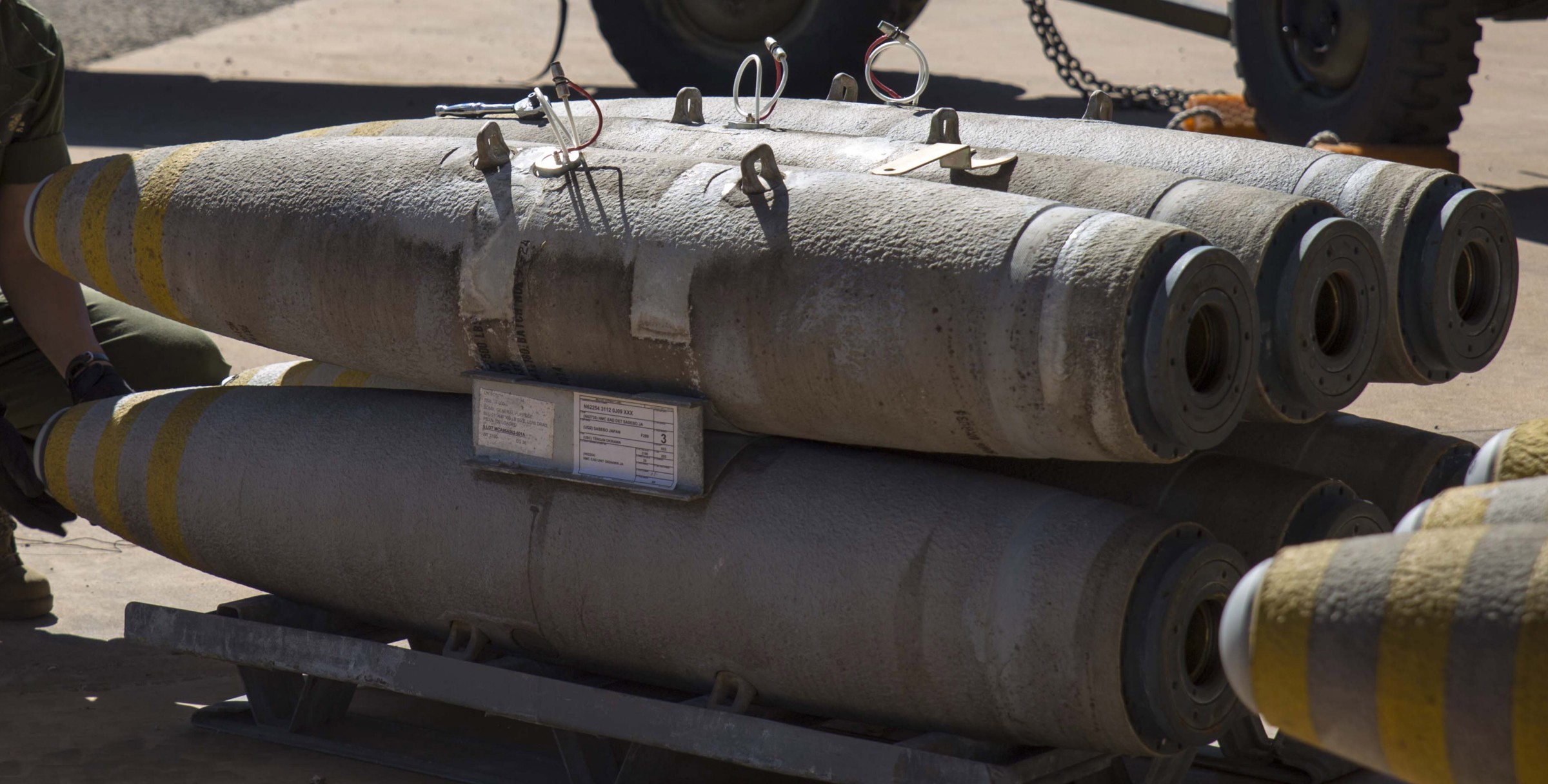

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 05
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)

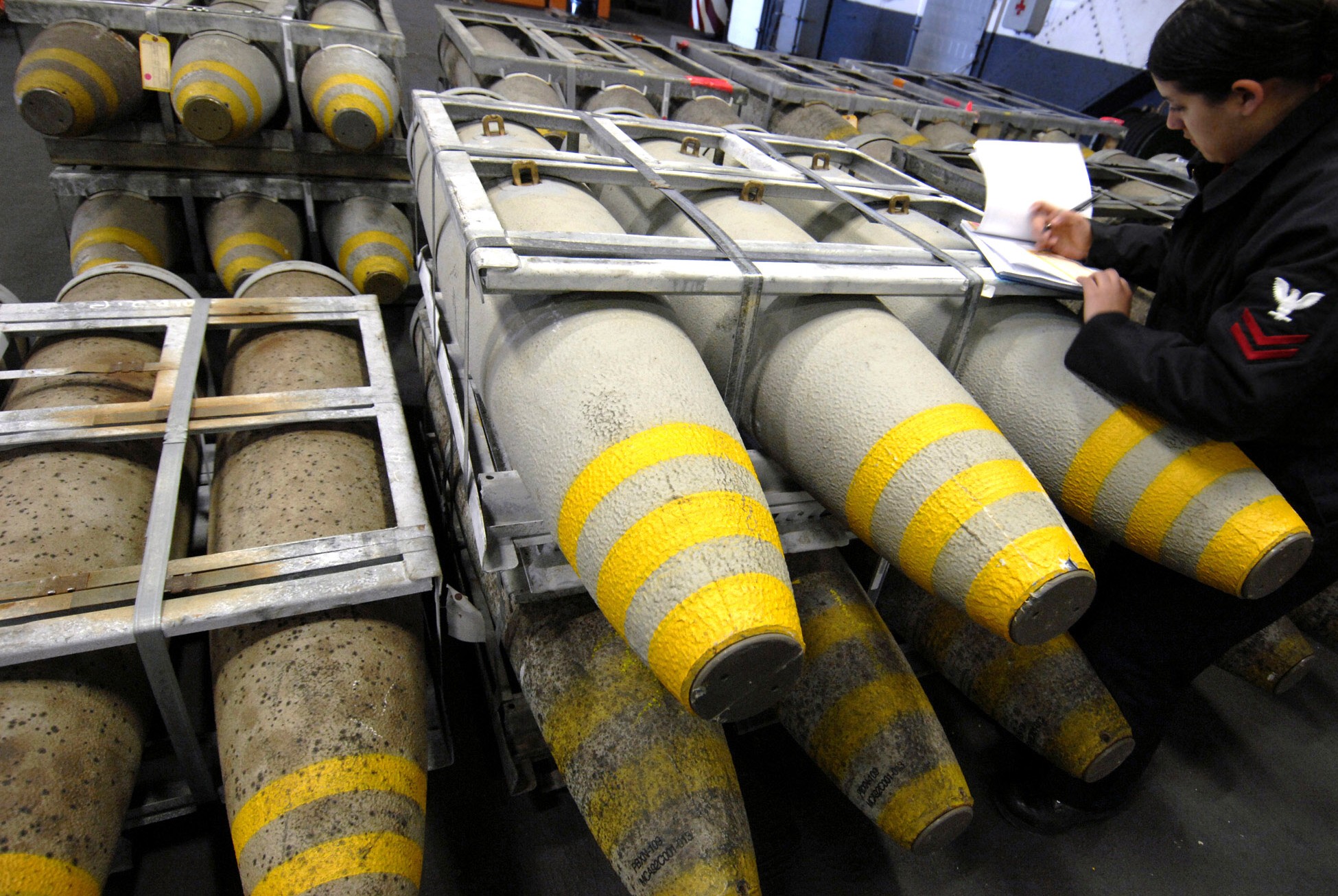

blu-110 general purpose bomb 1000 lbs low drag mk.83 navy 06
BLU-110 1000 lbs general purpose bomb (Navy - with thermal-protective coating)


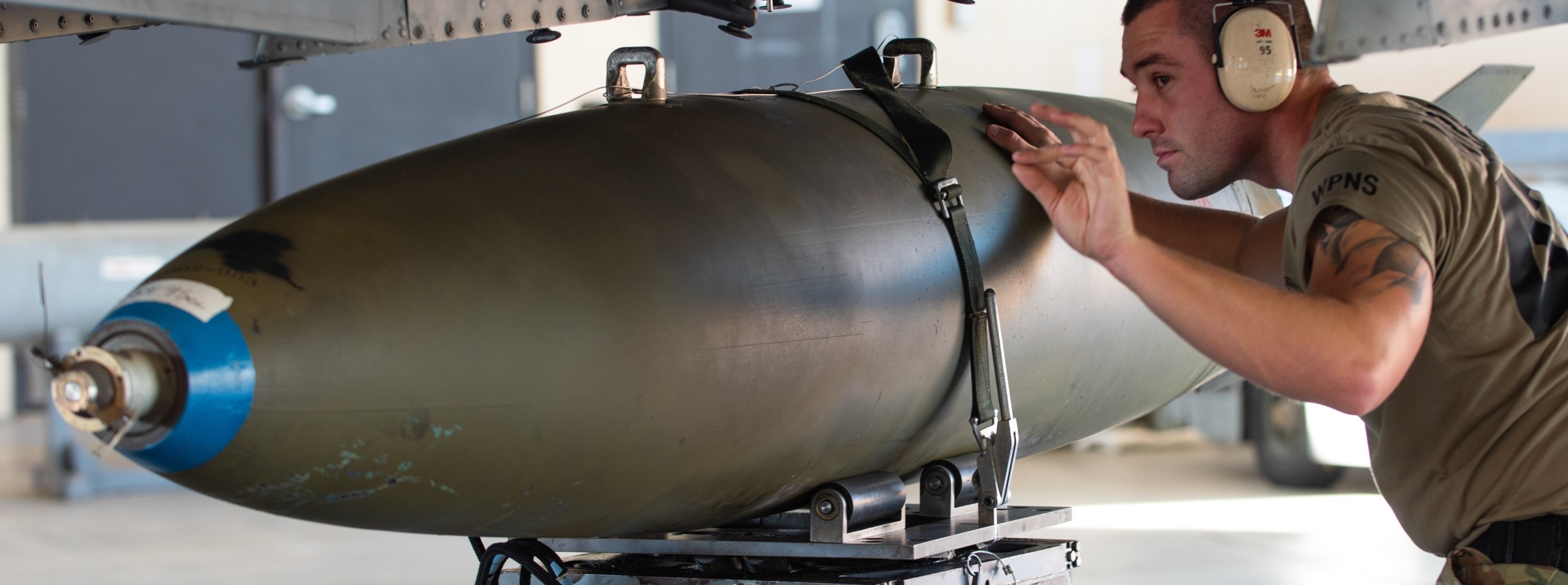

mark 83 mk.83 general purpose bomb 1000 lbs low drag air force navy 05
Mark 83 1000 lbs general purpose bomb (practice)

mark 83 mk.83 general purpose bomb 1000 lbs low drag air force navy 04

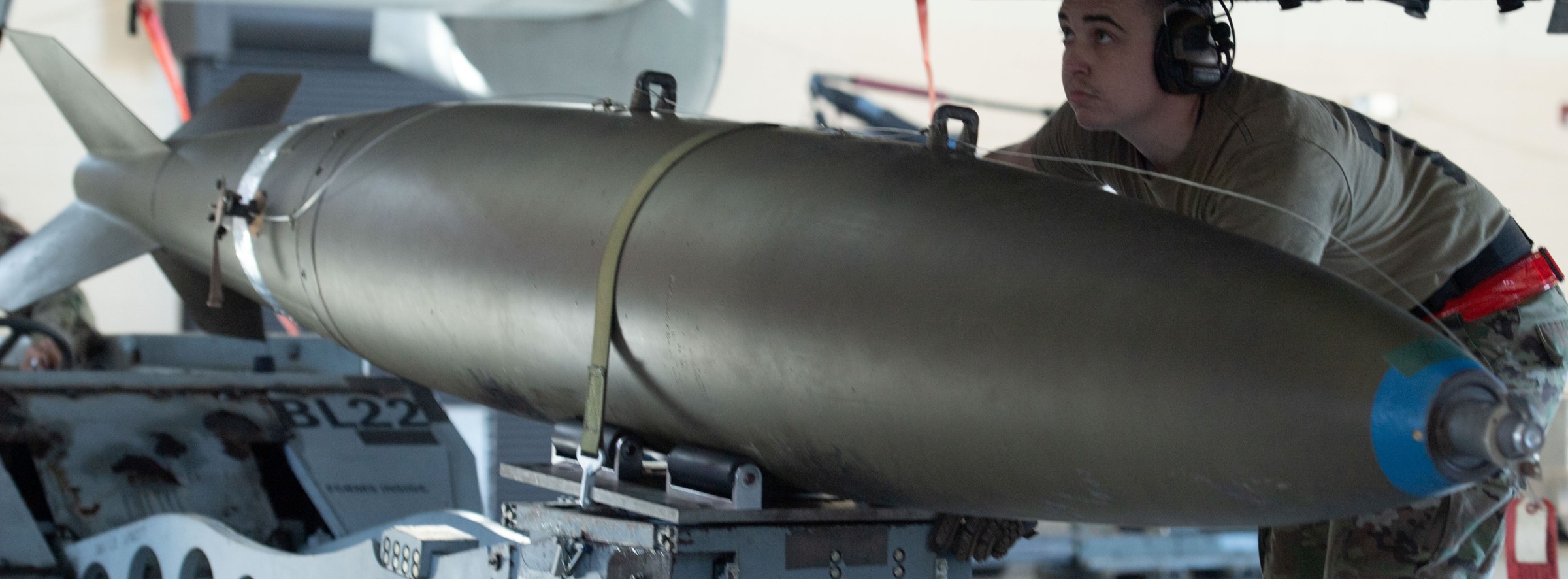

Mark 83 1000 lbs general purpose bomb (practice)

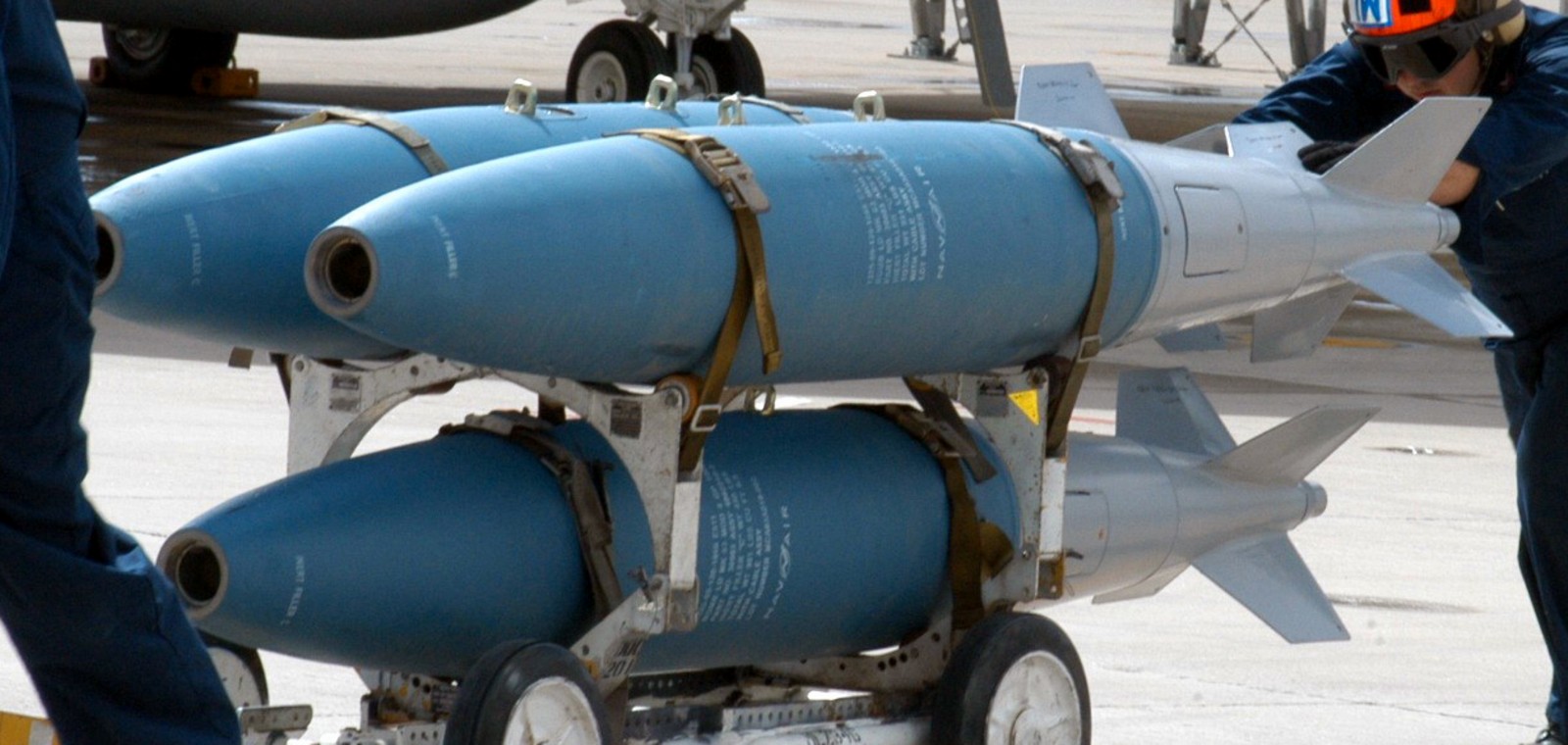

mark 83 mk.83 general purpose bomb 1000 lbs low drag air force navy 03
Mark 83 1000 lbs general purpose bomb (practice)

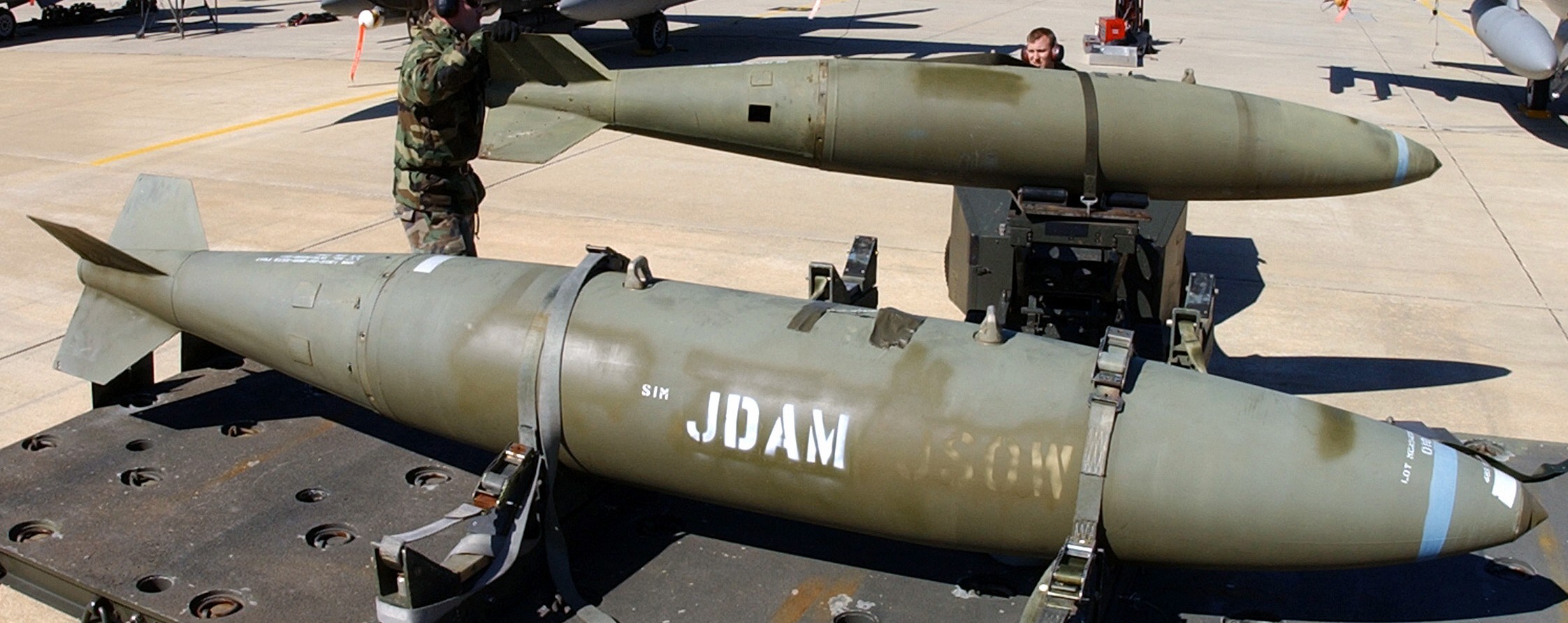

mark 83 mk.83 general purpose bomb 1000 lbs low drag air force navy 06
Mark 83 1000 lbs general purpose bomb (practice - used to simulate a JDAM for loading/unloading)

mark 83 mk.83 general purpose bomb 1000 lbs low drag air force navy 02
Mark 83 1000 lbs general purpose bomb (practice)



BLU-110 Snakeye
1000 lbs high-drag general purpose bomb
blu-110 snakeye general purpose bomb 1000 lbs mk.83 high-drag navy 02

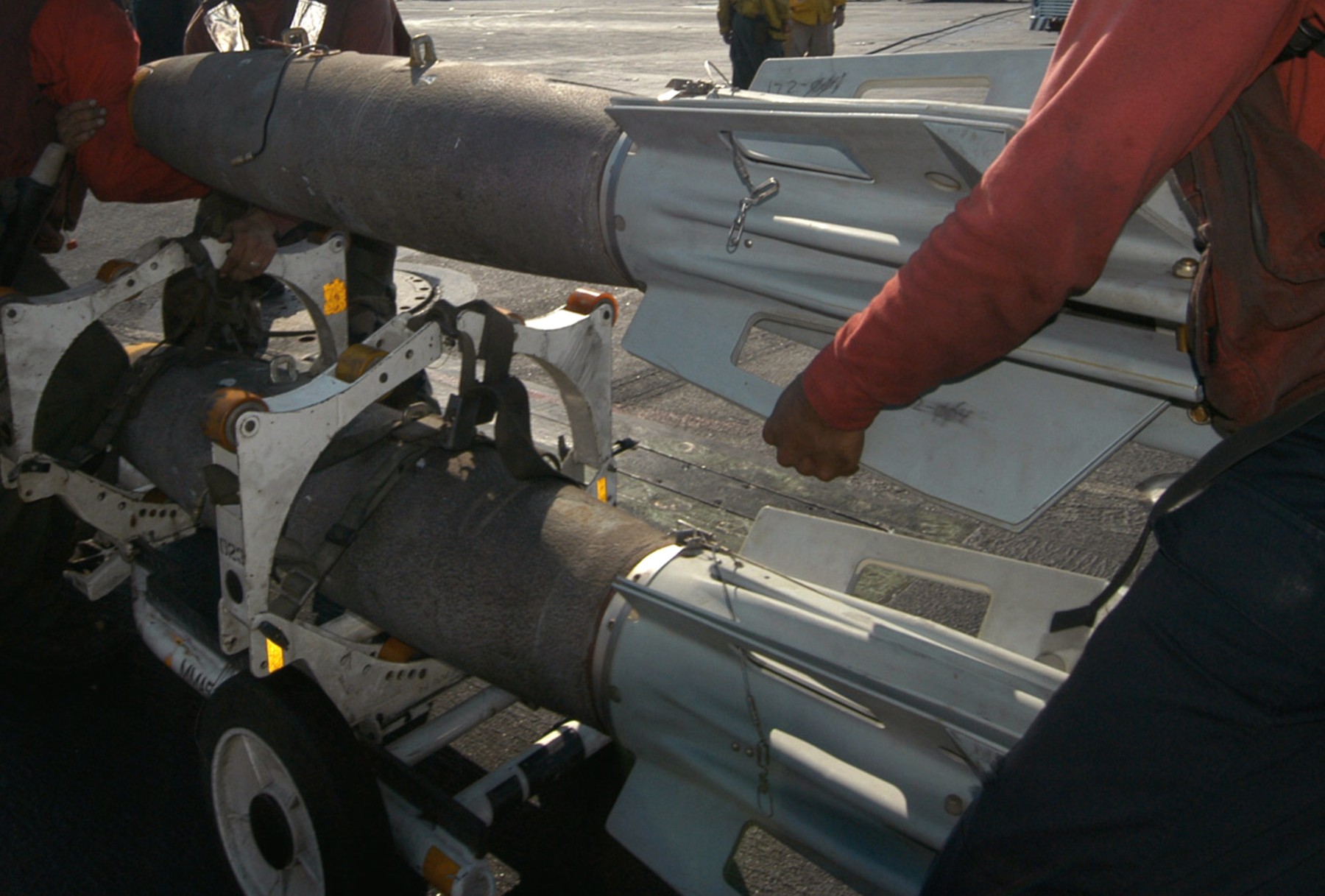

BLU-110 Snakeye 1000 lbs high-drag general purpose bomb (Navy - with thermal-protective coating)



Mark 83 AIR (with BSU-85 Air Inflatable Retarder / "ballute")
1000 lbs high drag general purpose bomb

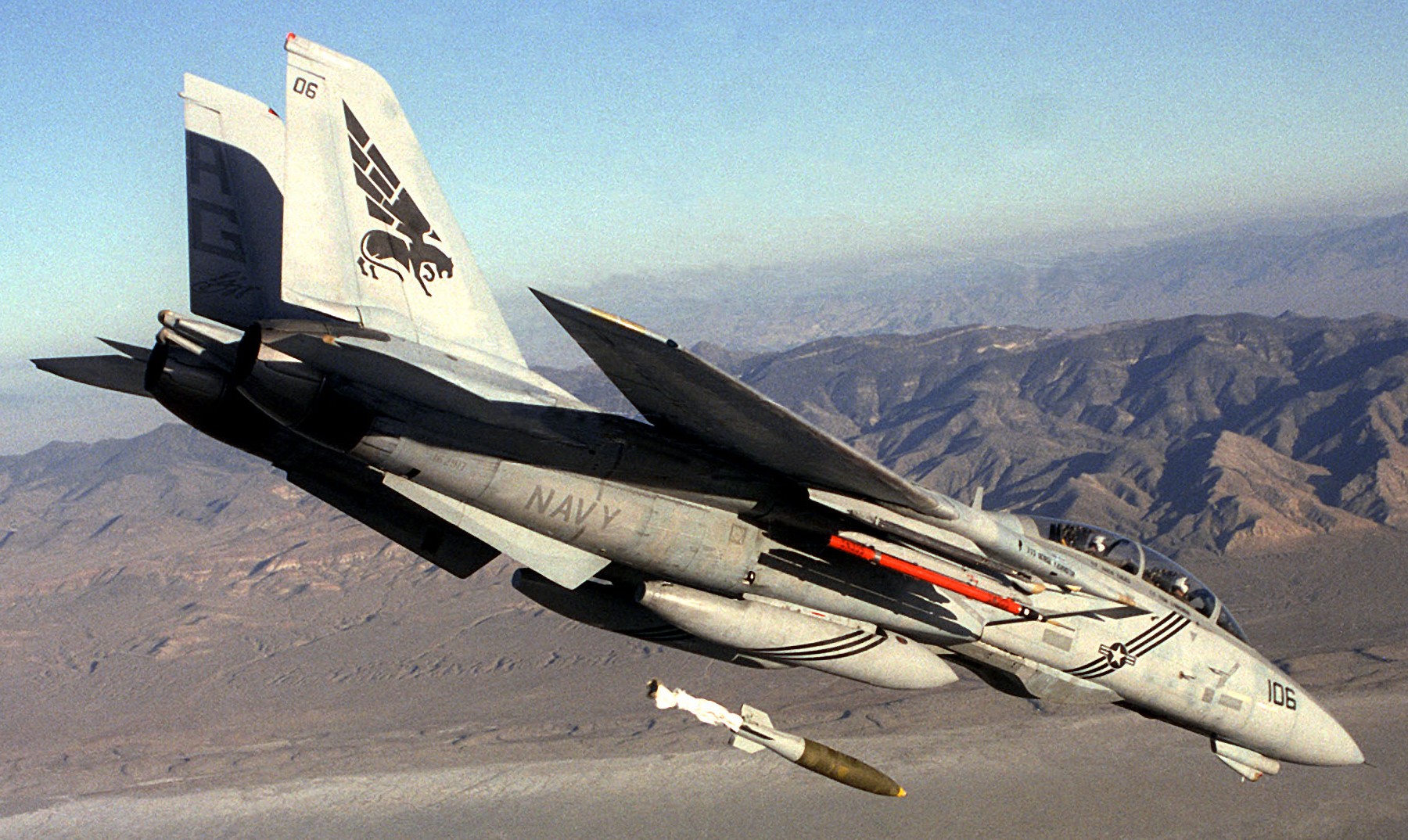

mark 83 mk.83 air general purpose bomb 1000 lbs high-drag air inflatable retarder ballute navy air force 02
Mark 83 AIR (with BSU-85 Air Inflatable Retarder / "ballute") 1000 lbs high drag general purpose bomb - launched from an US Navy F-14 Tomcat



Mark 84 / BLU-109 / BLU-117
2000 lbs general purpose bomb

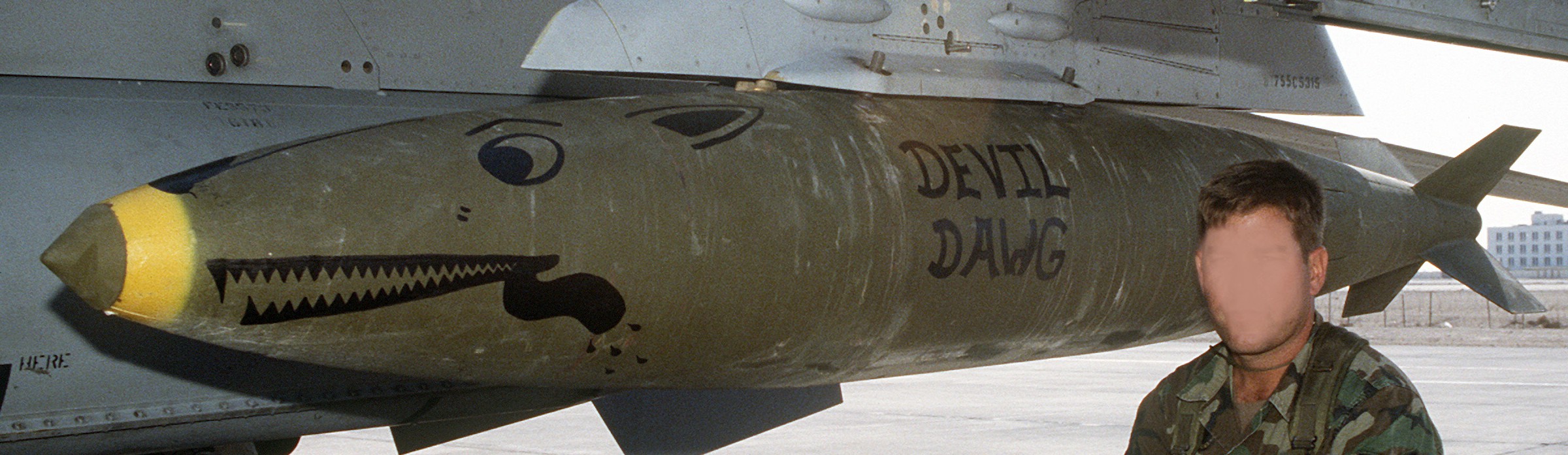

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 05
Mark 84 / BLU-109 2000 lbs general purpose bomb

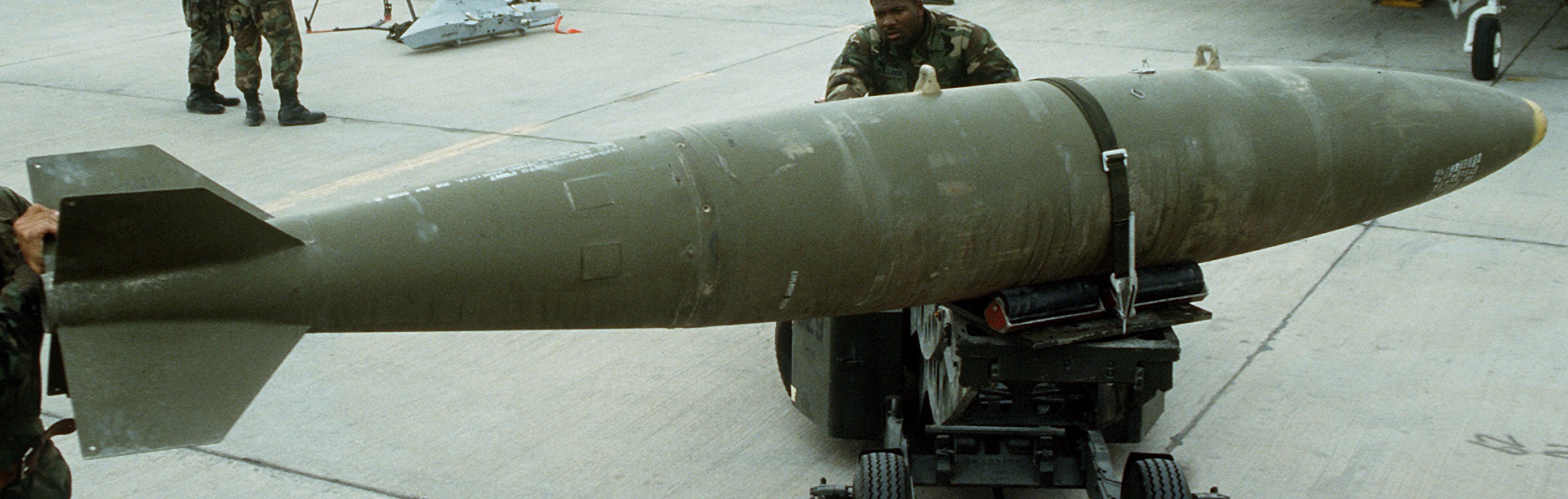

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 03
Mark 84 / BLU-109 2000 lbs general purpose bomb

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 07
Mark 84 / BLU-109 2000 lbs general purpose bomb

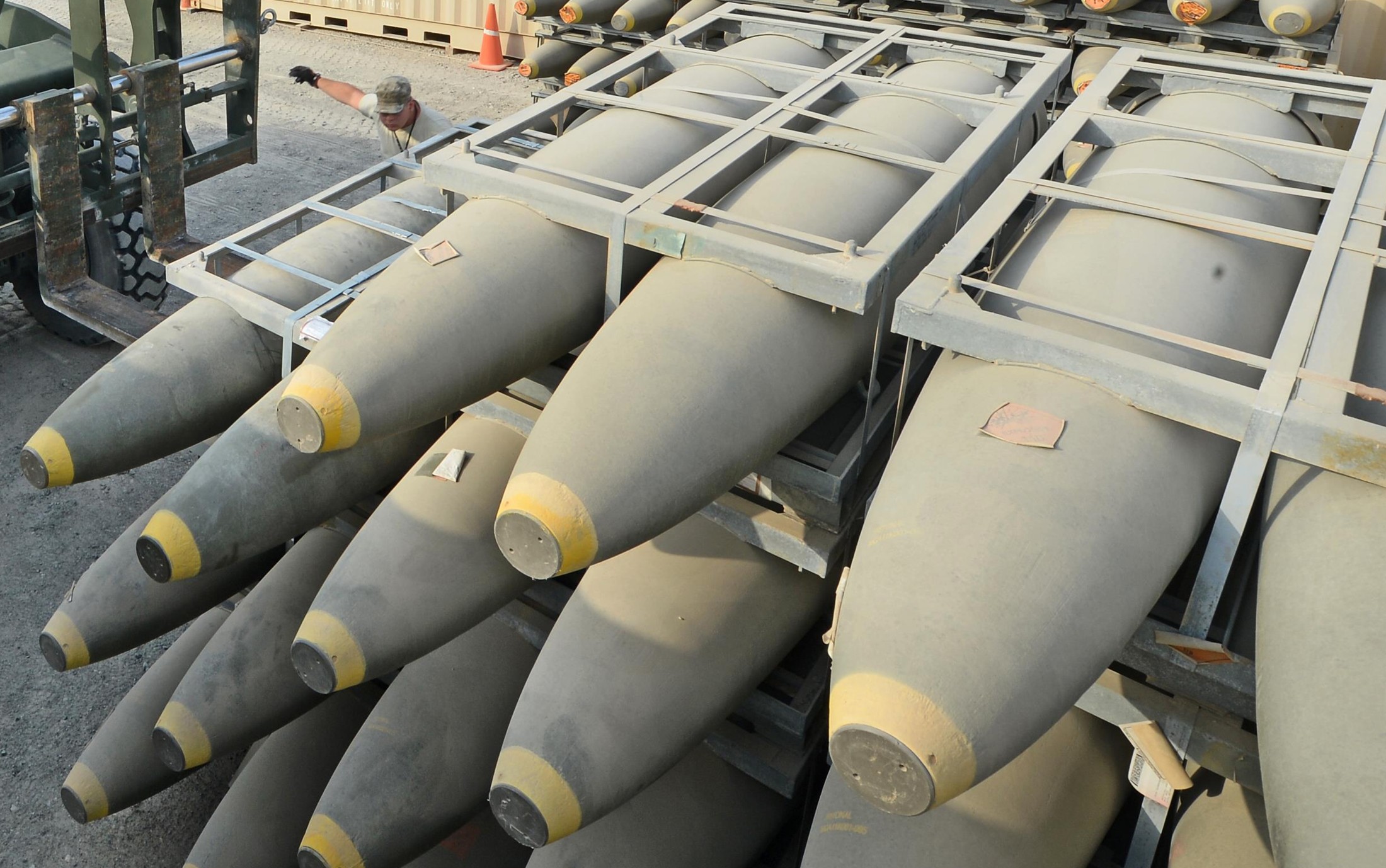

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 02
Mark 84 / BLU-109 2000 lbs general purpose bomb


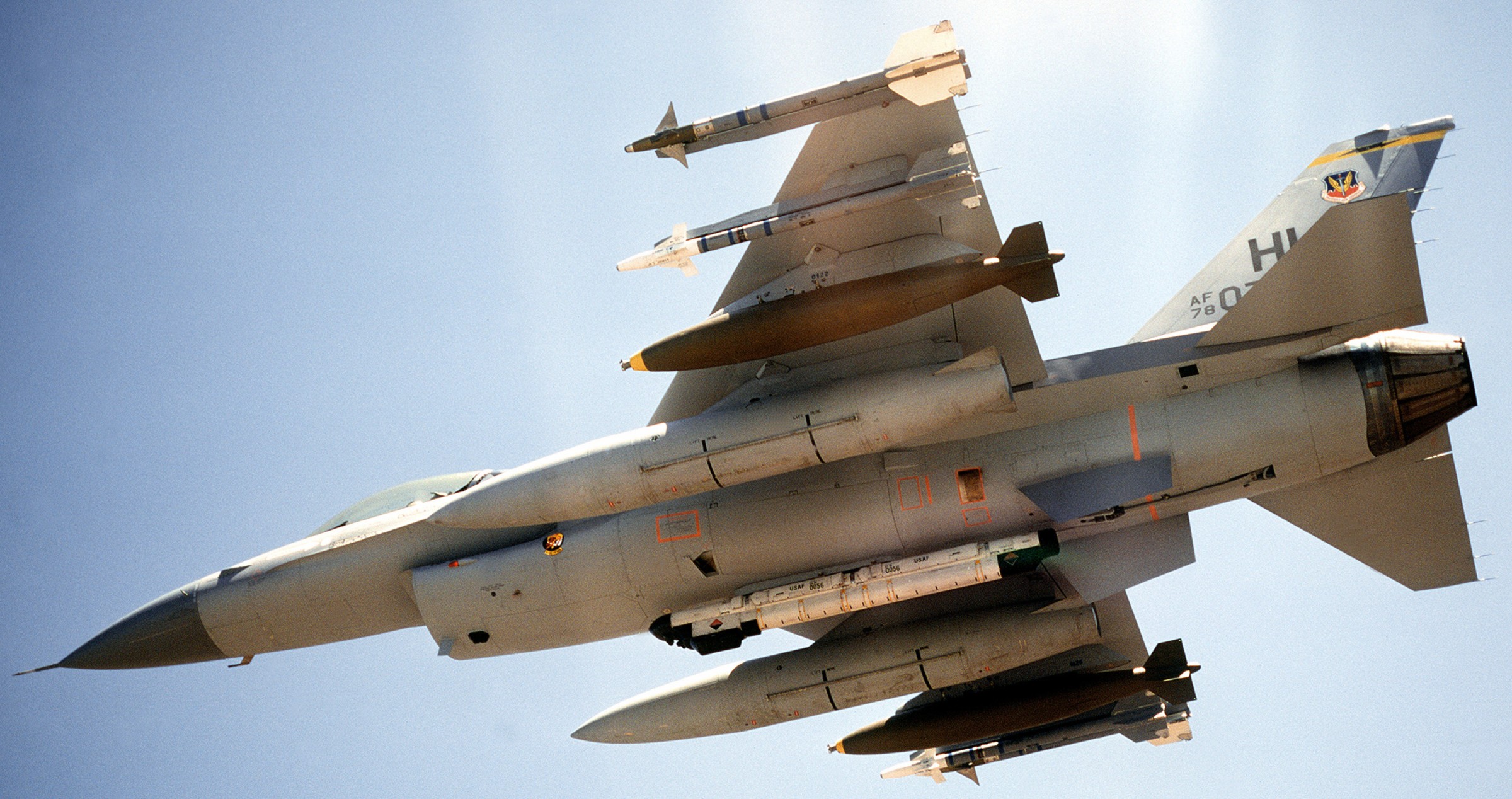

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force f-16 fighting falcon 09
an USAF F-16 Fighting Falcon, loaded with Mark 84 / BLU-109 2000 lbs general purpose bombs

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 08

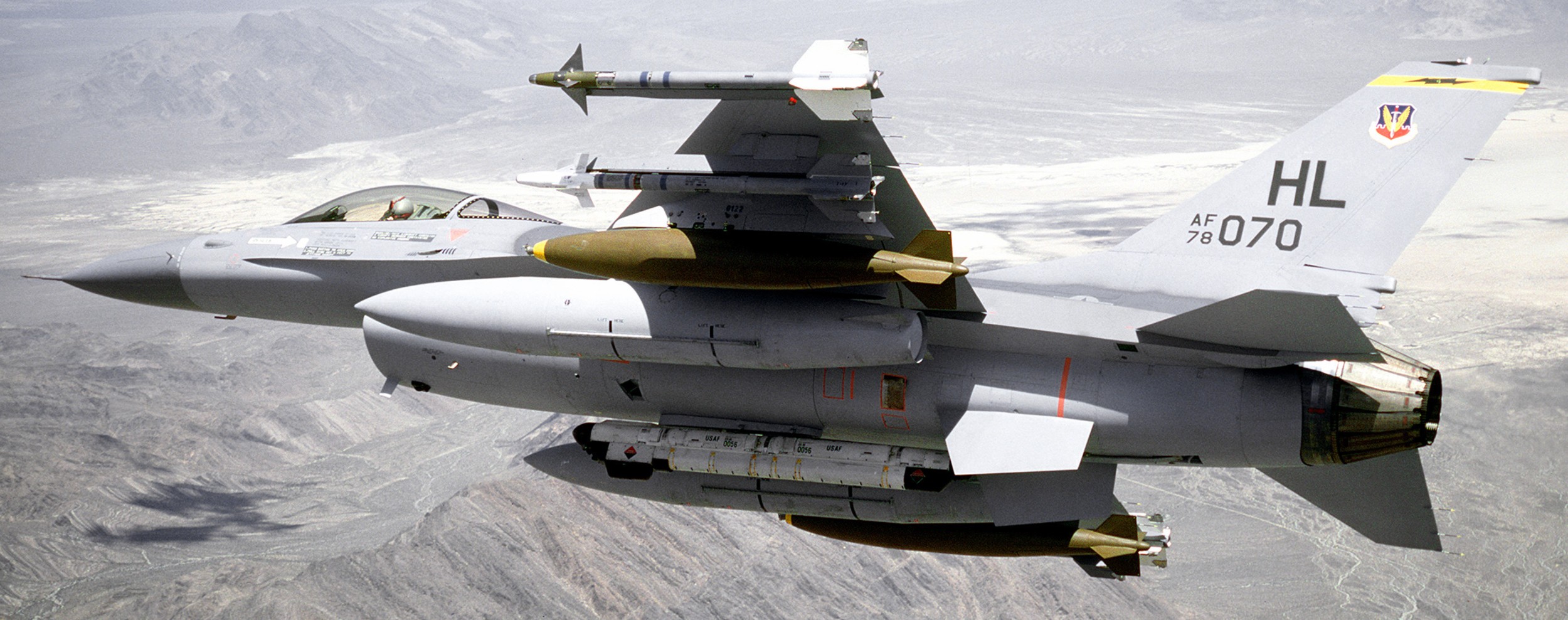

an USAF F-16 Fighting Falcon, loaded with Mark 84 / BLU-109 2000 lbs general purpose bombs


mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 06
Mark 84 / BLU-109 2000 lbs general purpose bomb (practice)

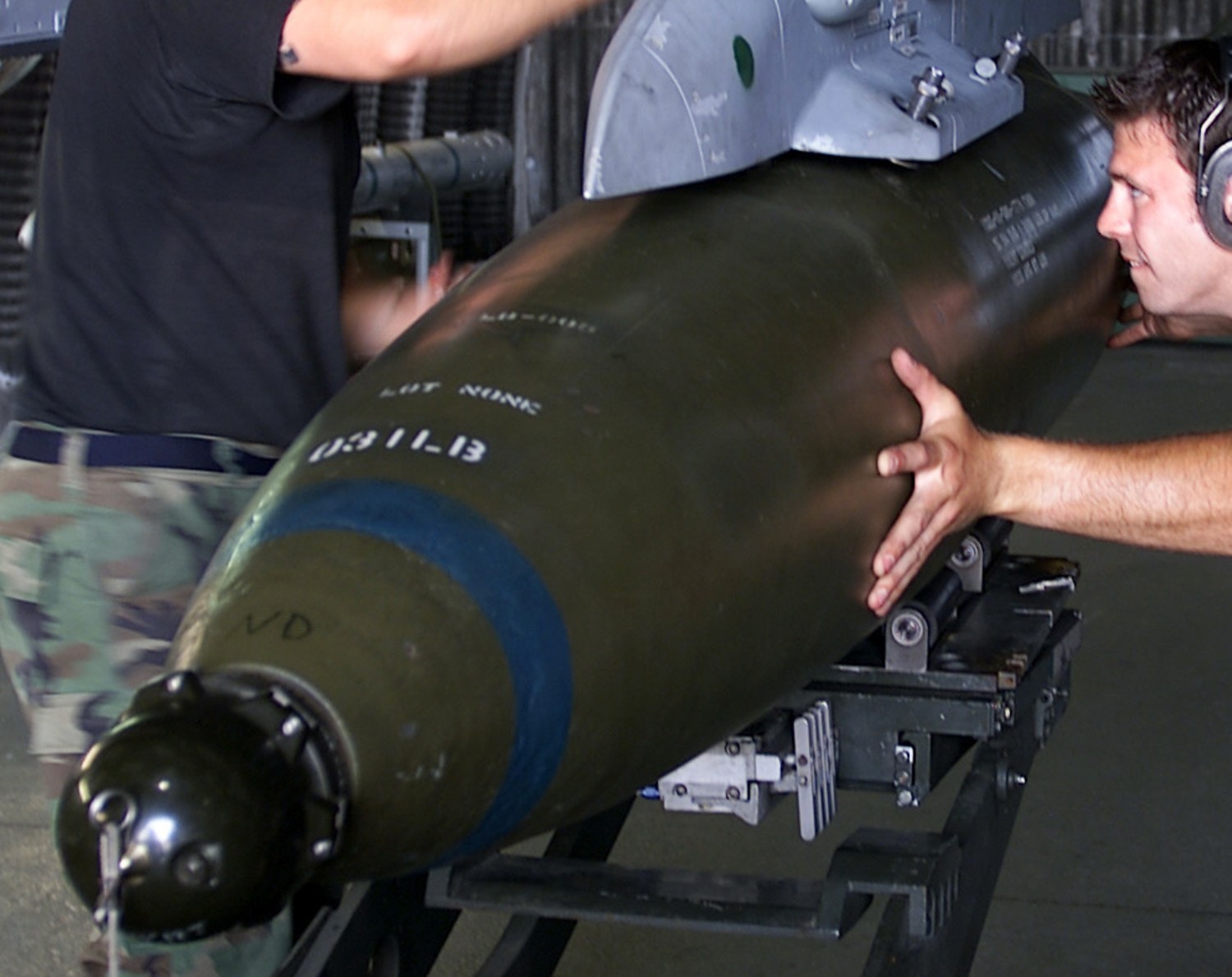

mark 84 mk.84 blu-109 general purpose bomb 2000 lbs low drag air force navy 04
Mark 84 / BLU-109 2000 lbs general purpose bomb (practice)



BLU-117
2000 lbs general purpose bomb
blu-117 general purpose bomb 2000 lbs mk.84 low drag navy 02

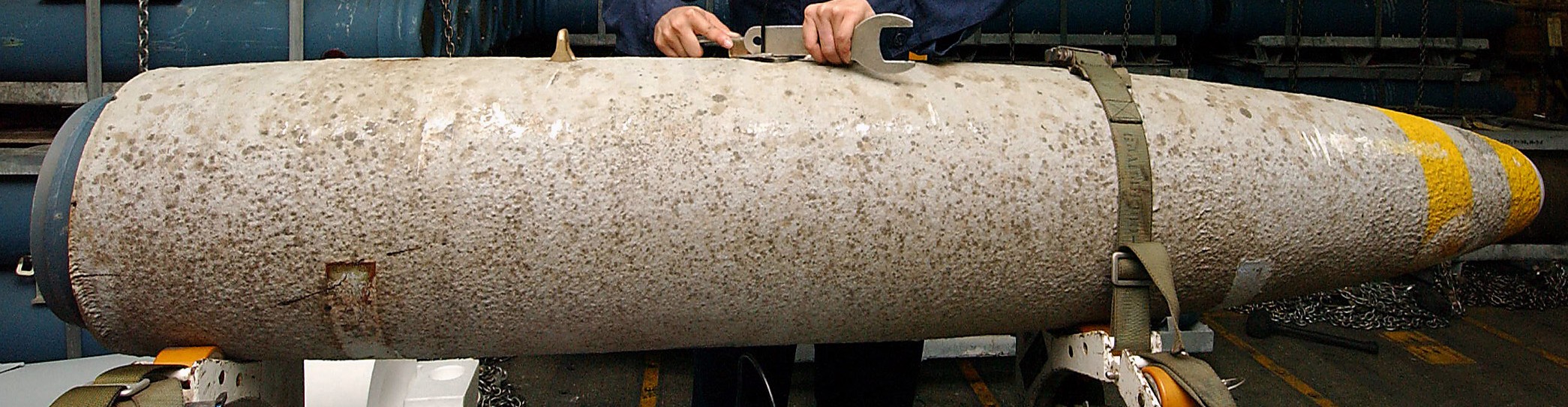

BLU-117 2000 lbs general purpose bomb (Navy - with thermal-protective coating)

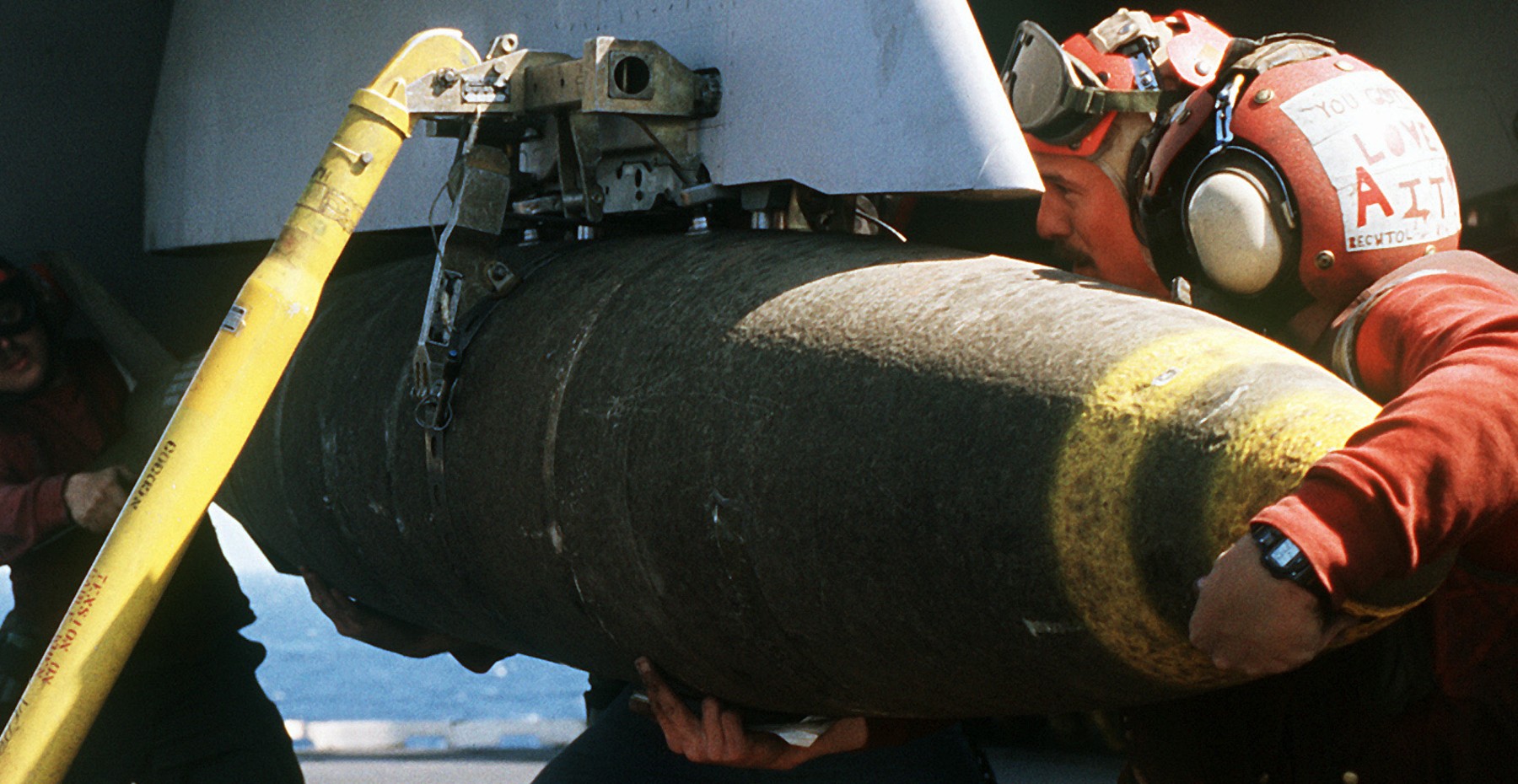

blu-117 general purpose bomb 2000 lbs mk.84 low drag navy 03
BLU-117 2000 lbs general purpose bomb (Navy - with thermal-protective coating)



Mark 62 Quickstrike shallow-water naval mine
(converted Mark 82 500 lbs bomb)
mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 04

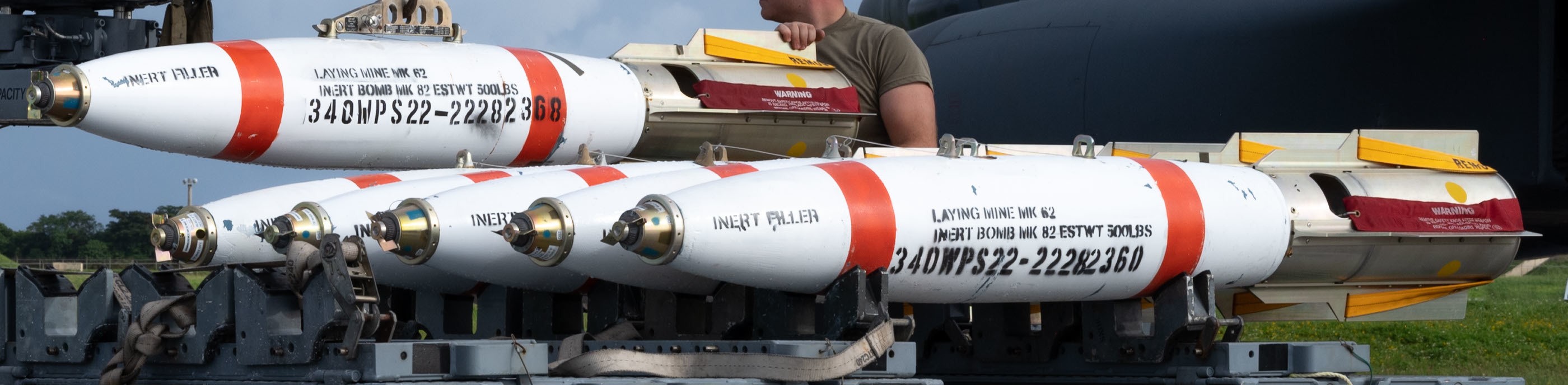

Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 11

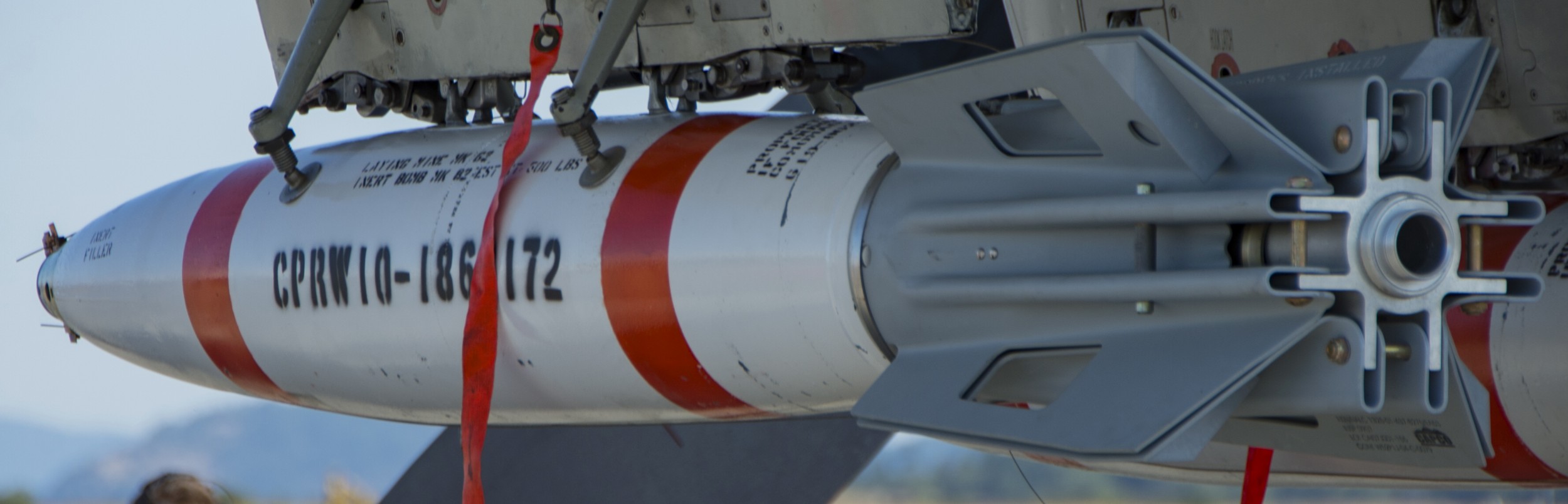

Mark 62 Quickstrike mine

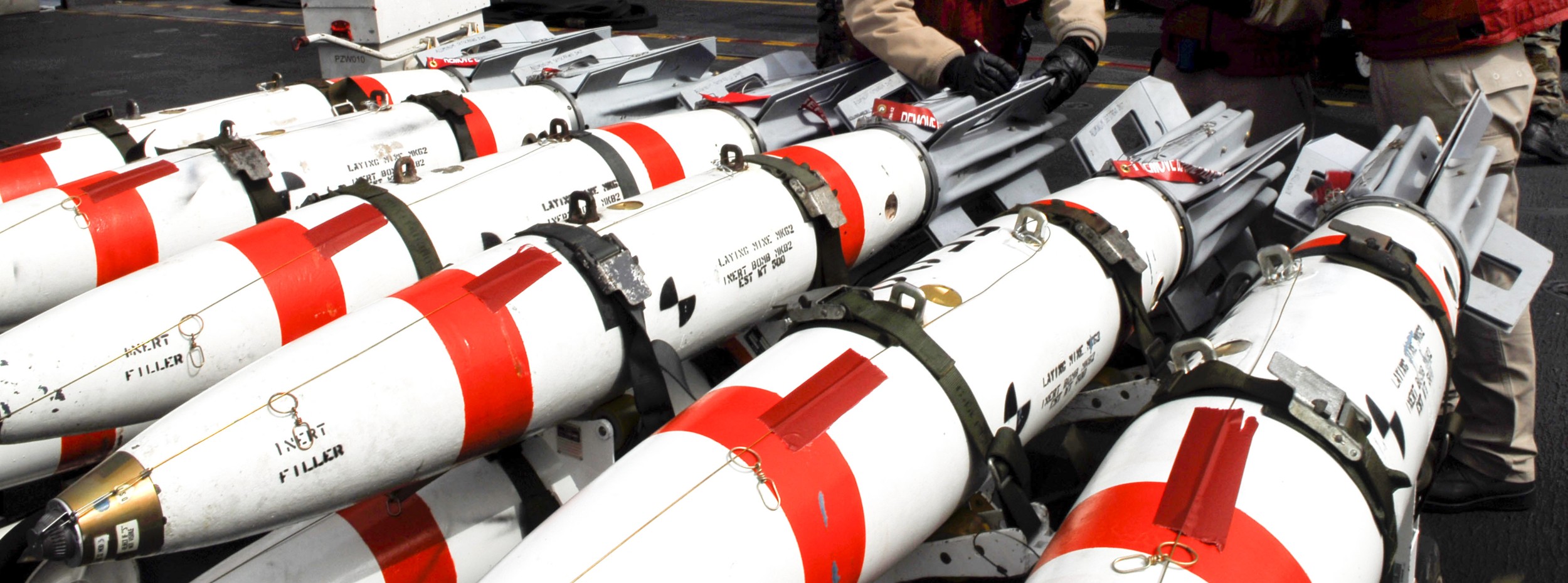

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 03
Mark 62 Quickstrike mine

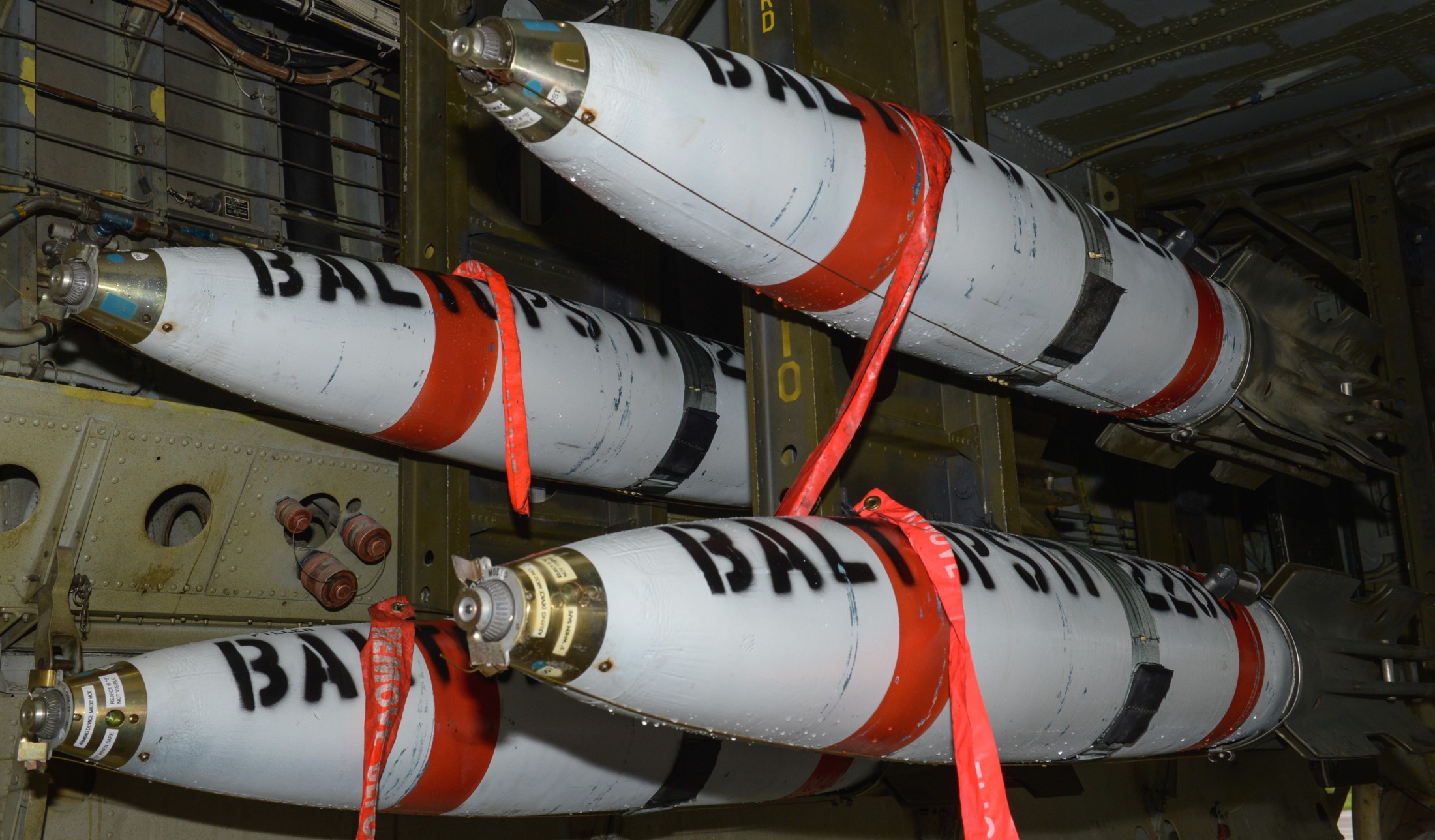

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 05
Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 09
Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 10
Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 02

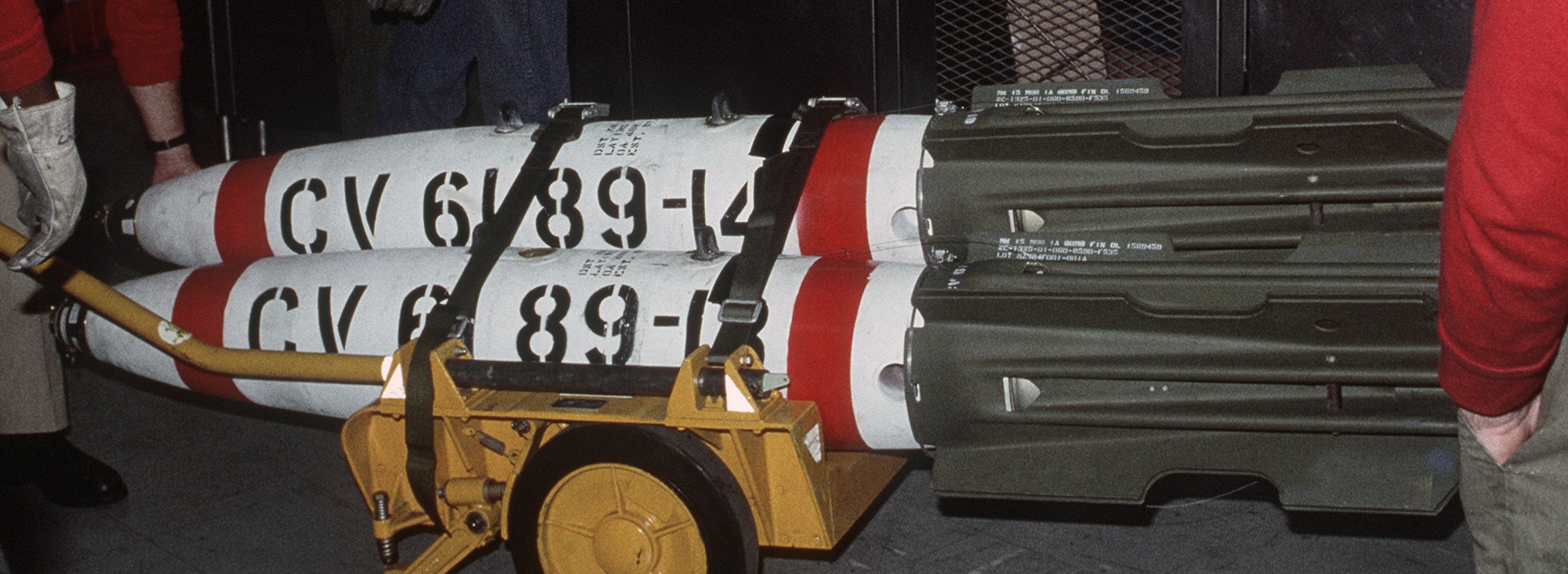

Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 08
Mark 62 Quickstrike mine

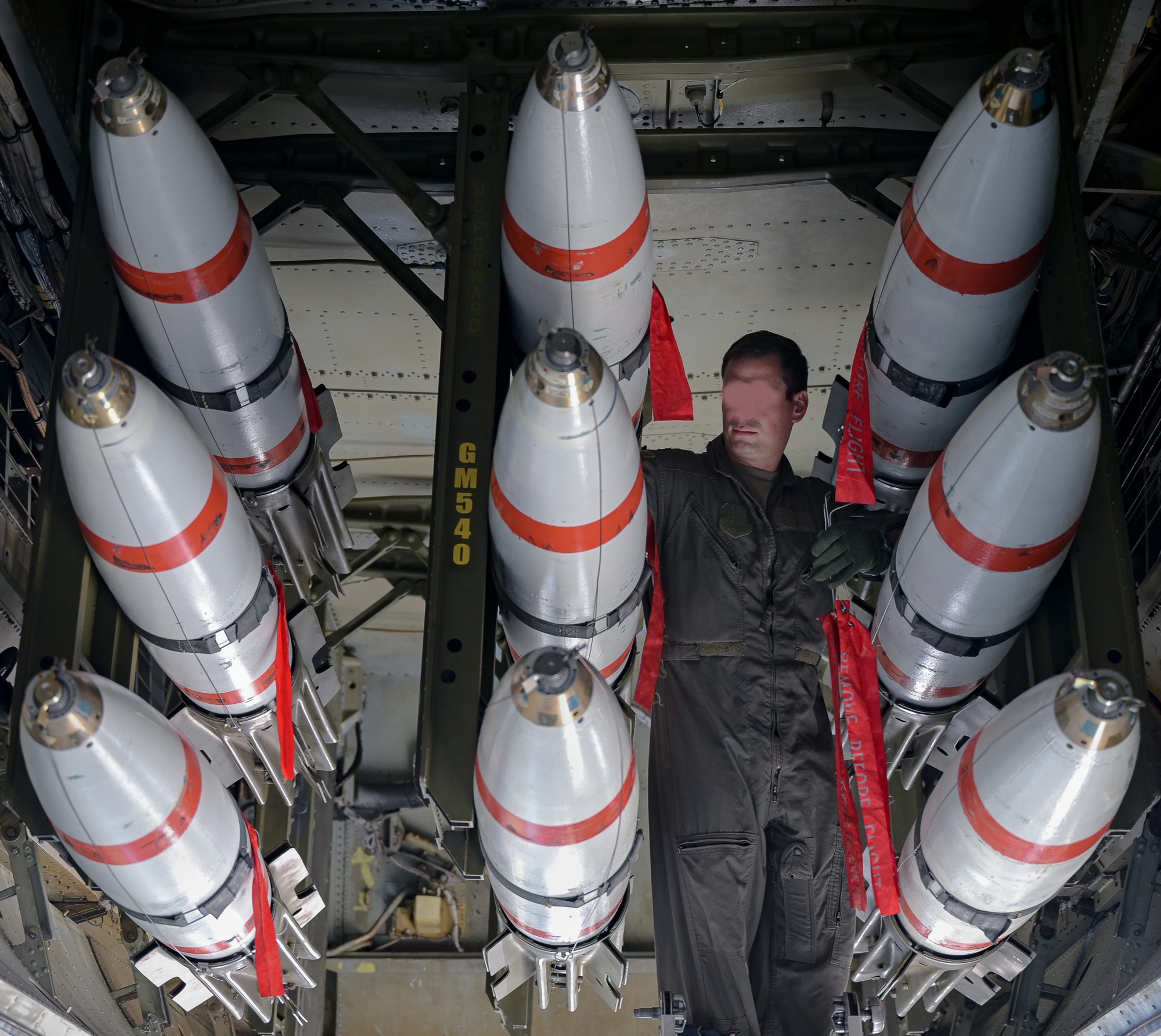

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 06
Mark 62 Quickstrike mine

mark 62 quickstrike mk.62 naval mine 500 lbs air force navy 07
Mark 62 Quickstrike mine

| seaforces.org | Weapon Systems start page |
