Isaac Peral (S-80 Plus) class Attack Submarine

s-80 plus isaac peral class attack submarine ssk spanish navy armada espanola navantia cartagena 23c

12/25

Units:

S-81 SPS Isaac Peral (2023)
S-82 SPS Narciso Monturiol (2026?)
S-83 SPS Cosme Garcia (2028?)
S-84 SPS Mateo Garcia de los Reyes (2029?)

+ 2 additional units on option

Specifications:

Builder: Navantia, Cartagena (Murcia), Spain

Displacement: 2,965 t submerged / 2,695 t (surfaced)
Length: 81.00 meters (265 feet 10 inches)
Beam: 11.68 m (38 ft 4 in)
Draft: 6.3 m (20 ft 8 in) / diameter = 7.3 m (23 ft 11 in)
Speed: 19 knots (35 km/h) submerged, 12 knots (22 km/h) surfaced / 4 knots on AIP
Range: 5,000 NMI (8,000 km)
Endurance: up to 50 days (AIP reactor autonomy = 28 days)
Test depth: 460 meters (1,510 ft)
Crew: 32 (+ 8 special forces)

Propulsion:
Diesel-Electric + AIP
3 x MTU-16V-396SE-85L electric engine (1,200 kW, each)
1 x UTC Bio-Ethanol AIP fuel cell unit (300 kW)
1 x Gamesa Electric motor (3,500 kW) driving 1 propeller

Armament:
6 x 21-inches / 533 mm torpedo tubes
for
DM2A4 Sea Hake heavy torpedo
UGM-84 Harpoon missile

+ naval mines

Optional armament:
Mk.48 ADCAP torpedo
Black Shark torpedo
Spearfish torpedo
Torped 2000

SM40 Exocet missile
UGM-109 Tomahawk TLAM

Systems:
VC 9.0 SCA Integrated Combat System Core (ICSC)
Link-11 and Link-22 data links

The Isaac Peral (S-80 Plus) class is a Spanish class of submarines being built by the state-owned Spanish company Navantia at its Cartagena (Murcia) shipyard.

The class has its roots in the late 1990s, and Spain ordered the submarines into production in 2003. Due to problems with the design, it had to be extensively redesigned in the 2010s, and a Spanish government budget crisis forced additional delays. On November 30, 2023, the first submarine of the class entered service with the Spanish Navy.

The S-80's air-independent propulsion (AIP) system is based on a bioethanol-processor consisting of a reaction chamber and several intermediate Coprox reactors. Provided by Hynergreen from Abengoa, the system transforms the bioethanol (BioEtOH) into high purity hydrogen. The output feeds a series of fuel cells from UTC Power company.

The reformator is fed with bioethanol as fuel and oxygen (stored as a liquid in a high pressure cryogenic tank), generating hydrogen and carbon dioxide as subproducts. The produced hydrogen and more oxygen is fed to the fuel cells.

The first two boats will enter service without the AIP - it will be added during the first scheduled overhaul (7 years after delivery to the Spanish Navy). The third and fourth boat will receive the AIP unit during construction.

images
for more images go to the individual boat's page

s-80 plus isaac peral class attack submarine ssk spanish navy armada espanola navantia s-81 26

S-81 SPS Isaac Peral

s-80 plus isaac peral class attack submarine ssk spanish navy armada espanola navantia s-82 narciso monturiol 12c

S-82 SPS Narciso Monturiol

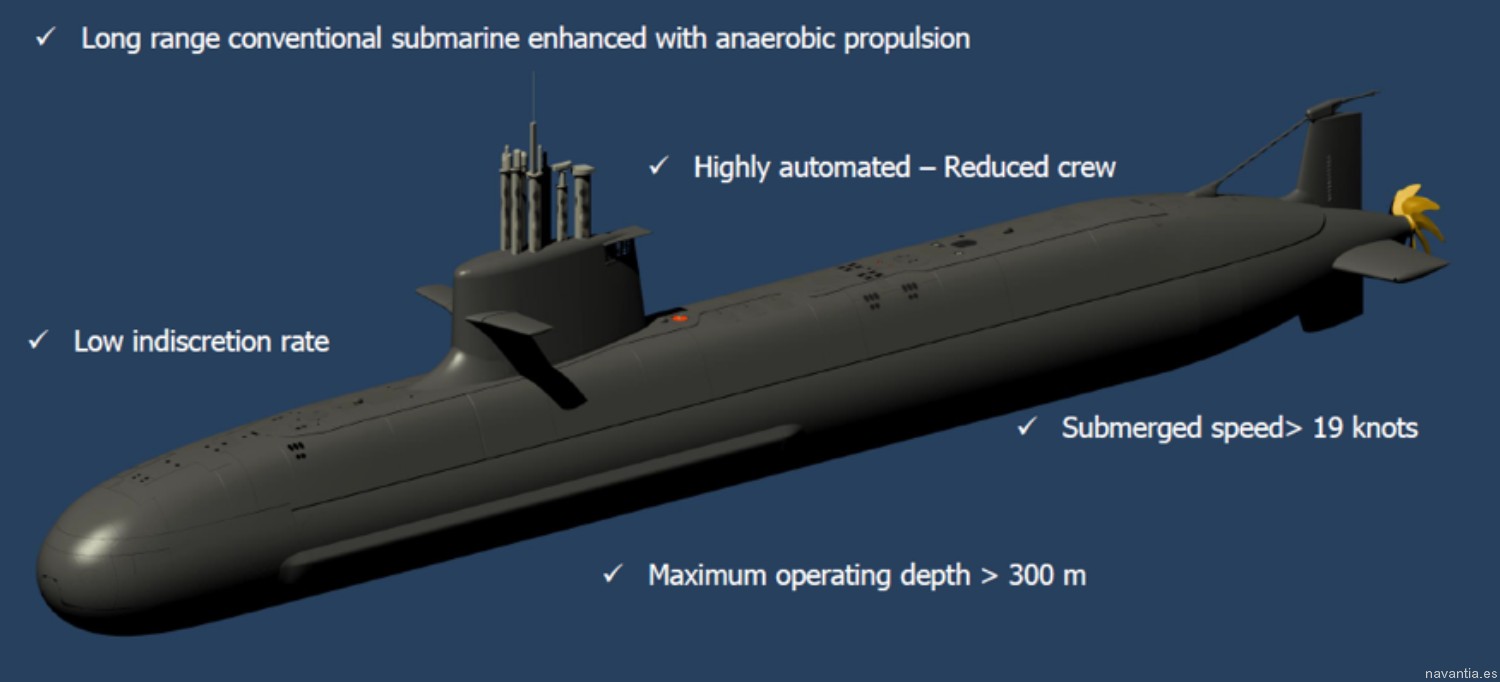

s-80 plus isaac peral class attack submarine ssk spanish navy armada espanola navantia 02

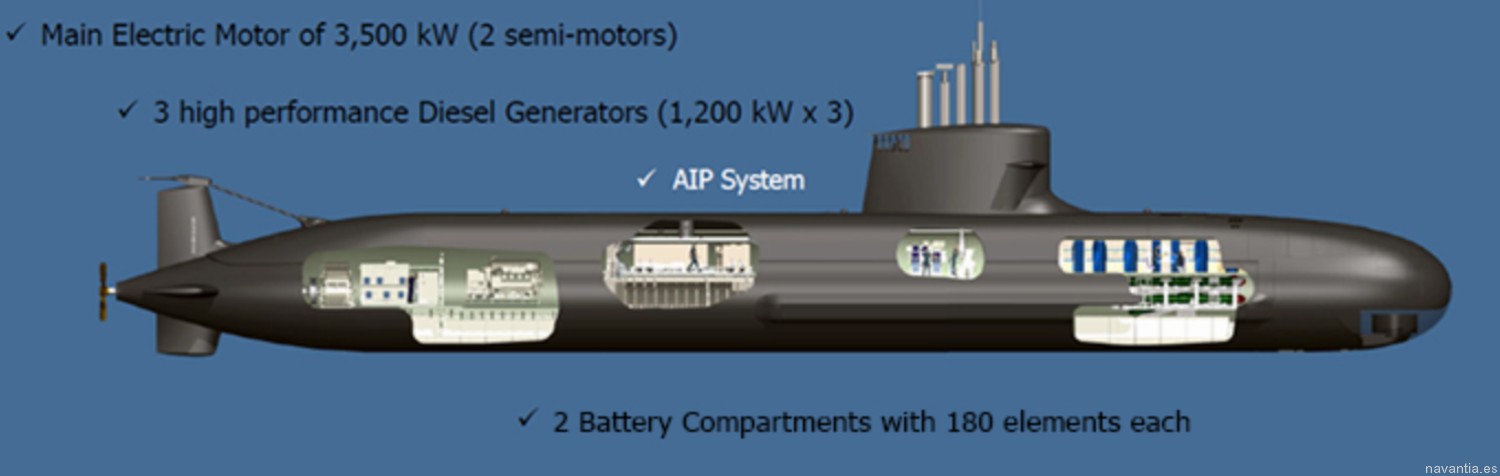

s-80 plus isaac peral class attack submarine ssk spanish navy armada espanola navantia 03
