Victory class Multi Role Combat Vessel

Republic of Singapore Navy
Victory class Multi Role Combat Vessel - MRCV

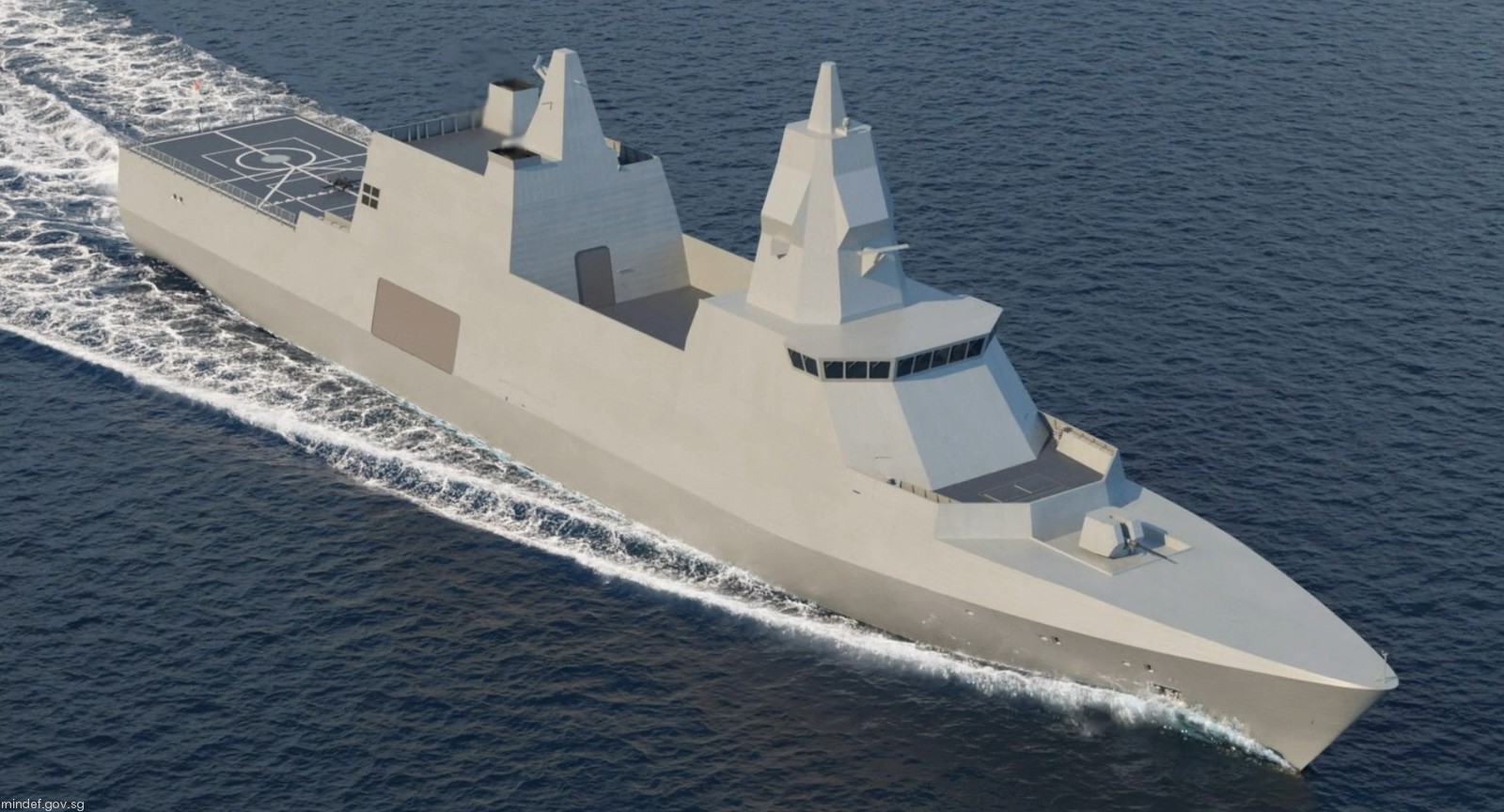

multi role combat vessel mrcv republic singapore navy st engineering 04x

10/25

Units (6 planned):

Unit	Laid down	Launched	Commissioned	STATUS
88 RSS Victory	first steel cut in March 2024	October 21, 2025	?	outfitting
89 RSS Valour	first steel cut - April 24, 2025
90 RSS Vigilance
91 RSS Valiant
92 RSS Vigour
93 RSS Vengeance

Specifications:

Builder: ST Engineering (Marine), Singapore

Displacement: 8,000 tons
Length: 150 meters (492 feet 1 inch)
Beam: 21 meters (68 ft 11 in)
Draft: 5.7 meters (18 ft 8 in)
Speed: 22+ knots (41+ km/h)
Range: 7,000 NMI (13,000 km)
Complement: >100

Propulsion:
GE Vernova Integrated Full Electric Propulsion (IFEP)

Armament:
1 x Sylver Vertical Launching System / VLS (2x16 cells)
for
MBDA VL Mica NG SAM missiles
MBDA Aster 30 Block 1 NT SAM missiles

1 x Oto-Melara (Leonardo) 76/62 Super Rapid DP gun / STRALES

2 x Rafael Typhoon Mk.30-c Remotely-Controlled Weapon Station (RCWS)

ST Engineering/IAI Blue Spear 5G SSM missiles

Aviation:
flight deck and hangar for 1 helicopter (up to 15 tons)

Sytems:
ST Engineering NERVA Ship Management System
Integrated Communication System
Navigation & Data Management System
Situational Awareness Traffic Management
Scanned Panoramic Electro Optics System
Thales SeaFire multifunction radar
Thales fire control radar
Safran PASEO XLR EO/IR system
Safran NGDS decoy launching system
Hull-mounted sonar

The Republic of Singapore Navy (RSN) ensures the seaward defence of Singapore and protects our vital Sea Lines of Communication (SLOCs) by keeping them open and ensuring the unimpeded flow of goods, services, and energy. This requires a strong Navy to conduct operations both near and afar. The MRCVs, alongside the RSN’s existing assets, will enhance Singapore’s ability to safeguard our SLOCs, and contribute to regional security architecture and international efforts to ensure that our access to the sea remains unimpeded.

The MRCV combines the combat capabilities of a modern frigate with the carriage and control capacity needed to be a Mothership for a wide range of unmanned systems. Developed to meet the RSN’s unique operational requirements, it is the largest and most complex warship built to date in Singapore. Developed through a joint effort led by the Defence Science and Technology Agency (DSTA), as well as DSO, ST Engineering and international partners, the MRCV demonstrates the deep expertise of Singapore’s Defence Technology Community and its strong partnership with the Singapore Armed Forces (SAF).

Advanced Combatant and Mothership for Unmanned Capabilities
At 150m in length and with a displacement of 8,000 tonnes, the MRCVs are designed to function as Motherships for a range of unmanned systems. With an operational range exceeding 7,000nm - twice that of the Formidable class frigates - and an endurance of over 21 days, the MRCVs enable the RSN to deploy a range of unmanned systems to protect Singapore’s SLOCs.

Unmanned Surface Vehicles (USVs), Unmanned Aerial Vehicles (UAVs), and Autonomous Underwater Vehicles (AUVs) deployed from the MRCVs will work together to expand the surveillance and operational reach of the ship across air, surface, and underwater domains. This enables one MRCV, with its fleet of unmanned technologies, to execute missions which would require multiple manned warships today.

The MRCVs will be equipped with advanced sensors and weapons to conduct high-end warfare, and perform the role of Command ship in support of SAF missions. It will also feature the latest Combat Management System (CMS), indigenously developed by DSTA, which incorporates advanced sense-making and decision-support capabilities.

Mission Modularity
Designed to host eight containerised modules in its mission bay, the MRCV can be re-configured for a wide range of missions within short periods of time. This provides increased operational flexibility as it allows the MRCV to also be deployed for missions such as humanitarian assistance and disaster relief (HADR). For example, if the onboard medical capabilities (i.e., Operating Theatre (OT), Intensive Care Unit (ICU), High Dependency Beds, Consultation Room, General Ward, and Pharmacy) are insufficient, the MRCV’s mission bays can accommodate Rapidly Deployable Maritime Containers (i.e. “clinic in a shipping container”) to increase its capabilities for HADR missions.

The capability to handle standardised shipping containers also streamlines logistics for the ship. Food, stores and maintenance equipment can be loaded and unloaded safely and efficiently.

Future Ready Design
Beyond the flexibility that modular capabilities provide, the MRCVs are also built with significant growth margins.

The high-voltage electrical distribution system - the MRCV’s “grid” - needed to power its Integrated Full Electric Propulsion (IFEP) system - is designed to accommodate future systems which may have higher energy demands.

The superstructure is made from lightweight Composite material. This enhances ship stability by lowering the centre of gravity and provides additional weight margins to accommodate the insertion of new equipment.

The MRCV is also designed with advanced automation to enhance crew effectiveness and safety.

The MRCV’s Bridge - the “cockpit” of ships - can be operated by two crew instead of five, and the Engineering Control Centre only requires one crew instead of four to monitor ship systems.

Onboard cranes streamline the process of loading/unloading of supplies, weapons, equipment. The Mission Bays are also fitted with a cargo elevator as well as equipment for efficient internal movement of containers.

The MRCVs will replace the existing Victory class Missile Corvettes (MCVs), and will be delivered progressively from 2028 onwards. To honour the legacy of the Victory class MCVs, the MRCVs will retain the names of the Victory class MCVs.

source: MINDEF Singapore

images

88 rss victory mrcv multi role combat vessel republic of singapore navy launching ceremony 2025 02

88 RSS Victory - launching ceremony - October 21, 2025

88 rss victory mrcv multi role combat vessel republic of singapore navy launching st engineering 2025 03

88 RSS Victory - launching ceremony - October 21, 2025

victory class multi role combat vessel mrcv republic of singapore navy 07

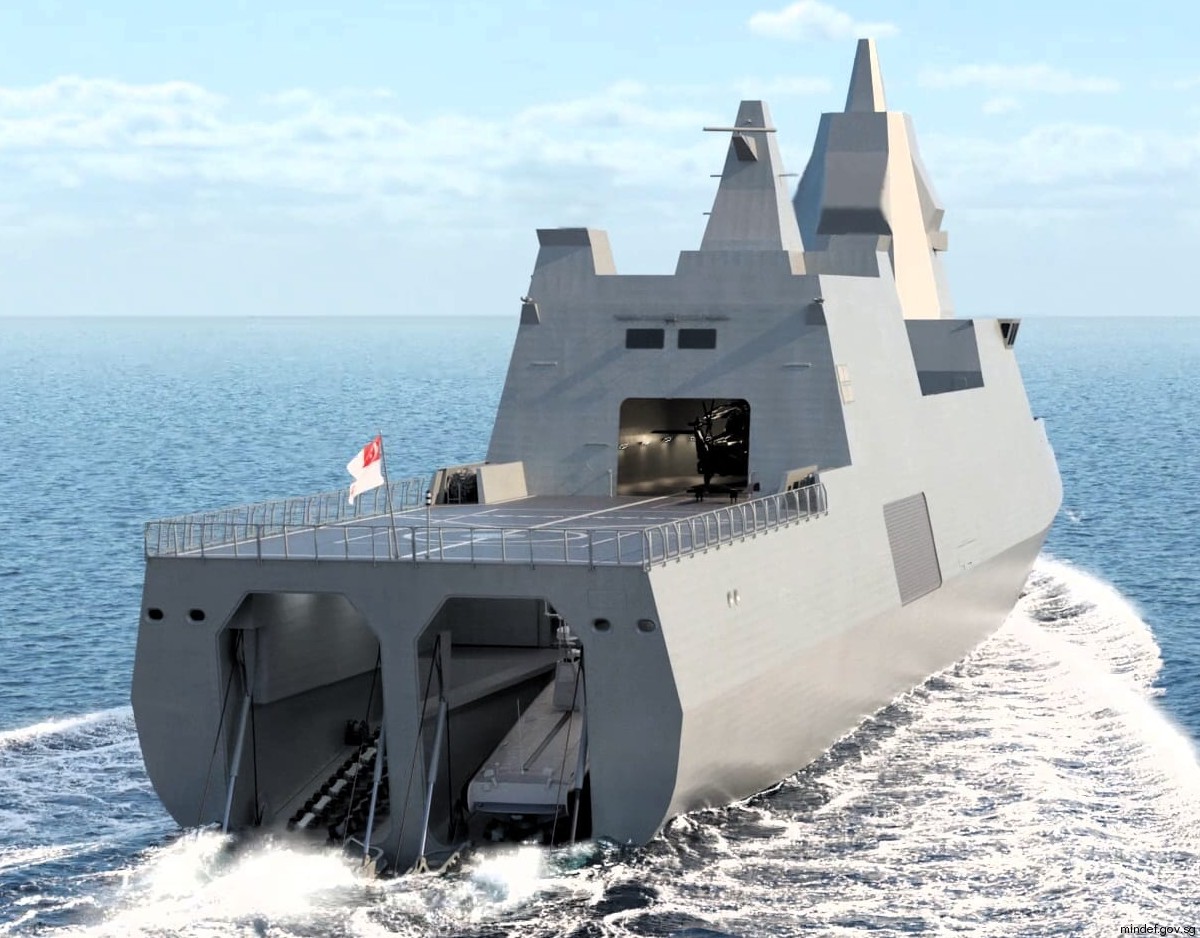

multi role combat vessel mrcv republic singapore navy st engineering 06

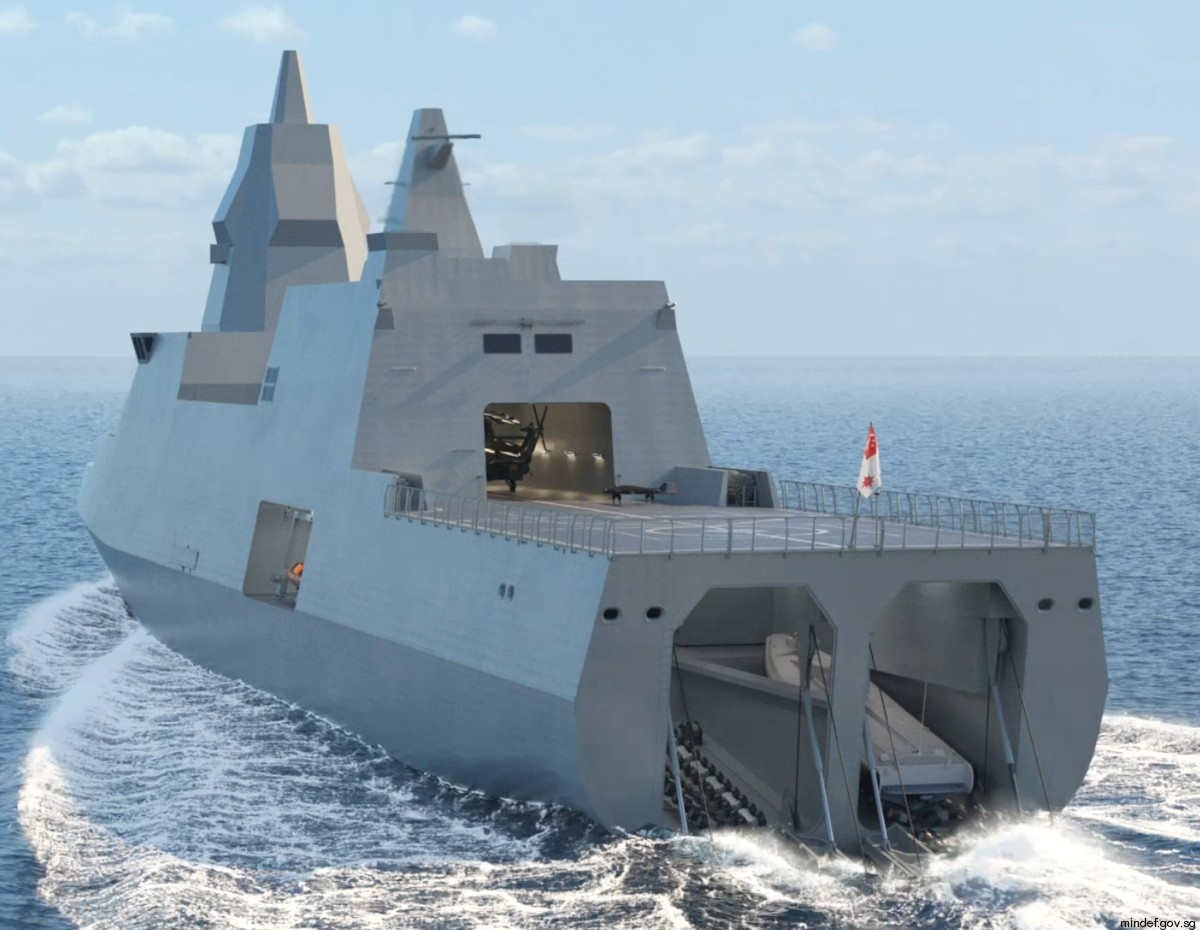

multi role combat vessel mrcv republic singapore navy st engineering 05

victory class multi role combat vessel mrcv republic of singapore navy armament systems 08

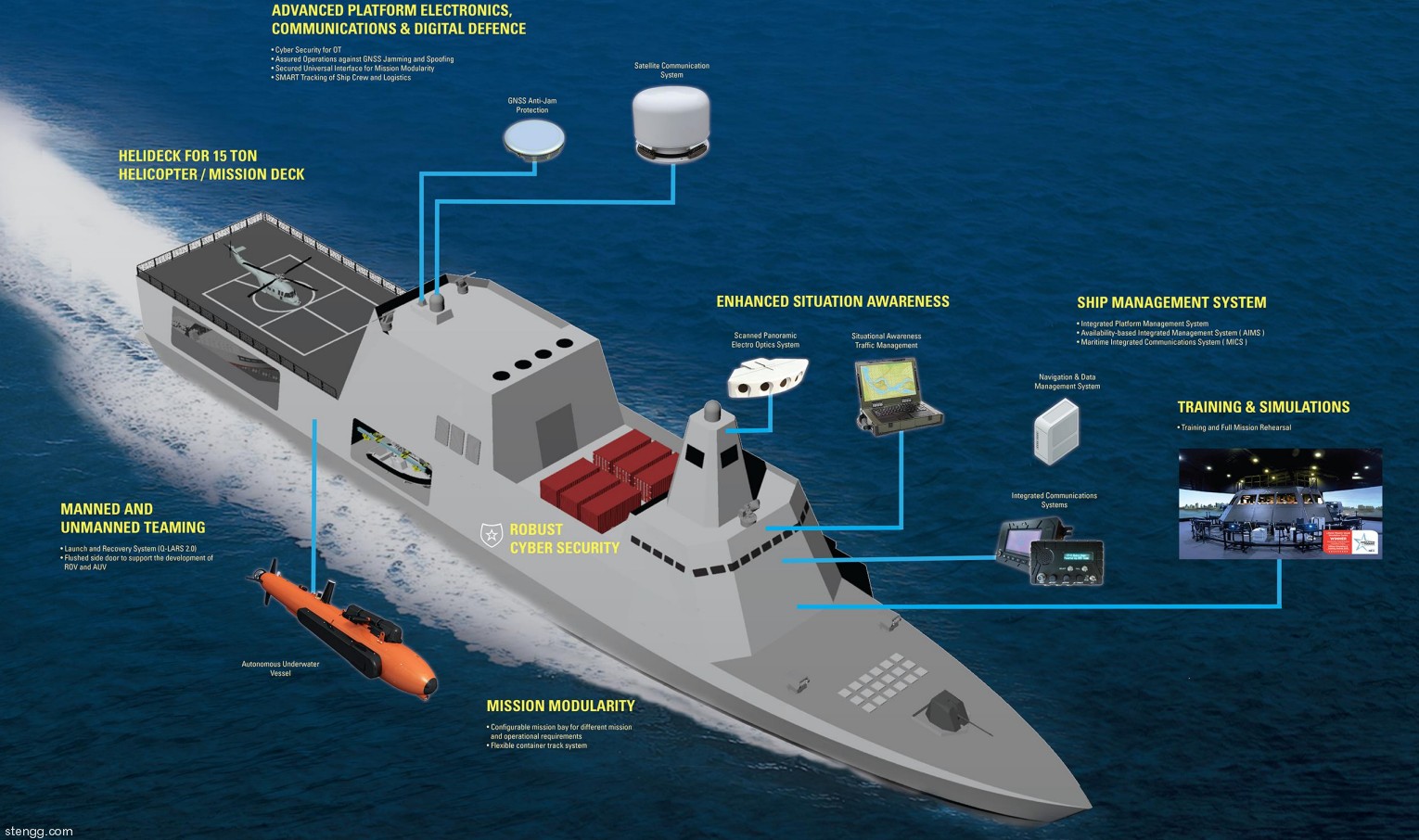

multi role combat vessel mrcv republic singapore navy st engineering 02

victory class multi role combat vessel mrcv republic of singapore navy 09

multi role combat vessel mrcv republic singapore navy st engineering 03

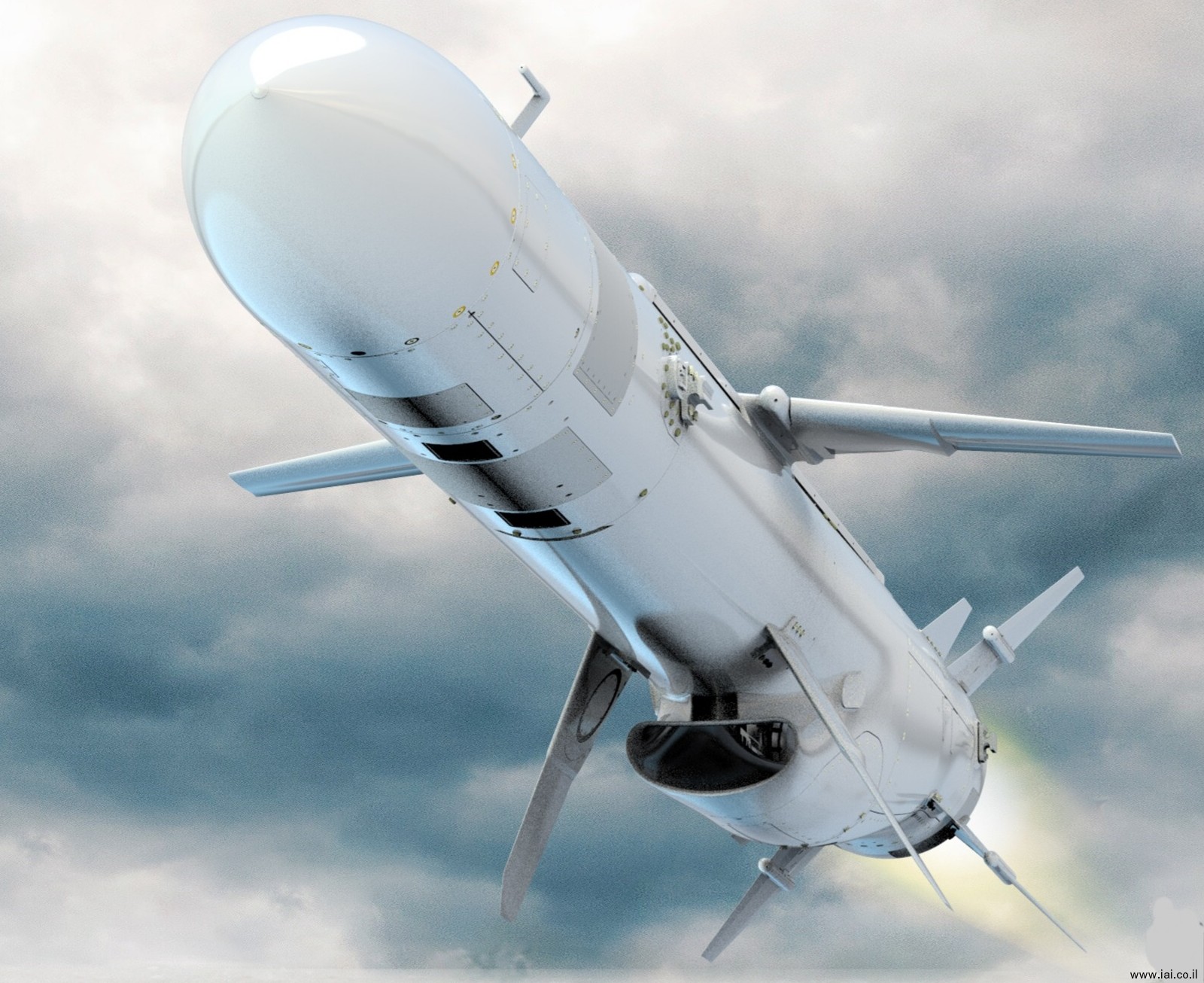

multi role combat vessel mrcv republic singapore navy st engineering iai blue spear ssm missile
