Republic of Korea Navy - ROKN Ulsan class Frigate |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ships: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Builders: Hyundai Heavy Industries, Ulsan, RoK Korea Shipbuilding Corporation (now Hanjin Heavy Industry Co. Ltd.), Busan, RoK Korea Takoma Shipyard (now Hanjin Heavy Industry Co. Ltd.), Busan, RoK Daewoo Shipbuilding & Marine Engineering (DSME), Geoje, RoK Displacement: 1500 tons (empty) / 2180 tons (full load) / Flight II + III 2300 tons (full load) Length: 102 meters (334.6 feet) Beam: 11.5 meters (37.7 ft) Draft: 3.5 meters (11.5 ft) Speed: 34 knots (63 km/h), max. Range: 4000 NMI (7400 km) at 16 knots (30 km/h) Complement: 150 Propulsion: CODOG (Combined Diesel or Gas) 2 x General Electric LM2500 gas turbines (58200 hp) 2 x MTU 12V 956 TB82 diesel engines (5940 hp) 2 shafts, 2 propellers Armament: 1-2 x Oto-Melara 76/62 guns (76mm / 3-inches / 62-caliber) 2 x Mk.141 quad missile laucher for up to 8 x RGM-84 Harpoon SSM 2 x Mk.32 triple torpedo tubes for Mk.46 torpedoes 3 x Oto-Melara/OtoBreda 40L70 DARDO CIWS (Flight II+III) 4 x Emerson Electric 30mm twin guns (Flight I) depth charges Aviation: none Systems: Signaal DA-05 / DA-08 air+surface search radar Signaal ZW-06 air search radar (early units) Samsung/Marconi ST-1810 air search radar (later units) Raytheon AN/SPS-10C navigation radar Signaal WM-28 fire control radar (early units) / Samsung/Marconi ST-1802 fire control radar (later units) Signaal LIOD -LIghtweight Optronic Director (early units) / Samsung/Radamec 2400 optronic director system (later units) Signaal PHS-32 hull-mounted sonar TB-261K towed sonar 2 x Mark 36 SRBOC chaff/decoy launcher 2 x SLQ-261 torpedo acoustic countermeasures SLQ-25 Nixie towed torpedo decoy ULQ-11K ESM/ECM system Tactical Air Navigation (TACAN) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The Ulsan class frigate is a class of multi-purpose Frigates of the
Republic of Korea. The ships were built in three flights. Names: FF-951 ROKS Ulsan: Ulsan Metropolitan City FF-952 ROKS Seoul: Seoul City FF-953 ROKS Chungnam: South Chungcheong Province, also known as Chungnam FF-955 ROKS Masan: Masan is an administrative region of Changwon, a city in the South Gyeongsang Province FF-956 ROKS Gyeongbuk: North Gyeongsang Province (aka Gyeongsangbuk-do) is a province in eastern South Korea FF-957 ROKS Jeonnam: South Jeolla Province, also known as Jeonnam FF-958 ROKS Jeju: Jeju Island is the largest island in South Korea FF-959 ROKS Busan: Busan, formerly romanized as Pusan and officially known as Busan Metropolitan City FF-961 ROKS Cheongju: Cheongju is the capital and largest city of North Chungcheong Province in South Korea Decommissioned units - fate: FF-951 ROKS Ulsan: museum ship in Ulsan city FF-952 ROKS Seoul: museum ship at Seoul Battleship Park FF-953 ROKS Chungnam: ? FF-955 ROKS Masan: part of reserve fleet FF-956 ROKS Gyeongbuk: part of reserve fleet |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| images | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

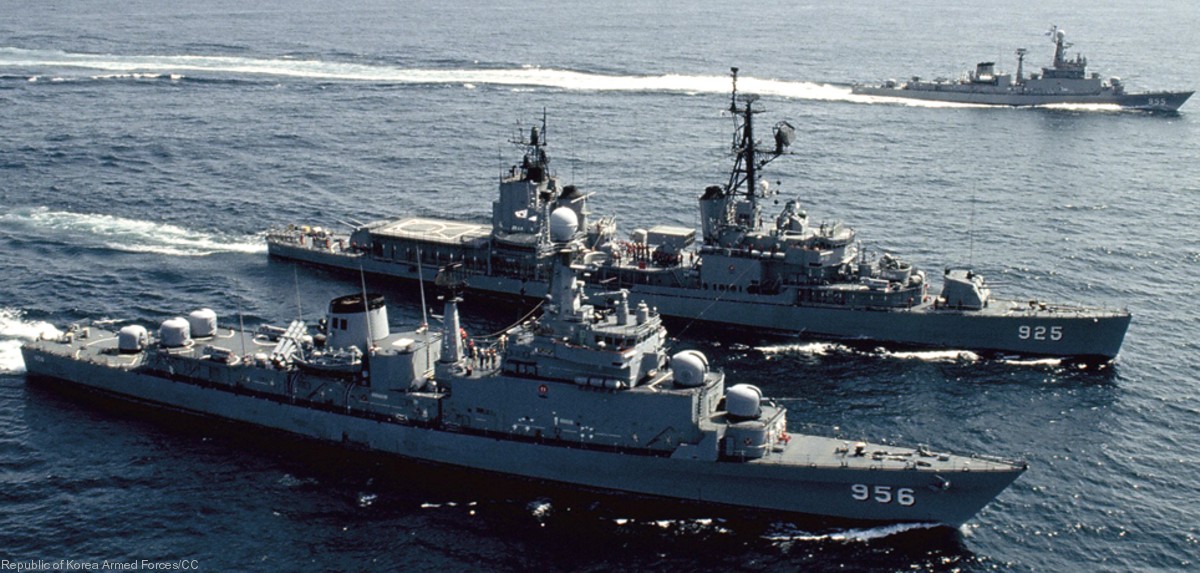

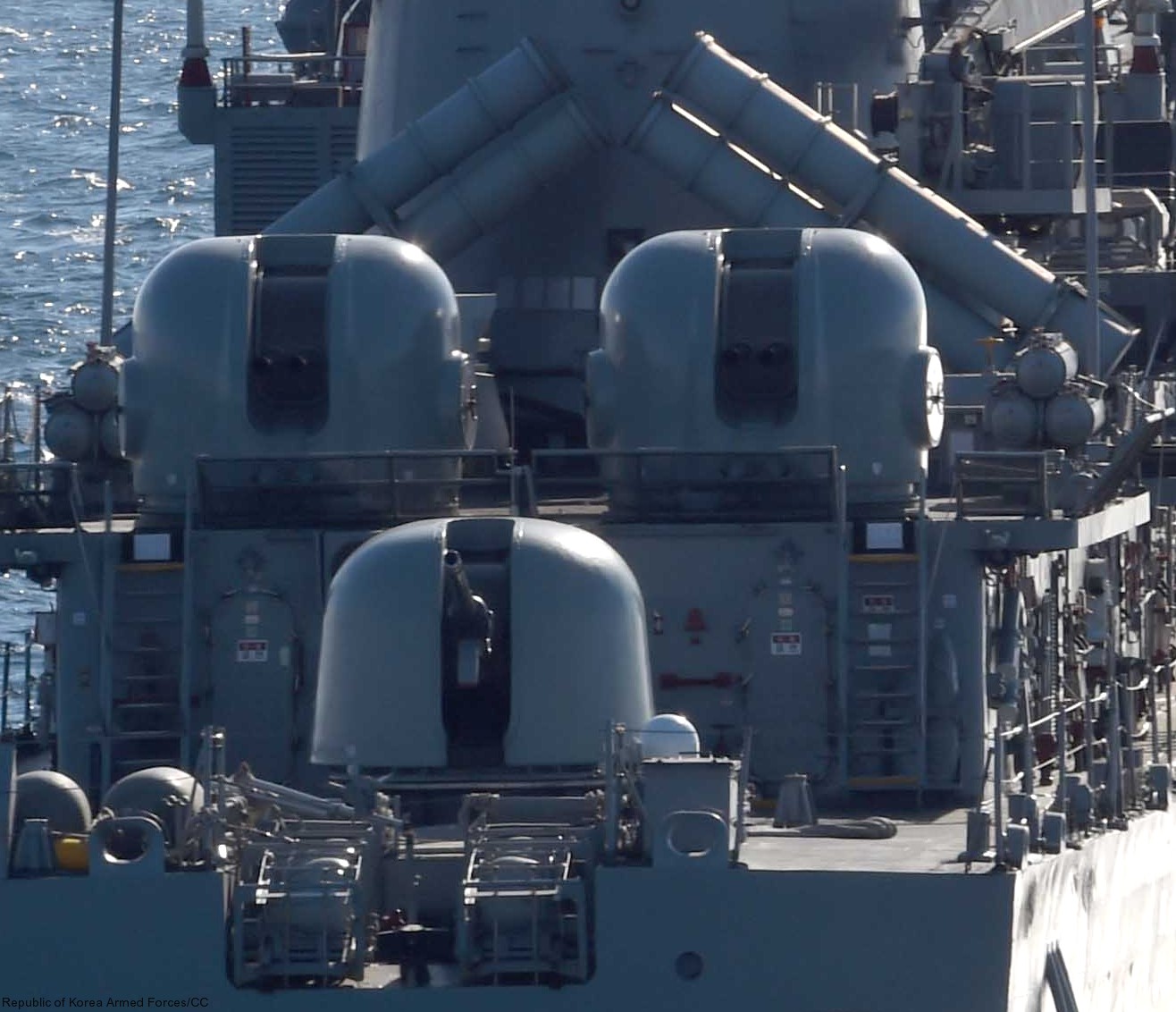

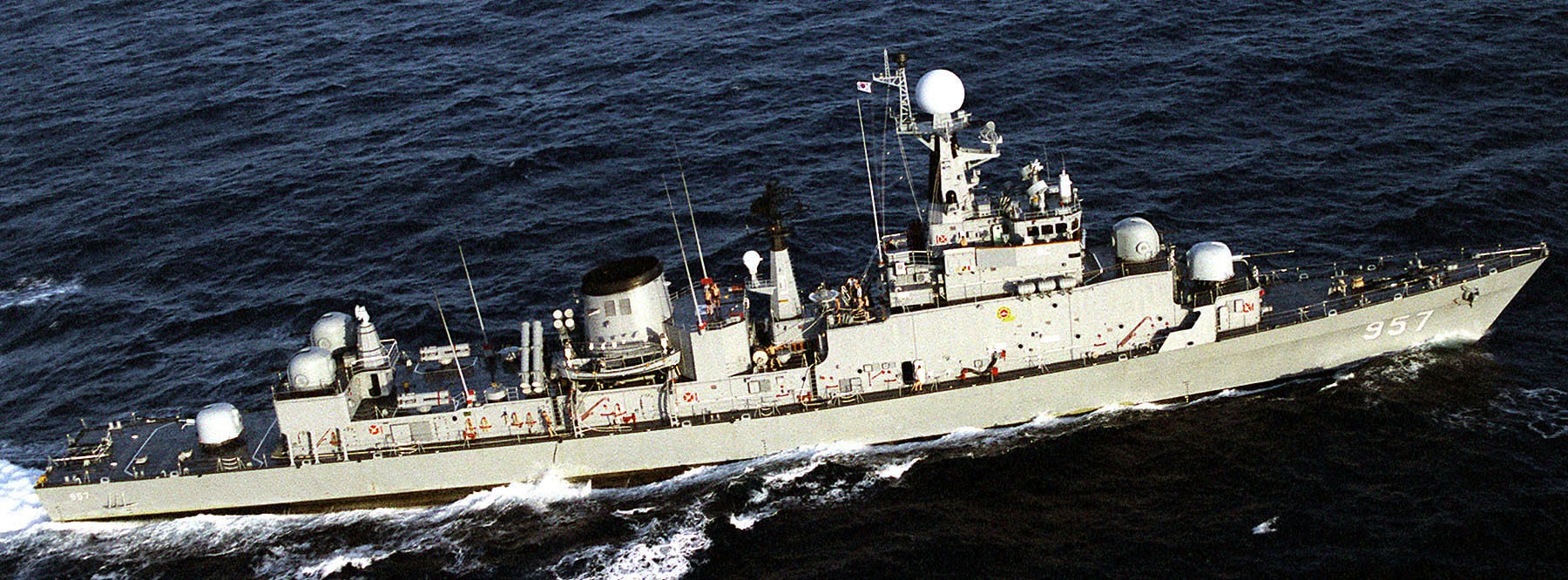

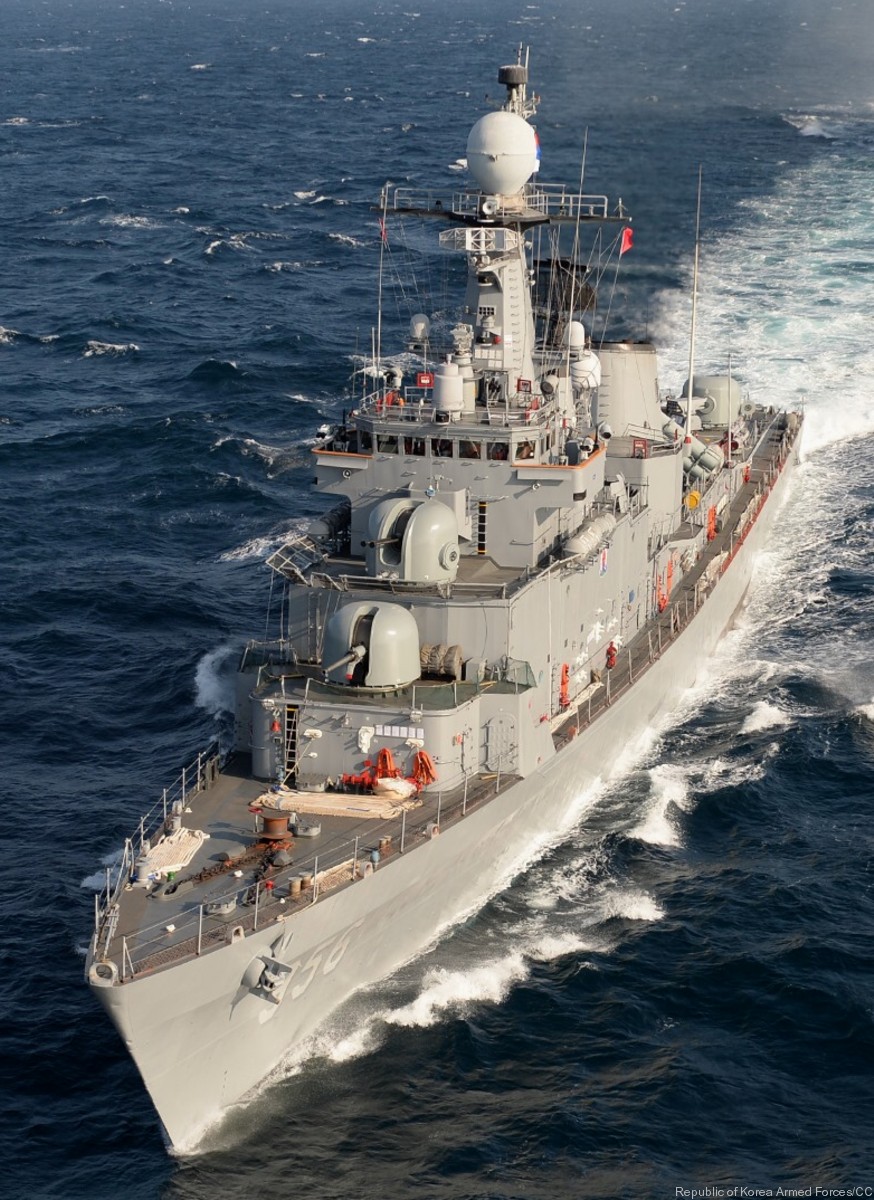

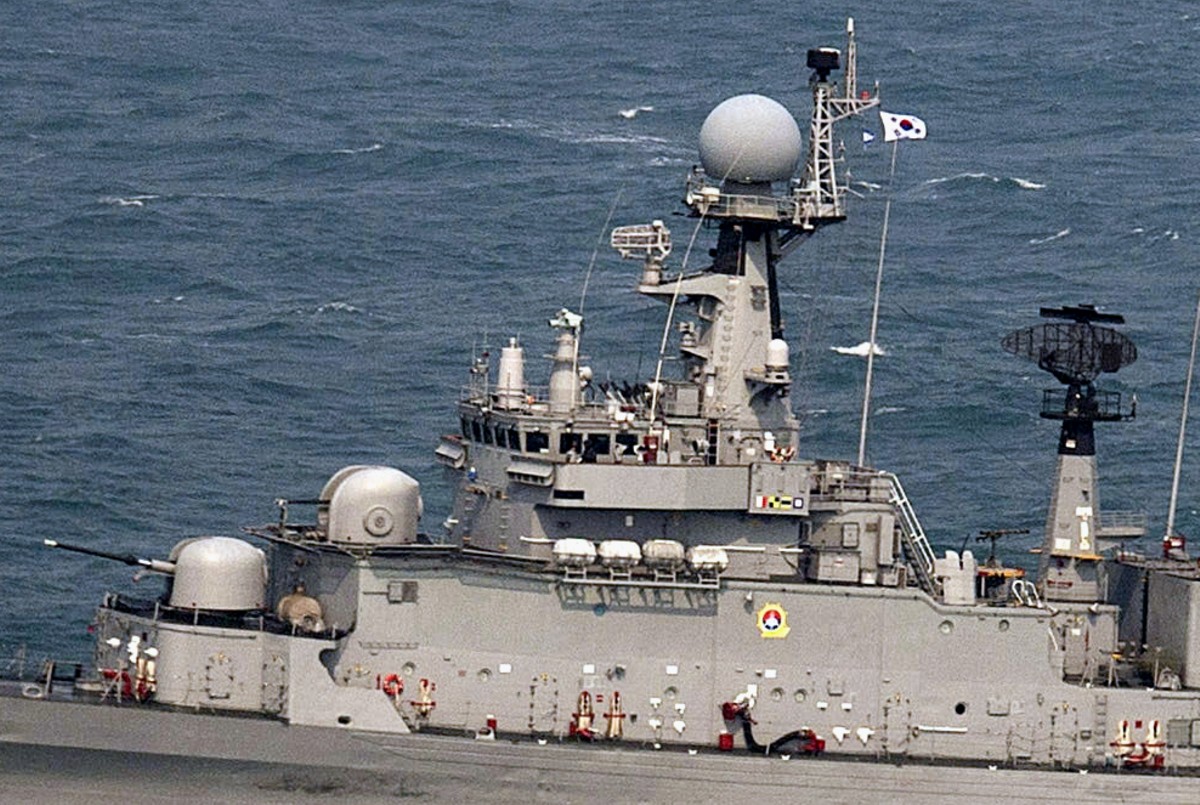

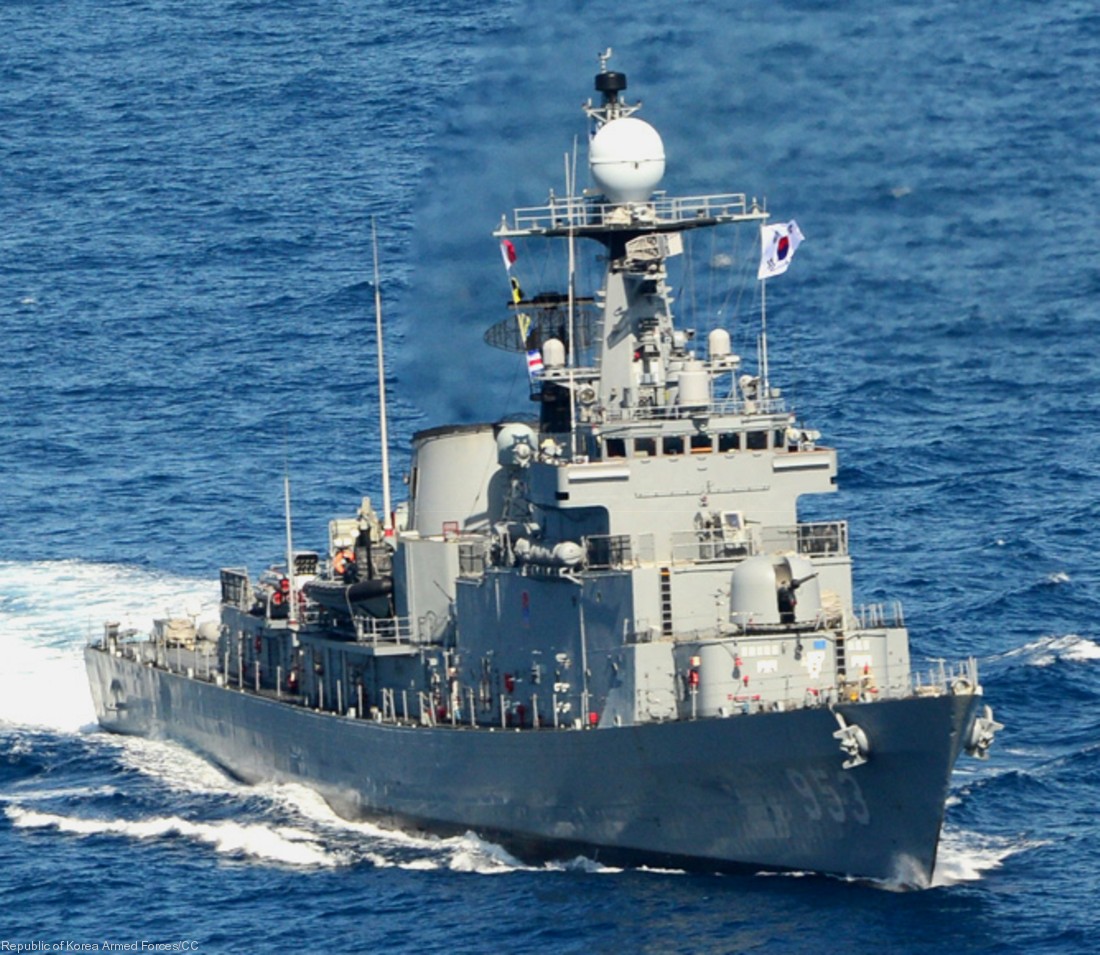

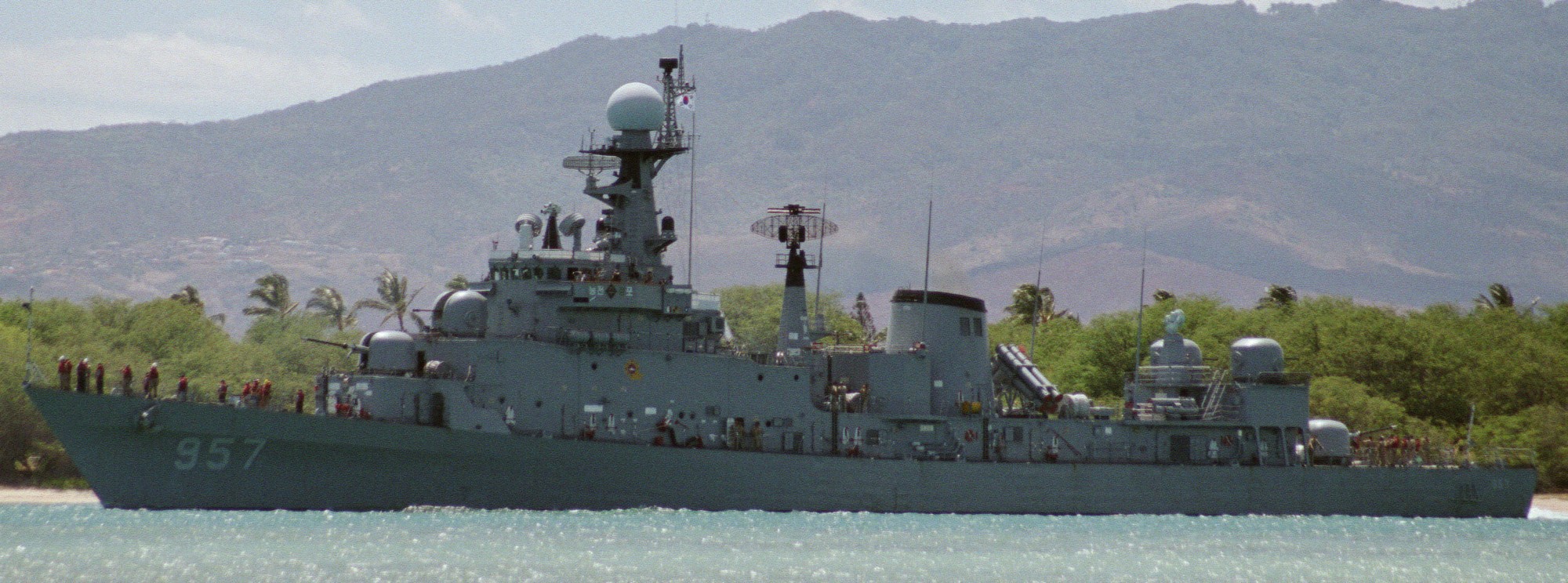

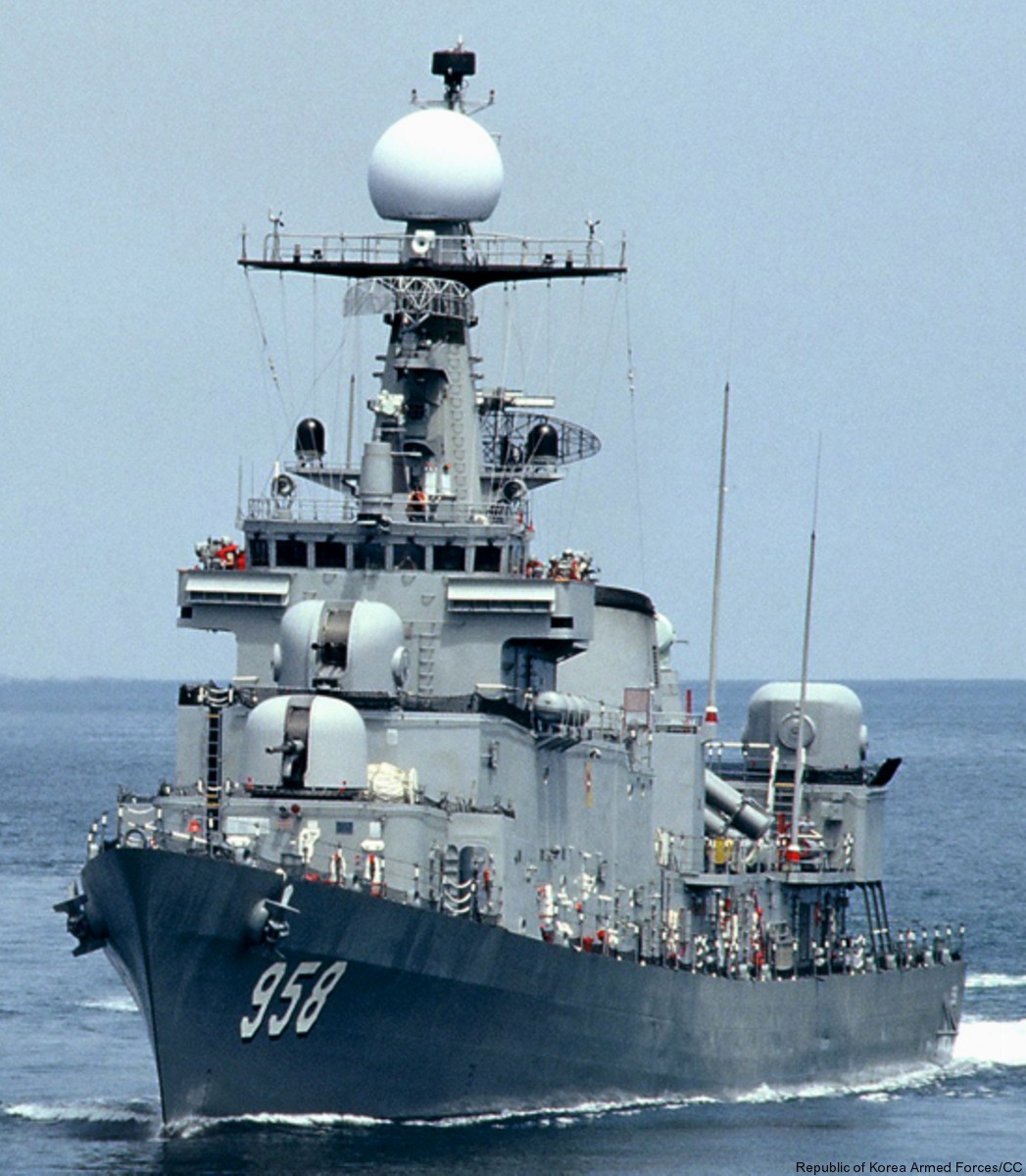

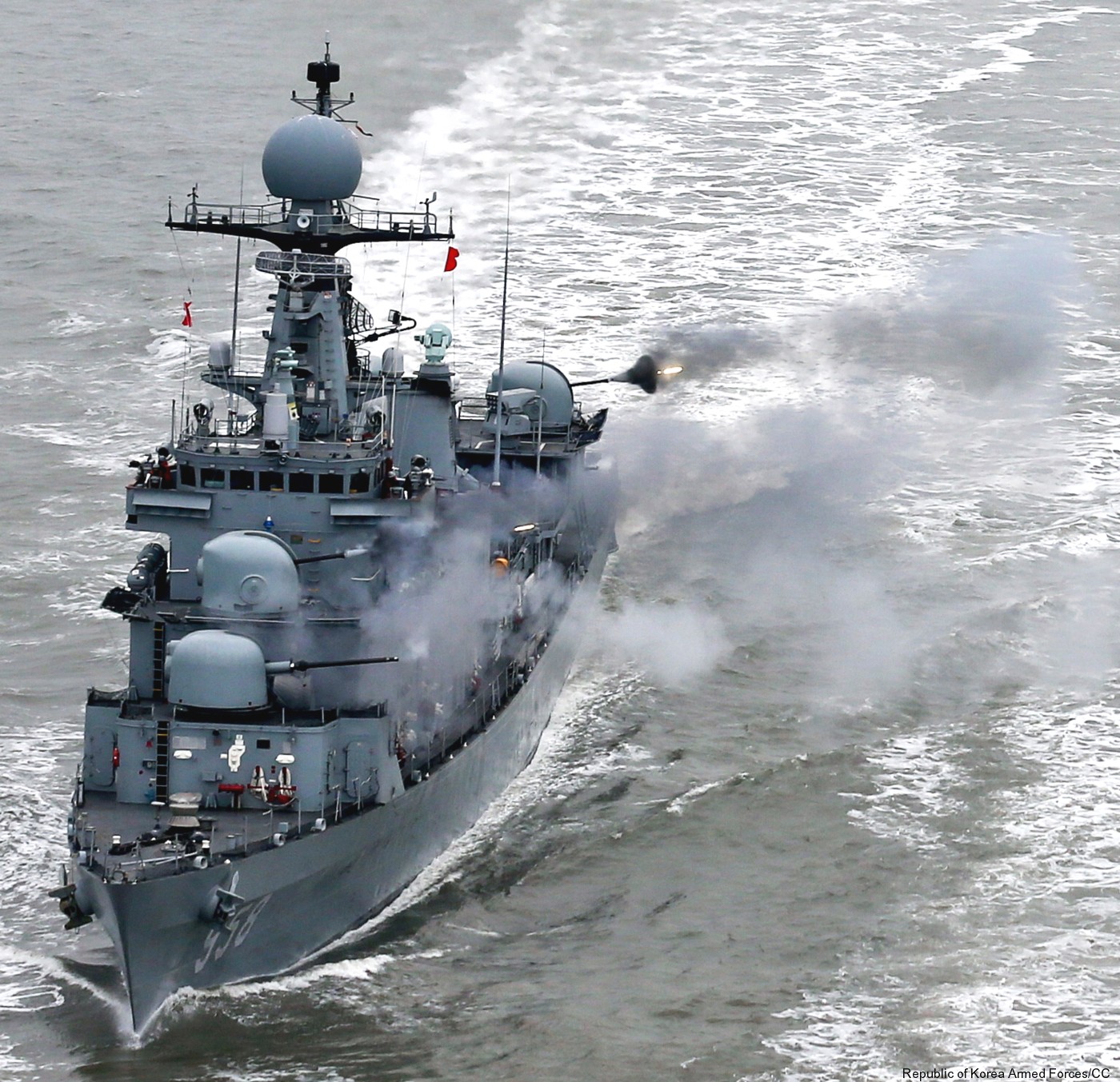

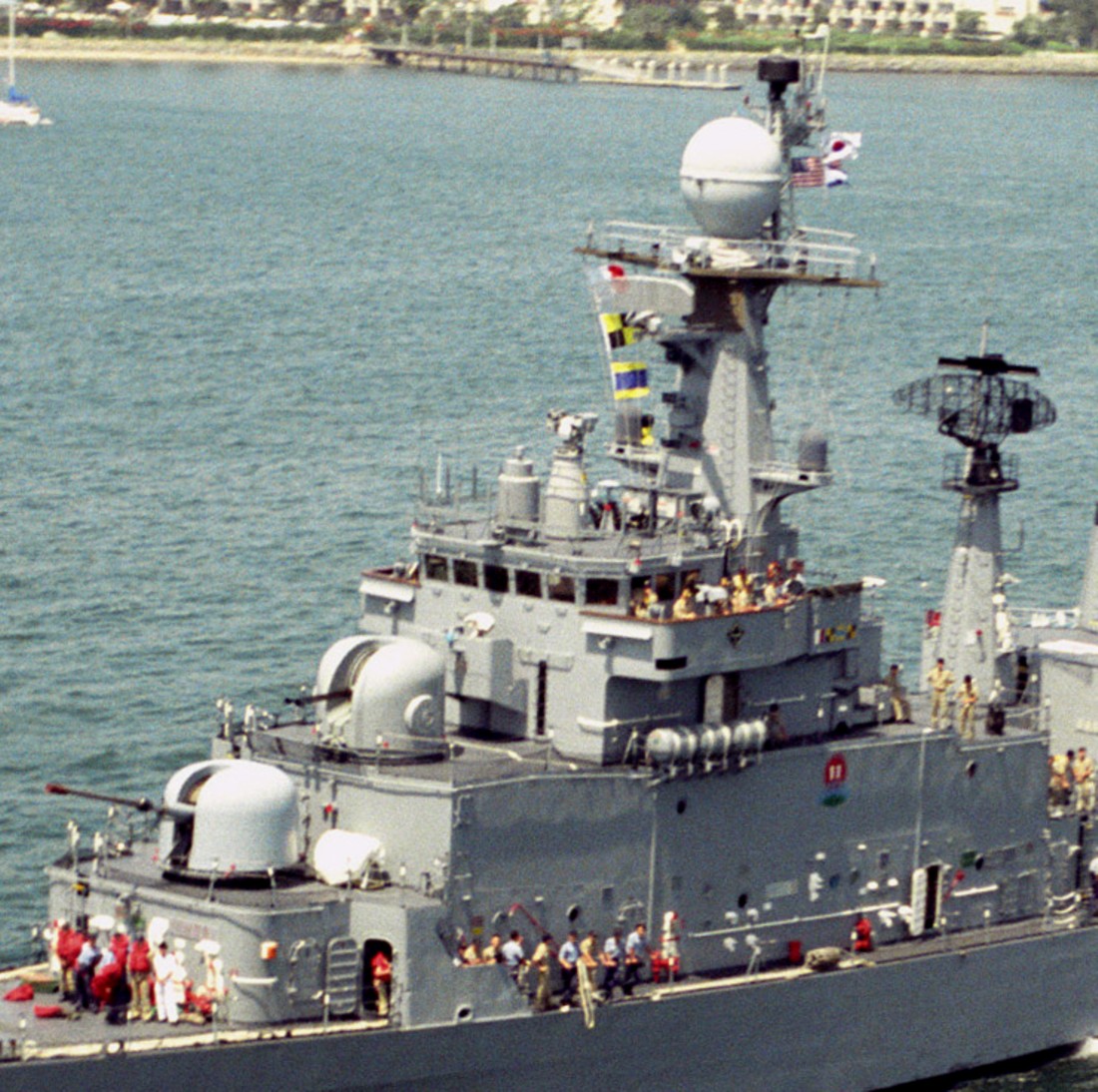

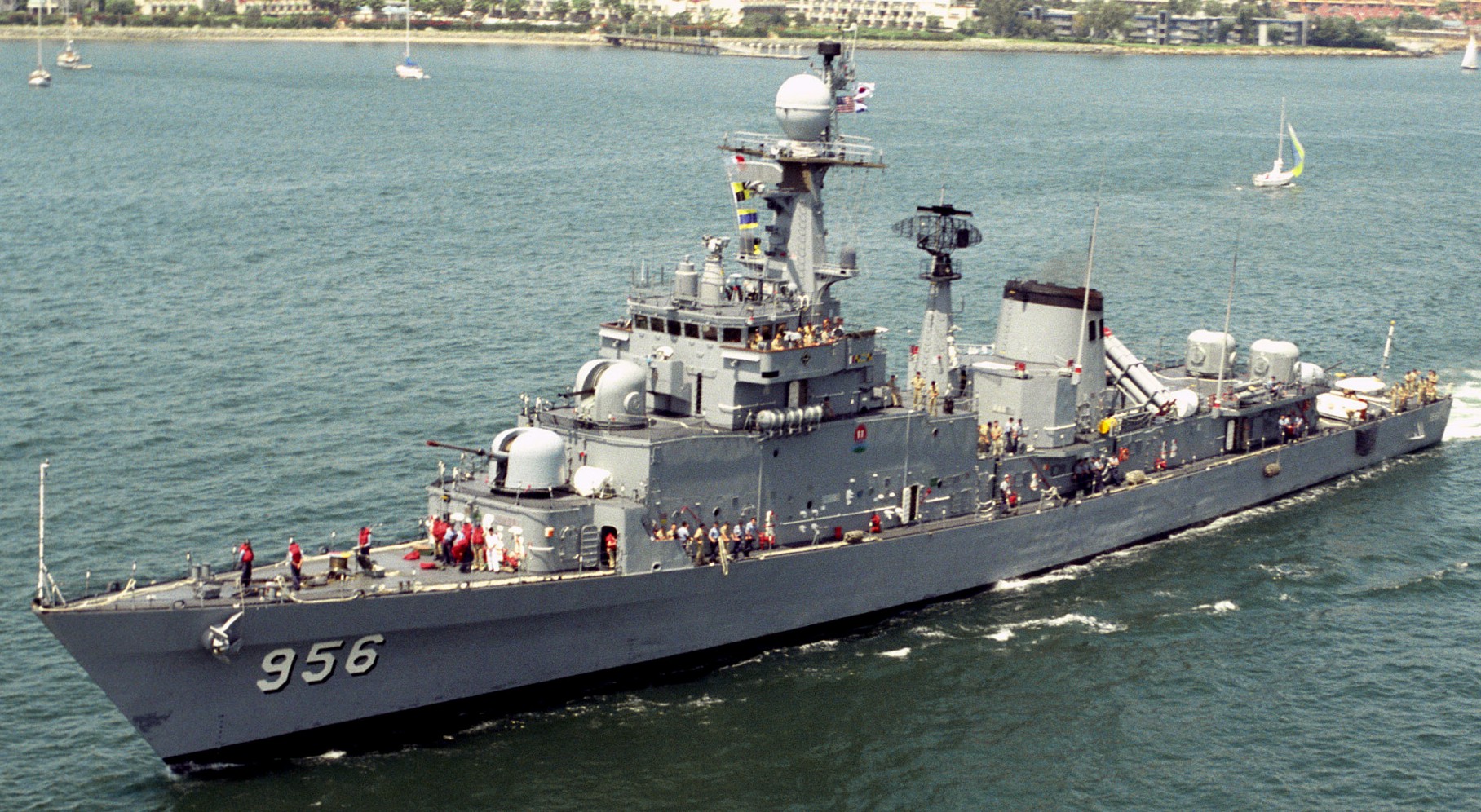

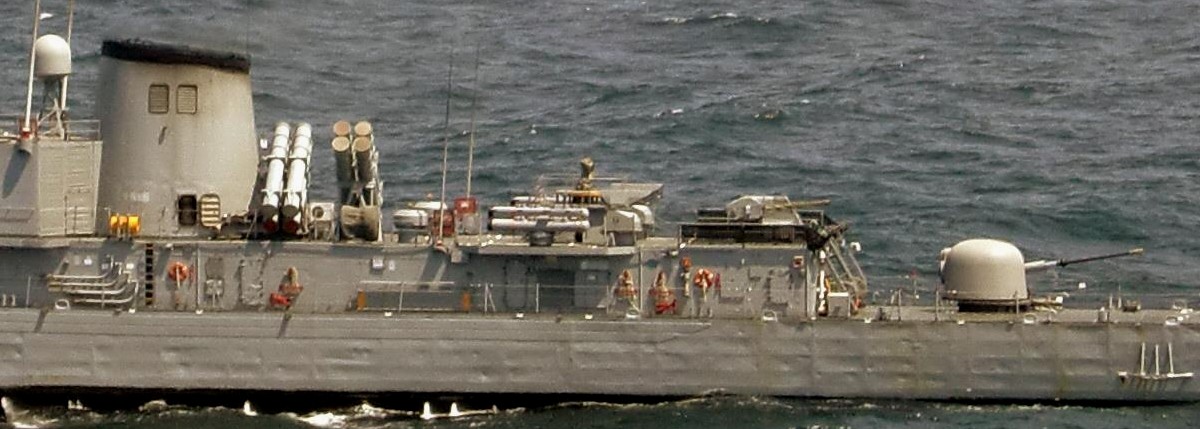

 FF-951 ROKS Ulsan  FF-951 ROKS Ulsan  FF-952 ROKS Seoul  cutout - armament details: Oto-Melara 76/62 gun / 3 x 30mm twin guns  cutout - armament details: tube launcher for RGM-84 Harpoon SSM (2x4) / Mk.32 triple torpedo tubes / 1 x 30mm twin gun / Oto-Melara 76/62 gun  FF-952 ROKS Seoul  FF-952 ROKS Seoul  FF-952 ROKS Seoul  FF-953 ROKS Chungnam  FF-953 ROKS Chungnam  FF-955 ROKS Masan fires a RGM-84 Harpoon SSM missile  FF-956 ROKS Gyeongbuk  cutout: Oto-Melara 76/62 gun / Oto-Melara 40L70 DARDO CIWS  FF-956 ROKS Gyeongbuk  FF-956 ROKS Gyeongbuk firing its Oto-Melara 40mm DARDO CIWS  FF-956 ROKS Gyeongbuk  cutout: Oto-Melara 76/62 gun / 2 x Oto-Melara 40L70 DARDO CIWS / RGM-84 Harpoon SSM launcher (2x4) / 2 x Mk.32 triple torpedo tubes / depth charge rack  FF-956 ROKS Gyeongbuk  FF-957 ROKS Jeonnam  FF-957 ROKS Jeonnam  FF-957 ROKS Jeonnam FF-958 ROKS Jeju  cutout - armament details: Oto-Melara 76/62 gun / Oto-Melara 40L70 DARDO CIWS  cutout - armament details: tube launcher for RGM-84 Harpoon SSM (2x4) / Mk.32 triple torpedo tubes / 2 x Oto-Melara 40L70 DARDO CIWS / Oto-Melara 76/62 gun  FF-958 ROKS Jeju  FF-958 ROKS Jeju  FF-958 ROKS Jeju  FF-958 ROKS Jeju  FF-958 ROKS Jeju  FF-959 ROKS Busan  FF-959 ROKS Busan  FF-961 ROKS Cheongju  FF-961 ROKS Cheongju  cutout: Oto-Melara 76/62 gun / 2 x Oto-Melara 40L70 DARDO CIWS  FF-961 ROKS Cheongju |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
