German Navy - Deutsche Marine
Type 120 Köln class Frigate


type 120 köln koln class frigate german navy deutsche marine emden augsburg karlsruhe lübeck braunschweig 02x


Ships:

F 220
FGS Köln (1961)
F 221
FGS Emden
(1961)
F 222
FGS Augsburg
(1962)
F 223
FGS Karlsruhe
(1962)
F 224
FGS Lübeck
(1963)
F 225
FGS Braunschweig
(1964)


Specifications:

  Builder:
H.C. Stülcken & Sohn, Hamburg, Germany

Displacement:
2750 tons (full load)
Length:
109,8 meters (360 feet 3 inches)
Beam: 11 meters (36 ft 1 in)
Draft: 4,6 meters (15 ft 1 in)
Speed: 32 knots (59 km/h)
Range: 3450 NM (6390 km) at 12 knots (22 km/h) / 5200 NM (9630 km) at 18 knots (33 km/h) / (900 NM (1670 km) at 30 knots (56 km/h)
Complement: 238

Propulsion:
CODAG
(Combined Diesel and Gas)
2 x
Brown Boveri Gas Turbines (2 x 8,83 MW = 23700 hp)
4 x MAN 16-cylinder Diesel Engines (4 x 2,208 MW = 11844 hp)
2 shafts, 2 propellers

Armament:


2 x
DCN single 100mm/L55 guns

2 x
Breda Mod.58II MDL - 40mm/L70 twin AA guns

2 x Bofors Mod.58 -  40mm/L70 single AA guns

4 x 533mm single torpedo tubes for Mk-44 torpedoes

2 x Bofors M/50 375mm quadruple ASW rocket launchers

depth charges & mine laying capacity

Aviation:
none

Systems:
KH14/9 navigation radar
DA-02 target designation radar
SGR103 / SGR105 surface search radar
MV2/3Du, M4/1Du, M5/1Du, M9/3Du fire control radar
PAE1A + CWE10 sonar


The ships of the F120 Köln class of frigates were the first major warships built in Germany after World War II.

They were the world's first ships to feature a combined diesel and gas propulsion system (CODAG).
The ships received numerous refits during their long careers with new electronics and torpedo tubes.
They were replaced by Type 122 / Bremen class frigates in the 1980s and four ships were sold to the Turkish Navy.



images

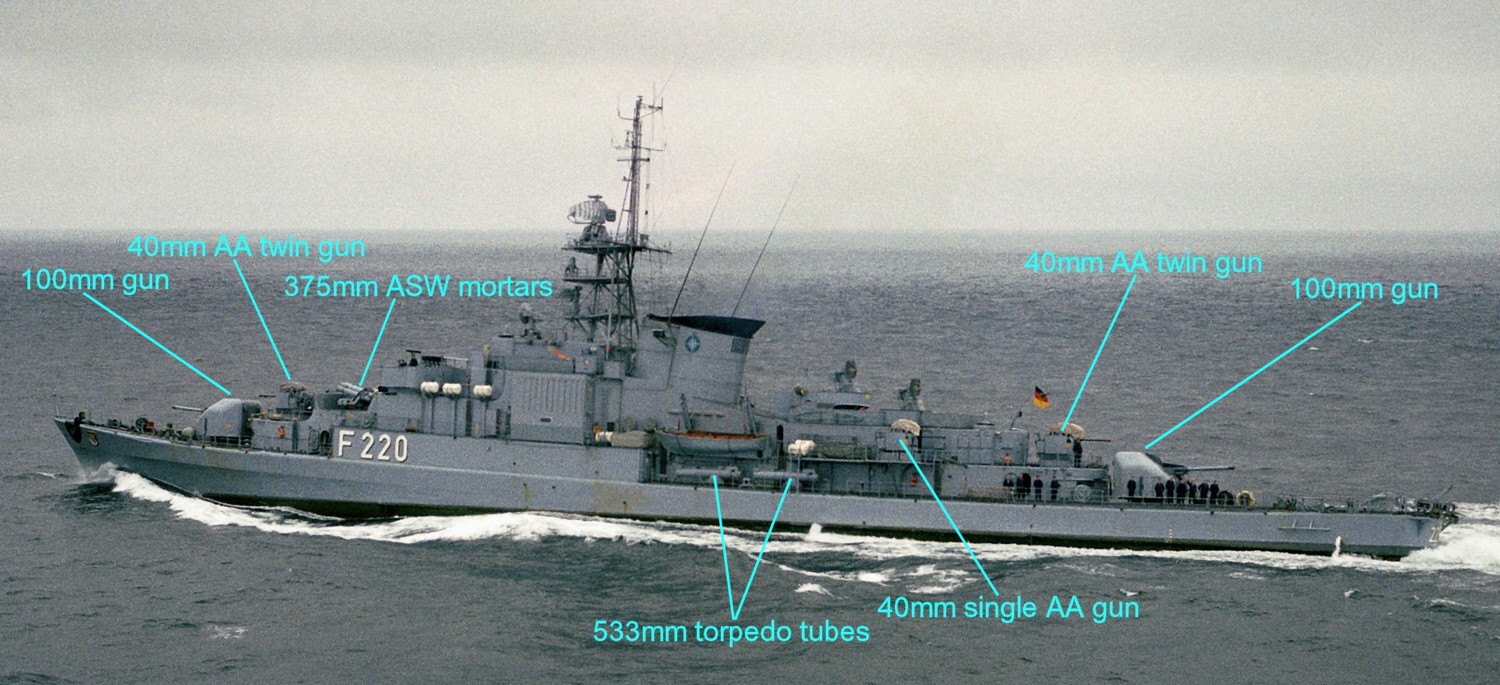

type 120 köln koln class frigate german navy deutsche marine armament dcn giat 100mm gun bofors 40mm breda 20mm torpedo asw mortar

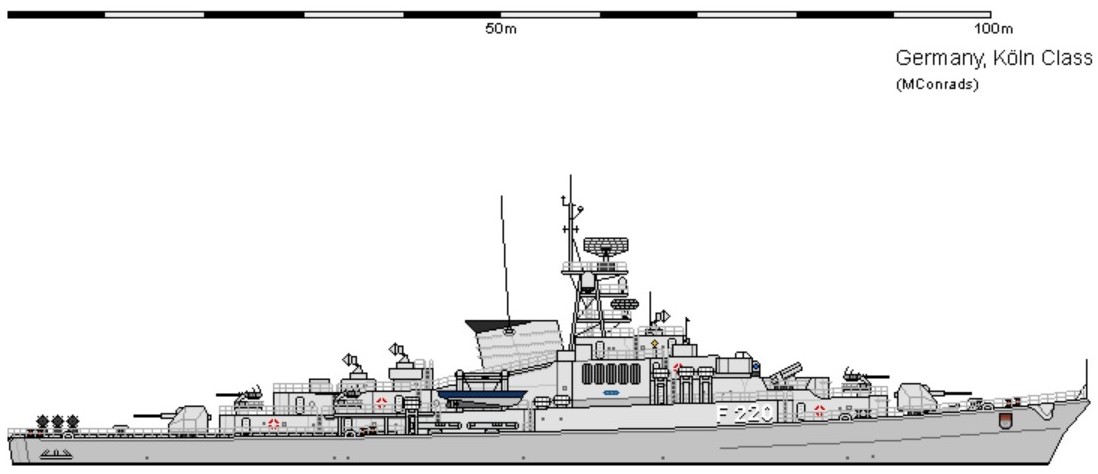

type 120 köln koln class frigate german navy deutsche marine emden augsburg karlsruhe lübeck braunschweig 02 drawing
