F 1000 ENS Shabab Misr Pohang Corvette Egyptian Naval Force

Arab Republic of Egypt - Egyptian Naval Force
F 1000 ENS Shabab Misr

sorry, no insignia

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force hyundai roks jinju 02x

02/24

Type, class: ex PCC-763 ROKS Jinju, Pohang class Patrol Corvette, Flight III
Builder: Hyundai Heavy Industries (HHI), Ulsan, Republic of Korea

STATUS:
Republic of Korea Navy service:
PCC-763 ROKS Jinju
Launched: February 12, 1986
Commissioned: November 1, 1986 (ROK service)
Decommissioned: December 31, 2016

Egyptian Naval Force service:
gifted to Egypt in 2017 / renamed Shabab Misr
Commissioned: October 26, 2017
IN SERVICE
Homeport: Alexandria

Specifications:

Displacement: 950 tons (empty) / 1220 tons (full load)
Length: 88.3 meters (289 feet 8 inches)
Beam: 10 meters (32 ft 10 in)
Draft: 2.9 meters (9 ft 6 in)
Speed: 32 knots (59 km/h), max. / 15 knots (28 km/h), cruise
Range: 4000 NMI (7400 km) at cruise speed
Complement: 95

Propulsion:
CODOG (Combined Diesel or Gas)
1 x General Electric LM2500 gas turbine (27820 hp / 20700 kW)
2 x MTU 12V 956 TB82 diesel engines (6260 hp / 4670 kw, total)
2 shafts, 2 propellers

Armament:
2 x Oto-Melara 76/62 compact guns
2 x Oto-Melara/OtoBreda 40L70 DARDO twin guns

Aviation:
none

Systems:
Raytheon AN/SPS-64 surface search radar
Signaal WM-28 Fire Control System
Signaal SEWACO ZK combat system
Raytheon AN/SQS-58 hull mounted sonar
4 x chaff/decoy launchers

images

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force 03

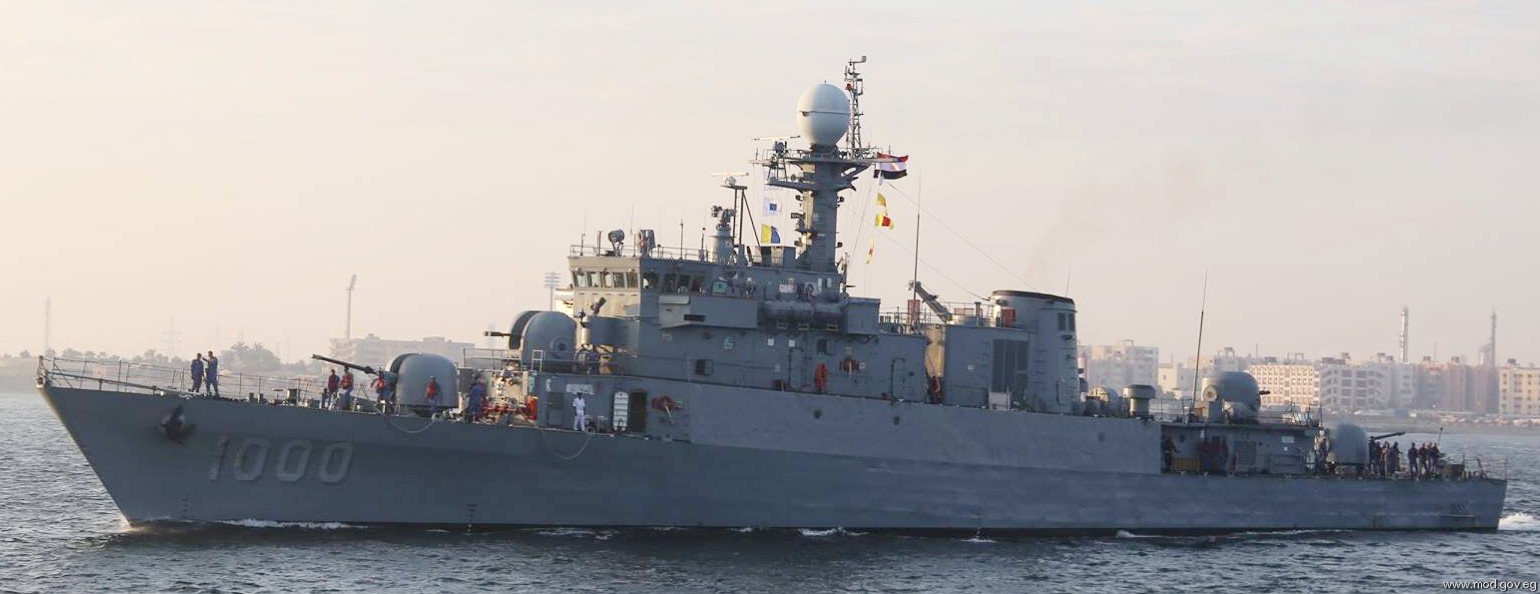

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force 02

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force 05

f-1000 ens shabab misr patrol corvette egyptian naval force oto melara breda 76/62 40l70 dardo gun 06

Oto-Melara 76/62 compact gun / Oto-Melara/OtoBreda 40L70 DARDO twin gun

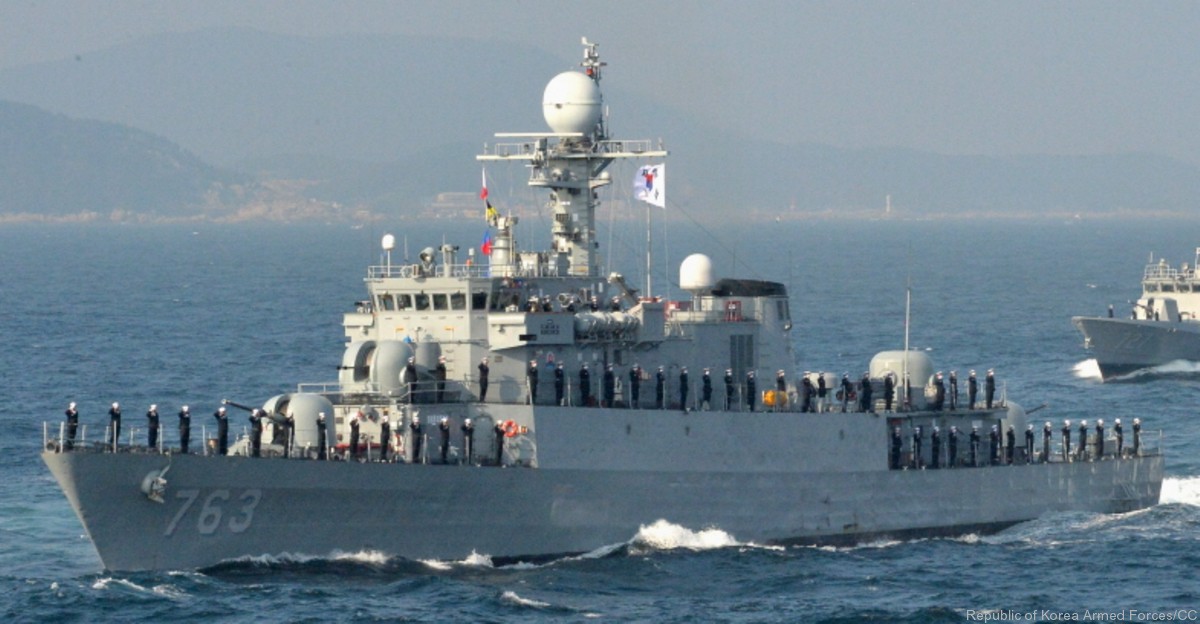

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force pcc-763 roks jinju 04

f-1000 ens shabab misr pohang class patrol corvette egyptian naval force pcc-763 roks jinju 04

in Republic of Korea Navy service as PCC-763 ROKS Jinju

F 1000 ENS Shabab Misr is the former Republic of Korean Navy Pohang class Corvette PCC-763 ROKS Jinju.

Jinju was launched on 12 February 1986 by Hyundai Heavy Industries in Ulsan. Commissioned on 1 November 1986 and decommissioned on 31 December 2016.

On 26 October 2017, the ship arrived at Alexandria Naval Base after being gifted by the RoK Navy.
