Royal Brunei Navy - Tentera Laut Diraja Brunei
Darussalam class Offshore Patrol Vessel


darussalam class offshore patrol vessel opv royal brunei navy tentera laut diraja brunei 02x

11/23
Ships:
Unit / Name Commissioned STATUS
KDB Darussalam (06) May 7, 2011 ACTIVE
KDB Darulehsan (07) May 7, 2011 ACTIVE
KDB Darulaman (08) August 12, 2011 ACTIVE
KDB Daruttaqwa (09) September 8, 2014 ACTIVE

Specifications:

Builder:
 Lürssen Werft, Bremen-Vegesack, Germany

Displacement: 1625 tons
Length: 80 meters (260 feet)
Beam: 13 meters (43 ft)
Draft: ?
Speed: 22 knots (41 km/h)
Range: 7500 NMI (13900 km) / Endurance: 21 days
Complement: 55+

Propulsion:
(Diesel)
2 x MTU V12 diesel engines (11400 hp)
2 shafts / 2 propellers

Armament:

1 x Bofors Mk.3 57mm gun (06, 07, 08)
1 x MLG27 machine gun (09)

2 x Oerlikon 20/85 KAA machine guns

4 x MM40 Exocet Block 3 SSM missiles (not on 09)

Aviation:
 helicopter landing platform / no hangar

Boats & landing craft:
2 x Boomeranger Boats
1 x Boomeranger Patrol Craft

Systems:
 Terma Scanter 4100 Air & Surface Surveillance Radar
Thales Sting-EO Mk.2 multi-sensor naval fire control tracking system
EDO ITT 3601 Tactical Radar ESM and Surveillance System
Terma DL-6T C-Guard Decoy Launching System


The Darussalam class offshore patrol vessel (OPV) is a class of four ships constructed for the Royal Brunei Navy.
They are the largest and most capable ships of the Royal Brunei Navy.
All four units are operating out of Muara Naval Base.

images

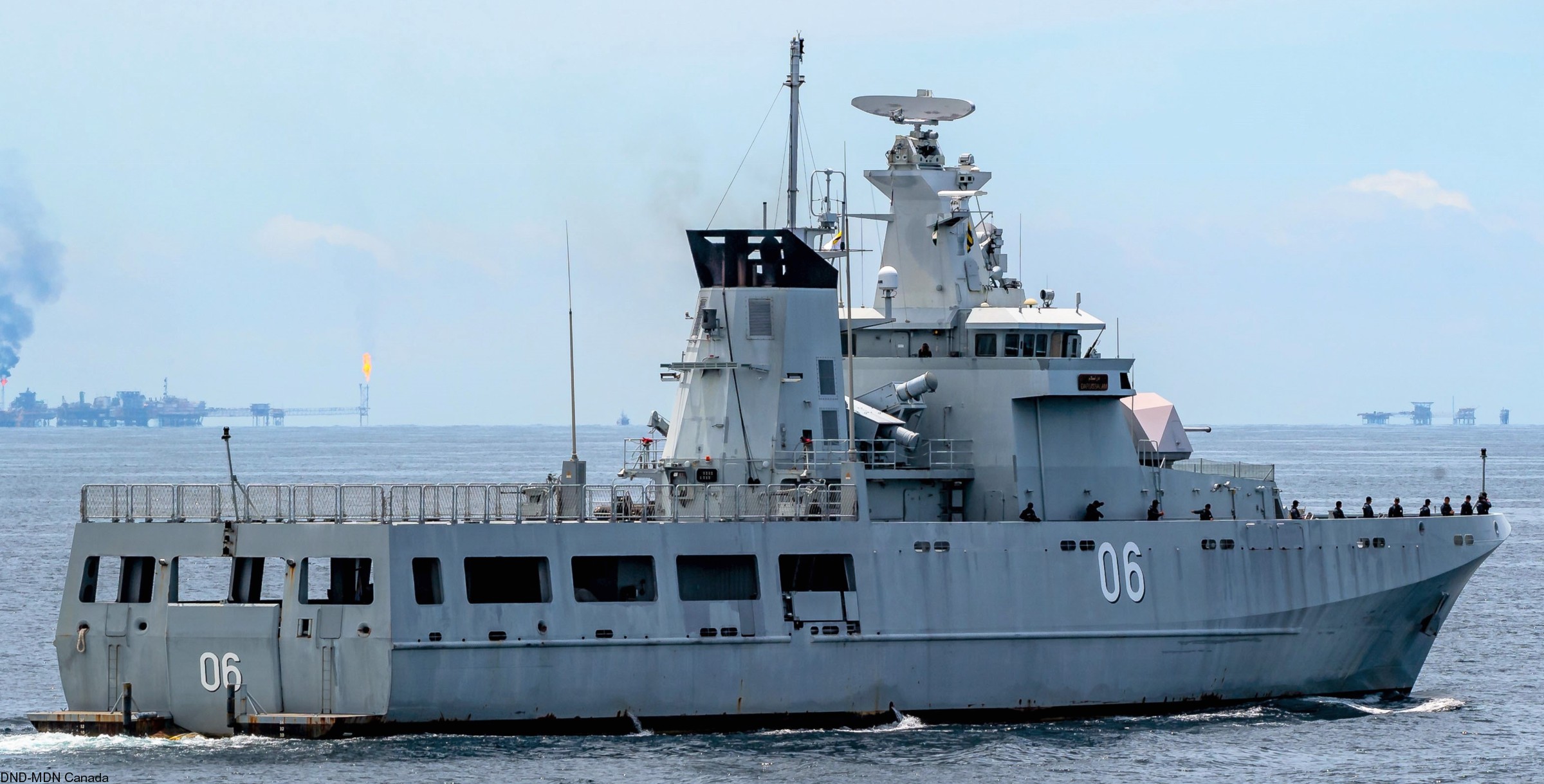

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 05
KDB Darussalam (06)

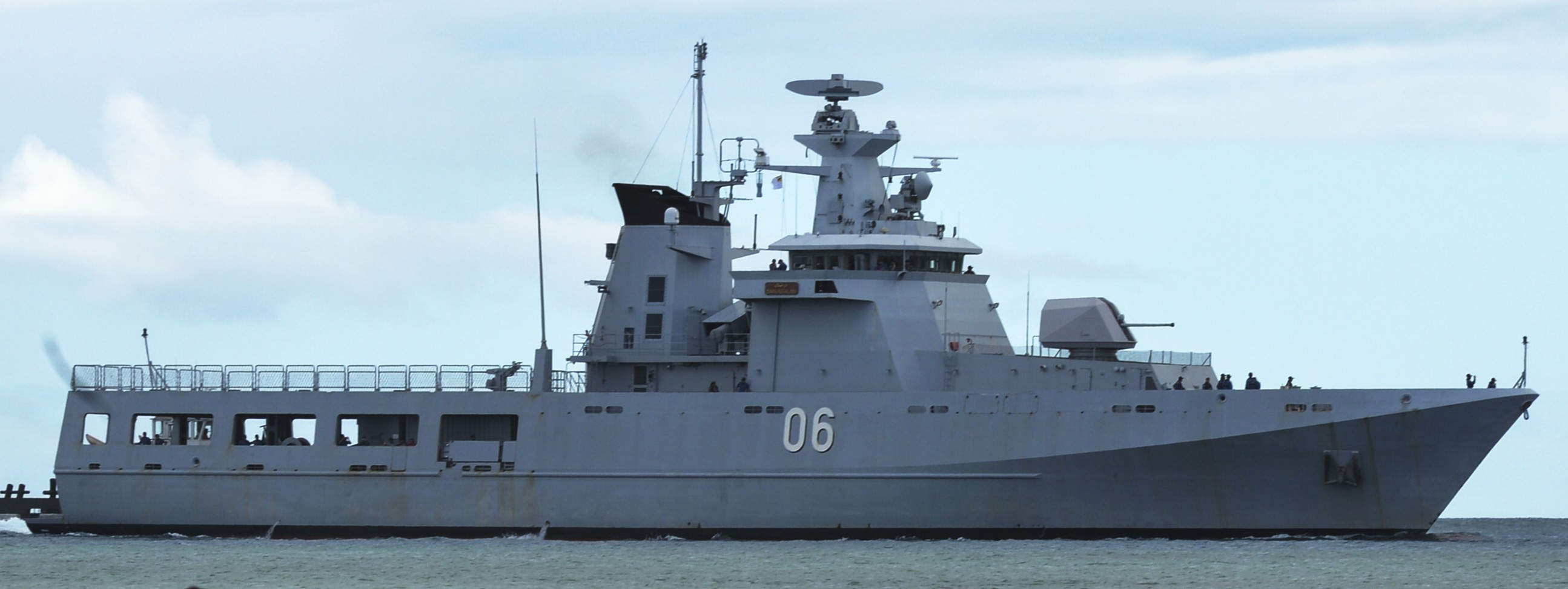

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 04
KDB Darussalam (06)

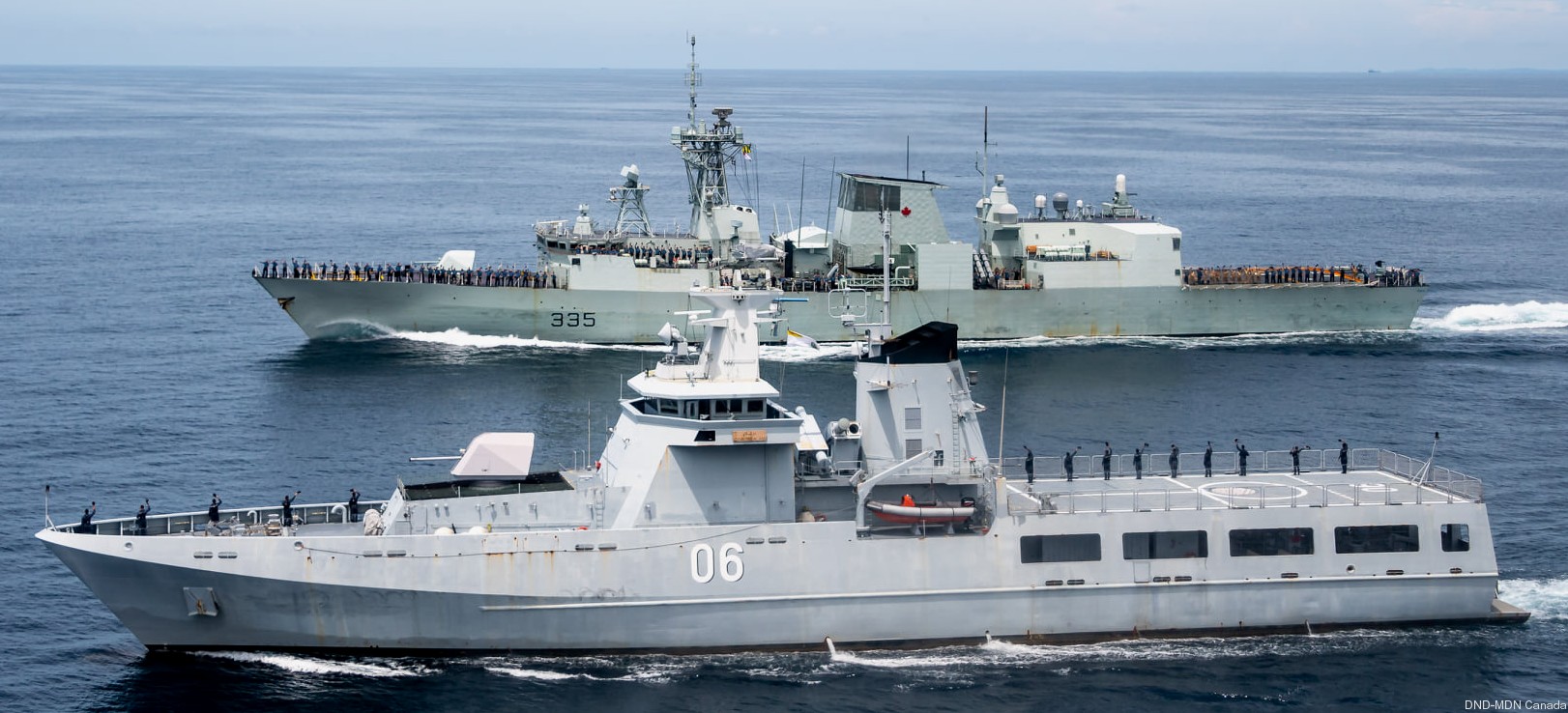

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 08
KDB Darussalam (06)

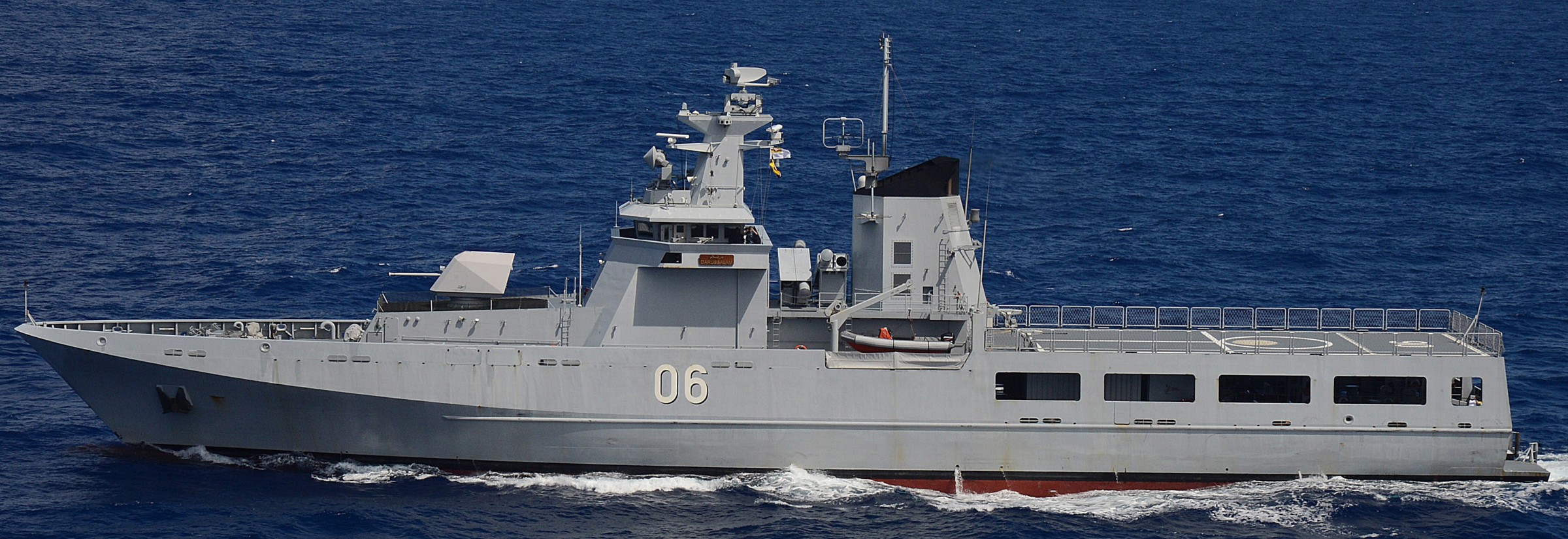

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 02
KDB Darussalam (06)

opv 06 kdb darussalam offshore patrol vessel royal brunei navy armament 02
cutout

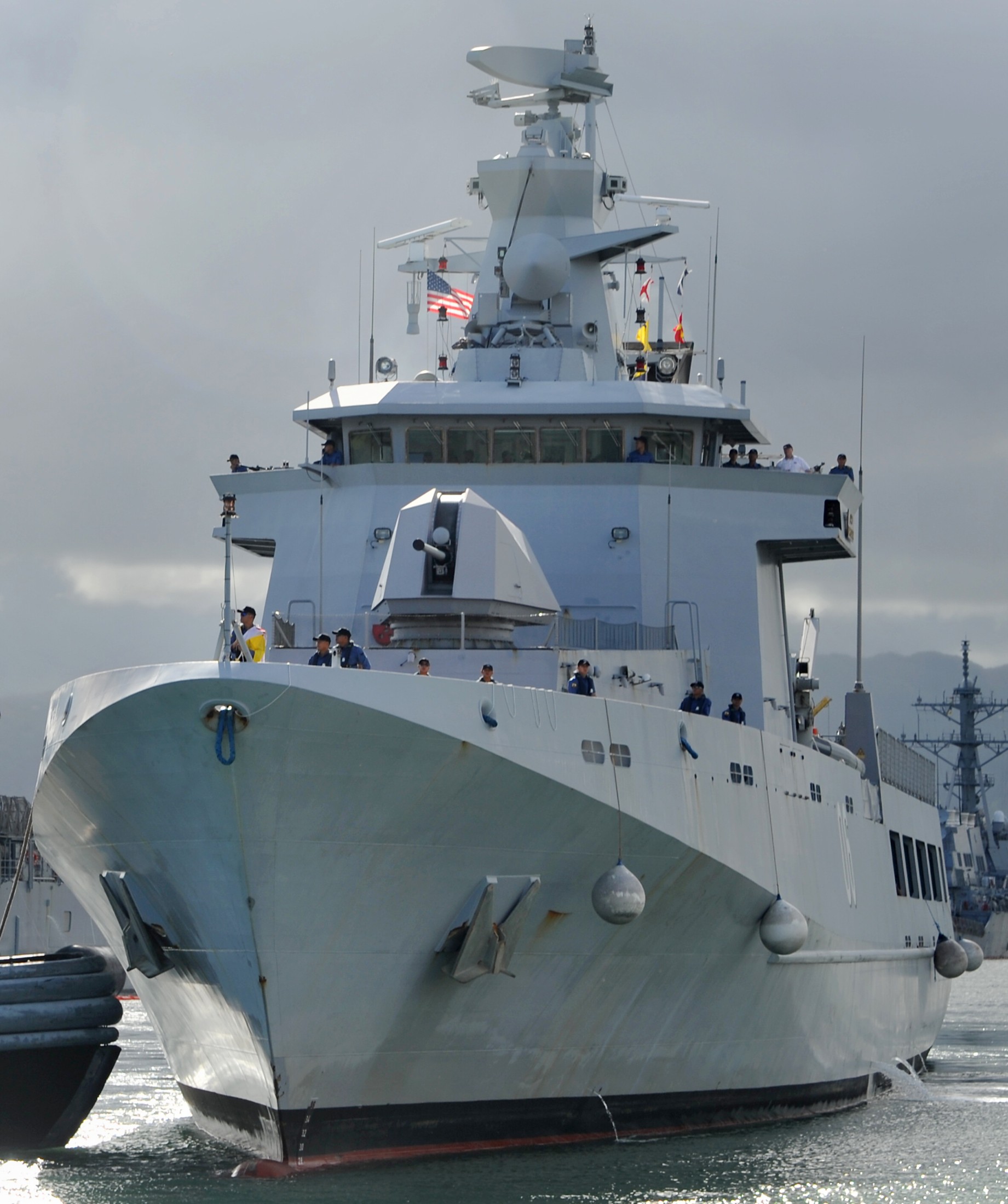

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 03
KDB Darussalam (06)

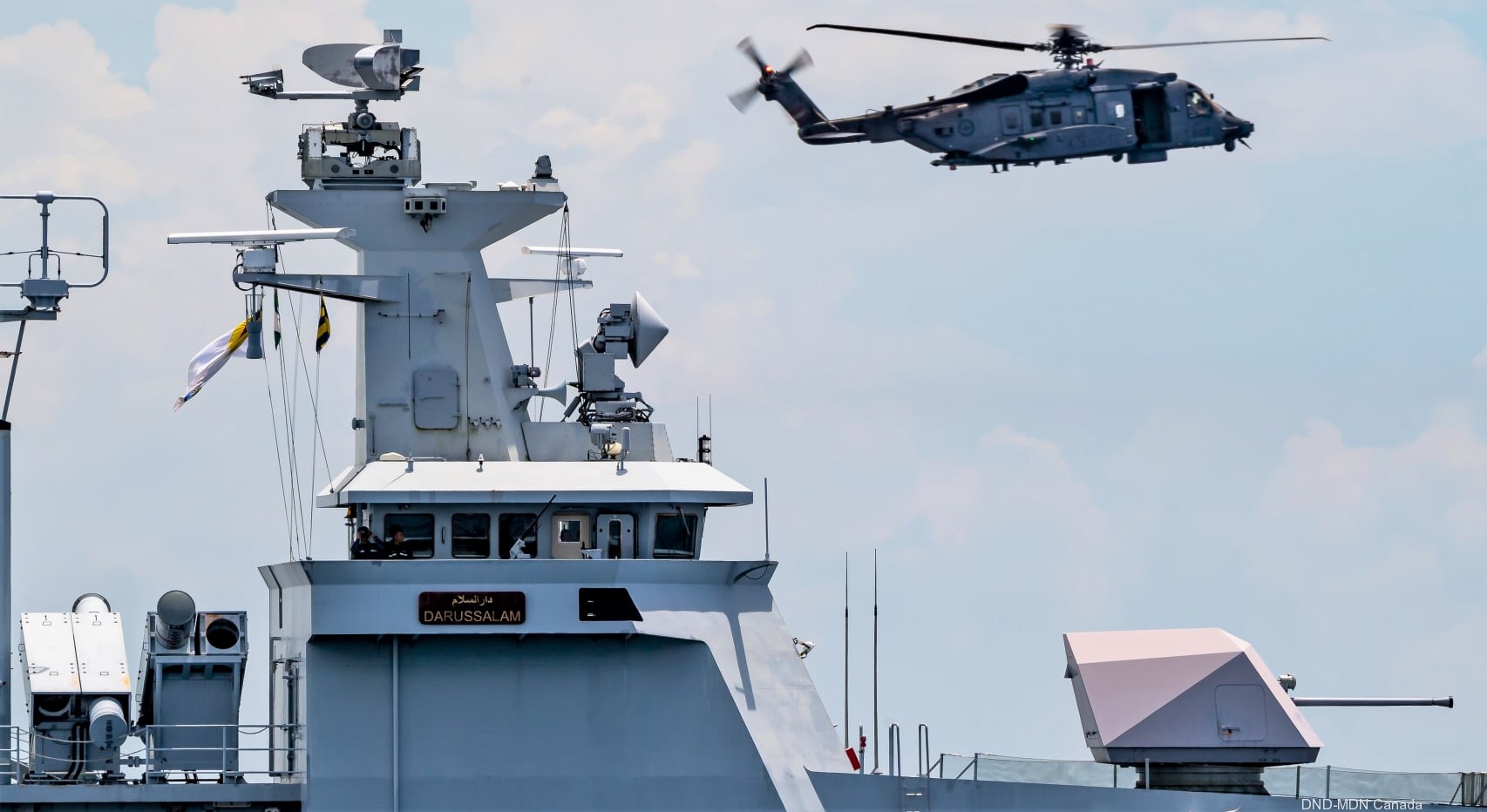

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 07
KDB Darussalam (06)

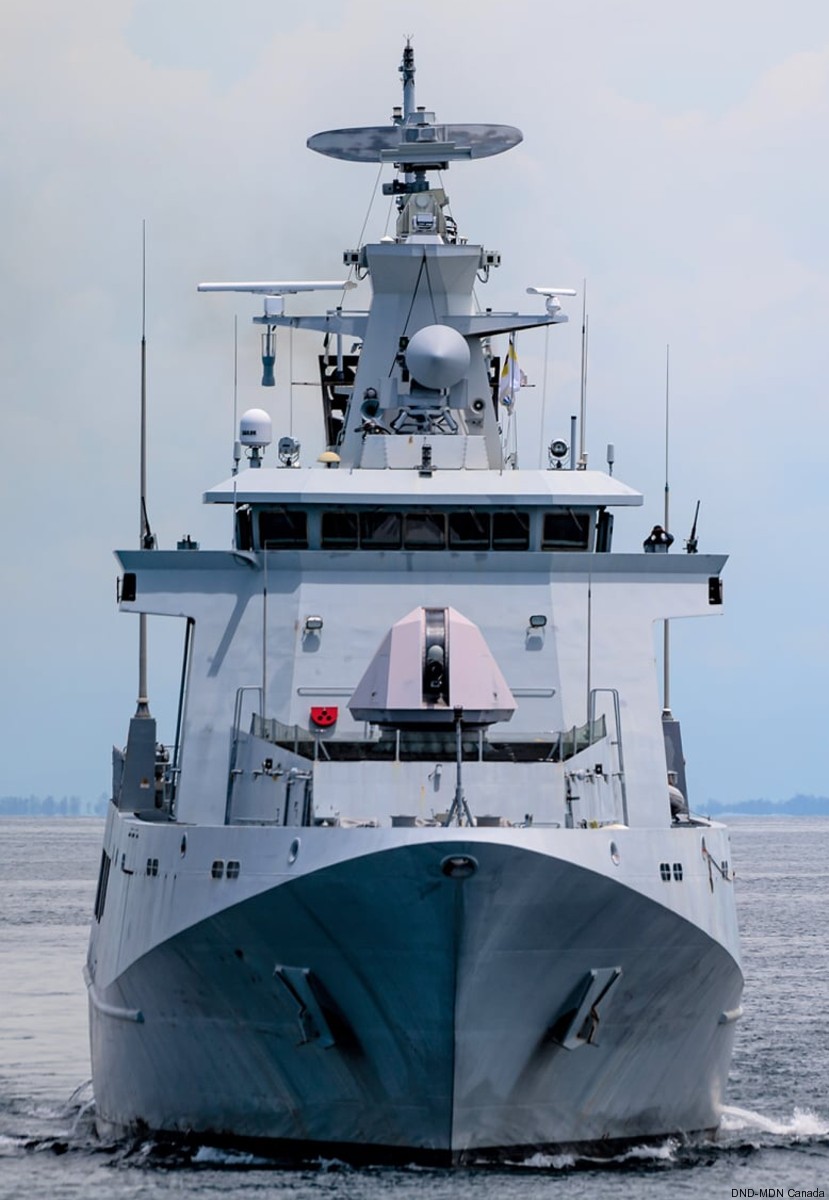

opv 06 kdb darussalam offshore patrol vessel royal brunei navy 06
KDB Darussalam (06)

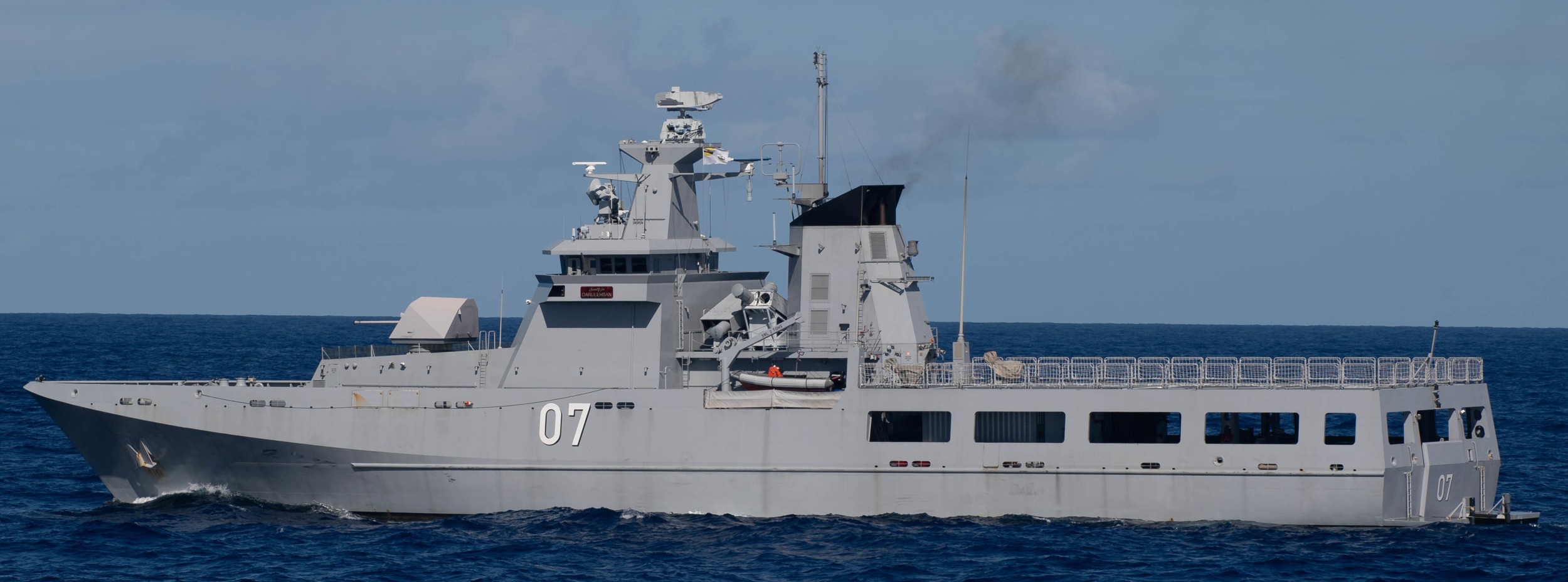

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 05
KDB Darulehsan (07)

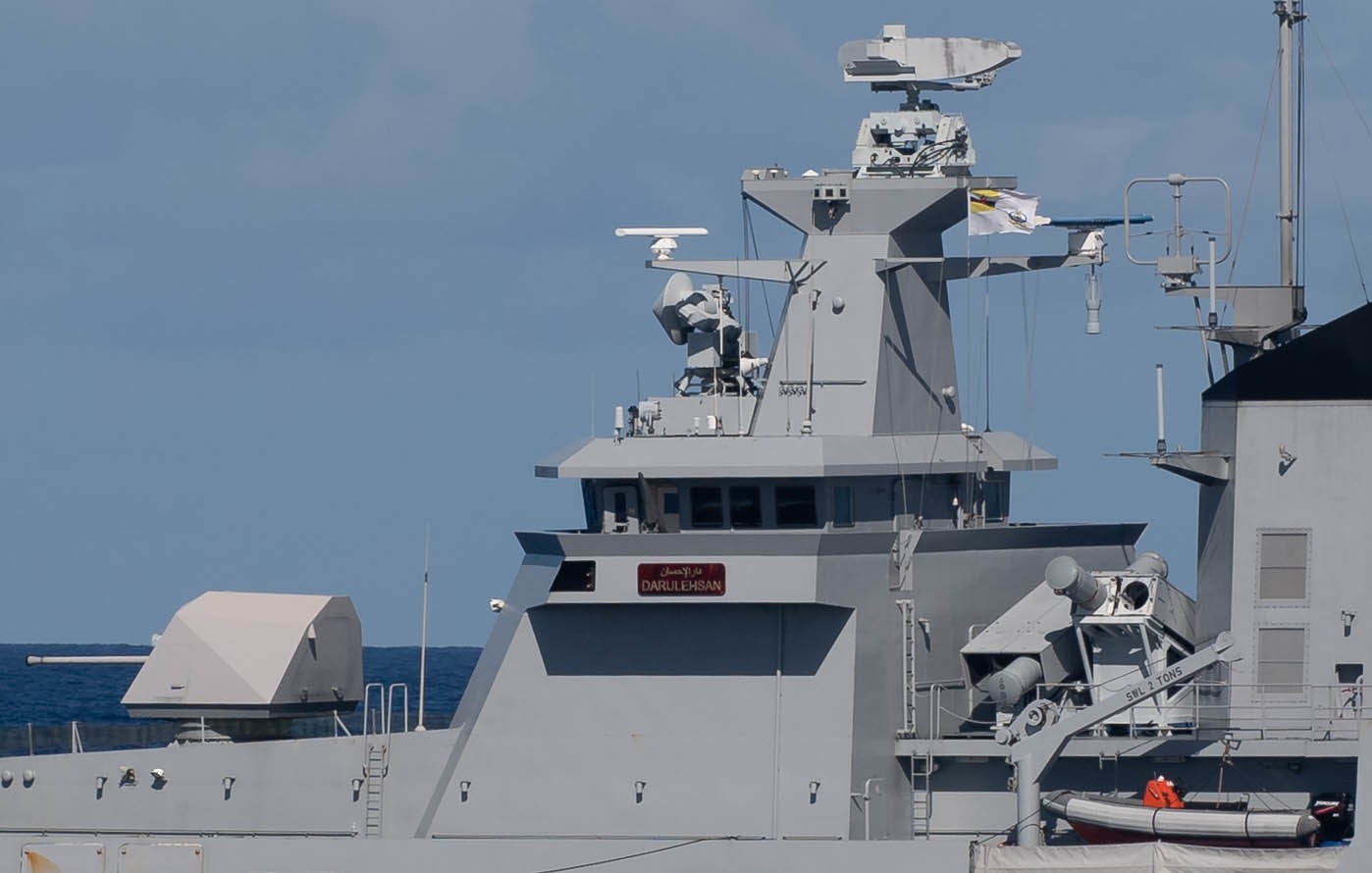

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy mm40 exocet ssm 05
cutout for details

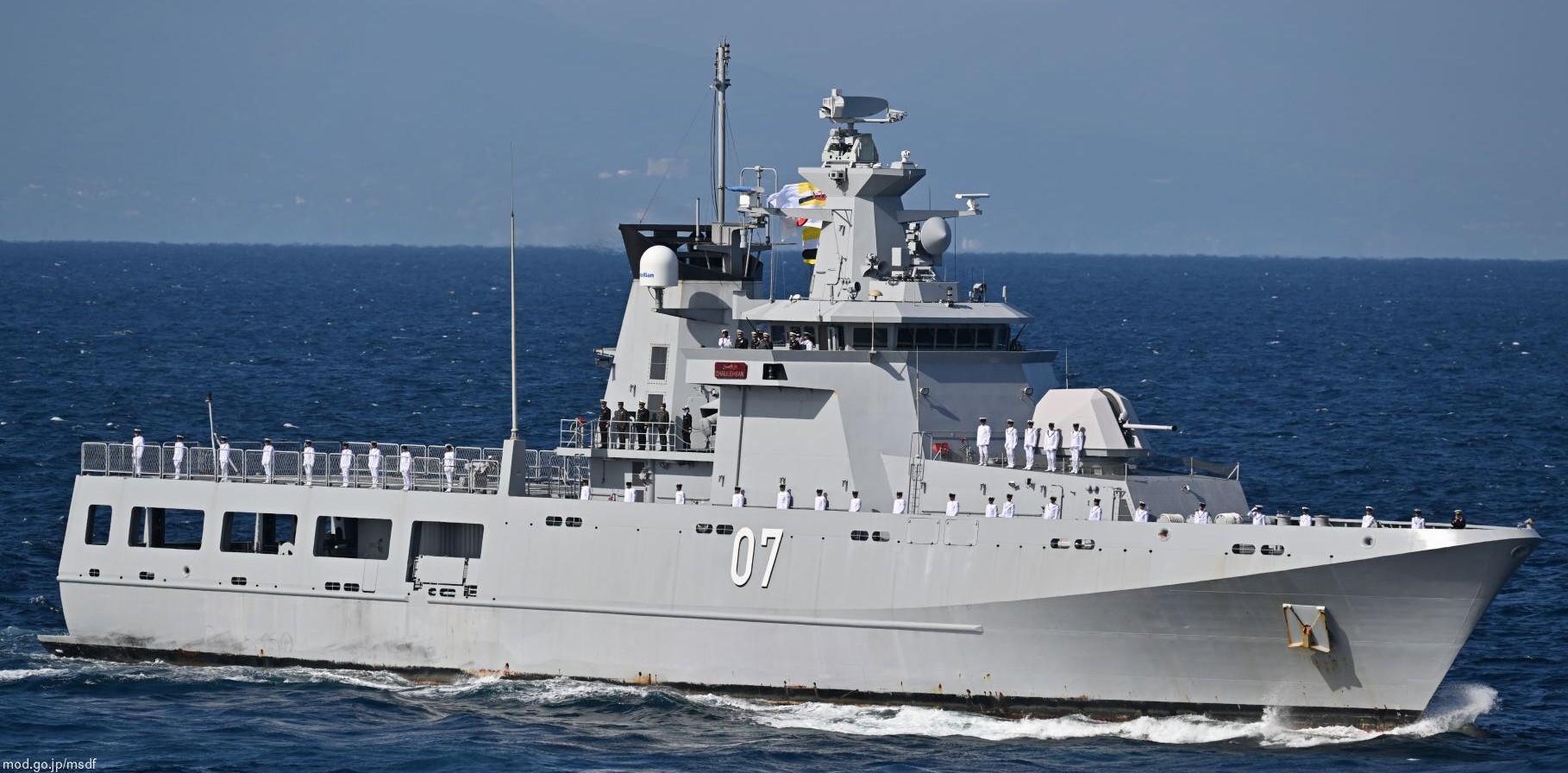

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 09
KDB Darulehsan (07)

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 07
KDB Darulehsan (07)

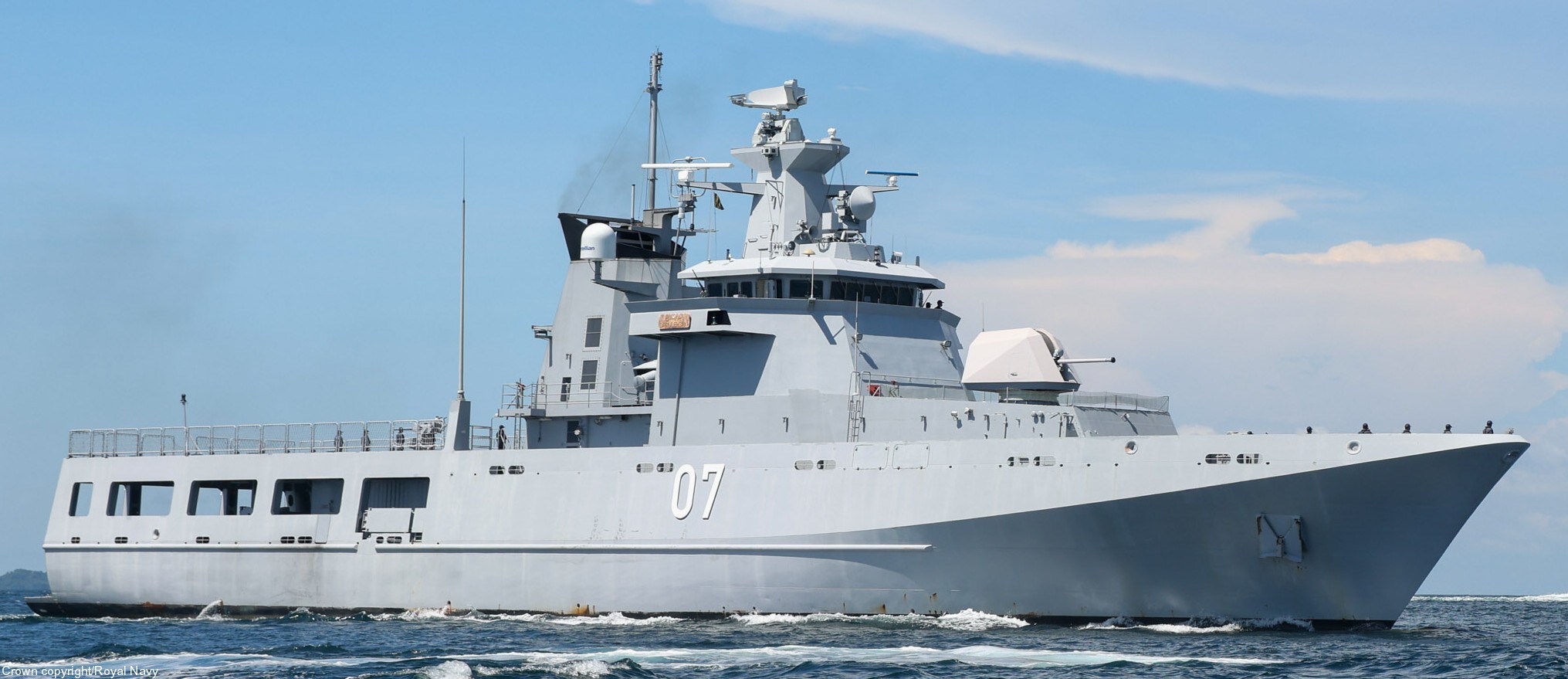

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 02
KDB Darulehsan (07)

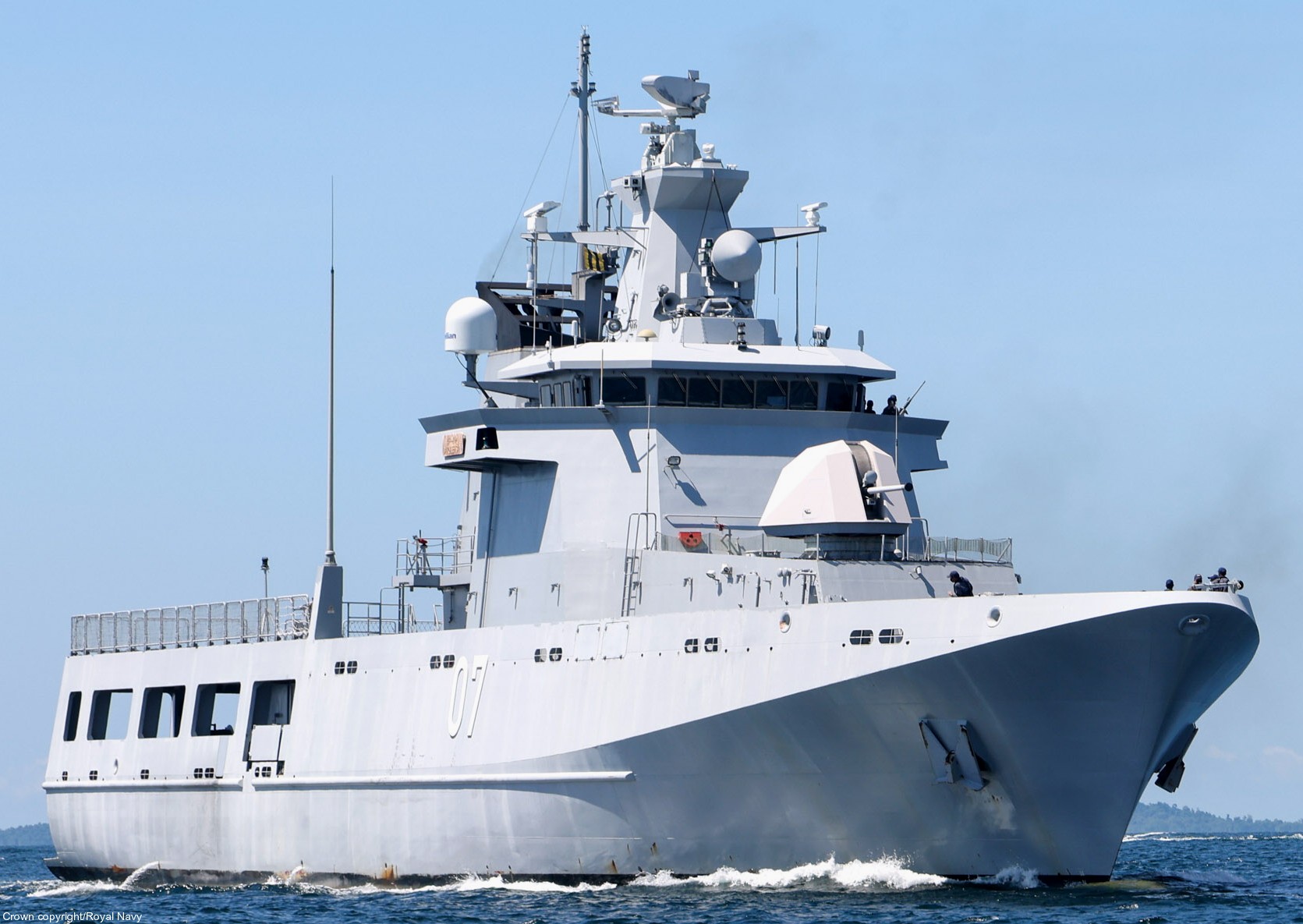

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 03
KDB Darulehsan (07)

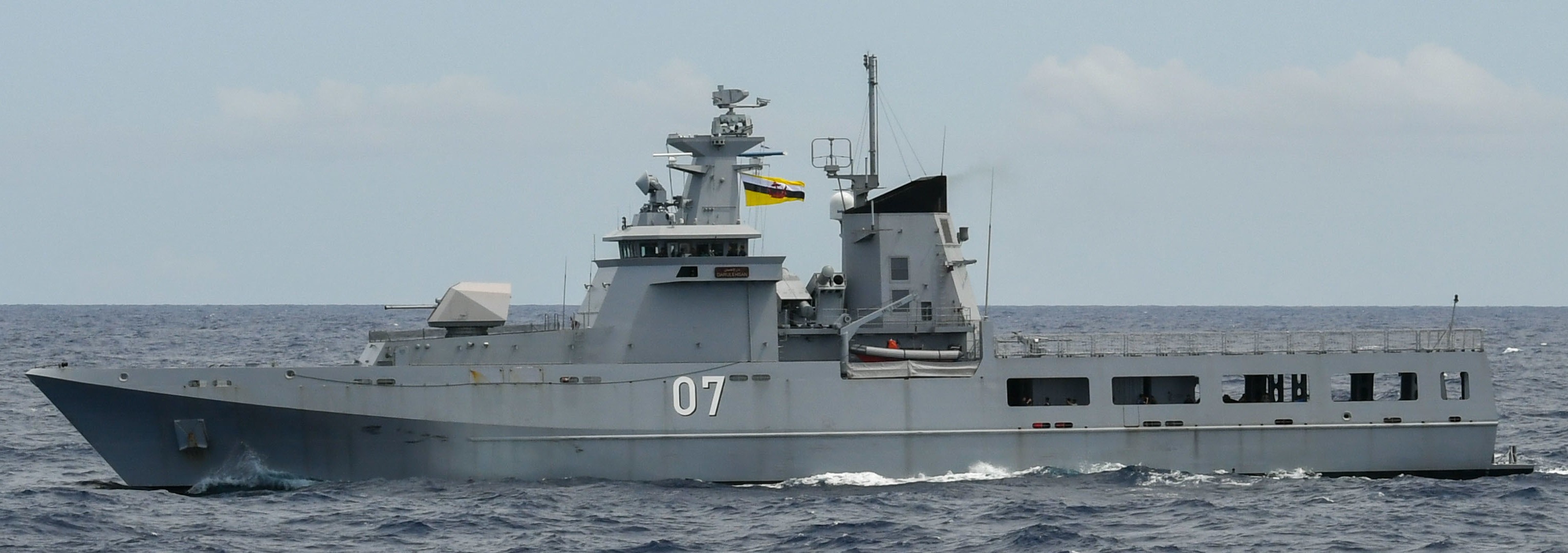

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 06
KDB Darulehsan (07)

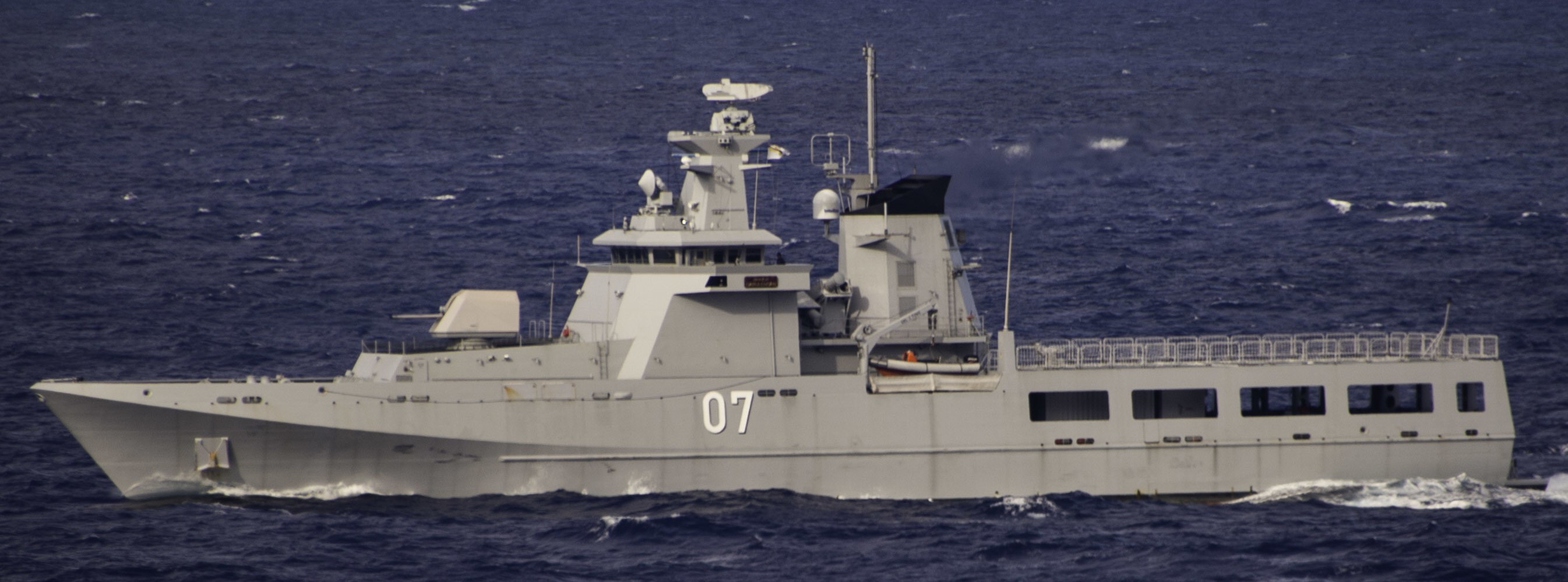

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 04
KDB Darulehsan (07)

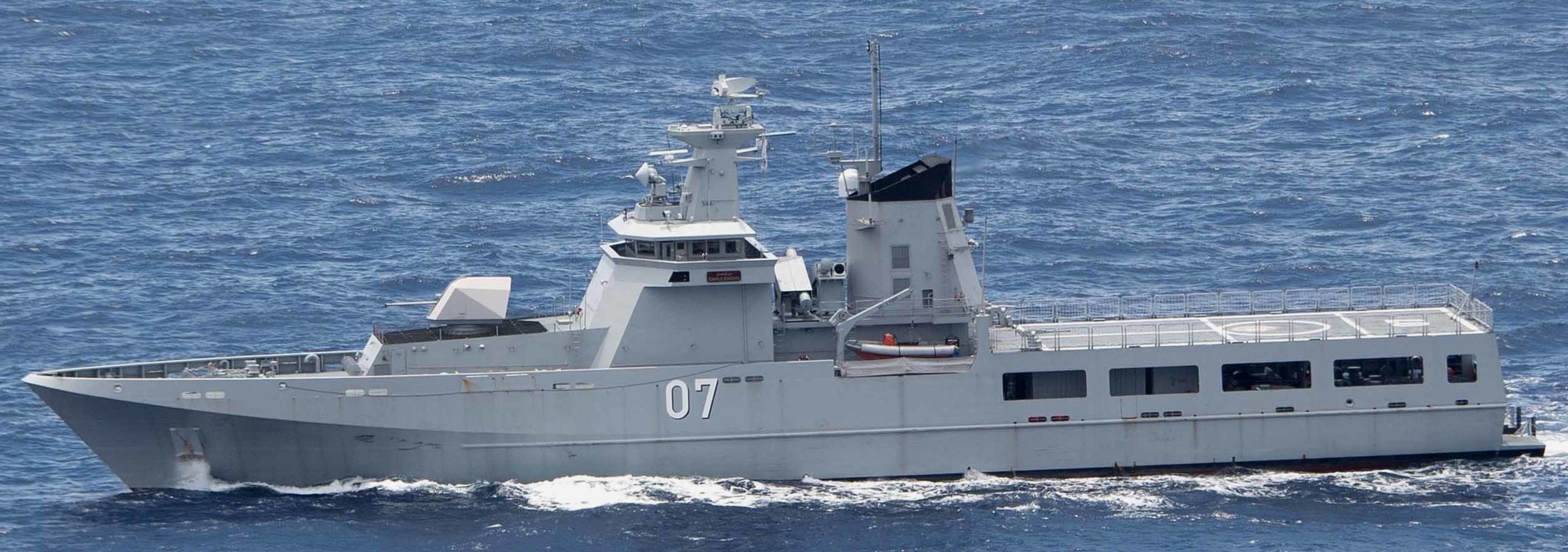

opv 07 kdb darulehsan offshore patrol vessel darussalem class royal brunei navy 08
KDB Darulehsan (07)

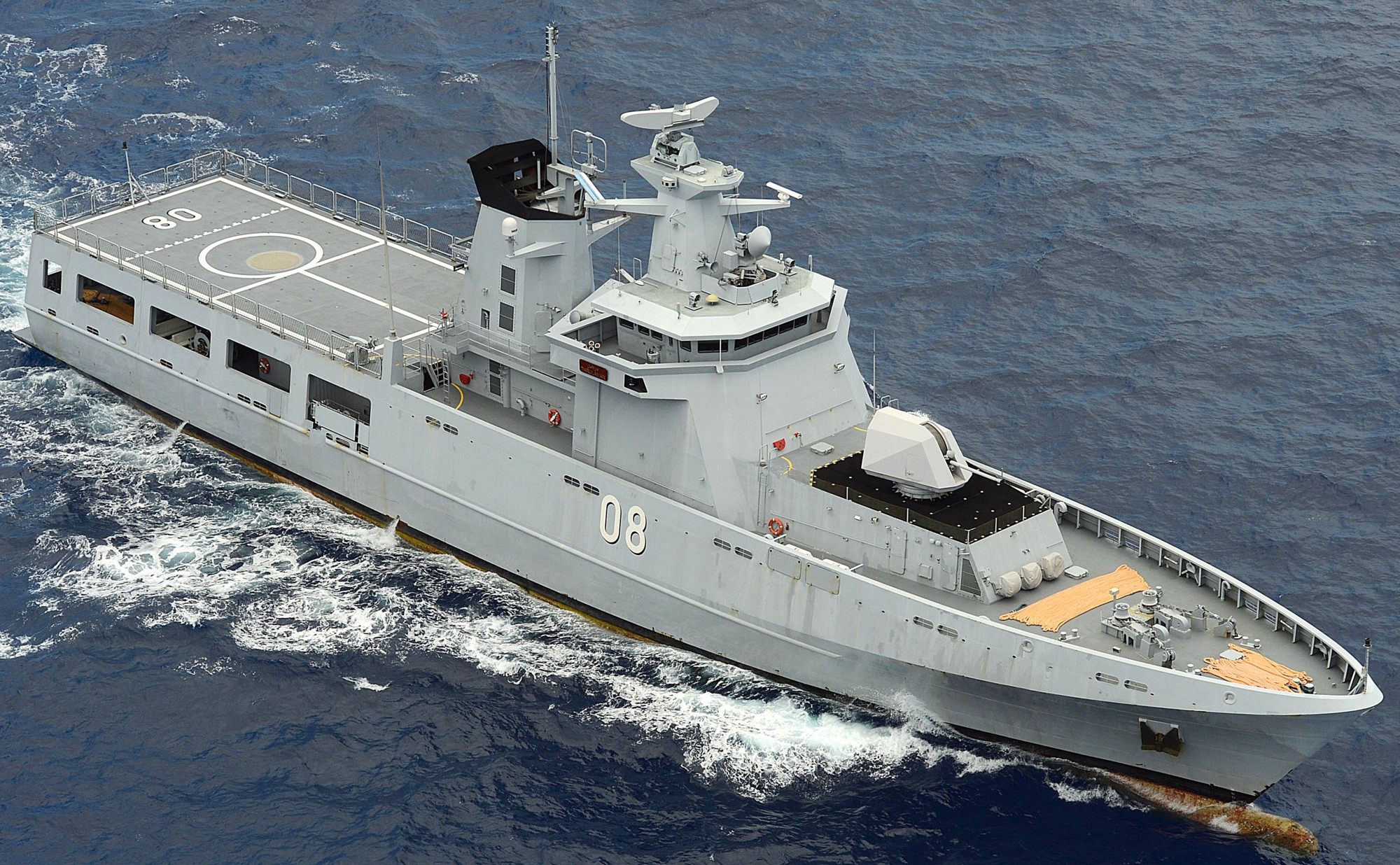

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 02
KDB Darulaman (08)

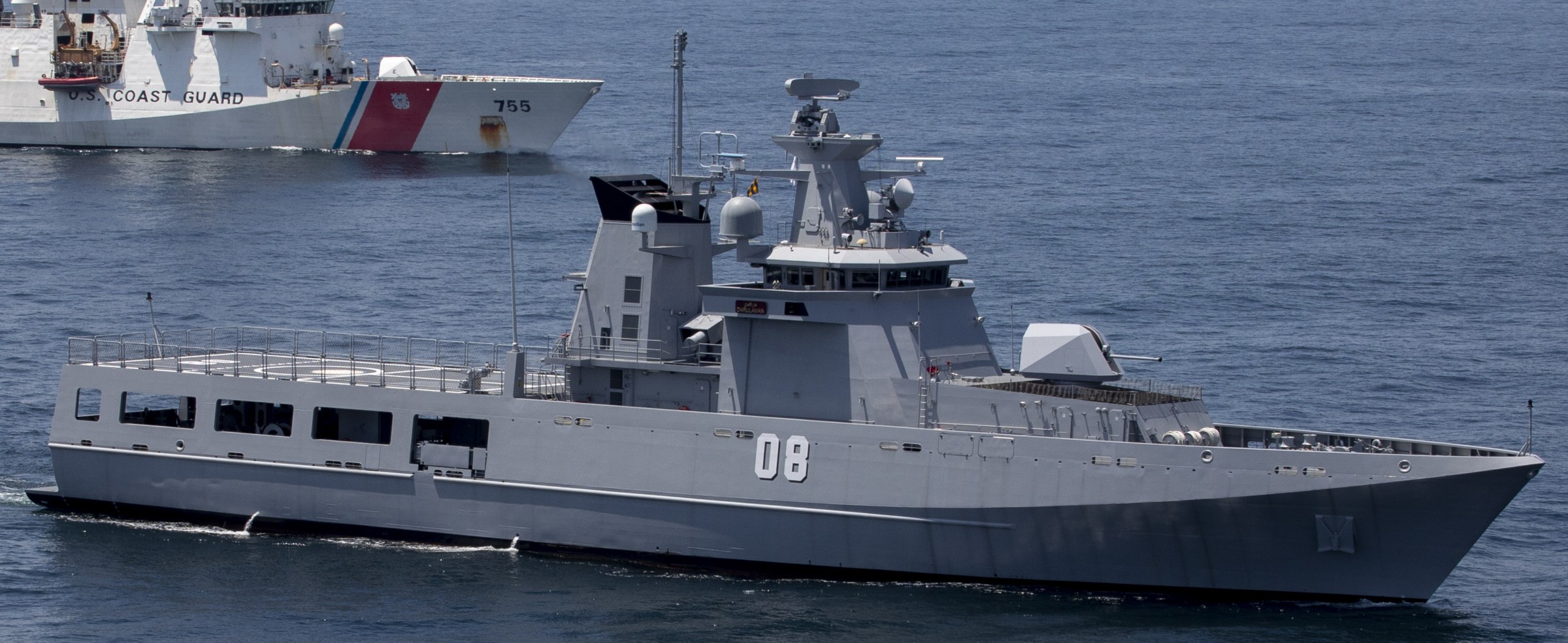

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 09
KDB Darulaman (08)

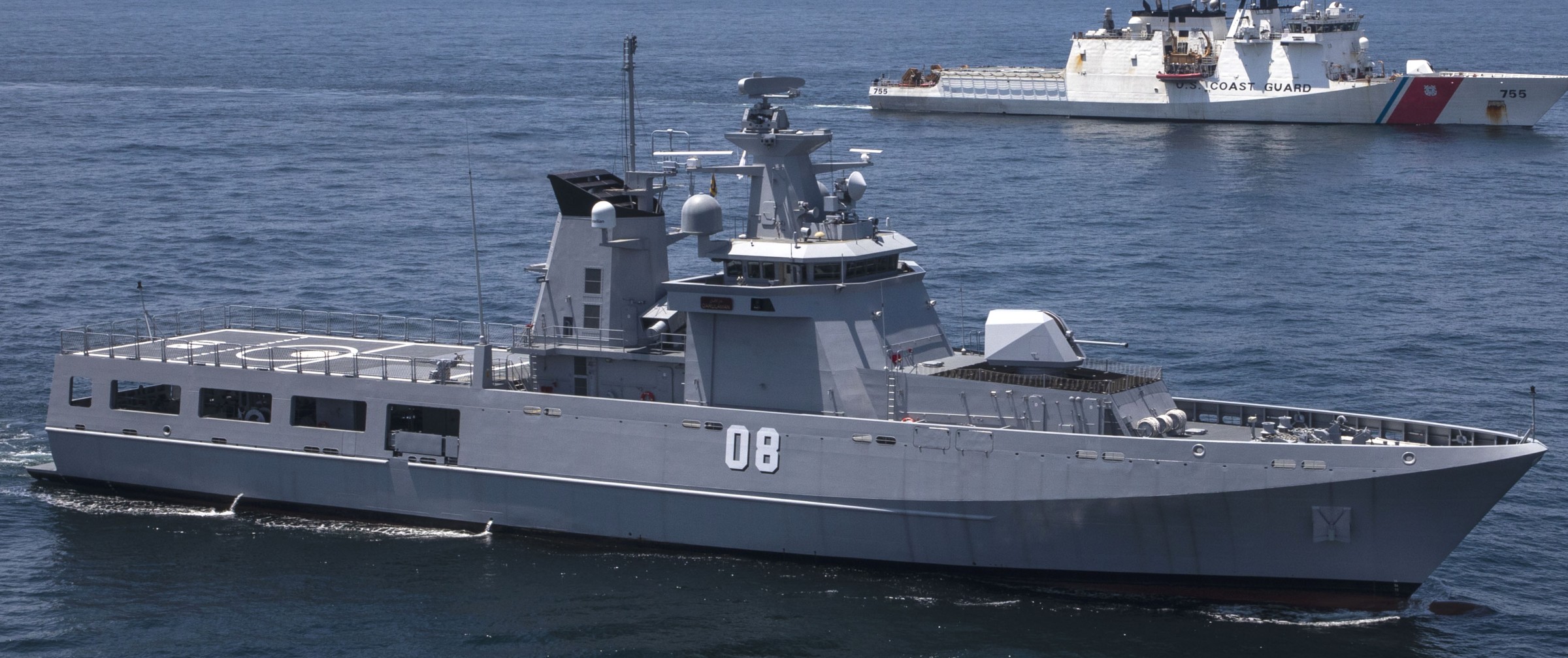

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 08
KDB Darulaman (08)

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 10
KDB Darulaman (08)

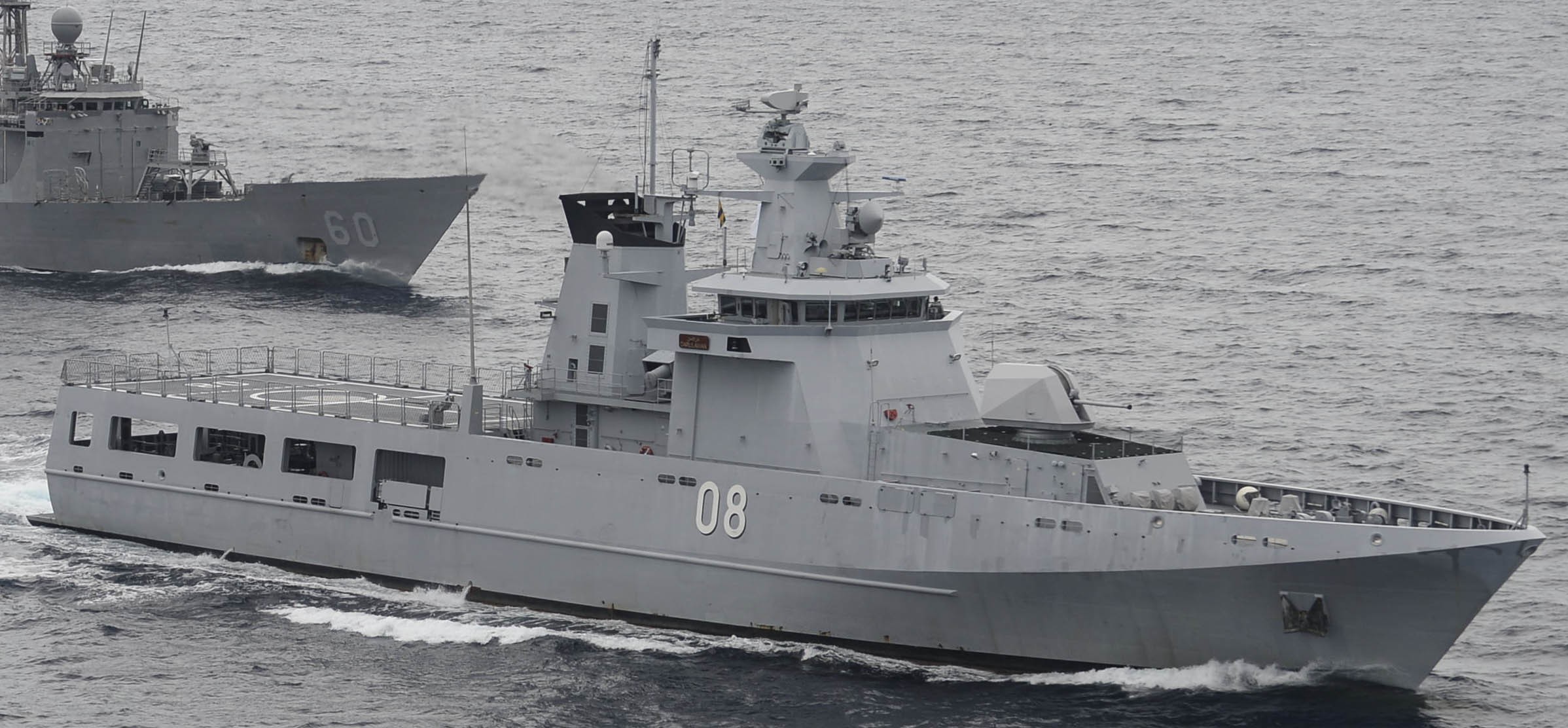

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 06
KDB Darulaman (08)

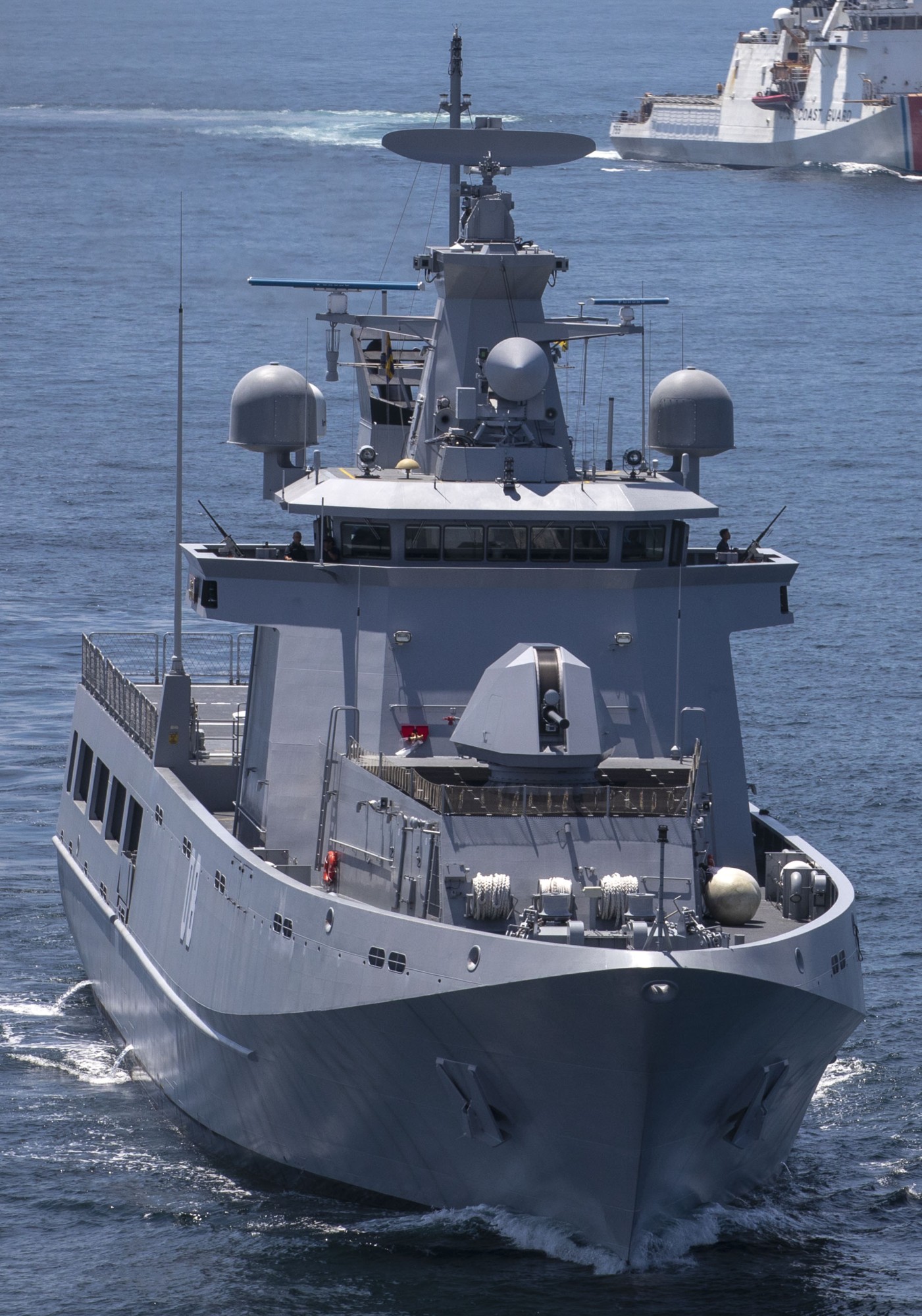

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 11
KDB Darulaman (08)

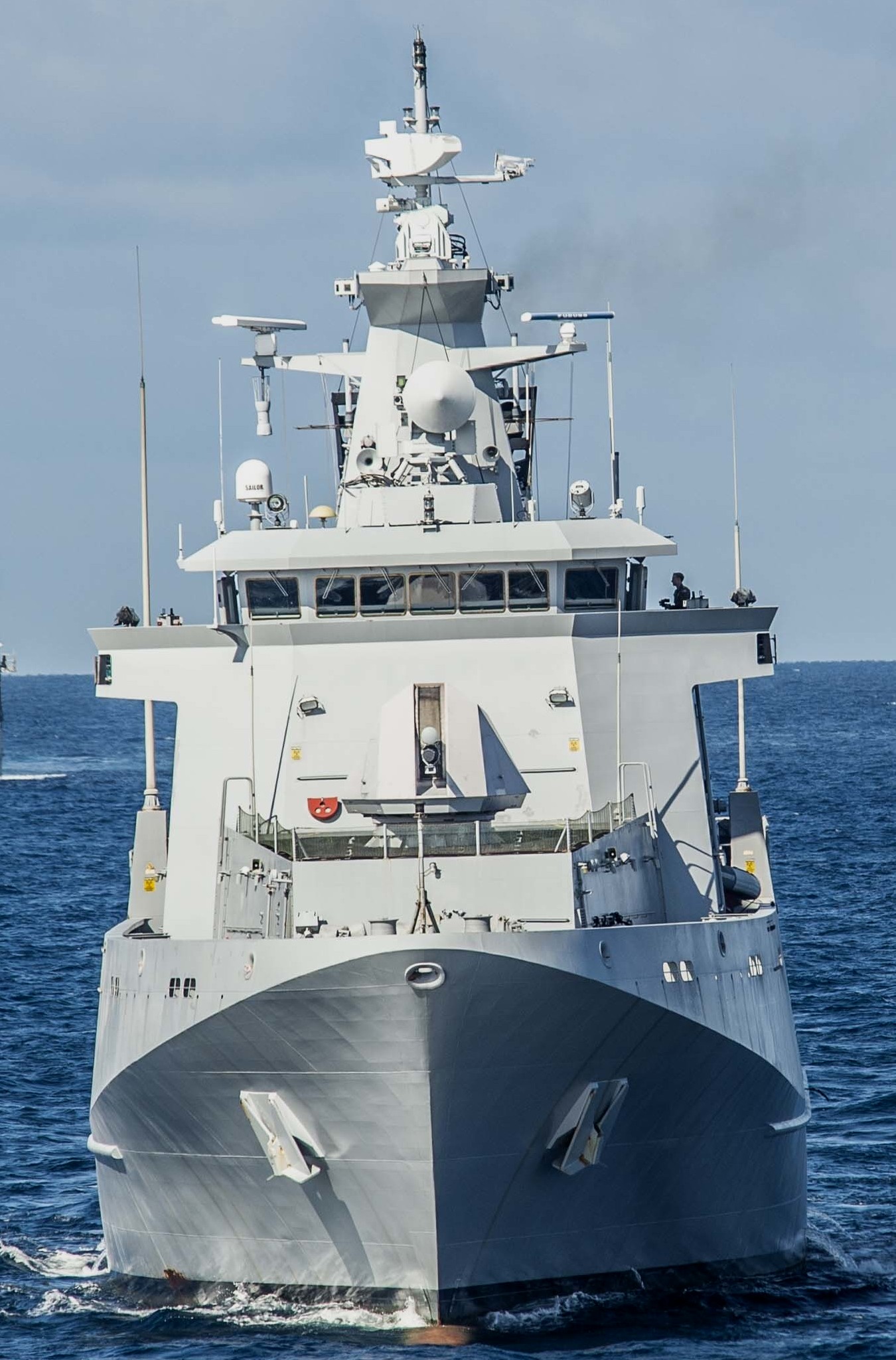

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 03
KDB Darulaman (08)

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 04
KDB Darulaman (08)

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy rimpac hawaii 05
KDB Darulaman (08)

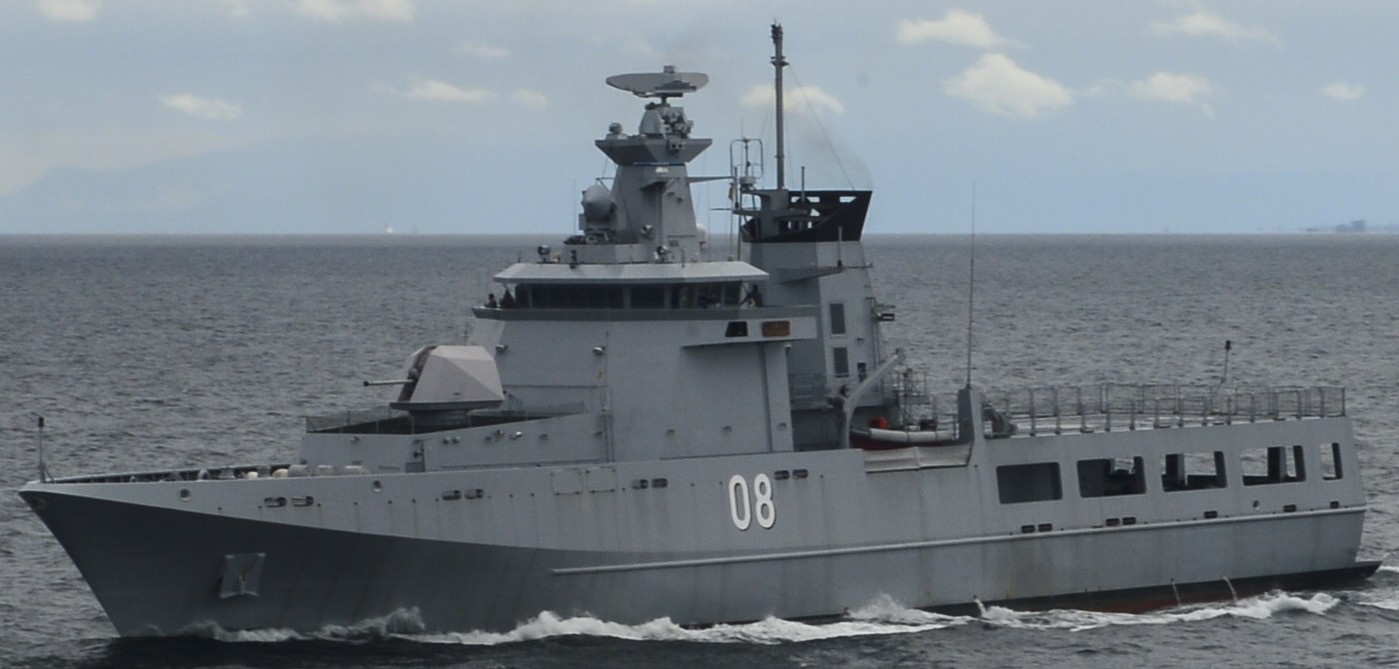

opv 08 kdb darulaman offshore patrol vessel darussalem class royal brunei navy 07
KDB Darulaman (08)



opv 09 kdb daruttaqwa offshore patrol vessel darussalem class royal brunei navy 05
KDB Daruttaqwa (09)

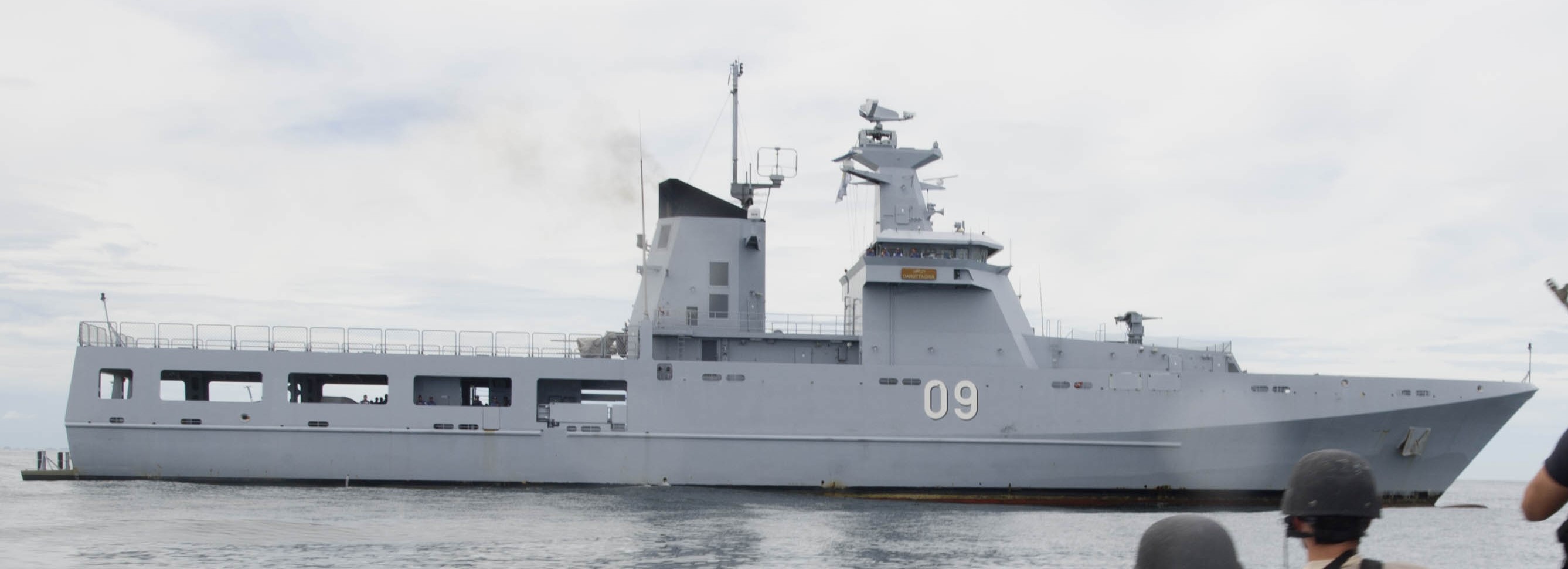

opv 09 kdb daruttaqwa offshore patrol vessel darussalem class royal brunei navy 02
KDB Daruttaqwa (09)

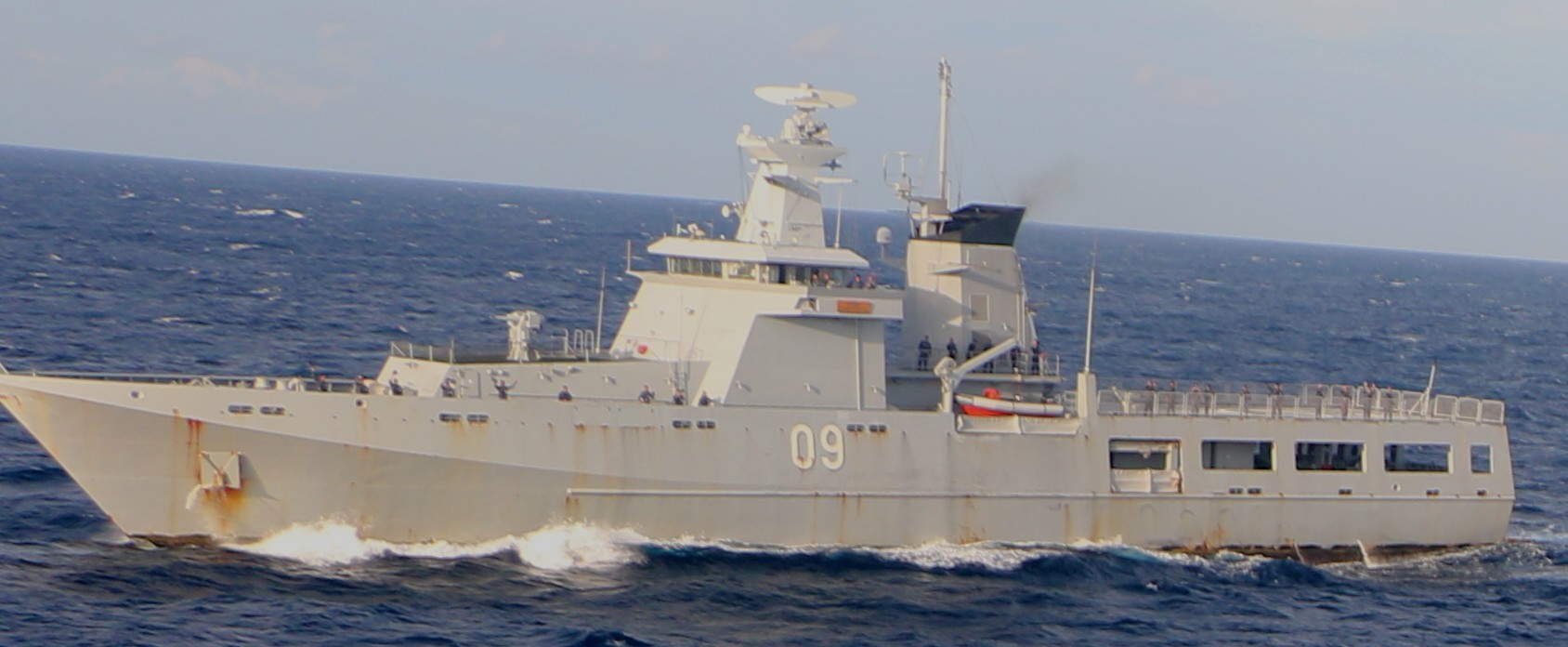

opv 09 kdb daruttaqwa offshore patrol vessel darussalem class royal brunei navy mlg27 03
KDB Daruttaqwa (09)

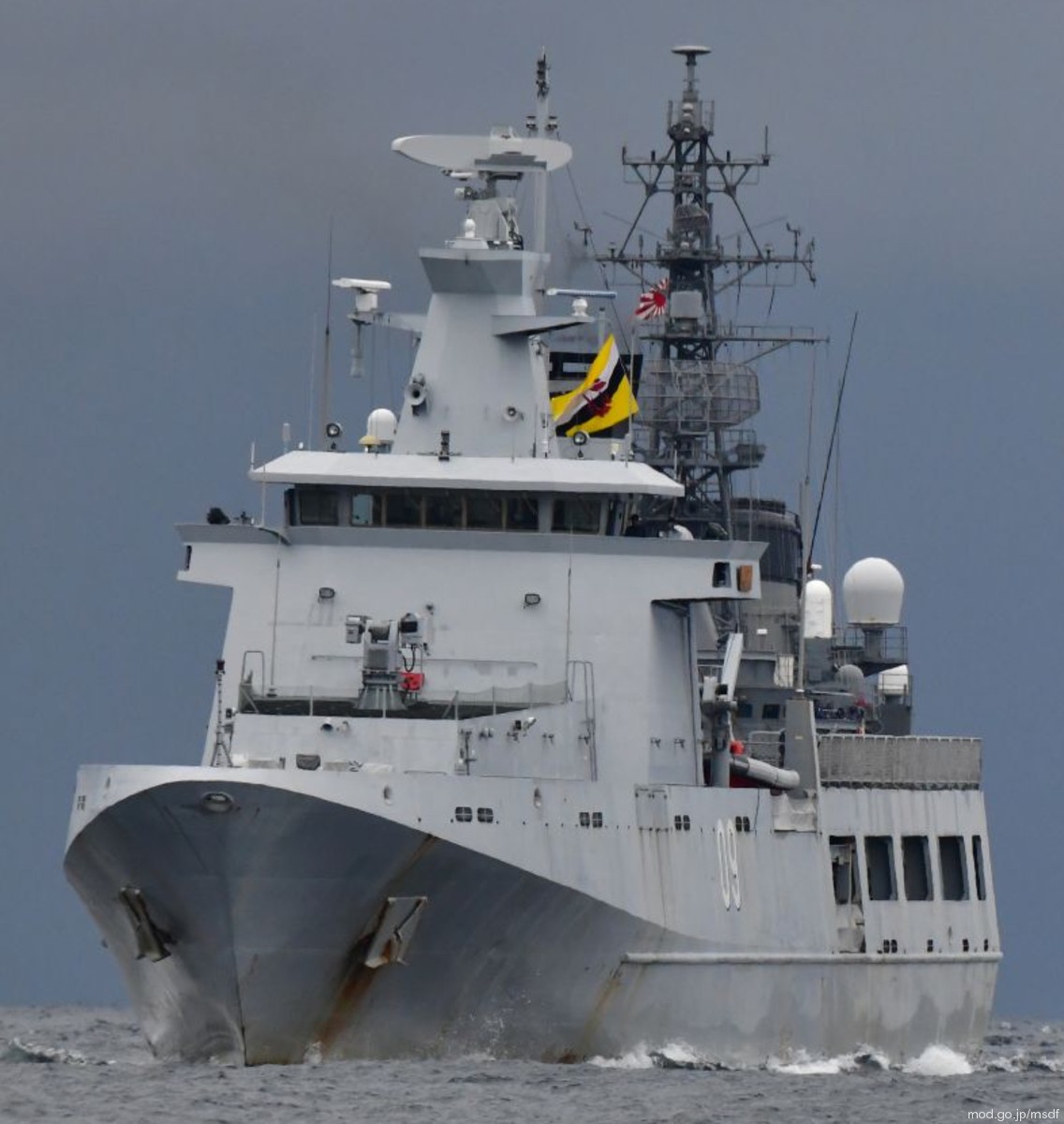

opv 09 kdb daruttaqwa offshore patrol vessel darussalem class royal brunei navy 04
KDB Daruttaqwa (09)
