Italian Navy / Marina Militare Italiana San Giorgio - class Amphibious
Transport Dock / LPD |
|||||||
|
|
|||||||
|
|
|||||||
|
Ships: |
|||||||
|
units: |
in service |
builder |
status |
||||
|
L 9892 ITS
San Giorgio |
1988 |
Fincantieri SpA, Riva Trigoso,
Genua |
in service |
||||
|
L 9893 ITS
San Marco |
1988 |
Fincantieri SpA, Riva Trigoso,
Genua |
in service |
||||
|
San Giusto subclass: |
|
|
|
||||
|
L 9894 ITS
San Giusto |
1994 |
Fincantieri SpA, Riva Trigoso,
Genua |
in service |
||||
|
|
|||||||
|
Specifications: |
|||||||
|
Length: |
133,30
meters |
||||||
|
Beam: |
20,50
meters |
||||||
|
Draft: |
5,40
meters |
||||||
|
Displacement: |
7700
tons (San Giusto 8000 tons) |
||||||
|
Speed: |
21
knots (39 km/h) max. / cruise 16 knots (30 km/h) |
||||||
|
Range: |
4500
NM (8300 km) at 20 knots (37 km/h) / 7500 NM (13900 km) at 16 knots (30 km/h) |
||||||
|
Crew: |
up to
180 |
||||||
|
Aviation: |
flight
deck with 3 landing spots (20x133 meters - San Giusto 20x100 meters) / no
hangar for
3 SH-3D
Sea King or 3
EH-101
Merlin or 5
x AB-212
helicopters |
||||||
|
Propulsion: |
2 Grandi Motori Trieste GMT A-420.12
diesel engines /16550 shp - (San Giusto 2 x GMT A-430.12 / 16650 shp) 2 shafts, 2
constant-pitch-propellers, 1 bow-thruster |
||||||
|
Armament: |
1 x Oto
Melara 76/62 mm gun (removed from San Giorgio and San Marco to increase flight deck
space) 2 x Oto-Melara/Oerlikon
KBA 25/80 remote machine gun systems |
||||||
|
Systems: |
SPQ 702 search radar |
||||||
|
Amphibious: |
350
troops 30
medium tanks or up to 36 vehicles 3 landing
craft, mechanized (LCM), 3 landing craft vehicle, personnel (LCVP) |
||||||
|
|
|||||||
|
Three
San Giorgio class amphibious transport dock were built by Fincantieri for the
Marina Militare Italiana. These ships can lift a battalion of troops, and up
to 36 armoured vehicles. The stern floodable dock can accommodate three
landing craft and the flight deck has three landing spots. San Giusto has a
full load displacement 300t greater than the other ships in the class. San
Giusto is normally employed as a training ship. The ships are based at the
Brindisi naval base. In July 2011 the Algerian Navy
placed an order with Fincantieri for an improved version of the San Giorgio
class amphibious transport ships, classified as Bâtiment de Débarquement et
de Soutien Logistique (BDSL). On 8 January 2014 the BDSL Kalaat Béni-Abbès
was launched. The vessel was fitted with DCNS Sylver VLS for Aster 15 and
Aster 30 SAM behind the island superstructure, one OTO Melara 76/62 Super
Rapid gun at the bow and with two 25/80 remote machine guns. |
|||||||
|
|
|||||||
|
class images |
|||||||
|
San Guisto (L 9894) - note the Oto Melara
76/62 gun on the bow

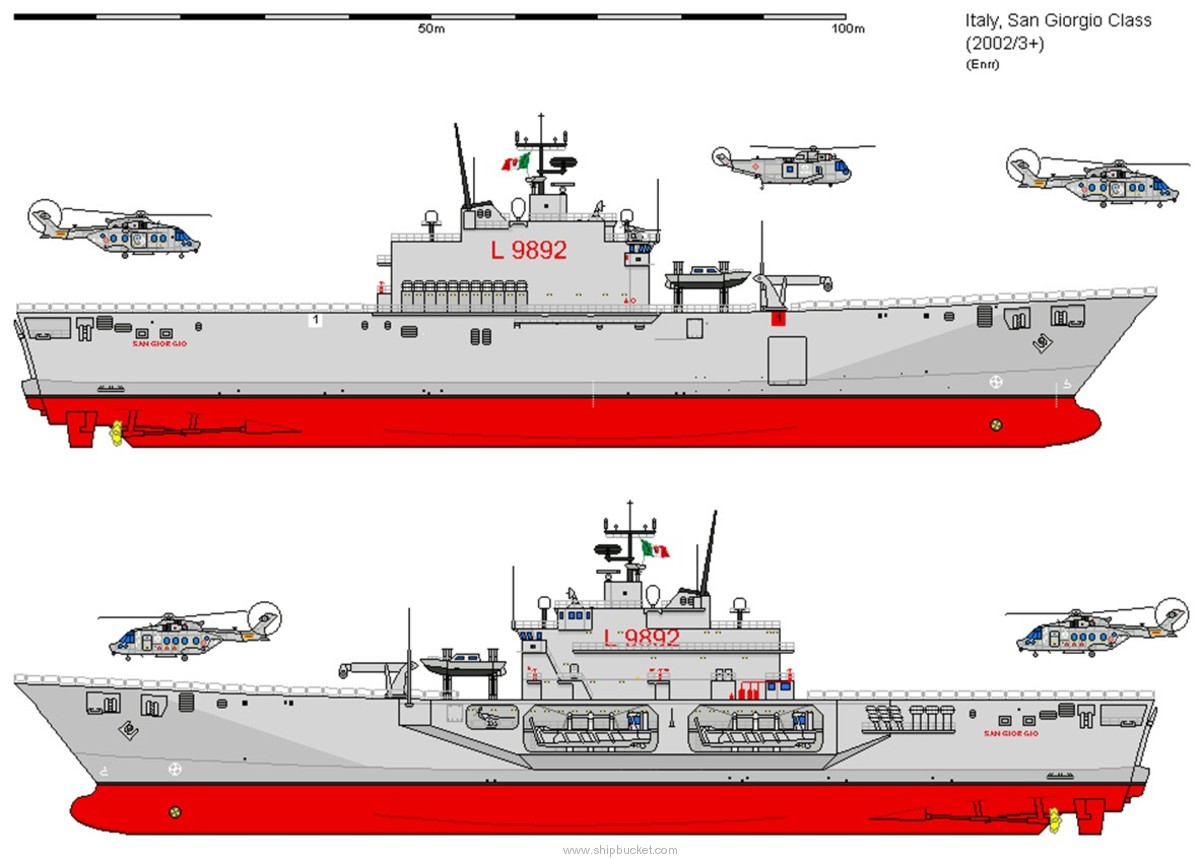

San Giorgio class LPD

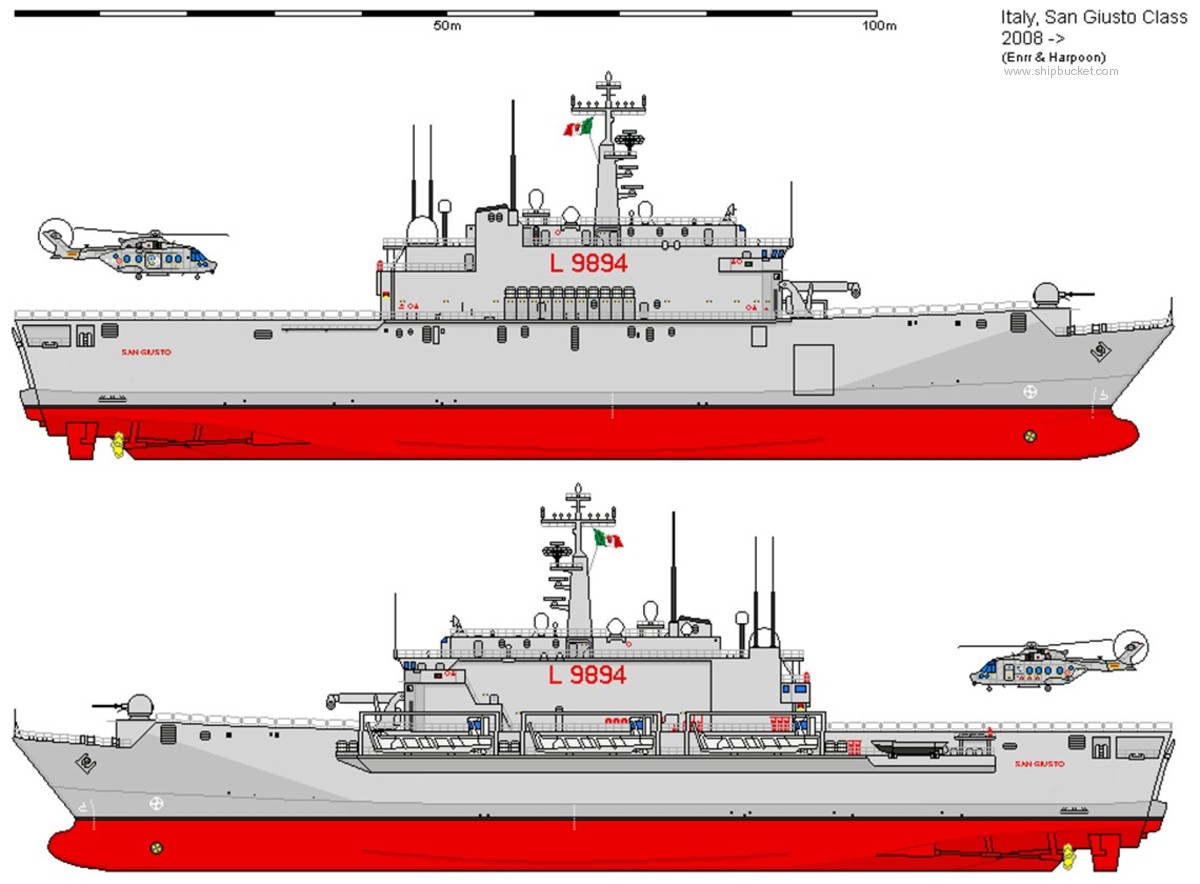

San Giusto LPD |
|||||||
|
|
|||||||
