Surface Vessel Weapon System
MBDA SIMBAD - TETRAL - SADRAL Missile Defense System
 MISTRAL-SAM based Missile Defense CIWS


mbda simbad rc tetral sadral missile defense system mistral sam ciws
SIMBAD RC

03/26
The basic Mistral missile is used with a man-portable launch unit.
There are also launch units that allow the missile to be fired from armoured vehicles, ships or helicopters (such as the Aérospatiale Gazelle, Denel Rooivalk, or Eurocopter Tiger). To reject the flares ejected from the rear of the targeted aircraft, proportional navigation using a gyro as a reference is adopted for Mistral, instead of the pursuit method in earlier IR-guided MANPADS (man-portable air-defense system). To further enhance the ECCM (electronic counter-countermeasure) capability, the seeker of Mistral has a very narrow field of view to reject decoys and interference, but the seeker can tilt in the range of +/− 38 degrees. On the launcher, the missile runs up the gyro in 2 seconds, and total reaction time is 5 seconds. The all-aspect two-color (2-4 and 3-5 µm) cooled IR-seeker of Mistral is developed by SAT, and the missile adopts both laser proximity and impact fuzes.

A close-in weapon system based on Mistral is a six-missile version called Sadral, with a stabilized rapid-reload launcher that is fully automated. A CSEE developed fire control director is integrated to the launcher, consisted of TV camera and FLIR. Image produced by both directors appear on the screen in the operator console below deck, and the missiles are locked onto the target before being launched. A fully loaded Sadral launcher weighs 1080 kg, and the operator console weighs 280 kg.


A two-missile unit installed on ships is called Simbad, and a newly launched four-missile version is called Tetral.
An evolution of the Simbad is now proposed: Simbad RC. Both Tetral and Simbad RC are remote controlled from the ship's deck while the original Simbad is manually operated with a simple optical sight.


MISTRAL lightweight fire-and-forget high speed surface-to-air missile (SAM)
Manufacturer: MBDA Missile Systems
Length: 1.88 m (incl. launch motor)
Diameter: ~92 mm
Weight: 19.7 kg
Effective Range: up to 8,000 m
Interception altitude: up to 6,000 m
Guidance: passive infrared homing
3-axis manoeuvrability for high-accuracy guidance
Intercept manoeuvring targets up to 9g
Warhead: High Explosive with high density tungsten balls / 2.95 kg
Detonation mechanism: Laser proximity or impact triggered
Kill probability: over 96 %
Engine: two stage solid propellant rocket
Speed: 800 m/s (approx. Mach 2.6)
Targets: sea-skimming and manoeuvring anti-ship missiles (SSM's) / Fighter aircraft / Helicopters / small surface crafts
Qualified for use in extreme conditions -40C° to +71C

Variants:
SIMBAD (2 missiles, manually)

SIMBAD RC (2 missiles, remote-controlled)
specifications:
Launcher, fully loaded
Weight: 480 kg
Bearing: +/- 160°
Elevation: -30° / + 55°
Gyro-stabilized

TETRAL (4 missiles, remote controlled)

SADRAL (6 missiles, fully automated)

sources: MBDA, wikipedia

images

mbda simbad rc missile defense system close in mistral sam remote controlled 09

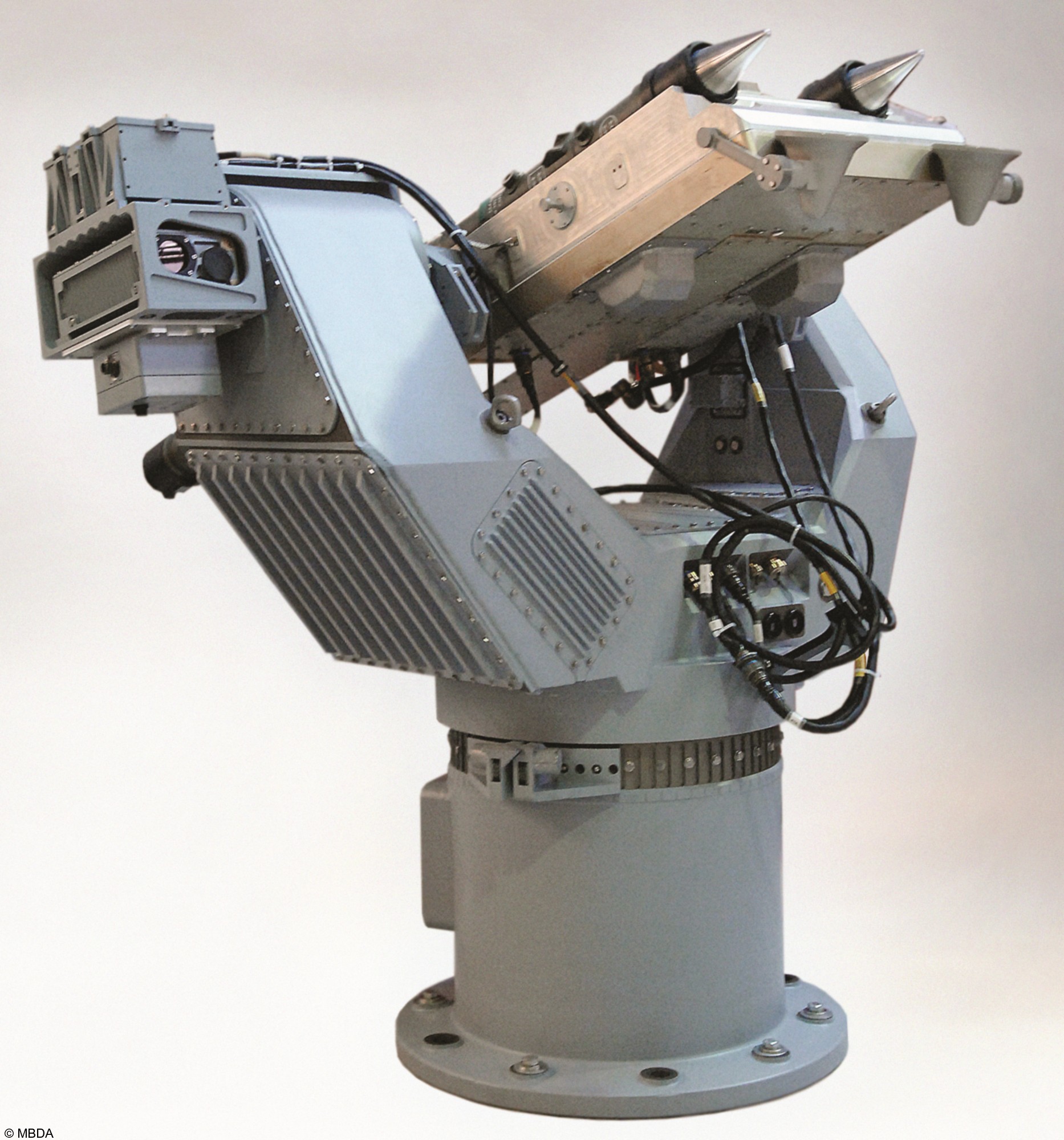

SIMBAD RC

mbda simbad rc missile defense system close in mistral sam remote controlled 03
SIMBAD RC

mbda simbad rc missile defense system close in mistral sam remote controlled 04
SIMBAD RC

mbda simbad rc missile defense system close in mistral sam remote controlled 08

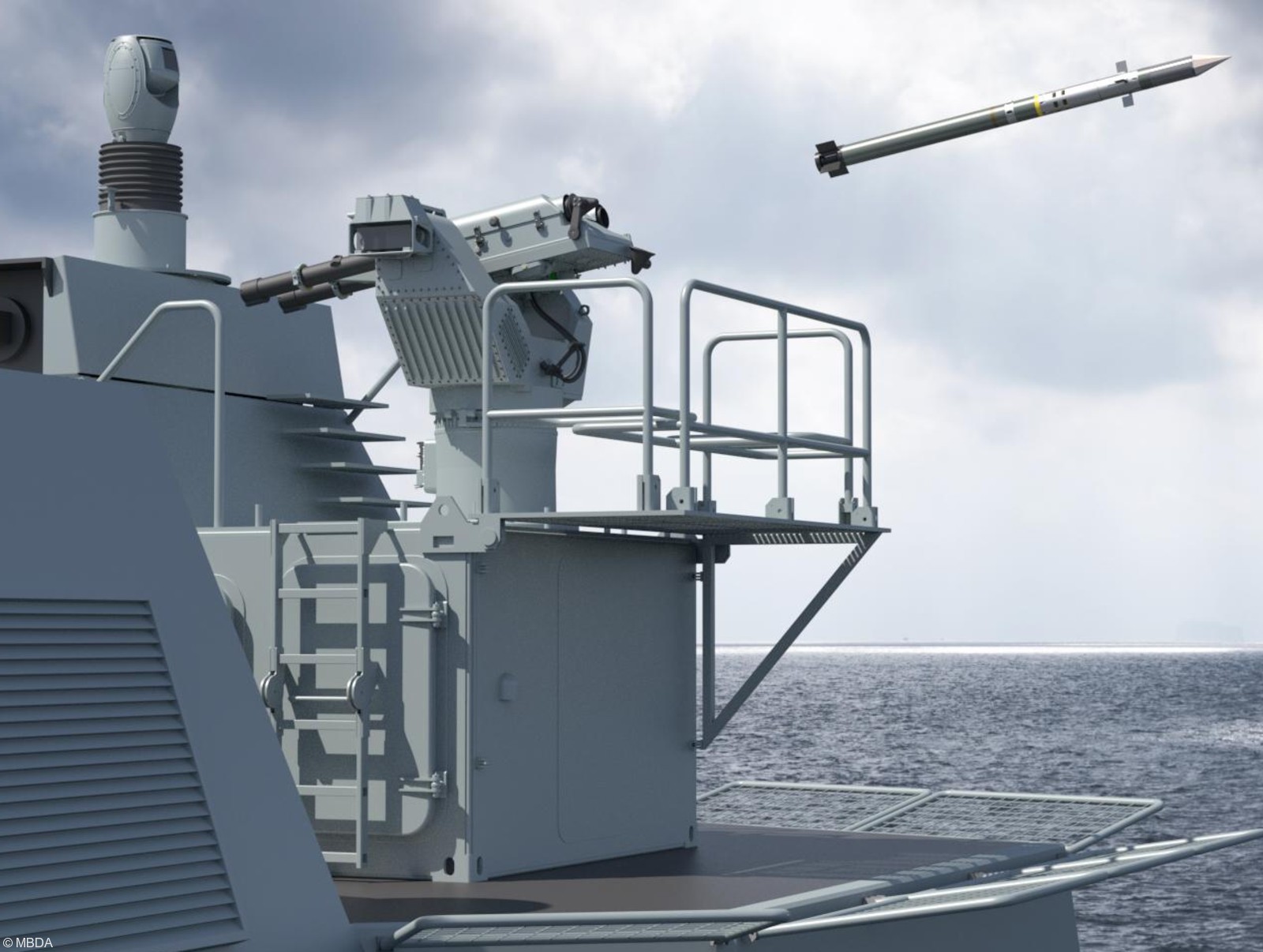

SIMBAD RC

mbda simbad rc missile defense system close in mistral sam remote controlled 07

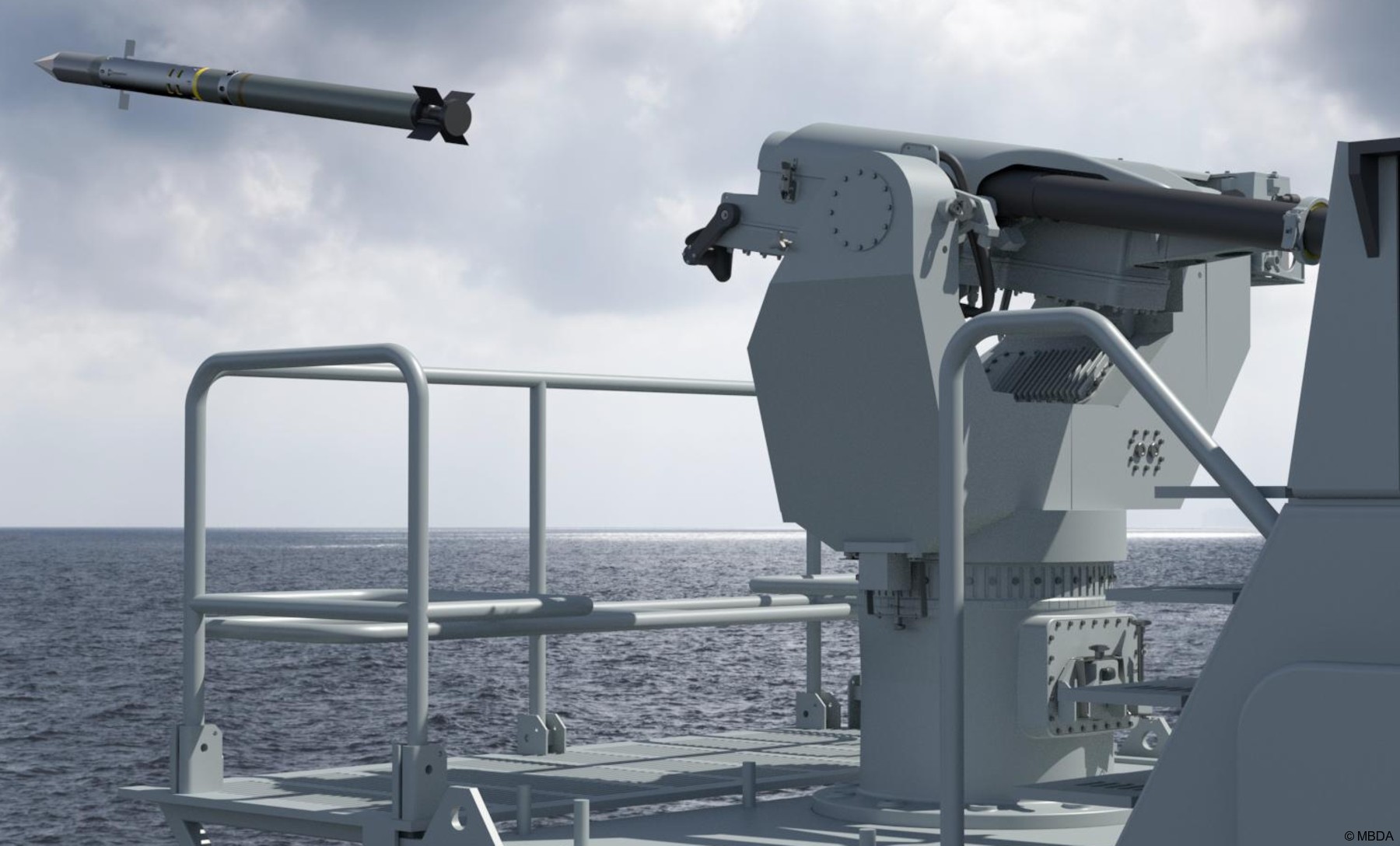

SIMBAD RC

mbda simbad rc missile defense system close in mistral sam remote controlled 05
SIMBAD RC

mbda simbad rc missile defense system surface small boat target test close in mistral sam 06

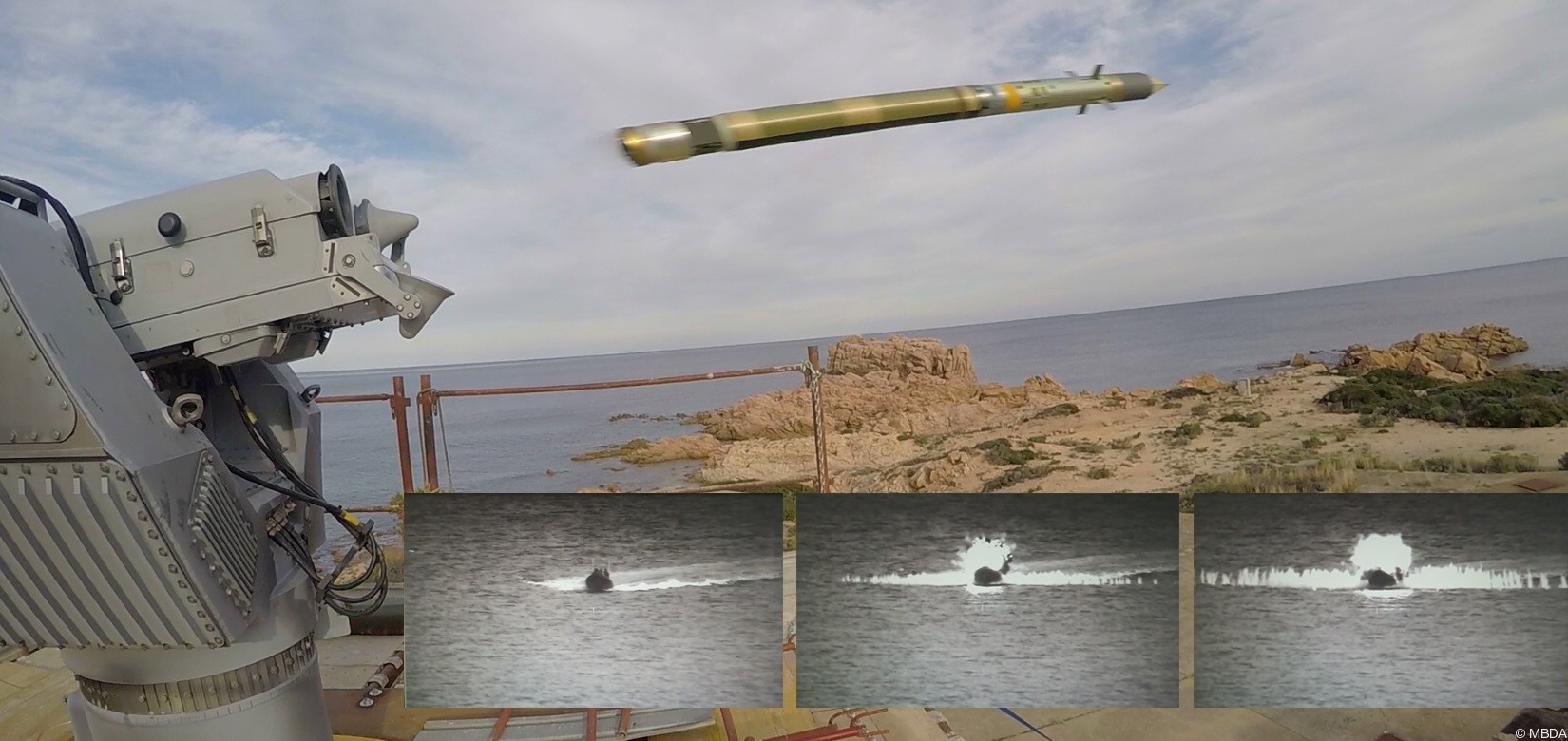

SIMBAD RC successfully target test against a small boat


mbda simbad missile defense system close in mistral sam 14
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 03
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 13
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 12
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 04
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 07
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 08
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 05
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 09
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 10
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 11
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 02
SIMBAD Defense System (2 Mistral Missiles)

mbda simbad missile defense system close in mistral sam 06
SIMBAD Defense System (2 Mistral Missiles)



mbda sadral missile defense system close in mistral sam 02
SADRAL Defense System (6 Mistral Missiles)


mbda mistral sam missile ciws 03

mbda mistral sam missile ciws 02

mbda mistral sam missile ciws 04

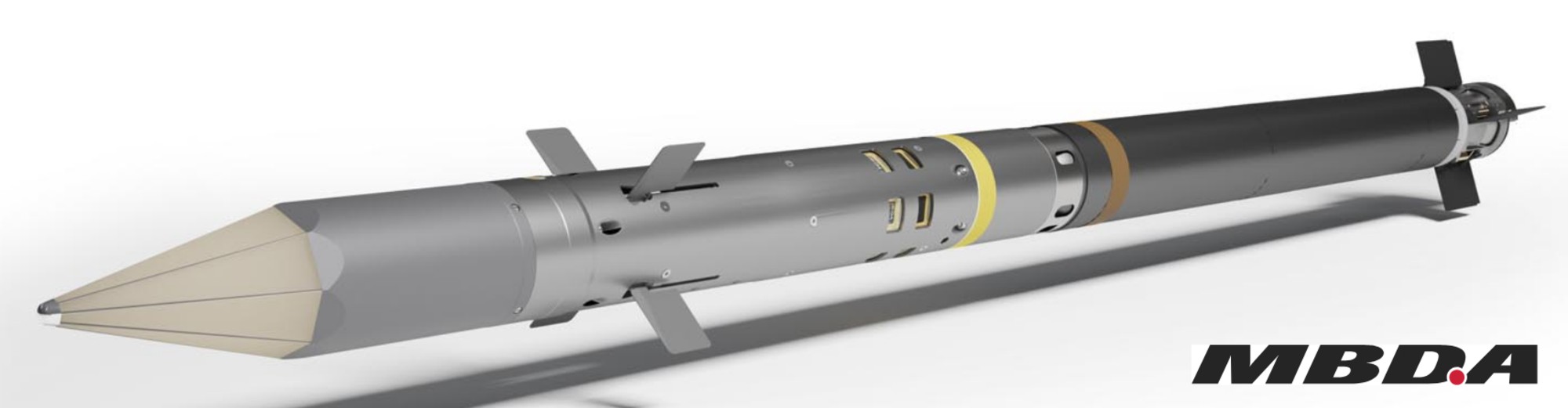

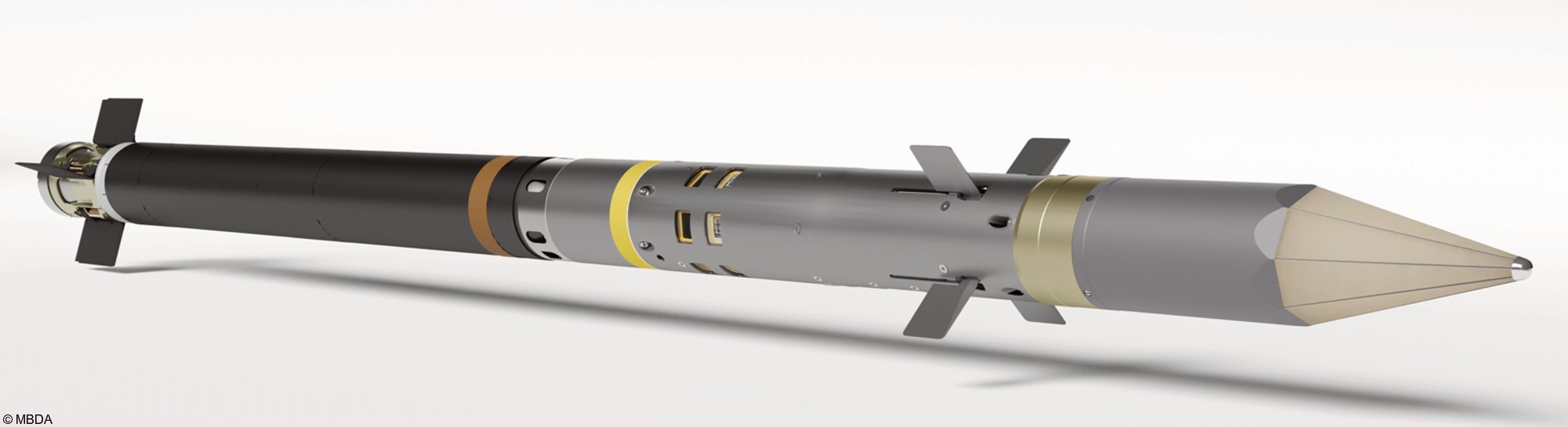

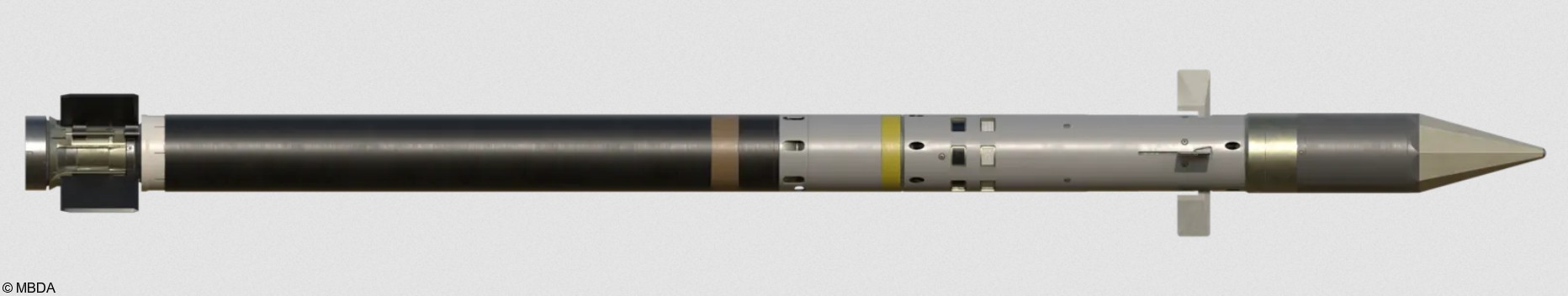

Mistral missile
