KNDS RapidFire Naval 40 mm Remote Weapon System RWS Thales

Surface Vessel Weapon System
KNDS RapidFire Naval
40 mm Remote Controlled, Stabilized Naval Weapon System

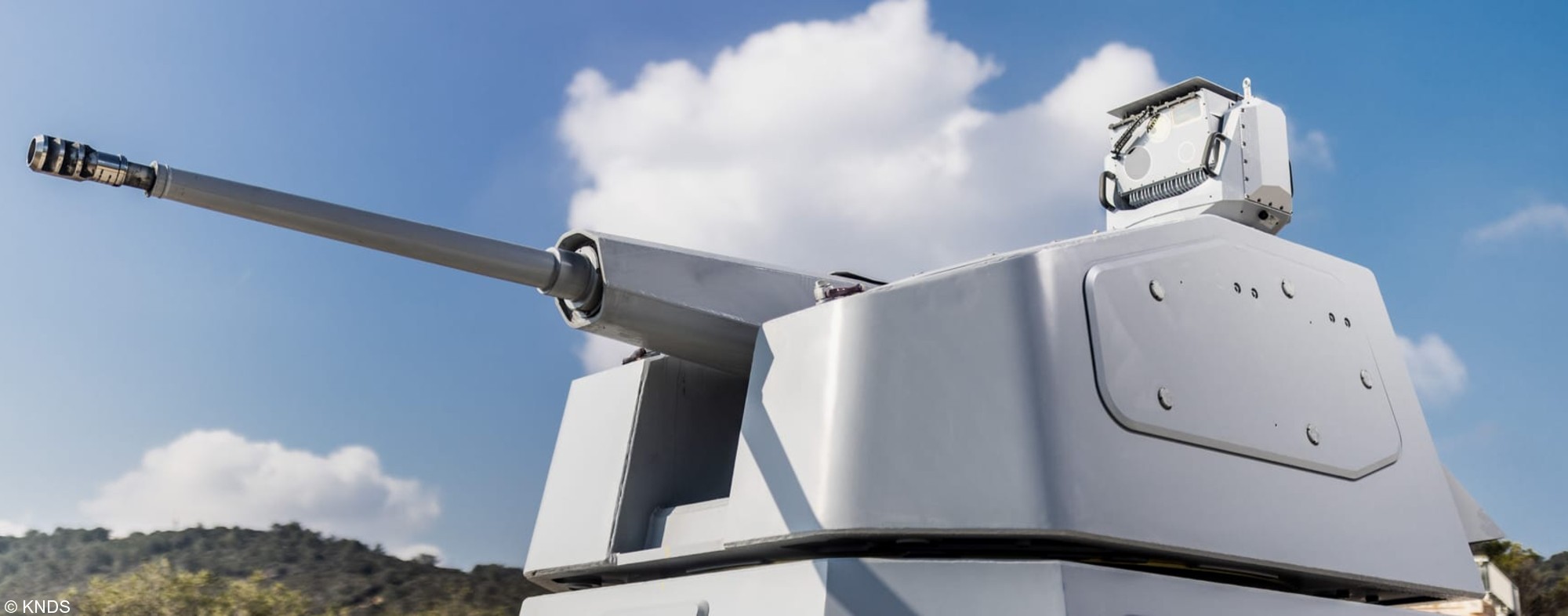

knds rapidfire 40 mm naval remote weapon system rws ciws thales a3b 03

03/26

The KNDS/Thales RapidFire Naval

... is a remote weapon system based on the 40CTC (40 mm Cased Telescoped Cannon).

Designed to counter massive attacks performed with simultaneous heterogeneous air and ground threats:
Air targets: Unmanned Aerial Vehicles (UAV), loitering munitions, helicopters, Fighters Ground Attack (FGA), cruise missiles, RAM, etc.
Surface targets: Unmanned Surface Vehicle (USV), Fast Patrol Boats (FPB), Fast Inshore Attack Craft (FIAC), sea-skimming missiles, etc.

The system consists of:
unmanned, remote controlled turret
including gyro-stabilised 40 mm CTAS (Cased Telescoped Armament System)

optronic Fire-Control System / FCS (infrared, daylight and laser range finder)

operator firing console

Effective range: 4,000 meters (2.16 NMI / 13,000 ft)
Firing rate: up to 200 rounds/min
Ammunition storage: 70 ready rounds in the turret (volume for up to 140 ready rounds)

40 mm telescoped, selectable, ammunition:
Anti-Aerial Air Burst (A3B)
The A3B rounds releases 660 grams (23 oz) of tungsten pellets that form a cloud of sub-projectiles in front of a target. The suggested method for aerial engagements is to fire at 80 rounds per minute, shooting a 4-round burst at 4,000 m (13,000 ft), then waiting a few seconds for damage assessment before firing another burst.
High-Explosive Point Detonating (HE PD)
High-Explosive Air Burst (HE AB)
Armor-Piercing, Fin-Stabilized, Discarding Sabot (APFSDS)
Target Practice (TP)

In service:
French Navy - future Prevaux class Offshore Patrol Vessel / Patrouilleur Hauturier (PH)

KNDS/Thales RapidFire Land:
Is the land-based variant of the RapidFire and is meant for integration on military vehicles.
Rate of fire is 200 rpm with a range against aerial and surface targets of 4,000 and 2,500 metres (13,100 and 8,200 ft).
The truck-based RapidFire can be mounted on a 6×6 and 8×8 chassis.

sources: KNDS, Thales +

images

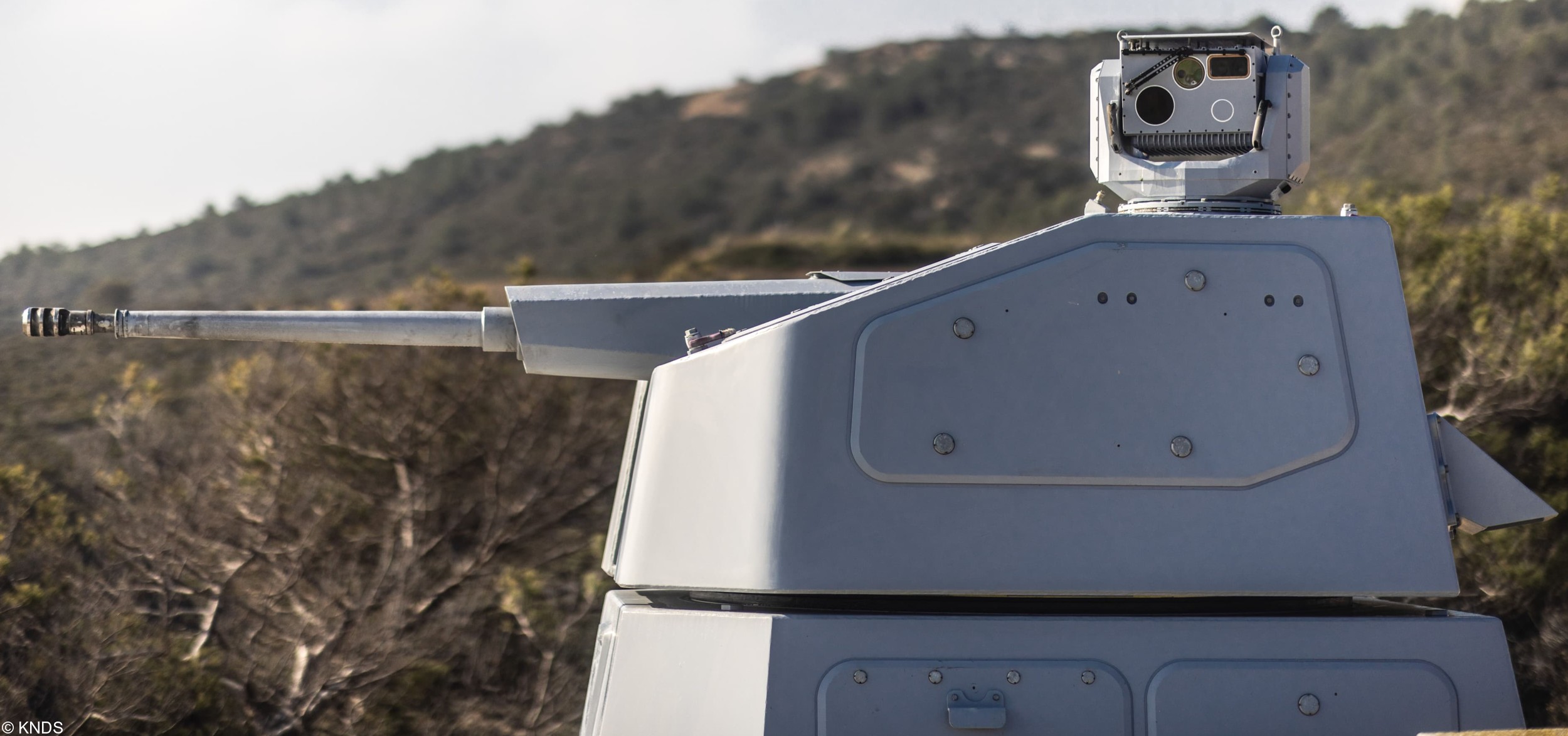

knds rapidfire 40 mm naval remote weapon system rws ciws thales a3b 04

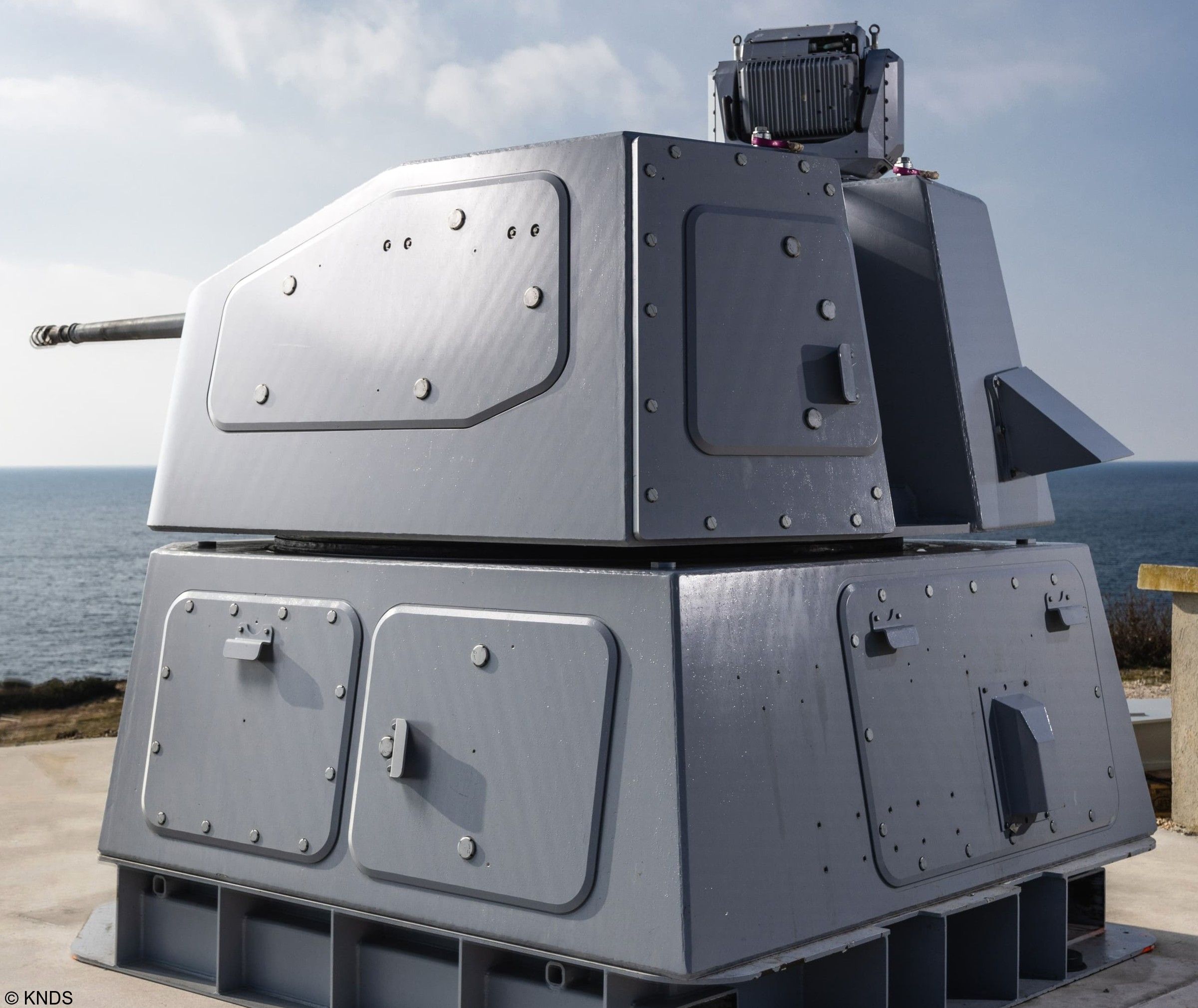

knds rapidfire 40 mm naval remote weapon system rws ciws thales a3b 02

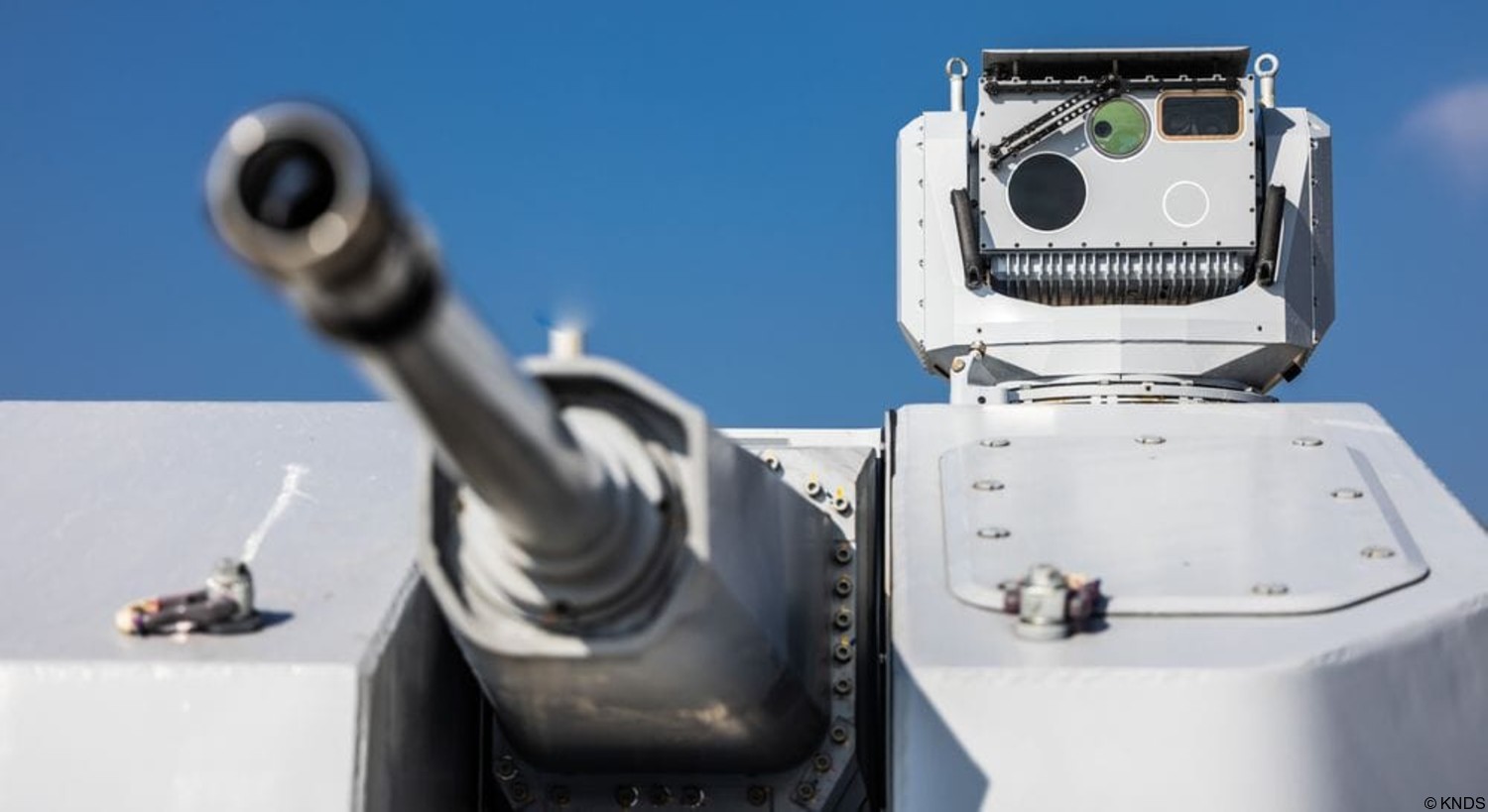

knds rapidfire 40 mm naval remote weapon system rws ciws thales a3b 06

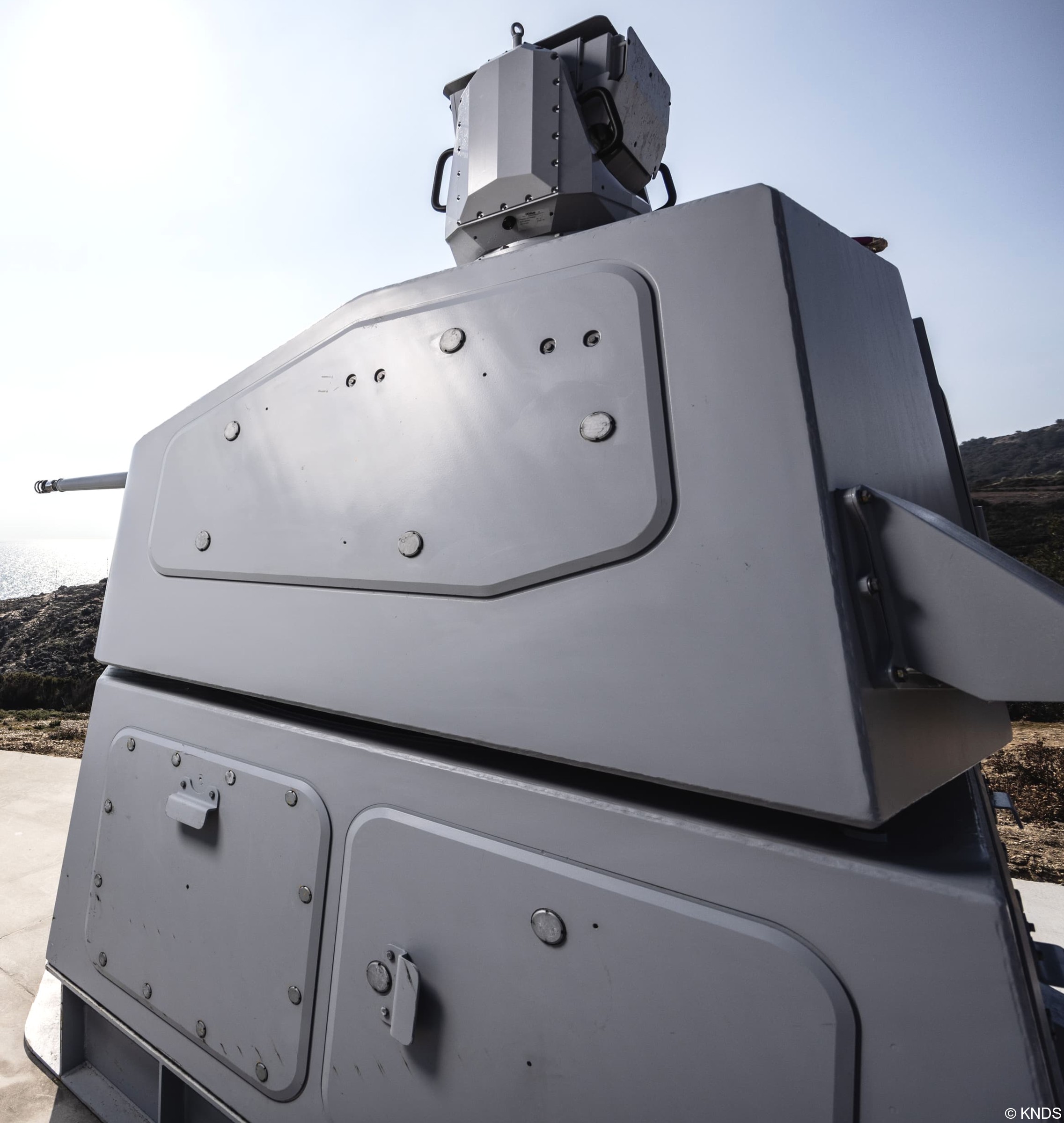

knds rapidfire 40 mm naval remote weapon system rws ciws thales a3b munition 05

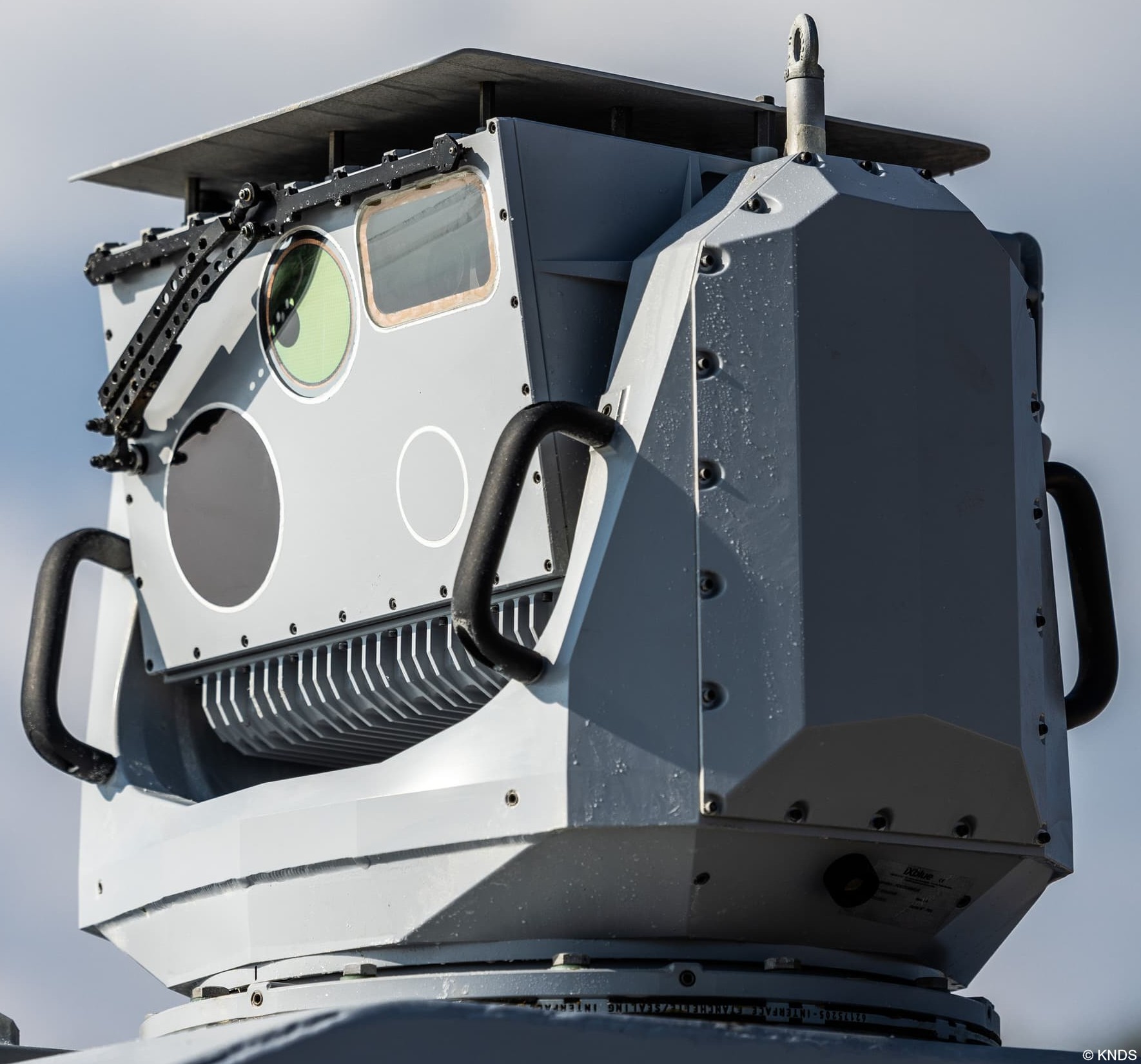

knds rapidfire 40 mm naval remote weapon system rws ciws thales optronic fire control system fcs 07

Optronic Fire-Control System (FCS)

knds rapidfire 40 mm naval remote weapon system rws ciws thales fire control fcs 08

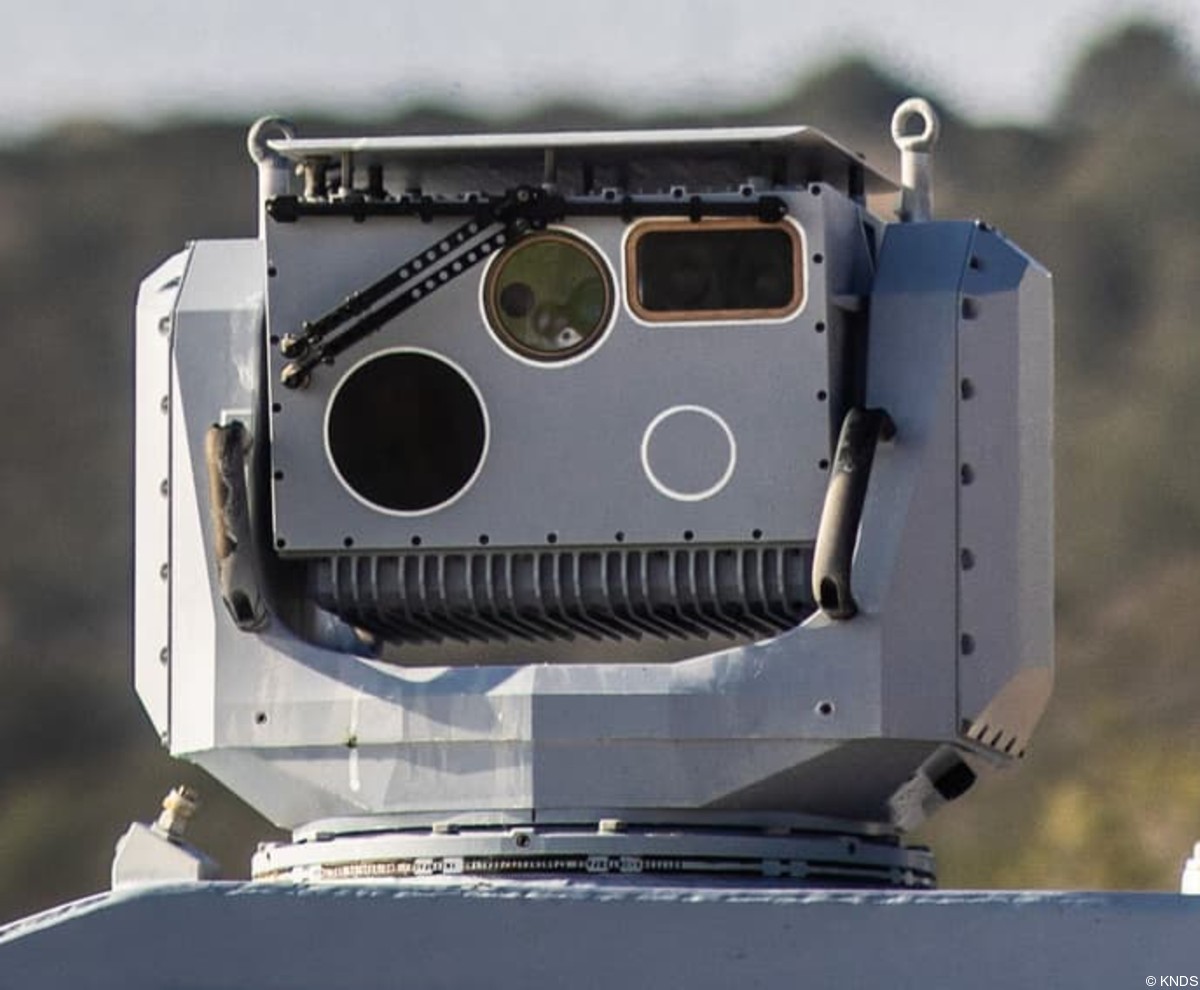

Optronic Fire-Control System (FCS)

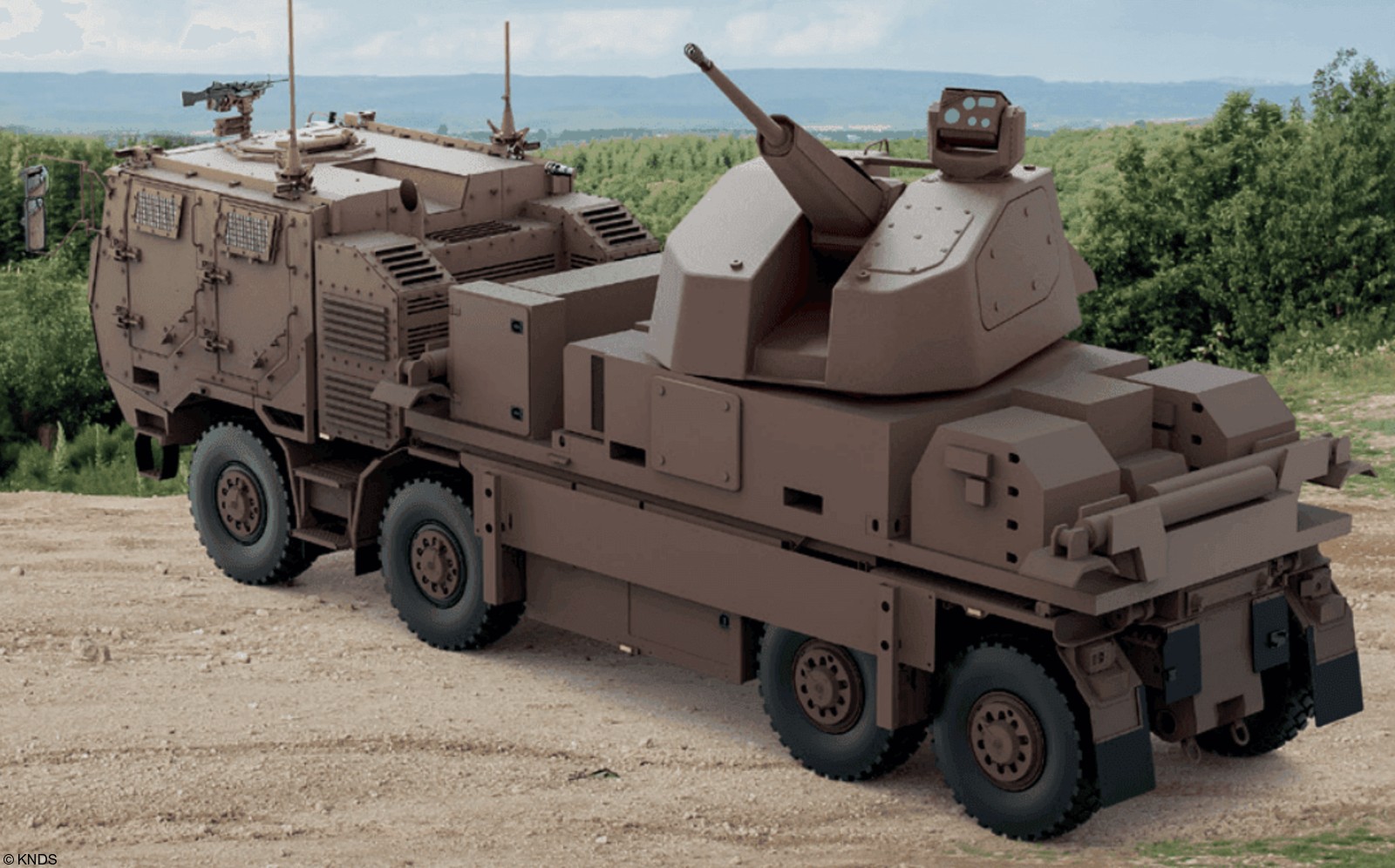

RapidFire Land

knds rapidfire land 40 mm remote weapon system rws ciws thales a3b 02
