Sentinel class Maritime Security Response Vessel Singapore

Republic of Singapore Navy
Sentinel class Maritime Security and Response Vessel

sentinel class maritime security and response vessel msrv republic singapore navy 02x

03/24

Units:

Unit	Launched	Commissioned	STATUS
55 MSRV Sentinel		January 2021	IN SERVICE
56 MSRV Guardian	1996 (ex RSS Dauntless)	January 2021	IN SERVICE
57 MSRV Protector		January 2022	IN SERVICE
58 MSRV Bastion		January 2022	IN SERVICE

Specifications:

Builder: Singapore Technologies Engineering (Marine), Singapore

Displacement: 525 tons
Length: 55 meters (180 feet 5 inches)
Beam: 8.6 meters (28 ft 2 in)
Draft: 2.7 meters (8 ft 10 in)
Speed: 20+ knots (37+ km/h)
Range: 1800 NMI (3300 km)
Complement: 30

Propulsion:
2 x MTU 12V 595 TE90 diesel engines coupled to ZF gear boxes driving 2 x Kamewa waterjets

Armament:
1 x Oto-Melara/OtoBreda 76/62 Super Rapid DP gun (3"/76mm)
1 x Rafael Typhoon 25 mm Remote Weapon System

Long Range Acoustic Device and Laser Dazzler System
Modular Ballistic Protection

Aviation:
none

Sytems:
?

The Sentinel-class Maritime Security and Response Vessels provide more calibrated options to respond to maritime incidents and offer greater persistence to protect Singapore's territorial waters. These vessels create flexibility for the Singapore government and Singapore Armed Forces (SAF) to meet the increased demands from maritime security threats that have grown in scale and complexity.

Installed with a range of calibrated capabilities, these refurbished ex-Fearless-class patrol vessels will be operated by the Maritime Security and Response Flotilla as a start, while new purpose-built vessels are being built.

Maritime Security and Response Flotilla:
The MSRF will be responsible to develop and operate calibrated capabilities to provide the Singapore government and Singapore Armed Forces (SAF) with more options to respond to maritime incidents. The capabilities raised by the MSRF will provide flexibility to meet the increased demands and a wider scope of maritime security operations, and offer greater persistence to protect Singapore's territorial waters. The MSRF will form an important part of the restructured Maritime Security Command.

The MSRF will operate new purpose-built vessels from 2026. As a start, the flotilla will operate four Sentinel-class Maritime Security and Response Vessels (MSRVs). It will also operate two Maritime Security and Response Tugboats (MSRTs). In line with other international maritime security agencies, these vessels will all bear red "racing" stripes on their bow.

(RSN)

images

msrv 56 rss guardian sentinel class maritime security and response vessel republic singapore navy 05

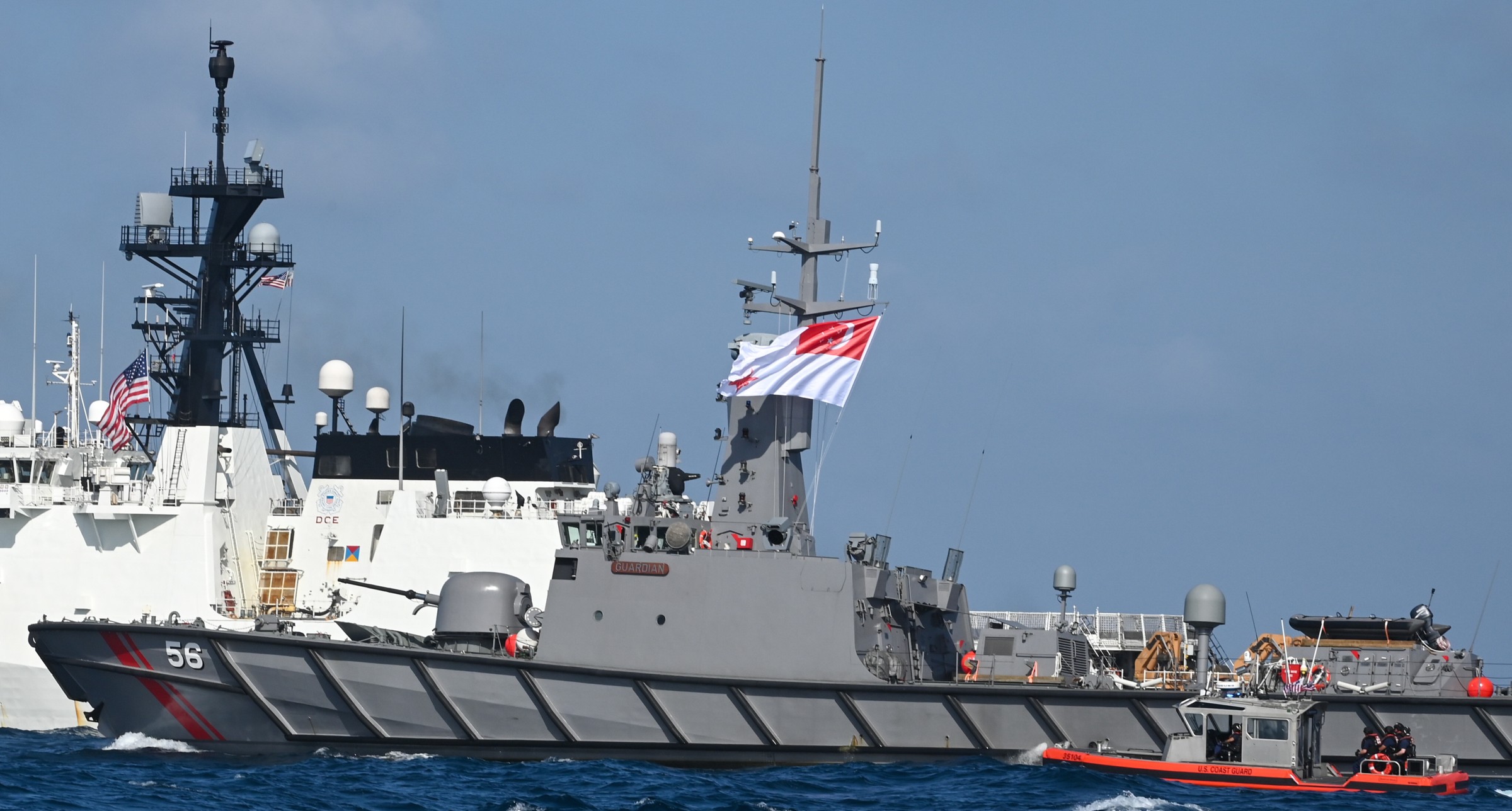

56 MSRV Guardian

msrv 56 rss guardian sentinel class maritime security and response vessel republic singapore navy 04

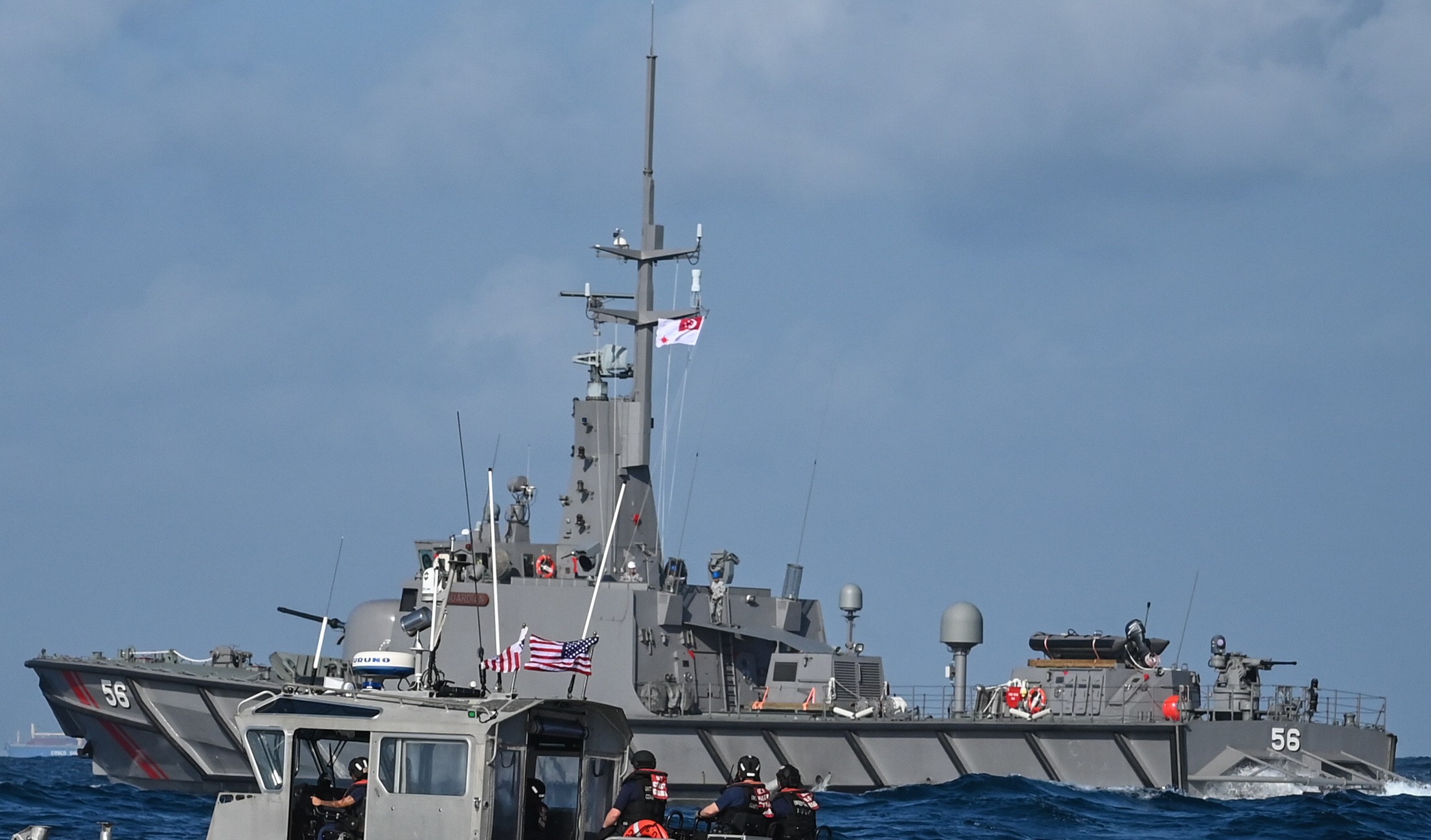

56 MSRV Guardian

msrv 56 rss guardian sentinel class maritime security and response vessel republic singapore navy 02

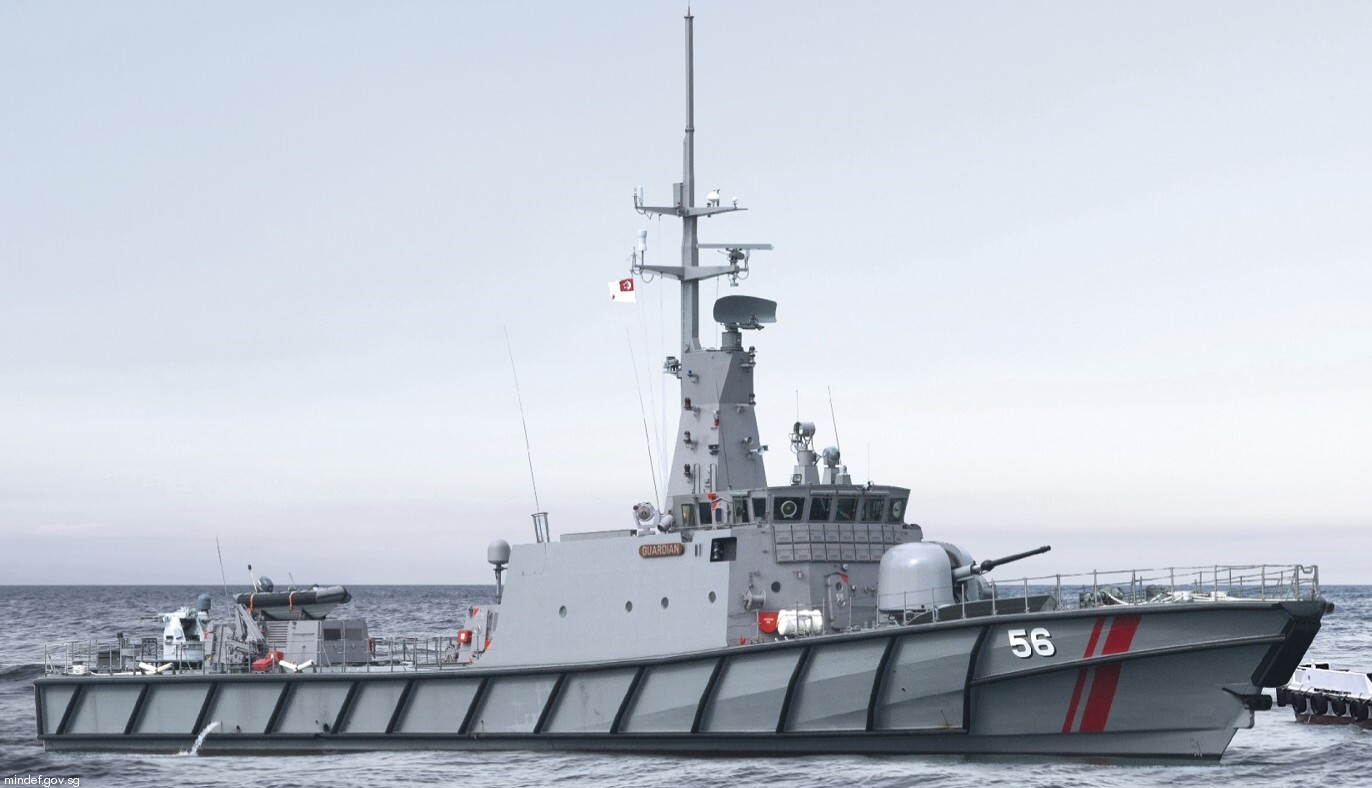

56 MSRV Guardian

msrv 56 rss guardian sentinel class maritime security and response vessel republic singapore navy 03

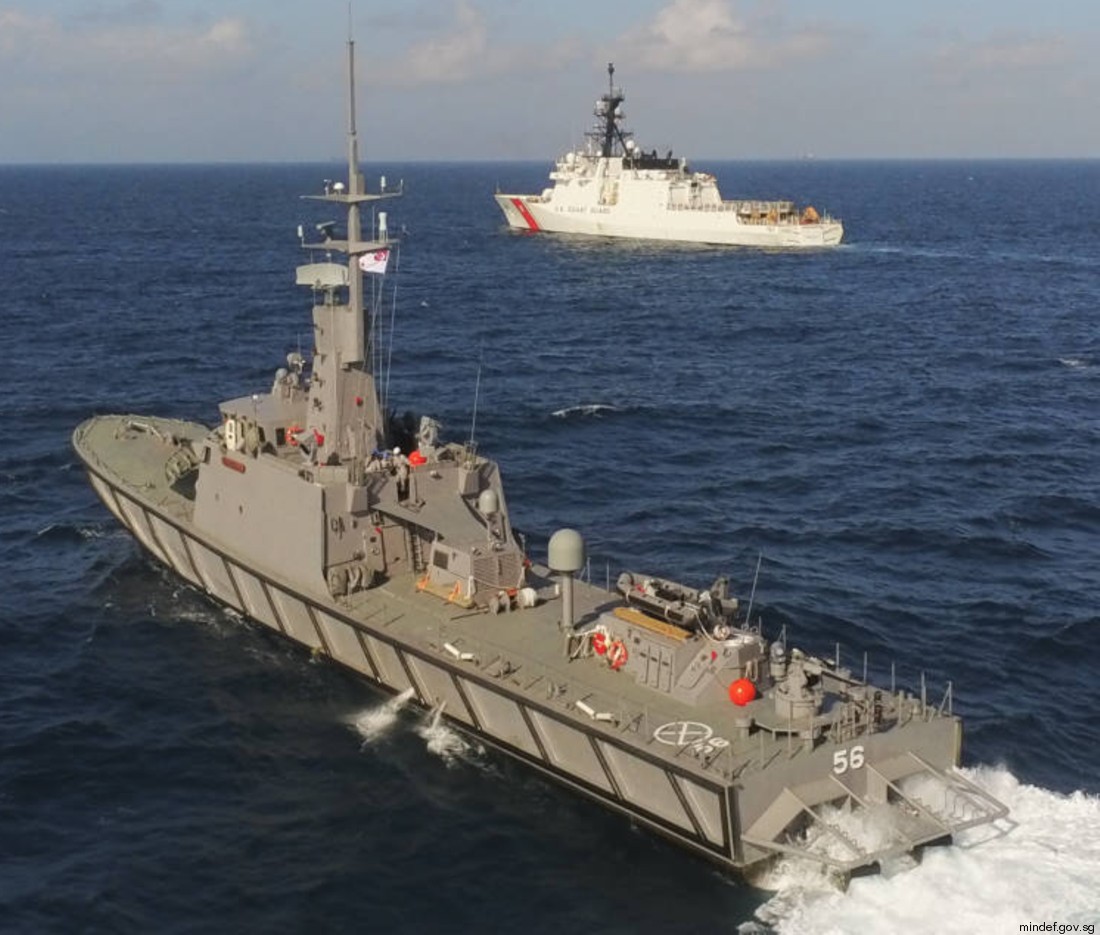

56 MSRV Guardian

msrv 57 rss protector sentinel class maritime security and response vessel republic singapore navy 02

57 MSRV Protector

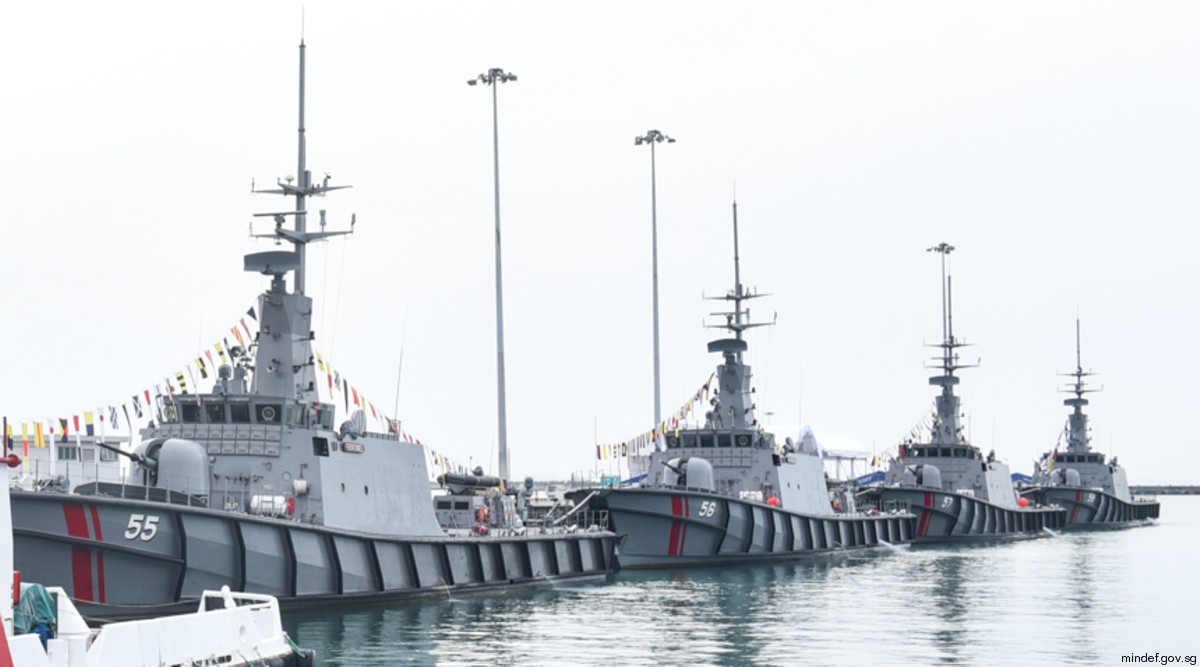

sentinel class maritime security and response vessel msrv republic singapore navy 03

sentinel class maritime security and response vessel msrv republic singapore navy 02x02

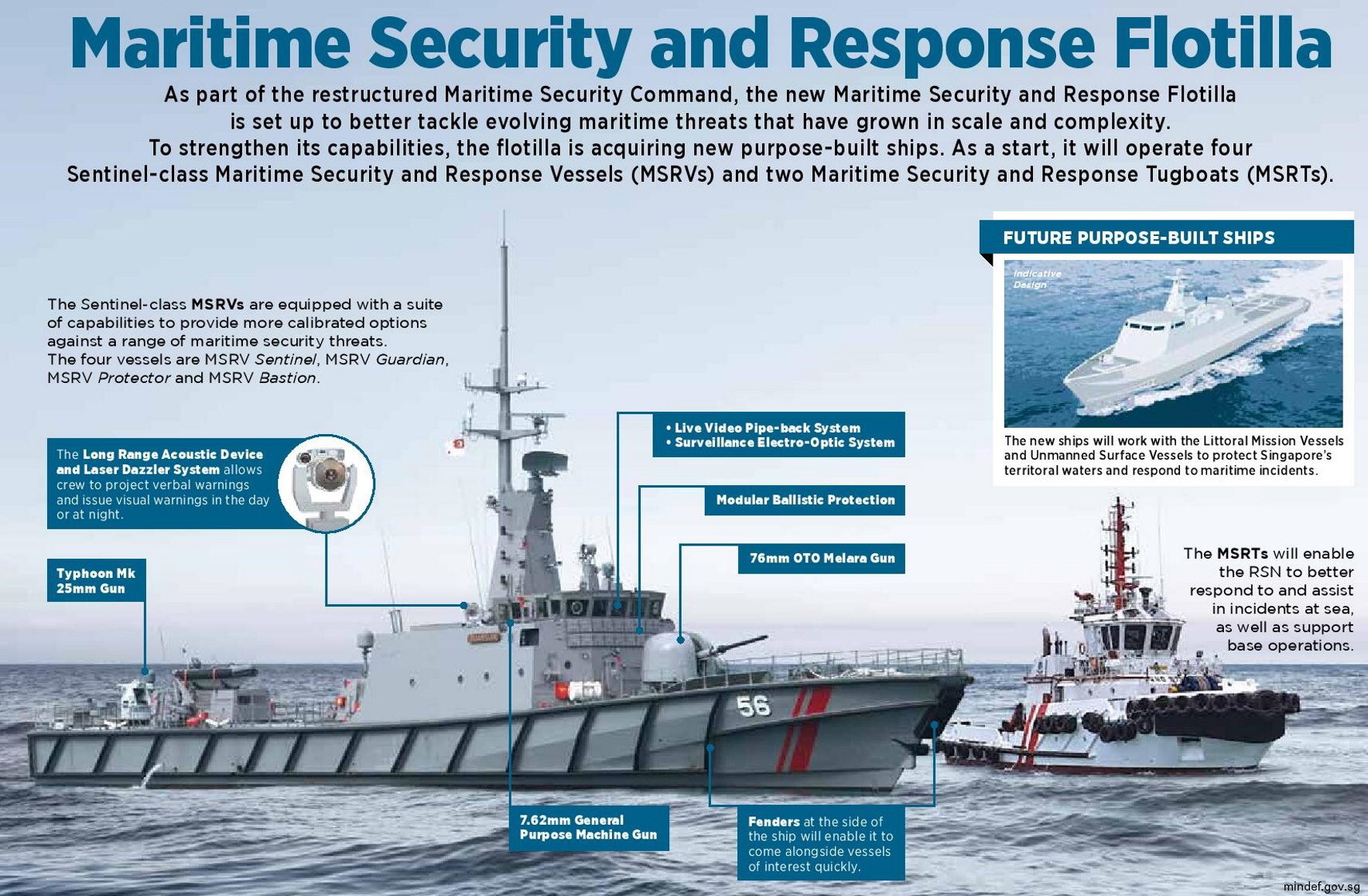

MSRF infosheet
