Republic of Korea Navy - ROKN Jang Bogo class (Type 209-1200 / KSS-I) Submarine |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ships: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Builders: Howaldtswerke-Deutsche Werft (HDW), Kiel, Germany Daewoo Shipbuilding & Marine Engineering (DSME), Geoje, RoK as built / after modernization Displacement: 1200 / 1400 tons (submerged) Length: 56 meters (184 feet) / 61 meters (200 feet) Beam: 6.3 meters (21 ft) Draft: 5.5 meters (18 ft) Speed: 11 knots (20 km/h), surfaced / 21.5 knots (40 km/h), submerged Range: 11000 NMI (20000 km) at 10 knots (19 km/h), surfaced 8000 NMI (15000 km) at 10 knots (19 km/h), snorkeling 400 NMI (740 km) at 4 knots (7.4 km/h), submerged on batteries Endurance: 50 days Test depth: 500 meters (1600 feet) Crew: 33 Propulsion: Diesel-Electric 4 x MTU 12V 396 SE diesel engines 1 x Siemens electric motor 5000 shp (3700 kW) 1 shaft / 1 propeller Armament: 8 x 21 in (533 mm) bow torpedo tubes for up to 14 x 21-inch (533mm) heavyweight Surface and Underwater Target Torpedoes - SUT Mod.2) UGM-84 Harpoon SSM anti-ship missiles up to 28 mines Systems: Atlas Elektronik integrated sensor underwater system (ISUS) Atlas Elektronik CSU 83 hull-mounted sonar Sigma 40XP inertial navigation systems (INS) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The Jang Bogo class submarine (formerly
romanised as Chang Bogo) is a variant of the Type 209
diesel-electric attack submarine initially developed by
Howaldtswerke-Deutsche Werft (HDW) of Germany, intended for service
with the South Korean Navy (ROKN). Upgrades: The South Korean Jang Bogo class submarines, originally based on Type 209-1200, had reportedly been heavily upgraded from a time early in the 21st century, which if properly undertaken was supposed to include domestic hull stretch augmentation from 1,200 tons to 1,400 tons, and installment of domestically developed Torpedo Acoustic Counter Measures (TACM). These upgrades could have been affected due to Korean economic problems of the late 1990s, which affected other plans to acquire nine 1,500-ton AIP-equipped boats or upgrade six 1200 boats to 1,500-tons AIP-equipped boats, although the more ambitious plan to acquire nine 1,800-ton Type 214 AIP submarines was preserved and put under progress, which will reportedly be wrapped up in 2018 when all submarines of the type are scheduled to be commissioned. Outfitting the submarines with UGM-84 Submarine-launched Harpoon SSM missile launching capability was a part of the upgrade, and this seems to have been properly carried out by 2002 on at least one submarine. By 2007, Na Daeyong and Lee Eokgi were demonstrated to have the capability. In the 2008 RIMPAC the submarine Lee Sunshin also demonstrated its sub-harpoon capability. By 2009 it was reported that nine South Korean-modified 1,400-ton Type 209 submarines were in service with the ROKN. As of 2011 they were reported to be 1,200-ton Type 209 submarines. They can equip the Baek Sang Eo (White Shark) heavy torpedo, and can possibly equip submarine-launched SSM-700K Hae Sung anti-ship missiles later on. LIG Nex1 began producing Torpedo & Acoustics Countermeasures (TACM) for unspecified submarine types of the ROKN as well, which finished development in 2000. AIP and flank-array sonars are planned for future modernizations. The Jang Bogo class offered to Indonesia will already be in stretched and augmented forms including guided missile-launching capabilities and a surface displacement of 1400 tons, quite similar to the original plan to upgrade the existing Jang Bogo-class submarines of ROKN to similar specifications. A science documentary by EBS reported that Jang Bogo-class submarines will undergo major generational overhaul and refit every eight to twelve years. The overhaul and refit involves periodic cutting, complete disassembly, and re-welding of the hull for the upgrade or total replacement of the submarine's old engines, navigational equipment, batteries, and other essential equipment with their modern counterparts. Hull stretch may also have taken place in some of the Jang Bogo-class vessels since the early 2000s, but it has neither been completely confirmed nor denied. Some Jang Bogo-class vessels are demonstrated to have sub-Harpoon launching capability when previously the class was lacking it. ROKN is committed to build and maintain a submarine force of 26 attack submarines until 2025, excluding small and midget submarines, though it is not clear how many submarines among those will belong to the Jang Bogo class. The oldest commissioned Jang Bogo-class submarine by then will be 32 years old. Lithium-ion battery power stacks are being developed to increase the underwater endurance of Jang Bogo-class submarines by two to three times, offering four to five times the power density of Type 209's current lead-acid batteries and as much as twice the power density of Type 214's BZM 120 fuel cells. source: wikipedia - - - - - Names: Jang Bogo (787 - 846) childhood name Gungbok, was a Sillan who rose to prominence in the Later Silla period of Korea as a powerful maritime figure Choe Mu-Seon (1325 -1395) was a medieval Korean scientist, inventor, and military commander during the late Goryeo Dynasty and early Joseon Dynasty Admiral Yi Sun-sin (April 28, 1545 - December 16, 1598) was a Korean admiral and military general famed for his victories against the Japanese navy during the Imjin war in the Joseon Dynasty Na Dae-yong was a Korean naval officer who fought against the Japanese navy in Imjin war and was also known as a designer of the turtle ship Lee Eok-gi (September 3, 1561 - August 27, 1597) was the commander of the Eastern Jeolla Fleet and later came to be the commander of the Western Jeolla Fleet |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| images | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

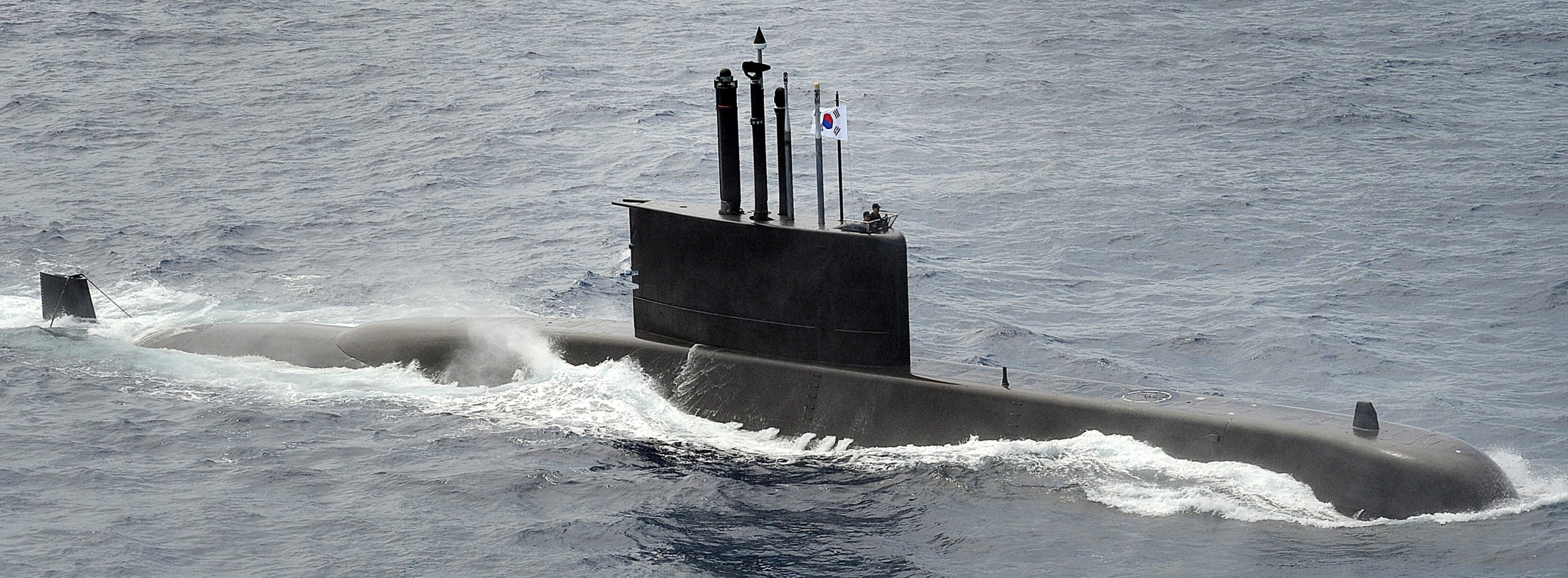

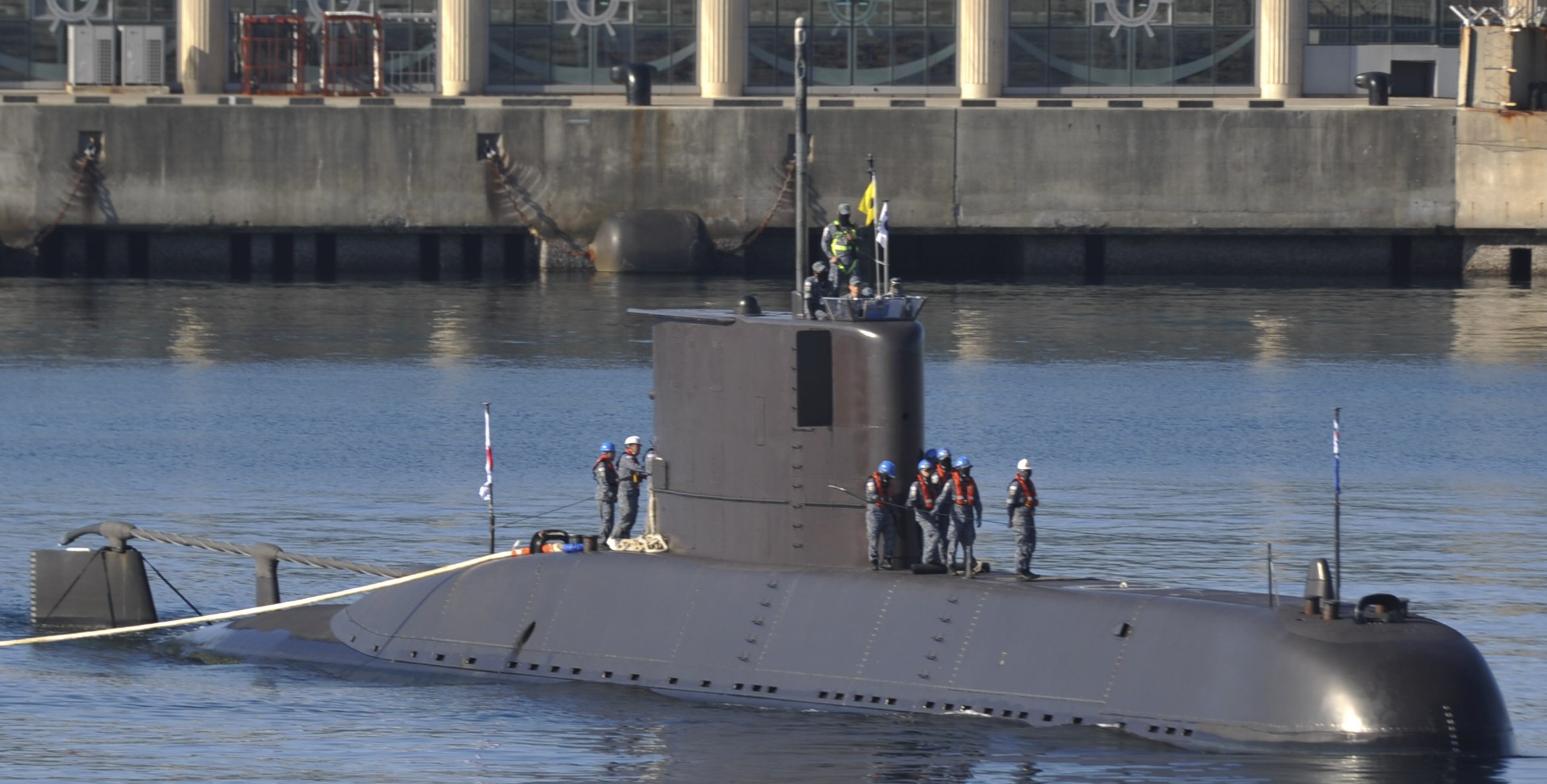

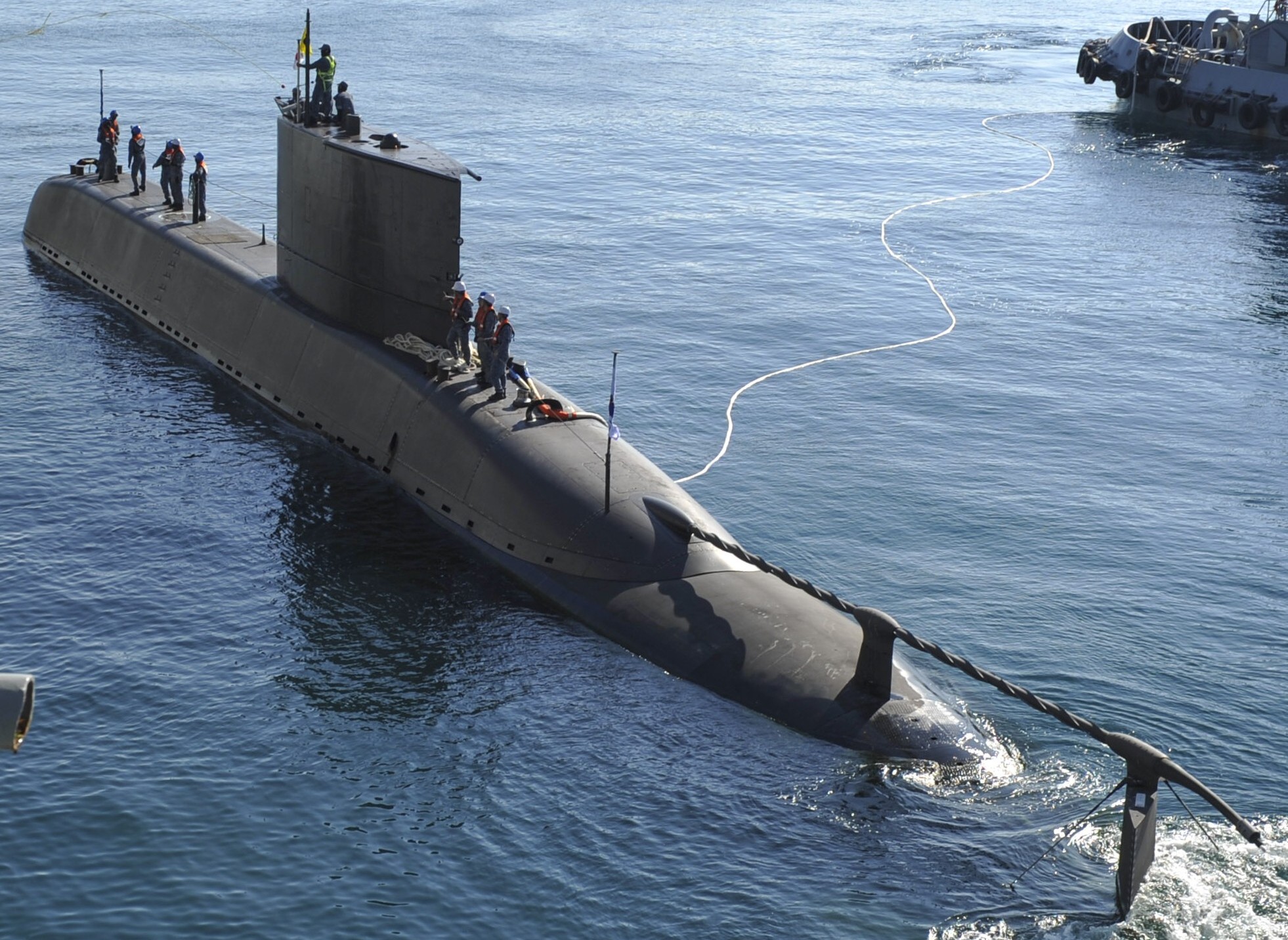

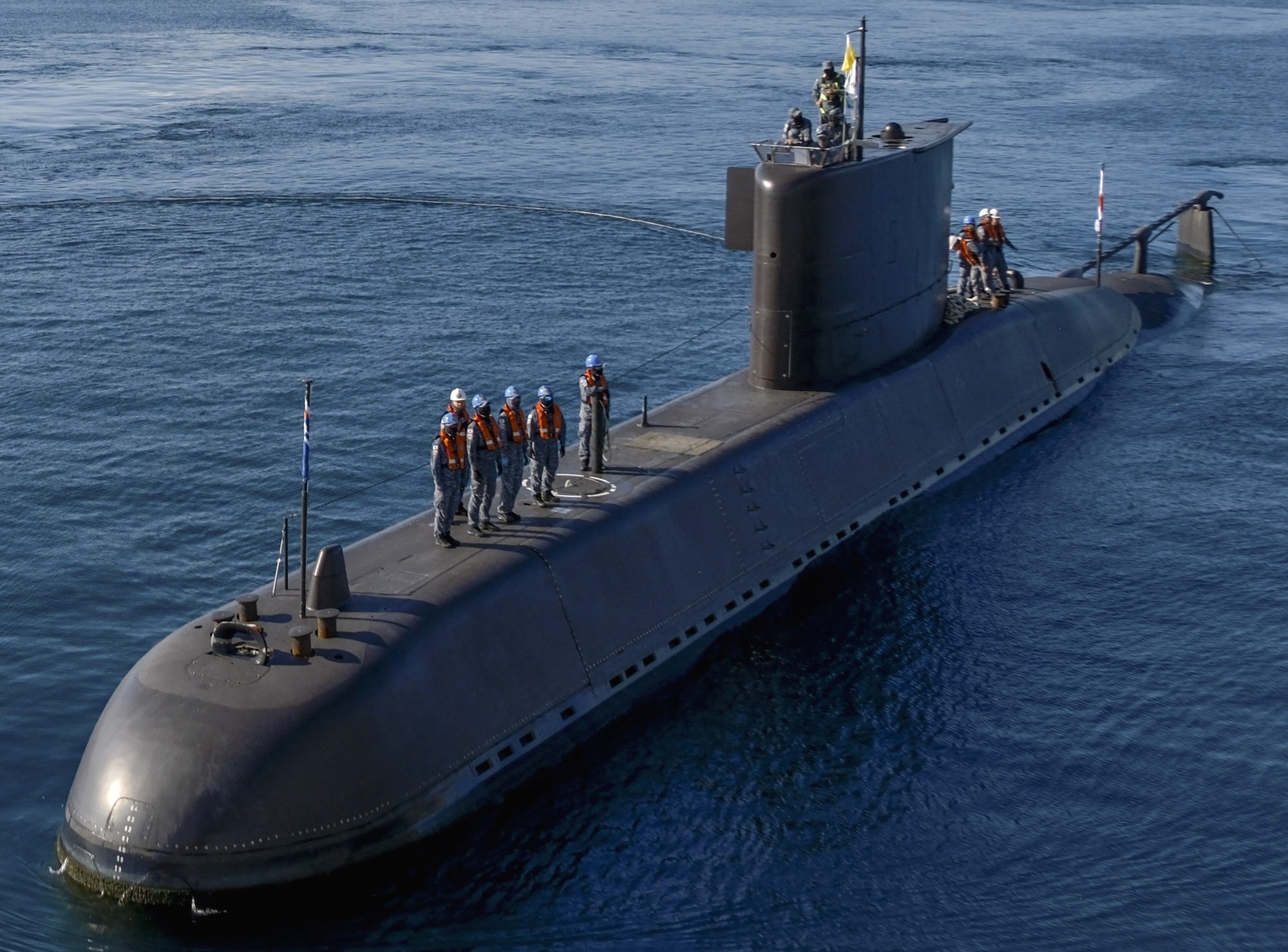

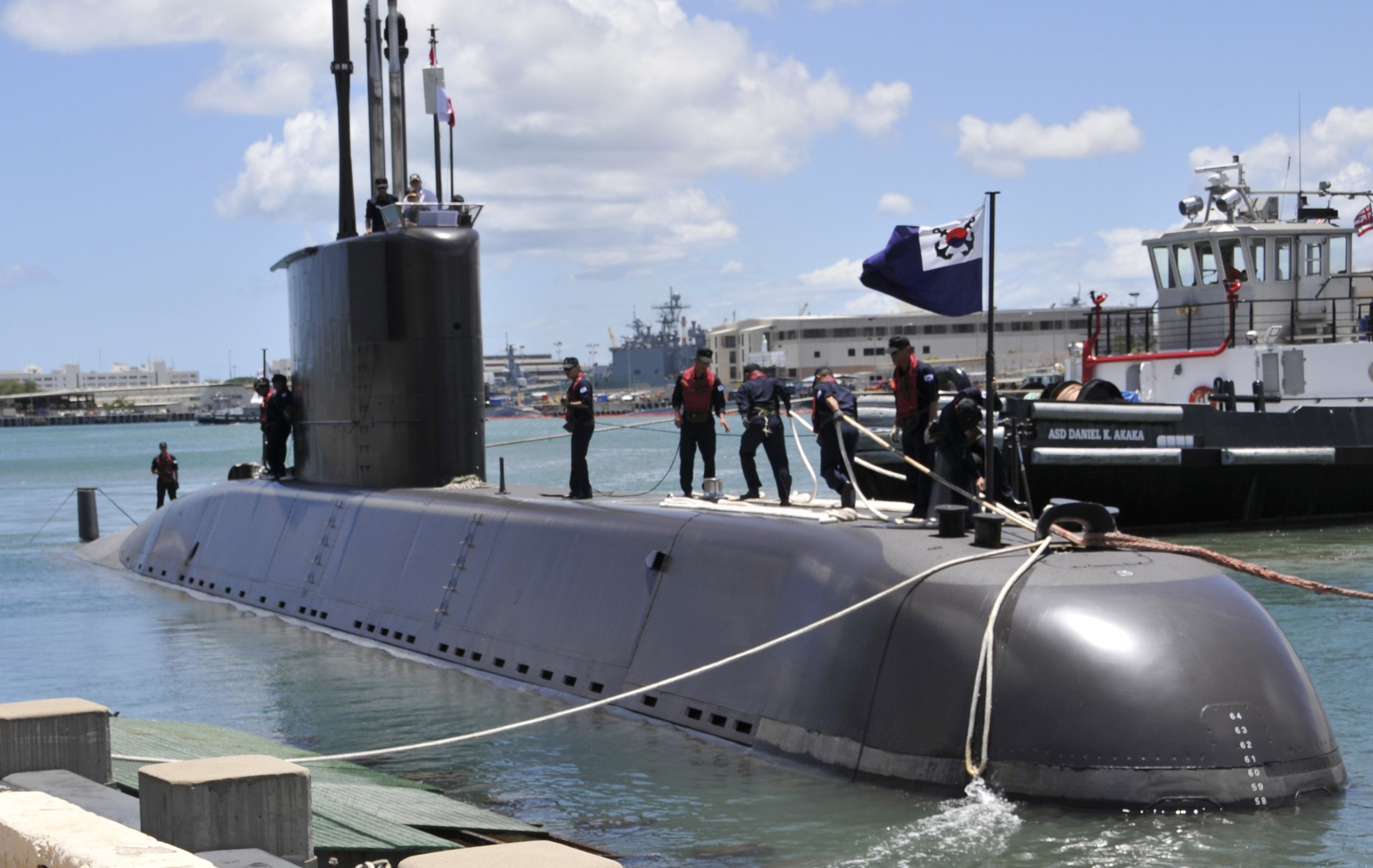

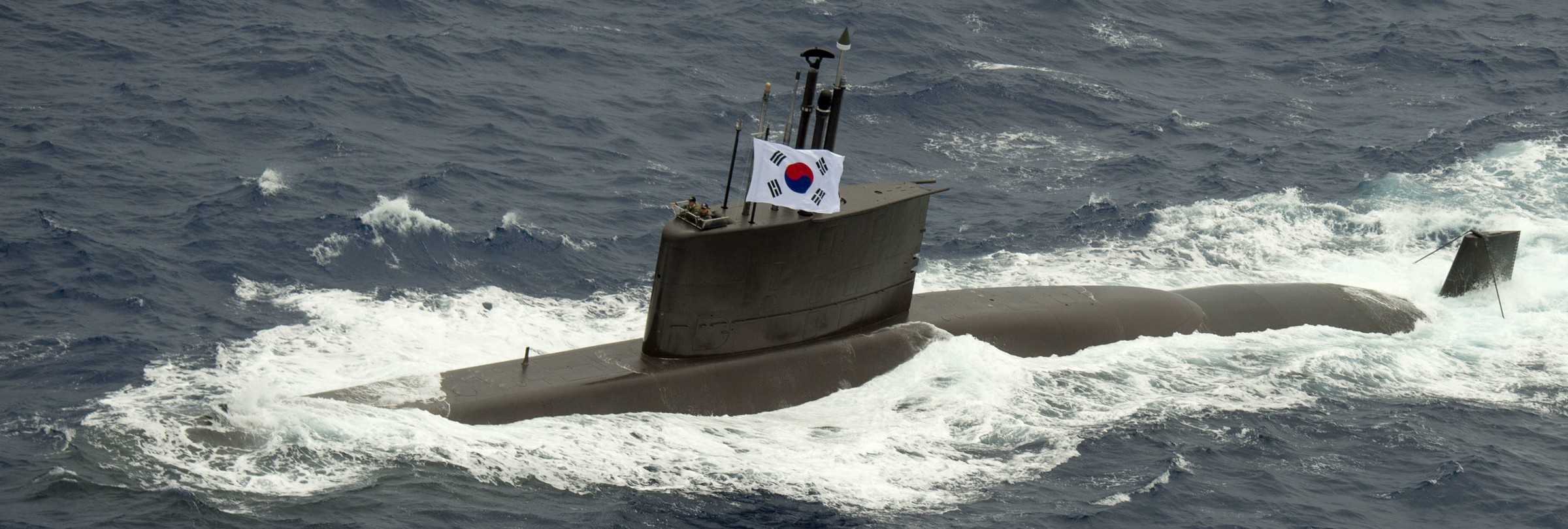

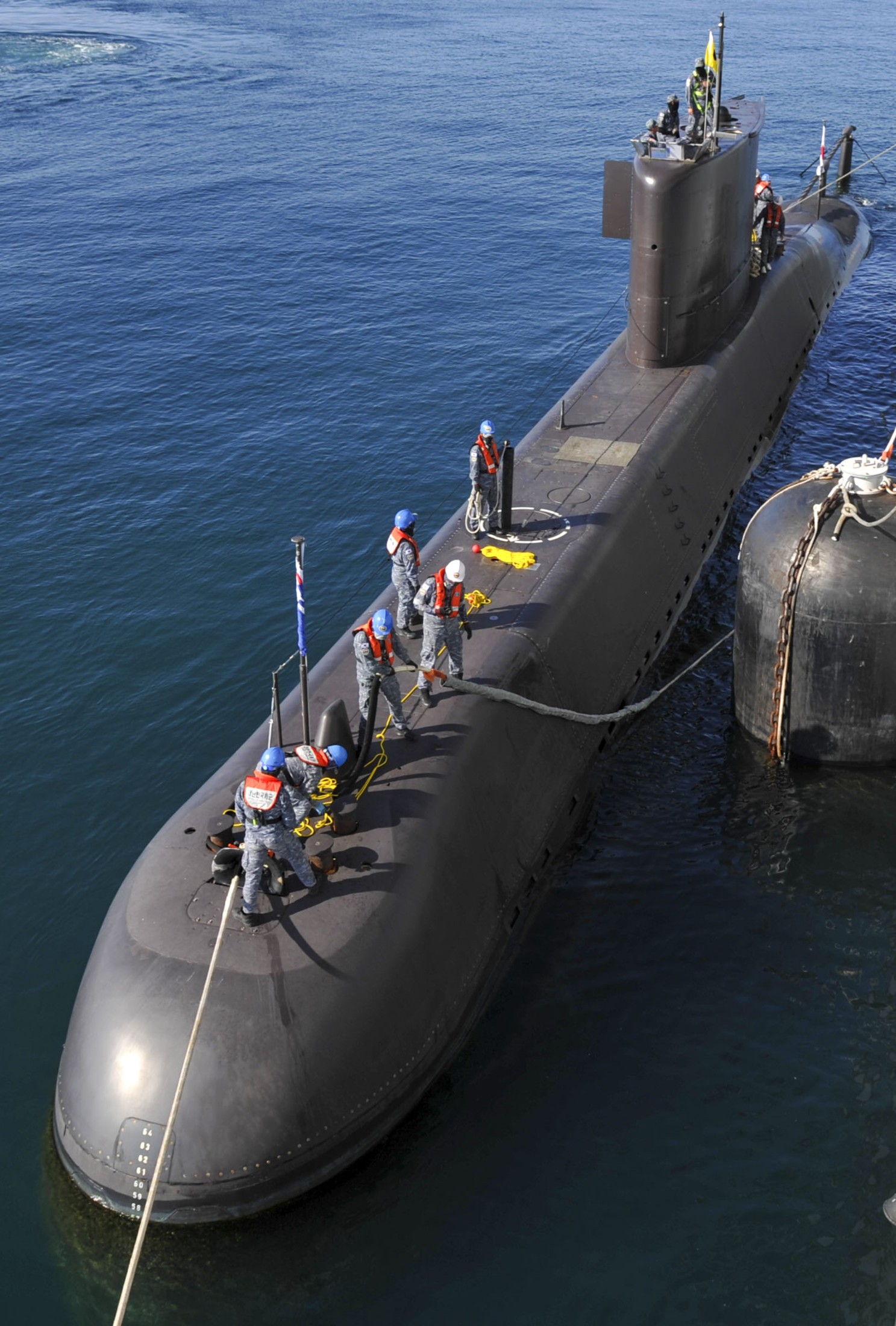

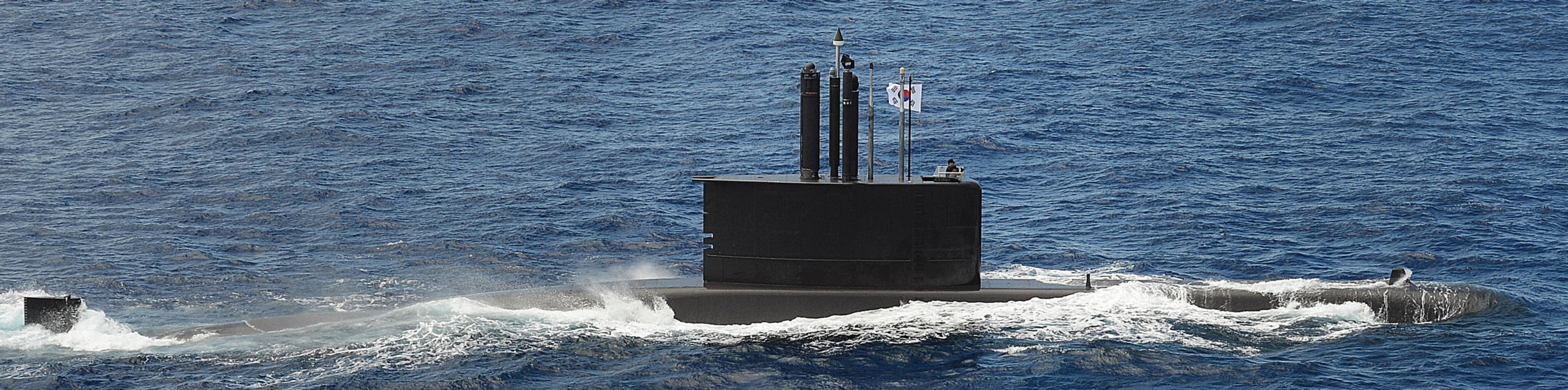

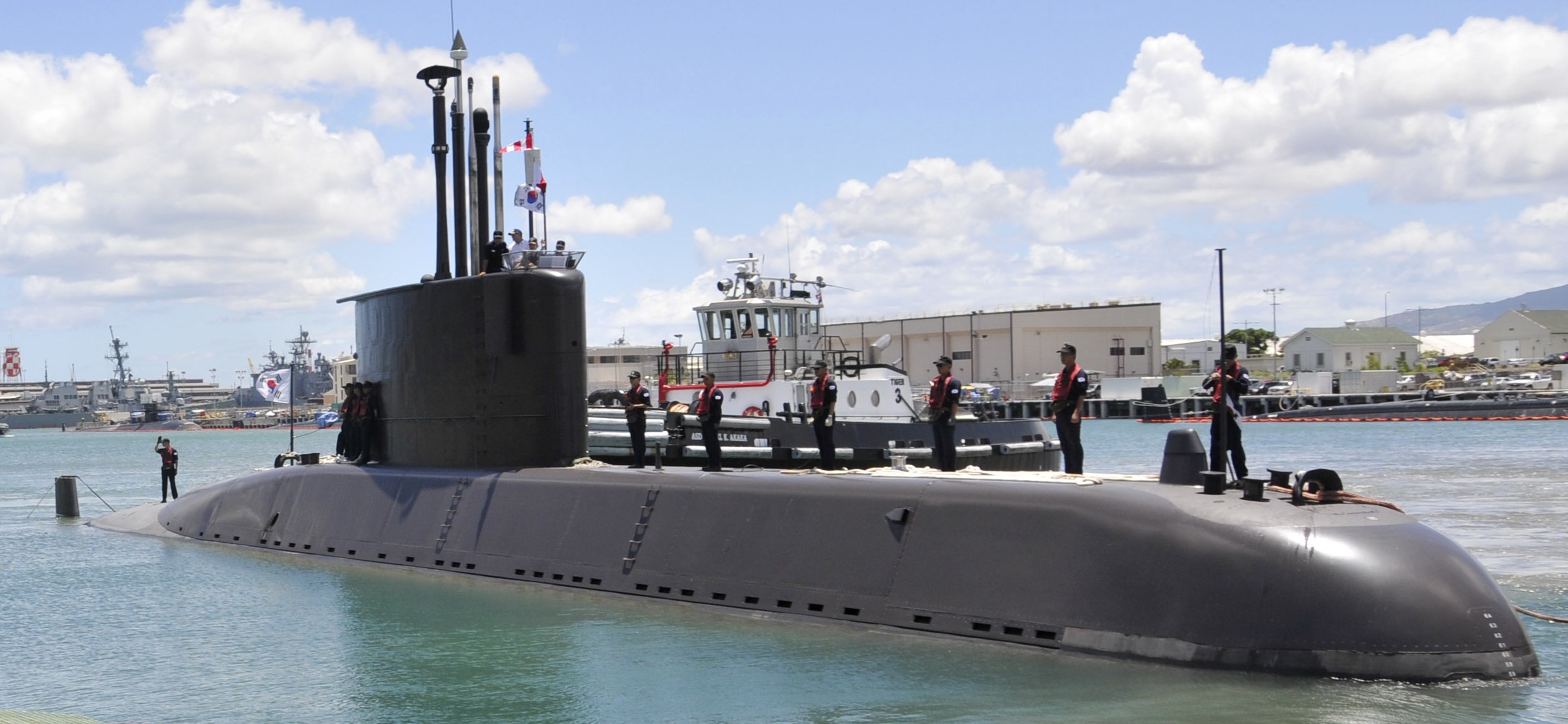

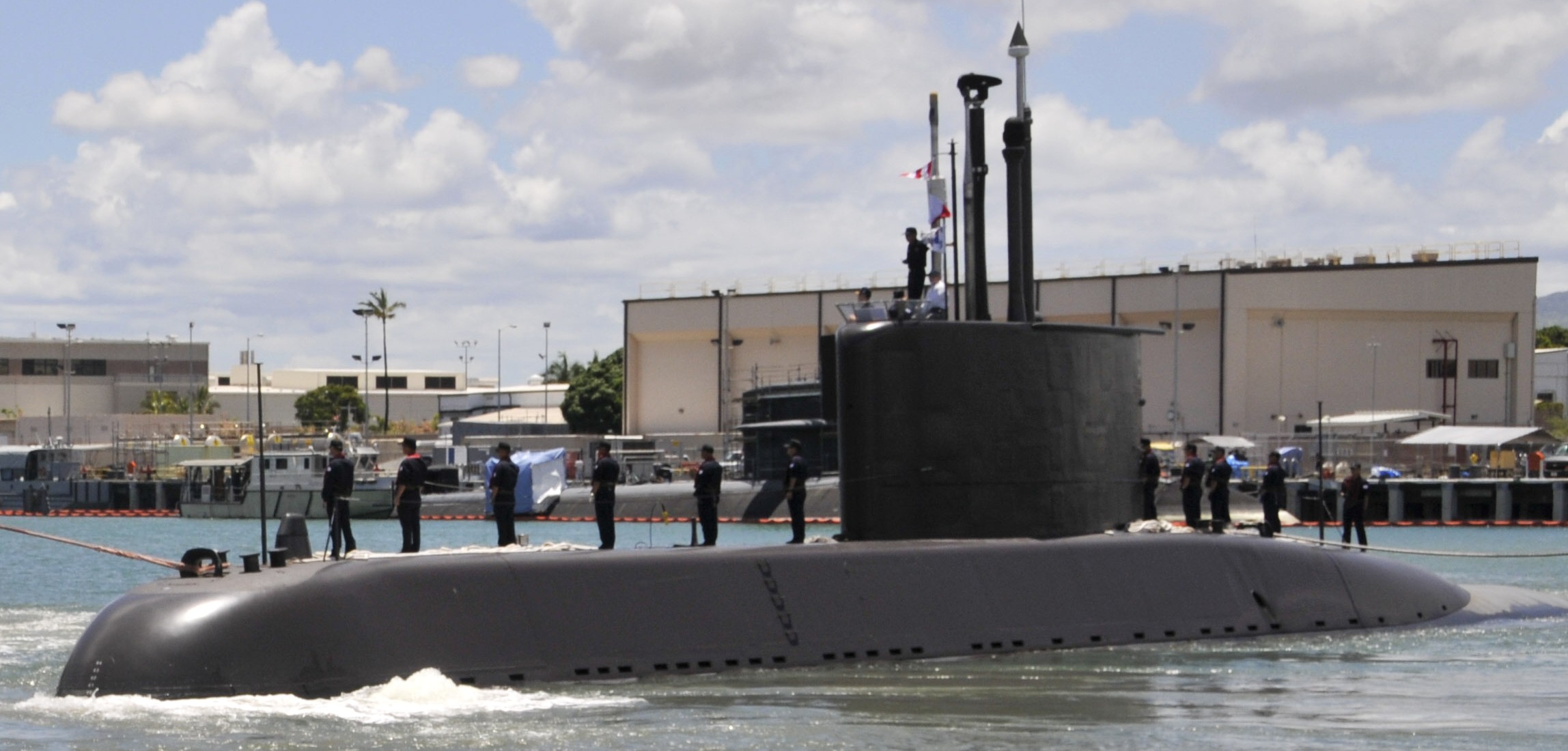

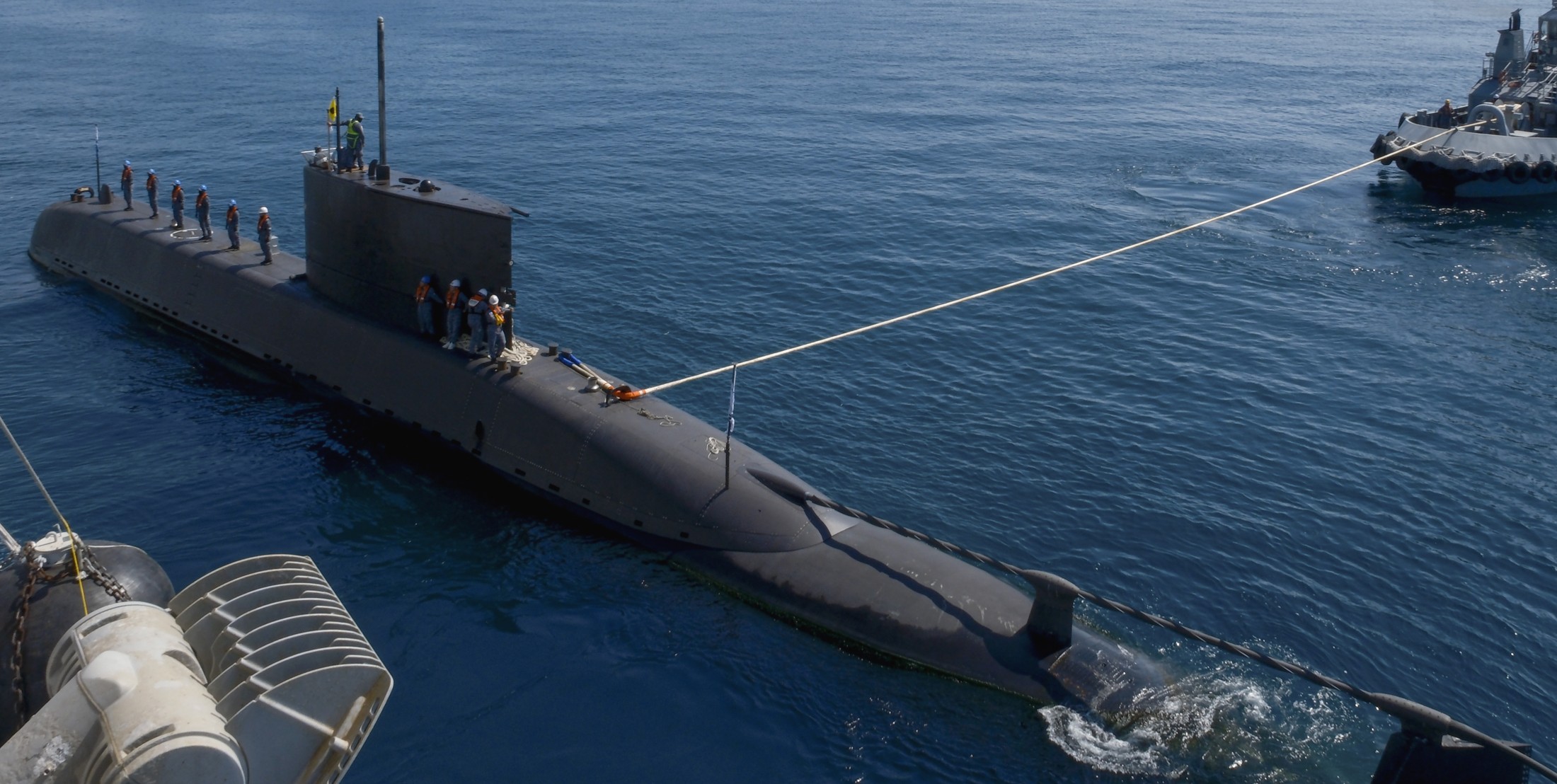

 SS-061 ROKS Jang Bogo  SS-062 ROKS Lee Chun  SS-063 ROKS Choe Museon  SS-063 ROKS Choe Museon  SS-063 ROKS Choe Museon  SS-063 ROKS Choe Museon  SS-065 ROKS Park Wi  SS-065 ROKS Park Wi  SS-065 ROKS Park Wi  SS-066 ROKS Lee Jongmoo (front, with a USN Los Angeles class SSN)  SS-067 ROKS Jung Woon  SS-068 ROKS Yi Sun-sin  SS-068 ROKS Yi Sun-sin  SS-068 ROKS Yi Sun-sin  SS-068 ROKS Yi Sun-sin  SS-069 ROKS Na Dae-yong SS-069 ROKS Na Dae-yong  SS-069 ROKS Na Dae-yong  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  SS-071 ROKS Lee Eok-gi  unidentified unit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
