Republic of Korea Navy - ROKN Chungnam class (FFG-III) Guided Missile Frigate |
||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||
| 08/25 | ||||||||||||||||||||||||||||||||||||||||||
| Ships: | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
| Specifications: | ||||||||||||||||||||||||||||||||||||||||||
|
Builders: Hyundai Heavy Industries (HHI), Ulsan, ROK SK Oceanplant, Donghae, ROK Hanwha Ocean Co., Ltd. (formerly Daewoo Shipbuilding & Marine Engineering), ROK Displacement: 3,600 tons (standard) / 4,300 tons (full load) Length: 129 meters (423 feet 3 inches) Beam: 14.8 meters (48 ft 7 in) Draft: 4.2 meters (13 ft 1 in) Speed: 30 knots (56 km/h), max. / 18 knots (33 km/h), cruise Range: 4,500 NMI (8330 km) Complement: 120 Propulsion: CODLOG (Combined Diesel-Electric or Gas) 2 x Rolls-Royce MT30 gas turbines 4 x MTU 12V4000 M43B diesel generators 2 x Leonardo Electric Motors 2 shafts, 2 controllable pitch propellers Armament: Korean Vertical Launching System (K-VLS) - 16 cells for Haegung K-SAAM SAM Missile (4 per cell) Haeryong VL-Tactical Land Attack Missile K-745 Red Shark (K-ASROC) Anti-Submarine Missile - - - - - 1 x Mk. 45 Mod. 4 gun (5-inches/127 mm/L62) 1 x CIWS-II 8 x SSM-700K C-Star Anti-Ship Missiles 2 x triple torpedo tubes for K745 Blue Shark Torpedoes Aviation: flight deck and hangar for 1 helicopter Systems: Hanwha Systems Combat Management System (CMS) Integrated Sensor Mast (ISM) with multi-function phased array radar (MFR) LIG Nex1 SPG-540K 3D fire control radar/electro-optical targeting system (EOTS) K/SPS-95K surface search and navigation radar SAQ-600K infrared search and track imaging (IRST) LIG Nex1 SAQ-560K electro-optical targeting system (EOTS) SQS-240K active/passive search & track hull sonar SQR-250K towed array sonar system (TASS) SLQ-200K Sonata electronic warfare system SLQ-261 torpedo decoy system |
||||||||||||||||||||||||||||||||||||||||||
| The Chungnam class Frigate is based on the preceding Daegu class. Which in turn is based on the Incheon class, and has otherwise been referred to as the Incheon class batch III, or FFX-III. | ||||||||||||||||||||||||||||||||||||||||||
| images | ||||||||||||||||||||||||||||||||||||||||||

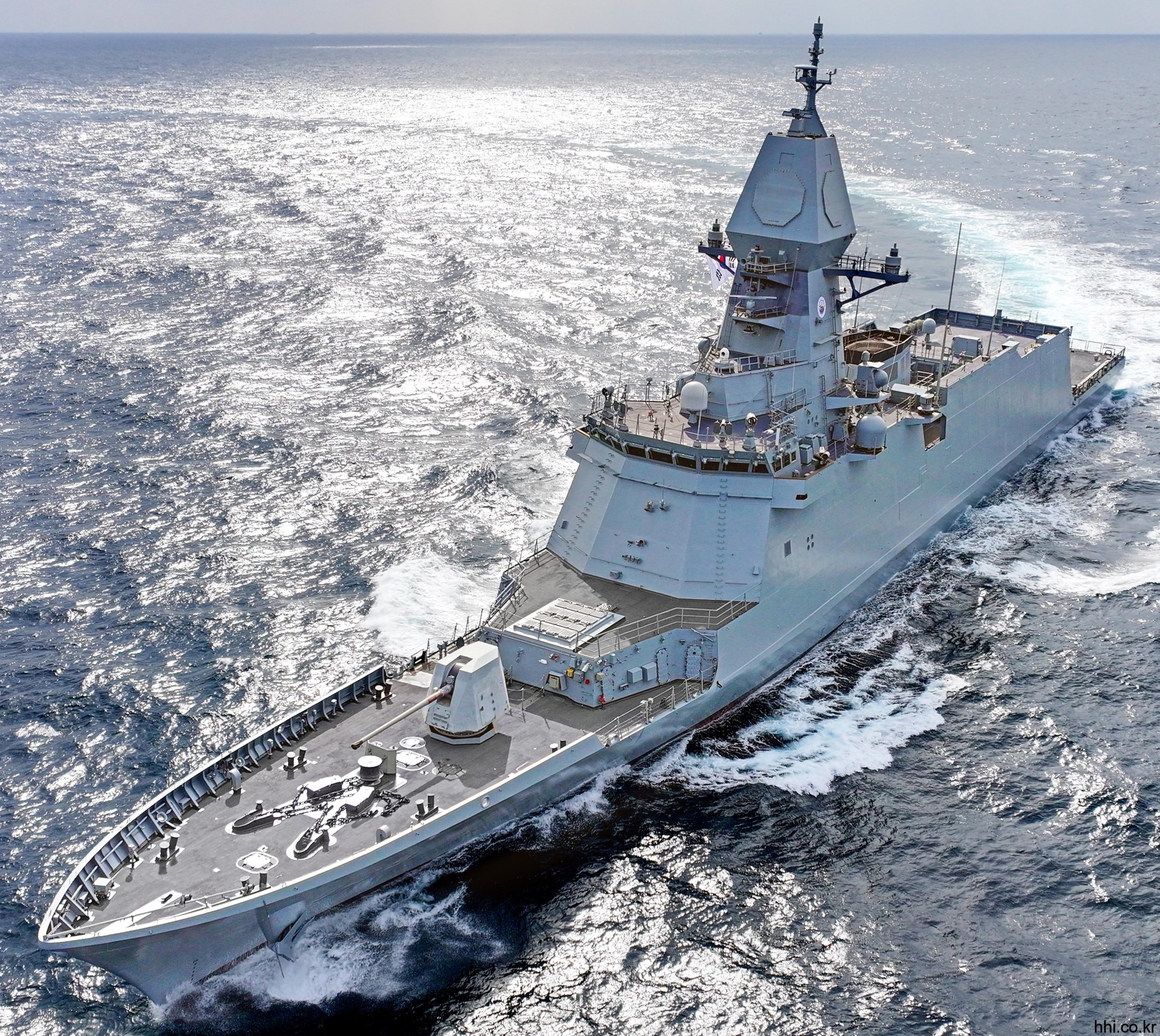

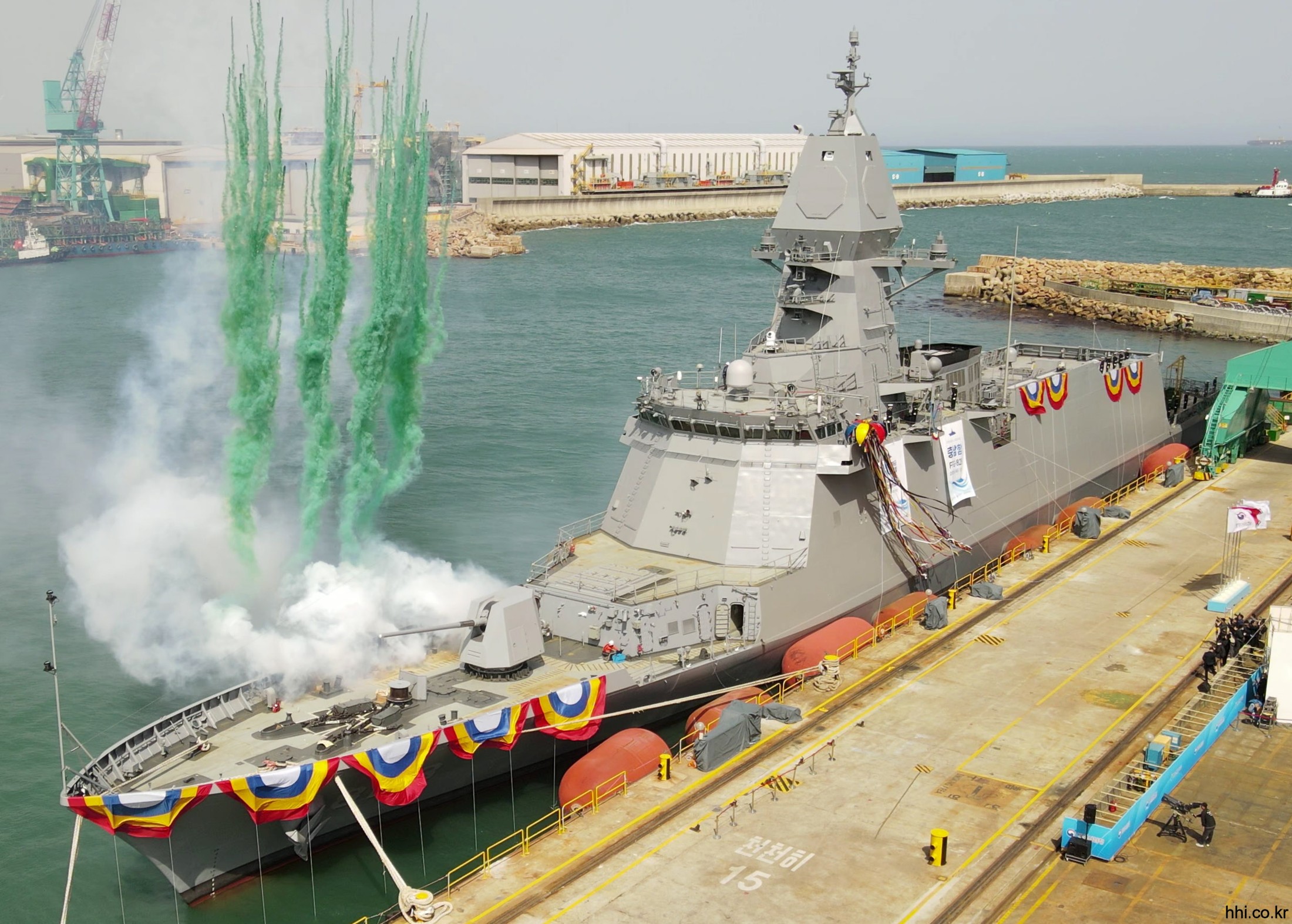

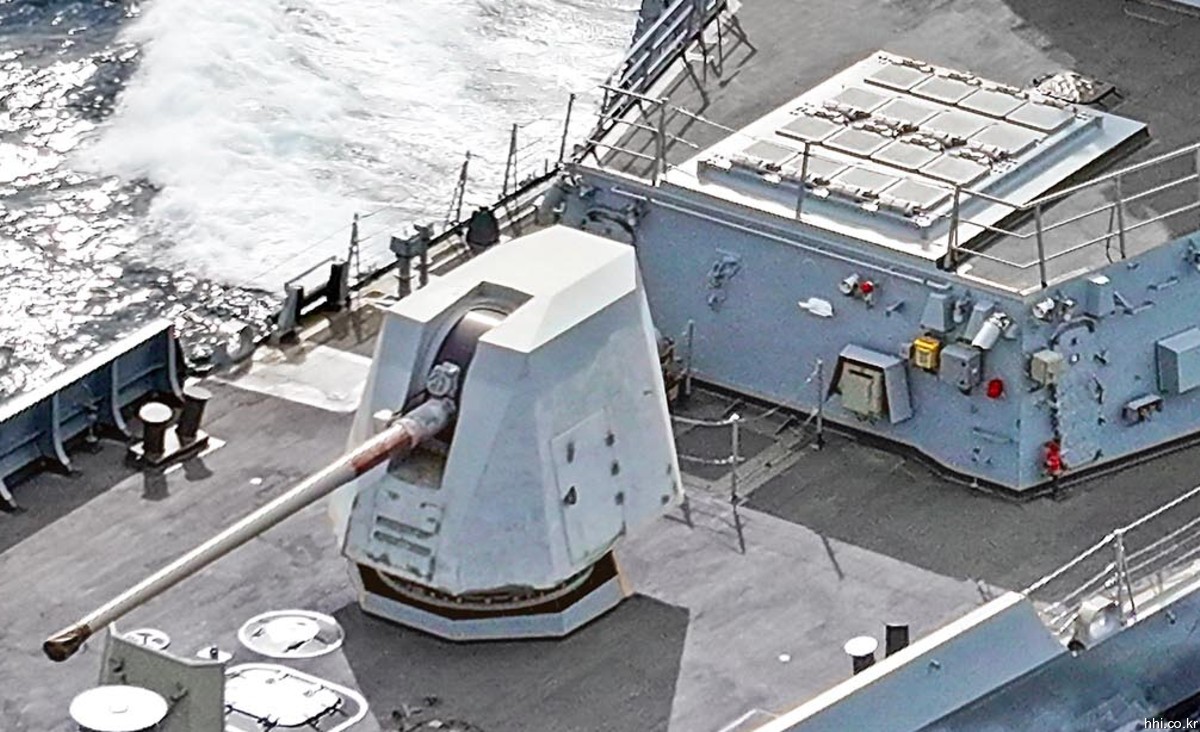

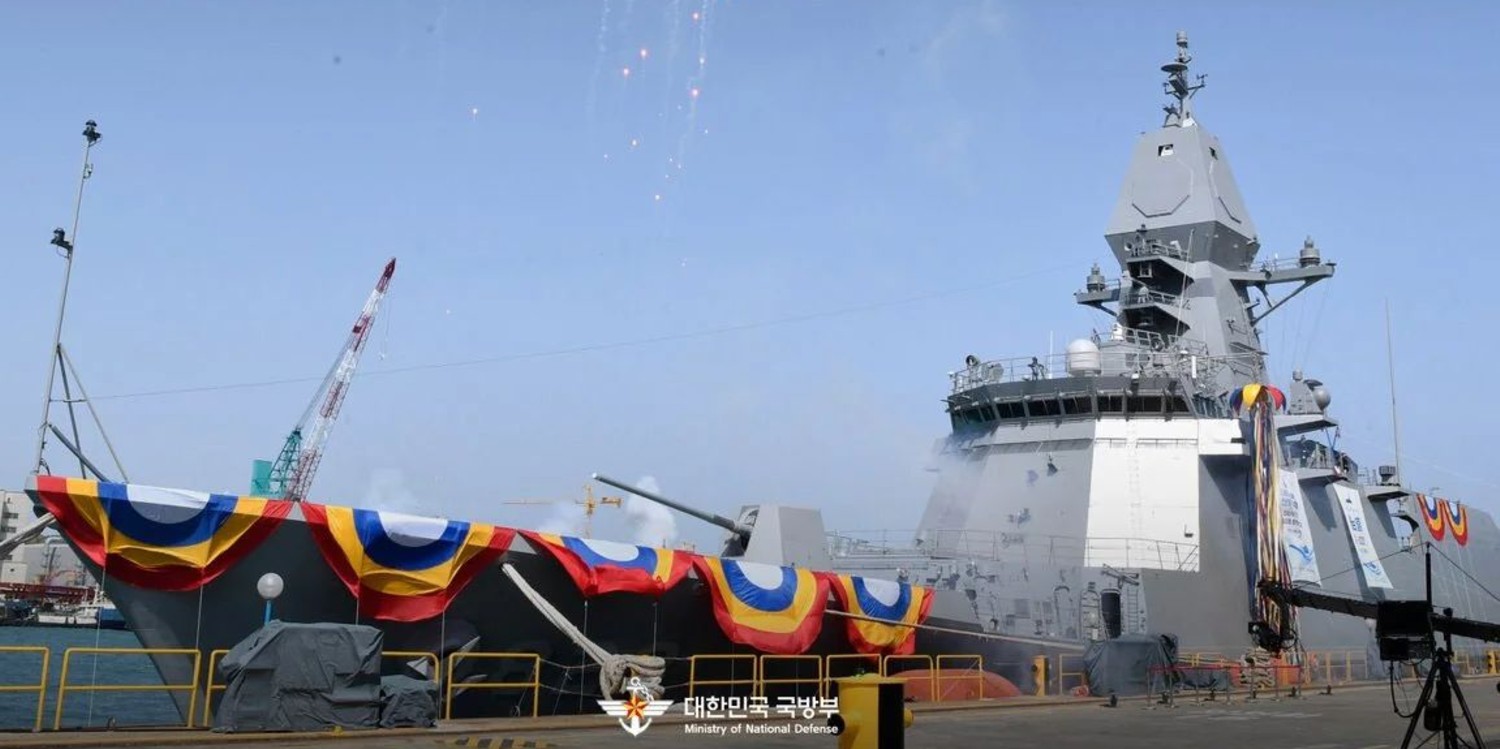

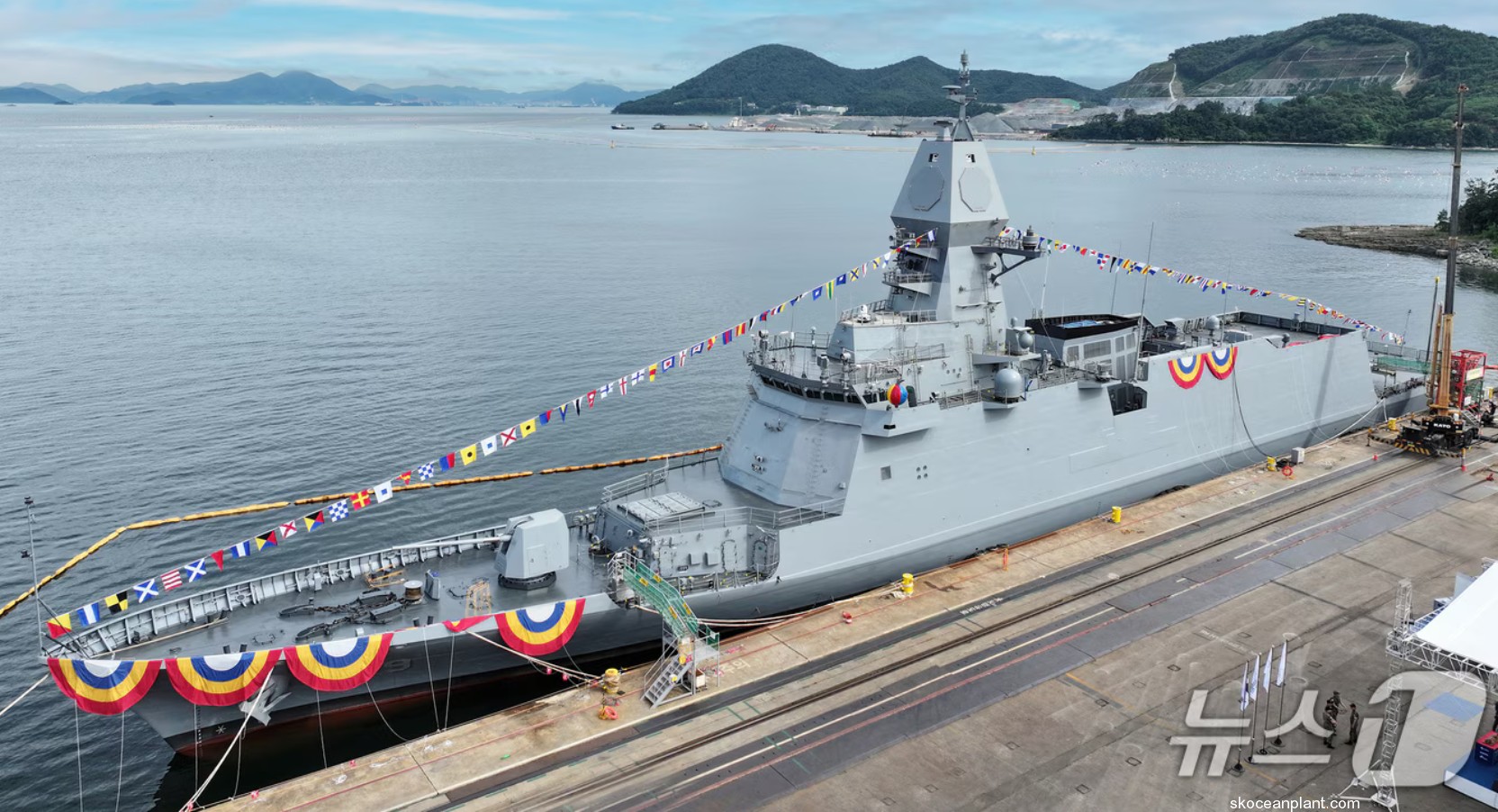

 FFG-828 ROKS Chungnam  FFG-828 ROKS Chungnam  FFG-828 ROKS Chungnam  FFG-829 ROKS Gyeongbuk  cutout: Mk.45 gun and 16-cell Korean Vertical Launching System (K-VLS) |
||||||||||||||||||||||||||||||||||||||||||
|
|
