Lockheed P-3CK Orion Patrol Republic of Korea Navy ROKN

Republic of Korea Navy - ROKN
Lockheed P-3C / P-3CK Orion

p-3ck orion republic of korea navy rokn lockheed maritime patrol aircraft mpa 11x

11/25

Units:

Serials / markings:

P-3C III+ Orion
950901 / 950902 / 950903 / 950905 / 950906 / 950907 / 950908 / 950909

P-3CK Orion
090910 / 090911 / 090912 / 090913 / 090915 / 090916 / 100917 / 100918

assigned to:

61st Patrol Air Group
611 Squadron (Pohang Gyeongju Airport)
613 Squadron (Pohang Gyeongju Airport)
615 Squadron (Jeju International Airport)

Description:

The Lockheed P-3 Orion is a four-engine turboprop long-range anti-submarine and maritime surveillance aircraft developed for the United States Navy and introduced in the 1960s.

Republic of Korea Navy: eight P-3C's, eight P-3CK's; based in Pohang Airport and Jeju international airport. Korean Air/L-3 Communications are upgrading the P-3C aircraft with new electronics, including new magnetic anomaly detectors, electro-optical sensors, surveillance equipment and a self-protection suite. The Navy's impetus stems from a 2010 experience in which ROK forces detected only 28% of North Korean submarines involved in exercises.

P-3CK:
Designation of the eight former USN P-3B TACNAVMOD aircraft that the Republic of Korea Navy procured from the USN and which are in the process of being rebuilt with P-3C configuration wings and fitted with updated Mission System Equipment by Korea Aerospace Industries (KAI) and L-3 Communications. These use the Vpx ENhanced Open architecture Multi-static (VENOM) acoustic processor system instead of the AN/USQ-78B installed in the aircraft of the United States and trusted allies.

General characteristics (P-3C):
Crew: 11
Length: 116 ft 10 in (35.61 m)
Wingspan: 99 ft 8 in (30.38 m)
Height: 33 ft 8.5 in (10.274 m)
Wing area: 1,300.0 sq ft (120.77 m2)
Empty weight: 61,491 lb (27,892 kg)
Zero-fuel weight: 77,200 lb (35,017 kg)
Max takeoff weight: 135,000 lb (61,235 kg) MTOW normal / 142,000 lb (64,410 kg) maximum permissible
Maximum landing weight: (MLW): 103,880 lb (47,119 kg)
Fuel capacity: 9,200 US gal (7,700 imp gal; 35,000 l) usable fuel in 5 wing and fuselage tanks
Powerplant: 4 x Allison T56-A-14 turboprop engines, 4,910 shp (3,660 kW) each (equivalent)
Propellers: 4-bladed Hamilton Standard 54H60-77, 13 ft 6 in (4.11 m) diameter constant-speed fully-feathering reversible propellers

Maximum speed: 411 kn (473 mph, 761 km/h) at 15,000 ft (4,572 m) and 105,000 lb (47,627 kg)
Cruise speed: 328 kn (377 mph, 607 km/h) at 25,000 ft (7,620 m) and 110,000 lb (49,895 kg)
Patrol speed: 206 kn (237 mph; 382 km/h) at 1,500 ft (457 m) and 110,000 lb (49,895 kg)
Stall speed: 133 kn (153 mph, 246 km/h) flaps up / 112 kn (129 mph; 207 km/h) flaps down
Combat range: 1,345 nmi (1,548 mi, 2,491 km) (3 hours on station at 1,500 ft (457 m))
Ferry range: 4,830 nmi (5,560 mi, 8,950 km)
Endurance: 17 hours 12 minutes at 15,000 ft (4,572 m) on two engines / 12 hours 20 minutes at 15,000 ft (4,572 m) on four engines
Service ceiling: 28,300 ft (8,600 m) / 19,000 ft (5,791 m) one engine inoperative (OEI)
Rate of climb: 1,950 ft/min (9.9 m/s)
Time to altitude: 25,000 ft (7,620 m) in 30 minutes
Wing loading: 103.8 lb/sq ft (507 kg/m2)
Power/mass: 0.1455 hp/lb (0.2392 kW/kg) (equivalent)
Take-off run: 4,240 ft (1,292 m)
Take-off distance to 50 ft (15 m): 5,490 ft (1,673 m)
Landing distance from 50 ft (15 m): 2,770 ft (844 m)

Armament:
missiles
torpedoes
depth charges

images

Lockheed P-3C III+ Orion

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950903 24

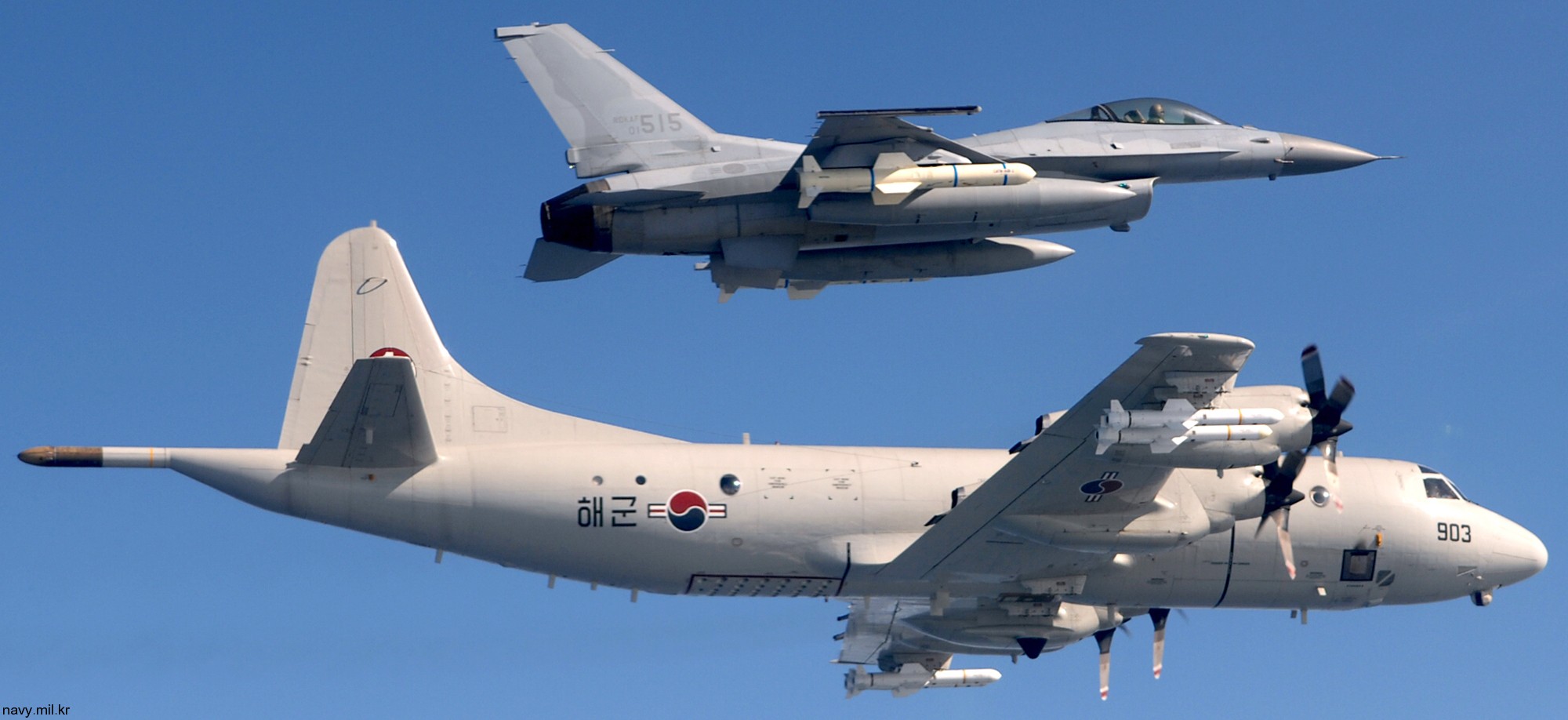

P-3C III+ Orion (950903) with an F-16C (RoK Air Force), both armed with AGM-84 Harpoon missiles

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950901 09

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950901 09

P-3C III+ Orion (950901)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 06

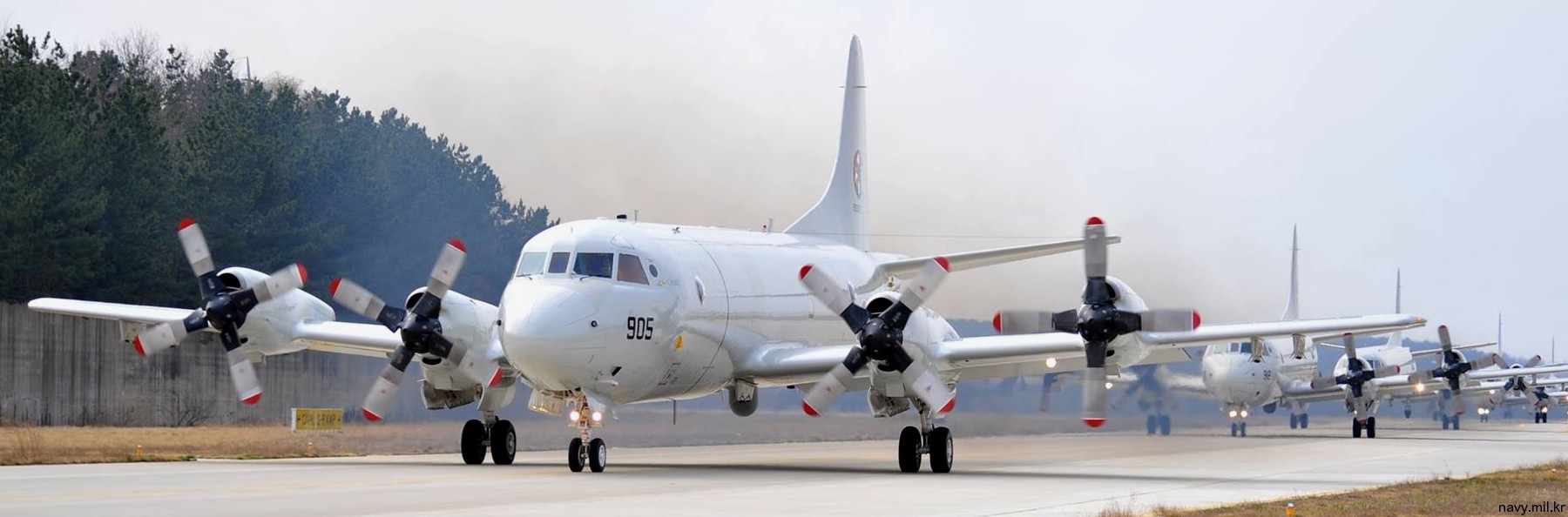

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 28

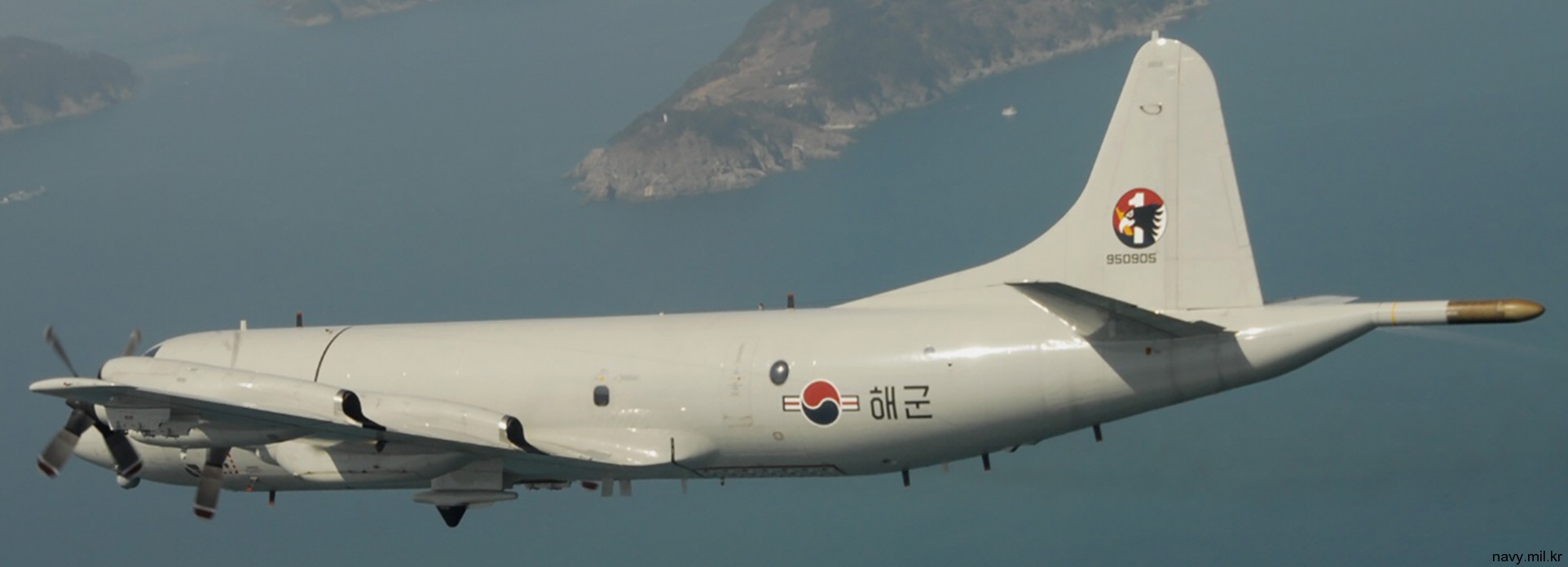

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950903 16

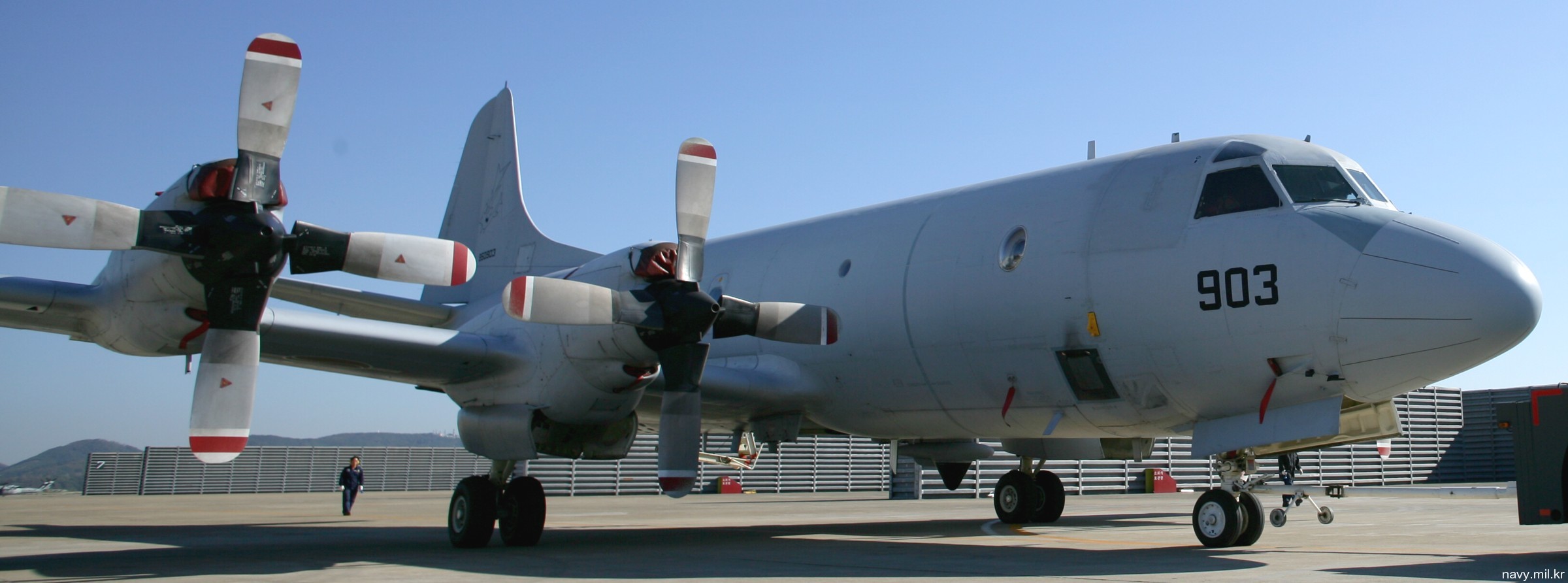

P-3C III+ Orion (950903)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 22

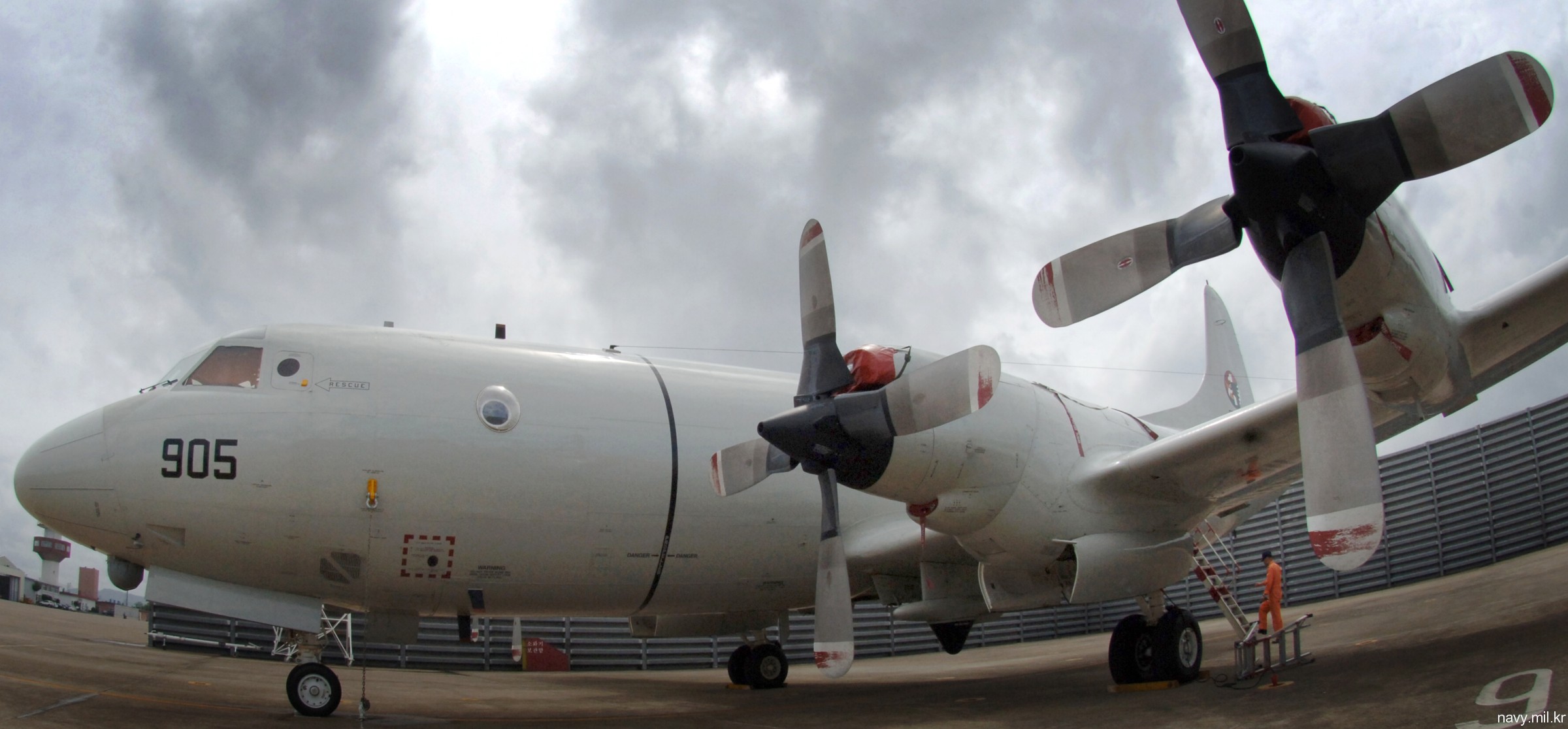

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 14

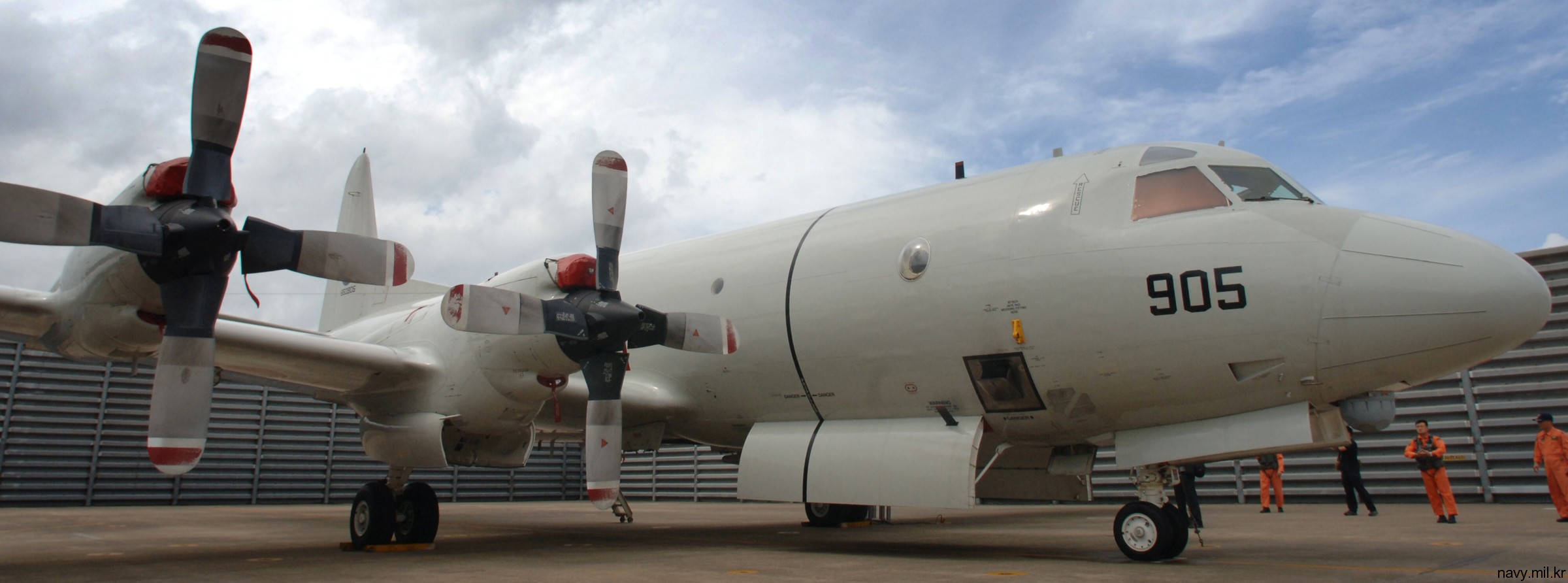

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950902 21

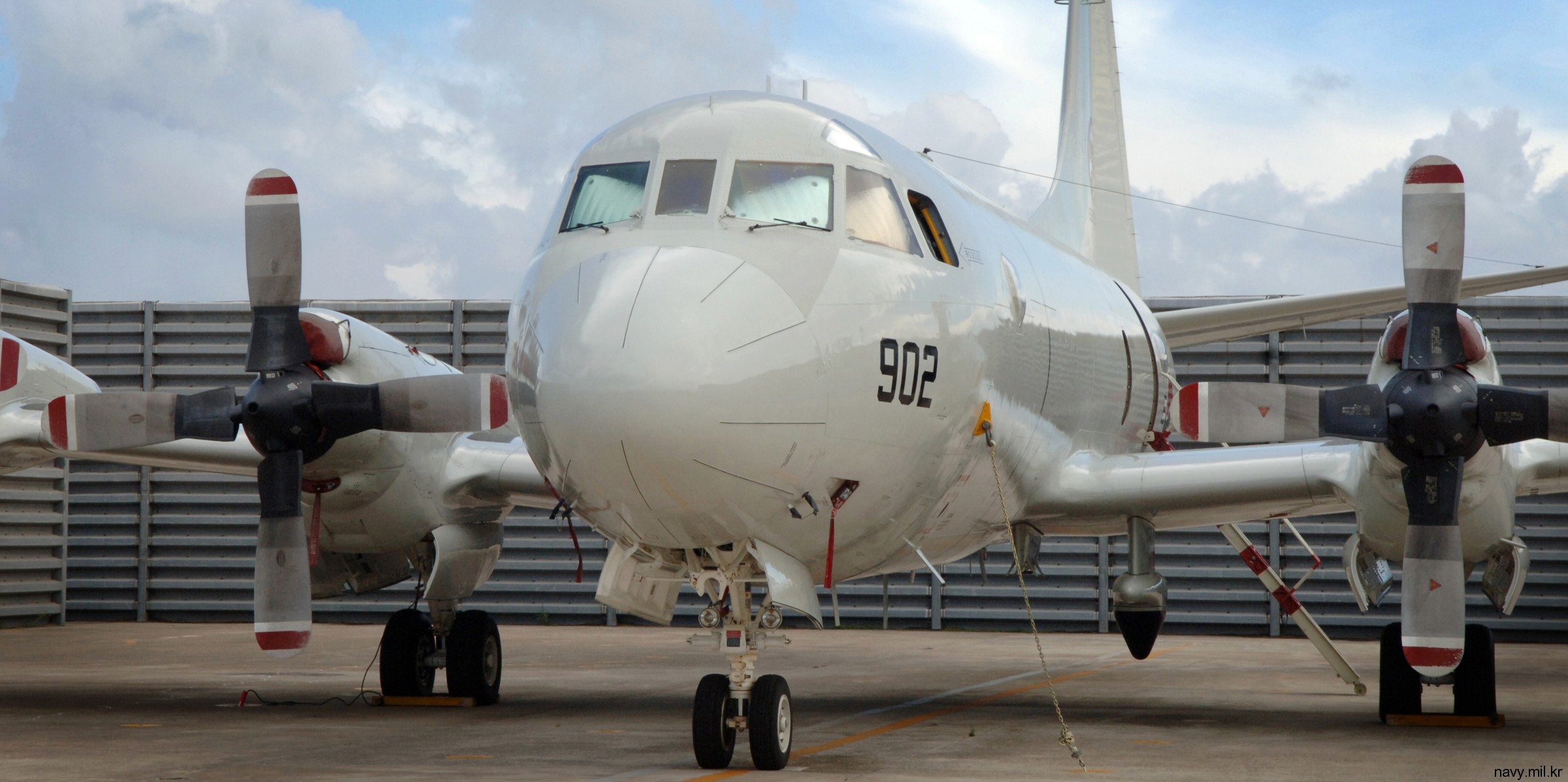

P-3C III+ Orion (950902)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950908 27

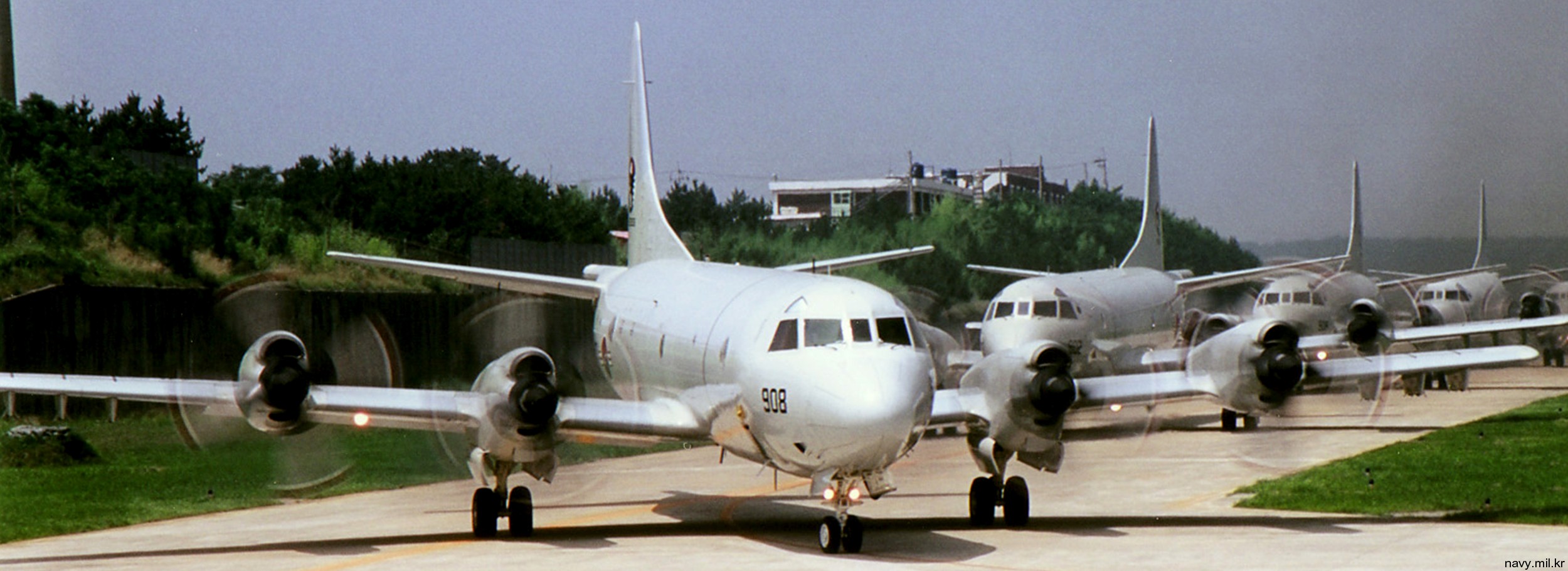

P-3C III+ Orion (950908)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950909 26

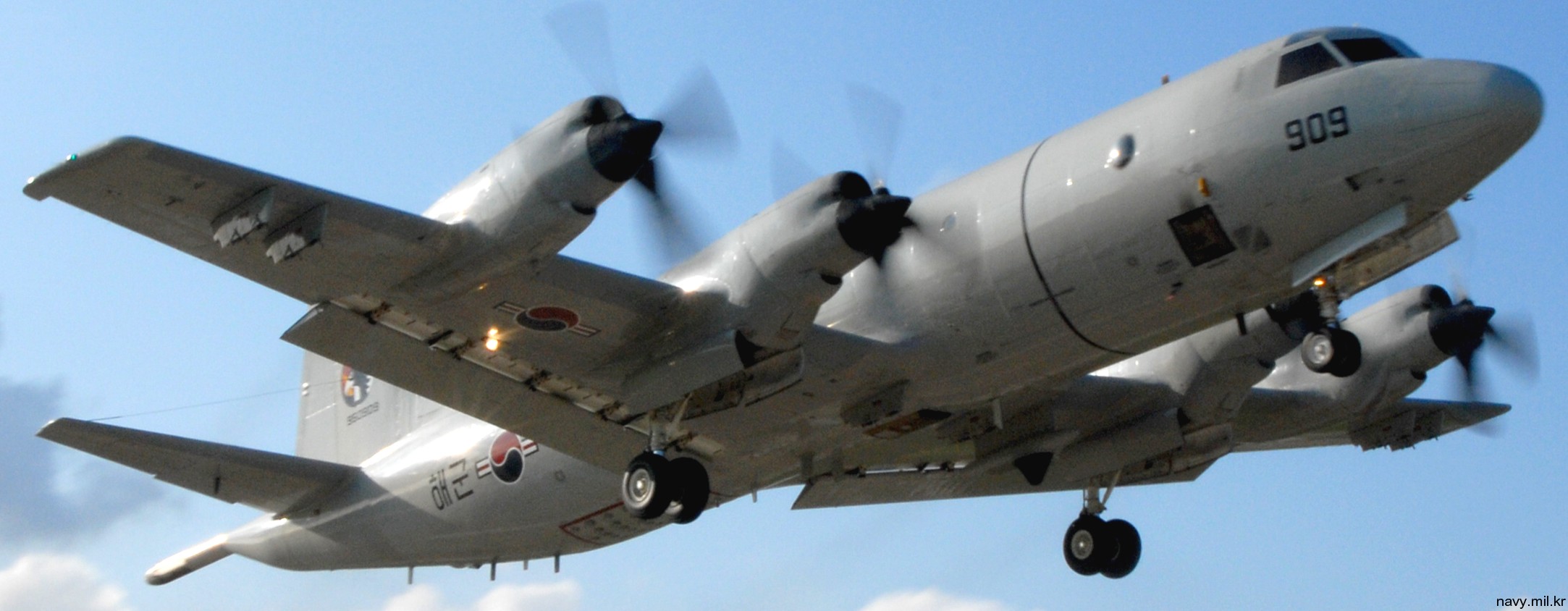

P-3C III+ Orion (950909)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950909 19

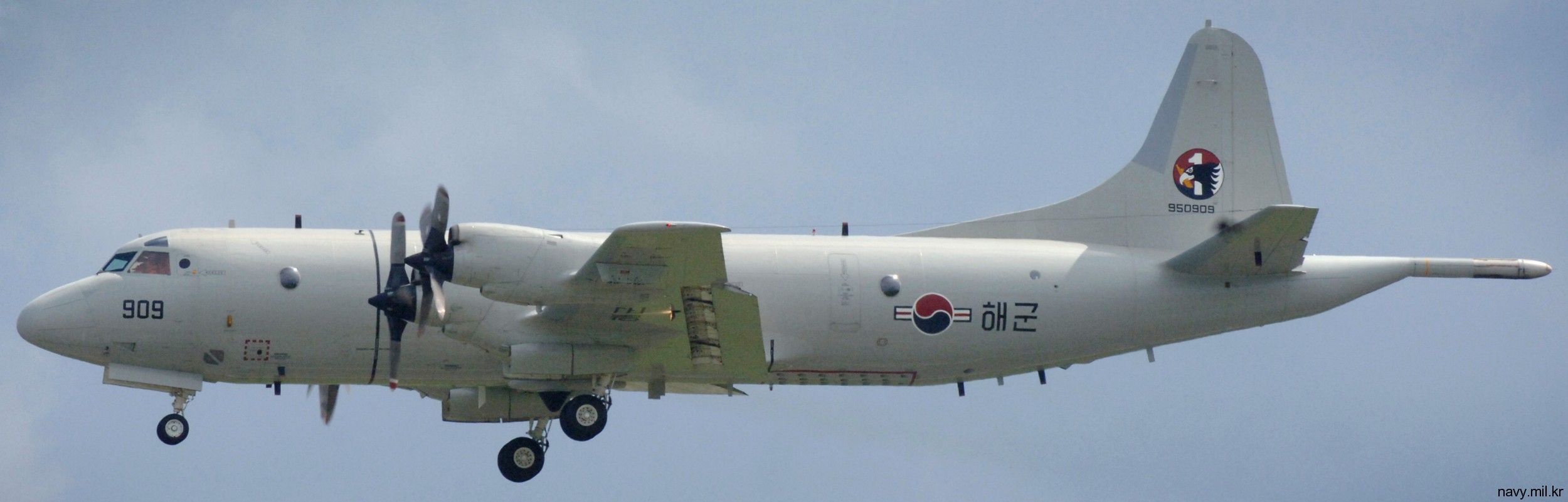

P-3C III+ Orion (950909)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 10

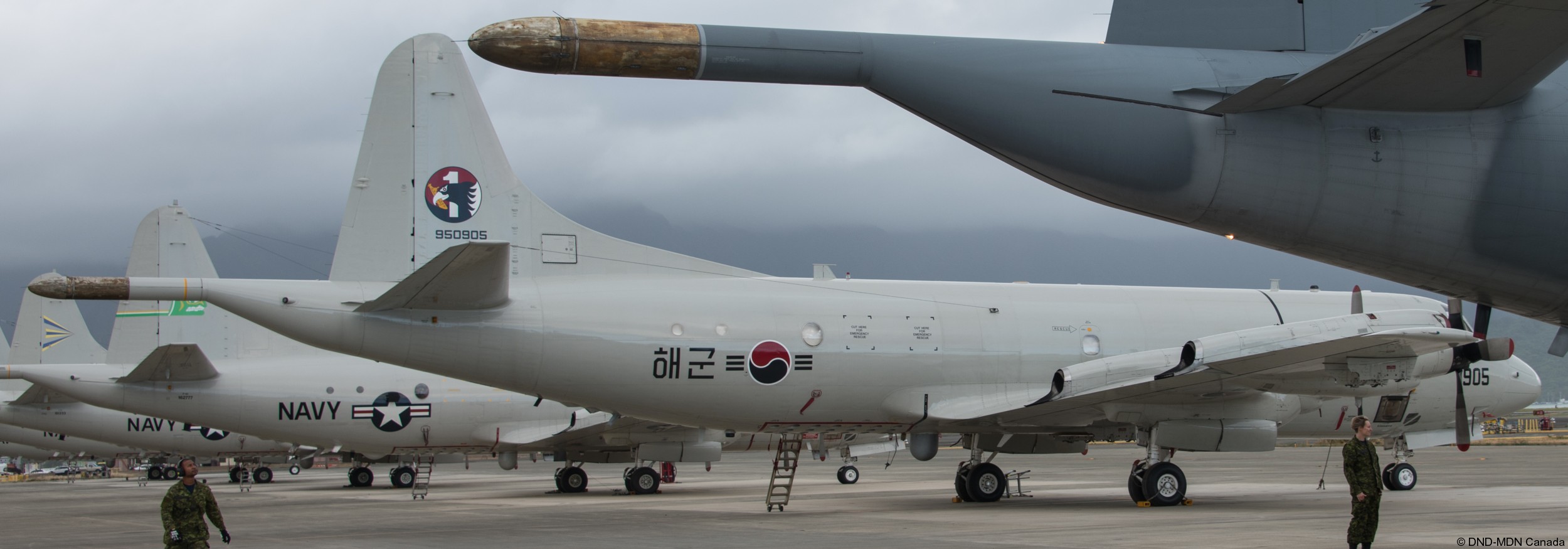

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950901 12

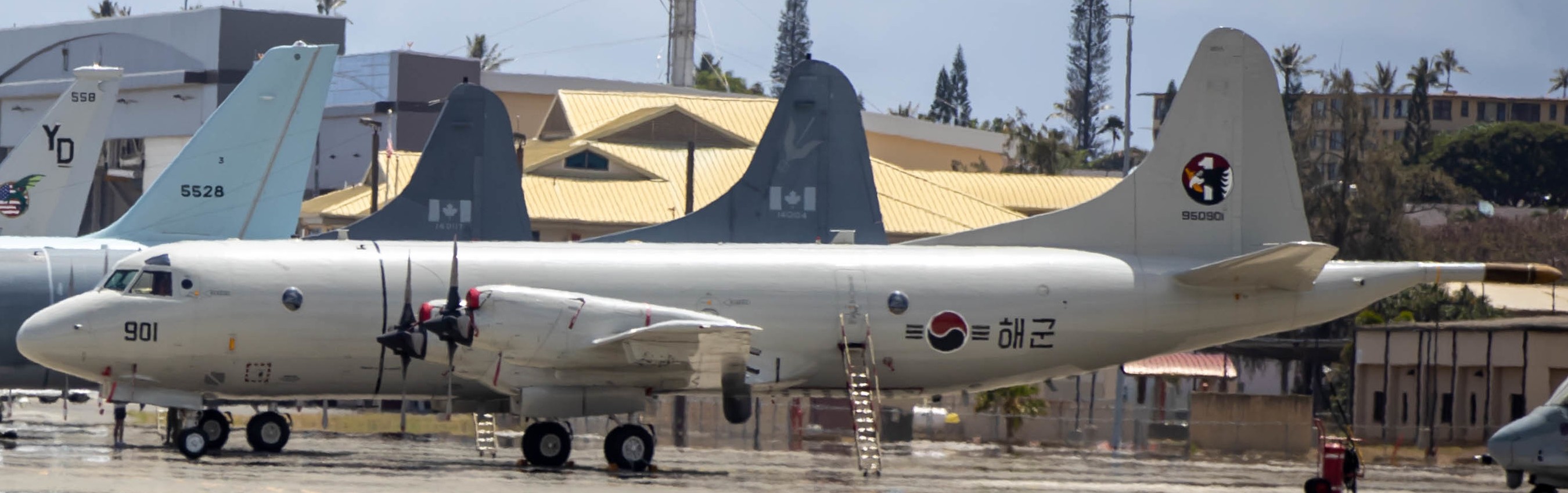

P-3C III+ Orion (950901)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 03

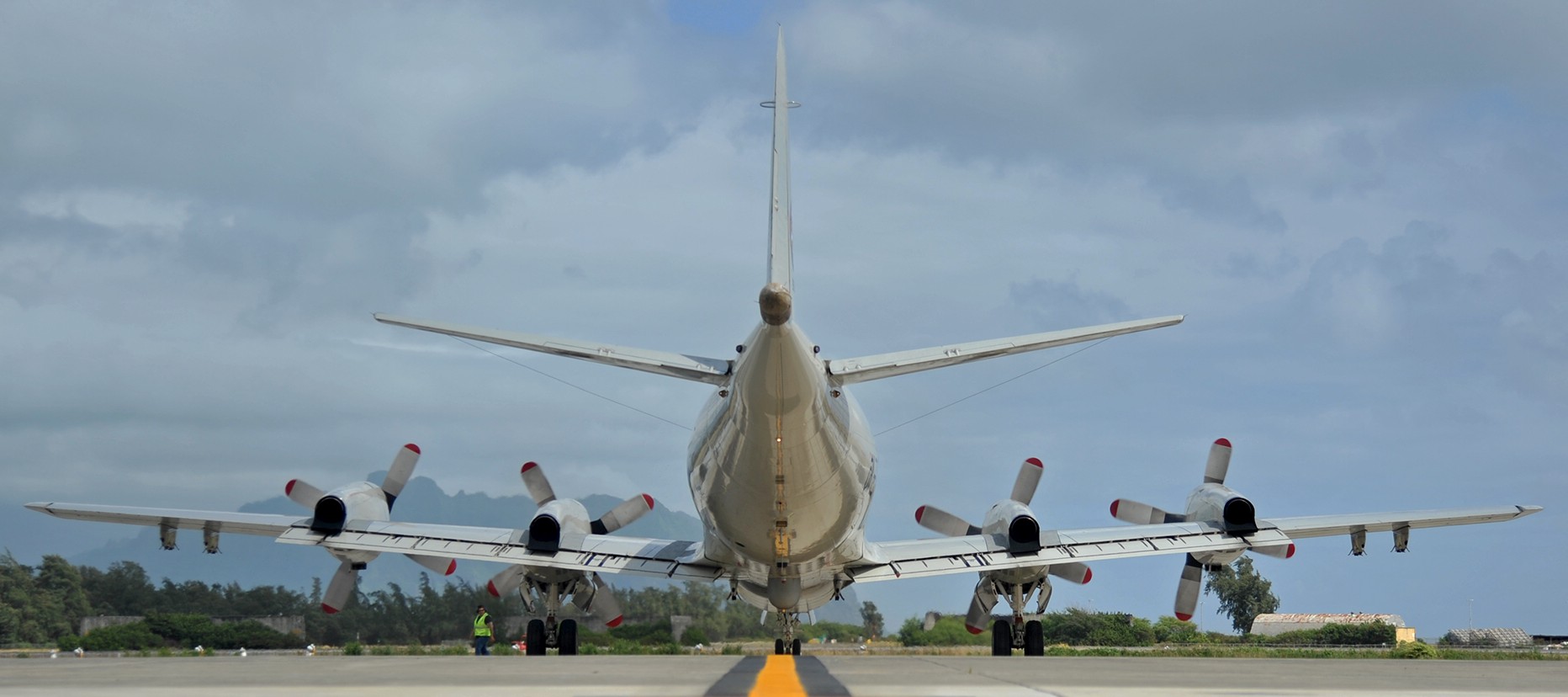

P-3C III+ Orion

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950906 08

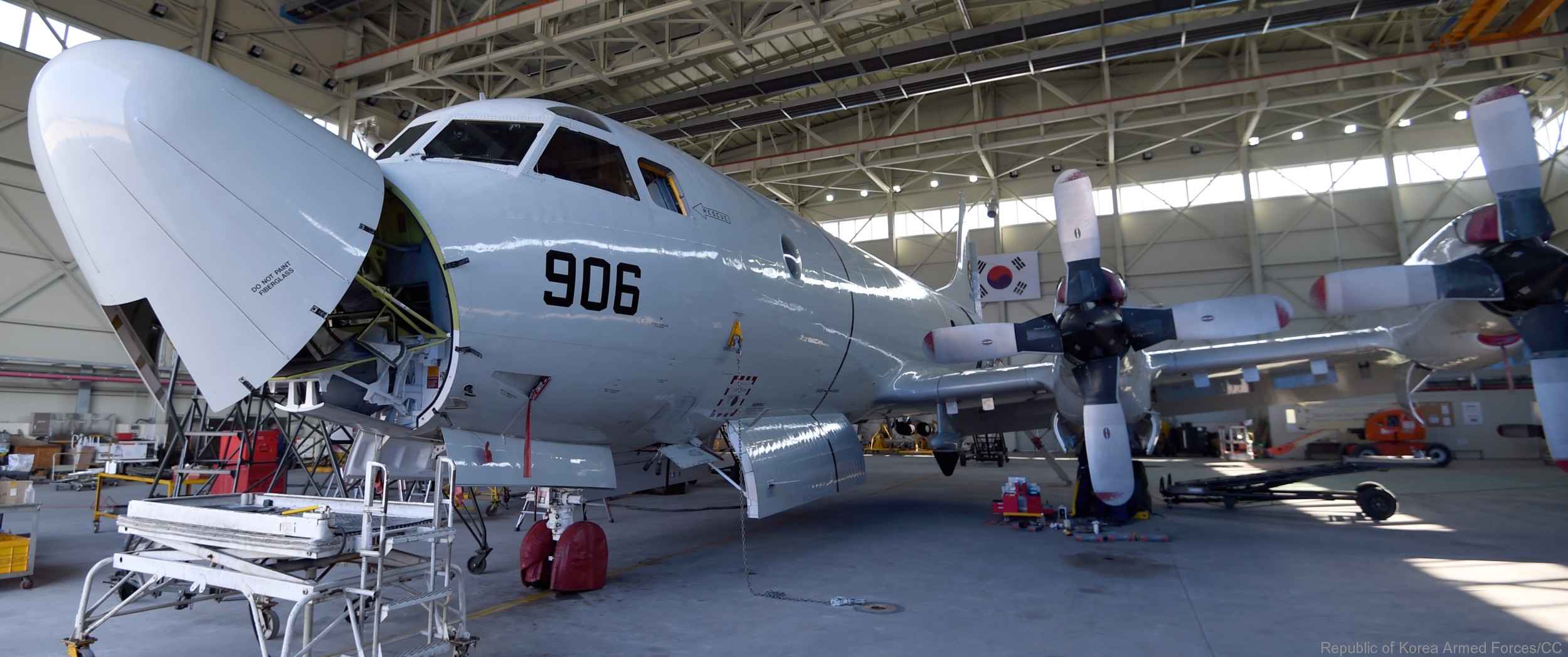

P-3C III+ Orion (950906)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 agm-84 harpoon missile 11

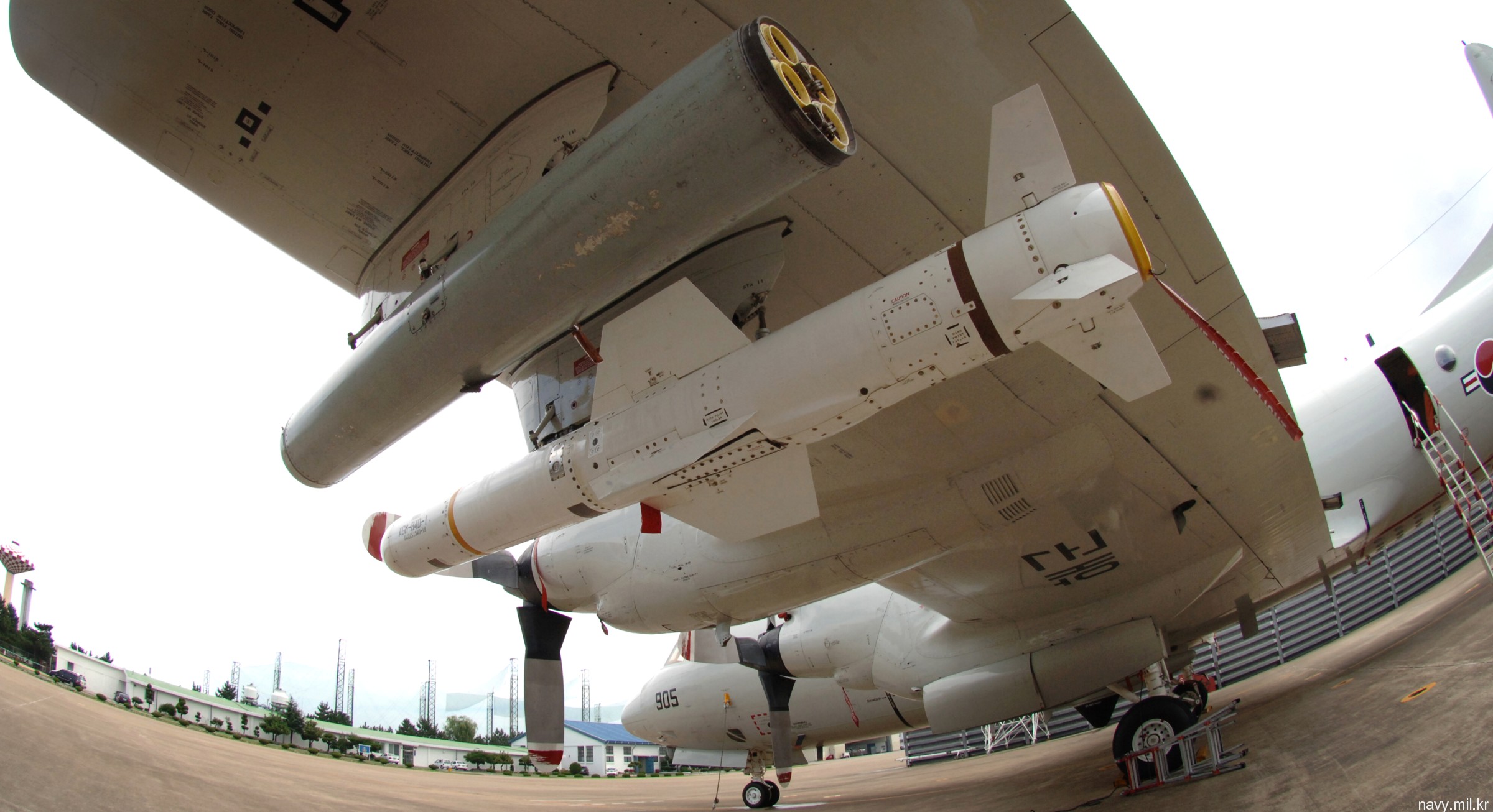

P-3C III+ Orion (950905) with AGM-84D Harpoon missile

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 04

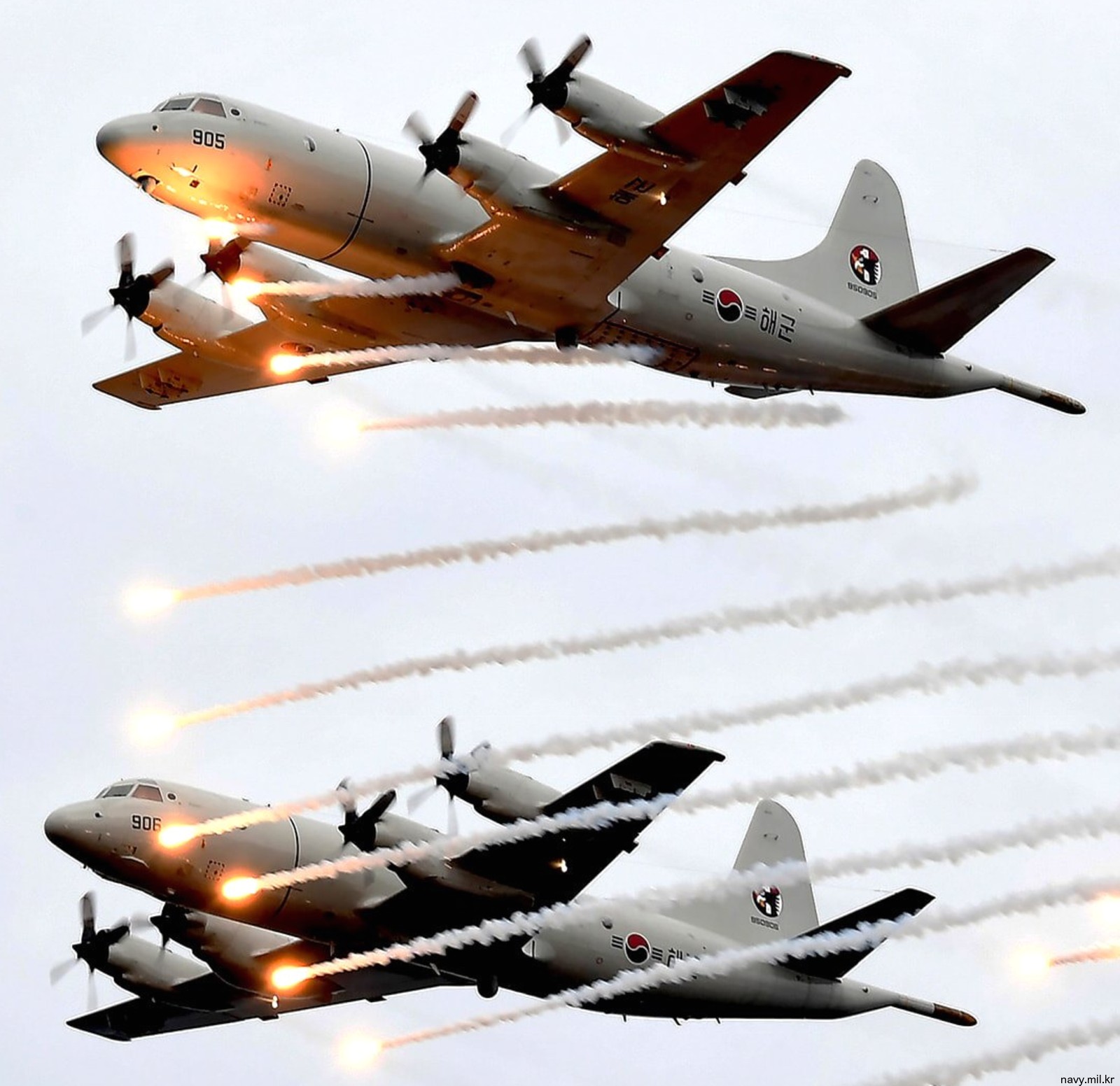

P-3C III+ Orion (950905 + 950906)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950909 23

P-3C III+ Orion (950909)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950908 18

P-3C III+ Orion (950908)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 02

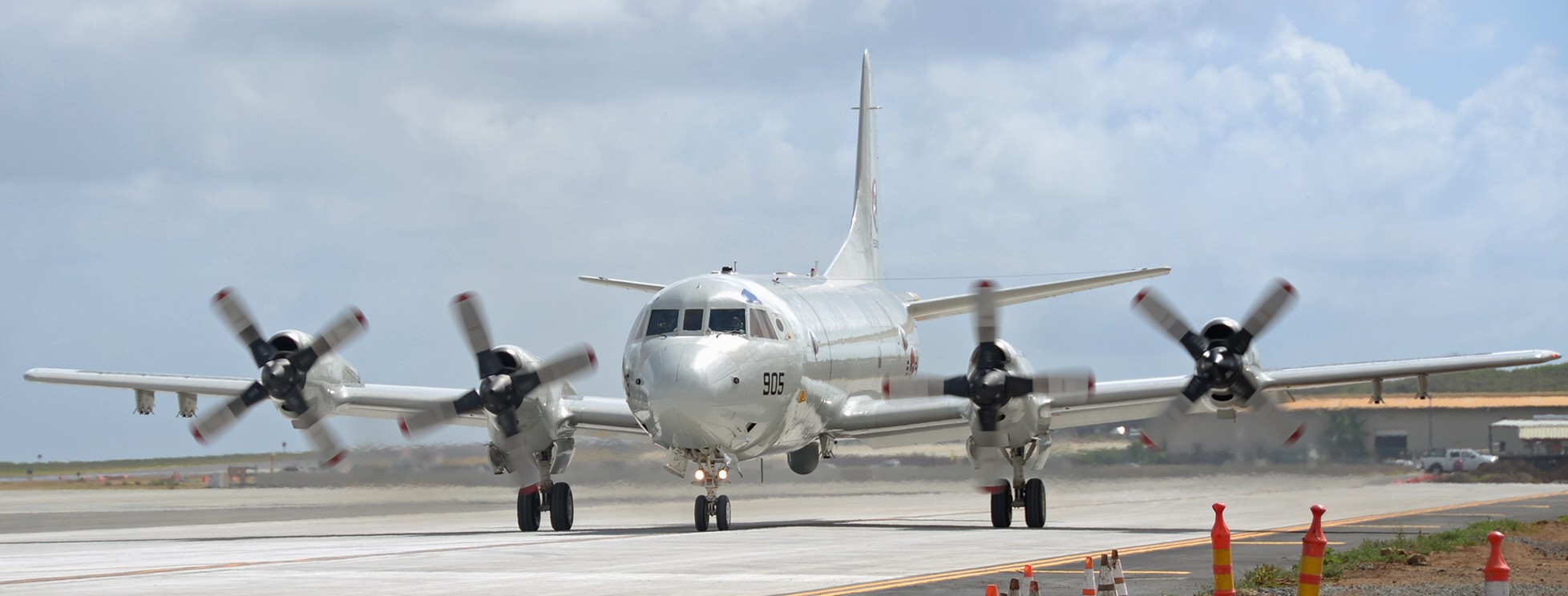

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950907 13

P-3C III+ Orion (950907)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950902 05

P-3C III+ Orion (950902)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950906 25

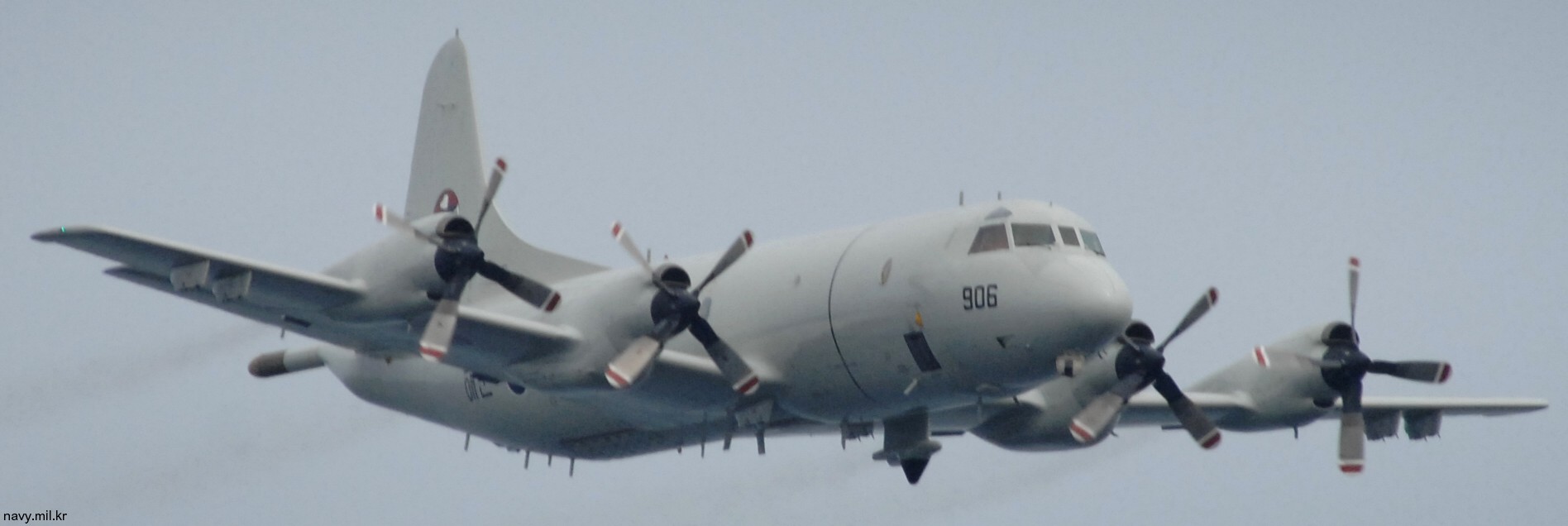

P-3C III+ Orion (950906)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950909 20

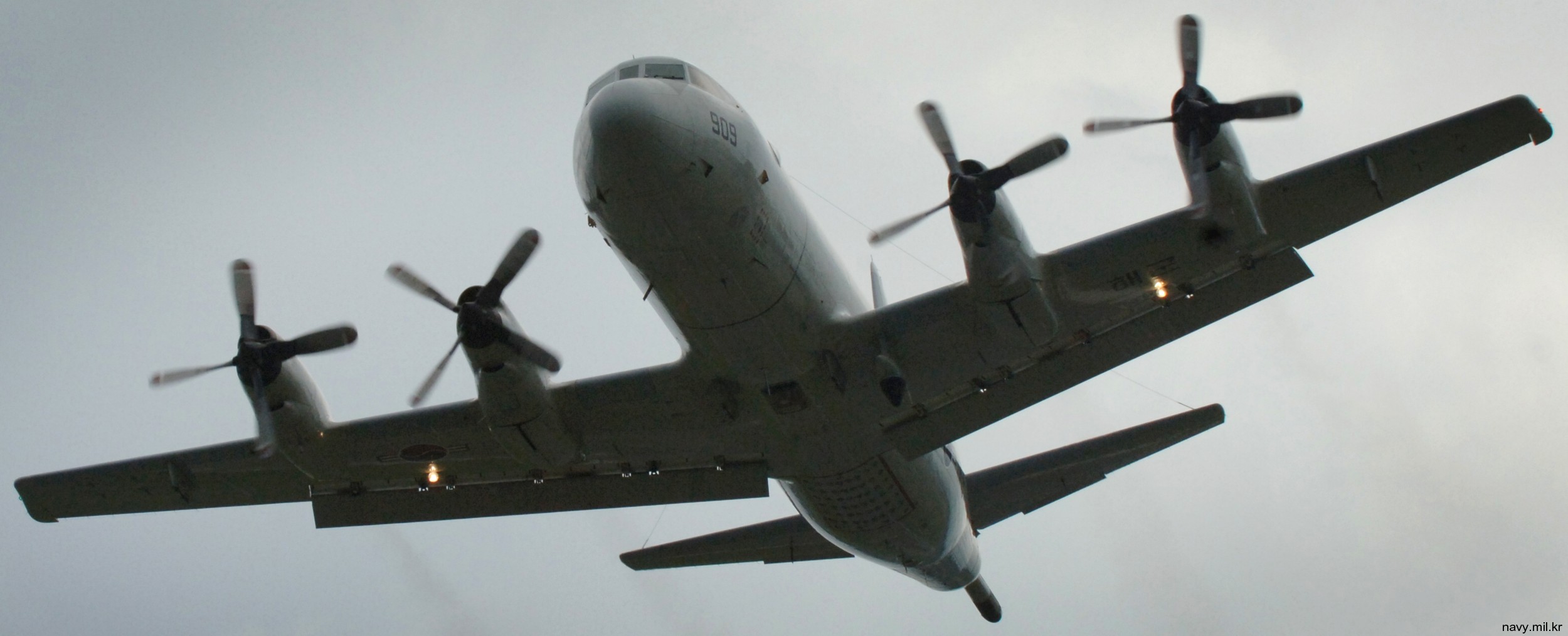

P-3C III+ Orion (950909)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950907 17

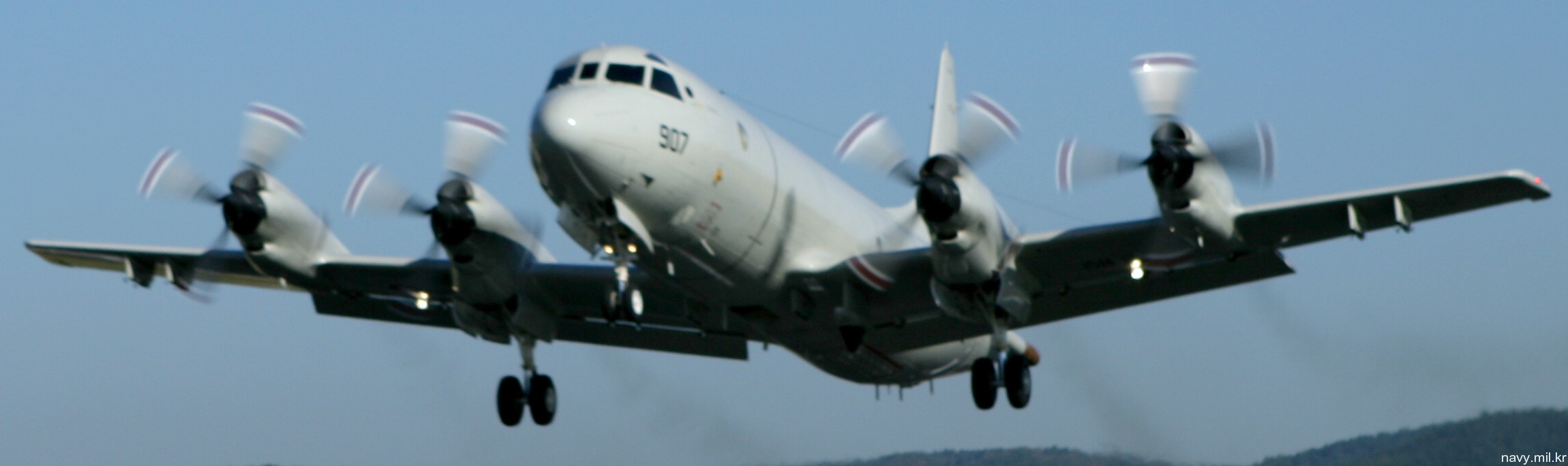

P-3C III+ Orion (950907)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950905 07

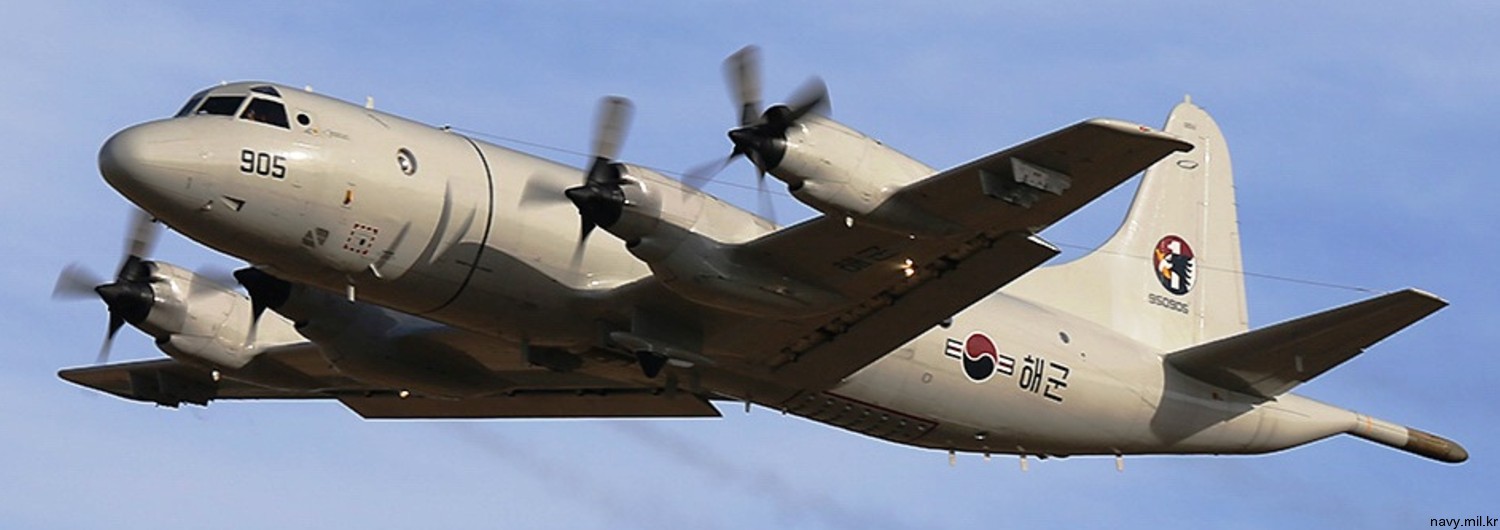

P-3C III+ Orion (950905)

p-3c orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 950909 15

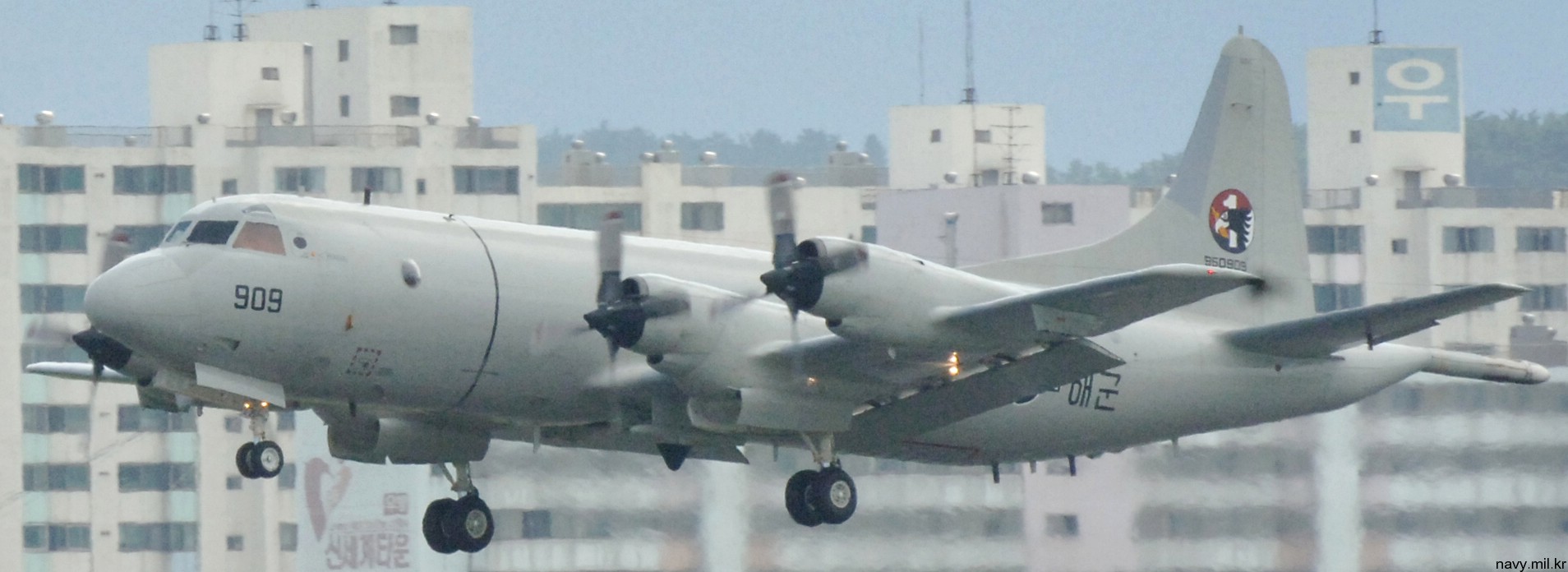

P-3C III+ Orion (950909)

Lockheed P-3CK Orion

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090911 11

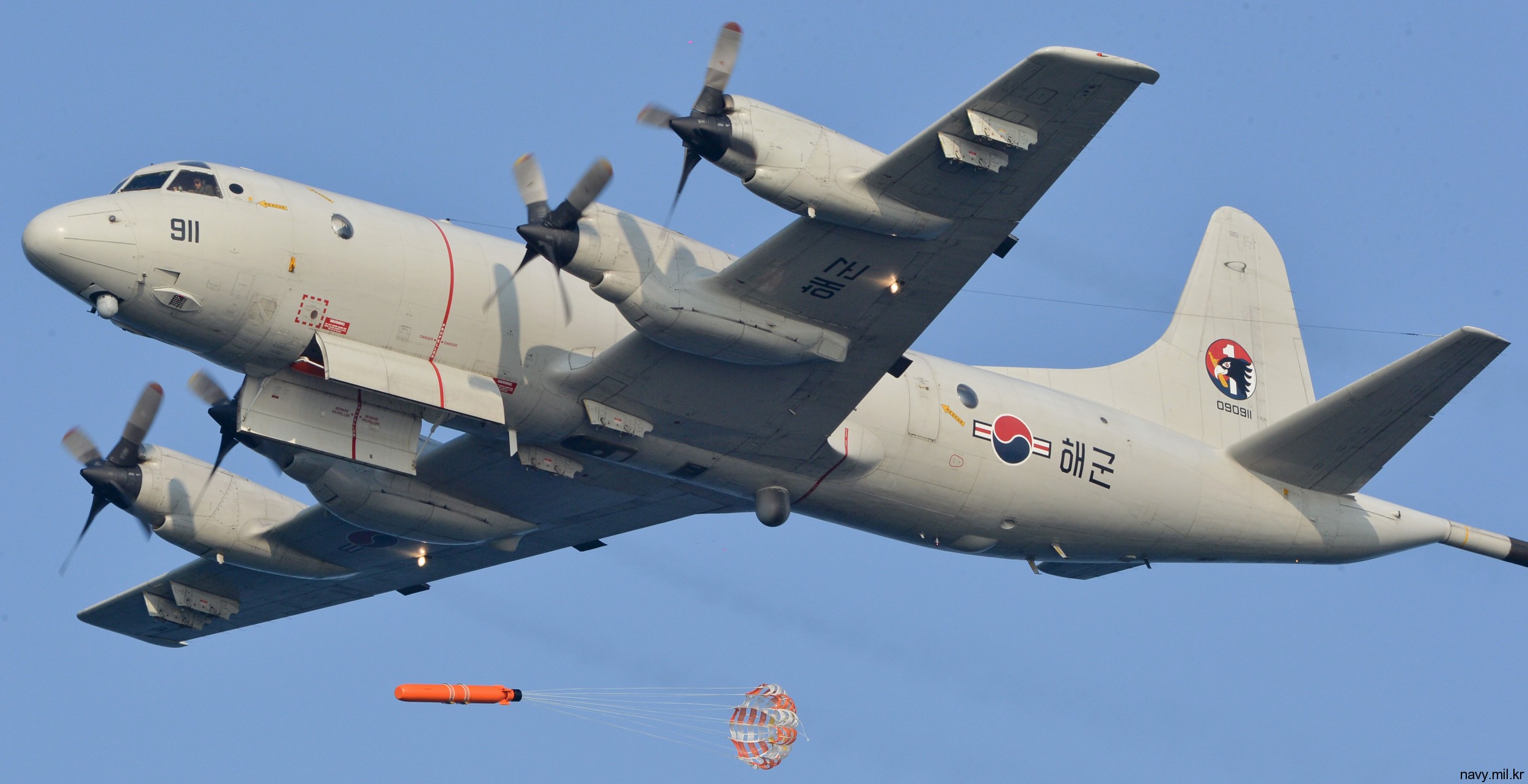

P-3CK Orion (090911) launches an exercise torpedo

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090911 torpedo 09

P-3CK Orion (090911 + 100918)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090915 08

P-3CK Orion (090915)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 100918 06

P-3CK Orion (100918)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 100918 05

P-3CK Orion (100918)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 100918 07

P-3CK Orion (100918)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090912 04

P-3CK Orion (090912) - torpedo and depth charge

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090913 03

P-3CK Orion (090913)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 090912 02

P-3CK Orion (090912)

p-3ck orion republic of korea navy rokn maritime patrol aircraft mpa lockheed 100918 10

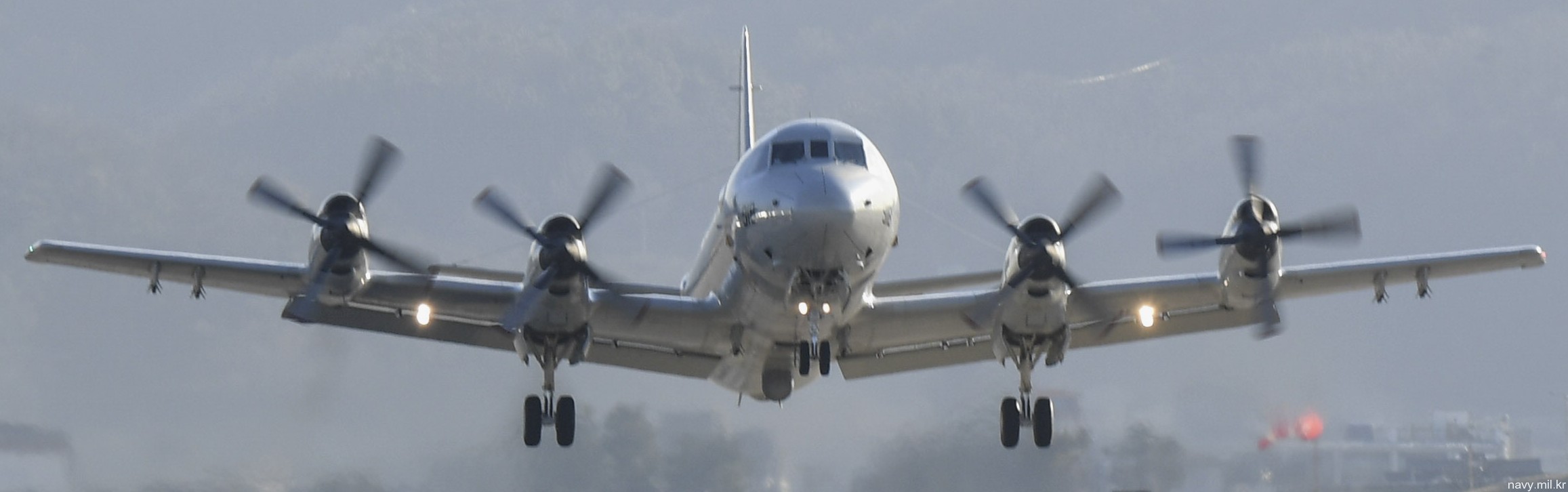

P-3CK Orion (100918)
