UH-60P Black Hawk Helicopter Republic of Korea Navy ROKN

Republic of Korea Armed Forces
Sikorsky UH-60P Black Hawk

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 05

07/21

Description:

UH-60P and HH-60P (S-70A-18 Black Hawk > based on UH-60L with some improvements) for Republic of Korea Armed Forces.
Around 150 were produced under license by Korean Air Aerospace Division (KAL-ASD).

Characteristics:
Crew: 2 pilots + 2 crew chiefs/gunners
Capacity: 2,640 lb (1,200 kg) of cargo internally, including 11 troops or 6 stretchers, or 9,000 lb (4,100 kg) of cargo externally
Length: 64 ft 10 in (19.76 m) including rotors
Fuselage length: 50 ft 1 in (15.27 m)
Width: 7 ft 9 in (2.36 m)
Height: 16 ft 10 in (5.13 m)
Empty weight: 12,511 lb (5,675 kg)
Max takeoff weight: 22,000 lb (9,979 kg)
Powerplant: 2 x General Electric T700-GE-701C/D turboshaft engines, 1,890 shp (1,410 kW) each
Main rotor diameter: 53 ft 8 in (16.36 m)
Main rotor area: 2,260 sq ft (210 m2)
Blade section: root: Sikorsky SC2110; tip: Sikorsky SSC-A09

Performance:
Maximum speed: 159 kn (183 mph, 294 km/h)
Cruise speed: 152 kn (175 mph, 282 km/h)
Never exceed speed: 193 kn (222 mph, 357 km/h)
Combat range: 320 nmi (370 mi, 590 km)
Ferry range: 1,199 nmi (1,380 mi, 2,221 km) with ESSS stub wings and external tanks
Service ceiling: 19,000 ft (5,800 m)
Rate of climb: 1,646 ft/min (8.36 m/s)
Disk loading: 7.19 lb/sq ft (35.1 kg/m2)
Power/mass: 0.192 shp/lb (0.316 kW/kg)

source: wikipedia

images

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 07

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 06

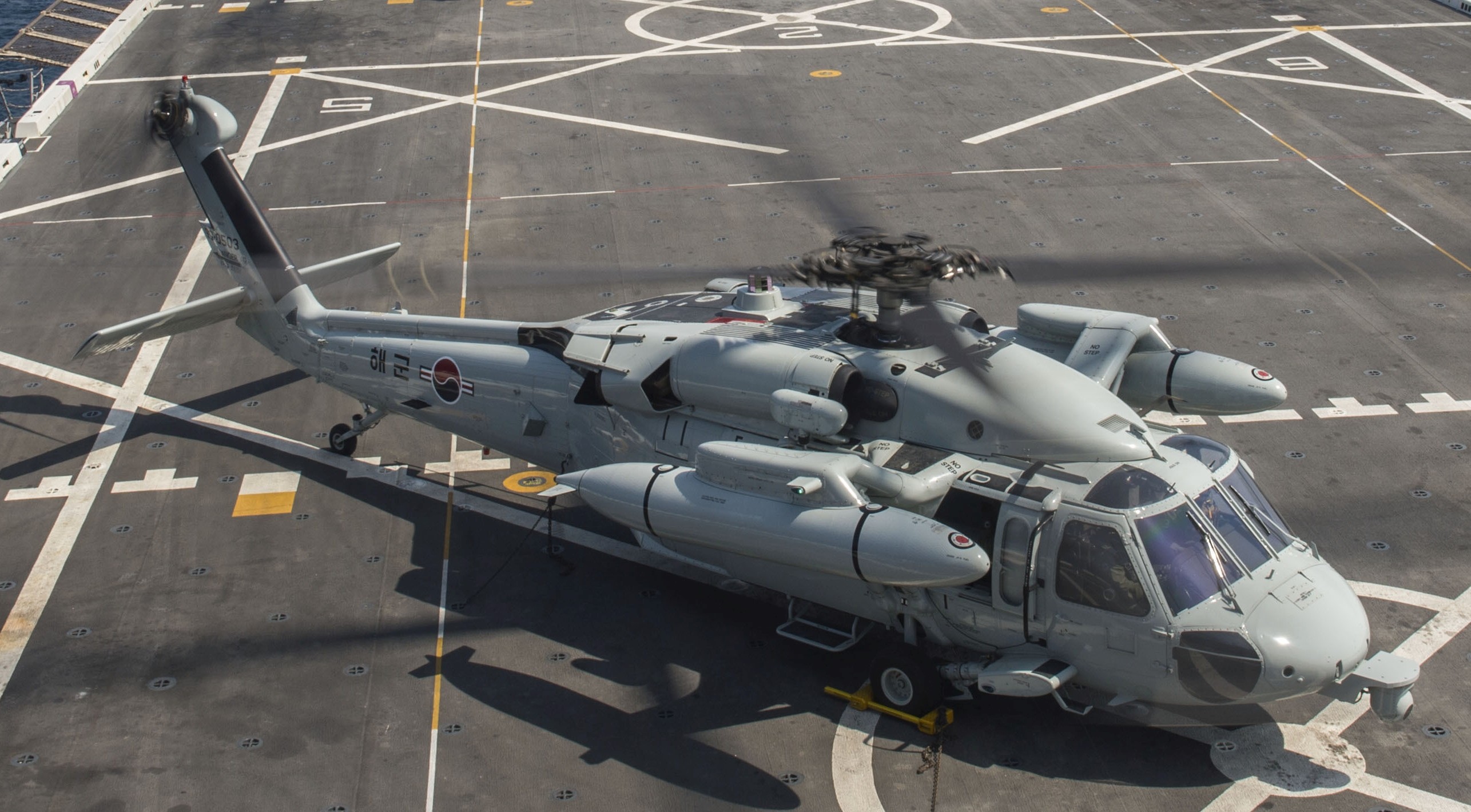

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 04

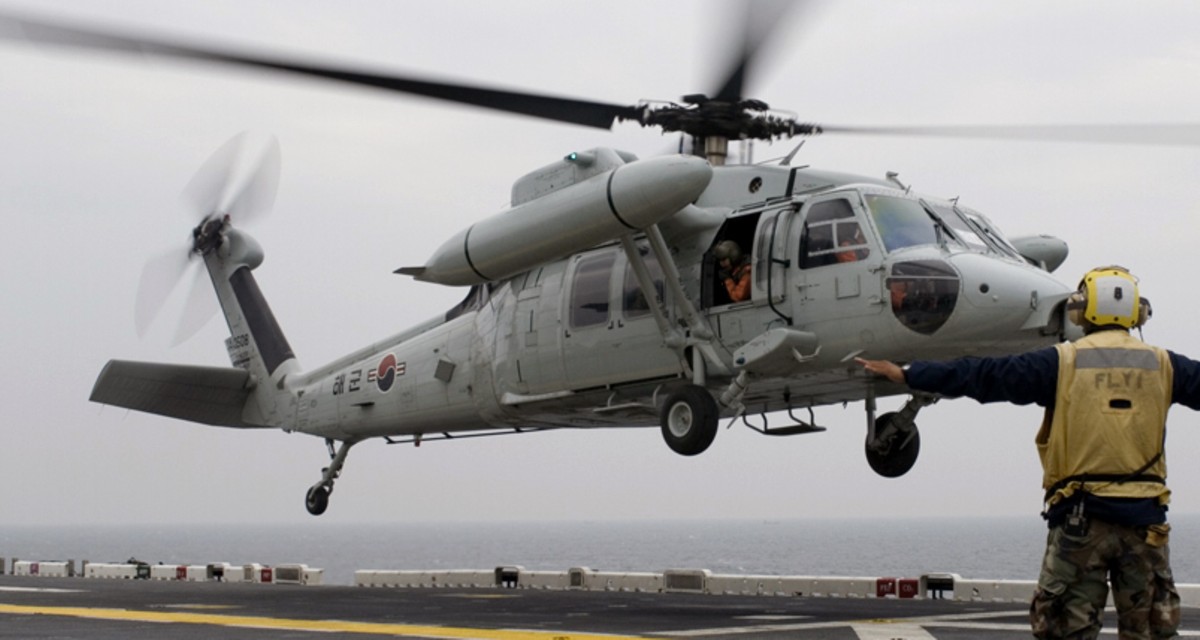

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 03

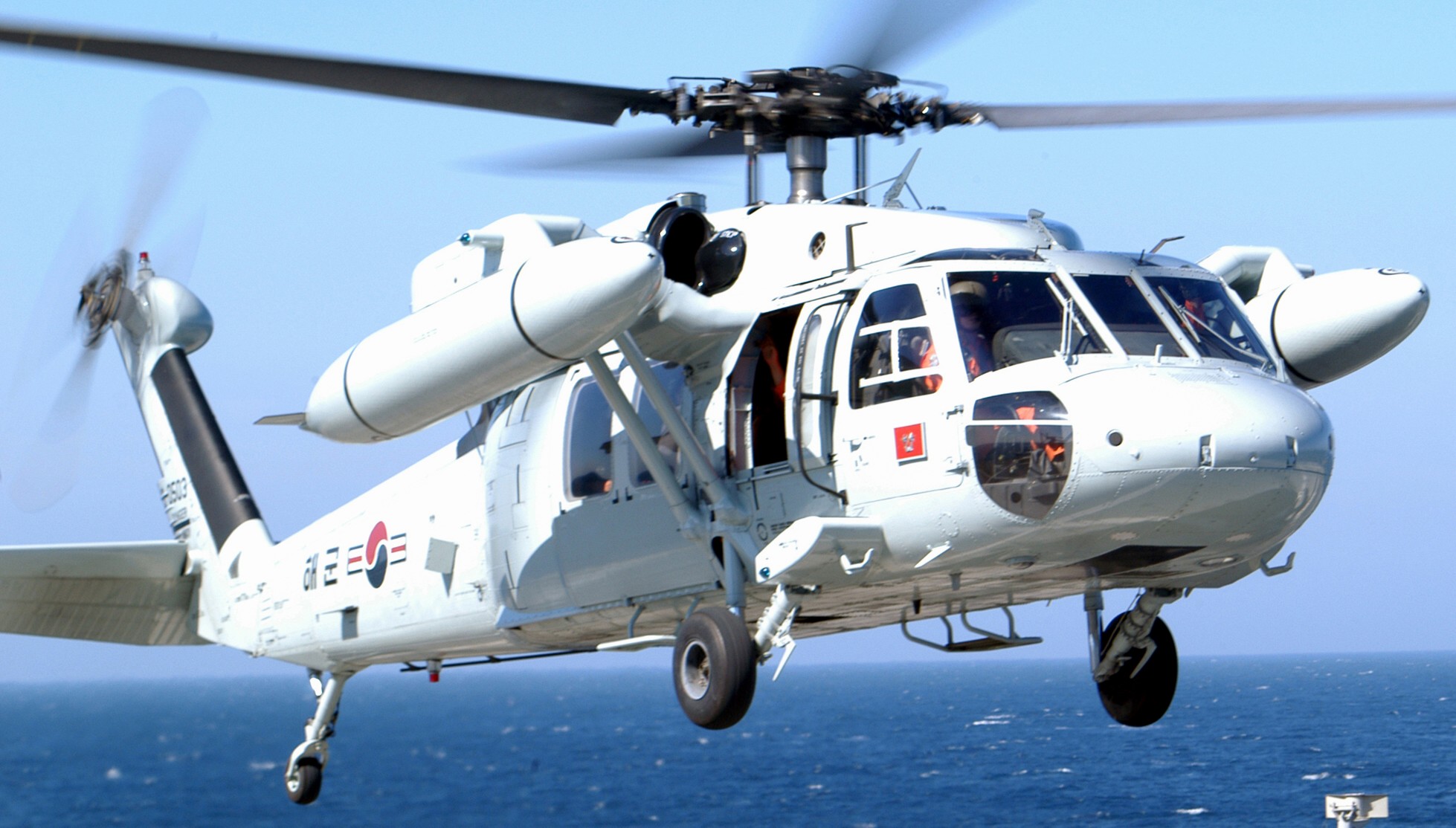

uh-60p hh-60p black hawk helicopter korean armed forces rok sikorsky korean air 02 vh-60p vip

VH-60P Black Hawk (VIP transport)
