Delfim class Submarine SSK Portuguese Navy Marinha

Portuguese Navy / Marinha Portuguesa
Delfim class Submarine

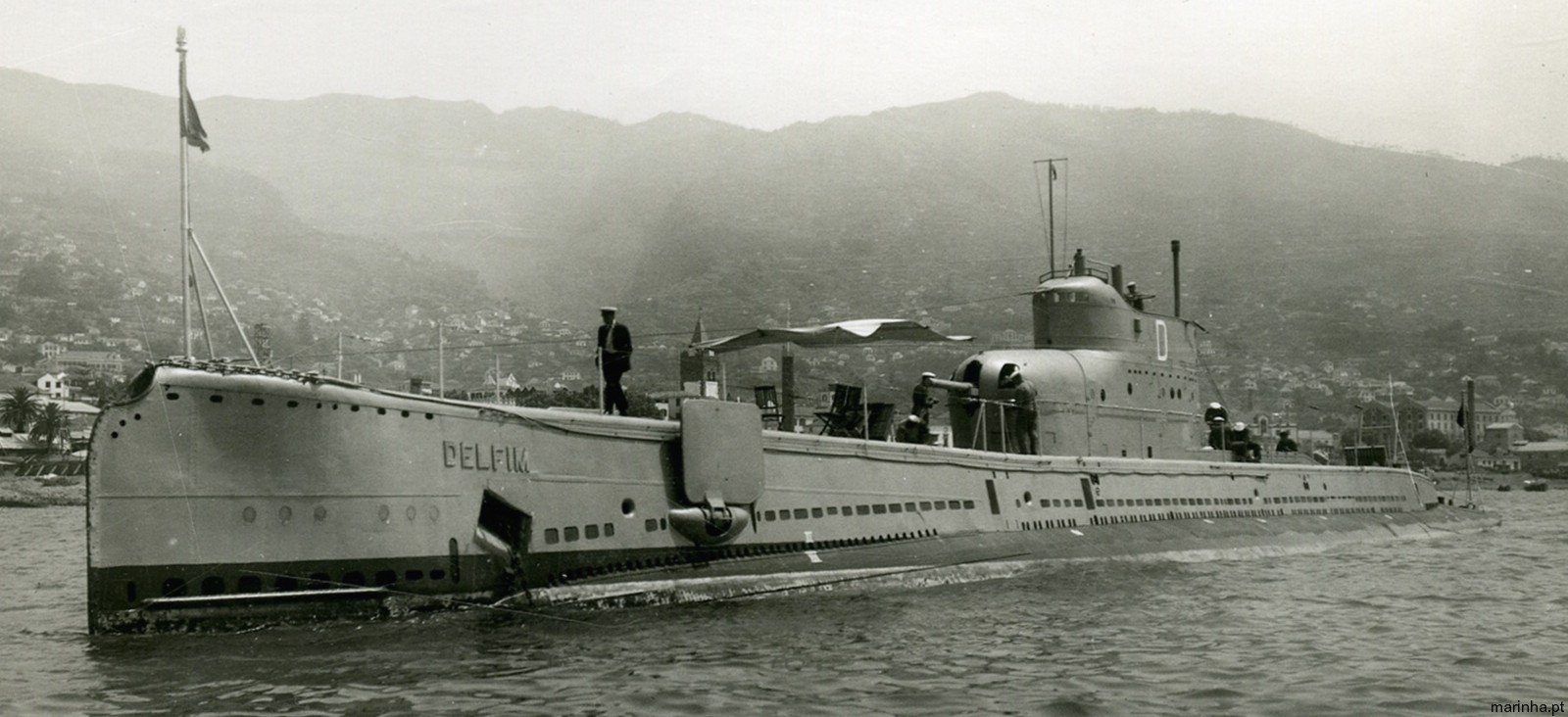

delfim class attack submarine nrp espadarte golfinho portuguese navy marinha 02

03/24

Units:

Name	Laid down	Launched	Commissioned	STATUS
Delfim	1933	1934	1935	stricken in 1950
Espadarte	1933	1934	1935	stricken in 1950
Golfinho	1933	1934	1935	stricken in 1950

Specifications:

Builder: Vickers Armstrongs Ltd., Barrow-in-Furness, U.K.

Displacement: 800 tons (surfaced) / 1090 tons (submerged)
Length: 69.2 meters (227 feet)
Beam: 6.5 meters (21 ft 4 in)
Draft: 3.9 meters (12 ft 10 in)
Speed: 16.5 knots (31 km/h), surfaced / 9.2 knots (17 km/h), submerged
Range: ?
Complement: 40

Propulsion:
DIESEL ELECTRIC
2 x Vickers diesel generators
2 x electric motors
2 shafts / 2 propellers

Armament:
6 x 533 mm (21") torpedo tubes (4 bow, 2 stern)
1 x QF4 102 mm (4") deck gun

Systems:

U.K. built series of three submarines for the Portuguese Navy.

images

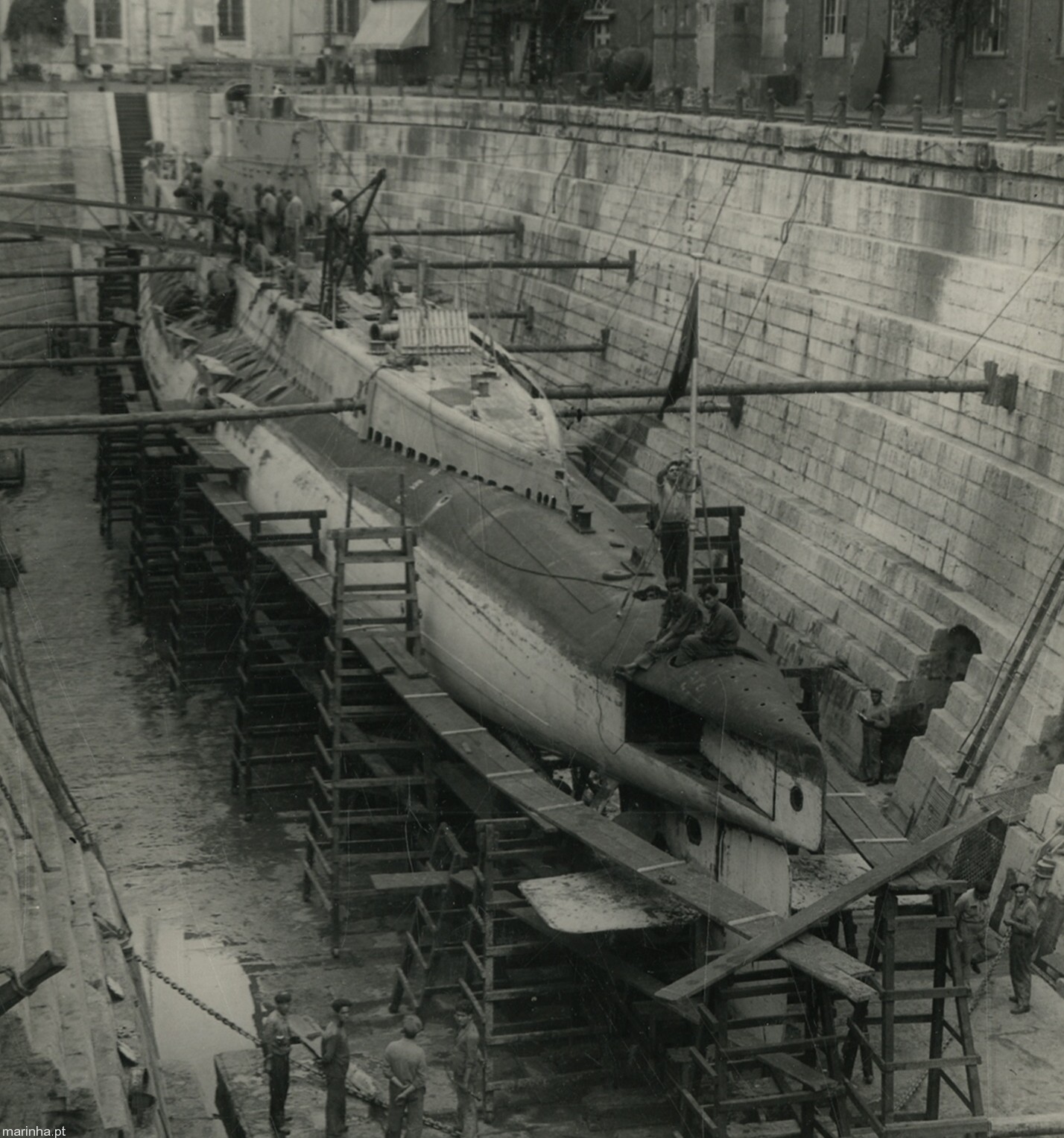

delfim class attack submarine nrp espadarte golfinho portuguese navy marinha 03

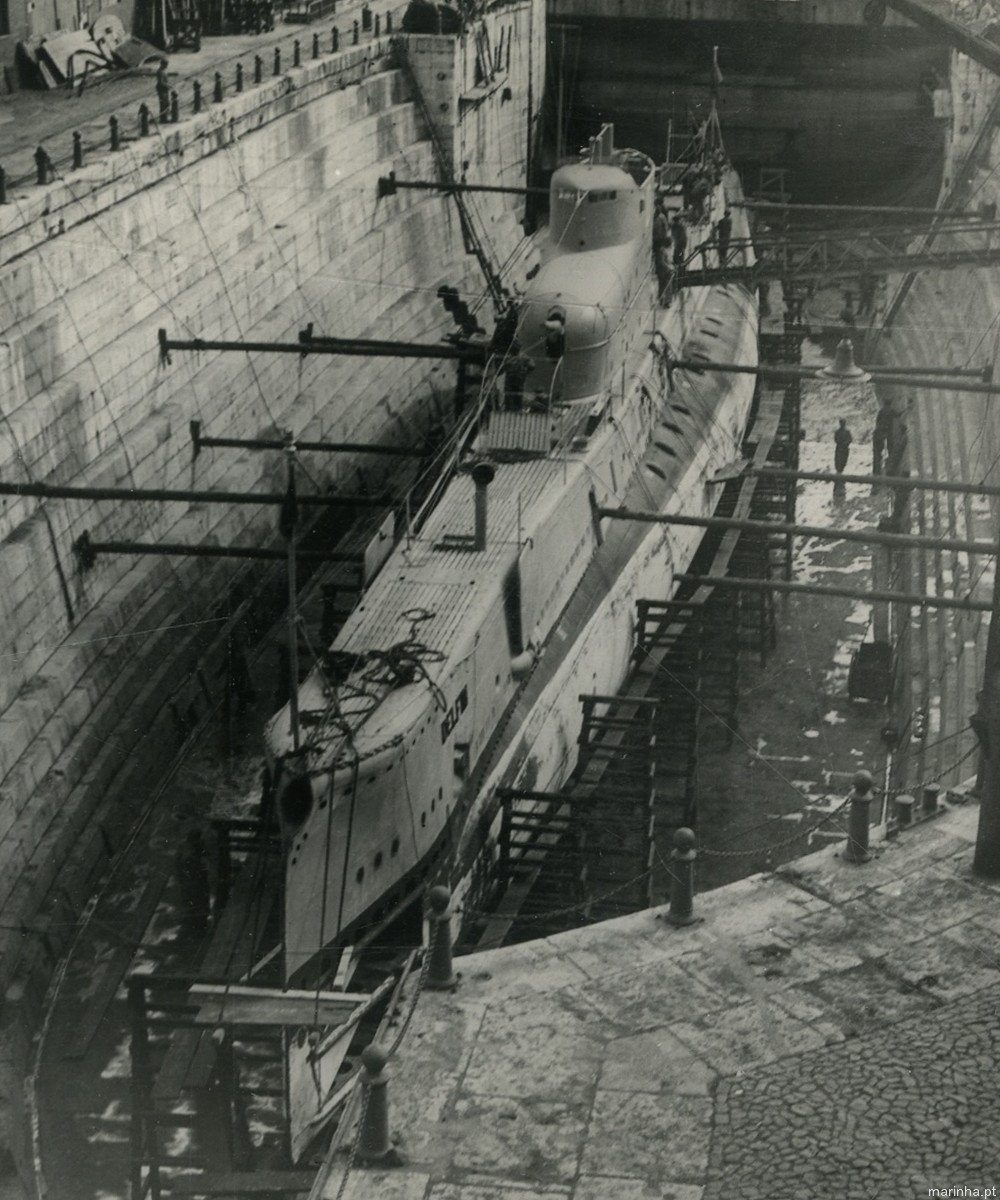

delfim class attack submarine nrp espadarte golfinho portuguese navy marinha 04
