Vivaldi class Offshore Patrol Vessel OPV Italian Navy MMI

Italian Navy / Marina Militare Italiana
Vivaldi class Offshore Patrol Vessel (OPV)
(Navigatori class / Pattugliatori polivalenti PPX)

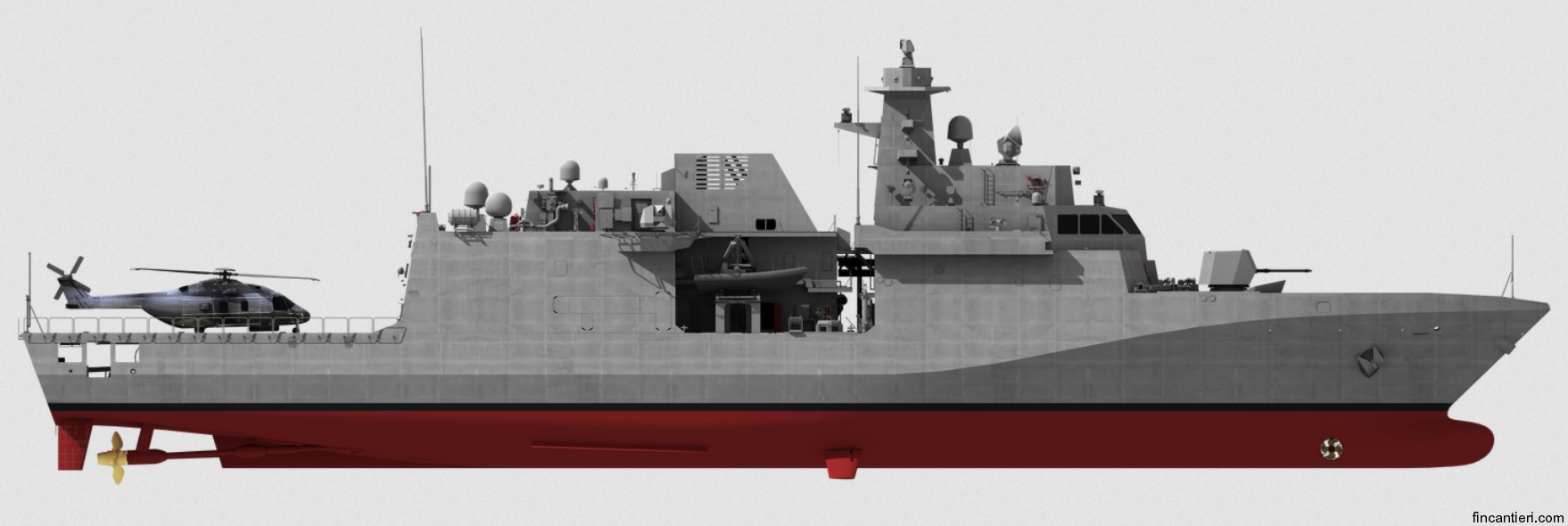

vivaldi class offshore patrol vessel opv ppx italian navy marina militare pattugliatori polivalenti 04x

03/26

Ships (4 + 2 option):

P 440 ITS Ugolino Vivaldi (2027)
P 441 ITS Sebastiano Caboto (2028)
P 442 ITS Antonio da Noli (2029)
P 443 ITS Giovanni da Verazzano (2030)

Specifications:

Length: 95 meters (311 feet 8 inches)
Beam: 14.2 meters (46 ft 7 in)
Draft: 3.8 m (12 ft 5 in)
Displacement: 2,400 tons
Speed: 24 knots (44 km/h), max.
Range: 3,500 NM (6,500 km) at 14 knots (26 km/h)
Complement: 72 (ship), accomodation for 93

Propulsion:
CODLAD (COmbined Diesel-eLectric And Diesel)
2 x MTU 16V 8000 M91L diesel engines (8 MW)
2 x Marelli Motori reversible electric motors (500 kW)
2 shafts, 2 controllable-pitch propellers, 1 bow thruster

Armament:

1 x Leonardo 76/62SR Super Rapid gun
(DAVIDE/STRALES System with DART ammunition)

2 x Leonardo Lionfish 30 Remote Weapon System / RWS
with Air Burst Munition (ABM)

Prepared for but not with:
Vertical Launching System (VLS) for VL MICA or CAMM-ER Missiles
MM40 Exocet SSM Anti-ship Missile System
RAMSyS Rolling-airframe Missile (RAM) Close-in Weapon System
ASW Torpedo Tubes

Aviation:
flight deck and hangar for 1 helicopter (SH-90A) and Leonardo AWHERO VTOL UAV

Systems:
SADOC 4 Combat Management System (CMS)
Naval Cockpit Combat Operations Center (COC)
Integrated Communication System
GEM Elettronica Columbus Mk.3 solid-state air and surveillance X-band 3D radar with integrated IFF
Leonardo NA-30S Mk.2 Radar/EO fire control system (main gun)
Leonardo self-stabilized day/night Electro-Optical Director (EOD) and Laser Rangefinder (for Lionfish RWS)
GEM Elettronica Gemini DB Navigation Radars
Knonos Naval HP EW System (REASM / CESM)
Multi Data Link Processor (MDLP)
Link 16 / Link 22 Data Links
SATCOM

Electric power:
4 x Isotta Fraschini V1708C2ME5 diesel generators (680 kW, each)

Boats + equipment:
1 x 9.3 m HURRICANE RIB
1 x 7 m SOLAS RIB

Anti-pollution and Humanitarian Assistance Equipment

The Vivaldi Class or also Navigatori II patrol vessels, also known by their PPX project name, represent a class of light multirole naval units of the Italian Navy designed to replace the patrol vessels of the Cassiopea class (4 units) and the Cassiopea II class (2 units).

The program, which provides for the possibility of having up to 10 PPX, is structured in several phases: 4 units under construction from 2024 to 2030/2032 while 2 are already financed but have yet to be contracted. The expansion from 6 to 10 units is part of the broader twenty-year program of modernization and expansion of the Italian Navy.

Ship data:

P 440 ITS Ugolino Vivaldi

Builder: Fincantieri, Riva Trigoso Shipyard (La Spezia)
Laid down: December 12, 2024
Launched: February 21, 2026
Commissioned: 2027 ?
OUTFITTING + TRIALS

Namesake:
Ugolino de Vivaldi († after 1291)
... was a Genoese explorer who, together with his brother Guido or Vadino de Vivaldo, commanded
the first known expedition in search of a sea route from Europe to India.

P 441 ITS Sebastiano Caboto

Builder: Fincantieri, Riva Trigoso Shipyard (La Spezia)
Laid down: December 18, 2025
Launched: 2027 ?
Commissioned: 2028 ?
UNDER CONSTRUCTION

Namesake:
Sebastiano Caboto (c. 1474 - c. December 1557)
... was a Venetian explorer, who at various times was in the service of the Kingdom of England,
the Crown of Aragon and the Holy Roman Emperor.
He was the son of Venetian explorer Giovanni Caboto and he grew up in England during his youth.
After his father's death, Caboto conducted his own voyages of discovery, charting the Eastern American
seaboard and seeking the Northwest Passage on behalf of England.
He later sailed for Spain, traveling to South America, where he explored the Rio de la Plata and established two new forts.

P 442 ITS Antonio da Noli

Builder: Fincantieri, Riva Trigoso Shipyard (La Spezia)
Laid down: 2026
Launched: 2028 ?
Commissioned: 2029 ?
ORDERED

Namesake:
Antonio da Noli (born 1415 or 1419)
... was a 15th-century Genoese nobleman and navigator, and the first governor of the earliest
European overseas colony in Subsaharan Africa.
He discovered some of the Cape Verde islands on behalf of Henry the Navigator and was made
the first Governor of Cape Verde by King Afonso V.

P 443 ITS Giovanni da Verazzano

Builder: Fincantieri, Riva Trigoso Shipyard (La Spezia)
Laid down: 2027 ?
Launched: 2029 ?
Commissioned: 2030 ?
ORDERED

Namesake:
Giovanni da Verrazzano (1491-1528)
... was an Italian explorer from the Republic of Florence, best known for his expedition to North America.
He led most of his later missions, including the one to America, in the service of King Francis I of France.
He is renowned as the first European to ever explore the Atlantic coast of North America between
Florida and New Brunswick in 1524, including New York Bay and Narragansett Bay.

images

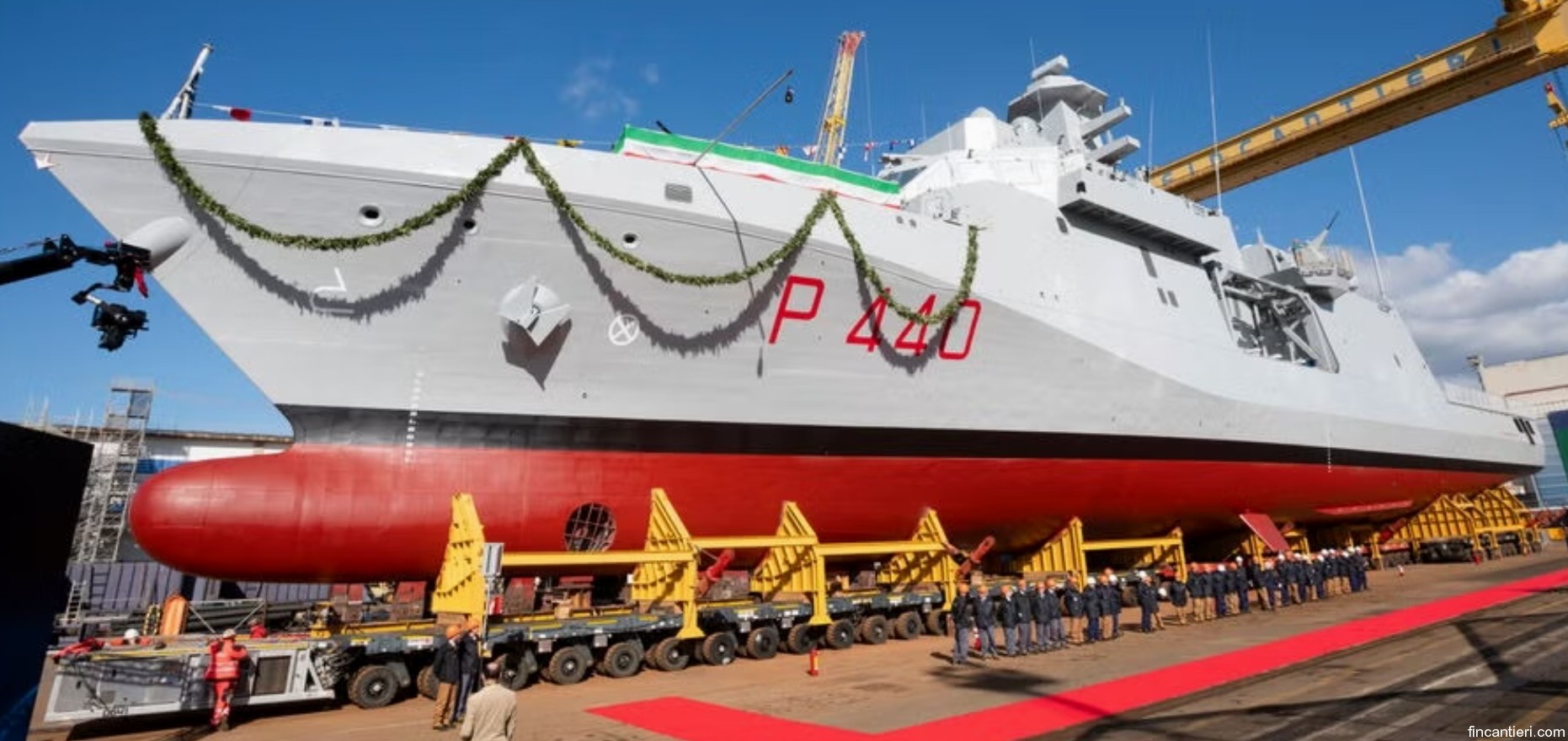

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti 02

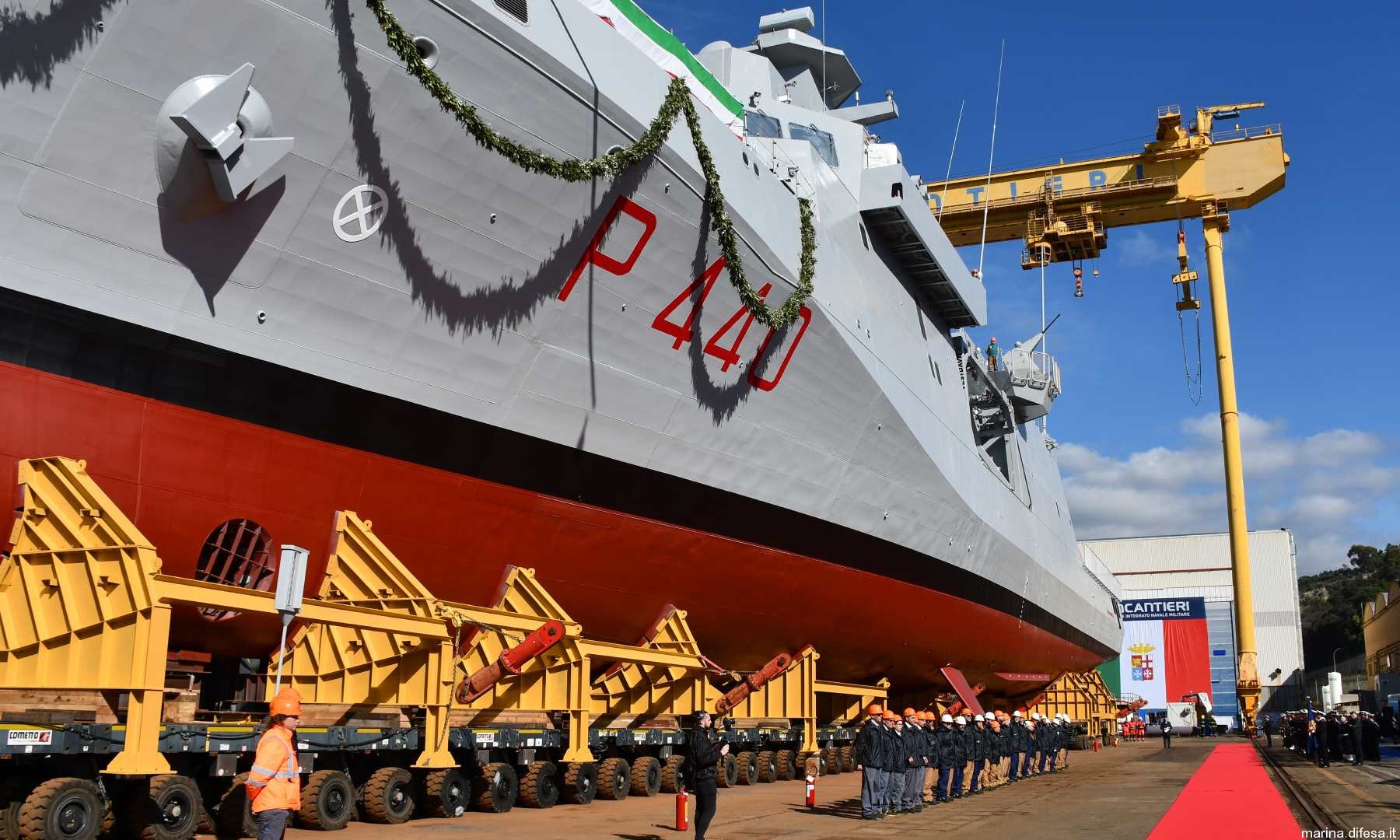

P 440 ITS Ugolino Vivaldi - launching at Fincantieri, Riva Trigoso Shipyard - February 21, 2026

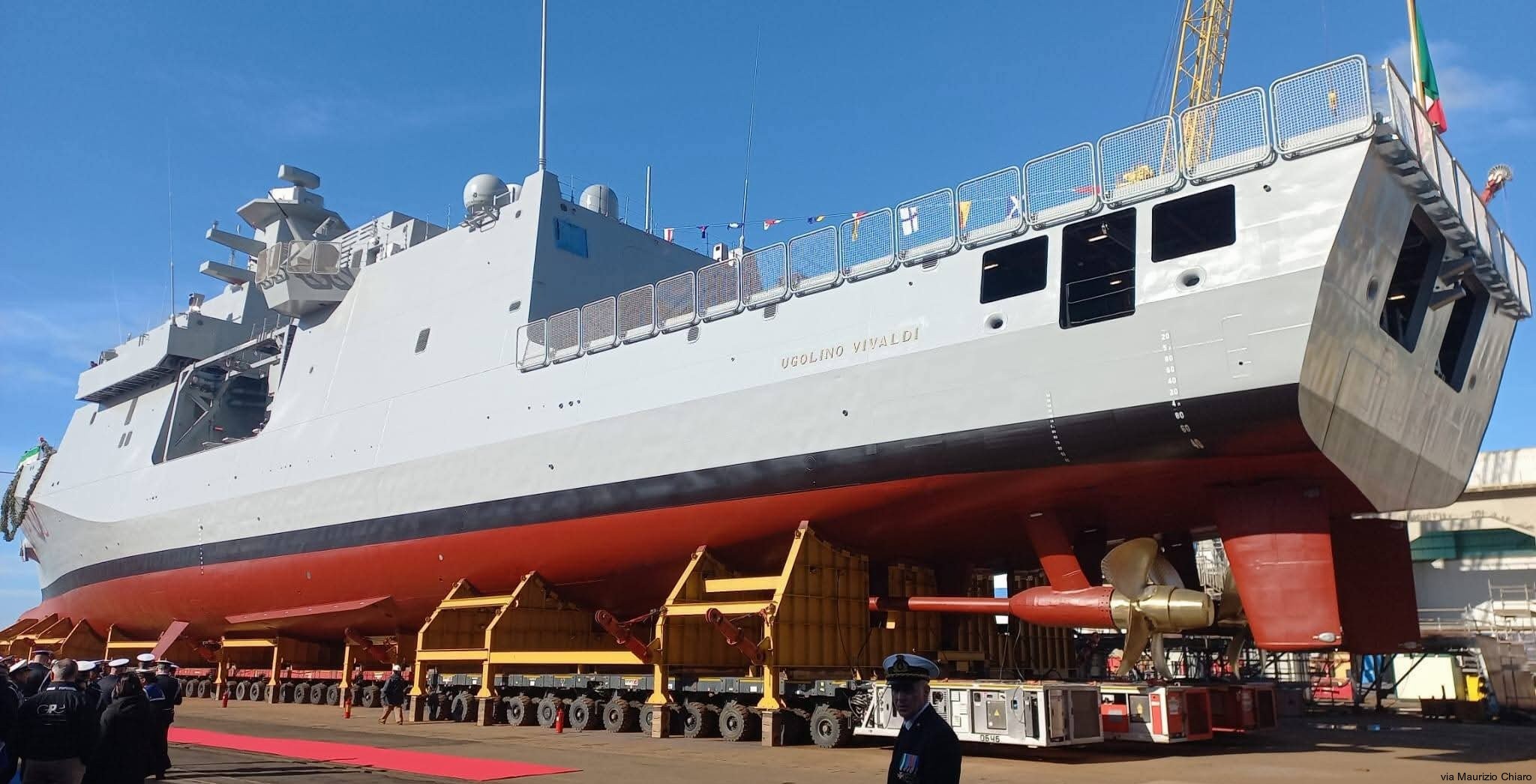

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti 07

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti 07

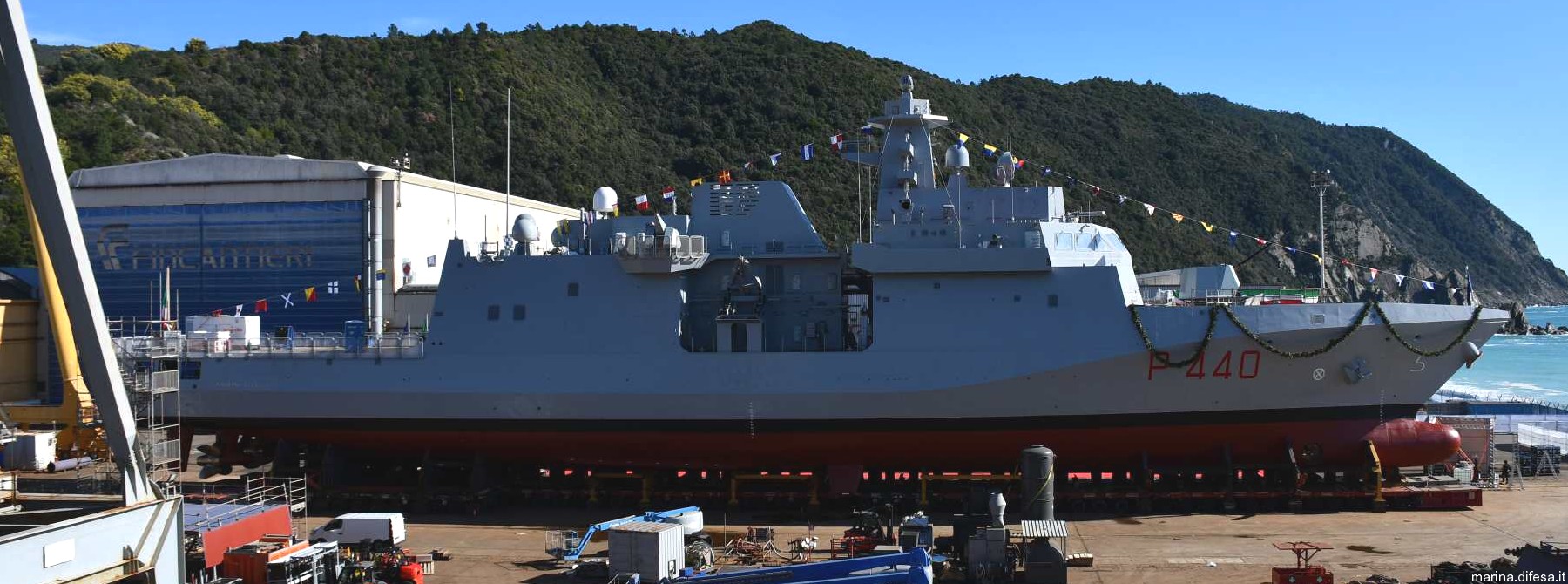

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare launching riva trigoso fincantieri 03

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti 04

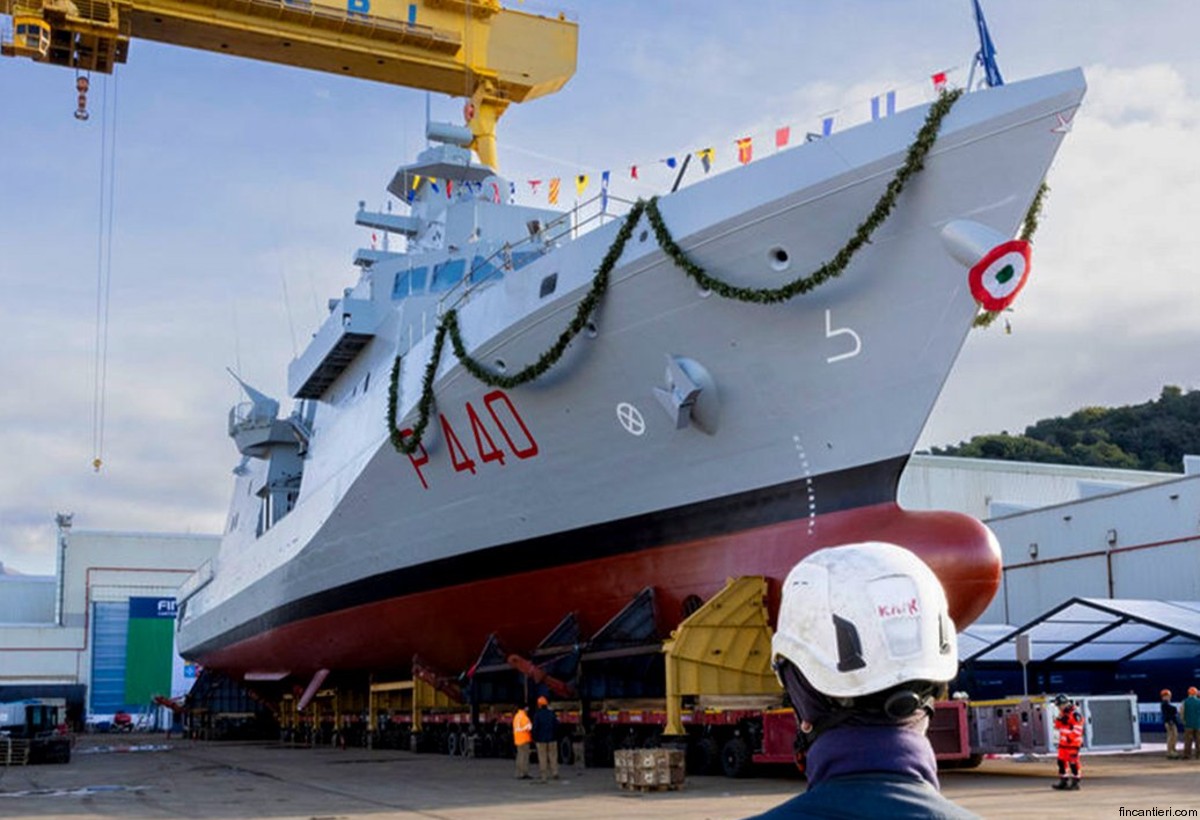

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti 06

p-440 its ugolino vivaldi offshore patrol vessel opv nave ppx italian navy marina militare pattugliatori polivalenti keel laying 2024

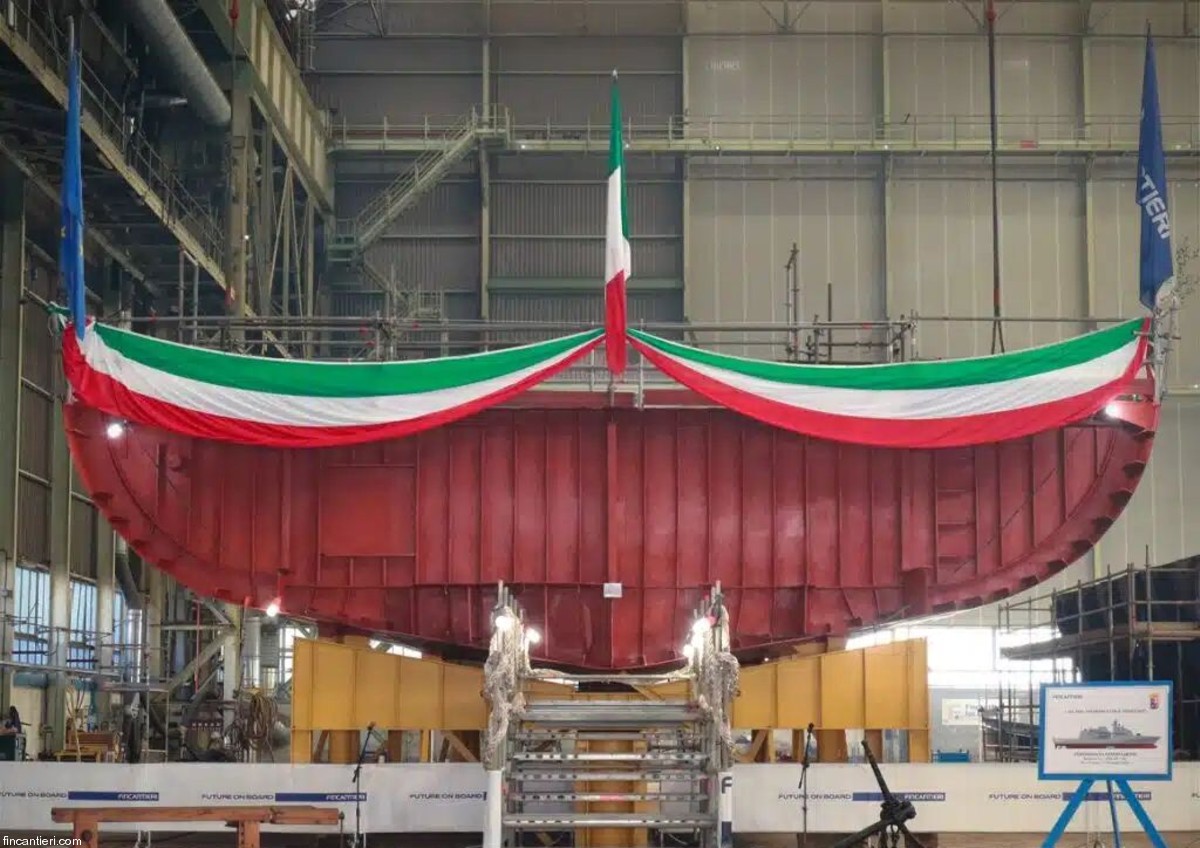

P 440 ITS Ugolino Vivaldi - keel laying at Fincantieri, Riva Trigoso Shipyard - December 12, 2024

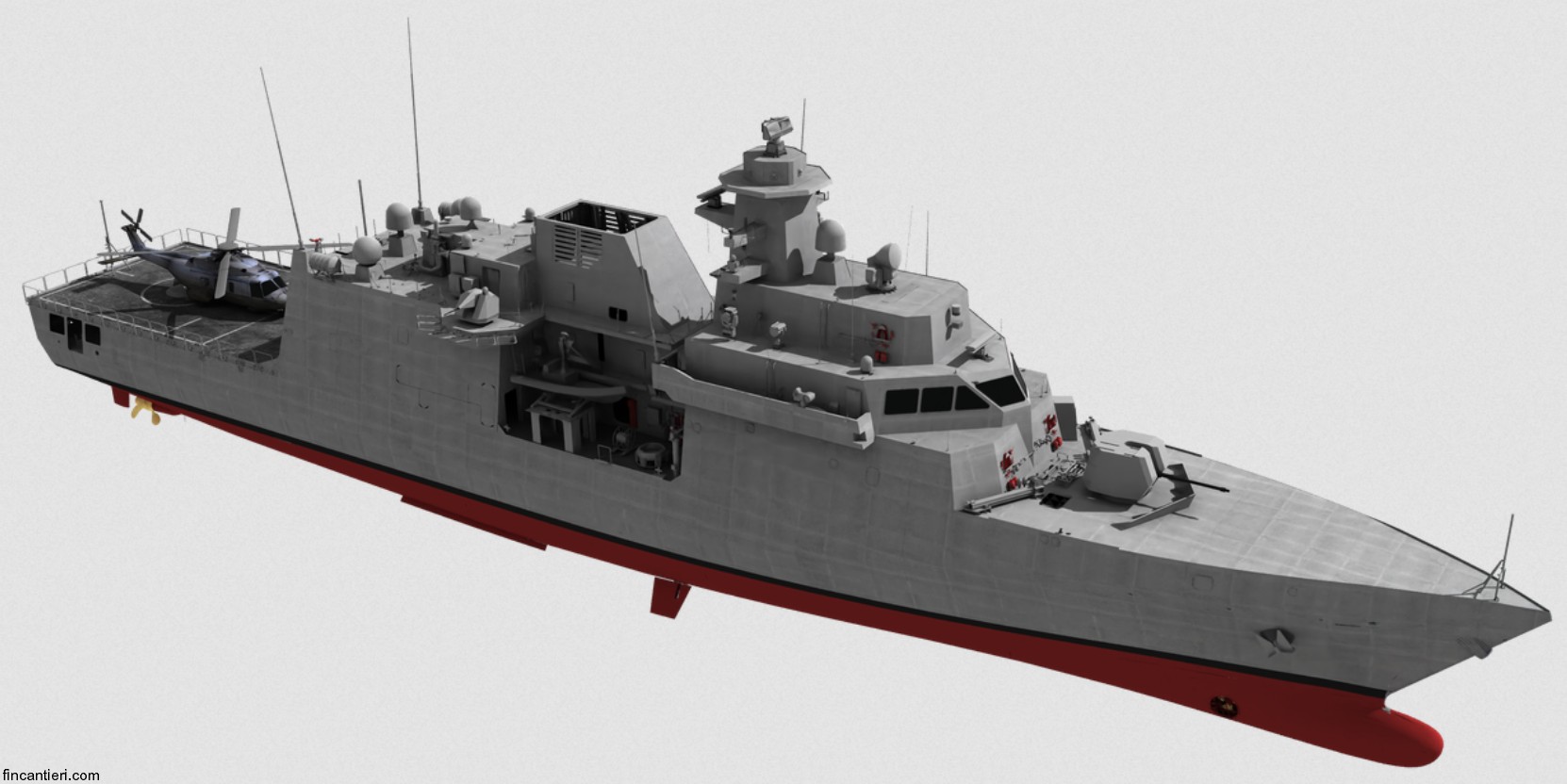

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 03

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 03

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 04

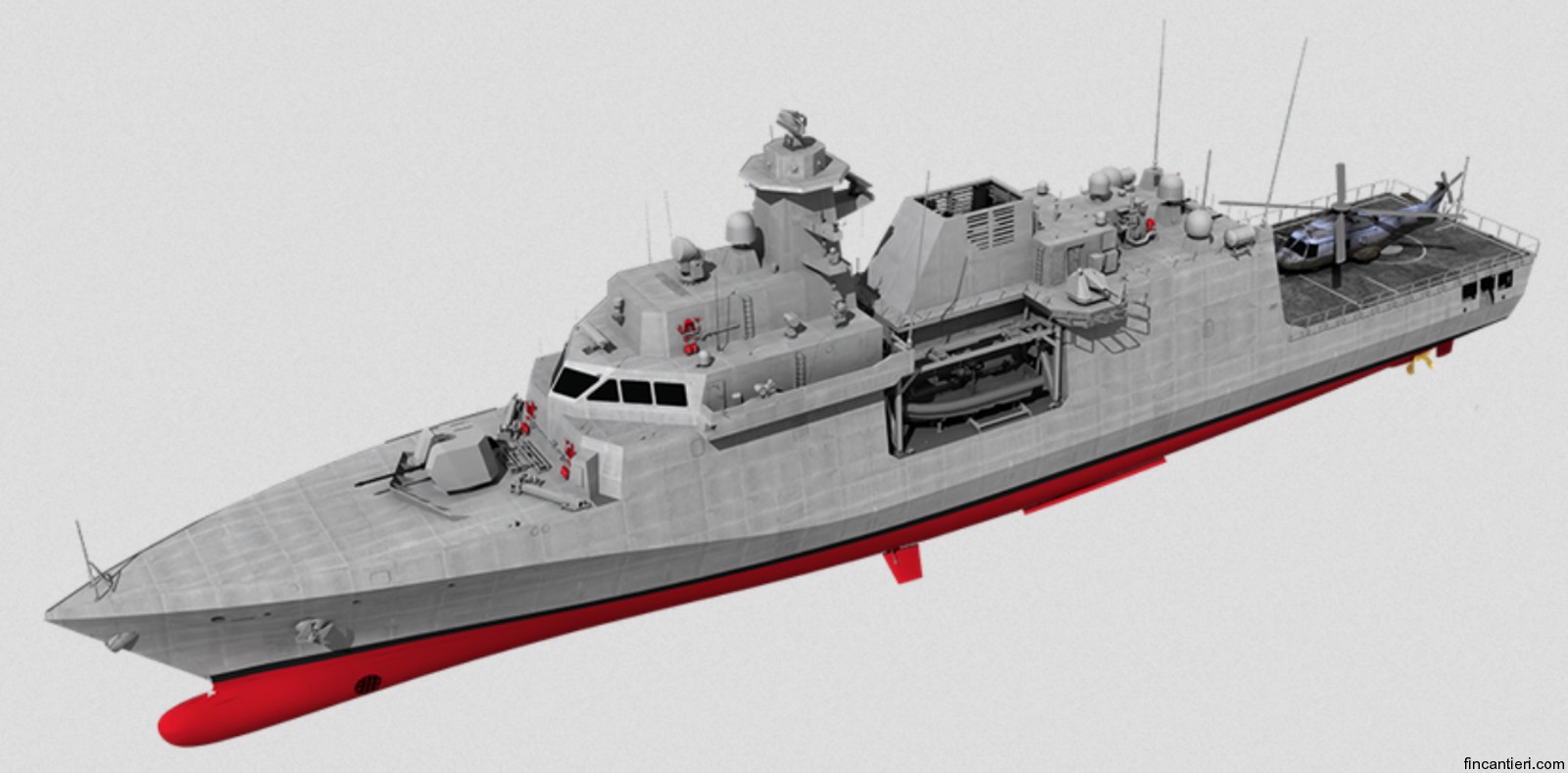

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 05

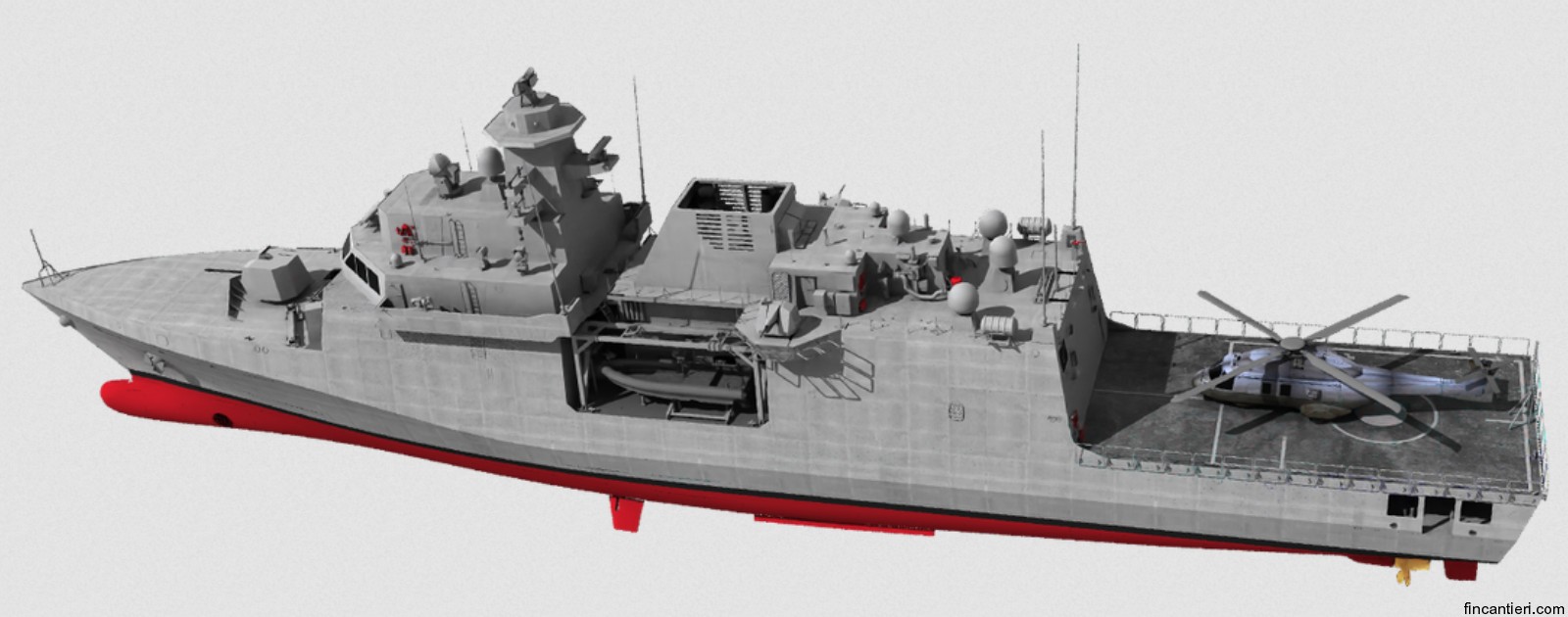

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 02

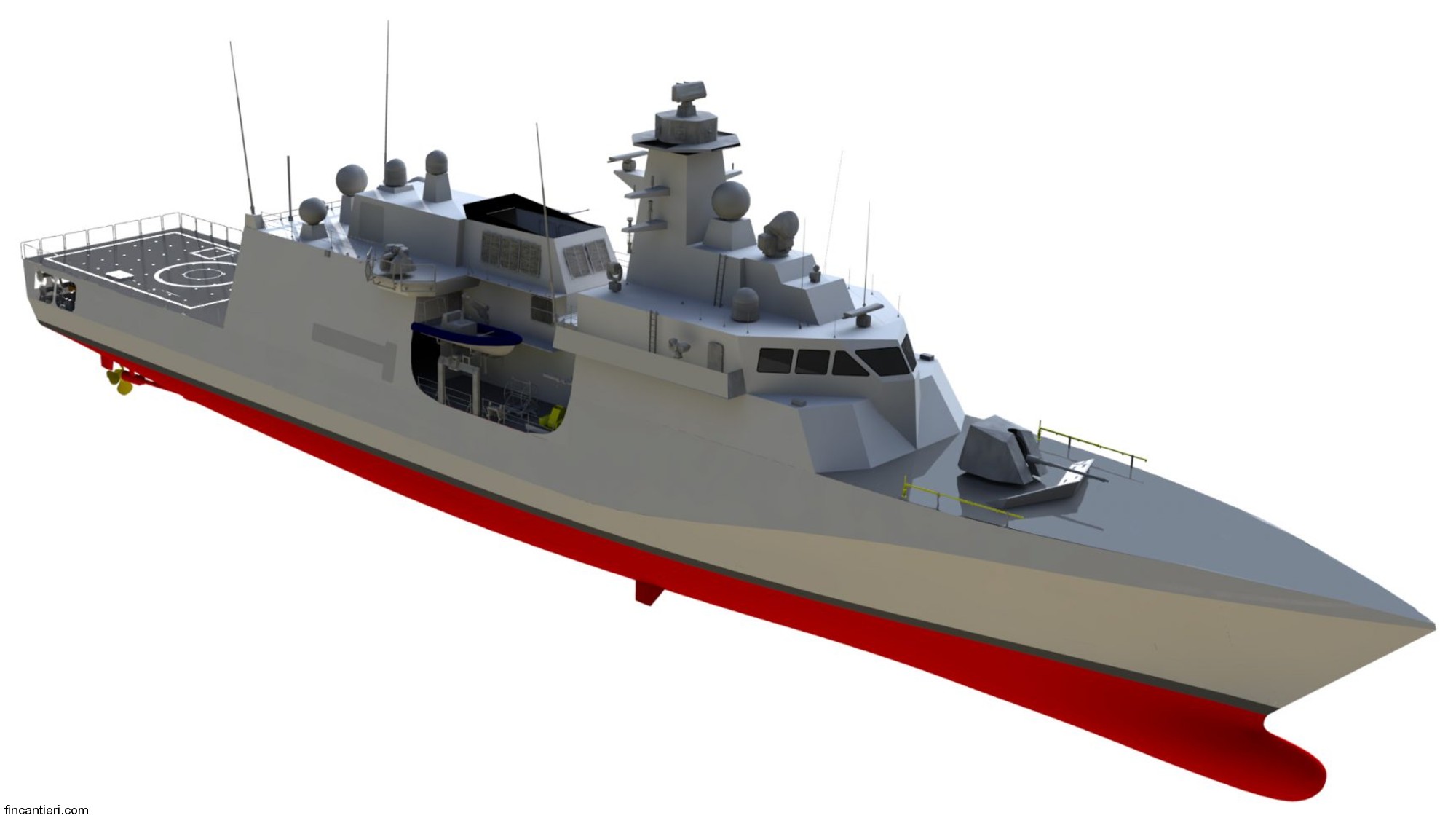

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 08

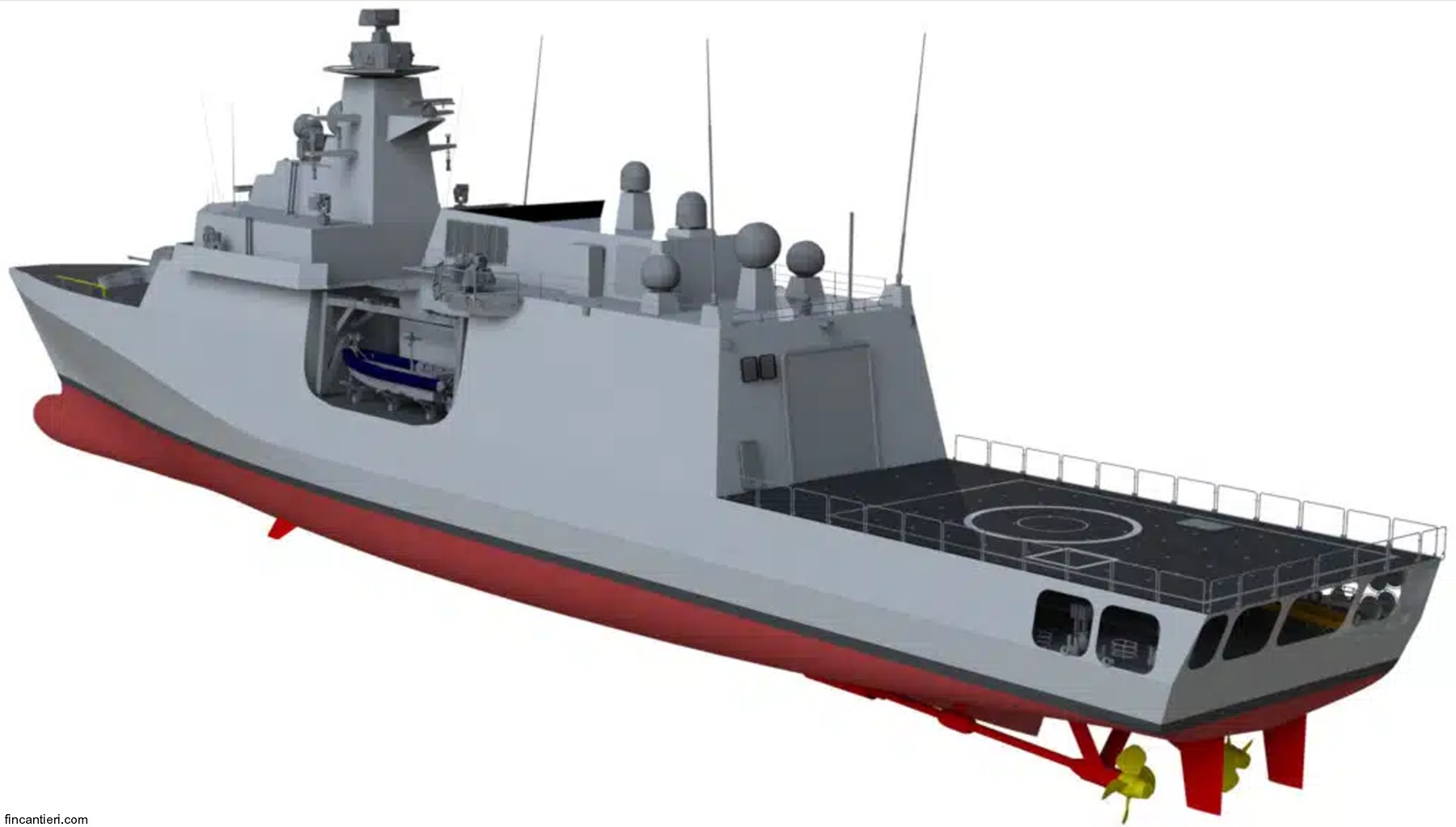

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 07

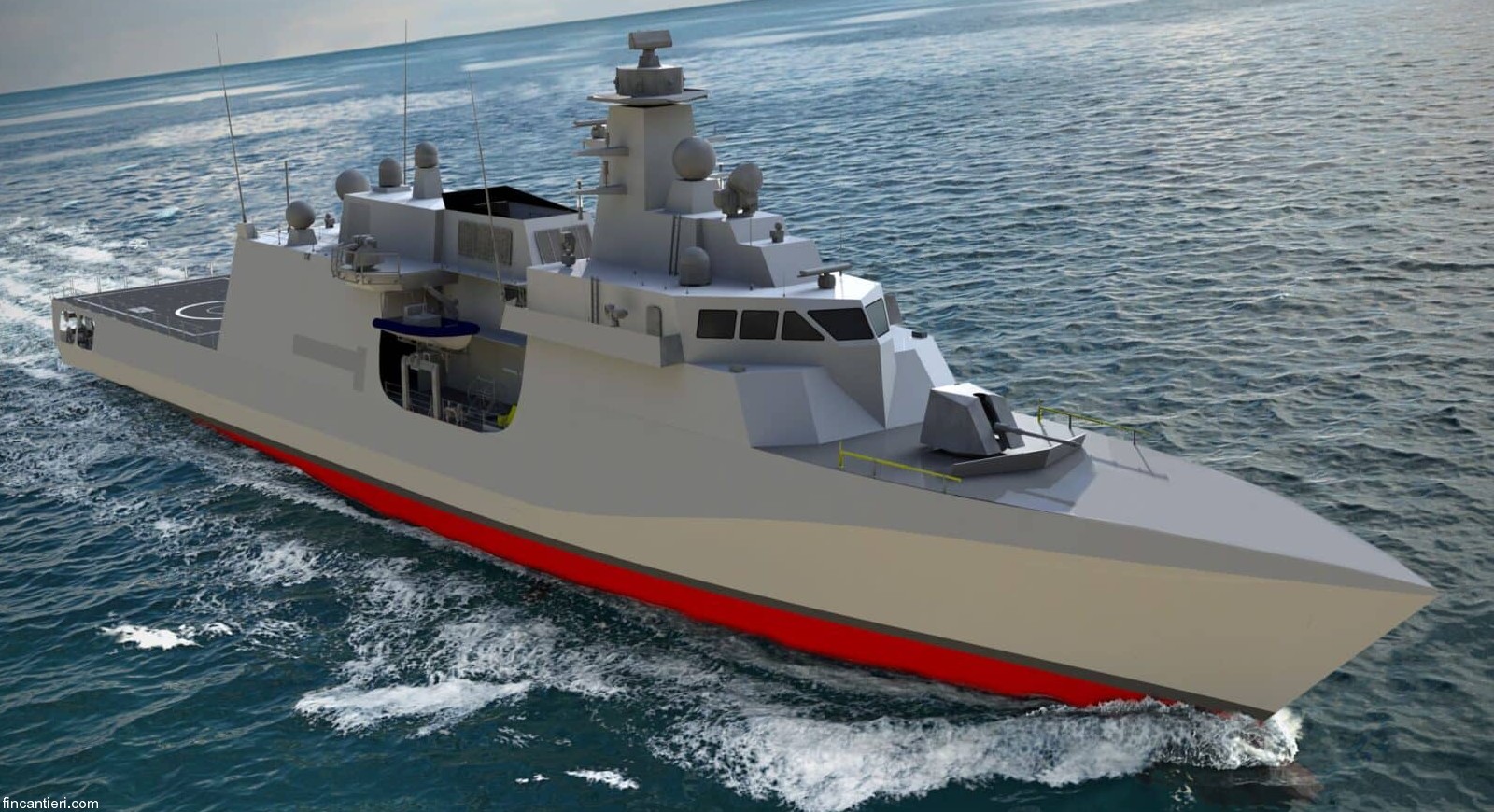

vivaldi class offshore patrol vessel opv ppx italian navy marina militare 06
