Invincible class Ballistic Missile Submarine SSBN SNLE-3G

French Navy - Marine Nationale
Invincible class Ballistic Missile Submarine - SSBN
(Sous-Marin Nucléaire Lanceur d'Engins de Troisieme Génération - SNLE 3G)

invincible class ballistic missile submarine ssbn snle-3g sous-marin nucléaire lanceur d'engins french navy marine nationale 03x

03/26

Units (4 planned):

S ??? FS Invincible (2035 ?)

Specifications:

Builder: Naval Group, Cherbourg, Normandy, France

Displacement: ~15,000 tons (submerged)
Length: ~150 meters (490 feet)
Beam: ?
Draught: ?
Speed: ?
Range: unlimited (20-25 years)
Complement: 110

Propulsion:
1 x K22 pressurized water nuclear reactor (220 MW / 300,000 hp)
1 x electric motor
1 x pump-jet propulsor

Armament:

16 x Vertical Launching Tubes
for
M51 submarine-launched ballistic missiles (SLBM)
with 6-10 multiple independently targetable reentry vehicles (MIRV) and 110 kt nuclear warheads

- - - - -

4 x 533mm (21 inches) torpedo tubes
for a mix of:
F21 heavy-weight torpedoes
MBDA Exocet SM40 anti-ship missiles (SSM)

Systems:
not known yet

The Invincible class (SNLE 3G / Sous-Marin Nucléaire Lanceur d'Engins de Troisieme Génération = third generation nuclear ballistic missile submarine)

... is a class of submarines under development for the French Navy's nuclear deterrent, part of the Force de dissuasion. It is being designed as a replacement for the current Triomphant class beginning around 2035, and could remain in service to as late as 2090. Steel was cut on the first vessel in the class in March 2024.

The SNLE 3G submarines are expected to join the fleet from 2035 and remain in service until 2080-2090. The first steel will be cut for the vessels in March 2024 and completed submarines delivered at a rate of one every five years from 2035, with the program completing in 2050.

S ??? FS Invincible

Laid down: first steel cut on March 20, 2024
Launched: ?
Commissioned: 2035 ?

images

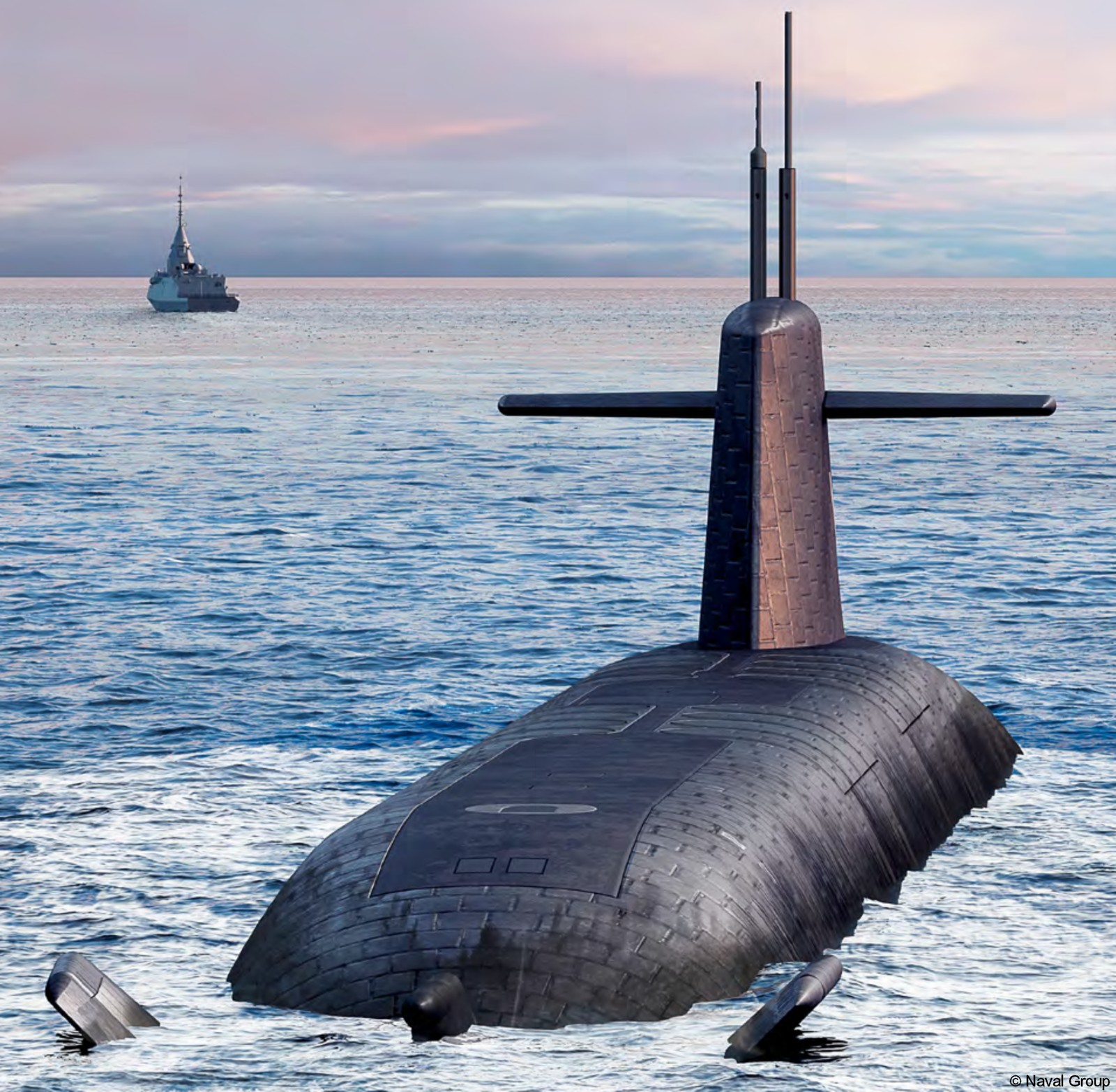

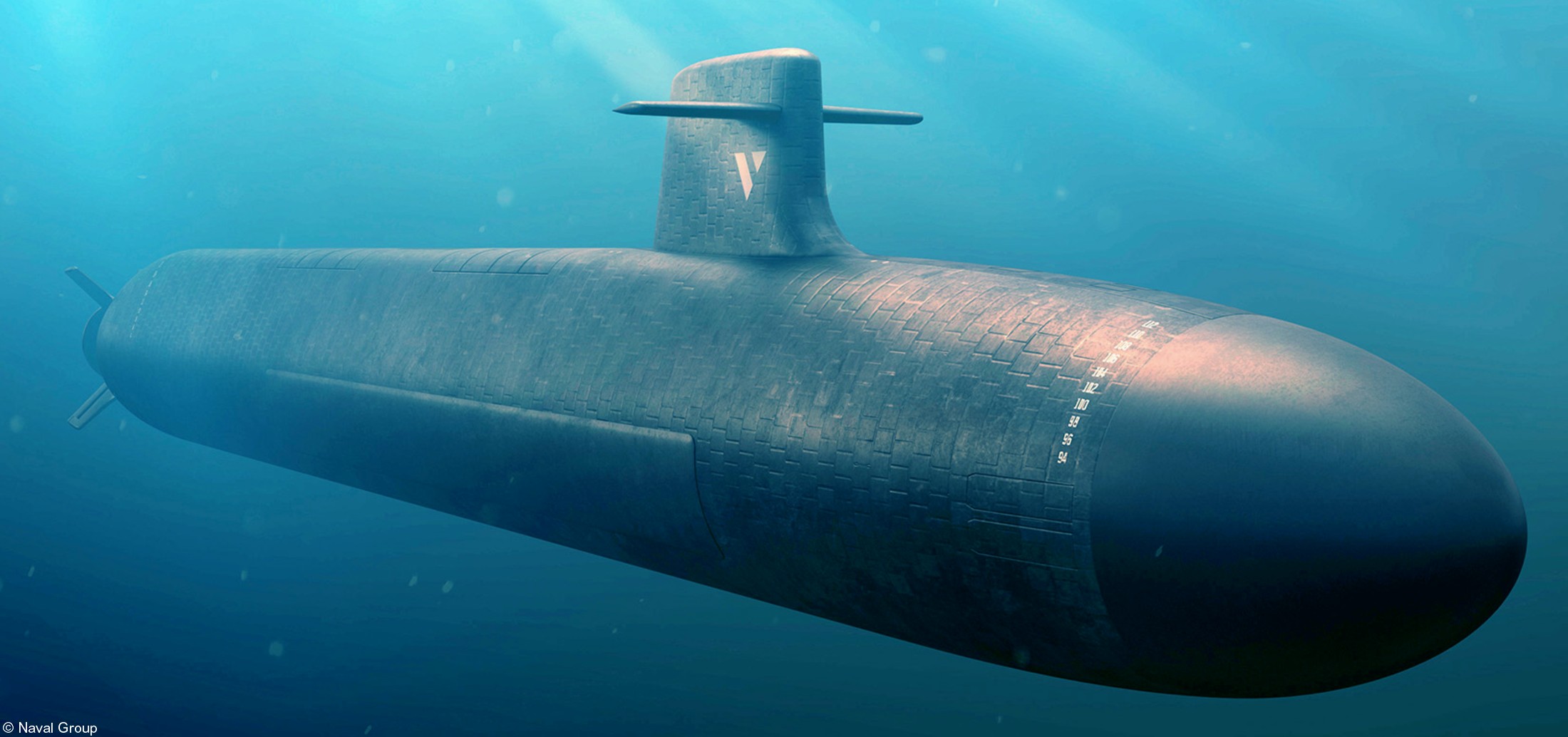

invincible class ballistic missile submarine ssbn snle-3g sous-marin nucléaire lanceur d'engins french navy marine nationale naval group 02
