H160M Guepard Helicopter French Navy Marine Nationale

French Navy
Airbus H160M Guepard
HIL - hélicoptère interarmées léger - Joint Light Helicopter

airbus h160m guepard helicopter french navy marine nationale flottille 02

08/26

Units:

Serials / markings:
delivery of the H160M helicopters is planned from 2029 onwards

Squadron ?

Homebase: ?

The Airbus Helicopters H160M is a medium military helicopter.
It is intended to replace the AS365 Dauphin and EC155/H155 models in the firm's lineup.

Variants:

Civilian:
H160: Prototype civil-orientated model. 3 built.
H160B: Civil production variant, certified in July 2020.

Military:
H160M: Base military-orientated model.
H160M Guépard: (HIL - hélicoptère interarmées léger - Joint Light Helicopter) Version developed for the French Armed Forces.

Specifications (H160):
Crew: 1-2
Capacity: 12
Length: 13.96 m (45 ft 10 in)
Width: 3.54 m (11 ft 7 in)
Height: 4.91 m (16 ft 1 in)
Empty weight: 4,050 kg (8,929 lb)
Max takeoff weight: 6,050 kg (13,338 lb)
Useful load: up to 2,000 kg (4,409 lb)
Fuel capacity: 1,120 kg (2,469 lb)
Powerplant: 2 x Safran Arrano 1A turboshaft engines, 955 kW (1,280 shp) each
Main rotor diameter: 13.40 m (43.96 ft)
Main rotor area: 141 m2 (1,520 sq ft)
Cruise speed: 255 km/h (158 mph, 138 kn)
Range: 880 km (550 mi, 475 nmi)
Endurance: 4 h 30 min with standard fuel tanks
Service ceiling: 6,096 m (20,000 ft) , 9,300 ft (2,835 m) hover ceiling IGE
Disk loading: 42.9 kg/m2 (8.8 lb/sq ft)

Armament:
Machine guns
Anti-ship missiles
?

sources: wikipedia + Marine Nationale

images

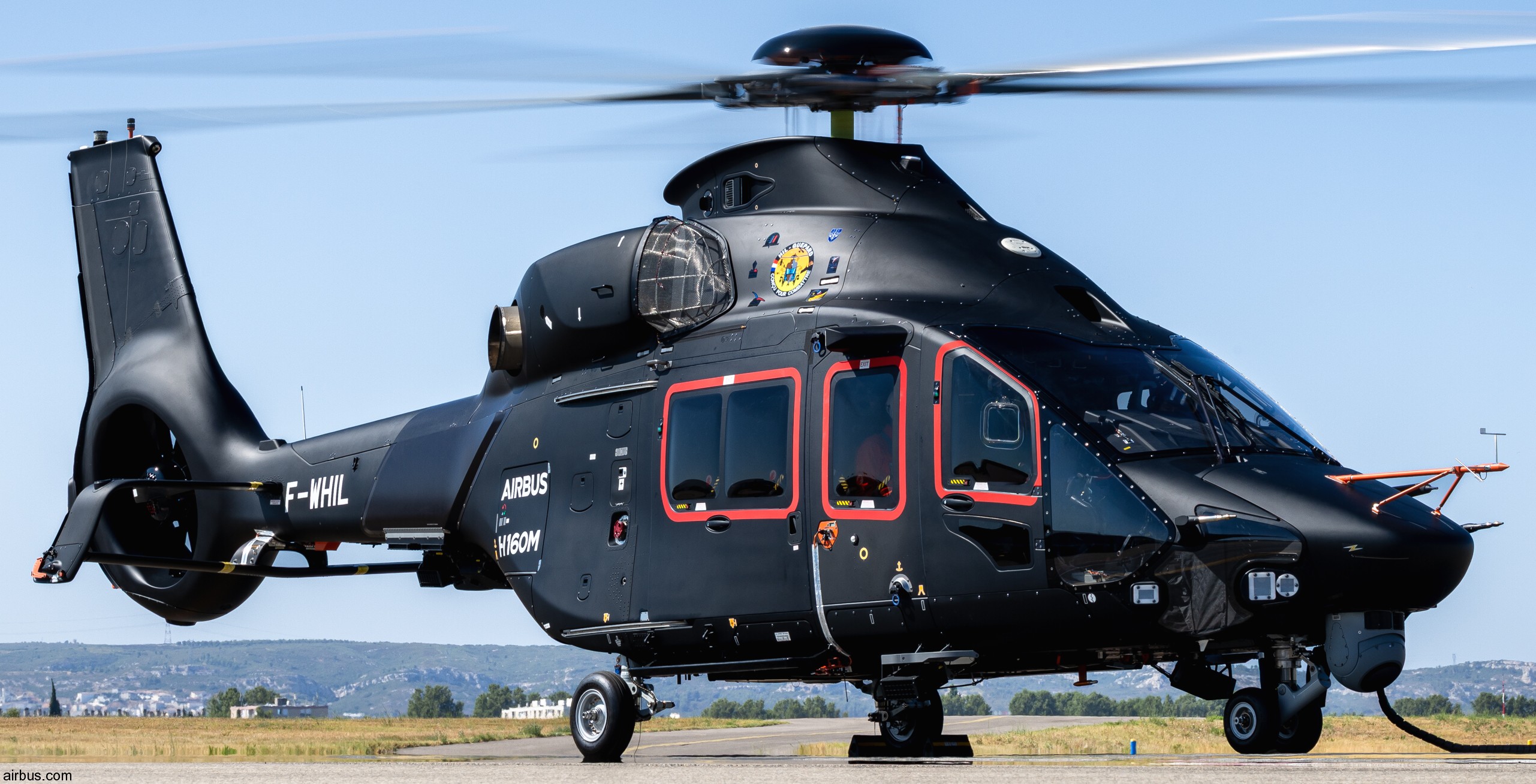

h160m guepard helicopter french navy marine nationale airbus prototype 04

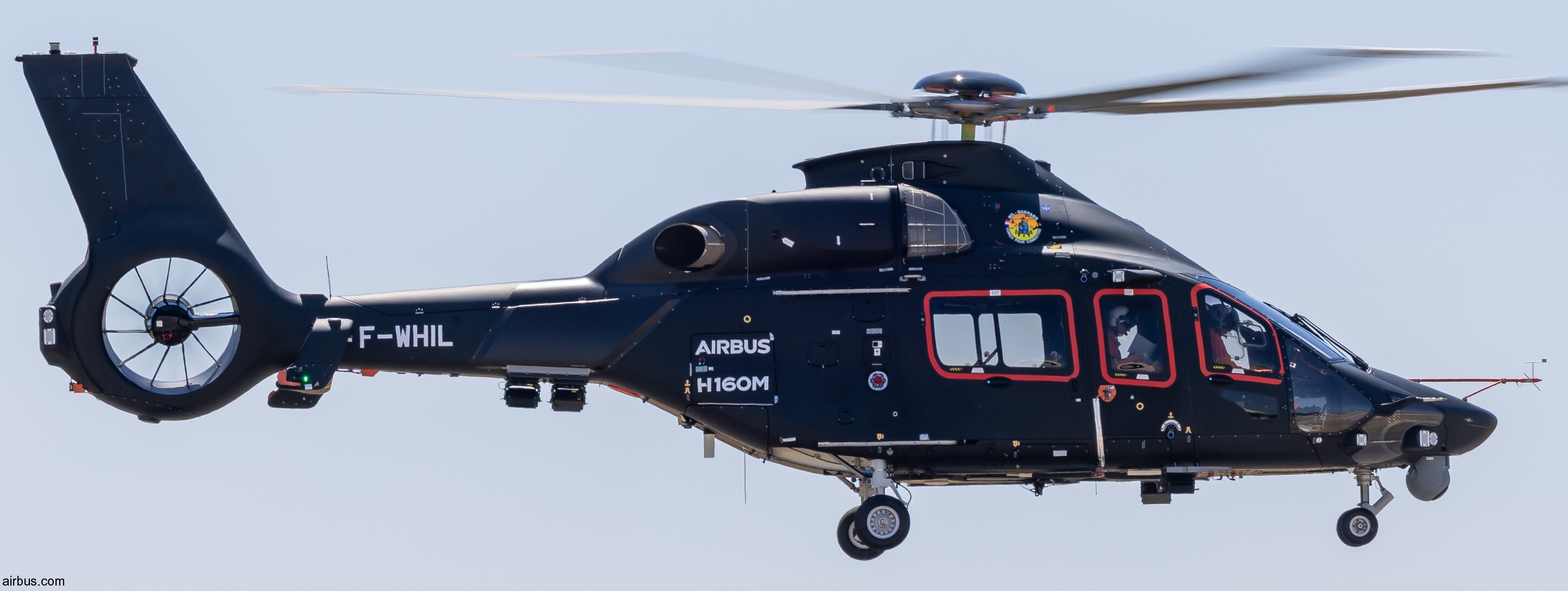

h160m guepard helicopter french navy marine nationale airbus flight tests 06

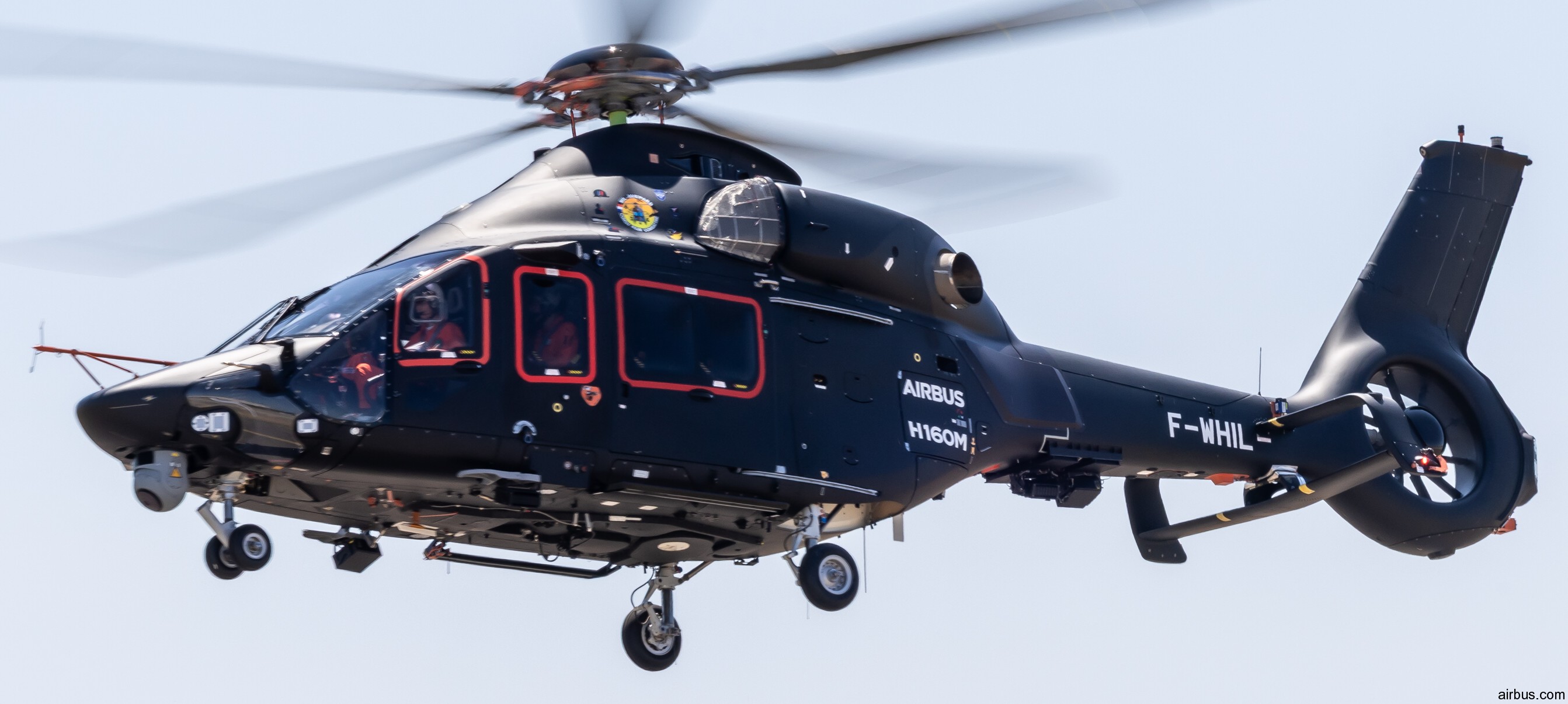

h160m guepard helicopter french navy marine nationale airbus 07

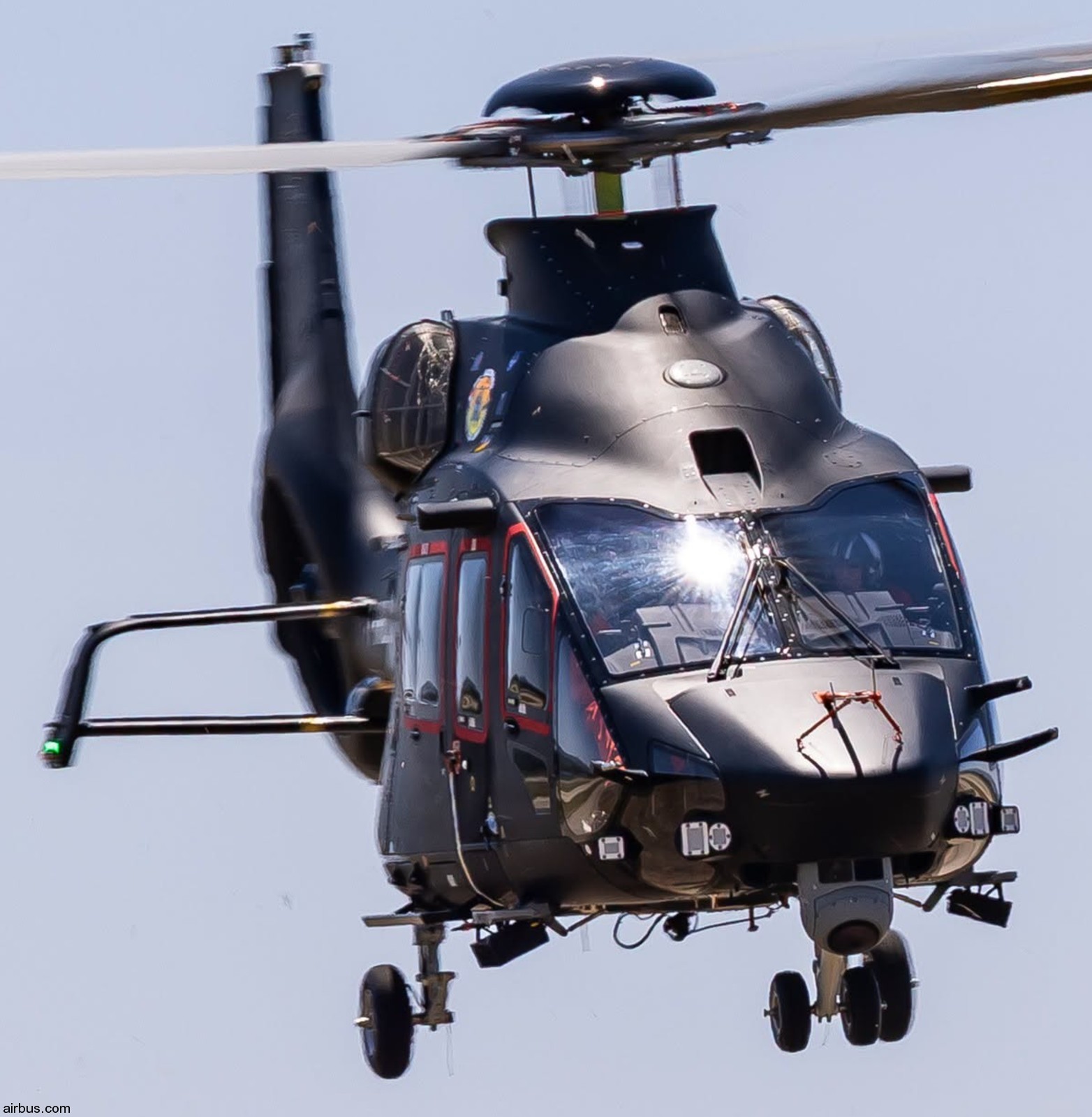

h160m guepard helicopter french navy marine nationale airbus 05

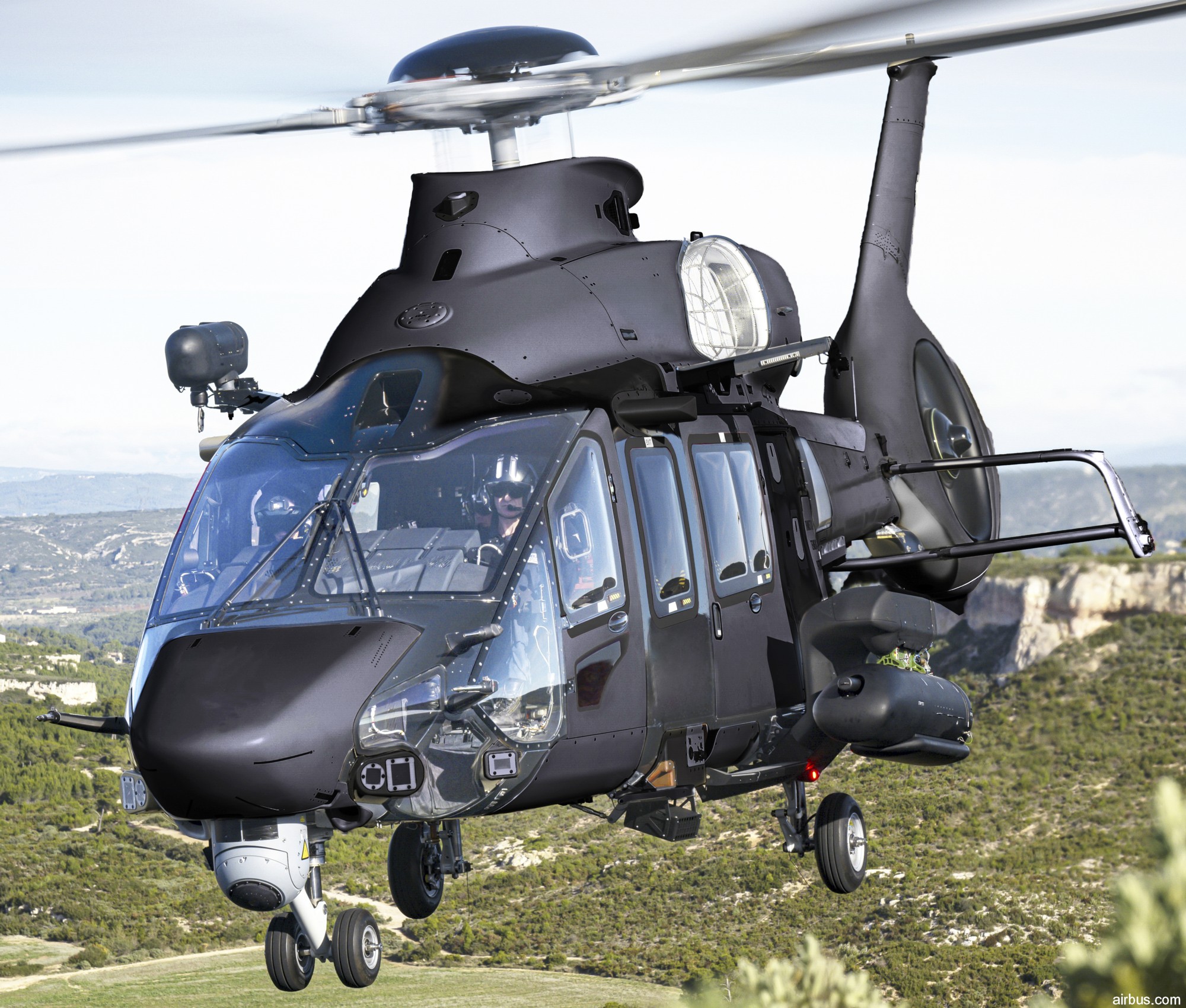

h160m guepard helicopter french navy marine nationale airbus 13

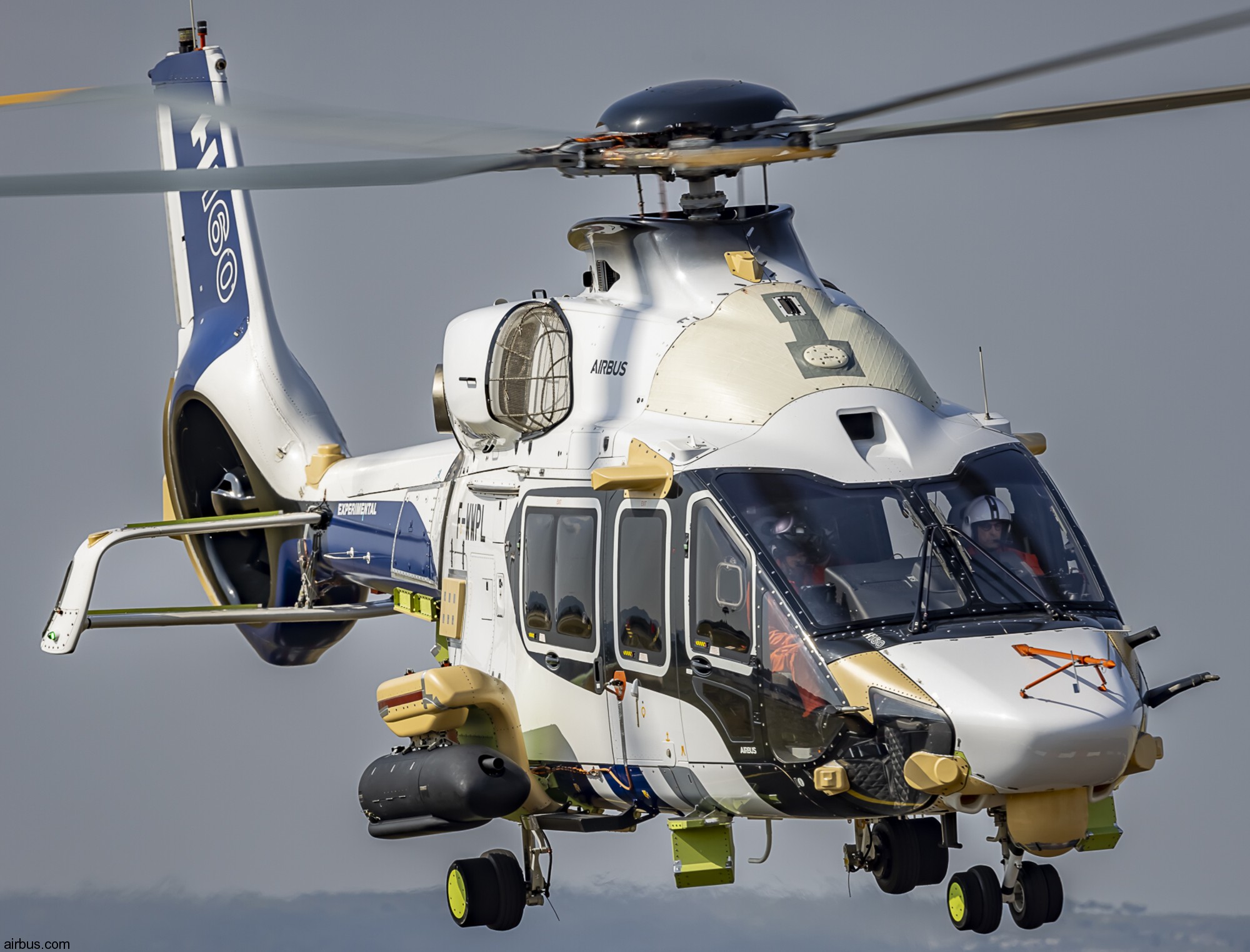

h160m guepard helicopter french navy marine nationale airbus armament systems flight tests 10

armament and systems flight tests

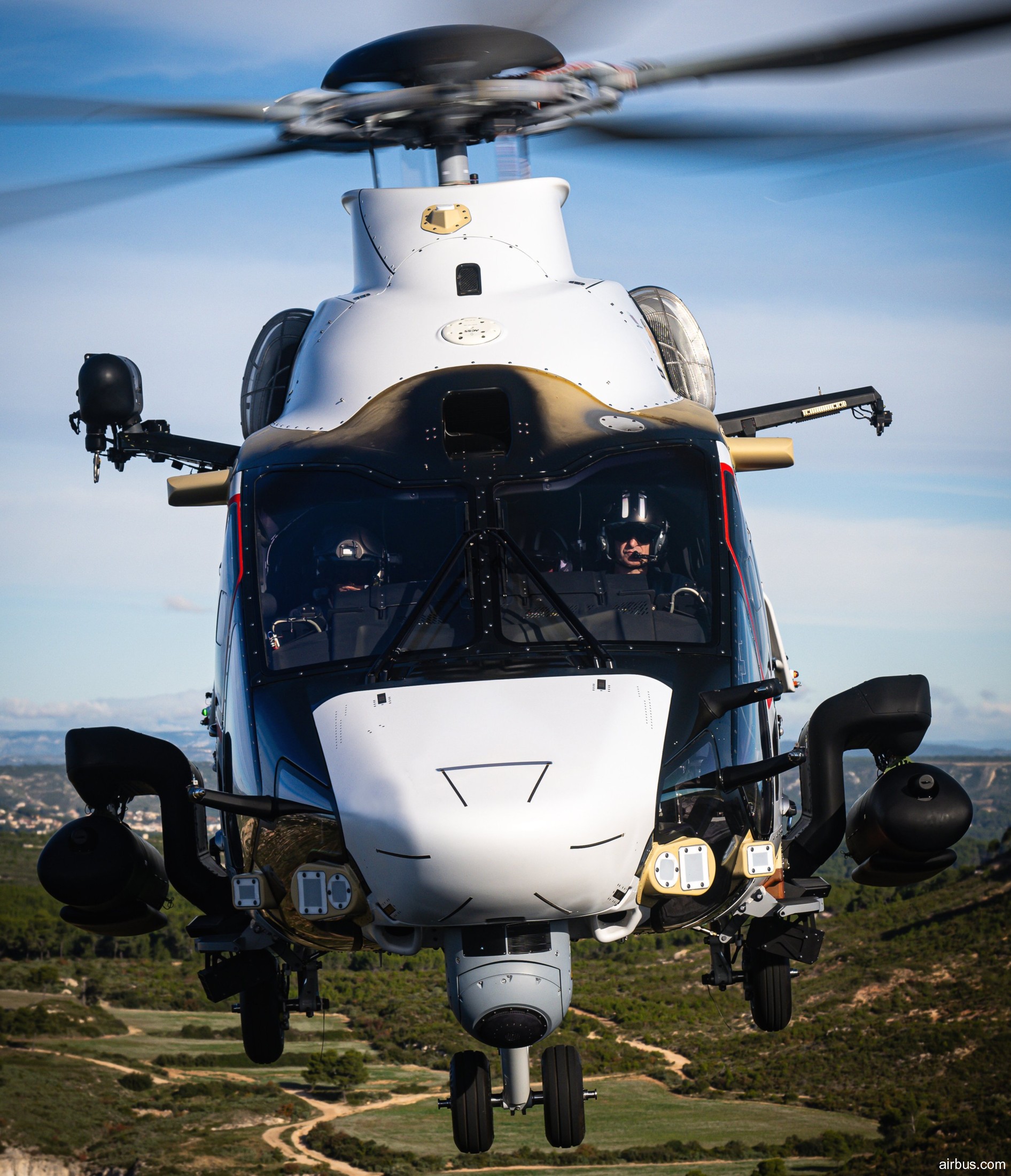

h160m guepard helicopter french navy marine nationale airbus 09

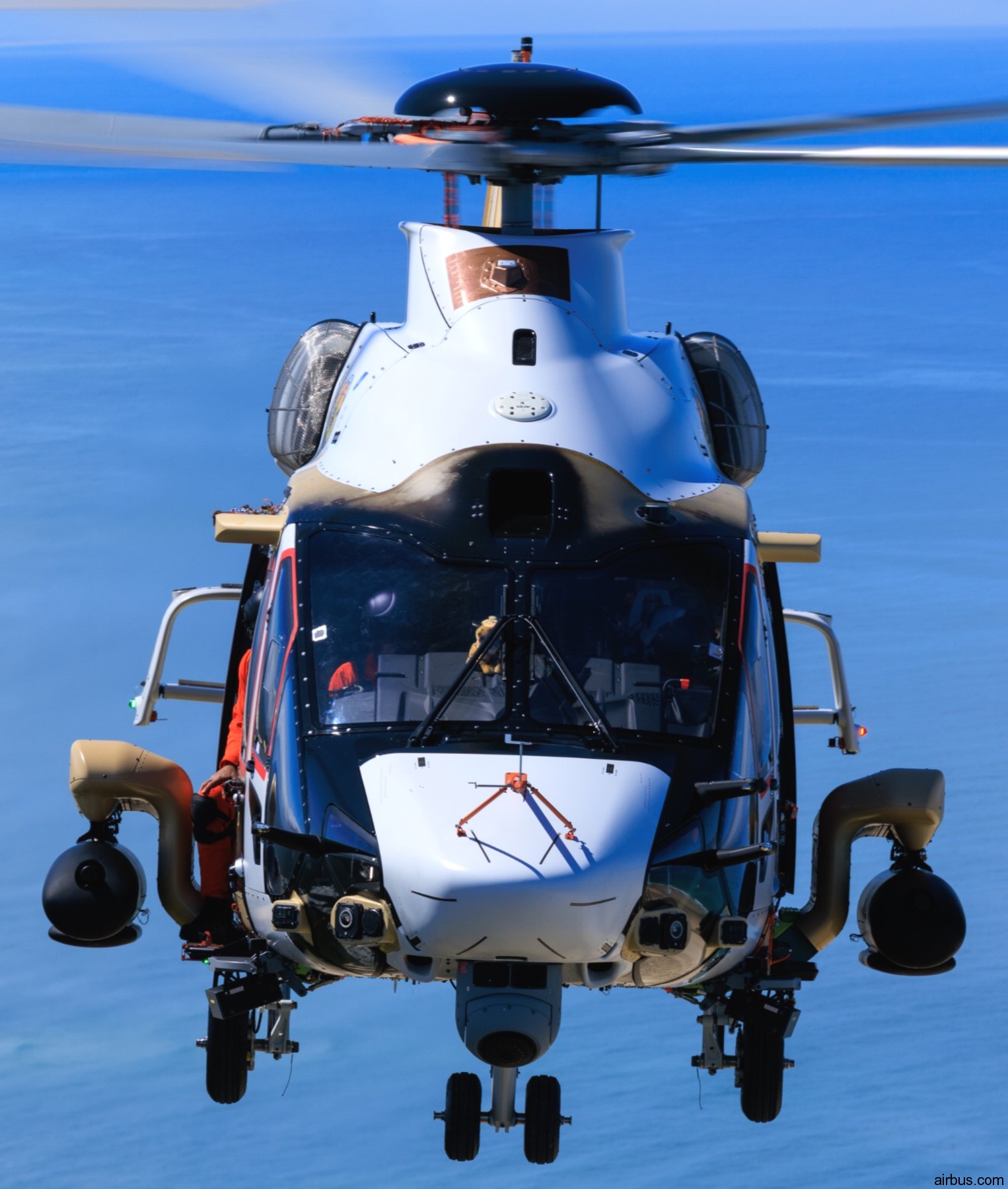

h160m guepard helicopter french navy marine nationale airbus 08

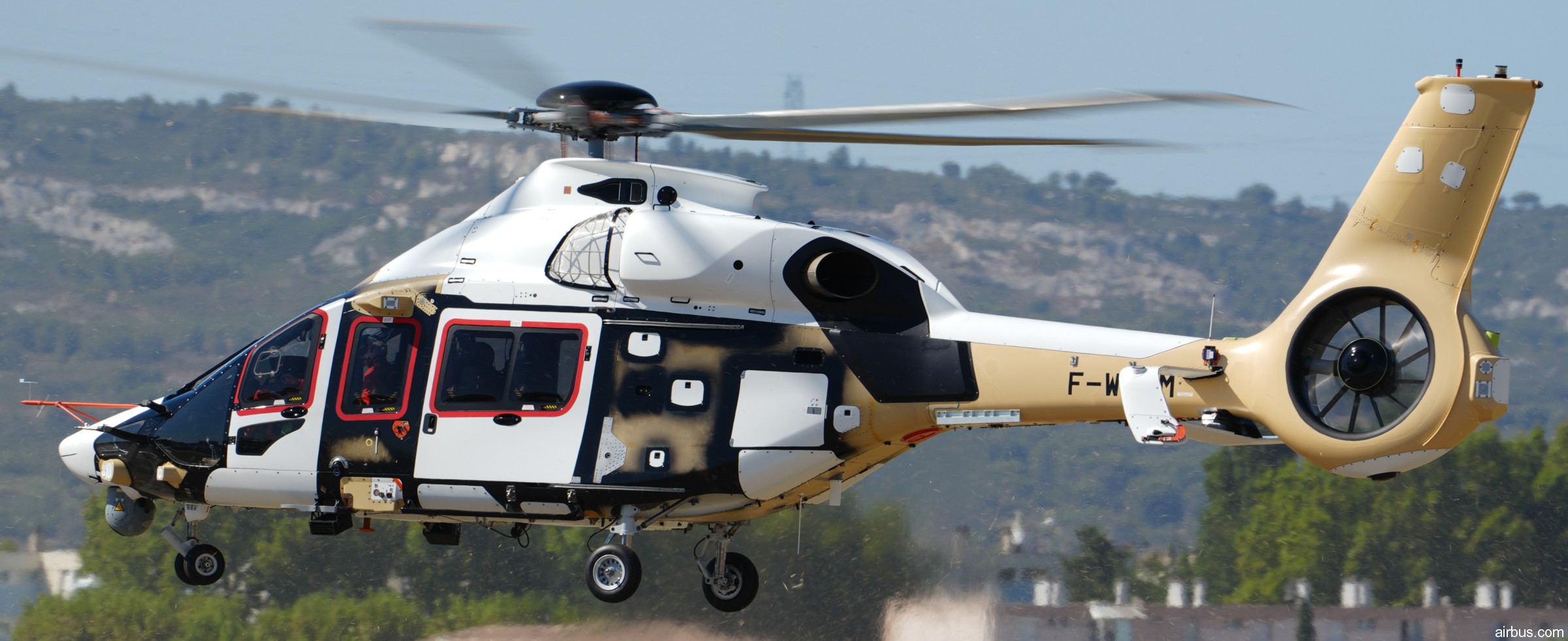

h160m guepard helicopter french navy marine nationale airbus 11

early prototype flight tests

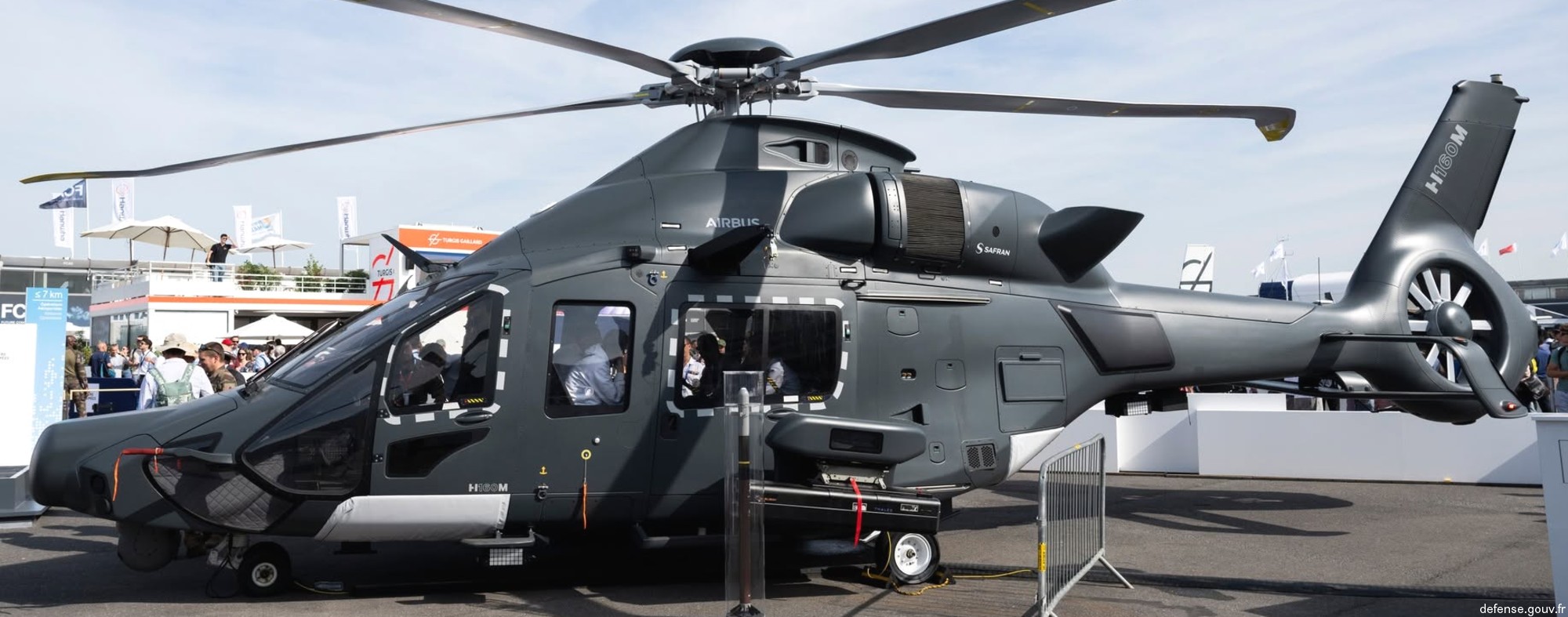

h160m guepard helicopter french navy marine nationale airbus 12

airbus h160m guepard helicopter french navy marine nationale flottille 03
