Type 209-1400 class Submarine SSK Egyptian Naval Force Navy

Arab Republic of Egypt - Egyptian Naval Force
Type 209-1400 class Attack Submarine - SSK

type 209-1400 mod class attack submarine ssk egytian naval force navy tkms 02x

02/24

Ships:

Unit / Name	Laid down	Launched	Commissioned	STATUS
S41 ENS 861	March 2012	December 2015	April 2017	IN SERVICE
S42 ENS 864	?	December 2016	August 2017	IN SERVICE
S43 ENS 867	?	May 2019	April 2020	IN SERVICE
S44 ENS 870	?	2020	July 7, 2021	IN SERVICE

Specifications:

Builder: ThyssenKrupp Marine Systems (TKMS), Kiel, Germany

Displacement: 1450 tons (surfaced) / 1600 tons (submerged)
Length: 62 meters (203 feet 5 inches)
Beam: 6.2 m (20 ft 4 in) pressure hull dimater
Speed: 11 knots (20 km/h) surfaced / 22 knots (41 km/h) submerged
Range, surfaced: 11000 NMI (20000 km) at 10 knots (19 km/h)
Range, snorkel: 8000 NMI (15000 km) at 10 knots (19 km/h)
Range, submerged: 400 NMI (750 km) at 4 knots (7 km/h)
Dive depth: 250 meters, max.
Complement: 30

Propulsion:
(Diesel Electric)
4 x MTU 12V396 SE84 diesel generators (3700 kW / 5000 shp)
4 x 120-cell batteries
1 x electric motor
1 shaft, 1 propeller

Armament:

8 x 21-inches / 533 mm bow torpedo tubes
for up to
14 x DM2A4 heavy weight torpedoes
and/or
UGM-84L Harpoon Block II SSM missiles

Systems:
?

The Type 209 is a range of diesel-electric attack submarines developed exclusively for export by Howaldtswerke-Deutsche Werft of Germany. Five class variants (Types 209/1100, 209/1200, 209/1300, 209/1400 and 209/1500), including modifications thereof, have been successfully exported to 15 countries, with 68 submarines being built and commissioned to five different variants between 1971 and 2021. More boats have been built to modified designs.

Egypt initially ordered two Type-209/1400mod submarines in 2011 and later ordered two more in 2014. The shipbuilder TKMS started building the first submarine S41 (861) in March 2012, the vessel was launched in December 2015 after 57 months of construction work. The Egyptian Navy received the S41 in December 2016, the second submarine S42 was launched during the same month. In April 2017, The S41 arrived at its home port in Alexandria and officially entered service, after a long journey from Kiel. Before reaching its naval base, the S41 conducted its first naval exercise with other units from the Egyptian Navy, ensuring its readiness to join the fleet. The Egyptian submarines have 8 x 21-inch (533 mm) torpedo tubes and are able to carry and launch up to 14 missiles and torpedoes, in addition to deploying naval mines. They will be fitted with DM2A4 SeaHake mod 4 torpedoes and UGM-84L Harpoon Block II missiles.

images

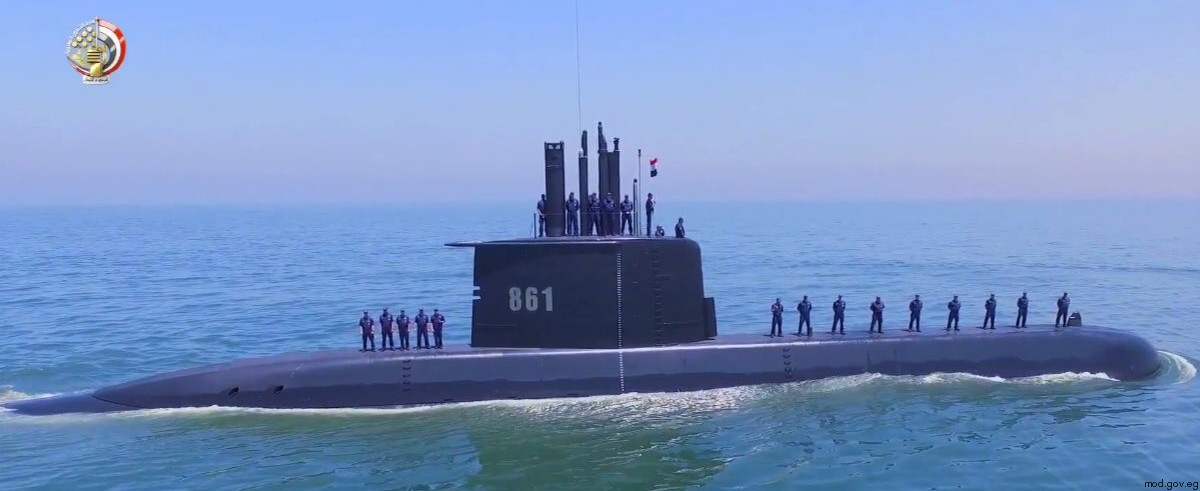

s41 ens 861 type 209-1400 mod class attack submarine egyptian naval force navy 02

S41 ENS 861

s41 ens 861 type 209-1400 mod class attack submarine egyptian naval force navy 03

S41 ENS 861

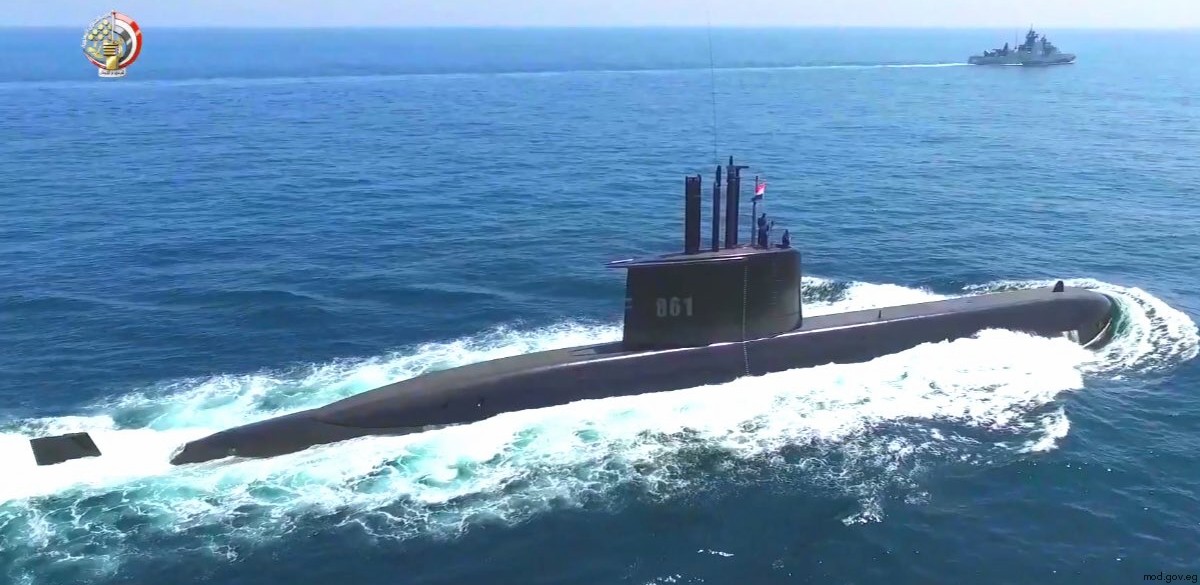

s41 ens 861 type 209-1400 mod class attack submarine egyptian naval force navy 04

S41 ENS 861

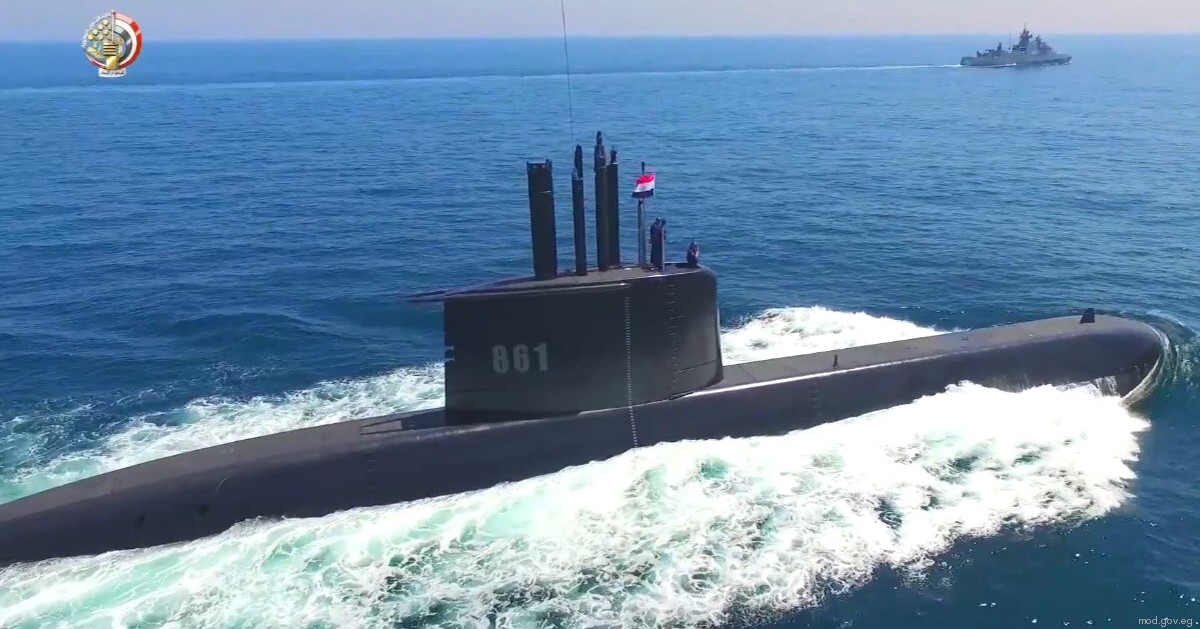

s41 ens 861 type 209-1400 mod class attack submarine egyptian naval force navy 05

S41 ENS 861

S42 ENS 864 - no image

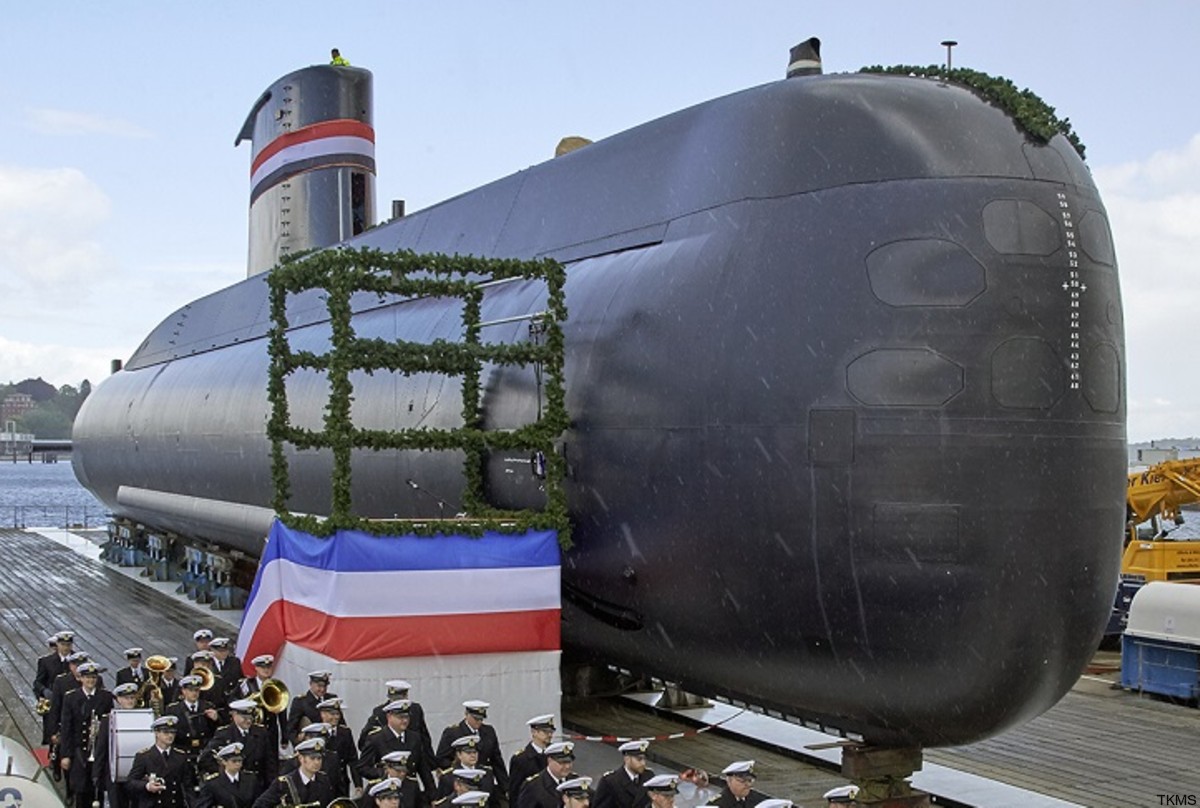

s43 ens 867 type 209-1400 mod class attack submarine egyptian naval force navy 03

S43 ENS 867

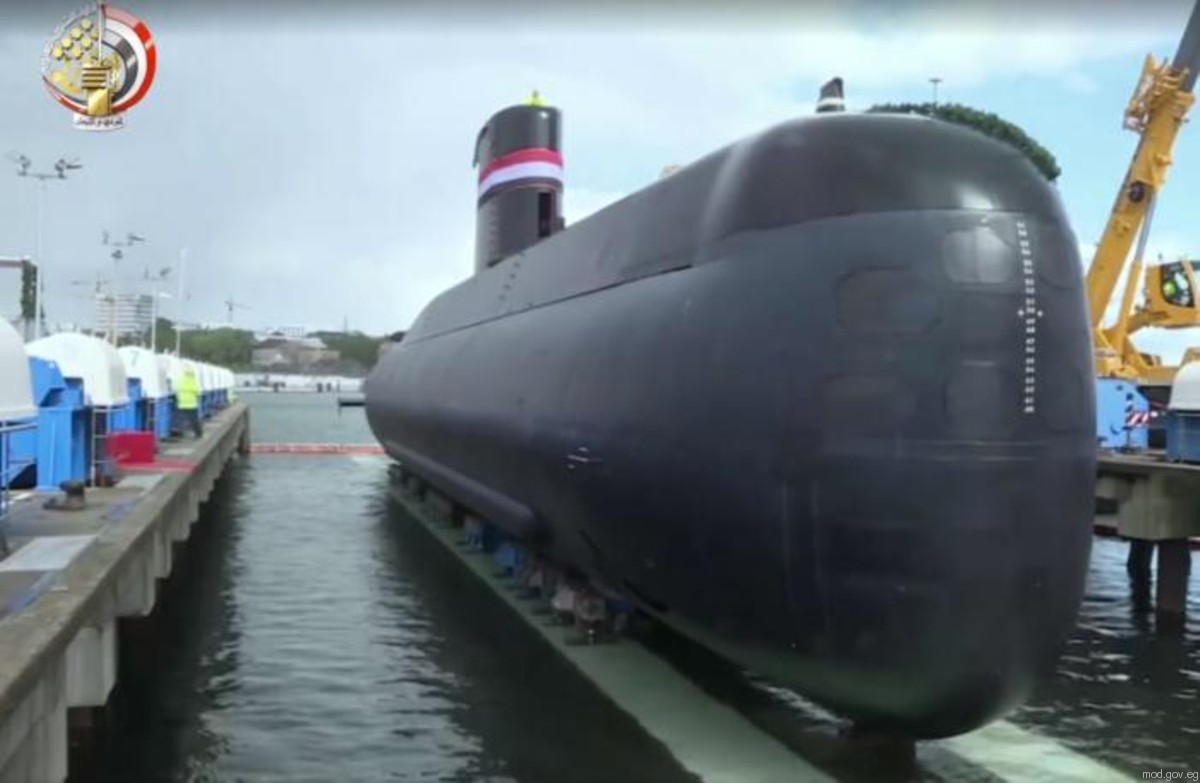

s43 ens 867 type 209-1400 mod class attack submarine egyptian naval force navy 02

S43 ENS 867

s44 ens 870 type 209-1400 mod class attack submarine egyptian naval force navy 02

S44 ENS 870

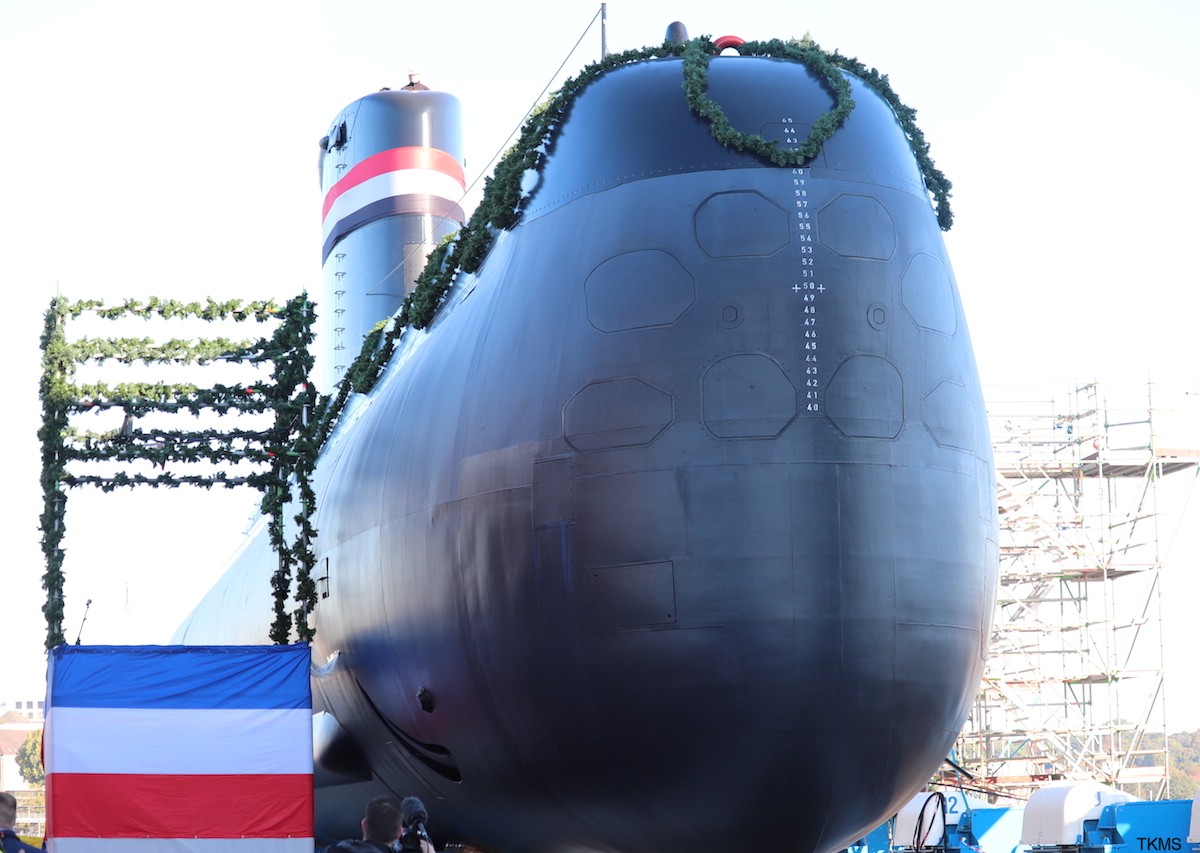

s44 ens 870 type 209-1400 mod class attack submarine egyptian naval force navy 03

S44 ENS 870
