Project 633 Romeo class Submarine SSK Egyptian Naval Force

Arab Republic of Egypt - Egyptian Naval Force

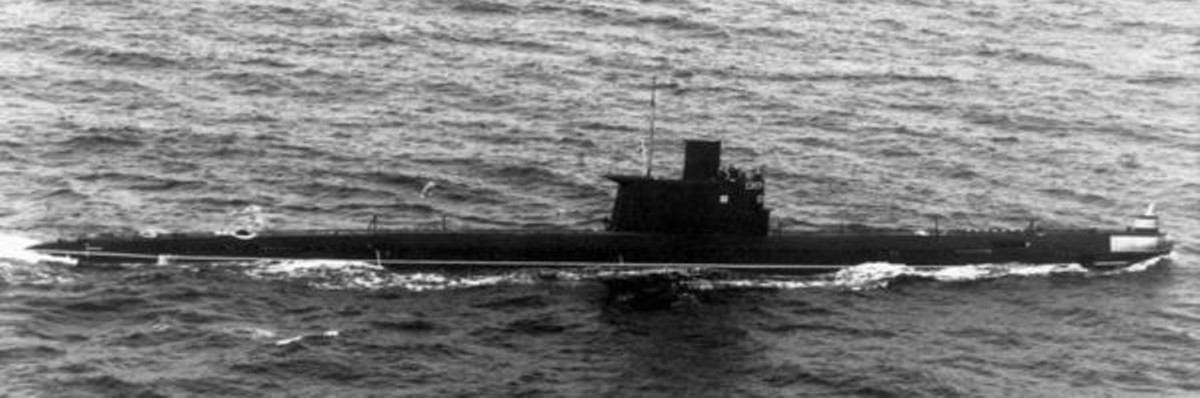

Project 633 Romeo class Attack Submarine - SSK

project 633 romeo class attack submarine ssk egyptian naval force navy 02x

02/24

Ships:

Unit / Name	Soviet service	Launched	Commissioned (EGY)	STATUS
ENS 711, later 831	C-32 / S-32	1959	1966	decommissioned 1989
ENS 342, later 834	C-34 / S-34	1959	1966	decommissioned 1989
ENS 334, later 837	C-353 / S-353	1958	1966	decommissioned 1996
ENS 335, later 840	C-354 / S-354	1959	1966	decommissioned 1996
ENS 333, later 843	C-352 / S-352	1958	1967	decommissioned 1996
ENS 332, later 846	C-351 / S-351	1958	1967	decommissioned 1996

Specifications:

Builder: Krasnoye Sormovo Shipyard No. 112, Gorky (now Nizhny Novgorod), Russia

Displacement: 1330 tons (surfaced) / 1730 tons (submerged)
Length: 76.6 meters (251 feet 3 inches)
Beam: 6.7 m (22 ft)
Draft: 5.2 m (17 ft 1 in)
Speed: 15 knots (28 km/h) surfaced / 13 knots (24 km/h) submerged
Range, surfaced: 7500 NMI (13900 km) at 9 knots (17 km/h)
Range, submerged: 350 NMI (650 km) on batteries
Dive depth: 270 meters
Complement: 55

Propulsion:
(Diesel Electric)
2 x Type 37D diesel generators (2940 kW / 4000 shp)
2 x PG-101 electric motors
2 shafts, 2 propellers

Armament:

8 x 21-inches / 533 mm (21 inches) torpedo tubes (6 bow, 2 stern)
for
14 x 21" heavy weight torpedoes
or
28 mines

Systems:
?

The Project 633 class (known in the West by its NATO reporting name as the Romeo class) is a class of Soviet diesel-electric submarine, built between 1957 and 1961.

Project 633 was a further development of the Soviet navy's post-war 611 (Zulu-class) and 613 (Whiskey-class) designs, which themselves were derivatives of the German Kriegsmarine Type XXI submarine. The project was undertaken by Lazurit Central Design Bureau of Gorky.

Only 20 of the Soviet Union's originally intended 56 were completed between October 1957 and the end of December 1961 because of the introduction of the nuclear submarine into the Soviet Navy.

Egypt operated six former Soviet Navy Projekt 633 Romeo class submarines.
