Najim al Zafir class Type 053HE Frigate Egyptian Naval Force

Arab Republic of Egypt - Egyptian Naval Force
Najim al Zafir (Type 053HE) class Frigate

najim al zafir type 053he class frigate egyptian naval force navy f956 ens al nasser 05x

02/24

Ships:

Unit / Name	Commissioned	STATUS
F 951 ENS Najim al Zafir	1984	DECOMMISSIONED
F 956 ENS Al Nasser	1985	DECOMMISSIONED

Specifications:

Builder: Jiangnan Shipyard, Shanghai, China

Displacement: 1700 tons (full load)
Length: 103.2 meters (339 feet)
Beam: 10.8 m (35 ft)
Draft: 3.05 m (10 ft)
Speed: 26 knots (48 km/h)
Range: ?
Complement: 190

Propulsion:
2 x 12E390VA diesel engines (7885 hp / 880 kW)
4 x SEMT Pielstick 16PA6 V280BTC diesel generators
2 shafts / 2 propellers

Armament:

2 x 57 mm / 70-caliber twin guns
2x2 HY-2 SSM missiles (NATO CSS-N-3 Seersucker)
3 x 37 mm / 63-caliber twin AA guns
4 x Type 81 5-tube ASW rocket launcher
depth charges + mines

Aviation:
none

Systems:
Type 354 radar
type 352 radar
H/SJD-3 sonar
GDG-775 optronic directors

images

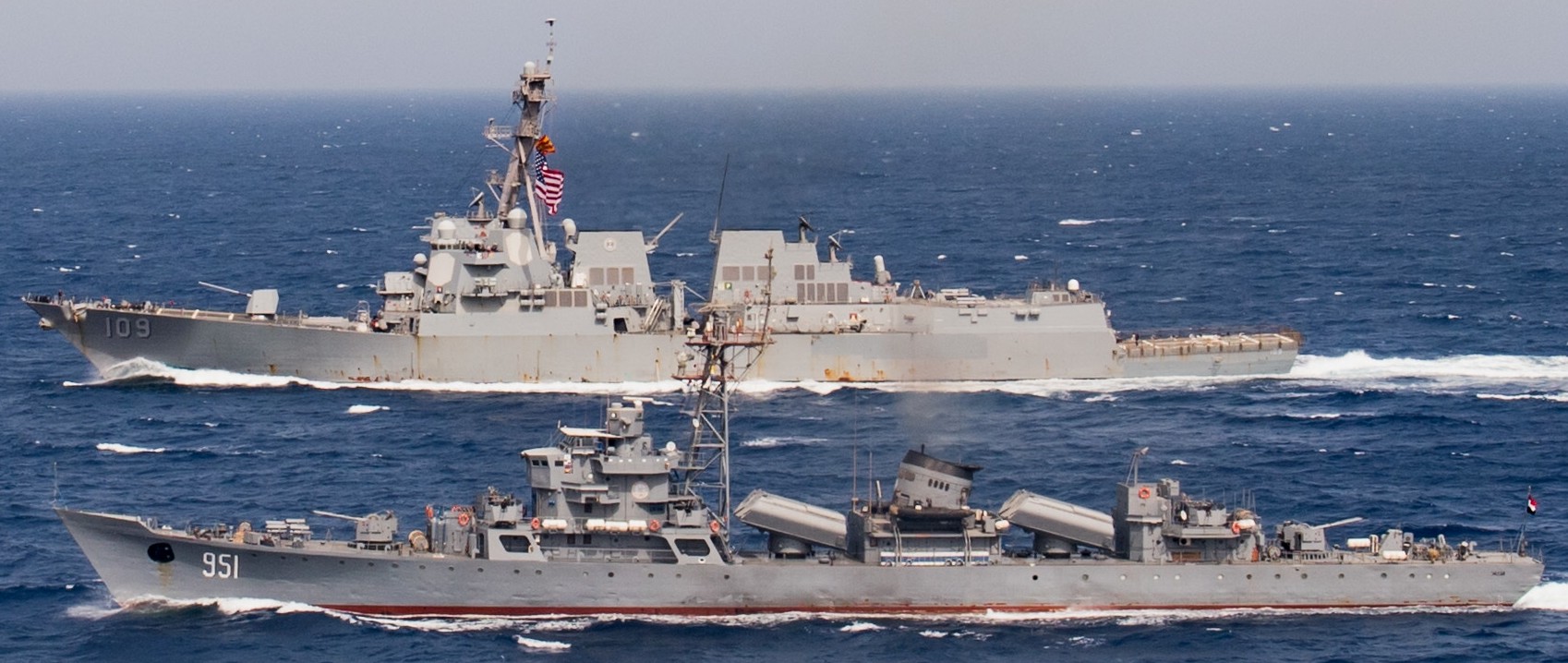

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 06

F 951 ENS Najim al Zafir

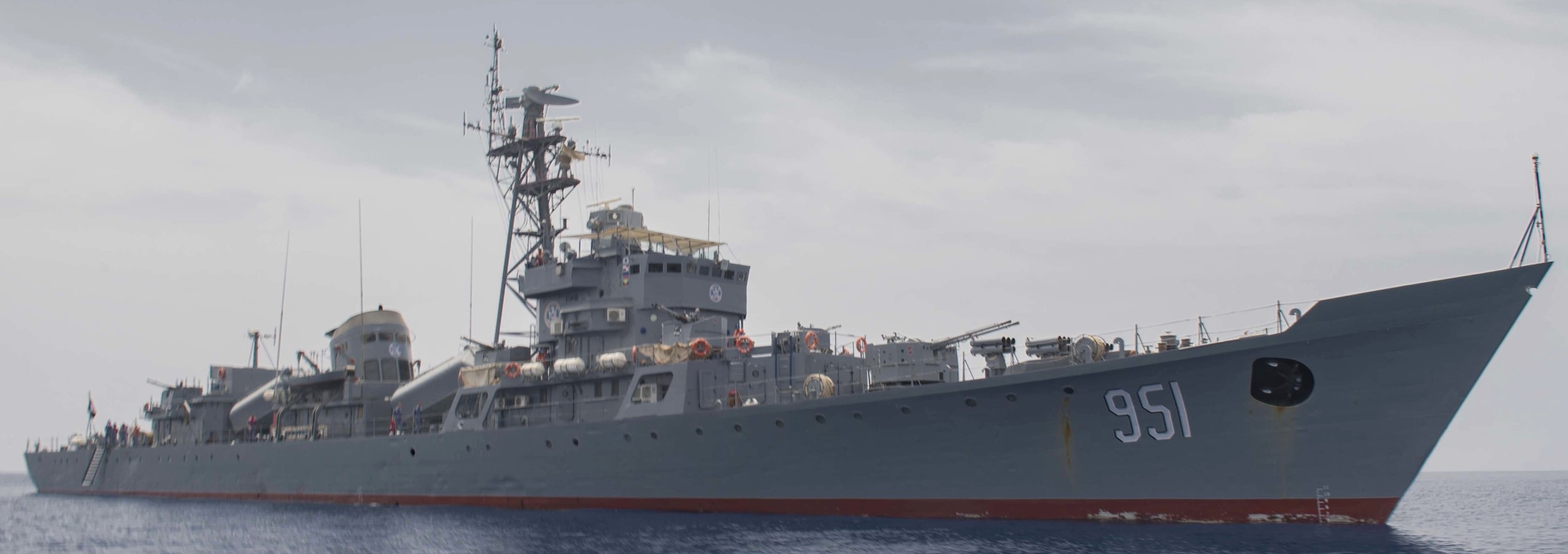

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 02

F 951 ENS Najim al Zafir

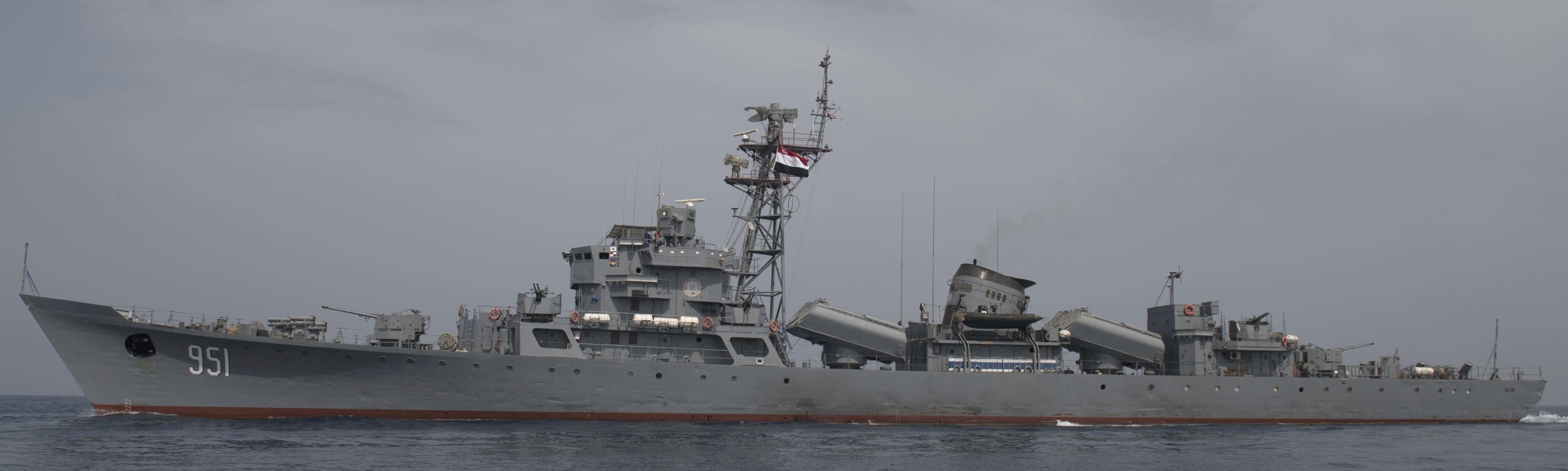

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 05

F 951 ENS Najim al Zafir

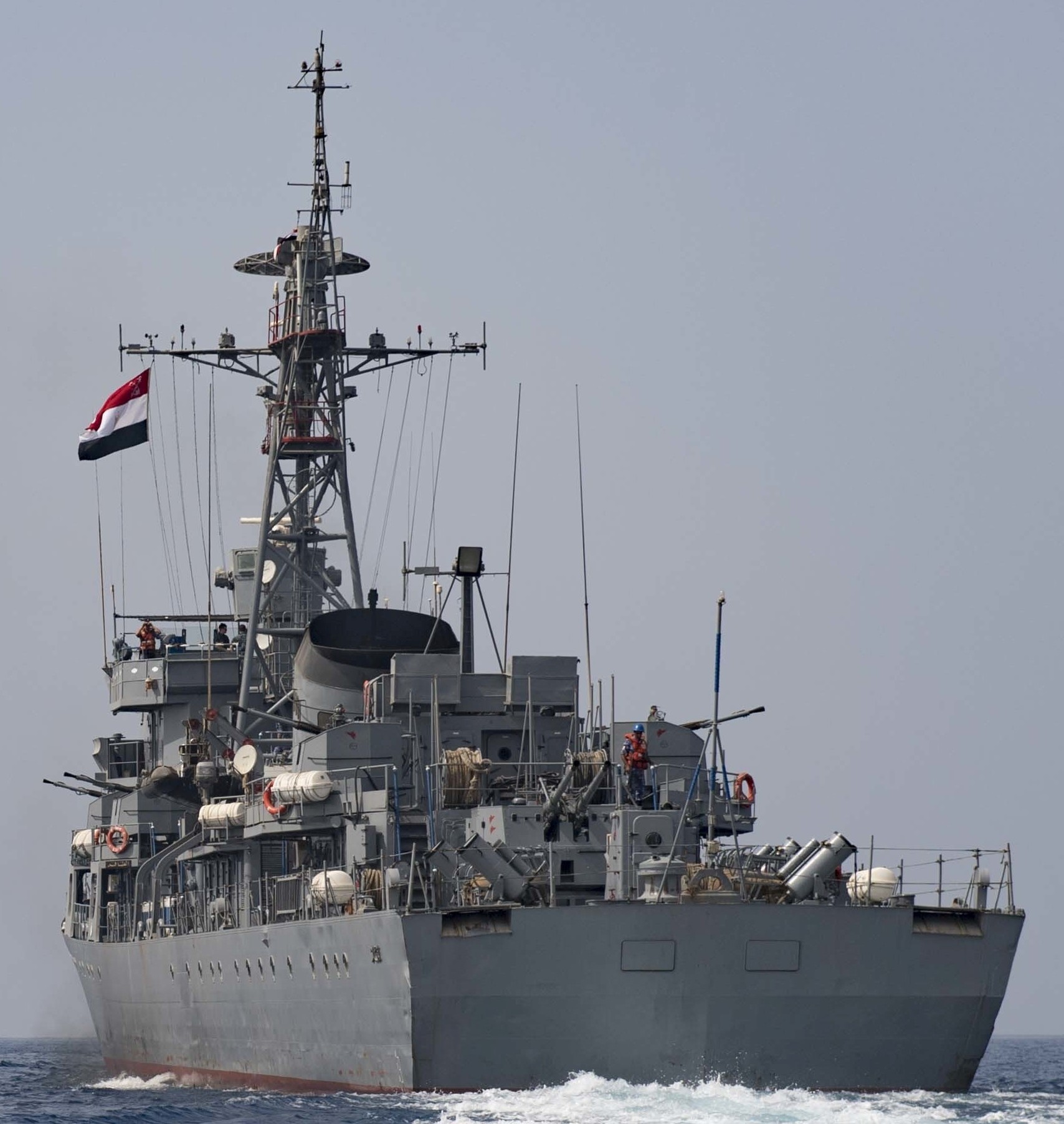

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 04

F 951 ENS Najim al Zafir

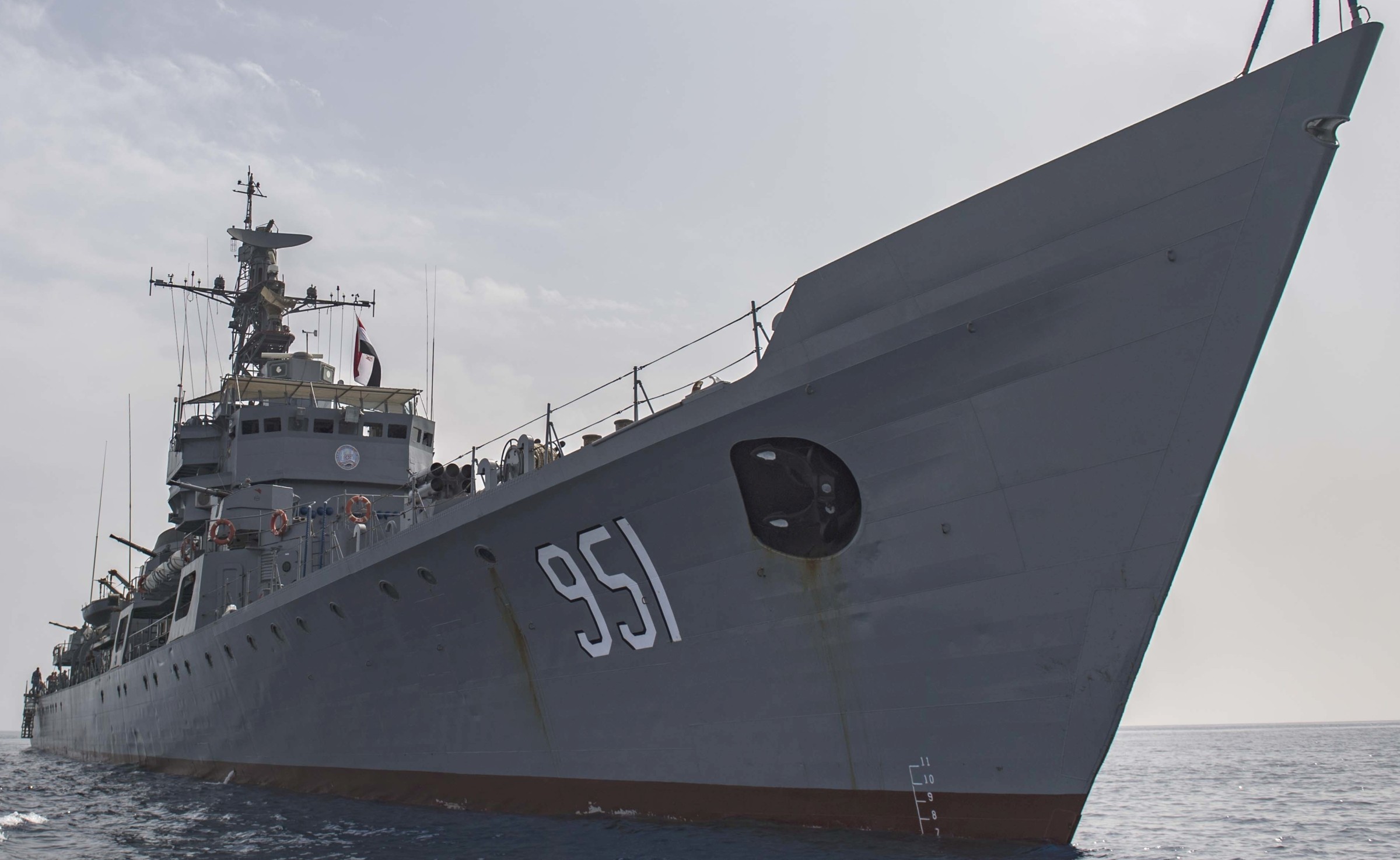

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 03

F 951 ENS Najim al Zafir

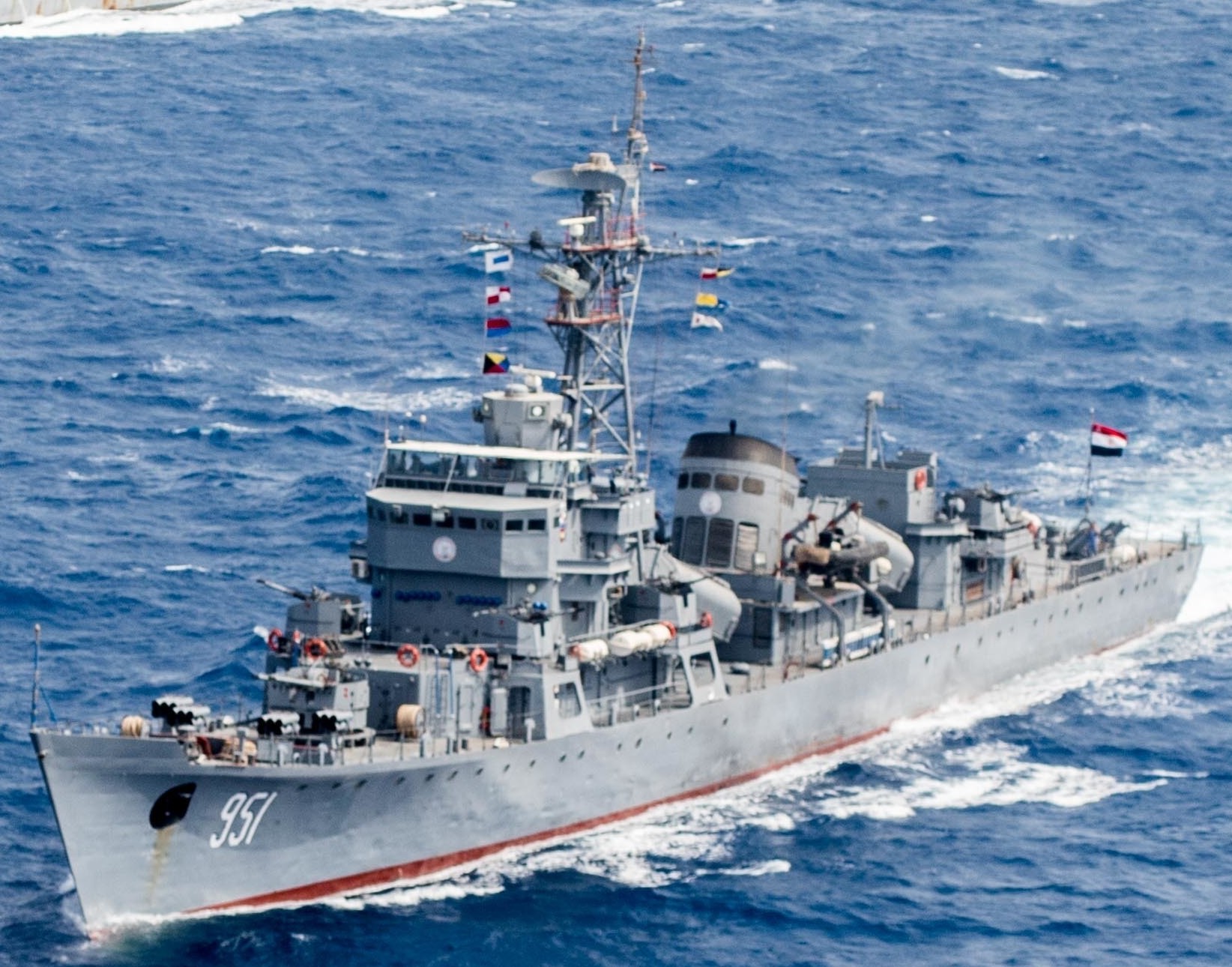

f-951 ens najim al zafir type 053he class frigate egyptian naval force navy 07

F 951 ENS Najim al Zafir

sorry, no images from F 956 ENS Al Nasser
