Type 054A Jiangkai II class Guided Missile Frigate

 type 054a jiangkai ii class guided missile frigate people's liberation army navy china hq-16 sam yu-8 yj-83 ssm

02/22
Ships:
Unit / Name
Batch 1
Name (Han) Builder Launched Commissioned STATUS
FFG 529 PLANS Zhoushan 舟山 Hudong December 21, 2006 January 3, 2008 ACTIVE

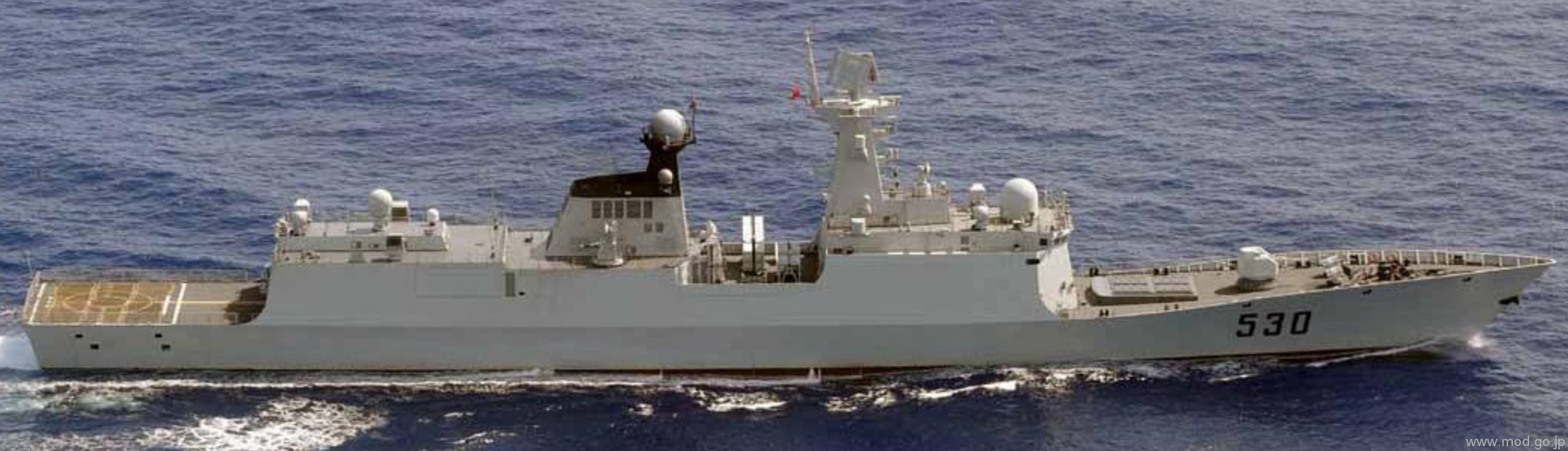

FFG 530 PLANS Xuzhou 徐州 Whampoa September 30, 2006 January 27, 2008 ACTIVE
FFG 570 PLANS Huangshan 黄山 Whampoa March 18, 2007 May 13, 2008 ACTIVE
FFG 568 PLANS Hengyang 衡阳 Hudong May 23, 2007 June 30, 2008 ACTIVE
Unit / Name
Batch 2
Name (Han) Builder Launched Commissioned STATUS
FFG 571 PLANS Yuncheng 运城 Whampoa February 8, 2009 January 27, 2010 ACTIVE
FFG 569 PLANS Yulin 玉林 Hudong April 28, 2009 February 1, 2010 ACTIVE
FFG 548 PLANS Yiyang 益阳 Whampoa November 17, 2009 October 26, 2010 ACTIVE
FFG 549 PLANS Changzhou 常州 Hudong May 18, 2010 May 30, 2011 ACTIVE
FFG 538 PLANS Yantai 烟台 Whampoa August 24, 2010 July 30, 2011 ACTIVE
FFG 546 PLANS Yancheng 盐城 Hudong April 27, 2011 June 5, 2012 ACTIVE
FFG 572 PLANS Hengshui 衡水 Whampoa May 21, 2011 July 9, 2012 ACTIVE
FFG 547 PLANS Linyi 临沂 Whampoa December 13, 2011 November 22, 2012 ACTIVE
FFG 573 PLANS Liuzhou 柳州 Hudong December 10, 2011 December 26, 2012 ACTIVE
FFG 575 PLANS Yueyang 岳阳 Whampoa May 9, 2012 May 3, 2013 ACTIVE
FFG 550 PLANS Weifang 潍坊 Hudong July 9, 2012 June 22, 2013 ACTIVE
FFG 574 PLANS Sanya 三亚 Hudong November 30, 2012 December 13, 2013 ACTIVE
Unit / Name
Batch 3
Name (Han) Builder Launched Commissioned STATUS
FFG 576 PLANS Daqing 大庆 Whampoa October 8, 2013 January 16, 2015 ACTIVE
FFG 577 PLANS Huanggang 黄冈 Hudong April 28, 2013 January 16, 2015 ACTIVE
FFG 579 PLANS Handan 邯郸 Whampoa July 26, 2014 August 16, 2015 ACTIVE
FFG 578 PLANS Yangzhou 扬州 Hudong September 30, 2013 September 21, 2015 ACTIVE
FFG 532 PLANS Jingzhou 荆州 Hudong January 22, 2015 January 5, 2016 ACTIVE
FFG 531 PLANS Xiangtan 湘潭 Whampoa March 19, 2015 February 24, 2016 ACTIVE
FFG 515 PLANS Binzhou 滨州 Hudong December 13, 2015 December 29, 2016 ACTIVE
FFG 536 PLANS Xuchang 许昌 Whampoa May 30, 2016 June 23, 2017 ACTIVE
FFG 539 PLANS Wuhu 芜湖 Hudong June 8, 2016 June 29, 2017 ACTIVE
FFG 598 PLANS Rizhao 日照 Whampoa April 1, 2017 January 12, 2018 ACTIVE
Unit / Name
Batch 4
Name (Han) Builder Launched Commissioned STATUS
FFG 599 PLANS Anyang 安阳 Hudong March 28, 2017 April 12, 2018 ACTIVE
FFG 500 PLANS Xianning 咸宁 Whampoa September 22, 2017 August 28, 2018 ACTIVE
FFG 601/533 PLANS Nantong 南通 Hudong December 16, 2017 January 23, 2019 ACTIVE
FFG 542 PLANS Zaozhuang 枣庄 Whampoa June 30, 2018 February 22, 2019 ACTIVE
Unit / Name
Batch 5
Name (Han) Builder Launched Commissioned STATUS
FFG 534 PLANS Ziyang 资阳 Whampoa July 12, 2021 2022 ?
FFG 535 PLANS Hebi 鹤壁 Hudong August 1, 2021 2022 ?
FFG 540 PLANS Xichang 西昌 Whampoa November 2021 2022 ?
FFG 537 PLANS Anqing 安庆 Hudong December 23, 2021 2022 ?
FFG 518 PLANS Gian 吉安 Whampoa December 23, 2021 2022 ?
FFG 514 PLANS Zhenjiang 镇江 Whampoa 2022 2023 ?
FFG 552 PLANS Yibin 宜宾 Whampoa 2022 2023 ?
FFG 516 PLANS Jiujiang 九江   2022 2023 ?
FFG 517 PLANS Nanping 南平   2022 2023 ?
FFG 513 PLANS Huaian 淮安   2022 2023 ?
FFG 551 PLANS Maoming 茂名   2022 2023 ?
FFG 555 PLANS Zhaotong 昭通   ? ?
FFG 556 PLANS Yingtan 鹰潭   ? ?

 + 7 for a total of 50 units planned

Specifications:

Builders:
Hudong-Zhonghua Shipbuilding, Shanghai, China
Whampoa Wenchong Shipbuilding Co., Ltd., Guangzhou, China

Displacement:
3600 tons (standard) / 4050 tons (full load)
Length:
134.1 meters (439 feet 11 inches)
Beam: 16 meters (52 ft 6 in)
Draft: 4.5 meters (14 ft 9 in)

Speed: 28 knots (52 km/h)
Range: 4000 NMI (7400 km) at 18 knots (33 km/h)
Complement: 180

Propulsion:
(Combined Diesel and Diesel - CODAD)
4 x
Pielstick 16PA6V-280STC diesel engines (6750 kW / 9050 hp, each)
2 shafts / 2 propellers


Armament:

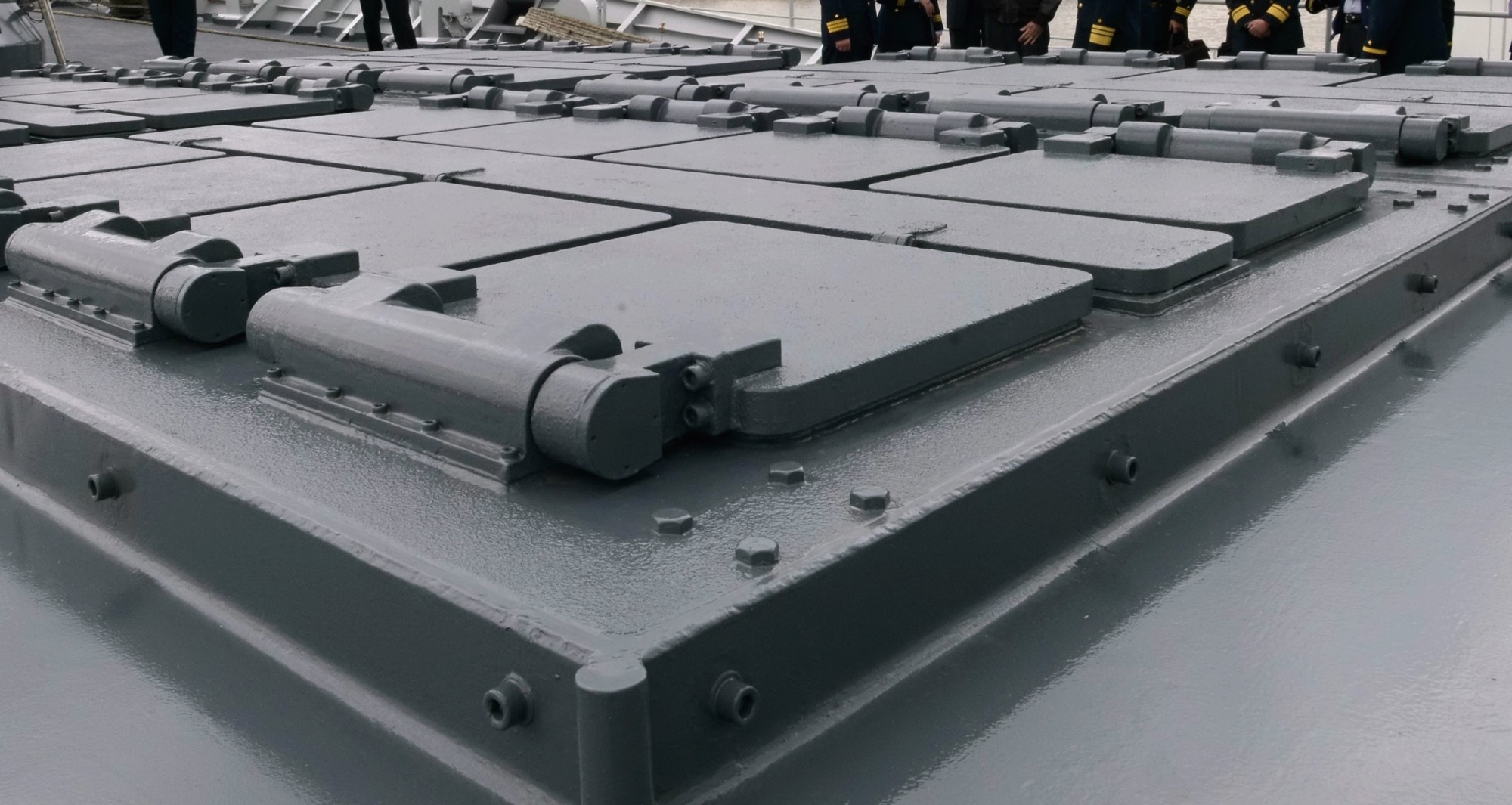

H/AKJ-16 vertical launching system (VLS) - 32 cells
for a mix of
HQ-16 medium-range anti-air missiles (SAM)
YU-8 rocket assisted ASW torpedoes (ASROC)


2x4 box launchers for YJ-83 anti-ship missiles (SSM)

1 x H/PJ-26 76mm DP gun


2 x H/PJ-12 (Type 730) 30mm close-in weapon system (CIWS) - (Flight 1+2)
2 x H/PJ-11 (Type 1130) 30mm close-in weapon system (CIWS) - (Flight 3+4)

2 x Type 7424 324mm triple torpedo tubes for YU-7 torpedoes

2 x Type 87 240mm ASW rocket launchers


Aviation:
flight deck and hangar for 1 helicopter

Systems:
H/LJQ-366 surface search radar
H/LJQ-382 3D air search radar
H/LJQ-364 sea/low altitude search radar
Racal RM-1290 navigation radar

Type 344 fire control radar / Mineral-ME Band Stand (SSM)
Type 345 fire control radar / MR-90 Front Dome (SAM)
Type 347G fire control radar (gun)
H/LJP-349A fire control radar (CIWS)

MGK-335 medium frequency active/passive sonar system
H/SJD-9 active/passive hull sonar
H/SJG-206 towed line array sonar (Flight 1+2)
H/SJG-311 active/passive towed line array sonar (Flight 3+4)

Type 562 underwater acoustic countermeasure system
H/RJZ-726 Electronic Countermeasure System
Type 922-1 radar warning receiver
HZ-100 ECM & ELINT system
Kashtan-3 missile jamming system
Type 726-4 18-tube chaff/decoy launchers
