China - People's Liberation Army Navy
 Type 052C Luyang II class Guided Missile Destroyer


type 052c class guided missile destroyer ddg china people's liberation army navy plan 07x

02/22
Ships:
Unit / Name
Batch 1		 Name (Han) Builder Launched Commissioned STATUS
DDG 170 PLANS Lanzhou 兰州 Jiangnan  April 29, 2003 October 18, 2005 ACTIVE
DDG 171 PLANS Haikou 海口 Jiangnan  October 30, 2003 December 26, 2005 ACTIVE
Unit / Name
Batch 2		 Name (Han) Builder Launched Commissioned STATUS
DDG 150 PLANS Changchun 长春 Jiangnan  October 28, 2010 January 31, 2013 ACTIVE
DDG 151 PLANS Zhengzhou 郑州 Jiangnan  July 20, 2011 December 26, 2013 ACTIVE
DDG 152 PLANS Jinan 济南 Jiangnan  January 2012 December 22, 2014 ACTIVE
DDG 153 PLANS Xi'an 西安 Jiangnan  July 2012 February 9, 2015 ACTIVE

Specifications:

Builder:
 Jiangnan Shipyard (Group) Co. Ltd., Shanghai, China

Displacement: 5800 tons (standard) / 7000 tons (full load)
Length: 155 meters (508 feet 6 inches)
Beam: 17 meters (55 ft 9 in)
Draft: 6 meters (19 ft 8 in)
Speed: 31+ knots (57+ km/h)
Range: 4000 NM (7400 km) at 18 knots (33 km/h)
Complement: 220

Propulsion:
Combined Diesel or Gas (CODOG)
2 x UGT-25000 gas turbines (batch 1) / 2 x QC-280 gas turbines (batch 2)
2 x MTU-20 V956 TB92 diesel engines (3.82 MW / 10250 hp, each)
2 shafts / 2 controllable pitch propellers (CPP)

Armament:

Vertical Launching System (VLS)
6x6 = 36 forward / 2x6 = 12 on hangar = 48 cells for:
HHQ-9 surface-to-air missiles (SAM)

1 x H/PJ-87 100 mm naval gun
2x4 YJ-62 anti-ship missiles (SSM)
2 x Type 730 H/PJ-12 close-in weapon system (CIWS)
 6 x torpedo tubes
 4 x multiple decoy rocket launchers

Aviation:
 flight deck and hangar for 1 helicopter
Systems:
H/LJG-346 multi-function, dual-band (S and C-bands) active electronically scanned array radar (AESA)
H/LJQ-517B air search radar
H/LJQ-366 over-the-horizon surface search radar
H/LJQ-364 sea/low altitude search radar
Type 344 multifunctional fire control radar (gun)
H/LJP-349 fire control radar (Type 730 CIWS)
H/SJD-9 hull mounted active/passive sonar
NRJ-6A Electronic Warfare System (ESM)
H/RJZ-726 Electronic Countermeasure System (ECM)


images

ddg-170 plans lanzhou type 052c class guided missile destroyer china people's liberation army navy 02
DDG-170 PLANS Lanzhou


ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 02
DDG-171 PLANS Haikou

ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 03
DDG-171 PLANS Haikou

ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 04
DDG-171 PLANS Haikou

ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 05
DDG-171 PLANS Haikou

ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 06
DDG-171 PLANS Haikou

ddg-171 plans haikou type 052c class guided missile destroyer china people's liberation army navy 07
DDG-171 PLANS Haikou


ddg-150 plans changchun type 052c class guided missile destroyer china people's liberation army navy 02
DDG-150 PLANS Changchun

ddg-150 plans changchun type 052c class guided missile destroyer china people's liberation army navy 03
DDG-150 PLANS Changchun

ddg-150 plans changchun type 052c class guided missile destroyer china people's liberation army navy 04
DDG-150 PLANS Changchun


ddg-151 plans zhengzhou type 052c class guided missile destroyer china people's liberation army navy 02
DDG-151 PLANS Zhengzhou

ddg-151 plans zhengzhou type 052c class guided missile destroyer china people's liberation army navy 03
DDG-151 PLANS Zhengzhou


ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 04
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 02
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 03
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 05
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 06
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 07
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 10
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 08
DDG-152 PLANS Jinan

ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 09  ddg-152 plans jinan type 052c class guided missile destroyer china people's liberation army navy 09a
DDG-152 PLANS Jinan


ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 02
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 03
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 04
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 05
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 06
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 07
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 08
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 09
DDG-153 PLANS Xi'an

ddg-153 plans xian type 052c class guided missile destroyer china people's liberation army navy 10
DDG-153 PLANS Xi'an


ARMAMENT + DETAILS

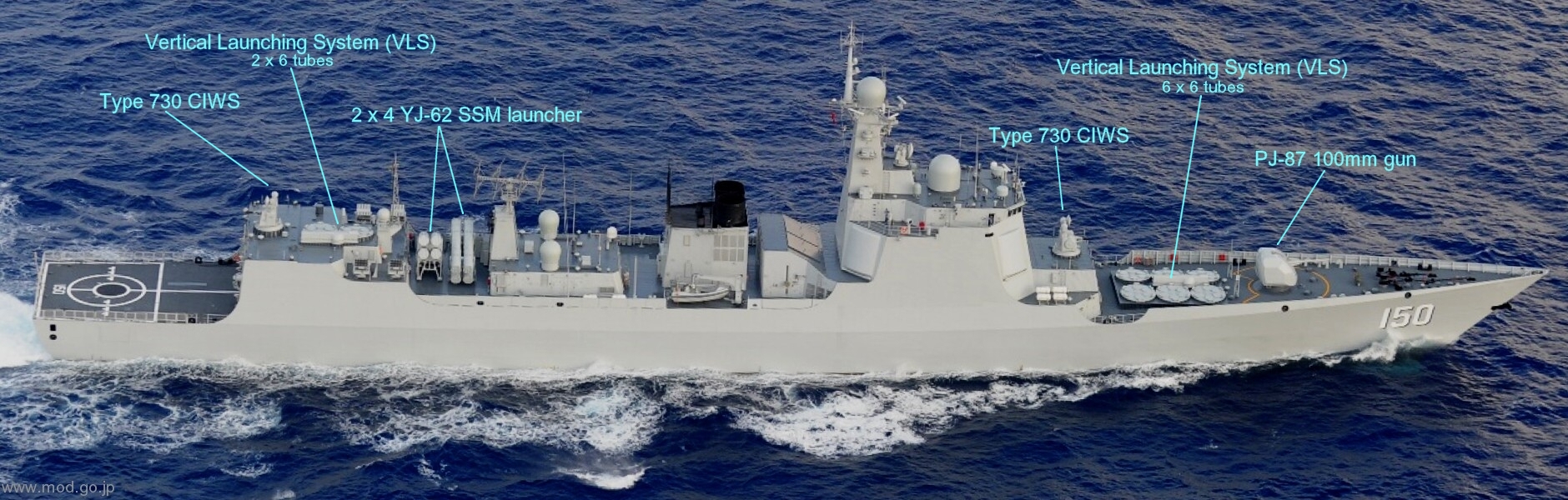

type 052c class guided missile destroyer china people's liberation army navy armament 02


type 052c class guided missile destroyer type 730 ciws vertical launching system vls pj-87 100mm gun china people's liberation army navy 02a
Type 730 CIWS - forward vertical launching system (VLS) 6 canisters with 6 cells - PJ-87 100mm gun

type 052c class guided missile destroyer vertical launching system vls hhq-9 sam china people's liberation army navy 12
vertical launching system (VLS) details - there are 6 launching tubes in each canister

type 052c class guided missile destroyer yj-62 ssm decoy launcher type-730 ciws china people's liberation army navy 02c
aft type 730 CIWS - 4 x multiple decoy launcher - quadruple launching tubes for YJ-62 anti-ship missiles (SSM)

type 052c class guided missile destroyer yj-62 ssm decoy launcher type-730 ciws china people's liberation army navy 07a
quadruple launching tubes for YJ-62 anti-ship missiles (SSM) - 4 x multiple decoy launcher

type 052c class guided missile destroyer pj-87 100mm gun china people's liberation army navy 11
PJ-87 100mm naval gun

type 052c class guided missile destroyer type-346 aesa radar china people's liberation army navy 05
4 x Type 346 multi-function, dual-band (S and C-bands) active electronically scanned array radar (AESA)

type 052c class guided missile destroyer type-346 aesa radar aegis china people's liberation army navy 10a
Type 346 AESA radar

type 052c class guided missile destroyer type-730 ciws close-in weapon system china people's liberation army navy 05a
Type 730 H/PJ-11 close-in weapon system (CIWS)

type 052c class guided missile destroyer mast antenna china people's liberation army navy 02b
mast and antenna details
