China - People's Liberation Army Navy
Type 071 Yuzhao class Landing Ship Dock - LSD

 type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy plan 02x

02/22
Ships:
Unit / Name
Batch 1
Name (Han) Builder Launched Commissioned STATUS
LSD 998 PLANS Kunlun Shan 昆仑山 Hudong December 21, 2006 November 30, 2007 ACTIVE
LSD 999 PLANS Jinggang Shan 井冈山 Hudong November 18, 2010 October 30, 2011 ACTIVE
LSD 989 PLANS Changbai Shan 长白山 Hudong September 26, 2011 September 23, 2012 ACTIVE
Unit / Name
Batch 2
Name (Han) Builder Launched Commissioned STATUS
LSD 988 PLANS Yimeng Shan 沂蒙山 Hudong January 22, 2015 February 1, 2016 ACTIVE
LSD 980 PLANS Longhu Shan 龙虎山 Hudong June 15, 2017 September 12, 2018 ACTIVE
LSD 987 PLANS Wuzhi Shan 五指山 Hudong January 20, 2018 January 12, 2019 ACTIVE
LSD 986 PLANS Siming Shan 四明山 Hudong December 28, 2018 2020 ACTIVE
LSD 985 PLANS Qilian Shan 祁连山 Hudong June 6, 2019 2020 ACTIVE
Unit / Name
Batch 3
Name (Han) Builder Launched Commissioned STATUS
LSD 990 PLANS Ali Shan 阿里山 Hudong 2022 2023 ? building
LSD 995 PLANS Shiwan Dashan 十万大山 Hudong 2022 2023 ? building

Specifications:

Builder:
Hudong-Zhonghua Shipbuilding Co. Ltd., Shanghai, China


Displacement:
25000 tons (full load)
Length:
210 meters (689 feet)
Beam: 28 meters (91 ft 10 in)
Draft: 7 meters (23 ft)

Speed: 25 knots (46 km/h)
Range: 6000 NMI (11000 km)
Complement: 175 (ship)

Propulsion:
(Combined Diesel and Diesel - CODAD)
4 x
SEMT Pielstick (Shaanxi license) 16 PC2.6 V400 diesel engines (35000 kW / 47000 hp, each)
2 shafts / 2 propellers


Armament:
1 x
H/PJ-26 76mm DP gun
 4 x H/PJ-13 (AK-630M) 30mm close-in weapon system
4 x Type 726-4 chaff/decoy launchers



Aviation:
flight deck and hangar for up to 4 helicopters

Landing Craft + Troops:
4 x Type 726 Yuyi class Landing Craft, Air Cushion (LCAC)
Armored Amphibious Assault Vehicles (AAV)
up to 900 embarked soldiers

Systems:
Type 360 (Seagull-S) air/surface search radar (E/F-band)
Type 364 air search radar (G-band)
Type 344 fire control radar (I-band)


images

lsd-989 plans changbai shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 03
LSD 989 PLANS Changbai Shan

lsd-989 plans changbai shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 02
LSD 989 PLANS Changbai Shan

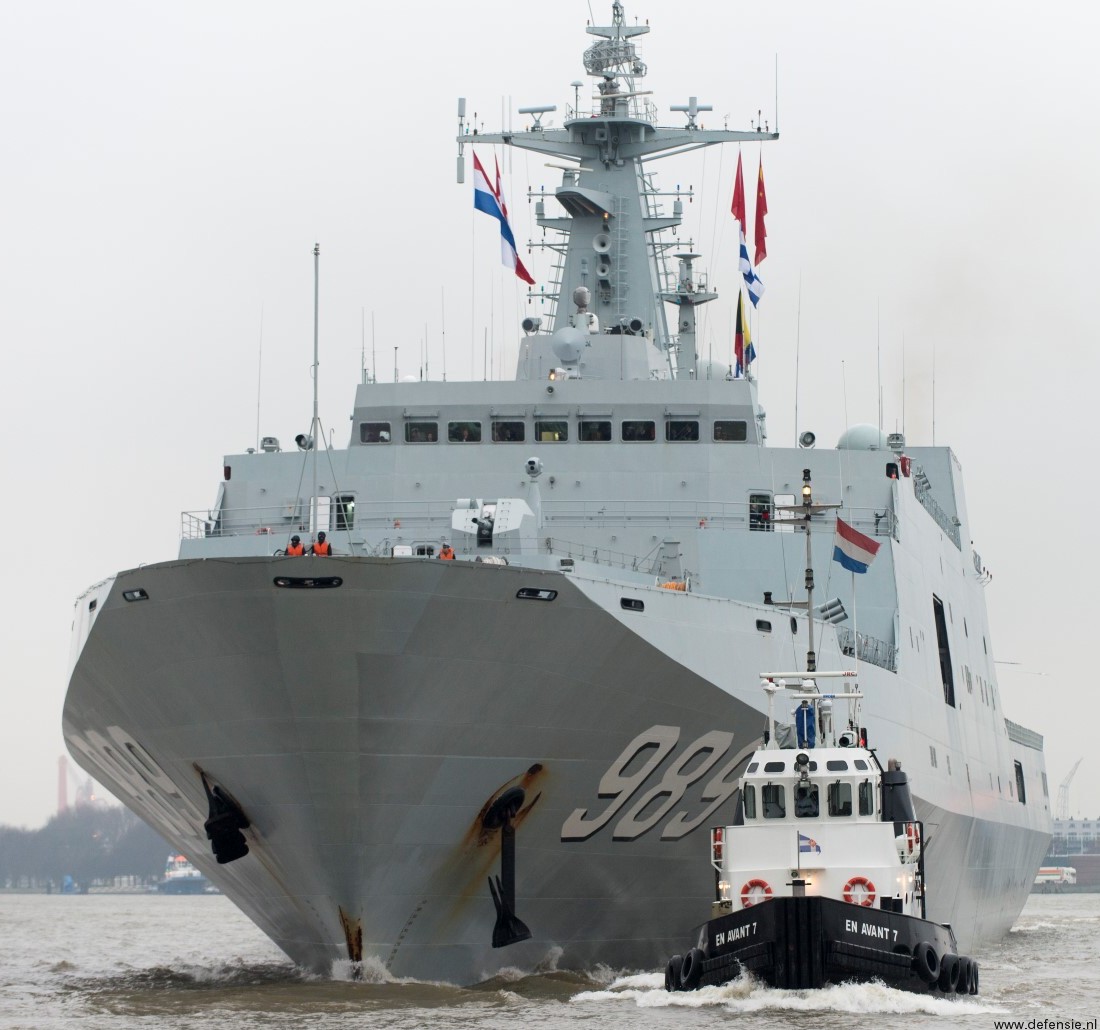

lsd-989 plans changbai shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 04
LSD 989 PLANS Changbai Shan

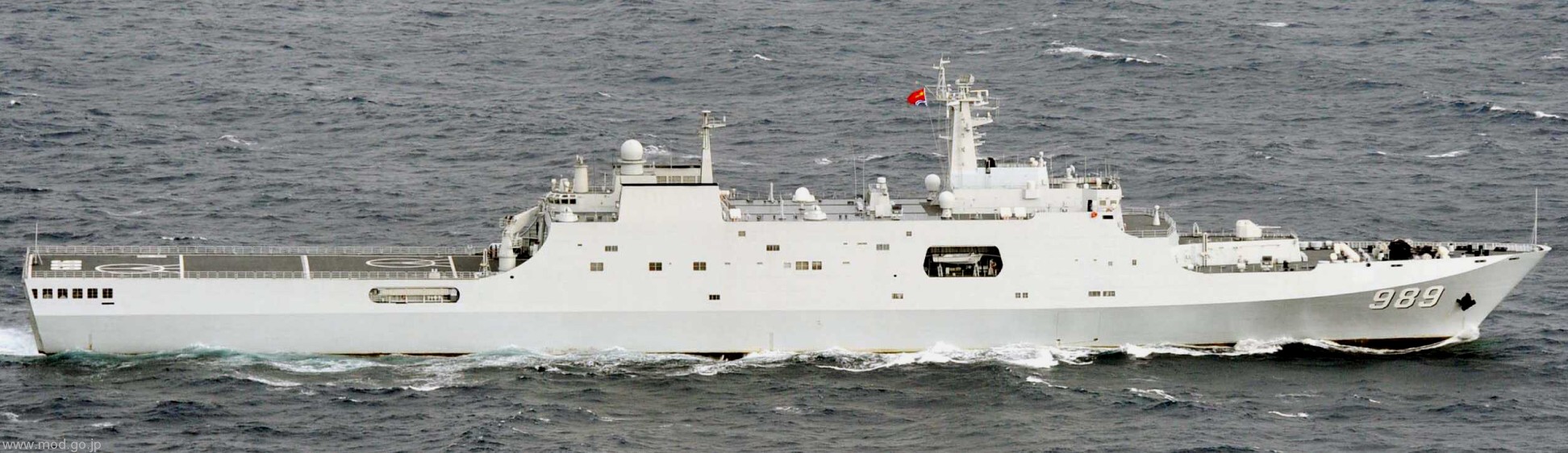

lsd-989 plans changbai shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 05
LSD 989 PLANS Changbai Shan

lsd-989 plans changbai shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 06
LSD 989 PLANS Changbai Shan

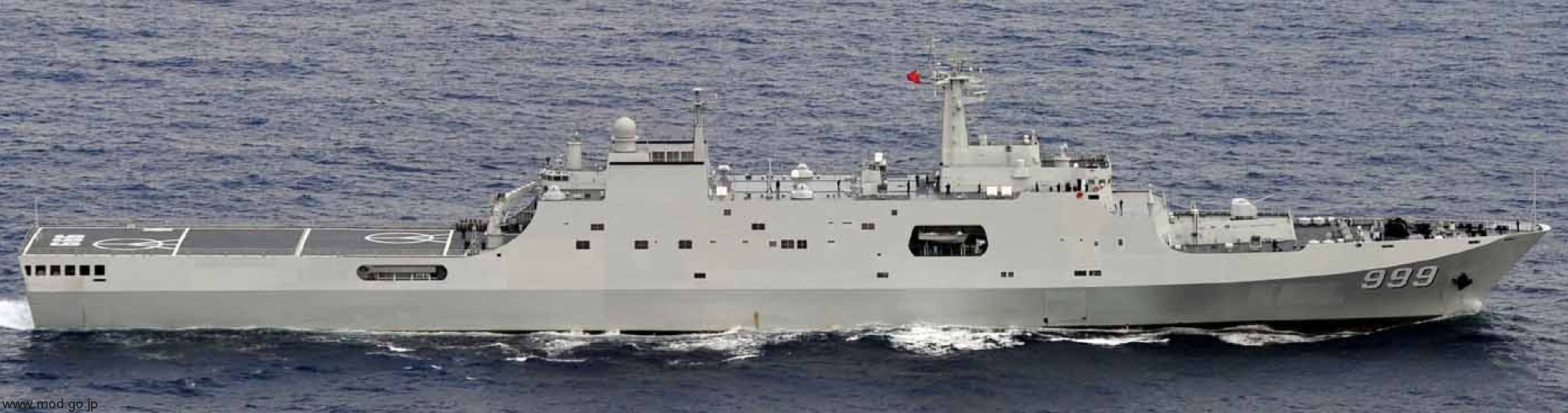

lsd-999 plans jinggang shan type 071 yuzhao class landing ship dock lsd amphibious transport china people's liberation army navy 02
LSD 999 PLANS Jinggang Shan
