Royal Canadian Navy - Marine Royale Canadienne
HO4S-3 Sea Horse

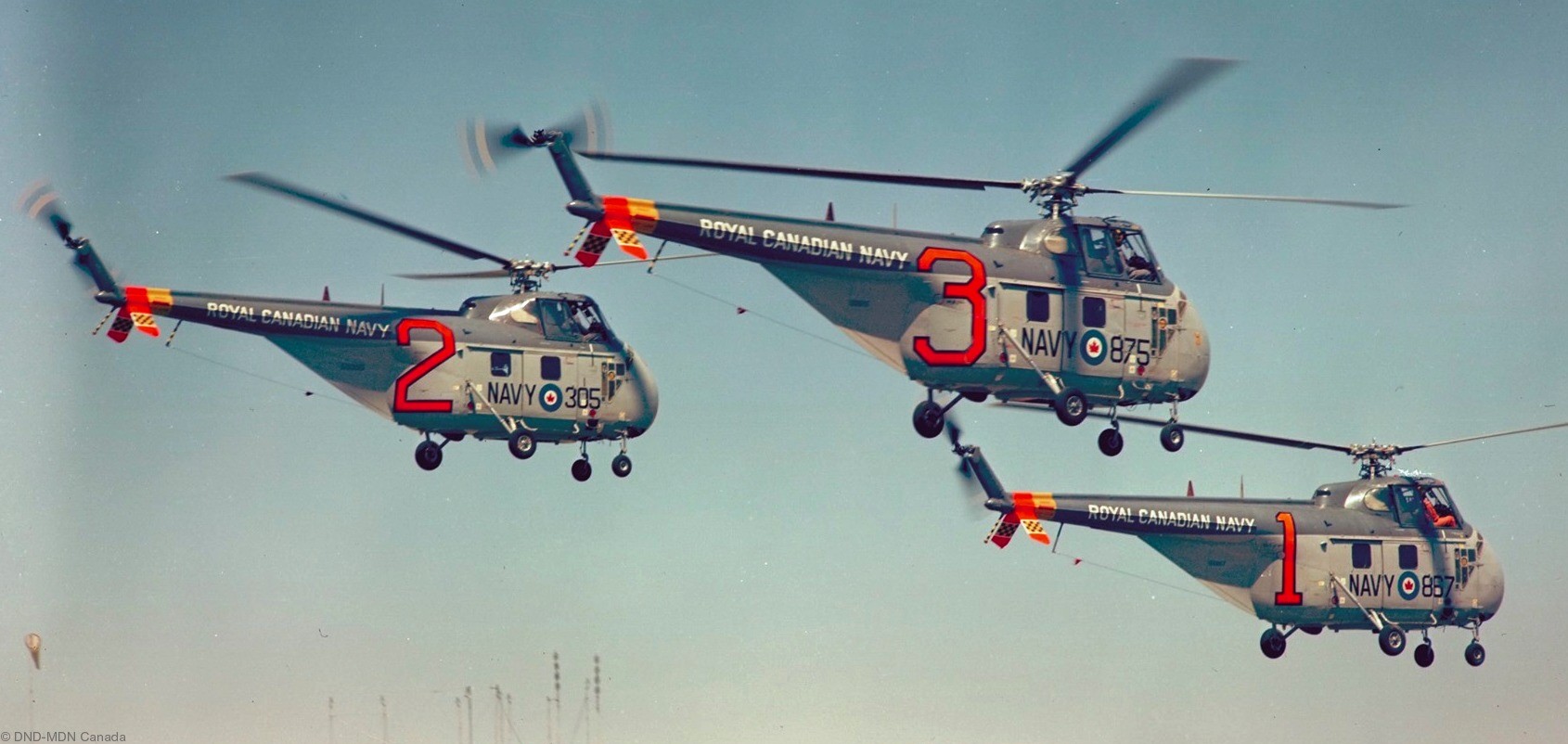

sikorsky ho4s-3 sea horse helicopter royal canadian navy h-19 s-55 02
Description + Specifications:
The Sikorsky H-19 Chickasaw (company model number S-55) was a multi-purpose helicopter used by the United States Army and United States Air Force. It was also license-built by Westland Aircraft as the Westland Whirlwind in the United Kingdom. United States Navy and United States Coast Guard models were designated HO4S, while those of the U.S. Marine Corps were designated HRS. In 1962, the U.S. Navy, U.S. Coast Guard and U.S. Marine Corps versions were all redesignated as H-19s like their U.S. Army and U.S. Air Force counterparts.

Development of the H-19 was initiated privately by Sikorsky without government sponsorship. The helicopter was initially designed as a testbed for several novel design concepts intended to provide greater load-carrying ability in combination with easy maintenance. Under the leadership of designer Edward F. Katzenberger, a mockup was designed and fabricated in less than one year.

The first customer was the United States Air Force, which ordered five YH-19 aircraft for evaluation; the YH-19's first flight was on 10 November 1949, less than a year after the program start date. This was followed by delivery of the first YH-19 to the U.S. Air Force on 16 April 1950 and delivery of the first HO4S-1 helicopter to the U. S. Navy on 31 August 1950. A U.S. Air Force YH-19 was sent to Korea for service trials in March 1951, where it was joined by a second YH-19 in September 1951. On 27 April 1951, the first HRS-1 was delivered to the U.S. Marine Corps, and on 2 May 1951, the first S-55 was delivered to Westland Aircraft.

1,281 of the helicopters were manufactured by Sikorsky in the United States. An additional 447 were manufactured by licensees of the helicopter including Westland Aircraft, the SNCASE in France and Mitsubishi in Japan.

In 1954 the Marines tested an idea to enhance lift in hot and high and/or heavily loaded conditions by installing a rocket nozzle at the tip of each rotor blade with the fuel tank located in the center above the rotor blade hub. Enough fuel was provided for seven minutes of operation. Although tests of the system were considered successful, it was never adopted operationally.

Canadian service:

Sikorsky HO4S-3 Sea Horse (Royal Canadian Navy)
13 units (Serials 55144, 55305, 55320, 55867, 55875, 55876, 55877, 55878, 55885, 55886, 55887, 55891, 55892)

Sikorsky H-19 Chickasaw (Royal Canadian Air Force)

15 units (Serials 9597, 9598, 9599, 9600, 9619, 9620, 9621, 9622, 9623, 9624, 9625, 9626, 9627, 9628, 9629)

Specifications (UH-19C):
Crew: 2
Capacity: ten troops or eight stretchers
Length: 42 ft 2 in (12.85 m) fuselage length excluding tail and main rotors
Height: 13 ft 4 in (4.06 m)
Empty weight: 4,795 lb (2,175 kg)
Gross weight: 7,500 lb (3,402 kg)
Powerplant: 1 x Pratt & Whitney R-1340-57 9-cylinder air-cooled radial piston engine, 600 hp (450 kW)
Main rotor diameter: 53 ft (16 m)
Main rotor area: 2,206 sq ft (204.9 m2)
Tail rotor diameter: 8 ft 8 in (2.64 m)
Maximum speed: 101 mph (163 km/h, 88 kn)
Cruise speed: 85 mph (137 km/h, 74 kn)
Range: 450 mi (720 km, 390 nmi)
Service ceiling: 10,500 ft (3,200 m)

source: wikipedia + other

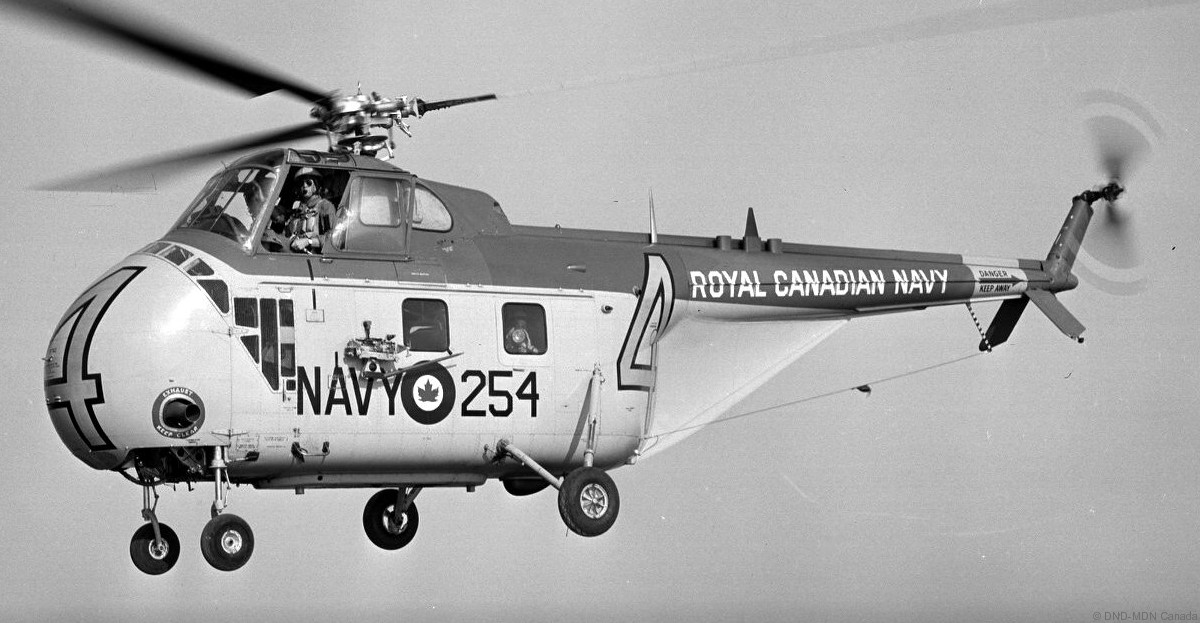

sikorsky ho4s-3 sea horse helicopter royal canadian navy h-19 s-55 03

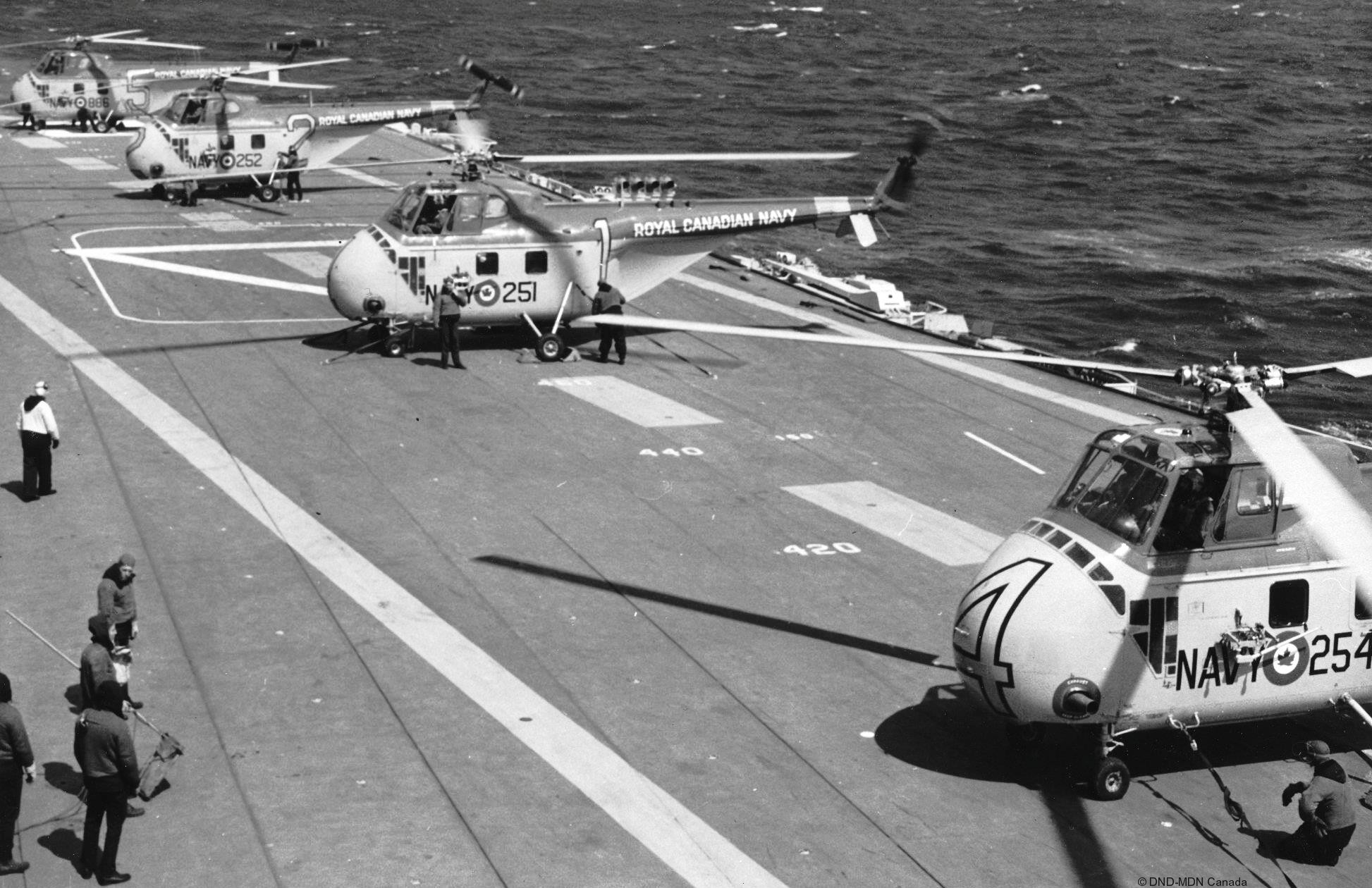

sikorsky ho4s-3 sea horse helicopter royal canadian navy h-19 s-55 04
