Surface Vessel Weapon System
Oto-Melara/Oerlikon KBA 25/80 Machine Gun System


kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 01

10/22
The Oto Melara / Oerlikon 25/80mm gun is a single-barrelled, stabilized, electric servo-drive assisted naval gun against targets within 2000m.

Manufacturer: Oto-Melara / Oto Breda (now Leonardo)
Caliber: 25mm
Weight: 1050 kg without ammunition / 1200 kg ready to fire
Lenght: 3,85 meters
Ready to fire rounds: 252

Ammunition 25x80mm:
- High Explosive Incendiary with Tracer (HEI-T)
- Semi Armor Piercing High Explosive Incendiary with Tracer (SAPHEI-T)
- Armor Piercing Discarding-Sabot (APDS)
- Armor Piercing Fin-Stabilized Discarding-Sabot (APFSDS)

Elevation: - 15° / + 50°
Traverse: 315°
Rate of fire: 570 rpm max.
Range: up to 2000 meters

Users:
Italian Navy

images

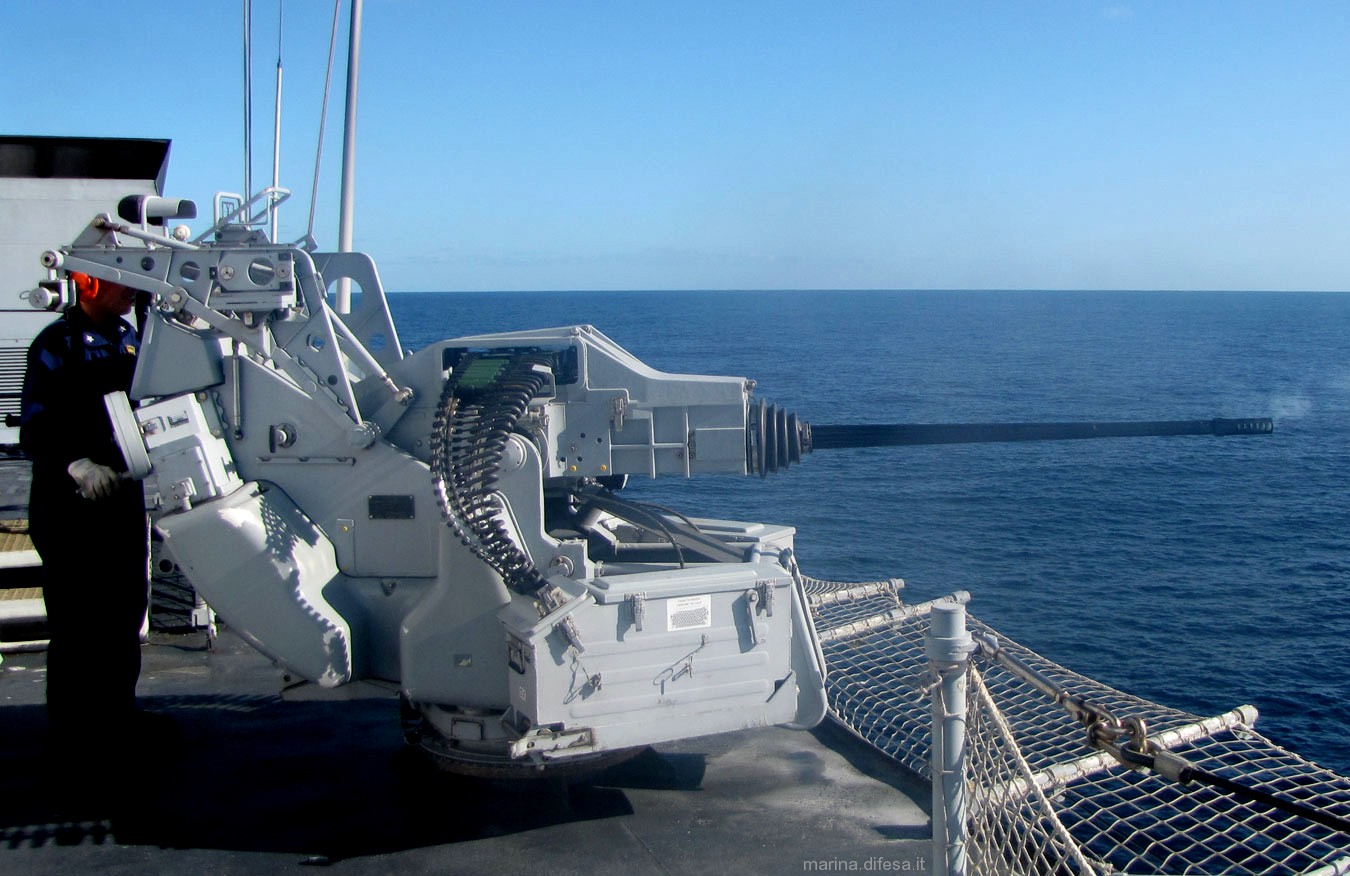

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 02

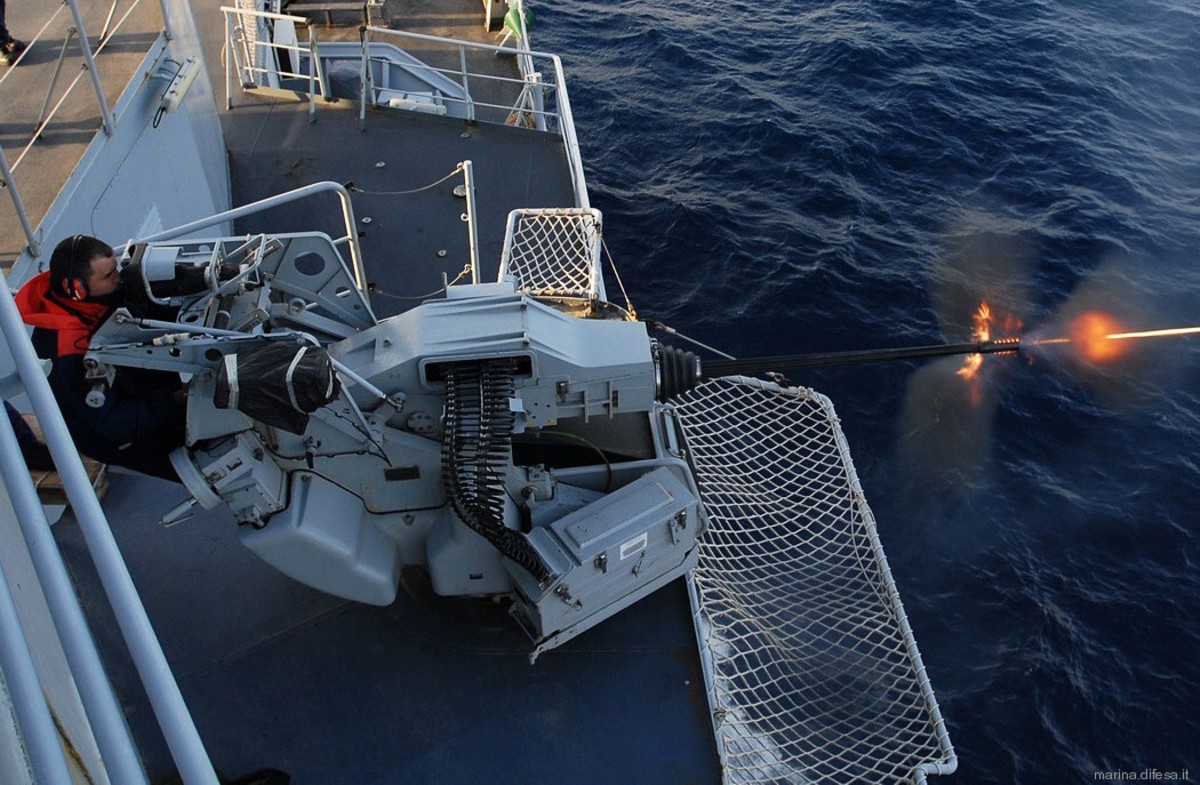

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 03

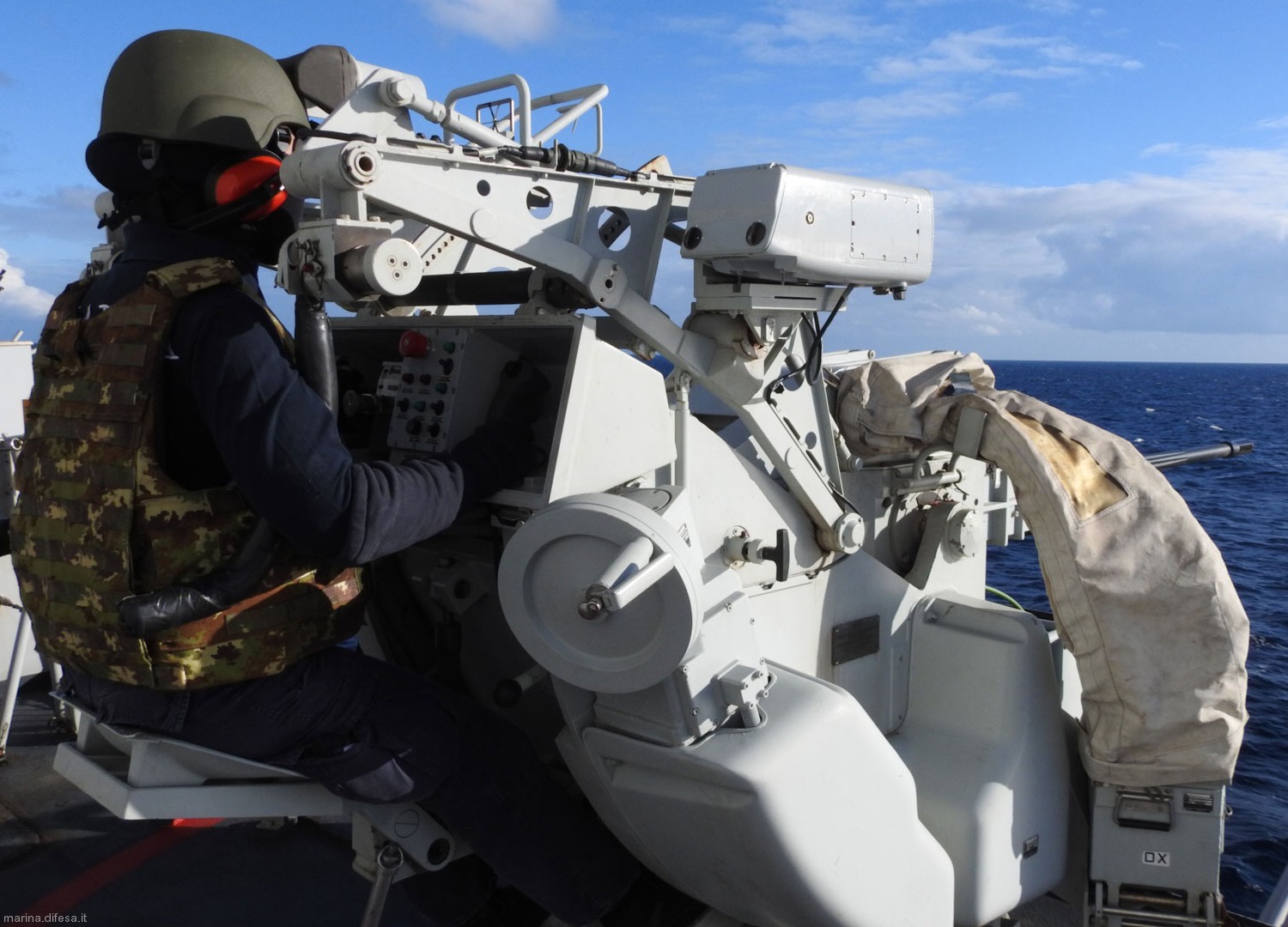

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 15

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 23

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 22

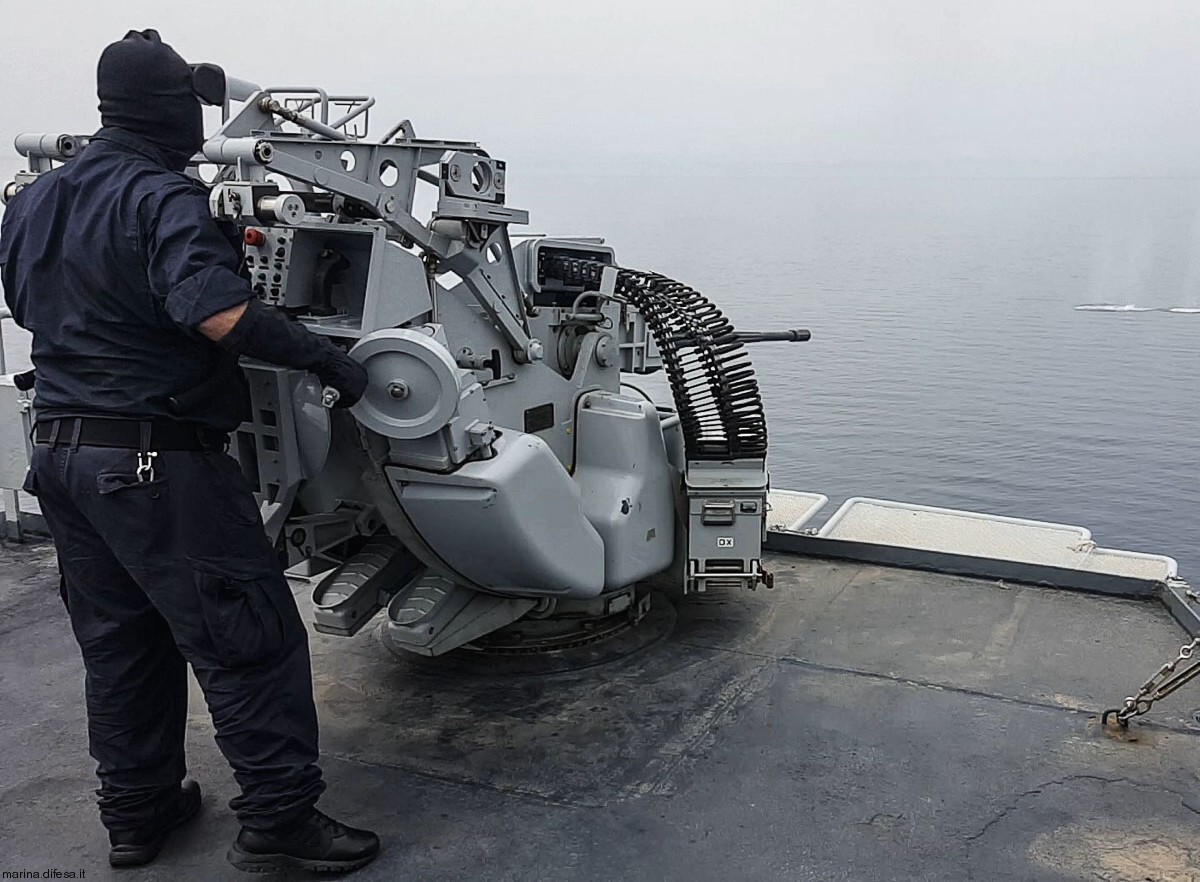

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 19

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 04

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 05

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 06

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 07

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 08 nave cavour carrier

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 09

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 10

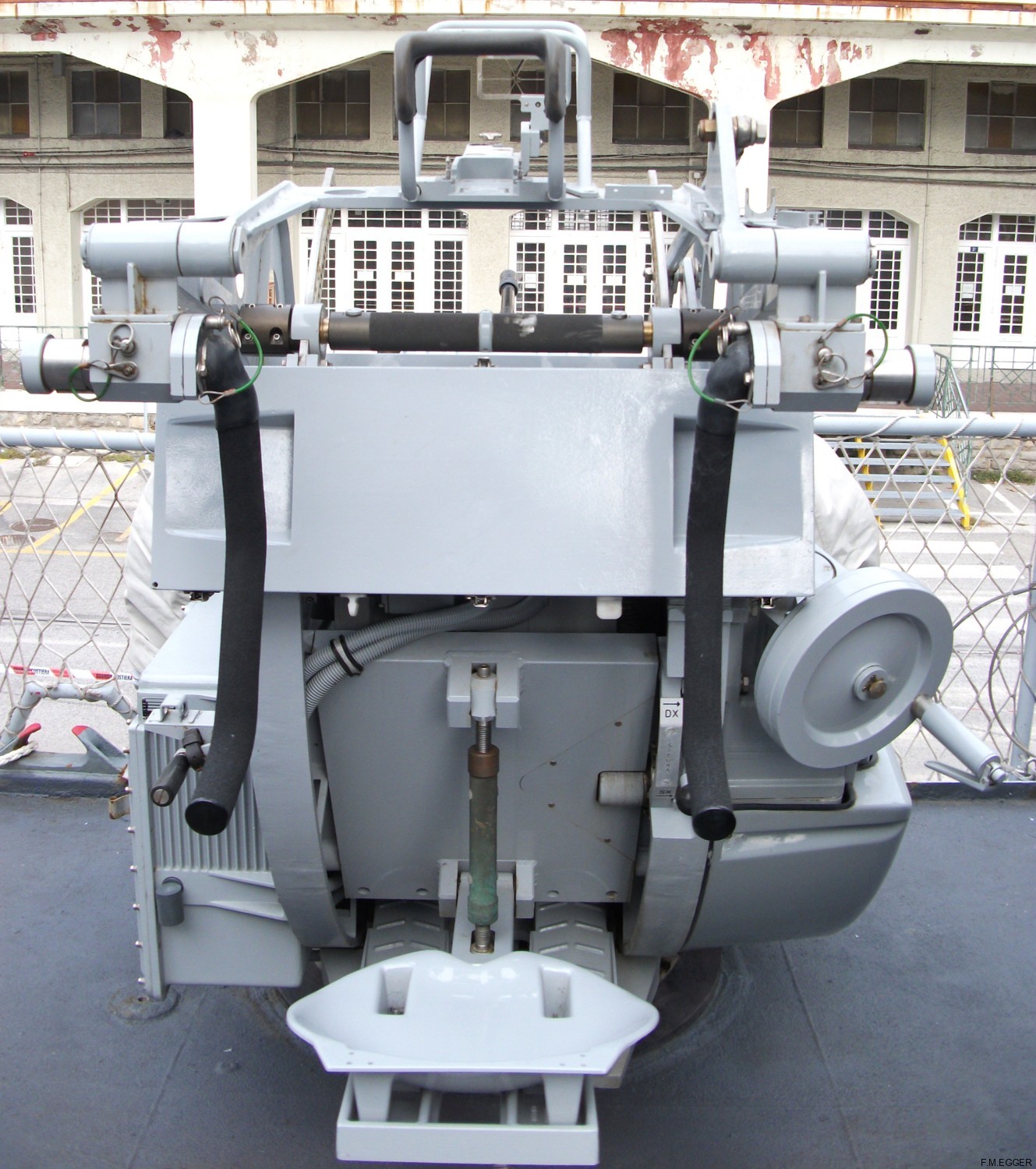

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 11

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 17

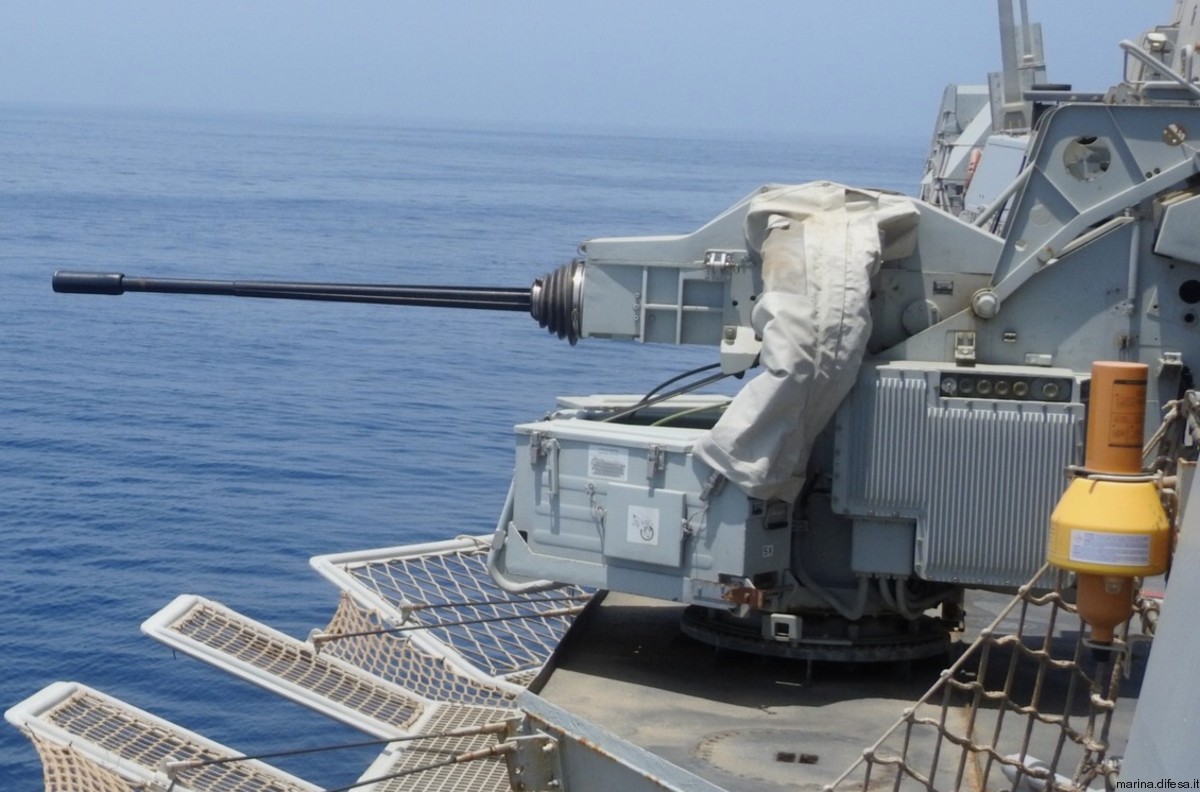

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 16 bergamini fremm frigate

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 18

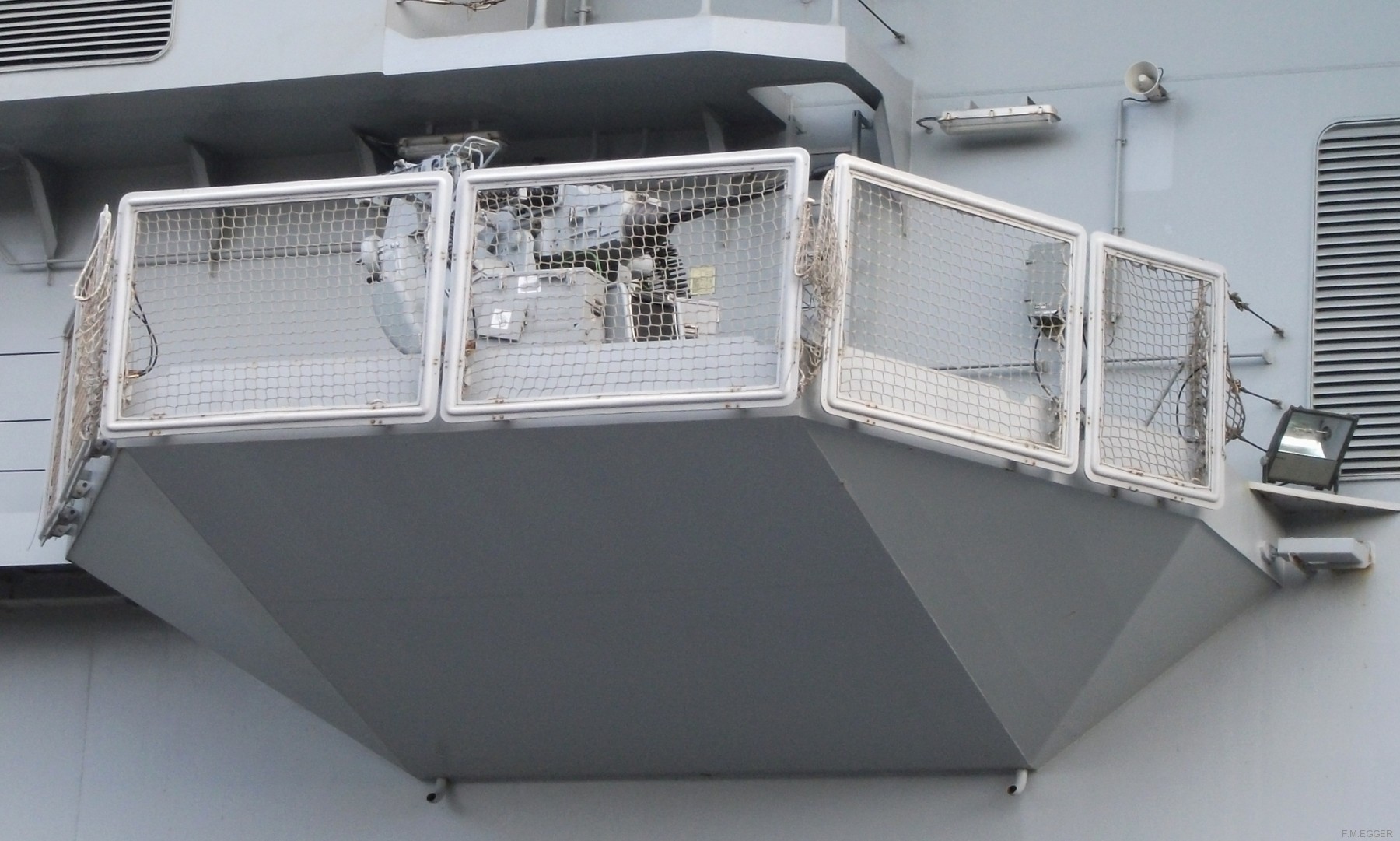

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 12 cavour aircraft carrier
Oto-Melara/Oerlikon KBA 25/80 in a "crow's nest" aboard ITS Cavour (C 550)

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 13

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 14

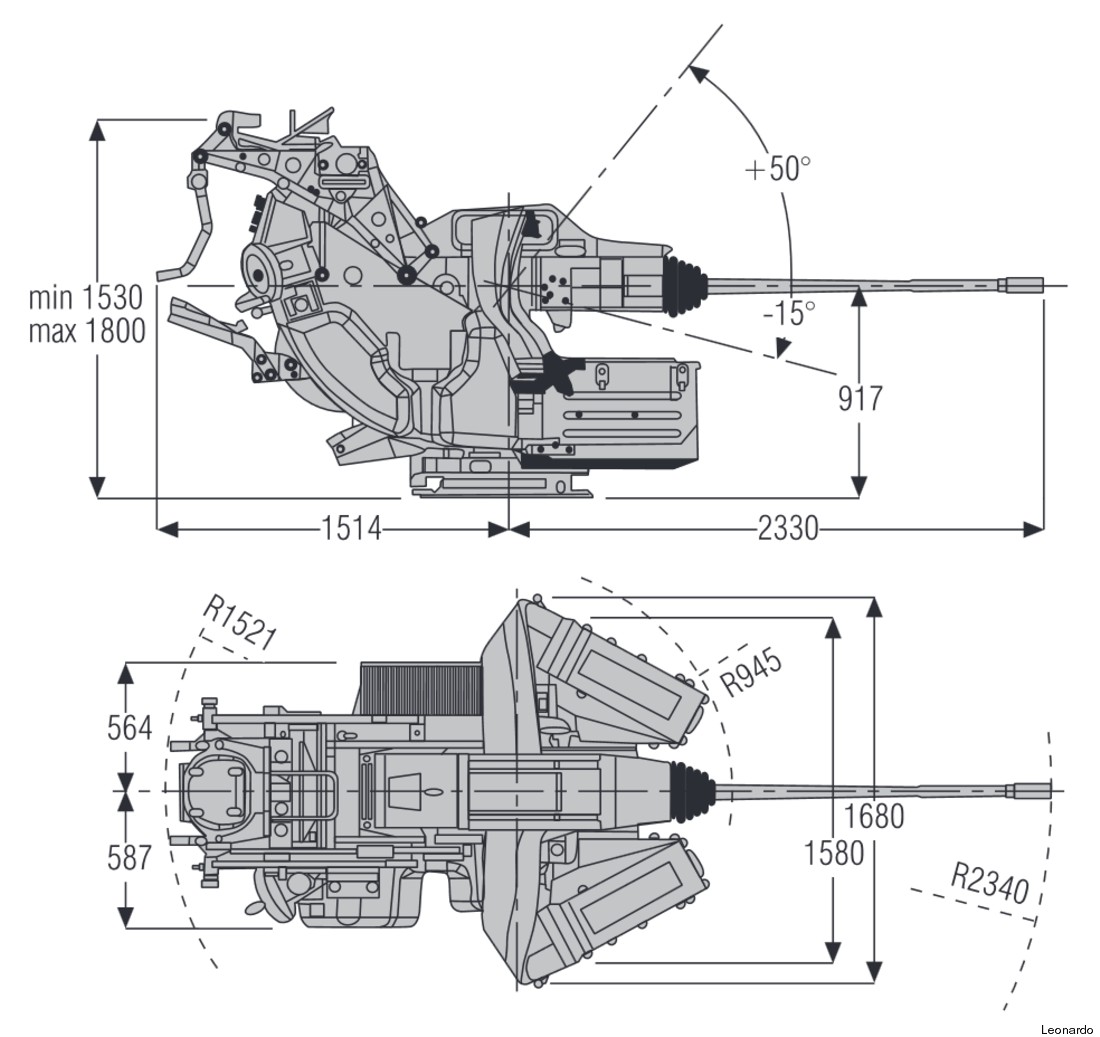

kba 25/80 mm machine gun system oto melara breda oerlikon leonardo italian navy marina militare 20
