Surface Vessel Weapon System
OtoMelara 127/64 LW gun
127mm (5") / 64-caliber lightweight dual-purpose automatic naval gun system


127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 02

07/22
The Oto Melara 127/64 Lightweight (LW) naval gun mount is a rapid-fire gun mount suitable for installation on large and medium size ships. It also has a version for coastal defense, intended for surface fire and naval gunfire support as main role and anti-aircraft fire as secondary role. The compactness of the gun feeding system makes possible the installation on narrow section crafts.

The gun can fire all standard 127 mm (5 inch) ammunition including Vulcano long range guided ammunition.

Modular automatic feeding magazines allow the firing of up to four different and immediately selectable types of ammunition; the magazines (four drums, each with one shell ready to fire and 13 other ammunitions on store) can be reloaded while the mount is in operation.

An ammunition manipulator system is available to transport projectiles and propelling charges from the main ammunition store to the feeding magazines, which are automatically reloaded. Ammunition flow is reversible. Rounds can be automatically unloaded from the gun. Digital and analog interfaces are available for any Combat Management System, also according to COBRA protocol.

The 127/64 LW naval gun mounts includes a Vulcano module, which acts twofold:
- Programmer for ammunition's fuse and guidance system.
- Mission Planning and Execution for Naval Fire Support Action (firing solutions, selection of ammunition, definition of trajectories and firing sequences, ballistic computations accounting for ammunition type, etc.), as a standalone or in interaction with ship's Network Centric System.


Technical data:
Manufacturer: OtoMelara / Leonardo
Caliber:
5 inches / 127 mm
Barrel lenght: 320 inches / 8,128 meters (= 64 caliber)
Weight: 17 tons / 37,000 lb (without ammunition)
Elevation: -12° / +70°
Traverse: +/- 155°
Rate of fire: 32 rounds per minute
Range: 23000 meters, max. / 15000 meters effective / 8600 meters AA / up to 120 km (75 mi) with Vulcano ER/LR ammunition
Ammunition stowage: 56 rounds ready to fire in 4 loader drums / 500-600 in magazine
Ammunition: all standard 5-inch ammunition including the new Vulcano extended range / long range guided ammunition

Users:
Bergamini/FREMM class Frigate (Italian Navy / Egyptian Navy)
Thaon di Revel vlass OPV/PPA (Italian Navy)
F125 Baden-Württemberg class Frigate (German Navy)
F126 MKS 180 class Frigate (German Navy)
Shivalik class Frigate (Indian Navy)
Delhi class Destroyer (Indian Navy)
El Radii / MEKO A200 class Frigate (Algerian Navy)
future F-110 class Frigate (Spanish Navy)
future Canadian Surface Combatant (Canadian Navy)
De Zeven Provincien class Frigate (Netherlands Navy)

images

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 09

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 10

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 07

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 06

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 03

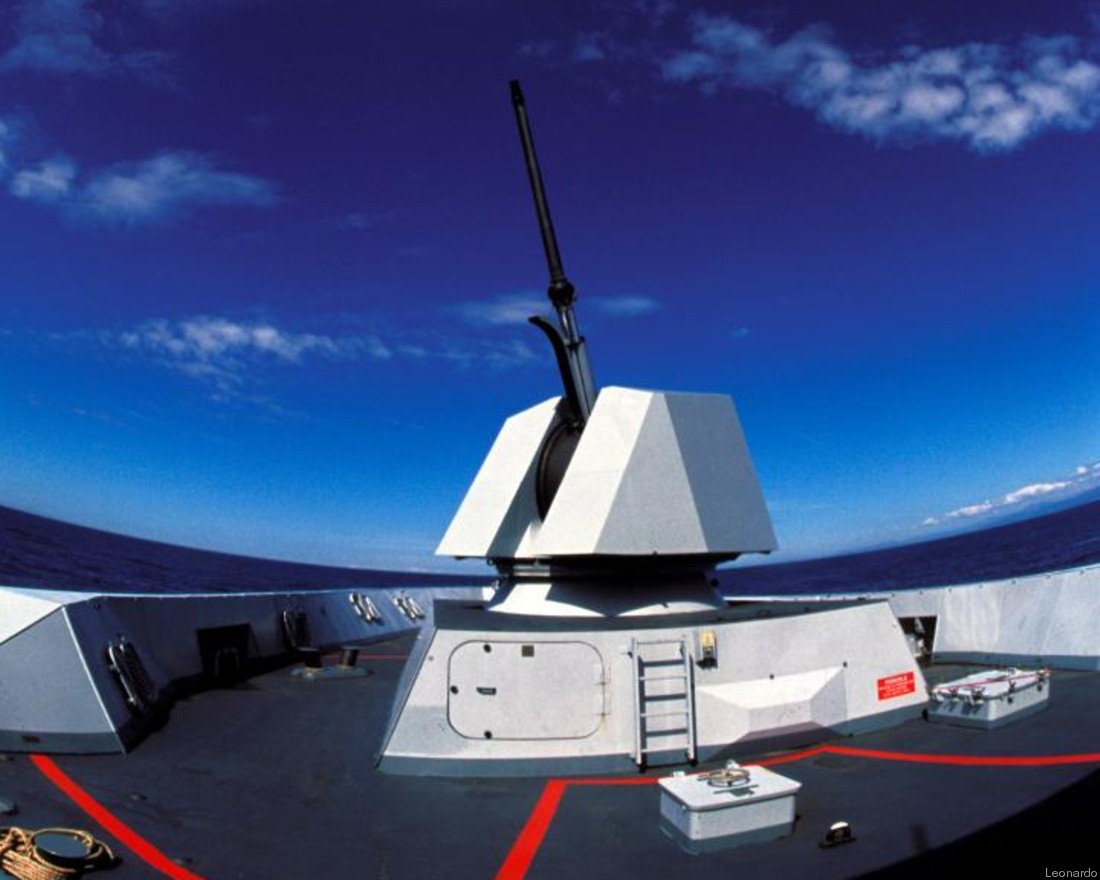

127/64 lw oto melara breda leonardo lightweight dual purpose naval gun system vulcano 08
