Surface Vessel Weapon System
Mk-13 Guided Missile Launching System (GMLS)


mk-13 guided missile launching system gmls rim-24 tartar sam rim-66 standard rgm-84 harpoon ssm


The Mk-13 guided missile launching system (GMLS) is a single-arm missile launcher designed for use on frigates and other military vessels.

The Mark 13 is equipped to fire the RIM-66 Standard, RGM-84 Harpoon, and RIM-24 Tartar missiles for anti-air and anti-ship defense, and is capable of firing the Standard at a rate of one every eight seconds. Its 40-round magazine consists of two concentric rings of vertically-stored missiles, 24 in the outer ring and 16 in the inner. In case of a fire, the system is equipped with magazine sprinkling, CO2 suppression and booster suppression.

The Mk-13 launcher is most typically employed as part of the Mk-74 Guided Missile Launch System, or the Mk-92 Fire Control System. Though the launcher was original armament on US Perry-class frigates (and their derivatives), in order to save costs on an obsolete system, by 2004 all active US vessels have had the system removed. It was also fitted on French Navy Cassard-class frigates, as well as the last ten US Navy Charles F. Adams class destroyers, the USN California class cruisers, the German Lütjens class destroyers and Australian Perth class destroyers and Adelaide class frigates.

Because of its distinctive single-armed design, the Mk 13 is often referred to as the "one-armed bandit."

Used for:
RIM-24 Tartar
RIM-66 Standard Missile MR
RGM-84 Harpoon


Used on:
Oliver Hazard Perry class FFG
California class CGN
Mitscher class DDG
Charles F. Adams class DDG

Perth class DDG (Australia)
Adelaide class FFG (Australia)
Cassard class Frigate (France)
Tromp class Frigate (Netherlands)
Jacob van Heemskerck class FFG (Netherlands)
Durand de la Penne class DDG (Italy)
Audace class DDG (Italy)
Lutjens class DDG (Germany)
Hatakaze class DDG (Japan)


images


mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr perry class ffg 03

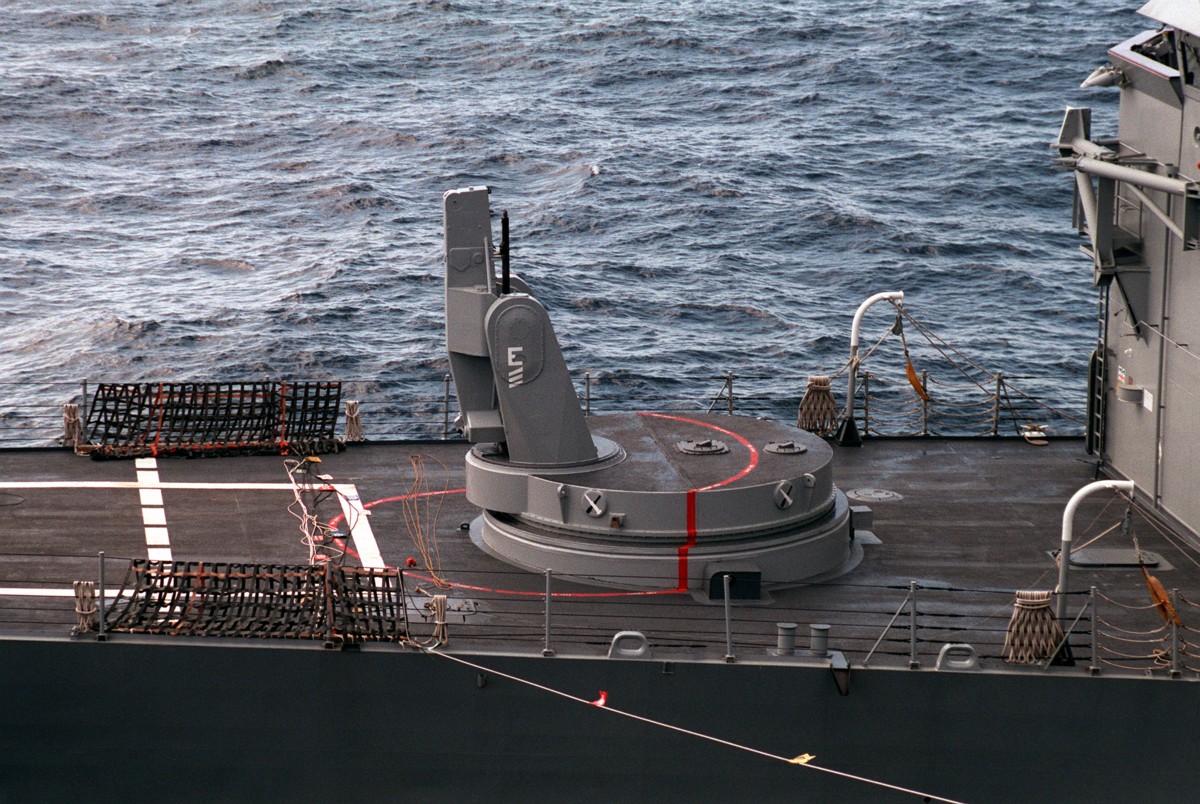

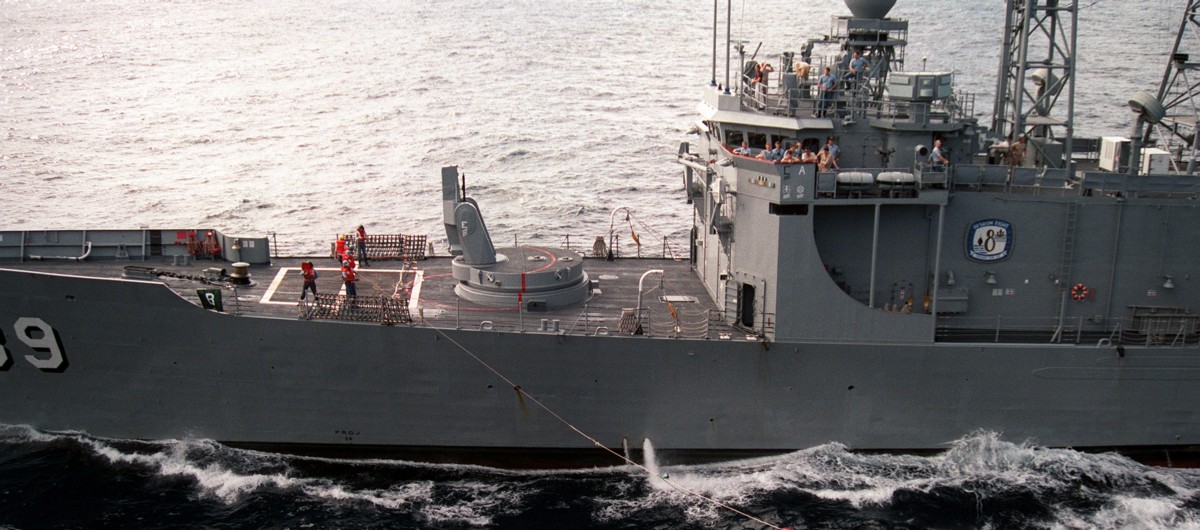

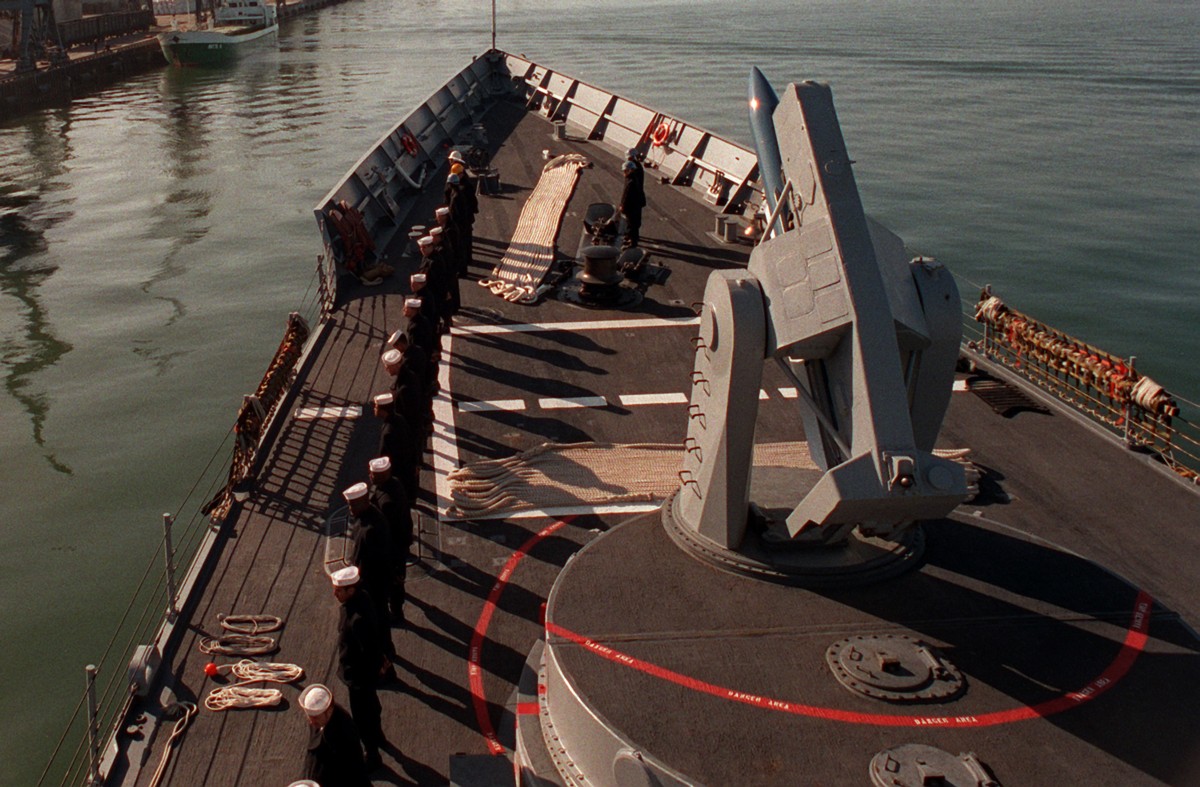

Mk-13 guided missile launching system (GMLS) aboard an US Navy Oliver Hazard Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr perry class ffg 04

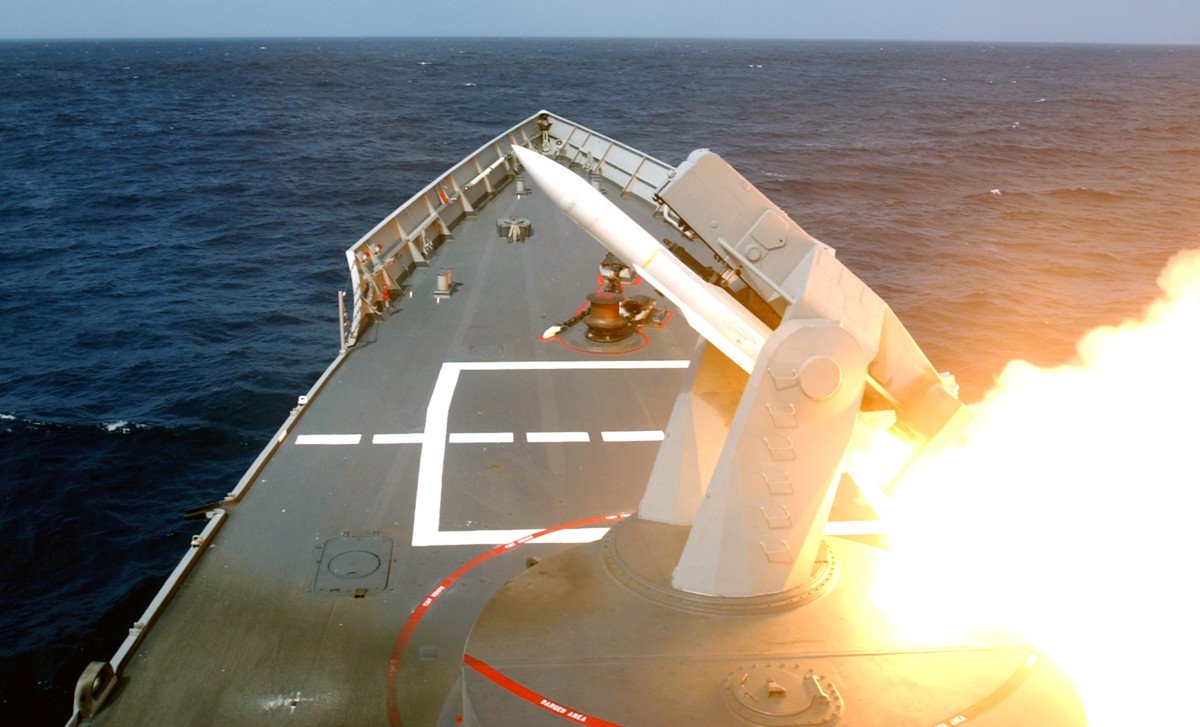

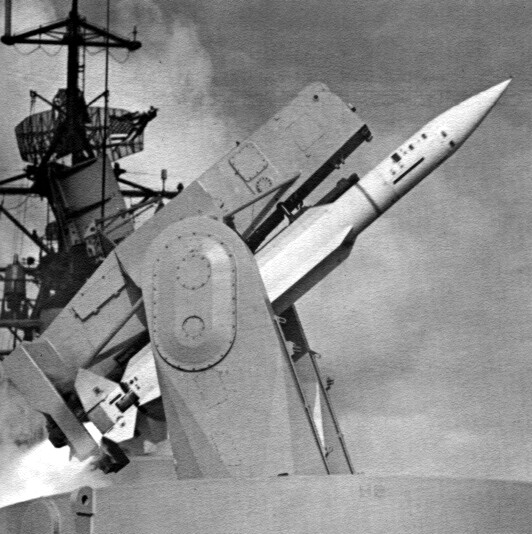

RIM-66 Standard Missile SM-1MR was fired from a Mk-13 missile launcher aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr perry class ffg 05
RIM-66 Standard Missile SM-1MR was fired from a Mk-13 missile launcher aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr perry class ffg 06

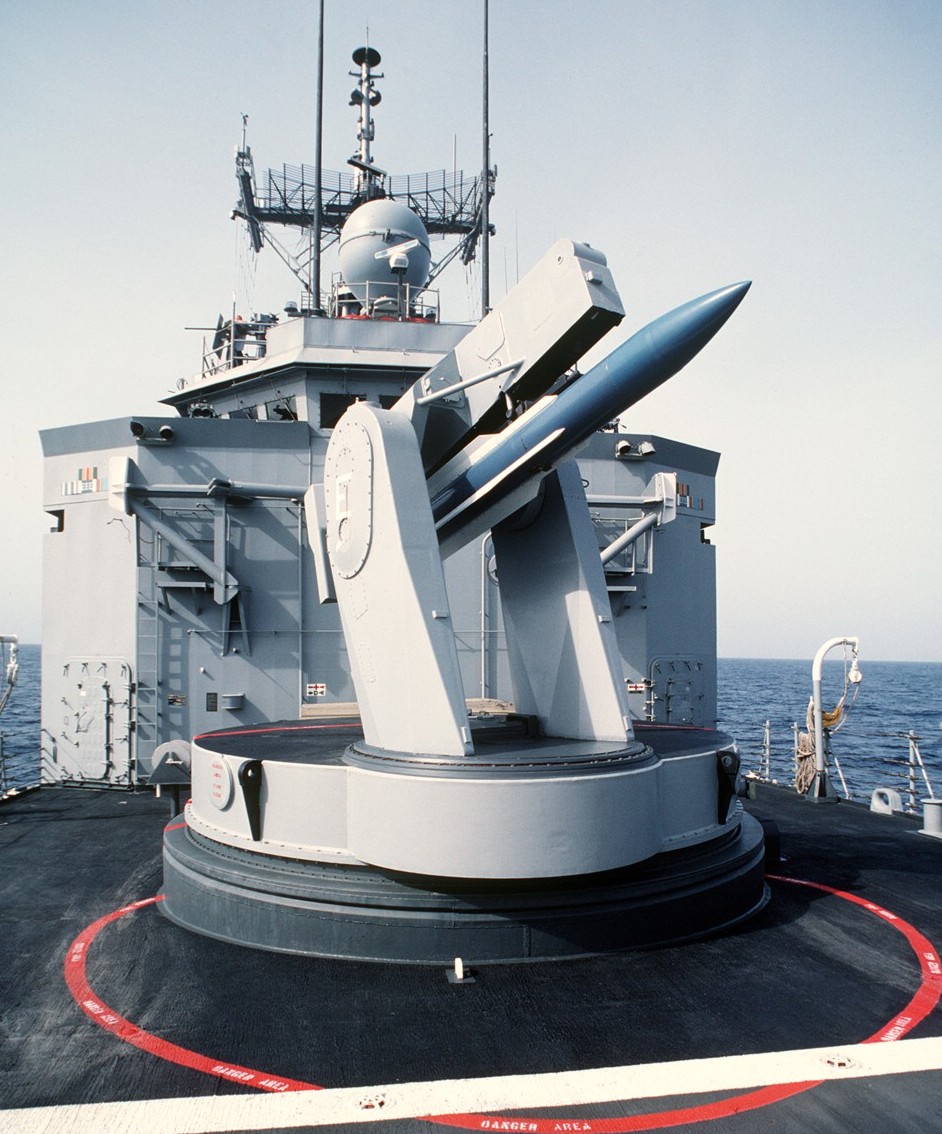

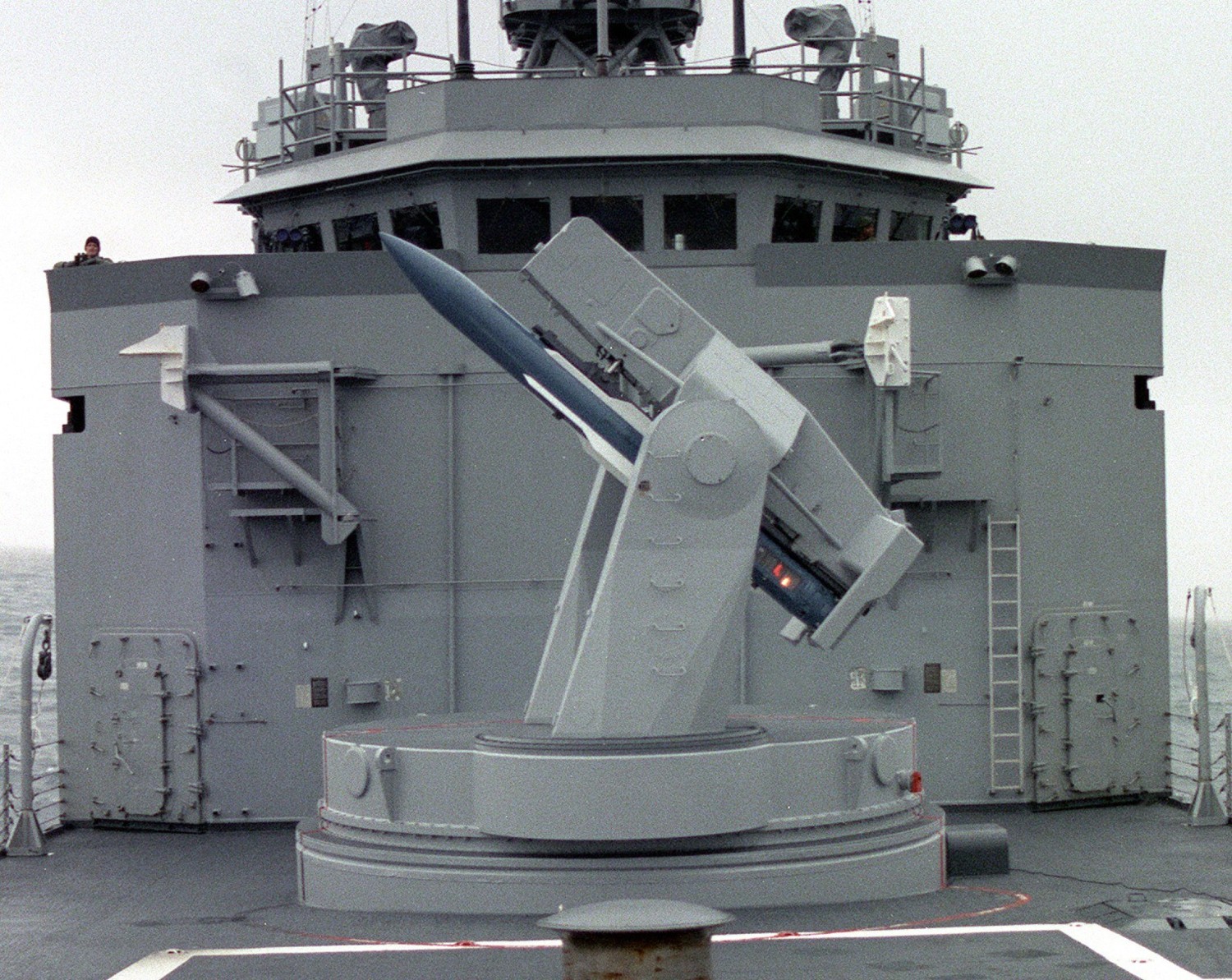

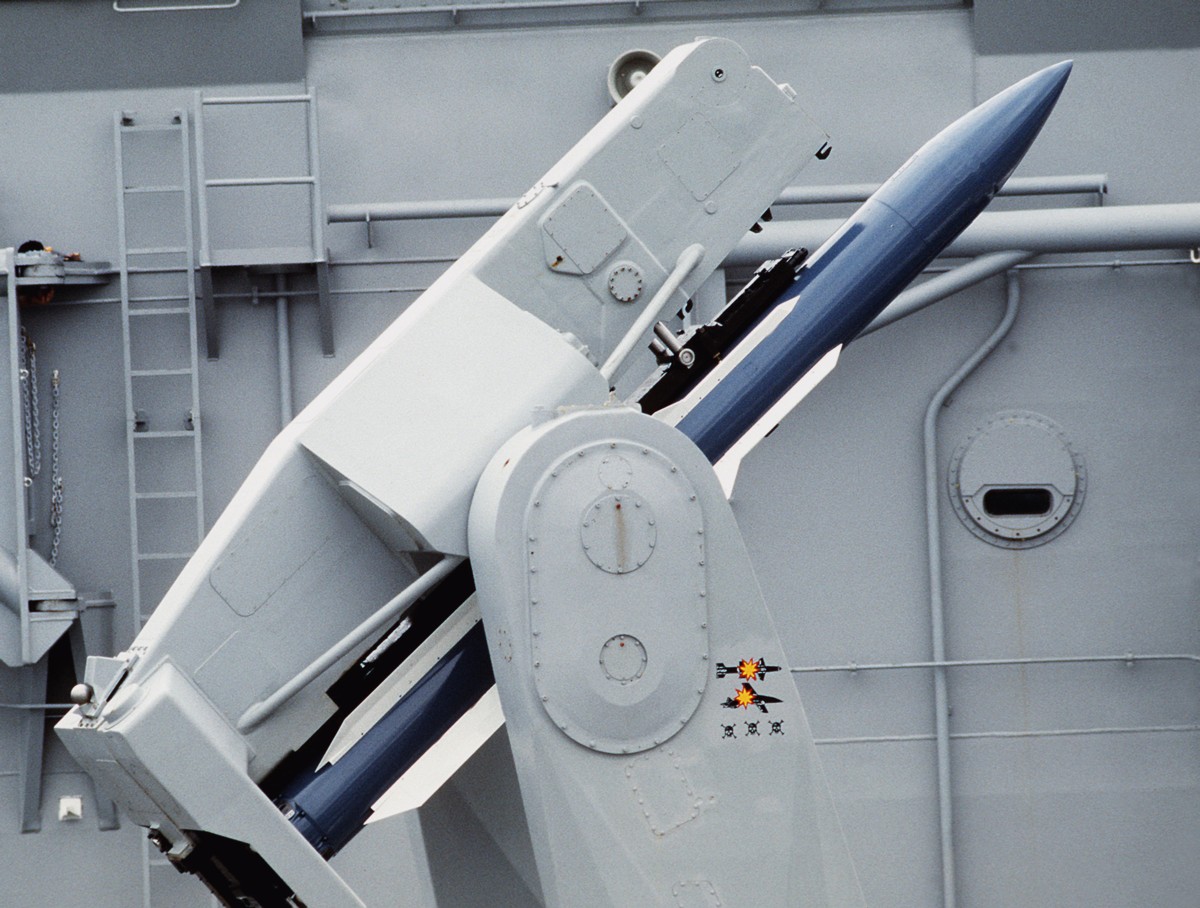

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr oliver hazard perry class ffg 07

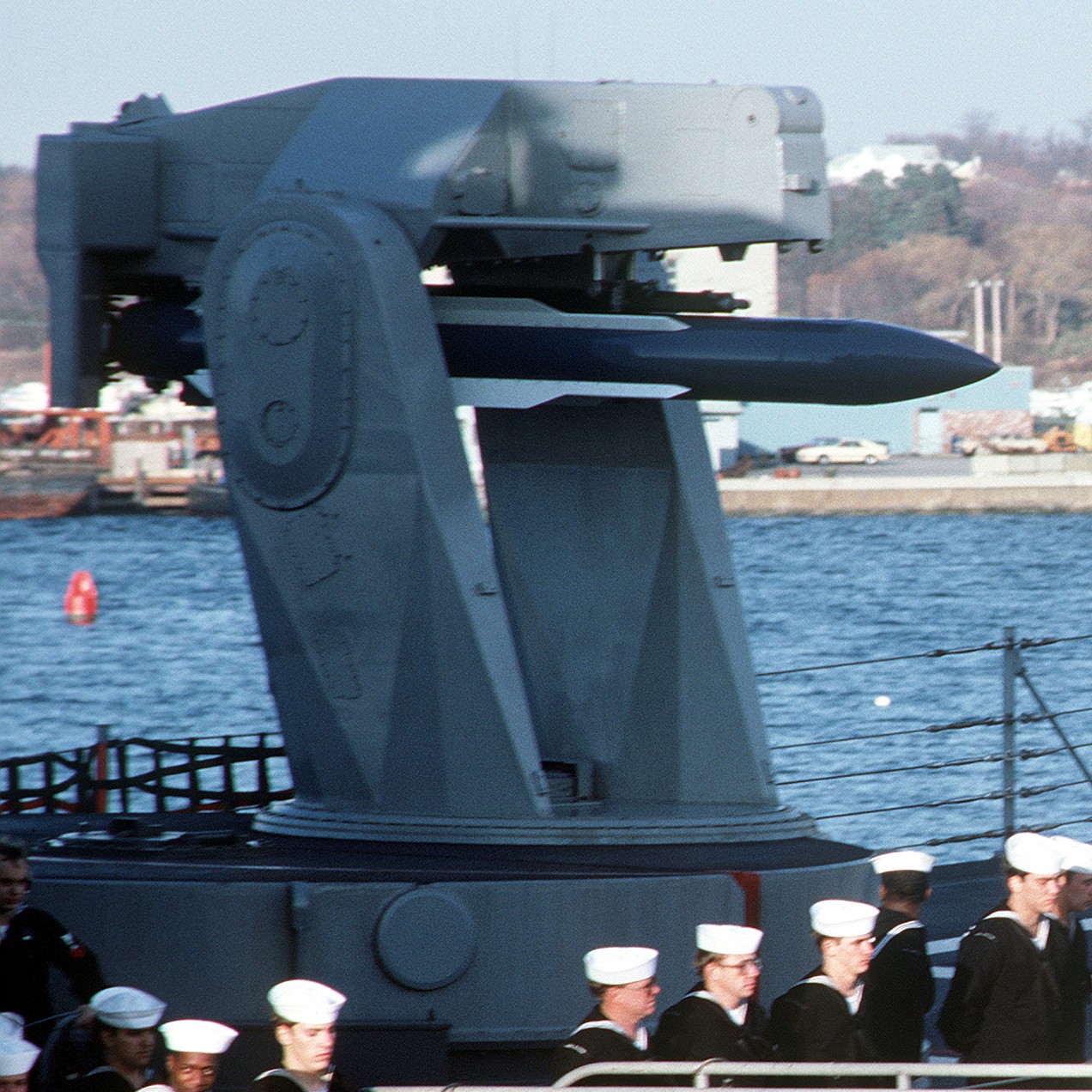

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 08

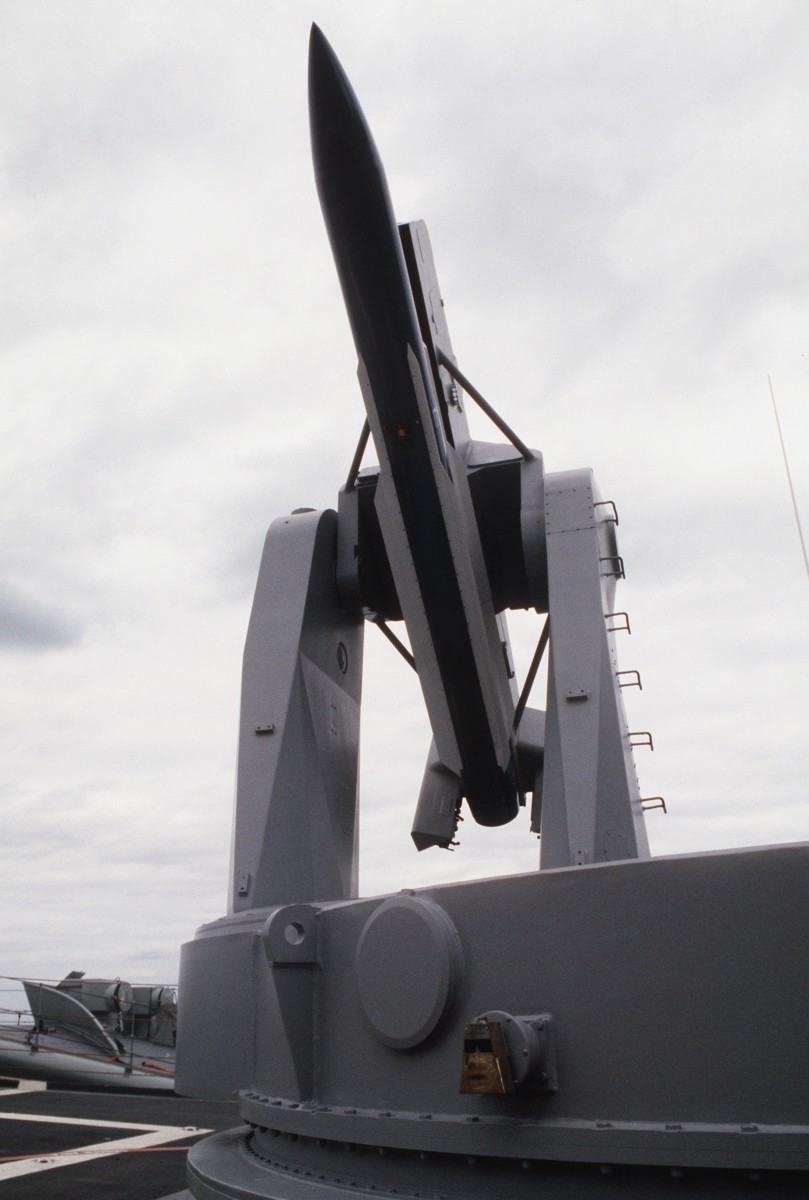

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 09

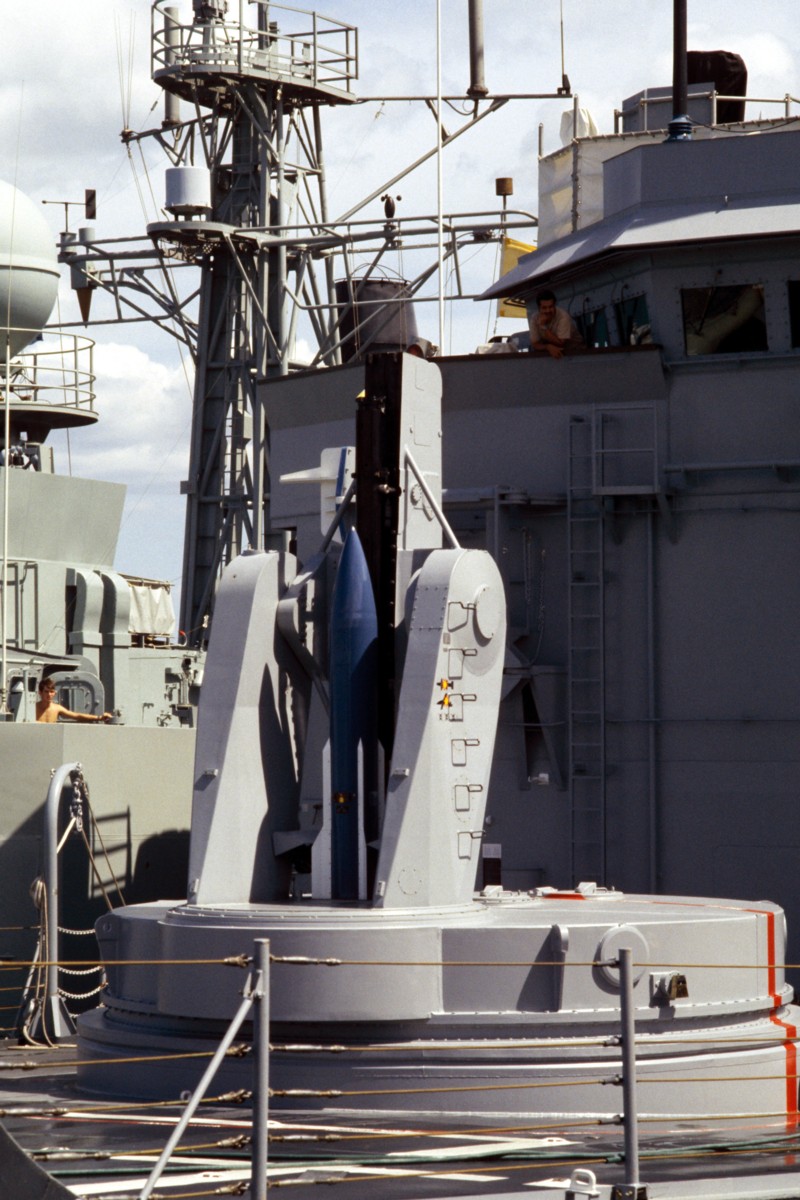

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 32

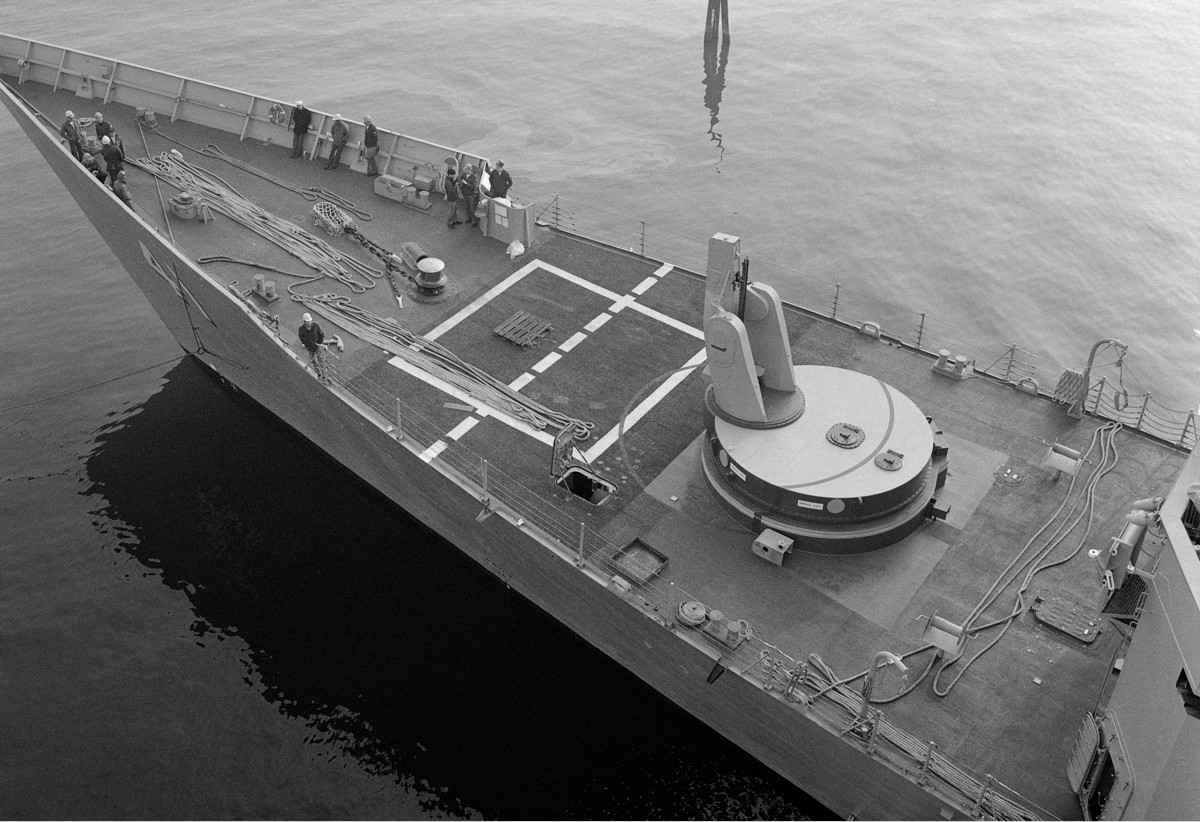

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 09
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 10
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 11
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 12
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 13
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 15

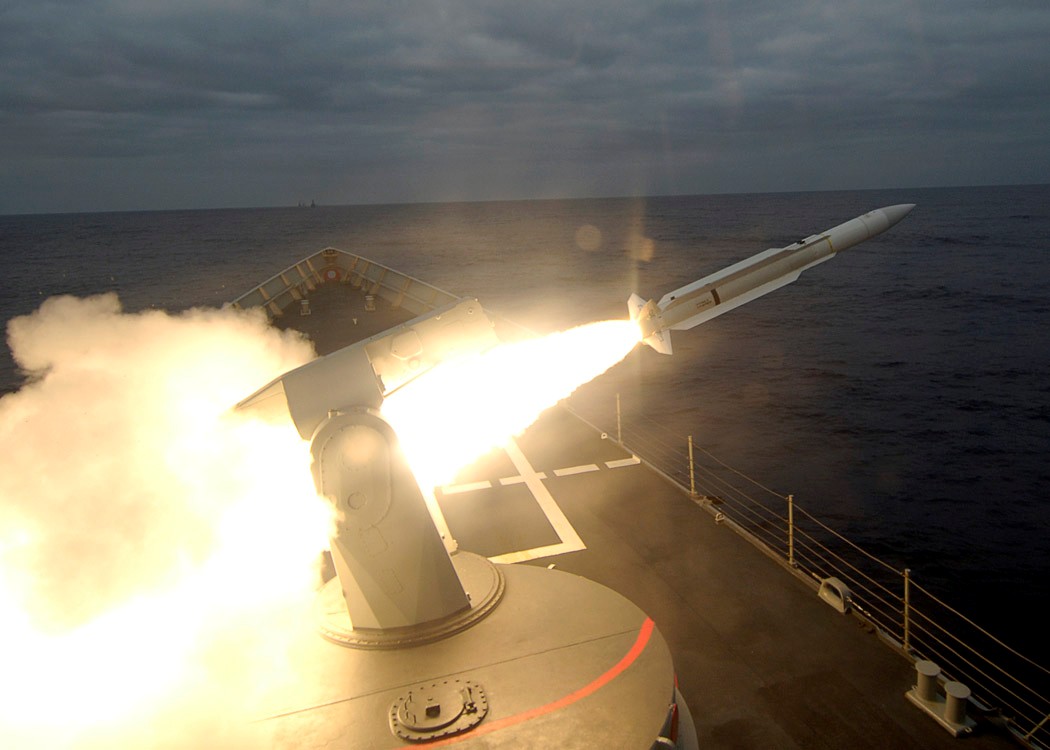

 Mk-13 guided missile launching system aboard the Spanish Navy Frigate SPS Canarias (F 86) fires a RIM-66 Standard Missile SM-1MR

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 15

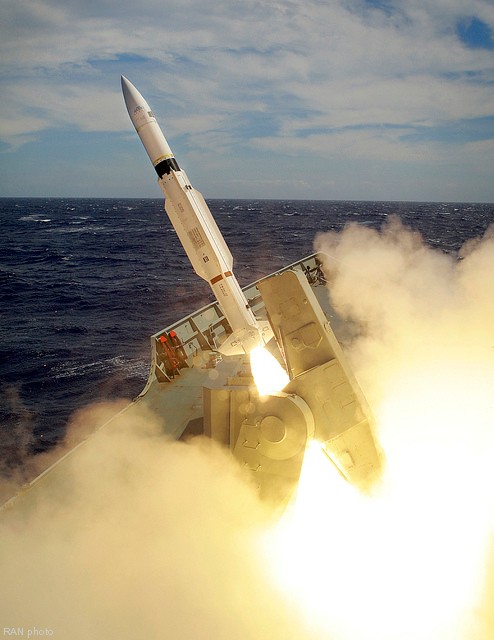

 Mk-13 guided missile launching system aboard the Royal Australian Navy Frigate
HMAS Sydney (FFG 03) fires a RIM-66 Standard Missile SM-2MR

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 16
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 17
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 18
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 19
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 20
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 21
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 22
 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr 23

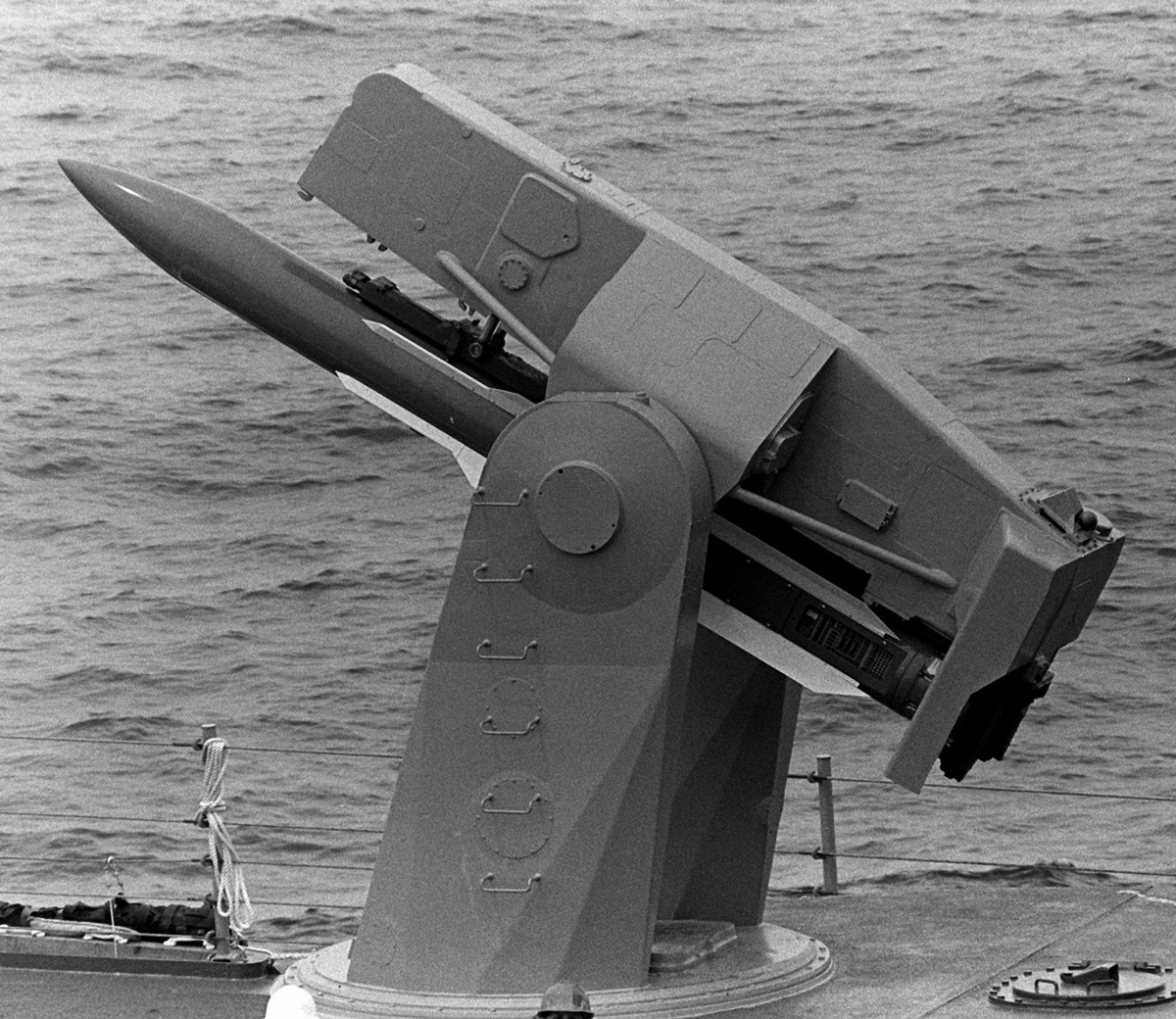

 Mk-13 guided missile launching system aboard a Perry class FFG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr rgm-84 harpoon ssm charles f. adams class ddg 30

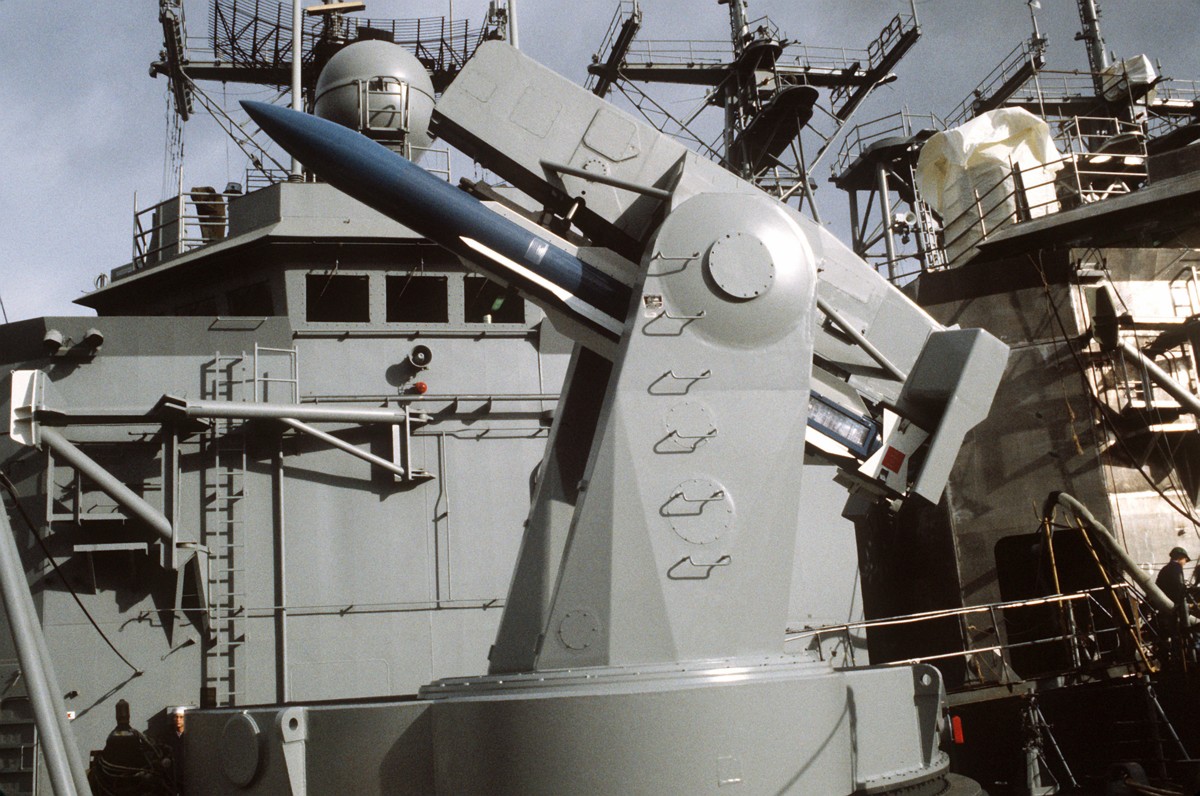

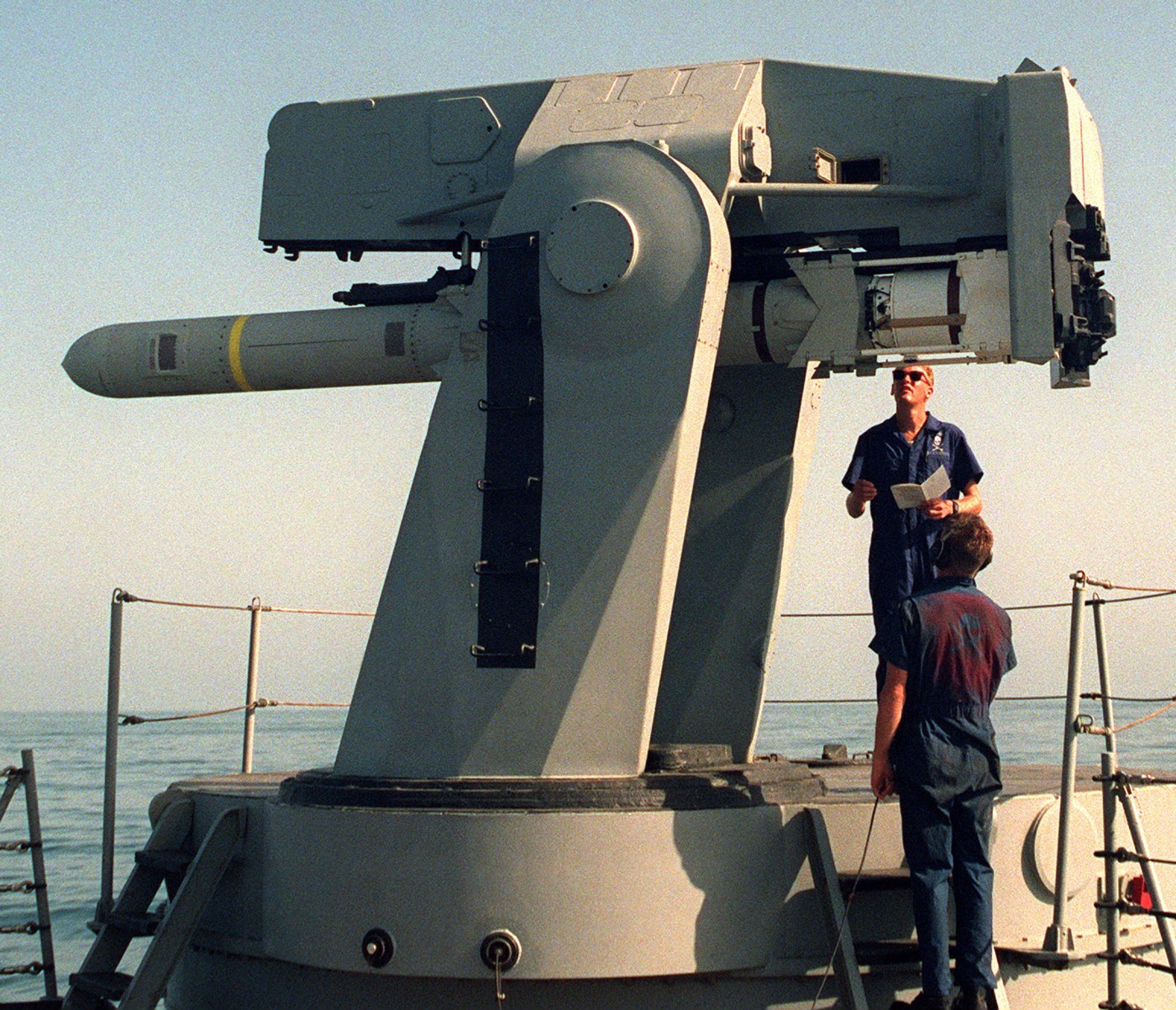

 Mk-13 guided missile launching system with a RGM-84 Harpoon SSM aboard a Charles F. Adams class DDG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr rgm-84 harpoon ssm charles f. adams class ddg 31
  Mk-13 guided missile launching system with a RGM-84 Harpoon SSM aboard a Charles F. Adams class DDG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr hatakaze class ddg jmsdf 07
Mk-13 guided missile launching system aboard a Japanese Maritime Self Defense Force (JMSDF) Hatakaze class DDG

mk-13 guided missile launching system gmls single arm rim-66 standard sm-1mr hatakaze class ddg jmsdf 06
Mk-13 guided missile launching system aboard a Japanese Maritime Self Defense Force (JMSDF) Hatakaze class DDG

mk-13 missile launcher gmls perth class ddg destroyer ddg royal australian navy

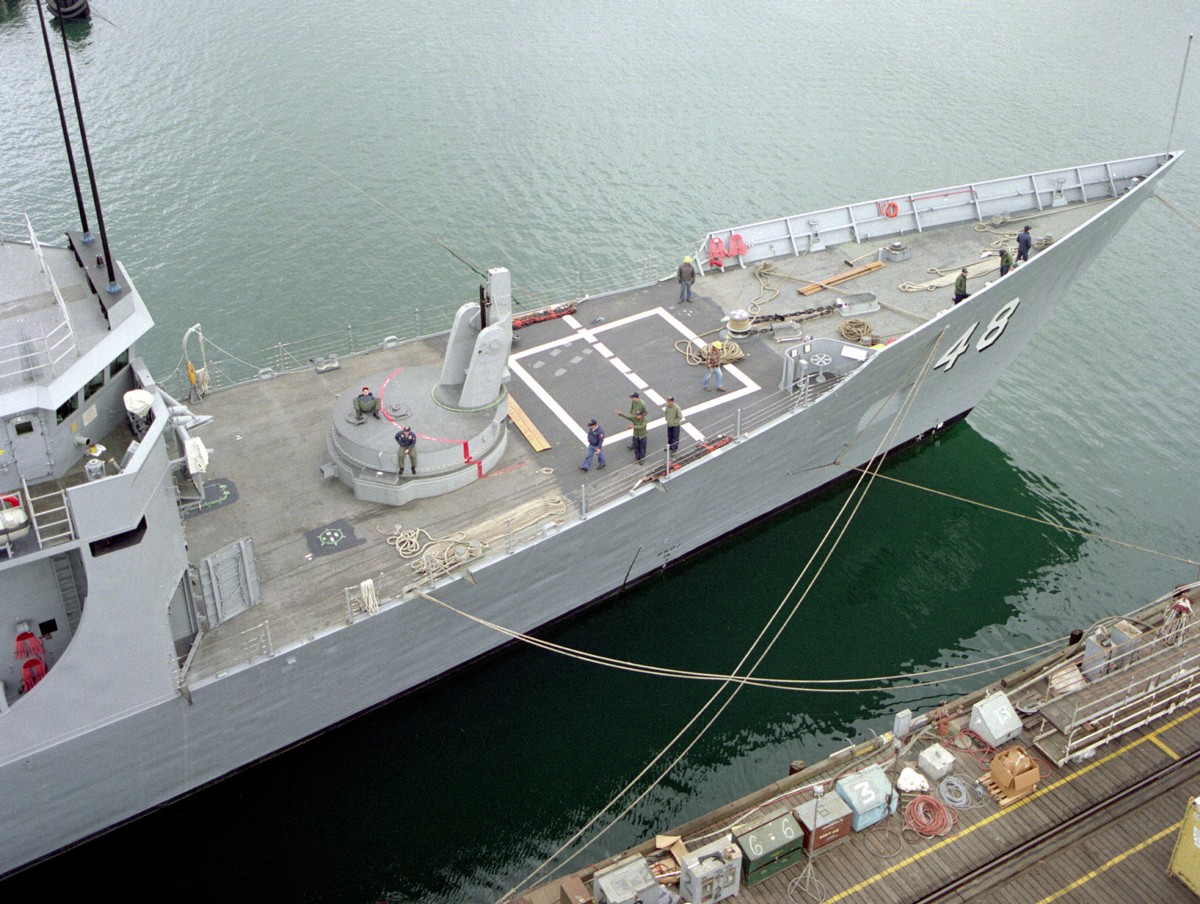

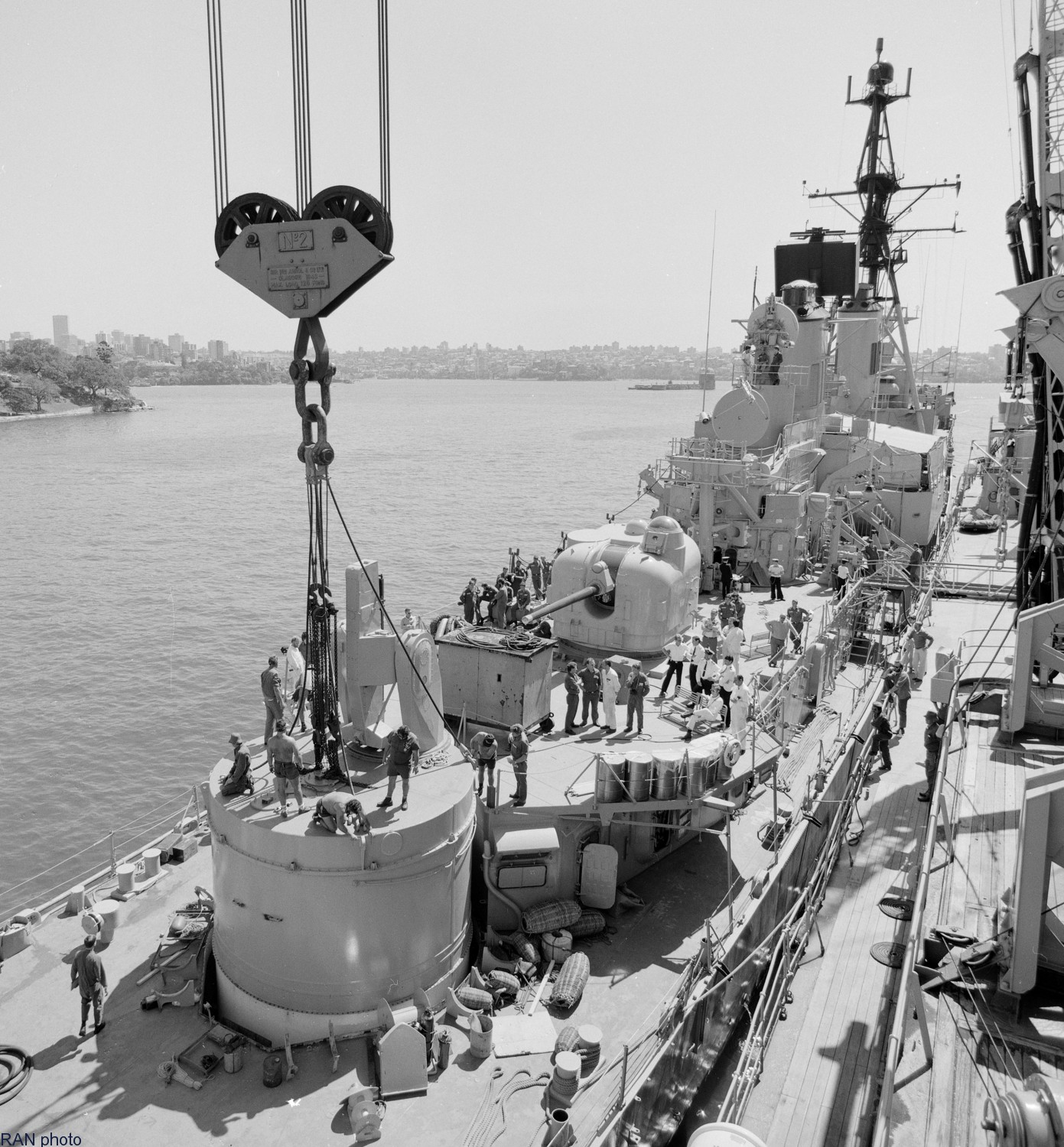

 Mk-13 guided missile launching system was removed from a Royal Australian Navy Perth class DDG

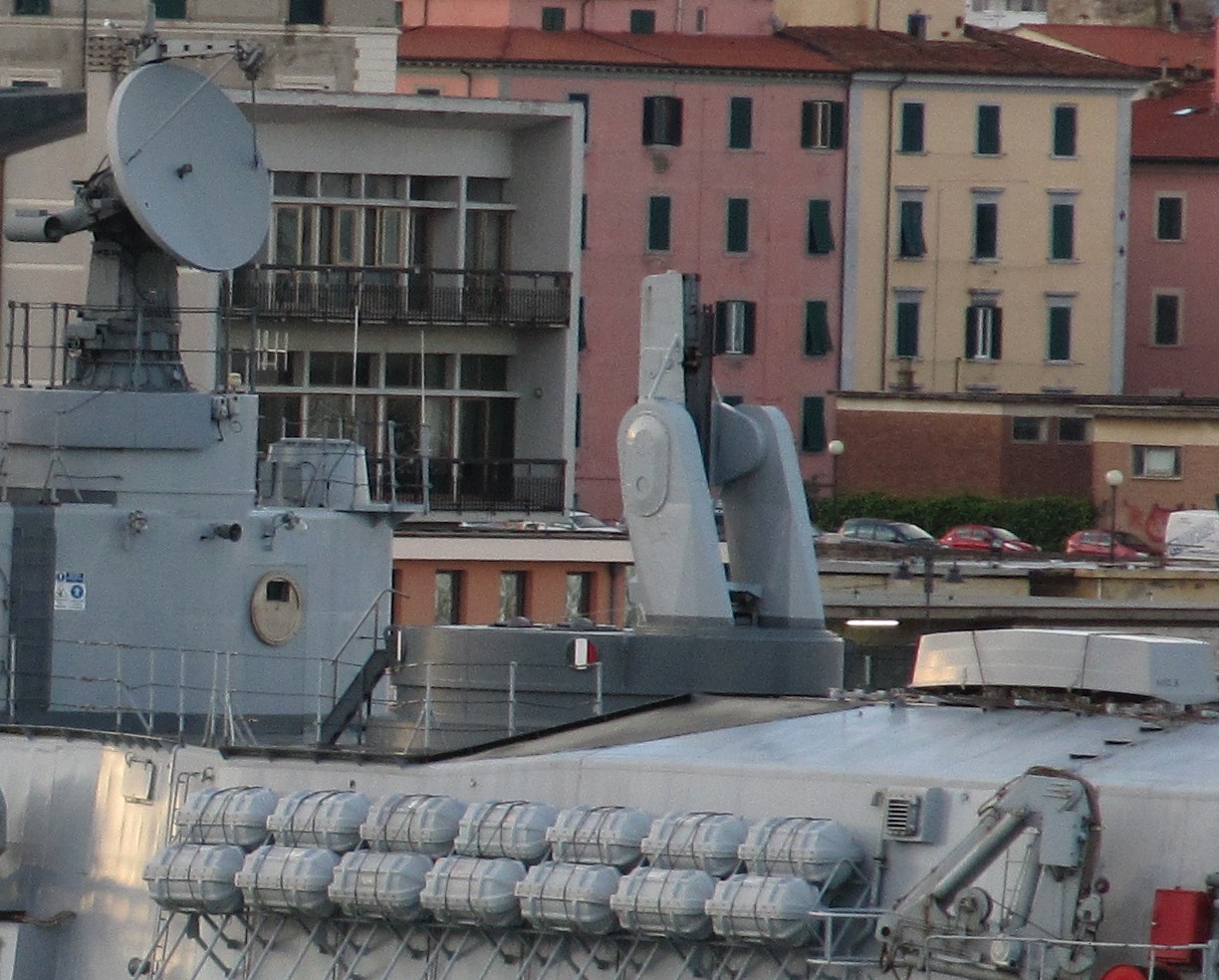

mk-13 missile launcher durand de la penne class destroyer ddg italian navy
Mk-13 guided missile launching system aboard an Italian Navy Durand de la Penne class DDG

mk-13 guided missile launching system gmls audace class destroyer ddg italian navy

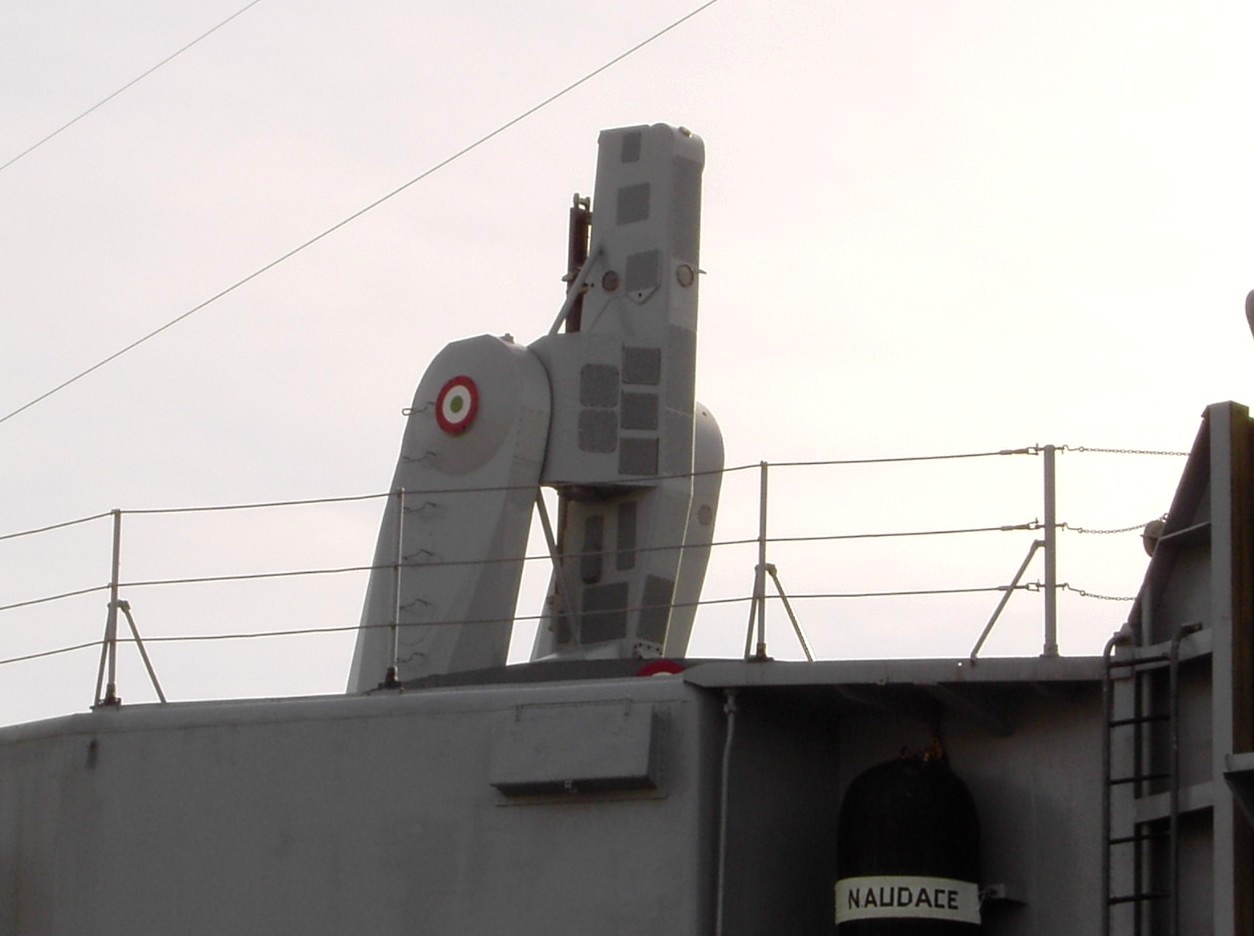

Mk-13 guided missile launching system aboard an Italian Navy Audace class DDG
