Harpers Ferry class Dock Landing Ship - LSD



harpers ferry class dock landing ship lsd carter hall oak hill pearl harbor avondale shipyards new orleans us navy

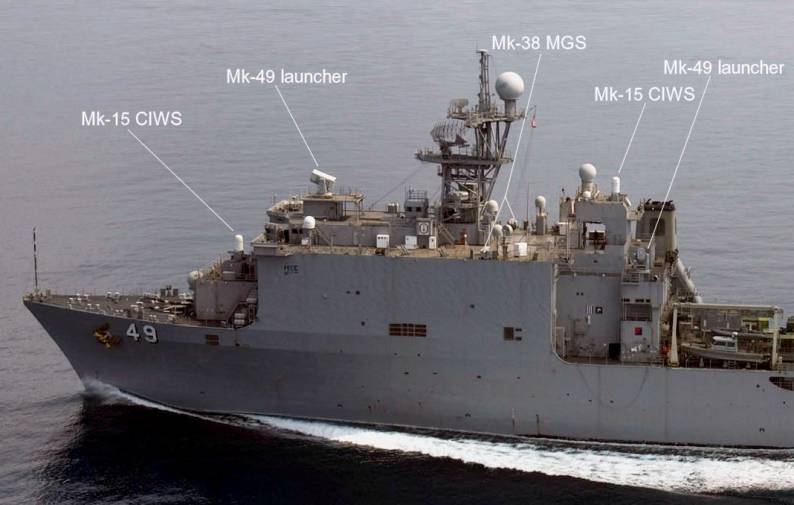

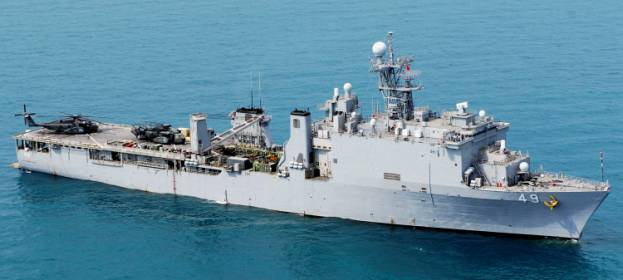

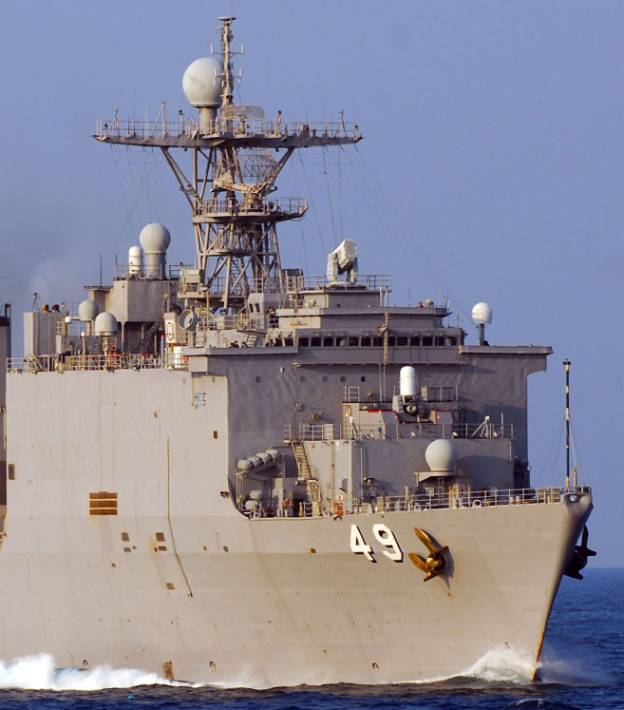

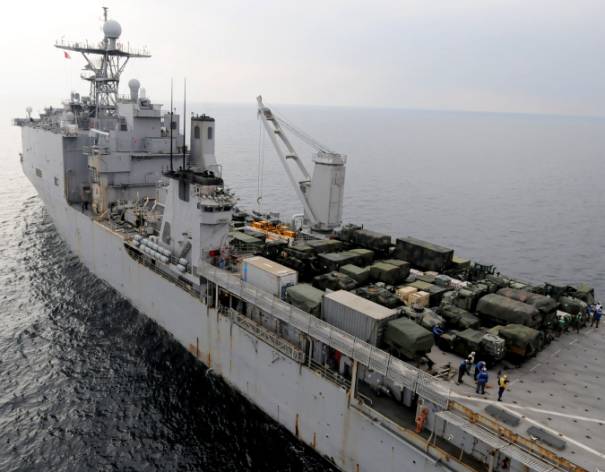

The Harpers Ferry-class is a class of dock landing ships completed in the early 1990s. Modified from the Whidbey Island class, it sacrifices landing craft capacity for more cargo space, making it closer to an amphibious transport dock type, but was not designated as such. Externally, the two classes can be told apart by the order of weapons. The Harper's Ferry type has the Phalanx CIWS mounted forward, and the RAM launcher on top of the bridge, while the Whidbey Island has the opposite arrangement.

All ships of the class are scheduled to undergo a midlife upgrade to ensure they remain in service through 2038. The ships will be upgraded each year through 2013, and the last ship will be modernized in 2014. Ships homeported on the East Coast will undergo upgrades at Metro Machine Corp., and ships based on the West Coast will receive upgrades at General Dynamics National Steel and Shipbuilding Company in San Diego.

Major elements of the upgrade package include diesel engine improvements, fuel and maintenance savings systems, engineering control systems, increased air conditioning/chill water capacity, and replacement of air compressors. The ships also replaced steam systems with all-electric functionality that will decrease maintenance.

source: wikipedia



Ships:

Units

in service

Builder

LSD 49 USS Harpers Ferry

1995

Avondale Shipyards, New Orleans, Louisiana, USA

LSD 50 USS Carter Hall

1995

Avondale Shipyards, New Orleans, Louisiana, USA

LSD 51 USS Oak Hill

1996

Avondale Shipyards, New Orleans, Louisiana, USA

LSD 52 USS Pearl Harbor

1998

Avondale Shipyards, New Orleans, Louisiana, USA



Specifications:

Displacement:

16975 tons (full load)

Length:

185,6 meters

Beam:

26 meters

Draft:

5 meters

Max Speed:

20+ knots (= 37+ km/h)

Propulsion:

4 x Colt Industries 16-cylinder diesel-engines

33000 shp, total

2 shafts / 2 controllable pitch propellers

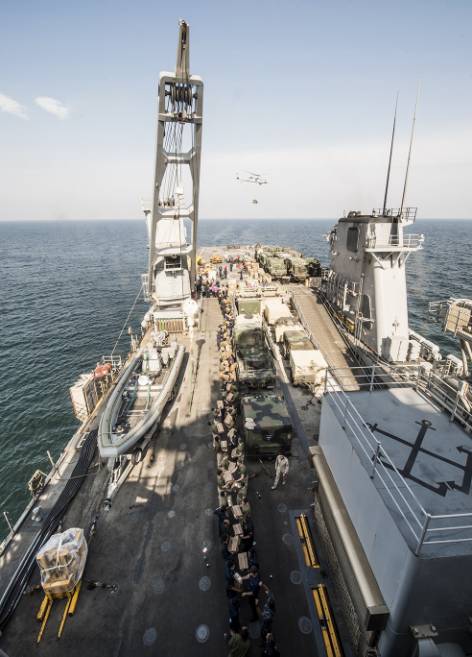

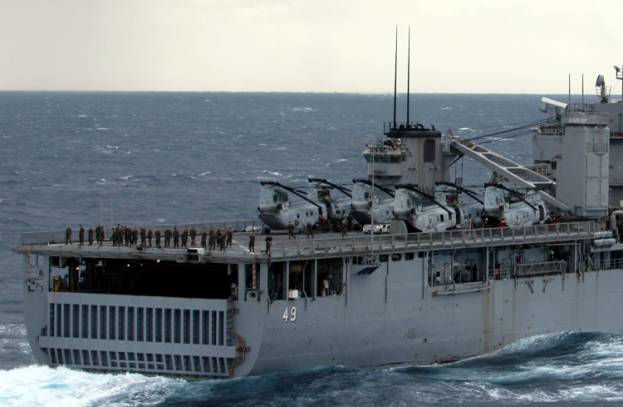

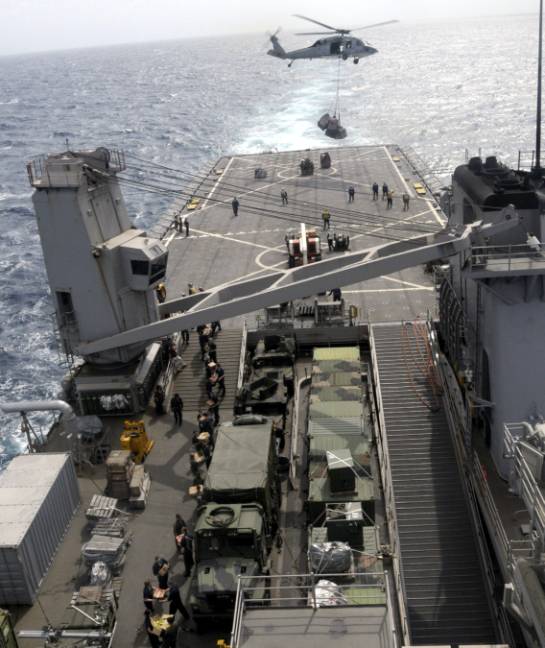

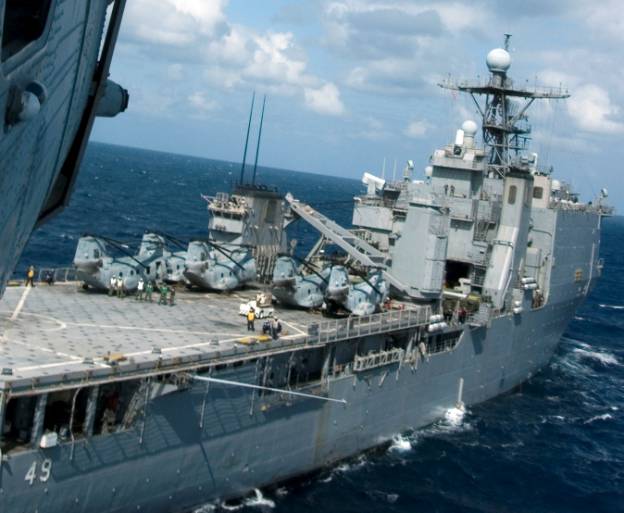

Aviation:

flight deck: 212 feet (64,6 meters) long / 83 feet (25,3 meters) wide

2 landing spots / no hangar

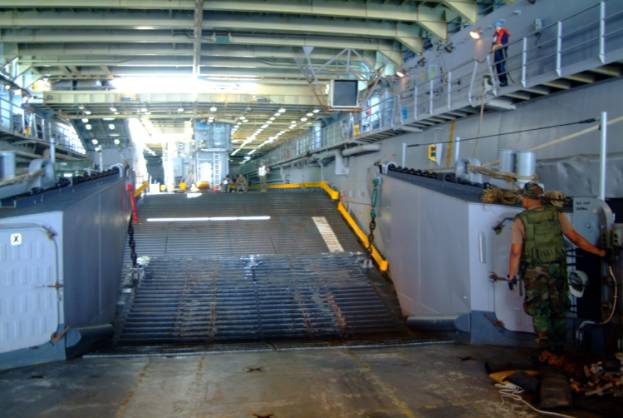

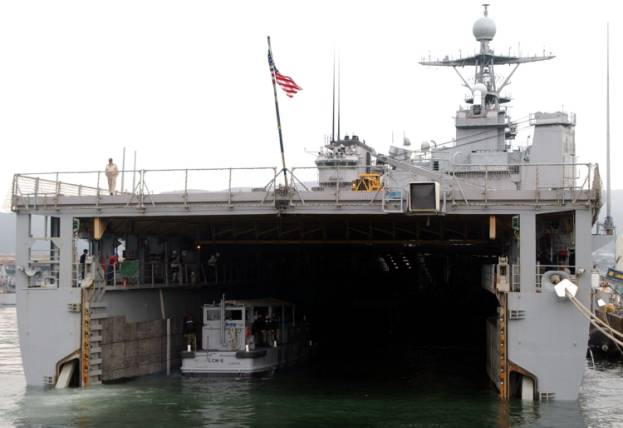

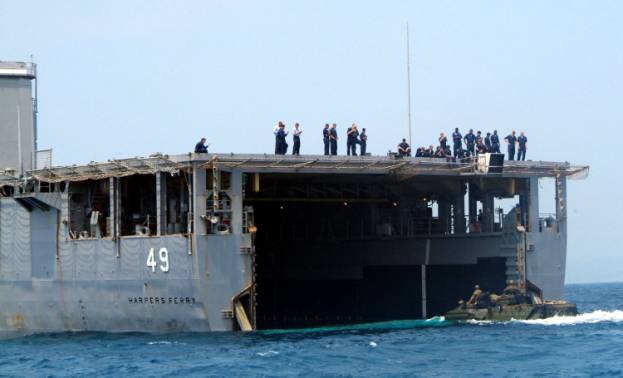

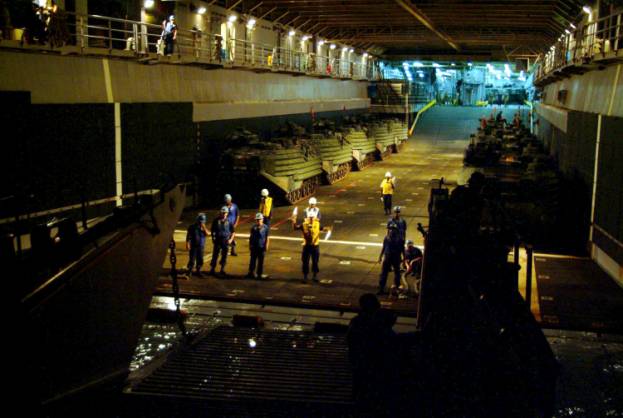

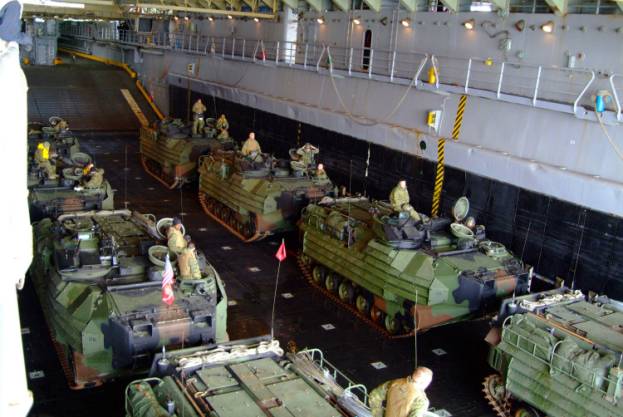

Well Deck:

220 feet (67 meters) long / 50 feet (15,25 meters) wide

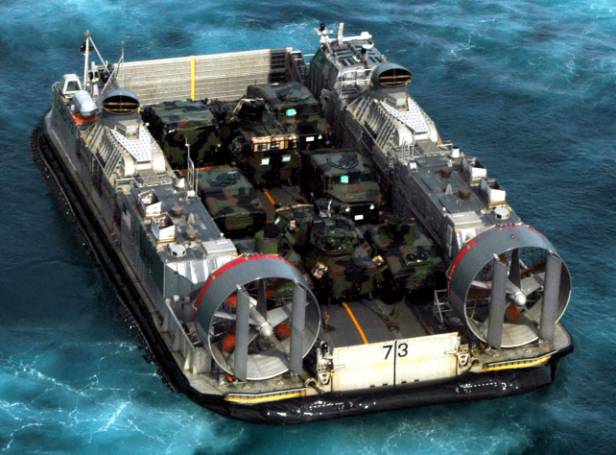

Landing force: 2 LCAC’s or 1 LCU

Complement:

Ship: 420

Marine Detachment: 402 plus 102 surge

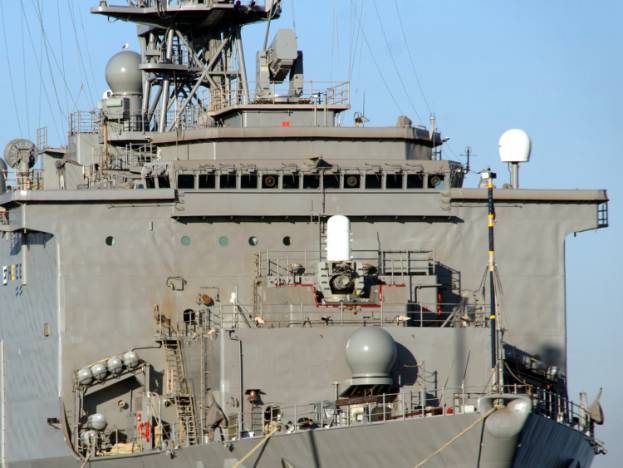

Armament:

2 x Mk-49 launcher for RIM-116 Rolling Airframe Missile (RAM)

2 x Mk-15 Phalanx CIWS

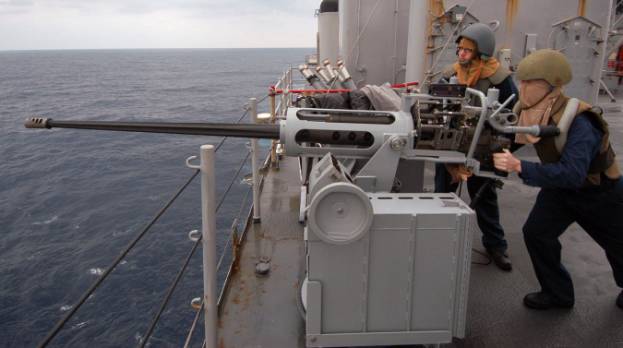

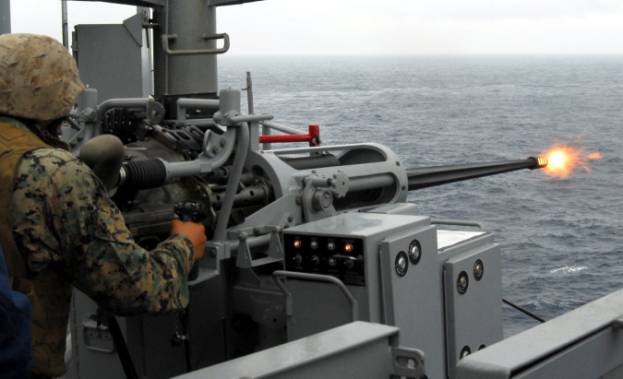

2 x Mk-38 machine gun systems (MGS)

6 x .50 caliber (12,7 mm) machine guns



Armament (defensive):











detail images:
