Turkish Navy / Türk Deniz Kuvvetleri
Barbaros class Frigate
(MEKO-200TN Track IIA + IIB)


barbaros class frigate meko-200tn iia iib turkish navy türk deniz kuvvetleri tcg orucreis salihreis kemalreis 02x


01/20
Ships:

MEKO-200TN-IIA class
F 244 TCG
Barbaros (1997)
F 245
TCG
Orucreis (1997)

MEKO-200TN-IIB class
F 246 TCG
Salihreis (1998)
F 247
TCG
Kemalreis (2000)


Specifications:

Length: IIA: 116.7 meters (383 feet) / IIB: 118 meters (387.1 ft)
Beam: 14.8 meters (49 ft)
Draft: 4.25 meters (13.9 ft)
Displacement: 3350 tons (full load)
Speed: 32 knots (59 km/h) on gas turbines / 22 knots (41 km/h) on diesels
Range: 4100 NM (7600 km) at 18 knots (33 km/h)
Complement: 170

Propulsion:
Combined Diesel or Gas (CODOG)
2 x General Electric LM-2500 gas turbines (44740 kW / 60000 hp total)
2 x MTU 20V 1163 diesel engines (19480 kW / 26120 hp total)

2 shafts, 2 controllable pitch propellers


Armament:

1 x Mk-41 Mod.8 Vertical Launching System (VLS)
16 cells - for
RIM-162 Evolved Sea Sparrow Missile (ESSM)
(F 246 + 247)

1 x Mk-29 missile launcher for 8 x RIM-7 Sea Sparrow SAM
(F 244 + 245 - will be replaced by Mk-41 VLS)
- - -
(all 4 units)
1 x Mk-45 Mod.2 (5" 127mm / 54-caliber) gun
3 x Oerlikon Contraves Sea Zenith 25mm CIWS system
2 x Mk-141 missile launcher for up to 8 x RGM-84 Harpoon SSM
2 x Mk-32 (12.75"/324mm) triple torpedo tubes for 6 x Mk-46 torpedos


Aviation:
flight deck and hangar for 1 helicopter
S-70B Seahawk ASW or AB-212 ASW

Systems:
BAE Systems AWS-9 2D long-range surveillance and tracking radar
replaced by
Thales SMART-S Mk-2 medium to long-range air and surface surveillance multibeam passive electronically scanned array 3D radar

AWS-6 radar
Decca 2040 BT radar

HSA STIR-24 target tracking and illumination radar (missile)
HSA STIR-18 target tracking and illumination radar (gun)

Raytheon AN/SQS-56 (DE1160) hull mounted sonar
Racal Cutlass ECM system
Racal Scorpion ECM system
2 x Mk-36 SRBOC chaff and decoy launching system
AN/SLQ-25 NIXIE torpedo decoy system



Units:

F 244 TCG Barbaros

Builder: Blohm & Voss, Hamburg, Germany
Laid down:
April 1992

Launched: September 29, 1993
Commissioned: May 23, 1997
IN SERVICE

Namesake:
Barbaros Kheireddin Pasha (Turkish: Barbaros Hayrettin Paşa - or Hayreddin Barbarossa), born Khizr or Khidr (c. 1478 - 4 July 1546),
was an Ottoman corsair and later admiral of the Ottoman Navy. Barbarossa's naval victories secured Ottoman dominance over the
Mediterranean during the mid 16th century.



F 245 TCG Orucreis

Builder: Gölcük Naval Shipyard, Kocaeli, Turkey
Laid down:
July 23, 1992

Launched: July 28, 1994
Commissioned: May 23, 1997
IN SERVICE

Namesake:
Oruç Reis (c. 1474-1518) was an Ottoman bey (governor) of Algiers and beylerbey (chief governor) of the West Mediterranean,
and the elder brother of Hayreddin Barbarossa. He was born on the Ottoman island of Midilli (Lesbos in modern Greece)
and was killed in battle against the Spanish at Tlemcen in the Ottoman Eyalet of Algeria.



F 246 TCG Salihreis

Builder: Blohm & Voss, Hamburg, Germany
Laid down:
March 16, 1995

Launched: September 26, 1997
Commissioned: July 22, 1998
IN SERVICE

Namesake:
Salah Rais (Turkish: Salih Reis - c. 1488 - 1568) was an Ottoman privateer and admiral. He is alternatively referred to as Sala Reis,
Salih Rais, Salek Rais and Cale Arraez in several European sources, particularly in Spain, France and Italy



F 247 TCG Kemalreis

Builder: Gölcük Naval Shipyard, Kocaeli, Turkey
Laid down:
December 3, 1995

Launched: July 22, 1998
Commissioned: June 8, 2000
IN SERVICE

Namesake:
Kemal Reis (c. 1451 - 1511) was an Ottoman privateer and admiral. He was also the paternal uncle of the famous Ottoman
admiral and cartographer Piri Reis, who accompanied him in most of his important naval expeditions.



The Barbaros-class frigates are among the most modern frigates in the Turkish Navy. They were designed in Germany and are part of the MEKO group of modular warships, in this case the MEKO 200 design. Two ships were built in Germany and two in Turkey with German assistance. They are larger than the previous Yavuz-class frigates and are also faster due to using CODOG machinery rather than pure diesels.

The first two vessels (F-244 and F-245) are defined as the Barbaros class (MEKO 200 TN Track II-A) while the last two vessels (F-246 and F-247) are defined as the Salih Reis class (MEKO 200 TN Track II-B) by the Turkish Navy. The two vessels of the Salih Reis class were fitted with the Mk.41 VLS, while the Sea Sparrow launchers on the older Barbaros-class vessels are currently being replaced with Mk-41 VLS, which is capable of launching Evolved Sea Sparrow (ESSM) missiles.

Modernization projects:
On 3 April 2018 a contract was signed between Aselsan - Havelsan Joint Venture and the secretariat for Defense Industry (SSM) regarding the Barbaros Class Frigate mid-life modernization project. Two of the frigates of the class have already received two 8-cell Mk41 vertical launcher system (VLS) modules, which replaced the obsolete Mk-29 Sea Sparrow launchers. Additionally the old AWS-9 3D air search radars has been replaced by modern Thales SMART-S Mk2 3D radars.

source: wikipedia

images

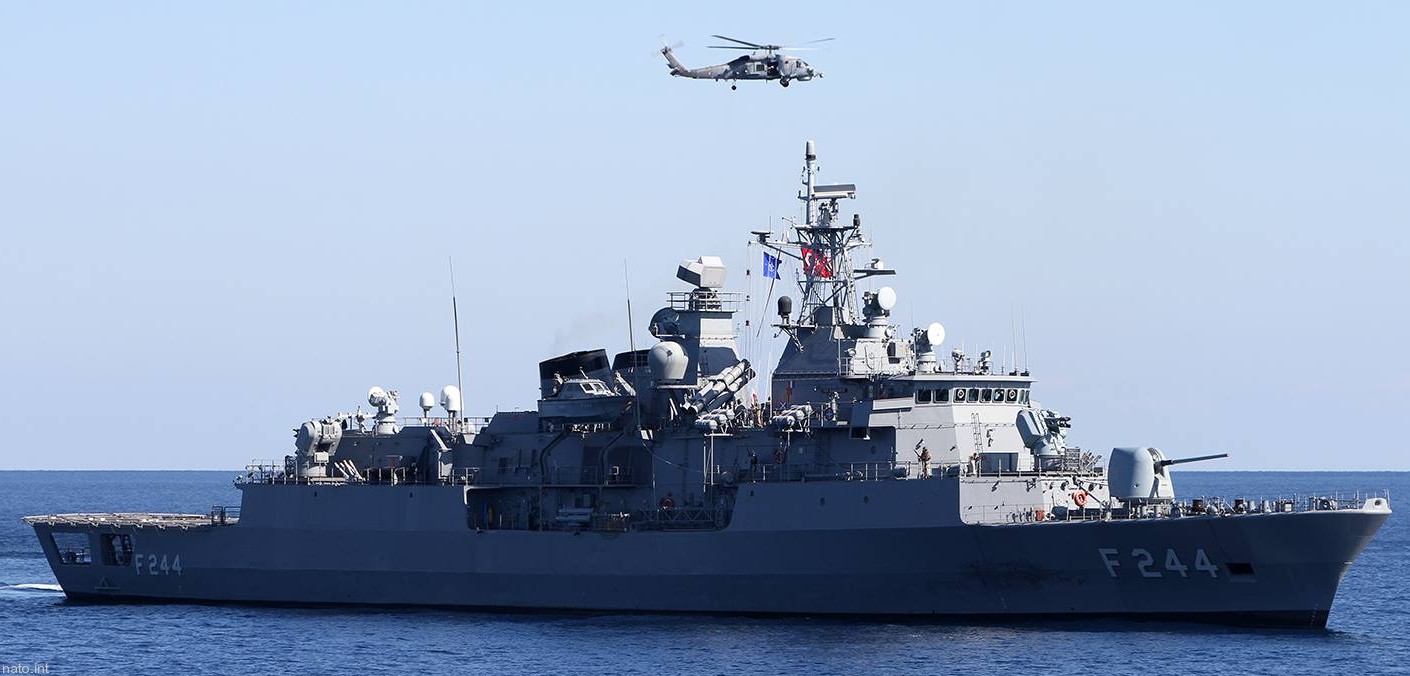

f-244 tcg barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 02
F 244 TCG Barbaros

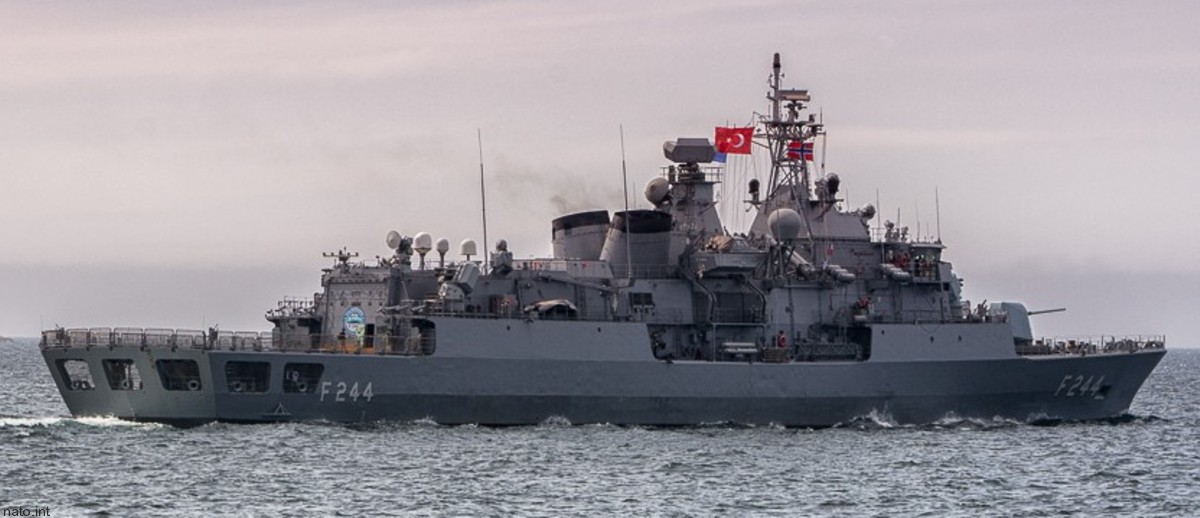

f-244 tcg barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 03
F 244 TCG Barbaros

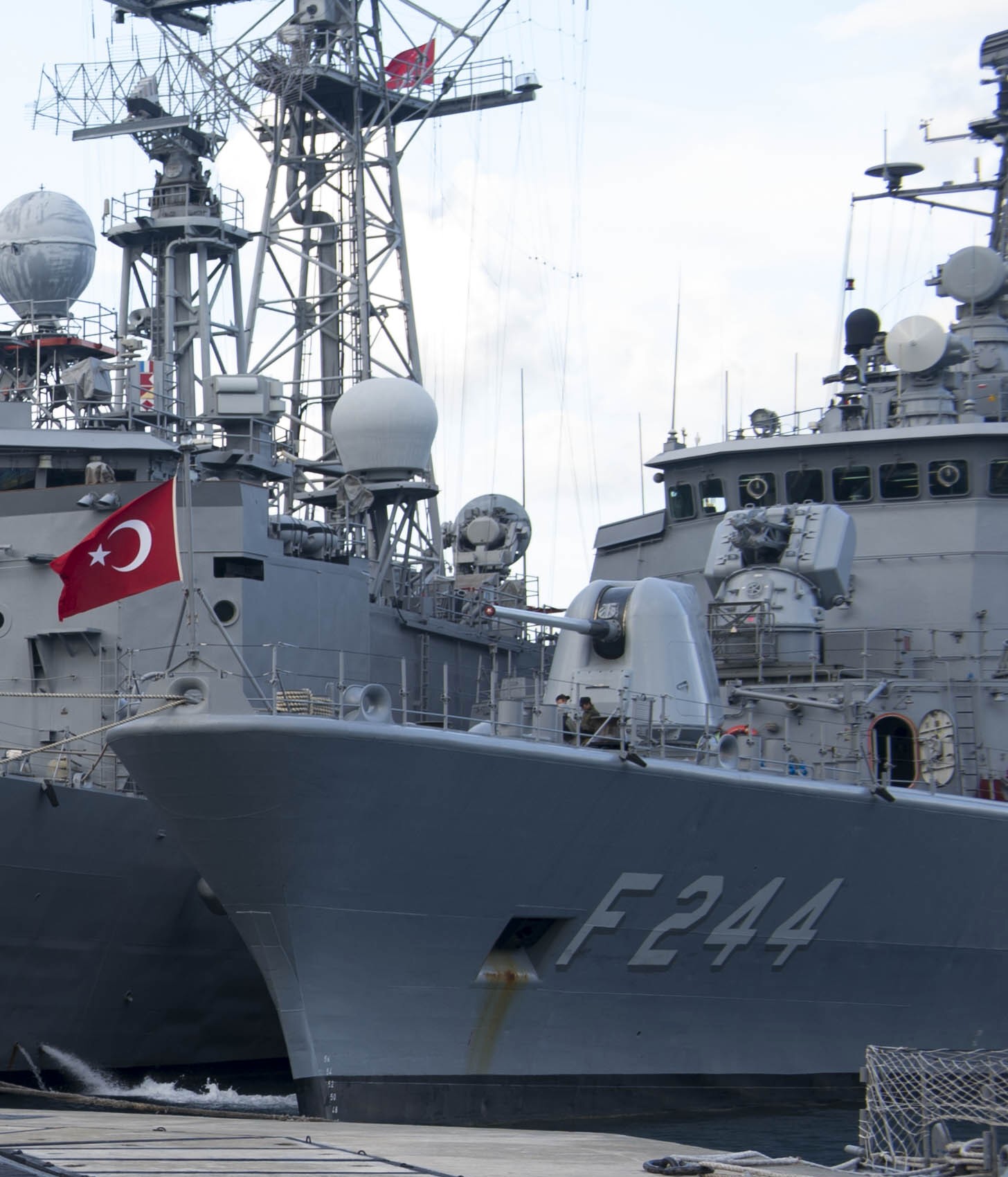

f-244 tcg barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 04
F 244 TCG Barbaros

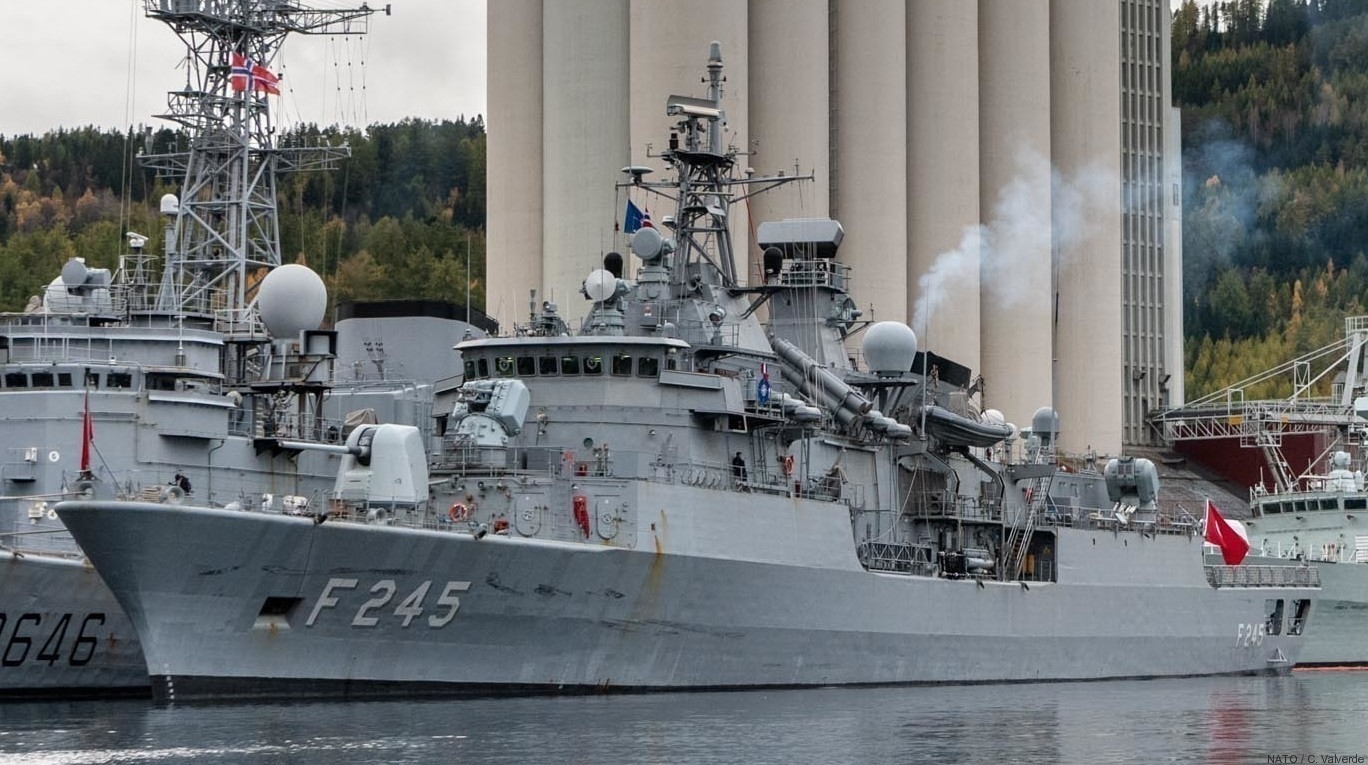

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 04
F 245 TCG Orucreis

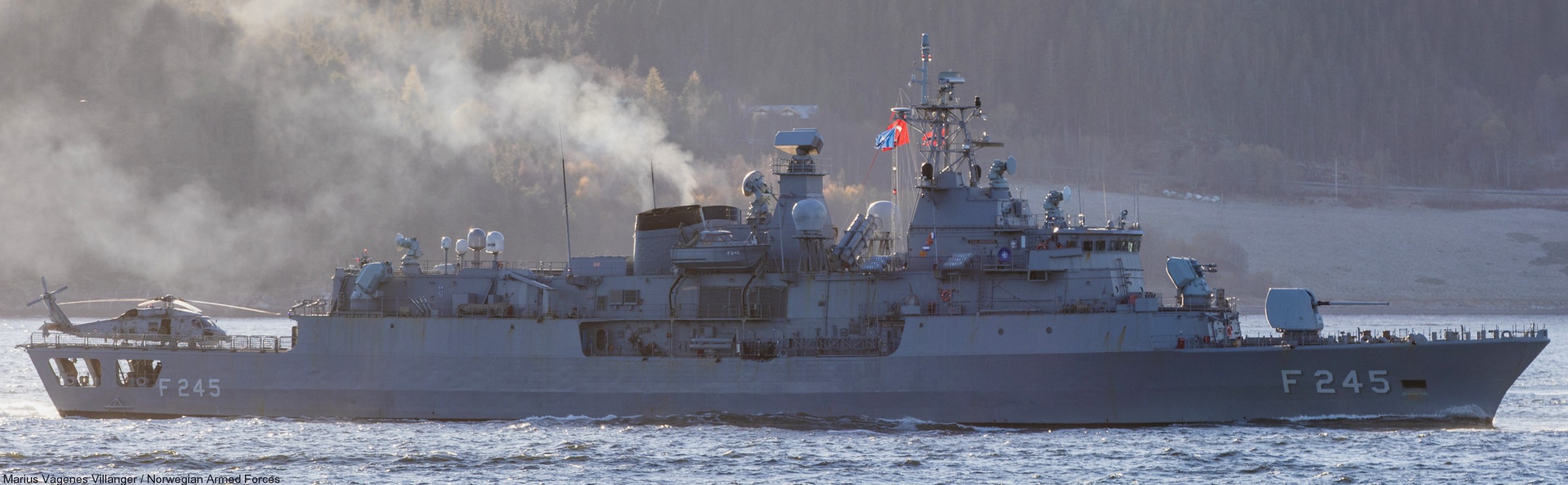

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 05 nato
F 245 TCG Orucreis

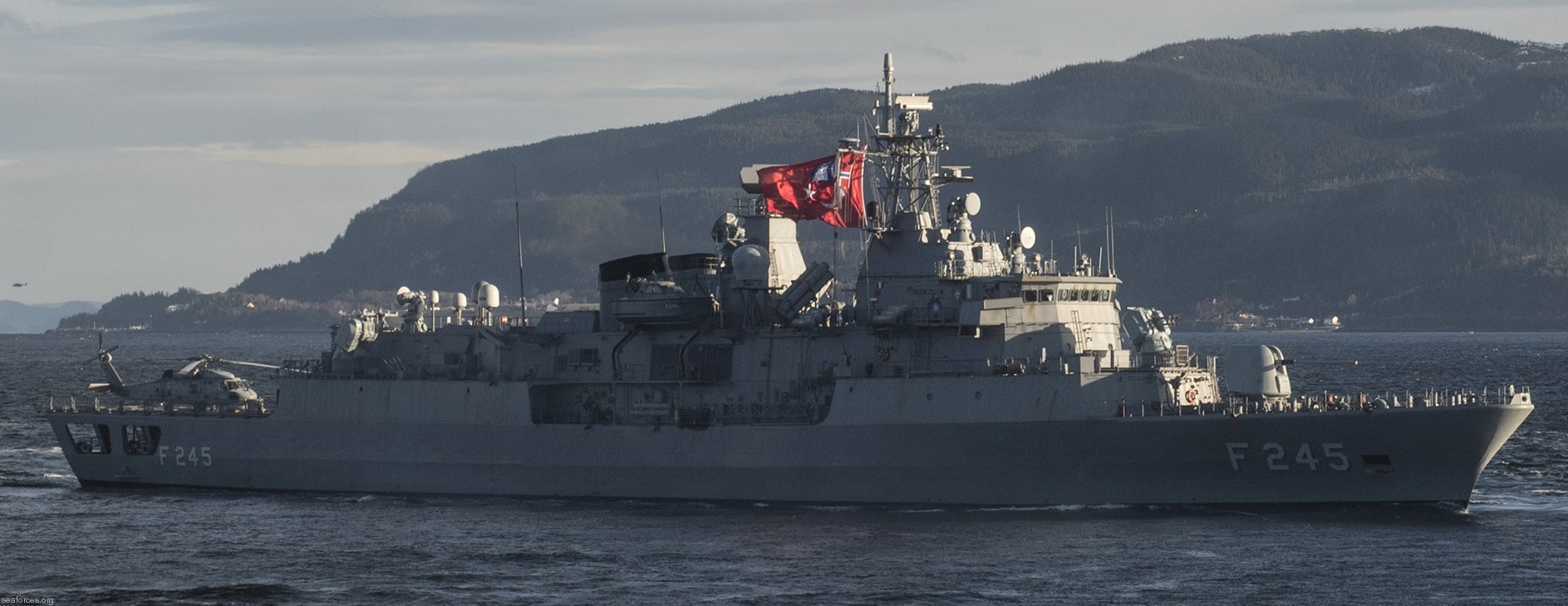

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 02
F 245 TCG Orucreis

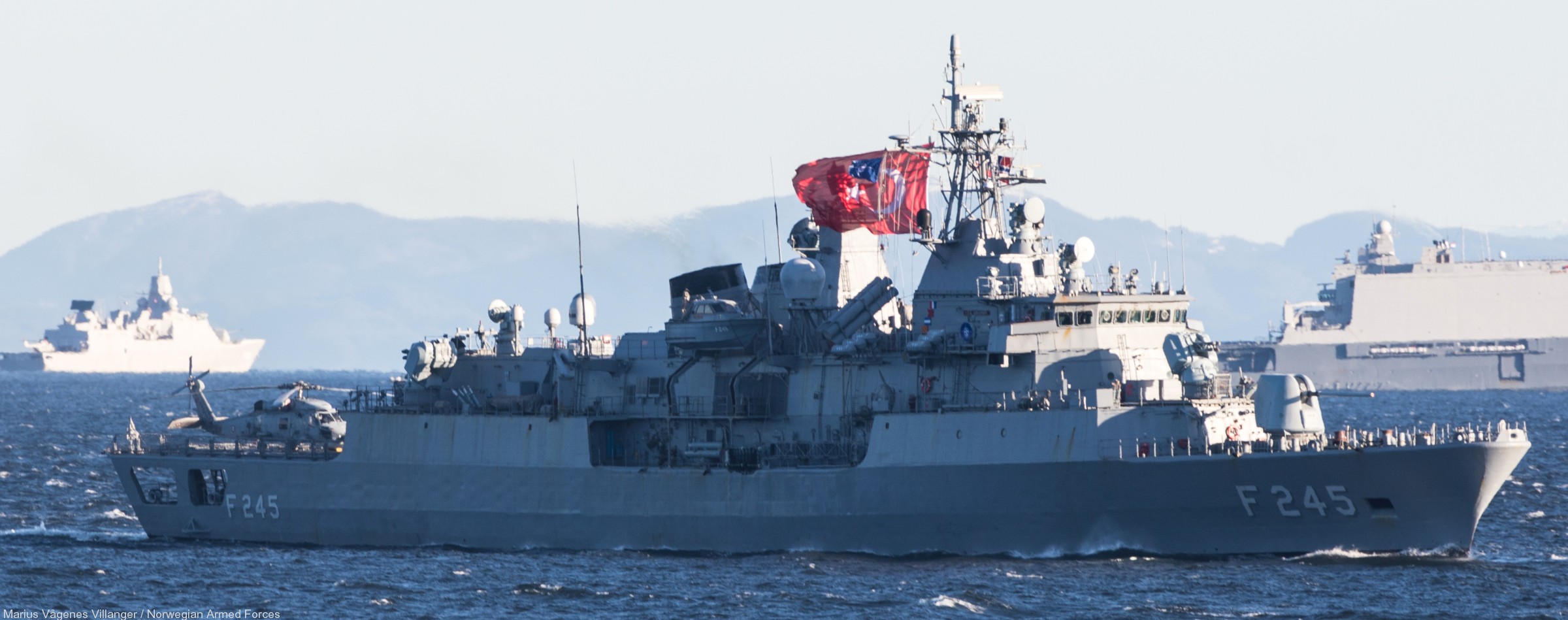

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 06
F 245 TCG Orucreis

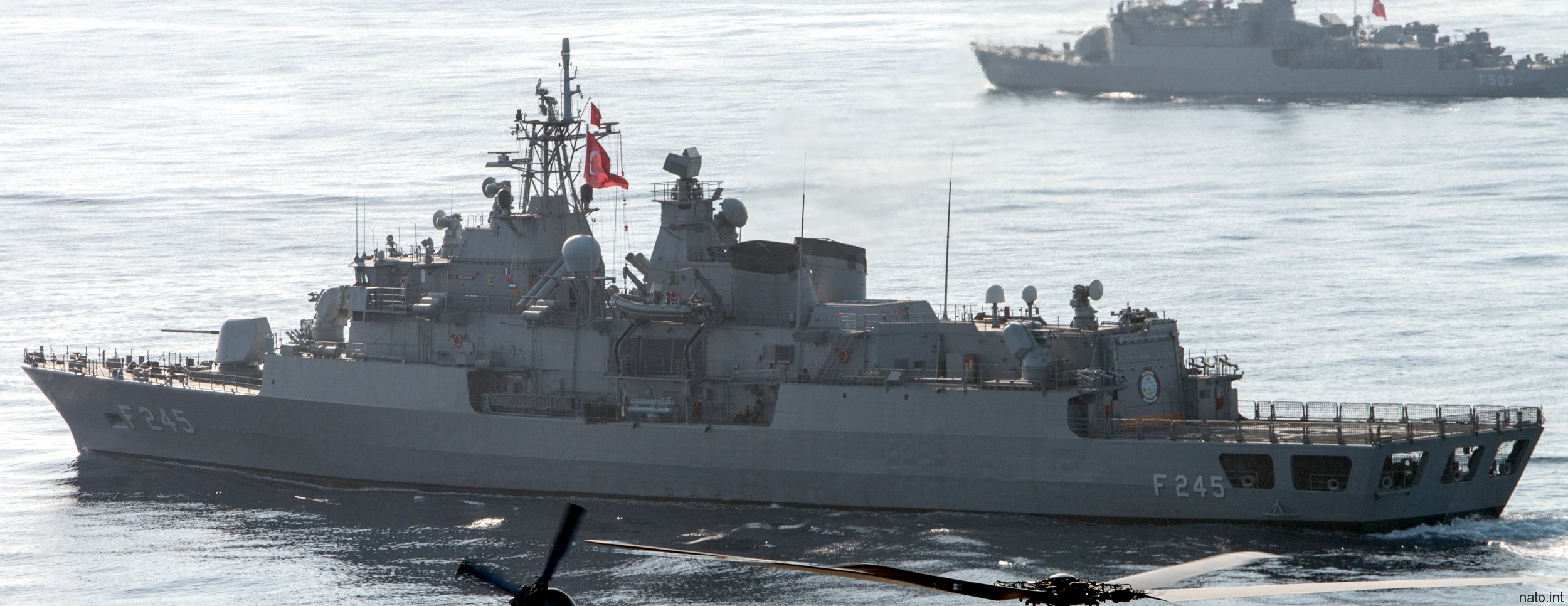

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 07
F 245 TCG Orucreis

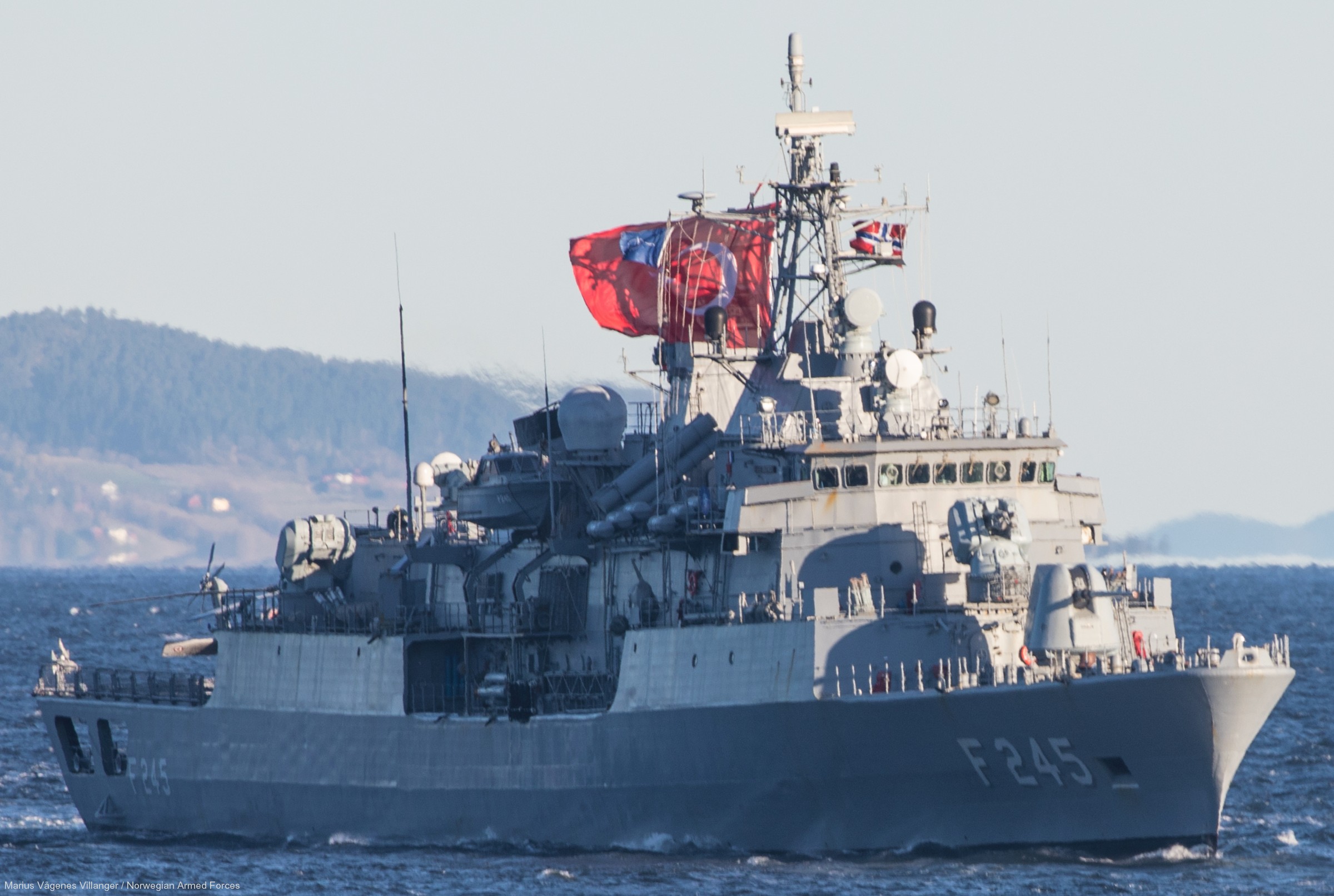

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 08
F 245 TCG Orucreis

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 03
F 245 TCG Orucreis

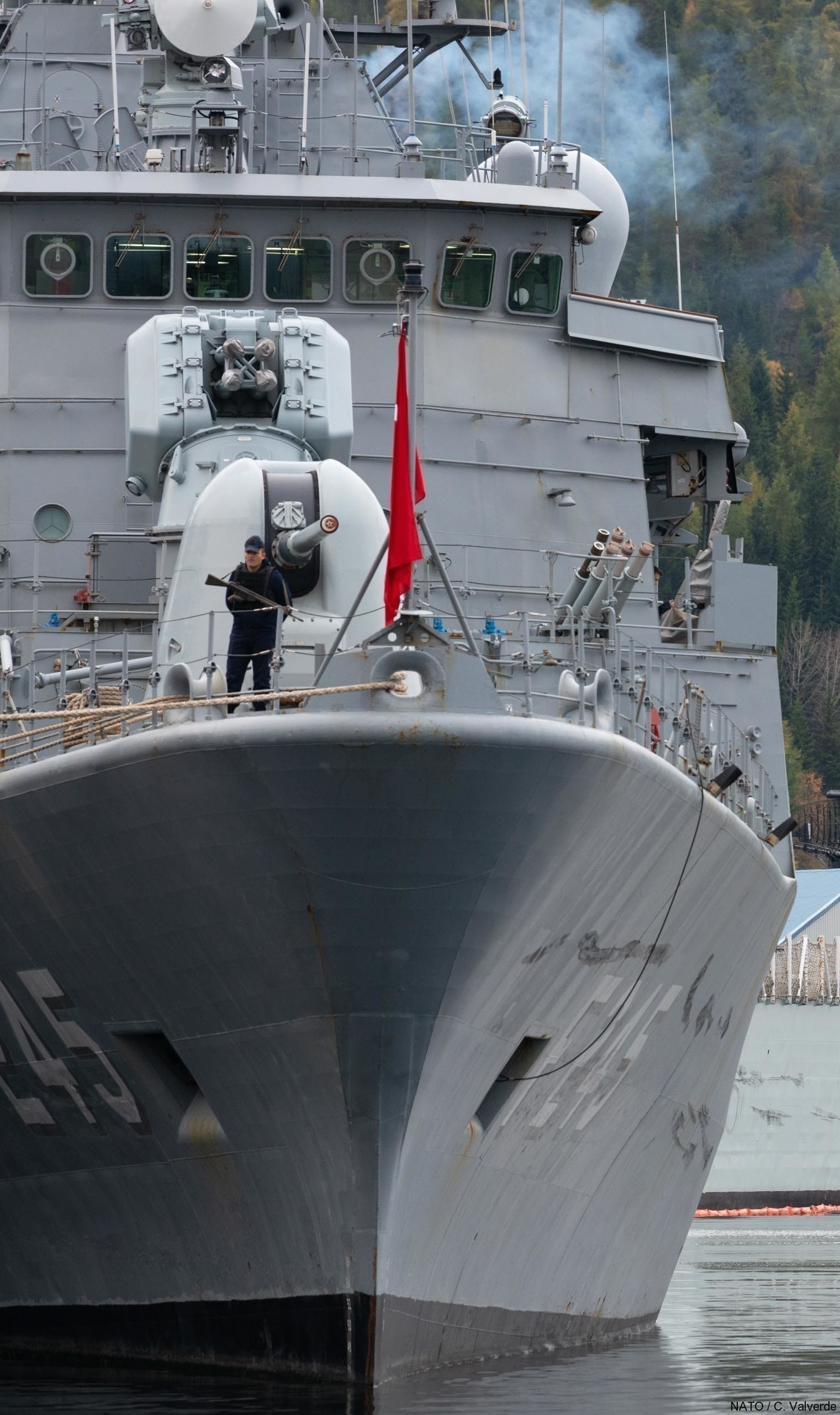

f-245 tcg orucreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 09
F 245 TCG Orucreis

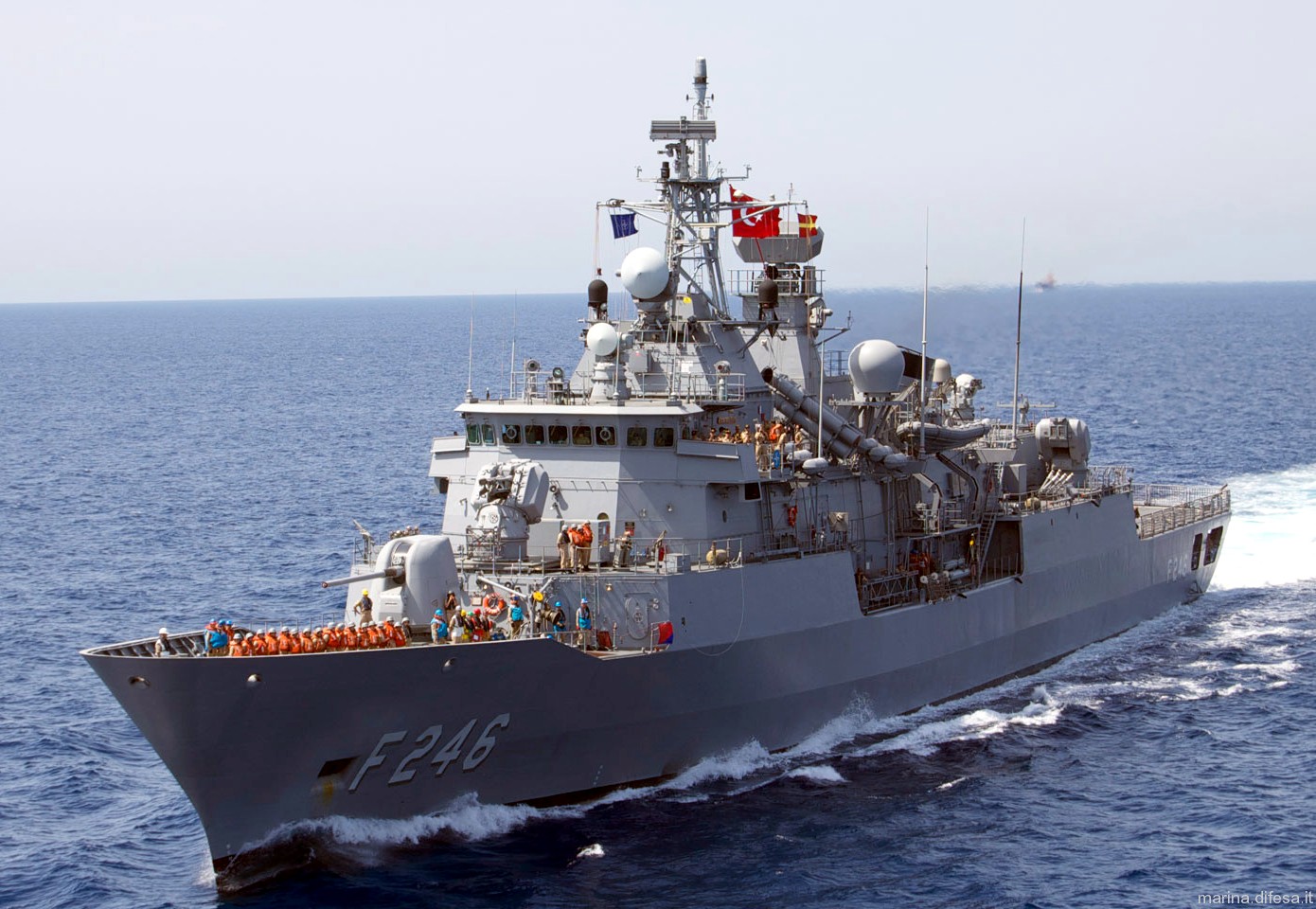

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 03
F 246 TCG Salihreis

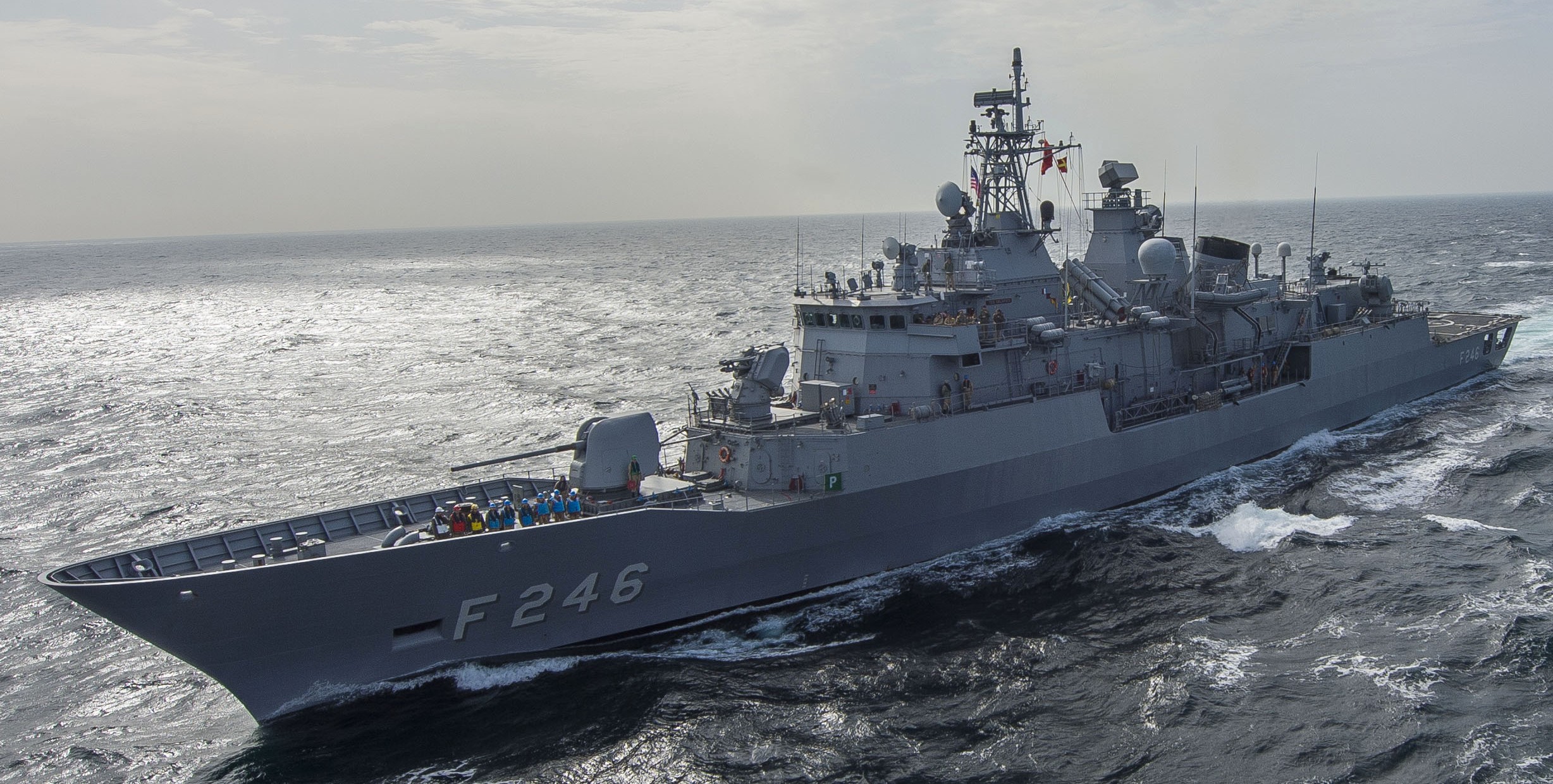

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 02
F 246 TCG Salihreis

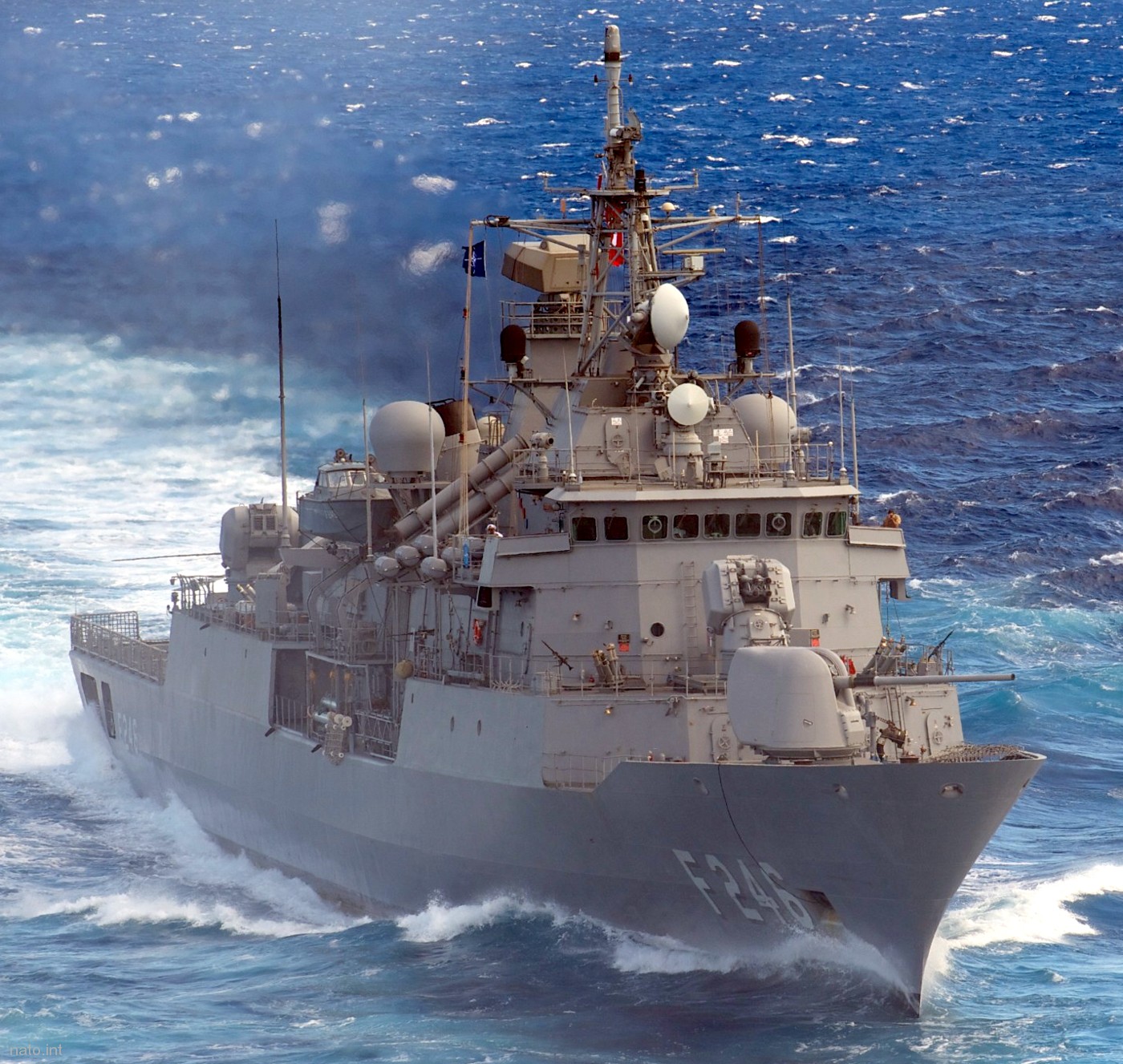

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 04
F 246 TCG Salihreis

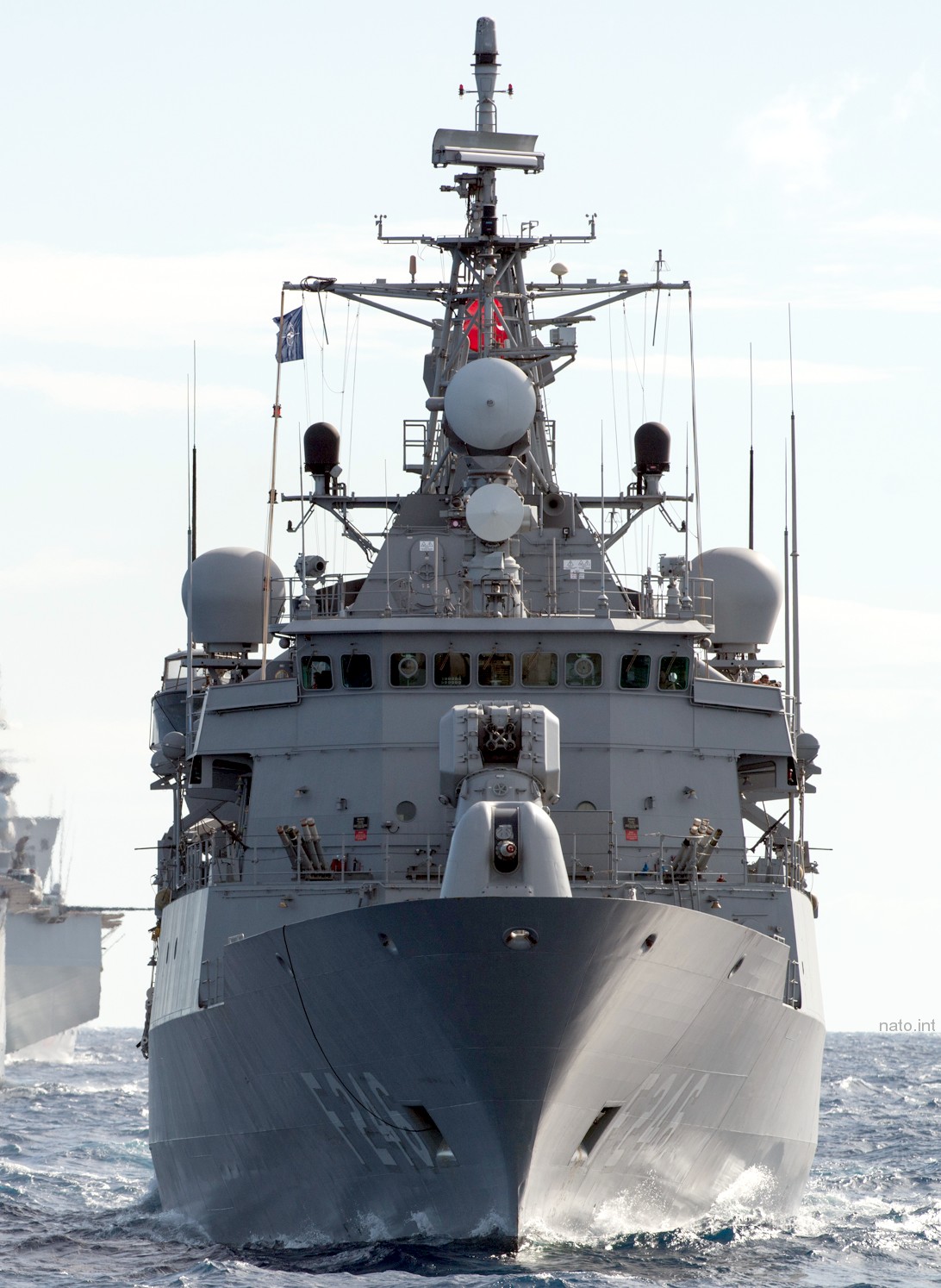

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 05
F 246 TCG Salihreis

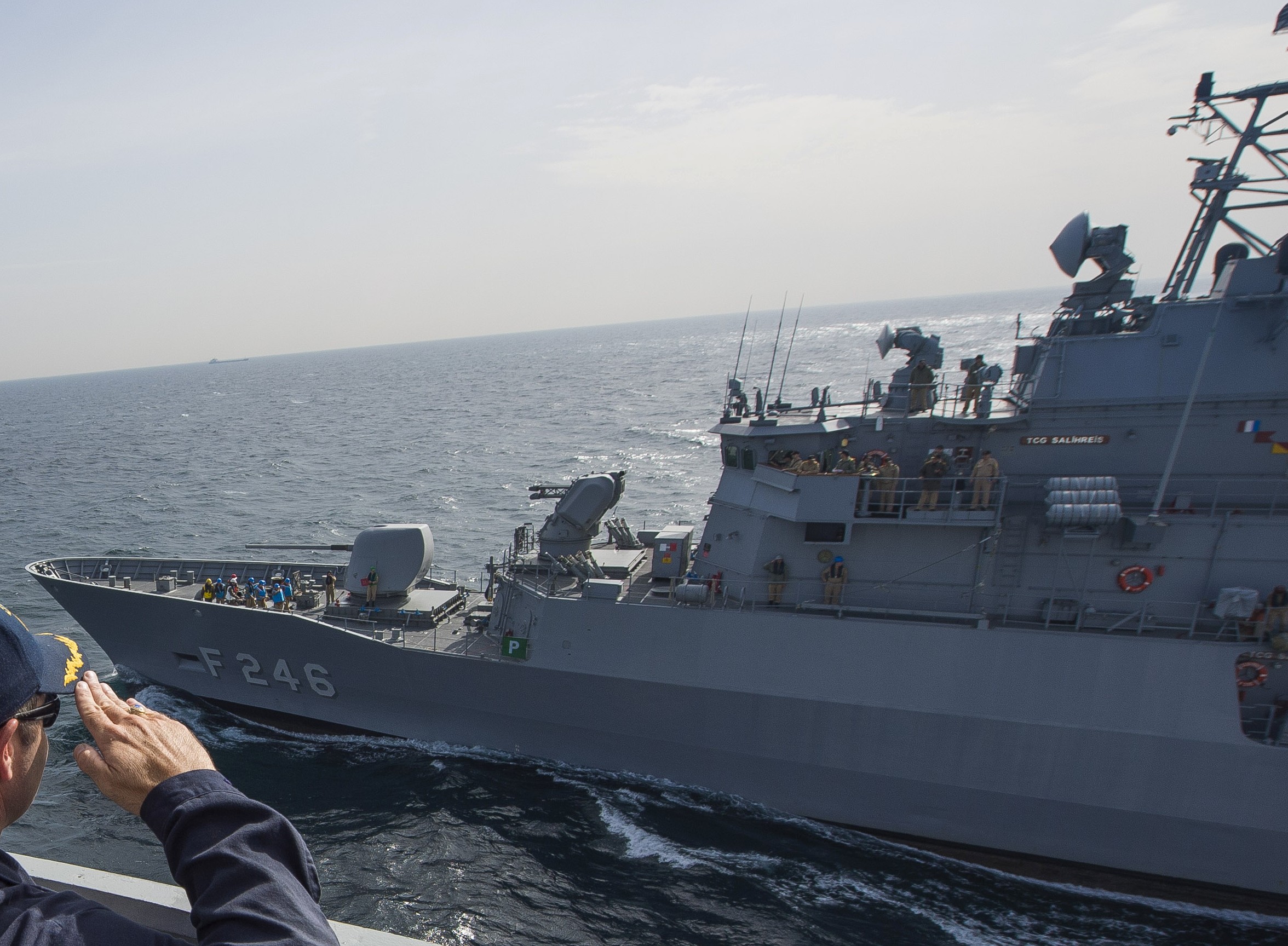

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 07
F 246 TCG Salihreis

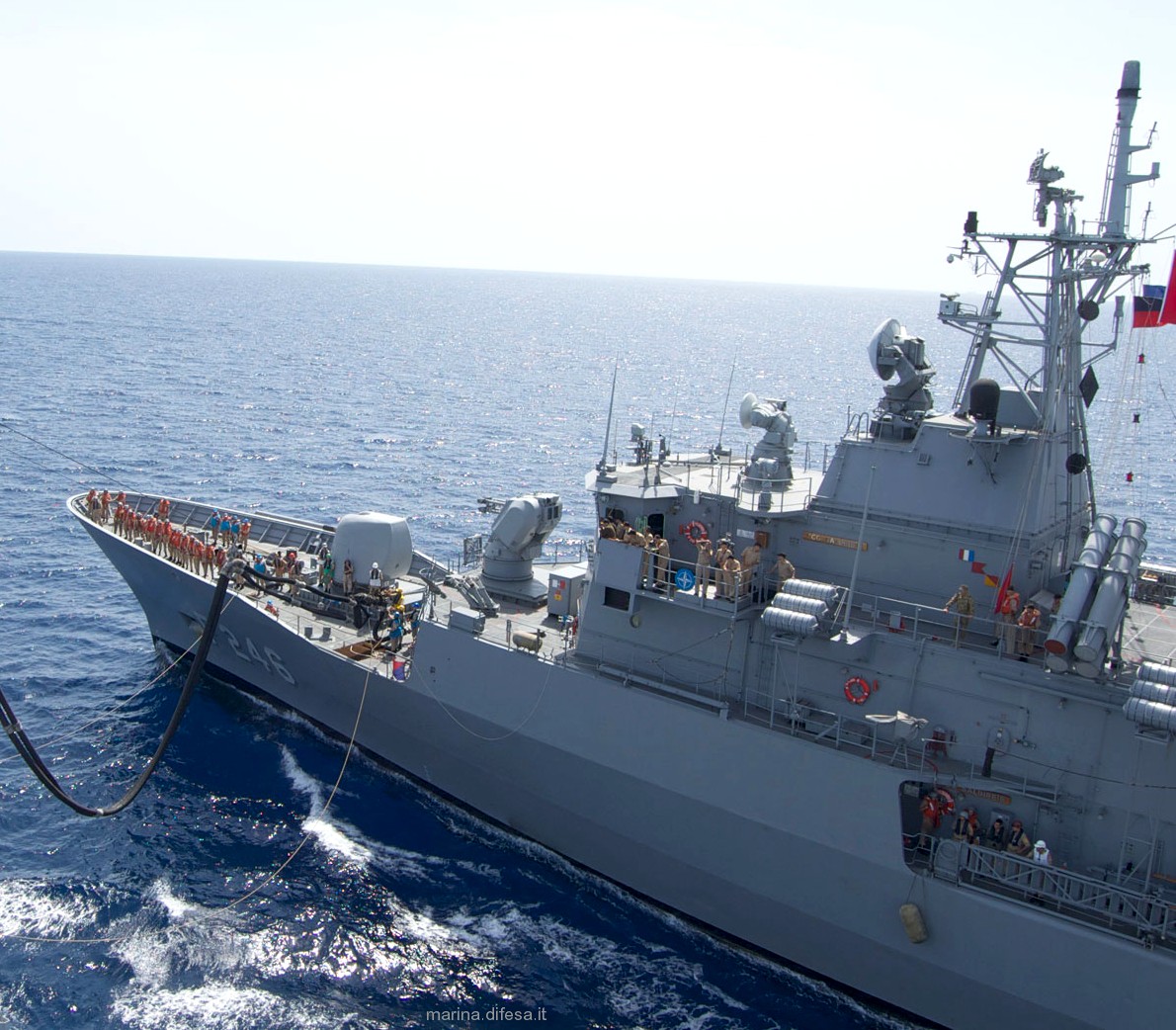

f-246 tcg salihreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 06
F 246 TCG Salihreis

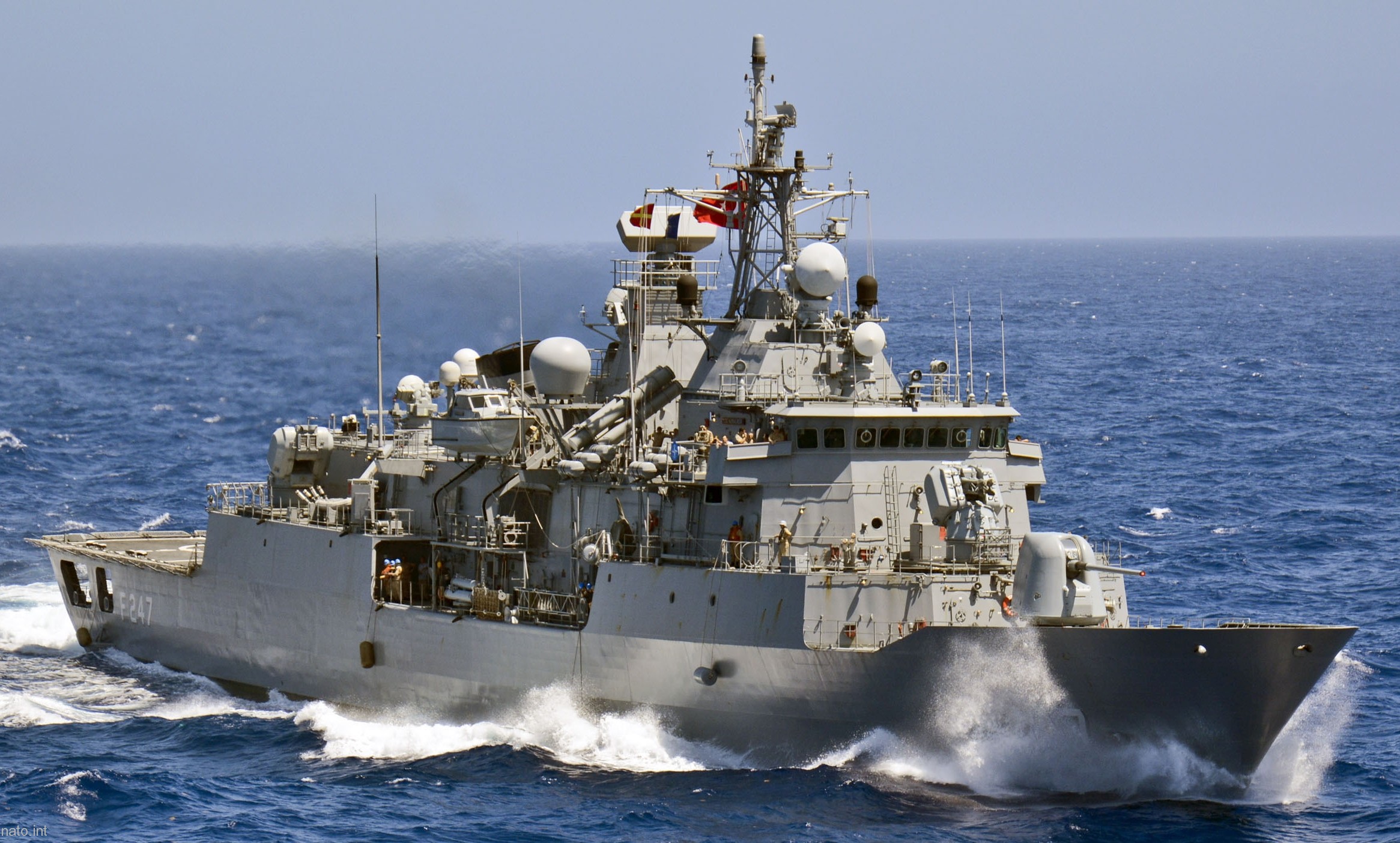

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 02
F 247 TCG Kemalreis

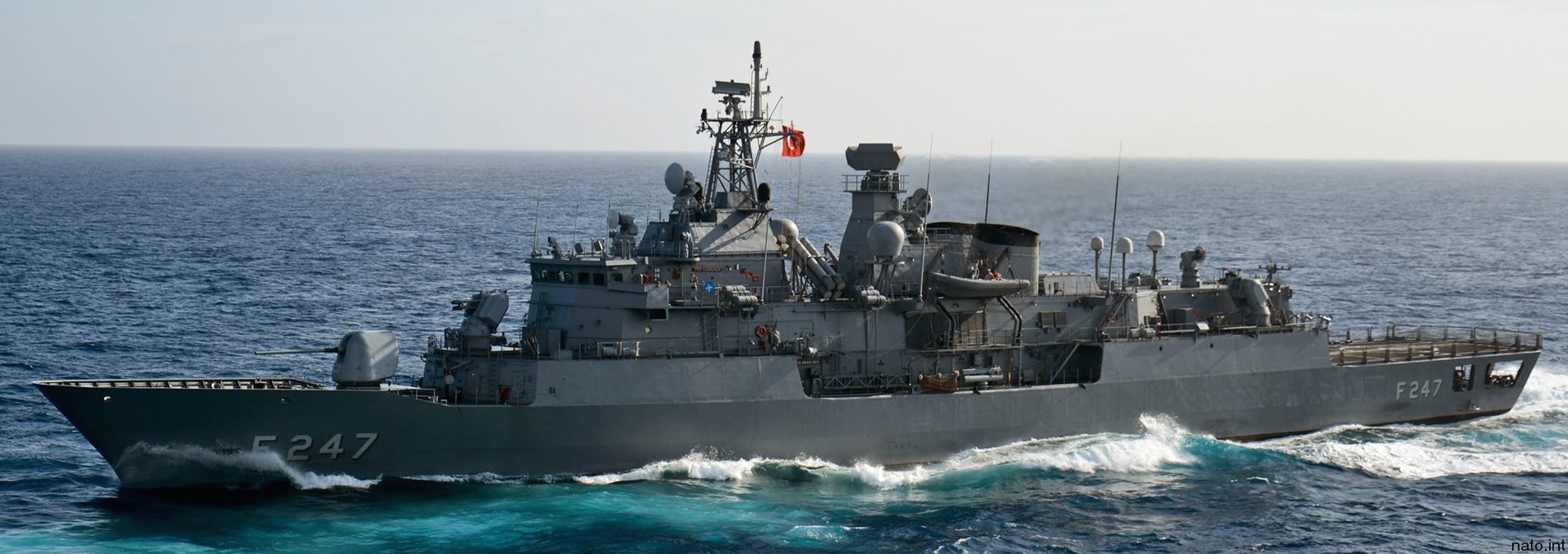

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 03
F 247 TCG Kemalreis

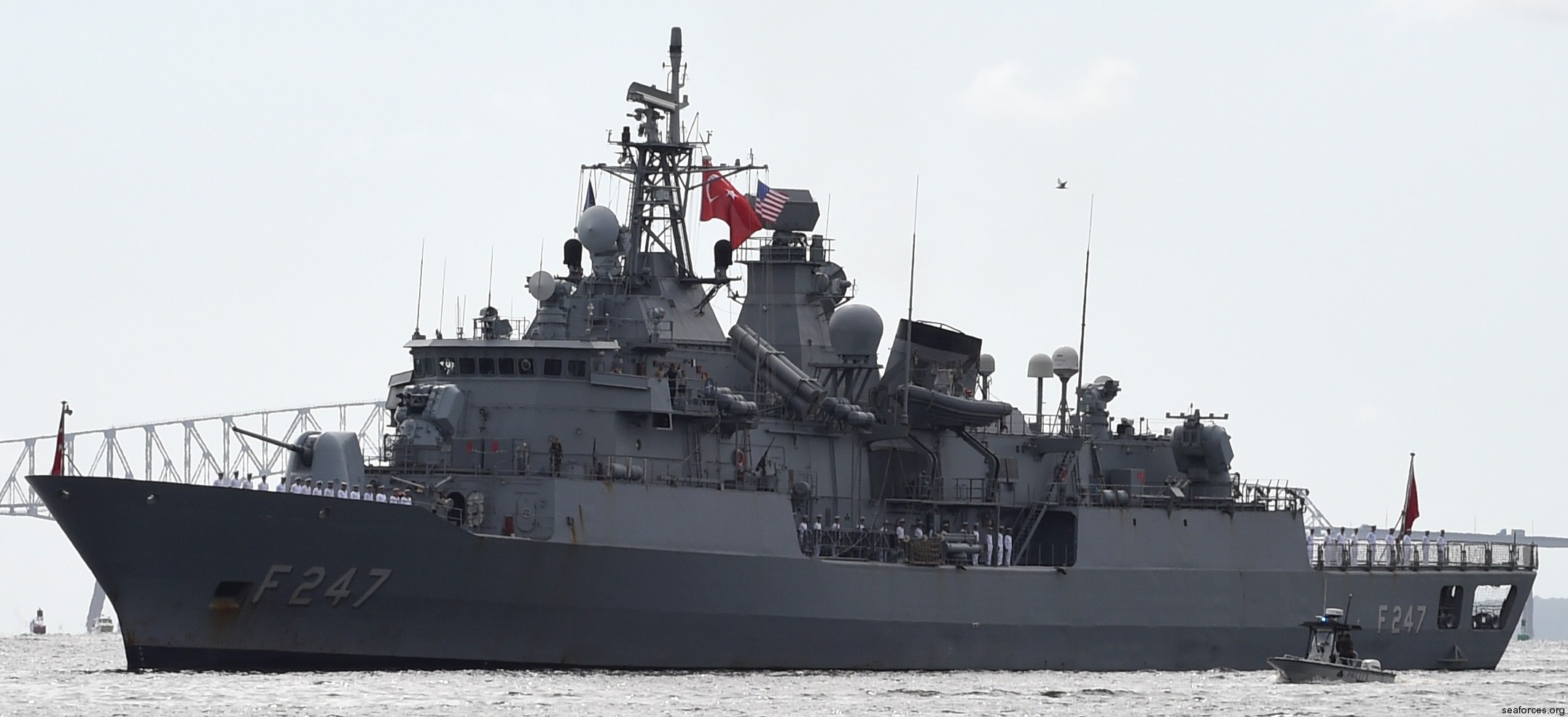

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 04
F 247 TCG Kemalreis

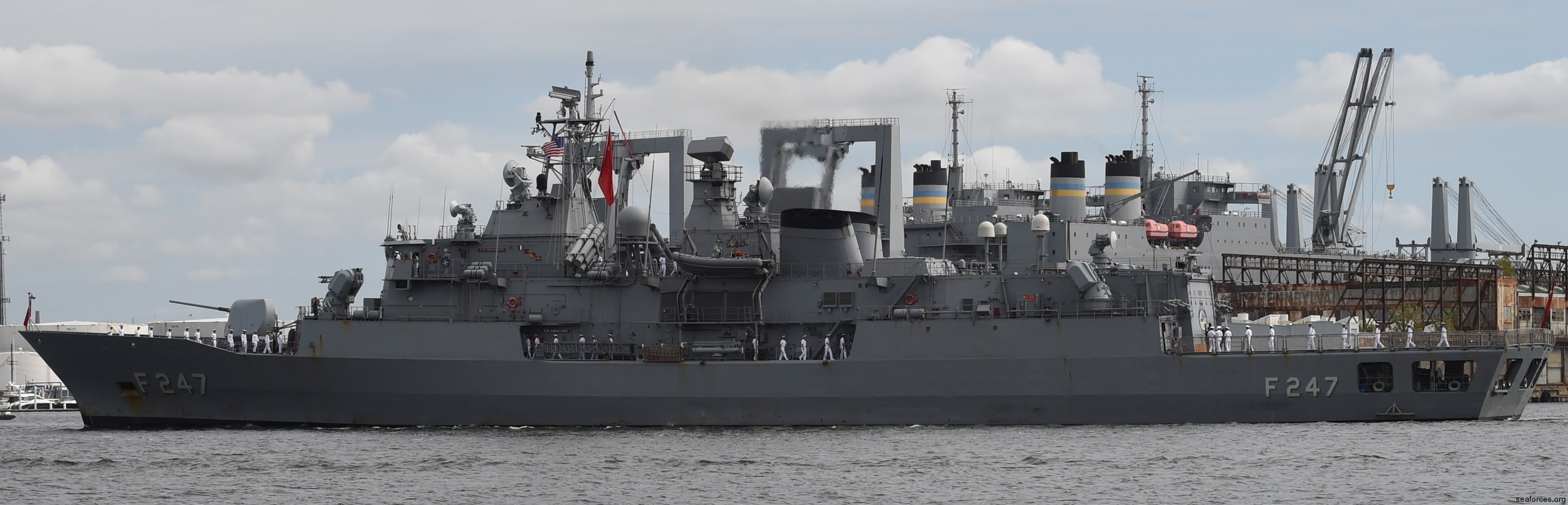

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 05 nato snmg
F 247 TCG Kemalreis

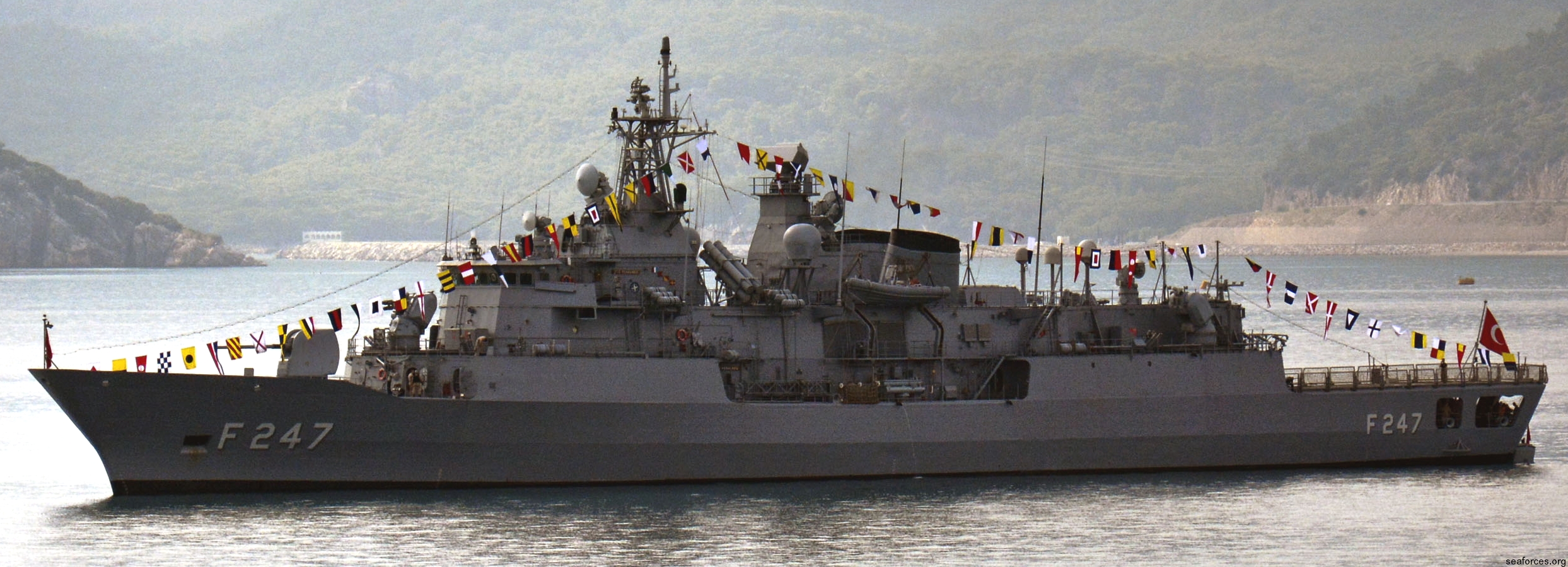

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 06
F 247 TCG Kemalreis

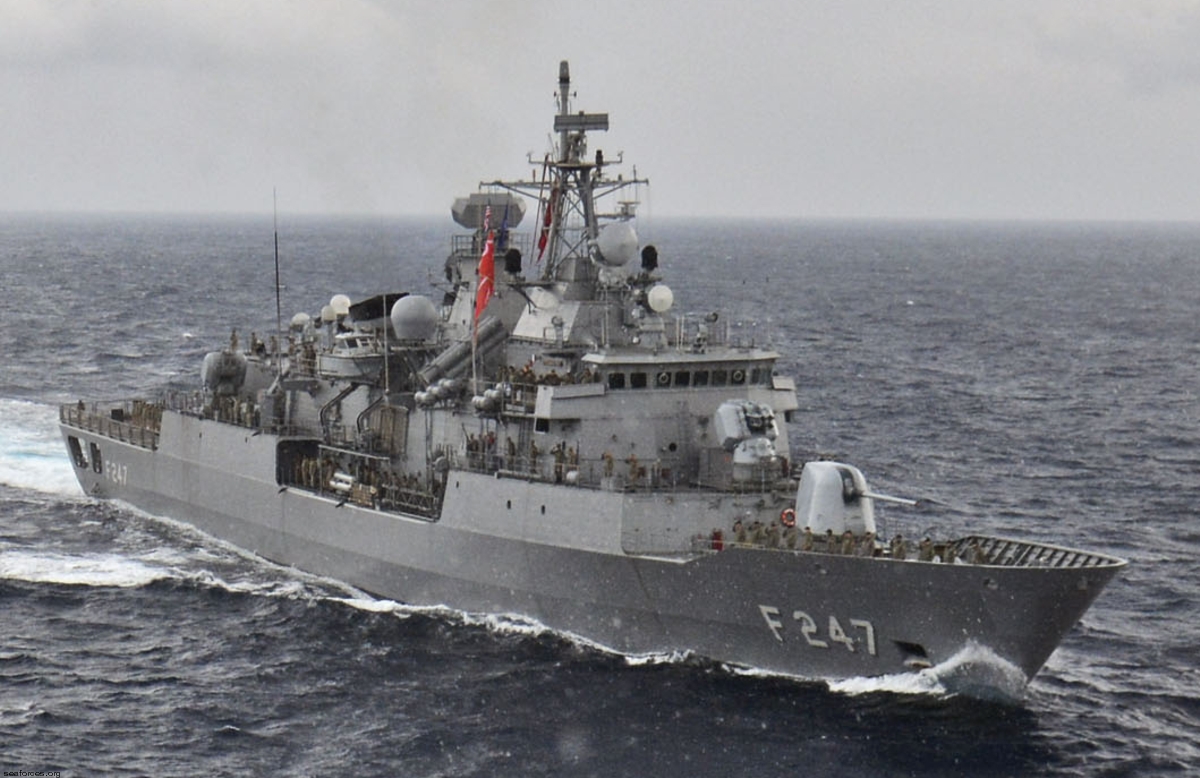

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 07
F 247 TCG Kemalreis

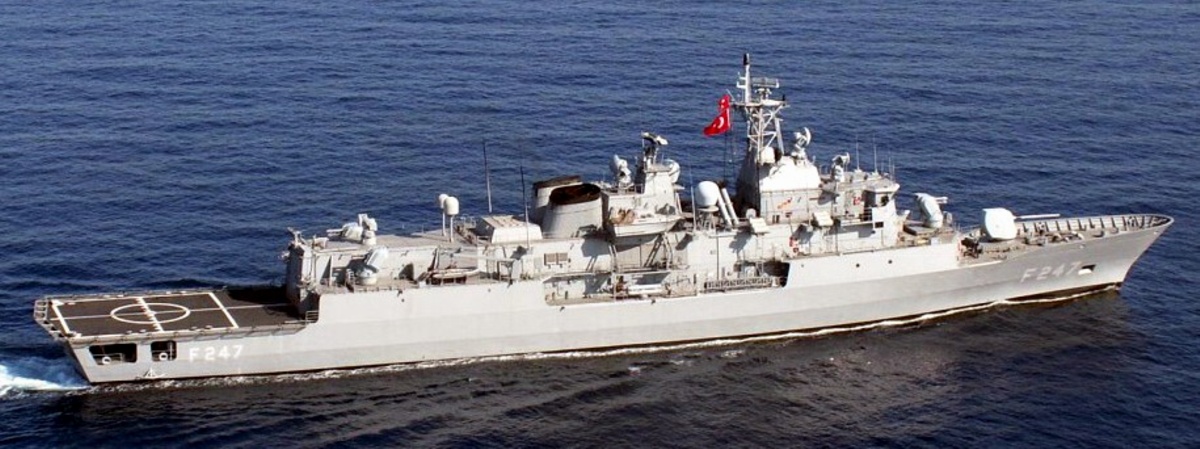

f-247 tcg kemalreis barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri 08
F 247 TCG Kemalreis



ARMAMENT + DETAILS

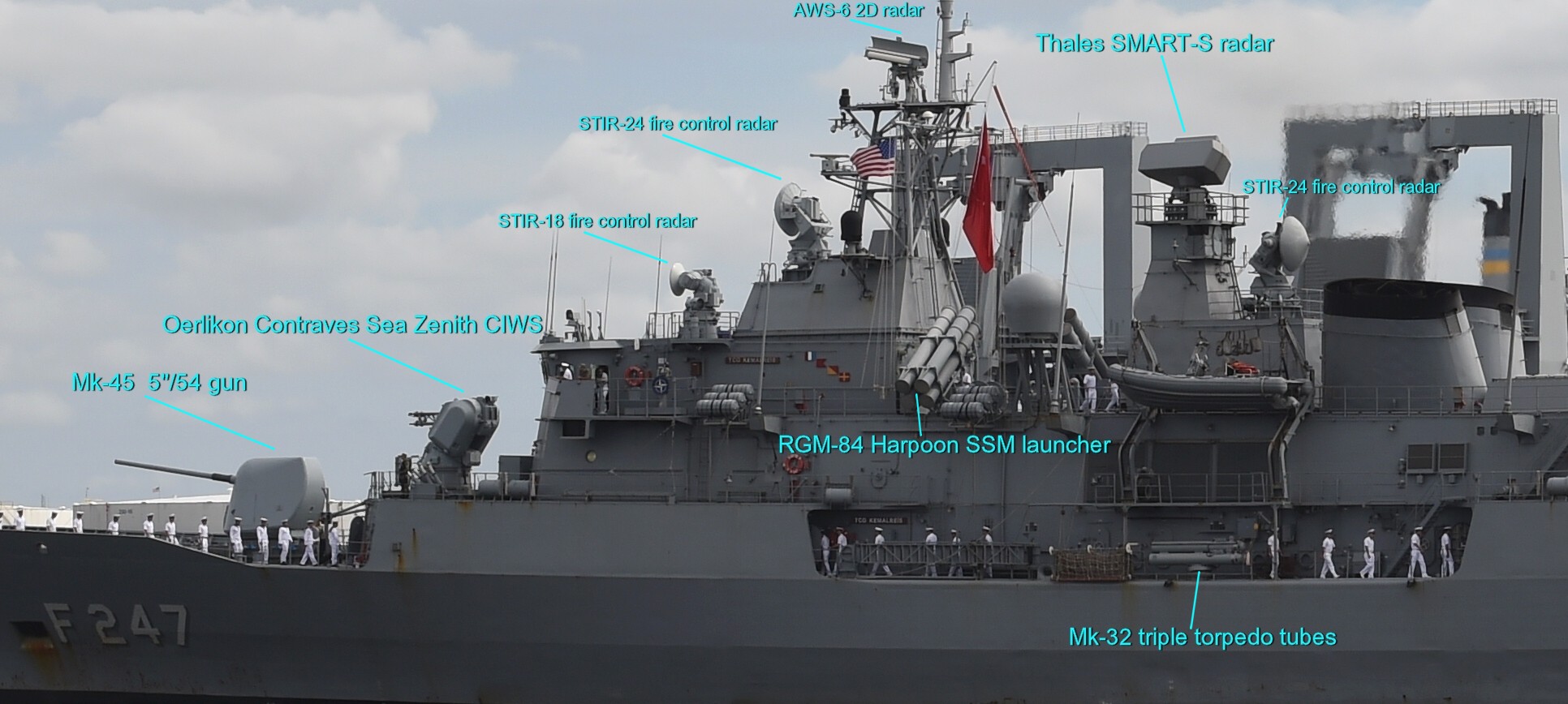

barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri mk-45 gun oerlikon sea zenith ciws rgm-84 harpoon ssm torpedo armament 02

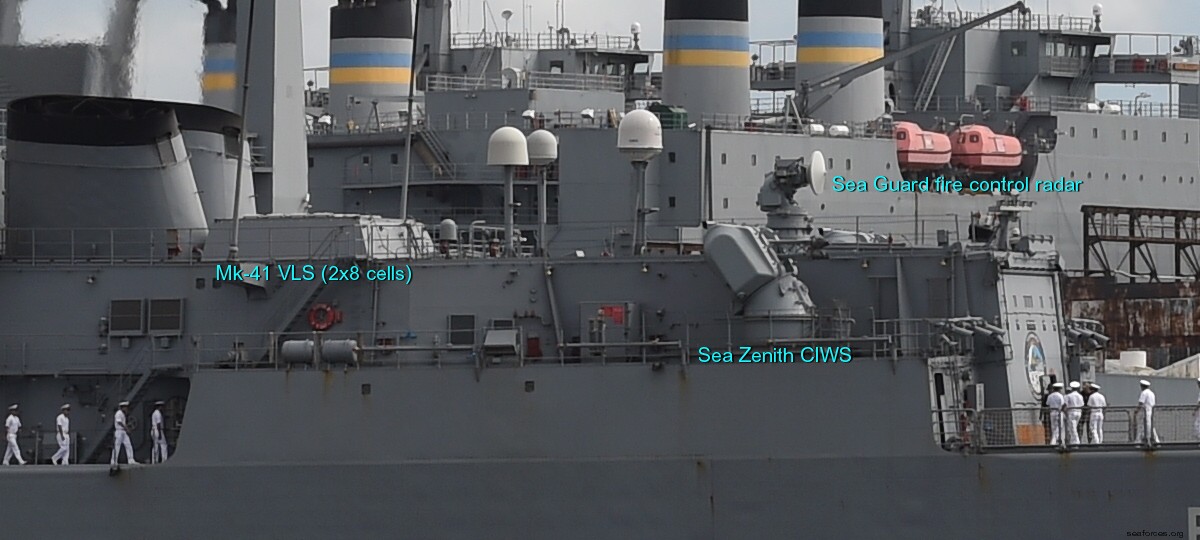

barbaros class frigate meko-200tn turkish navy türk deniz kuvvetleri mk-41 vls rim-162 essm sam missile armament 03
