United Kingdom - Royal Navy
Valiant class Attack Submarine

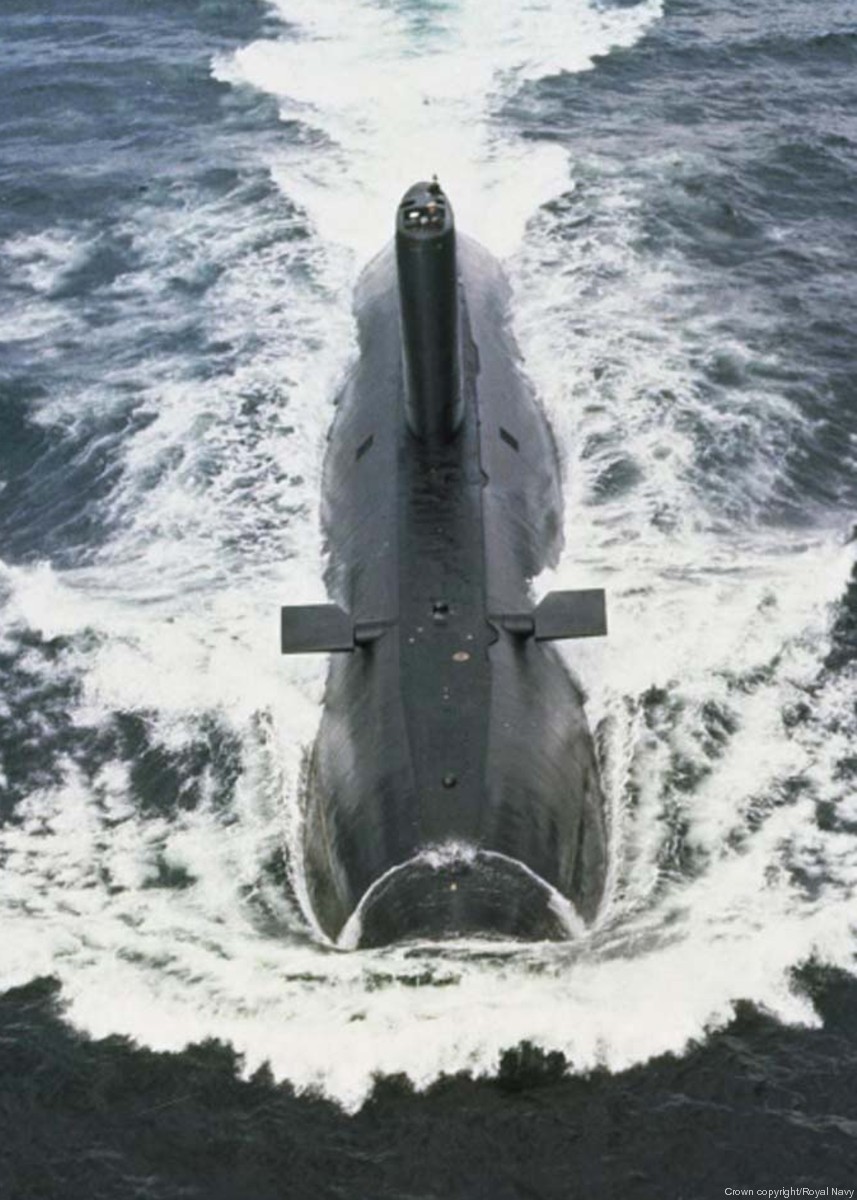

 valiant class attack submarine royal navy nuclear powered hms warspite




Ships:
S 102 HMS Valiant (1966)
S 103 HMS Warspite
(1967)

Specifications:
Length: 87 meters (285 ft)
Beam: 10,13 meters (33 ft 3 in)
Draft: 8,2 meters (27 ft)
Displacement: 4500 tons (surfaced) / 5000 tons (submerged)
Speed: 20 knots (37 km/h) surfaced / 29 knots (54 km/h) submerged
Range: unlimited
Complement: 103

Propulsion:
1 x Rolls-Royce pressurized water reactor
2 x steam turbines
1 shaft / 1 propeller

Armament:
6 x 21 inches (533mm) bow torpedo tubes

originally: 32 x Mark 8 or Mark 24 Tigerfish torpedoes or 64 Mark 5 and Mark 6 mines
later: 26 x torpedoes and 6 x UGM-84 Harpoon SSM or Stonefish and Sea Urchin mines



The Valiant class were a class of nuclear-powered fleet submarines in service with the Royal Navy from the mid-1960s until 1994. They were the first fully British nuclear fleet submarine; the earlier HMS Dreadnought used an American nuclear reactor. There were only two boats in the class, the first, Valiant (the nameship) commissioned in 1966 three years after Dreadnought, and Warspite the following year. Both were built by Vickers at Barrow-in-Furness.


Design:

The class were based on Dreadnought, but were enlarged by 20 feet (6 m) and had a dived displacement of 4,900 tons compared to 4,000 tons. Improvements made since the original Dreadnought meant that they ran significantly quieter under main power, and also had a Paxman diesel-electric generator that could be used for silent running. In most other respects (outside the power plant), the Valiants were identical to Dreadnought.

According to former head of the Royal Corps of Naval Constructors R.J. Daniel, when US Admiral Hyman G. Rickover, widely regarded as the father of the nuclear submarine, initially learned of the proposed rafting system for the Valiant class he was dismissive of the concept, with the result that the Royal Navy gained an advantage in submarine silencing that the United States Navy did not introduce until considerably later.

The Valiants were primarily used in the anti-submarine role, important during the Cold War. In 1967 Valiant set a Royal Navy (RN) record of sailing 12,000 miles (19,312 km) submerged in twenty-eight days, from Singapore to the UK. Both boats received a number of refits, including the capability to use the Harpoon missile. Valiant and other nuclear fleet submarines served in the Falklands War in 1982.

The Valiants had long careers: Warspite was decommissioned in 1991, and Valiant in 1994, due to cracks being discovered in her primary to secondary cooling system. They were very successful and served as the template for the Resolution-class ballistic missile submarine and subsequent Churchill-class fleet submarines.

source: wikipedia



Ships:

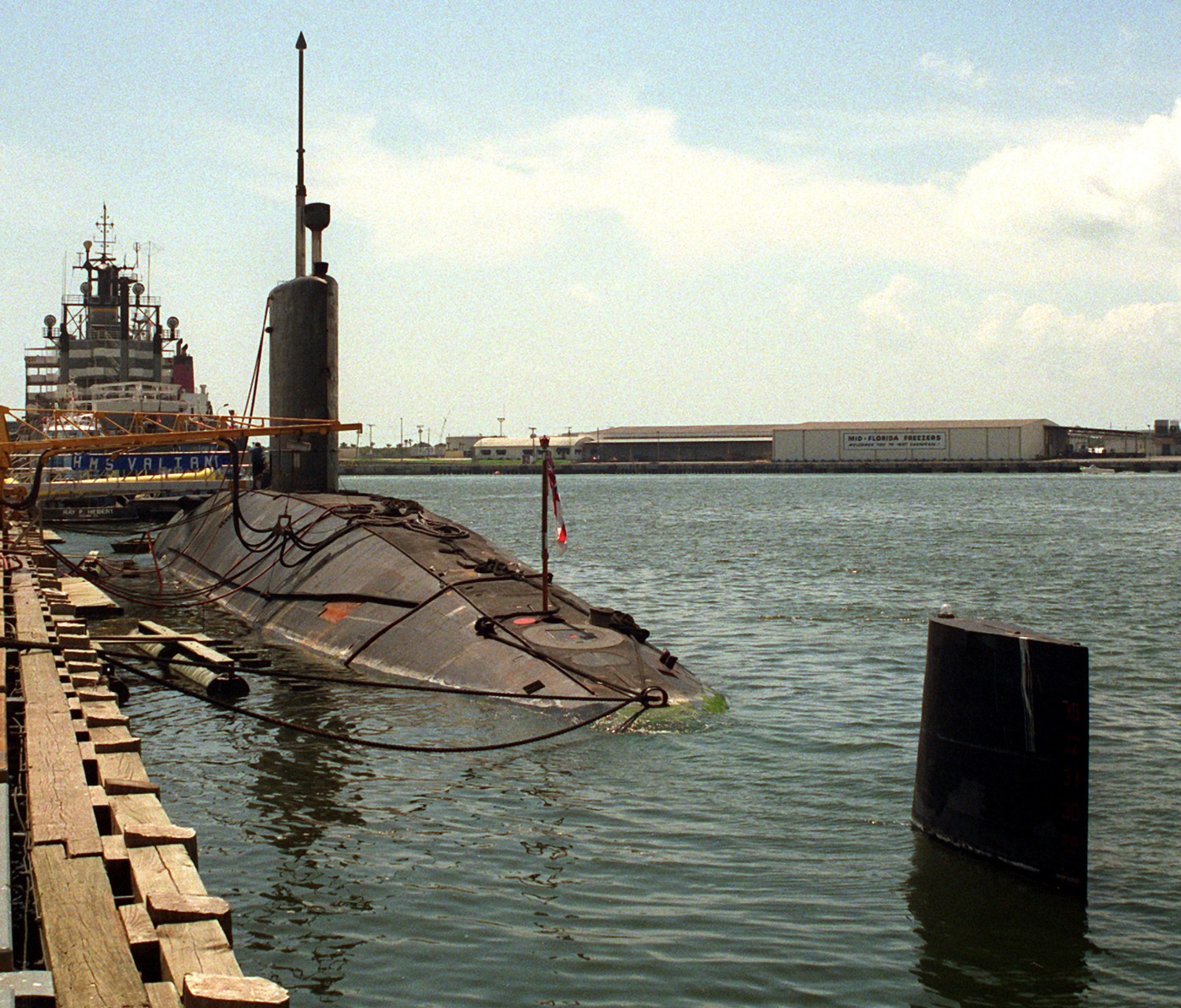

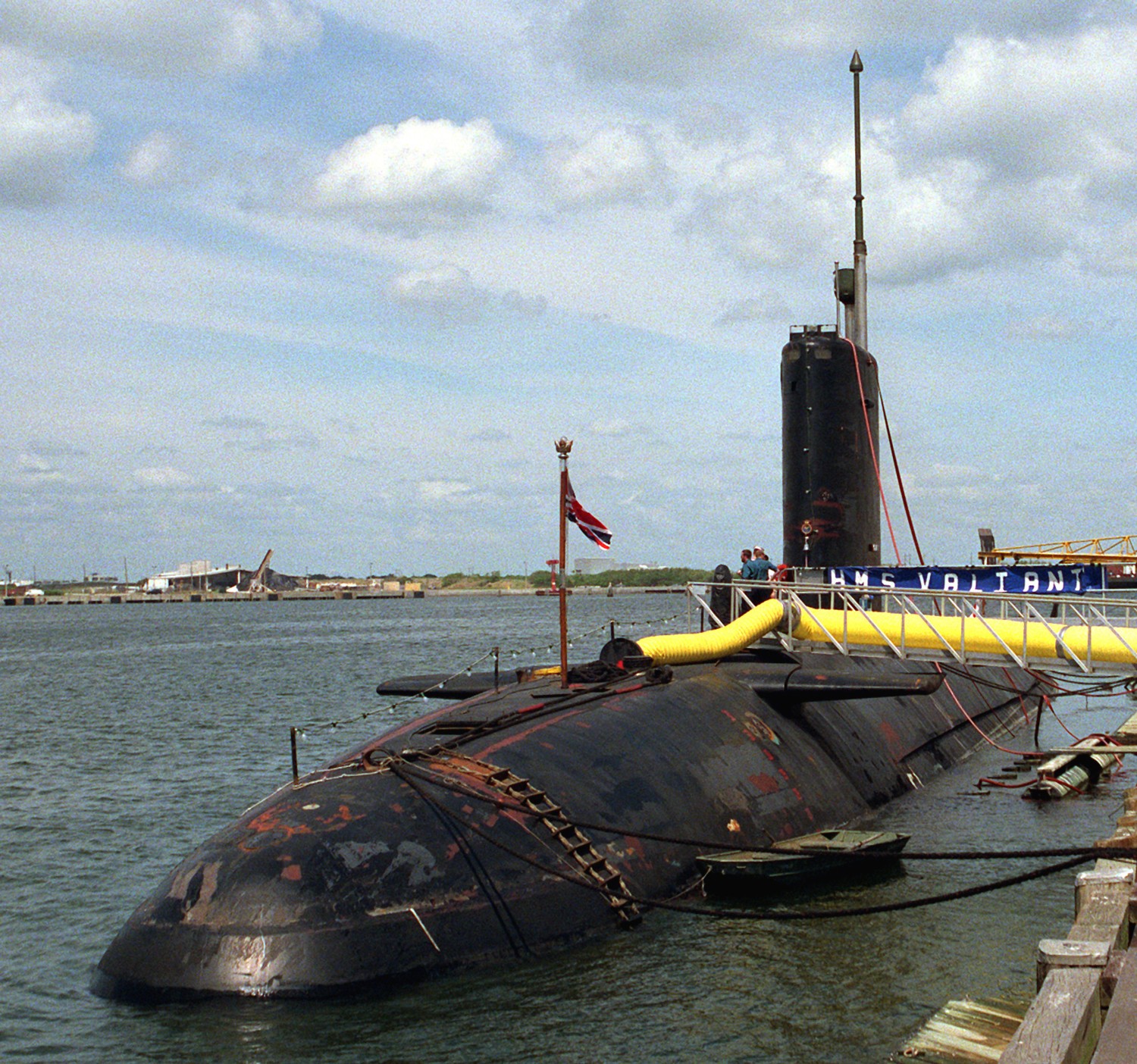

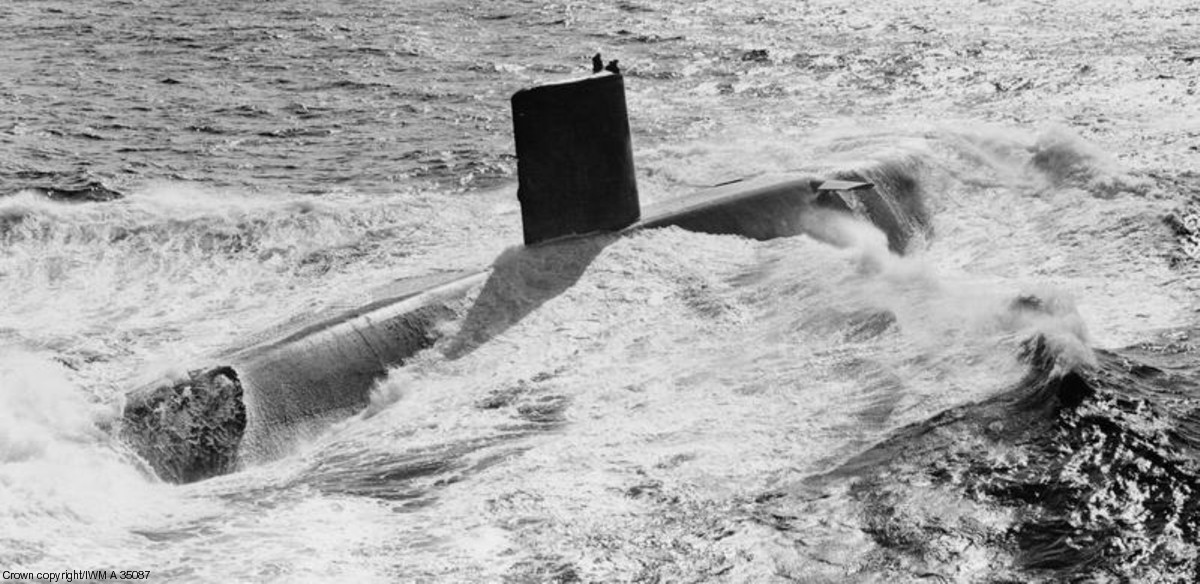

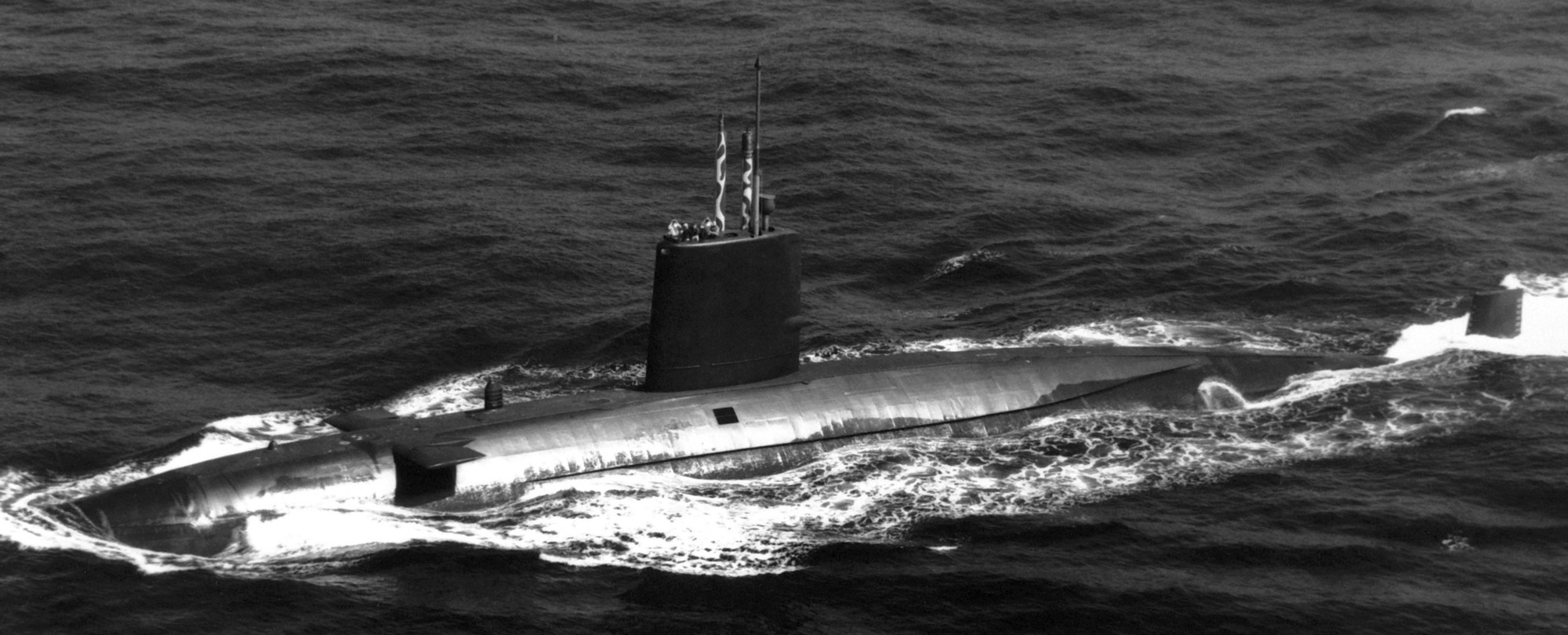

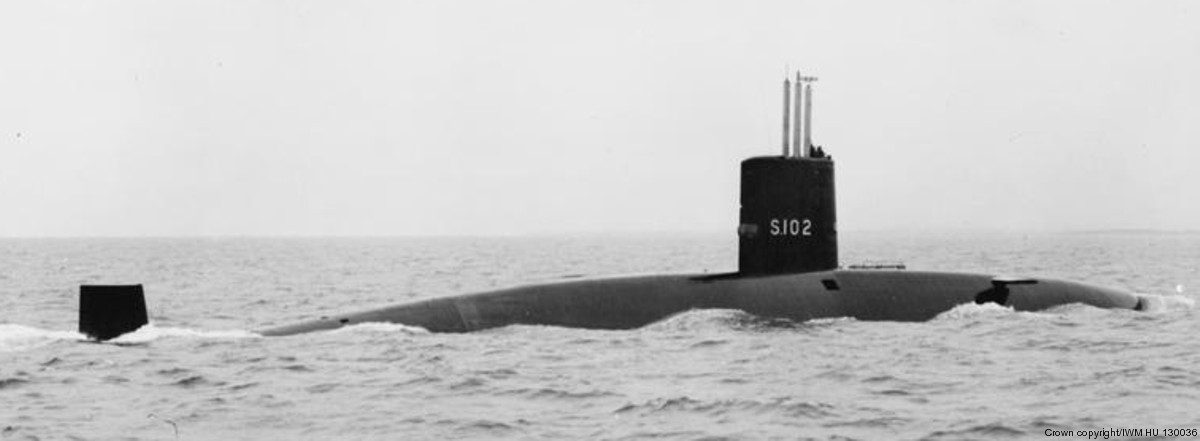

S 102 HMS Valiant
Builder:
Vickers Ltd., Shipbuilding Group, Barrow-in-Furness, Cumbria, UK
Awarded: August 31, 1960
Laid down:
January 21, 1962
Launched:
December 3, 1963
Commissioned:
July 18, 1966
Decommissioned: August 12, 1994
Fate:
paid off

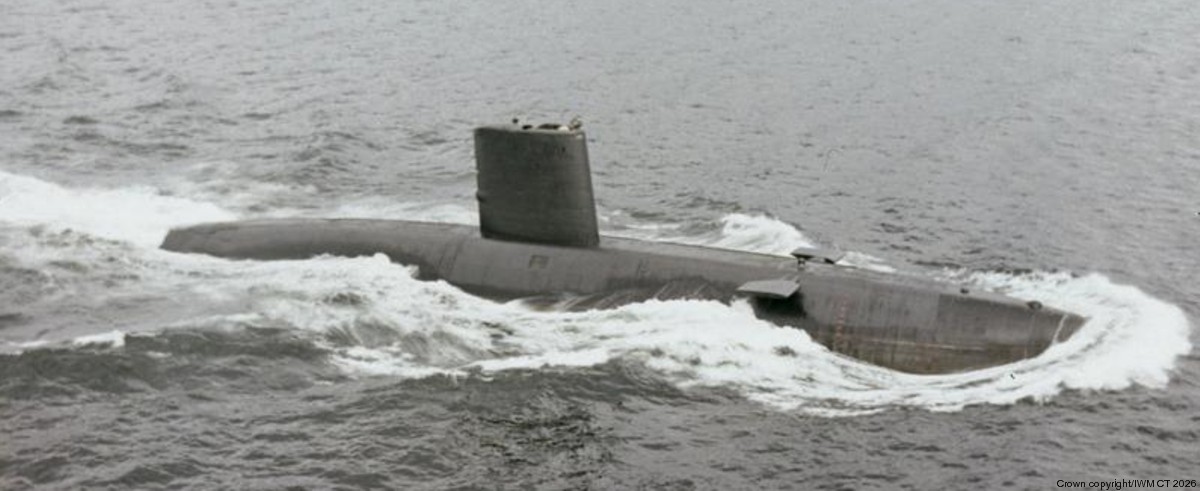

S 103 HMS Warspite
Builder:
Vickers Ltd., Shipbuilding Group, Barrow-in-Furness, Cumbria, UK
Awarded: December 12, 1962
Laid down:
December 10, 1963
Launched:
September 25, 1965
Commissioned:
April 18, 1967
Decommissioned: 1991
Fate:
paid off



images


valiant class s102 attack submarine royal navy s103 warspite hms

valiant class attack submarine ssn s102 s103 hms warspite royal navy

valiant class attack submarine ssn warspite hms royal navy
