Royal Navy / Fleet Air Arm
Wildcat HMA2 / AH1 Helicopter
(AgustaWestland AW159)


agusta westland wildcat hma2 ah1 helicopter royal navy fleet air arm squadron nas 815 825 847 rnas yeovilton 30x



Units:


815 Naval Air Squadron
RNAS Yeovilton, Somerset
Wildcat HMA2
815 nas naval air squadron insignia crest patch badge royal navy wildcat hma2 rnas yeovilton 02


825 Naval Air Squadron
RNAS Yeovilton, Somerset
Wildcat HMA2
825 nas naval air squadron insignia crest patch badge royal navy wildcat hma2 rnas yeovilton 02


847 Naval Air Squadron
RNAS Yeovilton, Somerset
Wildcat AH1
847 nas naval air squadron insignia crest patch badge royal navy wildcat ah1 rnas yeovilton 02

NOTE: 847 NAS is based at RNAS Yeovilton, with
helicopters drawn from an Army Air Corps pool
and flown by Royal Marines and Royal Navy aircrews





The AgustaWestland AW159 Wildcat (previously called the Future Lynx and Lynx Wildcat) is a British military helicopter. It is an improved version of the Westland Super Lynx designed to serve in the battlefield utility, search and rescue and anti-surface warfare roles. In British service, common variants are being operated by both the Royal Navy and British Army, having replaced their Lynx Mk.7/8/9 predecessors. The AW159 has also been offered to several export customers, and has been ordered by the Republic of Korea Navy and the Philippine Navy.

Development:

Background:
In 1995, the British Government announced that the Royal Navy's existing Westland Lynx helicopters were to be replaced; at that point, the service was intended to operate an all-Merlin fleet. Despite this stated intent, Westland Helicopters continued to hold talks with the Ministry of Defence (MOD) to find a future role for the type during the late 1990s; the firm issued multiple proposals to either extend the life of the existing Super Lynx through upgrade programmes or more ambitious remanufacturing programmes incorporating varying degrees of new components. In 2002, the Future Lynx project originated in two studies to determine the suitability of a derivative of the Super Lynx 300 to replace the existing Lynx helicopters of the Royal Navy and British Army. These requirements were known as the Surface Combatant Maritime Rotorcraft (SCMR) and Battlefield Light Utility Helicopter (BLUH) programmes, respectively.

In July 2002, AgustaWestland received a contract to conduct a formal assessment phase of the Future Lynx. On 22 July 2002, a collaboration agreement was signed between AgustaWestland and Thales Group, under which Thales was assigned development responsibility for the programme's core avionics, including communications, navigation, and flight management electronics; that same day, additional MOD funding for the fledgling Future Lynx programme was announced as having been allocated. By April 2003, the in-service dates for the BLUH and SCMR programmes were reported as being April 2007 and April 2008 respectively. Early on, AgustaWestland elected to adopt a glass cockpit incorporating electronics upgrades from the AgustaWestland AW101 along with various airframe improvements, such as a redesigned tail rotor and nose, as well as an increased use of machined components over fabricated counterparts, for the Future Lynx. By July 2004, the option of upgrading and remanufacturing the first generation Lynx had reportedly been judged to be uneconomical, and the BLUH programme of building a new generation airframe had been given prominence instead.

Restructure:
In late 2004, the National Audit Office (NOA) criticised the UK's existing helicopter fleet as being insufficient; concurrently, a major reorganisation of the MOD's procurement process subjected ongoing helicopter programmes to major restructuring. The BLUH was reportedly deemed unaffordable, and it was speculated that a more modest sensor fit could be used, as well as the procurement of alternative platforms such as the NHIndustries NH90, Eurocopter EC120, or Eurocopter EC635 instead of the Future Lynx. Ultimately, the utility transport aspect of the BLUH requirement was de-emphasised and the programme renamed Battlefield Reconnaissance Helicopter (BRH).

In early 2005, the MOD was reportedly deliberating on whether to launch an open competition for other companies to bid to meet the BRH requirement, or to sole-source the contract from AgustaWestland to proceed with the Future Lynx. In late March 2005, the MOD confirmed the Future Lynx as being its preferred option for its rotorcraft renewal programme, and was expected to place a non-competitive contract with AgustaWestland later that year. The signing of the contract was delayed to the following year, this was reportedly in part due to preparation and release of the 2005 Defence Industrial Strategy, which supported the selection of the Future Lynx.

On 22 June 2006, the MOD awarded AgustaWestland a £1 billion contract for 70 Future Lynx helicopters as a commitment under the Strategic Partnering Arrangement with AgustaWestland. The programme envisaged providing the British Army with 40 aircraft and Royal Navy with 30, with an option for a further 10, split equally between Army and Navy. By late 2007, the Future Lynx was scheduled to enter service with the British Army and Royal Navy in 2014 and 2015 respectively. In 2008, the cancellation of the Future Lynx programme has reportedly been under consideration. In December 2008, the MOD announced that the main contract would be proceeding, only incurring a minor cut in numbers set to be procured, for a total of 62 rotorcraft.

Into production:
In October 2007, following the passing of an interim critical design review, the Future Lynx programme proceeded to the manufacturing phase; the first metal was cut on the initial flight-test rotorcraft that same month. In September 2008, the powerplant selected for the Future Lynx, the LHTEC CTS800-4N, received European Aviation Safety Agency (EASA) type certification, enabling production deliveries to commence. In November 2008, GKN delivered the first complete airframe to AgustaWestland; the new airframe reportedly had an 80 per cent lower part count than the earlier generation Lynx, which was achieved via the use of monolithic machine components.

On 24 April 2009, it was announced that the Future Lynx had been designated AW159 by AgustaWestland, and would be known in British military service as the Wildcat. On 12 November 2009, the first Lynx Wildcat conducted the type's maiden flight from AgustaWestland's facility in Yeovil, Somerset. On 14 October 2010, the second AW159 performed its first flight; on 19 November 2010, a third Wildcat joined the flight test programme.

In July 2009, it was announced that the cost of the Wildcat programme had increased to £1.7 billion. In December 2011, it was reported that four additional Wildcats had been ordered for use by British special forces. These are to be joined by four from the current fleet on order, for a total of eight aircraft to operate as Wildcat Light Assault Helicopters. Further orders for the Wildcat have since been placed by export customers, including the Republic of Korea Navy and the Philippine Navy.


Design:
The AW159 Wildcat is a further development of the Westland Lynx. While the AW159 shares broad similarities in appearance to the Lynx, it has significant design differences and is heavily modernised and adapted to gain new attributes and functionality. The AW159 comprises 95% new components; the remaining 5%, consisting of such items as the fuel system and main rotor gearbox, are interchangeable with the Lynx AH7 and HMA8 variants. During development, the Army and Navy variants of the Wildcat reportedly maintained 98 per cent commonality with one another. The AW159 is the first helicopter by AgustaWestland to be designed inside an entirely digital environment. Among other changes, certain external elements of the Wildcat, such as the tail rotor, have been redesigned for greater durability and stealth qualities.

Both Army and Navy variants have a common airframe, which is manufactured by GKN Aerostructures; the airframe has been marinised for operations in the naval environment and provides for a greater airframe lifespan of 12,000 flight hours. The wheeled undercarriage is also strengthened for naval landings on both variants. The AW159 is powered by two 1,362 hp (1,016 kW) LHTEC CTS800 turboshaft engines which drives the rotorcraft's BERP IV rotor blades via a new transmission, increasing the maximum take-off weight by more than 1 ton over the legacy Super Lynx. It is equipped with a new composite tailboom, tailplane, tail rotor, nose structure and avionics suite. The naval version is also equipped with a SELEX Galileo Seaspray 7000E active electronically scanned array (AESA) radar and L-3 Wescam MX-15HDi electro-optical/infrared nose turret. A glass cockpit comprises the primary human-machine interface, using four 255 x 200mm multifunction displays to provide information to the aircrew and interact with the avionics systems on board.

The Wildcat featured an increased payload and range over the preceding Super Lynx; it is operationally required to carry up to 8 Future Anti-Surface Guided Weapons up to 185 kilometers from a host ship and remain on station for up to an hour. The type can perform aerial reconnaissance, anti-submarine warfare (ASW), anti-surface warfare (ASuW), utility, fire control, command and control, and troop transport duties. In these varied mission roles, a range of munitions can be used. In June 2014, the Royal Navy awarded Thales Group a £48 million contract to deliver the Lightweight Multirole Missile (Martlet) for the Wildcat under the Future Anti-Surface Guided Weapons Light (FASGW (L)) programme for targets such as small boats and fast attack craft. A Wildcat can carry four launchers each with five Martlets.

In March 2014 a contract was awarded to MBDA for the Sea Venom (FASGW Heavy) missile for use against vessels and land targets, replacing the Sea Skua. Both missiles are being integrated by AgustaWestland in a single £90m programme by 2018, with IOC for both planned by October 2020.

Many elements of the AW159's avionics are provided by Thales Group. The type is reported to possess significant ISTAR capabilities and improved situational awareness, achieved through its onboard integrated digital open systems architecture; it has been equipped with the Bowman communications system, allowing for data such as targeting and voice communications to be securely and seamlessly transmitted to friendly forces. Some AW159 models have been fitted with various General Dynamics-built mission systems, these include secured data recorders and tactical processing systems which integrate sensor data and application information for displaying within the cockpit as well as for retention within encrypted data storage. Other mission systems used on the Wildcat have been produced by BAE Systems. All variants of the Wildcat share the same defensive aids arrangement, which shares some commonality with the AgustaWestland Apache; features include missile warning sensors, countermeasures dispensers, and infrared exhaust suppressors.


Operational history:
The UK has ordered 34 Wildcats for the British Army and 28 for the Royal Navy. The Army Air Corps formed the Wildcat Fielding Team (Army), which later became 652 (Operational Conversion) Squadron, for trials and operational conversion of Joint Helicopter Command aircrew and ground crew to the type. The Royal Navy also commissioned a Wildcat Fielding Squadron, 700W Naval Air Squadron (700W NAS) in 2009. Both units are located at RNAS Yeovilton. In February 2012, a prototype Wildcat (ZZ402) conducted 20 days of trials aboard HMS Iron Duke off the coasts of England and Scotland; the tests involved operating under challenging weather conditions to define ship-helicopter operating limits for when the type enters service in 2015. During the trials, a total of 390 deck landings were completed including 148 night landings, 76 of which being conducted by pilots using night vision goggles.

The first production Wildcat was received in May 2012 by the WFT (Army); ZZ406. The Royal Navy received their first airframe at the end of 2013. Further trials of the type were conducted, such as deck landings aboard RFA Mounts Bay. In July 2012, the Wildcat conducted its first public display at the Farnborough Airshow. At the event, Defence Secretary Philip Hammond stated that the "Wildcat represents a considerable advance over the current Lynx helicopters, bringing greatly improved performance and capability."

On 29 August 2014, the Wildcat AH1 formally entered service with the Army Air Corps. On 23 March 2015, the Royal Navy's first Wildcat HMA2 began its initial operational deployment at sea on board HMS Lancaster. As of September 2015, 48 Wildcats had been delivered to the British Army and Royal Navy; in excess of 10,000 flight hours had been logged between the services along with a 100 percent availability rate achieved at sea and over 1,200 deck landings performed. In September 2015, a Wildcat HMA.2 of 825 Naval Air Squadron was deployed aboard HMS Duncan in the Persian Gulf to perform extreme high temperature trials.

On 4 July 2019, Royal Marines from 42 Commando unit used a Wildcat to board and detain the Grace 1 oil tanker off Gibraltar.


Variants:
Wildcat HMA2: Initial maritime model, total of 28 ordered for the Royal Navy
Wildcat AH1: Initial battlefield reconnaissance model, total of 34 ordered for the Royal Army Air Corps



Specifications (AW159):
Manufacturer: AgustaWestland (now Leonardo)
Crew:
2 pilots

Capacity: 6 passengers, including door gunner
Length: 15.24 m (50 ft 0 in)
Height: 3.73 m (12 ft 3 in)
Empty weight: 3,300 kg (7,275 lb)
Max takeoff weight: 6,000 kg (13,228 lb)
Powerplant: 2 x LHTEC CTS800-4N turboshaft, 1,015 kW (1,361 hp) each
Main rotor diameter: 12.8 m (42 ft 0 in)
Main rotor area: 128.7 m2 (1,385 sq ft)

Performance:
Maximum speed: 311 km/h (193 mph, 168 kn)
Range: 777 km (483 mi, 420 nmi)
Ferry range: 963 km (598 mi, 520 nmi)
Endurance: 2 hr 15 min (4 hr 30 min with auxiliary fuel tanks)

Armament:
Browning M3M pintle-mounted machine gun
up to 20 x Thales Martlet (Lightweight Multirole Missile LMM)
up to 4 x MBDA Sea Venom anti-ship missile
Sting Ray torpedo and Mk 11 depth charges

source: wikipedia

images

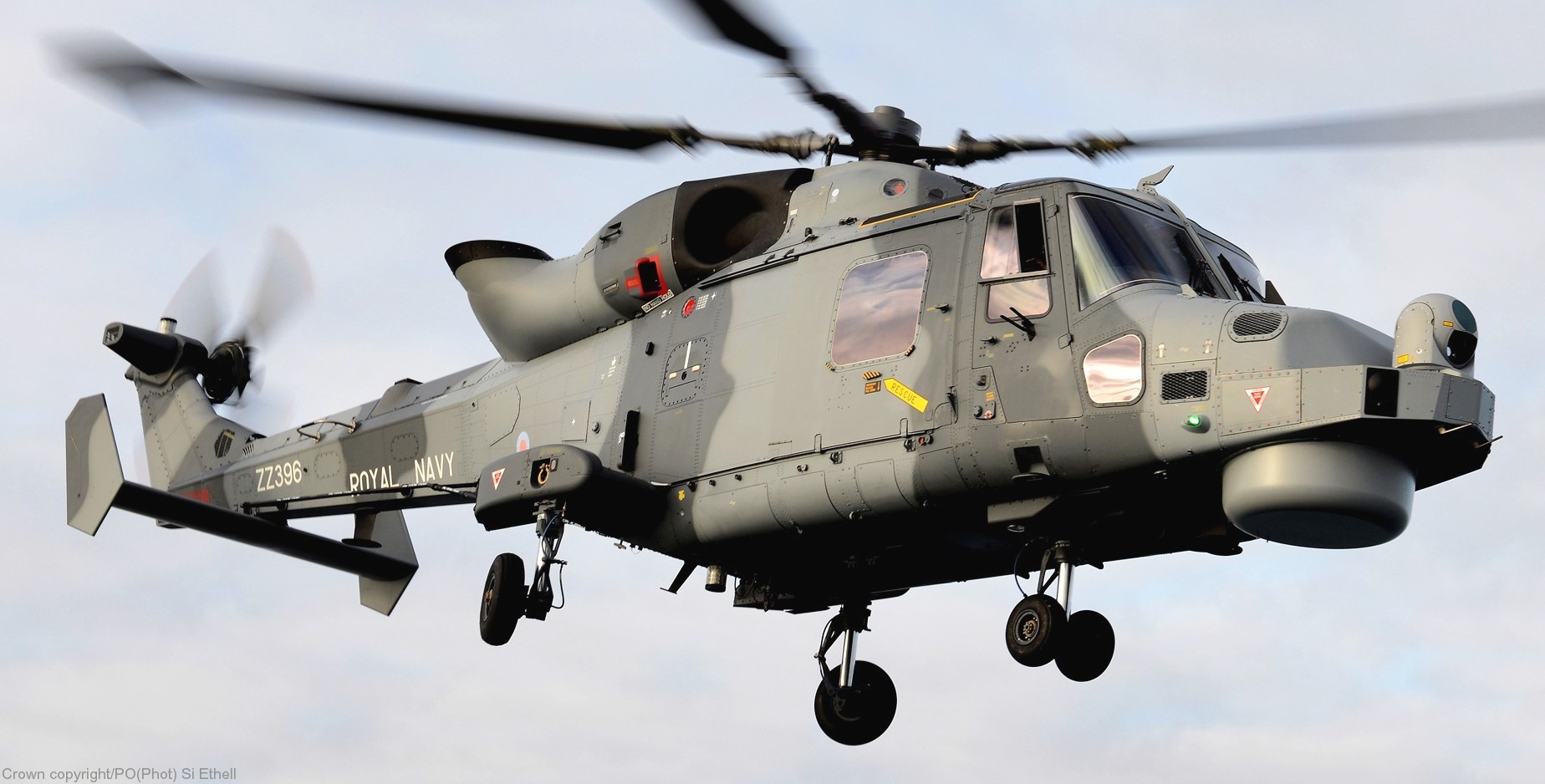

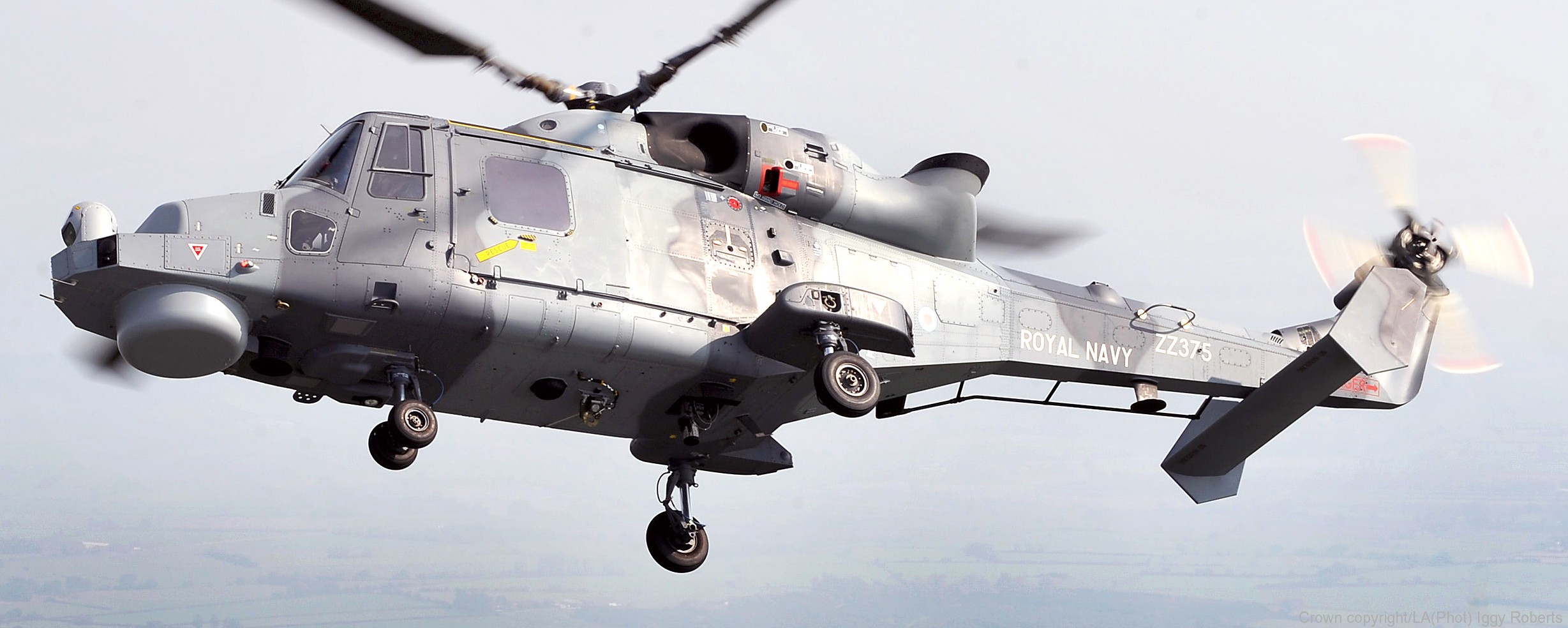

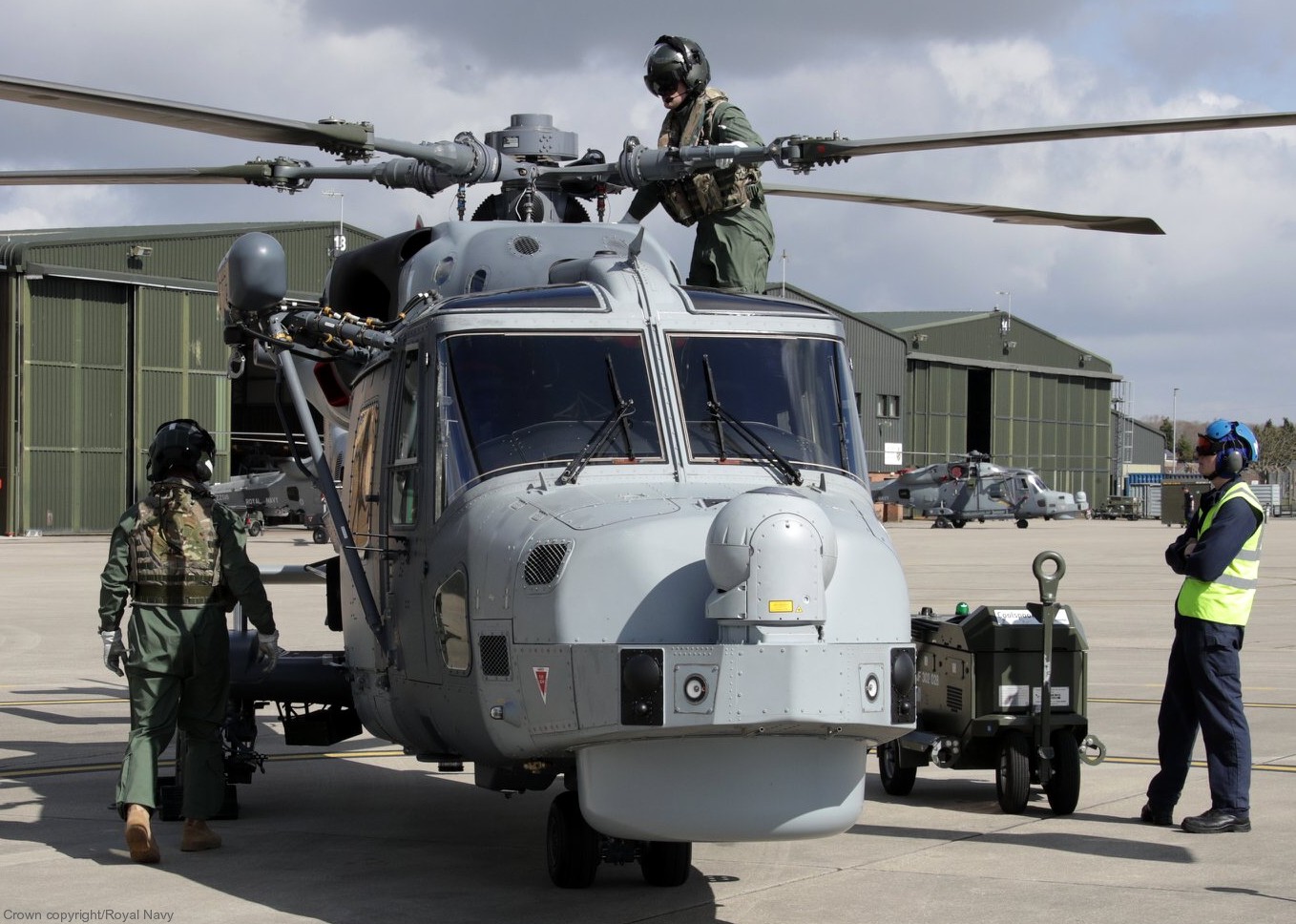

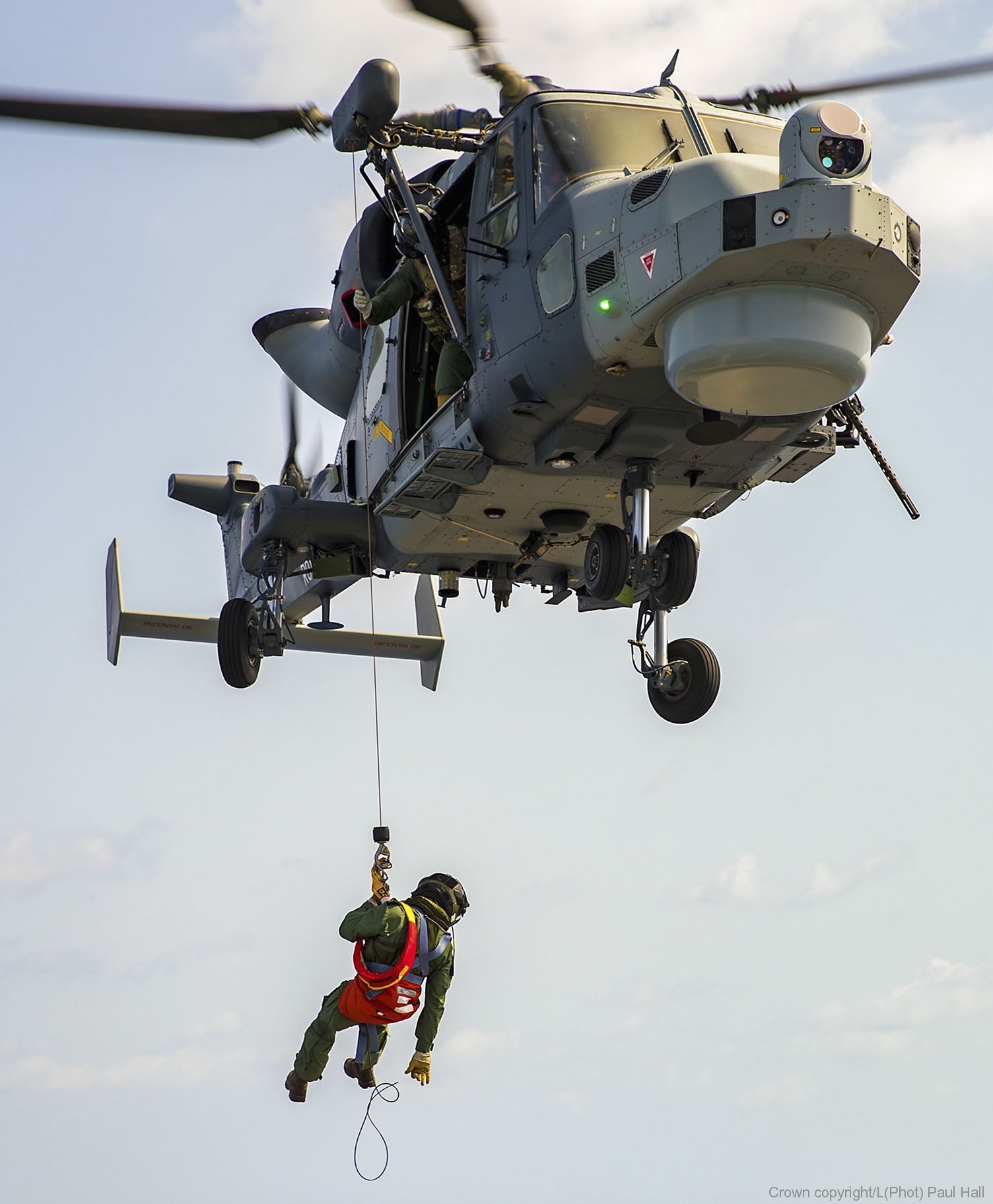

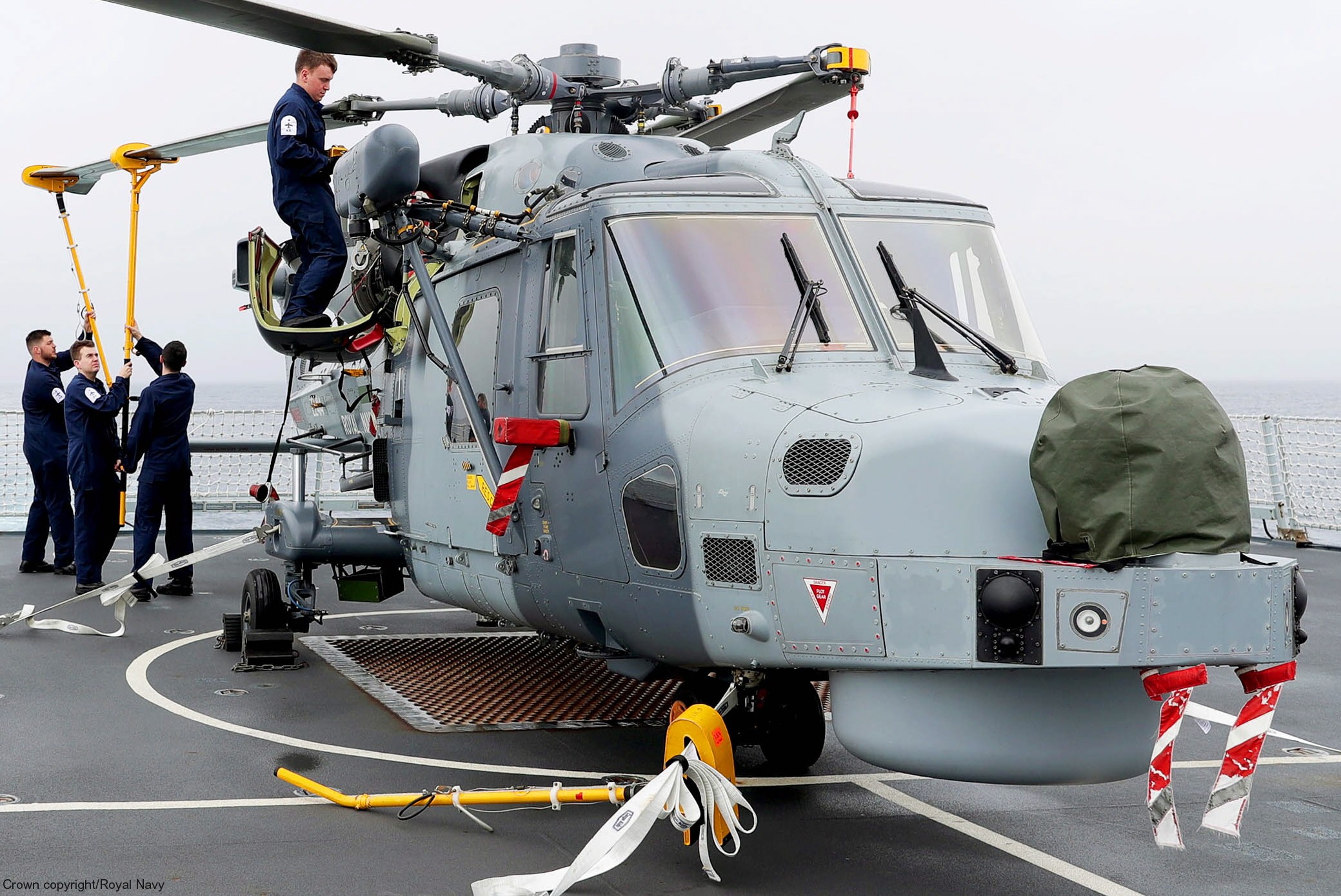

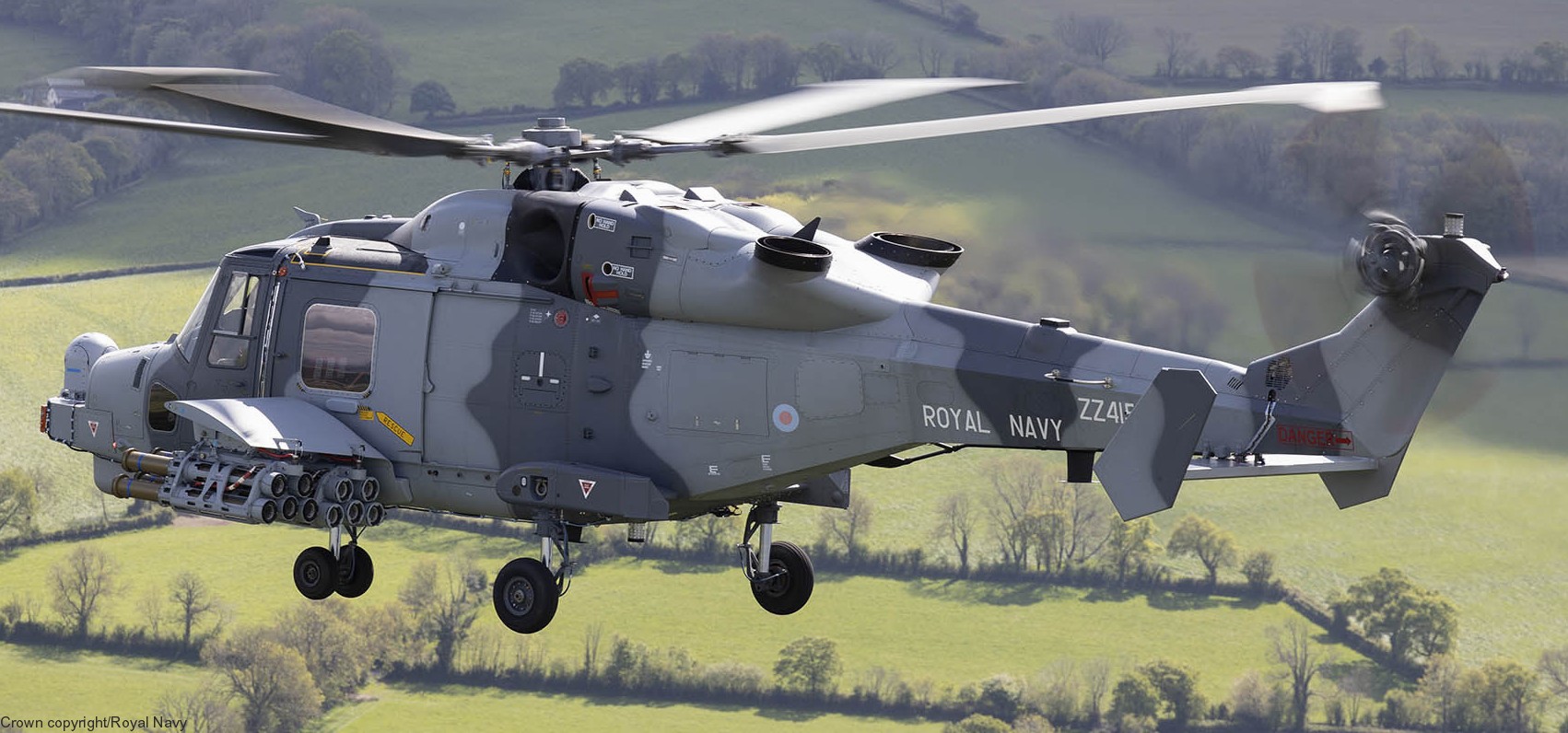

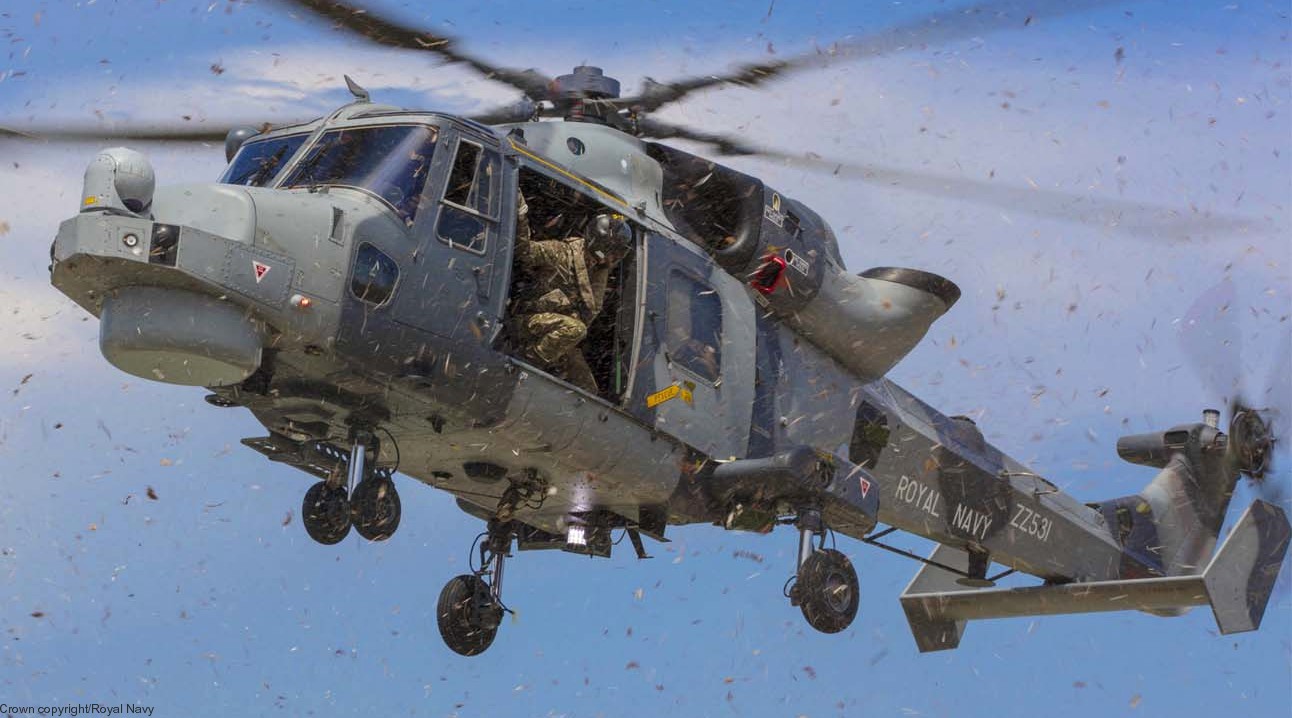

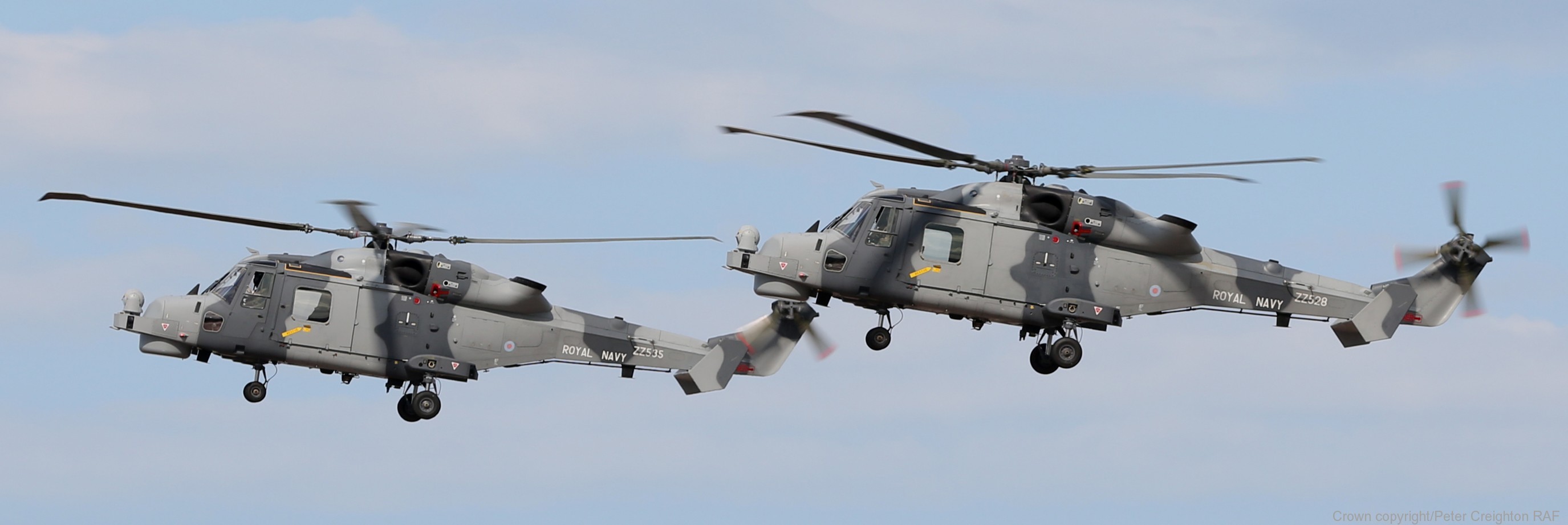

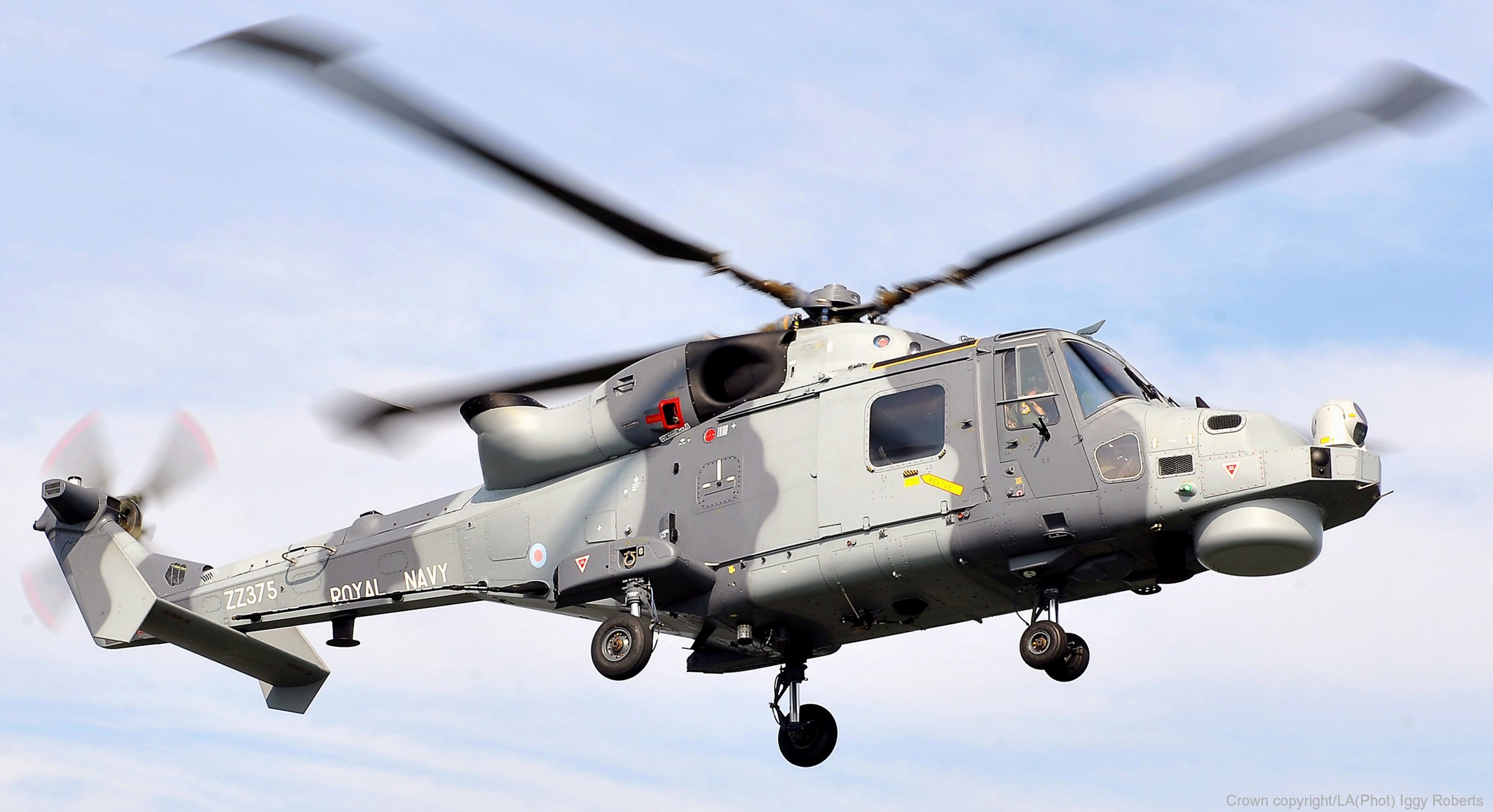

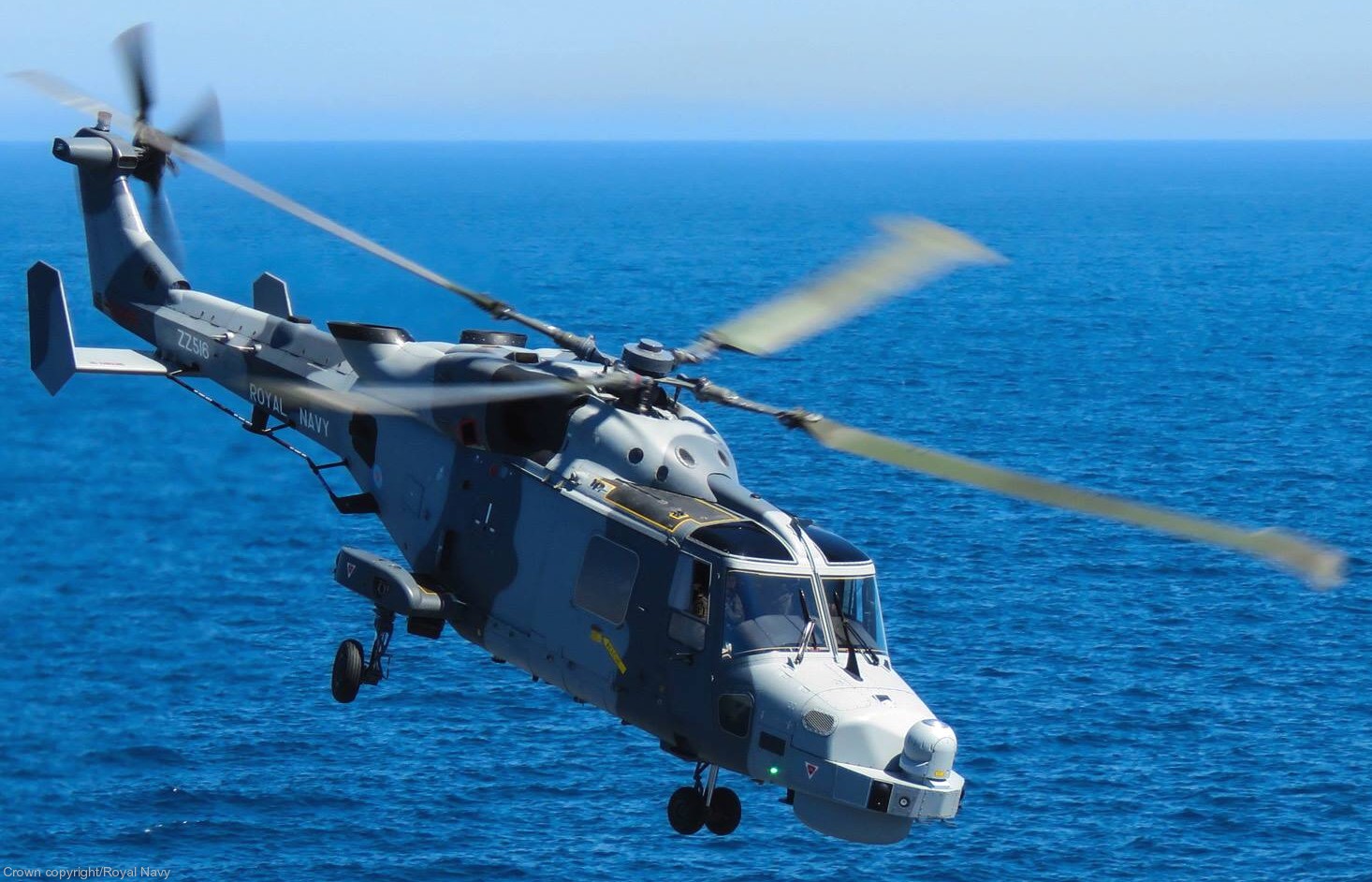

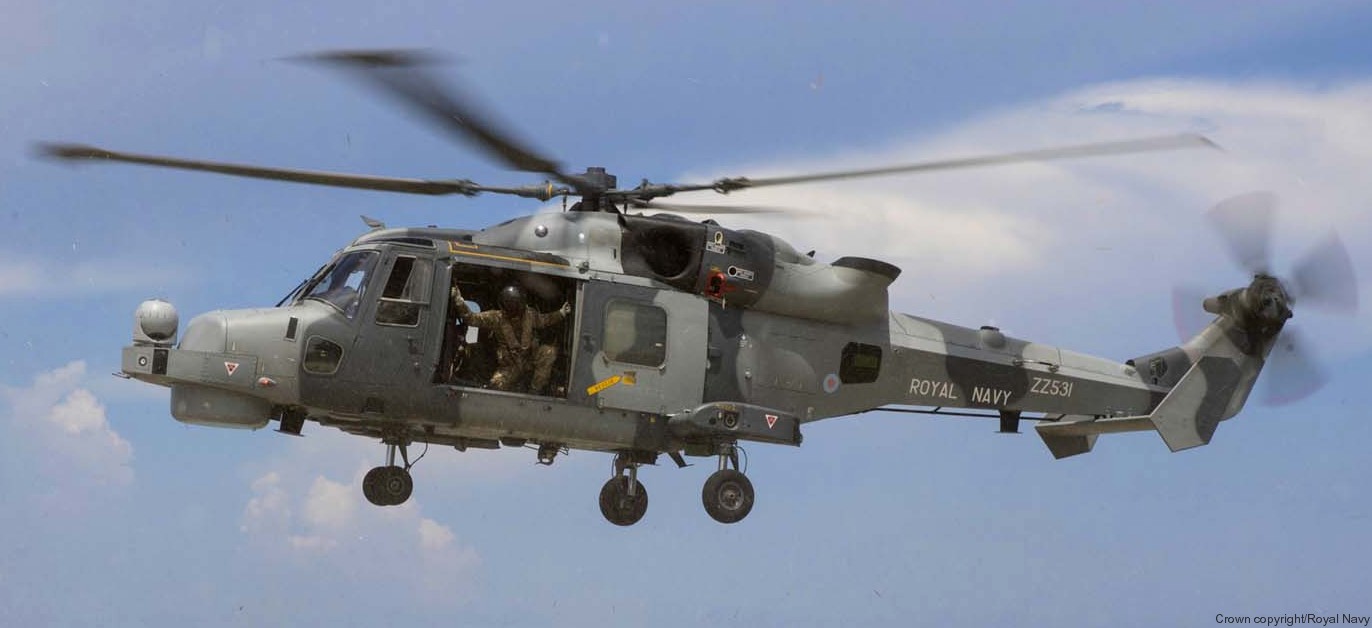

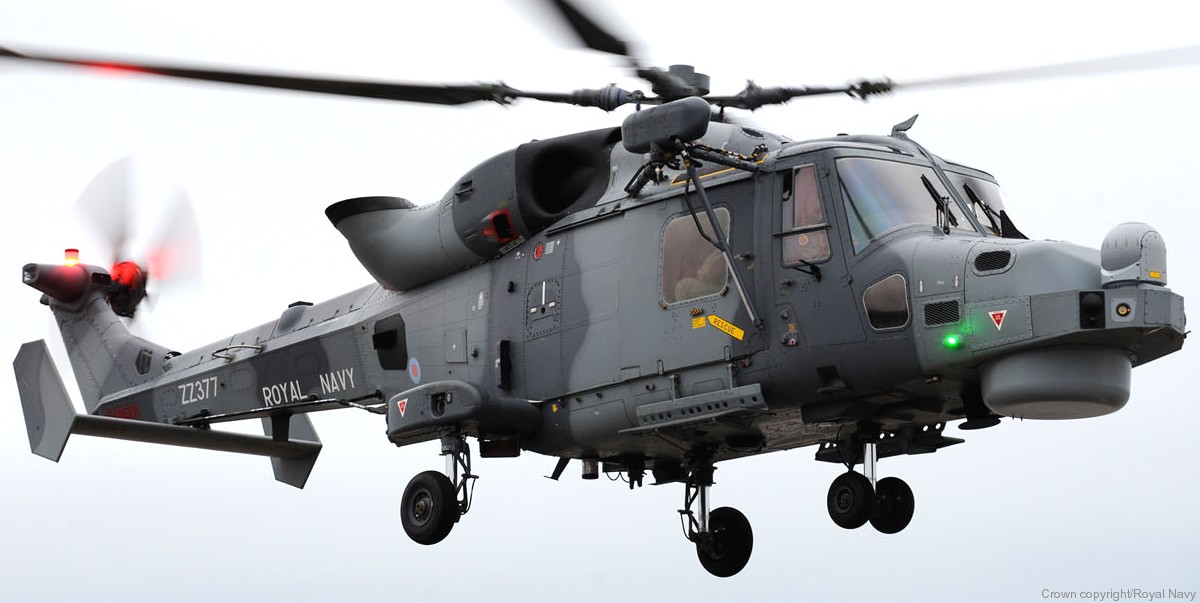

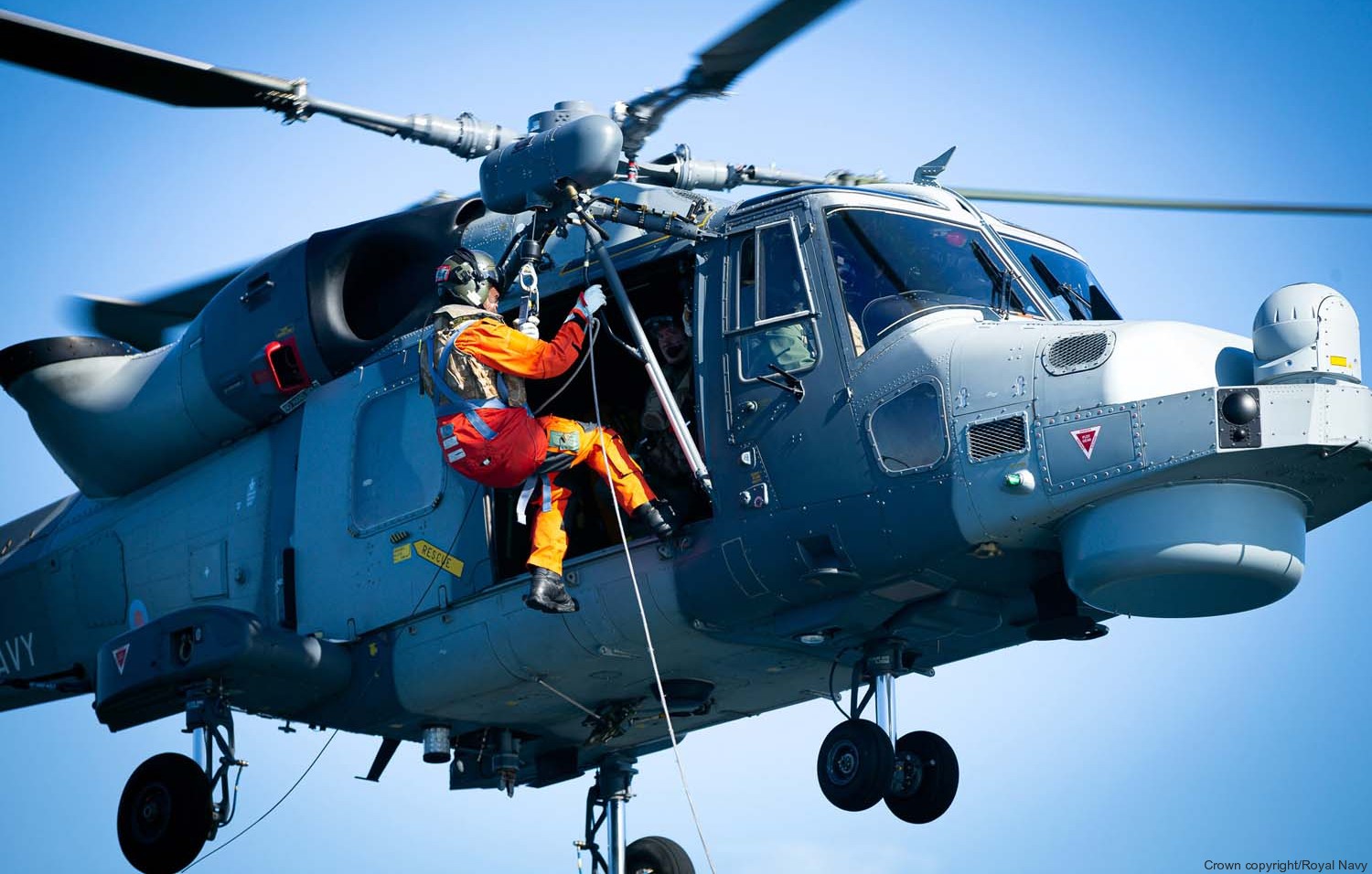

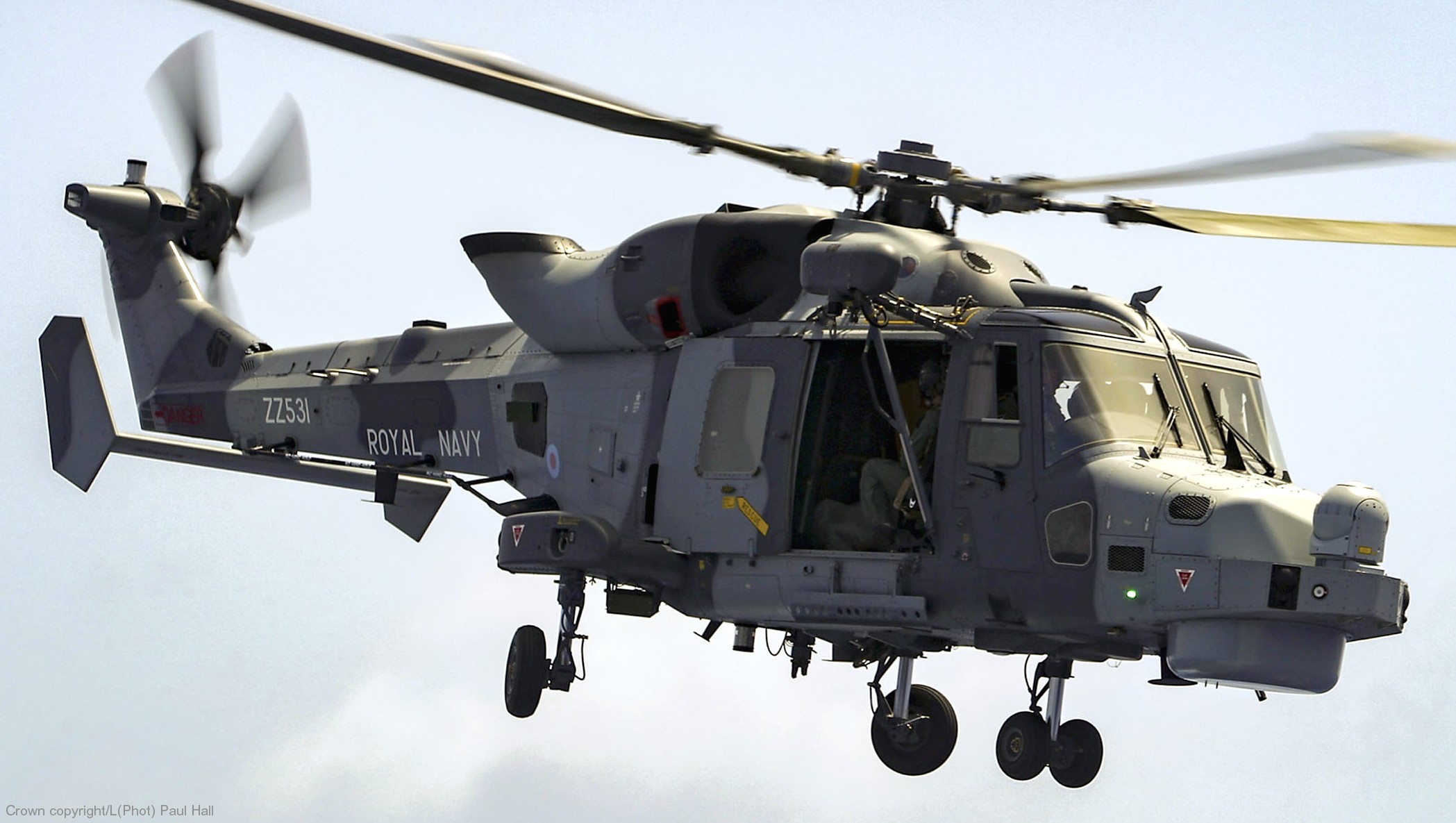

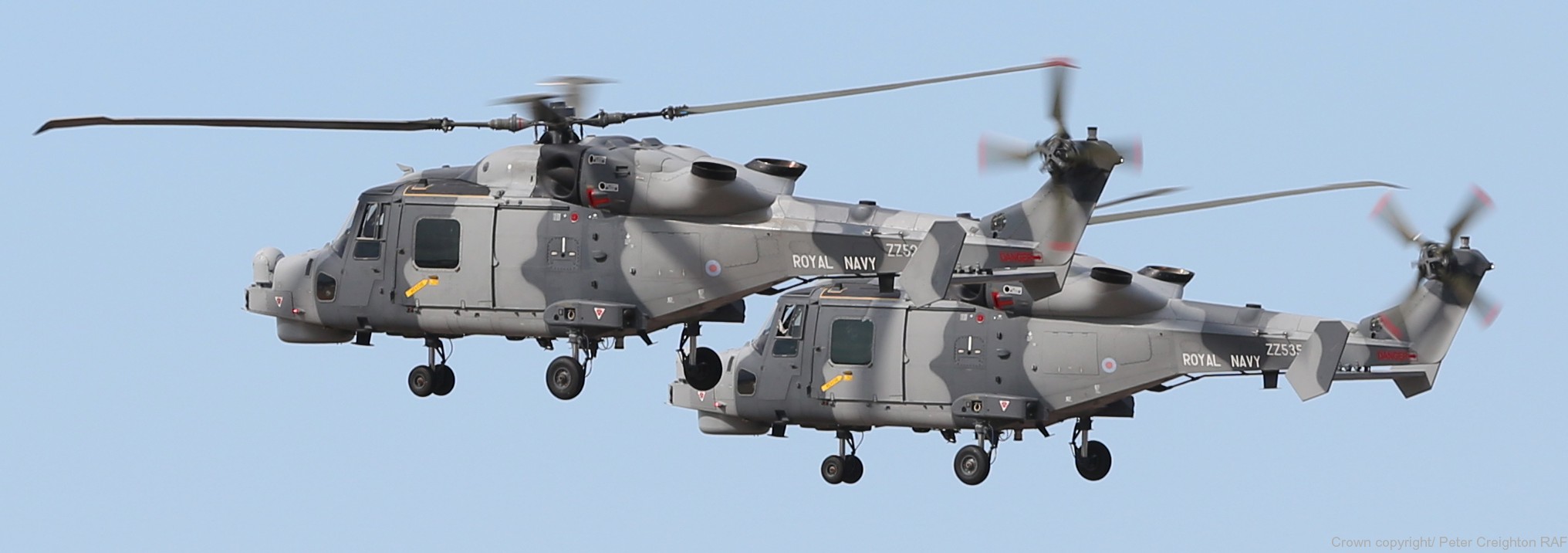

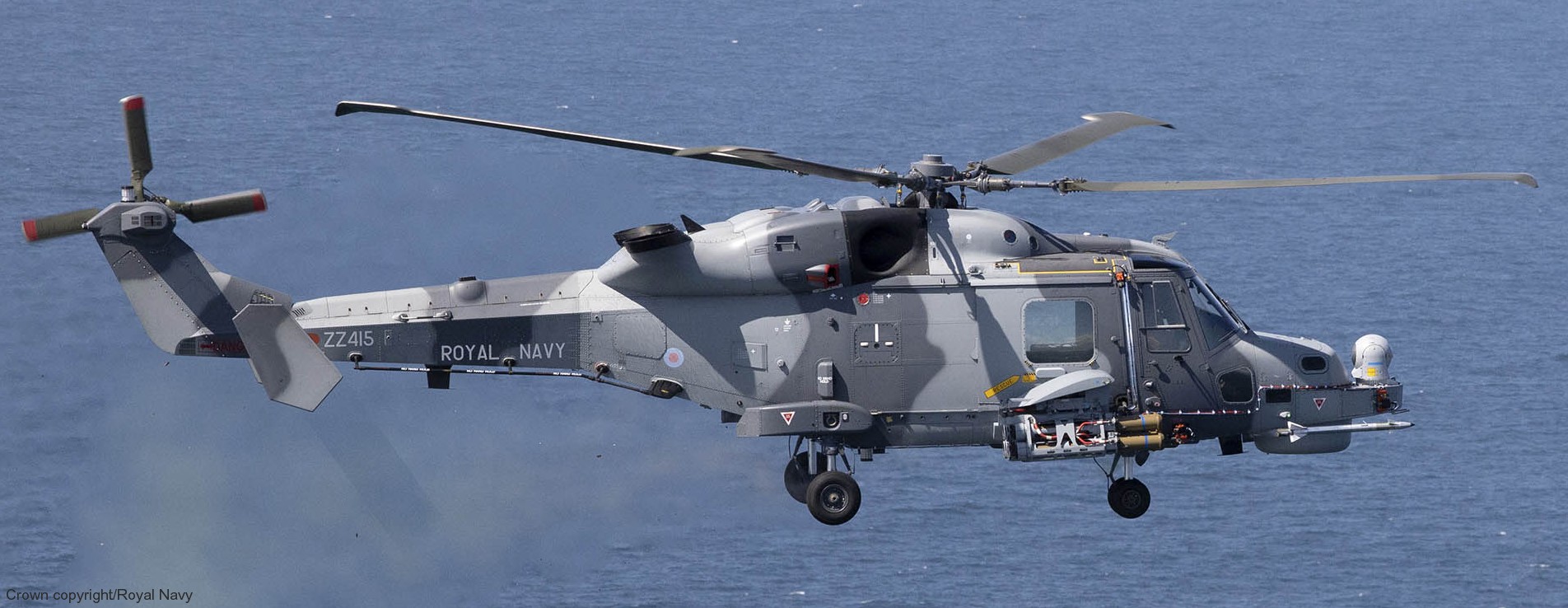

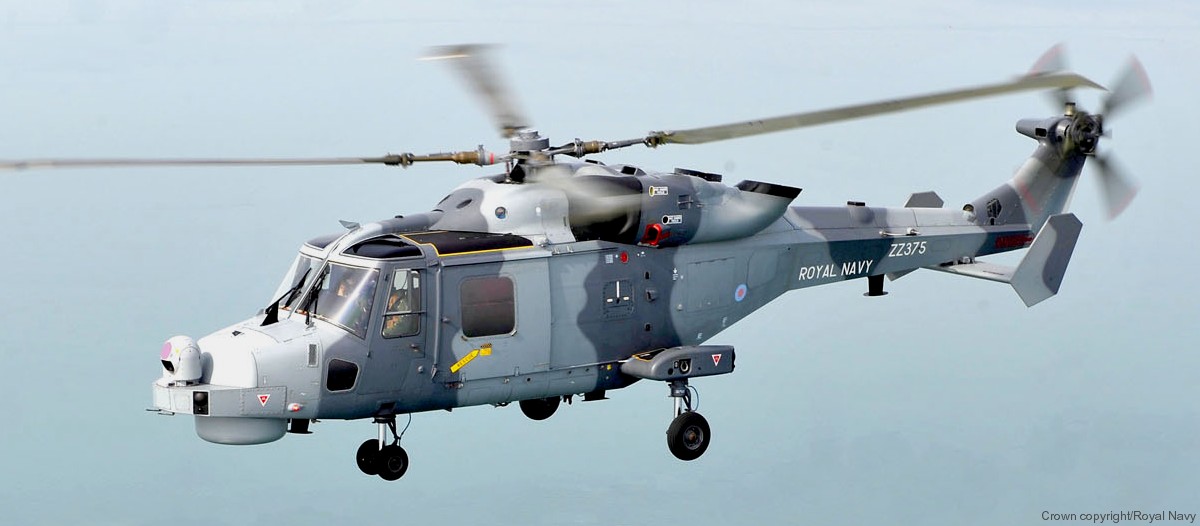

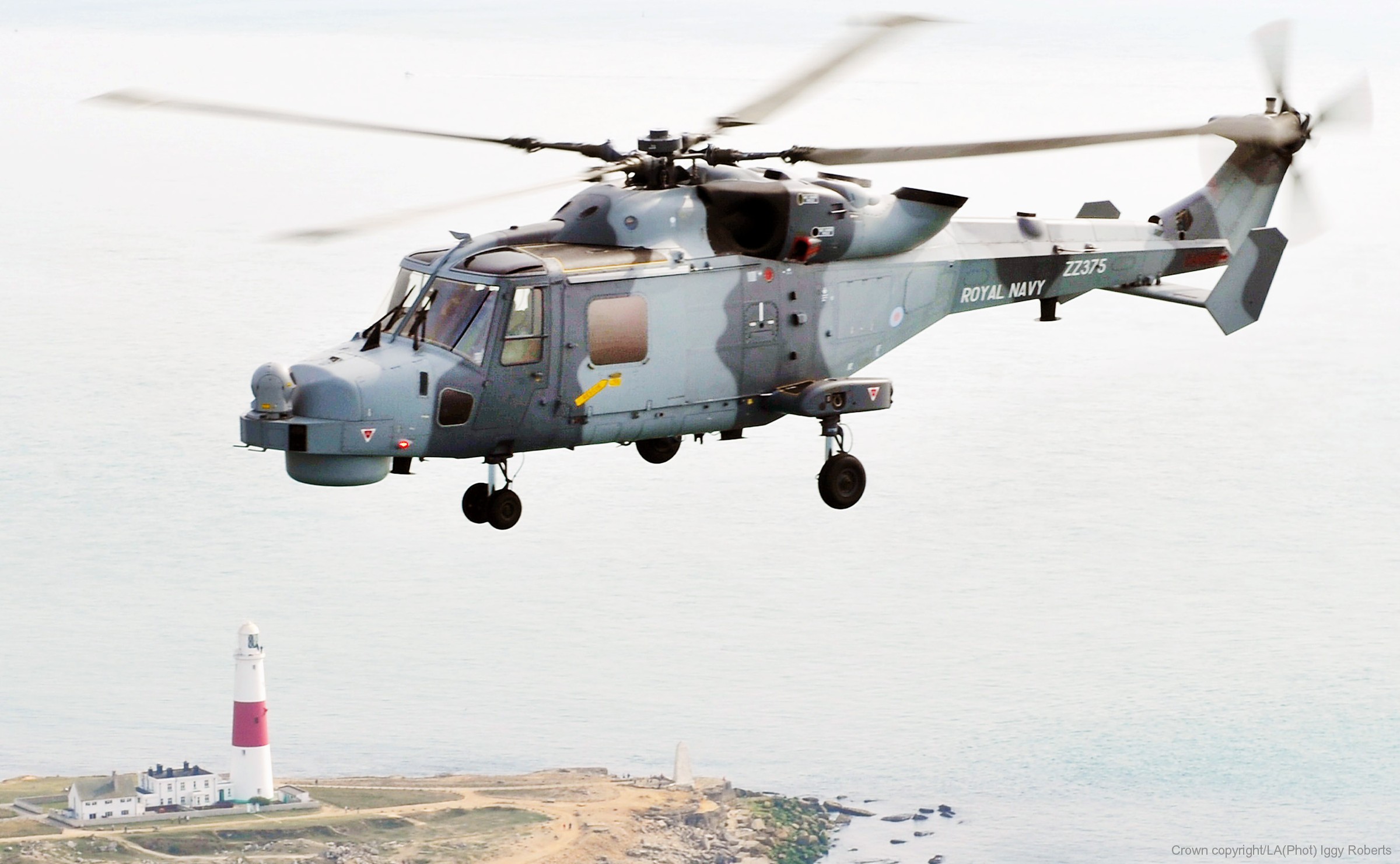

Wildcat HMA2

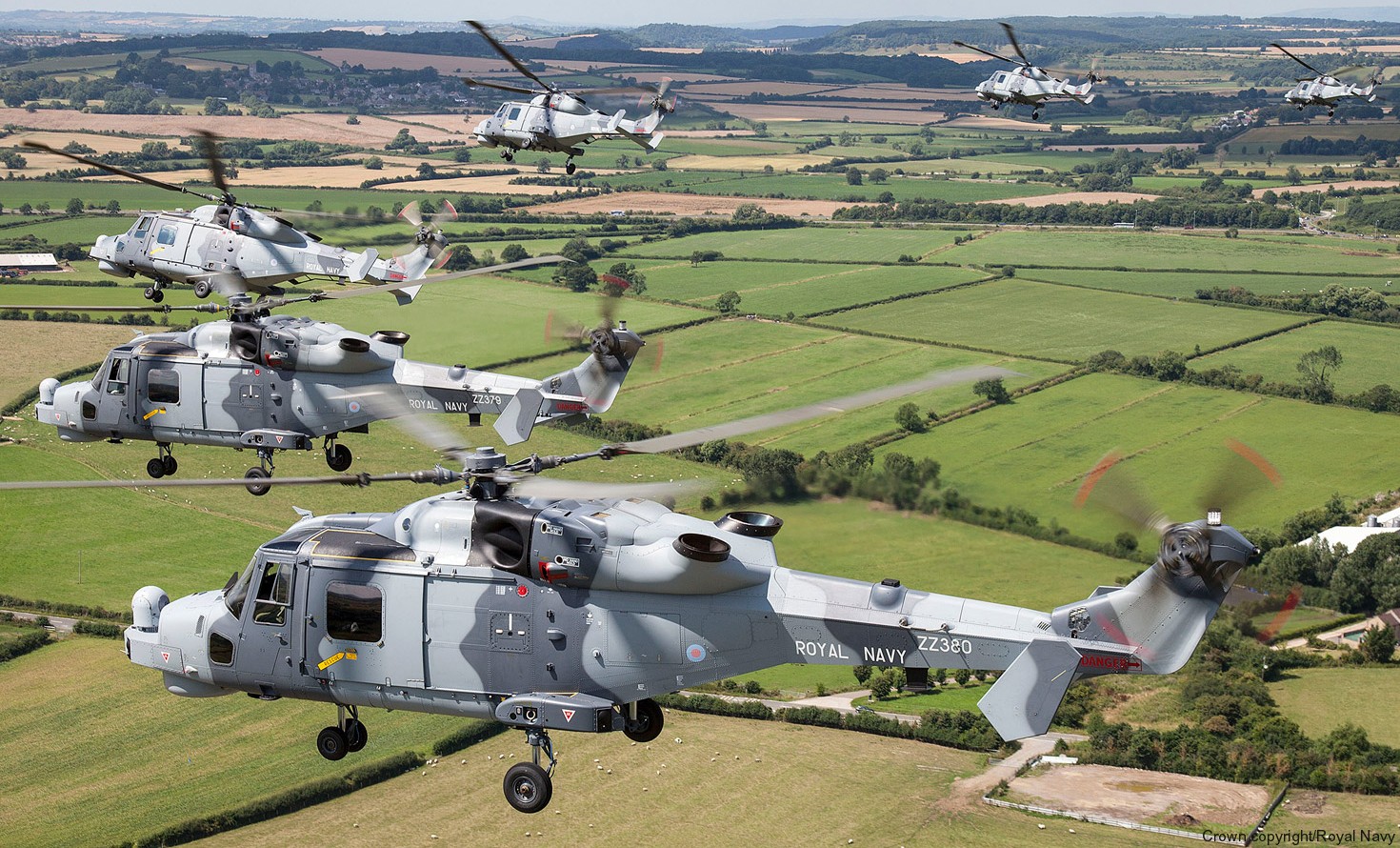

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 17

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 06

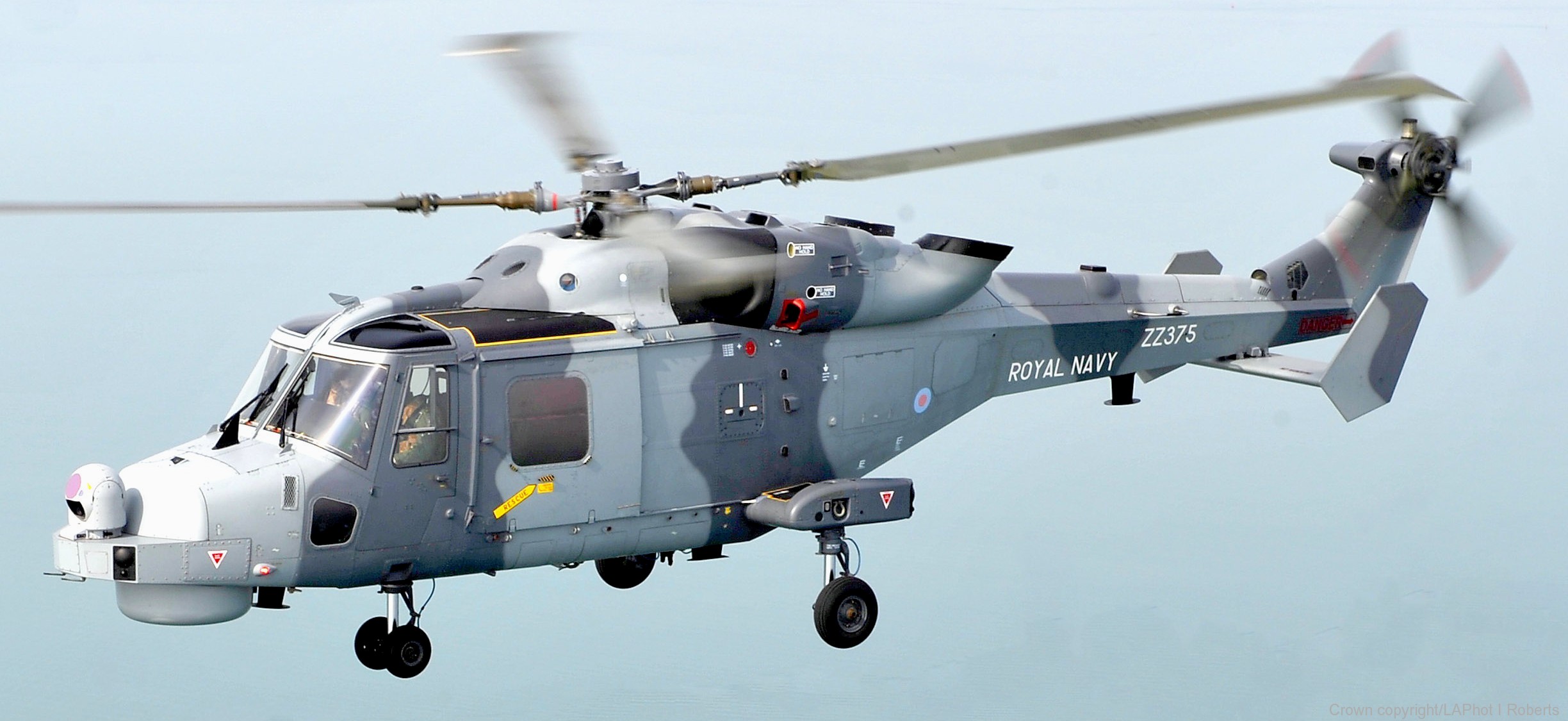

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 04

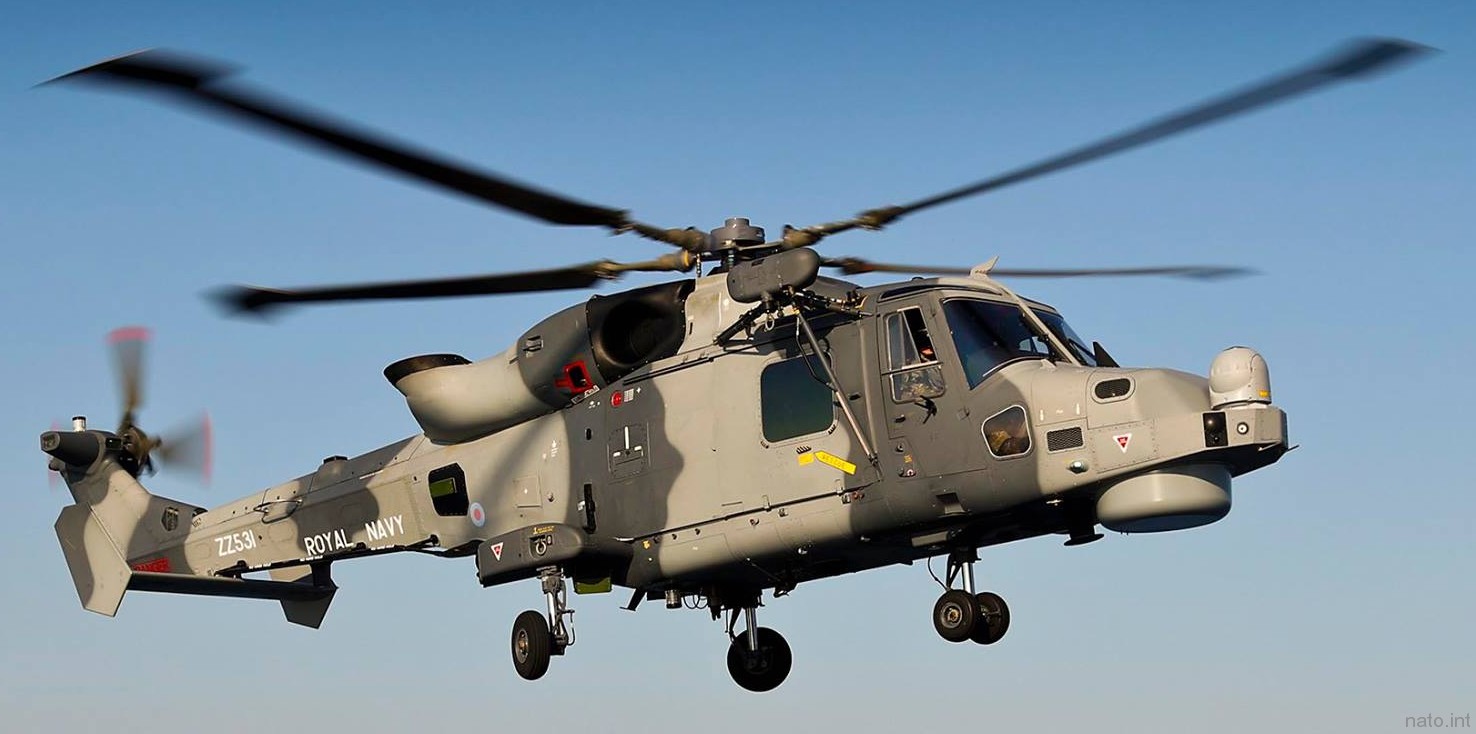

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 36

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 37

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 05

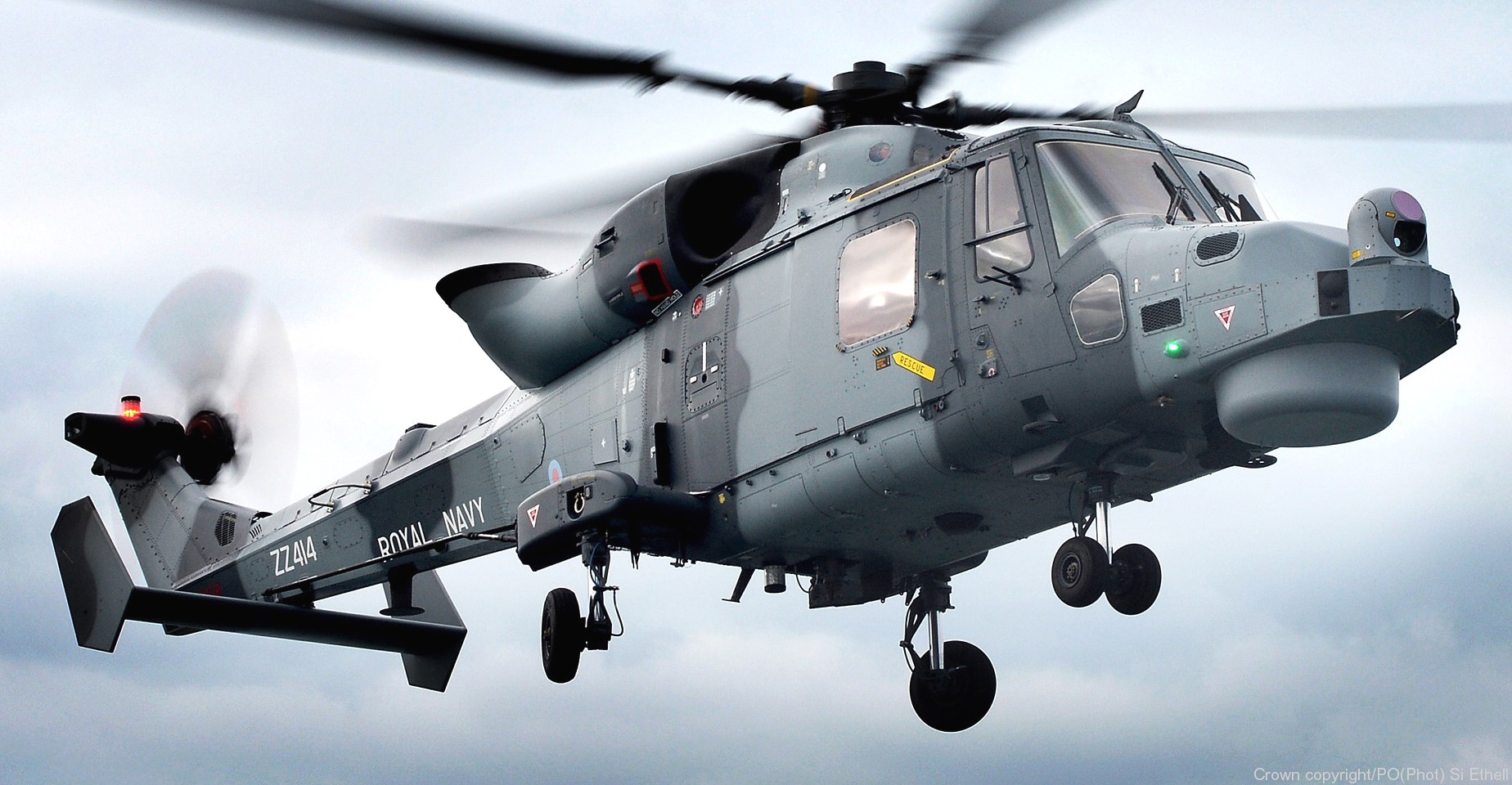

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 08

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 30 thales martlet missile

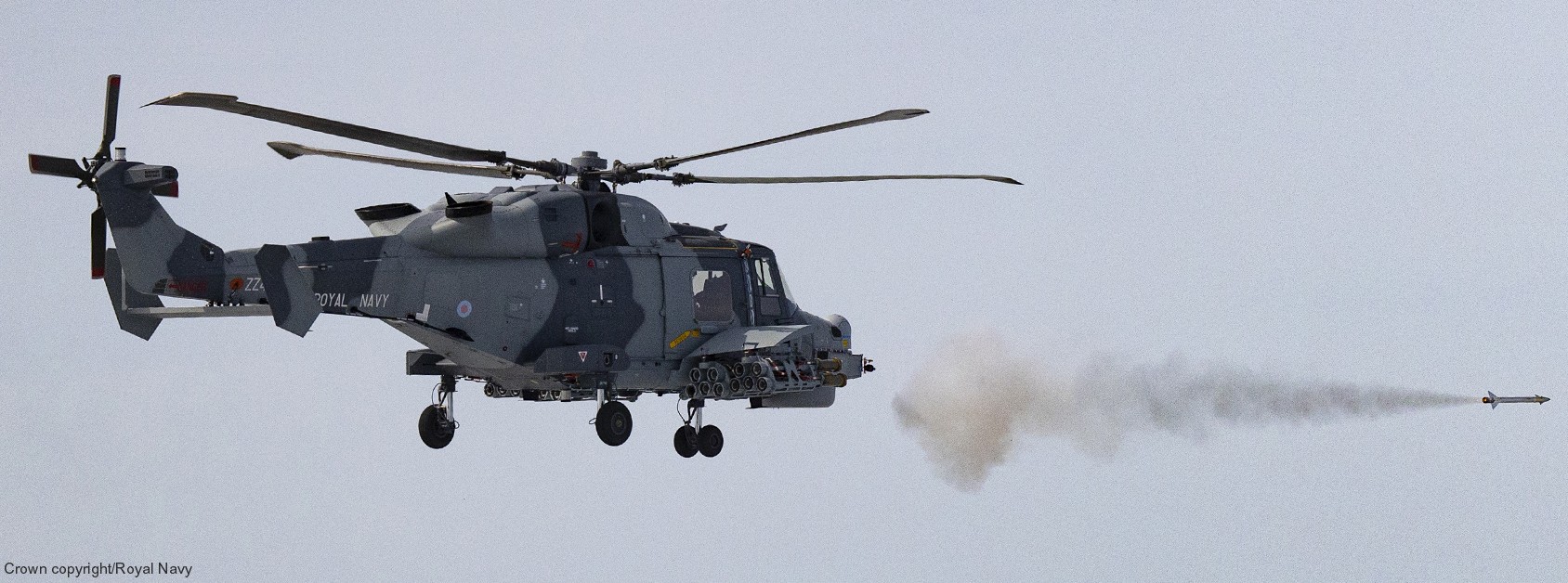

firing a Thales Martlet missile

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 35 thales martlet missile firing
firing a Thales Martlet missile

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 32 martlet missile

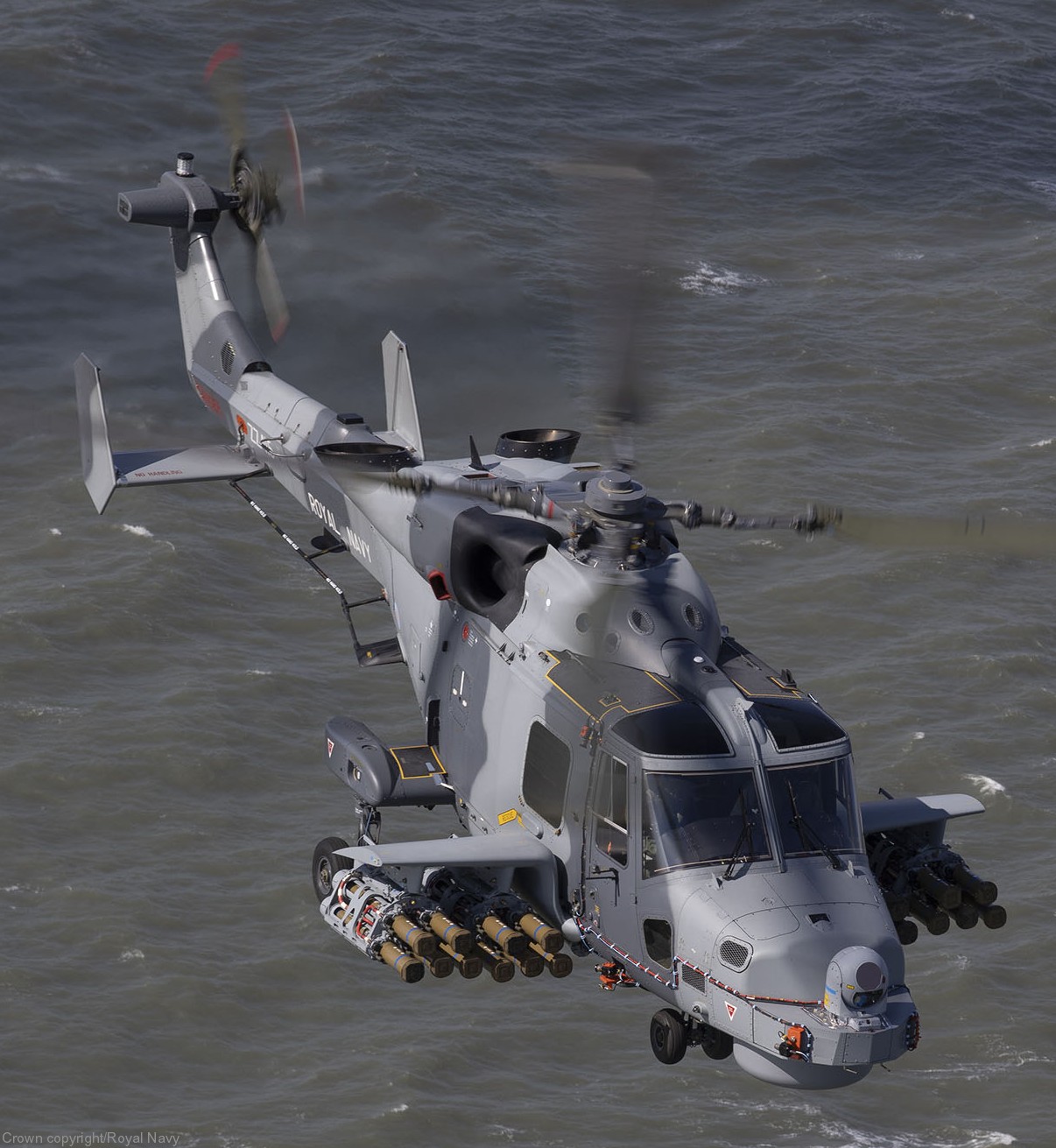

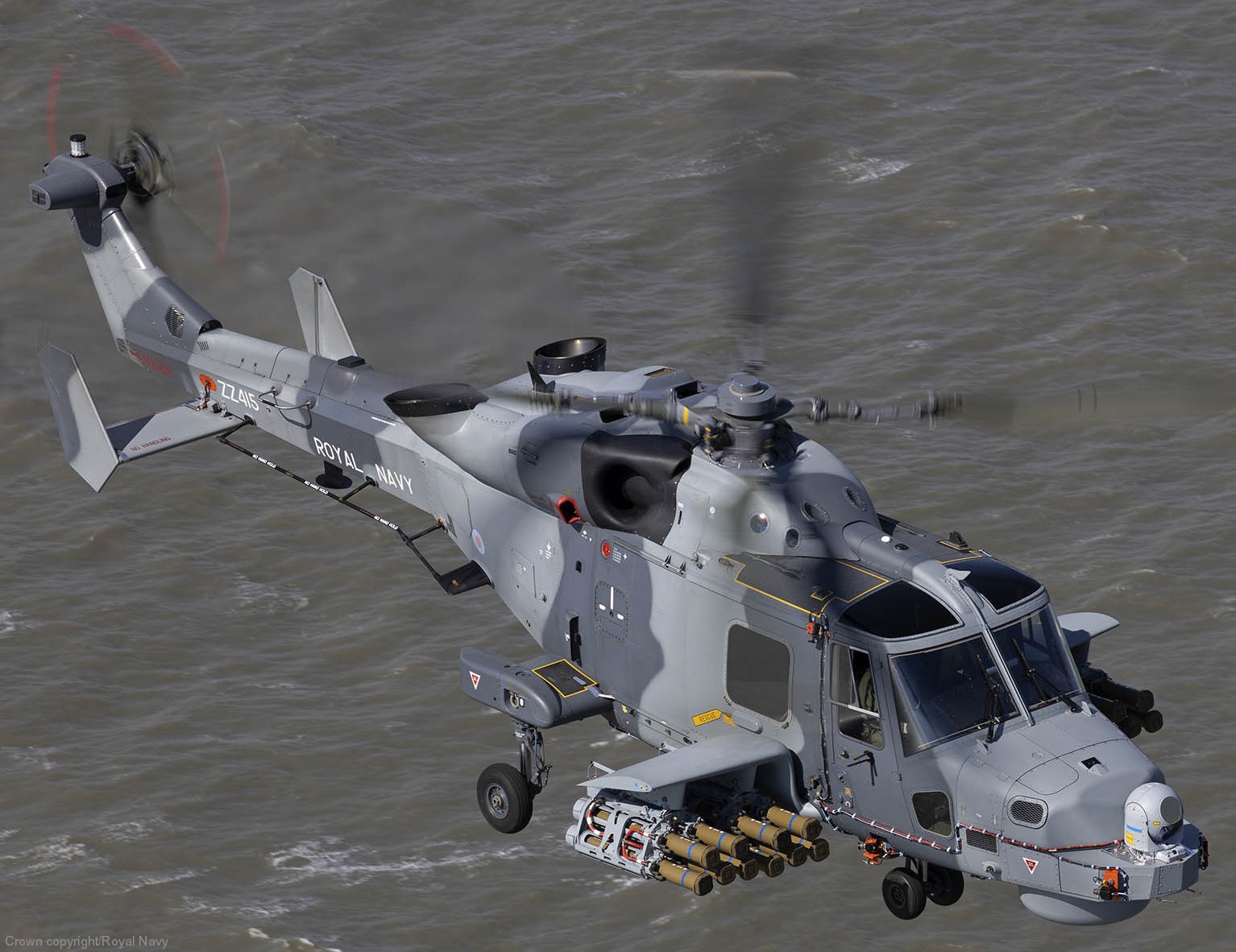

with 20 Thales Martlet Lightweight Multirole Missiles (LMM)

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 33
with 20 Thales Martlet Lightweight Multirole Missiles (LMM)

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 31
with 20 Thales Martlet Lightweight Multirole Missiles (LMM)

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 34 martlet missile
with 20 Thales Martlet Lightweight Multirole Missiles (LMM)

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 12

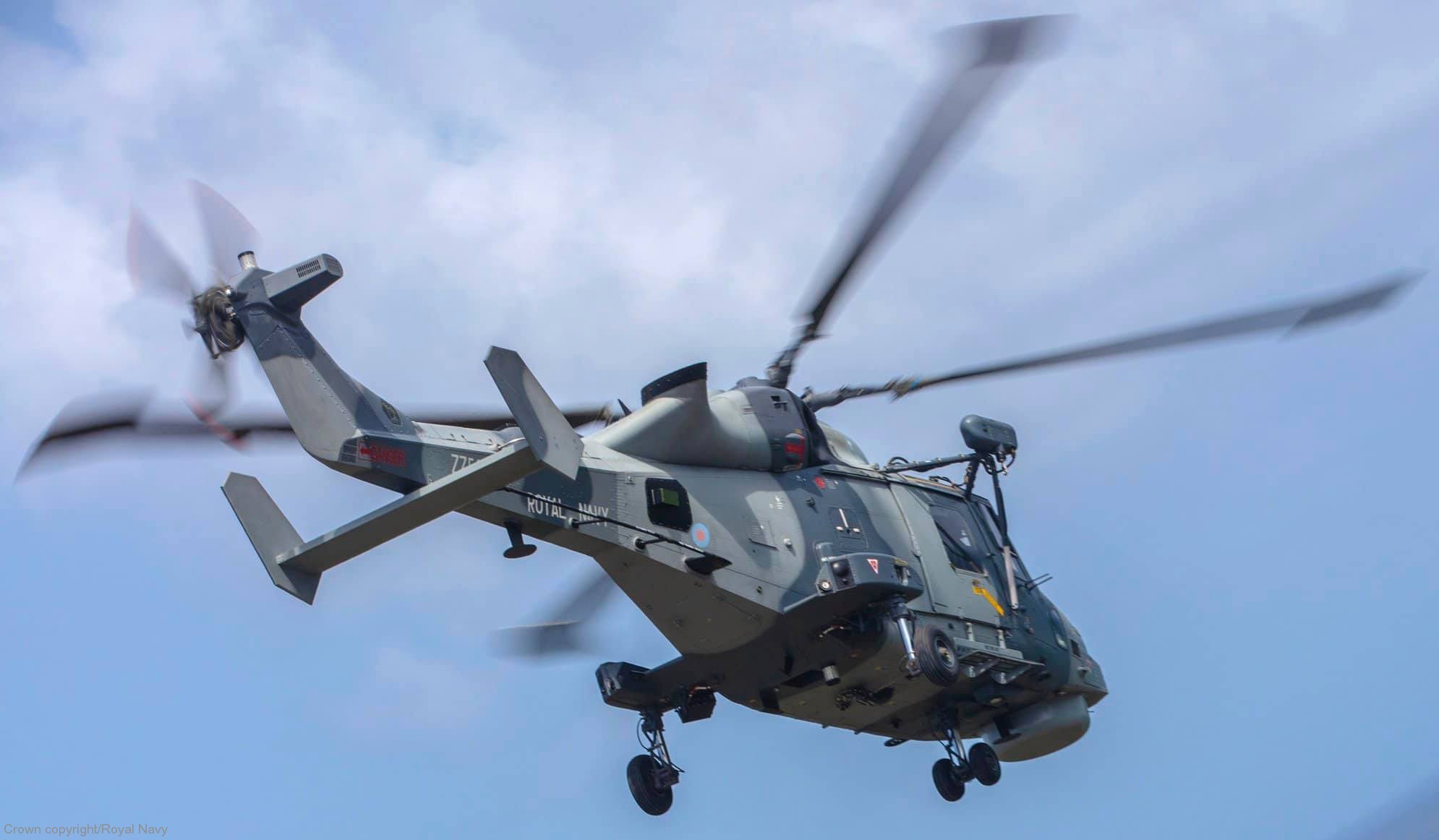

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 19

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 11

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 10 nato

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 02

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 03

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 04

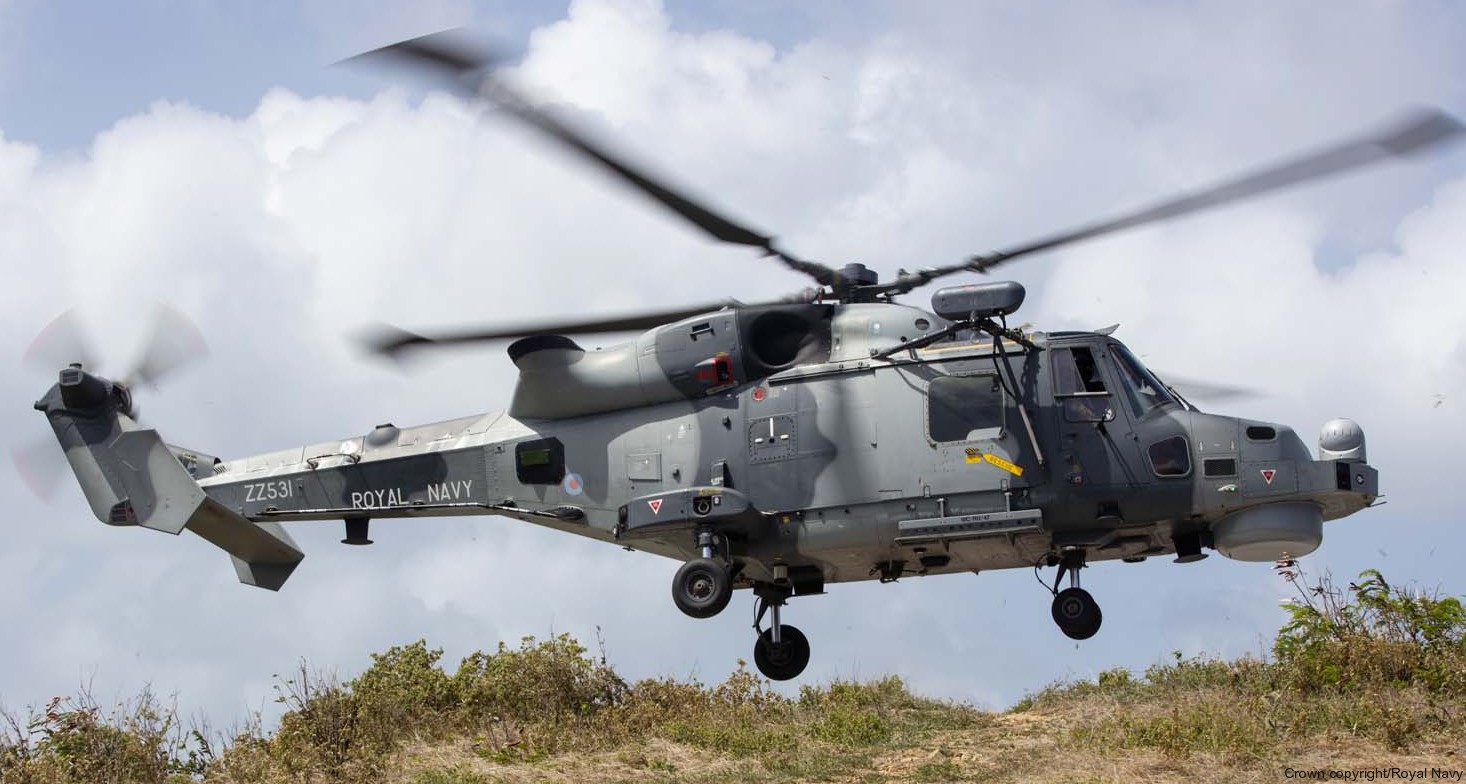

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 25

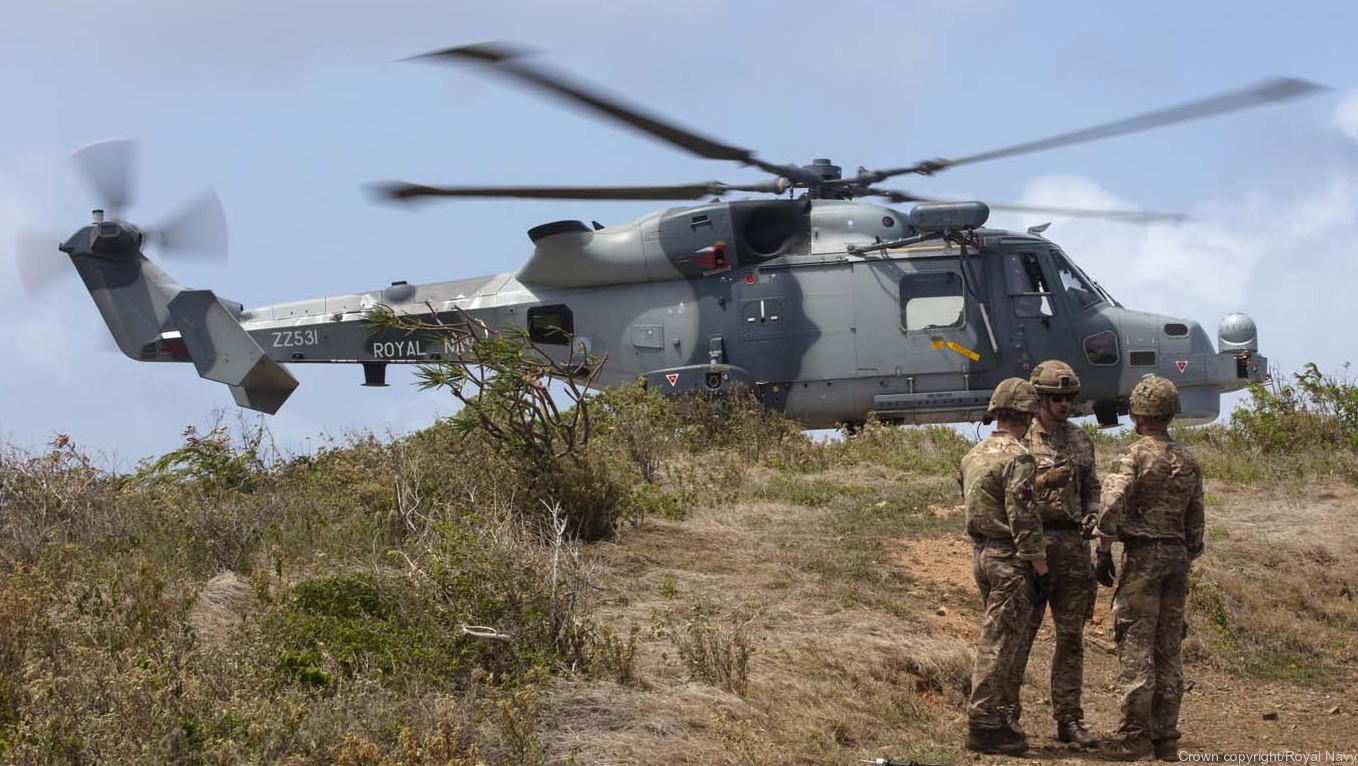

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 27

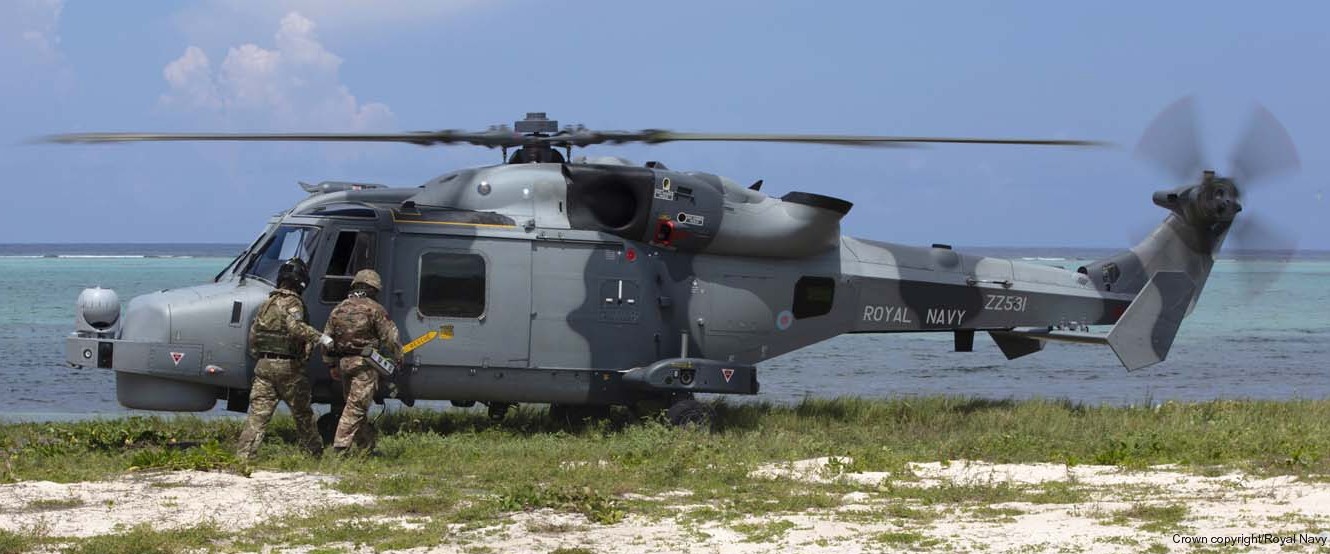

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 14b

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 14a

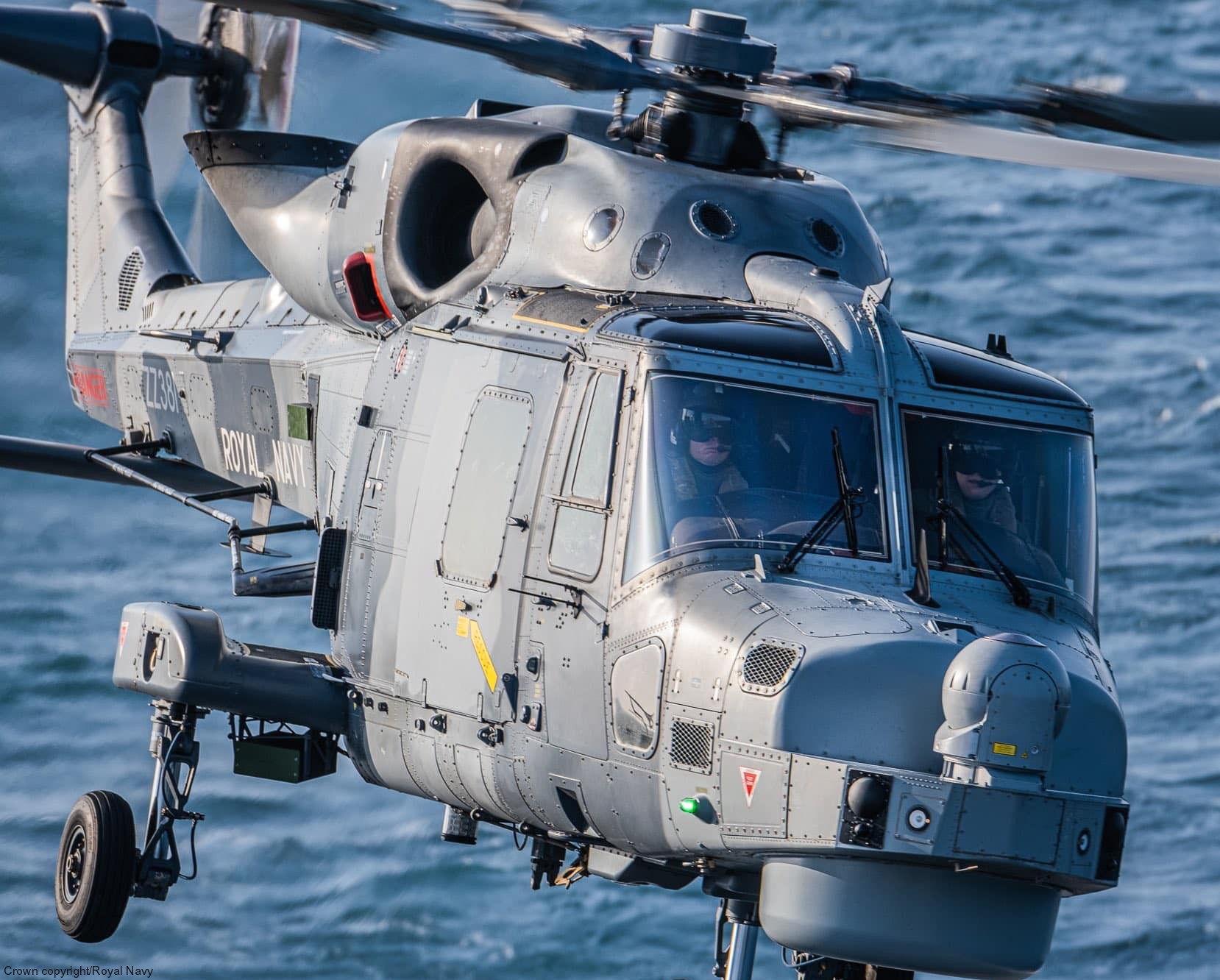

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 20

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 15 frigate destroyer hms

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 22

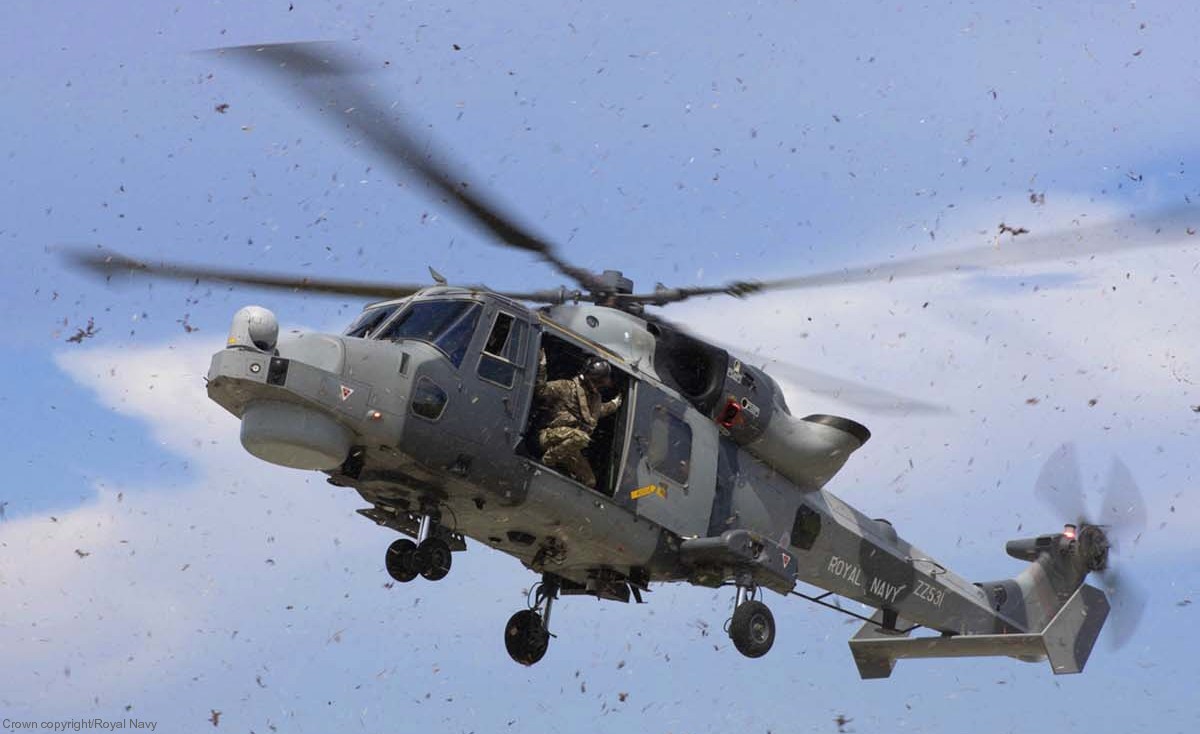

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 13

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 13a

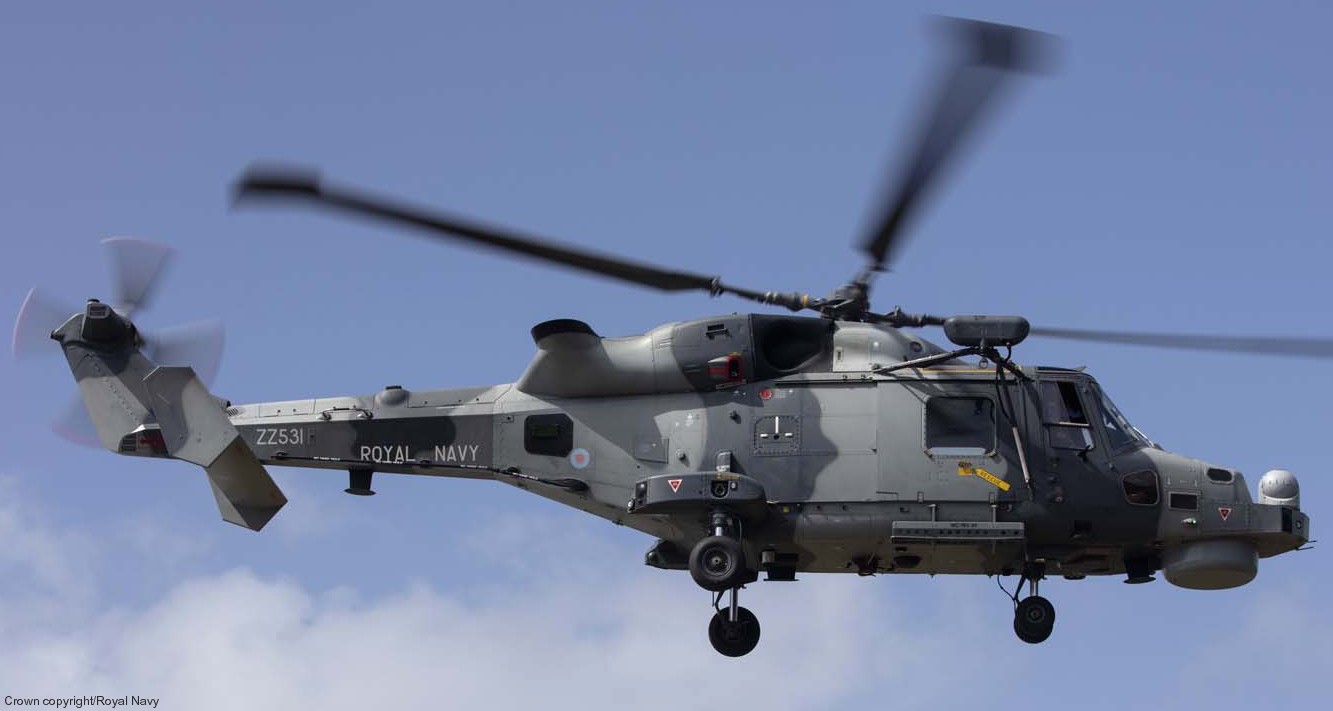

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 24

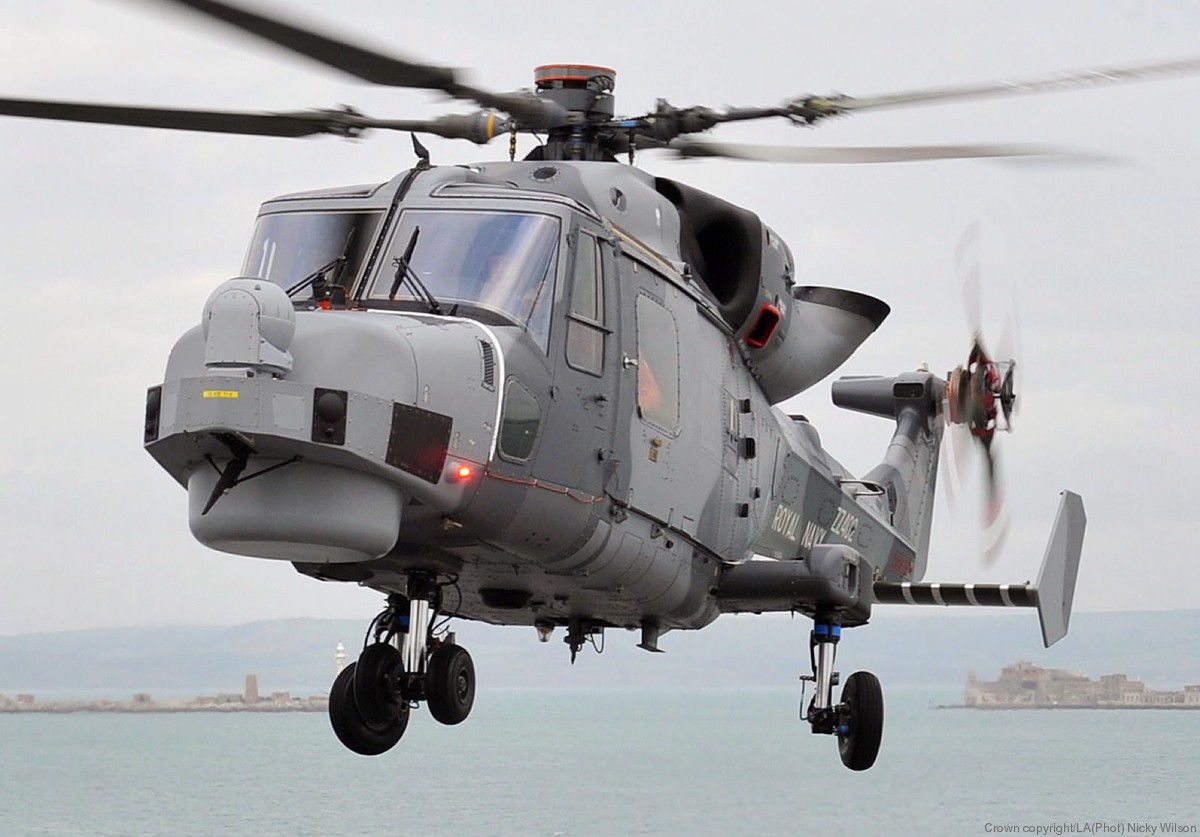

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 09

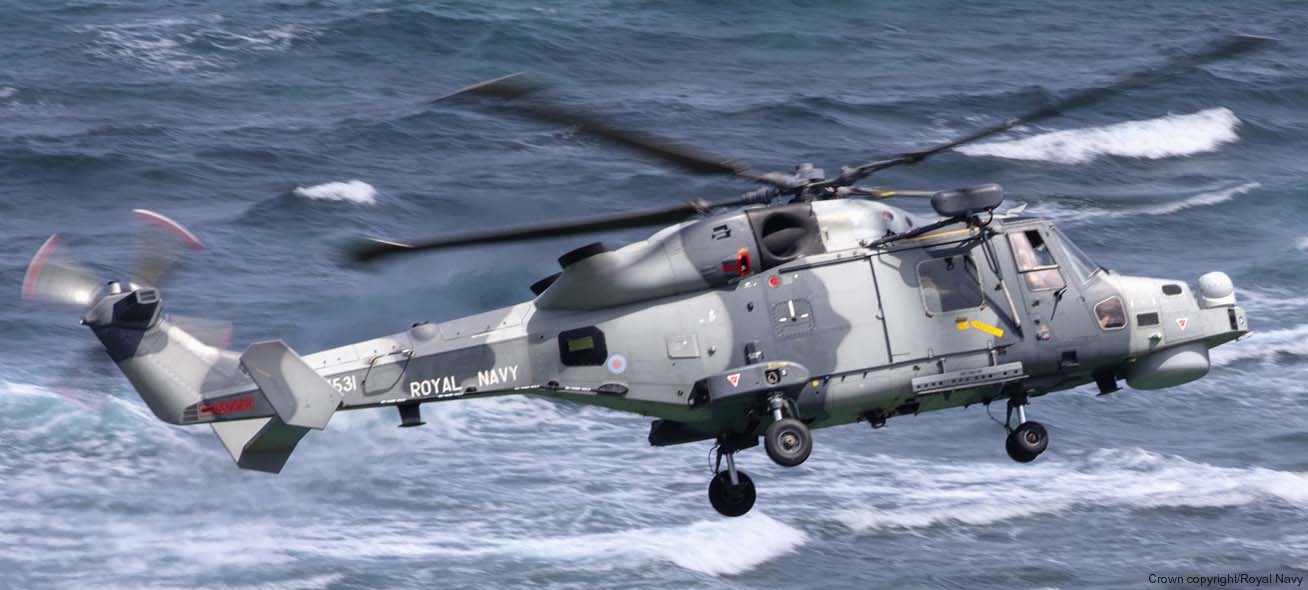

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 26

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 29 bae sting ray torpedo

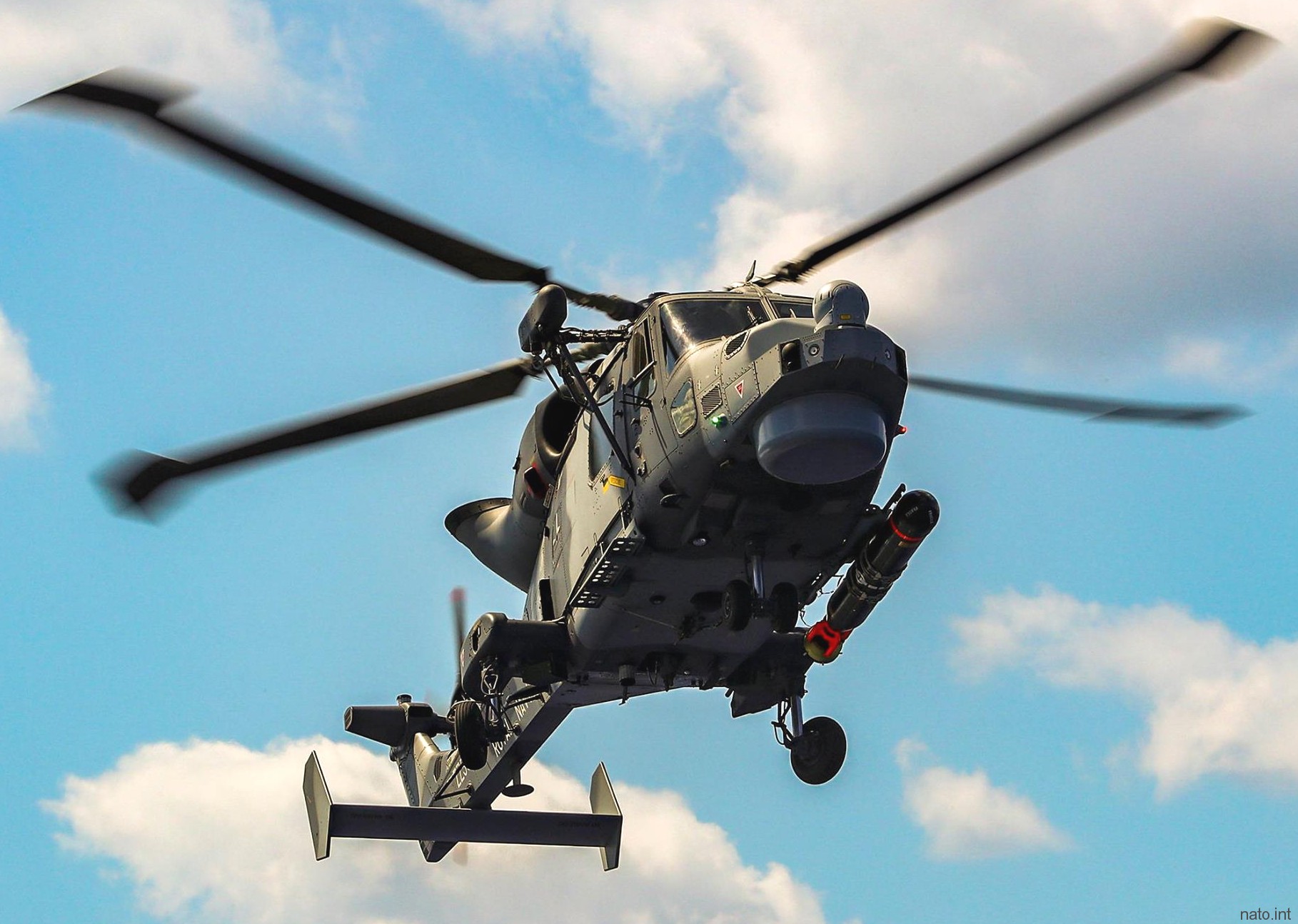

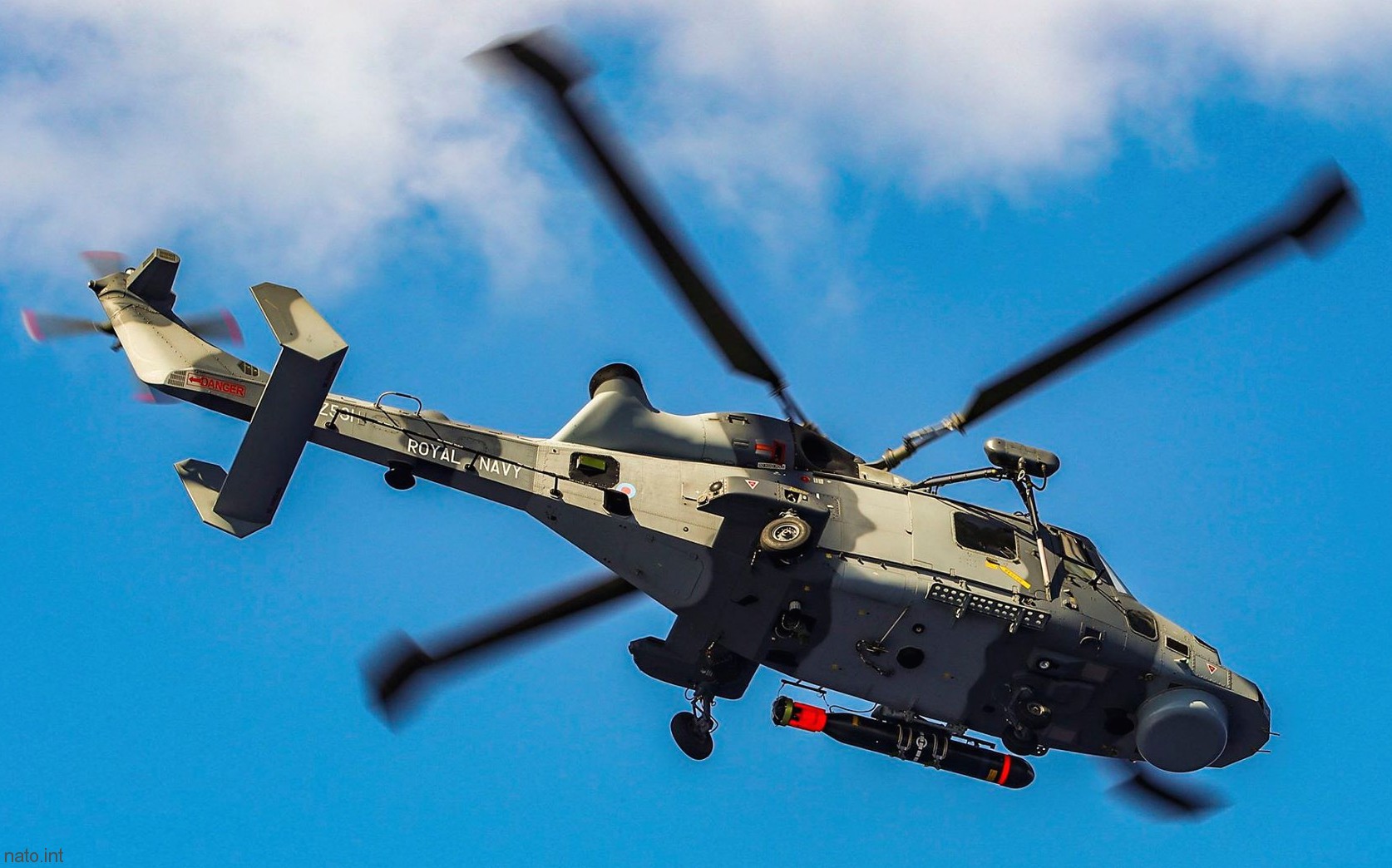

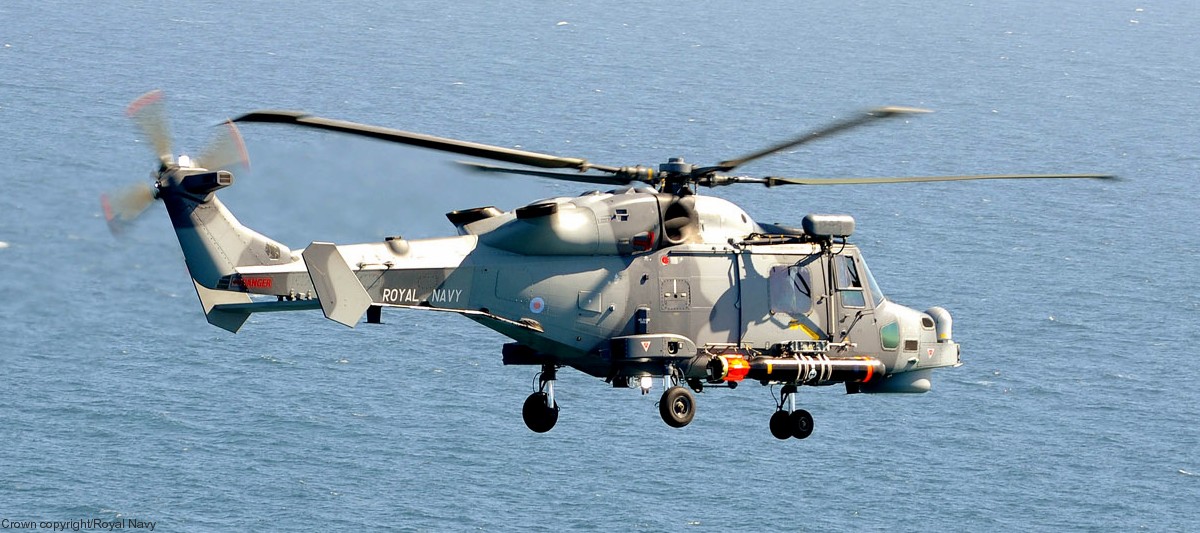

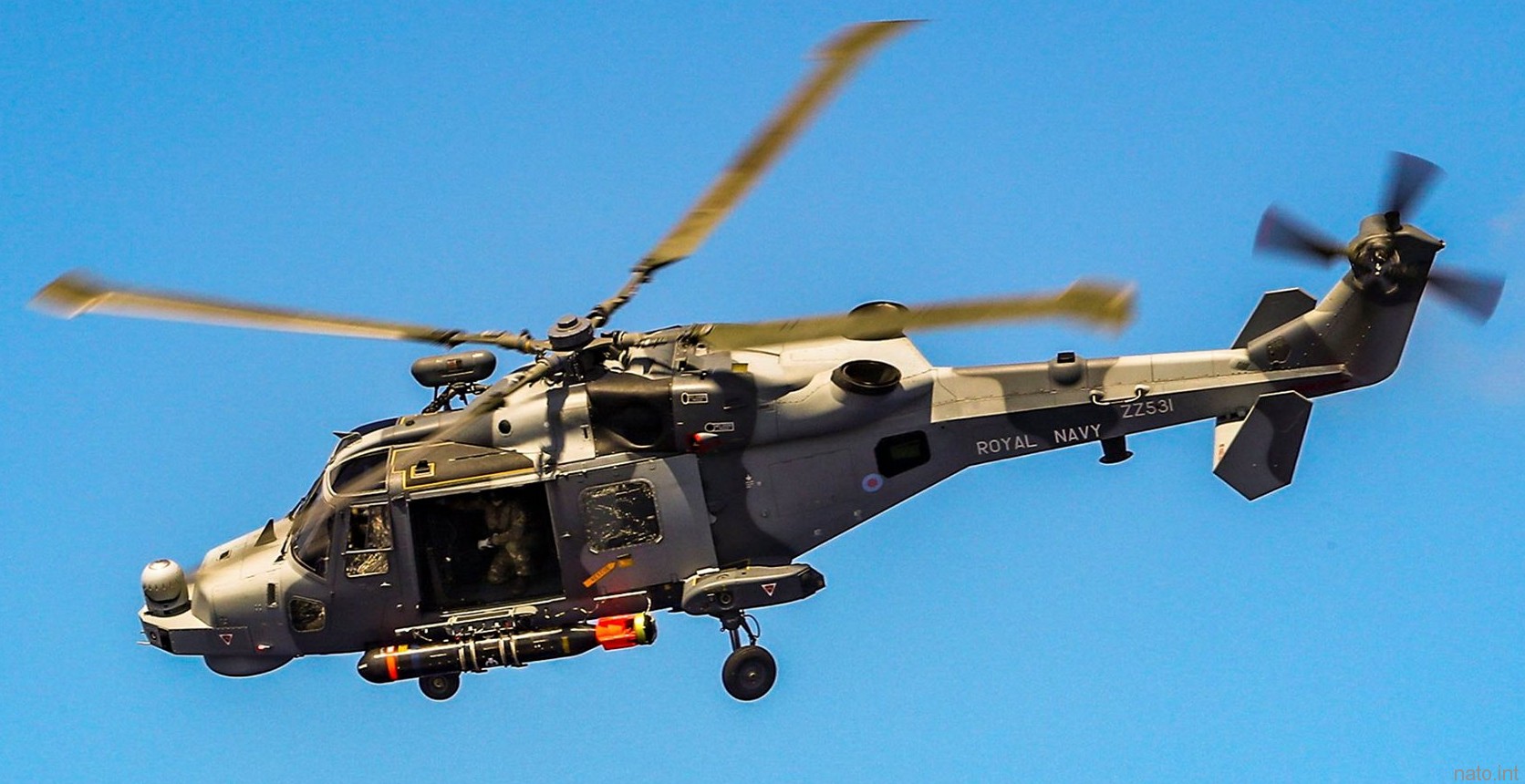

carrying a 324mm Sting Ray torpedo

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 28 bae sting ray torpedo 324mm
carrying a 324mm Sting Ray torpedo

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 39 sting ray torpedo
carrying a 324mm Sting Ray torpedo

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 40 324mm sting ray torpedo
carrying a 324mm Sting Ray torpedo

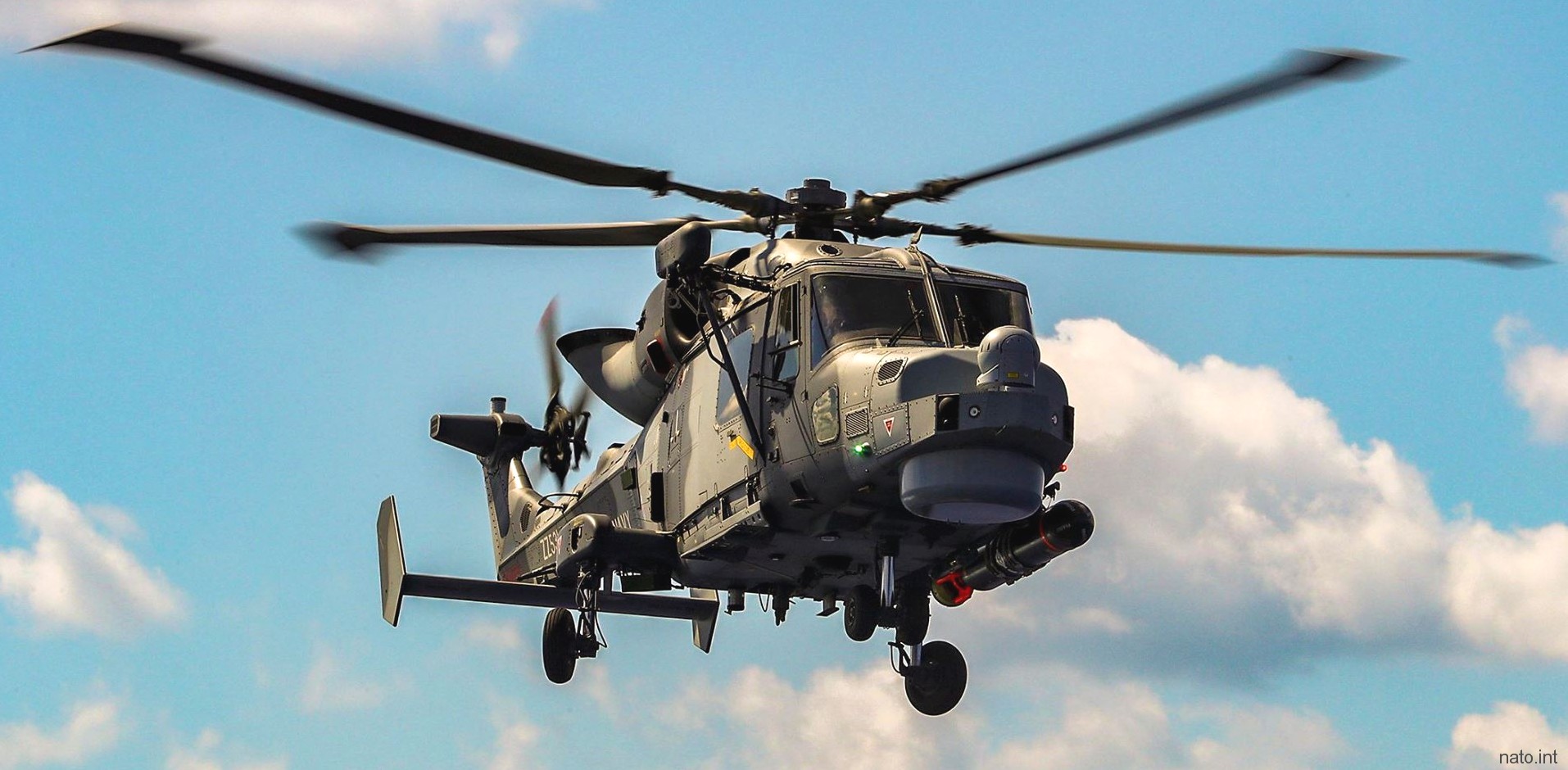

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 41
carrying a 324mm Sting Ray torpedo

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 42 sting ray torpedo bae underwater systems
carrying a 324mm Sting Ray torpedo

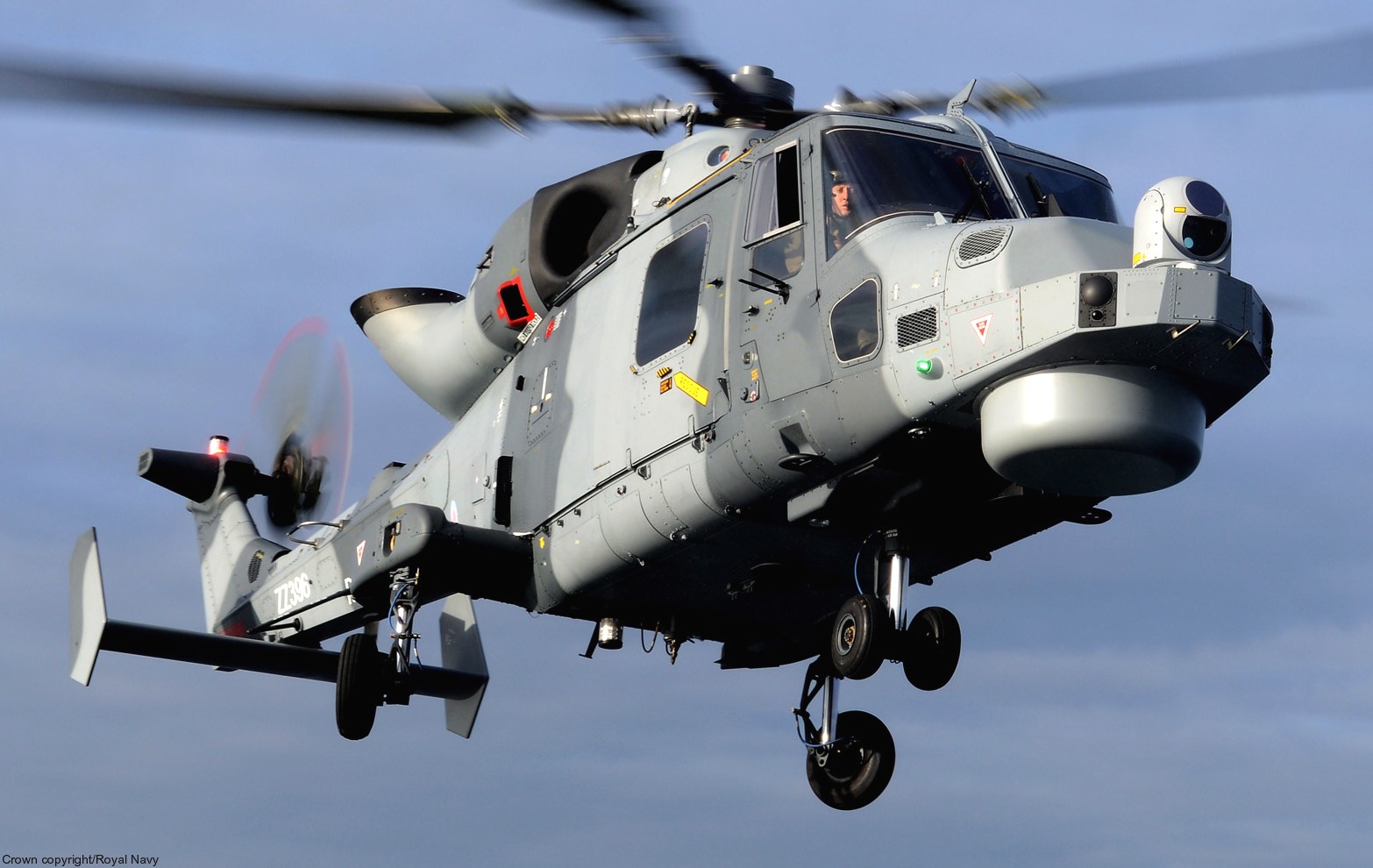

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 21

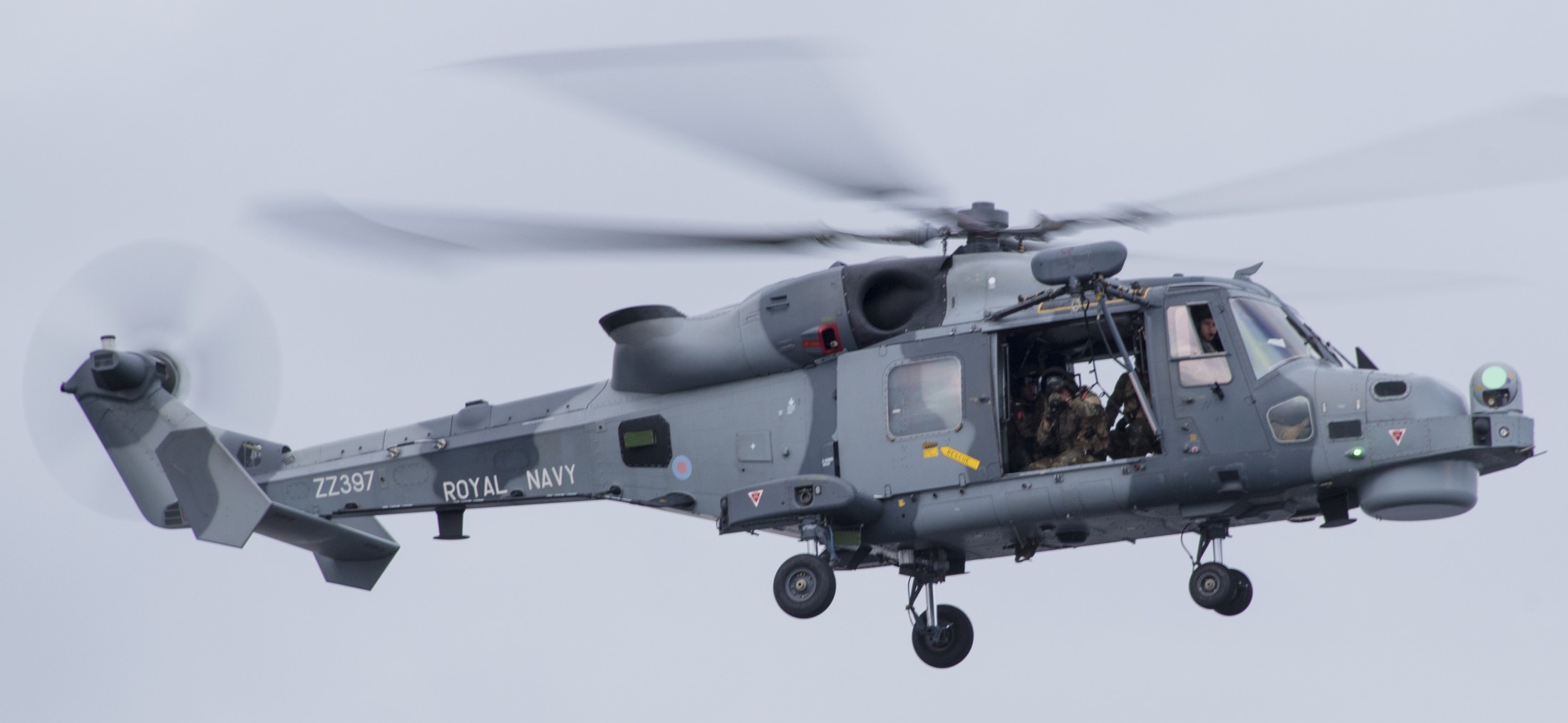

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 18

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 23

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 50

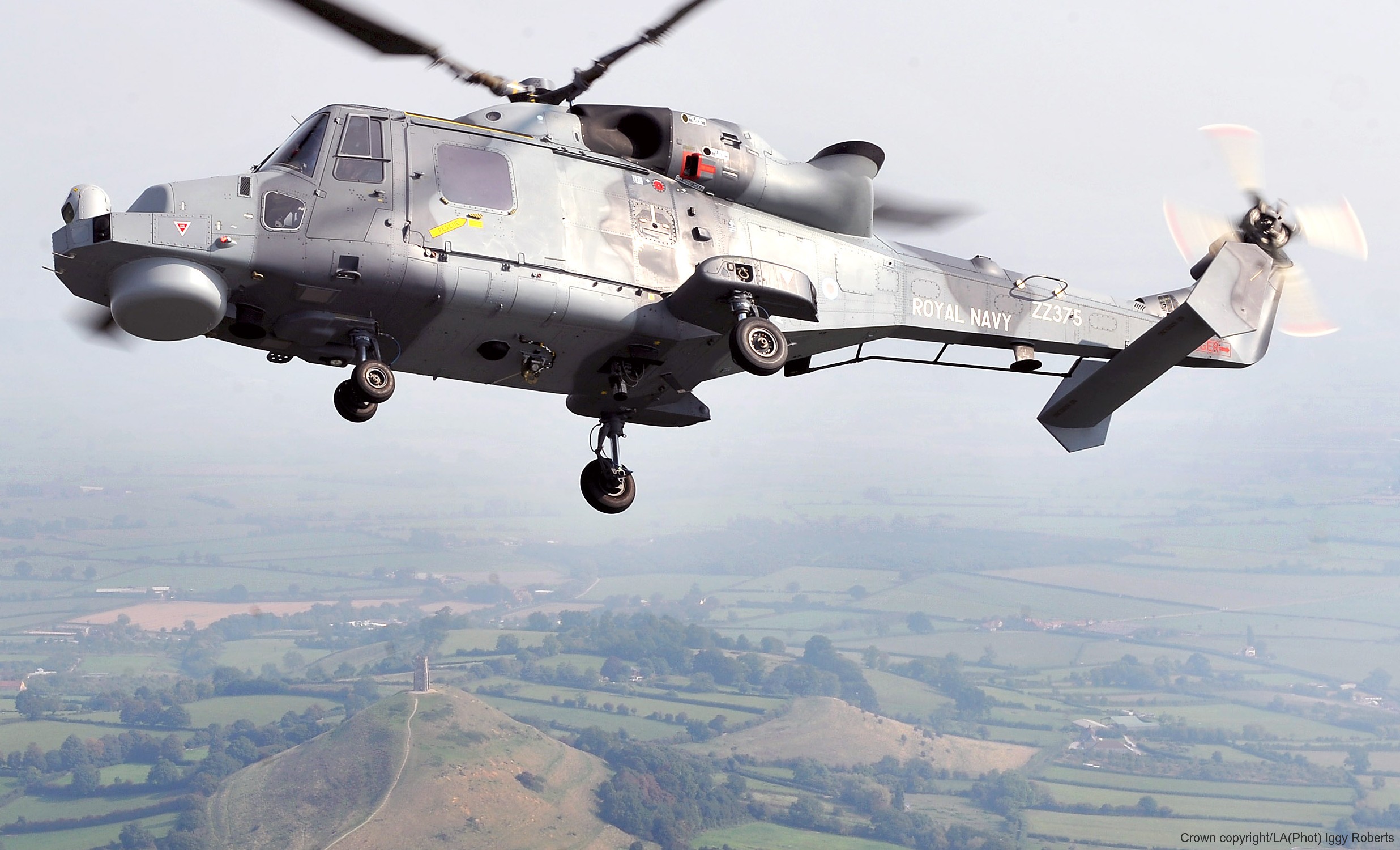

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 52

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 44

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 46

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 38

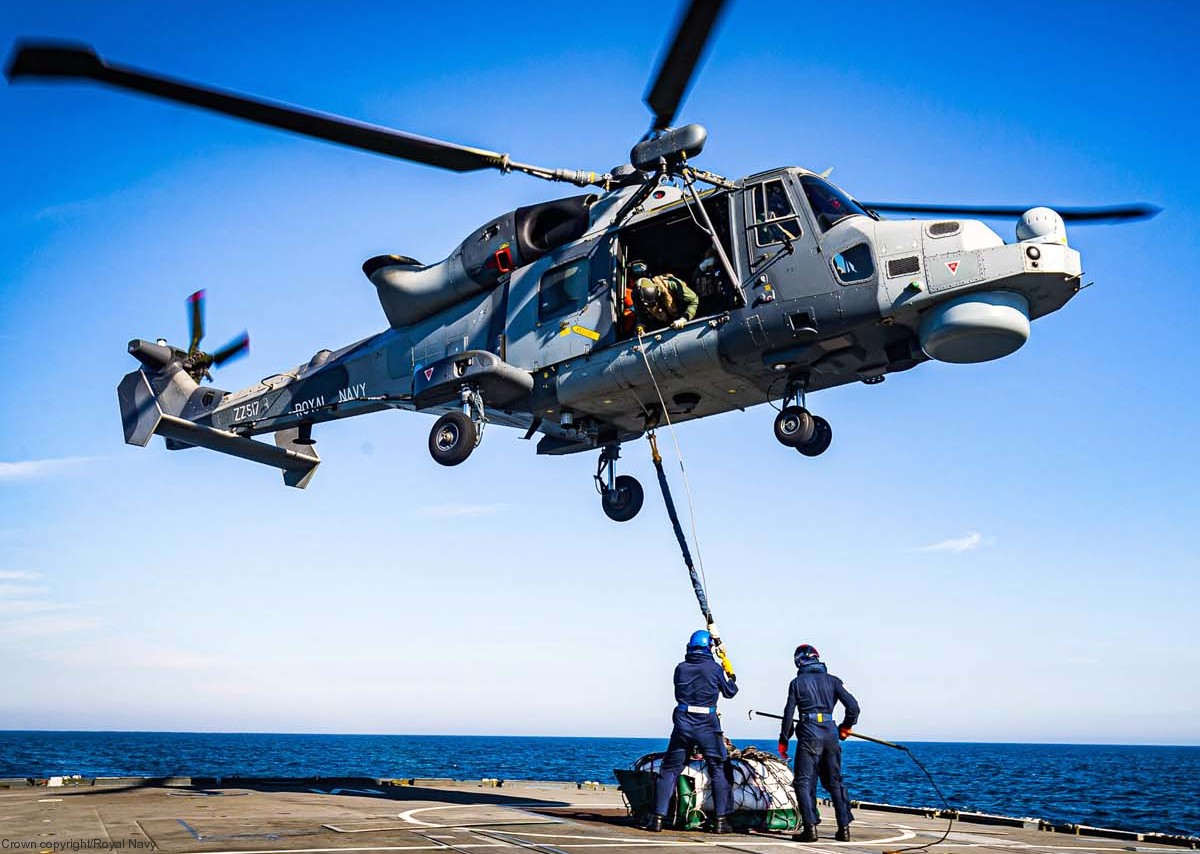

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 47

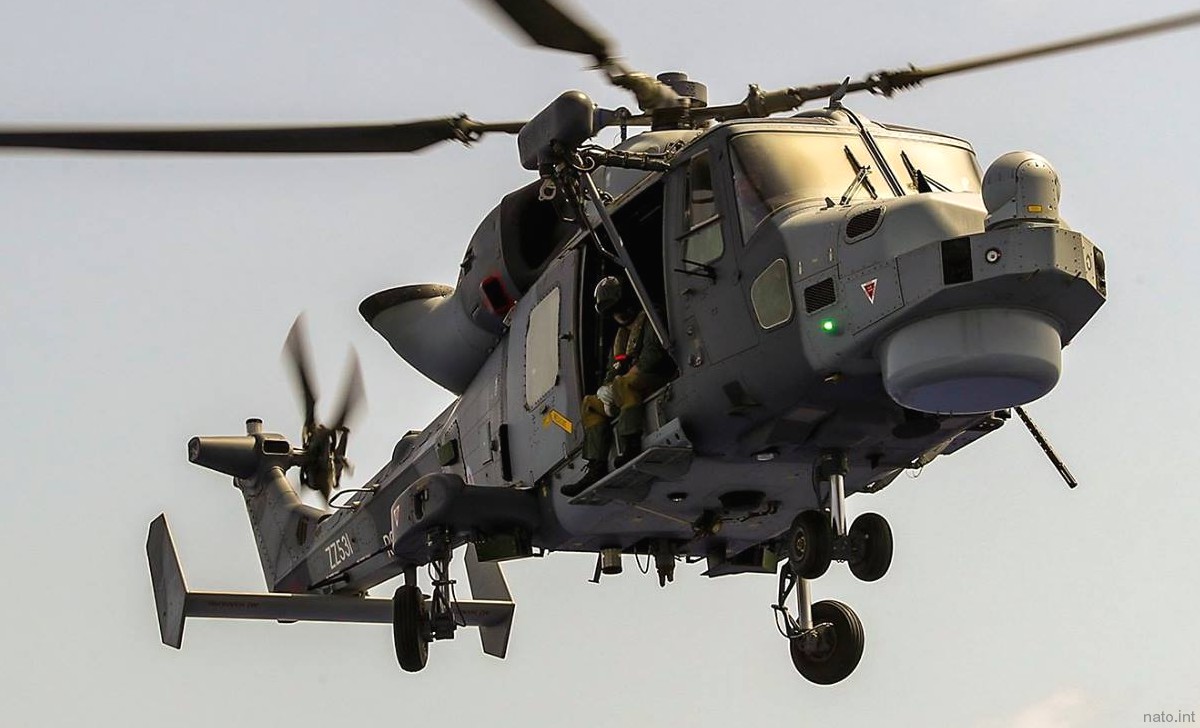

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 43

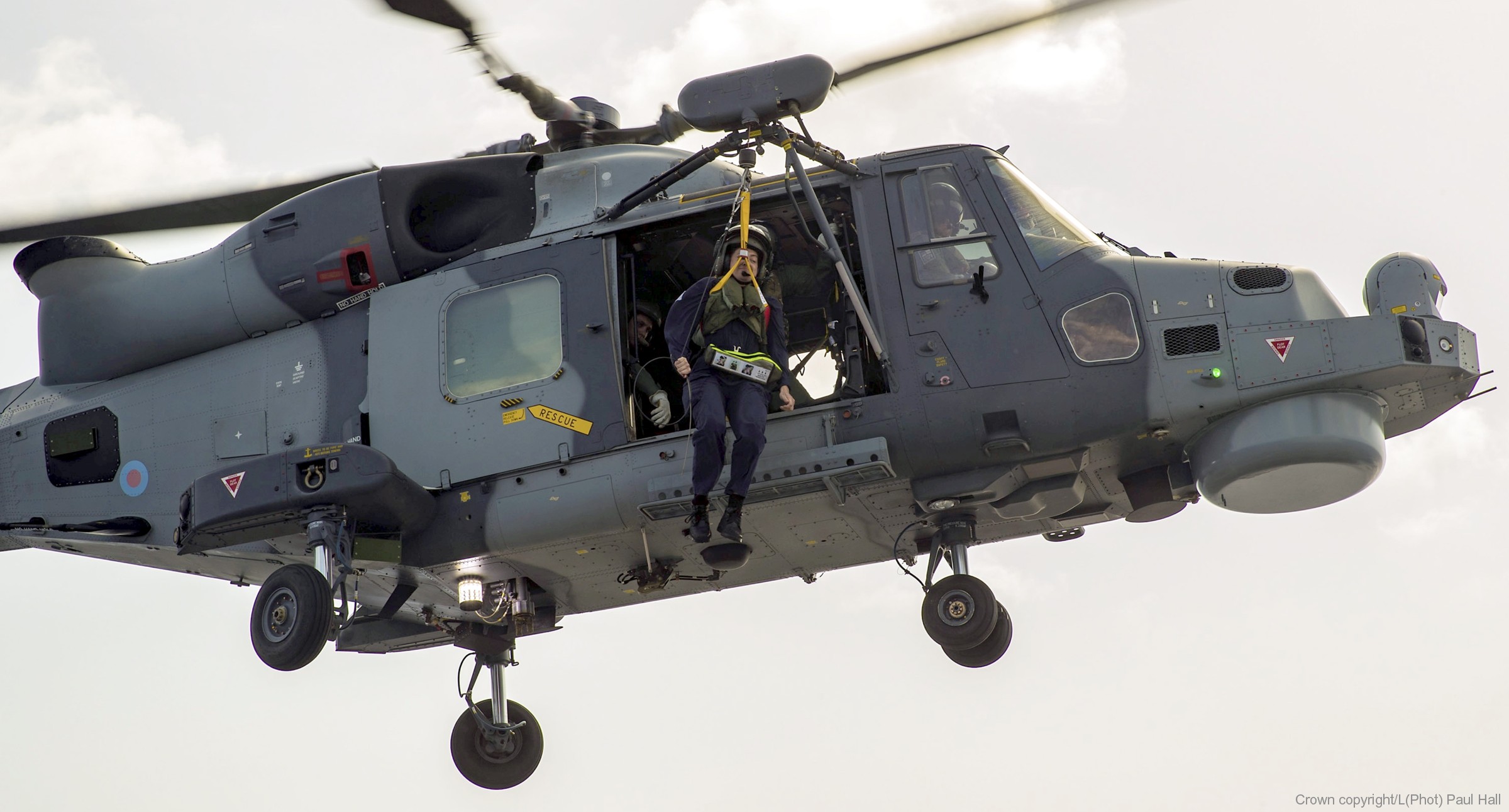

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 49 winch operations

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 48 winch

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 51

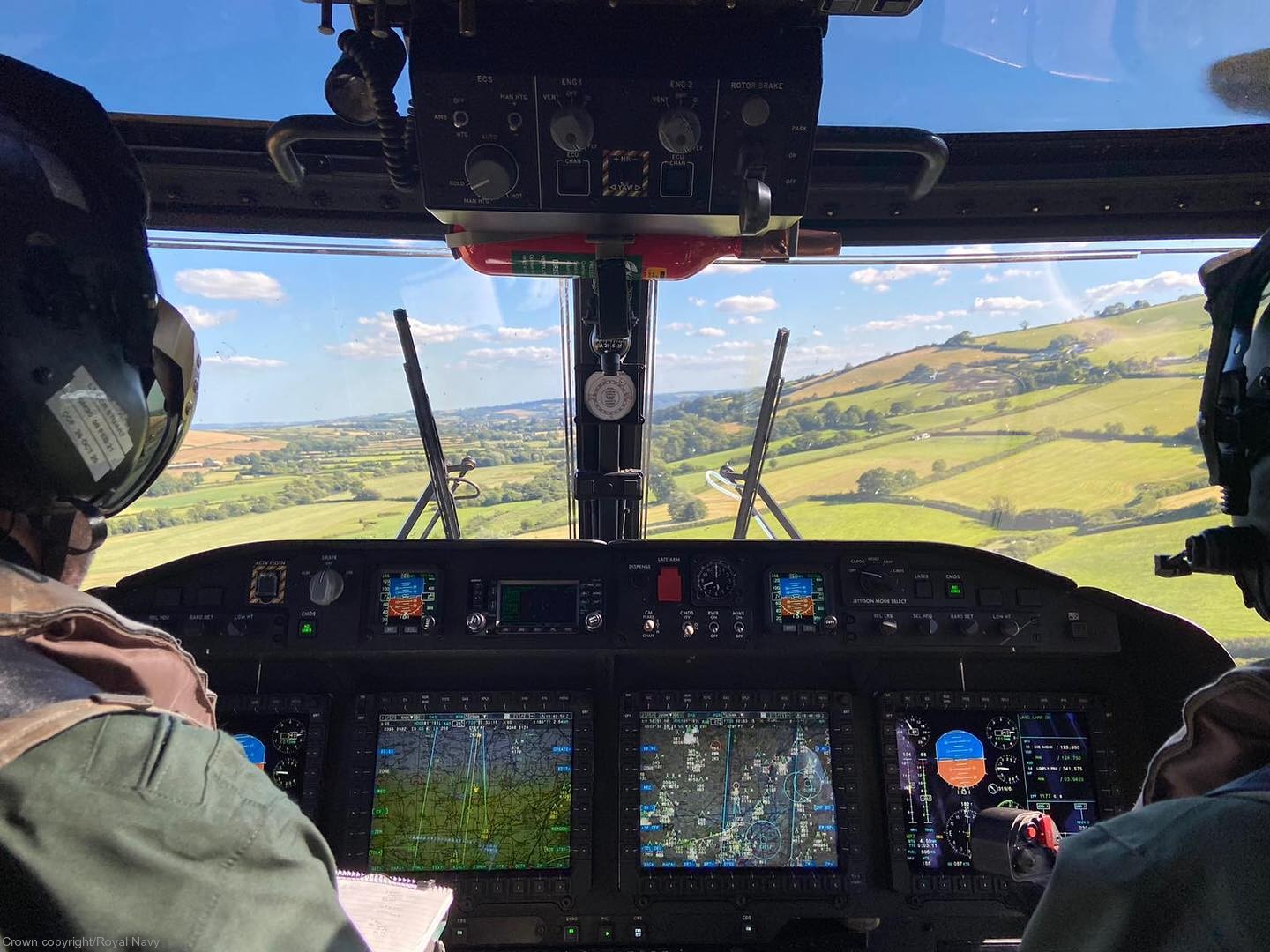

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 16 cockpit view

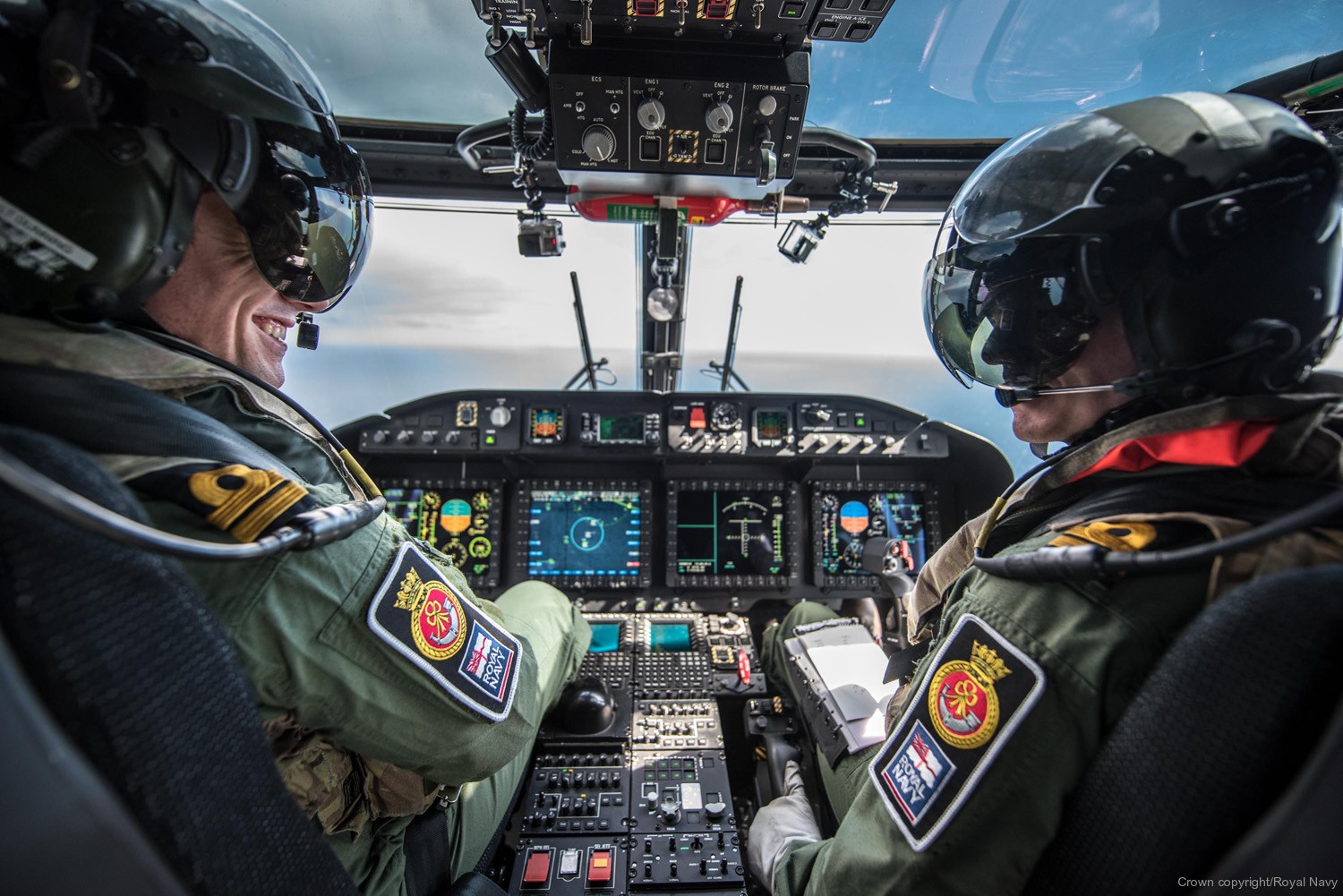

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 53 cockpit

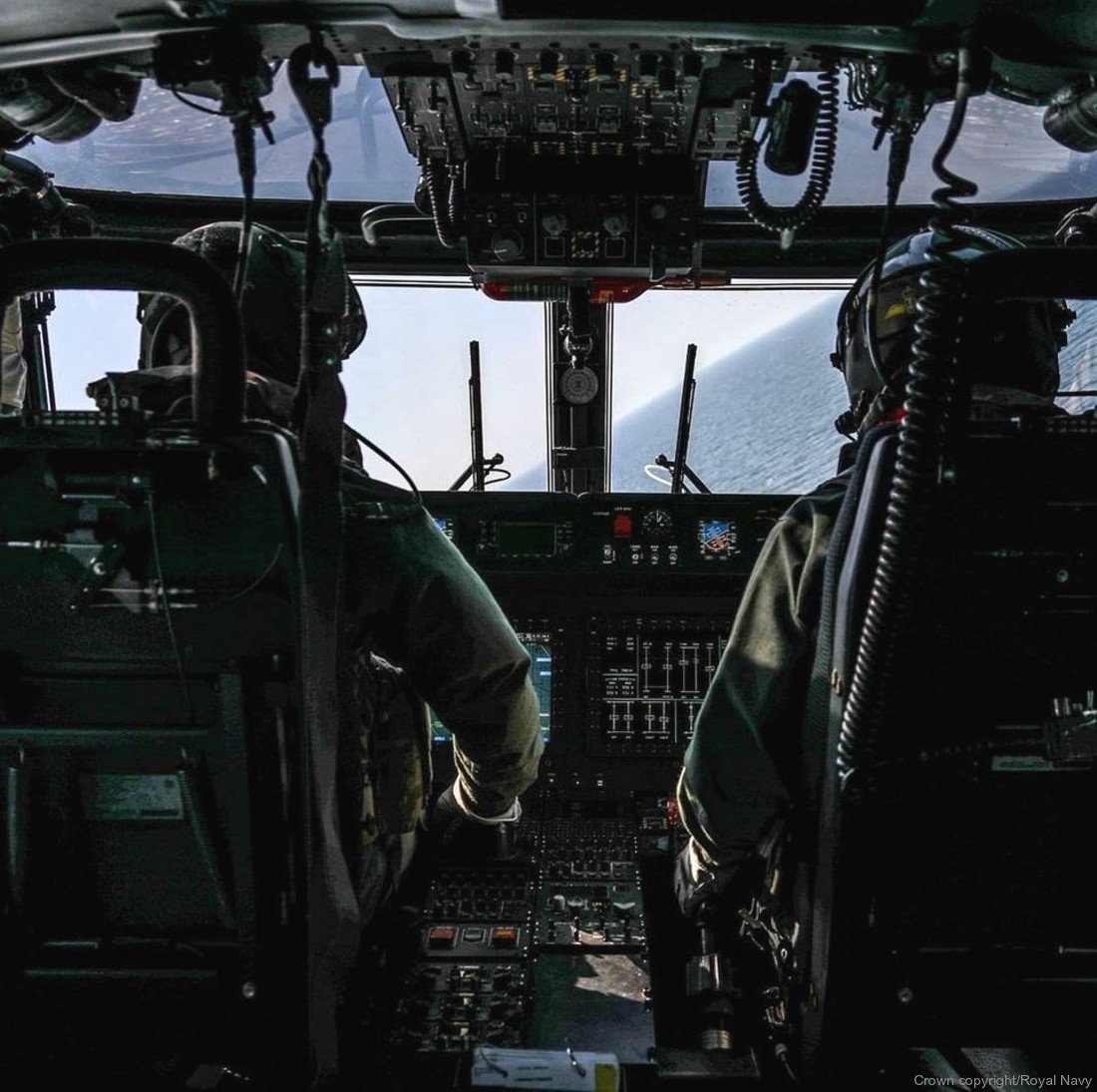

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 54 cockpit

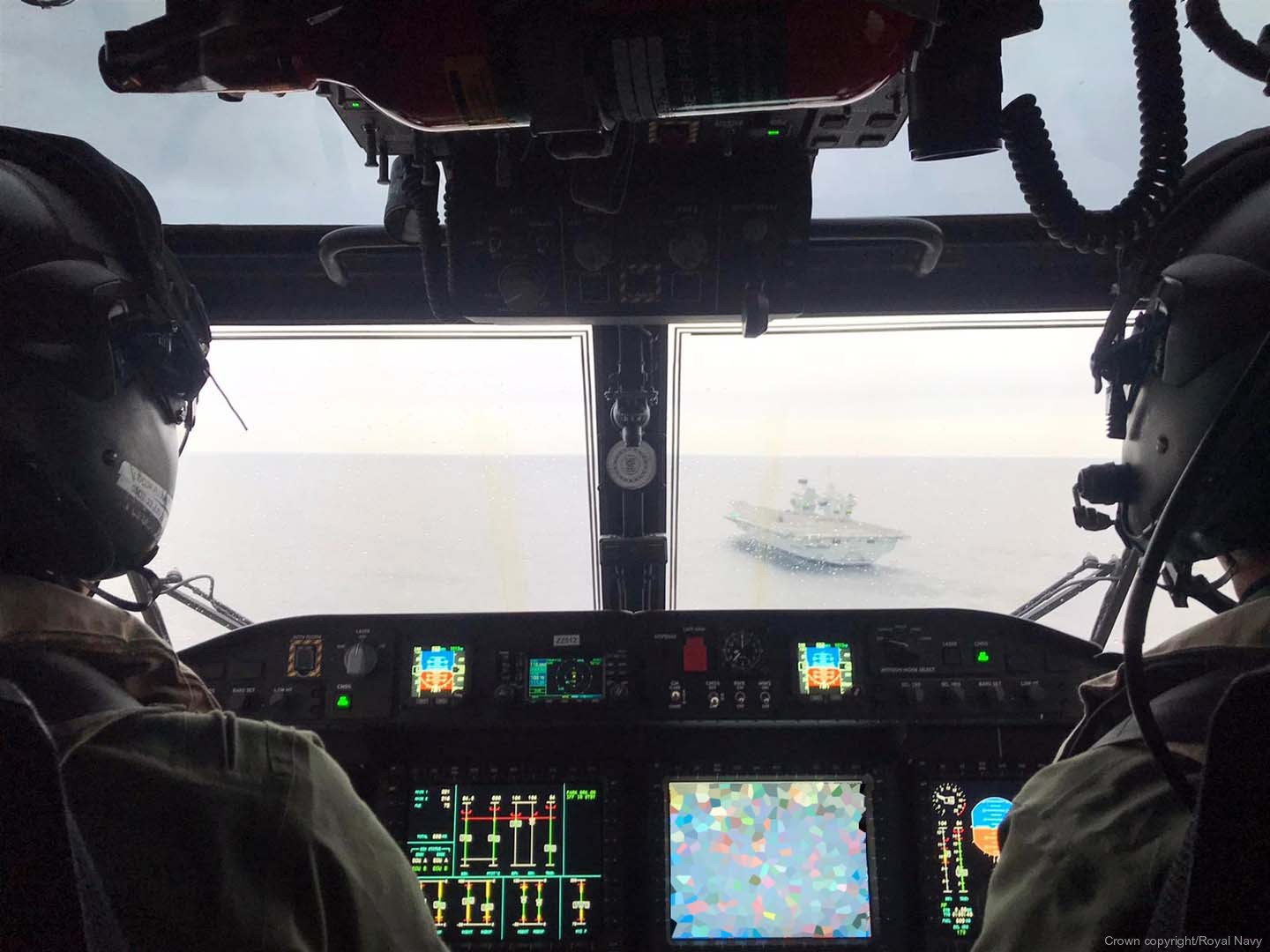

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 05 cockpit hms queen elizabeth

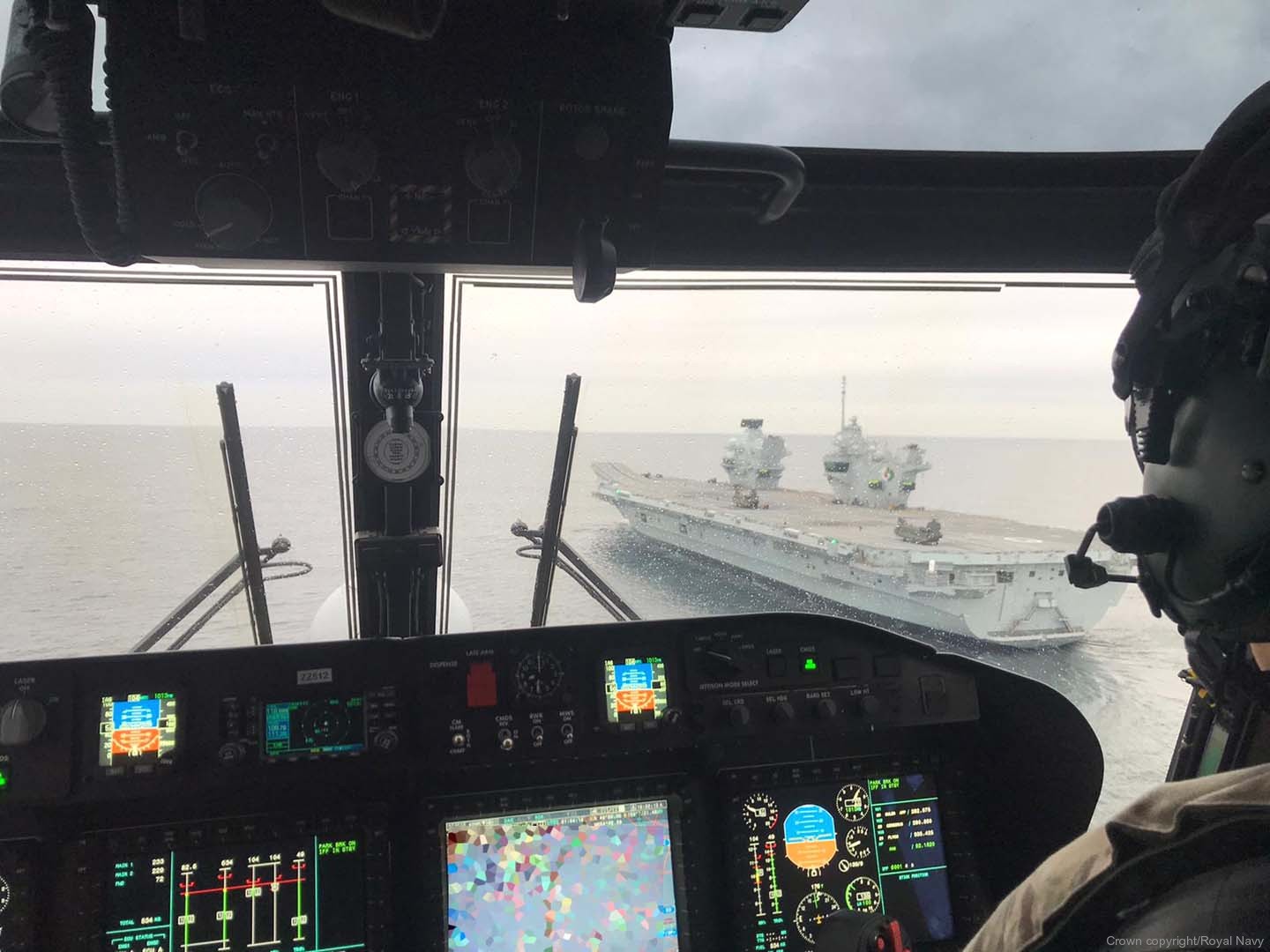

wildcat hma2 helicopter royal navy agusta westland aw159 leonardo naval air squadron nas rnas yeovilton 06 inside view

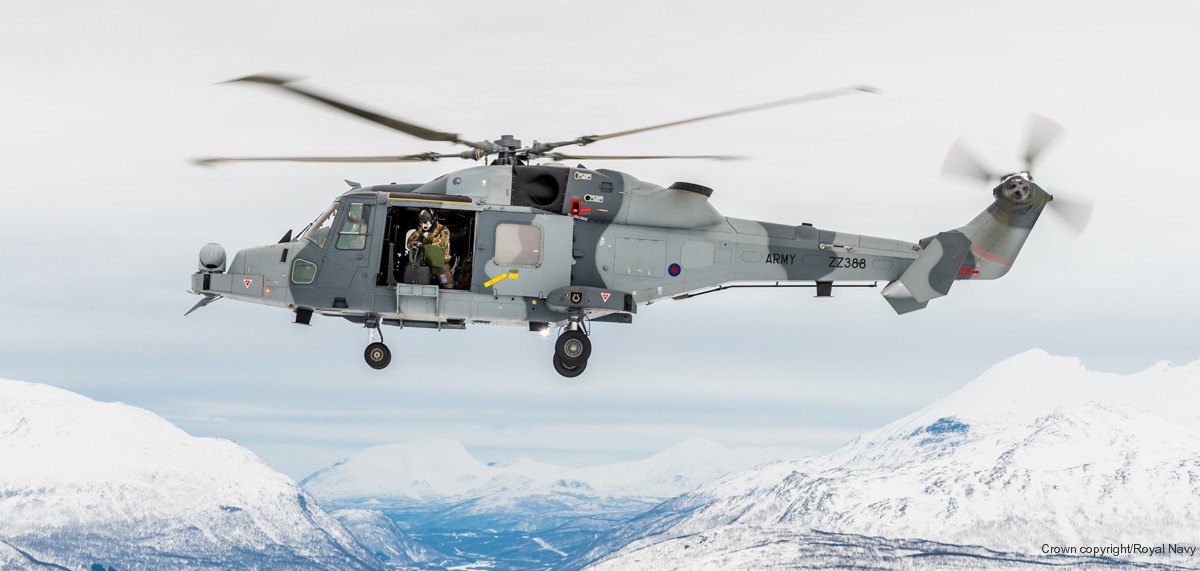

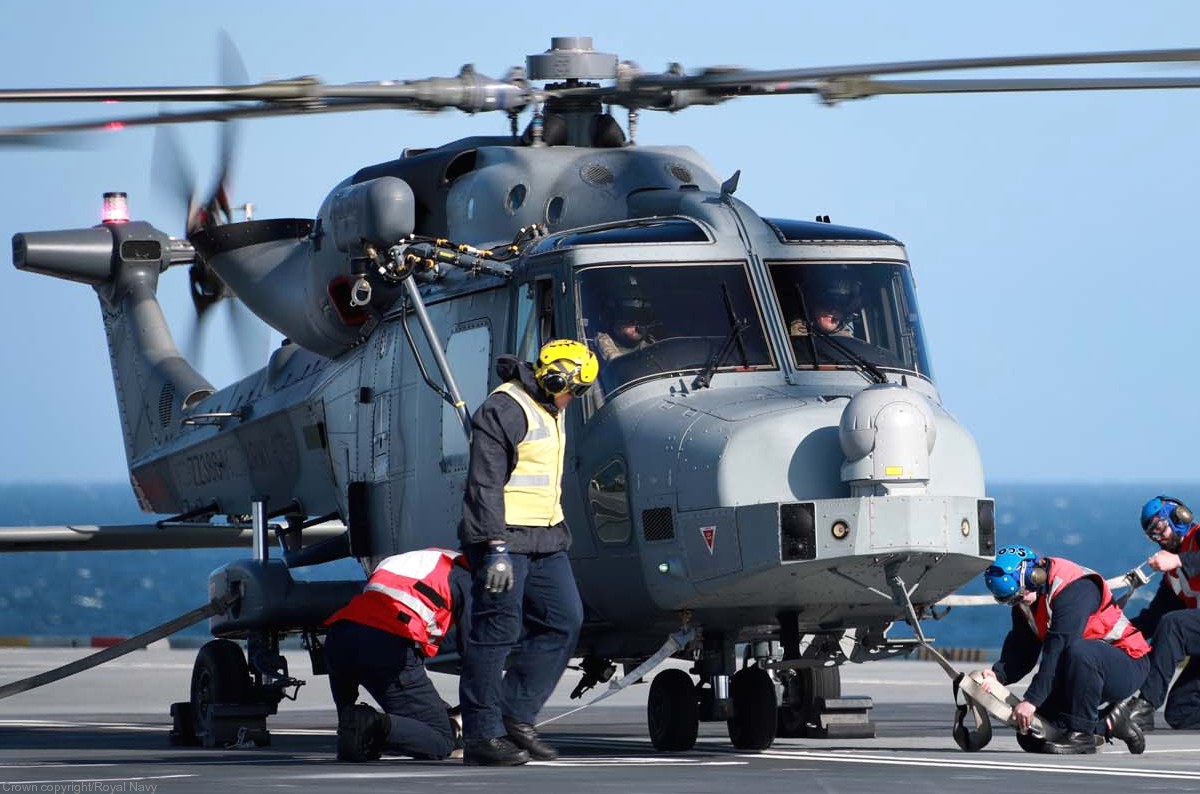

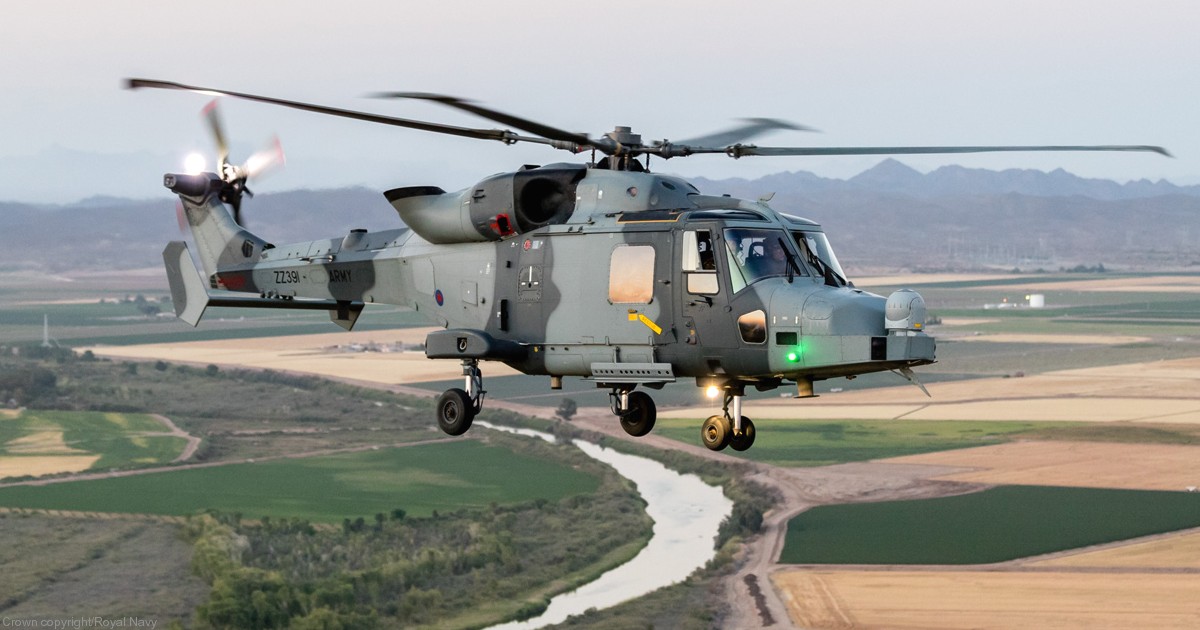

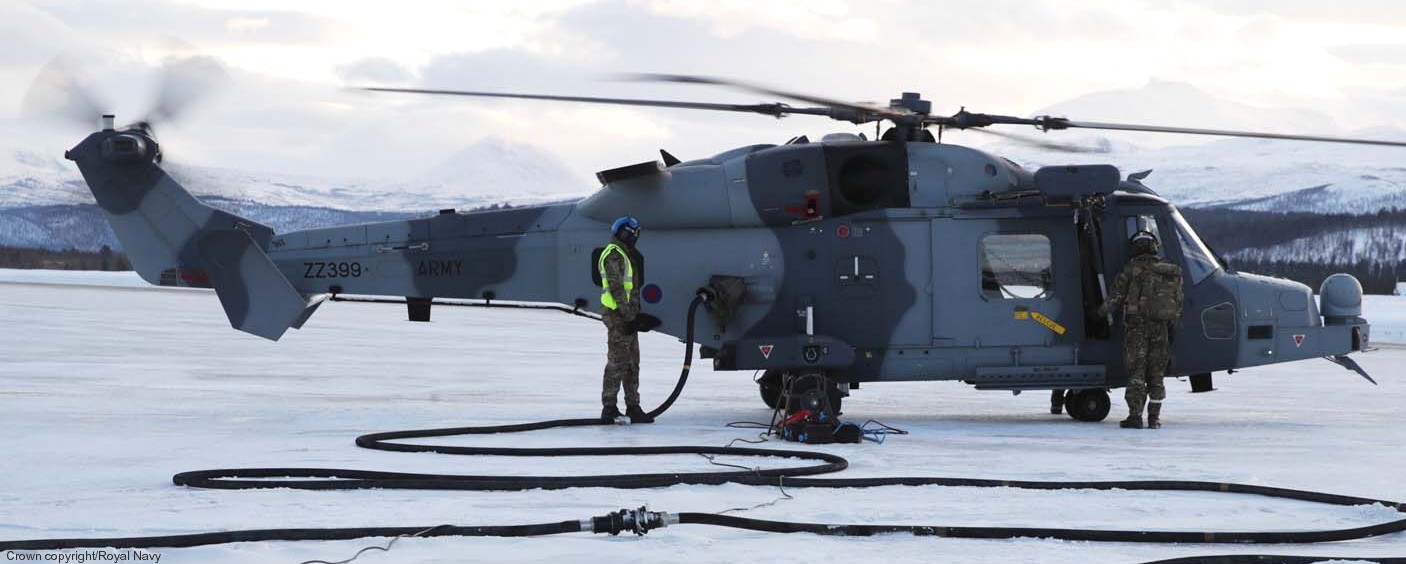

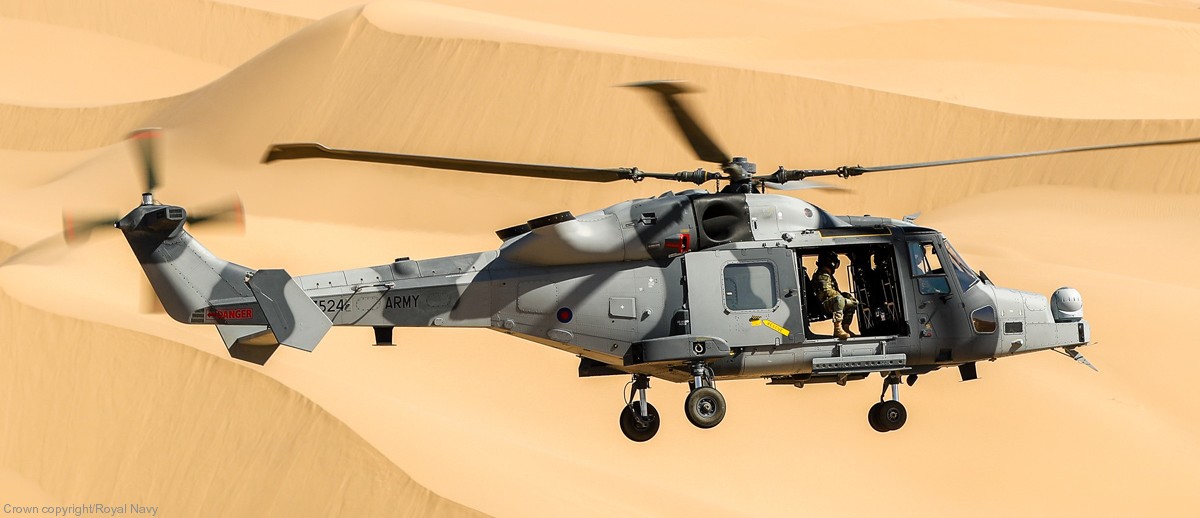

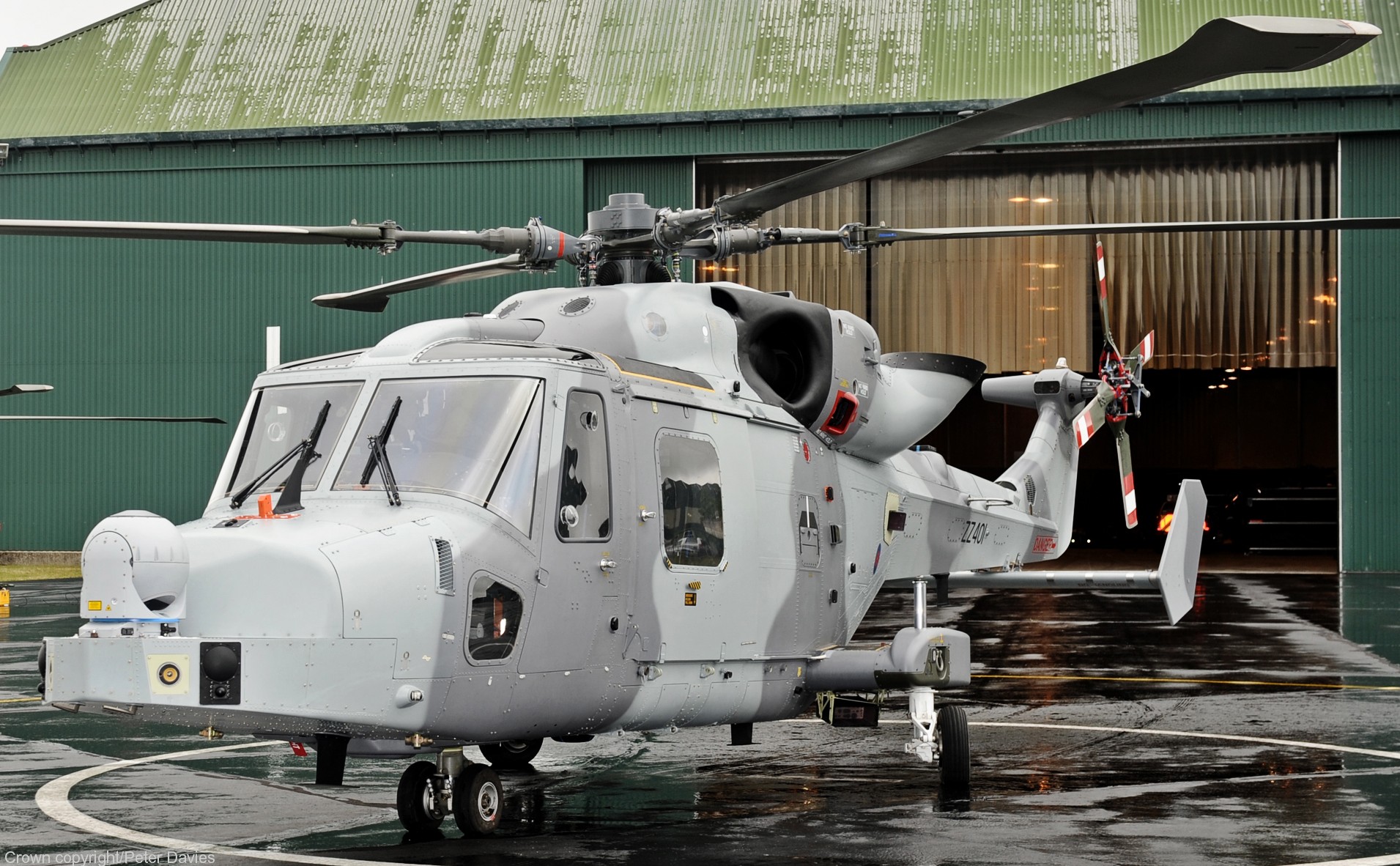

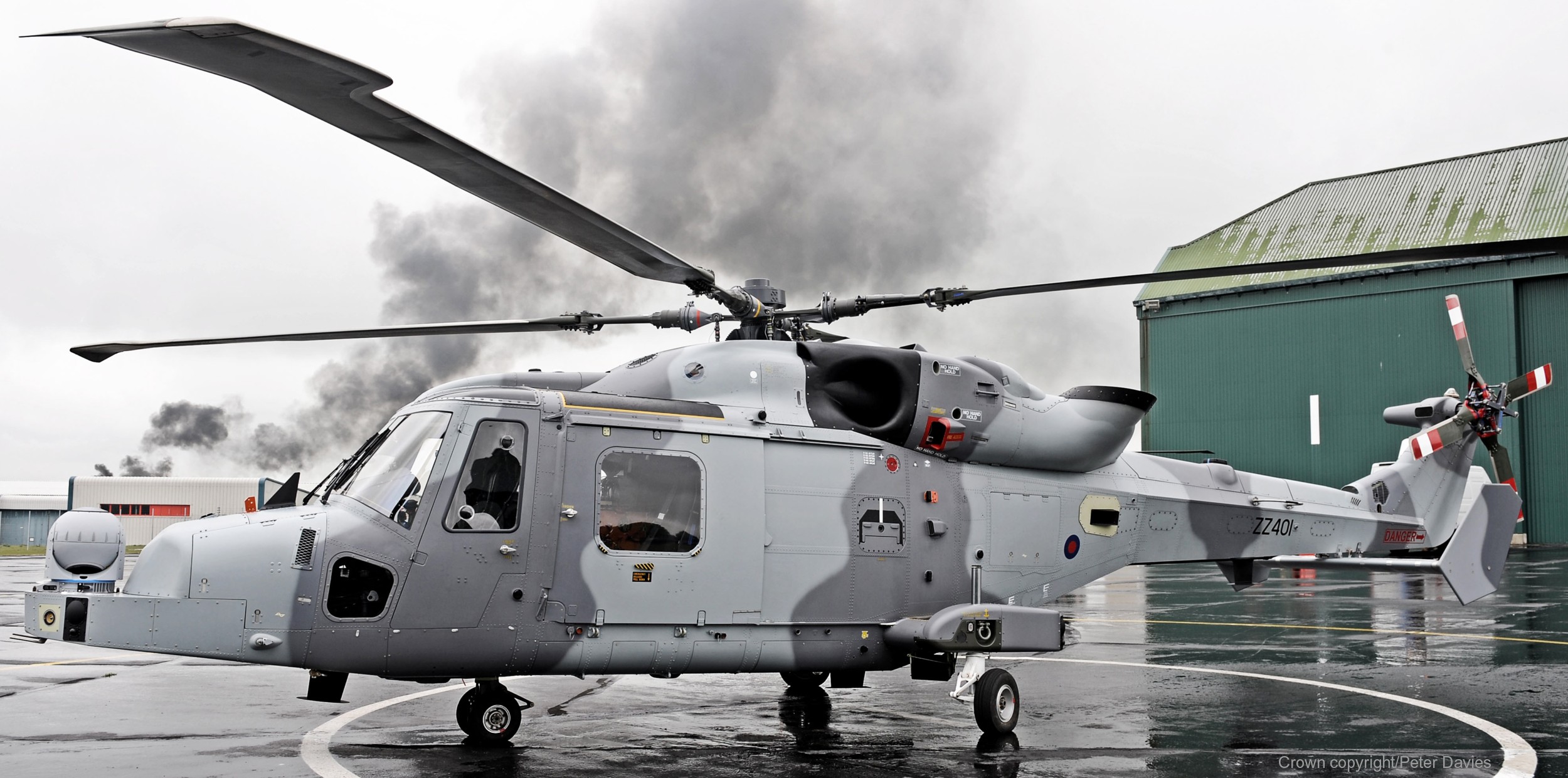

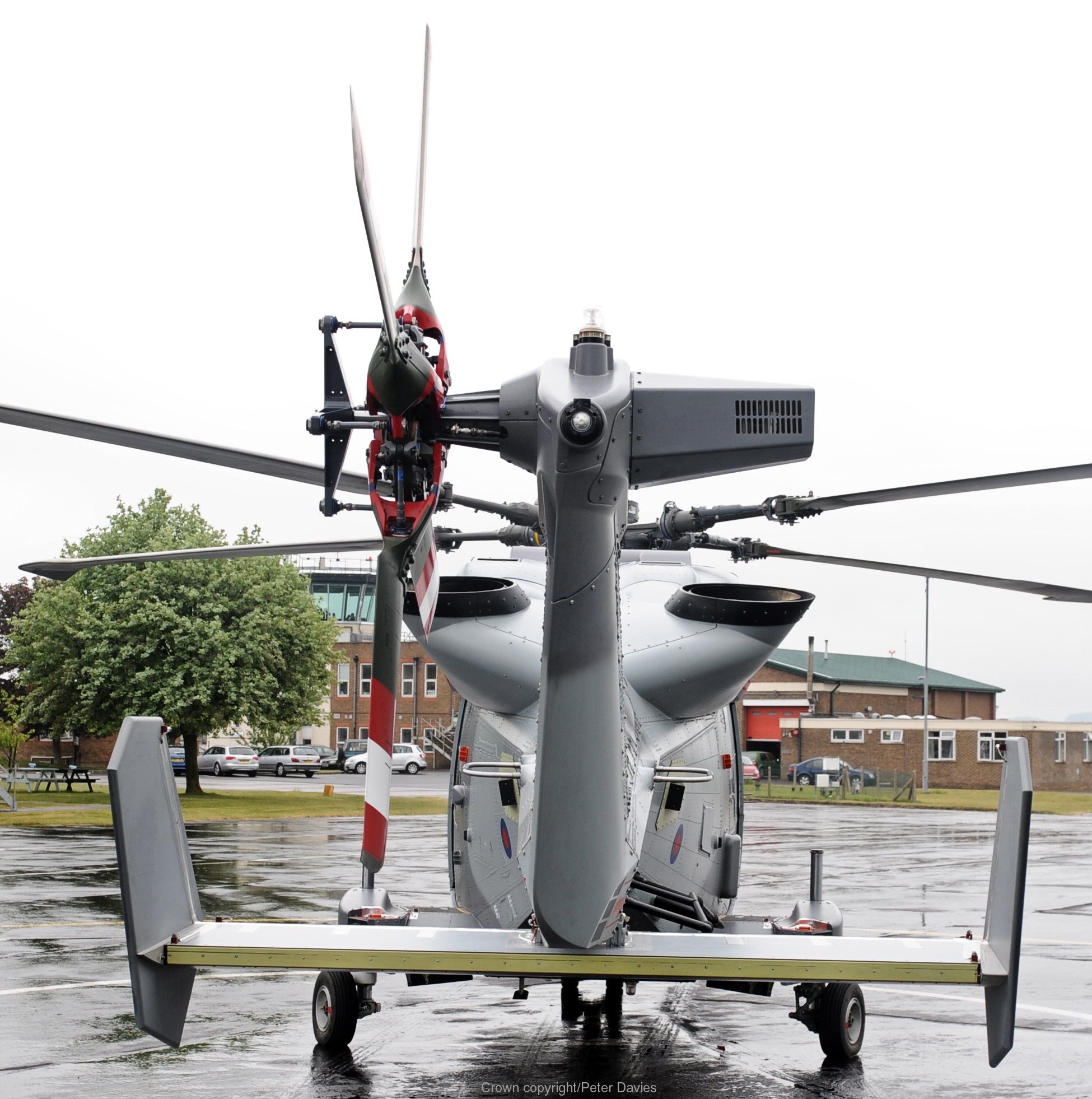

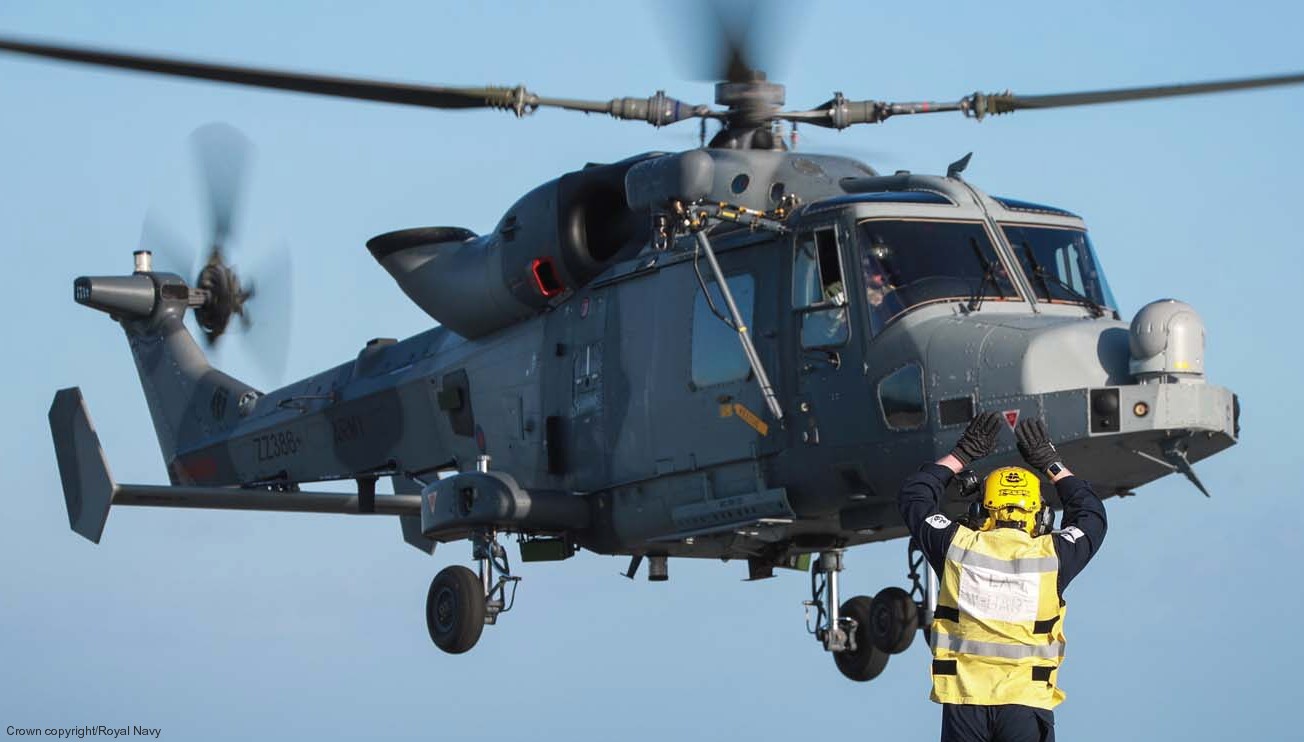

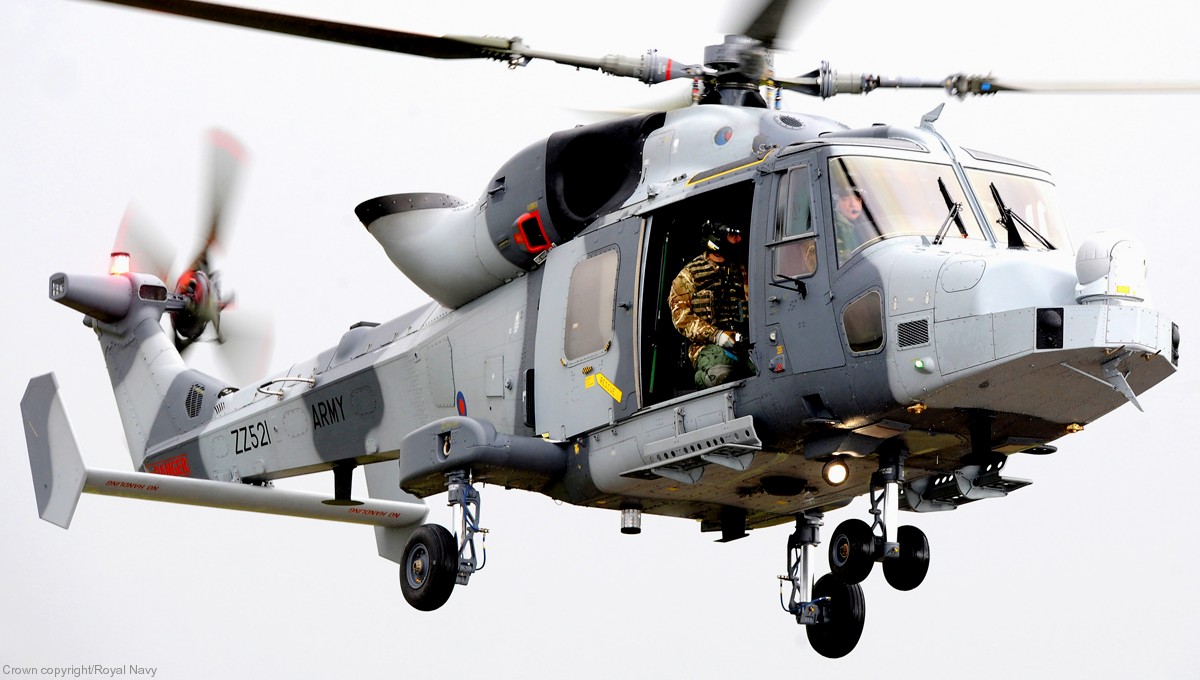

Wildcat AH1 (847 Naval Air Squadron / NAS)
