Royal Norwegian Navy / Sjøforsvaret
Snogg class Fast Attack Craft, Torpedo Missile
(Missiltorpedobåter - Missile Torpedo Boat)


snogg class fast attack craft missile torpedo boat missiltorpedobåter royal norwegian navy sjøforsvaret 02x 981 rapp


Units:

P 980 Snogg
| P 981 Rapp | P 982 Snar | P 983 Rask | P 984 Kvikk | P 985 Kjapp



Specifications:

Builder:
A/S Horten Verft, Karljohansvern, Horten, Norway

Length:
36,5 meters (120 feet)
Beam: 6 meters (19.8 ft)
Draught: 1,65 meters (5.4 ft)
Displacement: 140 tons (full load)
Speed: 30 knots (56 km/h)
Range: 550 NMI (1020 km)
Complement: 19

Propulsion:
2 x Maybach MD872 diesel engines (2 x 3600 hp = 5,37 MW)
2
shafts / 2 propellers


Armament:

6 x Penguin Mk.1 SSM (AGM-119)

1 x Bofors 40 mm L/70 gun

4 x 533mm (21") heavy-weight torpedo tubes



Systems:
TM-626 radar
TM-1226 radar



The Snøgg class was a Royal Norwegian Navy class of fast patrol boats (FPB). It might also be classified as a torpedo boat or a missile boat. In Norway this type of vessel is called a missile torpedo boat (MTB). The class was named after its lead vessel, Snøgg, which is a Norwegian word meaning "fast". All of the subsequent names are synonyms of "fast".

Six vessels were built during 1970 and 1971 to replace the ageing Rapp class. Designed by Lieutenant-commander (later Captain) Harald Henriksen as a development of the Storm-class. None of the vessels are left in Norwegian service today, they have been succeeded by the Hauk-class and Skjold-class class.

All boats were decommissioned by 1995

NOTE: In Norwegian, Royal Norwegian Navy vessels are given the prefix "KNM", short for Kongelige Norske Marine (Royal Norwegian Ship)
           - or in English 'HNoMS' for His Norwegian Majesty's Ship

images

hauk class fast attack craft missile torpedo boat missiltorpedobåter royal norwegian navy sjøforsvaret 02
two 533mm (21") heavy-weight torpedo were launched simultaneously

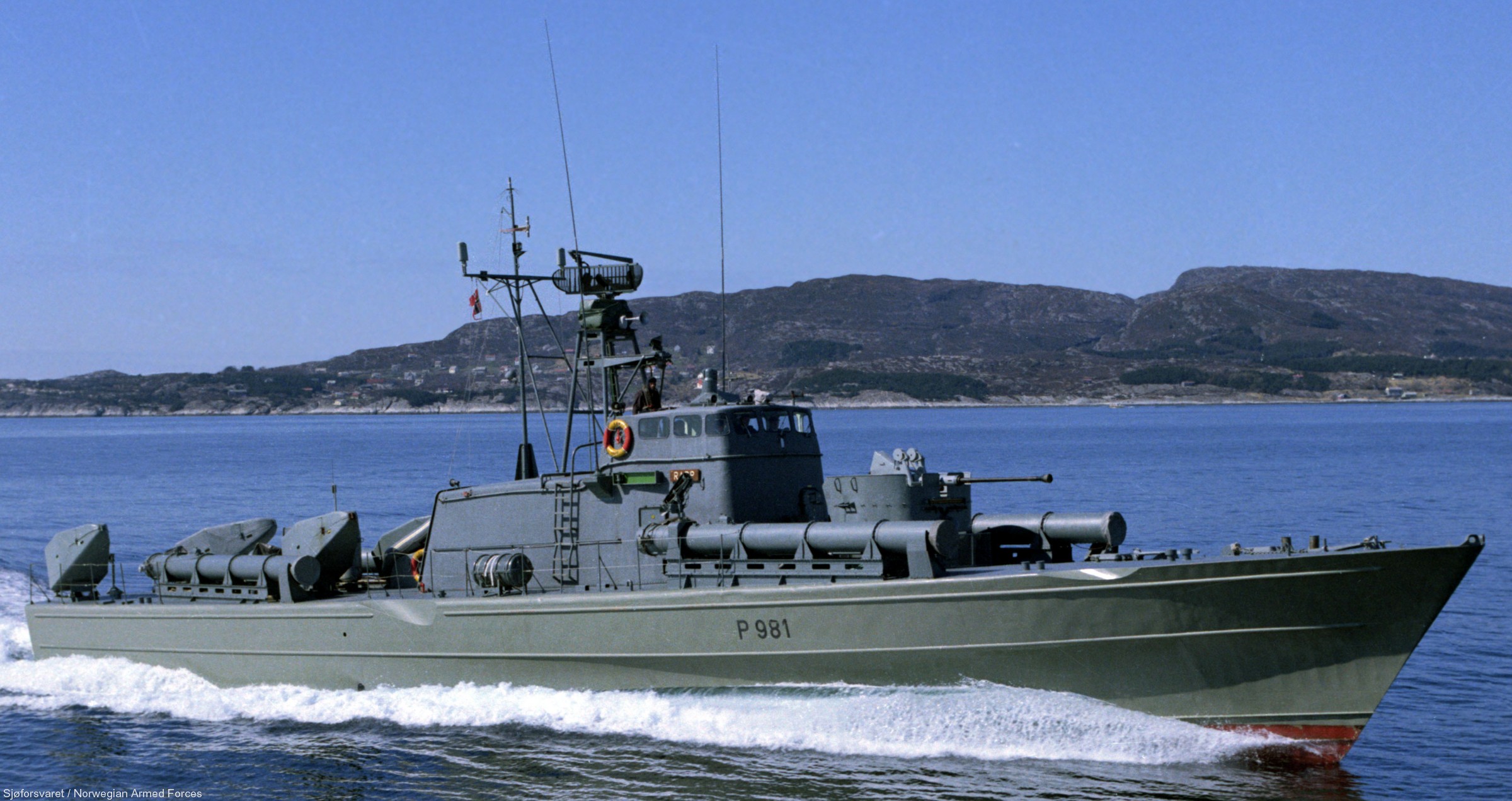

hauk class fast attack craft missile torpedo boat missiltorpedobåter royal norwegian navy sjøforsvaret 02 984 kvikk
Snogg class armament: 4 x 533mm (21") torpedo tubes / 1 x Bofors 40mm AA gun / Penguin Mk-1 SSM

hauk class fast attack craft missile torpedo boat missiltorpedobåter royal norwegian navy sjøforsvaret 02 penguin mk.1 ssm agm-114

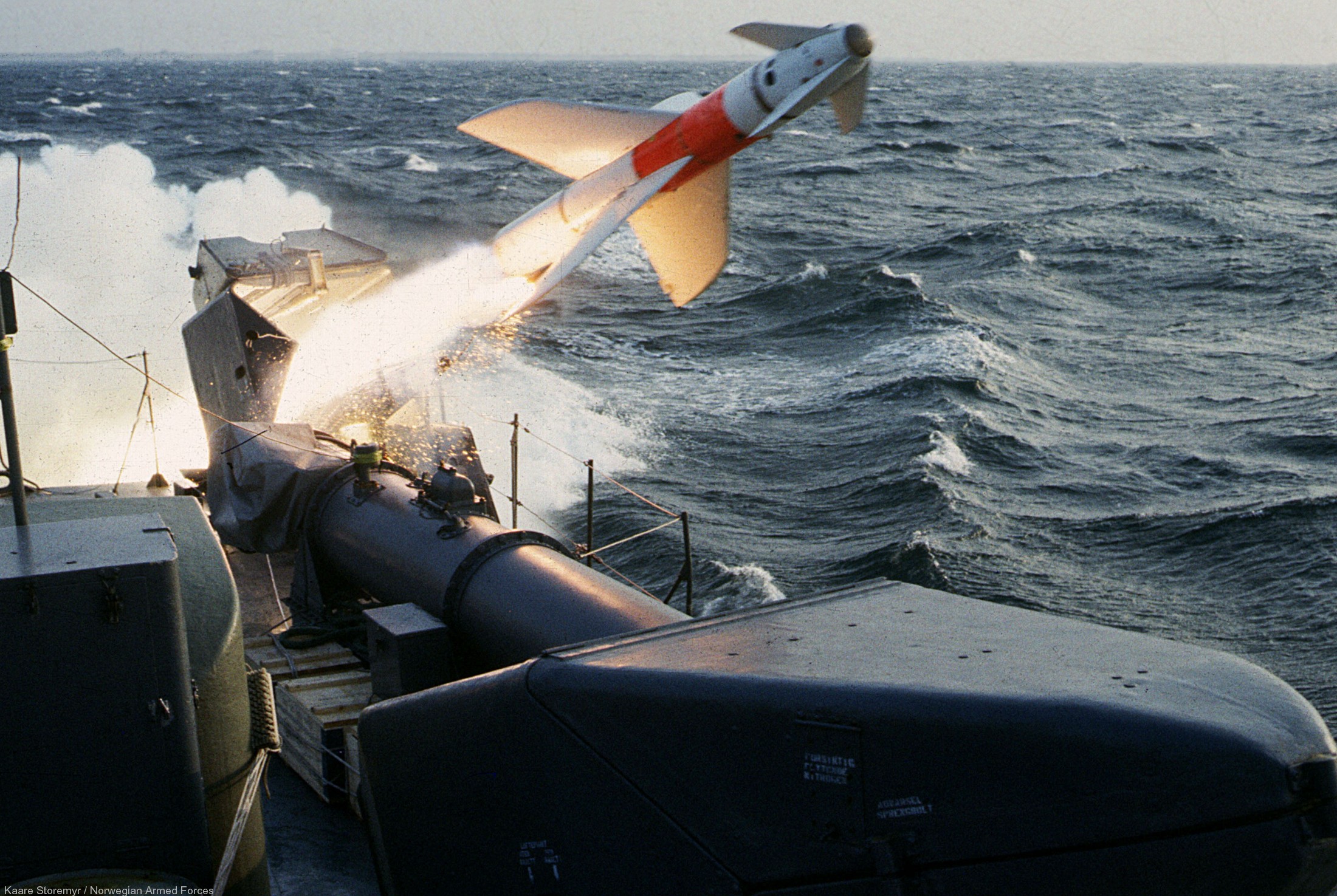

a Penguin Mk.1 SSM missile was fired
