Japan Maritime Self Defense Force / JMSDF
Oyashio class Attack Submarine - SS


oyashio class attack submarine ssk japan maritime self defense force jmsdf type 89 torpedo ugm-84 harpoon ssm 06x


12/20
Units:
Pennant / Name Jap. Name Laid down Launched Commissioned STATUS Builder
SS-590 JDS Oyashio おやしお January 26, 1994 October 15, 1996 March 15, 1998 > TSS-3608 KSC
SS-591 JDS Michishio みちしお February 16, 1995 September 18, 1997 March 10, 1999 > TSS-3609 MHI
SS-592 JDS Uzushio うずしお March 6, 1996 November 26, 1998 March 9, 2000 IN SERVICE KSC
SS-593 JDS Makishio まきしお March 26, 1997 September 22, 1999 March 29, 2001 IN SERVICE MHI
SS-594 JDS Isoshio いそしお March 9, 1998 November 27, 2000 March 14, 2002 IN SERVICE KSC
SS-595 JDS Narushio なるしお April 2, 1999 October 4, 2001 March 3, 2003 IN SERVICE MHI
SS-596 JDS Kuroshio くろしお March 27, 2000 October 23, 2002 March 8, 2004 IN SERVICE KSC
SS-597 JDS Takashio たかしお January 30, 2001 October 1, 2003 March 9, 2005 IN SERVICE MHI
SS-598 JDS Yaeshio やえしお January 15, 2002 November 4, 2004 March 9, 2006 IN SERVICE KSC
SS-599 JDS Setoshio せとしお January 23, 2003 October 5, 2005 February 28, 2007 IN SERVICE MHI
SS-600 JDS Mochishio もちしお February 23, 2004 November 6, 2006 March 6, 2008 IN SERVICE KSC

Specifications:

Length:
81.7 meters (268 feet 1 inch)
Beam: 8.9 meters (29 ft 2 in)
Draft: 7.4 meters (24 ft 3 in)

Displacement: 4000 tons (submerged) / 2750 tons (surfaced)
Speed: 12 knots (22 km/h; 14 mph) surfaced / 20 kn (37 km/h; 23 mph) submerged
Range: ?
Complement: 70

 Propulsion:
DIESEL-ELECTRIC
2 x
Kawasaki 12V25/25S diesel engines
2 x Kawasaki alternators
2 x Toshiba main electric-motors
3400 hp (2500 kW) surfaced / 7750 hp (5780 kW) submerged
1 shaft / 1 propeller

Armament:
6 x HU-605 21-inch (533mm) torpedo tubes
for a mix of 20
Type 89 torpedoes
UGM-84 Harpoon SSM


Systems:
ZPS-6 I-band surface/low-level air search radar

Hughes/Oki ZQQ-6 Sonar suite:
bow-array, flank arrays and 1x towed array sonar




The Oyashio class is a series of Japanese diesel-electric attack submarines operated by the JMSDF. The submarines entered service in the late 1990s. The submarines are larger than the earlier Harushio class, to provide space for a flank sonar array.

There are a total of 11 boats in the class - the last boat was commissioned in 2008. Oyashio, Michishio, and Kuroshio share their names with World War II destroyers Takashio shares a name with a third set of Yūgumo-class destroyers, of which none were built.


On February 1, 2018, The Ministry of Defence’s Maritime Staff Office, revealed that seven of the service’s 82 m Oyashio-class submarines, which have a surface displacement of 2,800 tonnes - have already completed service-life extension work to date. The seven boats have received extensive refits during their second and third maintenance cycles, which have been planned to bring the vessels to almost the same level of that of the latest model Sōryū-class submarine, while extending their service lives.

The first two boats have since been converted to training submarines:
SS-590 Oyashio redesignated TSS-3608 in March 2015
SS-591 Michishio redesignated TSS-3609 in February 2017

Builders:
Kawasaki Shipbuilding Corporation, Kobe, Japan (KSC)
Mitsubishi Heavy Industries, Kobe, Japan (MHI)

images

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 07

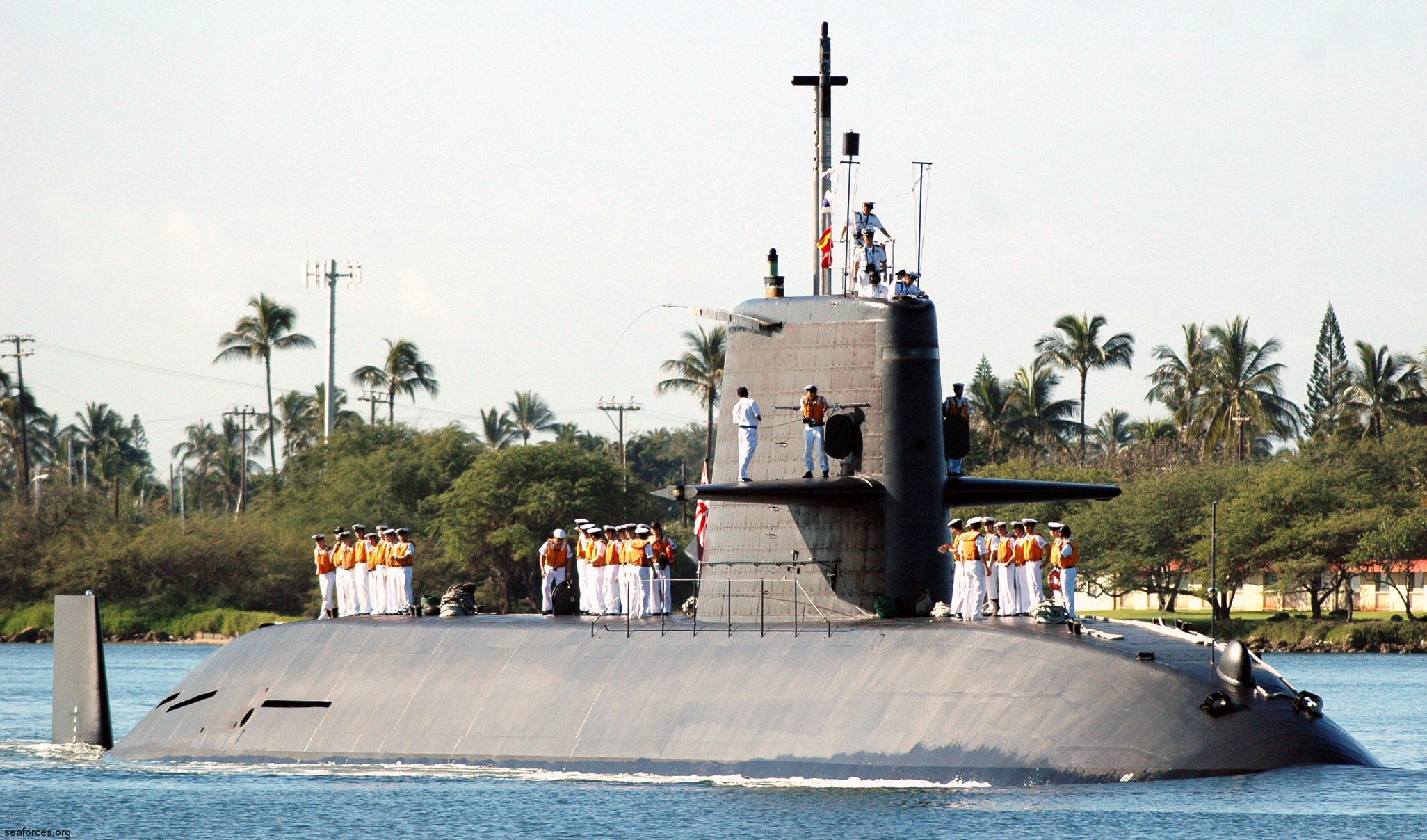

SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 03

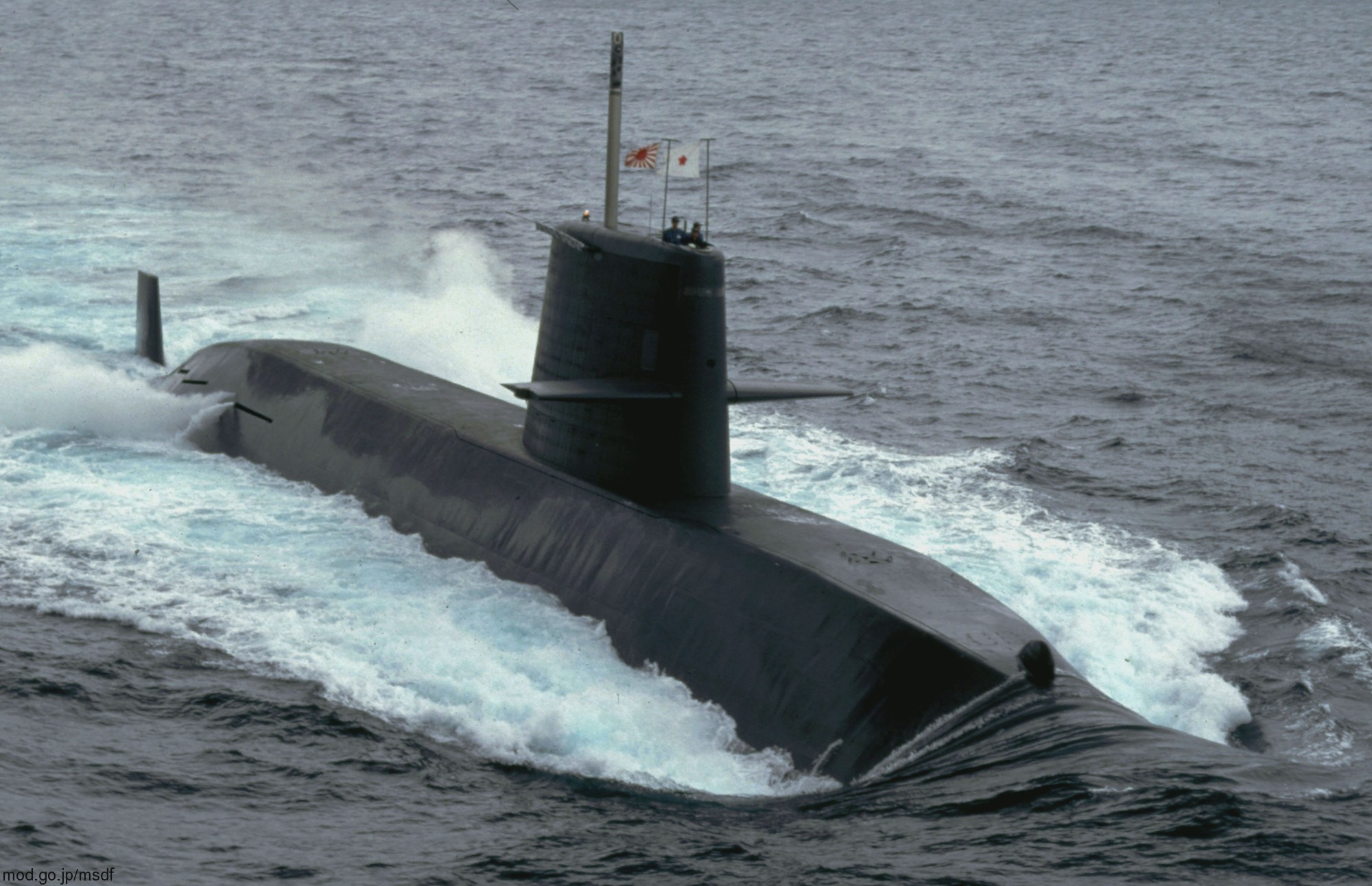

SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 09
SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 08

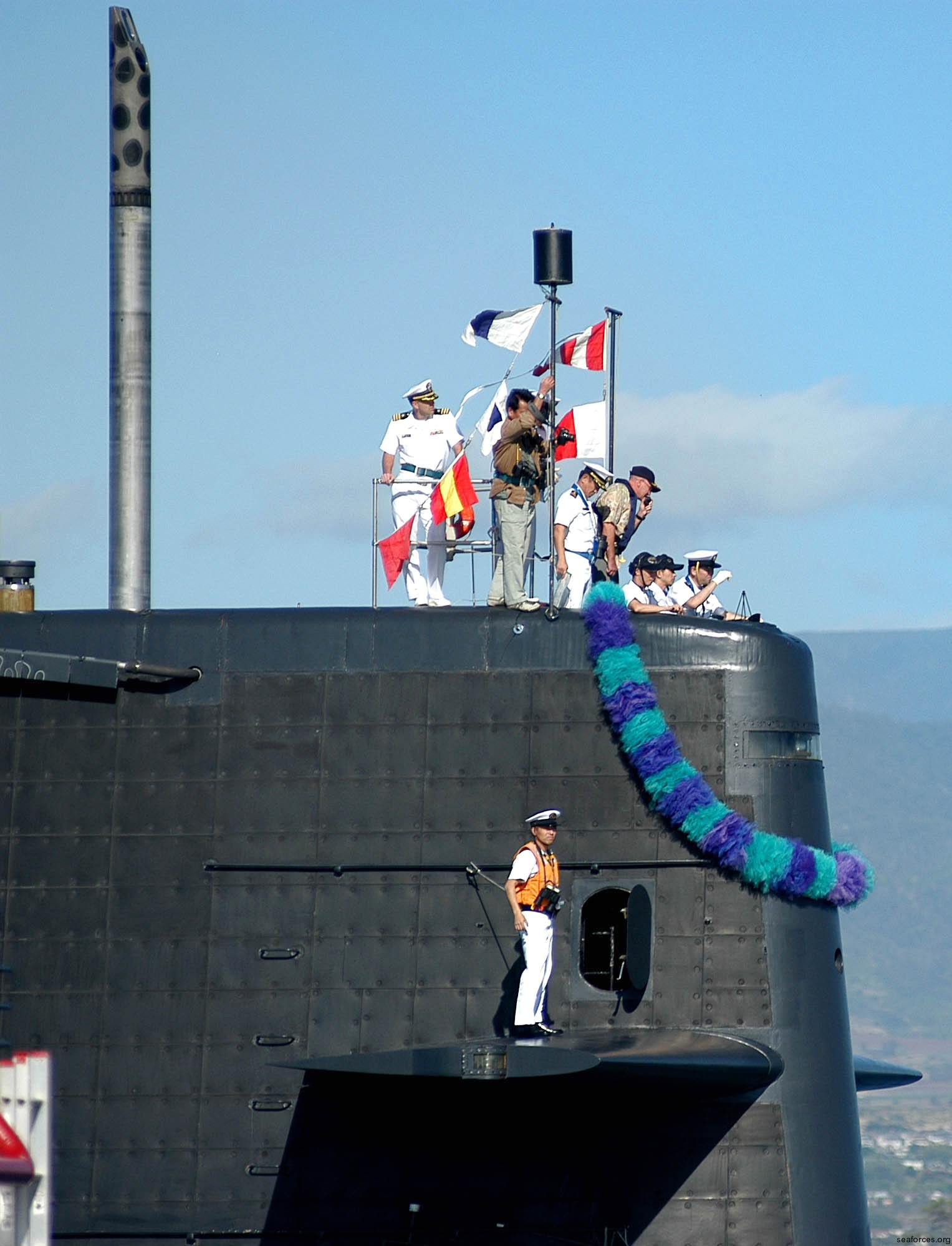

SS-590 JDS Oyashio

ss-590 jds oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-590 JDS Oyashio


ss-591 jds michishio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-591 JDS Michishio

ss-591 jds michishio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-591 JDS Michishio

ss-591 jds michishio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-591 JDS Michishio


ss-592 jds uzushio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-592 JDS Uzushio

ss-592 jds uzushio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-592 JDS Uzushio

ss-592 jds uzushio oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-592 JDS Uzushio

ss-592 jds uzushio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-592 JDS Uzushio

ss-592 jds uzushio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-592 JDS Uzushio


ss-593 jds makishio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-593 JDS Makishio

ss-593 jds makishio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-593 JDS Makishio


ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-594 JDS Isoshio

ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-594 JDS Isoshio

ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-594 JDS Isoshio

ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-594 JDS Isoshio

ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-594 JDS Isoshio

ss-594 jds isoshio oyashio class attack submarine japan maritime self defense force jmsdf 07
SS-594 JDS Isoshio


ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 14
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 15
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 07
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 08
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 09
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 10

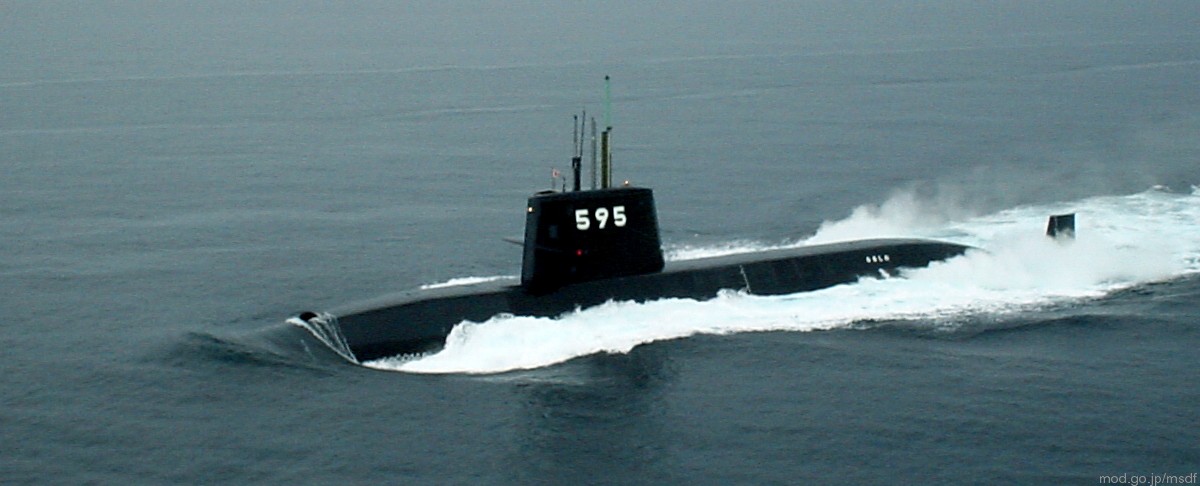

SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 12
SS-595 JDS Narushio

ss-595 jds narushio oyashio class attack submarine japan maritime self defense force jmsdf 13
SS-595 JDS Narushio


ss-596 jds kuroshio oyashio class attack submarine japan maritime self defense force jmsdf 02

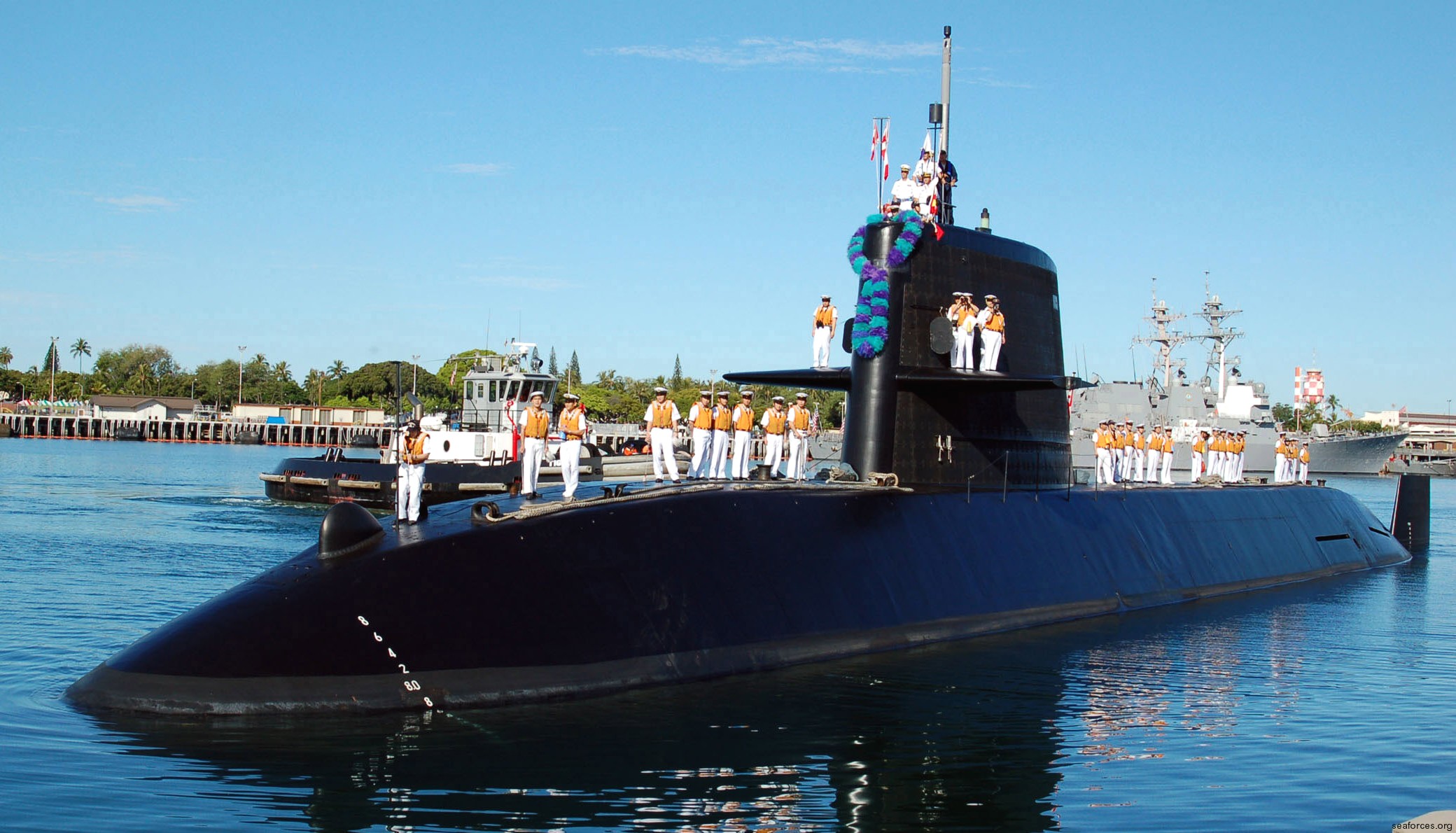

SS-596 JDS Kuroshio

ss-596 jds kuroshio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-596 JDS Kuroshio

ss-596 jds kuroshio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-596 JDS Kuroshio

ss-596 jds kuroshio oyashio class attack submarine japan maritime self defense force jmsdf 05

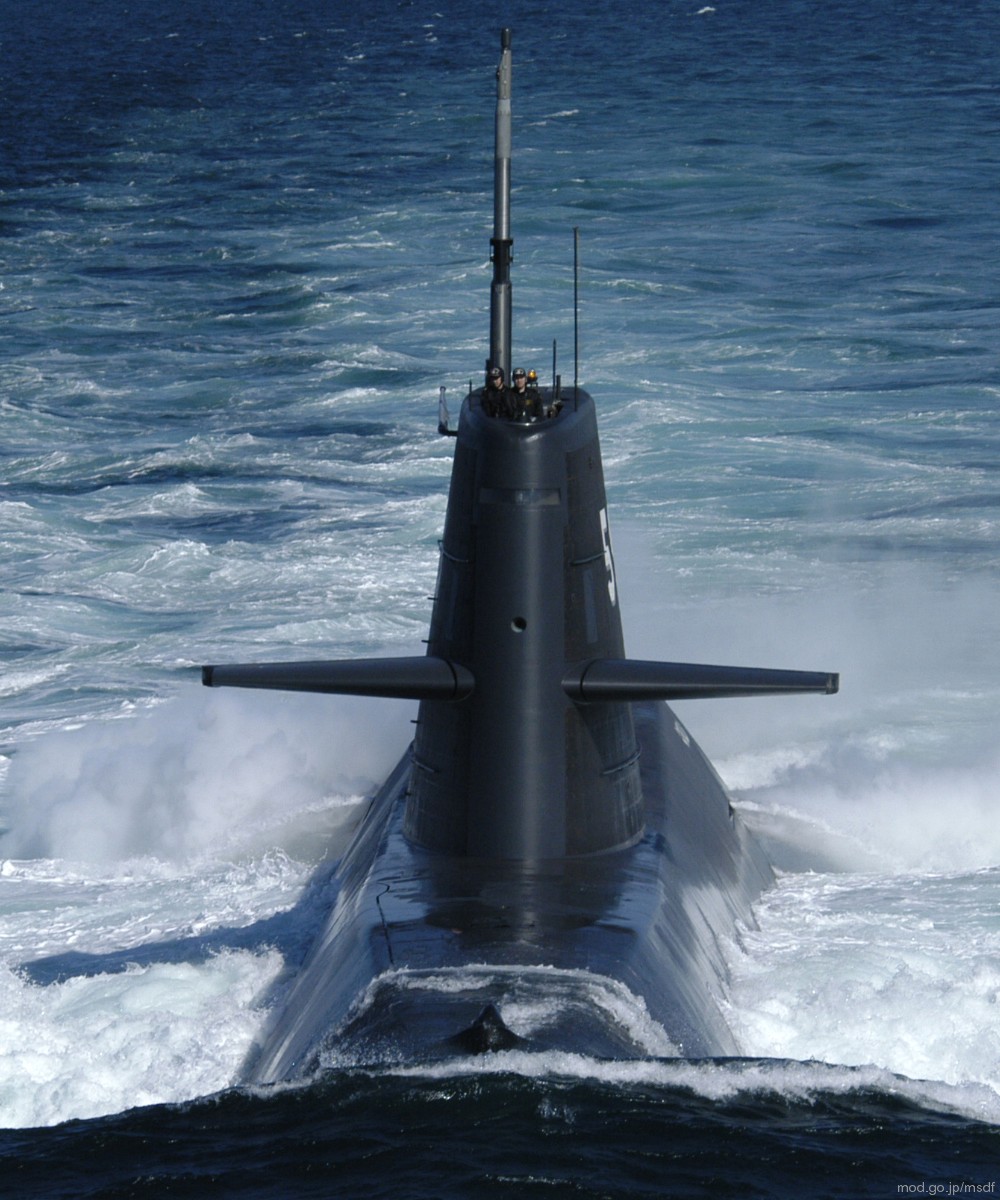

SS-596 JDS Kuroshio

ss-596 jds kuroshio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-596 JDS Kuroshio


ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 09
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 07
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 11
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 10
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 12
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 13
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-597 JDS Takashio

ss-597 jds takashio oyashio class attack submarine japan maritime self defense force jmsdf 08
SS-597 JDS Takashio


ss-598 jds yaeshio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-598 JDS Yaeshio

ss-598 jds yaeshio oyashio class attack submarine japan maritime self defense force jmsdf 03

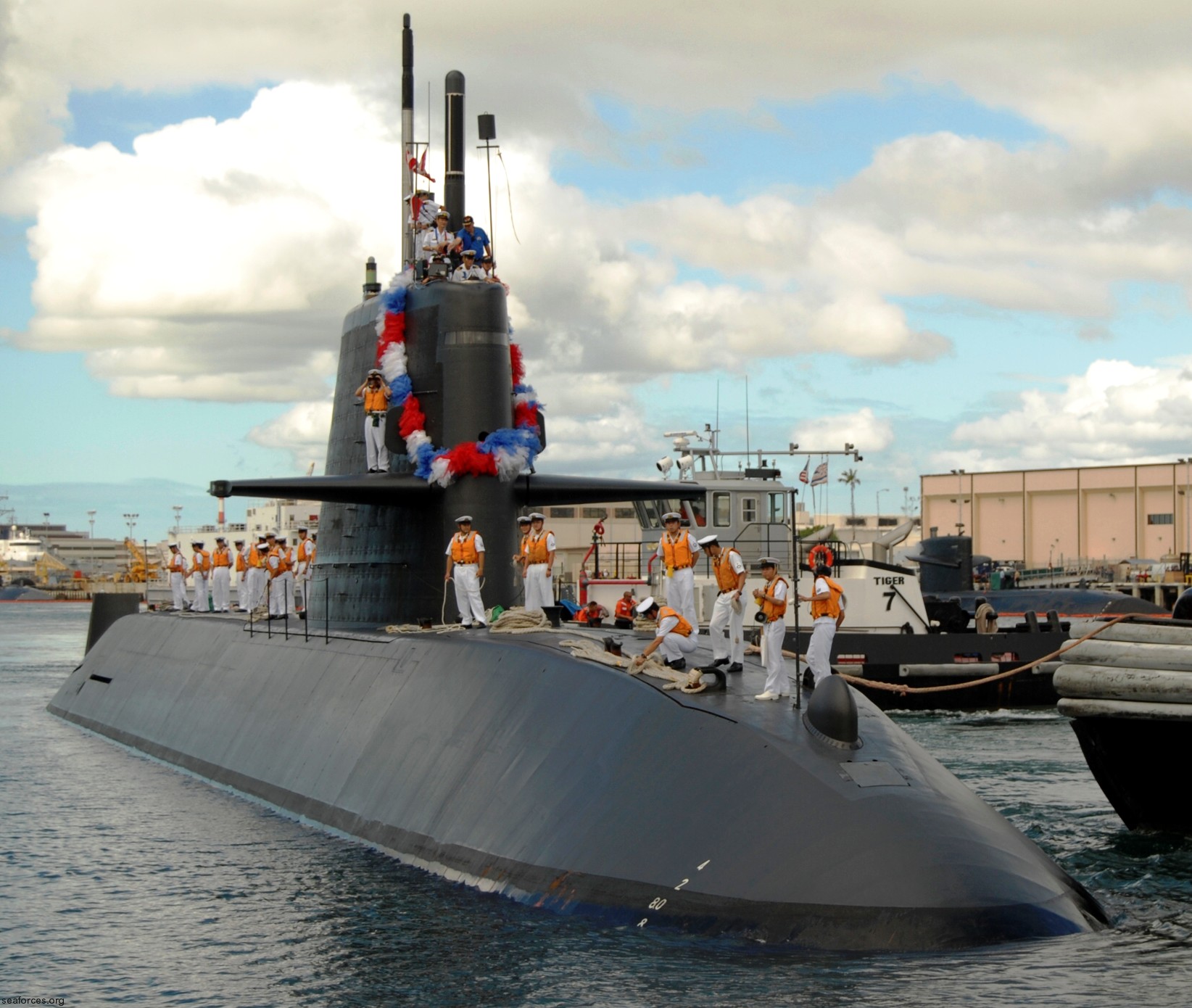

SS-598 JDS Yaeshio


ss-599 jds setoshio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-599 JDS Setoshio

ss-599 jds setoshio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-599 JDS Setoshio


ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 03
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 02
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 04
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 06
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 10
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 07
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 11
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 09
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 08
SS-600 JDS Mochishio

ss-600 jds mochishio oyashio class attack submarine japan maritime self defense force jmsdf 05
SS-600 JDS Mochishio
