Mogami class Missile Frigate - FFM


mogami class multi mission frigate japan maritime self defense force jmsdf navy 02x


11/23
Ships:

FFM-1
JS Mogami (2022)
FFM-2
JS Kumano (2022)
FFM-3
JS Noshiro (2022)
FFM-4
JS Mikuma (2023)
FFM-5
JS Yahagi (2023?)
FFM-6
JS Agano (2024?)
FFM-7
JS Niyodo (2024?)
FFM-8
JS Yubetsu (2025?)
FFM-9 JS ?
FFM-10 JS ?
(12 units planned)


Specifications:

Length:
133 meters (436 feet 4 inches)
Beam: 16.3 meters (53 ft 6 in)
Draft: ?

Displacement: 3900 tons (standard) / 5500 tons (full load)
Speed: 30+ knots (56+ km/h)
Range: ?
Complement: 90

 Propulsion:
CODAG (combined diesel and gas)
1 x
Rolls-Royce MT30 gas turbine
2 x MAN 12V28/33D STC diesel engines
2 shafts / 2 controllable pitch propellers / 1 bow-thruster

 Aviation:
flight deck and hangar for 1 helicopter (Mitsubishi SH-60K)

Armament:


1 x
Mk.41 Vertical Launching System / VLS (16 cells)
for
Type 03 Surface-to-Air Missiles (SAM)
Type 07 VL-ASROC

- - - - -

1 x Mk.45 (Mod.4) 5-inch/62-caliber (127mm) gun
2 x missile launcher for 8 x Type 17 SSM-2 anti ship missiles
Type 68 (HOS-303) 12,75-inch (324mm) torpedo tubes for Type 12 Torpedoes

1 x Mk.15 Mod.31 SeaRAM Close-in Weapon System (CIWS)
2 x Remote Weapon Station (RWS)

Systems:
OPY-2 X-band Multi-purpose Active Electronically Scanned Array (AESA) Radar
OAX-3 Electro-Optical and Infrared (EO/IR) Sensor System
OQQ-25 Variable Depth Sonar (VDS) and Towed Array Sonar System (TASS)
OQQ-11 Mine-hunting Sonar
OYQ-1 Combat Management System (CMS)
OYX-1-29 Console Display System
NOLQ-3E (Passive radar system and Electronic attack capability is integrated into the main radar antenna)
Chaff/Decoy launcher




The Mogami-class frigate (also known as 30FFM, 30FF, 30DX, or 30DEX) is a Japanese stealthy multi-mission frigate of the Japan Maritime Self-Defense Force (JMSDF).

Development:
In 2015 the Japanese defense budget allocated funds to study the construction of a new "compact-type hull destroyer with additional multi-functional capabilities" as well as a new radar system for the destroyer. In the same year Mitsubishi Heavy Industries (MHI) unveiled the frigate's first concept model (30FF) which they have been developing with their own funds.

In August 2017, the Acquisition, Technology & Logistics Agency (ATLA) selected MHI and Mitsui Engineering and Shipbuilding as the prime contractor and subcontractor to construct the frigate. In addition, the agency also selected a completely new design of the vessel (30DX). The new ship is set to replace the Asagiri-class destroyers and Abukuma-class destroyer escorts.

Construction of the 30DX was to begin in 2018. A total of twenty-two units are planned by 2032 and eight under contract by 2018; a pair to be built each year.

Design:
The original design to be used was the 30FF model. The ship's design looked similar to the United States Navy's Freedom-class littoral combat ship with an integrated mast. Its armament included a 5"/54 caliber Mark 45 gun, two remote weapon stations between the bridge and main gun, a SeaRAM above the helicopter hangar, and a helicopter. The length of the vessel was 120 metres (393 ft 8 in), with a max beam of 18 metres (59 ft 1 in), and a displacement of about 3,000 metric tons (3,000 long tons). The design had a planned maximum speed of 40 knots (74 km/h; 46 mph) and accommodated a crew of about 100.

However, the 30DX model was later chosen to be constructed. The 30DX design (although modern) is more conservative compared to the 30FF's more radical approach. The three main factors for the design change is due to the need for affordability, miniaturization/automation, and multi-mission capabilities. The vessel has an overall length of 130 metres (426 ft 6 in), breadth of 16 metres (52 ft 6 in), a standard displacement of 3,900 metric tons (3,800 long tons) with a full load displacement of about 5,500 metric tons (5,400 long tons), and a maximum speed of over 30 knots (56 km/h; 35 mph). Weapons include a Mk 45 gun, two remote weapon stations above the bridge, 16 Mk 41 Vertical Launching System (VLS) at the bow, 8 anti-ship missiles, one SeaRAM, an SH-60L helicopter, torpedoes, and decoy launchers. It can also deploy and recover unmanned underwater vehicles (UUV), unmanned surface vehicles (USV), and sea mines from the rear ramp beneath the helideck. It is also expected to use a naval version of the Type 03 Chū-SAM.

The stealthy design of both models is based on the research and development from the Mitsubishi X-2 Shinshin (then ATD-X) stealth fighter technology demonstrator, as both platforms are designed by Mitsubishi Heavy Industries. Along with stealth capabilities, the frigate also emphasizes on having a high level of automation. This allows the frigate to possess a low crew size of only 90 personnel compared to other ships of similar size.

The frigates will be powered by a Rolls-Royce MT30 gas turbine.

The overall design of the 30DX is to achieve a frigate-sized vessel with the capabilities similar to the Akizuki-class destroyer but with half the VLS cells.

At Sea Air Space 2019, Mitsubishi Heavy Industries revealed 'Advanced Integrated CIC' for the vessel. According to the report, it combined wheelhouse, managing and situational awareness room, engine and power control room, and combat information center with a large 360-degree circular screen wall. It can display panoramic views around the ship without a blind spot on the screen, and also utilized the augmented reality technology to discriminate the objects and navigate the ship.

source: wikipedia

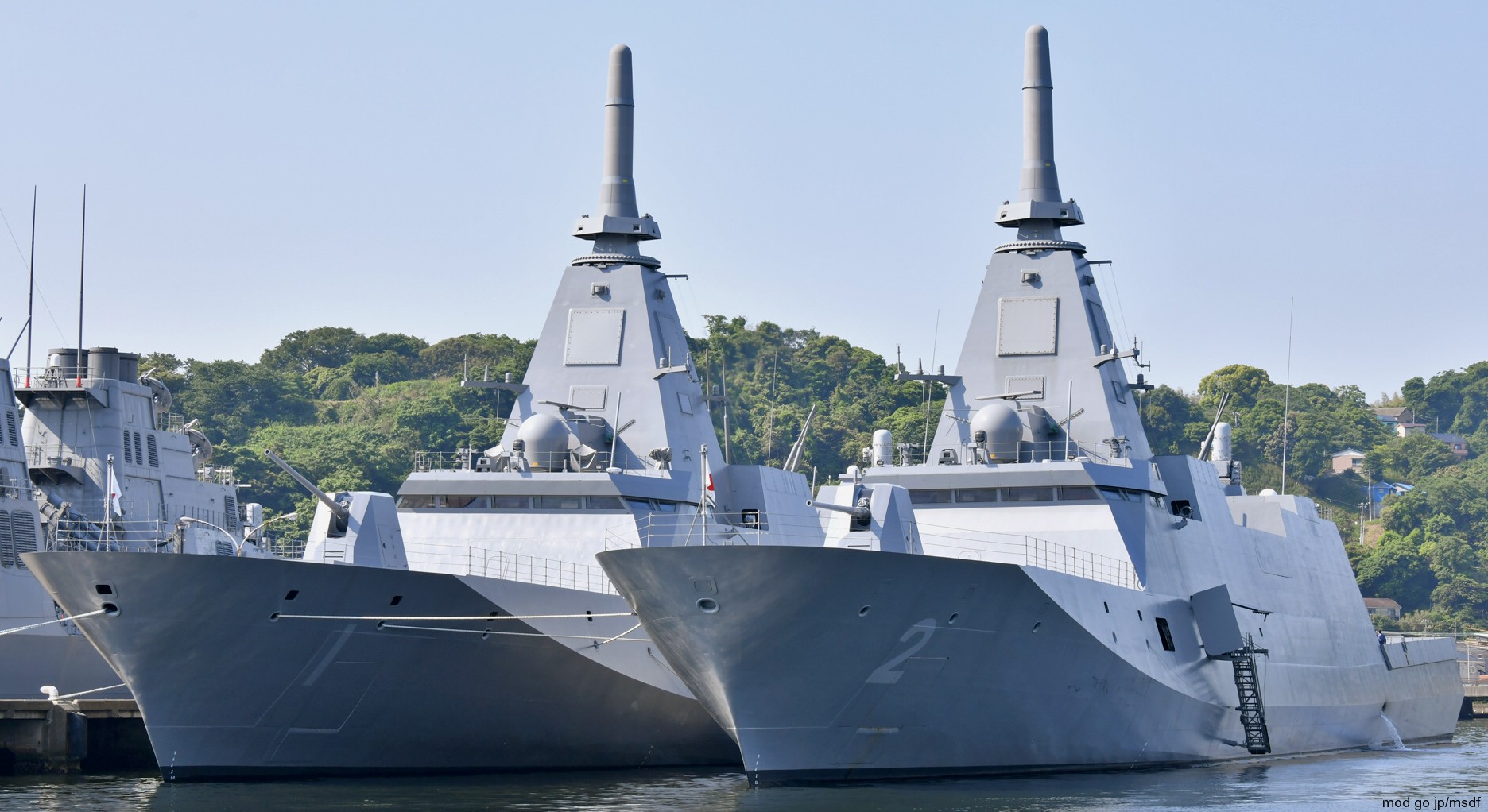

class images
for more images go to the individual ship-site

mogami class multi mission frigate japan maritime self defense force jmsdf navy ffm-1
FFM-1 JS Mogami

mogami class multi mission frigate japan maritime self defense force jmsdf navy ffm-2 js kumano
FFM-2 JS Kumano

mogami class multi mission frigate japan maritime self defense force jmsdf navy ffm-3 js noshiro
FFM-3 JS Noshiro

mogami class multi mission frigate japan maritime self defense force jmsdf navy ffm-4 js mikuma
FFM-4 JS Mikuma

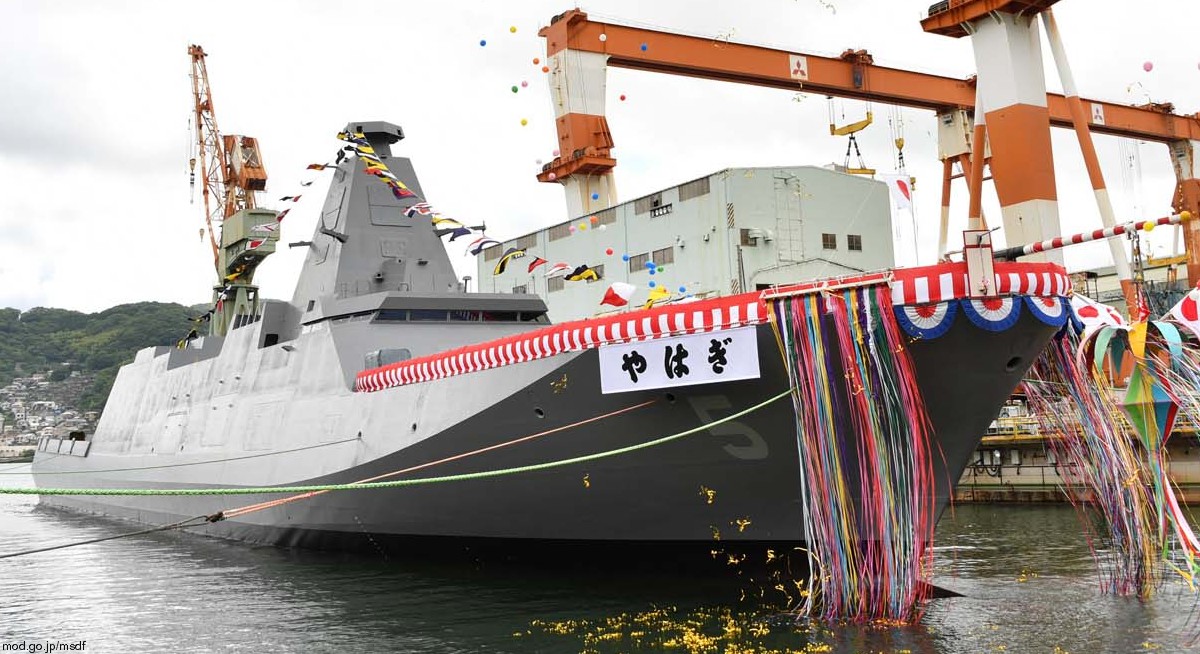

mogami class multi mission frigate japan maritime self defense force jmsdf navy ffm-5 js yahagi
