Japan Maritime Self-Defense Force - JMSDF





DE 226 JDS Ishikari - Destroyer Escort - DE



DE-226 JDS Ishikari destroyer escort japan maritime self defense force jmsdf





Specifications:

Data:

laid down: May 17, 1979

launched: March 18, 1980

commissioned: March 28, 1981

decommissioned: October 17, 2007

Builder:

Mitsui Shipyard, Tamano, Japan

Length:

85 meters

Beam:

10,8 meters

Draft:

3,6 meters

Displacement:

1290 tons (standard) / 1450 tons (full load)

Speed:

25 knots, max. (46 km/h)

Range:



Crew:

up to 95

Aviation:

none

Propulsion:

CODOG (combined diesel or gas)

1 Kawasaki/Rolls-Royce Olympus TM3B gas turbine (speed - 22500 shp)

1 Kawasaki 6DRV35/44 diesel engine (cruise - 4650 hp)

2 shafts, 2 controllable pitch propellers

Armament:

1 x Oto-Melara 76mm/62-caliber super rapid gun (3-inches)

2 x Mk-141 missile launcher for 8 RGM-84 Harpoon SSM

2 x Type-68 (Mk-32) 12,75-inch (324mm) triple torpedo tubes for Mk-46 torpedoes

1 x Bofors M/50 375mm multiple ASW rocket launcher

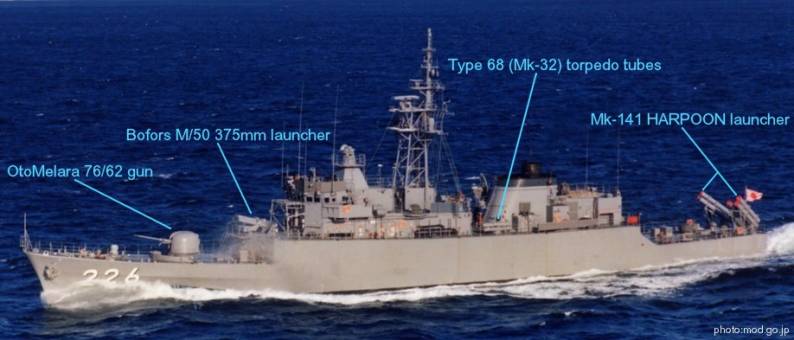

DE-226 JDS Ishikari destroyer escort armament Oto Melara 76 mm 62 caliber gun Mk-141 launcher RGM-84 Harpoon SSM Type 68 Mk-32 torpedo tubes Bofors M/50 375 mm ASW rocket launcher jmsdf





images:

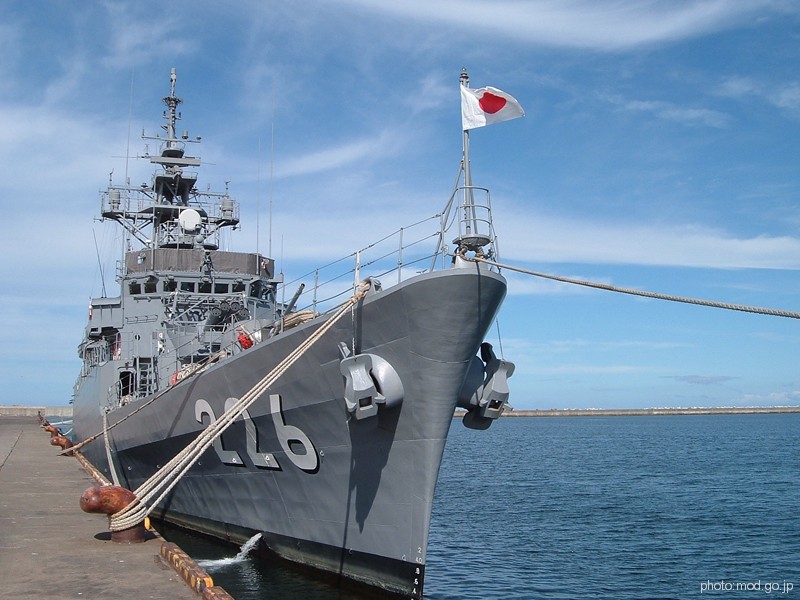

DE-226 JDS Ishikari destroyer escort japan maritime self defense force

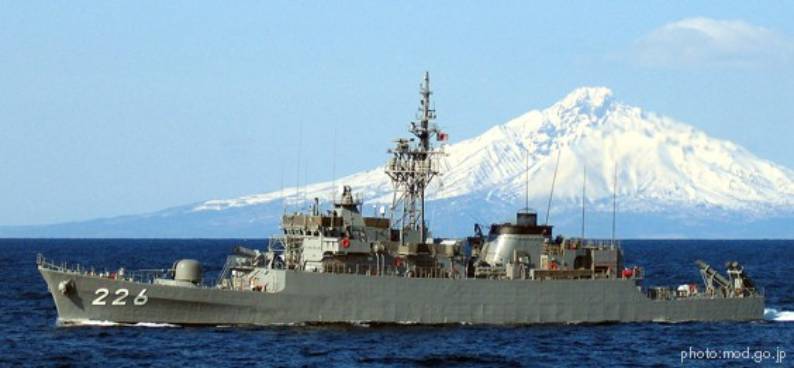

JDS Ishikari DE-226 destroyer escort

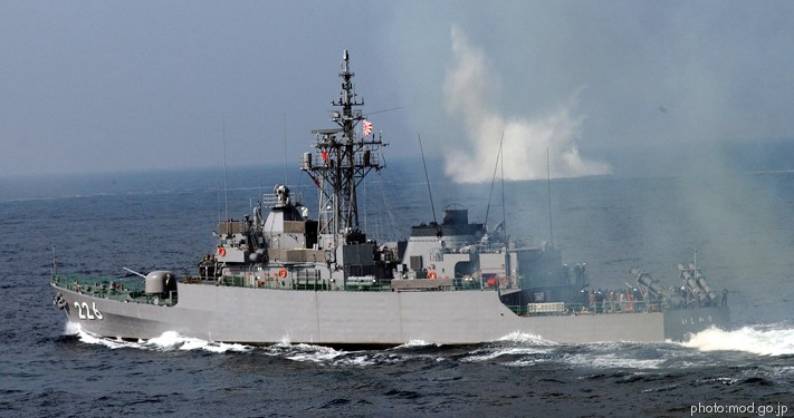

DE-226 JDS Ishikari destroyer escort jmsdf

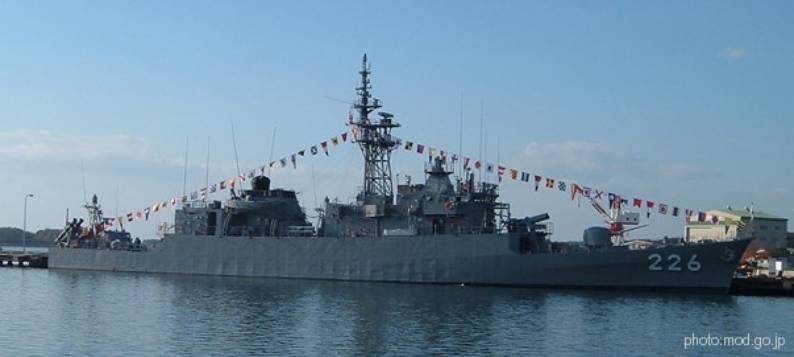

DE-226 JDS Ishikari destroyer escort jmsdf



JDS Ishikari DE-226 destroyer escort japan maritime self defense force navy
