Italian Navy / Marina Militare Italiana San Giorgio class Destroyer (ex WWII Capitani Romani class Cruiser) |
||
 |
||
| 10/22 | ||
| Ships: | ||
|
D 562 ITS San Giorgio D 563 ITS San Marco |
||
| Specifications: | ||
|
Displacement: 4930 tons (standard) / 5690 tons (full load) Length: 142.2 meters (466 feet 6 in) Beam: 14.4 meters (47 ft 3 in) Draft: 5.1 meters (16 ft 9 in) Speed: 39 knots (72 km/h) Range: 4000 NMI (7400 km) at 16 knots (30 km/h) Complement: 314 Propulsion: 4 x Thornycroft boilers 4 x Parsons geared steam turbines 110000 shp / 82000 kW 2 shafts / 2 propellers
Aviation: none Systems: AN/SPS-6 air search radar SG-6B surface search radar AN/SQS-11 sonar Mark 37 director (gun fire control system) |
||
| Units: | ||
|
||
|
|
||
|
The San Giorgio class was a class of two
destroyers of the Italian Navy. They entered service in 1955, with
the last one being decommissioned in 1980. Formerly Capitani
Romani-class cruisers of the Regia Marina (Royal Italian Navy)
during World War II, they were rebuilt as destroyers. For the two units the main reconstruction works concerned the armament. The eight 135-millimeter (5.3 in)/45 calibre guns, capable of delivering very precise shots, but lacking satisfactory anti-aircraft capability, were removed and replaced with six less powerful US 5 inches (127 mm)/38 caliber guns but with the fundamental ability to perform effective anti-aircraft fire. The guns were configured in three twin turrets, one forward and two aft. In place of the second twin forward turret, a Menon anti-submarine warfare (ASW) mortar was installed. The anti-aircraft armament was also reconfigured with the removal of the eight 37 mm (1.5 in)/5 cal guns replaced by four 40 mm (1.6 in) Bofors guns in quad variant and two in twin variant systems. The guns were controlled by a US Mark 37 director with Mark 25 radar on top. Other electronic devices were the AN/SPS-6 air-search radar, the SG-6B surface-search radar and an SQS-11 sonar. The ASW armament was complemented by four side anti-submarine mortars and two depth charge tracks. D-562 San Giorgio ... entered service in the Regia Marina (Royal Italian Navy) with the name Pompeo Magno in 1943 shortly before the armistice. After removal from the Navy list it was marked by the designation FV 1. In 1950 it was chosen for reconstruction as a destroyer and renamed San Giorgio. Once the work was completed, the ship entered service in the Italian Navy on 1 July 1955. From 1963 and until 1965, San Giorgio was again subjected to modification works at the Arsenal of La Spezia to be transformed into a training ship for the students of the Naval Academy of Livorno, carrying out this task until it was disarmed in 1980. D-563 San Marco ... was built with the name Giulio Germanico in the Royal Shipyard of Castellammare di Stabia. Laid down in 1939 and launched in 1941, the cruiser was completing the set-up when the armistice of 8 September was signed. Falling into the hands of the Germans who had taken control of the shipyard, the ship was scuttled when the following 28 September the German occupation troops left the city. After the war the hull of Giulio Germanico was recovered in the port of Castellammare and marked the designation FV 2. Given the good overall condition of the hull in 1950 it was decided to rebuild the ship as a destroyer and renamed San Marco. Once the work was completed, the ship entered service in the Italian Navy on 1 January 1956, serving until 1971 when it was disarmamed. |
||
| images | ||
|

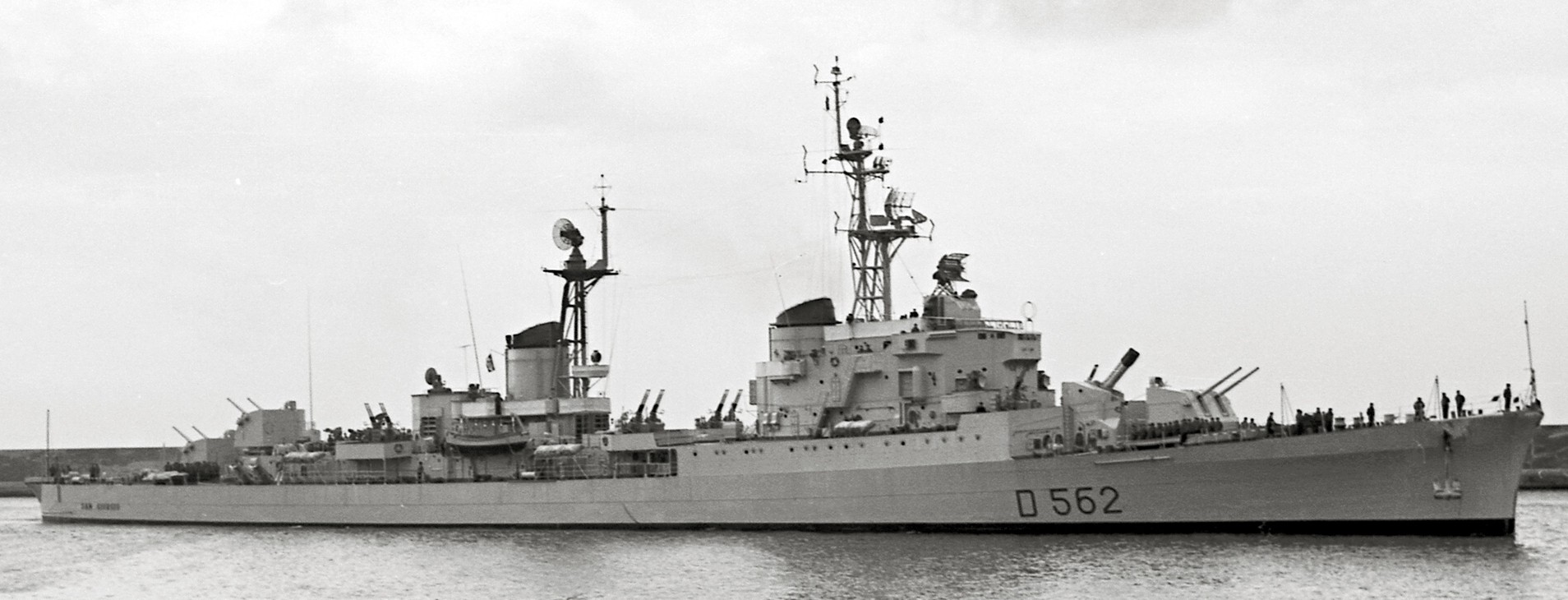

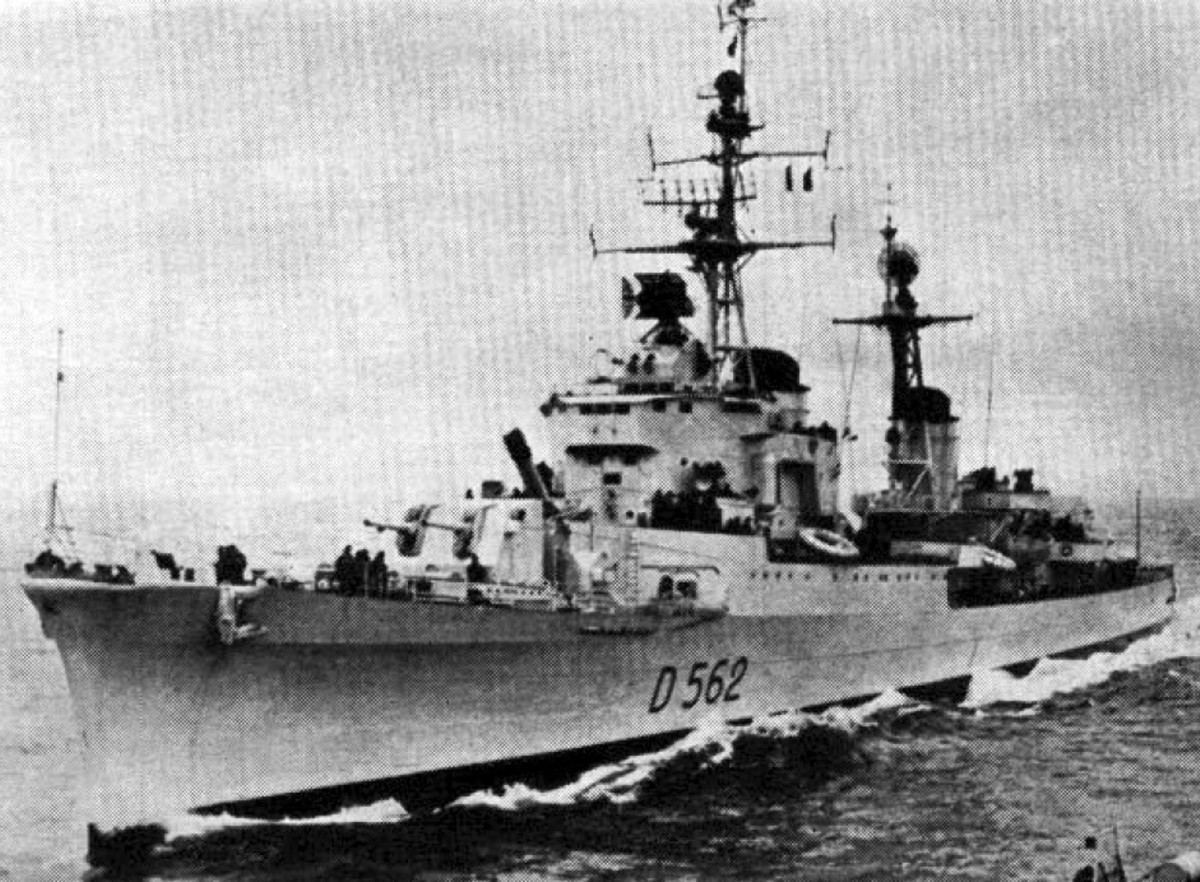

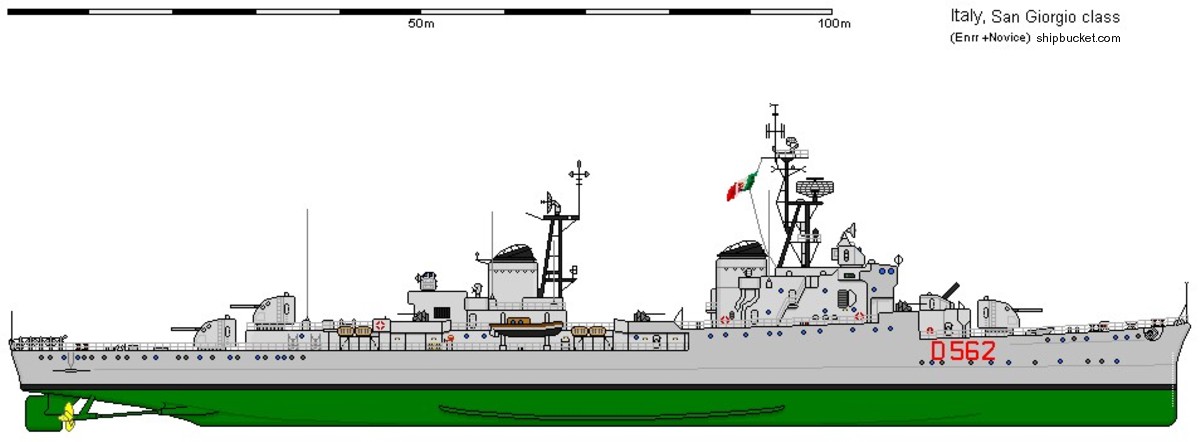

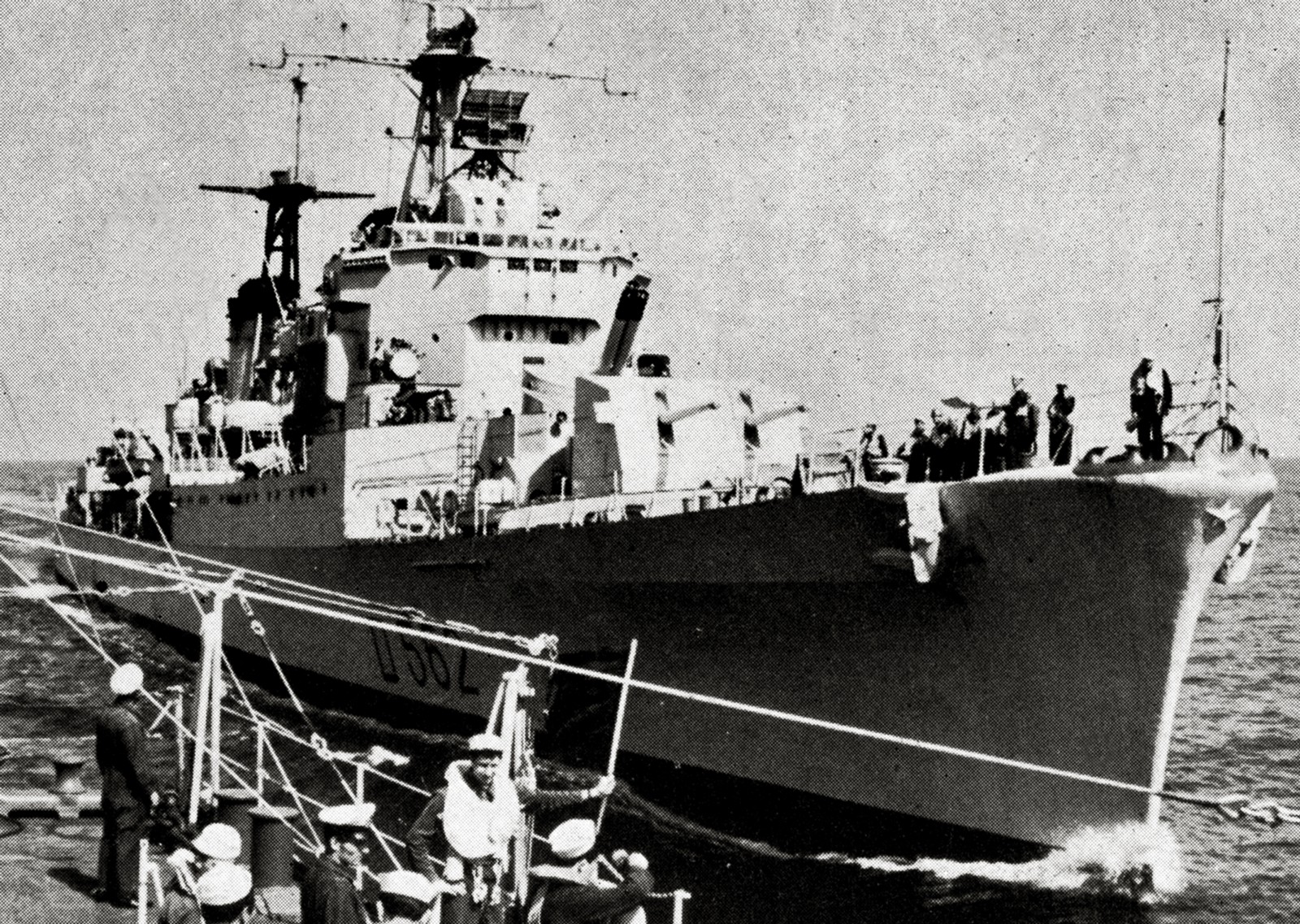

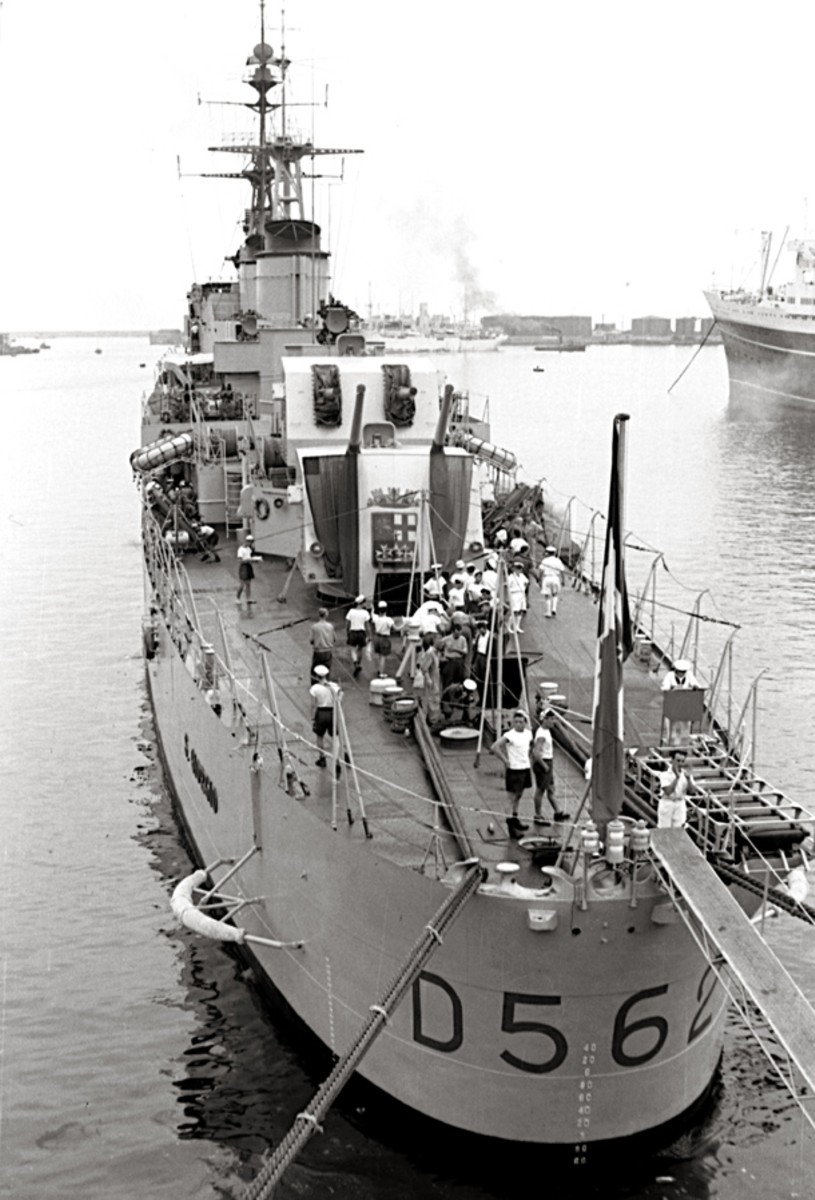

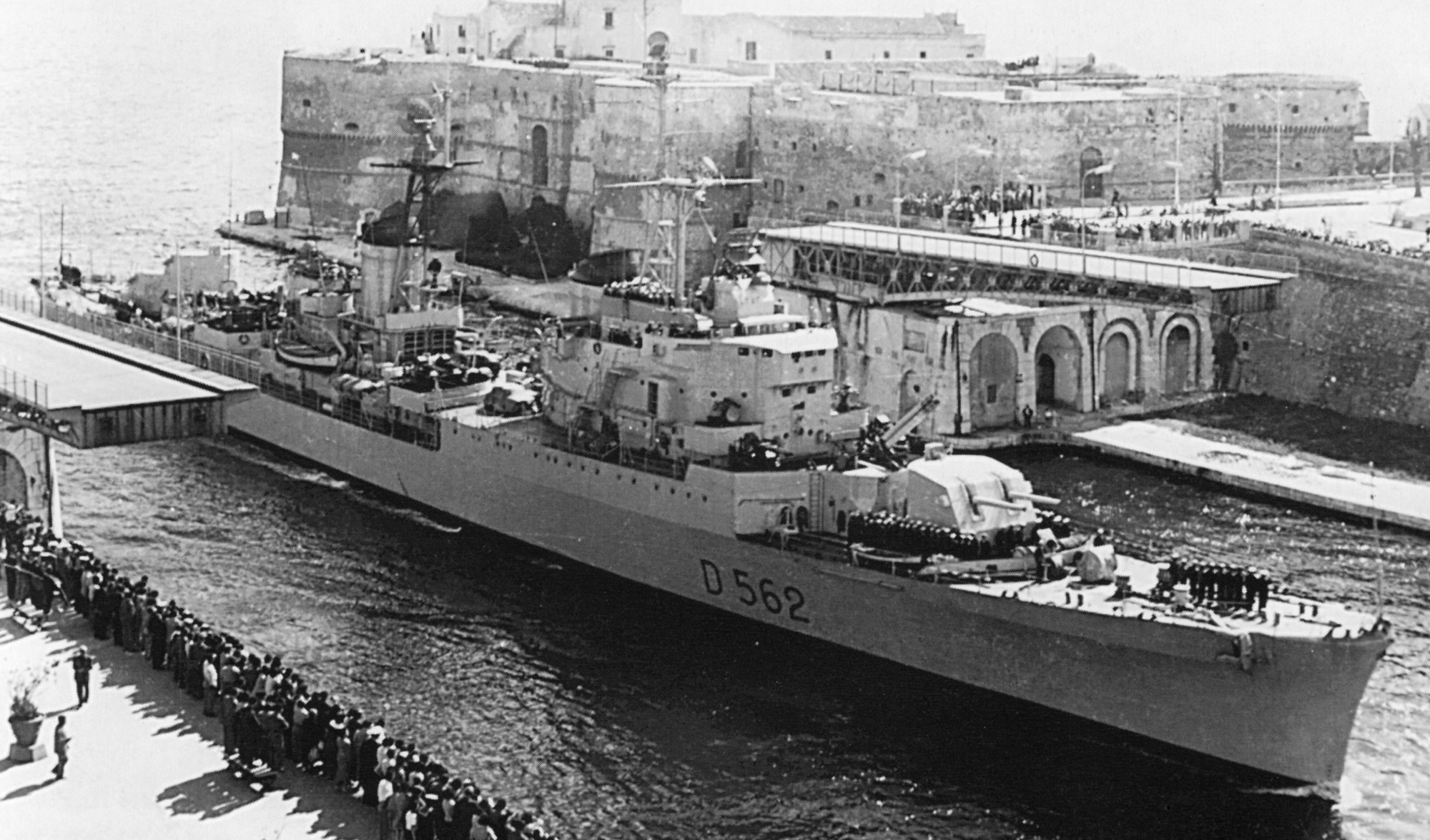

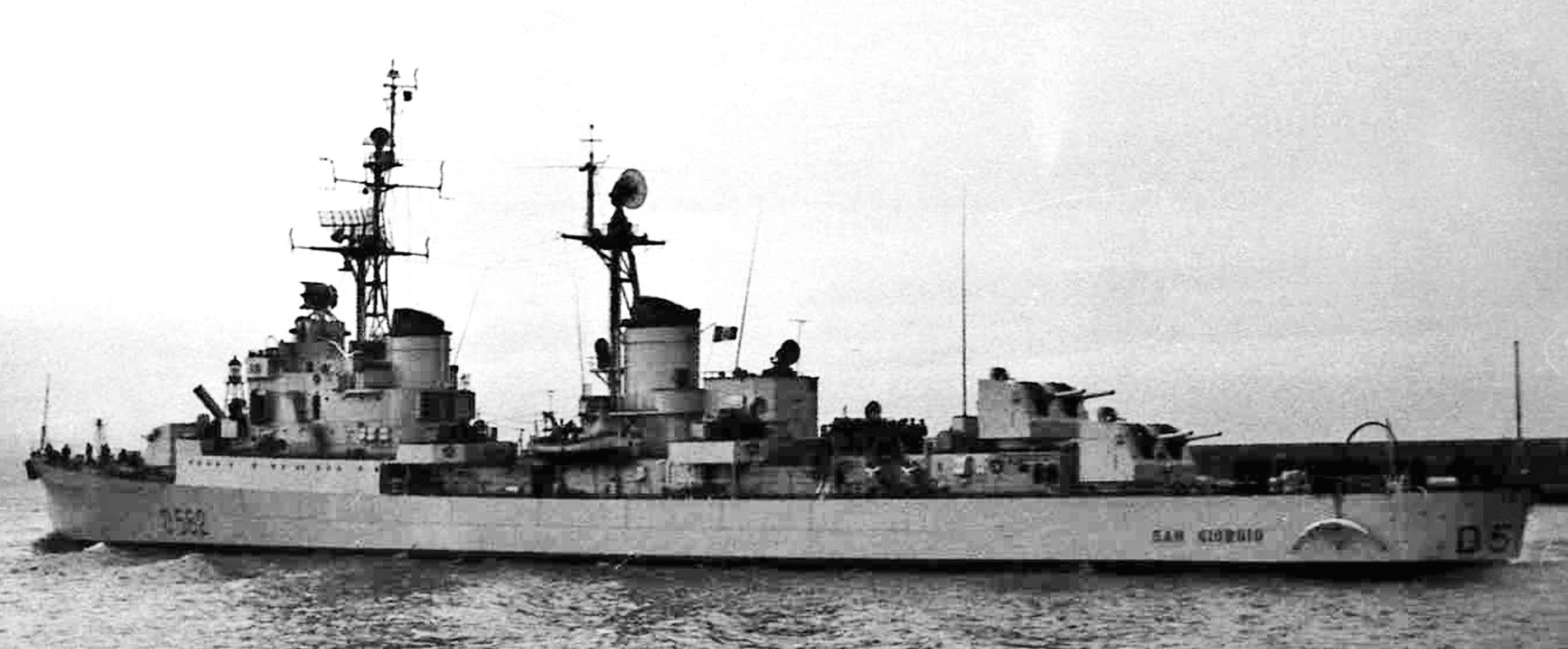

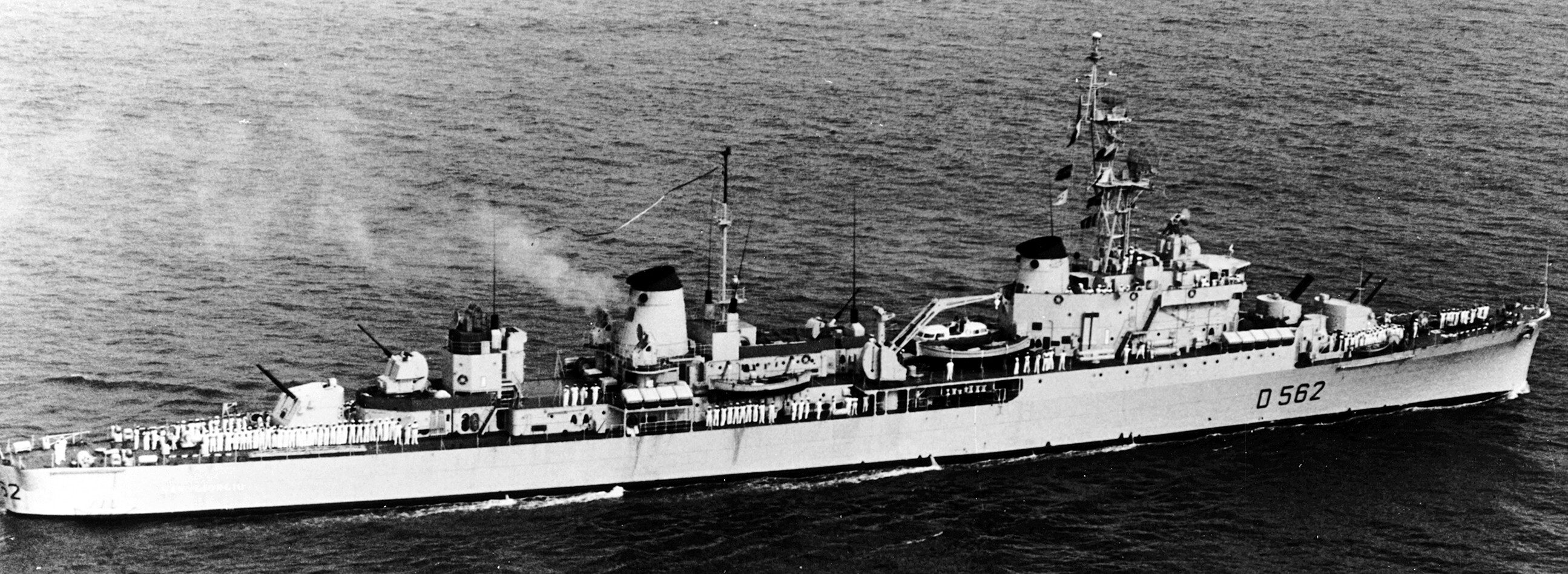

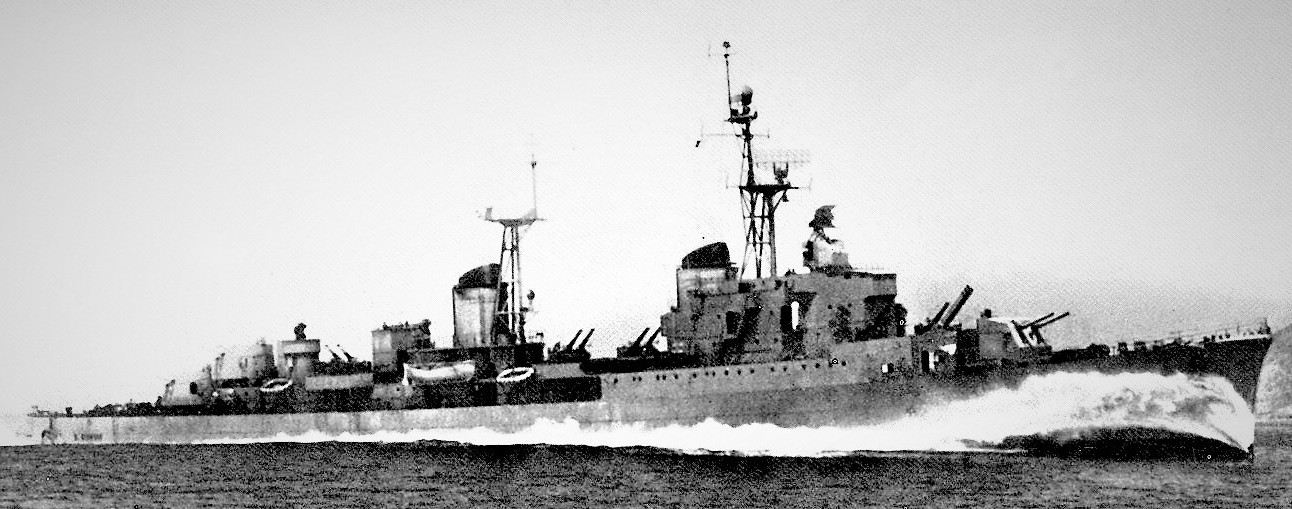

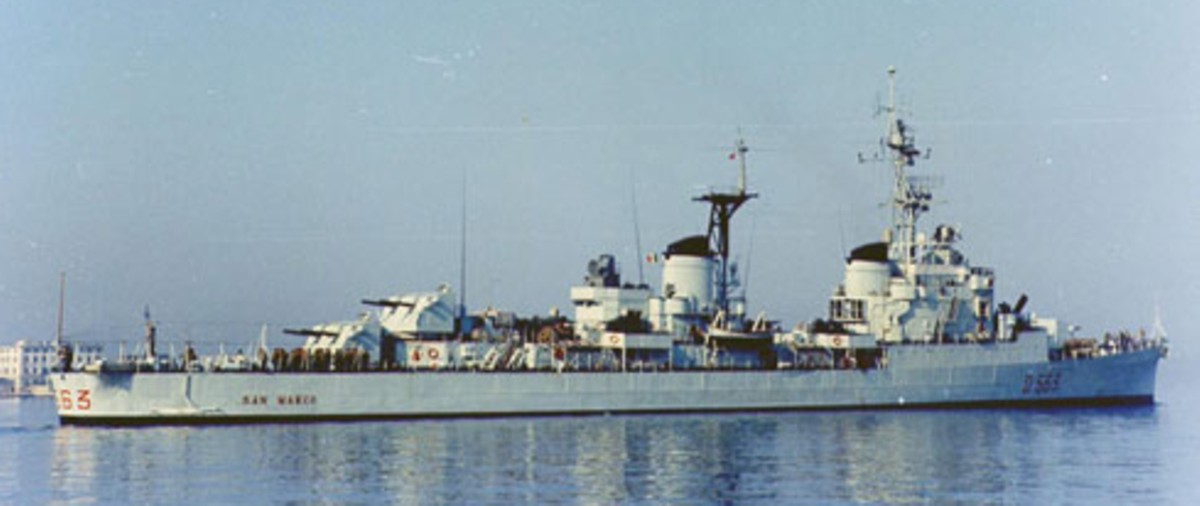

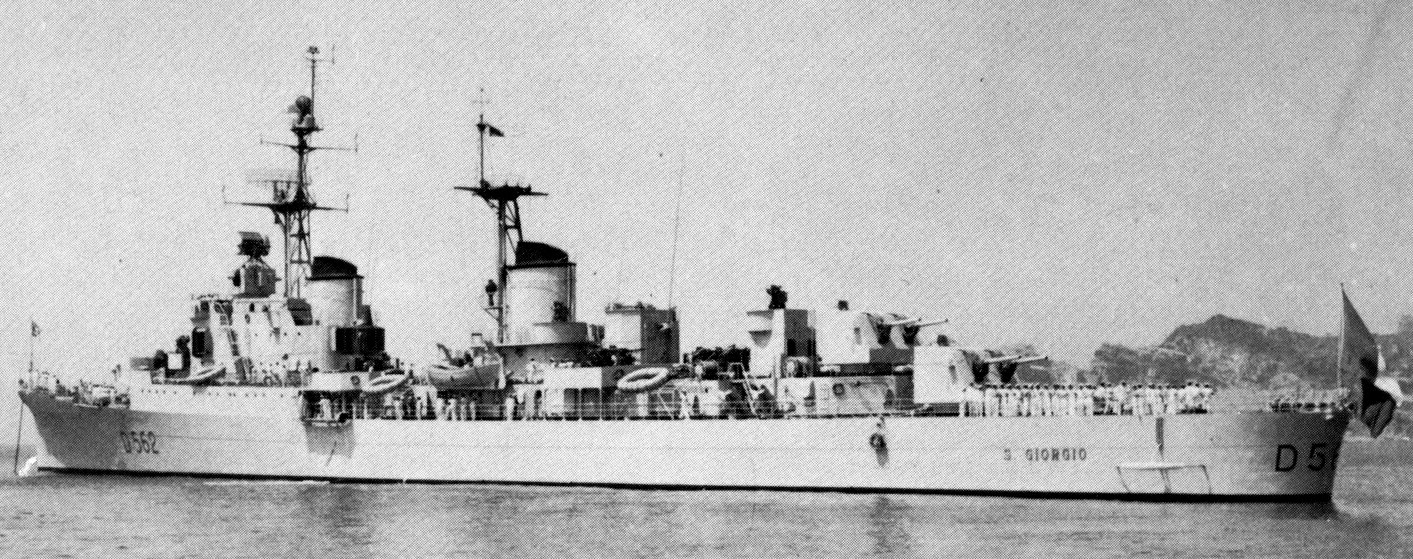

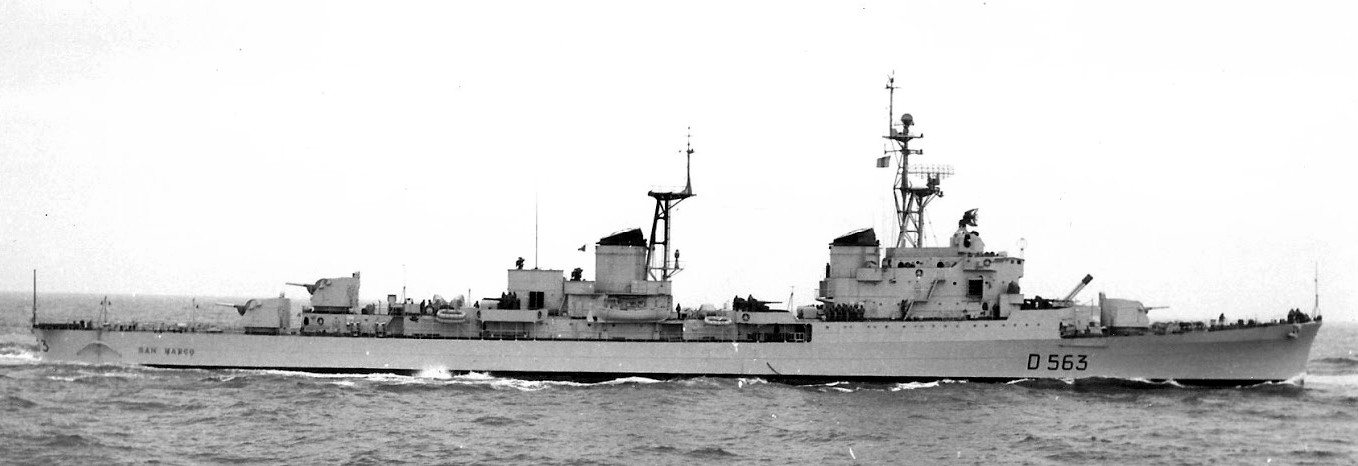

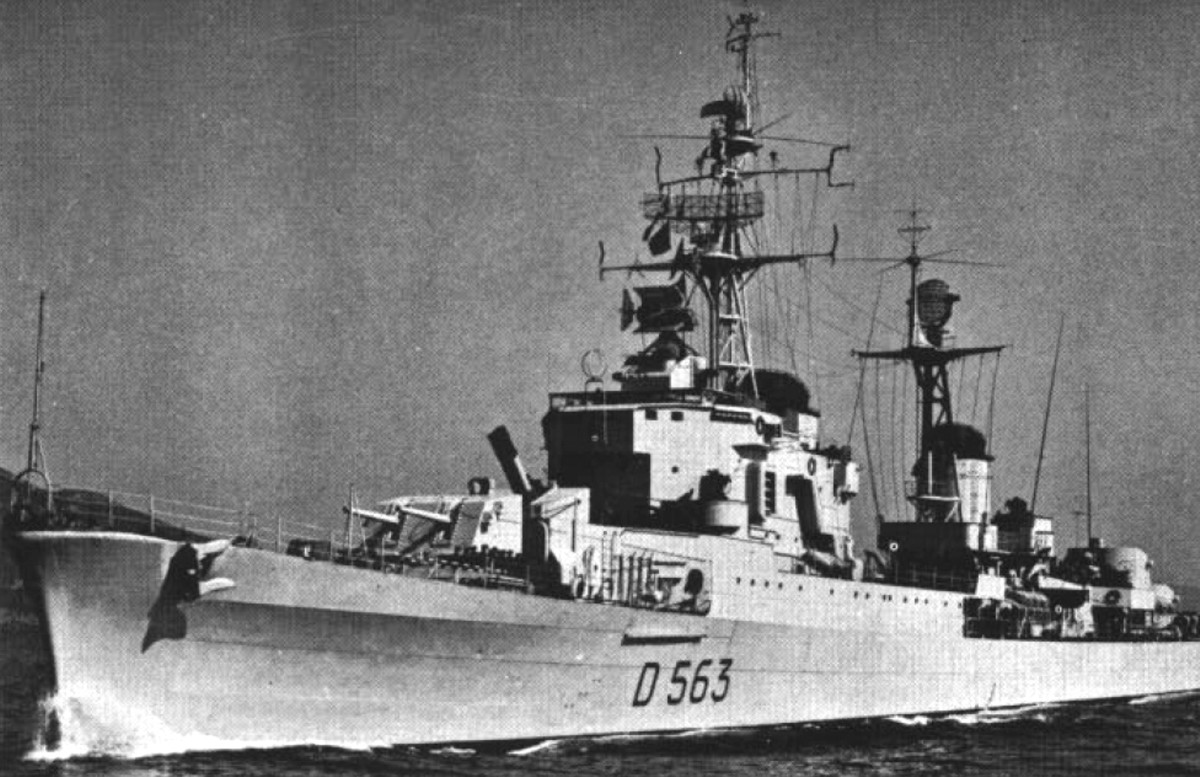

D 562 ITS San Giorgio          D 563 ITS San Marco    |
||
|
|
