Italian Navy / Marina Militare Italiana

Agusta-Bell AB-212







agusta bell ab-212 asw helicopter italian navy marina militare italiana





Agusta-Bell AB 212:
Utility transport version. Built under license in Italy by Agusta.

Agusta-Bell AB 212ASW:
Anti-submarine warfare, anti-shipping version of the AB 212 helicopter, built under license in Italy by Agusta. Operated by the Italian Navy, Hellenic Navy and Islamic Republic of Iran Navy, Peru, Spain, Turkey, and Venezuela.

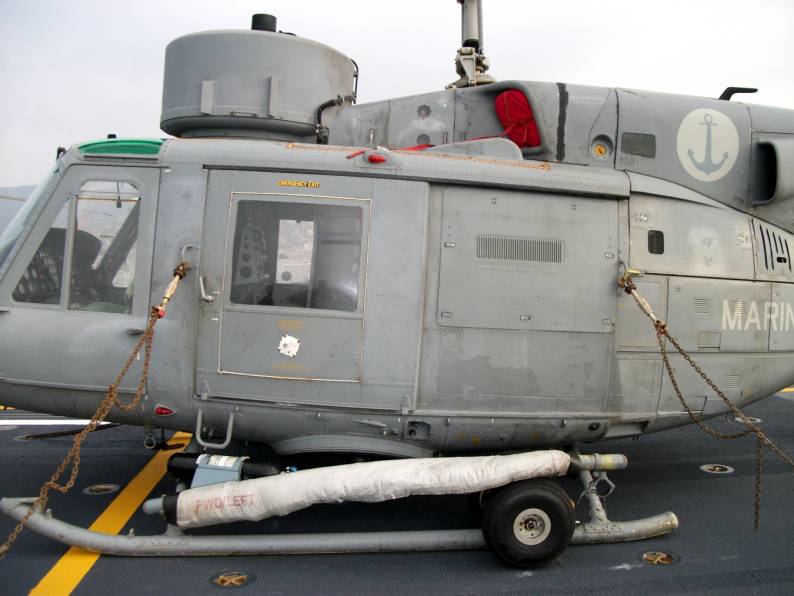

The AB-212ASW is a Model 212 Twin Huey with a prominent radome above the cockpit. Early production had a dome-shaped radome, while later production had a flatter "drum" radome. A left side winch is used for dipping the AQS-13 dipping sonar. Other changes include structural reinforcement for a gross weight of 11,197 lbs (5080 kg), ECM, shipboard deck tie-down attachments and corrosion protection.



Specifications:

Crew (AB-212): pilot, co-pilot, 5 passengers

Crew (AB-212ASW): pilot, co-pilot, 2 operators
Length: 14,02 meters
Rotor diameter: 14,5 meters
Height: 4,53 meters
Max. takeoff weight: 5080 kilograms
Powerplant: 2 Pratt & Whitney PT-6T-3 turboshaft engines (2000 hp)
Maximum speed: 130 knots (240 km/h)

Range: 360 NM (667 km)
Ceiling: 15000 feet (4570 m)



Armament:

1 x 7,62mm MG or 12,7mm MG / Mk-46 Torpedoes (ASW)



images



agusta bell ab-212 helicopter italian navy marina militare italiana

AB-212



ab-212 helicopter italian navy

AB-212



ab 212 helicopter italian navy mmi

AB-212



agusta bell ab-212 helicopter

AB-212



AB-212



ab-212 helicopter italian navy marina militare

AB-212



AB-212







agusta bell ab-212asw helicopter italian navy marina militare italiana

AB-212ASW



ab-212asw helicopter

AB-212ASW



agusta-bell ab-212 asw helicopter italian navy

AB-212ASW









ab-212 helicopter cockpit view





agusta bell ab-212 asw helicopter cockpit



AB-212ASW
