French Navy / Marine Nationale - Helicopter Carrier / Porte Hélicoptères
R 97 FS Jeanne d'Arc


r-97 fs jeanne d'arc insignia crest patch badge tape de bouche helicopter cruiser carrier french navy

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 02x

Type, class: Helicoper Carrier / unique unit / ordered and built as La Résolue / renamed Jeanne d'Arc in 1964
Builder: Arsenal de Brest, Brittany, France

STATUS:
Laid down: 1959
Launched: September 30, 1961
Commissioned: July 16, 1964
Decommissioned: September 1, 2010
Fate: sold for scrap / scrapped in Bordeaux


Namesake: Jeanne d'Arc / Joan of Arc (1412-1431)

Technical Data:
Lenght:
182 meters (597 feet)
Beam: 24 m (79 ft)
Draft: 7,5 m (25 ft)
Displacement: 12365 tons (full load)
Speed: 28 knots (52 km/h)
Range: 6800 NM (12600 km) at 16 knots (30 km/h)
Complement: 627

Propulsion:
4 x
steam turbines / 4 x boilers (29420 kW /40000 hp)
2 shafts / 2 propellers

Armament:
4 x
GIAT 100mm/55-caliber Naval Guns
2 removed in 2000
6 x MM40 Exocet SSM missiles

Aviation:
large flight deck / hangar deck with aft aircraft elevator

up to 10 helicopters:
Aerospatiale SA341 Gazelle
Aerospatiale SA319 Alouette III
Aerospatiale SA330 Puma
Westland Lynx
Aerospatiale SA321 Super Frelon


Systems:
DRBV 22D air search radar
DRBV 51A surface search radar
DRBN 34 naviagtion radars
DRBC 32A fire direction radar
DUBV 24 sonar
NIXIE towed torpedo decoy
Inmarsat



ship images


r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 06

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 07

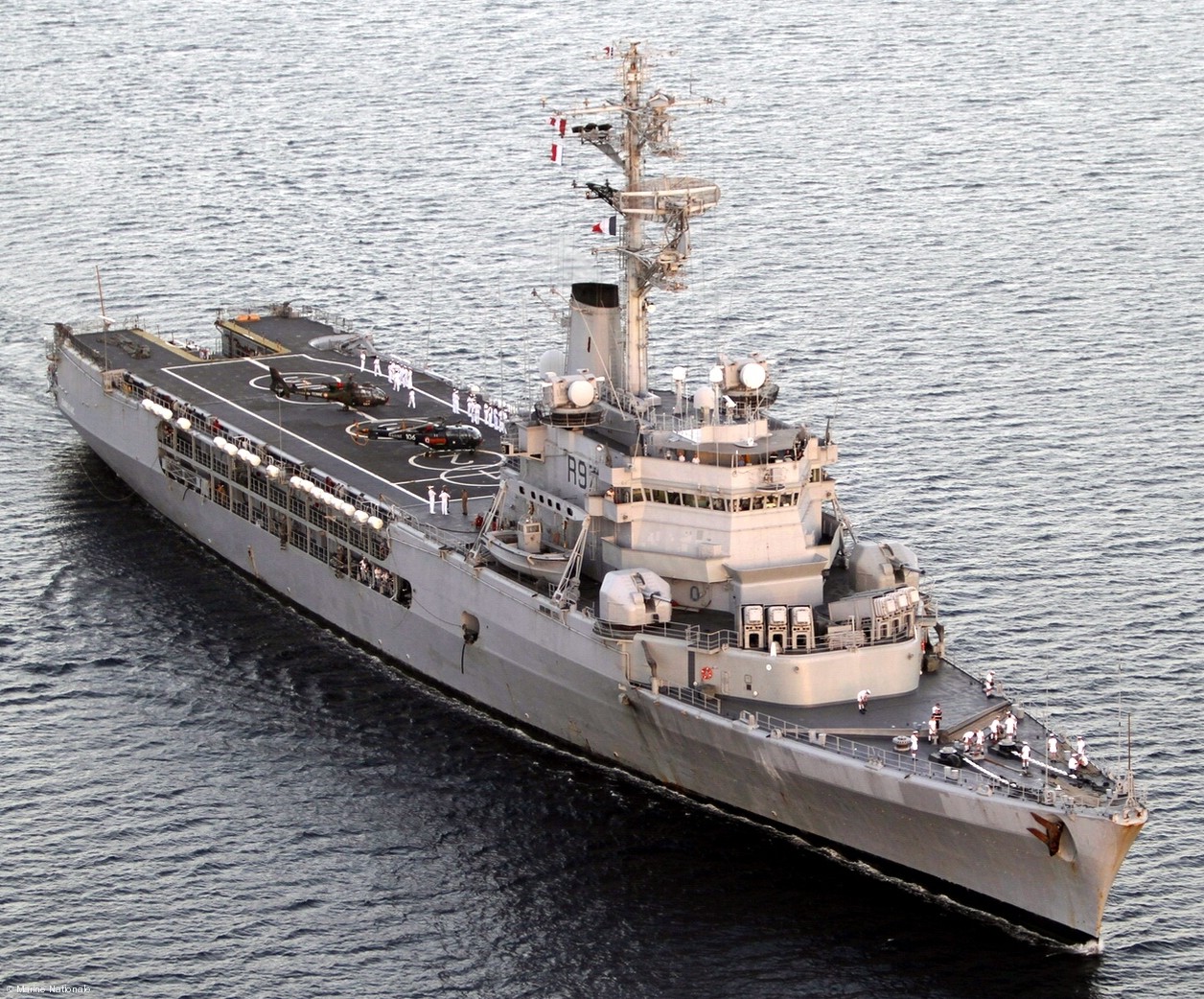

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 08

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 09

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 10

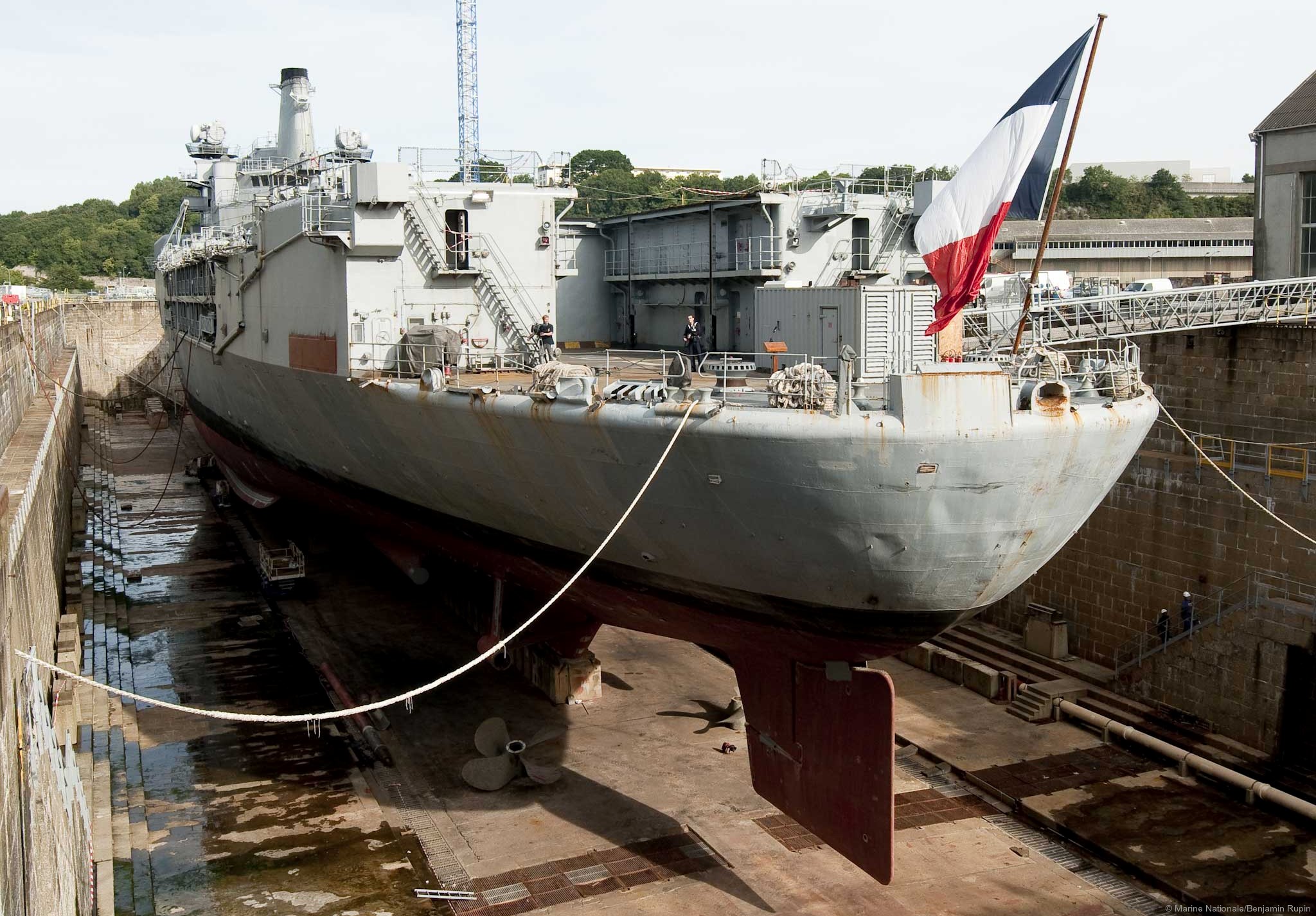

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 11 dry dock

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 12

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 13 new york fleet week

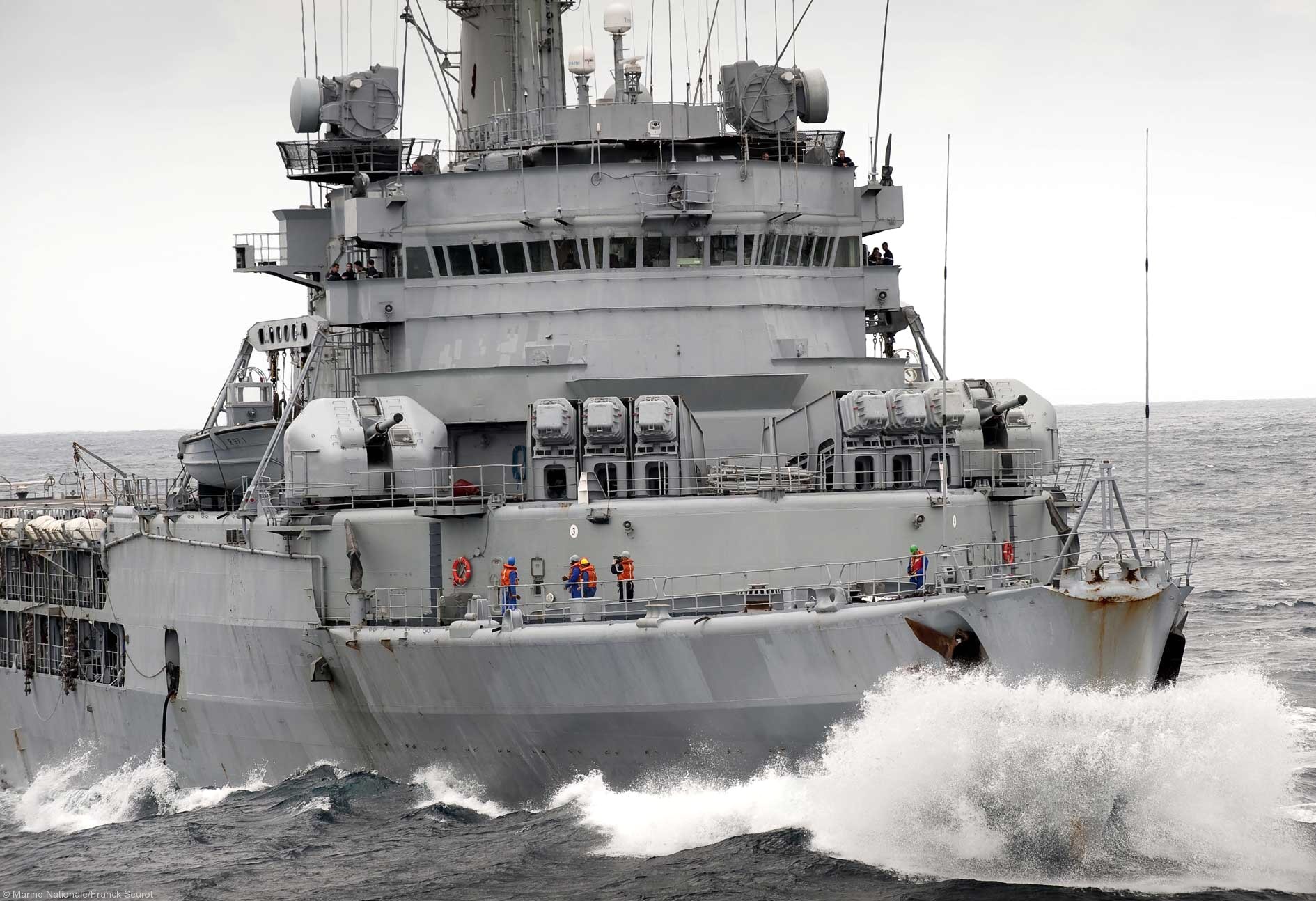

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 14 dcn giat 100mm gun mm38 exocet ssm
note the two 100mm/55-caliber gun turrets and six MM38 Exocet SSM missile launchers


r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 05 pearl harbor hawaii
Pearl Harbor, Hawaii - February 1989

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 02 new york fleet week
New York Fleet Week - July 1986

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 04
New York Fleet Week - July 1986

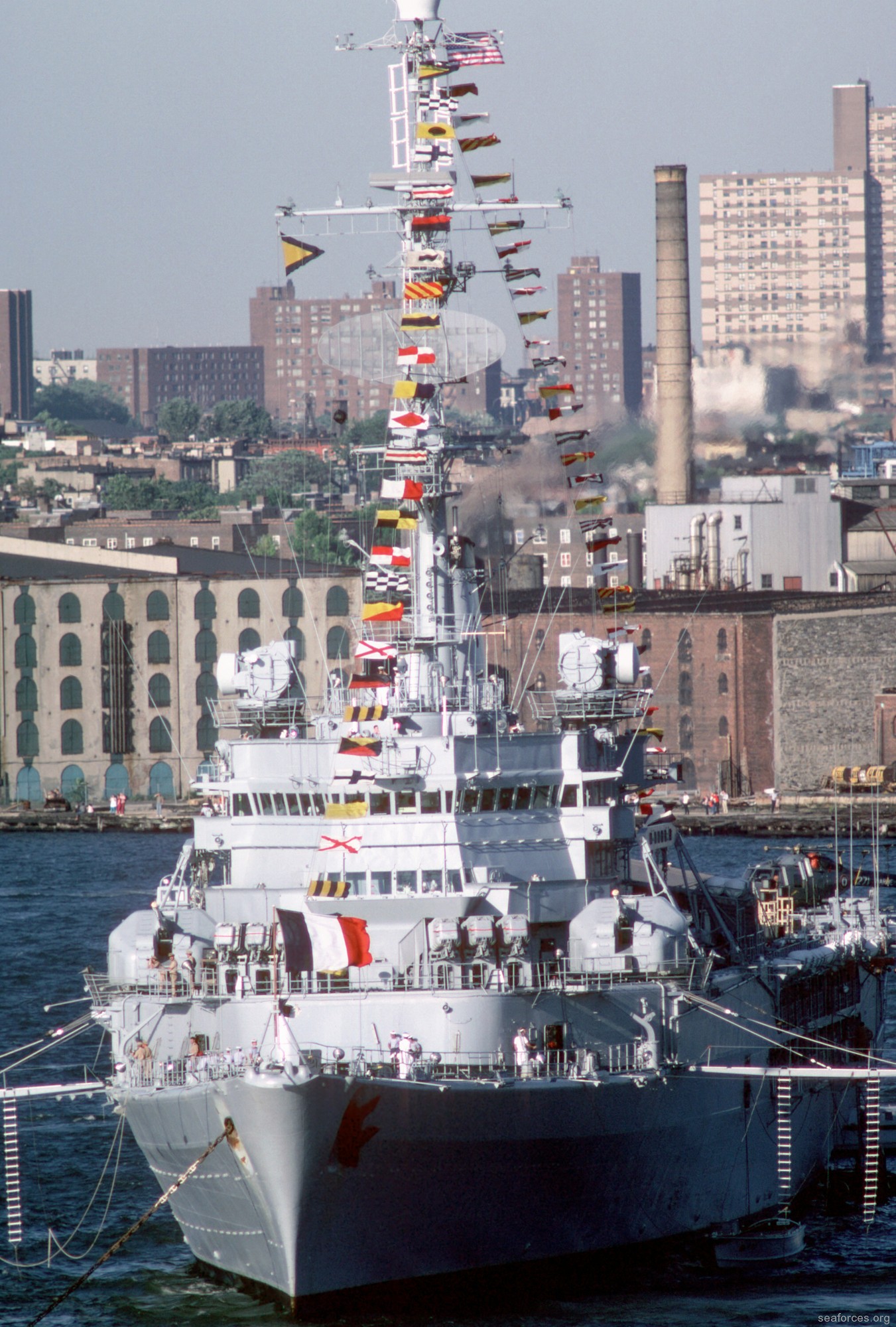

r-97 fs jeanne d'arc helicopter carrier cruiser french navy marine nationale 03
New York Fleet Week - July 1986


FS Jeanne D’Arc (R 97):

Jeanne d'Arc was a helicopter cruiser of the French Navy. She was the third vessel of the French Navy named after Joan of Arc ("Jeanne d'Arc", in French), a national heroine of France and saint of the Catholic Church who repelled the English invasion during the Hundred Years' War.

In peacetime, Jeanne d'Arc was used for teaching and training purposes; however, in case of emergency or crisis, she was to have become a fully capable helicopter cruiser. Toward the end of her service life Jeanne d'Arc became unsuitable for the role due to the increasing size and weight of helicopters.

Jeanne d'Arc was built as La Résolue, as her predecessor, Jeanne d'Arc of 1930, was still in service. She was renamed Jeanne d'Arc in 1964. The ship was retired in May 2010 and decommissioned in September 2010.

In peacetime, Jeanne d'Arc was a teaching and training vessel for the naval officers' application academy, and at the same time possessed an aerial group of 2 Aérospatiale Puma helicopters and 2 Aérospatiale Gazelle helicopters of the light aviation of the French Army, as well as two helicopters Alouette III of naval aviation.

Jeanne d'Arc was capable of combat deployment, either in the anti-submarine warfare role with 8 WG 13 Lynx helicopters, or for external missions by carrying Puma or Gazelle helicopters from the light aviation of the French Army. Initially, she was also able to carry landing troops and Sikorsky or Super Frelon helicopters.

Jeanne d'Arc could carry roughly 10 light or heavy helicopters and simultaneously handle the takeoff and landing of 3 helicopters.

Following the development of the anti-ship missile Exocet, Jeanne d'Arc was fitted with the system in 1974.

In 2008, Jeanne d'Arc was deployed in an anti-piracy role in the Gulf of Aden. The ship was used as part of the rescue effort of Le Ponant during the April 2008 hostage-taking incident. A Gazelle helicopter from Jeanne d'Arc carrying snipers chased and captured pirates who had escaped on 4x4 vehicles after the hostages had been freed.

Jeanne d'Arc commenced her final cruise on December 2009. The last trip included visits to Africa, South America including Rio to Buenos Aires, Lima, the French Antilles, the United States of America including New York city and Canada. The deployment was completed in May 2010 with a return to the port of Brest in France on 27 May 2010. On its final mission, Jeanne d'Arc, continued to perform in its role as a training vessel for French navy midshipmen. On this final voyage she was accompanied by the frigate Courbet (F712), and carried a French training squadron with 103 cadets, including twelve from nine foreign countries.

The helicopter carrier Jeanne d'Arc was formally removed from active service in the French Marine Nationale on 7 June 2010. The necessary disarmament operations were formalised by decree of the Ministry of Defence on 4 June 2010 and announced in the Official Bulletin or the Marine Nationale, Edition No. 26 on 25 June 2010. The announcement stated that these disarmament procedures where to be conducted under the authority of the Admiral commanding the Naval Action Force (ALFAN), the Minister of Defence and the Deputy Chief of Staff, Support and finance", Hubert Sciorella.

On 1 September 2010, at 11:30, Jeanne d'Arc's colours and name were withdrawn, formally ending her life as a ship in the Marine Nationale. This last ceremony of the colours on Jeanne d'Arc was held in the ship's home port of Brest. Following disarmament in l'Arsenal basin at Brest the ship continued to be moored at the naval base. On 9 September 2010 the former Jeanne d'Arc was removed of its naval number R 97 and moved to Piriouas as the hull Q 860 to conduct the work of securing the hulk and extracting the remaining recoverable hardware. The task of establishing an inventory of hazardous materials present on the vessel will take place in the naval yards prior to dismantling the hull and could take up to two years. A tender will then be spent for its dismantling. The French Navy currently has 76 hulks ready to be dismantled. The issue remains sensitive following problems arising from the disposal and dismantling of the former Clemenceau. In 2014. it was decided that Jeanne d'Arc would be dismantled at Bordeaux by the Bartin Recycling Group and Pétrofer, subsidiaries of Veolia Group. The contract was worth approximately 11.5 million Euros.

source: wikipedia



Jeanne d’Arc / Joan of Arc (circa 1412 - May 30, 1431):

... nicknamed "The Maid of Orléans" (French: La Pucelle d'Orléans), is considered a heroine of France and a Roman Catholic saint. She was born to Jacques d'Arc and Isabelle, a peasant family, at Domrémy in north-east France. Joan said she received visions of the Archangel Michael, Saint Margaret and Saint Catherine instructing her to support Charles VII and recover France from English domination late in the Hundred Years' War. The uncrowned King Charles VII sent Joan to the siege of Orléans as part of a relief mission. She gained prominence after the siege was lifted in only nine days. Several additional swift victories led to Charles VII's coronation at Reims. This long-awaited event boosted French morale and paved the way for the final French victory.

On 23 May 1430 she was captured at Compiègne by the Burgundian faction which was allied with the English. She was later handed over to the English, and then put on trial by the pro-English Bishop of Beauvais Pierre Cauchon on a variety of charges. After Cauchon declared her guilty she was burned at the stake on 30 May 1431, dying at about nineteen years of age.
